Unpacking the Router

This chapter contains these sections:

Unpacking the Router

This chapter includes instructions about how to unpack the IR8140H and describes the items that ship with the router.


Note


When you unpack the router, do not remove the foam blocks attached to the antennas and antenna connectors until you install the router. The foam protects the antennas and connectors during installation.


To unpack the router:

Procedure


Step 1

Open the shipping container and carefully remove the contents.

Step 2

Return all the packing material to the shipping container, and save it.

Step 3

Ensure that all the items listed in Package Contents are included in the shipment. If any item is damaged or missing, notify your authorized Cisco sales representative.


Package Contents

The following table lists the items that are shipped with your router.

Table 1. IR8140H Package Contents

Qty.

Item

Description

1

Cisco IR8140H

Router enclosure with the following components installed:

  • Power supply (100 to 240 VAC, 60 W output) attached to the back of the IR8140H. Power supply converts AC input voltage to 12V DC output voltage for the router (+/- 10 percent) and input frequency 60Hz and 50Hz (+/- 5 percent)

  • Up to three plug-in UIMs installed with the following two supported module types (slots 1, 2, and 3):

    • IRMH-WPAN module

    • IRMH-LTE module

  • CPU module (reserved Slot 0, bottom of the unit)

  • On-board GNSS receiver with pre-installed antenna

  • N-type connector for direct mount of outdoor antennas

  • Battery Backup Units (BBUs), 0 to 3 depending on the configuration ordered

1

Console cable

RJ-45 to DB-9

1

Grounding kit

Grounding lug and two screws

1

Mounting Bracket Kit

Includes:

  • Mounting bracket

  • Required hardware

Optional Items (Ordered Separately)

1

Pole mount kit

Includes:

  • Mounting plate

  • Two clamp brackets

  • Required hardware

1

Band strap kit

Two steel straps

1

Strap tool kit

BAND-IT strap tool

1

Antenna plug

IR-ANT-PLUG

1

Cable glands kit

Includes:

  • One cable gland (more can be ordered)

  • One tube of antiseize compound

1

Fiber Adapter Kit

Includes:

  • Cable extender

  • Cable gland

3

Module slot cover

IRMH-BLANK

Supported Modules and Interfaces

The Supervisor module serves as the CPU for the industrial router and is installed at the bottom of the router in the super slot.

Figure 1. IRMH-SUP-SP Supervisor Module

The following table shows the supported interface modules for IR8140H. For a complete list of all supported modules, see Supported Modules.

Table 2. Supported Interface Modules on IR8140H

Type

Module

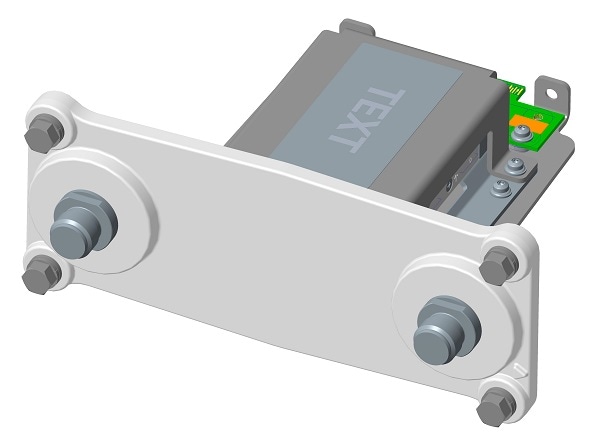

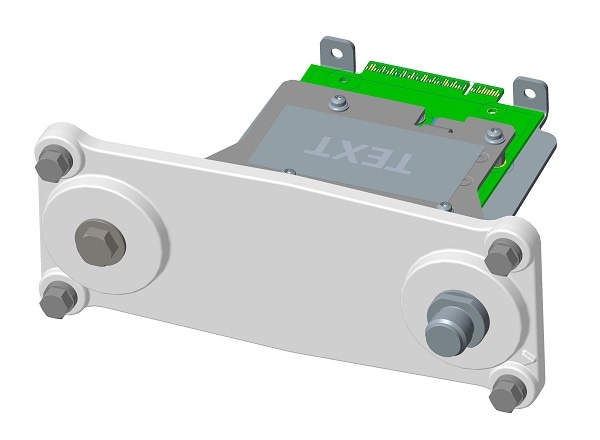

IRMH-WPAN module

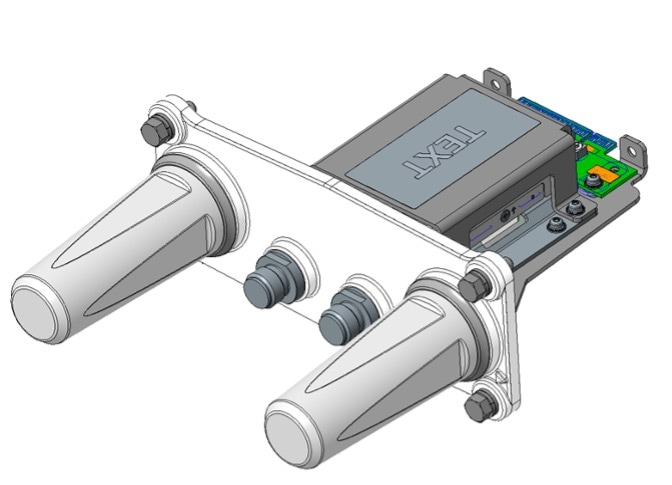

IRMH-LTE module

IRMH-5GS6-GL module
