Perform this task if the remote access headend is configured to use certificate authentication.

In Cisco SD-WAN Manager, use a CLI add-on template for the SD-WAN RA headend device to configure a PKI trustpoint that specifies a CA server for SCEP-based auto enrollment.

crypto pki trustpoint sdra_trustpoint
 auto-enroll renewal_percentage
 enrollment url http://ca-ip-address:80
 fingerprint ca_certificate_fingerprint
 subject-name cn= subj-name-string
 revocation-check none
 auto-trigger
 vrf ca-vrf

Example:

crypto pki trustpoint sdra_trustpoint
auto-enroll 80
enrollment url http://10.1.1.11
fingerprint 0123456789ABCDEF0123456789ABCDEF
subject-name cn=sdra_headend_1
revocation-check none
auto-trigger
vrf 1

The IKEv2 profile enables grouping of peers by identity, and specifies authentication and authorization policy.

Configure an IKEv2 Profile

In Cisco SD-WAN Manager, use a CLI add-on template for the SD-WAN RA headend device to configure the following:

1. Configure an IKEv2 profile.

   1. Specify a name for the profile.

      crypto ikev2 profile sdra_ikev2_profile

   2. Match peer identities and specify a local identity.

      match identity remote { any |  id-type id-value}
      identity local id-type id-value

   3. Specify authentication types and credentials.

      authentication local auth-type [ key pre-shared-key]
      authentication remote auth-type
      keyring aaa sdra-author-aaa-mlist password sdra-radius-password
      pki trustpoint sdra_trustpoint
      aaa authentication eap sdra_authen_mlist

   4. Specify user authorization parameters.

      aaa authorization user peer-auth-type cached

   5. Specify group authorization parameters.

      aaa authorization group peer-auth-type list sdra_author_mlist name-mangler sdra-group-author-name-mangler password sdra-radius-password

   6. Enable AAA accounting.

      aaa accounting peer-auth-type list sdra_acc_mlist

   7. Specify an IPsec virtual-template interface.

      virtual-template interface-number mode auto

   Example:

   crypto ikev2 profile sdra_ikev2_profile
    match identity remote any
    identity local email sdra_headend1@abc.com
    authentication local rsa-sig
    authentication remote anyconnect-eap aggregate
    pki trustpoint sdra_pki_trustpoint
    aaa authentication anyconnect-eap sdra_authen_mlist
    aaa authorization user anyconnect-eap cached
    aaa authorization group anyconnect-eap list sdra_author_mlist name-mangler sdra_group_author_name_mangler password sdra_radius_author_passwd
    aaa accounting anyconnect-eap sdra_acc_mlist
    virtual-template 1 mode auto

2. Configure the IKEv2 name mangler to extract the domain portion from the peer identity, using a Cisco SD-WAN Manager CLI template.

   crypto ikev2 name-mangler sdra_group_author_name
    fqdn domain
    email domain
    eap suffix delimiter @

   Example:

   crypto ikev2 name-mangler sdra_group_author_name_mangler
   fqdn domain
   email domain
   eap suffix delimiter @

Before You Begin

In step 3, the interface Virtual-Template command specifies a service VPN VRF. Before beginning this procedure, define the VRF. You can use a Cisco SD-WAN Manager feature template to define the VRF.

Configure IPsec Ciphers, Parameters, and Template Interface

In Cisco SD-WAN Manager, use a CLI add-on template for the SD-WAN RA headend device to configure the following:

1. Configure IPsec ciphers.

   crypto ipsec transform-set sdwan-ra_transform_se ipsec-cipher
   mode tunnel

   Example:

   crypto ipsec transform-set sdwan-ra_ipsec_ts esp-gcm 256
   mode tunnel

2. Configure IPsec parameters.

   crypto ipsec profile sdwan-ra_ipsec_profile
   set transform-set sdwan-ra_transform_set
   set security-association lifetime seconds ipsec_sa_life_sec
   set security-association replay window-size window-size
   set ikev2-profile sdwan-ra_ikev2_profile

   Example:

   crypto ipsec profile sdwan-ra_ipsec-profile
    set security-association lifetime seconds 33600
    set security-association replay window-size 64
    set transform-set sdwan-ra_transform_set
    set ikev2-profile sdwan-ra_ikev2_profile

3. Configure the IPsec virtual-template interface.

   interface Loopback 65515
    vrf forwarding sdwan-ra_service_vpn
    ip address private_ipv4_addr subnet_mask

   interface Virtual-Template sdwan-ra_vt_intf_num type tunnel
    vrf forwarding sdwan-ra_service_vpn
    tunnel mode ipsec ipv4
    tunnel protection ipsec profile sdwan-ra_ipsec_profile

   Example:

   vrf definition sdwan-ra_service_vpn
   !
   interface interface Loopback 65515
    vrf forwarding sdwan-ra_service_vpn
    ip address 10.0.0.100 255.255.255.0
   !
   interface Virtual-Template101 type tunnel
    vrf forwarding sdwan-ra_service_vpn
    tunnel mode ipsec ipv4
    tunnel protection ipsec profile sdwan-ra_ipsec-profile

Before You Begin

Ensure that you have an AnyConnect profile XML file available. Step 3 uses the file. For information about AnyConnect profiles, see the documentation for AnyConnect.

Configure AnyConnect Profile Download

In Cisco SD-WAN Manager, use a CLI add-on template for the SD-WAN RA headend device to configure the following:

1. Disable HTTP secure server functionality.

   no ip http secure-server

2. Configure SSL policy and specify the Cisco Catalyst SD-WAN remote access WAN IP as the local address for profile download.

   crypto ssl policy sdra_anyconnect_profile_download
    pki trustpoint sdra_pki_trustpoint  sign
    ip address local sdra_wan_ip port 443

3. Copy the AnyConnect profile XML file to the SDremote access headend bootflash and specify the path.

   Note	You can copy the AnyConnect profile XML file to the Cisco Catalyst SD-WAN remote access headend bootflash from a host reachable in a service VPN, using the secure copy command on the Cisco Catalyst SD-WAN remote access headend.

   crypto vpn anyconnect profile sdra_anyconnect_profile  bootflash: sdra_anyconnect_profile.xml

4. Specify the AnyConnect profile name in the IKEv2 profile.

   crypto ikev2 profile sdra_ikev2_profile
    anyconnect profile sdra_anyconnect_profile

Example:

no ip http secure-server
!
crypto ssl policy sdra_anyconnect_profile_download
 pki trustpoint sdra_pki_trustpoint sign
 ip address local 172.16.1.1 port 443
!
crypto vpn anyconnect profile sdra_anyconnect_profile bootflash: sdra_anyconnect_profile.xml
!
crypto ikev2 profile sdra_ikev2_profile
anyconnect profile sdra_anyconnect_profile

Note	This task is optional if all remote access users connect to the headend by hardware remote access client.

Configure each SD-WAN RA headend with a unique private IP pool from which to assign IP addresses to remote access clients. The IP pool can be shared across the service VPNs in which remote access clients connect to the SD-WAN RA headend.

Configure a Unique Local Private IP Pool on the SD-WAN RA Headend

1. In Cisco SD-WAN Manager, use a CLI add-on template for the SD-WAN RA headend device to configure the local IP pool. Ensure that the IP pool range is sufficient for the expected number of remote access connections.

   ip local pool sdra-ip-pool ip-address-range-start ip-address-address-end

   Example:

   ip local pool sdra_ip_pool 10.0.0.1 10.0.0.100

2. On the RADIUS server, configure the per-user or group policy to specify the IP pool name configured in the previous step.

3. Optionally, for each remote access service VPN, use a Cisco SD-WAN Manager OMP feature template to advertise the remote access IP pool range as a summary-only route.

   If the SD-WAN RA IP pool summary is not advertised, OMP automatically advertises, for each remote access client, static host routes that are dynamically programmed by the SD-WAN RA headend. This may not be optimal if there is a large number of remote access clients across the Cisco Catalyst SD-WAN fabric.

In Cisco SD-WAN Manager, use a CLI add-on template for the SD-WAN RA headend device to configure the following:

1. Configure RADIUS server parameters.

   aaa new-model
   aaa group server radius sdra_radius_grp
   server-private radius-ip key encr_key
   ip vrf forwarding radius-vrf

2. Configure AAA method lists for authentication, authorization and accounting.

   aaa authentication login sdra_authen_mlist group sdra_radius_grp
   aaa authorization network sdra_author_mlist group sdra_radius_grp
   aaa accounting network sdra_acc_mlist group sdra_radius_group

Example:

aaa new-model
aaa group server radius sdra_radius_group
server-private 10.0.8.100 key sdra-encr-key
ip vrf forwarding 1
!
aaa authentication login sdra_authen_mlist group sdra_radius_grp
aaa authorization network sdra_author_mlist group sdra_radius_grp
aaa accounting network sdra_acc_mlist group sdra_radius_group

Before You Begin

This task requires a working knowledge of RADIUS server configuration.

Configure the RADIUS Server with User Credentials and Policy

The SD-WAN RA headend relies on the RADIUS server as the repository of remote access user authentication credentials, and of policy configuration details, such as VRF, security group tag (SGT), IP pool name, and server subnets. Using the RADIUS server for these functions is preferable to trying to manage credential and policy configuration on each remote access headend device, as the RADIUS server centralizes this configuration and provides scalability.

The RADIUS server also functions as an extensible authentication protocol (EAP) server when remote access clients use the EAP authentication method.

To support the SD-WAN RA headend, ensure that the following parameters are configured on the RADIUS server. These parameters are required for enabling remote access connections:

• User authentication credentials

  • Username and password for AnyConnect-EAP connections

  • Pre-shared keys for the pre-shared key authentication method

  • EAP credentials for EAP authentication method

• Policy parameters that apply to a user or to a user group

  • VRF: Service VPN that the remote access user is assigned to

  • IP pool name: Name of the IP pool defined on the remote access headend

  • Server subnets: Subnet access to provide to the remote access user

  • SGT: Trustsec SGT tag to assign to the user traffic

For full configuration information, see the RADIUS documentation. For a list of supported attributes, see FlexVPN RADIUS Attributes.

For reference, see the following subset of RADIUS parameters. These parameters are required, to enable SD-WAN RA to establish remote access connections.

You can limit the rate of the aggregate upstream and downstream aggregate remote access traffic by applying quality of service (QoS) policers and shapers.

Configure remote access Traffic Rate Limiting

1. Rate limit remote access upstream traffic (from the remote access client).

   Note	The upstream traffic may be destined to Cisco Catalyst SD-WAN sites such as the SD-WAN RA headend, a data center LAN, or the internet.

   Use one or both of the following options to rate limit to the required rate.

   1. For encrypted upstream traffic: Using Cisco SD-WAN Manager, add an inbound QoS policer on the SD-WAN RA WAN interface, using the local data policy (access list), to rate limit encrypted upstream traffic.

      Rate limiting encrypted traffic drops excess remote access traffic, irrespective of the traffic destination, remote access client type, or application type.

      Configure the following match conditions and action:

      • Match IKEv2 and encrypted IPsec traffic. Include the following:

        • UDP ports 500 and 4500

        • IP protocol ESP

      • Action: Configure the required rate for the policing.

   2. For decrypted upstream traffic: Using Cisco SD-WAN Manager, add an inbound QoS policer on the SD-WAN RA WAN interface, using the centralized data policy, to rate limit decrypted upstream traffic.

      When rate limiting decrypted traffic, you can specify remote access clients and application types.

      Note	SD-WAN RA places a remote access user in a service VPN based on the user identity. After decryption, the traffic from a remote access user is treated as inbound traffic from the VPN of the remote access user.

      Configure the following match conditions and action:

      • Match remote access inner (within the IPsec tunnel) traffic. Specify the following:

        • Remote access user service VPN

        • For the source IP, specify the IP address(es) assigned to the remote access client.

        • Application

      • Action: Configure the required rate for the policing.

2. Using Cisco SD-WAN Manager, add an inbound QoS policer to the centralized policy to rate limit remote access downstream (toward the remote access client) traffic.

   The traffic may originate from sources such as traffic from the site where the SD-WAN RA headend is located, a data center LAN, software-as-a-service (SaaS) applications, or the internet.

   Effect: This step rate limits the enterprise and internet (including SaaS) remote access return traffic as close as possible to the traffic source (application server). When rate limiting unencrypted traffic, you can specify remote access clients and application types.

   Configure the following match conditions and action:

   • Match remote access inner (within the IPsec tunnel) traffic. Specify the following:

     • Remote access user service VPN

     • For the destination IP, specify the IP address(es) assigned to the remote access client.

     • Application

   • Action: Configure the required rate for the policing.

     For information, see Cisco SD-WAN Forwarding and QoS Configuration Guide, Cisco IOS XE Release 17.x.

At Cisco Catalyst SD-WAN sites with multiple Cisco IOS XE Catalyst SD-WAN devices acting as SD-WAN RA headends, you must ensure remote access traffic symmetry (both directions of a flow using the same path) to enable return traffic to be correctly routed to remote access clients.

A. Configure Remote Access Traffic Symmetry for Sites That Use VRRP

At a site with multiple Cisco IOS XE Catalyst SD-WAN devices functioning as SD-WAN RA headends, and with a LAN that uses the virtual router redundancy protocol (VRRP), use this procedure to ensure remote access traffic symmetry and retrun traffic reachability.

1. Ensure that each SD-WAN RA headend has a unique local private IP pool (remote access IP pool) for assigning IP addresses to remote access clients. remote access clients use the assigned private IP as the source IP for all inner (within the IPsec tunnel) traffic.

2. On each SD-WAN RA headend, in each of the end user service VPNs, add a static route to the remote access IP pool of each of the neighbor SD-WAN RA headends. For the static route, configure the corresponding SD-WAN RA headend as the next hop.

   The effect of this step is that if there is an asymmetric traffic flow, where return traffic arrives at a different device at the site than forward traffic, the static route forwards the traffic to the correct SD-WAN RA headend device, which is the headend device with the IPsec tunnel and host route to the remote access client.

Example:

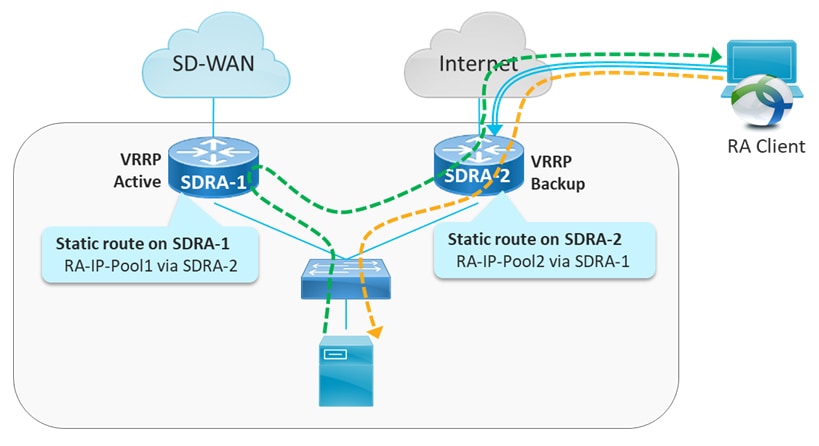

In the example shown in the figure, there are two SD-WAN RA headend devices (SDRA-1 and SDRA-2) at the same site. They are interconnected with a service VPN. Each has a unique local IP pool.

• On SDRA-1, configure a static route as follows:

  • Route destination: SDRA-2 IP pool subnet

  • Route next-hop: SDRA-2 service VPN IP

• On SDRA-2, configure a static route as follows:

  • Route destination: SDRA-1 IP pool subnet

  • Route next-hop: SDRA-1 service VPN IP

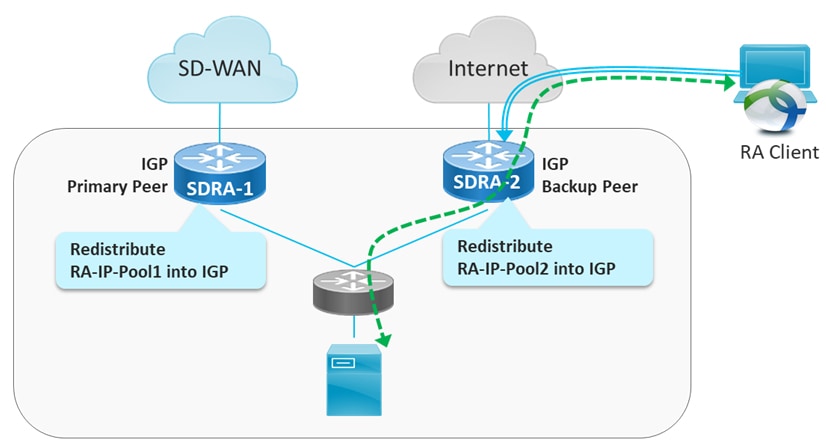

B. Configure Remote Access Traffic Symmetry for Sites That Use Routing Protocols

At a site with multiple Cisco IOS XE Catalyst SD-WAN devices functioning as SD-WAN RA headends, and with a LAN that uses routing protocols such as open shortest path first (OSPF) or enhanced interior gateway routing protocol (EIGRP), use this procedure to ensure remote access traffic symmetry and retrun traffic reachability.

1. Ensure that each SD-WAN RA headend has a unique local private IP pool for assigning IP addresses to remote access clients (remote access IP pool). remote access clients use the assigned private IP as the source IP for all inner (within the IPsec tunnel) traffic.

2. On each SD-WAN RA headend, redistribute the remote access IP pool into the service side routing protocol, so that the LAN-side router/L3 switch forwards any return traffic destined to remote access clients to the correct device, based on the assigned IP address (return traffic destination IP).

When the SD-WAN RA headend establishes a connection with a remote access user, it places the user in a service VPN based on the identity of the remote access user. After the remote access traffic is decrypted, it becomes inbound traffic on the assigned service VPN. The Cisco Catalyst SD-WAN features that are configured for the service VPN apply to the remote access traffic also. These feature include the following:

• NAT-DIA

• UTD

• ZBF

Configure Cisco Catalyst SD-WAN Features for remote access Traffic

Ensure that each service VPN is configured with the Cisco Catalyst SD-WAN features that you want to apply to the remote access traffic that uses that service VPN.
