This procedure describes how to install the Firepower 2100 series in a rack using
slide rails. It applies to all models of the 2100 series. It ships with the
Firepower 2130 and 2140 chassis; it is optional for the 2110 and 2120. For the 2110
and 2120, you install three screws on the chassis to secure the slide rail. For the
2130 and 2140, you use the pegs on the chassis to secure the slide rail. See Product ID Numbers for a list of the PIDs associated with racking
the chassis.

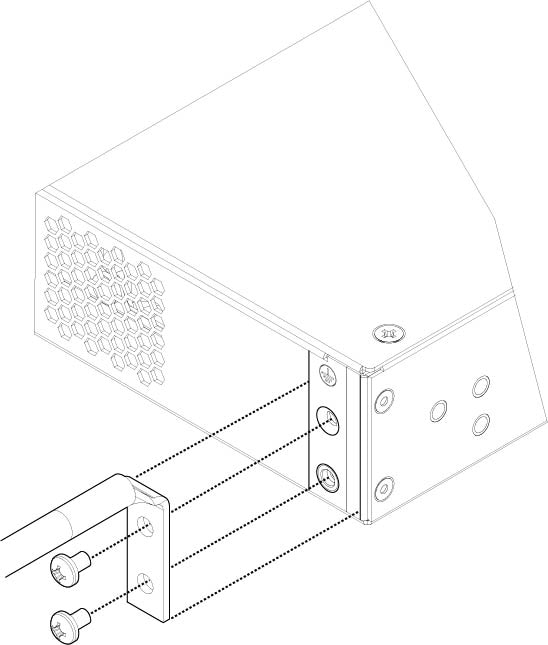

You can install the optional cable management bracket on all models of the 2100 series. The
optional cable management bracket kit comes with two cable management brackets and
four 8-32 x 0.375-inch screws.
The rack is a standard Electronic Industries Association (EIA) rack. It is a
4-post-EIA-310-D, which is the current revision as specified by EIA. The vertical
hole spacing alternates at .50 inches (12.70 mm) to .625 inches (15.90 mm) to .625
inches (15.90 mm) and repeats. The start and stop space is in the middle of the
.50-inch holes. The horizontal spacing is 18.312 inches (465.1 mm), and the rack
opening is specified as a minimum of 17.75 inches (450 mm).
You need the following to install the Firepower 2100 in a rack using slide rails:
-
Phillips screwdriver
-
One slide rail kit (part number 800-103711-01) that contains the following:
Note
|
The slide rail kit ships with the Firepower 2130 and 2140. You can order it for the
Firepower 2110 and 2120.
|
-
Left and right slides rails with two M3 x 6-mm Phillips screws (part number
48-101144-01)
-

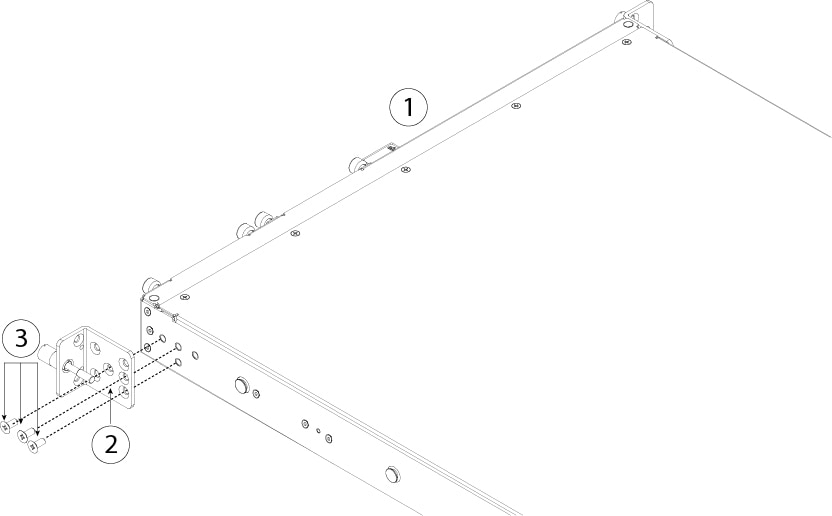

Two slide rail locking brackets (700-105350-02) with six 8-32 x 0.25-inch Phillips screws
(part number 48-101429-01)
-
(Optional) Two cable management brackets (part number 700-106377-01) with four 8-32 x
0.375-inch Phillips screws (part number 48-2696-01)
Slide rail assemblies work with four-post racks and cabinets with square slots, round 7.1mm
holes, #10-32 threaded holes, and #12-24 threaded holes on the rack post front. The
slide rail works with front to back spacing of rack posts from 24 to 36 inches. The
rack-mounting posts need to be 2 to 3.5-mm thick to work with the slide rail rack
mounting.
- Safety Warnings
- Take note of the following rack-mount safety warnings:
-
Warning
|
Statement
1006—Chassis Warning for Rack-Mounting and Servicing
To prevent bodily injury when mounting or servicing this unit in a rack, you must
take special precautions to ensure that the system remains stable. The following
guidelines are provided to ensure your safety:
-
This unit should be mounted at the bottom of the rack if it is the only unit
in the rack.
-
When mounting this unit in a partially filled rack, load the rack from the
bottom to the top with the heaviest component at the bottom of the rack.
-
If the rack is provided with stabilizing devices, install the stabilizers
before mounting or servicing the unit in the rack.
|
Warning
|
Statement
1032—Lifting the Chassis
To prevent personal injury or damage to the chassis, never attempt to lift or tilt
the chassis using the handles on modules, such as power supplies, fans, or cards.
These types of handles are not designed to support the weight of the unit.
|
Warning
|
Statement 1047—Overheating Prevention
To reduce the risk of fire or bodily injury, do not operate the unit
in an area that exceeds the maximum recommended ambient temperature
of 104°F (40°C).
|
Warning
|
Statement 1098—Lifting Requirement
Two people are required to lift the heavy parts of the product. To
prevent injury, keep your back straight and lift with your legs, not
your back.
|
