Installing Round Hole Adapters for Square Hole Rack Slides for the Cisco Firepower 7100 Series
China RoHS Hazardous Substance Table
This document describes how to install round hole rack adapters that can be used to adapt the square-hole-only sliding rail kits that are supplied with the Cisco Firepower 7100 Series devices. The document contains the following sections:
Warning This document applies only to sliding rail kits that have yellow square hole mount retention pieces. Use with other racks and slides is not supported and may cause injury or damage to equipment.
The adapter kit in Table 1 contains all items needed to adapt one sliding rail kit needed to mount one Firepower 7100 Series device in a rack. Your kit should look similar to the kit in Figure 1.
8 x M5-0.8mm x 9.52mm Philips flat head screws |

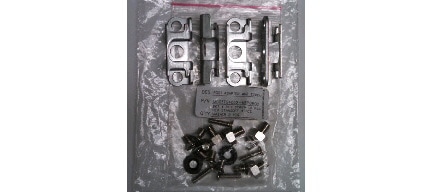

Figure 1 Round-to-Square Hole Rack Adapter Kit for Firepower 7100 Devices
The adapter kit is applicable for use on racks with a rail (vertical mounting flange) thickness of 0.125” (3.18mm) or less. The rack hole pattern must comply with EIA-310-D (or later.) The rails must be threaded with 10-32 holes to use the provided screws. The adapter holes will clear M8 and 12-24 sized screws.
Warning This kit does not work with Chatsworth /CPI racks that use the C shaped beams due to interference with the inner part of the C-Beam and the shoulder of the slide bracket structure (see Figure 2).

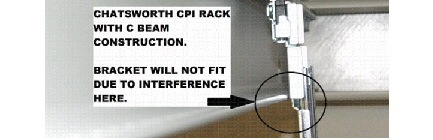

Figure 2 Chatsworth/CPI Rack Interference
Note Cage nuts and Tinnerman style (clip) nuts are NOT supported. Nuts of any kind behind the rail are NOT supported.
Note Use of the adapters increases both the minimum and the maximum front-to-back rail spacing by approximately 1” (26mm.)
Warning Use of non-supported racks or hardware may cause the equipment to fall, which could result in equipment damage or personal injury.
To mount a slide rail to the rack rail/vertical mounting flange:
Step 1 Screw the hex standoff into the end of the slide rail (see ).
Step 2 Repeat step 1 for each end of the two slide rails.

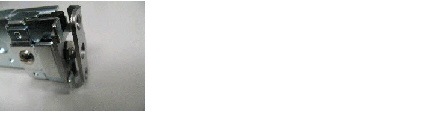

Figure 3 Hex Standoff to Slide Rail Ends
Step 3 Hook the adapter bracket in place behind the tabs on the end slide rail. Note that you must hold the adapter in place, it does not latch onto the slide rail (see Figure 4).

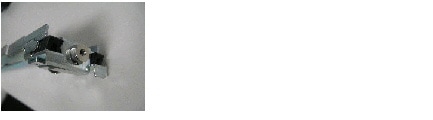

Figure 4 Adapter Attachment to Slide Rail Ends
Step 4 Choose a suitable rack location and identify the correct holes.
Step 5 Line the end of the slide rail (with the adapter) to the holes. The rail/vertical mounting flange goes into the C shape (from above) of the adapter. Support the back end of the slide rail to ease assembly.
Step 6 Install one of the four 5/8 inch Philips flat head screws with washer to hold the slide rail in place, but do not tighten completely (see Figure 5).
Note There are two washers in the kit. Use one washer per slide rail.

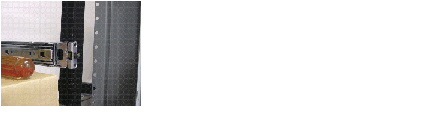

Figure 5 Attach Slide Rail and Adapter to Flange
Step 7 Install the shorter M5-0.8mm Philips flat head screws in the top and bottom, but do not tighten completely. They should be a bit loose for free play adjustment of the slide rail (see Figure 6).

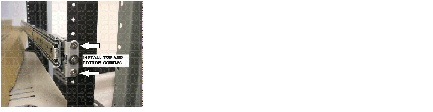

Figure 6 Install Top and Bottom Screws
Step 8 Attach the opposite end of the slide rail in the same manner.
Note You do not need to use a washer when attaching the opposite end of the adapter and slide rail.
Step 9 With the screws slightly loose, there is some movement between the pieces. Extend the slide rail so that both the inner and outer rail extend past the adapter bracket (see Figure 7). Adjust the pieces so that the slide moves freely, then tighten the three screws on the front and back of the slide rail.

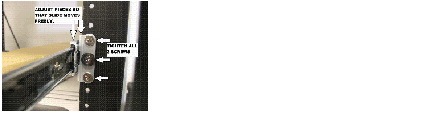

Figure 7 Adjust Slide Rail and Tighten Screws
Note The sliding rail kit includes a package of 4 M5-0.8mm x 15mm washer head, Philips screws. These will not be used when the round hole adapter is in place.

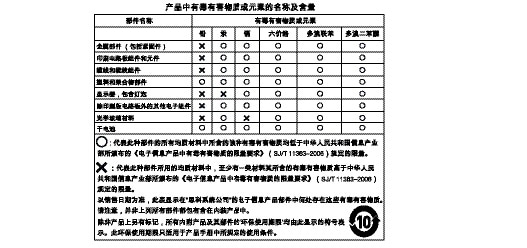

Note This table is a regulatory document required for products shipped to the People’s Republic of China.
