This chapter describes additional information about configuring the Threat Grid Appliance after the initial configuration.
 Note |
The initial configuration is described in the Cisco Threat Grid Appliance Setup and Configuration Guide. Refer to this guide for configuring the TGSH Dialog Interface and using the OpAdmin Configuration Wizard. |
It includes the following topics:
The initial Threat Grid Appliance configuration is performed during the appliance setup, as documented in the Cisco Threat Grid Appliance Setup and Configuration Guide, using the TGSH Dialog and the OpAdmin portal.
Note |
Threat Grid organizations and user accounts are managed in the Threat Grid Portal UI (from the drop-down arrow next to your login name in the navigation bar). |
The initial network configuration is completed using the TGSH Dialog (see Cisco Threat Grid Appliance Setup and Configuration Guide). This section provides some additional information about using the TGSH Dialog.
If you want to make changes to your initial network configuration, perform the following steps.
Note |
If you are using DHCP to obtain IPs, see Network Configuration and DHCP. |
| Step 1 |
Login to TGSH Dialog.
|
||
| Step 2 |
In the TGSH Dialog interface, select CONFIG_NETWORK. The Network Configuration console opens and displays the current network settings. |
||
| Step 3 |
Make any necessary changes (you need to backspace over the old entry before you can enter the new one). |
||
| Step 4 |
Leave the Dirty network DNS Name blank. |
||
| Step 5 |
After you finish updating the network settings, tab down and select Validate to validate your entries. If invalid values have been entered, you may see errors. Correct the entries and then select Validate again. After validation, the Network Configuration Confirmation displays the entered values. |
||
| Step 6 |
Select Apply to apply your configuration settings. Detailed information about the configuration changes that have been made are displayed. |
||
| Step 7 |
Select OK. The Network Configuration Console refreshes again and displays the IP addresses. Network configuration is now complete. |
TGSH Dialog remains open on the console and can be accessed either by attaching a monitor to the appliance or, if CIMC is configured, via remote KVM.
To reconnect to the TGSH Dialog, SSH into the Admin IP address as the user 'threatgrid'. The required password is either the initial randomly generated password, which is visible initially in the TGSH Dialog, or the new Admin password you create during the first step of the OpAdmin Configuration (see the Cisco Threat Grid Appliance Setup and Configuration Guide.
Network configuration in recovery mode mirrors the full system (v2.7 and later):
All interfaces are brought up.
Firewall rules and policy routing restricts which processes can communicate on which interfaces.
Note |
Support mode traffic on port 19791 is allow-listed across all three interfaces. |
Perform the following steps to set up networking in recovery mode.
| Step 1 |
Reboot the appliance and then choose Recovery Mode in the boot menu. |
| Step 2 |
Once the system is up, press Enter several times to get a clean command prompt. |
| Step 3 |
Enter netctl clean and provide the following information:
|
| Step 4 |
Enter Exit to apply the configuration. The appliance will attempt to open an outbound support connection on the Clean interface on port 19791/tcp. |
The initial setup and configuration wizard is described in the Cisco Threat Grid Appliance Setup and Configuration Guide. New Threat Grid Appliances may require the administrator to complete additional configuration, and OpAdmin settings may require updates over time.
The OpAdmin Portal is the Threat Grid Appliance administrator's main configuration interface. It is a Web portal that can be used once an IP address has been configured on the Threat Grid Appliance Admin interface.
OpAdmin is the recommended tool for configuring your appliance, and in fact, much of the appliance configuration can only be done via OpAdmin. OpAdmin is used to configure and manage a number of important Threat Grid Appliance configuration settings, including:
The administrator's passwords (for OpAdmin and the threatgrid user)
Threat Grid License
Rate Limits
SMTP
SSH
SSL Certificates
DNS servers (including DNS configuration for AMP for Endpoints Private Cloud integrations)
NTP servers
Server Notifications
Syslog messages and Threat Grid Notifications remote server setup
CA Certificate Management (for AMP for Endpoints Private Cloud integrations)
LDAP Authentication
Third-party Detection and Enrichment Services (including ClamAV, OpenDNS, Titanium Cloud, and VirusTotal)
Note |
|
Important |
OpAdmin uses HTTPS. Pointing a browser at the Admin IP is not sufficient; you must point to: https://adminIP/ OR https://adminHostname/ |
Setting up SSH keys provides the Threat Grid appliance administrator with access to the
TGSH Dialog via SSH (threatgrid@<host>).
It does NOT provide root access or a command shell. Multiple keys may be added in Configuration > SSH.
On Threat Grid Appliances (v2.7 and later), configuring a SSH public key for access to the appliance disables password-based authentication via SSH; this makes SSH authentication methods one or the other, not both. After a successful SSH connection using key-based authentication, tgsh-dialog prompts for a password, such that both tokens are required.
In addition to the periodic notifications that can be set up to deliver system notifications via email (in OpAdmin under Configuration > Notifications), you can configure a remote syslog server to receive syslog messages and Threat Grid notifications.
| Step 1 |
Log in to the OpAdmin portal and click Configuration > Syslog. |
| Step 2 |
Enter the server DNS and then choose a protocol from the drop-down list (TCP is the default, the other is UDP). |
| Step 3 |
Check the Verification check box to perform a DNS lookup after you save the configuration. |
| Step 4 |
Click Save. |
The Threat Grid Applicance supports LDAP authentication and authorization for OpAdmin and TGSH Dialog login.
You can authenticate multiple appliance administrators with different credentials that are managed on the domain controller or the LDAP server. Authentication modes include: System Password Only, System Password or LDAP, and LDAP Only.
There are three LDAP Protocol options: LDAP, LDAPS, and LDAP with STARTLS.
The following considerations should be reviewed:
The dual authentication mode (System Password or LDAP) is required to avoid accidentally locking yourself out of the appliance when setting up LDAP. Selecting LDAP Only is not allowed initially; you must first go through dual mode to make sure it works. You will need to log out of OpAdmin after the initial configuration, and then log back in using LDAP credentials in order to toggle to LDAP Only.
You can only log into TGSH Dialog using LDAP if you are configured for LDAP Only authentication. If authentication mode is set to System Password or LDAP, then the TGSH Dialog login will only allow the System login.
If the appliance is configured for LDAP authentication only (LDAP Only), then resetting the password in recovery mode will reconfigure the authentication mode to allow login with system password as well.
Make sure that the authentication filter is set up to restrict membership.
TGSH Dialog and OpAdmin require LDAP credentials only in LDAP Only mode: if LDAP only is configured, TGSH Dialog will not ask for the system password but for an LDAP user/password.
If authentication is configured for System Password or LDAP, TGSH Dialog will continue to ask for the system pw only, it'll not have both.
Troubleshooting LDAP: If it breaks, disable it by doing a password reset in Recovery Mode.
TGSH Dialog access via SSH: A system password or a configured SSH key is required in addition to LDAP credentials for tgsh-dialog access via ssh when in LDAP Only mode.
LDAP is outbound from the Clean interface.
Perform the following steps to configure LDAP authentication in the OpAdmin portal.
| Step 1 |

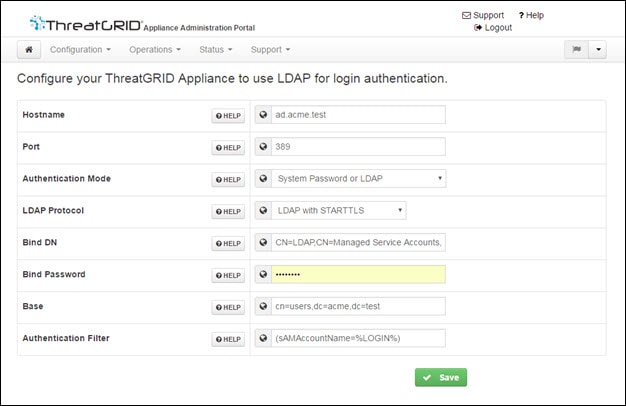

Log in to the OpAdmin portal and choose Configuration > LDAP to open the LDAP configuration page.  |
||
| Step 2 |
Complete the fields on the page. You can click the Help icon next to each field for a detailed description and more information.
|
||
| Step 3 |

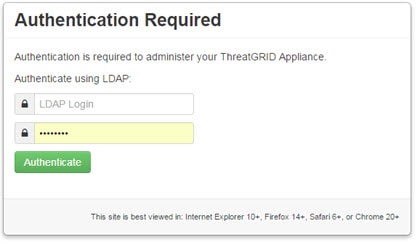

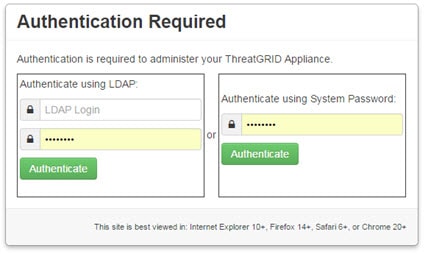

Click Save. When users log in to OpAdmin or TGSH Dialog, they will now see one of the following screens:
|
Integrations with several third-party detection and enrichment services, including OpenDNS, TitaniumCloud, and VirusTotal, can be configured on the appliance using the Integration Configuration page. This applies to Version 2.2 and later.
Note |
If OpenDNS is not configured, the whois information on the Domains entity page in the analysis report in the portal (in the Mask version of the UI) will not be rendered. |
| Step 1 |

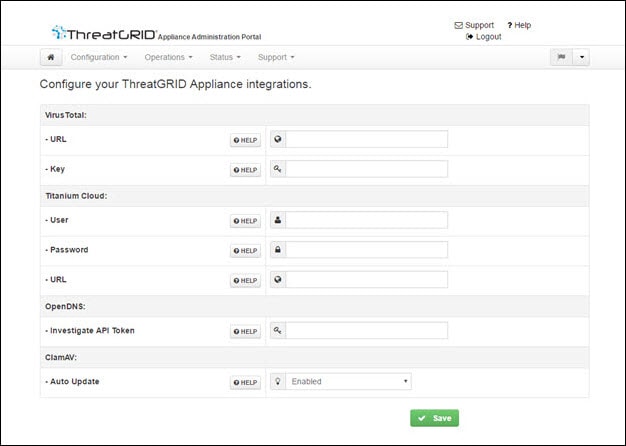

Log in to the OpAdmin portal and choose Configuration > Integrations to open the Integrations configuration page.
|
||
| Step 2 |
Enter the authentication or other values required.
|
||
| Step 3 |
Click Save. |

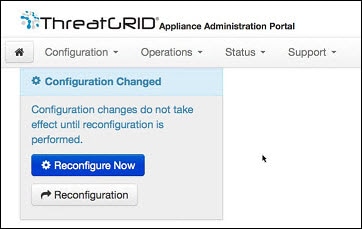

Any time changes are made to configuration settings, a light blue Configuration Changed alert appears below the Configuration menu. When you are done updating any OpAdmin configuration settings, you must save the new configuration in a separate step.
| Step 1 |
Click Configuration Changed to open the dialog.
|
| Step 2 |
Click Reconfigure Now to apply your changes to the appliance. |
Most Threat Grid Appliance users do not use a network configured with DHCP. However, if you are connected to a network configured to use DHCP, then read this section.
Note |
If the initial appliance network configuration used DHCP and you now need to switch to static IP addresses, see Network Configuration and DHCP. |

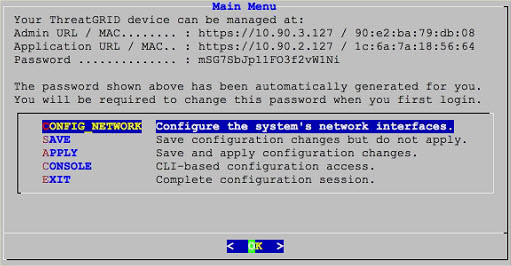

TGSH Dialog displays the information you will need to access and configure the OpAdmin portal interface. It may take some time for the IP addresses for DHCP to display after your appliance boots.
Threat Grid Appliances (v1.3 and later) that use DHCP need to explicitly specify DNS.
 Warning |
An upgrade of a system without a DNS server explicitly specified to v1.3 will fail. |
Admin URL - The Admin network. You will need this address in order to continue the remaining configuration tasks with OpAdmin.
Application URL - The Clean network. Note: This is the address to use after completing the configuration with OpAdmin, in order to access the Threat Grid application.
The Dirty network is not shown.
Password - The initial administrator's password, which is randomly generated during the appliance installation. You will need to change this password later as the first step the OpAdmin configuration process.
If you plan to use DHCP on a permanent basis, then no additional network configuration is necessary, unless you need to change the Admin IP address to static.
If you used DHCP for initial configuration, and you now need to adjust the IP assignment from DHCP to your permanent static IP addresses for all three networks, perform the following steps.
Note |
OpAdmin will not validate the gateway entries. If you enter the wrong gateway and save it, the OpAdmin interface will be inaccessible. You will need to use the console to fix the networking configuration if that was done on the admin interface. If Admin is still valid, you can fix it in OpAdmin and reboot. |
| Step 1 |
In the OpAdmin portal, click Network in the navigation pane (although Configuration > Network is checked in the License window, the DHCP network configuration has not yet been done). The Network configuration page opens. |
||
| Step 2 |
Complete the following fields:
|
||
| Step 3 |
Click Next (Applies Configuration) to save your network configuration settings.
|
||
| Step 4 |
Click Configuration Changed and choose Reconfigure Now to apply your DHCP configuration settings. |
