Security in Layers

There are a wide variety of threats that can be addressed by different mechanism. As a general best practice, a layered security approach to secure your collaboration deployment should be used. Physical access to your premises as well as access to your network, servers, endpoints, and systems should be protected and secure. Communications should be encrypted, and a good certificate management system should be deployed. Securing as many components and layers as possible augments the security, and if a layer or component is compromised, your system would still be protected by other security layers and security mechanisms.

Table 7-2 provides examples of collaboration threats and countermeasures. For each threat, multiple countermeasures should be deployed.

Physical Security

The first line of defense is physical security. It is important to provide physical security to your premises, network access, and very importantly to your core network infrastructure and servers. When physical security is compromised, simple attacks such as service disruption by shutting down power to your premises and/or servers can be initiated. With physical access, attackers could get access to server devices, reset passwords, and gain access to servers. Physical access also facilitates more sophisticated attacks such as man-in-the-middle attacks, which is why the second security layer, the network security, is critical.

For more information on general security practices, refer to the documentation at the following locations:

https://www.cisco.com/c/en/us/solutions/enterprise/design-zone-security/index.html

https://www.cisco.com/en/US/products/svcs/ps2961/ps2952/serv_group_home.html

Network Security

Network security is the next line of defense. The following section provides examples of some of the network security mechanisms. This section provides only brief coverage of network security and the Deployment section of this guide does not cover it. For more information on network security, refer to network security design guides available at

https://www.cisco.com/c/en/us/solutions/enterprise/design-zone-security/index.html

Voice and Video VLAN

Separate voice/video and data VLANs are recommended for the following reasons:

• Protection from malicious network attacks

VLAN access control, 802.1Q, and 802.1p tagging can provide protection for voice devices from malicious internal and external network attacks such as worms, denial of service (DoS) attacks, and attempts by data devices to gain access to priority queues through packet tagging.

• Ease of management and configuration

Separate VLANs for voice and data devices at the access layer provide ease of management and simplified QoS configuration.

The voice/video VLAN includes the hardware desk phones and video systems. The data VLAN includes end-user desktops and laptops, and software clients such as Jabber. Access lists (ACL), VLAN access lists (VACL), or firewalls can be used to limit traffic between the VLANs.

With wireless access, there are additional considerations. For details, refer to the Real-Time Traffic over Wireless LAN Solution Reference Network Design Guide and the Cisco Collaboration System Solution Reference Network Design (SRND) guide, both available at https://www.cisco.com/go/ucsrnd.

Layer 2 and Layer 3 Security

Use the standard security features available at Layer 2 and Layer 3.

Port Security

A classic attack on a switched network is a MAC content-addressable memory (CAM) flooding attack. This type of attack floods the switch with so many MAC addresses that the switch does not know which port an end station or device is attached to. Consequently, it broadcasts the traffic destined for that device to the entire VLAN. In this way, the attacker is able to see all traffic that is coming to all the users in a VLAN. Either port security or dynamic port security can be used to inhibit a MAC flooding attack. A customer with no requirement to use port security as an authorization mechanism would want to use dynamic port security with the number of MAC addresses appropriate to the function attached to a particular port. For example, a port with only a workstation attached to it would want to limit the number of learned MAC addresses to one. A port with a Cisco Unified IP Phone and a workstation behind it would want to set the number of learned MAC addresses to two (one for the IP phone itself and one for the workstation behind the phone) if a workstation is going to plug into the PC port on the phone. Port security also provides a form of device-level security authorization by checking the MAC address of the endpoint.

DHCP Snooping

Dynamic Host Configuration Protocol (DHCP) snooping prevents a non-approved DHCP or rogue DHCP server from handing out IP addresses on a network by blocking all replies to a DHCP request from untrusted ports. Because most phone deployments use DHCP to provide IP addresses to the phones, you should use the DHCP snooping feature in the switches to secure DHCP messaging. DHCP snooping can also help to protect against DHCP address scope starvation attacks which are used to create a DHCP denial-of-service (DoS) attack. With DHCP snooping enabled, untrusted ports will make a comparison of the source MAC address to the DHCP payload information and fail the request if they do not match. DHCP snooping prevents any single device from capturing all the IP addresses in any given scope, but incorrect configurations of this feature can deny IP addresses to approved users.

Dynamic ARP Inspection

Dynamic Address Resolution Protocol (ARP) Inspection (DAI) is a feature used on the switch to prevent Gratuitous ARP attacks on the devices plugged into the switch and on the router.

Gratuitous ARP (GARP) is an unsolicited ARP reply. In its normal usage, it is sent as a MAC broadcast. All stations on a LAN segment that receive a GARP message will cache this unsolicited ARP reply, which acknowledges the sender as the owner of the IP address contained in the GARP message. Gratuitous ARP has a legitimate use for a station that needs to take over an address for another station on failure. However, Gratuitous ARP can also be exploited by malicious programs that want to illegitimately take on the identity of another station. When a malicious station redirects traffic to itself from two other stations that were talking to each other, the hacker who sent the GARP messages becomes the man in the middle.

Dynamic ARP Inspection (DAI) is used to inspect all ARP requests and replies (gratuitous or non-gratuitous) coming from untrusted (or user-facing) ports to ensure that they belong to the ARP owner. The ARP owner is the port that has a DHCP binding that matches the IP address contained in the ARP reply. ARP packets from a DAI trusted port are not inspected and are bridged to their respective VLANs.

Dynamic ARP Inspection (DAI) requires that a DHCP binding be present to legitimize ARP responses or Gratuitous ARP messages. If a host does not use DHCP to obtain its address, it must either be trusted or an ARP inspection access control list (ACL) must be created to map the host's IP and MAC address. (See Figure 7-2.) Like DHCP snooping, DAI is enabled per VLAN, with all ports defined as untrusted by default. To leverage the binding information from DHCP snooping, DAI requires that DHCP snooping be enabled on the VLAN prior to enabling DAI.

Figure 7-2 Using DHCP Snooping and DAI to Block ARP Attacks

IP Source Guard

IP Source Guard provides source IP address filtering on a Layer 2 port to prevent a malicious host from impersonating a legitimate host by assuming the legitimate host's IP address. The feature uses dynamic DHCP snooping and static IP source binding to match IP addresses to hosts on untrusted Layer 2 access ports.

Initially, all IP traffic on the protected port is blocked except for DHCP packets. After a client receives an IP address from the DHCP server, or after static IP source binding is configured by the administrator, all traffic with that IP source address is permitted from that client. Traffic from other hosts is denied. This filtering limits a host's ability to attack the network by claiming a neighbor host's IP address. IP Source Guard is a port-based feature that automatically creates an implicit port access control list (PACL).

802.1X

802.1X is an IEEE standard that permits or denies network connectivity based on the identity of the end user or device. The 802.1X authentication feature can be used to identify and validate the device credentials of a Cisco endpoint before granting it access to the network. 802.1X is a MAC-layer protocol that interacts between an end device and a RADIUS server such as the Cisco Identity Service Engine (ISE). It encapsulates the Extensible Authentication Protocol (EAP) over LAN, or EAPOL, to transport the authentication messages between the end devices and the switch. In the 802.1X authentication process, the Cisco endpoint acts as an 802.1X supplicant, initiates the request to access the network, and provides its certificate (Locally Significant Certificate recommended). The Cisco Catalyst Switch, acting as the authenticator, passes the request to the authentication server and then either allows or restricts the phone from accessing the network.

802.1X can also be used to authenticate the data devices attached to the Cisco Unified IP Phones. An EAPOL pass-through mechanism is used by the Cisco Unified IP Phones, allowing the locally attached PC to pass EAPOL messages to the 802.1X authenticator. The Cisco Catalyst Switch port must be configured in multiple-authentication mode to permit one device on the voice VLAN and multiple authenticated devices on the data VLAN.

Firewalls, IPS, and AMP

Firewalls can be used in conjunction with access control lists (ACLs) to protect the collaboration servers and gateways from devices that are not allowed to communicate with them. You can deploy the Cisco Adaptive Security Appliance (ASA) with FirePOWER services. It combines the ASA firewall functionality and the Next Generation Intrusion Prevention System (NGIPS) as well as Anti-Malware Protection (AMP).

Some UDP and TCP ports used by the Cisco Collaboration systems might have to be opened in firewalls. Refer to the following guides to determine which ports are used:

• For Cisco Unified CM and IM and Presence, refer to the latest version of the System Configuration Guide for Cisco Unified Communications Manager, available at https://www.cisco.com/c/en/us/support/unified-communications/unified-presence/products-installation-and-configuration-guides-list.html.
• For Cisco Unity Connection, refer to the latest version of the Security Guide for Cisco Unity Connection, available at https://www.cisco.com/c/en/us/support/unified-communications/unity-connection/products-maintenance-guides-list.html.
• For Cisco Expressway, refer to the latest version of the Cisco Expressway IP Port Usage for Firewall Traversal Deployment Guide, available at https://www.cisco.com/c/en/us/support/unified-communications/expressway-series/products-installation-and-configuration-guides-list.html.
• For Cisco Jabber, refer to the latest version of the Planning Guide for Cisco Jabber, available at https://www.cisco.com/c/en/us/support/unified-communications/jabber-windows/products-installation-guides-list.html.

QoS

Quality of Service (QoS) can be used to ensure collaboration traffic receives appropriate priority over other traffic in the network, and it can safeguard against network flood attacks (a type of Denial of Service attack). While QoS is not a security feature in and of itself, when properly implemented it does ensure that packets with the appropriate QoS levels are given priority. This can prove effective against some packet flood attacks that attempt to bombard the network with packets to overwhelm interface buffers. With QoS those buffers are protected when the unmarked packets are dropped and the properly marked packets are allowed.

Refer to the Bandwidth Management chapter for more information on Collaboration QoS policies.

Preventing Unauthorized Access

Most of the Cisco Collaboration products have a hardened platform. For example, the platforms used by Cisco Unified CM, IM and Presence Service, and Unity Connection are locked down; the root account is disabled; third-party software installation is not allowed; a host-based intrusion protection (SELinux) and host-based firewall (iptables) are installed and enabled by default; a complex password policy is applied to administrative accounts; and secure management interfaces (HTTPS, SSH, SFTP) are enforced. Further – with the ability to assign users to access control groups and therefore to specific roles – administrators, end users, and application users can be given only the permissions they need. All installation packages are signed and include both the OS and application. System audit logging is available, which is critical for determining what might have happened when issues arise.

Servers deployed at the edge should be well secured because they are more exposed to the Internet. On the Cisco IOS gateway or Cisco Unified Border Element, there are many security features available, such as access control lists (ACLs), IP trust list, call threshold, call spike protection, bandwidth-based call admission control (CAC), media policing, NBAR policing, and voice policies. On Cisco Expressway, Call Processing Language (CPL) rules, host-based firewall (with dynamic system rules, non-configurable application rules, and user-configurable rules), and automated intrusion protection can be configured to protect the system.

Even though securing endpoints might not seem as critical as securing servers, endpoints should also be secured. Firstly, it is typically easier to access endpoints because they can be accessed by end users and are not locked down in a data center. Secondly, compromising endpoints can also be damaging. Critical information about the endpoint and the system it is registered to can be discovered on the phone screen and on the phone's web interface. Logs can be downloaded. Some endpoints such as Cisco video endpoints provide the endpoint administrator user many advanced capabilities, including call control of the endpoint and even capturing packets. On those endpoints, do not leave the default empty password but instead configure strong passwords. In general, when the settings Web Access, Web Admin, Console Access, Telnet Access, and SSH Access are available on an endpoint, we recommend disabling them. Those features should be enabled only when needed; for example, when troubleshooting an endpoint. An access control list should be configured to limit access to these interfaces to a management station or stations accessible by the administrator. If you decide to enable Web Access on an endpoint, allow only HTTPS (and not HTTP).

The Settings Access parameter on the Unified CM administration phone pages allows users to access the device settings when they press the Settings button. We recommend disabling this parameter or setting it to Restricted when available (this disables the access to administrative tasks). If you are performing an operation where endpoints could possibly loose the trust relationship with Unified CM (for example, when migrating endpoints from one Unified CM cluster to another Unified CM cluster and not distributing one ITLRecovery certificate and private key across all Unified CM clusters), you may temporarily enable Setting Access. You could also enable it temporarily for Unified CM upgrades as a precaution, even though Unified CM certificates should not be modified during upgrades. In case endpoints lose the trust with Unified CM, temporarily enabling Setting Access would allow the users to recover trust by going to the menu on their phone and resetting the security settings, which deletes the Initial Trust List (ITL) or Certificate Trust List (CTL). Alternatively, if trust is lost, it could also be recovered by using the ITL recovery key (refer to the CTL and ITL section for more information).

If not already enforced by default, ensure that complex password and PIN policies (for example, number of allowed failed logins, failed login account lockout duration, minimum credential length) are configured for administrators and users across all Cisco Collaboration products.

Toll Fraud Mitigation

Cisco Unified CM

On Cisco Unified CM, several mechanisms can be used to prevent toll fraud. Partitions and calling search spaces (CSS) provide segmentation and access control to the directory numbers, route patterns, directory URIs, and SIP route patterns that can be called or the device or line that is placing the call. As a best practice, apply the most restrictive class of service possible based on partitions and calling search spaces. For example, for SIP trunks connecting to PSTN gateways and Expressways, create an inbound calling search space that does not allow access to any of the PSTN gateway partitions. To prevent all offnet-to-offnet transfers, classify the SIP trunks to PSTN gateways as Offnet with the Call Classification enterprise parameter and set the Block OffNet to OffNet Transfer CallManager service parameter to True. Other mechanisms can also be used, such as time-of-day routing, forced authentication code (FAC), and using the Drop Ad hoc Conferences CallManager service parameter (set to When No OnNet Parties Remain in the Conference). If auto-registration is enabled, create a device pool with a restricted calling search space. We also recommend proactively monitoring system call detail records (CDRs).

Cisco Unity Connection

Unauthorized users could use the transfer feature in Cisco Unity Connection to place unauthorized calls. There are two main ways to prevent toll fraud with Unity Connection:

• On Unity Connection — Restriction tables control the phone numbers that can be used for transferring calls, for message notification, and for other Unity Connection functions. Each class of service has several restriction tables associated with it, and you can add more as needed. Refer to the Voice Messaging chapter for more details and for an example.
• On Unified CM — For the calling search space and rerouting calling search space, include only the required partitions. Refer to Table 2-21 , Class of Service for Voicemail .

For more details, refer to the latest version of the Security Guide for Cisco Unity Connection, available at

https://www.cisco.com/c/en/us/support/unified-communications/unity-connection/products-maintenance-guides-list.html

Also refer to Troubleshoot Toll Fraud via Unity Connection, available at

https://www.cisco.com/c/en/us/support/docs/unified-communications/unity-connection/119337-technote-cuc-00.html

Cisco Expressway

With Expressway business-to-business deployments, use Call Processing Language (CPL) rules to allow or reject calls from the Default Zone. For example, if you want to reject any business-to-business calls inbound to Expressway to unkown destinations with 9 as a prefix (to avoid unauthorized calls to the PSTN), you can create a CPL rule with the settings in Table 7-3 .

Also use the automated detection feature where IP addresses can be automatically rejected by Expressway-E internal firewall for a configurable period of time, after a configurable number of rejections from an IP address. With this automated detection feature, calls from those IP addresses are not processed by Expressway-E and they don’t appear in the call logs for example.

You can also use the SIP rate limiting feature where a limit is configured for the maximum number of connections per second and maximum burst size.

Cisco IOS Gateway and Cisco Unified Border Element

The telephony denial-of-service (TDoS) attack mitigation feature prevents Cisco IOS Gateways and Cisco Unified Border Element from responding to Session Initiation Protocol (SIP) requests arriving from untrusted IP addresses, which helps prevent toll fraud and leads to an improvement in performance. The SIP stack authenticates the source IP address of an incoming SIP request and blocks the response if the source IP address does not match any IP address in the trusted IP address list. The IP addresses configured in the dial-peer session target or in the voice class server-group are automatically part of the trusted IP address list. Additional trusted IP addresses can be added with the command ip address trusted list.

This TDoS feature is configured with the command:

If Cisco Unified Border Element is not deployed as a registrar server, disable the registrar service to avoid consuming unnecessary resources.

Certificate Management

Certificates are critical in a Cisco Collaboration deployment. They allow individuals, computers, and other services on the network to be authenticated and are required when establishing secure connections. Implementing good certificate management provides a good level of protection while reducing complexity.

This section starts with a brief overview of the public key infrastructure (PKI). Then general guidance is provided. Finally, architecture details for the various Cisco Collaboration products are provided.

Brief PKI Overview

The public key infrastructure (PKI) provides a mechanism to secure communications and validate identities of communicating parties. Communications are made secure through encryption, and identities are validated through the use of public/private key pairs and digital identity certificates.

Public/Private Key Pair

A public and private key pair comprises two uniquely related cryptographic keys mathematically related. Whatever is encrypted with a public key may be decrypted only by its corresponding private key (which must be kept secret), and vice versa.

Certificates

A digital certificate is an electronic credential that is used to certify the identity of individuals, computers, and other services on a network. It is a wrapper around the public key. It provides information about the owner of the public key. It is used, for example, in a TLS handshake to authenticate the other party or used to digitally sign a file. Certificates deployed with Cisco Collaboration products are based on the X.509 standards. The certificates include the following information, among others:

• Public Key
• Common Name (CN)
• Organization Name (O)
• Issuer Name
• Validity period (Not before, not after)
• Extensions (optional) — For example, Subject Alternate Name (SAN)

A certificate can be self-signed or signed by a certificate authority (CA).

Certificate Validation During TLS Handshake

When a client initiates a TLS connection to a server, the server sends its certificate during the TLS handshake so that the client can authenticate the server. This happens, for example, when an administrator or end-user connects to the Unified CM pages or when the Jabber client starts and connects to the Unified CM UDS server, IM and Presence server, and Unity Connection server.

In some cases, the server also authenticates the client and requests the client to send its certificate. This is mutual authentication (mutual TLS, or MTLS) and it is used, for example, between Unified CM and Cisco endpoints in encrypted mode (configured with media and signaling encryption), with SIP trunks connecting two Unified CM clusters, or with SIP trunks connecting Unified CM to Unity Connection, a Cisco IOS Gateway, or Expressway (if TLS verify is configured on Expressway).

When a certificate is received, the verification consists of checking the following items:

• Identity — The subject or identity for which the certificate is issued must match the identity that the initiator of the session intended to reach. The hostname (FQDN) is checked against the common name (CN) or Subject Alternate Name (SAN) extension.
• Validity period — The current time and date must be within the certificate's validity range.
• Revocation status of the certificate
• Trust — The certificate must be trusted. A certificate is considered trusted if the signing (issuing) party is trusted. Trust with signing parties typically is established by importing the certificate of the signing party into a store of trusted certificates (trust store). Refer to the section on CA-Signed Certificates Instead of Self-Signed Certificates for more details.
• Additionally, there could be other verification checks on the certificate. For example, in order to mitigate DNS poisoning, mobile and remote access clients require that the Unified CM registration domains are added in the Subject Alternate Name of the certificate, see Table 7-16 for more details.”

General Guidance on Certificates

Some servers such as Cisco Unified CM and IM and Presence Service can have different certificates for the various system services. Some servers such as Cisco Expressway have only one certificate for the service they provide. Table 7-4 lists the server certificates for this Preferred Architecture. As discussed in the next section, ECDSA certificates are not covered in this document.

There are also other ECDSA certificates, but as discussed in the section on RSA and ECDSA, they are not used for the deployment guidance in this chapter, so they are not listed in Table 7-4 .

In general, the Cisco Collaboration servers are installed by default with a self-signed certificate. The exception is Cisco Meeting Server, which has no certificate installed by default.

Cisco Unified CM self-signed certificates are valid for 5 years. The ITLRecovery certificate validity period is also 5 years with Unified CM release 14.

RSA and ECDSA

Certificates for the Cisco Collaboration products are typically based on RSA (Rivest, Shamir, and Adelman) for public/private keys and digital signatures. Some products also support Elliptical Curve Digital Signature Algorithm (ECDSA) certificates, but for simplicity the general recommendation is to use RSA-based certificates, and that is what is covered in this document.

For endpoints, we recommend using RSA-based Locally Significant Certificates (LSCs). For Unified CM SIP TLS, ECDSA and RSA are always enabled, but by default RSA is preferred over ECDSA, so RSA certificates are negotiated. This is the recommended configuration. For HTTPS, with Unified CM, IM and Presence Service, and Unity Connection, ECDSA is not enabled by default. It may be enabled by changing the HTTPS Ciphers enterprise parameter, but the recommendation is to use the default settings (ECDSA disabled).

Note Encryption cipher suites based on ECDHE do not require certificates based on ECDSA; they can be negotiated with certificates based on RSA.

CA-Signed Certificates Instead of Self-Signed Certificates

By default, when installing servers for the Cisco products discussed here, self-signed certificates are installed (except with Cisco Meeting Server, where no certificate is installed by default). To establish trust with a service based on a self-signed certificate, the server self-signed certificates must be imported into the trusted certificates store (or trust store) of all entities requiring secure connections to the service (clients). If not, with servers initiating the connections (for example, with Unified CM SIP trunks), the connection will fail. With Jabber and web browsers, users are prompted with warning messages and can accept the certificates, which then are in general added to the trusted certificate store. This should be avoided because being prompted multiple times to accept a number of certificates during startup of the client is not a good user experience. Even more important is the fact that most users will not actually verify whether the presented certificate is correct by checking the certificate's fingerprint, and instead will just accept any certificate. This breaks the security concept of certificate-based authentication for secure session establishment.

Importing self-signed certificates can be handled if the set of communicating parties is small, but it becomes less practical for large numbers of communication peers. This is the main reason why we recommend replacing most default self-signed certificates with certificates that are signed by a CA. It simplifies certificate management. With CA-signed certificates, it is not necessary to import each server certificate in the client trust store; but instead, importing the root CA certificate to the client trust store is sufficient. On the server side, in general, the root CA certificate must also be imported to the server trust store; and if using intermediate CA(s), all the certificates in the certificate chain must also be imported to the server trust store. Using CA-signed certificates also allows for issuing new service certificates without having to update all client or server trusted certificate stores, as long as the signing CA's root certificate has already been added to the trusted certificate stores of all clients.

As an example of the benefit of using a CA-signed certificate: If self-signed certificates are used with Jabber clients, the Unified CM Tomcat certificate (for UDS and for downloading TFTP configuration file), the IM and Presence tomcat and cup-xmpp certificates (for login and secure chat), and the Unity Connection Tomcat certificate (for visual voice mail) would have to be imported into the trust store of each client running Jabber. With CA-signed certificate, only the signing CA's root certificate needs to be imported.

In general, using a CA-signed certificate for the Tomcat certificates is the most beneficial approach because they are widely used and are user-facing certificates. This is also required when using SIP OAuth on the 7800/8800 Series phones. Using CA-signed certificates for the CallManager certificates avoids importing the CallManager certificates for all of the entities that connect to Unified CM subscribers via a SIP trunk.

However, it is not necessary to sign all of the certificates with an enterprise CA. Some certificates are used only for internal operations and are provided to the entity that needs them without any user intervention. For example, the Trust Verification Service (TVS) certificate is included in the Initial Trust List (ITL) file, and that ITL file is automatically downloaded by the endpoints when they boot, restart, or reset. Similarly, the ITLRecovery certificate is included in the Certificate Trust List (CTL) and Initial Trust List (ITL). Thus there are no benefits to signing those certificates with an external CA. There are also no real benefits to signing the CAPF certificate by an external CA. It does not provide support for Certificate Authority Proxy Function (CAPF) certificate or endpoint Locally Significant Certificate (LSC) revocation. Also, when configuring phone VPN or 802.1x, importing the root CA certificate into the ASA trust store is not sufficient. The CAPF certificate would still have to be imported because the endpoints do not send the certificate chain (and therefore do not send the CAPF certificate) during a TLS handshake.

Table 7-5 list the certificates that Cisco recommends to be signed by a CA.

Multi-Server Certificates

To further simplify certificate management, a multi-server certificate can be used. Instead of having a certificate for each node, a single certificate can be used across all the nodes in a cluster. A single corresponding private key is also used across all the nodes and is automatically propagated across the nodes. We recommend using multi-server certificates wherever available, as described in Table 7-6 . Starting with Unified CM release 14, self-signed certificates can also be multi-server certificates.

With Cisco Meeting Server, you can also issue a single certificate and single private key shared across all the nodes in the Cisco Meeting Server cluster (in addition to a separate certificate for the database client). However, the private key is not propagated automatically; it has to be imported manually to each Cisco Meeting Server node.

Note Wildcard certificates are not supported for the Cisco Collaboration products discussed in this chapter, except for Cisco Meeting Server. For Cisco Meeting Server, we recommend issuing a standard (non-wildcard) certificate and using that certificate for all Cisco Meeting Server services and nodes. (A second certificate for the database client would have to be generated.)

Public versus Private CA

Besides the requirement to use a public CA for the Expressway-E certificates, you could use either a public or enterprise CA (private or internal CA) to sign the various certificates of the Cisco Collaboration products in this document. The benefits of using a public CA include the fact that some clients and servers by default already trust major public CAs, and it is not required to establish trust between those devices and the public CA (import CA certificate in the client trust store). With a public CA, your IT organization also does not have to install and maintain internal CA servers. But the major drawbacks are the cost to issue certificates and restrictions that some public CAs might have.

What we recommend and describe in this document is the use of an enterprise CA for the certificates that we recommend to be CA-signed, except for the Expressway-E certificates which must be signed by a public CA and except for the Cisco Unified Border Element certificate if the SIP service provider supports encryption.

Cisco Unified CM and IM and Presence

This section describes certificate management for Cisco Unified CM and IM and Presence.

Unified CM Mixed Mode

As discussed later in the section on Media and Signaling Encryption, Unified CM mixed mode is enabled in this guide in order to allow media and signaling encryption on endpoints that do not support SIP OAuth, e.g. video endpoints. Unified CM SIP OAuth mode is also enabled to allow media and signaling encryption on the 7800 and 8800 Series phones and Jabber clients.

CTL and ITL

The Certificate Trust List (CTL) and Initial Trust List (ITL) are files that include Unified CM certificates. Those files are downloaded by Cisco endpoints. These trust lists allow the endpoints to get the minimum set of Unified CM certificates to build the trust to Unified CM services. The ITL files are always present in a Unified CM cluster, whether the Unified CM cluster is in non-secure mode or mixed mode. The CTL file is present and relevant only when Unified CM is in mixed mode.

The CTL and ITL files are signed by using the System Administrator Security Token (SAST, see Table 7-7 ) and contain a list of records. Each record contains a certificate, a certificate role or function, and pre-extracted certificate fields for easy look-up by the endpoint. Table 7-7 lists the certificate roles.

The ITL is signed by using the ITLRecovery private key. Each Unified CM node running the TFTP service has its own ITL file that it provides to the endpoints.

The CTL file is signed by using the private key of a System Administrator Security Token (SAST). With CTL, the SAST is the ITLRecovery private key. There is only one CTL file shared across the entire Unified CM cluster.

When endpoints boot or reset, before downloading their configuration file, they download the Certificate Trust List (CTL) from their TFTP server if Unified CM is in mixed mode. Then they download their TFTP server's Initial Trust List (ITL), if ITL is supported by the endpoint. Jabber does not support ITL, but the rest of the endpoints in this Preferred Architecture do support it. If the endpoint is newly deployed and it is the first time the endpoint connects to Unified CM, it does not have an existing CTL or ITL file and therefore does not have a list of certificates it can use to validate the CTL or ITL signature. In that case, the endpoint simply accepts the CTL/ITL file in a one-time leap of faith and stores the certificates that are part of those files. Once the endpoint has a trusted list of certificates, it can use them to validate the signatures of subsequent CTL and ITL files.

If an endpoint supports ITL or if Unified CM is in mixed mode (in which case a CTL file is downloaded by the endpoints), the endpoint possesses the ITLRecovery certificate from the ITL/CTL file(s) and therefore requests a configuration file that is signed by using the CallManager private key on the Unified CM TFTP server. If not (for example, as is the case with Jabber and when Unified CM is not in mixed mode), it requests a non-signed configuration file. After downloading its configuration file, the endpoint then verifies that it has the correct firmware. If not, it downloads the relevant firmware and validates the signature of the firmware to ensure it was not tampered with. Figure 7-3 summarizes the files downloaded by the endpoints when they start up. These are the high-level steps during the startup of the endpoints. For simplicity reasons, we are not including all of the steps during the endpoint startup.

Figure 7-3 Files Downloaded by Endpoints During Startup

Endpoint Certificates

Endpoint certificates are mainly used in the following scenarios:

• Media and signaling encryption when using mixed mode with endpoint certificates. In this guide, this only applies to video endpoints. Media and signaling encryption for Jabber clients and the 7800/8800 Series phones are enabled through SIP OAuth which does not rely on endpoint certificates.
• 802.1x authentication.
• Phone VPN authentication with certificate.
• Encrypted TFTP configuration files. In this guide, this only applies to video endpoints. The 7800/8800 Series phones are configured with SIP OAuth and the TFTP configuration file confidentiality is obtained in a different fashion, without relying on endpoint certificates. Refer to the TFTP configuration file confidentiality section for more details.
• Access to the endpoint’s web server via HTTPS.
• Wireless LAN authentication.
• Access to the endpoint’s web server via HTTPS.

There are two types of certificates on Cisco endpoints:

• Manufacturing Installed Certificate (MIC)
• Locally Significant Certificate (LSC)

MICs are pre-installed on the endpoints during the manufacturing process and are signed by Cisco Manufacturing CA. They are valid for 10 years or more and there is no certificate revocation support. An MIC could be used for media and signaling encryption, but as explained later, we recommend generating an LSC instead. The Cisco IP Phone 7800 Series and 8800 Series and CE-based video endpoints (Webex Desk Pro, Webex Room Series and Cisco MX, SX, Webex DX) all have MICs. Jabber does not have a MIC.

LSCs are certificates that you install in your own deployment. They can be signed by the Certificate Authority Proxy Function (CAPF) service running on the Unified CM publisher node or they can be signed by an external CA. All Cisco endpoints considered in this Preferred Architecture document support LSCs. LSCs are valid for up to 5 years, and the validity of the LSC can be tracked easily from the Unified CM Administration page or by receiving email notification as the expiration date approaches. With all endpoints listed in this guide, LSCs are based on SHA2 and can be based on a key length of 2048 bits or even up to 4096 bits with Jabber and the Cisco IP Phone 7800 Series and 8800 Series endpoints. Once a LSC is installed, the MIC is not used any longer by the endpoint except for activation code onboarding.

The goal of an MIC is to prove that the phone is a genuine Cisco phone and has been signed by Cisco Manufacturing CA. One of the benefits of using an MIC is to prevent a non-legitimate client spoofing a legitimate MAC address that is configured on your Unified CM cluster. However, the MIC does not prove the endpoint is part of your own Unified CM cluster. One of the drawbacks of using an MIC is that the Cisco Manufacturing CA certificate would have to be trusted in the ISE servers or in some Unified CM trust stores, which means that any Cisco endpoint, even the ones that are not part of your organization, would get their MIC trusted. The general recommendation is to use the MIC, only during the first CAPF enrollment to generate the first LSC on the endpoint. Once the endpoint has an LSC, then the recommendation is always to use the LSC rather than the MIC for authentication when renewing the LSCs.

There are three ways to issue LSCs on the phones:

• The first method is to have the CAPF service in Cisco Unified CM sign the LSCs. This is the easiest method.
• The second method is to use an online external CA (Microsoft CA) that issues LSCs to phones through the CAPF service when initiating the CAPF enrollment. The main benefit of this method is that the LSCs are signed by your own CA.
• The third method is to use an offline external CA. This is similar to the second method. The LSCs are issued by an external CA, but in an off-line manner where the endpoint Certificate Signing Request (CSR) files have to be exported manually from Unified CM, signed by the external CA, and then imported back into Unified CM.The benefit of this method compared to the online external CA is that it is not limited to Microsoft CA. However, it requires manual steps. This approach does not scale for large organizations and therefore is not covered in the current Preferred Architecture document.

Note With endpoints using a wireless LAN connection, the LSC issued by CAPF cannot be extended to 802.1X or EAP. Instead, use the MIC or a user installed certificate (installed via SCEP or manually installed through the phone web interface).

Survivable Remote Site Telephony (SRST)

Secure SRST is supported. When the Unified CM servers become unreachable, endpoints register to the local SRST router, and endpoints configured in encrypted mode in Unified CM still have their media and signaling encrypted when registering to the SRST router.

At a high level, this is how secure SRST is provisioned:

1. First, generate a certificate for the SRST router. As with most certificates, using a CA-signed certificate simplifies certificate management.

2. When Unified CM is configured with the Is SRST Secure setting enabled (check-box selected), Unified CM requests the SRST certificate from the credential server running on the SRST router and inserts the SRST certificate in the configuration file of the endpoints that are configured with SRST.

3. Manually import into the SRST router the trust certificates corresponding to the entity that signed the endpoint LSCs. If you used CAPF to issue the LSCs, this is the CAPF certificate. If you use an external CA to issue the LSCs, this the CA certificate (or trust chain certificates).

4. When the WAN goes down and/or the Unified CM servers become unreachable, the endpoints communicate securely with SRST for endpoints using encryption based on mixed mode. The endpoints authenticate SRST with the SRST certificate in their TFTP configuration file, and SRST authenticates the endpoints with the certificate corresponding to the entity that issued the LSCs (CAPF or external CA certificate) that you imported in the previous step.

Cisco Unity Connection

This document covers Cisco Unity Connection media and signaling encryption using Next Generation Encryption (NGE). With this configuration, Unity Connection Tomcat certificates are used instead of the Unity Connection Root and SIP certificates. A SIP trunk is configured between Unified CM and Unity Connection. This SIP trunk is secure, and Unified CM and Unity Connection are mutually authenticated. Unified CM is authenticated with its CallManager certificate (or Tomcat certificate if Unified CM was configured to reuse the Tomcat certificate for the CallManager certificate) while Unity Connection is authenticated with its Tomcat certificate. As mentioned earlier, the recommendation is to sign those certificates with an enterprise CA so that no certificate exchange between Unified CM and Unity Connection is required. The root CA certificate just needs to be imported to the Unified CM CallManager trust store and to the Unity Connection Tomcat trust store. Note that Unity Connection also automatically downloads the Unified CM CallManager certificates from the Unified CM TFTP servers to its Tomcat trust store.

Cisco Expressway

New installations of Cisco Expressway software ship with a temporary trusted CA and a server certificate issued by that temporary CA. We recommend replacing the server certificate with a CA-signed certificate and installing root CA certificates or certificate chains for the authorities that you trust.

Expressway-C certificates can be signed by either an enterprise CA or a public CA, and as mentioned earlier, this document assumes an enterprise CA is used. As for Expressway-E, the requirement is to sign the server certificate with a public CA. There are two reasons for this requirement:

• Hardware endpoints capable of mobile and remote access (MRA) have a list of over 100 public root CA certificates that they trust and that are included in the endpoint firmware. There is no mechanism for adding additional root CA certificates, and thus the Expressway-E certificate must be signed by one of those public CAs. The list of supported public CAs is available on https://www.cisco.com in the endpoint documentation; for example, https://www.cisco.com/c/en/us/support/collaboration-endpoints/unified-ip-phone-8800-series/products-technical-reference-list.html.
• Cisco Expressway-E is an Internet-facing component that communicates with endpoints, other organizations, and even the Cisco Collaboration Cloud. For this reason the public key infrastructure (PKI) underlying public CA trust is required to provide maximum security and trust with minimal effort.

CAPF enrollment is not supported while endpoints are connected to the enterprise over mobile and remote access (MRA). That means LSCs cannot be installed nor updated when endpoints are connecting over MRA. But this should not matter in general since MRA endpoints connecting via MRA do not use their endpoint certificate whether they are configured with encryption or not.

Note If a video endpoint is configured with encryption using mixed mode (with a phone security profile configured with the Device Security Mode set to Encrypted) and does not have an LSC, it is still able to connect successfully over MRA. However, if or when the encrypted video endpoint connects directly to the enterprise (on-premises), it must have an LSC, otherwise it will not register. This does not apply to Jabber and the 7800/8800 series phones configured in encrypted mode because they would be configured with SIP OAuth in this guide and endpoint certificates are not used with SIP OAuth.

The Collaboration Edge chapter also has some security considerations for Cisco Expressway. Refer that chapter for more details.

Cisco Meeting Server

By default, Cisco Meeting Server does not have any certificates. Cisco Meeting Server supports multiple options for the certificates, but the recommendation in this document is to issue a CA-signed certificate for the database client and another CA-signed certificate for the rest of the services, and then copy those certificates and corresponding private keys across the nodes in the Cisco Meeting Server cluster.

Cisco Meeting Management

Cisco Meeting Management uses a certificate to identify itself to browsers and to call bridges. During setup, Meeting Management generates a self-signed certificate. It should be replaced by a CA-signed certificate.

Cisco Prime Collaboration Deployment

Cisco Prime Collaboration Deployment uses the same platform as Unified CM, but it does not have a graphical user interface for certificate management. For HTTPS, ECDSA is disabled, so it is necessary to sign only the Tomcat certificate with a CA. Use the platform’s command line interface (CLI) to generate a Certificate Signing Request (CSR) and upload a CA-signed Tomcat certificate.

Cisco Prime Collaboration Deployment uses SOAP services, based on HTTPS, to connect to the Cisco Collaboration products to export and/or import data during Cisco Prime Collaboration Deployment tasks.

Encryption

With more services extending beyond the internal network, and with internal networks potentially subject to internal attacks, encryption and authentication are becoming increasingly critical.

Encryption protects against attacks such as eavesdropping, tampering, and session replay. If an unauthorized user was able to capture the traffic, he/she would not be able to decrypt the contents of the communication or modify it without knowing the encryption keys. Encryption also provides authentication through digital certificates when the encrypted communication is set up.

In general, we recommend enabling encryption on the various server connections, as discussed in the TLS Overview section. For Jabber we recommend enabling encrypted media and signaling, which is simple to provision and manage since Jabber can use the OAuth token to perform encrypted media and signaling and does not need an LSC. For phones and video endpoints, we recommend enabling encrypted media and signaling if possible, but it would require more configuration because mixed-mode would have to be enabled and LSCs would have to be installed (the recommendation is to use LSCs instead of MICs).

The authentication can be one-way or two-way; for example, it is one-way between an administrator or end user using a web browser to access web services, where the client (browser) authenticates the web server but where the server does not authenticate the client (browser). Alternatively, the authentication can be two-way with Mutual TLS (MTLS), where the server also authenticates the client. MTLS is used, for example, with the signaling between endpoints and the Unified CM server they are registered to or with Unified CM SIP trunks.

TLS Overview

Transport Layer Security (TLS) is a method for encrypting TCP traffic and is commonly used for web services traffic as well as SIP signaling. The following steps present an overview on how a TLS session is established:

1. A TLS connection is initiated by a TLS client, which connects to a TLS server. The client establishes a TCP connection with the server, sending first a Client Hello that contains a random number and its capabilities. These capabilities include the list of cipher suites the client supports.

2. The TLS server selects one of the cipher suites, typically taking into account the cipher suite preference of the client, and replies with a Server Hello. This message also includes another random number and the server certificate so that the client can authenticate it.

Figure 7-4 illustrates these two steps for establishing a TLS session. For simplicity, it does not include all the messages and possible variations in the TLS handshake. The server certificate could be sent in the Server Hello message or could be sent separately.

Figure 7-4 TLS Handshake

The authentication can be one-way authentication; for example, when an administrator or end user uses a web browser to access web services, where the TLS client (browser) authenticates the web server (TLS Server) but where the server does not authenticate the client (browser). Alternatively, the authentication can be two-way with Mutual TLS (MTLS), where the server also authenticates the client. MTLS is used, for example, with the signaling between endpoints and the Unified CM server they are registered to or with Unified CM SIP trunks. With Mutual TLS (MTLS), the server also authenticates the client. The server sends a client Certificate_Request to the client, which in turn sends back its certificate. Figure 7-5 illustrates this flow at a high level.

Figure 7-5 MTLS Handshake

With RSA, the client encrypts the pre-master secret with the server's public key and sends it to the server. With Diffie-Hellman (DH) key agreement algorithms, the pre-master secret is not sent over the network; instead, the client and server exchange data (computed from random numbers and signed by the private key for authentication purposes) so that the client and the server can derive the pre-master secret on their own. DH combined with changing random numbers (Diffie-Hellman Ephemeral) allows for Perfect Forward Secrecy (PFS).

Then, the master secret is derived and session keys are computed from the master secret. From this point, the client and server stop using the public-private key pair (asymmetric encryption) and start using the shared session keys for encryption (symmetric encryption).

In general, Cisco Collaboration products support TLS version 1.2. However, some products might not support it yet and some older products will not support it at all. In order to maximize interoperability, we recommend using the default configuration and not explicitly disabling TLS 1.0 or TLS 1.1 unless you have specific requirements for doing so. With the default configuration, when both client and server interfaces support TLS 1.2 as is typically the case, TLS 1.2 is negotiated. For more information on TLS 1.2 support with Cisco Collaboration products and the ability to disable lower versions of TLS, refer to the latest version of the TLS Compatibility Matrix for Cisco Collaboration Products, available at

https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/uc_system/unified/communications/system/Compatibility/TLS/TLS1-2-Compatibility-Matrix.html

Cisco Unified CM with IM and Presence and Endpoints

There are three main types of connections to encrypt:

• HTTPS and administrative or user interfaces

Most of those interfaces use encryption by default. For example, the Unified CM administrative web interface and the Unified CM end-user portal use HTTPS. If passwords or other sensitive information is sent in a connection, encrypt that connection; for example, for Unified CM integrated with LDAP, use LDAP over SSL. Or on the endpoints, for example, configure HTTPS for web services such as Extension Mobility.

• Signaling

TLS is mainly used to encrypt call control signaling; for example, with SIP signaling between endpoints and Unified CM servers or in SIP trunks. TLS is also used for other TCP communications such as XMPP.

• Media

The media traffic can be encrypted using Secure RTP (SRTP). The signaling must also be encrypted because the media encryption keys are exchanged between the endpoints through the signaling to Unified CM (using SDES).

Figure 7-6 shows a high-level view of the encrypted signaling and media on the endpoints. TLS is first set up for the SIP signaling between the endpoints and Unified CM (endpoint registration), as shown by step 1 in the figure. When an endpoint is placing a call, media encryption keys are generated and are sent through the SIP TLS channel, and the media is encrypted with SRTP, as shown by step 2 in the figure. As shown in Figure 7-6, with phones and video endpoints, the TLS handshake authentication for signaling is based on certificates on Unified CM and on the endpoints. During the call, the endpoints will also show a lock icon to indicate that the media is encrypted.

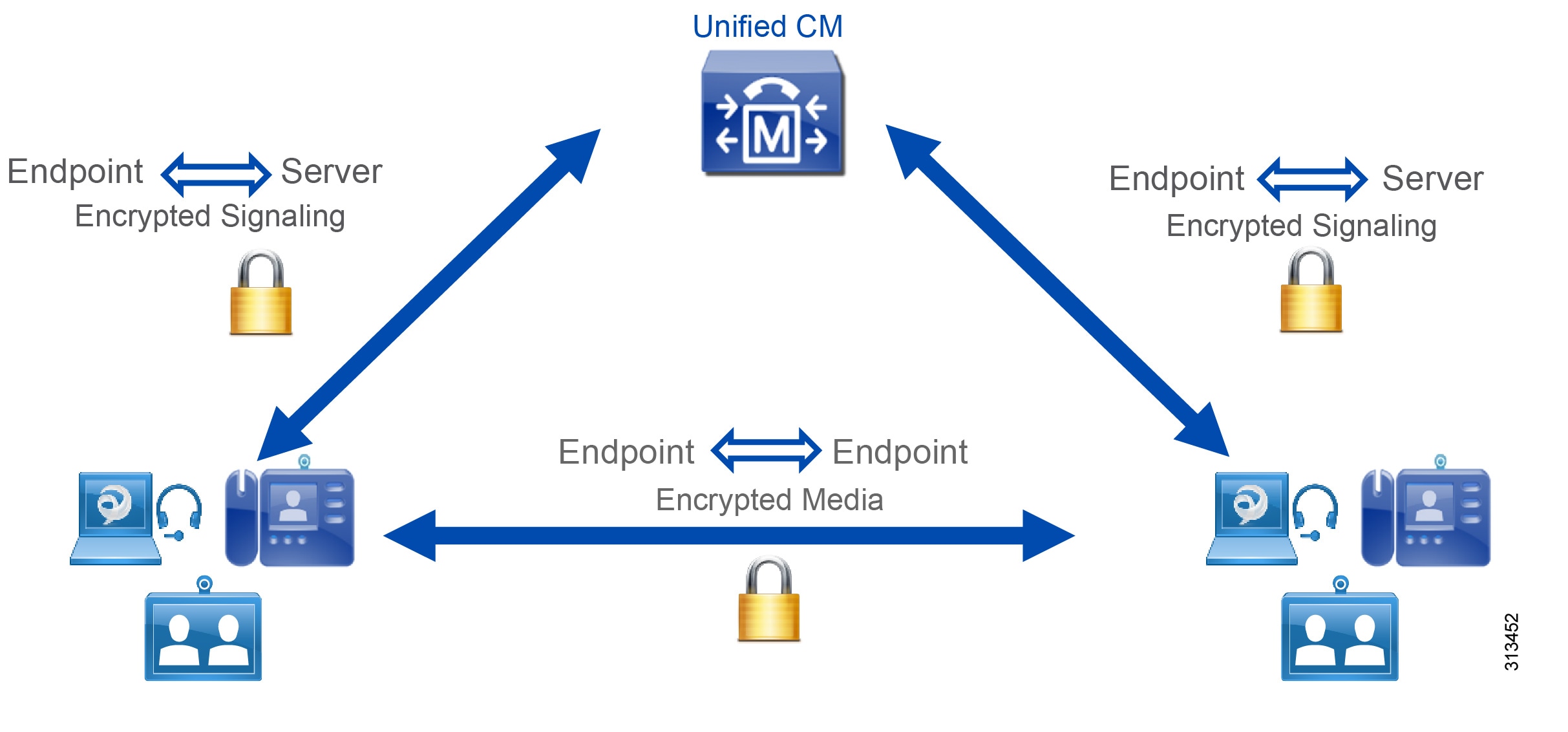

Figure 7-6 Signaling and Media Encryption with Unified CM Registered Endpoints

Some endpoints can be configured with signaling and media encryption and some can be configured without it in the same deployment. If an endpoint configured with signaling and media encryption places a call to an endpoint configured without signaling and media encryption, the call will be successful, the signaling between the encrypted endpoint and Unified CM will be encrypted, the signaling between the unencrypted endpoint and Unified CM will be unencrypted, and the media between the two endpoints will be unencrypted, as shown in Figure 7-7. During the call, the endpoints will not show the lock icon since the media is not encrypted.

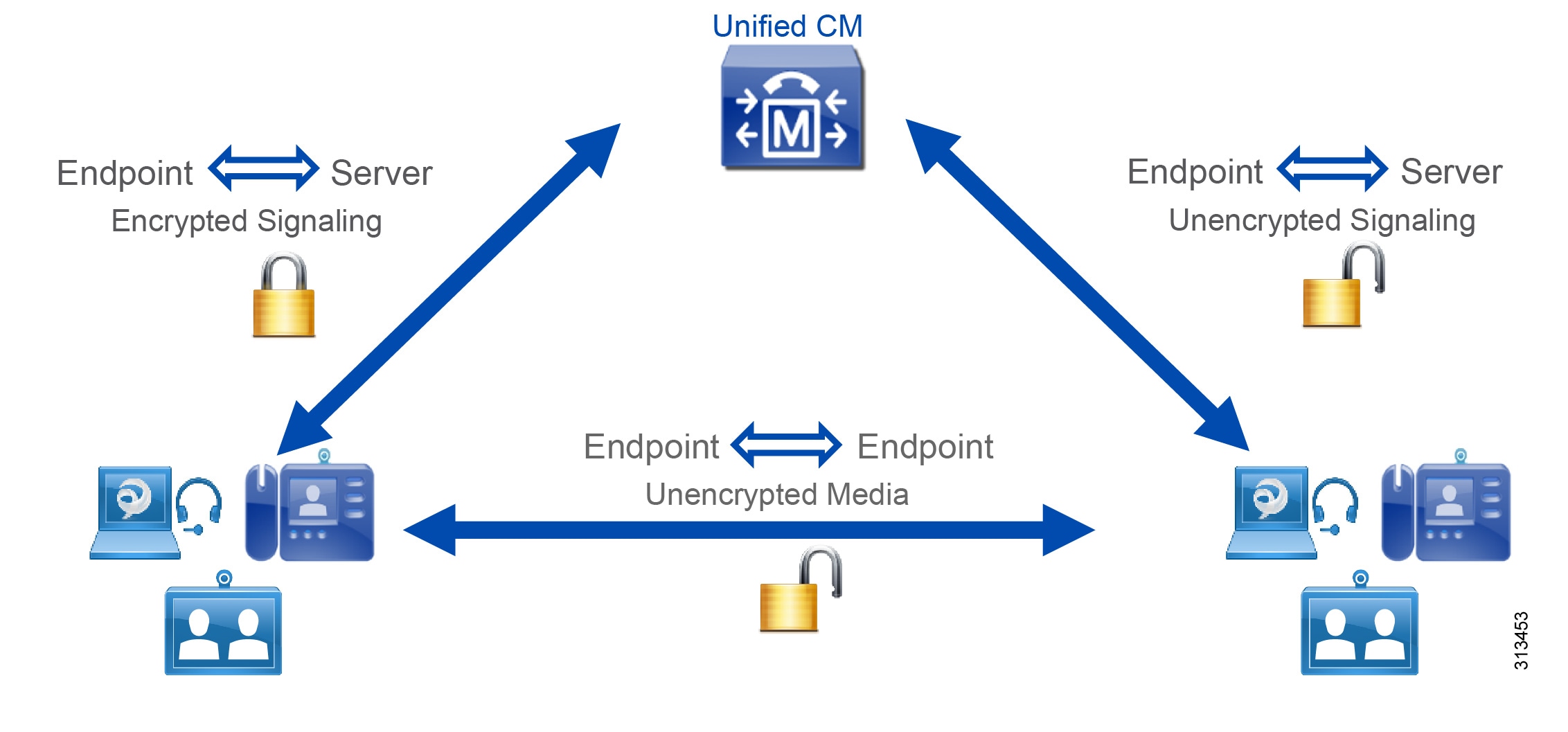

Figure 7-7 Interoperability between encrypted and unencrypted endpoints

Note To encrypt the communications between the nodes within a Unified CM cluster with IM and Presence (for example, Intra-Cluster Communication Signaling (ICCS)), IPsec must be deployed. However, because configuring and operating IPsec adds considerable complexity and affects the scalability of the system, and because Unified CM and IM and Presence nodes are typically located in protected and trusted data centers, deploying IPsec typically is not necessary for most deployments and is not covered in this document.

Cipher Suite Support

A cipher suite is a combination of cryptographic algorithms used to establish a TLS session. The list of supported cipher suites to encrypt communication links depends on the Cisco Collaboration products. The standard cipher suites are supported across the Cisco Collaboration solution. Some products such as Cisco Unified CM, IM and Presence, Unity Connection, and most endpoints listed in this document (for example, Cisco Jabber, Cisco IP Phone 7800 Series and 8800 Series, and Cisco Webex DX Series) support newer and stronger cipher suites that we refer to as Next Generation Encryption (NGE). These stronger cipher suites are based on newer algorithms and/or have longer cryptographic keys, and they are more difficult to compromise. In general, the strongest cipher suite that is supported by both client and server is negotiated. If a client supports only weaker cipher suites, then a weaker cipher might be negotiated. If you want to avoid negotiating down to cipher suites that are too weak, it is in general possible to restrict the cipher suites that can be negotiated. For example, on Unified CM there is a setting to limit TLS cipher suite negotiation to the strongest cipher suite (only AES 256 with SHA 384), another setting to allow strong and medium-strength cipher suites (adds AES 128 with SHA 256), and a setting to allow all supported cipher suites. For more granularity, it is possible to configure the list of cipher suites that can be allowed. For the digital signature algorithm used to set up a TLS connection, RSA is supported across the Cisco Collaboration solution. The other digital signature algorithm that can be used is Elliptic Curve Digital Signature Algorithm (ECDSA), which provides the same level of security as RSA but with smaller keys. However, it is not supported across all Unified CM services, across all Cisco Collaboration products, or on the endpoints, and it requires the server and sometimes the client to have an ECDSA-based certificate. Refer to the Certificate Management section for more details on RSA and ECDSA.

Note Encryption cipher suites based on ECDHE do not require certificates based on ECDSA; they can be negotiated with certificates based on RSA.

The following list discusses cipher suites for the various type of connections and provides our recommendation:

• HTTPS connection

For Unified CM with IM and Presence, there is one Enterprise Parameter setting for the HTTPS cipher suites. This parameter determines whether RSA-only cipher suites are allowed or all cipher suites (RSA and ECDSA) are allowed. We recommend using the default value, which is to allow RSA-only cipher suites (refer to the RSA and ECDSA section for more details).

The typical cipher suites that are negotiated are TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384 or TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256. For those cipher suites, ECDHE (Elliptical Curve Diffie Hellman Ephemeral) and RSA represent the ciphers used for the digital signature algorithm and key agreement. AES (Advanced Encryption Standard), GCM (Gallois Counter Mode) and SHA (Secure Hash Algorithm) represent the ciphers used for the actual encryption and authentication of the encrypted packets.

• SIP TLS (signaling)

With Unified CM, by default, cipher suites based on RSA are preferred over the ones based on ECDSA. This is the recommended configuration because ECDSA is not supported by all endpoints and is not supported across all Cisco Collaboration servers.

By default, all supported cipher suites are enabled. As described earlier, stronger cipher suites will be negotiated first, and typically TLS_ECDHE_RSA with AES256_GCM_SHA384 is negotiated. However, there could be some cases where both parties do not support this cipher suite and a lower strength cipher would need to be negotiated. To maximize cipher suite compatibility across the various components in the solution, we recommend using the default setting (allow all cipher suites, with RSA preferred).

• SRTP (media)

With Unified CM, by default all ciphers are enabled. As described earlier, stronger cipher suites will be attempted first, and typically the strongest one, AEAD AES-256 GCM (Authenticated Encryption with Associated Data, Advanced Encryption Standard, 256 key size, Galois Counter Mode), is negotiated. However, Cisco IOS Gateways, some endpoints, and some servers might not support this cipher suite. For this reason, we recommend using the default setting and allowing fallback to weaker cipher suites. To verify which cipher suites are supported for any Cisco endpoint, go to Cisco Unified Reporting page of Unified CM (System Reports > Unified CM Phone Feature List).

Media and Signaling Encryption

In order to enable encryption for media and signaling, two options are available.

• Unified CM Mixed mode. This is the traditional method. The endpoints authenticate to Unified CM through mutual TLS using their endpoint certificate.
• SIP OAuth (or encrypted mode based on OAuth token). This is the new method supported with Jabber since the collaboration system release 12.5 and supported with the 7800/8800 Series phones starting with the collaboration system release 14. The endpoints use their OAuth token in order to authenticate to Unified CM.

In general, SIP OAuth is recommended over Unified CM mixed mode because it is easier to configure and maintain. Indeed, with Unified CM mixed mode, endpoints certificates are required. Jabber client doesn’t have a MIC so an LSC would need to be installed on each Jabber client. The 7800/8800 Series phones have a MIC by default, but we recommend using Locally Significant Certificates (LSC) over Manufacturer Installed Certificates (MIC), so an LSC would also need to be installed on each 7800/8800 Series phone. Since SIP OAuth is supported with Jabber and the 7800/8800 Series phones, we recommend using SIP OAuth to enable media and signaling encryption on those endpoints. SIP OAuth is not supported with the video endpoints, therefore Unified mixed mode would need to be configured and an LSC would need to be installed on each video endpoint in order to enable media and signaling encryption with those endpoints. The administrator also has to monitor the validity of the LSCs and renew them before they expire. This is summarized in Table 7-8.

With both methods, Unified CM mixed mode and SIP OAuth, the Export-Controlled functionality has to be allowed in Smart Licensing, and the Restricted version of Unified CM software is required. (Media and signaling encryption is not available with the Unrestricted version of Unified CM.)

Those two different methods can be used in the same deployment, for example if video endpoints, 7800/8800 Series phones, and Jabber clients are all present in the same deployment. It does not matter which encryption method is used, for example, endpoints configured with one encryption method can place calls to endpoints configured with the other encryption method or with the same encryption method, the calls will be encrypted. Figure 7-8 shows an example where calls between video endpoints configured with encryption using mixed mode and Jabber clients or 7800/8800 Series phones configured with encryption using SIP OAuth are still encrypted.

Figure 7-8 Interoperability between endpoints configured with encryption based on mixed mode and based on SIP OAuth

In order to deploy SIP OAuth for on-premises 7800/8800 Series phones, you can simply configure SIP OAuth for phones that are already registered to Unified CM and they will automatically securely get an OAuth token (zero touch onboarding.) Alternatively, you could use activation code onboarding for new phones and they will get an OAuth token during onboarding.

In order to deploy SIP OAuth for 7800/8800 Series phones connecting via MRA, you can either use activation code onboarding over MRA. Or you can first onboard your phones while they are inside the corporate network and then change the MRA mode (by configuring “Allow activation code via MRA” on the Unified CM phone page). At this point, the phones can simply be taken outside of the corporate network, connect automatically via MRA using SIP OAuth without end-users having to enter username/password on their phones or perform activation code onboarding over MRA.

TFTP Configuration File Confidentiality

Without TFTP configuration file confidentiality, TFTP configuration files are available in plain text from any of the Unified CM TFTP servers through an unencrypted connection to anyone who has access network connectivity to the TFTP servers. The type of information available in a TFTP configuration file includes, for example, phone firmware information and information on the Unified CM cluster. More importantly, if usernames and passwords are provisioned in the Unified CM administration phone page, they could also be saved in plain text in the TFTP configuration files. Therefore, the general recommendation is to protect the TFTP configuration file confidentiality especially if usernames, passwords, or sensitive information are configured in the Unified CM administration phone page.

TFTP configuration file confidentiality is obtained by one of the following two methods.

• Encrypting the TFTP configuration file itself and use a non-encrypted network connection (HTTP) to the TFTP server.
• Using a mutually authenticated encrypted network connection (HTTPS) between the endpoint and the Unified CM TFTP server without encrypting the TFTP configuration files itself.

The support of those 2 methods depends on the endpoint type and whether the endpoint is configured with SIP OAuth. This is described in Table 7-9.

When endpoints are connecting via MRA, CAPF operations such as installing an LSC or updating an LSC are not supported. For this reason, it is simpler not to enable TFTP configuration file encryption for endpoints connecting through MRA. In this case, ensure that sensitive information (passwords for example) is not configured for those endpoints. In the case of the 7800/8800 phones configured with SIP OAuth and connecting via MRA, TFTP configuration file confidentiality will be performed automatically.

Secure SRST

Survivable Remote Site Telephony (SRST) routers based on the Cisco 4000 Series Integrated Services Routers can also be configured with secure SRST. When endpoints cannot establish communications with the Unified CM call processing servers, they fail-over to SRST, and media and signaling are still encrypted with secure SRST. The endpoints and the SRST routers are able to establish a secure and authenticated session because the endpoints have the SRST certificate in their TFTP configuration file and the SRST routers have the certificate of the CA that signed the LSC in their trust store (CAPF certificate or external CA certificate, manually imported by the administrator).

Cisco Meeting Server

Internal communications between Cisco Meeting Server nodes use encryption (TLS). For external communications between Cisco Meeting Server and other servers or devices, encryption could be forced or optional, depending on the type of communications. For example, the RESTful API communication between Unified CM and Cisco Meeting Server is always encrypted. But the SIP signaling and media between Cisco Meeting Server and Unified CM or endpoints can be configured with or without encryption (encryption is recommended). In a conference, if all participating endpoints are encrypted (encrypted media and signaling), a lock icon is displayed on all endpoints that support the conference lock. If one of the participating endpoints is not secure, an unlocked icon is displayed on all endpoints that support the conference lock.

Cisco Unity Connection

This document covers Cisco Unity Connection media and signaling encryption using Next Generation Encryption (NGE). With encryption, the signaling to/from Unity Connection and the media between the endpoints and the Unity Connection voicemail ports are encrypted. By default, the TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384 cipher suite is negotiated for the signaling between Unified CM and Unity Connection.

Cisco Expressway

This section discusses mobile and remote access (MRA) and business-to-business communications with Cisco Expressway.

Mobile and Remote Access (MRA)

The media and signaling between an MRA endpoint and Expressway-C are always encrypted. If an MRA endpoint calls an endpoint inside the corporate network, then the call leg inside the corporate network (that is, the signaling between Expressway-C and Unified CM, and the media between Expressway-C and the internal endpoint) may be encrypted depending on the configuration. If the MRA endpoint is configured with a phone security profile in non-encrypted mode, then this internal call leg is not encrypted. If Unified CM is in mixed mode and if the MRA endpoint is configured with a phone security profile in encrypted mode, then the SIP signaling between Expressway-C and Unified CM is encrypted. In addition to that, if the internal endpoint is also configured in encrypted mode, then the media between Expressway-C and the internal endpoint is encrypted (SRTP), and therefore the media and signaling are encrypted end-to-end (or more precisely, all the call legs are encrypted). See Figure 7-9.

Figure 7-9 Media and Signaling Encryption for MRA Endpoints

The certificates used for SIP TLS authentication with MRA differs somewhat from on-premises calls. When an endpoint connects to the enterprise through MRA, the endpoint verifies the Expressway-E server certificate but the server does not check the endpoint certificate. This TLS connection does not use mutual authentication. The MIC or LSC on the MRA client, whether it is present or not, is not verified. The user on the MRA client is then authenticated via the username and password against the Cisco Unified CM user database or integrated LDAP server (or IdP if Jabber is deployed with Single Sign-On). For the call leg between Expressway-C and Unified CM, if the MRA endpoint is configured with the encrypted mode, Expressway-C establishes a SIP TLS connection with Unified CM and sends its own certificate on behalf of the MRA endpoint. When Unified CM receives this certificate, it verifies that the phone security profile's name configured for that MRA endpoint is part of the SAN extension of the Expressway-C certificate.

Business-to-Business Communications

With business-to-business communications, the connection between Expressway and the other party does not have to be encrypted. This depends on the Transport parameter in the Expressway zone configuration. If Transport is set to TLS, certificate verification is not required. The administrator can disable certificate verification by setting the TLS verify parameter in the Expressway zone configuration to Off.

Cisco IOS Gateway and Cisco Unified Border Element

Cisco IOS Gateways and Cisco Unified Border Element support TLS and SRTP. For SRTP, the cipher suite AES_CM_128_HMAC_SHA1_32 is negotiated by default. The cipher suite AES_CM_128_HMAC_SHA1_80 can also be configured. In order to support the NGE cipher suites, SRTP pass-through must be configured. The main downside with SRTP pass-through is that media interworking between RTP and SRTP (handling RTP in one call leg and SRTP in the other call leg) is not supported.

By default, if the Cisco IOS Gateway or Cisco Unified Border Element initiates a call and request SRTP but the called endpoint does not support SRTP, the call is dropped. To maximize interoperability, configure srtp fallback and srtp negotiate. When they are configured, the By default, if the Cisco IOS Gateway or Cisco Unified Border Element does not drop the call but instead falls back from SRTP to RTP.

For more information on the SRTP commands, refer to the Cisco IOS Voice Command Reference, available at https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/voice/vcr4/vcr4-cr-book/vcr-s11.html.

Multi-Cluster Considerations

In a multi-cluster deployment, if clusters are located in the same data center, encryption between the clusters is not critical. However, if the clusters are located in different data centers and are connected over service provider links, we recommend enabling encryption on the following intercluster links:

• SIP trunks

Encrypt the SIP trunks between the clusters. With the CallManager certificates signed by a CA and the CA certificate (or root CA certificate) already in the CallManager-trust store, no additional operations related to certificates are required for intercluster SIP trunk encryption.

• Intercluster Lookup Service (ILS) connections

Encrypt Intercluster Lookup Service (ILS) connections. To enable ILS encryption, we recommend using TLS certificates (Tomcat certificates) for authentication and a shared password across the clusters for authorization. With the Tomcat certificates signed by a CA and the CA certificate (or root CA certificate) already in the Tomcat trust store, no additional operations related to certificates are required to enable ILS encryption.

• Location Bandwidth Manager (LBM) links

If call admission control (CAC) is configured, intercluster LBM links should also be encrypted. LBM encryption is also based on Tomcat certificates, and with the Tomcat certificate signed by a CA and the CA certificate already in the Tomcat trust store, there are no additional operations related to certificates required to enable LBM encryption.

High Availability Considerations for Collaboration Security

There is high availability for the Unified CM Trust Verification Service (TVS). The TVS runs as a network service on all Unified CM nodes. Endpoints use the same TVS nodes as the Unified CM call processing nodes they are configured with in the Cisco Unified CM group. Their primary TVS server is their primary call processing subscriber, and their backup TVS server is their backup call processing subscriber.

The Unified CM publisher has a critical role with security components. The publisher runs the CAPF service to which the phones connect. Therefore, if the publisher is down, CAPF operations are not possible. For example, Locally Significant Certificate (LSC) installation is not possible. Generating a multi-server certificate and enabling/disabling mixed mode are also operations that are performed on the publisher and require it to be running.

Collaboration Security Capacity Planning

Enabling encryption can slightly increase the CPU and memory utilization on the servers. However, except for Cisco Unified Border Element, the simplified sizing deployments described in the Sizing chapter are not affected by enabling encryption.

Cisco Unified CM with IM and Presence and Endpoints

For Cisco Unified CM with IM and Presence and for endpoints, at a high level, perform the following configurations:

• Cipher Suites Configuration
• Server Certificate Generation and Management
• Certificate Monitoring
• LDAP over SSL Configuration
• SIP Trunk Encryption

For media and signaling encryption on the endpoints, also perform the following configurations:

• Mixed mode configuration
• CAPF enrollment and configuration of media and signaling encryption on the endpoints
• Secure SRST configuration

Cipher Suites Configuration

There are three main types of secure connections, and there is a cipher enterprise parameter for each of them:

• HTTPS

As discussed in the Cipher Suite Support section, we recommend using the default value for the HTTPS Ciphers enterprise parameter, RSA Ciphers only. If you want to enable ECDSA ciphers, change the setting to All Supported EC and RSA Ciphers.

• TLS (signaling)

As discussed in the Cipher Suite Support section, we recommend using the default value for the TLS Ciphers enterprise parameter, All Ciphers RSA Preferred. However, if you have specific requirements and, for example, need to disable the negotiation of weaker cipher suites or wish to negotiate ECDSA over RSA cipher suites, the TLS Ciphers enterprise parameter can be modified.

• SRTP (media)

As discussed in the Cipher Suite Support section, we recommend using the default value for the SRTP Ciphers enterprise parameter, All Supported Ciphers. However, if you have specific requirements and, for example, need to disable the negotiation of weaker cipher suites, the SRTP Ciphers enterprise parameter can be modified and can be set to Strongest - AEAD AES-256 GCM cipher only or to Medium - AEAD AES-256 GCM, AEAD AES-128 GCM ciphers only, but note that some endpoints and servers do not support these cipher suites. See the Cipher Suite Support section for more details.

Server Certificate Generation and Management

As mentioned in the section on CA-Signed Certificates Instead of Self-Signed Certificates, we recommend using CA-signed certificates for most certificates. We are also recommending using multi-server certificates whenever it is possible. For a list of certificates to be signed by a CA and certificates to be multi-server certificates, refer to Table 7-5 and Table 7-6. Certificates that do not need to be CA-signed and do not need to be multi-server certificates do not need to be modified or regenerated.

At a high level, the procedure to issue CA-signed certificates is as follows:

1. Upload the root CA certificate or certificate chain into the corresponding server trust store.

2. Generate the certificate signing requests (CSR) for the desired certificate.

3. Download the CSRs.

4. Submit the CSRs to the signing CA.

5. Upload the new CA-signed certificate using the appropriate type.

With Unified CM, IM and Presence Service, and Unity Connection, these operations are performed from the OS Administration web interface of your system.

For more detailed steps, refer to the latest version of the Security Guide for Cisco Unified Communications Manager, available at https://www.cisco.com/c/en/us/support/unified-communications/unified-communications-manager-callmanager/products-maintenance-guides-list.html.

1. Upload the root CA certificate

The first step is to import the root CA certificate (or certificate chain if there are intermediate CAs). With Unified CM and IM and Presence Service, this operation needs be done only on the publisher, and the certificate will then automatically be distributed to the trust stores of the other nodes in the cluster.

Go to the OS Administration page and select Security > Certificate Management > Upload Certificate/Certificate chain, and then upload the root CA certificate (or certificate chain) into the trust store of the service for which you are issuing a CA-signed certificate. Note that the RSA and ECDSA certificates share the same trust store. Table 7-10 lists the trust stores where the CA certificate needs to be imported.

2. Generate the certificate signing requests (CSR)

To generate a certificate signing request (CSR), go to the OS Administration page and select Security > Certificate Management > Generate CSR.

Some certificates support the multi-server feature; see Table 7-6 for the list. For those certificates, generate the CSR on the publisher and select Multi-Server (SAN) in the Distribution field of the CSR page. See Table 7-11 for where to generate the CSR for multi-server certificates. For the other certificates, issue a CSR on each node and use the default value for the Distribution field.

In general, you do not have to change the default value for the Common Name field. This field is by default set to the FQDN of the node where you are generating the CSR. With a multi-server certificate, a "-ms" is appended after the hostname portion of the FQDN.

In general, we recommend using a Key Length of 2048 bits or larger and a Hash Algorithm set to SHA256. Therefore, you can use the default value for those fields.

3. Download the CSRs

4. Submit the CSRs to the signing CA

The CA generates corresponding certificates.

Key usage and extended key usage extensions restrict the purposes for which a key may be used. Ensure that the X.509 key usage and X.509 extended key usage in the issued certificate match the request in the CSR. A common problem is that the enterprise CA issuing and signing the certificate is not configured with the appropriate certificate template and does not issue a certificate with the appropriate key usage extension. For example, the Unified CM Tomcat certificate must include the TLS Web Client Authentication extended key usage (EKU). Failure to use a template that includes the TLS Web Client EKU will result in TLS connection setup failures for inter-server communications – for example, Intercluster Lookup Service (ILS) and User Data Store (UDS) – due to the incorrect key usage. Table 7-12 shows an example of the Key Usage Requirements. As a general rule, generate a CSR, note the Key Usage and Extended Key Usage specified in the CSR, ensure the enterprise CA has a certificate template that contains the correct Key Usage and Extended Key and, if not, create a new certificate template. After submitting the CSR to the CA and getting back the certificate, ensure that the Key Usage and Extended Key Usage are still there.

5. Upload the new CA-signed certificate using the appropriate type

Upload the certificate and select the corresponding value for the Certificate Purpose field. For example, if uploading the Tomcat certificate, select tomcat for the Certificate Purpose field.

For multi-server certificates, perform the upload operation on the publisher node and not on the subscriber nodes.

Once certificates are uploaded, services must be restarted. The GUI indicates which service to restart. For example, with the CallManager certificate, the Cisco Tftp, Cisco CallManager, and Cisco CTIManager services must be restarted.

The procedure to issue multi-server self-signed is simple. Go to the OS Administration page and select Security > Certificate Management > Generate Self-signed and select Multi-Server (SAN) in the Distribution field of the certificate page. And again, restart the relevant services indicated by the GUI.

If activation code onboarding is configured with the 7800/8800 Series phones, ensure that Unified CM has been configured in the “Cisco Cloud Onboarding” menu as specified in the Call Control chapter for example with the recommendation to select the checkbox “I want Cisco to manage the Cisco Cloud Service CA Certificates required for this trust”. Also configure the following items:

• In Cisco Unified CM Administration > Advanced Features > MRA Service Domain, create MRA Service Domain(s).
• In Cisco Unified CM Administration > Advanced Features > Cisco Cloud Onboarding, enable activation code onboarding by selecting the “Enable Activation Code Onboarding with Cisco Cloud” checkbox and enter the MRA activation domain to use.

If SIP OAuth and/or activation code onboarding is configured with the 7800/8800 Series phones, also import the following root CA certificates described in Table 7-13 into the Phone-Edge-trust of Unified CM.

Note Once you import a certificate to the Phone-Edge-trust and the 7800/8800 Series phones receive the certificates from that trust store, the 7800/8800 Series phones configured with SIP OAuth will not trust the built-in list of public CA certificates anymore. Therefore, once you upload for example your enterprise root CA certificate into the Phone-Edge-trust for the on-premises SIP OAuth configuration, you would need to upload the certificate of the root CA that signed the Expressway-E certificate even if that CA certificate is part of the built-in list of public CA certificates that the phone used to trust.

Certificate Monitoring

Monitor Certificate Validity

Enable certificate validity monitoring on Unified CM for server certificates and LSCs.

Go to Cisco Unified CM OS Administration > Security > Certificate Monitor and enter the number of days before expiration to begin notification as well as the frequency of the notifications. Enable email notification. Select Enable LSC monitoring so that both server certificates and LSCs are monitored.

Alternatively, if Webex Cloud-Connected UC is deployed, you can configure certificate monitoring for all your Unified CM and IM & Presence servers (and for more UC applications in the future) conveniently from a single place, use the certificate monitoring functionality in Webex Control Hub. Configure the Notification Start Time, Notification Frequency, and the email of the notification recipients.

Certificate Validity Check for Long-Lived Sessions

Unified CM can periodically check the revocation and expiry status of the certificates for long-lived connections. This is done for CTI connections with JTAPI/TAPI applications and LDAP connections (and IPsec, which is not covered in this document).

To enable certificate validity check (expiry and revocation status check) for long-lived connections, enable the Unified CM Enterprise Parameter Certificate Validity Check.

For certificate revocation status validation, also configure Online Certificate Status Protocol (OCSP) in Cisco Unified CM OS Administration > Security > Revocation.

LDAP over SSL Configuration

Configure LDAP over SSL for the connections to Microsoft Active Directory.

On Unified CM, perform the following steps:

• If the LDAP certificate is self-signed, import it into the Unified CM tomcat-trust store.

If the LDAP certificate is signed by a CA, import the root CA certificate into the Unified CM tomcat-trust store. If you configured Online Certificate Status Protocol (OCSP) to monitor the revocation status of the LDAP certificate, also import the LDAP certificate itself.

• In Cisco Unified CM Administration > System > LDAP > LDAP directory and in Cisco Unified CM Administration > System > LDAP > Authentication, change the LDAP port to a secure port and the enable the Use TLS option (check the box). Typically, the LDAP secure port is 3268 if synchronizing against a global catalog (GC) or 636 if synchronizing against the Windows Microsoft Active Directory domain controller (DC). For more information about DC and GC behavior and port numbers, refer to the Microsoft documentation at https://technet.microsoft.com/en-us/library/cc978012.aspx.

SIP Trunk Encryption

This section explains how to configure encryption for Unified CM SIP trunks.

For each type of SIP trunk, create a secure SIP Trunk security profile in the Unified CM Administration interface (under System > Security) for all the existing SIP trunk security profiles. Use the same parameter as the existing SIP trunk security profile (see the Call Control chapter), except for the parameters listed in Table 7-14 .

In the configuration for each SIP trunk, use the settings described in Table 7-15 .

Note Do not encrypt the Presence SIP trunk between Unified CM nodes and IM and Presence nodes because not all messages are encrypted.

Media and Signaling Encryption on the Endpoints

To configure media and signaling encryption on the endpoints, perform the following high-level steps:

• Enable the OAuth token for SIP (for Jabber and the 7800/8800 Series phone).
• Enable mixed mode (for the video endpoints).
• Create phone security profiles with encrypted mode to enable media and signaling encryption.
• Associate the phone security profiles to the endpoints and install a Locally Significant Certificate (LSC) on the phones and on-premises video endpoints, except for the endpoints connecting only through MRA.
• Configure the MRA mode on the 7800/8800 Series phones configured with SIP OAuth.

The following sections provide more details on these steps.

Enable SIP OAuth Mode

With the OAuth token enabled for SIP, Jabber and the 7800/8800 Series phones can perform media and signaling encryption, without the need to install an LSC or enable mixed mode.

To enable the SIP OAuth mode, enter the following CLI command:

Restart the CallManager services on all Unified CM nodes running this service. If you plan to enable mixed mode, you can wait to restart the CallManager service until after you enable mixed mode.

Enable Mixed Mode

Before enabling mixed mode, activate the CAPF service on the Unified CM publisher first. If you activate the CAPF service after enabling mixed mode, the Certificate Trust List (CTL) file will need to be updated.

To enable mixed mode, perform the following steps:

• SSH into the Unified CM publisher.
• Enter the utils ctl set-cluster mixed-mode CLI command.
• Restart the TFTP, CallManager, and CTIManager services on all Unified CM nodes running those services.

For more details, refer to the latest version of the Security Guide for Cisco Unified Communications Manager, available at https://www.cisco.com/c/en/us/support/unified-communications/unified-communications-manager-callmanager/products-maintenance-guides-list.html.

CAPF Online CA Mode

If you chose the CAPF online CA mode where the LSC endpoint certificates are signed by an external CA, perform the following the steps:

1. Import the CA certificate (or trust chain) to the Unified CM CAPF-trust.

2. Import the CA server IIS certificate or its CA certificate (or trust chain) to the Unified CM tomcat-trust, if not already done.

3. If some phones or video endpoints are configured in encrypted mode, import the CA certificate (or trust chain) to the Unified CM CallManager-trust, if not already done.

4. Configure the CAPF service parameters on the Unified CM publisher. Use the following settings:

5. Activate the Cisco Certificate Enrollment Service on the Unified CM publisher, if not already done.

6. Restart the CAPF service.

Phone Security Profiles and LSC Installation

At this point in the configuration process, the server certificates are generated, and mixed mode and SIP OAuth are enabled on Unified CM.

The next step is to create a phone security profile with Device Security Mode set to Encrypted to enable media and signaling encryption on the endpoints. The following considerations apply to the phone security profiles:

• When creating phone security profiles, use the Phone Security Profile Type Universal Device Template. This type of phone security profile is not specific to a particular phone model, so it can be applied to any phone model. This simplifies the configuration and the certificate management. With a phone security profile that is specific to a phone model, when a new type of endpoint is added, a new phone security profile has to be created. If the endpoint is configured for encryption using mixed mode instead of SIP OAuth then the Expressway-C certificate needs to be regenerated with the new phone security device profile name added as a SAN if MRA endpoints are using this phone security profile. With a universal phone security profile, there is no need to create a new phone security profile or to regenerate a new Expressway-C certificate each time you add a new device type.
• A phone security profile can be associated to both MRA and non-MRA endpoints. But ensure that the phone security profile name is in FQDN format if it is associated to MRA endpoints.
• Since our recommendation is to use media and signaling encryption, set the Device Security Mode setting to Encrypted.
• To enable TFTP configuration file encryption, select the TFTP Encrypted Config option (check the box). As discussed in the Architecture section, the recommendation is to enable TFTP encrypted configuration only for on-premises video endpoints and to disable it for endpoints connecting over MRA (and ensure that no sensitive information is entered in the phone page). TFTP Encrypted Config also requires the endpoint to have a certificate installed (MIC or LSC). Refer to the Architecture section for more information on TFTP configuration file confidentiality.
• Select the Enable OAuth Authentication checkbox for the phone security profiles that will be used by Jabber endpoints and the 7800/8800 Series phones (see Table 7-16). This is to configure encryption based on SIP OAuth. If the Device Security Mode is selected but this checkbox is not selected, then encryption is configured based on mixed mode and not based on SIP OAuth. With SIP OAuth, the TFTP configuration file confidentiality cannot be modified, refer to the TFTP configuration file confidentiality section for more information.
• The recommendation in this guide is to enable SIP OAuth for the Jabber endpoints. However, that means that the Jabber TFTP configuration file is not encrypted and not confidential. If TFTP configuration file for Jabber is an absolute requirement for you, then do not configure SIP OAuth for Jabber and install an LSC on the Jabber clients instead. Since installing and managing LSC certificates on Jabber require sizeable additional administrative overhead, we usually do not recommend installing LSC certificates and deploying TFTP configuration file encryption for Jabber endpoints. Instead, we recommend configuring encryption based on SIP OAuth and this is what we cover in this guide.
• The phone security profile also specifies the authentication mode used when an endpoint connects to CAPF. In general, we recommend using the authentication mode By Existing Certificate (precedence to LSC). With this setting, if an endpoint has only an MIC, the existing MIC is used for authentication to CAPF. If the endpoint has an LSC (with or without an MIC), then the LSC is used instead. So this works well for endpoints that have either an MIC or an LSC.
• For the Key Order setting in the phone security profile, select RSA Only ; and for the RSA Key Size setting select 2048 or larger.

With these considerations, you would create different phone security profiles. Table 7-16 shows how they differ. Use the values discussed above for the rest of the settings.

Associate the phone security profiles to endpoints and install a Locally Significant Certificate (LSC) on the on-premises video endpoints

Associate the phone security profiles to all endpoints.

To associate a phone security profile to an endpoint, go to the phone configuration page and select the desired security profile in the Device security profile setting.

Install and LSC on the video endpoints. To configure LSC installation, select Install/Upgrade for the Certificate Operation field on the phone configuration page. In the Certification Authority Proxy Function (CAPF) Information section in the phone configuration page, the CAPF information from the phone security profile should be populated automatically. You need to update only the Operation Completes By field to a future date, if it is not already set.

Then, after associating the phone security profile and optionally configuring LSC installation, save the configuration. Apply the configuration or reset the endpoint. At this point, the phone security profile should be applied. If the LSC installation was configured, the endpoint gets an LSC. (With an authentication string, in some cases, the user has to press the Update button for the LSC installation to proceed.) The endpoint should also be configured with media and signaling encryption.

Tip The Cisco Unified Communications Manager Bulk Administration Tool (BAT) or Cisco Prime Collaboration Provisioning can be used to assign the phone security profile and/or to perform the CAPF enrollment.

Configure the MRA mode on the 7800/8800 Series phones configured with SIP OAuth

When provisioning the 7800/8800 Series phones with SIP OAuth, if the endpoints will be connecting via MRA, select the checkbox Allow Activation Code via MRA in the Unified CM phone page in order to allow activation code onboarding over MRA or when taking an endpoint already configured with SIP OAuth and successfully registered and moving it from on-premises to MRA. If the 7800/8800 Series phones configured as encrypted with SIP OAuth are inside the corporate network, unselect the checkbox Allow Activation Code via MRA, otherwise the endpoints might not be able to register.

Enable Secure Survivable Remote Site Telephony (SRST)

With Survivable Remote Site Telephony (SRST), use the following procedure:

• Use the enterprise CA to sign the certificate of the SRST router. For details on certificate management on a Cisco IOS router, refer to the section on Cisco IOS Gateway and Cisco Unified Border Element.
• Import, into the SRST router, the trust certificate corresponding to the entity that signed the endpoint LSCs, so that SRST is able to authenticate the LSCs. If you used CAPF to issue the LSCs, this is the CAPF certificate. If you use an external CA to issue the LSCs, this is the CA certificate (or trust chain certificates).
• Enable secure SRST by enabling (checking the box) Is SRST Secure? in the SRST reference configuration in Cisco Unified CM Administration > System > SRST.

For more details, refer to the latest version of the Security Guide for Cisco Unified Communications Manager, available at https://www.cisco.com/c/en/us/support/unified-communications/unified-communications-manager-callmanager/products-maintenance-guides-list.html.

Cisco Unity Connection

This section covers Cisco Unity Connection media and signaling encryption using Next Generation Encryption (NGE), which uses the Unity Connection Tomcat certificate instead of the Unity Connection Root and SIP certificates.

At a high-level the steps for enabling NGE for media and signaling on Unity Connection are as follows:

• On Unity Connection, manage certificates.
• On Unity Connection, configure encryption for the telephony integration.
• On the Unified CM, enable encryption on the SIP trunk to Unity Connection.

First, manage the certificates on Unity Connection. On Unity Connection, perform the following steps:

• On the Unity Connection publisher node, upload the root CA certificate (or certificate chain) into the Unity Connection tomcat-trust store. Similarly, upload the root CA certificate into the CallManager-trust store (required with CA-signed CallManager certificates). Those certificates are automatically propagated to the trust stores on the Unity Connection subscriber node.
• On the Unity Connection publisher node, issue a CSR to get a multi-server Tomcat certificate and get it signed by the enterprise CA. As an example, the common name is us-cuc-ms.ent-pa.com. The X509v3 key usage extensions are Digital Signature, Key Encipherment, and Data Encipherment. The X509v3 extended key usage extensions are TLS Web Server Authentication and TLS Web Client Authentication. Since this is a multi-server certificate, the certificate is automatically installed on the Unity Connection subscriber when you install it on the Unity Connection publisher. After installing this new Tomcat certificate, restart the Tomcat service on both Unity Connection nodes.

For details on uploading the CA certificate or issuing a CA-signed Tomcat certificate, refer to the Cisco Unified CM and IM and Presence section. The procedure is the same for Unity Connection.

Since we are assuming the same CA is used with Cisco Unified CM and Unity Connection, there is no need to import the CA certificate into the Unified CM tomcat-trust store; it should already be there.

Next, configure encryption on Unity Connection:

• In Cisco Unity Connection Administration > Telephony Integrations > Security > S IP Security Profile, create a new SIP security profile with the following settings:

Field	Setting
Port	5061
Do TLS	Select this check box

This SIP security profile is automatically assigned the display name 5061/TLS.

• Under Telephony Integrations > Port Group, select the port group PhoneSystem-1 and modify the port group with the following settings:

Field	Setting
SIP Security Profile	Select the SIP Security Profile you created in the previous step (5061/TLS)
Enable Next Generation Encryption	Select this check box
Secure RTP	Select this check box

• On the Port Group page, go to Edit > Servers. In the SIP Servers configuration, ensure that 5061 is configured for the TLS port. In the TFTP Servers configuration, ensure that the Unified CM TFTP servers are configured. This is how Unity Connection automatically downloads the CallManager certificates in its CallManager-trust store when the Port Group has been reset.

Next, enable encryption on the Unified CM SIP trunk to Unity Connection:

• A SIP trunk security profile with encryption and the appropriate X.509 Subject Name should already have been created (see Table 7-14 ). Select this SIP trunk security profile for the SIP trunk to Unity Connection.

At this point, on Unified CM the encrypted SIP trunk should be in full service. When a phone connects to a voicemail port, the media and signaling should also be encrypted. LDAP over SSL should also be configured. Go to Cisco Unity Connection Administration > System Settings > LDAP ; and in the LDAP Directory Configuration and LDAP Authentication pages, select Use TLS and configure the port 636, similarly to the LDAP over SSL configuration on Unified CM.

Collaboration Edge

This section provides high-level information for deploying certificate management and encryption on Cisco Expressway, Cisco IOS Gateways, and Cisco Unified Border Element.

Cisco Expressway

This section discusses certificate management first, then it explains the settings to use for encryption.

Cisco Expressway Certificate Management

As mentioned in the Architecture section, new installations of Cisco Expressway software ship with a temporary trusted CA and a server certificate issued by that temporary CA. Replace the temporary CA certificates with the CA certificates that you trust, and generate CA-signed certificates for Expressway. Use the enterprise CA to sign the Expressway-C certificates and a public CA to sign the Expressway-E certificates. The list of the supported public CAs for Expressway-E is available in the endpoint documentation on cisco.com; for example, see the Certificate Authority Trust List available at https://www.cisco.com/c/en/us/support/collaboration-endpoints/unified-ip-phone-8800-series/products-technical-reference-list.html.

To implement certificate management for Cisco Expressway, use the steps outlined in the following sections.

Upload the CA Root Certificate.

Go to the Trusted CA certificate page (Maintenance > Security certificates > Trusted CA certificate). On this page, replace the existing certificates with a new root CA certificate or certificate chain. Subsequent CA certificates are appended to the existing list of CA certificates. Upload the CA certificate listed in Table 7-17 . This operation has to be done on each Expressway node of both Expressway-C and Expressway-E clusters.

If configuring encryption with SIP OAuth and/or activation code onboarding, ensure OAuth with refresh token is configured. On Expressway C, in Configuration > Unified Communications > Configuration, enable Authorize by OAuth token with refresh.

If using activation code onboarding via MRA with the 7800/8800 Series phones, also enable “Allow activation code onboarding” on that page. With activation code onboarding over MRA, the phones send their MIC certificate to Expressway-E as part of the mutual TLS connection setup. By default, the root certificates of the Cisco Manufacturing CAs that sign the MICs are already in Expressway, but you can verify that by going to the Trusted CA certificate page (Maintenance > Security certificates > Trusted CA certificate) and clicking on Activation code onboarding trusted CA certificates.

Generate a Certificate Signing Request (CSR) for each Expressway node.

1. Go to Maintenance > Security > Server certificate.

2. Generate a CSR.

Subject Alternate Name (SAN) extensions for IM and Presence chat node aliases should be added automatically. Additional SAN extensions might have to be added, depending on whether your Expressway node is an Expressway-C or an Expressway-E node and depending on the features that are deployed. For more details, refer to Table 7-18 .

For more information, refer to the latest version of the Cisco Expressway Certificate Creation and Use Deployment Guide, available at https://www.cisco.com/c/en/us/support/unified-communications/expressway-series/products-installation-and-configuration-guides-list.html.

3. Download the CSR and submit it to the CA so that a CA-signed certificate can be issued. Use the Base 64 format. Verify that the X509v3 Key Usage and X509v3 Extended Key Usage in the CSR are present in the certificate issued by the CA, as shown in Table 7-19 .

4. Upload the new certificate

Cisco Expressway Encryption Configuration

MRA and XMPP Federation

TLS is used for the Unified Communications zone on Expressway-C. Ensure that TLS verify is set to On for all Unified Communications services: Unified CM servers, IM and Presence Service nodes, and Unity Connection. You configure this when performing Unified Communications service node discovery (Configuration > Unified Communications). This ensures that Expressway-C nodes verify the certificates of the Unified Communications nodes.

The Unified Communications traversal zone between Expressway-C and Expressway-E is implicitly configured with TLS certification verification enabled and with media encryption. On the Expressway-C MRA traversal zone, set the Authentication policy to Do not check credentials. On the Expressway-E MRA traversal zone, set the Authentication policy to Do not check credentials and enter a TLS verify subject name that matches the cluster name of the Expressway-C certificate (added as a SAN in the Expressway-C certificate).

The media and signaling traffic between an MRA endpoint and Expressway-E are always encrypted. In order to encrypt the call leg inside the corporate network (that is, the signaling between Expressway-C and Unified CM, and the media between Expressway-C and the internal endpoint), configure the MRA endpoint and the endpoints inside the network with a phone security profile in encrypted mode. When you do so, the media and signaling are encrypted end-to-end (all the call legs are encrypted).

With XMPP federation, we recommend setting the Security mode to TLS Required. However, there are cases where it should be set to TLS optional. For example, TLS Required is not supported with Cisco WebEx Messenger; so if you have XMPP federation with an enterprise using Cisco WebEx Messenger, you should use TLS Optional. In this scenario, you should also set Require Client-side security certificates to Off.

Business-to-Business Communications

As mentioned in the Architecture section, configure Call Processing Language (CPL) rules.

Also, for the Unified CM neighbor zone on Expressway-C, use the recommended settings in Table 7-20 .

For the traversal zone on Expressway-C, use the recommended settings in Table 7-21 .

For the traversal zone on Expressway-E, use the recommended settings in Table 7-22 .

For the default zone (incoming calls), on Expressway-E, use the recommended settings in Table 7-23 .

For the DNS zone (outgoing calls) on Expressway E, use the recommended settings in Table 7-24 .

On Unified CM at this point, the SIP trunk security profile should already have been created. Refer to Table 7-14 for details.

Cisco IOS Gateways and Cisco Unified Border Element

This section discusses certificate management first, then it discusses encryption configuration.

Certificate Management

With Cisco IOS Gateways and Cisco Unified Border Element (CUBE), we also recommend using CA-signed certificates.

There are various ways to upload the certificates. The following procedure is based on the manual certificate enrollment using the terminal. Certificates are in PEM (base 64) format.

1. Create an RSA keypair.

For example: crypto key generate rsa general-keys label CUBE modulus 2048

2. Create a PKI trustpoint for Cisco Unified Border Element (CUBE).

For example, with a manual enrollment using the terminal:

3. Authenticate the trustpoint with the CA and accept the CA certificate.

Basically, this uploads the CA certificate for that trustpoint.

For example: crypto pki authenticate CUBE-Certificate

And then paste the CA certificate in PEM format.

4. Enroll the trustpoint with the CA server. Basically, this creates the Certificate Signing Request (CSR).

For example: crypto pki enroll CUBE-Certificate

In this step, you do not have to include the router serial number or the IP address in the subject name.

5. Sign this CSR with the CA.

Use a CA template that is for Client and Server Web Authentication (TLS Web Client Authentication and TLS Web Server Authentication in the X509v3 Extended Key Usage).

6. Import the certificate that was just generated into the Cisco gateway.

For example, if you are manually importing the certificate in PEM format using the terminal:
crypto pki import CUBE-Certificate certificate

If the Unified CM certificate was not signed by a CA, then the Unified CM CallManager certificate of all the Unified CM call processing subscriber nodes would need to be imported in the Cisco IOS Gateways and Cisco Unified Border Element (CUBE) using a new trustpoint.

Once the certificate management is done, proceed with the encryption configuration.

Encryption Configuration

Follow these steps:

1. Associate the trustpoint with the Cisco IOS voice process.

For example:

2. Enable TLS transport for the dial-peers.

For example:

3. Enable secure signaling.

For example, to enable secure signaling to/from specific devices, configure the following:

4. Enable SRTP.

Cisco IOS Gateways and Cisco Unified Border Element (CUBE) support AES_CM_128_HMAC_SHA1_80 and AES_CM_128_HMAC_SHA1_32 (default). To enable AES_CM_128_HMAC_SHA1_80, configure:

With SRTP pass-thru, stronger ciphers can be used between the source and destination devices, and Cisco Unified Border Element would just forward the packet without processing it. To configure srtp passthru, configure:

Conferencing

This section describes how to deploy Cisco Meeting Server and Cisco TelePresence Management Suite (TMS) for conferencing services.

Cisco Meeting Server

Cisco Meeting Server does not provide a web interface to manage certificates. Certificate management is done via the mainboard management processor (MMP) commands.

Use the following high-level steps to generate and install the Cisco Meeting Server certificates:

• Generate a single CSR (and private key) for all services. In this CSR, specify the organization domain in the CN field and in the SAN extension. Also specify the FQDN of all the Cisco Meeting Server nodes in the SAN extension. Download the private key via SFTP. Sign the CSR by your enterprise CA. Ensure that the Extended Key Usage Server Authentication and Client Authentication are present. In this guide we refer to this certificate as the shared certificate.
• Upload via SFTP the new shared CA-signed certificate (and associated private key) and CA certificate to all Cisco Meeting Server nodes. Also upload the new database client CA-signed certificate (and associated private key) to the Cisco Meeting Server nodes running the Call Bridge service with no local database.
• Install the certificates.

– Web Admin: On each node running this service, disable the service, install the shared certificate and associated private key, and then enable the service.

– Call Bridge: On each node running this service, install the shared certificate and associated private key, and restart the service.

– Web Bridge: On each node running this service, install the shared certificate and associated private key and the CA certificate, and restart the service.

– Database server: On each node with a local database, ensure that database clustering is not activated, then install the shared certificate and associated private key. Once this is done, clustering configuration between the nodes can be enabled.

– Database client: On each node running the Call Bridge service with no local database, ensure that database clustering is not activated, then install the database client certificate and associated private key. Once this is done, clustering configuration between the nodes can be enabled.

The following sections provide examples of the above steps. In those examples, the shared Cisco Meeting Server certificate signed by the enterprise CA is CAsignedCluster.cer, the corresponding private key is CAsignedCluster.key, and the root CA certificate is rootCAcert.cer.

Generate CSRs.

For the database client certificate:

For the shared certificate:

Issue certificates based on those CSRs

Install certificates for the various services and Cisco Meeting Server nodes.

On each node running the Web Admin service:

On each node running the Call Bridge service:

Create a file containing the CMS certificate and the CA certificate chain. We name this file uscmsclusterfullchain.cer in this example.

On each node running the Web Bridge service:

On the node that will host the database master (usually first node that is configured with a database):

On the other nodes that will also run the local database:

If you have a node running the Call Bridge service but with no local database:

For more information, refer to the latest version of the Cisco Meeting Server, Certificate Guidelines for Scalable and Resilient Server Deployments, available at https://www.cisco.com/c/en/us/support/conferencing/meeting-server/products-installation-and-configuration-guides-list.html.

On Unified CM, ensure that a SIP trunk security profile is configured with encryption, TLS, and the Cisco Meeting Server XMPP domain name in the X.509 Subject Name, as described in the section on SIP Trunk Encryption. Associate this SIP trunk security profile with all the SIP trunks to CMS nodes running the Call Bridge service.

Cisco Meeting Management

Cisco Meeting Management (CMM) is installed by default with a self-signed certificate.

Generate a CA-signed certificate with the CDRreceiveraddress as well as any addresses your users will use for the browser interface.

The private key and certificate are created outside of Cisco Meeting Management by performing the following steps:

1. Generate a private key using the following command:

2. Generate a certificate signing request (CSR) using the private key from step 1:

3. Enter the data requested, including Country, State or province, Organization name, and so forth.

4. Send the Cisco Meeting Management certificate signing request file, us-cmm-certcsr.pem, to be signed by your enterprise certificate authority (CA). You should get a certificate chain back from the CA, us-cmm.cer.

5. Upload the private key and certificate chain through the CMM administration pages.

6. Restart Cisco Meeting Management as prompted by the administration pages.

Cisco TelePresence Management Suite

The private key and certificate are created outside of Cisco TelePresence Management Suite (TMS). You can do this with OpenSSL, for example, by following these high-level steps:

1. Generate a private key using the following command:

2. Generate a certificate signing request (CSR) using the private key above:

3. Enter the data requested, including Country, State or province, Organization name, and so forth.

4. Send the TMS certificate signing request file, us-tms1-certcsr.pem, to be signed by your enterprise certificate authority (CA). You should receive the signed certificate, us-tms1.cer, back from the CA.

5. Combine the signed certificate with the private key:

6. On TMS, import the root CA certificate into the Certification Authority Trust store. Also import the new TMS certificate and associated private key to the Personal trust store.

7. With Microsoft Management Console (MMC) and the certificate Snap-in, select the certificate you just imported, right-click, and select All Tasks > Manage Private Keys. Provide read and full control permissions to the users that are used by TMS (in most cases they will be the SERVICE and NETWORK SERVICE users).

8. Go to the TMS tool and in Security Settings > TLS Certificates, select the new certificate.

9. Go to IIS and configure binding to the new certificate.

10. Restart the IIS and TMS services.

For more information, refer to the latest version of the Cisco TelePresence Management Suite Administrator Guide, available at https://www.cisco.com/c/en/us/support/conferencing/telepresence-management-suite-tms/products-maintenance-guides-list.html.

Also refer to the TMS Certificates with TMS Tools for TLS Communication Configuration Example, available at https://www.cisco.com/c/en/us/support/docs/conferencing/telepresence-management-suite-tms/118723-configure-tms-00.html.

Collaboration Management Services

Cisco Prime Collaboration Deployment

Cisco Prime Collaboration Deployment does not have a graphical user interface (GUI) for the platform administration. To issue a CA-signed certificate, go to the command line interface (CLI) and issue a CSR. Use the CLI commands set csr gen tomcat to generate a CSR, show csr own tomcat /tomcat.csr to display the CSR in PEM format, set cert import trust tomcat to import CA and/or subordinate CA certificates, and set cert import own tomcat tomcat-trust/ <tomcat-certificate-name> to import the Tomcat certificate.

Restart the Tomcat service with the command utils service restart Cisco Tomcat.

Multi-Cluster Considerations

In a multi-cluster deployment, if clusters are not part of the same data center, enable encryption for the intercluster links.

For the SIP trunks, since our recommendation is to use CA-signed certificates for CallManager, and assuming the same CA is used for the different clusters, there is no need to exchange CallManager or CA certificates between the clusters.

To enable ILS encryption, we recommend using TLS certificates for authentication and using a password for authorization. In the Unified CM ILS configuration page, select the Use TLS Certificates option (check the box), select the Use Password option (check the box), and enter a password that will be shared between the Unified CM clusters. With the Tomcat certificate signed by the enterprise CA, and with the enterprise root CA certificate (or certificate chain) already in the Tomcat trust store, there are no additional operations required to enable ILS encryption for the certificates.

To enable LBM encryption, simply set the Unified CM Enterprise Parameter LBM Security Mode to Secure. Again, with the Tomcat certificate signed by the enterprise CA, and with the enterprise root CA certificate already in the Tomcat trust store, there are no additional operations required to enable LBM encryption for the certificates.
