Technical Specifications

Environmental and Physical Specifications

This table describes the environmental specifications.

Table 1. Environmental Specifications for the Switch

Environmental Ranges

Operating temperature

1

23 to 113°F (–5 to 45°C)

Storage temperature

–40 to 158°F (–40 to 70°C)

Relative humidity

5 to 90% (noncondensing)

Operating altitude

Up to 10,000 ft (3000 m)

Storage altitude

Up to 15,000 ft (4500 m)
1 Minimum ambient temperature for cold start is 32°F (0°C)

This table describes the environmental specifications.

Table 2. Environmental Specifications for the Power Supplies

Environmental Ranges

Operating temperature

23°F to 113°F (–5°C to 45°C) up to 5000 feet (1500m)

23°F to 104°F (–5°C to 40ºC) up to 10,000 feet (3000m)

Storage temperature

–40 to 158°F (–40 to 70°C)

Relative humidity

5% to 90% (noncondensing)

Altitude

10,000 ft (3,000 m) up to 45°C

This table describes the physical specifications.

Table 3. Physical Specifications for the Switch

Dimensions (H x W x D)

Chassis Dimensions

Chassis Dimensions with the FAN FRUs and the power supplies installed

1.73 x 17.5 x 13.8 in. (4.4 x 44.4 x 35 cm) C9200-24P

1.73 x 17.5 x 15.4 in. (4.4 x 44.4 x 39.1 cm) C9200-24P

1.73 x 17.5 x 13.8 in. (4.4 x 44.4 x 35 cm) C9200-24PB

1.73 x 17.5 x 15.4 in. (4.4 x 44.4 x 39.1 cm) C9200-24PB

1.73 x 17.5 x 13.8 in. (4.4 x 44.4 x 35 cm) C9200-48P

1.73 x 17.5 x 15.4 in. (4.4 x 44.4 x 39.1 cm) C9200-48P

1.73 x 17.5 x 13.8 in. (4.4 x 44.4 x 35 cm) C9200-48PB

1.73 x 17.5 x 15.4 in. (4.4 x 44.4 x 39.1 cm) C9200-48PB

1.73 x 17.5 x 13.8 in. (4.4 x 44.4 x 35 cm) C9200-48PL

1.73 x 17.5 x 15.4 in. (4.4 x 44.4 x 39.1 cm) C9200-48PL

1.73 x 17.5 x 13.8 in. (4.4 x 44.4 x 35 cm) C9200-48T

1.73 x 17.5 x 15.4 in. (4.4 x 44.4 x 39.1 cm) C9200-48T

1.73 x 17.5 x 13.8 in. (4.4 x 44.4 x 35 cm) C9200-24PXG

1.73 x 17.5 x 15.4 in. (4.4 x 44.4 x 39.1 cm) C9200-24PXG

1.73 x 17.5 x 13.8 in. (4.4 x 44.4 x 35 cm) C9200-48PXG

1.73 x 17.5 x 15.4 in. (4.4 x 44.4 x 39.1 cm) C9200-48PXG

1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm) C9200L-24P-4G

1.73 x 17.5 x 12.9 in. (4.4 x 44.5 x 32.9 cm) C9200L-24P-4G

1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm) C9200L-24P-4X

1.73 x 17.5 x 12.9 in. (4.4 x 44.5 x 32.9 cm) C9200L-24P-4X

1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm) C9200L-24T-4G

1.73 x 17.5 x 12.9 in. (4.4 x 44.5 x 32.9 cm) C9200L-24T-4G

1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm) C9200L-24T-4X

1.73 x 17.5 x 12.9 in. (4.4 x 44.5 x 32.9 cm) C9200L-24T-4X

1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm) C9200L-48P-4G

1.73 x 17.5 x 12.9 in. (4.4 x 44.5 x 32.9 cm) C9200L-48P-4G

1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm) C9200L-48P-4X

1.73 x 17.5 x 12.9 in. (4.4 x 44.5 x 32.9 cm) C9200L-48P-4X

1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm) C9200L-48PL-4G

1.73 x 17.5 x 12.9 in. (4.4 x 44.5 x 32.9 cm) C9200L-48PL-4G

1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm) C9200L-48PL-4X

1.73 x 17.5 x 12.9 in. (4.4 x 44.5 x 32.9 cm) C9200L-48PL-4X

1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm) C9200L-48T-4G

1.73 x 17.5 x 12.9 in. (4.4 x 44.5 x 32.9 cm) C9200L-48T-4G

1.73 x 17.5 x 11.3 in. (4.4 x 44.5 x 28.8 cm) C9200L-48T-4X

1.73 x 17.5 x 12.9 in. (4.4 x 44.5 x 32.9 cm) C9200L-48T-4X

1.73 x 17.5 x 13.8 in. (4.4 x 44.5 x 35 cm) C9200L-24PXG-4X

1.73 x 17.5 x 15.4 in. (4.4 x 44.5 x 39.1 cm) C9200L-24PXG-4X

1.73 x 17.5 x 13.8 in. (4.4 x 44.5 x 35 cm) C9200L-24PXG-2Y

1.73 x 17.5 x 15.4 in. (4.4 x 44.5 x 39.1 cm) C9200L-24PXG-2Y

1.73 x 17.5 x 13.8 in. (4.4 x 44.5 x 35 cm) C9200L-48PXG-4X

1.73 x 17.5 x 15.4 in. (4.4 x 44.5 x 39.1 cm) C9200L-48PXG-4X

1.73 x 17.5 x 13.8 in. (4.4 x 44.5 x 35 cm) C9200L-48PXG-2Y

1.73 x 17.5 x 15.4 in. (4.4 x 44.5 x 39.1 cm) C9200L-48PXG-2Y

Weight measurement is calculated with one power supply installed.

Table 4. Weight Measurements

Switch Model

Weight

C9200-24T

11 lb (5 kg)

C9200-24P

11 lb (5 kg)

C9200-24PB

11 lb (5 kg)

C9200-48T

11.5 lb (5.2 kg)

C9200-48P

11.5 lb (5.2 kg)

C9200-48PB

11.5 lb (5.2 kg)

C9200-48PL

11.5 lb (5.2 kg)

C9200-24PXG

11.4 lb (5.15 kg)

C9200-48PXG

11.9 lb (5.44 kg)

C9200L-24T-4G

9.6 lb (4.35 kg)

C9200L-24P-4G

10.4 lb (4.71 kg)

C9200L-48T-4G

10 lb (4.53 kg)

C9200L-48P-4G

10.6 lb (4.8 kg)

C9200L-48T-4X

10 lb (4.53 kg)

C9200L-48P-4X

10.6 lb (4.8 kg)

C9200L-24P-4X

10.4 lb (4.71 kg)

C9200L-24T-4X

9.6 lb (4.35 kg)

C9200L-48PL-4G

10.6 lb (4.8 kg)

C9200L-48PL-4X

10.6 lb (4.8 kg)

C9200L-24PXG-4X

12 lb (5.44 kg)

C9200L-24PXG-2Y

12 lb (5.44 kg)

C9200L-48PXG-4X

12.6 lb (5.71 kg)

C9200L-48PXG-2Y

12.6 lb (5.71 kg)

This table describes the physical specifications.

Table 5. Physical Specifications for the Power Supplies

Weight

PWR-C5-125WAC

1.5 lb (0.68 kg)

PWR-C5-600WAC

1.7 lb (0.77 kg)

PWR-C5-1KWAC

2 lb (0.9 kg)

PWR-C6-125WAC

1.5 lb (0.68 kg)

PWR-C6-600WAC

1.7 lb (0.77 kg)

PWR-C6-1KWAC

2 lb (0.9 kg)

Dimensions (H x D x W)

The dimensions shown include the extraction handle and the keying feature.

PWR-C5-125WAC

1.58 x 4.0 x 7.6 in. (40.1 X 101.6 X 193 mm)

PWR-C5-600WAC

PWR-C5-1KWAC

PWR-C6-125WAC

PWR-C6-600WAC

PWR-C6-1KWAC

AC Power Cord Specifications

This table lists the specifications for the AC power cords that are available for the AC-input power supplies.

Table 6. AC Power Cords Power Supplies

Locale

Part Number

Cordset Rating

Length

AC Source Plug Type

Argentina

CAB-TA-AR

250 VAC, 10 A

2.5 m
Figure 1. CAB-TA-AR= (Argentina)


Australia

CAB-TA-AP

250 VAC, 10 A

2.5 m
Figure 2. CAB-TA-AP= (Australia)


Brazil

CAB-ACBZ-12A

125 VAC, 12 A

2.5 m
Figure 3. CAB-ACBZ-12A= (Brazil)

Brazil

CAB-ACBZ-10A

250 VAC, 10 A

2.5 m
Figure 4. CAB-ACBZ-10A= (Brazil)


China

CAB-TA-CN

250 VAC, 10 A

2.5 m
Figure 5. CAB-TA-CN= (China)

Denmark

CAB-TA-DN

250 VAC, 10 A

2.5 m
Figure 6. CAB-TA-DN= (Denmark)

Europe

CAB-TA-EU

250 VAC, 10 A

2.5 m
Figure 7. CAB-TA-EU= (Europe)

India

CAB-TA-IN

250 VAC, 10 A

2.5 m

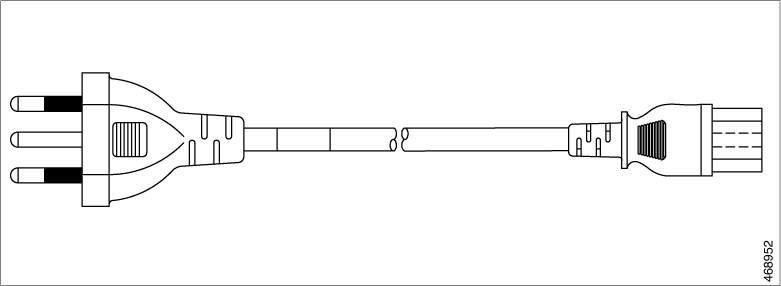

Figure 8. CAB-TA-IN= (India)

Israel

CAB-TA-IS

250 VAC, 16 A

2.5 m
Figure 9. CAB-TA-IS= (Israel)

Italy

CAB-TA-IT

250 VAC, 10 A

2.5 m
Figure 10. CAB-TA-IT= (Italy)

Japan
CAB-TA-JP2

125 VAC, 12 A

2.5 m
Figure 11. CAB-TA-JP= (Japan)

Japan

CAB-TA-250V-JP

250 VAC, 12 A

2.5 m
Figure 12. CAB-TA-250V-JP= (Japan)

Japan
CAB-TA-125V-JP3

125 VAC, 12 A

2.5 m

-

North America

CAB-TA-NA

125 VAC, 12 A

2.5 m
Figure 13. CAB-TA-NA= (North America)

Switzerland

CAB-TA-SW

250 VAC, 10 A

2.5 m
Figure 14. CAB-TA-SW= (Switzerland)

United Kingdom

CAB-TA-UK

250 VAC, 10 A

2.5 m
Figure 15. CAB-TA-UK= (United Kingdom)

Cabinet jumper power cord, C14-C15 connectors

CAB-C15-CBN

250 VAC, 13 A

1.22 m
Figure 16. CAB-C15-CBN=
2

Note


This power cord is not rated for use with PWR-C1-1100WAC or PWR-C1-1100WAC-P power supplies.
3

Note


48 port only.

Specifications for the Power Supplies and Fans

Table 7. Power Specifications for the AC Power Supplies

Power Requirements

Maximum output power




  • PWR-C5-125WAC and PWR-C6-125WAC: 125 W

  • PWR-C5-600WAC and PWR-C6-600WAC: 600 W

  • PWR-C5-1KWAC and PWR-C6-1KWAC: 1000 W

Input voltage and Frequency


100 to 240 VAC(autoranging) 50-60 Hz

Input current

  • PWR-C5-125WAC and PWR-C6-125WAC: 1.6-0.7A

  • PWR-C5-600WAC and PWR-C6-600WAC: 7-2.8A

  • PWR-C5-1KWAC and PWR-C6-1KWAC: 12-6A

Output ratings

  • PWR-C5-125WAC and PWR-C6-125WAC: 12V @ 10.5A

  • PWR-C5-600WAC and PWR-C6-600WAC: 54V @ 11.1A

  • PWR-C5-1KWAC and PWR-C6-1KWAC: 54V @ 16.5A

Total output BTU

  • PWR-C5-125WAC and PWR-C6-125WAC: 426.5 BTUs per hour, 125W

  • PWR-C5-600WAC and PWR-C6-600WAC: 2047.3 BTUs per hour, 600W

  • PWR-C5-1KWAC and PWR-C6-1KWAC: 3412 BTUs per hour, 1000W
Table 8. Fan Module Environmental and Physical Specifications

Environmental Ranges

Operating temperature

23 to 176°F (–5 to 80°C)

Storage temperature

–40 to 185°F (–40 to 85°C) up to 15,000 ft (4500 m)

Relative humidity

5 to 95% (noncondensing)

Altitude

Up to 13,000 ft (4000 m)

Physical Specification


Dimensions (H x D x W)

1.62 x 1.73 x 4.24 in. (4.11 x 4.39 x 10.76 cm)

Weight (for three fans)

0.48 lb (0.21 kg)

Operating Specification

Airflow

20 cfm
