Specific License Reservation

Specific License Reservation allows customers in highly secure networks to use Smart Licensing (and Smart licenses) without communicating the license information.

For a more detailed overview on Cisco Licensing, go to cisco.com/go/licensingguide.

Introduction to Specific License Reservation

Devices that are registered with smart licenses share device information at regular intervals with Cisco Smart Software Manager (SSM). Devices that are deployed in a highly secure network must not share the device information externally. Cisco offers license reservation as an on-request configuration for these devices.


Note

License reservation provides limited or no functionality to certain smart licensing features such as transfer of licenses between products, license usage, asset management and so on.

Specific License Reservation (SLR) allows reservation of specific licenses, including add-on licenses. Begin by requesting license reservation for your Smart Account. After you have received a response from the licensing support team, you can proceed with the next steps, as outlined below.

To reserve specific licenses for a device, generate a request code from the device. Enter the request code in Cisco SSM along with the required licenses and their quantity, and generate an authorization code. Enter the authorization code on the device to map the license to the Unique Device Identifier (UDI).

To reserve specific licenses for a stack configuration, generate a request code for each member in the stack. Generate individual authorization codes for each of the request codes. Register each member of the stack with the generated authorization code.

To reserve specific licenses for modular switches, generate request codes for the supervisor module and chassis module separately. Enter the request code in Cisco SSM and select the required licenses (Network license for the supervisor module and DNA license for the chassis module) and generate authorization codes. Register the supervisor module and the chassis module with the respective authorization codes.

Requesting License Reservation for Your Smart Account

To request license reservation to your Smart Account in Cisco Smart Software Manager, complete the following steps:

  1. Go to Support Case Manager.

  2. Click OPEN NEW CASE

  3. Select Software Licensing

The licensing team will contact you to start the process or for any additional information.

Migrating Traditional Licenses to Cisco SSM

Cisco SSM allows you to manage all your Cisco smart software licenses from one centralized portal. The traditional license that the device is registered with should be migrated to Cisco SSM before license reservation.

Raise a request for license migration with the Cisco Technical Assistance Center (TAC). After the request is approved, Cisco TAC requests the Global Licensing Operation (GLO) team to deposit the license in Cisco SSM.

Registering a Device with SLR

To register a device with SLR, perform the following tasks:

  1. Enable license reservation on a device.

  2. Generate a license reservation request code from the device.

  3. Enter the request code in Cisco SSM, reserve a license, and generate an authorization code.

  4. Register the device with the generated authorization code.

Configuring the License Level

This procedure is optional. Use this procedure to:

  • Downgrade or upgrade licenses.

  • Enable or disable an evaluation or extension license.

  • Clear an upgrade license.

Configure the required license levels on the device before registering. The following are the license levels that are available for the Cisco Catalyst 3000 Series Switches:

Base licenses

  • LAN Base—Supports Layer 2 features.

  • IP Base—Supports Layer 2 and Layer 3 features.

  • IP Services—Supports Layer 2, Layer 3, and IPv6 features.

Add-on licenses—These licenses can be subscribed for a fixed term of three, five, or seven years.

  • Cisco Digital Networking Architecture (DNA) Essentials

  • Cisco DNA Advantage (includes DNA Essentials)

To configure the license levels, follow this procedure:

Procedure

  Command or Action Purpose
Step 1

enable

Example:

> enable

Enables privileged EXEC mode.

Enter your password, if prompted.
Step 2

configure terminal

Example:

# configure terminal

Enters global configuration mode.
Step 3

license boot level license_level

Example:

(config)# license boot level ipservices

Activates the licenses on the device.
Step 4

exit

Example:

(config)# exit

Returns to privileged EXEC mode.
Step 5

write memory

Example:

# write memory

Saves the license information on the device.
Step 6

show version

Example:

# show version
Snippet
------------------------------------------------------------------------------
Technology-package Current     Type                     Technology-package Next reboot
------------------------------------------------------------------------------
ipbasek9                       Smart License                    ipservicesk9
None                           Subscription Smart License       None

Shows license-level information.

Step 7

reload

Example:

# reload

Reloads the device.

Enabling SLR on a Device

To enable SLR, perform this procedure:

Procedure

  Command or Action Purpose
Step 1

enable

Example:

> enable

Enables privileged EXEC mode.

Enter your password, if prompted.
Step 2

configure terminal

Example:

# configure terminal

Enters global configuration mode.
Step 3

license smart reservation

Example:

(config)# license smart reservation

Enables SLR. Use the no form of this command to disable SLR.

Step 4

exit

Example:

(config)# exit

Exits global configuration mode, and returns the device to privileged EXEC mode.

Generating a Request Code from a Device

After SLR is enabled, you must generate a request code from the device.

To generate a request code, perform this procedure:

Procedure

  Command or Action Purpose
Step 1

enable

Example:

> enable

Enables privileged EXEC mode.

Enter your password, if prompted.
Step 2

license smart reservation request [all | local]

Example:

# license smart reservation request local
Enter this request code in the Cisco Smart Software Manager portal:
CK-ZWS-C3850-24P:FCW1831C1A2-BgPWudjgx-50

Generates a request code that needs to be entered in Cisco SSM. The request code can be generated for the following:

  • all —Generates a request code for all connected devices.

  • local —Generates a request code for the active device.

What to do next

Reserving a License in Cisco SSM.

Verifying the License Status After Generating a Request Code

To verify the license status after generating a request code, use the show license reservation command:

Device> enable
Device# show license reservation
Overall status:
  Active: PID:WS-C3850-24P,SN:FCW1831C1A2
    License reservation: ENABLED
      Reservation status: RESERVATION IN PROGRESS on Jun 12 15:36:04 2018 UTC
      Export-Controlled Functionality: Not Allowed
      Request code: CK-ZWS-C3850-24P:FCW1831C1A2-BgPWudjgx-50
      Last return code: CgTDxM-Wy7B7z-dxBBCu-E4o2BG-s8tzsB-SfRnF9-21KoGt-LU7Ckp-Kj2

Reserving a License in Cisco SSM

Procedure

Step 1

Log in to the Cisco SSM from https://software.cisco.com/#.

Log in to the Cisco SSM using the username and password provided by Cisco.

Step 2

Click the Inventory tab.

Step 3

From the Virtual Account drop-down list, choose your virtual account.

Step 4

Click the Licenses tab.

Step 5

Click License Reservation.

The Smart License Reservation window is displayed. The Enter Request Code tab is selected by default.

Step 6

In the Reservation Request Code field, enter the request code.

Step 7

Click Next.

The Select Licenses tab is displayed.

Step 8

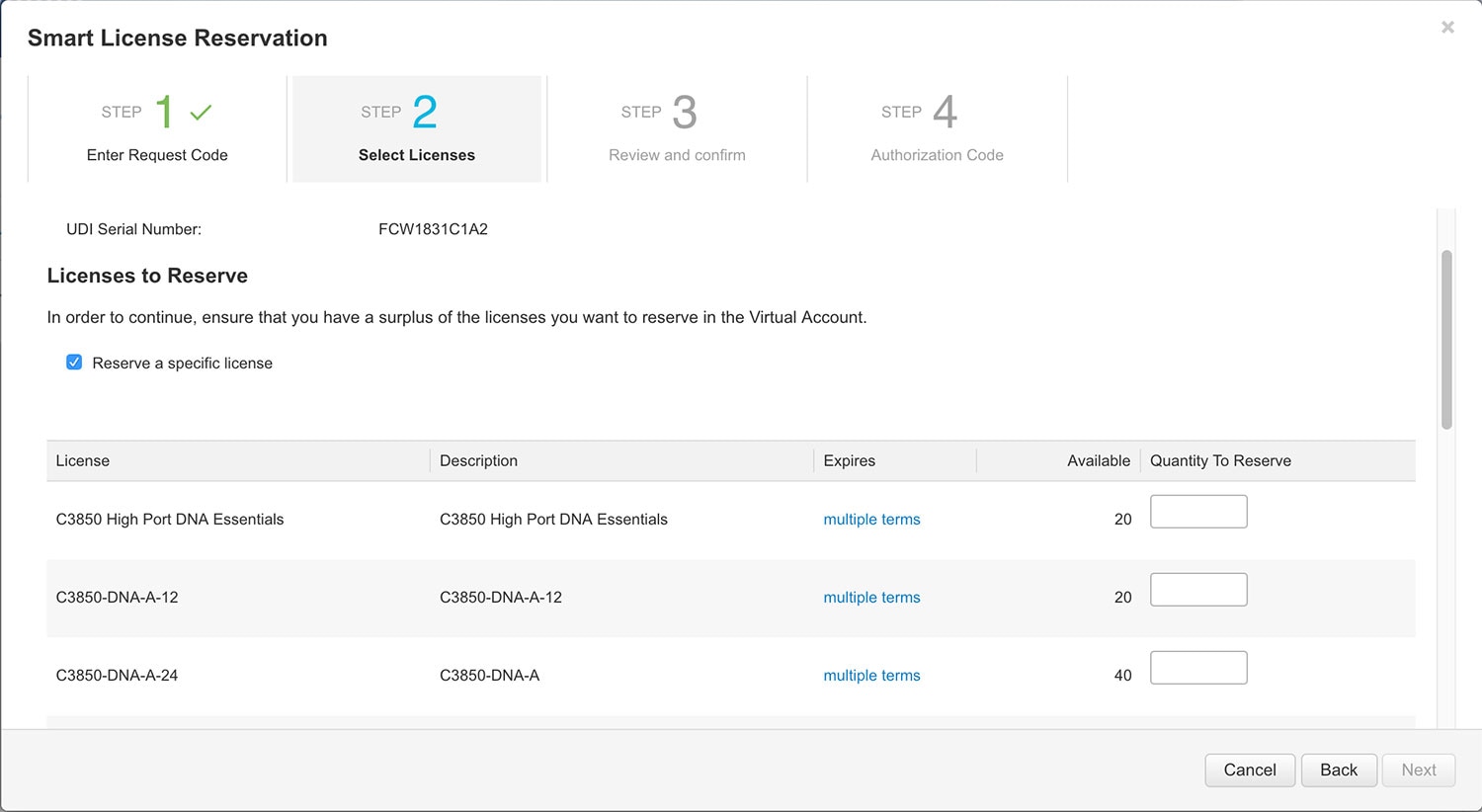

Check the Reserve a specific license check box.

Step 9

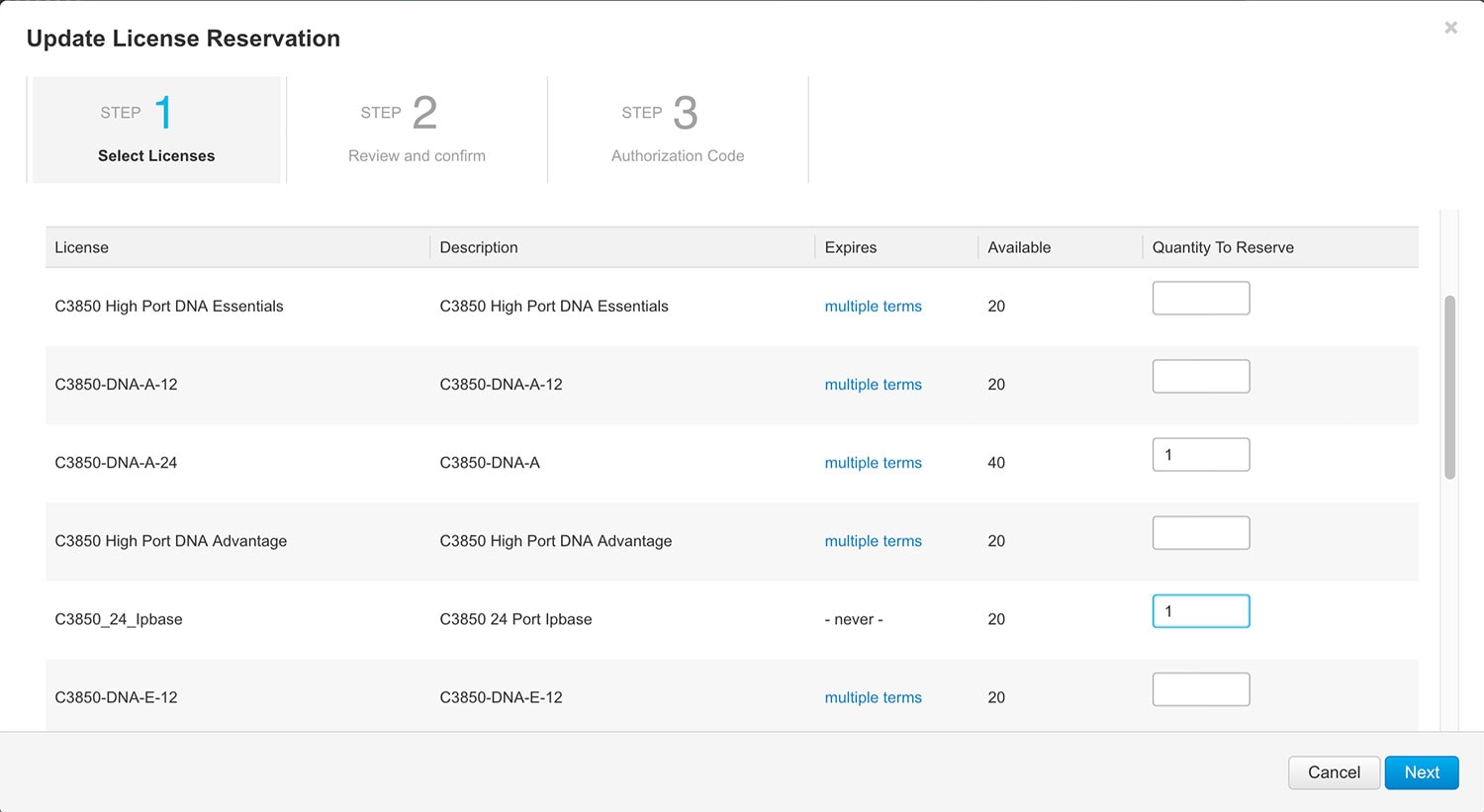

In the Quantity to Reserve field, enter the numeral 1 adjacent to the required license.

Note

The Quantity to Reserve field allows the reservation of only one license at a time.

Step 10

Click Next.

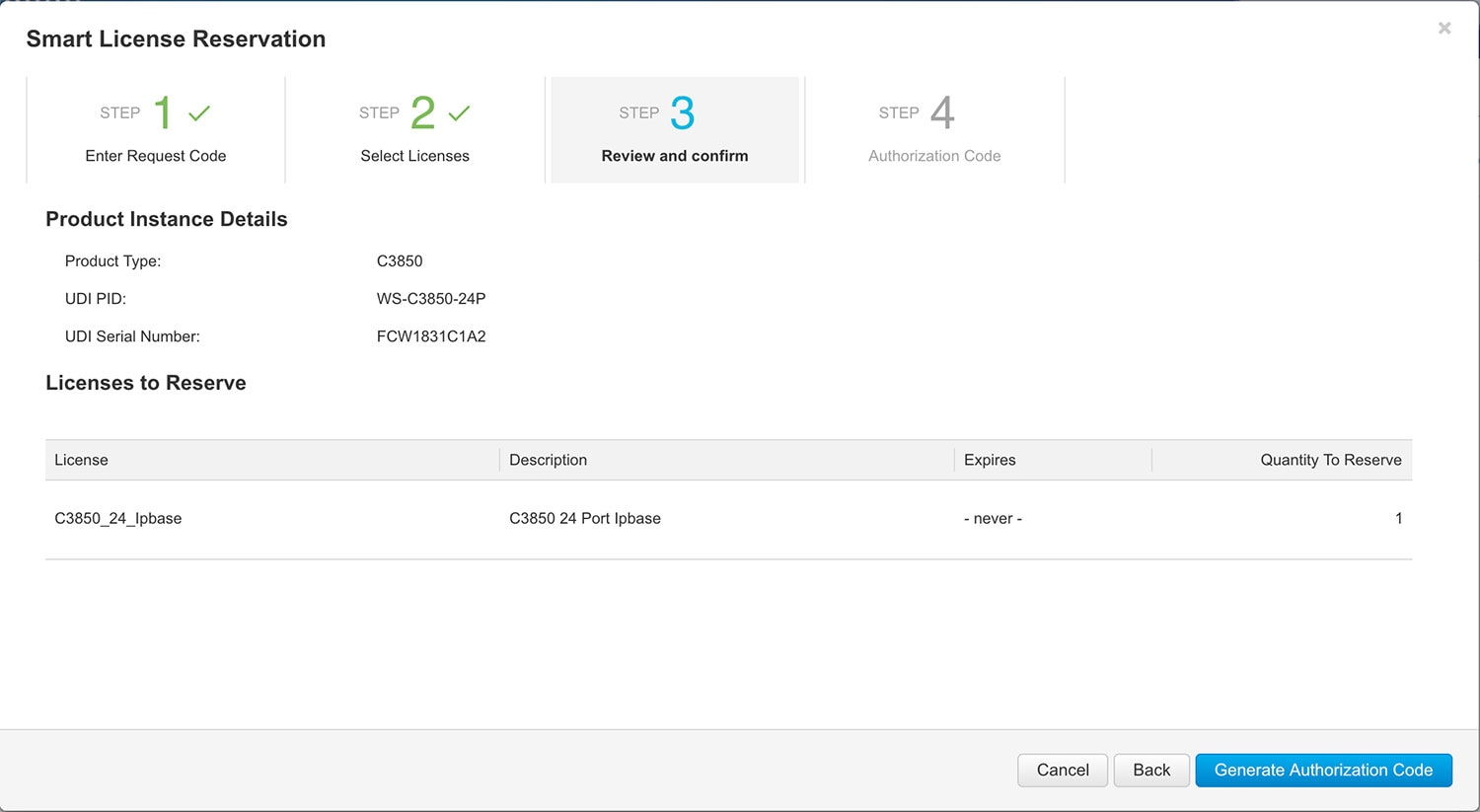

The Review and confirm tab is displayed.

Step 11

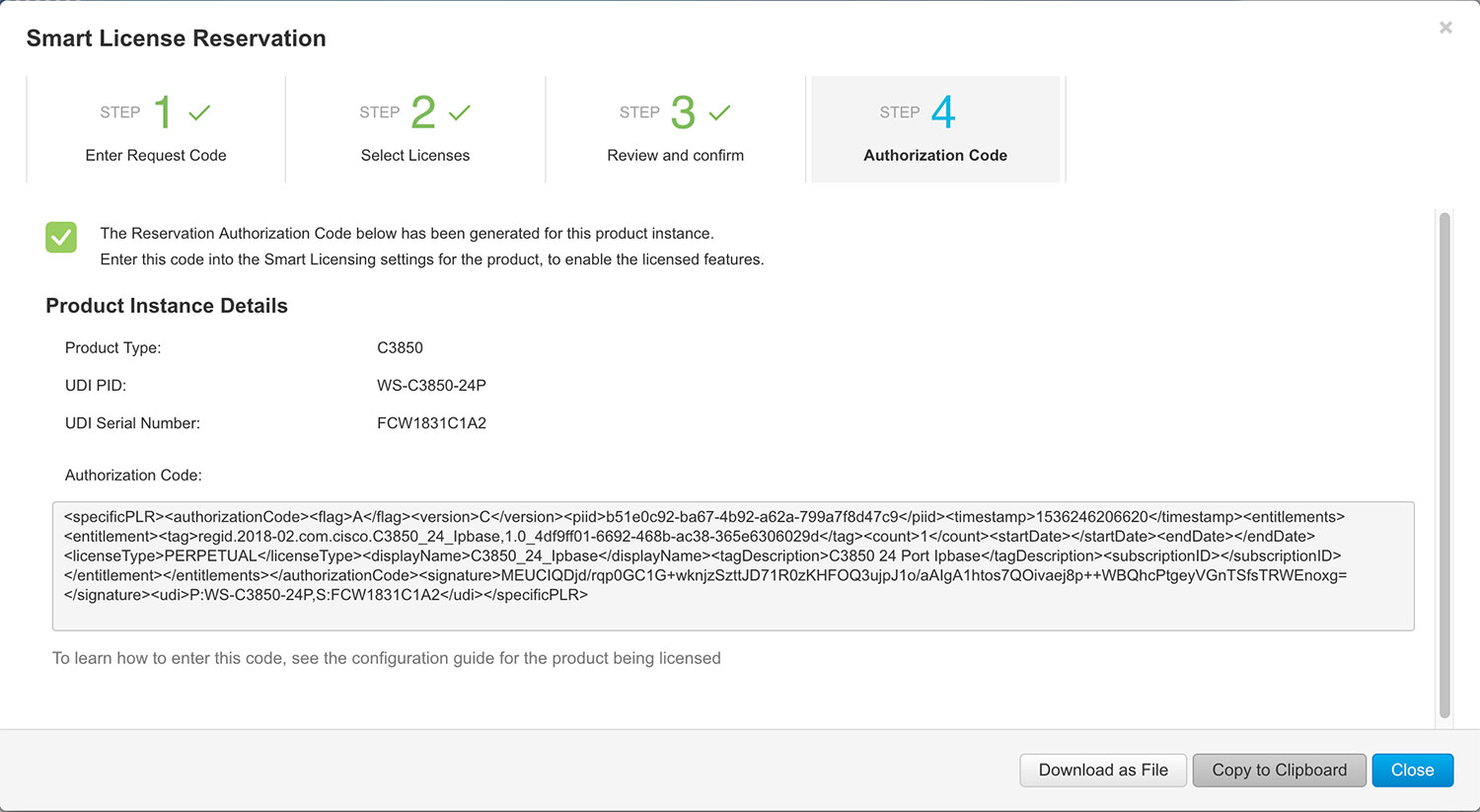

Click Generate Authorization Code.

The Authorization Code tab is displayed.

Step 12

After the authorization code is generated, click Copy to Clipboard to copy the authorization, or Download as File to download the file and save it to the Flash drive or TFTP server.

What to do next

Register a device using the authorization code.

Registering a Device Using the Authorization Code

To register a device using the authorization code, perform this procedure:

Procedure

  Command or Action Purpose
Step 1

enable

Example:

> enable

Enables privileged EXEC mode.

Enter your password, if prompted.
Step 2

license smart reservation install file {flash:filename | tftp://filepath}

Example:

# license smart reservation install file flash:AuthCode.txt
Reservation install file successful
Last Confirmation code UDI: PID:WS-C3850-24P,SN:FCW1831C1A2
5a56f188

Loads the authorization code either from the Flash drive or the TFTP server and registers the device.

Verifying the License Status After Registering a Device with Authorization Code

To verify the license status after registration, use the show license reservation command:

Device> enable
Device# show license reservation
Overall status:
  Active: PID:WS-C3850-24P,SN:FCW1831C1A2
    License reservation: ENABLED
      Reservation status: SPECIFIC INSTALLED on Sep 06 11:12:46 2018 EDT
      Export-Controlled Functionality: Not Allowed
      Last Confirmation code: 5a56f188

Specified license reservations:
  C3850_24_Ipbase (C3850-24 IP Base):
    Description: C3850 24 Port Ipbase
    Total reserved count: 1
    Term information:
      Active: PID:WS-C3850-24P,SN:FCW1831C1A2
        License type: PERPETUAL
          Term Count: 1

Registering Stack Members with a Single Authorization File

In a stack configuration, a single authorization file can be used to register all the members in the stack instead of registering each member separately.

To create a single authorization file, perform this procedure:

  1. Download the authorization files of each member in the stack and save it locally.

  2. Open any of the authorization file using a text editor.

    The following code is available:

    <specificPLR><authorizationCode><flag>A</flag>
<version>C</version><piid>07639008-be16-43c7-8dfd-fd31eae63fdf</piid>
<timestamp>1528829828573</timestamp><entitlements><entitlement>
<startDate>2018-JUN-12 UTC</startDate><endDate>2018-DEC-09 UTC</endDate>
<tag>regid.2018-02.com.cisco.C3850_24_Ipserv,1.0_f8e7b1ab-93d6-4c16-b579-e1aef2d7e528</tag>
<count>1</count><licenseType>TERM</licenseType><displayName>C3850_24_Ipserv</displayName>
<tagDescription>C3850 24 Port Ipserv</tagDescription><subscriptionID></subscriptionID></entitlement></entitlements></authorizationCode>
<signature>MEQCIHfhX7eqXaTlPvUwHUlkXMut9nfibYGMtSMx/Cm1KKX2AiBc4/oxMsyzGhwFZDY3htC0FUN/ujJ1y4xbmSezL4Nxkw==</signature>
<udi>P:WS-C3850-24P,S:FCW1818C01U</udi></specificPLR>

  3. Insert the tag <smartLicense> at the beginning of the code, and the tag </smartLicense> at the end of the code:

    <smartLicense>
<specificPLR><authorizationCode><flag>A</flag>
<version>C</version><piid>07639008-be16-43c7-8dfd-fd31eae63fdf</piid>
<timestamp>1528829828573</timestamp><entitlements><entitlement>
<startDate>2018-JUN-12 UTC</startDate><endDate>2018-DEC-09 UTC</endDate>
<tag>regid.2018-02.com.cisco.C3850_24_Ipserv,1.0_f8e7b1ab-93d6-4c16-b579-e1aef2d7e528</tag>
<count>1</count><licenseType>TERM</licenseType><displayName>C3850_24_Ipserv</displayName>
<tagDescription>C3850 24 Port Ipserv</tagDescription><subscriptionID></subscriptionID></entitlement></entitlements></authorizationCode>
<signature>MEQCIHfhX7eqXaTlPvUwHUlkXMut9nfibYGMtSMx/Cm1KKX2AiBc4/oxMsyzGhwFZDY3htC0FUN/ujJ1y4xbmSezL4Nxkw==</signature>
<udi>P:WS-C3850-24P,S:FCW1818C01U</udi></specificPLR></smartLicense>

  4. Copy the authorization code from all the other files and paste it into this file:

    <smartLicense>
<specificPLR><authorizationCode><flag>A</flag>
<version>C</version><piid>07639008-be16-43c7-8dfd-fd31eae63fdf</piid>
<timestamp>1528829828573</timestamp><entitlements><entitlement>
<startDate>2018-JUN-12 UTC</startDate><endDate>2018-DEC-09 UTC</endDate>
<tag>regid.2018-02.com.cisco.C3850_24_Ipserv,1.0_f8e7b1ab-93d6-4c16-b579-e1aef2d7e528</tag>
<count>1</count><licenseType>TERM</licenseType><displayName>C3850_24_Ipserv</displayName>
<tagDescription>C3850 24 Port Ipserv</tagDescription><subscriptionID></subscriptionID></entitlement></entitlements></authorizationCode>
<signature>MEQCIHfhX7eqXaTlPvUwHUlkXMut9nfibYGMtSMx/Cm1KKX2AiBc4/oxMsyzGhwFZDY3htC0FUN/ujJ1y4xbmSezL4Nxkw==</signature>
<udi>P:WS-C3850-24P,S:FCW1818C01U</udi></specificPLR>
<specificPLR><authorizationCode><flag>A</flag>
<version>C</version><piid>07639008-be16-43c7-8dfd-fd31eae63fdf</piid>
<timestamp>1528829828573</timestamp><entitlements><entitlement>
<startDate>2018-JUN-12 UTC</startDate><endDate>2018-DEC-09 UTC</endDate>
<tag>regid.2018-02.com.cisco.C3850_24_Ipserv,1.0_f8e7b1ab-93d6-4c16-b579-e1aef2d7e345</tag>
<count>1</count><licenseType>TERM</licenseType><displayName>C3850_24_Ipserv</displayName><tagDescription>C3850 24 Port Ipserv</tagDescription><subscriptionID></subscriptionID></entitlement></entitlements></authorizationCode>
<signature>MEQCIHfhX7eqXaTlPvUwHUlkXMut9nfibYGMtSMx/Cm1KKX2AiBc4/oxMsyzGhwFZDY3htC0FUN/ujJ1y4xbmSezL4Nxkw==</signature>
<udi>P:WS-C3850-24P,S:FCW2089C01X</udi></specificPLR></smartLicense>

  5. Save the authorization file. Install the authorization file using the license smart reservation install file {flash:filename | tftp://filepath} command.

Upgrading or Downgrading a License on a Device

You can upgrade or downgrade your device license level without sharing the device information with Cisco SSM.

To change the license level on a device, perform the following tasks:

  1. Generate a new authorization code for the new license from Cisco SSM.

  2. Install the authorization code on the device and get the confirmation code.

  3. Configure the new license level on the device.

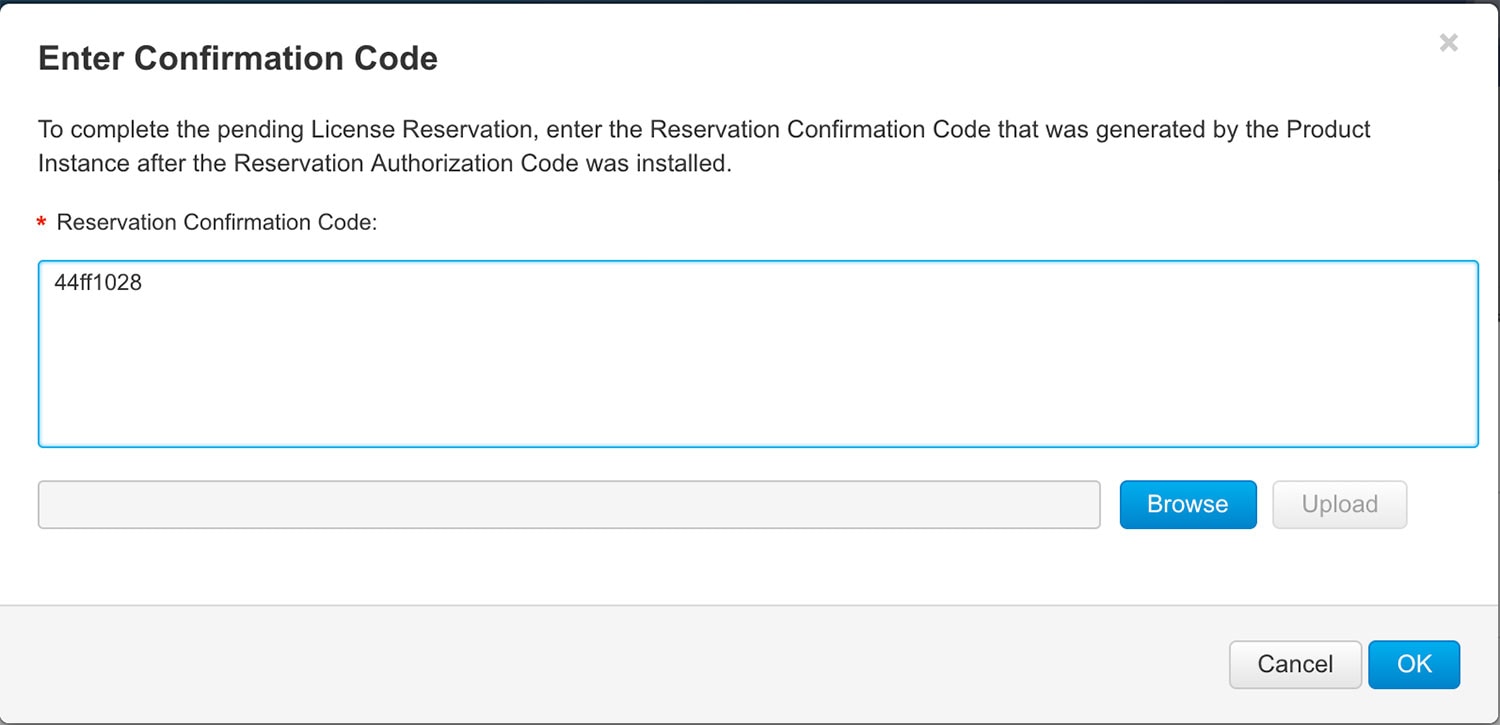

  4. Enter the confirmation code in Cisco SSM.

Generating a New Authorization Code for the New License in Cisco SSM

Procedure

Step 1

Log in to the Cisco SSM at https://software.cisco.com/#.

Log in to the Cisco SSM using the username and password provided by Cisco.

Step 2

Click the Inventory tab.

Step 3

From the Virtual Account drop-down list, choose your virtual account.

Step 4

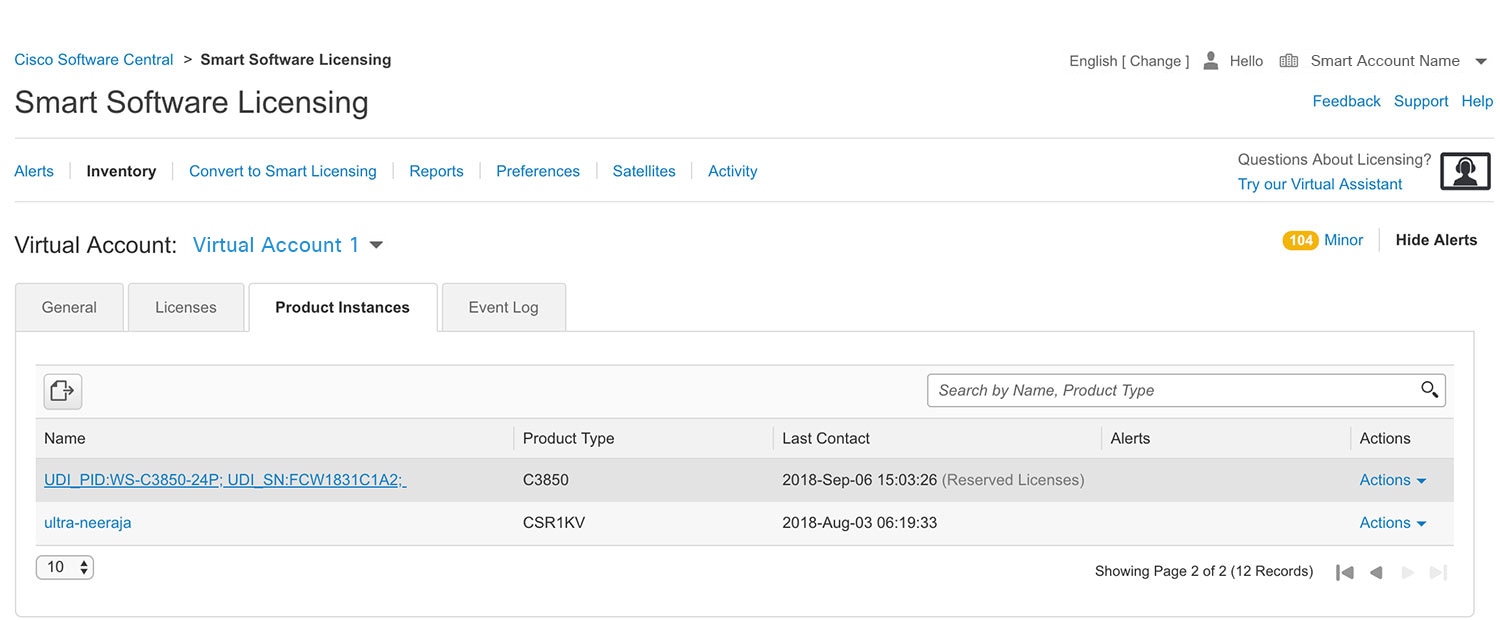

Click the Product Instances tab.

The list of product instances that are available is displayed.
Step 5

Locate the required product instance from the product instances list. Optionally, you can also enter a name or product type string in the search tab to locate the product instance.

Step 6

Click the required product instance to expand the same.

The Overview window is displayed.

Step 7

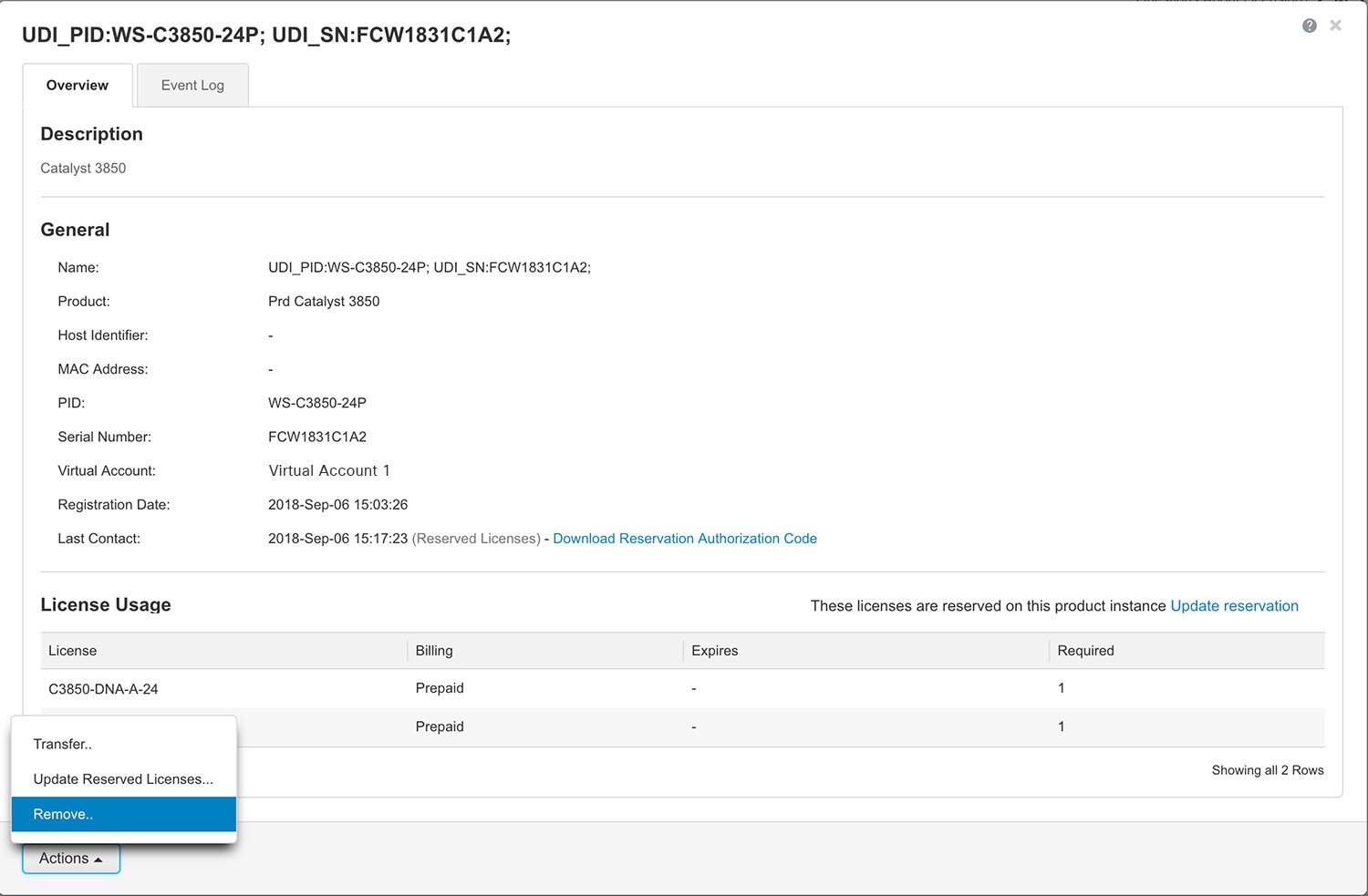

From the Actions drop-down list, choose Update Reserved Licenses.

The Update License Reservation window is displayed.

Step 8

In the Quantity to Reserve field, enter the numeral 1 adjacent to the required license.

Note

The Quantity to Reserve field allows reservation of one license at a time.

Step 9

Click Next.

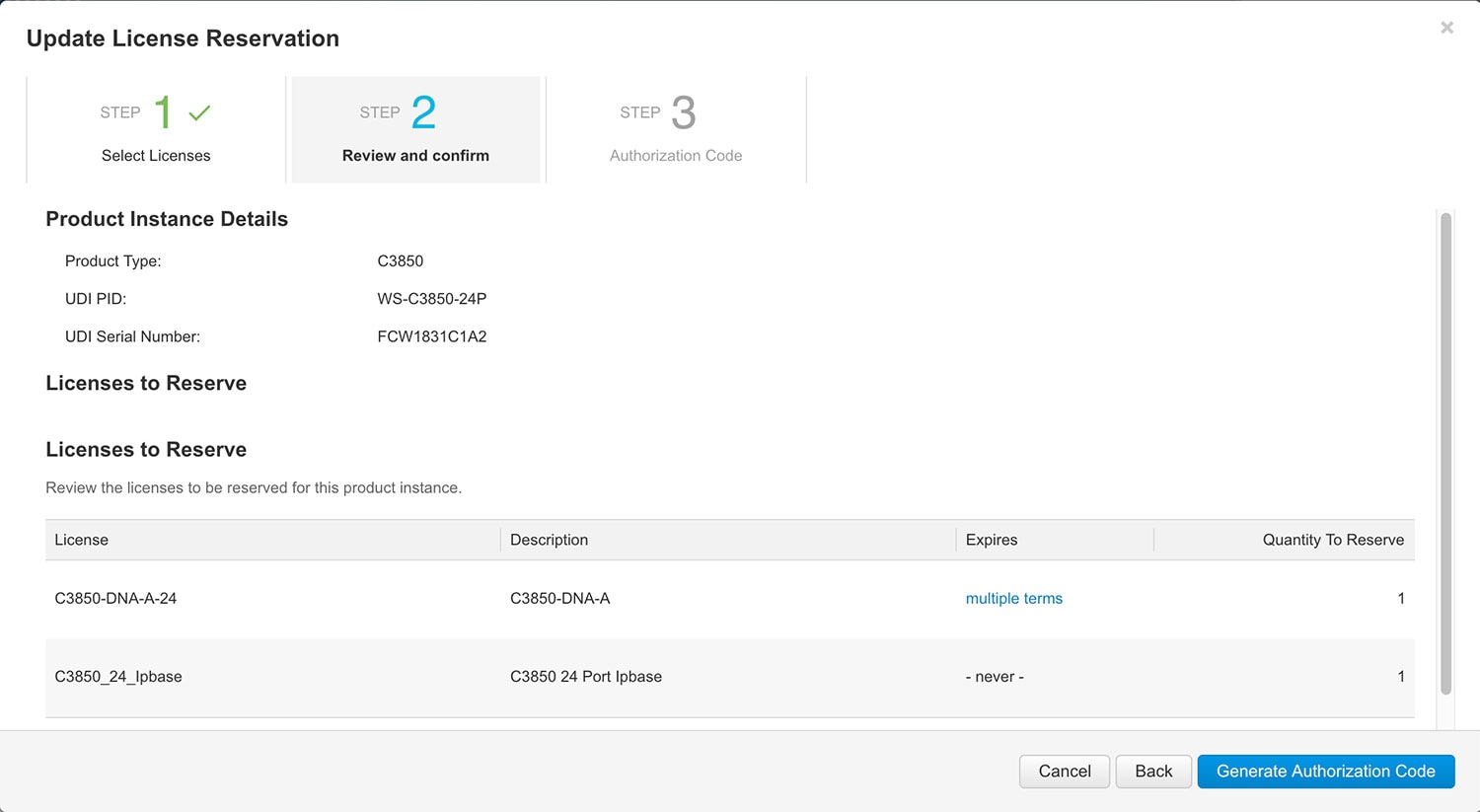

The Review and confirm tab is displayed.

Step 10

Review the license reservation information and click Generate Authorization Code.

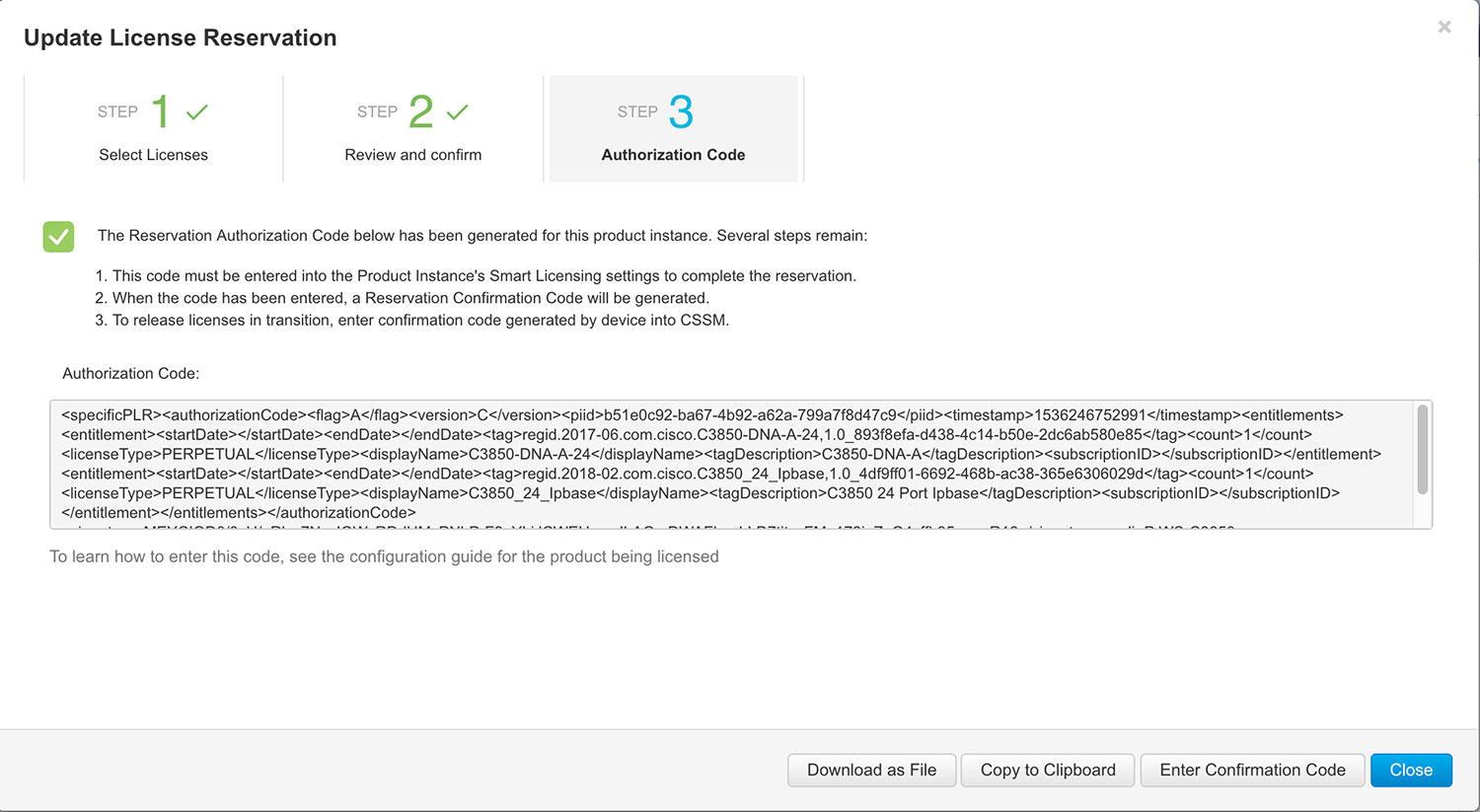

The Authorization Code tab is displayed.

Step 11

After the authorization code is generated, click Copy to Clipboard to copy the authorization, or Download as File to download the file and save it to the Flash drive or the TFTP server.

What to do next

Registering a device using authorization code.

Registering a Device Using Authorization Code

To register a device with the authorization code, perform this procedure:

Procedure

  Command or Action Purpose
Step 1

enable

Example:

> enable

Enables privileged EXEC mode.

Enter your password, if prompted.
Step 2

license smart reservation install file {flash:filename | tftp://filepath}

Example:

# license smart reservation install file flash:AuthCode.txt
Reservation install file successful
Last Confirmation code UDI: PID:WS-C3850-24P,SN:FCW1831C1A2
44ff1028

Loads the authorization code either from the Flash drive or the TFTP server, and registers the device.

Verifying the License Status After Registering the Device Using Authorization Code

To verify the status of the license after registration, use the show license reservation command:

Device> enable
Device# show license reservation
Overall status:
  Active: PID:WS-C3850-24P,SN:FCW1831C1A2
    License reservation: ENABLED
      Reservation status: SPECIFIC INSTALLED on Sep 06 11:12:46 2018 EDT
      Export-Controlled Functionality: Not Allowed
      Last Confirmation code: 44ff1028

Specified license reservations:
  C3850-DNA-A-24 (C3850-24 DNA Advantage):
    Description: C3850-DNA-A
    Total reserved count: 1
    Term information:
      Active: PID:WS-C3850-24P,SN:FCW1831C1A2
        License type: PERPETUAL
          Term Count: 1
  C3850_24_Ipbase (C3850-24 IP Base):
    Description: C3850 24 Port Ipbase
    Total reserved count: 1
    Term information:
      Active: PID:WS-C3850-24P,SN:FCW1831C1A2
        License type: PERPETUAL
          Term Count: 1

Configuring the License Level

This procedure is mandatory. Only on completion of this procedure, is a device authorized to use the new license level.

To configure the license level, follow this procedure:

Procedure

  Command or Action Purpose
Step 1

enable

Example:

> enable

Enables privileged EXEC mode.

Enter your password, if prompted.
Step 2

configure terminal

Example:

# configure terminal

Enters global configuration mode.
Step 3

license boot level license_level

Example:

(config)# license boot level ipservices addon dna-advantage

Activates the licenses on the device.
Step 4

exit

Example:

(config)# exit

Returns to privileged EXEC mode.
Step 5

write memory

Example:

# write memory

Saves the license information on the device.
Step 6

show version

Example:

# show version
Snippet
------------------------------------------------------------------------------
Technology-package Current     Type                     Technology-package Next reboot
------------------------------------------------------------------------------
ipbasek9                       Smart License                    ipservicesk9
dna-advantage                  Subscription Smart License       dna-advantage

Shows license-level information.

Step 7

reload

Example:

# reload

Reloads the device.

Note

This step is mandatory.

Entering the Confirmation Code in Cisco SSM

This procedure is mandatory. On completion of this procedure, information stored in Cisco SSM is updated to indicate that the device is reloaded with the new license level and registered with the new authorization code. You need to complete this procedure to allow Cisco SSM to accept upgrades or downgrades at the license level in the future.

Procedure

Step 1

Log in to the Cisco SSM at https://software.cisco.com/#.

Log in to the Cisco SSM using the username and password provided by Cisco.

Step 2

Click the Inventory tab.

Step 3

From the Virtual Account drop-down list, choose your virtual account.

Step 4

Click the Product Instances tab.

List of product instances available is displayed.
Step 5

Locate the required product instance from the product instances list. Optionally, you can also enter a name or product type string in the search tab to locate the product instance.

Step 6

Click the required product instance to expand the same.

The Overview window is displayed.

Step 7

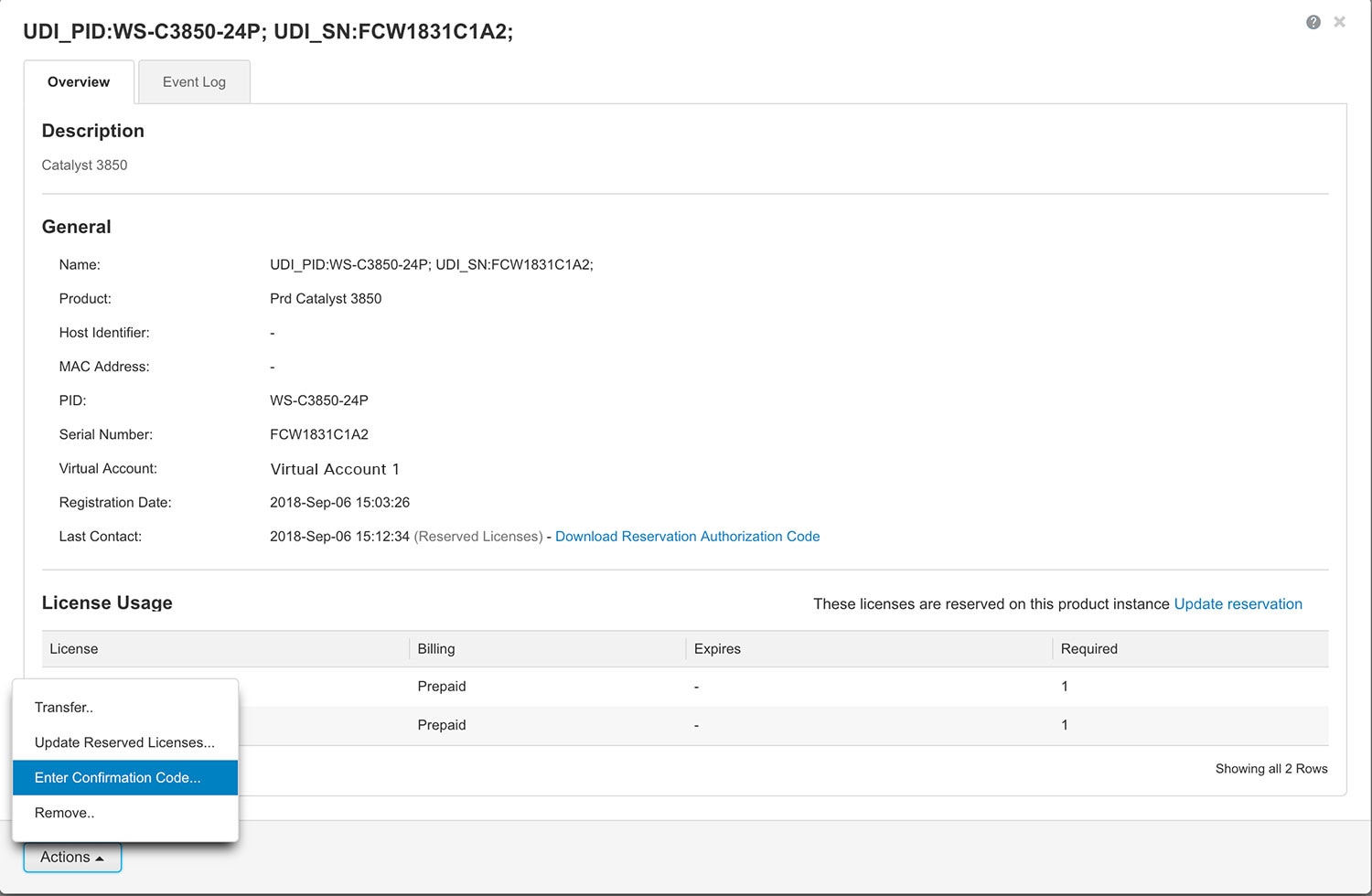

From the Actions drop-down list, choose Enter Confirmation Code.

The Enter Confirmation code window is displayed.

Step 8

In the Reservation Confirmation Code field, enter the confirmation code.

Step 9

Click OK.

The confirmation code is updated on CSSM.

Canceling a SLR Request

The license reservation request code can be cancelled before or after an authorization code is generated. Note that the authorization file needs to be returned to Cisco SSM if the cancellation request is raised after an authorization code is generated from CSSM.

To cancel an SLR request before the authorization code is installed, perform this procedure:

Procedure

  Command or Action Purpose
Step 1

enable

Example:

> enable

Enables privileged EXEC mode.

Enter your password, if prompted.
Step 2

license smart reservation cancel [all | local]

Example:

# license smart reservation cancel local

Cancels the license reservation request. Cancellation can be requested for the following:

  • all —Cancels the request for all the connected devices.

  • local —Cancels the request for the active device.

Step 3

license smart reservation return authorization file {flash:filename | tftp://filepath}

Example:

# license smart reservation return authorization file flash:AuthCode.txt

(Optional) Returns the generated authorization file.

Note

This step is required if only an authorization file is generated.

Use the license smart reservation return authorization file command to return the authorization file if you need to return the license, but have misplaced the return reservation code.

Verifying the License Status After Canceling SLR

To verify the license status after canceling SLR, use the show license reservation command:

Device> enable
Device# show license reservation
Overall status:
  Active: PID:WS-C3850-24P,SN:FCW1831C1A2
    License reservation: ENABLED
      Reservation status: NOT INSTALLED
      Export-Controlled Functionality: Not Allowed
      Last return code: CgTDxM-Wy7B7z-dxBBCu-E4o2BG-s8tzsB-SfRnF9-21KoGt-LU7Ckp-Kj2

Removing SLR from a Device

To remove SLR from a device, perform the following tasks:

  1. Generate a return code from a device.

  2. Enter the return code on Cisco SSM.

  3. Remove the product instance.

Generating a Return Code from a Device

To generate a return code, perform this procedure:

Procedure

  Command or Action Purpose
Step 1

enable

Example:

> enable

Enables privileged EXEC mode.

Enter your password, if prompted.
Step 2

license smart reservation return [all | local]

Example:

# license smart reservation return
This command will remove the license reservation authorization code and the device will transition back to the unregistered state. Some features may not function properly.

Do you want to continue? [yes/no]: y
Enter this return code in Cisco Smart Software Manager portal:
UDI: PID:WS-C3850-24P,SN:FCW1831C1A2
    CgTDxM-Wy7B7z-dxBBCu-E4o2BG-s8tzsB-SfRnF9-21KoGt-LU7Ckp-Kj2

Cancels the device registration with the return code. The return code can be generated for the following:

  • all ―Generates return codes for all the connected devices.

  • local ―Generates return code for the active device.

Removing the Product Instance from CSSM

Procedure

Step 1

Log in to Cisco SSM at https://software.cisco.com/#.

Log in to Cisco SSM using the username and password provided by Cisco.

Step 2

Click the Inventory tab.

Step 3

From the Virtual Account drop-down list, choose your virtual account.

Step 4

Click the Product Instances tab.

The list of product instances that are available is displayed.
Step 5

Locate the required product instance from the product instances list. Optionally, you can enter a name or product type string in the search tab to locate the product instance.

Step 6

Click the required product instance to expand the same.

The Overview window is displayed.

Step 7

From the Actions drop-down list, choose Remove.

The Remove Product Instance window is displayed.

Step 8

In the Reservation Return Code field, enter the return code.

Step 9

Click Remove Product Instance.

The reservation information is removed and the license is made available in the virtual account.

Configuration Examples for SLR

The following sections provide various SLR examples.

Example: Enabling SLR

To enable SLR, use the license smart reservation command:

Device> enable
Device# configure terminal
Device(config)# license smart reservation
Device(config)# exit

Example: Viewing the License Information Before Registering

Example

To display the license entitlements, use the show license all command:


Device> enable
Device# show license all
Load for five secs: 2%/0%; one minute: 5%; five minutes: 3%
No time source, 11:00:34.118 EDT Thu Sep 6 2018

Smart Licensing Status
======================

Smart Licensing is ENABLED
License Reservation is ENABLED

Registration:
  Status: UNREGISTERED
  Export-Controlled Functionality: Not Allowed

License Authorization:
  Status: EVAL MODE
  Evaluation Period Remaining: 66 days, 3 hours, 8 minutes, 24 seconds

License Conversion:
  Automatic Conversion Enabled: False
  Status: Not started

Utility:
  Status: DISABLED

Data Privacy:
  Sending Hostname: yes
    Callhome hostname privacy: DISABLED
    Smart Licensing hostname privacy: DISABLED
  Version privacy: DISABLED

Transport:
  Type: Callhome

License Usage
==============

(C3850-24 IP Base):
  Description:
  Count: 1
  Version: 1.0
  Status: EVAL MODE
  Reservation:
    Reservation status: NOT INSTALLED

Product Information
===================
UDI: PID:WS-C3850-24P,SN:FCW1831C1A2

Agent Version
=============
Smart Agent for Licensing: 4.4.13_rel/116
Component Versions: SA:(1_3_dev)1.0.15, SI:(dev22)1.2.1, CH:(rel5)1.0.3, PK:(dev18)1.0.3

Reservation Info
================
License reservation: ENABLED

Overall status:
  Active: PID:WS-C3850-24P,SN:FCW1831C1A2
      Reservation status: NOT INSTALLED
      Export-Controlled Functionality: Not Allowed

License Usage Information

To display the license usage information, use the show license usage command:


Device> enable
Device# show license usage
License reservation: ENABLED

Overall status:
  Active: PID:WS-C3850-24P,SN:FCW1831C1A2
      Reservation status: NOT INSTALLED
      Export-Controlled Functionality: Not Allowed

License Summary Information

To display all the license summaries, use the show license summary command:


Device> enable
Device# show license summary

Smart Licensing is ENABLED
License Reservation is ENABLED

Registration:
  Status: UNREGISTERED
  Export-Controlled Functionality: Not Allowed

License Authorization:
  Status: EVAL MODE
  Evaluation Period Remaining: 66 days, 3 hours, 8 minutes, 24 seconds

License Usage:
  License                 Entitlement tag               Count Status
  -----------------------------------------------------------------------------
                          (C3850-24 IP Base)                 1 EVAL MODE

License Status Information

To display the license status information, use the show license status command:


Device> enable
Device# show license status
Smart Licensing is ENABLED

Utility:
  Status: DISABLED

Data Privacy:
  Sending Hostname: yes
    Callhome hostname privacy: DISABLED
    Smart Licensing hostname privacy: DISABLED
  Version privacy: DISABLED

Transport:
  Type: Callhome

Registration:
  Status: UNREGISTERED
  Export-Controlled Functionality: Not Allowed

License Authorization:
  Status: EVAL MODE
  Evaluation Period Remaining: 66 days, 3 hours, 8 minutes, 24 seconds

Example: Viewing the License Status After Registering

To display license entitlements, use the show license all command:


Device> enable
Device# show license all
Load for five secs: 2%/0%; one minute: 4%; five minutes: 3%
No time source, 11:05:30.019 EDT Thu Sep 6 2018

Smart Licensing Status
======================

Smart Licensing is ENABLED
License Reservation is ENABLED

Registration:
  Status: REGISTERED - SPECIFIC LICENSE RESERVATION
  Export-Controlled Functionality: Not Allowed
  Initial Registration: SUCCEEDED on Sep 06 11:04:48 2018 EDT

License Authorization:
  Status: AUTHORIZED - RESERVED on Sep 06 11:04:48 2018 EDT

License Conversion:
  Automatic Conversion Enabled: False
  Status: Not started

Utility:
  Status: DISABLED

Data Privacy:
  Sending Hostname: yes
    Callhome hostname privacy: DISABLED
    Smart Licensing hostname privacy: DISABLED
  Version privacy: DISABLED

Transport:
  Type: Callhome

License Usage
==============

C3850_24_Ipbase (C3850-24 IP Base):
  Description: C3850 24 Port Ipbase
  Count: 1
  Version: 1.0
  Status: AUTHORIZED
  Reservation:
    Reservation status: SPECIFIC INSTALLED
    Total reserved count: 1

Product Information
===================
UDI: PID:WS-C3850-24P,SN:FCW1831C1A2

Agent Version
=============
Smart Agent for Licensing: 4.4.13_rel/116
Component Versions: SA:(1_3_dev)1.0.15, SI:(dev22)1.2.1, CH:(rel5)1.0.3, PK:(dev18)1.0.3

Reservation Info
================
License reservation: ENABLED

Overall status:
  Active: PID:WS-C3850-24P,SN:FCW1831C1A2
      Reservation status: SPECIFIC INSTALLED on Sep 06 11:04:48 2018 EDT
      Export-Controlled Functionality: Not Allowed
      Last Confirmation code: 5a56f188

Specified license reservations:
  C3850_24_Ipbase (C3850-24 IP Base):
    Description: C3850 24 Port Ipbase
    Total reserved count: 1
    Term information:
      Active: PID:WS-C3850-24P,SN:FCW1831C1A2
        License type: PERPETUAL
          Term Count: 1

To display the license usage information, use the show license usage command:


Device> enable
Device# show license usage
License Authorization:
  Status: AUTHORIZED - RESERVED on Sep 06 11:04:48 2018 EDT
C3850_24_Ipbase (C3850-24 IP Base):
  Description: C3850 24 Port Ipbase
  Count: 1
  Version: 1.0
  Status: AUTHORIZED
  Reservation:
    Reservation status: SPECIFIC INSTALLED
    Total reserved count: 1

To display all the license summaries, use the show license summary command:


Device> enable
Device# show license summary
Smart Licensing is ENABLED
License Reservation is ENABLED

Registration:
  Status: REGISTERED - SPECIFIC LICENSE RESERVATION
  Export-Controlled Functionality: Not Allowed

License Authorization:
  Status: AUTHORIZED - RESERVED

License Usage:
  License                 Entitlement tag               Count Status
  -----------------------------------------------------------------------------
  C3850_24_Ipbase         (C3850-24 IP Base)                1 AUTHORIZED

To display the license status information, use the show license status command:


Device> enable
Device# show license status
Smart Licensing is ENABLED

Utility:
  Status: DISABLED
License Reservation is ENABLED

Data Privacy:
  Sending Hostname: yes
    Callhome hostname privacy: DISABLED
    Smart Licensing hostname privacy: DISABLED
  Version privacy: DISABLED

Transport:
  Type: Callhome

Registration:
  Status: REGISTERED - SPECIFIC LICENSE RESERVATION
  Export-Controlled Functionality: Not Allowed
  Initial Registration: SUCCEEDED on Sep 06 11:04:48 2018 EDT

License Authorization:
  Status: AUTHORIZED - RESERVED on Sep 06 11:04:48 2018 EDT

Example: Adding a New Member to a Stack Running SLR

This example shows how to add a new member to an existing stack running SLR. Although the sample ouput in the example is that of a Catalyst 9300 switch, the same process applies to the Cisco Catalyst 3850 and 3650 Series Switches.

The following are the key aspects of this process:

  • Ensure that the Cisco IOS XE software version on the new member is the same as the version running on the existing stack.

  • Bring-up the member as a standalone, install the SLR authorization code, and only then add it to the existing stack running SLR.

  1. Displaying and verifying the details of the existing stack.

    This is a two-member stack, where one switch is the active and the other, the standby. The show license summary command shows that the stack is registered and running SLR. The show version command shows that the software version running on the stack is Cisco IOS XE Gibraltar 16.12.4.
    Device# show switch
Switch/Stack Mac Address : 0077.8d38.ba00 - Local Mac Address
Mac persistency wait time: Indefinite
                                             H/W   Current
Switch#   Role    Mac Address     Priority Version  State
-------------------------------------------------------------------------------------
*1       Active   0077.8d38.ba00     15     V02     Ready
 2       Standby  0c75.bd0e.e080     10     V01     Ready

Device# show license udi
UDI: PID:C9300-24UX,SN:FCW2303D16Y

HA UDI List:
    Active:PID:C9300-24UX,SN:FCW2303D16Y
    Standby:PID:C9300-24U,SN:FHH2043P09E

Device# show license summary
Smart Licensing is ENABLED
License Reservation is ENABLED

Registration:
  Status: REGISTERED - SPECIFIC LICENSE RESERVATION
  Export-Controlled Functionality: ALLOWED

License Authorization:
  Status: AUTHORIZED - RESERVED

License Usage:
  License                 Entitlement tag               Count Status
  ------------------------------------------------------------------------
  C9300 24P Network Ad... (C9300-24 Network Advan...)       2 AUTHORIZED
  C9300 24P DNA Advantage (C9300-24 DNA Advantage)          2 AUTHORIZED

Device# show version
Cisco IOS XE Software, Version 16.12.04
Cisco IOS Software [Gibraltar], Catalyst L3 Switch Software (CAT9K_IOSXE),
Version 16.12.4, RELEASE SOFTWARE
<output truncated>
  2. Bringing up the new member as a standalone and verifying that the software version is the same as the existing stack. In this example, this is Cisco IOS XE Gibraltar 16.12.4.
    Device# show switch
Switch/Stack Mac Address : f8b7.e24e.a100 - Local Mac Address
Mac persistency wait time: Indefinite
                                             H/W   Current
Switch#   Role    Mac Address     Priority Version  State
--------------------------------------------------------------
*1       Active   f8b7.e24e.a100     1      P2B     Ready

Device# show version
Cisco IOS XE Software, Version 16.12.04
Cisco IOS Software [Gibraltar], Catalyst L3 Switch Software (CAT9K_IOSXE),
Version 16.12.4, RELEASE SOFTWARE
<output truncated>

  3. Enabling SLR on the standlone and saving configuration changes.

    The show license summary command is used to verify the same (License Reservation is ENABLED) .
    Device# configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Device(config)# license smart reservation
Device(config)# exit
Switch# copy running-config startup-config
Building configuration...
[OK]

Device# show license udi
UDI: PID:C9300-48T,SN:FCW2139L056

Device# show license summary

Smart Licensing is ENABLED
License Reservation is ENABLED

Registration:
  Status: UNREGISTERED
  Export-Controlled Functionality: NOT ALLOWED

License Authorization:
  Status: EVAL MODE
  Evaluation Period Remaining: 89 days, 22 hours, 47 minutes, 10 seconds

License Usage:
  License                 Entitlement tag               Count Status
  -----------------------------------------------------------------------------
                          (C9300-48 Network Advan...)       1 EVAL MODE
                          (C9300-48 DNA Advantage)          1 EVAL MODE

  4. Generating a request code from the standalone, reserving the license in CSSM (not shown in the sample output), registering the device using the authorization code generated in CSSM.

    Device# license smart reservation request all
Enter this request code in the Cisco Smart Software Manager portal:
UDI: PID:C9300-48T,SN:FCW2139L056
    Request code: CB-ZC9300-48T:FCW2139L056-AK9A6sMTr-B0

    At this point, you have to enter the request code in CSSM and generate an authorization code. See Reserving a License in Cisco SSM, then proceed with the installation of the authorization code.

    The show license summary command shows that the standalone now has a registered SLR and can be added to a stack running SLR.

Device# license smart reservation install file tftp://192.0.2.0//auto/tftp-users2/tom/SLR-9300-SA.txt
Reservation install file successful
Last Confirmation code UDI: PID:C9300-48T,SN:FCW2139L056
    Confirmation code: fc6c282f


Device# show license summary
Smart Licensing is ENABLED
License Reservation is ENABLED
Registration:
  Status: REGISTERED - SPECIFIC LICENSE RESERVATION
  Export-Controlled Functionality: ALLOWED
License Authorization:
  Status: AUTHORIZED - RESERVED
License Usage:
  License                 Entitlement tag               Count Status
  -----------------------------------------------------------------------------
  C9300 48P Network Ad... (C9300-48 Network Advan...)       1 AUTHORIZED
  C9300 48P DNA Advantage (C9300-48 DNA Advantage)          1 AUTHORIZED

  5. Power off the standalone switch. Through their StackWise ports, connect the switch to a powered-on switch stack, and finally power on the new member.

    For information about connecting switches in a stack, refer to the Planning a Switch Data Stack section of the Hardware Installation Guide for the device.

    Powering off the switch and then connecting it to a stack is faster, but you can also reload the switch to bootloader (switch:) and add it to the SLR stack. To reload to bootloader, you must ensure that the switch is set to manual boot mode as shown below:
    Device# configure terminal
Device(config)# boot manual
Device(config)# end
Device# copy running-config startup-config

Device# show boot | include Manual
Manual Boot = yes

!!!Reload to bootloader, add the switch to the stack running SLR and boot the new switch.

    The show switch command shows that the stack has a third member now.

    The show license udi command shows that the active is the retained (PID:C9300-24UX,SN:FCW2303D16Y), and the new member is listed (PID:C9300-48T,SN:FCW2139L056).

    The show license summary and show license all commands display SLR-related information for the three-member stack.

    Device# show switch
Switch/Stack Mac Address : 0077.8d38.ba00 - Local Mac Address
Mac persistency wait time: Indefinite
                                             H/W   Current
Switch#   Role    Mac Address     Priority Version  State
-------------------------------------------------------------------------------------
*1       Active   0077.8d38.ba00     15     V02     Ready
 2       Standby  0c75.bd0e.e080     10     V01     Ready
 3       Member   f8b7.e24e.a100     1      P2B     Ready

Device# show license udi
UDI: PID:C9300-24UX,SN:FCW2303D16Y
HA UDI List:
    Active:PID:C9300-24UX,SN:FCW2303D16Y
    Standby:PID:C9300-24U,SN:FHH2043P09E
    Member:PID:C9300-48T,SN:FCW2139L056


Device# show license summary
Smart Licensing is ENABLED
License Reservation is ENABLED
Registration:
  Status: REGISTERED - SPECIFIC LICENSE RESERVATION
  Export-Controlled Functionality: ALLOWED
License Authorization:
  Status: AUTHORIZED - RESERVED
License Usage:
  License                 Entitlement tag               Count Status
  -----------------------------------------------------------------------------
  C9300 24P Network Ad... (C9300-24 Network Advan...)       2 AUTHORIZED
  C9300 24P DNA Advantage (C9300-24 DNA Advantage)          2 AUTHORIZED
  C9300 48P Network Ad... (C9300-48 Network Advan...)       1 AUTHORIZED
  C9300 48P DNA Advantage (C9300-48 DNA Advantage)          1 AUTHORIZED


Device# show license all
Smart Licensing Status
======================

Smart Licensing is ENABLED
License Reservation is ENABLED
Registration:
  Status: REGISTERED - SPECIFIC LICENSE RESERVATION
  Export-Controlled Functionality: ALLOWED
  Initial Registration: SUCCEEDED on Nov 24 13:59:33 2020 PST
License Authorization:
  Status: AUTHORIZED - RESERVED on Nov 24 11:38:45 2020 PST
Export Authorization Key:
  Features Authorized:
    <none>
Utility:
  Status: DISABLED
Data Privacy:
  Sending Hostname: yes
    Callhome hostname privacy: DISABLED
    Smart Licensing hostname privacy: DISABLED
  Version privacy: DISABLED
Transport:
  Type: Callhome
License Usage
==============
C9300 24P Network Advantage (C9300-24 Network Advantage):
  Description: C9300-24P Network Advantage
  Count: 2
  Version: 1.0
  Status: AUTHORIZED
  Export status: NOT RESTRICTED
  Reservation:
    Reservation status: SPECIFIC INSTALLED
    Total reserved count: 2
C9300 24P DNA Advantage (C9300-24 DNA Advantage):
  Description: C9300-24P DNA Advantage
  Count: 2
  Version: 1.0
  Status: AUTHORIZED
  Export status: NOT RESTRICTED
  Reservation:
    Reservation status: SPECIFIC INSTALLED
    Total reserved count: 2
C9300 48P Network Advantage (C9300-48 Network Advantage):
  Description: C9300 48P Network Advantage
  Count: 1
  Version: 1.0
  Status: AUTHORIZED
  Export status: NOT RESTRICTED
  Reservation:
    Reservation status: SPECIFIC INSTALLED
    Total reserved count: 1
C9300 48P DNA Advantage (C9300-48 DNA Advantage):
  Description: C9300 48P DNA Advantage
  Count: 1
  Version: 1.0
  Status: AUTHORIZED
  Export status: NOT RESTRICTED
  Reservation:
    Reservation status: SPECIFIC INSTALLED
    Total reserved count: 1
Product Information
===================
UDI: PID:C9300-24UX,SN:FCW2303D16Y
HA UDI List:
    Active:PID:C9300-24UX,SN:FCW2303D16Y
    Standby:PID:C9300-24U,SN:FHH2043P09E
    Member:PID:C9300-48T,SN:FCW2139L056
Agent Version
=============
Smart Agent for Licensing: 4.8.10_rel/63

Reservation Info
================
License reservation: ENABLED

Overall status:
  Active: PID:C9300-24UX,SN:FCW2303D16Y
      Reservation status: SPECIFIC INSTALLED on Nov 24 11:38:45 2020 PST
      Export-Controlled Functionality: ALLOWED
      Last Confirmation code: db4dc928
  Standby: PID:C9300-24U,SN:FHH2043P09E
      Reservation status: SPECIFIC INSTALLED on Nov 24 11:38:45 2020 PST
      Export-Controlled Functionality: ALLOWED
      Last Confirmation code: 2edf2248
  Member: PID:C9300-48T,SN:FCW2139L056
      Reservation status: SPECIFIC INSTALLED on Nov 24 13:12:38 2020 PST
      Export-Controlled Functionality: ALLOWED
      Last Confirmation code: fc6c282f

Specified license reservations:
  C9300 24P Network Advantage (C9300-24 Network Advantage):
    Description: C9300-24P Network Advantage
    Total reserved count: 2
    Term information:
      Active: PID:C9300-24UX,SN:FCW2303D16Y
        License type: PERPETUAL
          Term Count: 1
      Standby: PID:C9300-24U,SN:FHH2043P09E
        License type: PERPETUAL
          Term Count: 1
  C9300 24P DNA Advantage (C9300-24 DNA Advantage):
    Description: C9300-24P DNA Advantage
    Total reserved count: 2
    Term information:
      Active: PID:C9300-24UX,SN:FCW2303D16Y
        License type: PERPETUAL
          Term Count: 1
      Standby: PID:C9300-24U,SN:FHH2043P09E
        License type: PERPETUAL
          Term Count: 1
  C9300 48P DNA Advantage (C9300-48 DNA Advantage):
    Description: C9300 48P DNA Advantage
    Total reserved count: 1
    Term information:
      Member: PID:C9300-48T,SN:FCW2139L056
        License type: PERPETUAL
          Term Count: 1
  C9300 48P Network Advantage (C9300-48 Network Advantage):
    Description: C9300 48P Network Advantage
    Total reserved count: 1
    Term information:
      Member: PID:C9300-48T,SN:FCW2139L056
        License type: PERPETUAL
          Term Count: 1

Example: Replacing the License for a Member in a Stack Running SLR

If you have a new member in a stack and there are no spare licenses available to reserve, this example shows you how to correctly go about getting the license for the member. Although the sample ouput in the example is that of a Catalyst 9300 switch, the same process applies to the Cisco Catalyst 3850 and 3650 Series Switches.

The following are the key aspects of this process:

  • Remove the member for which you want to replace the license, from the stack. Then boot the removed member as a standalone, to return the SLR authorization code.

  • After the returned license count is updated in CSSM, follow the steps as shown in Example: Adding a New Member to a Stack Running SLR, to install a new SLR authorization code.

  1. Starting with a three-member stack running SLR and attempting to request a code and install an SLR authorization code (generated in CSSM).
    Device# show switch
Switch/Stack Mac Address : 0077.8d38.ba00 - Local Mac Address
Mac persistency wait time: Indefinite
                                             H/W   Current
Switch#   Role    Mac Address     Priority Version  State
-------------------------------------------------------------------------------------
*1       Active   0077.8d38.ba00     15     V02     Ready
 2       Standby  0c75.bd0e.e080     10     V01     Ready
 3       Member   f8b7.e24e.a100     1      P2B     Ready

Device# show license summary

Smart Licensing is ENABLED
License Reservation is ENABLED

Registration:
  Status: UNREGISTERED
  Export-Controlled Functionality: NOT ALLOWED

License Authorization:
  Status: EVAL MODE
  Evaluation Period Remaining: 89 days, 4 hours, 12 minutes, 51 seconds

License Usage:
  License                 Entitlement tag               Count Status
  -----------------------------------------------------------------------------
                          (C9300-24 Network Advan...)       2 EVAL MODE
                          (C9300-24 DNA Advantage)          2 EVAL MODE
                          (C9300-48 Network Advan...)       1 EVAL MODE
                          (C9300-48 DNA Advantage)          1 EVAL MODE

Device# license smart reservation request all
Enter this request code in the Cisco Smart Software Manager portal:
UDI: PID:C9300-24UX,SN:FCW2303D16Y
    Request code: CD-ZC9300-24UX:FCW2303D16Y-AK9A6sMTr-65
UDI: PID:C9300-24U,SN:FHH2043P09E
    Request code: CD-ZC9300-24U:FHH2043P09E-AK9A6sMTr-F6
UDI: PID:C9300-48T,SN:FCW2139L056
    Request code: CC-ZC9300-48T:FCW2139L056-AK9A6sMTr-DD

Device# license smart reservation install file tftp://192.0.2.0//auto/tftp-users2/tom/SLR-9300-3M.txt
Reservation install file successful
Last Confirmation code UDI: PID:C9300-24UX,SN:FCW2303D16Y
    Confirmation code: 2d5a7388
UDI: PID:C9300-24U,SN:FHH2043P09E
    Confirmation code: dc8d69d8
UDI: PID:C9300-48T,SN:FCW2139L056
    Confirmation code: d4edc453

Device# show license summary

Smart Licensing is ENABLED
License Reservation is ENABLED

Registration:
  Status: REGISTERED - SPECIFIC LICENSE RESERVATION
  Export-Controlled Functionality: ALLOWED

License Authorization:
  Status: AUTHORIZED - RESERVED

License Usage:
  License                 Entitlement tag               Count Status
  -----------------------------------------------------------------------------
  C9300 24P Network Ad... (C9300-24 Network Advan...)       2 AUTHORIZED
  C9300 24P DNA Advantage (C9300-24 DNA Advantage)          2 AUTHORIZED
  C9300 48P Network Ad... (C9300-48 Network Advan...)       1 AUTHORIZED
  C9300 48P DNA Advantage (C9300-48 DNA Advantage)          1 AUTHORIZED

  2. Removing the device (switch 3) which does not have enough spare licenses to reserve.

    The show switch command shows that switch 3 has been removed.
    Device# reload slot 3
Proceed with reload?[confirm]

Device# show license summary
Smart Licensing is ENABLED
License Reservation is ENABLED
Registration:
  Status: REGISTERED - SPECIFIC LICENSE RESERVATION
  Export-Controlled Functionality: ALLOWED
License Authorization:
  Status: AUTHORIZED - RESERVED
License Usage:
  License                 Entitlement tag               Count Status
  -----------------------------------------------------------------------------
  C9300 24P Network Ad... (C9300-24 Network Advan...)       2 AUTHORIZED
  C9300 24P DNA Advantage (C9300-24 DNA Advantage)          2 AUTHORIZED

Device# show switch
Switch/Stack Mac Address : 0077.8d38.ba00 - Local Mac Address
Mac persistency wait time: Indefinite
                                             H/W   Current
Switch#   Role    Mac Address     Priority Version  State
-------------------------------------------------------------------------------------
*1       Active   0077.8d38.ba00     15     V02     Ready
 2       Standby  0c75.bd0e.e080     10     V01     Ready
 3       Member   0000.0000.0000     0      P2B     Removed

  3. Bringing-up the removed member as a standalone and returning the SLR.

    The second instance of the show license summary command shows that the device has returned to an unregistered state and is in EVAL MODE.
    Device# show switch
Switch/Stack Mac Address : f8b7.e24e.a100 - Local Mac Address
Mac persistency wait time: Indefinite
                                             H/W   Current
Switch#   Role    Mac Address     Priority Version  State
-------------------------------------------------------------------------------------
 1       Member   0000.0000.0000     0              Provisioned
 2       Member   0000.0000.0000     0              Provisioned
*3       Active   f8b7.e24e.a100     1      P2B     Ready

Device# show license summary
Smart Licensing is ENABLED
License Reservation is ENABLED
Registration:
  Status: REGISTERED - SPECIFIC LICENSE RESERVATION
  Export-Controlled Functionality: ALLOWED
License Authorization:
  Status: AUTHORIZED - RESERVED
License Usage:
  License                 Entitlement tag               Count Status
  -----------------------------------------------------------------------------
  C9300 48P Network Ad... (C9300-48 Network Advan...)       1 AUTHORIZED
  C9300 48P DNA Advantage (C9300-48 DNA Advantage)          1 AUTHORIZED

Device# license smart reservation return all
This command will remove the license reservation authorization code and the device will
transition back to the unregistered state. Some features may not function properly.

Do you want to continue? [yes/no]: yes
Enter this return code in Cisco Smart Software Manager portal:
UDI: PID:C9300-48T,SN:FCW2139L056
    Return code: CjJP1E-V1SDoG-XaQXfN-n7MFFk-vLcijg-eSF1ev-KEF2Pq-U3uBXq-gQM

Device# show license summary
Smart Licensing is ENABLED
License Reservation is ENABLED
Registration:
  Status: UNREGISTERED
  Export-Controlled Functionality: NOT ALLOWED
License Authorization:
  Status: EVAL MODE
  Evaluation Period Remaining: 89 days, 22 hours, 39 minutes, 28 seconds
License Usage:
  License                 Entitlement tag               Count Status
  -----------------------------------------------------------------------------
                          (C9300-48 Network Advan...)       1 EVAL MODE
                          (C9300-48 DNA Advantage)          1 EVAL MODE
  4. Booting up the switch and reserving the license

    Note

    After this point, the sample output follows the same steps as in this example: Example: Adding a New Member to a Stack Running SLR.

    Device# show switch
Switch/Stack Mac Address : f8b7.e24e.a100 - Local Mac Address
Mac persistency wait time: Indefinite
                                             H/W   Current
Switch#   Role    Mac Address     Priority Version  State
-------------------------------------------------------------------------------------
*1       Active   f8b7.e24e.a100     1      P2B     Ready


Device# configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.

Device(config)# license smart reservation
Device(config)# exit
Device# copy running-config startup-config
Device# show license summary

Smart Licensing is ENABLED
License Reservation is ENABLED

Registration:
  Status: UNREGISTERED
  Export-Controlled Functionality: NOT ALLOWED

License Authorization:
  Status: EVAL MODE
  Evaluation Period Remaining: 89 days, 22 hours, 31 minutes, 51 seconds

License Usage:
  License                 Entitlement tag               Count Status
  -----------------------------------------------------------------------------
                          (C9300-48 Network Advan...)       1 EVAL MODE
                          (C9300-48 DNA Advantage)          1 EVAL MODE


Device#
Device# license smart reservation request all
Enter this request code in the Cisco Smart Software Manager portal:
UDI: PID:C9300-48T,SN:FCW2139L056
    Request code: CD-ZC9300-48T:FCW2139L056-AK9A6sMTr-36

Device# license smart reservation install file tftp://192.0.2.0//auto/tftp-users2/tom/SLR-9300-SA.txt
Reservation install file successful
Last Confirmation code UDI: PID:C9300-48T,SN:FCW2139L056
    Confirmation code: f9eb0732

Device# show license summary
Smart Licensing is ENABLED
License Reservation is ENABLED
Registration:
  Status: REGISTERED - SPECIFIC LICENSE RESERVATION
  Export-Controlled Functionality: ALLOWED
License Authorization:
  Status: AUTHORIZED - RESERVED
License Usage:
  License                 Entitlement tag               Count Status
  -----------------------------------------------------------------------------
  C9300 48P Network Ad... (C9300-48 Network Advan...)       1 AUTHORIZED
  C9300 48P DNA Advantage (C9300-48 DNA Advantage)          1 AUTHORIZED
    After reloading the new switch, adding it to the stack and booting up the switch to join the stack:
    Device# show switch
Switch/Stack Mac Address : 0077.8d38.ba00 - Local Mac Address
Mac persistency wait time: Indefinite
                                             H/W   Current
Switch#   Role    Mac Address     Priority Version  State
-------------------------------------------------------------------------------------
*1       Active   0077.8d38.ba00     15     V02     Ready
 2       Standby  0c75.bd0e.e080     10     V01     Ready
 3       Member   f8b7.e24e.a100     1      P2B     Ready

Device# show license summary
Smart Licensing is ENABLED
License Reservation is ENABLED
Registration:
  Status: REGISTERED - SPECIFIC LICENSE RESERVATION
  Export-Controlled Functionality: ALLOWED
License Authorization:
  Status: AUTHORIZED - RESERVED
License Usage:
  License                 Entitlement tag               Count Status
  -----------------------------------------------------------------------------
  C9300 24P Network Ad... (C9300-24 Network Advan...)       2 AUTHORIZED
  C9300 24P DNA Advantage (C9300-24 DNA Advantage)          2 AUTHORIZED
  C9300 48P Network Ad... (C9300-48 Network Advan...)       1 AUTHORIZED
  C9300 48P DNA Advantage (C9300-48 DNA Advantage)          1 AUTHORIZED

Device# show license all
Smart Licensing Status
======================
Smart Licensing is ENABLED
License Reservation is ENABLED
Registration:
  Status: REGISTERED - SPECIFIC LICENSE RESERVATION
  Export-Controlled Functionality: ALLOWED
  Initial Registration: SUCCEEDED on Nov 24 16:17:28 2020 PST
License Authorization:
  Status: AUTHORIZED - RESERVED on Nov 24 15:39:51 2020 PST
Export Authorization Key:
  Features Authorized:
    <none>
Utility:
  Status: DISABLED
Data Privacy:
  Sending Hostname: yes
    Callhome hostname privacy: DISABLED
    Smart Licensing hostname privacy: DISABLED
  Version privacy: DISABLED
Transport:
  Type: Callhome
License Usage
==============

C9300 24P Network Advantage (C9300-24 Network Advantage):
  Description: C9300-24P Network Advantage
  Count: 2
  Version: 1.0
  Status: AUTHORIZED
  Export status: NOT RESTRICTED
  Reservation:
    Reservation status: SPECIFIC INSTALLED
    Total reserved count: 2

C9300 24P DNA Advantage (C9300-24 DNA Advantage):
  Description: C9300-24P DNA Advantage
  Count: 2
  Version: 1.0
  Status: AUTHORIZED
  Export status: NOT RESTRICTED
  Reservation:
    Reservation status: SPECIFIC INSTALLED
    Total reserved count: 2

C9300 48P Network Advantage (C9300-48 Network Advantage):
  Description: C9300 48P Network Advantage
  Count: 1
  Version: 1.0
  Status: AUTHORIZED
  Export status: NOT RESTRICTED
  Reservation:
    Reservation status: SPECIFIC INSTALLED
    Total reserved count: 1

C9300 48P DNA Advantage (C9300-48 DNA Advantage):
  Description: C9300 48P DNA Advantage
  Count: 1
  Version: 1.0
  Status: AUTHORIZED
  Export status: NOT RESTRICTED
  Reservation:
    Reservation status: SPECIFIC INSTALLED
    Total reserved count: 1

Product Information
===================
UDI: PID:C9300-24UX,SN:FCW2303D16Y

HA UDI List:
    Active:PID:C9300-24UX,SN:FCW2303D16Y
    Standby:PID:C9300-24U,SN:FHH2043P09E
    Member:PID:C9300-48T,SN:FCW2139L056

Agent Version
=============
Smart Agent for Licensing: 4.8.10_rel/63

Reservation Info
================
License reservation: ENABLED

Overall status:
  Active: PID:C9300-24UX,SN:FCW2303D16Y
      Reservation status: SPECIFIC INSTALLED on Nov 24 15:39:51 2020 PST
      Export-Controlled Functionality: ALLOWED
      Last Confirmation code: 2d5a7388
  Standby: PID:C9300-24U,SN:FHH2043P09E
      Reservation status: SPECIFIC INSTALLED on Nov 24 15:39:51 2020 PST
      Export-Controlled Functionality: ALLOWED
      Last Confirmation code: dc8d69d8
  Member: PID:C9300-48T,SN:FCW2139L056
      Reservation status: SPECIFIC INSTALLED on Nov 24 16:12:00 2020 PST
      Export-Controlled Functionality: ALLOWED
      Last Confirmation code: f9eb0732

Specified license reservations:
  C9300 24P DNA Advantage (C9300-24 DNA Advantage):
    Description: C9300-24P DNA Advantage
    Total reserved count: 2
    Term information:
      Active: PID:C9300-24UX,SN:FCW2303D16Y
        License type: PERPETUAL
          Term Count: 1
      Standby: PID:C9300-24U,SN:FHH2043P09E
        License type: PERPETUAL
          Term Count: 1
  C9300 24P Network Advantage (C9300-24 Network Advantage):
    Description: C9300-24P Network Advantage
    Total reserved count: 2
    Term information:
      Active: PID:C9300-24UX,SN:FCW2303D16Y
        License type: PERPETUAL
          Term Count: 1
      Standby: PID:C9300-24U,SN:FHH2043P09E
        License type: PERPETUAL
          Term Count: 1
  C9300 48P DNA Advantage (C9300-48 DNA Advantage):
    Description: C9300 48P DNA Advantage
    Total reserved count: 1
    Term information:
      Member: PID:C9300-48T,SN:FCW2139L056
        License type: PERPETUAL
          Term Count: 1
  C9300 48P Network Advantage (C9300-48 Network Advantage):
    Description: C9300 48P Network Advantage
    Total reserved count: 1
    Term information:
      Member: PID:C9300-48T,SN:FCW2139L056
        License type: PERPETUAL
          Term Count: 1

Supported Devices

The following devices support SLR.

  • Cisco Catalyst 3650 Series Switches

  • Cisco Catalyst 3850 Series Switches

Feature History for SLR

This table provides release and related information for features explained in this module.

These features are available on all releases subsequent to the one they were introduced in, unless noted otherwise.

Command History

Release

Feature

Feature Information

Cisco IOS XE Fuji 16.9.1

Specific License Reservation (SLR)

This feature was introduced.

SLR enables you to use Smart Licensing in an air-gapped network. It does this by providing the option to reserve the required licenses.

Cisco IOS XE Gibraltar 16.12.6

License status change for evaluation and expired evaluation license

If a device is not connected to CSSM, what was displayed as EVAL MODE and EVAL EXPIRED (prior to Cisco IOS XE Gibraltar 16.12.6), is displayed as IN-USE starting from Cisco IOS XE Gibraltar 16.12.6.

For detailed information, see License Status Change for Evaluation and Expired Evaluation Licenses.
