First Published: August 14, 2024

Last Updated: October 25, 2024

Introduction

This document provides release information for the following Catalyst IE and Cisco ESS switches:

  • Cisco Catalyst Rugged Series Switches (IE3100, IE3105, IE3200, and IE3300)

  • Cisco Catalyst IE3400 Rugged Series (IE3400)

  • Cisco Catalyst IE3400 Heavy-Duty Series (IE3400H)

  • Cisco Embedded Services 3300 Series (ESS3300)

Cisco Catalyst IE3x00 Rugged Series Switches feature advanced, full Gigabit Ethernet speed for rich real-time data—and a modular, optimized design. These Cisco rugged switches bring simplicity, flexibility and security to the network edge, and are optimized for size, power, and performance.

From their end-to-end security architecture to delivering centralized automation and scale with Cisco intent-based networking, the Cisco Catalyst IE3x00 family is the perfect solution to your switching needs in almost any use case.

Cisco Embedded Services 3300 Series Switches (ESS3300) revolutionize Cisco’s embedded networking portfolio with 1G/10G capabilities. ESS3300 switches are optimized to meet specialized form-factor, ruggedization, port density, and power needs of many applications requiring customization. They complement Cisco’s off-the-shelf Industrial Ethernet switching portfolio.

On ESS3300, the small form factor, board configuration options, and optimized power consumption provide Cisco partners and integrators the flexibility to design custom solutions for defense, oil and gas, transportation, mining, and other verticals. The ESS3300 runs the trusted and feature-rich Cisco IOS XE Software, allowing Cisco partners and integrators to offer their customers the familiar Cisco IOS CLI and management experience on their ESS3300 solutions.

New Features for Cisco IOS XE 17.15.1

Feature Name

License Level

Description

Supported Platforms

Related Document

Software Support for IE3100 PoE

Network Essentials

From Cisco IOS XE 17.15.1, Power over Ethernet (PoE) is supported on the following models of the Cisco Catalyst IE3100 Rugged Series Switches:

  • The IE-3100-4P2S-E has a PoE budget of 120 W and supplies up to 30 W PoE+ output on its 4 downlink ports.

  • The IE-3100-8P2C-E has a PoE budget of 240 W and supplies up to 30 W PoE+ output on its 8 downlink ports.

IE-3100-4P2S-E, IE-3100-8P2C-E

Power over Ethernet Configuration Guide, Cisco Catalyst IE3100 Rugged Series Switches

Behavior Changes

CSDL Issue

From 17.15.1 release, application signature verification is performed by default for all applications during installation. Only Cisco-signed applications can be installed after verification. Unsigned applications will not be allowed to install.


Note

If unsigned applications were installed on your system before upgrading to version 17.15.1, they will continue to function after the upgrade. However, if you uninstall an unsigned application and try to reinstall it, the signature verification will fail.

To install unsigned applications, disable signature verification manually by using the app-hosting verification disable command, as shown in the example here:

Device# app-hosting verification disable

Use the show app-hosting infra command to verify Application signature verification, as shown in the example here:

Device# show app-hosting infra
IOX version: 2.11.0.2
App signature verification: disabled
CAF Health: Stable

Note

Unsigned applications are third-party applications built by customers or users.

Important Notes

IOx Support for IE3300 Switches

To see if the IE-3300-8P2S switch or IE-3300-8T2S switch supports IOx application environment, check the Hardware Version ID on the switch label. The Hardware Version ID is in the upper-right corner of the label, as shown in the following illustration. Support for the feature is available only with Hardware Version ID 06 or later. In the following illustration, the Version ID appears as "V06" at the end of the string inside the red rectangle in the upper-right corner of the label.

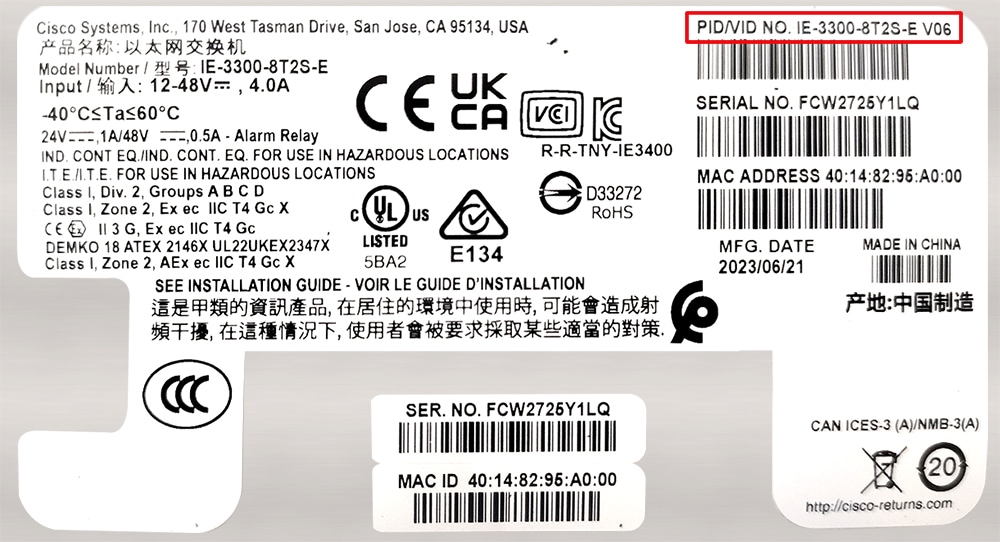

Figure 1. IE3300 Switch Label

You also can see the Version ID by entering the show version command and examining the output, as shown in the following example:

IE-3300#show version
Base Ethernet MAC Address          : b0:c5:3c:99:c8:a0
Motherboard Assembly Number        : 73-101289-11
Motherboard Serial Number          : FOC27151WEZ
Model Revision Number              : V06
Motherboard Revision Number        : B
Model Number                       : IE-3300-8T2S
System Serial Number               : FCW2507P4CV
Top Assembly Part Number           : 68-102662-01
Top Assembly Revision Number       : B0
System FPGA version                : 0.89.2
CIP Serial Number                  : 0x1999C8A0
SKU Brand Name                     : Cisco

IE-3300-8U2X and IE-3300-8T2X switches have supported IOx since the Cisco IOS-XE 17.4.1 release.

Startup Config is Always Read from Flash

Beginning in Cisco IOS XE Release 17.10.1, the startup configuration is always read from flash. The latest configuration is available only in flash when you save the running config, irrespective of the booted media (for example, flash, sdflash, or usbflash ) and the boot mode (install or bundle).


Note

Also beginning in the Cisco IOS XE Release 17.10.1, you can configure Cisco Catalyst embedded switches to use USB Flash as the primary boot device. See the Cisco IOS XE Migration Guide for IIoT Switches on cisco.com.

SMU Installation: Boot in Install Mode

Software Maintenance Upgrade (SMU) installation is no longer supported in bundle mode. Previously, SMU installation was supported in both bundle boot and install mode. Beginning in Cisco IOS XE 17.9.1, SMU supports patching using install mode only.

SMU installation stops if the device is booted up in bundle mode and syslog messages are displayed. You must boot the switch in install mode to support SMU installation.

If the device is booted up in install mode, SMU installation continues to work as before.

IE3100: Booting Install Image from SD Card

Booting an install image (packages.conf) from SD card is not recommended. After factory reset, to perform a swap drive sync from SD card to internal flash memory, you must manually boot the image available in the emergency partition so that the swap drive auto restore will occur from the emergency image.

For more information about the SD swap drive, see Configuring SD Swap Drive.

IE3400: Hardware Changes may Require Action

Some hardware components on the Cisco Catalyst IE3400 Rugged Series and Cisco Catalyst IE3400 Heavy Duty Series switches have changed. The changes, which are automatically handled by the IOS XE software, do not affect switch functionality or the ordering process. New units shipped after May 31, 2022 have the hardware change.

However, you may need to upgrade the software, depending on which base switch and expansions module you have, as shown in the following table.


Note

For detailed information about affected hardware versions, supported software releases, and instructions for different scenarios, see Field Notice Title on Cisco.com.

If you have...

Then...

Older versions (shipped before May 31, 2022) of the base switch and expansion module

No action is required.

Newer versions (shipped after May 31, 2022) of the base switch and expansion module

Deploy one of the supported releases of IOS-XE. Refer to Field Notice Title on Cisco.com for details that are appropriate to your deployment.

Newer version of the base switch with an older version of the expansion module

Older version of the base switch with a newer version of the expansion module

FPGA Profile

FPGA Profile is supported in Cisco IOS XE release 17.8 and later. In a Cisco IOS XE upgrade from an earlier release that does not support FPGA Profile, for example, an upgrade from Cisco IOS XE 17.7.1 to 17.8.1, the default FPGA Profile is installed. Any features controlled by FPGA Profile that are configured in the switch running the earlier release and that are not included in the default profile will be rejected.


Note

This feature is supported for Cisco Catalyst IE3400 Rugged Series Switches and Cisco Catalyst IE3400 Heavy-Duty Series Switches.

For example, CTS IPv6 is not supported in the default profile, so CTS IPv6 configurations are rejected during bootup after the upgrade. Similarly, after a Cisco IOS XE upgrade where the cts-ipv6 profile is loaded, existing PRP configurations are rejected upon bootup.

To keep the existing profile and feature configurations after an upgrade:

  1. After booting the switch, selected the required FPGA Profile as described in "Changing the FPGA Profile", in System Management Configuration Guide, Cisco Catalyst IE3x00 Rugged, IE3400 Heavy Duty, and ESS3300 Series Switches, chapter "Configuring FPGA Profile".

    Do not copy running-config to startup-config or write memory.

  2. Reload the switch.

    The required feature configurations will not be discarded because they are supported by the selected profile.

PoE Limitation on IE3x00

Even when using power supplies that can provide up to a supported maximum (for example, 170W, 240W, or 480W) for the PoE budget, the PoE budget for the IE3x00 defaults to 125W regardless of the power supplies used. You can configure the power budget to use the maximum.


Note

Before changing the power budget, the minimum power requirements for the switch need to be considered as well. Please refer to the data sheet for your switch for more details.

The attached power supply powers the IE3x00 switch operation as well as PoE power. When increasing the maximum PoE budget, you must subtract the power draw of the IE3x00 switch from the capacity of the attached power supply. You do so to prevent the IE3x00 switch from overdrawing the capacity of the attached power supply. For example, the IE3400 switch with an expansion module supports a maximum PoE budget of 480W. The IE3400-8P2S with an attached IEM-3400-8P draws 67W. With a 480W capacity power supply, the maximum you should configure the PoE budget is (480W-67W) 413W.

To use the power supply's maximum supported wattage for the PoE budget, configure the power supply max wattage in global configuration mode as follows:

  1. Verify the maximum amount that the power supplies support for the PoE budget.

  2. Subtract the operating power of the IE3x00 switch according to its datasheet from the maximum capacity of the power supply. This is your max PoE budget.

  3. Enter power inline max max-wattage to increase the PoE budget based on the power supplies used.

    max-wattage is the maximum available PoE power.

IE3200 and IE 3300 with 10Mbps or 100Mbps speed in Half-Duplex Mode

CRC errors were observed on the IE3200 and IE3300 platforms when the switch is configured with 10Mbps or 100Mbps speed in half-duplex mode.

As a workaround, configure no ptp enable on the half-duplex interface. This improves ingress and egress latencies considerably and ensures that there are no late collisions (and therefore, no CRC errors).

The issue and workaround apply to Cisco IOS XE releases 17.3.5 and later.

L3 ACL limitation on usage of L4OP in ACLs

Layer 4 Operator (L4OP) in ACLs is limited by the hardware to a maximum of 8 L4OP (range and gt) for UDP and 8 L4OP for TCP, for a total of 16 global L4OP. Keep in mind that the range operator consumes 2 L4OP.

The L4OPs include: gt (greater than), lt (less than), neq (not equal), eq (equal), range (inclusive range).


Note

The eq does not consume L4OPs. For more information see QoS Configuration Guide.

Cisco Catalyst IE and ESS Switches: Model Numbers

The following table lists the supported hardware models and the default license levels they are delivered with. For information about the available license levels, see section License Levels.

Model Number

Default License Level

Description

IE3100-4P2S-E

Network Essentials

4 x Gigabit Ethernet 10/100/1000 PoE/PoE+ RJ45 ports, 2 x 100/1000 SFP fiber ports

IE3100-8P2C-E

Network Essentials

8 x Gigabit Ethernet 10/100/1000 PoE/PoE+ RJ45 ports, 2 x dual-purpose 1000Base-T RJ45 or 2 100/1000 SFP fiber ports

IE-3100-18T2C-CC-E

Network Essentials

18 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2 x dual-purpose 1000Base-T RJ45 or 2 100/1000 SFP fiber ports, conformal coating

IE-3100-4T2S-E

Network Essentials

4 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2x 100/1000 SFP fiber ports

IE-3100-8T2C-E

Network Essentials

8 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2x dual-purpose 1000Base-T RJ45 or 2 100/1000 SFP fiber ports

IE-3100-8T4S-E

Network Essentials

8 x Gigabit Ethernet 10/100/1000 RJ45 ports, 4x 100/1000 SFP fiber ports

IE-3100-18T2C-E

Network Essentials

18 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2x dual-purpose 1000Base-T RJ45 or 2x 00/1000 SFP fiber ports

IE-3105-8T2C-E

Network Essentials

8 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2x dual-purpose 1000Base-T RJ45 or 2x 100/1000 SFP fiber ports

IE-3105-18T2C-E

Network Essentials

18 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2x dual-purpose 1000Base-T RJ45 or 2x 100/1000 SFP fiber ports

ESS-3300-NCP-E

Network Essentials

Main Board without a cooling plate

2 ports of 10 GE fiber, 8 ports of GE copper. 4 of the 8 GE copper ports can also be combo ports.

Terminal Power: 16W

ESS-3300-NCP-A

Network Advantage

Main Board without a cooling plate

2 ports of 10 GE fiber, 8 ports of GE copper. 4 of the 8 GE copper ports can also be combo ports.

Terminal Power: 16W

ESS-3300-CON-E

Network Essentials

Main Board conduction cooled

2 ports of 10 GE fiber, 8 ports of GE copper. 4 of the 8 GE copper ports can also be combo ports

Terminal Power: 16W

ESS-3300-CON-A

Network Advantage

Main Board conduction cooled

2 ports of 10 GE fiber, 8 ports of GE copper. 4 of the 8 GE copper ports can also be combo ports

Terminal Power: 16W

ESS-3300-24T-NCP-E

Network Essentials

Main Board with a 16p Expansion Board without a cooling plate

2 ports of 10 GE fiber, 24 ports of GE copper

4 of 8 GE ports can be combo ports on mainboard

4 of 16 GE ports can be combo ports on expansion board

Terminal Power: 24W

ESS-3300-24T-NCP-A

Network Advantage

Main Board with a 16p Expansion Board without a cooling plate

2 ports of 10 GE fiber, 24 ports of GE copper

4 of 8 GE ports can be combo ports on mainboard

4 of 16 GE ports can be combo ports on expansion board

Terminal Power: 24W

ESS-3300-24T-CON-E

Network Essentials

Main Board with a 16p Expansion Board conduction cooled

2 ports of 10 GE fiber, 24 ports of GE copper

4 of 8 GE ports can be combo ports on mainboard

4 of 16 GE ports can be combo ports on expansion board

Terminal Power: 24W

ESS-3300-24T-CON-A

Network Advantage

Main Board with a 16p Expansion Board conduction cooled

2 ports of 10 GE fiber, 24 ports of GE copper

4 of 8 GE ports can be combo ports on mainboard

4 of 16 GE ports can be combo ports on expansion board

Terminal Power: 24W

IE-3200-8T2S-E

Network Essentials

8 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2 fiber 100/1000 SFP-based ports, non-PoE

IE-3200-8P2S-E

Network Essentials

8 x Gigabit Ethernet 10/100/1000 PoE/PoE+ ports, 2 fiber 100/1000 SFP-based ports; PoE power budget of 240W

IE-3300-8T2S-E

Network Essentials

8 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2 fiber 100/1000 SFP-based ports, non-PoE

IE-3300-8P2S-E

Network Essentials

8 x Gigabit Ethernet 10/100/1000 PoE/PoE+ ports, 2 fiber 100/1000 SFP-based ports; PoE power budget of 360W (including expansion module)

IE-3300-8T2S-A

Network Advantage

8 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2 fiber 100/1000 SFP-based ports, non-PoE

IE-3300-8P2S-A

Network Advantage

8 x Gigabit Ethernet 10/100/1000 PoE/PoE+ ports, 2 fiber 100/1000 SFP-based ports; PoE power budget of 360W (including expansion module)

IE-3300-8T2X-A

Network Advantage

8 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2 fiber 1/10 Gigabit Ethernet SFP-based ports, non-PoE

IE-3300-8T2X-E

Network Essentials

8 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2 fiber 1/10 Gigabit Ethernet SFP-based ports, non-PoE

IE-3300-8U2X-E

Network Essentials

8 x Gigabit Ethernet 10/100/1000 4PPoE (802.3bt type 3) ports, 2 fiber

1/10 Gigabit Ethernet SFP-based ports; PoE power budget of 480W

IE-3300-8U2X-A

Network Advantage

8 x Gigabit Ethernet 10/100/1000 4PPoE (802.3bt type 3) ports, 2 fiber

1/10 Gigabit Ethernet SFP-based ports; PoE power budget of 480W

IE-3400-8T2S-E

Network Essentials

8 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2 fiber 100/1000 SFP-based ports, non-PoE

IE-3400-8T2S-A

Network Advantage

8 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2 fiber 100/1000 SFP-based ports, non-PoE

IE-3400-8P2S-E

Network Essentials

8 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2 fiber 100/1000 SFP-based ports with PoE

IE-3400-8P2S-A

Network Advantage

8 x Gigabit Ethernet 10/100/1000 RJ45 ports, 2 fiber 100/1000 SFP-based ports with PoE

IE-3400H-8T-E

Network Essentials

8 x 1-Gbps X-Coded ports, 1 Alarm input and 1 Alarm output, 1 Console port, mini-change input for Single power source

IE-3400H-8T-A

Network Advantage

8 x 1-Gbps X-Coded ports, 1 Alarm input and 1 Alarm output, 1 Console port, mini-change input for Single power source

IE-3400H-8FT-E

Network Essentials

8 x 100-Mbps D-coded ports, 1 Alarm input and 1 Alarm output, 1 Console port, Mini-change input for Single Power Source .

IE-3400H-8FT-A

Network Advantage

8 x 100-Mbps D-coded ports, 1 Alarm input and 1 Alarm output, 1 Console port, Mini-change input for Single Power Source .

IE-3400H-16T-E

Network Essentials

16 x 1-Gbps X-Coded ports, 1 Alarm input and 1 Alarm output, 1 Console port, mini-change input for Single power source

IE-3400H-16T-A

Network Advantage

16 x 1-Gbps X-Coded ports, 1 Alarm input and 1 Alarm output, 1 Console port, mini-change input for Single power source

IE-3400H-16FT-E

Network Essentials

16 x 100-Mbps D-coded ports, 1 Alarm input and 1 Alarm output, 1 Console port, Mini-change input for Single Power Source .

IE-3400H-16FT-A

Network Advantage

16 x 100-Mbps D-coded ports, 1 Alarm input and 1 Alarm output, 1 Console port, Mini-change input for Single Power Source .

IE-3400H-24T-E

Network Essentials

24 x 1-Gbps X-Coded ports, 1 Alarm input and 1 Alarm output, 1 Console port, mini-change input for Single power source

IE-3400H-24T-A

Network Advantage

24 x 1-Gbps X-Coded ports, 1 Alarm input and 1 Alarm output, 1 Console port, mini-change input for Single power source

IE-3400H-24FT-E

Network Essentials

24 x 100-Mbps D-coded ports, 1 Alarm input and 1 Alarm output, 1 Console port, Mini-change input for Single Power Source .

IE-3400H-24FT-A

Network Advantage

24 x100-Mbps D-coded ports, 1 Alarm input and 1 Alarm output, 1 Console port, Mini-change input for Single Power Source .

WebUI System Requirements

The WebUI is a web browser-based switch management tool that runs on the switch. The following subsections list the hardware and software required to access the WebUI.

Minimum Hardware Requirements

Processor Speed

DRAM

Number of Colors

Resolution

Font Size

233 MHz minimum1

512 MB2

256

1280 x 800 or higher

Small
1 We recommend 1 GHz
2 We recommend 1 GB DRAM

Software Requirements

Operating Systems

  • Windows 10 or later

  • Mac OS X 10.9.5 or later

Browsers

  • Google Chrome: Version 59 or later (On Windows and Mac)

  • Microsoft Edge

  • Mozilla Firefox: Version 54 or later (On Windows and Mac)

  • Safari: Version 10 or later (On Mac)

Upgrading the Switch Software

This section covers the various aspects of upgrading or downgrading the device software.


Note

See the Cisco IOS XE Migration Guide for IIoT Switches for the latest information about upgrading and downgrading switch software.

Finding the Software Version

The package files for the Cisco IOS XE software can be found on the system board flash device flash (flash:) or external SDFlash (sdflash:).

You can use the show version privileged EXEC command to see the software version that is running on your switch.


Note
Although the show version output always shows the software image running on the switch, the model name shown at the end of this display is the factory configuration and does not change if you upgrade the software license.

You can also use the dir filesystem: privileged EXEC command to see the names and versions of other software images that you might have stored in flash memory.

Software Images 17.15.x

The following table provides the file names for the IOS XE 17.15.x software images for Cisco Catalyst IE3x00 Rugged, IE3400 Heavy Duty, ESS3300, and IE3100 Rugged Series Switches.

Release

Image Type

Platform

File Name

Cisco IOS XE.17.15.1

Universal

IE3x00 (IE3200, IE3300, IE3400, IE3400H)

ie3x00-universalk9.17.15.01.SPA.bin

ESS3300

ess3x00-universalk9.17.15.01.SPA.bin

IE3100 and IE3105

ie31xx-universalk9.17.15.01.SPA.bin

Automatic Boot Loader Upgrade

When you upgrade from the existing release on your switch to a later or newer release for the first time, the boot loader may be automatically upgraded, based on the hardware version of the switch. If the boot loader is automatically upgraded, it will take effect on the next reload.

For subsequent Cisco IOS XE releases, if there is a new bootloader in that release, it may be automatically upgraded based on the hardware version of the switch when you boot up your switch with the new image for the first time.


Caution
Do not power cycle your switch during the upgrade.

Scenario

Automatic Boot Loader Response

If you boot Cisco IOS XE the first time

Boot loader may be upgraded to version "8.1.2" for IE3x00 and ESS-3300.

Checking Bootloader upgrade...
…
Bootloader upgrade successful

Software Installation Commands


Note

For the install command to be successful, it is recommended to have a minimum of free space that is twice the size of the image in flash. If there is not enough space available in flash, you are advised to free up space in flash either by issuing the install remove inactive command or to manually clean up the flash by removing unwanted core files or any other files that occupy a large amount of space in flash.

Summary of Software Installation Commands for Install Mode

To install and activate the specified file, and to commit changes to be persistent across reloads—install add file filename [ activate commit]

add file tftp: filename

Copies the install file package from a remote location to the device and performs a compatibility check for the platform and image versions.

activate [ auto-abort-timer]

Activates the file, and reloads the device. The auto-abort-timer keyword automatically rolls back image activation.

commit

Makes changes persistent over reloads.

remove

Deletes all unused and inactive software installation files.

Licensing

This section provides information about the licensing packages for features available on Cisco Catalyst IE3x00 Rugged, IE3400 Heavy Duty, and ESS3300 Series Switches and Cisco Catalyst IE3100 Rugged Series Switches.

License Types

The following license types are available:

  • Permanent: for a license level, and without an expiration date.

  • Term: a time-based license for a three, five, or seven year period.

  • Evaluation: a license that is not registered.


Note

Evaluation licenses are only used in Cisco IOS XE Release 17.3.1. Starting with Cisco IOS XE Release 17.3.2, Evaluation licenses are no longer used by Smart Licensing.

License Levels - Usage Guidelines

  • Base licenses (Network Advantage) are ordered and fulfilled only with a permanent license type.

  • Network Essentials license is the default license. It is permanent. A connection to the Smart Licensing server is not required if the IE switch will be deployed with a Network Essentials license.

  • Add-on licenses (DNA Essentials, DNA Advantage) are ordered and fulfilled only with a term license type.

  • An add-on license level is included when you choose a network license level. If you use DNA features, renew the license before term expiry, to continue using it, or deactivate the add-on license and then reload the switch to continue operating with the base license capabilities.

  • Evaluation licenses cannot be ordered. They are not tracked via Cisco Smart Software Manager and expire after a 90-day period. Evaluation licenses can be used only once on the switch and cannot be regenerated. Warning system messages about an evaluation license expiry are generated only 275 days after expiration and every week thereafter. An expired evaluation license cannot be reactivated after reload.


    Note

    Evaluation licenses are only used in Cisco IOS XE Release 17.3.1. Starting with Cisco IOS XE Release 17.3.2, Evaluation licenses are no longer used by Smart Licensing.

Smart Licensing Using Policy

An enhanced version of Smart Licensing is available, with the overarching objective of providing a licensing solution that does not interrupt the operations of your network, rather, one that enables a compliance relationship to account for the hardware and software licenses you purchase and use.

With this licensing model, you do not have to complete any licensing-specific operations, such as registering or generating keys before you start using the software and the licenses that are tied to it. Only export-controlled and enforced licenses require Cisco authorization before use. License usage is recorded on your device with timestamps, and the required workflows can be completed at a later date.

Multiple options are available for license usage reporting – this depends on the topology you implement. You can use the Cisco Smart Licensing Utility (CSLU) Windows application, or report usage information directly to Cisco Smart Software Manager (CSSM). A provision for offline reporting for air-gapped networks, where you download usage information and upload to CSSM, is also available.

Starting with this release, Smart Licensing Using Policy is automatically enabled on the device. This is also the case when you upgrade to this release.

By default, your Smart Account and Virtual Account in CSSM is enabled for Smart Licensing Using Policy.


Note

Starting with Cisco IOS XE Amsterdam 17.3.2, with the introduction of Smart Licensing Using Policy, even if you configure a hostname for a product instance or device, only the Unique Device Identifier (UDI) is displayed.

This change in the display can be observed in all licensing utilities and user interfaces where the hostname was displayed in earlier releases. It does not affect any licensing functionality. There is no workaround for this limitation.

The licensing utilities and user interfaces that are affected by this limitation include only the following: Cisco Smart Software Manager (CSSM), Cisco Smart License Utility (CSLU), and Smart Software Manager On-Prem (SSM On-Prem).

For more information about Smart Licensing, see Smart Licensing Using Policy for Cisco Enterprise Routing Platforms.

Caveats

Caveats describe unexpected behavior in Cisco IOS XE releases. Caveats listed as open in a prior release are carried forward to the next release as either open or resolved.

Cisco Bug Search Tool

Cisco Bug Search Tool is a web-based tool that acts as a gateway to the Cisco bug tracking system that maintains a comprehensive list of defects and vulnerabilities in Cisco products and software. BST provides you with detailed defect information about your products and software.

Click the link for the caveat in the sections below to view details for the caveat in Bug Search Tool.

Open Caveats in Cisco IOS XE 17.15.1

Identifier

Description

CSCwk86434

IE3100: Configuration failed to parse with a good ciscortr.cfg.

Resolved Caveats in Cisco IOS XE 17.15.1

Identifier

Description

CSCwi31665

IE3400 shows in inventory with Incorrect Category Network Device error

CSCwi49051

IE-3300 Configuration Issue for IP Source Guard

CSCwi64278

ESS-3300 | Multicast Packets are dropped with Source Guard Feature Enabled

CSCwi66479

Intermittent packet drops and log "Error: LPM IPv6 100% capacity is reached."

CSCwi69364

NETCONF get config returns <add-vlans> <add> and <remove> after changing allowed trunk VLANs via CLI

CSCwi80954

IE-3300 drops unicast DHCP Discover packet if DHCP Snooping is enabled globally on L3 interfaces

CSCwi90435

ESS3300- Stopping unknown unicast needs a toggle to work after reload

CSCwj15427

IE3300 drops ARP packets for a VLAN, when DAI is configured globally on any VLAN

CSCwj23080

IE-3400 crashes after clear cts due segmentation fault

CSCwj34960

IE3400: IPDT feature with vrf configuration causes arp learning failure

CSCwj70605

Switch drops ARP packets for a VLAN, when DAI is configured globally on any VLAN

CSCwj91206

Profinet and LLDP configuration is not visible in startup config and is missing after reload

CSCwk30765

PNP/Autoinstall failing.

CSCwk31099

IE3100 interfaces fail to recover after being disabled when connected to 3rd party device

CSCwk62620

Device hangs while loading 17.14.1, if any SFP connected in TenGig1/2 port

Troubleshooting

For the most up-to-date, detailed troubleshooting information, see the Cisco TAC website at this URL:

https://www.cisco.com/en/US/support/index.html

Go to Product Support and select your product from the list or enter the name of your product. Look under Troubleshoot and Alerts, to find information for the problem that you are experiencing.

Related Documentation

Information about Cisco IOS XE at this URL: https://www.cisco.com/c/en/us/products/ios-nx-os-software/ios-xe/index.html

All support documentation for Cisco Catalyst IE3100 Rugged Series Switches is at this URL: https://www.cisco.com/c/en/us/support/switches/catalyst-ie3100-rugged-series/series.html

All support documentation for Cisco Catalyst IE3200 Rugged Series Switches is at this URL: https://www.cisco.com/c/en/us/support/switches/catalyst-ie3200-rugged-series/tsd-products-support-series-home.html

All support documentation for Cisco Catalyst IE3300 Rugged Series Switches is at this URL: https://www.cisco.com/c/en/us/support/switches/catalyst-ie3300-rugged-series/tsd-products-support-series-home.html

All support documentation for Cisco Catalyst IE3400 Rugged Series Switches is at this URL: https://www.cisco.com/c/en/us/support/switches/catalyst-ie3400-rugged-series/tsd-products-support-series-home.html

All support documentation for Cisco Catalyst IE3400H Heavy Duty Series Switches is at this URL: https://www.cisco.com/c/en/us/support/switches/catalyst-ie3400-heavy-duty-series/tsd-products-support-series-home.html

All support documentation for Cisco ESS3300 Series Switches is at this URL: https://www.cisco.com/c/en/us/support/switches/embedded-service-3000-series-switches/tsd-products-support-series-home.html

Cisco Validated Designs documents at this URL: https://www.cisco.com/go/designzone

To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL: http://www.cisco.com/go/mibs

Communications, Services, and Additional Information

  • To receive timely, relevant information from Cisco, sign up at Cisco Profile Manager.

  • To get the business impact you’re looking for with the technologies that matter, visit Cisco Services.

  • To submit a service request, visit Cisco Support.

  • To discover and browse secure, validated enterprise-class apps, products, solutions, and services, visit Cisco DevNet.

  • To obtain general networking, training, and certification titles, visit Cisco Press.

  • To find warranty information for a specific product or product family, access Cisco Warranty Finder.

Documentation Feedback

To provide feedback about Cisco technical documentation, use the feedback form available in the right pane of every online document.

Cisco Support Community

Cisco Support Community is a forum for you to ask and answer questions, share suggestions, and collaborate with your peers. Join the forum at: https://supportforums.cisco.com/index.jspa.

Cisco Feature Navigator (CFN)

The Cisco Feature Navigator provides links to browse Cisco products and find relevant features and licenses. It also allows you to compare platforms, determine common features between products, and identify unique product features.

The CFN also has a tab that provides a MIB Locator.
