Overview
This hardware technical guide provides a product description, specifications, and compliance information for the Cisco Embedded Service 3300 Series Switches.
 Note |
The documentation set for this product strives to use bias-free language. For purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. |

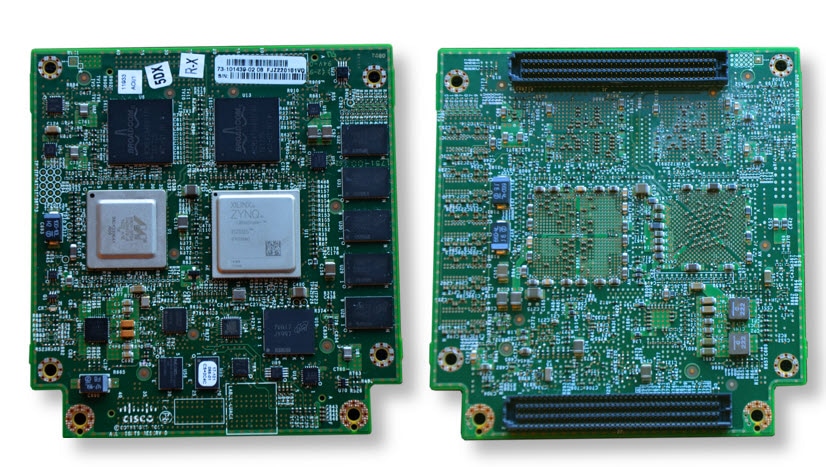

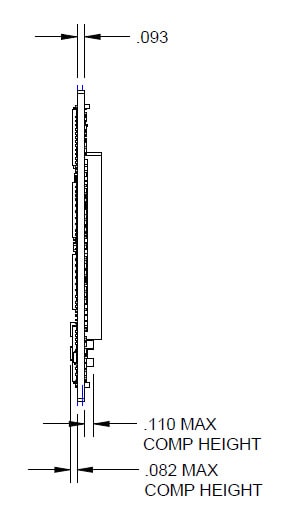

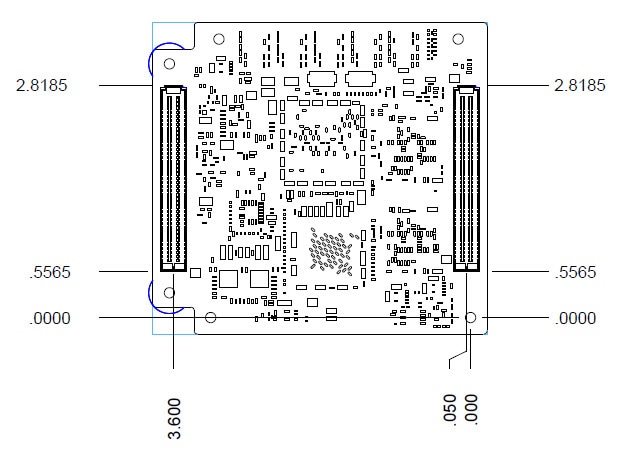

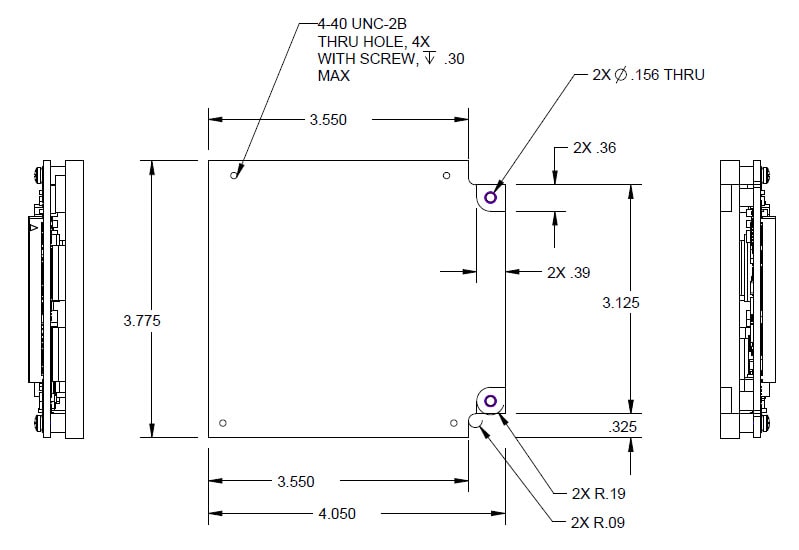

The Cisco ESS 3300 is an embedded Ethernet switch card with a board size of 4.050 in x 3.775 in (102.87mm x 95.89mm). This module may fit in an enclosure that was originally designed for PC/104 modules with some additional adaptation.

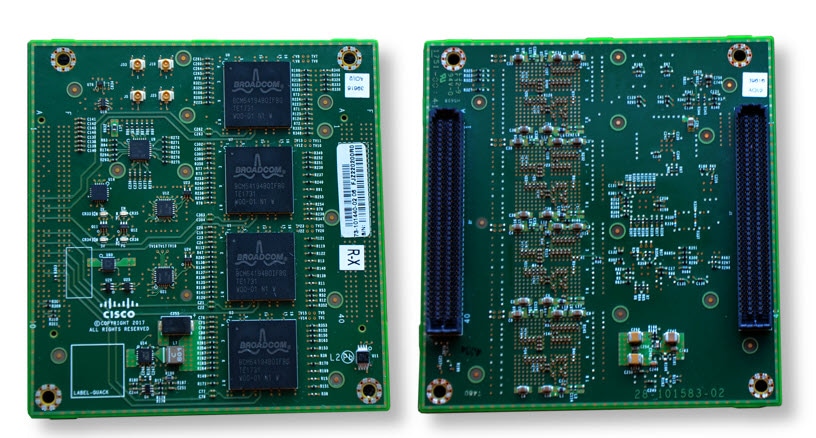

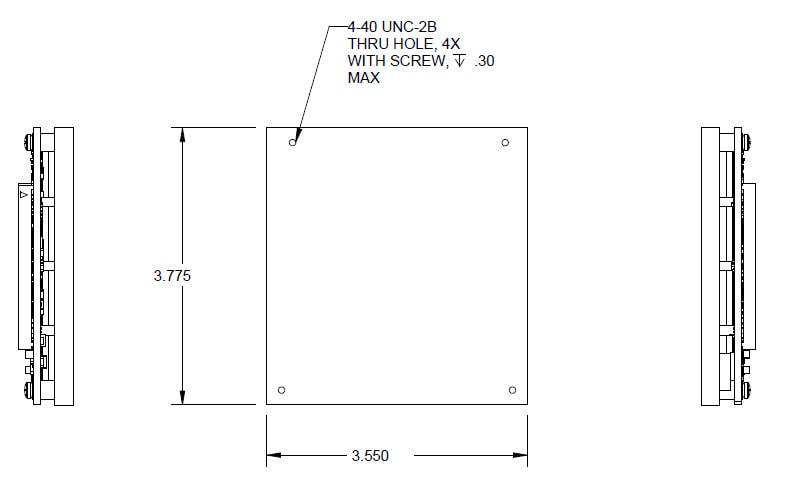

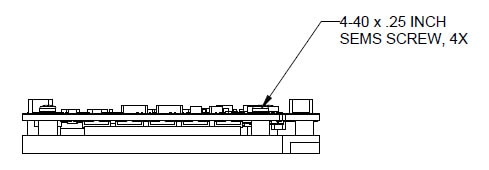

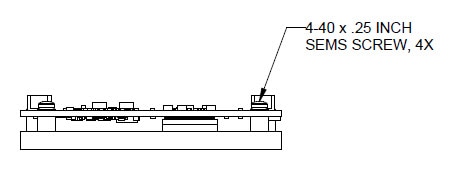

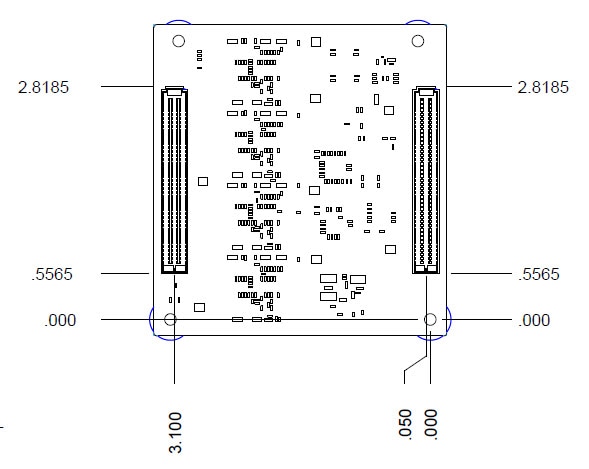

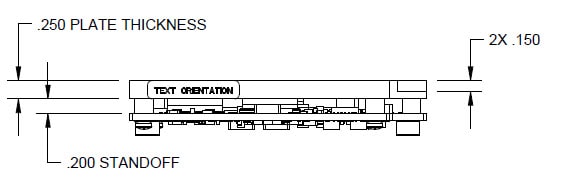

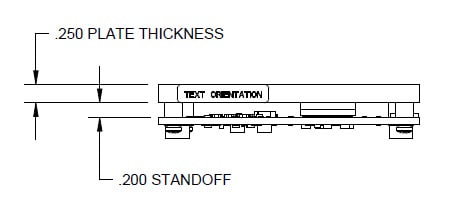

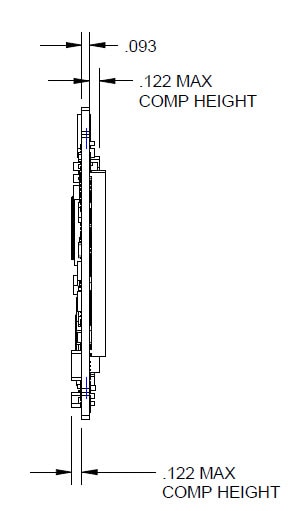

The compact design simplifies integration and offers system integrators the ability to use the Cisco ESS 3300 in a wide variety of applications. The Cisco ESS 3300 consists of a Main Board and an optional Expansion Board. Both the Main Board and the Expansion Board are available with Cisco-designed cooling plates, and are also available without the cooling plates for system integrators who want to design their own custom thermal solutions.
The following table provides the hardware product IDs and brief descriptions for the boards.
|
SKU |
Description |
Ports |
Thermal Power |
|---|---|---|---|
|
ESS-3300-NCP-E |
Main Board without a cooling plate. |
2 ports of 10 GE fiber, 8 ports of GE copper. 4 of the 8 GE copper ports can also be combo ports. |
16 Watts |
|
ESS-3300-CON-E |
Main Board conduction cooled |
2 ports of 10 GE fiber, 8 ports of GE copper. 4 of the 8 GE copper ports can also be combo ports |
16 Watts |
|
ESS-3300-24T-NCP-E |
Main Board with a 16p Expansion Board without a cooling plate |
2 ports of 10 GE fiber, 24 ports of GE copper 4 of 8 GE ports can be combo ports on mainboard 4 of 16 GE ports can be combo ports on expansion board |
24 Watts |
|
ESS-3300-24T-CON-E |
Main Board with a 16p Expansion Board conduction cooled |
2 ports of 10 GE fiber, 24 ports of GE copper 4 of 8 GE ports can be combo ports on mainboard 4 of 16 GE ports can be combo ports on expansion board |
24 Watts |
Note |
Refer to the Cisco ESS 3300 Product Data Sheet for a complete list of available product IDs. |
Note |
The 24T SKU is a combination of the Main Board together with the 16T Expansion board. |
