Appendix

This chapter contains the following sections:

Web User Interface

The Cisco IOS-XE operating system provides a graphical user interface for monitoring and configuration of your device. The WebUI needs to be enabled before it can be used. Use these commands to enable it:

username admin privilege 15 password 0 ess9300
ip http server
ip http authentication local
ip http secure-server

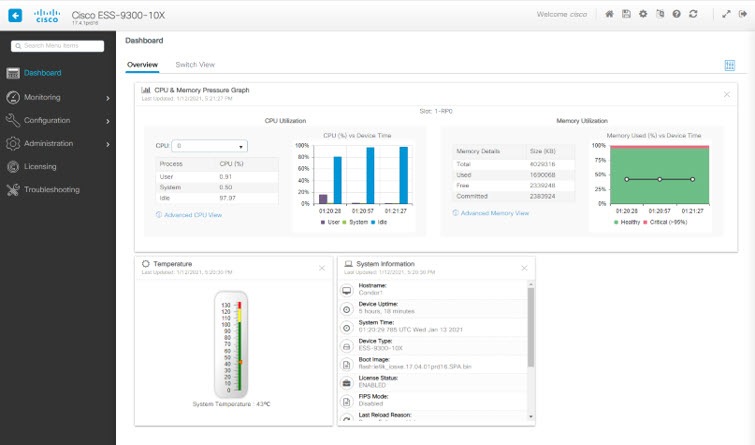

When launched, the initial display is a dashboard that looks similar to the following example:

Compliance and Safety Information

The ESS 9300 was installed in a representative chassis, tested, and shown to meet the standards listed in the following tables. Individual results will depend on final implementation. Formal compliance testing must be performed by the system integrator in a fully assembled product.

Specification

Description

Safety

UL 60950-1 Recognized Component (R/C)

CSA22.2 No. 60950-1

EN60950-1

IEC60950-1

IEC62368-1 2nd Ed.

EN62368-1

UL 62368-1 Recognized Component (R/C)

CSA C22.2 No. 62368-1

Emissions

EN 55022 / CISPR 22

EN 55032 / CISPR 32

FCC Part 15 Subpart B

ICES 003 for class A device

Immunity

EN 55024

EN 55035

EN 61000-4-2

EN 61000-4-3

EN 61000-4-4

EN 61000-4-5

EN 61000-4-6

EN 61000-4-11

IEC 61000-4-8

IEC 61000-4-10

IEC 61000-4-16

IEC 61000-4-18

MIL Compliance

Note
In Progress

CE101

CE102

CS101

CS109

CS114

CS115

CS116

CS117

CS118

RE101

RE102

RS101

RS103

RS105

Restriction of Hazardous Substances (RoHS)

RoHS is directive being adopted worldwide that restricts certain limits of the following materials from certain manufactured products:

  • Lead (Pb): < 1000 ppm
  • Mercury (Hg): < 100 ppm
  • Cadmium (Cd): < 100 ppm
  • Hexavalent Chromium: (Cr VI) < 1000 ppm
  • Polybrominated Biphenyls (PBB): < 1000 ppm
  • Polybrominated Diphenyl Ethers (PBDE): < 1000 ppm

Cisco products fall under RoHS Category 3, Computing & Communications Equipment. Cisco products must be RoHS-certified prior to being shipped/imported to the following RoHS countries: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom

Communications, Services, and Additional Information

  • To receive timely, relevant information from Cisco, sign up at Cisco Profile Manager.

  • To get the business impact you’re looking for with the technologies that matter, visit Cisco Services.

  • To submit a service request, visit Cisco Support.

  • To discover and browse secure, validated enterprise-class apps, products, solutions, and services, visit Cisco DevNet.

  • To obtain general networking, training, and certification titles, visit Cisco Press.

  • To find warranty information for a specific product or product family, access Cisco Warranty Finder.

Cisco Bug Search Tool

Cisco Bug Search Tool (BST) is a gateway to the Cisco bug-tracking system, which maintains a comprehensive list of defects and vulnerabilities in Cisco products and software. The BST provides you with detailed defect information about your products and software.

Documentation Feedback

To provide feedback about Cisco technical documentation, use the feedback form available in the right pane of every online document.
