Tables by Group

Overview

This section explains major areas of the schema. Tables are arranged in logical groups based on their domains and interrelationships.

For each section, you can find:

  • an illustration that maps the connections among tables in that group

  • links to detailed information on each individual table in the group

  • a link to the database rules for the group

For details on the columns in each table, see All Tables.

Blended Agent (Outbound Option)

This figure depicts the tables in the Blended Agent (Outbound Option) category and their connections.

In this graphic:

  • A single box represents a single table.

  • A stack of boxes represents several tables in another category of the schema.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

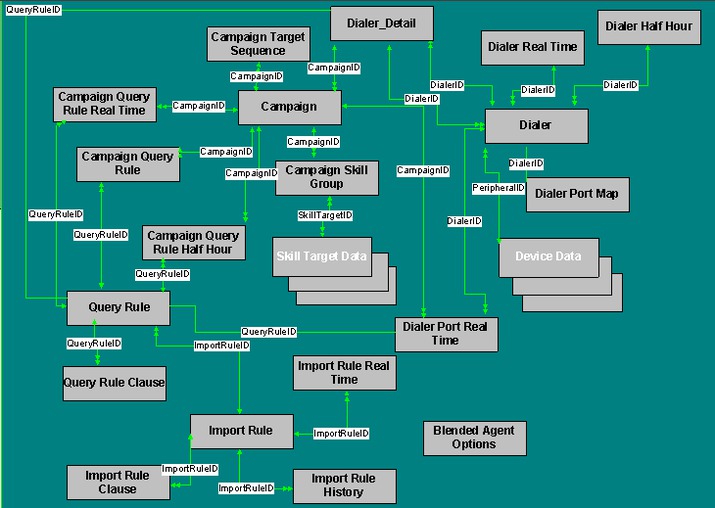

Figure 1. Blended Agent


To see database rules for tables in the Blended Agent group, see Blended Agent Tables (Outbound Option).

Tables that hold Blended Agent (Outbound Option) data are listed below.

Business Hours

This figure depicts the tables in this category and their connections.

In this graphic:

  • A single box represents a single table.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

  • A stack of boxes represents several tables in another category of the schema.

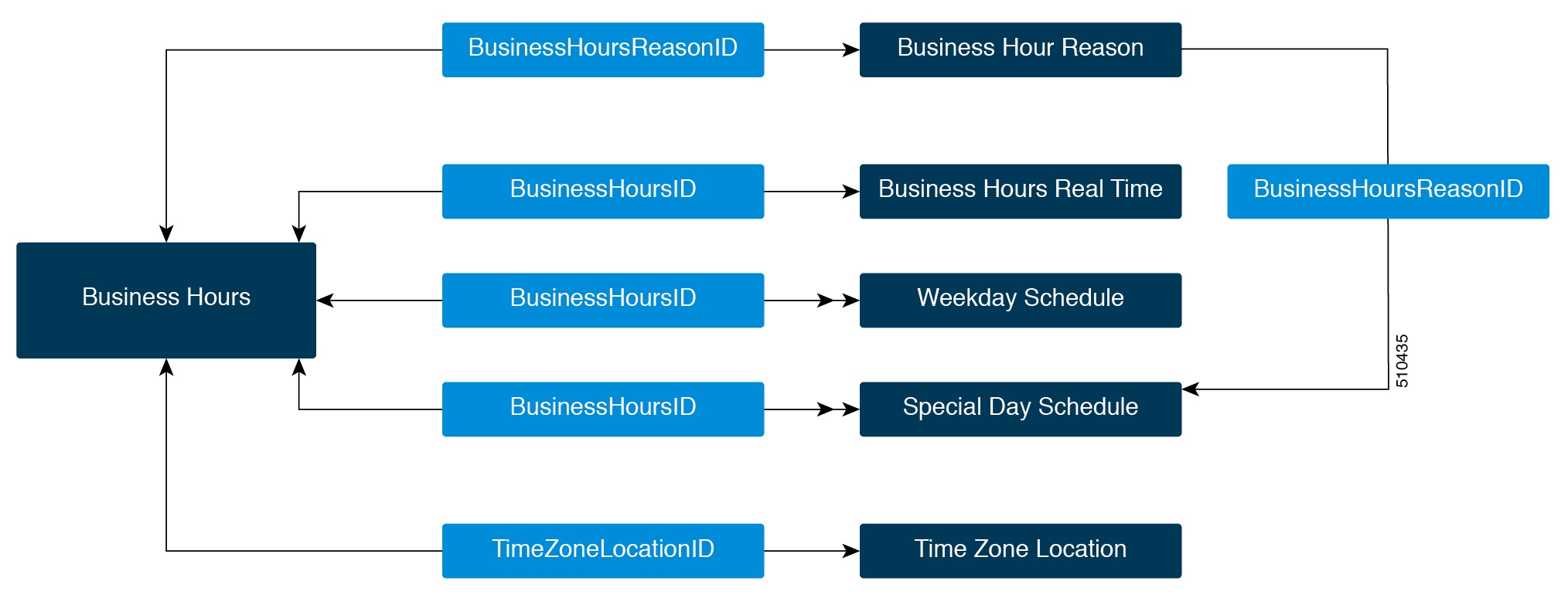

Figure 2. Business Hours Category

To see the database rules for these tables, see Business Hours Tables.

Tables in the Business Hours category include the following:

Contact Sharing

This figure depicts the tables in this category and their connections.

In this graphic:

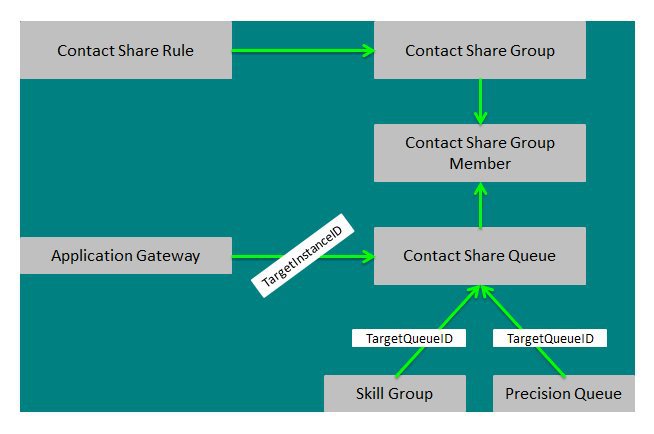

Figure 3. Contact Sharing


  • A single box represents a single table.

  • A box with a + plus sign represents a subcategory of table with related detail: Peripheral and Trunk Group.

  • A stack of boxes represents several tables in another category of the schema.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

Figure 4. Contact Sharing

To see database rules for these tables, see Contact Sharing Tables.

Tables in the Contact Sharing category include the following:

Survey (For Future Use)

This figure depicts the tables in this category and their connections.

In the following graphic:

  • A single box represents a single table.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

  • A stack of boxes represents several tables in another category of the schema.

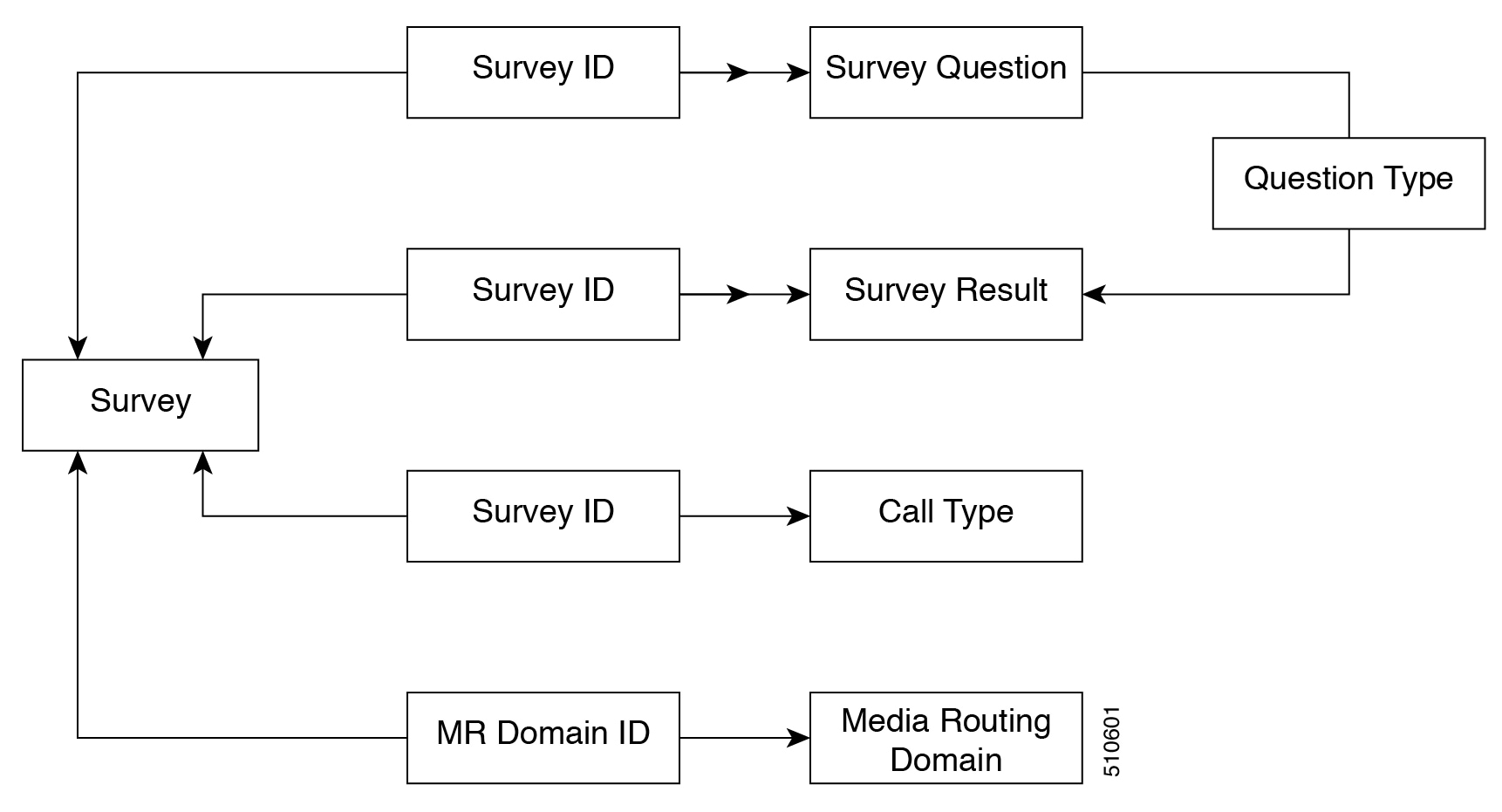

Figure 5. Survey

To see the database rules for these tables, see CX Survey_Table (For Future Use).

Tables in the Survey category include the following:

Device

This figure depicts the tables in this category and their connections.

In this graphic:

  • A single box represents a single table.

  • A box with a + plus sign represents a subcategory of table with related detail: Peripheral and Trunk Group.

  • A stack of boxes represents several tables in another category of the schema.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

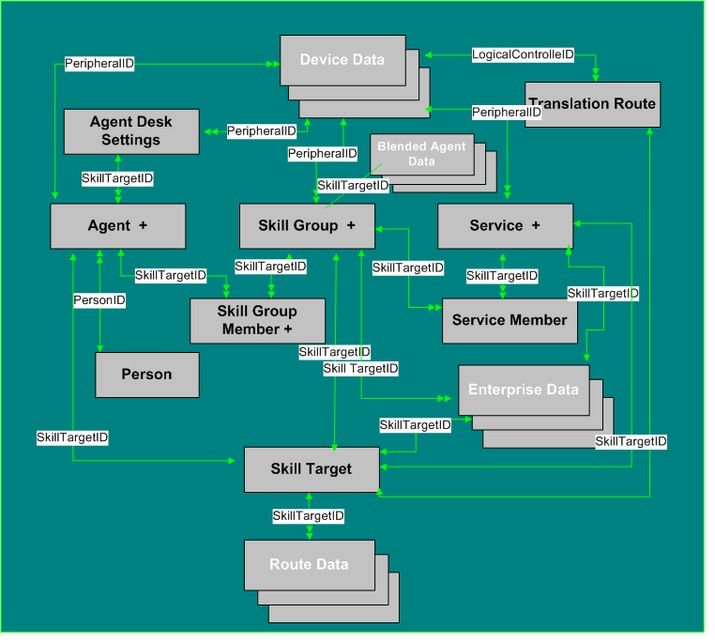

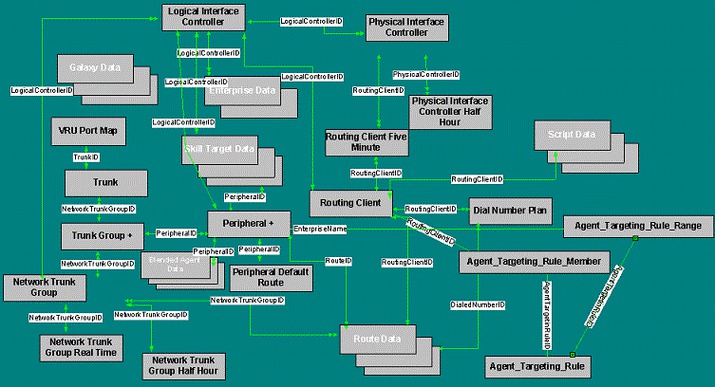

Figure 6. Device


To see database rules for these tables, see Device Tables.

Tables in the Device category include the following:

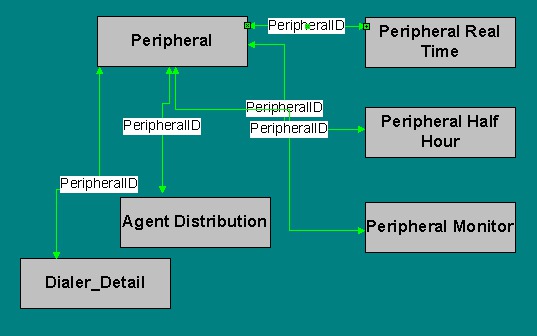

Enterprise

The figure below shows the relationships among tables in the Enterprise category.

  • A single box represents a single table.

  • A stack of boxes represents several tables in another category of the schema.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

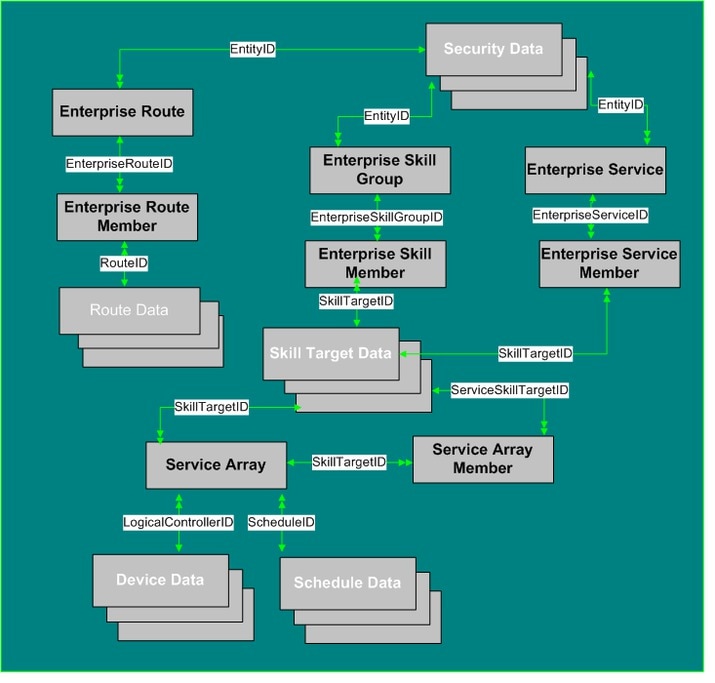

Figure 9. Enterprise


To see database rules for these tables, see Enterprise Tables.

Tables that hold Enterprise data are listed below.

Media Routing

The figure below shows the relationships among the tables in the Media Routing category.

  • A single box represents a single table.

  • A stack of boxes represents several tables in another category of the schema.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

Figure 10. Media Routing Tables


To see Database rules for the Media Routing tables, see Media Routing Tables.

Media Routing Tables are listed below:

Precision Queue

This figure depicts the tables in the Precision Queue category and their connections.

Figure 11. Precision Queue Tables

In this graphic:

  • A single box represents a single table.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

Tables that hold Precision Queue data are listed below:

  • Agent_Real_Time

  • Agent_Skill_Group_Interval

  • Agent_Skill_Group_Real_Time

  • Call_Type_SG_Interval

  • Precision_Q_Real_Time_Table

  • Precision_Queue_Step

  • Precision_Queue_Term

  • Router_Queue_Interval

  • Skilll_Group

  • Skill_Group_Interval

  • Termination_Call_Detail

Precision Queue Detail

The figure below illustrates the tables in the Precision Queue Detail subcategory.

Figure 12. Precision Queue Detail

Route

This figure depicts the tables in this category and their connections.

In this graphic:

  • A single box represents a single table.

  • A box with a + plus sign represents a subcategory of table with related detail: Route Detail.

  • A stack of boxes represents several tables in another category of the schema.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

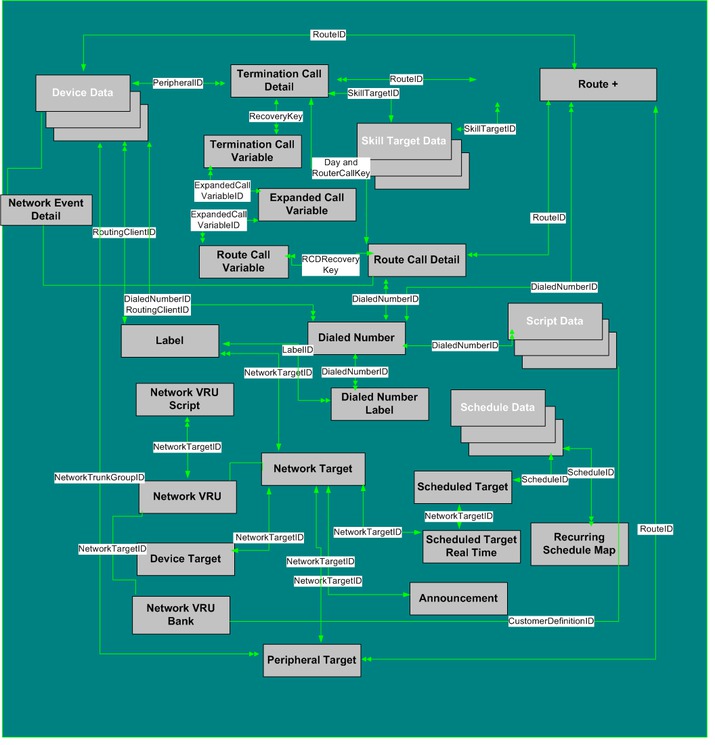

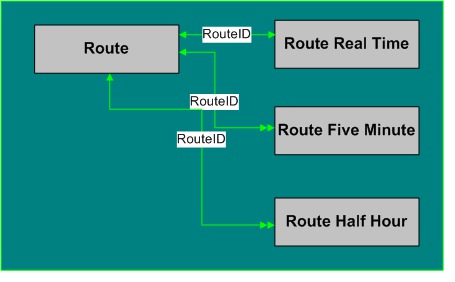

Figure 13. Route Tables


To see Database Rules for Route Tables, see Route Tables.

Tables that hold Route data are listed below.

Route Detail Tables

The figure below illustrates the tables in the Route Details subcategory.

Figure 14. Route Details Tables


Route Detail Tables are:

Schedule

This figure depicts the tables in this category.

In this graphic:

  • A single box represents a single table.

  • A stack of boxes represents several tables in another category of the schema.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

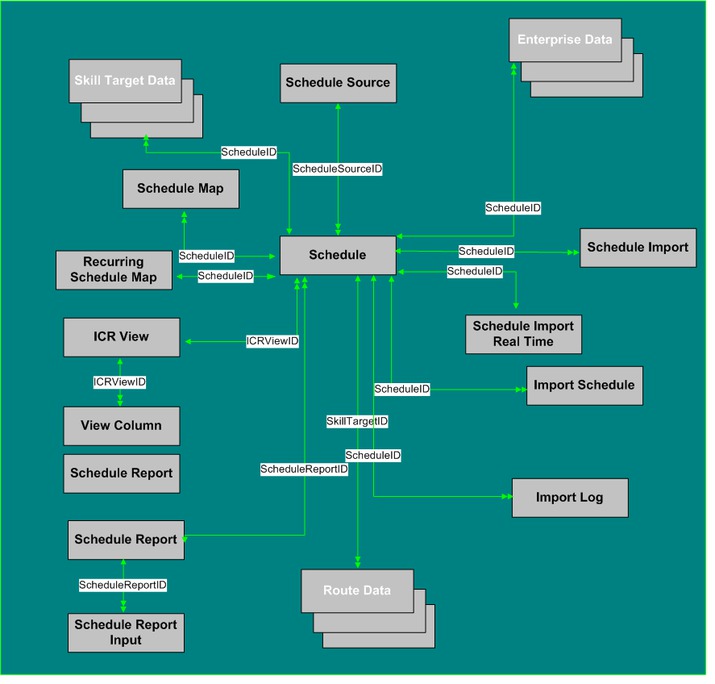

Figure 15. Schedule Tables


To see Database Rules for Schedule Tables, see Schedule Tables.

Tables that hold Schedule data are listed below.

Script

This figure depicts the tables in this category.

In this graphic:

  • A single box represents a single table.

  • A box with a + plus sign represents a subcategory of table with related detail: Call Type, Region, and Script.

  • A stack of boxes represents several tables in another category of the schema.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

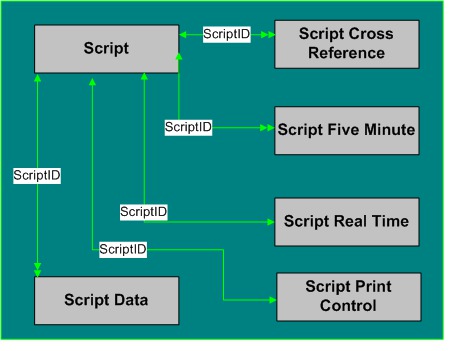

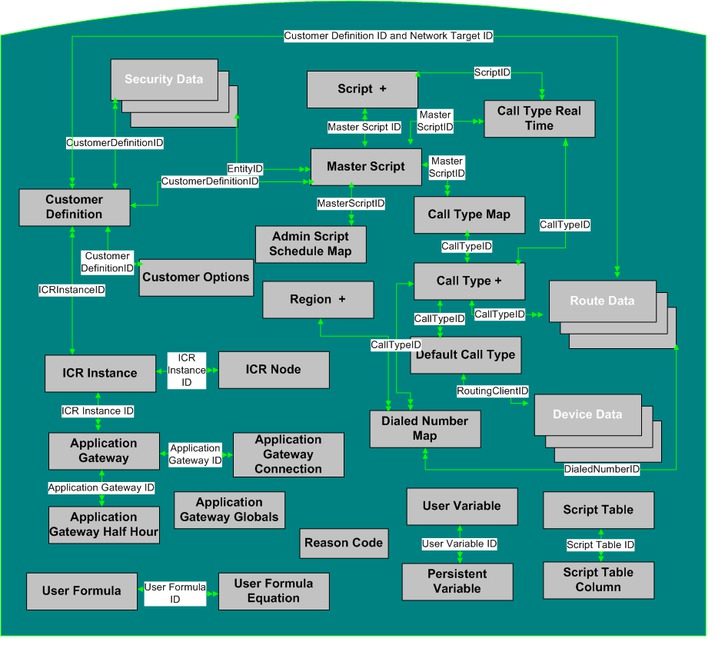

Figure 16. Script Tables


To see database rules for these tables, see Script Tables.

Script Tables are listed below

Call Type Detail

The figure below illustrates the tables in the Call Type subcategory.

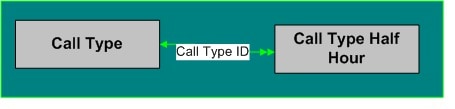

Figure 17. Call Type Tables


These tables are:

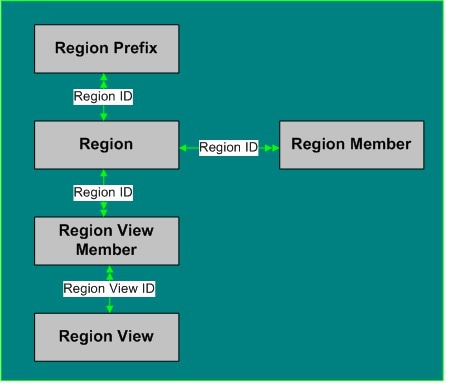

Security

The figure below shows the relationships among tables in the Security category.

  • A single box represents a single table.

  • A stack of boxes represents several tables in another category of the schema.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

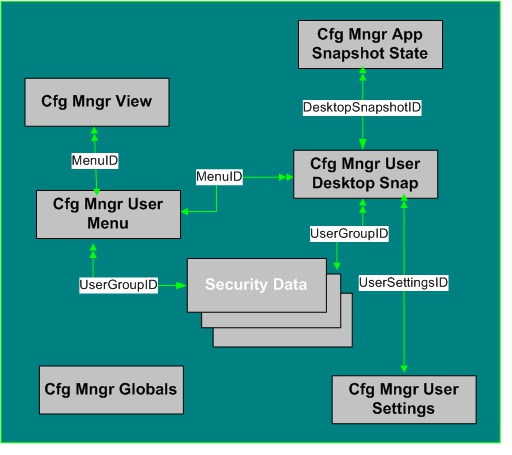

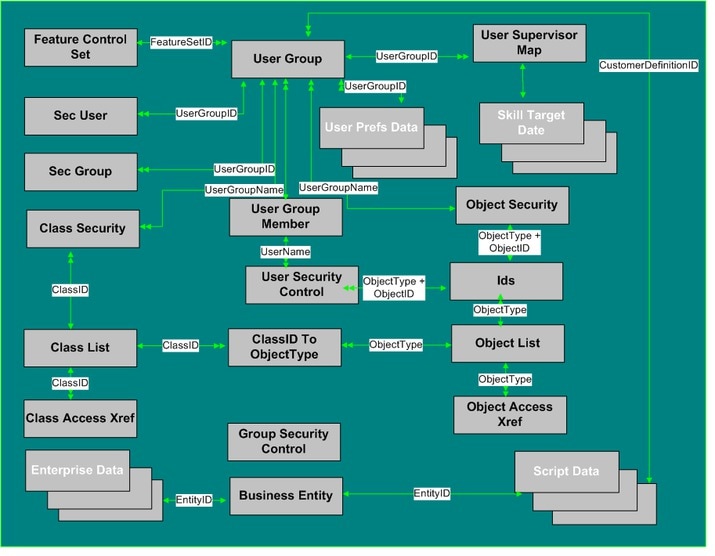

Figure 20. Security Tables


To see database rules for these tables, see Security Tables.

Tables that hold Security data are listed below.

Skill Target

This figure shows the relationships among tables in the Skill Target category. The Agent, Service, Skill Group, and Skill Group Member tables each have related tables, as indicated by the + (plus signs) in the illustration.

In this graphic:

  • A single box represents a single table.

  • A box with a + plus sign represents a subcategory of table with related detail: Agent, Service, Skill Group, and Skill Group Member.

  • A stack of boxes represents several tables in another category of the schema.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

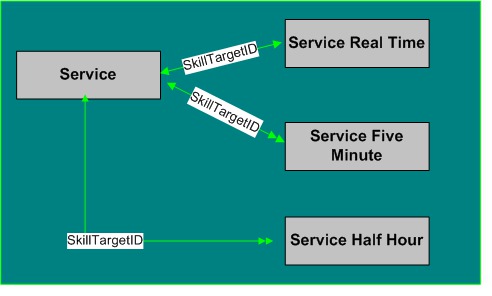

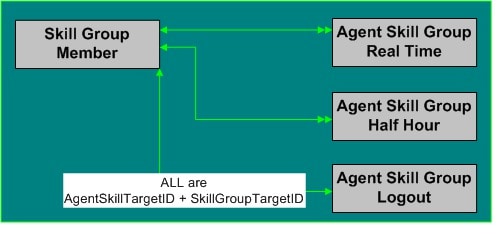

Figure 21. Skill Target Tables


To see database rules for Skill Target tables, see Skill Target Tables.

Skill Target tables include the following:

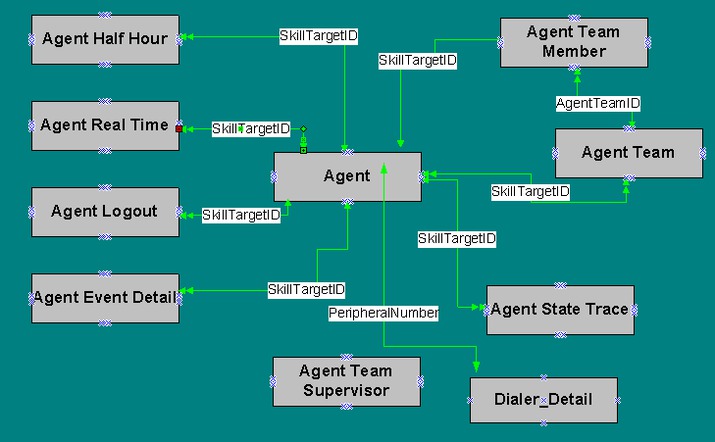

Smart License

Smart_License_Info

This table is one of the Smart License tables.

This table captures the Registration and Authorization status for a Smart License Agent instance running on a Unified CCE instance. The fields in this table represent the responses received from the Cisco Smart Software Manager (CSSM) portal using internal APIs.

Each row displays the information for one Smart Agent instance.

Related Tables

  • Smart_License_Server

  • Smart_License_Product

  • Smart_License_Entitlements

Table 1. Indexes for the Smart_License_Info Table

index_name

index_description

index_keys

XPKSmart_License_Info

Primary key

SmartLicenseInfoID

Fields in the Smart_License_Info Table

Name

Description

Data Type

Keys and NULL Option

AuthorizationExpires

Date and time of expiry of the product license authorization. Product license authorization must be renewed before this date.

DBDATETIME

NULL

AuthorizationFailedReason

 Reason for failure of authorization attempt. VARCHAR(255) NULL

ChangeStamp

 Incremented when the record is changed in the database. CHANGESTAMP NOT NULL

CssmAuthorizationStatus

Authorization status ID of Unified CCE with CSSM or Satellite.

Default value is 5

 DBINT NULL

CssmRegistrationStatus

Registration status ID of Unified CCE with CSSM or Satellite.

Default value is 2

 DBINT NULL

DaysLeftInEvaluationMode

Number of days left in evaluation mode.

 DBINT

NULL

DaysLeftInOutOfCompliance

Number of days left in Out Of Compliance mode.

 DBINT

NULL

DateTimeStamp

 Records the date and time when the record is added/updated. DBDATETIME NULL

ExportControlledAllow

N indicates that encryption cannot be turned on.

Values Y or N are allowed

 DBCHAR

NULL

EvaluationExpiredTime

Date and time of expiry of the product evaluation period.

DBDATETIME

NULL

FutureUseDateTime1

Reserved Field

DBDATETIME

NULL

FutureUseInt1

 Reserved Field DBINT NULL

FutureUseInt1

 Reserved Field DBINT NULL

FutureUseInt2

 Reserved Field DBINT NULL

FutureUseInt3

 Reserved Field DBINT NULL

FutureUseInt4

 Reserved Field DBINT NULL

FutureUseInt5

 Reserved Field DBINT NULL

FutureUseInt6

 Reserved Field DBINT NULL

FutureUseVarChar1

 Reserved Field VARCHAR(255) NULL

FutureUseVarChar2

 Reserved Field VARCHAR(255) NULL

FutureUseVarChar3

 Reserved Field VARCHAR(255) NULL

FutureUseVarChar4

 Reserved Field VARCHAR(255) NULL

FutureUseVarChar5

 Reserved Field VARCHAR(255) NULL

IsAuthorizationFailed

Y if the product license authorization attempt fails.

Values Y or N are allowed

 DBCHAR

NULL

IsRegistrationFailed

Y if the product license registration attempt fails.

Values Y or N are allowed

 DBCHAR

NULL

LastAuthorizationAttempt

 Date and Time of the last renewal attempt for the product license authorization. DBDATETIME NULL

LastRenewalAttempt

 Date and Time of the last renewal attempt for the product license registration. DBDATETIME NULL

NextAuthorizationAttempt

 Date and Time of the next renewal attempt for the product license authorization. DBDATETIME NULL

NextRenewalAttempt

 Date and Time of the next renewal attempt for the product license registration. DBDATETIME NULL

OverageDays

The number of days you can use Unified CCE when Out Of Compliance.

 DBINT NULL

OverageDaysUpdatedTime

 Time stamp when the overage days column is updated. DBDATETIME NULL

ProductInstance

Registered Product instance with CSSM.

VARCHAR(100)

NULL

RegistrationExpires

 Date and Time at which the product license registration will expire. Product license registration must be renewed before this date. DBDATETIME NULL

RegistrationFailedReason

 Reason for registration attempt failure. VARCHAR(255) NULL

SmartAccount

Name of Smart Account Name.

VARCHAR(100)

NULL

SmartLicenseInfoID

Gets the Smart License ID from the Next_Available_Number table.

DBINT

PK

Clustered

SmartLicenseServerId

 Foreign key to SmartLicenseServer DBINT NULL

VirtualAccount

Name of Virtual Account Name.

VARCHAR(100)

NULL

Smart_License_Server

This table is one of the Smart License tables.

This table stores the Unified CCE specific configuration information that is required for connection and registration to CSSM.

This table will come under configuration database table.

Related Tables

  • Smart_License_Info

  • Smart_License_Product

  • Smart_License_Entitlements

Table 2. Indexes for the Smart_License_Server Table

index_name

index_description

index_keys

XPKSmart_License_Server

Primary key

SmartLicenseServerID
Table 3. Fields in the Smart_License_Server Table

Name

Description

Data Type

Keys and NULL Option

AgentId

ID that is used to identify the source of the notification when there are multiple instances of an agent on the same system.

VARCHAR(255)

NULL

ChangeStamp

Increments when the record is changed in the database.

CHANGESTAMP

NOT NULL

CssmResponseTimeout

Maximum wait time from CSSM before SmartAgent times out and API fails.

DBINT

NULL

DateTimeStamp

Records the date and time when the record was added/updated.

DBDATETIME

NULL

DeploymentMode

Enterprise

DBINT

NOT NULL

ExcludeSpikes

Applies the 95 percentile formula to exclude spikes if this value set to Y.

Values Y or N are allowed

Default value is Y

DBCHAR

NOT NULL

FutureUseInt1

Reserved for future use.

DBINT

NULL

FutureUseInt2

Reserved for future use.

DBINT

NULL

FutureUseInt3

Reserved for future use.

DBINT

NULL

FutureUseInt4

Reserved for future use.

DBINT

NULL

FutureUseInt5

Reserved for future use.

DBINT

NULL

FutureUseVarChar1

Reserved for future use.

VARCHAR(255)

NULL

FutureUseVarChar2

Reserved for future use.

VARCHAR(255)

NULL

FutureUseVarChar3

Reserved for future use.

VARCHAR(255)

NULL

FutureUseVarChar4

Reserved for future use.

VARCHAR(255)

NULL

FutureUseVarChar5

Reserved for future use.

VARCHAR(255)

NULL

IDToken

Get the token from Cisco Licensing Cloud CSSM.

VARCHAR(255)

NULL

IsProvisionAllowed

Defines the enforcement level applied. Default value is Y which allows MACD operation on Agents and Features. Default.

Values Y or N are allowed.

DBCHAR

NOT NULL

LicenseType

1 -Perpetual

2 - Flex

DBINT

NOT NULL

OutOfCompliance

Defines if the system is OutOfCompliance.

Allowed: Y or N

DBCHAR

NULL

OutOfComplianceStartTime

The Out-of-Compliance start date.

DBDATETIME

NULL

OutOfComplianceCount

Number of times system went into Out Of Compliance.

Default Value: 0

DBINT

NULL

ProxyHostnameOrIP

Intermediate HTTP/HTTPS proxy Host name or IP address

VARCHAR(255)

NULL

ProxyPort

Intermediate HTTP/HTTPS proxy port address

DBINT

NULL

SmartCode

For internal use.

VARCHAR(255)

NULL

SmartLicenseServerID

Gets the Smart License ID from the Next_Available_Number table.

DBINT

PK

Clustered

SerialNumber

Serial number to identify the product.

VARCHAR(50)

NULL

SlrEnabled

SLR State:

0 - Disabled

1 - Enabled

DBINT

NULL

SlrStatus

SLR Status

0 - NONE

1 - IN_PROGRESS

2 - UNIVERSAL

3 - SPECIFIC

DBINT

NULL

TransportGatewayUrl

Smart Software Manager Satellite URL only in mediated deployment mode.

VARCHAR(255)

NULL

TransportType

0 - Direct

1 - On-Prem CSSM

2 - Proxy

DBINT

NOT NULL

TransportUrl

Cisco Smart Software Manager transport URL in non-mediated deployment mode.

VARCHAR(255)

NULL

TransportMode

Transport mechanism to connect Smart Agent To CSSM

  • 1 - Transport Call Home

DBINT

NULL

UsageMode

The two License Usage Modes are:

  • 0 - Production

  • 1 - Non-Production system

DBINT

NULL

Smart_License_Entitlements

This table is one of the Smart License tables.

This table stores the information on the pre-defined entitlement tags for identifying and reporting licenses on CSSM.

The information is presented in the table in multiple rows, one for each supported entitlement such as Standard and Premium Agent Entitlement for each supported product.

Related Tables

  • Smart_License_Info

  • Smart_License_Product

  • Smart_License_Server

Table 4. Indexes for the Smart_License_Server Table

index_name

index_description

index_keys

XPKSmart_License_Entitlements

Primary key

SmartLicenseEntitlementsTagID
Table 5. Fields in the Smart_License_Server Table

Name

Description

Data Type

Keys and NULL Option

ChangeStamp

Increments when the record is changed in the database.

CHANGESTAMP

NOT NULL

DateTimeStamp

Records the date and time when the record was added/updated.

DBDATETIME

NULL

DeploymentType

Deployment mode of the system.

varchar(255)

NULL

EntitlementTag

Unique tag per Product ID (PID).

For example, Standard or Premium Agent EntitlementTag. EntitlementTag names are different for different types licenses.

VARCHAR(255)

NULL

EntitlementDisplayname

Identifies the entitlement names for the configured deployment.

VARCHAR(255)

NULL

EntitlementDescription

Displays the description of the Entitlement on CSSM.

1 - Direct

2 - Proxy

3 - Satellite Connected

4 - Satellite Disconnected

VARCHAR(255)

NULL

EntitlementVersion

Entitlement Version is usually 1.0 unless multiple versions are required by the product.

VARCHAR(255)

NULL

EnforcementMode

Current enforcement mode of the entitlement.

List of the probable modes:

  • Invalid

  • Licenses not in use

  • Waiting

  • InCompliance

  • OutOfCompliance

  • Overage

  • Evaluation Mode

  • EvalExpired

  • AuthorizedPeriodExpired

  • Disabled

  • InvalidTag

  • NotApplicable

  • ReservedInCompliance

  • NotAuthorized

  • NotInUse

VARCHAR(50)

NULL

FutureUseVarChar1

Reserved for future use.

VARCHAR(255)

NULL

FutureUseVarChar2

Reserved for future use.

VARCHAR(255)

NULL

FutureUseInt1

Reserved for future use.

DBINT

NULL

FutureUseInt2

Reserved for future use.

DBINT

NULL

LicenseType

The two types of license supported are:

  • 1 - Perpetual

  • 2 - Flex

The default value 1(Perpetual).

DBINT

NULL

LockUsage

It is the highest license consumption value above and beyond entitlement value when the system is in Out-of-compliance state.

DBINT

NULL

OutOfCompliance

This flag tells whether this Entitlement is in OutOfCompliance.

DBINT

NULL

OutOfComplianceCount

Displays the number of times the Entitlements are OutOfCompliance.

DBINT

NULL

PeakUsage

Displays the peak usage of this entitlement

DBINT

NULL

SmartLicense EntitlementsTagID

Gets the Smart License ID from the Next_Available_Number table.

DBINT

NOT NULL

Smart_License_Product

This table is one of the Smart License tables.

This table stores the information about the pre-defined product tag, display name and description to identify the product instances on CSSM.

Related Tables

  • Smart_License_Info

  • Smart_License_Server

  • Smart_License_Entitlements

Table 6. Indexes for the Smart_License_Server Table

index_name

index_description

index_keys

XPKSmart_License_Product

Primary key

SmartLicenseProductID
Table 7. Fields in the Smart_License_Server Table

Name

Description

Data Type

Keys and NULL Option

ChangeStamp

This field is incremented when the record is changed in the database.

CHANGESTAMP

NOT NULL

DateTimeStamp

Records the date and time when the license record was added/updated.

DBDATETIME

NULL

FutureUseInt1

Reserved for future use.

DBINT

NULL

FutureUseInt2

Reserved for future use.

DBINT

NULL

FutureUseVarChar1

Reserved for future use.

VARCHAR(255)

NULL

FutureUseVarChar2

Reserved for future use.

VARCHAR(255)

NULL

ProductDescription

Displays the description of the product license in the product instance overview of CSSM.

VARCHAR (255)

NULL

ProductDisplayName

Displays the name of the product in the product instance overview of CSSM.

VARCHAR (255)

NOT NULL

ProductEnvironment

Displays the environment of the product in the product instance overview of CSSM.

The two types of environments supported are:

  • 0: Production (default value)

  • 1: Development

DBINT

NULL

PrivacyEnabled

Displays the privacy status of the product in the product instance overview of CSSM.

Values 0 or 1 are allowed.

  • 0: Privacy disabled

  • 1: Privacy enabled (default value)

DBINT

NULL

ProductTag

Is a unique id defined for each product like

  • UCCE

  • PCCE

VARCHAR (255)

NOT NULL

ProductVersion

Product Version is usually 1.0 unless multiple versions are required by the product.

VARCHAR (30)

NULL

SmartLicenseProductID

Gets the Smart License ID from the Next_Available_Number table.

DBINT

PK

Clustered

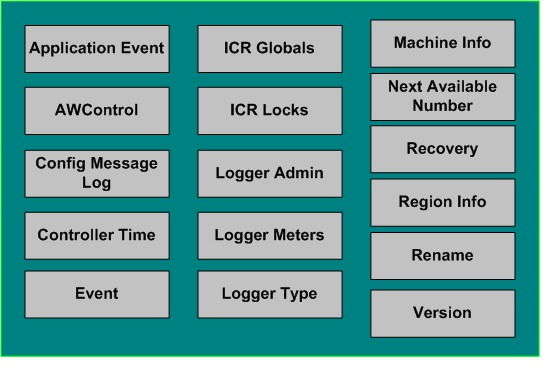

User Preferences

The figure below illustrates the relationships among the Uesr Preferences tables.

  • A single box represents a single table.

  • A stack of boxes represents several tables in another category of the schema.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

Figure 27. User Preferences Tables


To see database rules for these tables, see User Preferences Tables.

User Preferences Tables include the following:

VRU Micro-application

The figure below illustrates the relationships among the VRU Micro-Application tables.

  • A single box represents a single table.

  • A single arrowhead indicates a one-to-one relationship, and a double arrowhead indicates a one-to-many relationship.

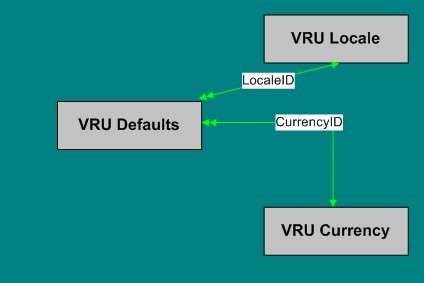

Figure 28. VRU Micro-application Tables


For database rules, see VRU Micro-applications Tables.

VRU MicroApplication Tables are listed below:

Tables Reserved for Future Use

Although the following tables have been added to the Unified ICM/Unified CCE Schema, they are reserved for future use:

  • Application_Gateway_License

  • Campaign_Half_Hour

  • Campaign_Real_Time

  • Dialer Skill Group Half Hour

  • Dialer Skill Group Real Time

  • License_Definition

  • License_Real_Time

  • Phone_Strategy

  • Phone_Strategy_Node
