System Implementation

Revised: December 21, 2009

This section describes the information you need to configure the Cisco 2900 Series Integrated Services Routers Generation 2 (ISRs G2) branch routers, and Catalyst 3560 switches used in the Streamlined Medium Branch Network.

Note Use the Command Lookup Tool (registered customers only) for more information on the commands used in this document.

The full configuration of the Cisco 3900 Series ISR that was used for validating the features described in this guide is provided in the Streamlined Medium Branch Network Toolkit.

Contents

•Network Topology

•WAN Services Implementation

•LAN Services Implementation

•Network Fundamental Services Implementation

•Security Services Implementation

•Voice Services Implementation

•Optimization Services Implementation

•Caveats

Network Topology

Figure 1 shows the components of the Streamlined Medium Branch Network test bed. The topology includes the following components:

Enterprise Headquarters

•Web servers

•File servers

•Print servers

•PC clients

•Cisco 7200 Series VXR routers

•Cisco Secure ACS

•Catalyst 3560 and Catalyst 6500 switches

•IP Phones

•Cisco Unified Communications Manager (Cisco Unified CM)

•Cisco Wide Area Application Engine (Cisco WAE) 512

•Cisco Configuration Engine

Enterprise Branch

•Cisco 2951 and Cisco 2921 ISRs

•Cisco 3560 switches

•Cisco Unified IP Phones 7942G, 7945G, 7961G, 7962G, 7965G, 7971G, and 7985G

•Cisco Unified IP Conference Station 7936

•PC clients

•Demilitarized zone (DMZ) servers

•Analog telephones and faxes

Figure 1 Streamlined Medium Branch Network Test Bed

Figure 2 shows the detailed topology, interface assignment, and IP addressing scheme.

Figure 2 Streamlined Medium Branch Network Topology

Figure 3 shows the high-speed WAN interface cards (HWICs), voice interface cards (VICs), voice WAN interface cards (VWICs), and network modules configuration on a Cisco 2951 router. WAN connectivity is provided by the 4-port high-speed interface card (HWIC-4T). A Cisco 2921 router, shown in Figure 4 was filled in the same way. The Cisco Unity Express AIM2-CUE module was placed into internal slot 1.

Figure 3 Interface Card and Service Module Configuration on a Cisco 2951 Router

Figure 4 Interface Card and Service Module Configuration On a Cisco 2921

The router configuration in the following sections applies to both routers, unless noted otherwise. The same configuration applies to both access layer switches.

WAN Services Implementation

The following four configurations were tested for connecting WAN access lines to the nearest provider edge (PE) device of the service provider network:

•Multiport DS-1 Interface with Multilink Point-to-Point Encapsulation

•Multiport DS-1 Interface with Multilink Frame Relay Encapsulation

•Onboard Gigabit Ethernet Interface

Multiport DS-1 Interface with Multilink Point-to-Point Encapsulation

To support the multilink PPP configuration, four interfaces on the HWIC-4T were bundled together to form a single multilink bundle.


Router(config)# interface Multilink1 ! Enters multilink interface configuration mode

Router(config-if)# ip address 192.168.0.1 255.255.255.252 ! Specifies an IP address for
interface

Router(config-if)# ip access-group BLOCK-TFTP in ! Applies ACL named "BLOCK-TFTP" on
incoming traffic

Router(config-if)# ip access-group BLOCK-TFTP out ! Applies ACL named "BLOCK-TFTP" on
outgoing traffic

Router(config-if)# ip pim sparse-dense-mode ! Enables multicast in sparse-dense mode

Router(config-if)# no ip mroute-cache ! Disables fast-switching of multicast packets

Router(config-if)# ip nbar protocol-discovery ! Enables NBAR to discover default protocols
and gather statistics

Router(config-if)# load-interval 30 ! Specifies interval for computing load statistics

Router(config-if)# ip flow egress ! Enables NetFlow accounting for outgoing packets

Router(config-if)# ip flow ingress ! Enables NetFlow accounting for incoming packets

Router(config-if)# ppp multilink ! Enables Multilink PPP

Router(config-if)# ppp multilink group 1 ! Assigns interface to the multilink group 1

Router(config-if)# max-reserved-bandwidth 100 ! Makes 100% of interface bandwidth
available for QoS reservations

Router(config-if)# exit


Router(config)# interface Serial0/1/0 ! Enters serial interface configuration mode for
channel group 0

Router(config-if)# no ip address

Router(config-if)# encapsulation ppp ! Configures encapsulation type for interface as PPP

Router(config-if)# ppp multilink ! Enables Multilink PPP

Router(config-if)# ppp multilink group 1 ! Assigns interface to multilink group 1

Router(config-if)# max-reserved-bandwidth 100 ! Makes 100% of interface bandwidth
available for QoS reservations

Router(config-if)# no shutdown

Router(config-if)# interface Serial0/1/1 ! Enters serial interface configuration mode for
channel group 0

Router(config-if)# no ip address

Router(config-if)# encapsulation ppp ! Configures encapsulation type for interface as PPP

Router(config-if)# ppp multilink ! Enables Multilink PPP

Router(config-if)# ppp multilink group 1 ! Assigns interface to multilink group 1

Router(config-if)# max-reserved-bandwidth 100 ! Makes 100% of interface bandwidth
available for QoS reservations

Router(config-if)# no shutdown

Router(config-if)# interface Serial0/1/2 ! Enters serial interface configuration mode for
channel group 0

Router(config-if)# no ip address

Router(config-if)# encapsulation ppp ! Configures encapsulation type for interface as PPP

Router(config-if)# ppp multilink ! Enables Multilink PPP

Router(config-if)# ppp multilink group 1 ! Assigns interface to multilink group 1

Router(config-if)# max-reserved-bandwidth 100 ! Makes 100% of interface bandwidth
available for QoS reservations

Router(config-if)# no shutdown

Router(config-if)# interface Serial0/1/3 ! Enters serial interface configuration mode for
channel group 0

Router(config-if)# no ip address

Router(config-if)# encapsulation ppp ! Configures encapsulation type for interface as PPP

Router(config-if)# ppp multilink ! Enables Multilink PPP

Router(config-if)# ppp multilink group 1 ! Assigns interface to multilink group 1

Router(config-if)# max-reserved-bandwidth 100 ! Makes 100% of interface bandwidth
available for QoS reservations

Router(config-if)# no shutdown

Router(config-if)# exit

Apply the following command on the Multilink1 interface after defining the EIGHT-CLASS-V3PN- EDGE-SHAPE class as shown in the Security section.

Router(config-if)# service-policy output EIGHT-CLASS-V3PN-EDGE-SHAPE ! Applies QoS policy
to the interface in outgoing direction to provide preferential treatment for traffic

Apply the following command on the Multilink1 interface after defining the Public security zone as shown in the Security section.

Router(config-if)# zone-member security Public ! Adds interface to firewall zone called
Public

Apply the following command on the Multlink1 interface after defining the VPN-MAP crypto map as shown in the Security section if using GETVPN.

Router(config-if)# crypto map VPN-MAP ! Applies crypto map "VPN-MAP" to the interface

Verification of Multiport DS-1 Interface with Multilink PPP Encapsulation

To verify the multilink interface configuration, enter the show ppp multilink command to display the active serial interfaces bundled as part of PPP multilink.

Router# show ppp multilink


Multilink1

  Bundle name: BRANCH

  Remote Endpoint Discriminator: [1] ISP-1

  Local Endpoint Discriminator: [1] Router

  Bundle up for 2w2d, total bandwidth 8192, load 1/255

  Receive buffer limit 48000 bytes, frag timeout 1000 ms

    0/0 fragments/bytes in reassembly list

    3 lost fragments, 4704524 reordered

    9/800 discarded fragments/bytes, 0 lost received

    0xE543EE received sequence, 0xE83A54 sent sequence

  Member links: 4 active, 0 inactive (max not set, min not set)

    Se0/1/0, since 2w2d

    Se0/1/1, since 2w2d

    Se0/1/2, since 2w2d

    Se0/1/3, since 2w2d

No inactive multilink interfaces

Router#

Use the show interface multilink command to show the status of multilink.

Router1# show interface Multilink 1

Multilink1 is up, line protocol is up

  Hardware is multilink group interface

  Internet address is 192.168.0.1/30

  Backup interface ATM0/2/IMA0, failure delay 0 sec, secondary disable delay 0 sec,

  kickin load not set, kickout load not set

  MTU 1500 bytes, BW 8192 Kbit, DLY 100000 usec,

     reliability 255/255, txload 1/255, rxload 1/255

  Encapsulation PPP, LCP Open, multilink Open

  Open: IPCP, CDPCP, loopback not set

  Keepalive set (10 sec)

  DTR is pulsed for 2 seconds on reset

  Last input 00:00:21, output never, output hang never

  Last clearing of "show interface" counters 2w2d

  Input queue: 0/75/178/0 (size/max/drops/flushes); Total output drops: 791

  Queueing strategy: fifo

  Output queue: 0/40 (size/max)

  30 second input rate 0 bits/sec, 0 packets/sec

  30 second output rate 1000 bits/sec, 1 packets/sec

     5463859 packets input, 1356700636 bytes, 0 no buffer

     Received 0 broadcasts, 0 runts, 0 giants, 0 throttles

     12 input errors, 0 CRC, 1 frame, 0 overrun, 0 ignored, 8 abort

     5275968 packets output, 3619744669 bytes, 0 underruns

     0 output errors, 0 collisions, 1 interface resets

     0 output buffer failures, 0 output buffers swapped out

     0 carrier transitions

Router#

Multiport DS-1 Interface with Multilink Frame Relay Encapsulation

To support the multilink Frame Relay configuration, four (and two) interfaces on the HWIC-4T were bundled together to form a single multilink bundle.

Router(config)# interface MFR 1 ! Enters Frame Relay multilink interface configuration mode

Router(config-if)# encapsulation frame-relay ! Specifies Frame Relay encapsulation for the
interface

Router(config-if)# ip address 192.168.0.1 255.255.255.252 ! Specifies an IP address for
interface

Router(config-if)# ip access-group BLOCK-TFTP in ! Applies ACL named "BLOCK-TFTP" on
incoming traffic

Router(config-if)# ip access-group BLOCK-TFTP out ! Applies ACL named "BLOCK-TFTP" on
outgoing traffic

Router(config-if)# no ip mroute-cache ! Disables fast-switching of multicast packets

Router(config-if)# ip nbar protocol-discovery ! Enables NBAR to discover default protocols
and gather statistics

Router(config-if)# load-interval 30 ! Specifies interval for computing load statistics

Router(config-if)# ip flow egress ! Enables NetFlow accounting for outgoing packets

Router(config-if)# ip flow ingress ! Enables NetFlow accounting for incoming packets

Router(config-if)# max-reserved-bandwidth 100 ! Makes 100% of interface bandwidth
available for QoS reservations

Router(config-if)# end


Router(config)# interface Serial0/1/0 ! Enters serial interface configuration mode for
channel group 1

Router(config-if)# encapsulation frame-relay MFR 1 ! Assigns the link to MFR bundle with id
1

Router(config-if)# no shutdown

Router(config-if)# interface Serial0/1/1 ! Enters serial interface configuration mode for
channel group 1

Router(config-if)# encapsulation frame-relay MFR 1 ! Assigns the link to MFR bundle with id
1

Router(config-if)# no shutdown

Router(config-if)# interface Serial0/1/2 ! Enters serial interface configuration mode for
channel group 1

Router(config-if)# encapsulation frame-relay MFR 1 ! Assigns the link to MFR bundle with id
1

Router(config-if)# no shutdown

Router(config-if)# interface Serial0/1/3 ! Enters serial interface configuration mode for
channel group 1

Router(config-if)# encapsulation frame-relay MFR 1 ! Assigns the link to MFR bundle with id
1

Router(config-if)# end

Apply the following command on the MFR interface after defining the EIGHT-CLASS-V3PN- EDGE-SHAPE class as shown in the Security section.

Router(config-if)# service-policy output EIGHT-CLASS-V3PN-EDGE-SHAPE ! Applies QoS policy
to the interface in outgoing direction to provide preferential treatment for traffic

Apply the following command on the MFR interface after defining the Public security zone as shown in the Security section.

Router(config-if)# zone-member security Public ! Adds interface to firewall zone called
Public

Apply the following command on the MFR interface after defining the VPN-MAP crypto map as shown in the Security section if using GETVPN.

Router(config-if)# crypto map VPN-MAP ! Applies crypto map "VPN-MAP" to the interface

Onboard Gigabit Ethernet Interface

The onboard Gigabit Ethernet port was used for WAN connection with Ethernet encapsulation.

Note When using the Small Form Plugable (SFP) module that provides optical connectivity, the default media type for the interface must be changed to SFP.

Branch(config)# interface gigabitEthernet0/0! Enters the gigabit Ethernet interface
configuration mode

Branch(config-if)# ip address 192.168.0.1 255.255.255.252 ! Specifies an IP address for
interface

Branch(config-if)# ip access-group BLOCK-TFTP in ! Applies ACL named "BLOCK-TFTP" on
incoming traffic

Branch(config-if)# ip access-group BLOCK-TFTP out ! Applies ACL named "BLOCK-TFTP" on
outgoing traffic

Branch(config-subif)# ip nbar protocol-discovery ! Enables NBAR to discover default
protocols and gather statistics

Branch(config-if)# ip flow ingress ! Enables NetFlow accounting for incoming traffic

Branch(config-if)# ip flow egress ! Enables NetFlow accounting for outgoing traffic

Branch(config-if)# ip pim sparse-dense-mode ! Enables multicast in sparse-dense mode

Branch(config-if)# no ip mroute-cache ! Disables fast-switching of multicast packets

Branch(config-if)# load-interval 30 ! Specifies interval for computing load statistics

Branch(config-if)# max-reserved-bandwidth 100 ! Makes 100% of interface bandwidth
available for QoS reservations

Branch(config-if)# media-type sfp ! Sets the Ethernet connector to SFP module

Branch(config-if)# no shutdown

Branch(config-if)# end

Apply the following command on the Gigabit Ethernet interface after defining the EIGHT-CLASS- V3PN-EDGE-SHAPE class as shown in the Security section.

Router(config-if)# service-policy output EIGHT-CLASS-V3PN-EDGE-SHAPE ! Applies QoS policy
to the interface in outgoing direction to provide preferential treatment for traffic

Apply the following command on the Gigabit Ethernet interface after defining the Public security zone as shown in the Security section.

Router(config-if)# zone-member security Public ! Adds interface to firewall zone called
Public

Apply the following command on the Gigabit Ethernet interface after defining the VPN-MAP crypto map as shown in the Security section if using GETVPN.

Router(config-if)# crypto map VPN-MAP ! Applies crypto map "VPN-MAP" to the interface

LAN Services Implementation

The main design consideration in the branch office LAN design are high availability, scalability, security, and manageability. A multilayered LAN architecture addresses these criteria and makes it easier to troubleshoot network issues.

The Multilayered Branch LAN architecture can be divided into the following layers:

•Edge and Distribution Layer: Provides WAN connectivity, routing, addressing, high availability, quality of service (QoS), security, management services, and an exit point to the rest of the network.

•Access Layer: Provides connectivity and Power-over-Ethernet (PoE) to end user devices. Layer 2 security, authentication, private VLANs, trunking, and QoS are addressed at this layer.

Edge and Distribution Layer

One of the onboard Gigabit Ethernet ports was connected to an access layer switch. The following are VLAN configurations were applied to create VLANs across the branch network:

•Data VLAN

•Voice VLAN

•DMZ VLAN

•Management VLAN

Enable the LAN facing the Gigabit Ethernet interface.

Branch(config)# interface GigabitEthernet0/1 ! Enters gigabit Ethernet sub-interface
configuration mode

Branch(config-subif)# no shutdown

Data VLAN

Branch(config)# interface GigabitEthernet0/1.1 ! Enters gigabit Ethernet sub-interface
configuration mode

Branch(config-subif)# description Data-VLAN

Branch(config-subif)# encapsulation dot1Q 301 ! Defines IEEE 802.1Q VLAN encapsulation
type

Branch(config-subif)# ip address 10.0.0.1 255.255.255.0 ! Assigns IP address to the
interface

Branch(config-subif)# ip pim sparse-dense-mode ! Enables multicast in sparse-dense mode

Apply the following command on the Gigabit Ethernet subinterface after defining the INPUT-POLICY class as shown in the Security section.

Branch(config-subif)# service-policy input INPUT-POLICY ! Executes a policy "INPUT-POLICY"
on incoming traffic

Apply the following command on the Gigabit Ethernet subinterface after defining the Private security zone as shown in the Security section.

Branch(config-subif)# zone-member security Private ! Adds the subinterface to firewall
zone called Private

Apply the following command on the Gigabit Ethernet subinterface after defining the IPS-ADVSET ACL as shown in the Security section.

Branch(config-subif)# ip ips IPS-ADVSET out ! Enables IPS signature matching for traffic
flowing in outward direction

Branch(config-subif)# ip ips IPS-ADVSET in ! Enables IPS signature matching for traffic
flowing in inward direction

Voice VLAN

Branch(config)# interface GigabitEthernet0/1.2 ! Enters gigabit Ethernet sub-interface
configuration mode

Branch(config-subif)# description Voice-VLAN

Branch(config-subif)# encapsulation dot1Q 302 ! Defines IEEE 802.1Q VLAN encapsulation
type

Branch(config-subif)# ip address 10.0.1.1 255.255.255.0 ! Assigns IP address to the
interface

Branch(config-subif)# ip pim sparse-dense-mode ! Enables multicast in sparse-dense mode

Apply the following command on the Gigabit Ethernet subinterface after defining the INPUT-POLICY class as shown in the Security section.

Branch(config-subif)# service-policy input INPUT-POLICY ! Executes a policy "INPUT-POLICY"
on incoming traffic

Apply the following command on the Gigabit Ethernet subinterface after defining the Private security zone as shown in the Security section.

Branch(config-subif)# zone-member security Private ! Adds the subinterface to firewall
zone called Private

DMZ VLAN

Branch(config-subif)# interface GigabitEthernet0/1.3 ! Enters gigabit Ethernet
sub-interface configuration mode

Branch(config-subif)# description DMZ-VLAN

Branch(config-subif)# encapsulation dot1Q 303 ! Defines IEEE 802.1Q VLAN encapsulation
type

Branch(config-subif)# ip address 10.0.2.65 255.255.255.240 ! Assigns IP address to the
interface

Branch(config-subif)# ip pim sparse-dense-mode ! Enables multicast in sparse-dense mode

Apply the following command on the Gigabit Ethernet subinterface after defining the INPUT-POLICY class as shown in the Security section.

Branch(config-subif)# service-policy input INPUT-POLICY ! Executes a policy "INPUT-POLICY"
on incoming traffic

Apply the following command on the Gigabit Ethernet subinterface after defining the DMZ security zone as shown in the Security section.

Branch(config-subif)# zone-member security DMZ ! Adds the subinterface to firewall zone
called DMZ

Apply the following command on the Gigabit Ethernet subinterface after defining the IPS-ADVSET ACL as shown in the Security section.

Branch(config-subif)# ip ips IPS-ADVSET out ! Enables IPS signature matching for traffic
flowing in outward direction

Branch(config-subif)# ip ips IPS-ADVSET in ! Enables IPS signature matching for traffic
flowing in inward direction

Management VLAN

Branch(config-subif)# interface GigabitEthernet0/1.4 ! Enters gigabit Ethernet
sub-interface configuration mode

Branch(config-subif)# description Management-VLAN

Branch(config-subif)# encapsulation dot1Q 310 ! Defines IEEE 802.1Q VLAN encapsulation
type

Branch(config-subif)# ip address 10.0.2.1 255.255.255.224 ! Assigns IP address to the
interface

Branch(config-subif)# ip pim sparse-dense-mode ! Enables multicast in sparse-dense mode

Apply the following command on the Gigabit Ethernet subinterface after defining the INPUT-POLICY class as shown in the Security section.

Branch(config-subif)# service-policy input INPUT-POLICY ! Executes a policy "INPUT-POLICY"
on incoming traffic

Apply the following command on the Gigabit Ethernet subinterface after defining the Private security zone as shown in the Security section.

Branch(config-subif)# zone-member security Private ! Adds the subinterface to firewall
zone called Private

Distribution Layer

•VLAN Trunking Protocol Implementation

•VLAN Implementation

•Spanning Tree Implementation

•Uplink to Router Implementation

•EtherChannel Implementation

•DOT1X Services

VLAN Trunking Protocol Implementation

VLAN Trunking Protocol (VTP) is a client server protocol that reduces the overhead of network administration by propagating the VLAN information from the server to all the clients in a single VTP domain.

In the Streamlined Medium Branch Network, the Catalyst 3560 series switch at the distribution layer was configured as a VTP server. This provides an additional level of resiliency and simplifies management.

Switch-Dist(config)# vtp domain VTP-BRANCH ! Creates VTP domain with name "VTP-BRANCH"

Switch-Dist(config)# vtp mode server ! Sets the distribution switch to server VTP mode

Note Always check the revision number of a new switch before bringing adding it to the network, regardless of whether the switch is going to operate in VTP client mode or operate in VTP server mode. To reset the revision number, do one of the following:

•Reboot the switch
or

•Temporarily change the domain name of the new switch and then change it back to its valid domain name.

VTP Verification

To verify your VTP configuration, enter the show vtp status command to display the VTP management status and other counters.

Switch# show vtp status

VTP Version                     : 2

Configuration Revision          : 91

Maximum VLANs supported locally : 1005

Number of existing VLANs        : 5

VTP Operating Mode              : Server

VTP Domain Name                 : VTP-BRANCH

VTP Pruning Mode                : Disabled

VTP V2 Mode                     : Disabled

VTP Traps Generation            : Disabled

MD5 digest                      : 0x01 0x71 0x91 0x17 0x8C 0x59 0xE5 0x39

Configuration last modified by 10.0.1.254 at 7-29-08 17:23:15

Local updater ID is 10.0.1.254 on interface Vl10 (lowest numbered VLAN interface found)

Switch#

VLAN Implementation

VLAN is a logical segmentation of LAN into multiple-broadcast domain that allows a group of hosts to communicate as if they were on a single LAN even if they are not physically collocated. A Layer 3 device is required for communication between VLANs.

Five VLANs were defined: DATA, VOICE, DMZ, MANAGEMENT, and BLACKHOLE.

Switch-Dist(config)# vlan 301 ! Creates Data VLAN to vlan database

Switch-Dist(config-vlan)# name DATA

Switch-Dist(config-vlan)# exit

Switch-Dist(config)# vlan 302 ! Creates Voice VLAN to vlan database

Switch-Dist(config-vlan)# name VOICE

Switch-Dist(config-vlan)# exit

Switch-Dist(config) # vlan 303 ! Creates DMZ VLAN to vlan database

Switch-Dist(config-vlan)# name DMZ

Switch-Dist(config-vlan)# exit

Switch-Dist(config)# vlan 310 ! Creates management VLAN to vlan database

Switch-Dist(config-vlan)# name MANAGEMENT

Switch-Dist(config-vlan)# exit

Switch-Dist(config-vlan)# vlan 333 ! Creates black hole VLAN to vlan database

Switch-Dist(config-vlan)# name BLACKHOLE

Switch-Dist(config-vlan)# exit

Switch-Dist(config)# interface Vlan301 ! Enters Data VLAN configuration mode

Switch-Dist(config-if)# ip address 10.0.0.254 255.255.255.0 ! Specifies the IP address for
the SVI interface

Switch-Dist(config-if)# interface Vlan302 ! Enters Voice VLAN configuration mode

Switch-Dist(config-if)# ip address 10.0.1.0 254 255.255.255.0 ! Specifies the IP address
for the SVI interface

Switch-Dist(config-if)# interface Vlan303 ! Enters switch virtual interface (SVI)
configuration

Switch-Dist(config-if)# ip address 10.0.2.78 255.255.255.240 ! Specifies the IP address for
the SVI interface

Switch-Dist(config-if)# interface Vlan310 ! Enters Management VLAN interface configuration
mode

Switch-Dist(config-if)# ip address 10.0.2.30 255.255.255.224 ! Specifies the IP address for
the SVI interface

The following configuration was applied to all access ports connected to an IP Phone.

Switch-Access(config)# interface range g1/0/4 - 48 ! Enters configuration for range of
gigabit Ethernet ports

Switch-Access(config-if-range)# switchport mode access ! Sets the port to access mode

Switch-Access(config-if-range)# switch access vlan 301 ! Assigns the port to Data VLAN

Switch-Access(config-if-range)# switchport voice vlan 302 ! Assigns the port to Voice VLAN

Switch-Access(config-if-range)# spanning-tree portfast ! Sets the switch port to
forwarding state ignoring listening/learning state

Switch-Access(config-if-range)# srr-queue bandwidth share 1 70 25 5 ! Enables bandwidth
sharing for all output queues. Queue 1 is strict priority queue, queue 2 gets 70 % of
bandwidth, queue 3 25 % of bandwidth, and queue 4 5 % of the bandwidth

Switch-Access(config-if-range)# srr-queue bandwidth shape 3 0 0 0 ! Specifies queue 2,3,4
to operate in shared mode.

Switch-Access(config-if-range)# priority-queue out ! Egress expedite queue is enabled.
This command will force SRR to ignore weight of queue 1 while calculating the bandwidth
ratio. This queue will be emptied before servicing other queues.

Switch-Access(config-if-range)# mls qos trust device cisco-phone ! Specifies the port to
trust the CoS/DSCP value if the CDP neighbor is Cisco IP Phone

Switch-Access(config-if-range)# load-interval 30 ! Specifies interval for computing load
statistics

The following configuration was applied to all access ports connected to a DMZ server.

Switch-Access(config)# interface range g1/0/49 - 52 ! Enters configuration for range of
gigabit Ethernet ports

Switch-Access(config-if-range)# switchport mode access ! Sets the port to access mode

Switch-Access(config-if-range)# switch access vlan 303 ! Assigns the port to DMZ VLAN

Switch-Access(config-if-range)# spanning-tree portfast ! Sets the switch port to
forwarding state ignoring listening/learning state

Switch-Access(config-if-range)# srr-queue bandwidth share 1 70 25 5 ! Enables bandwidth
sharing for all output queues. Queue 1 is strict priority queue, queue 2 gets 70% of
bandwidth, queue 3 25% of bandwidth, and queue 4 5% of the bandwidth

Switch-Access(config-if-range)# srr-queue bandwidth shape 3 0 0 0 ! Specifies queue 2,3,4
to operate in shared mode.

Switch-Access(config-if-range)# priority-queue out ! Egress expedite queue is enabled.
This command will force SRR to ignore weight of queue 1 while calculating the bandwidth
ratio. This queue will be emptied before servicing other queues.

Switch-Access(config-if-range)# load-interval 30 ! Specifies interval for computing load
statistics

Spanning Tree Implementation

Switch-Dist(config)# spanning-tree mode pvst ! Enables Per-VLAN spanning-tree protocol

Spanning Tree Verification

To verify your Spanning Tree configuration, enter the show spanning-tree summary command to display the Spanning Tree mode enabled in the switch.

Switch# show spanning-tree summary

Switch is in pvst mode

Root bridge for: none

Extended system ID           is enabled

Portfast Default             is disabled

PortFast BPDU Guard Default  is disabled

Portfast BPDU Filter Default is disabled

Loopguard Default            is disabled

EtherChannel misconfig guard is enabled

UplinkFast                   is disabled

BackboneFast                 is disabled

Configured Pathcost method used is short

       <Removed>

Uplink to Router Implementation

Switch-Dist(config)# interface g1/0/1 ! Enters gigabit Ethernet interface configuration
mode

Switch-Dist(config-if)# description trunk to router

Switch-Dist(config-if)# switchport trunk encapsulation dot1q ! Tags outgoing frames with
IEEE 802.1Q trunk encapsulation format

Switch-Dist(config-if)# switchport trunk allowed vlan 301-303,310 ! Defines list of allowed
VLANs that can send traffic on the trunk.

Switch-Dist(config-if)# switchport mode trunk ! Enables the Ethernet port as VLAN trunk

Switch-Dist(config-if)# load-interval 30 ! Specifies interval for computing load
statistics

EtherChannel Implementation

Switch-Access(config)# interface g1/0/2 ! Enters port 2 configuration mode

Switch-Access(config-if)# switchport trunk encapsulation dot1q ! Tags outgoing frames with
IEEE 802.1Q trunk encapsulation format

Switch-Access(config-if)# switchport mode trunk ! Enables the Ethernet port as VLAN trunk

Switch-Access(config-if)# load-interval 30 ! Specifies interval for computing load
statistics

Switch-Access(config-if)# channel-group 1 mode active ! Assigns the interface to be
EtherChannal EtherChannel group 1 in LACP active mode

Switch-Access(config-if)# interface g1/0/3 ! Enters port 3 configuration mode

Switch-Access(config-if)# switchport trunk encapsulation dot1q ! Tags outgoing frames with
IEEE 802.1Q trunk encapsulation format

Switch-Access(config-if)# switchport mode trunk ! Enables the Ethernet port as VLAN trunk

Switch-Access(config-if)# load-interval 30 ! Specifies interval for computing load
statistics

Switch-Access(config-if)# channel-group 1 mode active ! Assigns the interface to be
EtherChannal EtherChannel group 1 in LACP active mode

Switch-Access(config-if)# exit

Switch-Access(config)# interface Port-channel1 ! Enters EtherChannel specific
configuration mode

Switch-Access(config-if)# switchport trunk encapsulation dot1q ! Tags outgoing frames with
IEEE 802.1Q trunk encapsulation format

Switch-Access(config-if)# switchport mode trunk ! Enables the EtherChannel as VLAN trunk

Switch-Access(config-if)# load-interval 30 ! Specifies interval for computing load
statistics

Switch-Access(config-if)# exit

DOT1X Services

Switch-Dist(config)# aaa new-model ! Enables Authentication, Authorization and Accounting
services

Switch-Dist(config)# aaa authentication dot1x default group radius ! Specifies default
dot1x authentication to use RADIUS server database

Switch-Dist(config)# aaa session-id common ! Specifies to use the same session identifier
for all invocations of accounting services

Switch-Dist(config)# dot1x system-auth-control ! Enables IEEE 802.1x authentication
globally on the switch

Switch-Dist(config)# radius-server host 172.16.0.80 ! Specifies RADIUS server IP address

Switch-Dist(config)# radius-server key KEY-BR ! Specifies RADIUS server key as "KEY-BR"
for encrypting all communication with the RADIUS server

Switch-Dist(config)# int range g1/0/4 - 52 ! Enters configuration for range of gigabit
Ethernet ports

Switch-Dist(config-if-range)# dot1x port-control auto ! Enables dot1x authentication on
the port

Switch-Dist(config-if-range)# dot1x timeout server-timeout 60 ! Specifies time to wait for
a response from RADIUS server before retransmitting

Switch-Dist(config)# int range g2/0/7 - 28 ! Enters configuration for range of gigabit
Ethernet ports

Switch-Dist(config-if-range)# dot1x port-control auto ! Enables dot1x authentication on
the port

Switch-Dist(config-if-range)# dot1x timeout server-timeout 60 ! Specifies time to wait for
a response from RADIUS server before retransmitting QoS Implementation

Access Layer

•VTP Implementation

•Spanning Tree Implementation

•EtherChannel Implementation

•DOT1X Services

•QoS Implementation

•Assigning QoS to Switch Port

VTP Implementation

Switch-Access(config)# vtp domain VTP-BRANCH ! Creates VTP domain with name "VTP-BRANCH"

Switch-Access(config)# vtp mode client ! Sets the access switch to client VTP mode

Note Always check the revision number of a new switch before bringing adding it to the network, regardless of whether the switch is going to operate in VTP client mode or operate in VTP server mode. To reset the revision number, do one of the following:

•Reboot the switch
or

•Temporarily change the domain name of the new switch and then change it back to its valid domain name.

Spanning Tree Implementation

Switch-Access(config)# spanning-tree mode pvst ! Specifies the Per-VLAN spanning-tree
protocol

EtherChannel Implementation

Switch-Access(config)# interface g1/0/1 ! Enters port 0 configuration mode

Switch-Access(config-if)# switchport trunk encapsulation dot1q ! Tags outgoing frames with
IEEE 802.1Q trunk encapsulation format

Switch-Access(config-if)# switchport mode trunk ! Enables the Ethernet port as VLAN trunk

Switch-Access(config-if)# load-interval 30 ! Specifies interval for computing load
statistics

Switch-Access(config-if)# channel-group 1 mode active ! Assigns the interface to be
EtherChannal EtherChannel group 1 in LACP active mode

Switch-Access(config-if)# interface g1/0/2 ! Enters port 1 configuration mode

Switch-Access(config-if)# switchport trunk encapsulation dot1q ! Tags outgoing frames with
IEEE 802.1Q trunk encapsulation format

Switch-Access(config-if)# switchport mode trunk ! Enables the Ethernet port as VLAN trunk

Switch-Access(config-if)# load-interval 30 ! Specifies interval for computing load
statistics

Switch-Access(config-if)# channel-group 1 mode active ! Assigns the interface to be
EtherChannal EtherChannel group 1 in LACP active mode

Switch-Access(config-if)# exit

Switch-Access(config)# interface Port-channel1 ! Enters EtherChannel specific
configuration mode

Switch-Access(config-if)# switchport trunk encapsulation dot1q ! Tags outgoing frames with
IEEE 802.1Q trunk encapsulation format

Switch-Access(config-if)# switchport mode trunk ! Enables the EtherChannel as VLAN trunk

Switch-Access(config-if)# load-interval 30 ! Specifies interval for computing load
statistics

Switch-Access(config-if)# exit

VLAN Implementation

The following configuration was applied to all access ports connected to an IP Phone.

Switch-Access(config)# interface range g1/0/3 - 52 ! Enters configuration for range of
gigabit Ethernet ports

Switch-Access(config-if-range)# switchport mode access ! Sets the port to access mode

Switch-Access(config-if-range)# switch access vlan 301 ! Assigns the port to Data VLAN

Switch-Access(config-if-range)# switchport voice vlan 302 ! Assigns the port to Voice VLAN

Switch-Access(config-if-range)# srr-queue bandwidth share 1 70 25 5 ! Enables bandwidth
sharing for all output queues. Queue 1 is strict priority queue, queue 2 gets 70% of
bandwidth, queue 3 25% of bandwidth, and queue 4 5% of the bandwidth

Switch-Access(config-if-range)# srr-queue bandwidth shape 3 0 0 0 ! Specifies queue 2,3,4
to operate in shared mode.

Switch-Access(config-if-range)# priority-queue out ! Egress expedite queue is enabled.
This command will force SRR to ignore weight of queue 1 while calculating the bandwidth
ratio. This queue will be emptied before servicing other queues.

Switch-Access(config-if-range)# mls qos trust device cisco-phone ! Specifies the port to
trust the CoS/DSCP value if the CDP neighbor is Cisco IP Phone

Switch-Access(config-if-range)# spanning-tree portfast ! Sets the switch port to
forwarding state ignoring listening/learning state

Switch-Access(config-if-range)# load-interval 30 ! Specifies interval for computing load
statistics

DOT1X Services

Switch-Access(config)# aaa new-model ! Enables Authentication, Authorization and
Accounting services

Switch-Access(config)# aaa authentication dot1x default group radius ! Specifies default
dot1x authentication to use RADIUS server database

Switch-Access(config)# aaa session-id common ! Specifies to use the same session identifier
for all invocations of accounting services

Switch-Access(config)# dot1x system-auth-control ! Enables IEEE 802.1x authentication
globally on the switch

Switch-Access(config)# radius-server host 172.16.0.80 ! Specifies RADIUS server IP address

Switch-Access(config)# radius-server key KEY-BR ! Specifies RADIUS server key as "KEY-BR"
for encrypting all communication with the RADIUS server

Switch-Access(config)# int range g1/0/3 - 52 ! Enters configuration for the range of
Gigabit Ethernet ports

Switch-Access(config-if-range)# dot1x port-control auto ! Enables dot1x authentication on
the port

Switch-Access(config-if-range)# dot1x timeout server-timeout 60 ! Specifies time to wait
for a response from RADIUS server before retransmitting

DOT1X Services Verification

To verify your DOT1X services configuration, enter the following command:

Switch-Access# show dot1x interface g1/0/4

Supplicant MAC <Not Applicable>

   AuthSM State      = N/A

   BendSM State      = N/A

PortStatus        = N/A

MaxReq            = 2

MaxAuthReq        = 2

HostMode          = Single

PortControl       = Auto

QuietPeriod       = 60 Seconds

Re-authentication = Disabled

ReAuthPeriod      = 3600 Seconds

ServerTimeout     = 60 Seconds

SuppTimeout       = 30 Seconds

TxPeriod          = 30 Seconds

Guest-Vlan        = 0

QoS Implementation

The mapping for the CoS to DSCP values is shown in Figure 33 in the "Quality of Service" section on page 42.

Switch-Access(config)# mls qos ! Enables QoS on the switch

Switch-Access(config)# mls qos map policed-dscp 0 10 18 24 25 34 to 8 ! Defines
Policed-DSCP map which is used to mark down the packets with specified values to DSCP 8.

Switch-Access(config)# mls qos map cos-dscp 0 8 16 24 32 46 48 56 ! Defines CoS-DSCP map
for preferential treatment

Switch-Access(config)# mls qos srr-queue output cos-map queue 1 threshold 3 5 ! Maps the
CoS 5 to egress queue 1 with threshold 3

Switch-Access(config)# mls qos srr-queue output cos-map queue 2 threshold 1 2 4 ! Maps the
CoS 2 and CoS 4to egress queue 2 with threshold 1

Switch-Access(config)# mls qos srr-queue output cos-map queue 2 threshold 2 3 ! Maps the
CoS 3 to egress queue 2 with threshold 2

Switch-Access(config)# mls qos srr-queue output cos-map queue 2 threshold 3 6 7 ! Maps the
CoS 6 and CoS 7to egress queue 2 with threshold 3

Switch-Access(config)# mls qos srr-queue output cos-map queue 3 threshold 3 0 ! Maps the
CoS 0 to egress queue 3 with threshold 3

Switch-Access(config)# mls qos srr-queue output cos-map queue 4 threshold 3 1 ! Maps the
CoS 1to egress queue 4 with threshold 3

Switch-Access(config)# mls qos srr-queue output dscp-map queue 1 threshold 3 46 ! Maps the
DSCP value 46 to egress queue 1 with threshold 3

Switch-Access(config)# mls qos srr-queue output dscp-map queue 2 threshold 1 16 18 20 22
25 32 34 36 ! Maps the DSCP values16, 18, 20, 22, 25, 32, 34 and 36 to egress queue 2 with
threshold 1

Switch-Access(config)# mls qos srr-queue output dscp-map queue 2 threshold 1 38 ! Maps the
DSCP value 38 to egress queue 2 with threshold 1

Switch-Access(config)# mls qos srr-queue output dscp-map queue 2 threshold 2 24 26 36 !
Maps the DSCP values 24, 26, and 36 to egress queue 2 with threshold 2

Switch-Access(config)# mls qos srr-queue output dscp-map queue 2 threshold 3 48 56 36 !
Maps the DSCP values 36, 48, and 56 to egress queue 2 with threshold 3

Switch-Access(config)# mls qos srr-queue output dscp-map queue 3 threshold 3 0 36 ! Maps
the DSCP values 0 and 36 to egress queue 3 with threshold 3

Switch-Access(config)# mls qos srr-queue output dscp-map queue 4 threshold 1 8 36 ! Maps
the DSCP values 8 and 36 to egress queue 4 with threshold 1

Switch-Access(config)# mls qos srr-queue output dscp-map queue 4 threshold 3 10 12 14 36!
Maps the DSCP values 10, 12,14, and 36 to egress queue 4 with threshold 3

Switch-Access(config)# mls qos queue-set output 1 threshold 2 70 80 100 100 ! Defines the
weighed tail-drop thresholds for queue 2 to 70% for threshold 1 and 80% for threshold 2

Switch-Access(config)# mls qos queue-set output 1 threshold 4 40 100 100 100 ! Defines the
weighed tail-drop thresholds for queue 4 to 40% for threshold 1 and 100% for threshold 2

Switch-Access(config)# ip access-list extended DVLAN-BULK-DATA ! Defines ACL to match Bulk
Data

Switch-Access(config-ext-nacl)# permit tcp any any eq 220 ! Match Internet Mail Access
Protocol v3 (IMAPv3)

Switch-Access(config-ext-nacl)# permit tcp any any eq 143 ! Match Internet Message Access
Protocol (IMAP)

Switch-Access(config-ext-nacl)# permit tcp any any eq smtp ! Match Simple Mail Transfer
Protocol

Switch-Access(config-ext-nacl)# ip access-list extended DVLAN-MISSION-CRITICAL-DATA !
Defines ACL to match Business Critical Data

Switch-Access(config-ext-nacl)# permit tcp any any eq www ! Match HTTP traffic for port 80

Switch-Access(config-ext-nacl)# permit tcp any any range 3200 3203 !Match SAP traffic

Switch-Access(config-ext-nacl)# permit tcp any any eq 3600 ! Match SAP traffic

Switch-Access(config-ext-nacl)# permit tcp any any range 2000 2002 !Match SCCP traffic

Switch-Access(config-ext-nacl)# permit udp any any eq isakmp ! Match Internet Security
Association and Key Management Protocol

Switch-Access(config-ext-nacl)# permit tcp any eq www any ! Match HTTP traffic coming from
source port 80

Switch-Access(config-ext-nacl)# ip access-list extended DVLAN-PC-VIDEO ! Defines ACL to
match Video traffic

Switch-Access(config-ext-nacl)# permit udp any any range 16384 32767 ! Match traffic in
the given port range

Switch-Access(config-ext-nacl)# ip access-list extended DVLAN-TRANSACTIONAL-DATA ! Defines
ACL to match Transactional Data

Switch-Access(config-ext-nacl)# permit tcp any any eq 1352 ! Match Lotus Notes traffic

Switch-Access(config-ext-nacl)# permit udp any any eq domain ! Match DNS traffic

Switch-Access(config-ext-nacl)# permit udp any any eq netbios-dgm ! Match NetBios traffic

Switch-Access(config-ext-nacl)# permit udp any any eq netbios-ns ! Match NetBios traffic

Switch-Access(config-ext-nacl)# permit udp any any eq netbios-ss ! Match NetBios traffic

Switch-Access(config-ext-nacl)# ip access-list extended VVLAN-ANY ! Defines ACL to match
Voice VLAN traffic

Switch-Access(config-ext-nacl)# permit ip 10.0.1.0 0.0.0.255 any

Switch-Access(config-ext-nacl)# ip access-list extended VVLAN-CALL-SIGNALING ! Defines ACL
to match voice signaling traffic

Switch-Access(config-ext-nacl)# permit udp 10.0.1.0 0.0.0.255 any

Switch-Access(config-ext-nacl)# permit tcp 10.0.1.0 0.0.0.255 any range 2000 2002

Switch-Access(config-ext-nacl)# ip access-list extended VVLAN-VOICE ! Defines ACL to match
voice traffic

Switch-Access(config-ext-nacl)# permit udp 10.0.1.0 0.0.0.255 any

Switch-Access(config-ext-nacl)# permit udp 10.0.1.0 0.0.0.255 any range 16384 32767

Switch-Access(config-ext-nacl)# class-map match-all DVLAN-TRANSACTIONAL-DATA ! Defines
class-map for Transactional Data

Switch-Access(config-cmap)# match access-group name DVLAN-TRANSACTIONAL-DATA ! Matches
traffic specified in DVLAN-TRANSACTIONAL-DATA ACL

Switch-Access(config-cmap)# class-map match-all DVLAN-PC-VIDEO ! Defines class-map for
Video traffic

Switch-Access(config-cmap)# match access-group name DVLAN-PC-VIDEO ! Matches traffic
specified in DVLAN-PC-VIDEO ACL

Switch-Access(config-cmap)# class-map match-all VVLAN-CALL-SIGNALING ! Defines class-map
for Voice signalling

Switch-Access(config-cmap)# match access-group name VVLAN-CALL-SIGNALING ! Matches traffic
specified in VVLAN-CAL-SIGNALING ACL

Switch-Access(config-cmap)# class-map match-all DVLAN-MISSION-CRITICAL-DATA ! Defines
class-map for Business critical traffic

Switch-Access(config-cmap)# match access-group name DVLAN-MISSION-CRITICAL-DATA ! Matches
traffic specified in DVLAN-MISSION_CRITICAL_DATA ACL

Switch-Access(config-cmap)# class-map match-all VVLAN-VOICE ! Defines class-map for voice
traffic

Switch-Access(config-cmap)# match access-group name VVLAN-VOICE ! Matches traffic
specified in VVLAN-VOICE ACL

Switch-Access(config-cmap)# class-map match-all VVLAN-ANY ! Defines class-map for voice
vlan traffic

Switch-Access(config-cmap)# match access-group name VVLAN-ANY ! Matches traffic specified
in VVLAN-ANY ACL

Switch-Access(config-cmap)# class-map match-all DVLAN-BULK-DATA ! Defines class-map for
Bulk traffic

Switch-Access(config-cmap)# match access-group name DVLAN-BULK-DATA ! Matches traffic
specified in DVLAN-BULK_DATA ACL

Switch-Access(config-cmap)# policy-map IPPHONE+PC-ADVANCED ! Defines Policy-map

Switch-Access(config-pmap)# class VVLAN-VOICE ! Matches traffic classified by VVLAN-VOICE
class-map

Switch-Access(config-pmap-c)# set dscp ef ! Set DSCP value to EF

Switch-Access(config-pmap-c)# police 6144000 61440 exceed-action drop ! Incoming traffic
will be policed to 6.2 Mbps with a 62 KB burst size and if the rate is exceeded packet
will be dropped

Switch-Access(config-pmap-c)# class VVLAN-CALL-SIGNALING ! Matches traffic classified by
VVLAN-VOICE class-map

Switch-Access(config-pmap-c)# set dscp cs3 ! Set DSCP value to CS3

Switch-Access(config-pmap-c)# police 1024000 10240 exceed-action policed-dscp-transmit !
Incoming traffic will be policed to 10.2 Mbps with a 10.2 KB burst size and if the rate is
exceeded packet will be marked down to Scavenger class (CS1)

Switch-Access(config-pmap-c)# class VVLAN-ANY ! Matches traffic classified by class-map

Switch-Access(config-pmap-c)# set dscp default ! Set DSCP value to 0

Switch-Access(config-pmap-c)# police 32000 8000 exceed-action policed-dscp-transmit !
Incoming traffic will be policed to 32 kbps with a 8 KB burst size and if the rate is
exceeded packet will be marked down to Scavenger class (CS1)

Switch-Access(config-pmap-c)# class DVLAN-PC-VIDEO ! Matches traffic classified by
class-map

Switch-Access(config-pmap-c)# set dscp af41 ! Set DSCP value to 0

Switch-Access(config-pmap-c)# police 1984000 19840 exceed-action policed-dscp-transmit !
Incoming traffic will be policed to 10.2 Mbps with a 10.2 KB burst size and if the rate is
exceeded packet will be marked down to Scavenger class (CS1)

Switch-Access(config-pmap-c)# class DVLAN-MISSION-CRITICAL-DATA ! Matches traffic
classified by class-map

Switch-Access(config-pmap-c)# set dscp 25 ! Set DSCP value to 25

Switch-Access(config-pmap-c)# police 12500000 125000 exceed-action policed-dscp-transmit !
Incoming traffic will be policed to 12.5 Mbps with a 125 KB burst size and if the rate is
exceeded packet will be marked down to Scavenger class (CS1)

Switch-Access(config-pmap-c)# class DVLAN-TRANSACTIONAL-DATA ! Matches traffic classified
by class-map

Switch-Access(config-pmap-c)# police 10000000 100000 exceed-action policed-dscp-transmit
!Incoming traffic will be policed to 10 Mbps with a 100 KB burst size and if the rate is
exceeded packet will be marked down to Scavenger class (CS1)

Switch-Access(config-pmap-c)# set dscp af21 ! Set DSCP value to AF21

Switch-Access(config-pmap-c)# class DVLAN-BULK-DATA ! Matches traffic classified by
class-map

Switch-Access(config-pmap-c)# set dscp af11 ! Set DSCP value to AF11

Switch-Access(config-pmap-c)# police 5000000 50000 exceed-action policed-dscp-transmit
!Incoming traffic will be policed to 5 Mbps with a 50 KB burst size and if the rate is
exceeded packet will be marked down to Scavenger class (CS1)

Switch-Access(config-pmap-c)# class class-default ! Defines default class

Switch-Access(config-pmap-c)# set dscp default ! Set DSCP value to 0

Switch-Access(config-pmap-c)# police 12500000 125000 exceed-action policed-dscp-transmit !
Incoming traffic will be policed to 12.5 Mbps with a 125 KB burst size and if the rate is
exceeded packet will be marked down to Scavenger class (CS1)

QoS Verification

To verify your QoS configuration, enter the show mls qos command to display whether QoS is enabled in the switch.

Switch-Access# show mls qos

QoS is enabled

QoS ip packet dscp rewrite is enabled


Switch-Access# show mls qos maps policed-dscp

   Policed-dscp map:

     d1 :  d2 0  1  2  3  4  5  6  7  8  9

     ---------------------------------------

      0 :    08 01 02 03 04 05 06 07 08 09

      1 :    08 11 12 13 14 15 16 17 08 19

      2 :    20 21 22 23 08 08 26 27 28 29

      3 :    30 31 32 33 08 35 36 37 38 39

      4 :    40 41 42 43 44 45 46 47 48 49

      5 :    50 51 52 53 54 55 56 57 58 59

      6 :    60 61 62 63


Switch-Access# show mls qos maps cos-dscp

   Cos-dscp map:

        cos:   0  1  2  3  4  5  6  7

     --------------------------------

       dscp:   0  8 16 24 32 46 48 56

Assigning QoS to Switch Port

Switch-Access(config)# interface range g1/0/4 - 48 ! Enters configuration for the range of
Gibabit Ethernet ports

Switch-Access(config-if-range)# service-policy input IPPHONE+PC-ADVANCED ! Applies QoS
policy IPPHONE+PC-ADVANCED to the interface in input direction.

ignoring listening/learning state

Verification of Assigning QoS to Switch Port

To verify that QoS is being assigned to the switch port, enter the show policy-map interface to display the QoS policy and the related counters.

Switch-Access# show policy-map interface g1/0/4

 GigabitEthernet1/0/3


  Service-policy input: IPPHONE+PC-ADVANCED


    Class-map: VVLAN-VOICE (match-all)

      0 packets, 0 bytes

       offered rate 0 bps, drop rate 0 bps

      Match: access-group name VVLAN-VOICE


    Class-map: VVLAN-CALL-SIGNALING (match-all)

      0 packets, 0 bytes

       offered rate 0 bps, drop rate 0 bps

      Match: access-group name VVLAN-CALL-SIGNALING


    Class-map: VVLAN-ANY (match-all)

      0 packets, 0 bytes

       offered rate 0 bps, drop rate 0 bps

      Match: access-group name VVLAN-ANY


    Class-map: DVLAN-PC-VIDEO (match-all)

      0 packets, 0 bytes

       offered rate 0 bps, drop rate 0 bps

      Match: access-group name DVLAN-PC-VIDEO


    Class-map: DVLAN-MISSION-CRITICAL-DATA (match-all)

      0 packets, 0 bytes

       offered rate 0 bps, drop rate 0 bps

      Match: access-group name DVLAN-MISSION-CRITICAL-DATA


    Class-map: DVLAN-TRANSACTIONAL-DATA (match-all)

      0 packets, 0 bytes

       offered rate 0 bps, drop rate 0 bps

      Match: access-group name DVLAN-TRANSACTIONAL-DATA


    Class-map: DVLAN-BULK-DATA (match-all)

      0 packets, 0 bytes

       offered rate 0 bps, drop rate 0 bps

      Match: access-group name DVLAN-BULK-DATA


    Class-map: class-default (match-any)

      0 packets, 0 bytes

       offered rate 0 bps, drop rate 0 bps

      Match: any

        0 packets, 0 bytes

         rate 0 bps

Network Fundamental Services Implementation

•High Availability

•IP Addressing and IP Routing

High Availability

•Redundant WAN Link

•Redundant Edge Router

Redundant WAN Link

Backup for any of the three access links is provided by using a Systematic High-Speed Digital Subscriber Line (SHDSL)-based inverse multiplexing over ATM (IMA) interface. The backup interface is connected to the closest PE device of the service provider network.

Router(config)# controller SHDSL 0/2/0 ! Enters controller configuration mode

Router(config-controller)# dsl-group 0 pairs 0, 1, 2 ima ! Creates an IMA bundle pairing
links 0-2

Router(config-controller-dsl-group)# ima group clock-mode itc ! Defines clock mode for the
IMA group. Sets the transmit clock for at least one link to be different from the other
links.

Router(config-controller-dsl-group)# shdsl annex A-B ! Specifies annex A/B of G.991.2
standard to be used on the controller

Router(config-controller-dsl-group)# shdsl rate auto ! Sets the controller rate
negotiation in auto mode

Router(config-controller-dsl-group)# end


Router(config)# interface ATM0/2/IMA0 ! Enters IMA interface configuration mode

Router(config-if)# bandwidth 4608 ! Sets the maximum allowed bandwidth in Kbps

Router(config-if)# load-interval 30 ! Specifies interval for computing load statistics

Router(config-if)# max-reserved-bandwidth 100 ! Makes 100% of interface bandwidth
available for QoS reservations

Router(config-if)# exit


Router(config)# interface ATM0/2/IMA0.1 point-to-point ! Creates IMA point-to-point
sub-interface and specifies its parameters

Router(config-subif)# ip address 209.165.201.1 255.255.255.252 ! Assigns IP address to the
interface

Router(config-subif)# pvc 10/10 ! Creates a PVC and specifies its parameters

Router(config-if-atm-vc)# protocol ip 209.165.201.2 broadcast ! Enables broadcast
capability to perform reverse-arp on the ISP router

Router(config-if-atm-vc)# vbr-rt 2304 2304 ! Assigns VBR class of service and defines peak
and average cell rate

Router(config-if-atm-vc)# oam-pvc manage ! Enables end-to-end F5 OAM loopback cell
transmission and OAM management

Router(config-if-atm-vc)# encapsulation aal5mux ppp Virtual-Template10 ! Configures PPPoA
AAL5+MUX point-to-point encapsulation and associates it with Virtual-Template


Router(config)# interface Virtual-Template10 ! Enters Virtual Template configuration

Router(config-if)# bandwidth 4608 ! Sets the maximum allowed bandwidth in Kbps

Router(config-if)# ip unnumbered ATM0/2/IMA0.1 ! Reuses the IP address of the IMA
sub-interface

Router(config-if)# ip nbar protocol-discovery ! Enables NBAR to discover default protocols
and gather statistics

Router(config-if)# ip flow ingress ! Enables NetFlow accounting for incoming traffic

Router(config-if)# ip flow egress ! Enables NetFlow accounting for outgoing traffic

Router(config-if)# load-interval 30 ! Specifies interval for computing load statistics

Router(config-if)# max-reserved-bandwidth 100 ! Makes 100% of interface bandwidth
available for QoS reservations

Router(config-if)# end

Apply the following command on the Virtual Template interface after defining the EIGHT-CLASS-V3PN- EDGE-SHAPE class as shown in the Security section.

Router(config-if)# service-policy output EIGHT-CLASS-V3PN-EDGE-SHAPE ! Applies QoS policy
to the interface in outgoing direction to provide preferential treatment for traffic

Apply the following command on the Virtual Template interface after defining the Public security zone as shown in the Security section.

Router(config-if)# zone-member security Public ! Adds interface to firewall zone called
Public

Apply the following command on the Virtual Template interface after defining the VPN-MAP crypto map as shown in the Security section if using GETVPN.

Router(config-if)# crypto map VPN-MAP ! Applies crypto map "VPN-MAP" to the interface

Redundant WAN Link Verification

To verify the redundant WAN link configuration, enter the show backup command to display the backup interface and its status for each primary interface.

Router# show backup

Primary Interface   Secondary Interface   Status

-----------------   -------------------   ------

Multilink1          ATM0/2/IMA0           normal operation

Redundant Edge Router

Active-Standby Implementation with HSRP

Using Hot Standby Router Protocol (HSRP), one router was placed in active mode for data traffic and as backup for voice traffic. The other router is primary for voice traffic and data traffic backup. If one of the routers fails, the other becomes active for both voice and data traffic.

The standby preempt command enables the HSRP router with the highest priority to immediately become the active router. Priority is determined first by the configured priority value, and then by the IP address. In each case, a higher value indicates greater priority.

The standby track command allows monitoring of another interface on the router by the HSRP process in order to alter the HSRP priority for a given group. If the line protocol of the specified interface goes down, the HSRP priority is reduced. This means that another HSRP router with higher priority can become the active router if that router has standby preempt enabled.

Primary Voice, Secondary Data Router

Router(config-if)# interface GigabitEthernet0/1.2 ! Enters gigabit Ethernet sub-interface
configuration mode

Router(config-subif)# description Voice-VLAN active router for voice

Router(config-subif)# standby 2 ip 10.0.1.3 ! Enables HSRP, places the sub-interface into
HSRP group 2, and assigns virtual IP address for the group

Router(config-subif)# standby 2 priority 180 ! Sets HSRP priority for this router in group
2 to 180. The standby voice router has to have lower priority than 180

Router(config-subif)# standby 2 preempt delay minimum 60 ! Allows higher priority router
in group 2 to preempt this router, but 60 seconds must pass before preemption

Router(config-subif)# standby 2 track Multilink1 80 ! Instructs HSRP process for group 2
to track status of the WAN interface (gigabit Ethernet in this case). If the interface
goes down the router's priority is decremented. The priority is decremented by 80 when the
interface goes down. This will make the router of lower priority than the current standby
and force a switchover

Router(config-subif)# interface GigabitEthernet0/1.1 ! Enters gigabit Ethernet
sub-interface configuration mode

Router(config-subif)# description Data-VLAN standby router for data

Router(config-subif)# standby 1 ip 10.0.0.3 ! Enables HSRP, places the sub-interface into
HSRP group 2, and assigns virtual IP address for the group

Router(config-subif)# standby 1 priority 120 ! Sets HSRP priority for this router in group
1 to 120. The active data router has higher priority than 120

Router(config-subif)# standby 1 preempt delay minimum 60 ! Allows higher priority router
in group 1 to preempt this router, but 60 seconds must pass before preemption

Router(config-subif)# standby 1 track Multilink1 30 ! Instructs HSRP process for group 2
to track status of the WAN interface (gigabit Ethernet in this case). If the interface
goes down the router's priority is decremented. The priority is decremented by 30 when the
interface goes down

Router(config-subif)# interface GigabitEthernet0/1.3 ! Enters gigabit Ethernet
sub-interface 3 configuration

Router(config-subif)# description DMZ-VLAN standby router for DMZ data traffic

Router(config-subif)# standby 3 ip 10.0.2.67 ! Enables HSRP, places the sub-interface into
HSRP group 3, and assigns virtualIP address for the group

Router(config-subif)# standby 3 priority 120 ! Sets HSRP priority for this router in group
3 to 120. The active DMZ router has higher priority than 120

Router(config-subif)# standby 3 preempt delay minimum 60 ! Allows higher priority router
in group 3 to preempt this router, but 60 seconds must pass before preemption

Router(config-subif)# standby 3 track GigabitEthernet0/030 ! Instructs HSRP process for
group 3 to track status of the WAN interface (gigabit Ethernet in this case). If the
interface goes down the router's priority is decremented. The priority is decremented by
80 when the interface goes down

Secondary Voice, Primary Data Router

Router2(config-if)# interface GigabitEthernet0/1.2 ! Enters gigabit Ethernet sub-interface
1 configuration

Router2(config-subif)# description Voice-VLAN standby router for voice

Router2(config-subif)# standby 2 ip 10.0.1.3 ! Enables HSRP, places the sub-interface into
HSRP group 2, and assigns virtualIP address for the group

Router2(config-subif)# standby 2 priority 120 ! Sets HSRP priority for this router in
group 2 to 120. The active voice router has higher priority than 120

Router2(config-subif)# standby 2 preempt delay minimum 60 ! Allows higher priority router
in group 2 to preempt this router, but 60 seconds must pass before preemption

Router2(config-subif)# standby 2 track Multilink1 30 ! Instructs HSRP process for group 2
to track status of the WAN interface (gigabit Ethernet in this case). If the interface
goes down the router's priority is decremented. The priority is decremented by 30 when the
interface goes down

Router2(config-subif)# interface GigabitEthernet0/1.1 ! Enters gigabit Ethernet
sub-interface 2 configuration

Router2(config-subif)# description Data-VLAN active router for data

Router2(config-subif)# standby 1 ip 10.0.0.3! Enables HSRP, places the sub-interface into
HSRP group 1, and assigns virtual IP address for the group

Router2(config-subif)# standby 1 priority 180 ! Sets HSRP priority for this router in
group 1 to 120. The standby data router has lower priority than 180

Router2(config-subif)# standby 1 preempt delay minimum 60 ! Allows higher priority router
in group 1 to preempt this router, but 60 seconds must pass before preemption

Router2(config-subif)# standby 1 track Multilink1 80 ! Instructs HSRP process for group 1
to track status of the WAN interface (gigabit Ethernet in this case). If the interface
goes down the router's priority is decremented. The priority is decremented by 80 when the
interface goes down

Router2(config-subif)# interface GigabitEthernet0/1.3 ! Enters gigabit Ethernet
sub-interface 3 configuration

Router2(config-subif)# description DMZ-VLAN active router for DMZ data traffic


Router2(config-subif)# standby 3 ip 10.0.2.67 ! Enables HSRP, places the sub-interface
into HSRP group 3, and assigns virtual IP address for the group

Router2(config-subif)# standby 3 priority 180 ! Sets HSRP priority for this router in
group 3 to 180. The standby data router has lower priority than 180

Router2(config-subif)# standby 3 preempt delay minimum 60 ! Allows higher priority router
in group 3 to preempt this router, but 60 seconds must pass before preemption

Router2(config-subif)# standby 3 track Multilink1 80 ! Instructs HSRP process for group 1
to track status of the WAN interface (gigabit Ethernet in this case). If the interface
goes down the router's priority is decremented. The priority is decremented by 80 when the
interface goes down

To verify the configuration of the secondary router, enter the following command:

Router2# show standby

GigabitEthernet0/1.1 - Group 1

  State is Active

    2 state changes, last state change 00:05:38

  Virtual IP address is 10.0.0.3

  Active virtual MAC address is 0000.0c07.ac01

    Local virtual MAC address is 0000.0c07.ac01 (v1 default)

  Hello time 3 sec, hold time 10 sec

    Next hello sent in 0.252 secs

  Preemption enabled, delay min 60 secs

  Active router is local

  Standby router is 10.0.0.1, priority 90 (expires in 8.256 sec)

  Priority 109 (configured 189)

    Track interface Multilink1 state Down decrement 80

  Group name is "hsrp-Gi0/1.1-1" (default)

GigabitEthernet0/1.2 - Group 2

  State is Standby

    1 state change, last state change 00:05:47

  Virtual IP address is 10.0.1.3

  Active virtual MAC address is 0000.0c07.ac02

    Local virtual MAC address is 0000.0c07.ac02 (v1 default)

  Hello time 3 sec, hold time 10 sec

    Next hello sent in 0.048 secs

  Preemption enabled, delay min 60 secs

    Local virtual MAC address is 0000.0c07.ac02 (v1 default)

  Hello time 3 sec, hold time 10 sec

    Next hello sent in 0.048 secs

  Preemption enabled, delay min 60 secs

  Active router is 10.0.1.1, priority 180 (expires in 8.144 sec)

  Standby router is local

  Priority 90 (configured 120)

    Track interface Multilink1 state Down decrement 30

  Group name is "hsrp-Gi0/1.2-2" (default)

GigabitEthernet0/1.3 - Group 3

  State is Active

    2 state changes, last state change 00:05:21

  Virtual IP address is 10.0.2.67

  Active virtual MAC address is 0000.0c07.ac03

    Local virtual MAC address is 0000.0c07.ac03 (v1 default)

  Hello time 3 sec, hold time 10 sec

    Next hello sent in 2.404 secs

  Preemption enabled, delay min 60 secs

  Active router is local

  Standby router is unknown

  Priority 100 (configured 180)

    Track interface Multilink1 state Down decrement 80

  Group name is "hsrp-Gi0/1.3-3" (default)

IP Addressing and IP Routing

•Routing Protocol Implementation

•Multicast Implementation

•DHCP Implementation

•NAT Implementation

•Quality of Service Implementation

Routing Protocol Implementation

A branch office router is likely to use a single routing protocol. However, because a network may use EIGRP, OSPF, RIPv2, BGP or static routing, all of these protocols were independently validated. The following configurations are for each of the protocols. Table 1 summarizes the subnets in the Streamlined Medium Branch Network.

Table 1 Subnet Assignment

Network
Address
Type

Primary WAN

192.168.0.0/30
192.168.0.4/30

Private

Backup WAN

209.165.201.0/30
209.165.201.4/30

Public

Loopback

209.165.201.8/30

Public

Data VLAN

10.0.0.0/24

Private

Voice VLAN

10.0.1.0/24

Private

Management VLAN

10.0.2.0/27

Private

Black Hole VLAN

10.0.2.32/27

Private

DMZ VLAN

10.0.2.64/28

Private

Tunnel Interfaces

10.0.2.80/30

Private

Voice Mail Module

10.0.2.84/30

Private

Cisco WAAS Module

10.0.2.88/30

Private

Central Site Network

172.16.0.0/16

Private


The Streamlined Medium Branch Network provides direct access to the Internet through split tunneling. Various combinations of WAN services and VPN technologies lead to several different options for implementing the split tunnel mechanism. In WAN implementations where the network service provider is responsible for routing (for example, Layer 3 VPN [L3VPN]), split tunneling can be provided on the primary link and the backup link can be set to standby state. The implementation options vary slightly for GETVPN and DMVPN. In WAN implementations where the enterprise is responsible for routing, split tunneling can be provided on the backup link by maintaining it in an active state. Again, there is a slight variation between GETVPN and DMVPN implementations.

Active/Standby Primary/Backup WAN Links with DMVPN Implementation

The secondary WAN interface must be configured as the backup interface for the primary WAN link.

Router(config)# interface Multilink1 ! Enters multilink interface configuration mode

Router(config-if)# backup interface ATM0/2/IMA0 ! Specifies backup interface

Router(config-if)# exit


A loopback interface with a public address is used as the source interface for the DMVPN
tunnel.

Router(config)# interface Loopback0 ! Enters loopback interface configuration mode

Router(config-if)# ip address 209.165.201.9 255.255.255.252 ! Specifies loopback subnet

Router(config-if)# exit

The "DMVPN Implementation" section provides configuration for the tunnel interface. After the tunnel interface is defined, two routing processes are configured: one for the enterprise network, and another for the public network. The following sections provide implementations in which OSPF, EIGRP, and RIPv2 provide routing for enterprise traffic in which BGP is responsible for routing public traffic.

Enterprise Routing With OSPF

Enterprise networks are learned through the tunnel interface.

Router(config)# router ospf 1 ! Enables private network OSPF routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# router-id 10.0.0.1 ! Specifies the OSPF router ID

Router(config-router)# network 10.0.0.0 0.0.0.255 area 0 ! Advertises Data VLAN subnet in
backbone area

Router(config-router)# network 10.0.1.0 0.0.0.255 area 0 ! Advertises Voice VLAN subnet in
backbone area

Router(config-router)# network 10.0.2.0 0.0.0.31 area 0 ! Advertises Management VLAN
subnet in backbone area

Router(config-router)# network 10.0.2.64 0.0.0.15 area 0 ! Advertises DMZ VLAN subnet in
backbone area

Router(config-router)# network 10.0.2.80 0.0.0.3 area 0 ! Advertises Tunnel subnet in
backbone area

Router(config-router)# network 10.0.2.88 0.0.0.3 area 0 ! Advertises WAAS subnet in
backbone area

Router(config-router)# exit

Enterprise Routing with EIGRP

Enterprise networks are learned through the tunnel interface.

Router(config)# router eigrp 1 ! Enables private network EIGRP routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# no auto-summary ! Disable automatic route summarization

Router(config-router)# network 10.0.0.0 0.0.0.255 ! Advertises Data VLAN subnet

Router(config-router)# network 10.0.1.0 0.0.0.255 ! Advertises Voice VLAN subnet

Router(config-router)# network 10.0.2.0 0.0.0.31 ! Advertises Management VLAN subnet

Router(config-router)# network 10.0.2.64 0.0.0.15 ! Advertises DMZ VLAN subnet

Router(config-router)# network 10.0.2.80 0.0.0.3 ! Advertises Tunnel subnet

Router(config-router)# network 10.0.2.88 0.0.0.3 ! Advertises WAAS subnet

Router(config-router)# exit

Enterprise Routing with RIPv2

Enterprise networks are learned through the tunnel interface.

Router(config)# router rip ! Enables private network RIP routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# no auto-summary ! Disable automatic route summarization

Router(config-router)# version 2 ! Enable RIP version 2

Router(config-router)# network 10.0.0.0 ! Advertises all branch subnets

Router(config-router)# exit

Service Provider Routing with BGP

The BGP routing process is responsible for establishing the tunnel link by advertising the loopback network. In default BGP configuration, the router learns public routes advertised by the PE or ISP router. A large routing table would slow down the destination network lookup process. In general, network service providers should not advertise Internet routes to the branch network, but in case this happens, an access list is defined to exclude public routes.

Router(config)# access-list 20 permit 209.165.201.8 0.0.0.3 ! Permits Loopback network and
blocks all others

Router(config)# router bgp 1 ! Enables public and loopback network BGP routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# neighbor 192.168.0.2 remote-as 65015! Neighbor router IP for
primary link that is in autonomous system 65015

Router(config-router)# neighbor 209.165.201.2 remote-as 65016! Neighbor router IP for
backup link that is in autonomous system 65016

Router(config-router)# network 192.168.0.0 mask 255.255.255.252 ! Advertises primary WAN
link subnet

Router(config-router)# network 209.165.201.0 mask 255.255.255.252 ! Advertises backup WAN
link subnet

Router(config-router)# network 209.165.201.8 mask 255.255.255.252 ! Advertises Loopback
subnet

Router(config-router)# distribute-list 20 in ! Block all routing updates except for
Loopback network

Router(config-router)#exit

Finally, static routes are defined to direct traffic to the public network. When the primary link is active, it is used as the default route for all traffic. When the backup link is active, it is used as the default for all traffic.

Router(config)# ip route 0.0.0.0 0.0.0.0 192.168.0.2 ! Sets the primary WAN link as
default for all traffic

Router(config)# ip route 0.0.0.0 0.0.0.0 209.165.201.2 ! Sets the backup WAN link as
default for all traffic

Active/Standby Primary/Backup WAN Links with GETVPN on Primary Link and DMVPN on Backup Link Implementation

Because GETVPN is a tunnel-less protocol, it is used only on the primary WAN link. Because DMVPN is used for the backup link, the tunnel interface is needed only when the primary link fails. All enterprise network information is advertised over the primary link. Since this link also routes public traffic, it may insert public routes into the routing table. To prevent this situation, the following ACL is defined to allow only enterprise networks in the routing table.

Router(config)# access-list 10 permit 172.16.0.0 0.0.255.255 ! Permits all Enterprise
networks

Enterprise Routing with OSPF

Enterprise networks are learned through the primary WAN interface.

Router(config)# router ospf 1 ! Enables private network OSPF routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# router-id 10.0.0.1 ! Specifies the OSPF router ID

Router(config-router)# network 10.0.0.0 0.0.0.255 area 0 ! Advertises Data VLAN subnet in
backbone area

Router(config-router)# network 10.0.1.0 0.0.0.255 area 0 ! Advertises Voice VLAN subnet in
backbone area

Router(config-router)# network 10.0.2.0 0.0.0.31 area 0 ! Advertises Management VLAN
subnet in backbone area

Router(config-router)# network 10.0.2.64 0.0.0.15 area 0 ! Advertises DMZ VLAN subnet in
backbone area

Router(config-router)# network 10.0.2.80 0.0.0.3 area 0 ! Advertises Tunnel subnet in
backbone area

Router(config-router)# network 10.0.2.88 0.0.0.3 area 0 ! Advertises WAAS subnet in
backbone area

Router(config-router)# network 192.168.0.0 0.0.0.3 area 0 ! Advertises primary WAN link
subnet in the backbone area

Router(config-router)# distribute-list 10 in ! Block all Internet routing updates

Router(config-router)# exit

Enterprise Routing with EIGRP

Enterprise networks are learned through the primary WAN interface.

Router(config)# router eigrp 1 ! Enables private network EIGRP routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# no auto-summary ! Disable automatic route summarization

Router(config-router)# network 10.0.0.0 0.0.0.255 ! Advertises Data VLAN subnet

Router(config-router)# network 10.0.1.0 0.0.0.255 ! Advertises Voice VLAN subnet

Router(config-router)# network 10.0.2.0 0.0.0.31 ! Advertises Management VLAN subnet

Router(config-router)# network 10.0.2.64 0.0.0.15 ! Advertises DMZ VLAN subnet

Router(config-router)# network 10.0.2.80 0.0.0.3 ! Advertises Tunnel subnet

Router(config-router)# network 10.0.2.88 0.0.0.3 ! Advertises WAAS subnet

Router(config-router)# network 192.168.0.0 0.0.0.3 ! Advertises primary WAN link subnet

Router(config-router)# distribute-list 10 in ! Block all Internet routing updates

Router(config-router)# exit

Enterprise Routing with RIPv2

Enterprise networks are learned through the primary WAN interface.

Router(config)# router rip ! Enables private network RIP routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# no auto-summary ! Disable automatic route summarization

Router(config-router)# version 2 ! Enable RIP version 2

Router(config-router)# network 10.0.0.0 ! Advertises all branch subnets

Router(config-router)# network 192.168.0.0! Advertises primary WAN link subnet

Router(config-router)# distribute-list 10 in ! Block all Internet routing updates

Router(config-router)# exit

Service Provider Routing with BGP

The BGP routing process is responsible for establishing the tunnel link by advertising the loopback network. In the default BGP configuration, the router learns public routes that are advertised by the ISP router. A large routing table would slow down the destination network lookup process. In general, network service providers should not advertise Internet routes to the branch network; an access list should be defined to exclude public routes.

Router(config)# access-list 20 permit 209.165.201.8 0.0.0.3 ! Permits Loopback network and
blocks all others


Router(config)# router bgp 1 ! Enables public and loopback network BGP routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# neighbor 209.165.201.2 remote-as 65016 ! Neighbor router IP for
backup link that is in autonomous system 65016

Router(config-router)# network 209.165.201.0 mask 255.255.255.252 ! Advertises backup WAN
link subnet

Router(config-router)# network 209.165.201.8 mask 255.255.255.252 ! Advertises Loopback
subnet

Router(config-router)# distribute-list 20 in ! Block all routing updates except for
Loopback network

Router(config-router)# exit

Finally, static routes are defined to direct traffic to the public network. When the primary link is active, it is used as the default for all traffic. When the backup link is active, it is used as the default for all traffic.

Router(config)# ip route 0.0.0.0 0.0.0.0 192.168.0.2 ! Sets the primary WAN link as
default for all traffic

Router(config)# ip route 0.0.0.0 0.0.0.0 209.165.201.2 ! Sets the backup WAN link as
default for all traffic

Active/Active Primary/Backup WAN Link with DMVPN Implementation

The primary function of the backup interface in the Streamlined Medium Branch Network is to provide an alternate path in case the primary link fails. When the primary WAN interface is operational, the backup interface is in standby mode. However, for purposes of split tunneling, the interface can be kept in active state and provide access to the Internet, because it is a direct connection.

Again, there are two routing processes, one for enterprise traffic and another for public traffic. The routing is similar to the Active/Standby configuration for DMVPN because BGP likely selects the primary interface as the lowest-cost path to the central site network. It automatically switches over the tunnel interface to the backup link when the primary fails. To prevent situations where the Internet has a lower cost path to the central site, static routes with different costs are defined for the central site loopback interface. The only other difference in configuration is the default route configuration. Non-enterprise traffic must be directed out over the backup link.

Enterprise Routing with OSPF

Enterprise networks are learned through the tunnel interface.

Router(config)# router ospf 1 ! Enables private network OSPF routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# router-id 10.0.0.1 ! Specifies the OSPF router ID

Router(config-router)# network 10.0.0.0 0.0.0.255 area 0 ! Advertises Data VLAN subnet in
backbone area

Router(config-router)# network 10.0.1.0 0.0.0.255 area 0 ! Advertises Voice VLAN subnet in
backbone area

Router(config-router)# network 10.0.2.0 0.0.0.31 area 0 ! Advertises Management VLAN
subnet in backbone area

Router(config-router)# network 10.0.2.64 0.0.0.15 area 0 ! Advertises DMZ VLAN subnet in
backbone area

Router(config-router)# network 10.0.2.80 0.0.0.3 area 0 ! Advertises Tunnel subnet in
backbone area

Router(config-router)# network 10.0.2.88 0.0.0.3 area 0 ! Advertises WAAS subnet in
backbone area

Router(config-router)# exit

Enterprise Routing with EIGRP

Enterprise networks are learned through the tunnel interface.

Router(config)# router eigrp 1 ! Enables private network EIGRP routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# no auto-summary ! Disable automatic route summarization

Router(config-router)# network 10.0.0.0 0.0.0.255 ! Advertises Data VLAN subnet

Router(config-router)# network 10.0.1.0 0.0.0.255 ! Advertises Voice VLAN subnet

Router(config-router)# network 10.0.2.0 0.0.0.31 ! Advertises Management VLAN subnet

Router(config-router)# network 10.0.2.64 0.0.0.15 ! Advertises DMZ VLAN subnet

Router(config-router)# network 10.0.2.80 0.0.0.3 ! Advertises Tunnel subnet

Router(config-router)# network 10.0.2.88 0.0.0.3 ! Advertises WAAS subnet

Router(config-router)# exit

Enterprise Routing with RIPv2

Enterprise networks are learned through the Tunnel interface.

Router(config)# router rip ! Enables private network RIP routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# no auto-summary ! Disable automatic route summarization

Router(config-router)# version 2 ! Enable RIP version 2

Router(config-router)# network 10.0.0.0 ! Advertises all branch subnets

Router(config-router)# exit

Service Provider Routing with BGP

The BGP routing process is responsible for establishing the tunnel link by advertising the loopback network. In the default BGP configuration, the router learns public routes that are advertised by the PE or ISP router. A large routing table would slow down the destination network lookup process. In general, network service providers should not advertise Internet routes to the branch network; an access list should be defined to exclude public routes.

Router(config)# access-list 20 permit 209.165.201.8 0.0.0.3 ! Permits Loopback network and
blocks all others


Router(config)# router bgp 1 ! Enables public and loopback network BGP routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# neighbor 192.168.0.2 remote-as 65015 ! Neighbor router IP for
primary link that is in autonomous system 65015

Router(config-router)# neighbor 209.165.201.2 remote-as 65016 ! Neighbor router IP for
backup link that is in autonomous system 65016

Router(config-router)# network 192.168.0.0 mask 255.255.255.252 ! Advertises primary WAN
link subnet

Router(config-router)# network 209.165.201.0 mask 255.255.255.252 ! Advertises backup WAN
link subnet

Router(config-router)# network 209.165.201.8 mask 255.255.255.252 ! Advertises Loopback
subnet

Router(config-router)# distribute-list 20 in ! Block all routing updates except for
Loopback network

Router(config-router)# exit

Finally, static routes are defined to direct traffic to the public network. When the primary link is active, it is used as the default for all traffic. When the backup link is active, it is used as the default for all traffic. In addition, static routes ensure that the central site loopback interface is routed over the primary link when it is in an active state.

Router(config)# ip route 0.0.0.0 0.0.0.0 192.168.0.2 250 ! Sets the primary WAN link as
default for all traffic with higher cost than the backup WAN link

Router(config)# ip route 0.0.0.0 0.0.0.0 209.165.201.2 ! Sets the backup WAN link as
default for all traffic with lower cost than the primary link

Router(config)# ip route 209.165.201.10 255.255.255.255 192.168.0.2 ! Sets the primary WAN
link as the preferred interface for reaching the central site Loopback interface

Router(config)# ip route 209.165.201.10 255.255.255.255 209.165.201.2 250 ! Sets the
backup WAN link as the preferred interface for reaching the central site Loopback
interface

Active/Active Primary/Backup WAN Links with GETVPN on Primary Link and DMVPN on Backup Link Implementation

As in the Active/Standby configuration with DMVPN, this implementation differs from the Active/Standby GETVPN and DMVPN implementation in the assignment of static routes for loopback network and public traffic.

Router(config)# access-list 10 permit 172.16.0.0 0.0.255.255 ! Permits all Enterprise
networks

Enterprise Routing with OSPF

Enterprise networks are learned through the primary WAN interface.

Router(config)# router ospf 1 ! Enables private network OSPF routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# router-id 10.0.0.1 ! Specifies the OSPF router ID

Router(config-router)# network 10.0.0.0 0.0.0.255 area 0 ! Advertises Data VLAN subnet in
backbone area

Router(config-router)# network 10.0.1.0 0.0.0.255 area 0 ! Advertises Voice VLAN subnet in
backbone area

Router(config-router)# network 10.0.2.0 0.0.0.31 area 0 ! Advertises Management VLAN
subnet in backbone area

Router(config-router)# network 10.0.2.64 0.0.0.15 area 0 ! Advertises DMZ VLAN subnet in
backbone area

Router(config-router)# network 10.0.2.80 0.0.0.3 area 0 ! Advertises Tunnel subnet in
backbone area

Router(config-router)# network 10.0.2.88 0.0.0.3 area 0 ! Advertises WAAS subnet in
backbone area

Router(config-router)# network 192.168.0.0 0.0.0.3 area 0 ! Advertises primary WAN link
subnet in the backbone area

Router(config-router)# distribute-list 10 in ! Block all Internet routing updates

Router(config-router)# exit

Enterprise Routing with EIGRP

Enterprise networks are learned through the primary WAN interface.

Router(config)# router eigrp 1 ! Enables private network EIGRP routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# no auto-summary ! Disable automatic route summarization

Router(config-router)# network 10.0.0.0 0.0.0.255 ! Advertises Data VLAN subnet

Router(config-router)# network 10.0.1.0 0.0.0.255 ! Advertises Voice VLAN subnet

Router(config-router)# network 10.0.2.0 0.0.0.31 ! Advertises Management VLAN subnet

Router(config-router)# network 10.0.2.64 0.0.0.15 ! Advertises DMZ VLAN subnet

Router(config-router)# network 10.0.2.80 0.0.0.3 ! Advertises Tunnel subnet

Router(config-router)# network 10.0.2.88 0.0.0.3 ! Advertises WAAS subnet

Router(config-router)# network 192.168.0.0 0.0.0.3 ! Advertises primary WAN link subnet

Router(config-router)# distribute-list 10 in ! Block all Internet routing updates

Router(config-router)# exit

Enterprise Routing with RIPv2

Enterprise networks are learned through the primary WAN interface.

Router(config)# router rip ! Enables private network RIP routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# no auto-summary ! Disable automatic route summarization

Router(config-router)# version 2 ! Enable RIP version 2

Router(config-router)# network 10.0.0.0 ! Advertises all branch subnets

Router(config-router)# network 192.168.0.0 ! Advertises primary WAN link subnet

Router(config-router)# distribute-list 10 in ! Block all Internet routing updates

Router(config-router)# exit

Service Provider Routing with BGP

The BGP routing process is responsible for establishing the tunnel link by advertising the loopback network. In the default BGP configuration, the router learns public routes advertised by the ISP router. In general, network service providers should not advertise Internet routes to the branch network; an access list should be defined to exclude public routes.

Router(config)# access-list 20 permit 209.165.201.8 0.0.0.3 ! Permits Loopback network and
blocks all others


Router(config)# router bgp 1 ! Enables public and loopback network BGP routing process

Router(config-router)# passive interface GigabitEthernet 0/1 ! Disables routing
advertisements on the LAN interface

Router(config-router)# neighbor 209.165.201.2 remote-as 65016 ! Neighbor router IP for
backup link that is in autonomous system 65016

Router(config-router)# network 209.165.201.0 mask 255.255.255.252 ! Advertises backup WAN
link subnet

Router(config-router)# network 209.165.201.8 mask 255.255.255.252 ! Advertises Loopback
subnet

Router(config-router)# distribute-list 20 in ! Block all routing updates except for
Loopback network

Router(config-router)# exit

There is a possibility that the tunnel link has a lower cost to the central site than the primary WAN link. To prevent traffic from being sent over the tunnel link when the WAN link is available, the tunnel interface is defined as backup for the primary WAN interface.

Router(config)# interface Multilink1 ! Enters multilink interface configuration mode

Router(config-if)# backup interface Tunnel1 ! Specifies backup interface

Router(config-if)# exit

Finally, static routes are defined to direct traffic to the public network. When the primary link is active, it is used as the default for all route traffic. When the backup link is active, it is used as the default route for all traffic.

Router(config)# ip route 0.0.0.0 0.0.0.0 192.168.0.2 250 ! Sets the primary WAN link as
default for all traffic with higher cost than backup WAN link

Router(config)# ip route 0.0.0.0 0.0.0.0 209.165.201.2 ! Sets the backup WAN link as
default for all traffic with lower cost than primary WAN link

Multicast Implementation

Previous sections have shown how to apply multicast on each interface.

Router(config)# ip multicast-routing ! Enables multicast routing

Multicast Verification

To verify your multicast configuration, enter the following command:

Router# show ip pim neighbor

PIM Neighbor Table

Mode: B - Bidir Capable, DR - Designated Router, N - Default DR Priority,

      S - State Refresh Capable

Neighbor          Interface                Uptime/Expires    Ver   DR

Address                                                            Prio/Mode

192.168.0.1       Multilink1               00:00:16/00:01:27 v2    1 / S P

Router#

DHCP Implementation

Addresses were dynamically assigned for the data and voice VLAN devices. The DMZ server used static addressing. The DHCP server should be implemented on the router that is configured as active for voice traffic.

Router(config)# ip dhcp excluded-address 10.0.1.1 10.0.1.10 ! Specifies the addresses to
be excluded from DHCP

Router(config)# ip dhcp excluded-address 10.0.1.245 10.0.1.254 ! Specifies the addresses
to be excluded from DHCP

Router(config)# ip dhcp pool IP-PHONES ! Specifies DHCP pool for IP Phones

Router(dhcp-config)# network 10.0.1.0 255.255.255.0 ! Specifies the DHCP address range

Router(dhcp-config)# default-router 10.0.1.3 ! Specifies the default HSRP gateway

Router(dhcp-config)# option 150 ip 10.0.0.2 ! Specifies the default TFTP server

Router(dhcp-config)# lease 30 ! Sets the lease expiration to 1 month

Router(dhcp-config)# exit

Router(config)# ip dhcp excluded-address 10.0.0.1 10.0.0.30! Specifies the addresses to be
excluded from DHCP

Router(config)# ip dhcp excluded-address 10.0.0.245 10.0.0.254! Specifies the addresses to
be excluded from DHCP

Router(config)# ip dhcp pool PCS ! Specifies the DHCP pool for PCs

Router(dhcp-config)# network 10.0.0.0 255.255.255.0 ! Specifies the DHCP address range

Router(dhcp-config)# default-router 10.0.0.3 ! Specifies the default HSRP gateway

Router(dhcp-config)# exit

Router(config)# service dhcp ! Starts the DHCP server

The standby voice router should implement a second DHCP server. It is not possible to configure this second DHCP server as a backup to the DHCP server on the active voice router; however, by modifying the ping parameters of this second DHCP server, it is possible to ensure that the DHCP server on the active voice router is primarily responsible for IP address assignment. The default number of pings and the ping time-outs are 2 pings and 5 milliseconds (ms), in which case it takes 1 second for the primary DHCP server to offer an IP address to a client. The secondary DHCP server parameters were changed to 4 pings and 1000 ms, in which case it takes 5 seconds for the secondary DHCP server to offer an IP address to the client. This ensures that when both servers are running, the primary server is the faster to offer an IP address lease.

Router2(config)# ip dhcp pool IP-PHONES ! Specifies DHCP pool for IP Phones

Router2(dhcp-config)# network 10.0.1.0 255.255.255.0 ! Specifies the DHCP address range

Router2(dhcp-config)# default-router 10.0.1.3 ! Specifies the default HSRP gateway

Router2(dhcp-config)# option 150 ip 10.0.1.2 ! Specifies the default TFTP server

Router2(dhcp-config)# lease 30 ! Sets the lease expiration to 1 month

Router2(dhcp-config)# exit

Router2(config)# ip dhcp pool PCS !Specifies the DHCP pool for PCs

Router2(dhcp-config)# network 10.0.0.0 255.255.255.0 ! Specifies the DHCP address range

Router2(dhcp-config)# default-router 10.0.0.3 ! Specifies the default HSRP gateway

Router2(dhcp-config)# exit

Router2(config)# ip dhcp ping packets 4! Doubles the number of ping packets before address
can be assigned. The primary DHCP server only sends 2 ping packets

Router2(config)# ip dhcp ping timeout 1000 ! Doubles the amount of time that must pass
before timing out a ping packet. The primary DHCP server only waits 500 msec

Router2(config)# service dhcp !Starts the DHCP server

DHCP Verification

To verify your DHCP configuration, enter the show ip dhcp binding command to display the IP address details leased by the DHCP server.

Router# show ip dhcp binding

Bindings from all pools not associated with VRF:

IP address          Client-ID/              Lease expiration        Type

                    Hardware address/

                    User name

10.0.1.26       0100.1e4a.a8e5.e1       Infinite                Automatic

10.0.1.29       0100.5060.0387.20       Infinite                Automatic

Router#

NAT Implementation

Router(config)# ip access-list standard NAT-BRANCH! Defines extended ACL for translation

Router(config-ext-nacl)# permit 10.0.0.0 0.0.0.255

Router(config-ext-nacl)# exit

Router(config)# ip nat translation tcp-timeout 300 ! Specifies timeout value for TCP ports

Router(config)# ip nat inside source list NAT-BRANCH interface ATM0/2/IMA0.1 overload !
Enables NAT for traffic that matches the ACL (Inside local) and translates the source
address to specified interface address (Inside global) on the backup interface

Router(config)# interface GigabitEthernet0/1.1 ! Enters gigabit Ethernet configuration
mode

Router(config-subif)# ip nat inside ! Specifies the interface as connected to inside
network

Router(config-subif)# exit

Router(config)# interface ATM0/2/IMA0.1 ! Enters backup interface configuration mode

Router(config-if)# ip nat outside ! Specifies the interface as connected to outside
network

Router(config-if)# exit

NAT Verification

To verify your NAT configuration, enter the following command:

Router# show ip nat translations

Pro Inside global      Inside local       Outside local      Outside global

tcp 22


10.0.0.15: 2140     10.0.0.15: 2140    201.165.201.1:2000    201.165.201.1:2000

Router#

Quality of Service Implementation

Quality of service (QoS) identifies business-critical traffic and ensures that appropriate bandwidth and network resources are allocated according to a classification scheme. QoS includes classification of different traffic types, marking specific fields in Layer 2 or Layer 3 headers, prioritizing the traffic based on the marked field, and dropping unwanted traffic.

Eight-Class QoS was configured to match traffic, based on the NBAR protocol classification or using Layer 2 or Layer 3 header information. A different level of service is provided for the matched traffic. The QoS scheme also checks for any unwanted traffic and drops it if matches are found in the incoming traffic from the LAN. A parent policy-map is configured to shape the outgoing traffic to a specified rate (as per the service provider), and a child policy-map is applied to the shaping queue.

Router(config)# ip access-list extended ACL-FTP ! Defines extended ACL to identify traffic
from a local FTP server

Router(config-ext-nacl)# permit ip host 10.0.0.4 any

Router(config-ext-nacl)# exit

!Defines two extended access lists (101 and 102) to classify PCs running enterprise
applications

Router(config)# access-list 101 permit ip host 10.0.0.5 host 172.16.0.30

Router(config)# access-list 101 permit ip host 10.0.0.6 host 172.16.0.30

Router(config)# access-list 102 permit ip host 10.0.0.7 any

Router(config)# access-list 102 permit ip host 10.0.0.8 any

Router(config)# access-list 102 permit ip host 10.0.0.9 any

Router(config)# access-list 102 permit ip host 10.0.0.10 any

Router(config)# ip nbar port-map custom-02 udp 1434 ! Customizes NBAR protocol to match
UDP port 1434 used by the SQL Slammer and Sapphire worms

Router(config)# ip nbar port-map custom-03 tcp 5554 9996 ! Customizes NBAR protocol to
match TCP ports 5554 and 9996 used by the Sasser worm

Router(config)# ip nbar port-map custom-04 tcp 445 ! Customize NBAR protocol to match TCP
port 445 used by Microsoft SMB protocol for file sharing

Router(config)# class-map match-all SQL-SLAMMER ! Defines Class map for Sql-Slammer
traffic

Router(config-cmap)# match protocol custom-02 ! Matches traffic with port number in
custom-02

Router(config-cmap)# match packet length min 404 max 404 ! Matches traffic with packet
length 404 bytes

Router(config-cmap)# exit

Router(config)# class-map match-any WORMS ! Defines class map for unwanted traffic

Router(config-cmap)# match protocol http url "*.ida*" ! Matches HTTP traffic with the
specific string in the URL

Router(config-cmap)# match protocol http url "*cmd.exe*" ! Matches HTTP traffic with the
specific string in the URL

Router(config-cmap)# match protocol http url "*root.exe*" ! Matches HTTP traffic with the
specific string in the URL

Router(config-cmap)# match protocol http url "*readme.eml*" ! Matches HTTP traffic with
the specific string in the URL

Router(config-cmap)# match class-map SQL-SLAMMER ! Matches SQL-Slammer worm signature

Router(config-cmap)# match protocol custom-03 ! Matches Sasser worm signature

Router(config-cmap)# exit

Router(config)# class-map match-any VOICE ! Defines class map for Voice traffic

Router(config-cmap)# match ip dscp ef ! Matches traffic with DSCP set to EF

Router(config-cmap)# exit

Router(config)# class-map match-all INTERACTIVE-VIDEO ! Defines class map for interactive
video traffic

Router(config-cmap)# match ip dscp af41 af42 ! Matches traffic with DSCP set to AF41 or
AF42

Router(config-cmap)# exit

Router(config)# class-map match-all SCAVENGER ! Defines class map for Scavenger traffic

Router(config-cmap)# match ip dscp cs1 ! Matches traffic with DSCP set to cs1

Router(config-cmap)# exit

Router(config)# class-map match-any MISSION-CRITICAL ! Defines classmap for mission
critical traffic

Router(config-cmap)# match ip dscp cs3 ! Matches traffic with DSCP set to CS3

Router(config-cmap)# match ip dscp af31 ! Matches traffic with DSCP set to AF31

Router(config-cmap)# match access-group 101 ! Matches ip traffic in ACL 101

Router(config-cmap)# match ip dscp 25 ! Matches traffic with DSCP set to 25

Router(config-cmap)# match protocol http ! Matches HTTP traffic

Router(config-cmap)# exit

Router(config)# class-map match-any INTERNETWORK-CONTROL ! Defines class map for routing
control traffic

Router(config-cmap)# match ip dscp cs6 ! Matches traffic with DSCP set to CS6

Router(config-cmap)# exit

Router(config)# class-map match-any TRANSACTIONAL-DATA ! Defines class map for
transactional data traffic

Router(config-cmap)# match ip dscp af21 af22 ! Matches traffic with DSCP set to AF21 or
AF22

Router(config-cmap)# match access-group 102 ! Matches ip traffic in ACL

Router(config-cmap)# match protocol custom-04 ! Matches traffic with port number mentioned
in custom-04

Router(config-cmap)# exit

Router(config)# class-map match-any BULK-DATA ! Defines Class map for bulk traffic

Router(config-cmap)# match ip dscp af11 af12 ! Matches traffic with DSCP set to AF11 or
AF12

Router(config-cmap)# match protocol ftp ! Matches FTP traffic

Router(config-cmap)# match access-group name ACL-FTP ! Matches ip traffic in ACL-FTP ACL

Router(config-cmap)# exit


Router(config)# policy-map EIGHT-CLASS-V3PN-EDGE ! Defines child policy map

Router(config-pmap)# class VOICE ! Matches traffic classified by VOICE class-map

Router(config-pmap-c)# priority % 18 ! Specifies guaranteed bandwidth of 14% of interface
bandwidth

Router(config-pmap-c)# class INTERACTIVE-VIDEO ! Matches traffic classified by
INTERACTIVE-VIDEO class-map

Router(config-pmap-c)# priority % 10 ! Specifies guaranteed bandwidth of 6% of interface
bandwidth

Router(config-pmap-c)# class MISSION-CRITICAL ! Matches traffic classified
byMISSION-CRITICAL class-map

Router(config-pmap-c)# bandwidth % 25 ! Specifies a minimum bandwidth of 25% of interface
bandwidth

Router(config-pmap-c)# random-detect ! Specifies to drop TCP packet randomly to avoid tail
drop

Router(config-pmap-c)# class INTERNETWORK-CONTROL ! Matches traffic classified by
INTERNETWORK-CONTROL class-map

Router(config-pmap-c)# bandwidth % 3 ! Specifies a minimum bandwidth of 3% of interface
bandwidth

Router(config-pmap-c)# class TRANSACTIONAL-DATA ! Matches traffic classified by
TRANSACTIONAL-DATA class-map

Router(config-pmap-c)# bandwidth % 12 ! Specifies a minimum bandwidth of 18% of interface
bandwidth

Router(config-pmap-c)# random-detect ! Specifies to drop TCP packet randomly to avoid tail
drop

Router(config-pmap-c)# class BULK-DATA ! Matches traffic classified by BULK-DATA class map

Router(config-pmap-c)# bandwidth % 5 ! Specifies a minimum bandwidth of 5% of interface
bandwidth

Router(config-pmap-c)# class SCAVENGER ! Matches traffic classified by SCAVANGER class map

Router(config-pmap-c)# bandwidth % 2 ! Specifies a minimum bandwidth of 2% of interface
bandwidth

Router(config-pmap-c)# class class-default ! Defines default class

Router(config-pmap-c)# bandwidth % 25 ! Specifies a minimum bandwidth of 25% of interface
bandwidth

Router(config-pmap-c)# random-detect ! Specifies to drop TCP packet randomly to avoid tail
drop

Router(config-pmap-c)# exit

Router(config-pmap)# exit

After creating the following two policy maps, apply them on WAN interfaces as described in the DS-3, DS-1, and Gigabit Ethernet interface configuration section.

Router(config)# policy-map EIGHT-CLASS-V3PN-EDGE-SHAPE ! Defines parent policy map for
Primary interface

Router(config-pmap)# class class-default ! Matches all traffic

Router(config-pmap-c)# shape average 6912000 ! Outgoing traffic was shaped at a rate of
6.9 Mbps

Router(config-pmap-c)# service-policy EIGHT-CLASS-V3PN-EDGE ! Attaches traffic policy to
shaping queue.

Router(config-pmap-c)# exit

Router(config-pmap)# exit

Router(config)# policy-map EIGHT-CLASS-V3PN-EDGE-BACKUP ! Defines parent policy map for
Backup interface

Router(config-pmap)# class class-default ! Matches all traffic

Router(config-pmap-c)# shape average 4608000 ! Outgoing traffic was shaped at a rate of
4.6 Mbps

Router(config-pmap-c)# service-policy EIGHT-CLASS-V3PN-EDGE ! Attaches traffic policy to
shaping queue.

Router(config-pmap-c)# exit

Router(config)# map-class frame-relay FR-SHAPING ! Defines a map-class for Frame Relay
traffic shaping

Router(config-map-class)# frame-relay cir 24000000 ! Sets average rate to 24 Mbps

Router(config-map-class)# frame-relay bc 120000 ! Sets committed burst size to 120 Kb

Router(config-map-class)# frame-relay mincir 24000000 ! Sets the minimum guaranteed rate
it should drop in case of congestion to 24 Mbps

Router(config-map-class)# frame-relay adaptive-shaping becn ! Enables to adjust the
shaping rate in response to backward congestion notification

Router(config-map-class)# service-policy output EIGHT-CLASS-V3PN-EDGE-SHAPE ! Attaches
traffic policy to Frame Relay shaping queue.

Router(config-map-class)# exit

Router(config)# policy-map INPUT-POLICY ! Defines Policy map for LAN interface

Router(config-pmap)# class WORMS ! Matches HTTP traffic with Virus

Router(config-pmap-c)# drop ! Drop the traffic

Router(config-pmap-c)# class class-default ! Matches all traffic

Router(config-pmap-c)# exit

Router(config-pmap)# exit

Router(config)#

Quality of Service Verification

To verify your QoS configuration, enter the show policy-map interface command to display the QoS policy and related traffic counters on each interface.

Router# show policy-map interface

 GigabitEthernet0/1.1


  Service-policy input: INPUT-POLICY


    Class-map: WORMS (match-any)

      9 packets, 594 bytes

      30 second offered rate 0 bps, drop rate 0 bps

      Match: protocol http url "*.ida*"

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol http url "*cmd.exe*"

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol http url "*root.exe*"

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol http url "*readme.eml*"

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: class-map match-all SQL-SLAMMER

        0 packets, 0 bytes

        30 second rate 0 bps

        Match: protocol custom-02

        Match: packet length min 404 max 404

      Match: protocol custom-03

        9 packets, 594 bytes

        30 second rate 0 bps

      drop


    Class-map: class-default (match-any)

      103593411 packets, 6980776240 bytes

      30 second offered rate 0 bps, drop rate 0 bps

      Match: any

      QoS Set

        dscp cos

          Packets marked 103593416

 GigabitEthernet0/1.2


  Service-policy input: INPUT-POLICY


    Class-map: WORMS (match-any)

      0 packets, 0 bytes

      30 second offered rate 0 bps, drop rate 0 bps

      Match: protocol http url "*.ida*"

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol http url "*cmd.exe*"

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol http url "*root.exe*"

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol http url "*readme.eml*"

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: class-map match-all SQL-SLAMMER

        0 packets, 0 bytes

        30 second rate 0 bps

        Match: protocol custom-02

        Match: packet length min 404 max 404

      Match: protocol custom-03

        0 packets, 0 bytes

        30 second rate 0 bps

      drop


    Class-map: class-default (match-any)

      3350613 packets, 212885188 bytes

      30 second offered rate 0 bps, drop rate 0 bps

      Match: any

      QoS Set

        dscp cos

          Packets marked 3350613

 GigabitEthernet0/1.3


  Service-policy input: INPUT-POLICY


    Class-map: WORMS (match-any)

      0 packets, 0 bytes

      30 second offered rate 0 bps, drop rate 0 bps

      Match: protocol http url "*.ida*"

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol http url "*cmd.exe*"

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol http url "*root.exe*"

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol http url "*readme.eml*"

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: class-map match-all SQL-SLAMMER

        0 packets, 0 bytes

        30 second rate 0 bps

        Match: protocol custom-02

        Match: packet length min 404 max 404

      Match: protocol custom-03

        0 packets, 0 bytes

        30 second rate 0 bps

      drop


    Class-map: class-default (match-any)

      3266743 packets, 201900728 bytes

      30 second offered rate 0 bps, drop rate 0 bps

      Match: any

      QoS Set

        dscp cos

          Packets marked 3266743

 GigabitEthernet0/0/0


  Service-policy output: EIGHT-CLASS-V3PN-EDGE-SHAPE


    Class-map: class-default (match-any)

      86921887 packets, 11420188514 bytes

      30 second offered rate 1000 bps, drop rate 0 bps

      Match: any

      Traffic Shaping

           Target/Average   Byte   Sustain   Excess    Interval  Increment

             Rate           Limit  bits/int  bits/int  (ms)      (bytes)

          6912000/6912000   43200  172800    172800    25        21600


        Adapt  Queue     Packets   Bytes     Packets   Bytes     Shaping

        Active Depth                         Delayed   Delayed   Active

        -      0         85141012  2709383642 0         0         no


      Service-policy : EIGHT-CLASS-V3PN-EDGE


        Class-map: VOICE (match-any)

          1781 packets, 206488 bytes

          30 second offered rate 0 bps, drop rate 0 bps

          Match: ip dscp ef (46)

            0 packets, 0 bytes

            30 second rate 0 bps

          Queueing

            Strict Priority

            Output Queue: Conversation 136

            Bandwidth 14 ( %)

            Bandwidth 967 (kbps) Burst 24175 (Bytes)

            (pkts matched/bytes matched) 0/0

            (total drops/bytes drops) 0/0


        Class-map: INTERACTIVE-VIDEO (match-all)

          0 packets, 0 bytes

          30 second offered rate 0 bps, drop rate 0 bps

          Match: ip dscp af41 (34) af42 (36)

          Queueing

            Strict Priority

            Output Queue: Conversation 136

            Bandwidth 6 ( %)

            Bandwidth 414 (kbps) Burst 10350 (Bytes)

            (pkts matched/bytes matched) 0/0

            (total drops/bytes drops) 0/0


        Class-map: MISSION-CRITICAL (match-any)

          1181375 packets, 148873894 bytes

          30 second offered rate 0 bps, drop rate 0 bps

          Match: ip dscp cs3 (24)

            1181375 packets, 148873894 bytes

            30 second rate 0 bps

          Match: ip dscp af31 (26)

            0 packets, 0 bytes

            30 second rate 0 bps

          Match: access-group 101

            0 packets, 0 bytes

            30 second rate 0 bps

          Match: ip dscp 25

            0 packets, 0 bytes

            30 second rate 0 bps

          Match: protocol http

            0 packets, 0 bytes

            30 second rate 0 bps

          Queueing

            Output Queue: Conversation 137

            Bandwidth 25 ( %)

            Bandwidth 1728 (kbps)

            (pkts matched/bytes matched) 0/0

        (depth/total drops/no-buffer drops) 0/0/0

             exponential weight: 9

             mean queue depth: 0


  class    Transmitted      Random drop      Tail drop    Minimum Maximum  Mark

           pkts/bytes       pkts/bytes       pkts/bytes    thresh  thresh  prob

      0       0/0               0/0              0/0           20      40  1/10

      1       0/0               0/0              0/0           22      40  1/10

      2       0/0               0/0              0/0           24      40  1/10

      3 1181305/148866418       0/0              0/0           26      40  1/10

      4       0/0               0/0              0/0           28      40  1/10

      5       0/0               0/0              0/0           30      40  1/10

      6       0/0               0/0              0/0           32      40  1/10

      7       0/0               0/0              0/0           34      40  1/10

   rsvp       0/0               0/0              0/0           36      40  1/10



        Class-map: INTERNETWORK-CONTROL (match-any)

          1245619 packets, 176240010 bytes

          30 second offered rate 0 bps, drop rate 0 bps

          Match: ip dscp cs6 (48)

            1245619 packets, 176240010 bytes

            30 second rate 0 bps

          Queueing

            Output Queue: Conversation 138

            Bandwidth 3 ( %)

            Bandwidth 207 (kbps)Max Threshold 64 (packets)

            (pkts matched/bytes matched) 0/0

        (depth/total drops/no-buffer drops) 0/0/0


        Class-map: TRANSACTIONAL-DATA (match-any)

          8833287 packets, 1254893912 bytes

          30 second offered rate 1000 bps, drop rate 0 bps

          Match: ip dscp af21 (18) af22 (20)

            8833286 packets, 1254893912 bytes

            30 second rate 1000 bps

          Match: access-group 102

            0 packets, 0 bytes

            30 second rate 0 bps

          Match: protocol custom-04

            0 packets, 0 bytes

            30 second rate 0 bps

          Queueing

            Output Queue: Conversation 139

            Bandwidth 18 ( %)

            Bandwidth 1244 (kbps)

            (pkts matched/bytes matched) 0/0

        (depth/total drops/no-buffer drops) 0/0/0

             exponential weight: 9

             mean queue depth: 0


  class    Transmitted      Random drop      Tail drop    Minimum Maximum  Mark

           pkts/bytes       pkts/bytes       pkts/bytes    thresh  thresh  prob

      0       0/0               0/0              0/0           20      40  1/10

      1       0/0               0/0              0/0           22      40  1/10

      2 8833254/1254889504      0/0              0/0           24      40  1/10

      3       0/0               0/0              0/0           26      40  1/10

      4       0/0               0/0              0/0           28      40  1/10

      5       0/0               0/0              0/0           30      40  1/10

      6       0/0               0/0              0/0           32      40  1/10

      7       0/0               0/0              0/0           34      40  1/10

   rsvp       0/0               0/0              0/0           36      40  1/10



        Class-map: BULK-DATA (match-any)

          0 packets, 0 bytes

          30 second offered rate 0 bps, drop rate 0 bps

          Match: ip dscp af11 (10) af12 (12)

            0 packets, 0 bytes

            30 second rate 0 bps

          Match: protocol ftp

            0 packets, 0 bytes

            30 second rate 0 bps

          Match: access-group name aclftp

            0 packets, 0 bytes

            30 second rate 0 bps

          Queueing

            Output Queue: Conversation 140

            Bandwidth 5 ( %)

            Bandwidth 345 (kbps)Max Threshold 64 (packets)

            (pkts matched/bytes matched) 0/0

        (depth/total drops/no-buffer drops) 0/0/0


        Class-map: SCAVENGER (match-all)

          0 packets, 0 bytes

          30 second offered rate 0 bps, drop rate 0 bps

          Match: ip dscp cs1 (8)

          Queueing

            Output Queue: Conversation 141

            Bandwidth 2 ( %)

            Bandwidth 138 (kbps)Max Threshold 64 (packets)

            (pkts matched/bytes matched) 0/0

        (depth/total drops/no-buffer drops) 0/0/0


        Class-map: class-default (match-any)

          75659826 packets, 9839974210 bytes

          30 second offered rate 0 bps, drop rate 0 bps

          Match: any

          Queueing

            Output Queue: Conversation 142

            Bandwidth 25 ( %)

            Bandwidth 1728 (kbps)

            (pkts matched/bytes matched) 0/0

        (depth/total drops/no-buffer drops) 0/0/0

             exponential weight: 9

             mean queue depth: 0


  class    Transmitted      Random drop      Tail drop    Minimum Maximum  Mark

           pkts/bytes       pkts/bytes       pkts/bytes    thresh  thresh  prob

      0 73879122/9719111088      0/0              0/0           20      40  1/10

      1       0/0               0/0              0/0           22      40  1/10

      2      18/14796           0/0              0/0           24      40  1/10

      3       0/0               0/0              0/0           26      40  1/10

      4       0/0               0/0              0/0           28      40  1/10

      5       0/0               0/0              0/0           30      40  1/10

      6       0/0               0/0              0/0           32      40  1/10

      7       0/0               0/0              0/0           34      40  1/10

   rsvp       0/0               0/0              0/0           36      40  1/10


 Virtual-Template10



  Service-policy output: EIGHT-CLASS-V3PN-EDGE-BACKUP


    Service policy content is displayed for cloned interfaces only such as vaccess and
sessions

Security Services Implementation

•Infrastructure Protection Implementation

•Access Control Implementation

•Secure Connectivity Implementation

•Threat Defense Detection and Mitigation Implementation

Infrastructure Protection Implementation

•Securing Unused Ports

•Turning Off Unused Services

•Routing Protocol Security

•Additional Services Measures

Securing Unused Ports

The following is an example of securing an unused port. The example applies to both of the access layer switches.

Switch(config)# interface g1/0/4 ! Enters configuration mode for the specified port

Switch(config-if)# switchport mode access ! Assign the port to access mode

Switch(config-if)# switchport access vlan 333 ! Assign the unused port to Black Hole VLAN

Switch(config-if)# exit

Turning Off Unused Services

To improve the overall security of the network, the Cisco IOS devices must be secured from infrastructure attack. As a security best practice, disable any unused services because these unused services are only rarely used for legitimate purposes and can be used to launch a denial of service (DoS) attack. The following example disables the unused services.

Router(config)# no service pad ! Disable PAD service

Router(config)# no service udp-small-servers ! Disable UDP small server

Router(config)# no service tcp-small-servers ! Disable TCP small server

Router(config)# no ip bootp server ! Disable BOOTP server

Router(confif)# no cdp run ! Disable Cisco Discover Protocol service

Router(config)# no ip source-route ! Disable source routing

Router(config)# no ip classless  ! Disable forwarding of packets for unrecognized subnets

Router(config)# no ip http server ! Disable HTTP server

Router(config)# no ip http secure-server ! Disable HTTPS server

Router(config)# no ip domain-lookup ! Disable DNS server

Router(config) # interface Multilink1 ! Enters interface configuration mode

Router(config-if)# no cdp enable ! Disable Cisco discovery protocol on the interface

Router(config-if)# no ip redirects ! Disable ICMP redirect message

Router(config-if)# no ip proxy-arp ! Disable Proxy ARP

Router(config-if)# no ip unreachables ! Disable ICMP unreachable error message

Router(config-if)# no ip directed-broadcast! Disable directed broadcasts

Router(config-if)# no ip mask-reply! Disable ICMP mask reply messages

The unused services can also be disabled by running Cisco AutoSecure.

Router# auto secure
--- AutoSecure Configuration ---
*** AutoSecure configuration enhances the security of
the router, but it will not make it absolutely resistant
to all security attacks ***
AutoSecure will modify the configuration of your device.
All configuration changes will be shown. For a detailed
explanation of how the configuration changes enhance security
and any possible side effects, please refer to Cisco.com for
Autosecure documentation.
At any prompt you may enter '?' for help.
Use ctrl-c to abort this session at any prompt.
Gathering information about the router for AutoSecure
Is this router connected to internet? [no]: yes
Enter the number of interfaces facing the internet [1]: 3
Controller Timeslots D-Channel Configurable modes Status
T1 0/0/0 24 23 pri/channelized Administratively up
T1 0/0/1 24 23 pri/channelized Administratively up Administratively up
Interface IP-Address OK? Method Status Protocol
GigabitEthernet0/1 unassigned YES NVRAM up up
GigabitEthernet0/1.1 10.0.0.1 YES NVRAM up up
GigabitEthernet0/1.2 10.0.1.1 YES NVRAM up up
GigabitEthernet0/1.3 10.0.2.65 YES NVRAM up up
GigabitEthernet0/1.4 10.0.2.1 YES NVRAM up up
Serial0/0/0:0 unassigned YES unset down down
Serial0/0/0:1 unassigned YES unset down down
Serial0/0/0:2 unassigned YES unset down down
Serial0/0/0:3 unassigned YES unset down down
Serial0/0/0:4 unassigned YES unset down down
Serial0/0/0:5 unassigned YES unset down down
Serial0/0/0:6 unassigned YES unset down down
Serial0/0/0:7 unassigned YES unset down down
Serial0/0/0:8 unassigned YES unset down down
Serial0/0/0:9 unassigned YES unset down down
Serial0/0/0:10 unassigned YES unset down down
Serial0/0/0:11 unassigned YES unset down down
Serial0/0/0:12 unassigned YES unset down down
Serial0/0/0:13 unassigned YES unset down down
Serial0/0/0:14 unassigned YES unset down down
Serial0/0/0:15 unassigned YES unset down down
Serial0/0/0:16 unassigned YES unset down down
Serial0/0/0:17 unassigned YES unset down down
Serial0/0/0:18 unassigned YES unset down down
Serial0/0/0:19 unassigned YES unset down down
Serial0/0/0:20 unassigned YES unset down down
Serial0/0/0:21 unassigned YES unset down down
Serial0/0/0:22 unassigned YES unset down down
Serial0/0/0:23 unassigned YES NVRAM up up
Serial0/1/0 unassigned YES NVRAM up up
Serial0/1/1 unassigned YES NVRAM up up
Serial0/1/2 unassigned YES NVRAM up up
Serial0/1/3 unassigned YES NVRAM up up
ATM0/2/IMA0 unassigned YES NVRAM standby mode down
ATM0/2/IMA0.1 209.165.201.1 YES NVRAM standby mode down
In1/0 10.0.2.85 YES NVRAM up up
Integrated-Service-Engine1/0 10.0.2.89     YES NVRAM administratively down down
Multilink1 192.168.0.1 YES NVRAM up up
Virtual-Access1 unassigned YES unset up up
Virtual-Access2 unassigned YES unset down down
Virtual-Template10 209.165.201.1 YES TFTP down down
Loopback0 209.165.201.9 YES NVRAM up up
Tunnel1 10.0.2.81 YES NVRAM up up
Enter the interface name that is facing the internet: Multilink1
Enter the interface name that is facing the internet: ATM0/2/IMA0.1
Enter the interface name that is facing the internet: Loopback0
Securing Management plane services...
Disabling service finger
Disabling service pad
Disabling udp & tcp small servers
Enabling service password encryption
Enabling service tcp-keepalives-in
Enabling service tcp-keepalives-out
Disabling the cdp protocol
Disabling the bootp server
Disabling the http server
Disabling the finger service
Disabling source routing
Disabling gratuitous arp
Is SNMP used to manage the router? [yes/no]: no
Disabling SNMP
Here is a sample Security Banner to be shown
at every access to device. Modify it to suit your
enterprise requirements.
Authorized Access only
This system is the property of So-&-So-Enterprise.
UNAUTHORIZED ACCESS TO THIS DEVICE IS PROHIBITED.
You must have explicit permission to access this
device. All activities performed on this device
are logged. Any violations of access policy will result
in disciplinary action.
Enter the security banner {Put the banner between
k and k, where k is any character}:
k Unauthorised access to this device is prohibited k
Enable secret is either not configured or
is the same as enable password
Enter the new enable secret:
Confirm the enable secret :
Enter the new enable password:
Confirm the enable password:
Configuring AAA local authentication
Configuring Console, Aux and VTY lines for
local authentication, exec-timeout, and transport
Securing device against Login Attacks
Configure the following parameters
Blocking Period when Login Attack detected: 5
Maximum Login failures with the device: 5
Maximum time period for crossing the failed login attempts: 5
Configure SSH server? [yes]: yes
Enter hostname: Branch
Enter the domain-name: example.com
Configuring interface specific AutoSecure services
Disabling the following ip services on all interfaces:
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
Disabling mop on Ethernet interfaces
Securing Forwarding plane services...
Enabling CEF (This might impact the memory requirements for your platform)
Enabling unicast rpf on all interfaces connected
to internet
Configure CBAC Firewall feature? [yes/no]: no
Tcp intercept feature is used prevent tcp syn attack
on the servers in the network. Create autosec_tcp_intercept_list
to form the list of servers to which the tcp traffic is to
be observed
Enable tcp intercept feature? [yes/no]: no
This is the configuration generated:
no service finger
no service pad
no service udp-small-servers
no service tcp-small-servers
service password-encryption
service tcp-keepalives-in
service tcp-keepalives-out
no cdp run
no ip bootp server
no ip http server
no ip finger
no ip source-route
no ip gratuitous-arps
no ip identd
no snmp-server
banner motd ^C Unauthorised access to this device is prohibited ^C
security passwords min-length 6
security authentication failure rate 10 log
enable secret 5 $1$2gLN$RpNwkFyfJdCjXkMDxY3PI1
enable password 7 011F07065802150C2E
aaa new-model
aaa authentication login local_auth local
line con 0
login authentication local_auth
exec-timeout 5 0
transport output telnet
line aux 0
login authentication local_auth
exec-timeout 10 0
transport output telnet
line vty 0 4
login authentication local_auth
transport input telnet
line tty 1
login authentication local_auth
exec-timeout 15 0
line tty 66
login authentication local_auth
exec-timeout 15 0
line tty 130
login authentication local_auth
exec-timeout 15 0
login block-for 5 attempts 5 within 5
ip domain-name example.com
crypto key generate rsa general-keys modulus 1024
ip ssh time-out 60
ip ssh authentication-retries 2
line vty 0 4
transport input ssh telnet
service timestamps debug datetime msec localtime show-timezone
service timestamps log datetime msec localtime show-timezone
logging facility local2
logging trap debugging
service sequence-numbers
logging console critical
logging buffered
interface GigabitEthernet0/0
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
no mop enabled
interface GigabitEthernet0/1
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
no mop enabled
interface GigabitEthernet0/1.1
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
interface GigabitEthernet0/1.2
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
interface GigabitEthernet0/1.3
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
interface Serial0/0/0
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
interface Serial0/1/1
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
interface Serial0/1/2
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
interface Serial0/1/3
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
interface Serial0/0/0:23
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
interface ATM0/2/IMA0
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
interface ATM0/2/IMA0.1
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
interface Integrated-Service-Engine1/0
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
no mop enabled
interface Integrated-Service-Engine0/1
no ip redirects
no ip proxy-arp
no ip unreachables
no ip directed-broadcast
no ip mask-reply
no mop enabled
ip cef
access-list 100 permit udp any any eq bootpc
interface ATM0/3/IMA0.1
ip verify unicast source reachable-via rx allow-default 100
!
end
Apply this configuration to running-config? [yes]: yes
Applying the config generated to running-config
The name for the keys will be: Router.example.com
percent The key modulus size is 1024 bits
percent Generating 1024 bit RSA keys, keys will be non-exportable...[OK]
Router#
092165: Sep 23 03:03:32.096 PDT: percentAUTOSEC-1-MODIFIED: AutoSecure configuration has been Modified on this device
Router#

Routing Protocol Security

Apply an authentication mechanism to all the WAN interfaces.

OSPF

Router(config)# interface Tunnel 1 ! Enters tunnel interface configuration mode

Router(config-line)# ip ospf authentication message-digest ! Enables MD5 routing protocol
authentication

Router(config-line)# ip ospf message-digest-key 100 md5 c1$k0Sys ! Sets key and password
for MD5

Router(config)# exit

Router(config)# interface Multilink1 ! Enters serial interface configuration mode

Router(config-line)# ip ospf authentication message-digest ! Enables MD5 routing protocol
authentication

Router(config-line)# ip ospf message-digest-key 100 md5 c1$k0Sys ! Sets key and password
for MD5

Router(config)# exit

EIGRP

Router(config)# key chain EIGRP-KEY ! Creates chain of keys

Router(config-keychain)# key 1 ! Creates a key

Router(config-keychain-key)# key-string c1$k0SyS ! Sets the key value

Router(config-keychain-key)# exit

Router(config-keychain)# exit


Router(config)# interface Tunnel 1 ! Enters tunnel interface configuration mode

Router(config-line)# ip authentication mode eigrp 100 md5 ! Enables MD5 routing protocol
authentication

Router(config-line)# ip authentication key-chain eigrp 100 EIGRP-KEY ! Sets key and
password for MD5

Router(config)# exit

Router(config)# interface Multilink1 ! Enters serial interface configuration mode

Router(config-line)# ip authentication mode eigrp 100 md5 ! Enables MD5 routing protocol
authentication

Router(config-line)# ip authentication key-chain eigrp 100 EIGRP-KEY ! Sets key and
password for MD5

Router(config)# exit

RIPv2

Router(config)# key chain RIP-KEY ! Creates chain of keys

Router(config-keychain)# key 1 ! Creates a key

Router(config-keychain-key)# key-string c1$k0SyS ! Sets the key value

Router(config-keychain-key)# exit

Router(config-keychain)# exit


Router(config)# interface Tunnel 1 ! Enters tunnel interface configuration mode

Router(config-line)# ip rip authentication mode md5 ! Enables MD5 routing protocol
authentication

Router(config-line)# ip rip authentication key-chain RIP-KEY ! Sets key and password for
MD5

Router(config)# exit

Router(config)# interface Multilink1 ! Enters serial interface configuration mode

Router(config-line)# ip rip authentication mode md5 ! Enables MD5 routing protocol
authentication

Router(config-line)# ip rip authentication key-chain RIP-KEY ! Sets key and password for
MD5

Router(config)# exit

Additional Services Measures

Router(config)# line vty 0 4 ! Specifies VTY line specific parameters

Router(config-line)# transport input ssh ! Allows only SSH connection

Router(config)# exit

Router(config)# ip http secure-server ! Enables HTTPS service

Router(config)# ip http authentication aaa login-authentication default ! Specifies to use
AAA database for HTTP login

Verification of Additional Services Measures

To verify your additional services configuration, enter the following command.

Router# show ip ssh

SSH Enabled - version 1.99

Authentication timeout: 120 secs; Authentication retries: 3

Access Control Implementation

Authentication, Authorization, and Accounting (AAA) is an architectural framework for consistently configuring a set of independent security functions. It provides a modular way of performing authentication, authorization, and accounting using a protocol such as RADIUS or TACACS.

In the branch architecture, AAA is the primary method for access control, using RADIUS as the protocol for communication between network devices and the AAA server.

Router(config)# aaa new-model ! Enables Authentication, Authorization and Accounting
services

Router(config)# aaa group server radius AAA-BRANCH ! Specifies the RADIUS server group

Router(config-sg-radius)# server 172.16.0.80 auth-port 1645 acct-port 1646 ! Specifies the
RADIUS server ip address

Router(config-sg-radius)# aaa authentication login default group radius local ! Specifies
default login authentication to use RADIUS server database

Router(config-sg-radius)# aaa authentication login VPN-AUTH-LIST group radius local !
Specifies SSL VPN login authentication to use RADIUS server database

Router(config)# aaa session-id common ! Specifies the use of the same session identifier
for all invocations of accounting services

Router(config)# radius-server key BRANCH-KEY ! Specifies RADIUS server key

Password Management

Router(config)# security passwords min-length 8 ! Sets minimum length of passwords to 8
characters

Router(config)# service password-encryption ! Enables Cisco IOS to encrypt all password in
configuration file

Router(config)# enable password level 7 C1$k0SyS ! Enables configuration password with
privilege level 7

Router(config)# enable secret level 5 C1$k0SyS ! Enables configuration password stored
with MD5 encryption with privilege level 5

Router(config)# security authentication failure rate 10 log ! Allows up to 10 unsuccessful
login attempts with a syslog entry for attempts that exceed the threshold

Router(config)# username admin password C1$k0SyS ! Sets login password


Switch-Access(config)# service password-encryption ! Enables Cisco IOS to encrypt all
password in configuration file

Switch-Access(config)# enable secret level 5 C1$k0SyS ! Enables configuration password
stored with MD5 encryption with privilege level 5

Secure Connectivity Implementation

•GETVPN Key Server

•DMVPN Implementation

•SSL VPN Implementation

Group Encrypted Transport Virtual Private Networks (GETVPN) eliminates the need for tunnels across the WAN. By removing the need for point-to-point tunnels, meshed networks can scale better while maintaining network-intelligence features that are critical to voice and video quality, such as QoS, routing, and multicast. GETVPN offers a new standards-based IPsec security model that is based on the concept of "trusted" group members. Trusted member routers use a common security methodology that is independent of any point-to-point IPsec tunnel relationship.

GET-based networks can be used in a variety of WAN environments, including IP and Multiprotocol Label Switching (MPLS). MPLS VPNs that use this encryption technology are highly scalable, manageable, and cost-effective, and they meet government-mandated encryption requirements. The flexible nature of GET allows security-conscious enterprises either to manage their own network security over a service provider WAN service or to offload encryption services to their providers. GET simplifies securing large Layer 2 or MPLS networks that require partial or full-mesh connectivity.

In the Streamlined Medium Branch Foundation, GETVPN encryption was used on the primary WAN link.

Router(config)# crypto isakmp policy  1 ! Identifies the policy to create and enters
isakmp configuration mode

Router(config-isakmp)# encryption 3des ! Specifies the 3-DES encryption algorithm

Router(config-isakmp)# authentication pre-share ! Specifies authentication with preshared
keys

Router(config-isakmp)# hash md5 ! Specifies hash algorithm as MD5

Router(config-isakmp)# group 2 ! Specifies the 1024-bit Diffie-Hellman group

Router(config-isakmp)# lifetime 28800 ! Specifies the lifetime of IKE security association

Router(config-isakmp)# crypto isakmp key VPN-KEY address 209.165.201.10! Specifies static
key for the ISAKMP negotiation with peer device using remote peer Loopback address

Router(config)# crypto isakmp keepalive 30 ! Enables keepalives between peers with
specified interval

Router(config)# crypto gdoi group GET-GROUP ! Enters GDOI group configuration mode.

Router(config-gdoi-group)# identity number 1357924680 ! Sets GDOI group number

Router(config-gdoi-group)# server address ipv4 209.165.201.10 ! Specifies GDOI key server
address

Router(config-gdoi-group)# crypto map VPN-MAP local-address Loopback0 ! Specifies the
interface to be used by the crypto map for the IPSEC traffic

Router(config)# crypto map VPN-MAP 1 gdoi ! Enters crypto map configuration mode and
creates or modifies a crypto map entry.

Router(config-crypto-map)# set group GET-GROUP ! Associates the GDOI group to the crypto
map.

Router(config-crypto-map)# qos pre-classify ! Enables QoS on VPN tunnel interface

Router(config-crypto-map)# exit

Apply the VPN-MAP on all WAN interfaces and subinterfaces.

Router(config-fr-dlci)# crypto map VPN-MAP


or


Router(config-if)# crypto map VPN-MAP

GETVPN Key Server

The key server was configured at the central location.

KEY-SERVER(config)# crypto isakmp policy 1 ! Defines an IKE policy

KEY-SERVER(config-isakmp)# encryption 3des ! Specifies 3-DES encryption algorithm

KEY-SERVER(config-isakmp)# authentication pre-share ! Specifies authentication with
preshared keys

KEY-SERVER(config-isakmp)# group 2 ! Specifies the 1024-bit Diffie-Hellman group

KEY-SERVER(config-isakmp)# lifetime 28800 ! Specifies the lifetime of IKE security
association

KEY-SERVER(config)# crypto ipsec transform-set GET-GROUP esp-aes 256 esp-sha-hmac !
Defines a IPSec transform set with ESP encapsulation and AES 256 bit encryption

KEY-SERVER(cfg-crypto-trans)# crypto ipsec profile GET-VPN ! Defines a profile and enters
IPSEC configuration mode

KEY-SERVER(ipsec-profile)# set security-association lifetime seconds 86400 ! Specifies
security association lifetime

KEY-SERVER(ipsec-profile)# set transform-set GET-GROUP ! Specifies which transform sets
can be used with the crypto map entry.

KEY-SERVER(ipsec-profile)# crypto gdoi group GET-GROUP ! Identifies a GDOI group and
enters GDOI group configuration mode

KEY-SERVER(config-gdoi-group)# identity number 1357924680 ! Sets GDOI group number

KEY-SERVER(config-gdoi-group)# server local ! Specified GDOI key server as local and
enters its configuration

KEY-SERVER(gdoi-local-server)# rekey address ipv4 REKEY-ADDRESS ! Defines destination
information for rekey messages as defined in the REKEY-ADDRESS ACL

KEY-SERVER(gdoi-local-server)# rekey lifetime seconds 300 ! Limits the number of seconds
that any one encryption key should be used

KEY-SERVER(gdoi-local-server)# rekey retransmit 10 number 2 ! Specifies the number of
times the rekey message is retransmitted

KEY-SERVER(gdoi-local-server)# rekey authentication mypubkey rsa REKEY-RSA ! Specifies the
keys to be used for a rekey to GDOI group members

KEY-SERVER(gdoi-local-server)# sa ipsec 1 ! Specifies the IPsec SA policy information to
be used for a GDOI group and enters GDOI SA IPsec configuration mode

KEY-SERVER(gdoi-sa-ipsec)# profile GET-VPN ! Defines the IPsec SA policy for a GDOI group

KEY-SERVER (gdoi-sa-ipsec)# match address ipv4 SA-ACL ! Specifies an IP extended access
list for a GDOI registration.

KEY-SERVER (gdoi-sa-ipsec)# replay counter window-size 64 ! Specifies the window-size for
the replay counter

KEY-SERVER (config)# ip access-list extended REKEY-ADDRESS ! Defines an extended
access-list and enters acl mode

KEY-SERVER (config-ext-nacl)# permit udp host host 209.165.201.10 eq 848 host 239.1.100.1
eq 248 ! Permits packets from a specific address to register with the Key-Server at its
multicast address

KEY-SERVER (config)# ip access-list extended SA-ACL ! Defines an extended access-list and
enters acl mode

KEY-SERVER(config-ext-nacl)# permit ip 10.0.0.0 0.0.0.255 172.16.0.0 0.0.255.255
! Permits traffic from branch subnets to central site subnets and vice versa

KEY-SERVER(config-ext-nacl)# permit ip 10.0.1.0 0.0.0.255 172.16.0.0 0.0.255.255

KEY-SERVER(config-ext-nacl)# permit ip 10.0.2.0 0.0.0.31 172.16.0.0 0.0.255.255

KEY-SERVER(config-ext-nacl)# permit ip 172.16.0.0 0.0.255.255 10.0.0.0 0.0.0.255

KEY-SERVER(config-ext-nacl)# permit ip 172.16.0.0 0.0.255.255 10.0.1.0 0.0.0.255

KEY-SERVER(config-ext-nacl)# permit ip 172.16.0.0 0.0.255.255 10.0.2.0 0.0.0.31

DMVPN Implementation

Dynamic Multipoint Virtual Private Network (DMVPN) is useful for building scalable IPsec VPNs. DMVPN uses a centralized architecture to provide easier implementation and management for deployment that requires granular access control for diverse users including teleworkers and mobile workers.

Cisco DMVPN allows branch locations to communicate directly with each other over the public WAN or Internet, such as when using Voice over IP (VoIP) between two branch offices, but does not require a permanent VPN connection between sites. In the Streamlined Medium Branch Network, DMVPN was tested on both the primary WAN link and the backup WAN link depending on whether the tunnel interface is active.

Router(config)# crypto isakmp policy 1 ! Defines IKE policy

Router(config-isakmp)# encr 3des ! Specifies the encryption mode as 3DES

Router(config-isakmp)# hash md5 ! Specifies hash algorithm as MD5

Router(config-isakmp)# authentication pre-share ! Specifies authentication with pre-shared
keys

Router(config-isakmp)# group 2 ! Specifies 1024-bit Diffie-Hellman group

Router(config-isakmp)# lifetime 28800 ! Specifies the lifetime of IKE security association

Router(config)# crypto isakmp key VPN-KEY address 209.165.201.10 ! Defines the preshared
key to be used for authentication

Router(config)# crypto isakmp keepalive 30 ! Enables keepalives between peers with
specified interval

Router(config)# crypto ipsec transform-set DM-GROUP esp-3des esp-md5-hmac ! Specifies
IPSec transform set with ESP encapsulation and AES 256 bit encryption
Router(cfg-crypto-trans)# exit

Router(config)# crypto ipsec profile DM-VPN ! Defines IPSec Profile

Router(ipsec-profile)# set security-association lifetime seconds 86400 ! Specifies the
amount of time for SA to be active

Router(ipsec-profile)# set transform-set DM-GROUP ! Specifies the IPSec transform set for
encrypting traffic

Router(ipsec-profile)# exit

Router(config)# interface Tunnel 1 ! Enters tunnel interface configuration mode

Router(config-if)# ip address 10.0.2.81 255.255.255.252 ! Specifies tunnel interface IP
address

Router(config-if)# ip mtu 1416 ! Sets the MTU size to 1416 bytes

Router(config-if)# tunnel source Loopback 0 ! Specifies the source address to be used for
tunnel packets

Router(config-if)# ip nbar protocol-discovery ! Enables NBAR protocol discovery

Router(config-if)# ip flow ingress ! Enables Netflow accounting on incoming traffic

Router(config-if)# ip flow egress ! Enables Netflow accounting on outgoing traffic

Router(config-if)# ip nhrp authentication KEY-BR ! Specifies authentication string

Router(config-if)# ip nhrp map 172.16.0.10 209.165.201.10 ! Specifies central site Tunnel
address to Tunnel source mapping

Router(config-if)# ip nhrp map multicast 209.165.201.10 ! Enables Broadcast/Multicast
support for Tunnel source address

Router(config-if)# ip nhrp network-id 100000 ! Specifies network identifier for this NBMA
network

Router(config-if)# ip nhrp holdtime 300 ! Specifies the time the NHRP address will be
advertised as valid

Router(config-if)# ip nhrp nhs 172.16.0.10 ! Specifies next hop server as the Tunnel
interface

Router(config-if)# load-interval 30 ! Specifies the interval for computing load statistics

Router(config-if)# qos pre-classify ! Enables QoS on VPN tunnel interface

Router(config-if)# tunnel mode gre multipoint ! Specifies the tunnel mode as multipoint
GRE

Router(config-if)# tunnel key 100000 ! Specifies the tunnel key

Router(config-if)# tunnel protection ipsec profile DM-VPN ! Associate IPSec profile with
tunnel interface

Apply the following command on the Tunnel interface after defining VPN security zone.

Router(config-if)# zone-member security VPN ! Adds this interface to firewall zone called
VPN

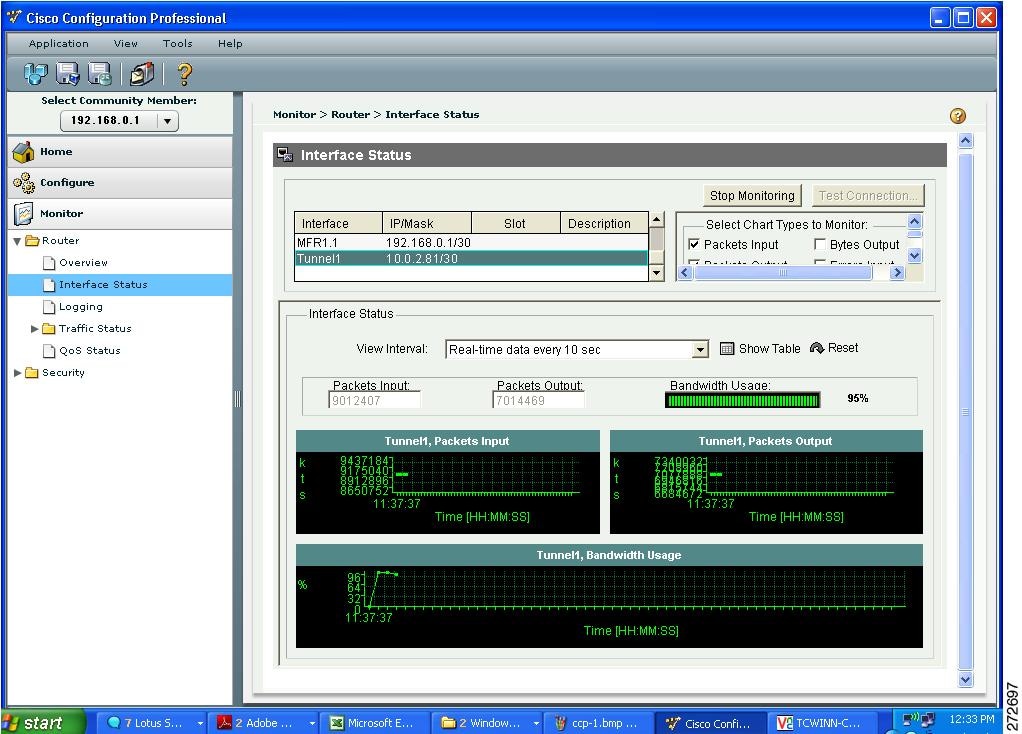

DMVPN Verification

To verify your DMVPN configuration, enter the following commands:

Router# show crypto ipsec sa


interface: Tunnel1

    Crypto map tag: Tunnel1-head-0, local addr 10.10.11.137


   protected vrf: (none)

   local  ident (addr/mask/prot/port): (10.10.11.137/255.255.255.255/47/0)

   remote ident (addr/mask/prot/port): (80.80.80.214/255.255.255.255/47/0)

   current_peer 80.80.80.214 port 500

     PERMIT, flags={origin_is_acl,}

    #pkts encaps: 259540, #pkts encrypt: 259540, #pkts digest: 259540

    #pkts decaps: 256812, #pkts decrypt: 256812, #pkts verify: 256812

    #pkts compressed: 0, #pkts decompressed: 0

    #pkts not compressed: 0, #pkts compr. failed: 0

    #pkts not decompressed: 0, #pkts decompress failed: 0

    #send errors 0, #recv errors 0


     local crypto endpt.: 10.10.11.137, remote crypto endpt.: 80.80.80.214

     path mtu 1514, ip mtu 1514, ip mtu idb Loopback0

     current outbound spi: 0xA4863CF6(2760260854)

     PFS (Y/N): N, DH group: none


     inbound esp sas:

      spi: 0x3EF09B6E(1055955822)

        transform: esp-3des esp-md5-hmac ,

        in use settings ={Tunnel, }

        conn id: 39, flow_id: Onboard VPN:39, sibling_flags 80000046, crypto map:
Tunnel1-head-0

        sa timing: remaining key lifetime (k/sec): (4565229/2312)

        IV size: 8 bytes

        replay detection support: N

        Status: ACTIVE


     inbound ah sas:


     inbound pcp sas:


     outbound esp sas:

      spi: 0xA4863CF6(2760260854)

        transform: esp-3des esp-md5-hmac ,

        in use settings ={Tunnel, }

        conn id: 40, flow_id: Onboard VPN:40, sibling_flags 80000046, crypto map:
Tunnel1-head-0

        sa timing: remaining key lifetime (k/sec): (4564995/2312)

        IV size: 8 bytes

        replay detection support: N

        Status: ACTIVE



     outbound ah sas:


     outbound pcp sas:


Router# show crypto isakmp sa

IPv4 Crypto ISAKMP SA

dst             src             state          conn-id slot status

209.165.201.9     209.165.201.10  QM_IDLE          21440    0 ACTIVE

SSL VPN Implementation

Secure Socket Layer Virtual Private Network (SSL VPN) is used to connect remote office users directly to the branch and provide them access to resources in the DMZ VLAN. They are also able to place calls using PC soft phones.

Router(config)#crypto pki trustpoint SSLVPN ! Defines a PKI certificate trust point

Router(ca-trustpoint)# enrollment selfsigned ! Specifies this router as self-signed root
certificate authority

Router(ca-trustpoint)# serial-number ! Specifies that the routers serial number should be
in the certificate request

Router(ca-trustpoint)# revocation-check none ! Disable certificate status check

Router(ca-trustpoint)# rsakeypair CERT-KEY ! Specified RSA key pair

Router(ca-trustpoint)#exit

Router(config)#crypto pki certificate chain SSLVPN ! Enters certificate configuration mode

Router(config-cert-chain)# certificate self-signed 01 ! Manually enters self-signed
certificate

There can be only one self-signed PKI certificate per router. AutoSecure, described in the Infrastructure Protection Implementation section, creates a self-signed certificate for the router while configuring SSH access. If AutoSecure was enabled on the router, then the next step is not necessary. However, if AutoSecure was not enabled, the above command will request a self-signed PKI certificate. To learn about creating self-signed certificates, visit:

http://www.cisco.com/en/US/prod/collateral/iosswrel/ps6537/ps6586/ps6657/white_paper_c07-372106.html

Enter the certificate in hexidecimal representation....


Router(config-pubkey)# 308201F2 3082019C A0030201 02020101 300D0609 2A864886 F70D0101
04050030

Router(config-pubkey)# 42314030 12060355 0405130B 46545831 31343841 36433030 2A06092A
864886F7

Router(config-pubkey)# 0D010902 161D4B69 76752D33 3832352D 42722D31 2E796F75 72646F6D
61696E2E

Router(config-pubkey)# 636F6D30 1E170D30 38303231 33323232 3131345A 170D3230 30313031
30303030

Router(config-pubkey)# 30305A30 42314030 12060355 0405130B 46545831 31343841 36433030
2A06092A

Router(config-pubkey)# 864886F7 0D010902 161D4B69 76752D33 3832352D 42722D31 2E796F75
72646F6D

Router(config-pubkey)# 61696E2E 636F6D30 5C300D06 092A8648 86F70D01 01010500 034B0030
48024100

Router(config-pubkey)# A699E60C 8EBCF9EA B3142412 FDEE1150 BF25E671 0FBF5E3E 323ABFEB
FFC9790D

Router(config-pubkey)# D5D10D76 7639A04A DDD45FA3 F82E6EFE 2F14C046 E05C0488 433CD054
44E97E61

Router(config-pubkey)# 02030100 01A37D30 7B300F06 03551D13 0101FF04 05300301 01FF3028
0603551D

Router(config-pubkey)# 11042130 1F821D4B 6976752D 33383235 2D42722D 312E796F 7572646F
6D61696E

Router(config-pubkey)# 2E636F6D 301F0603 551D2304 18301680 14E94478 E4EE44CD 8277D8E9
B12EBC6D

Router(config-pubkey)# ABC165DC D8301D06 03551D0E 04160414 E94478E4 EE44CD82 77D8E9B1
2EBC6D

Router(config-pubkey)# C165DCD8 300D0609 2A864886 F70D0101 04050003 41001086 6FDC6C2E
735E9A99

Router(config-pubkey)# 764F874B 03F10F55 31414E96 A0901C04 D172E2B1 AF990499 5404A7B8
94543832

Router(config-pubkey)# 5B5C0389 C543C76F 49E70F1D CCBCCEC3 A9B346CF D561

Router(config-pubkey)# quit

Router(config-cert-chain)# exit

Add the following rules to the firewall access control list (ACL) definitions.

Router(config)# ip access-list extended publicSelfInRule20Acl ! Enters Public to IOS zone
ACL definition

Router(config-ext-nacl)# permit tcp any host 209.165.201.15 ! Public address of SSLVPN
gateway 1

Router(config-ext-nacl)# permit tcp any host 209.165.201.17 ! Public address of SSLVPN
gateway 2

Router(config-ext-nacl)# permit tcp any host 209.165.201.20 eq www ! Public address of DMZ
server

Router(config-ext-nacl)# permit tcp any host 209.165.201.21 eq www ! Public address of DMZ
server

Router(config-ext-nacl)# permit tcp any host 209.165.201.22 eq www ! Public address of DMZ
server

Router(config-ext-nacl)# permit ip 192.168.0.0 0.0.0.252 ! Central site network

Router(config-ext-nacl)# permit ip 209.165.201.0 0.0.0.252 ! Central site network

Router(config-ext-nacl)# exit

Router(config)#


Router(config)# ip access-list extended publicDMZInRule20Acl ! Enters Public to DMZ zone
ACL definition

Router(config-ext-nacl)# permit tcp any host 209.165.201.16 ! Public address of SSLVPN
gateway 1

Router(config-ext-nacl)# permit tcp any host 209.165.201.17 ! Public address of SSLVPN
gateway 2

Router(config-ext-nacl)# permit tcp any host 209.165.201.20 eq www ! Public address of DMZ
server

Router(config-ext-nacl)# permit tcp any host 209.165.201.21 eq www ! Public address of DMZ
server

Router(config-ext-nacl)# permit tcp any host 209.165.201.22 eq www ! Public address of DMZ
server

Router(config-ext-nacl)# exit


Router(config)# ip local pool SSLVPN-Address-Pool 10.0.0.70 10.0.2.79 ! Defines pool of
addresses for VPN clients


Router(config)# webvpn gateway SSLVPN-GATEWAY-1 ! Enters webvpn gateway configuration mode

Router(config-webvpn-gateway)# ip address 209.165.201.15 port 443 ! Assigns public IP for
the gateway

Router(config-webvpn-gateway)# http-redirect port 80 ! Configures HTTP traffic to be
carried as HTTPS

Router(config-webvpn-gateway)# ssl trustpoint SSLVPN ! Assigns PKI certificate trust point

Router(config-webvpn-gateway)# inservice ! Starts the SSLVPN process

Router(config-webvpn-gateway)# exit


Router(config)# webvpn gateway SSLVPN-GATEWAY-2

Router(config-webvpn-gateway)# ip address 209.165.201.17 port 443 ! Assigns public IP for
the gateway

Router(config-webvpn-gateway)# http-redirect port 80 ! Configures HTTP traffic to be
carried as HTTPS

Router(config-webvpn-gateway)# ssl trustpoint SSLVPN ! Assigns PKI certificate trust point

Router(config-webvpn-gateway)# inservice ! Starts the SSLVPN process

Router(config-webvpn-gateway)# exit


Router(config)# webvpn install svc flash:sslclient-win-1.1.4.176.pkg ! Installs Cisco
AnyConnect VPN package


Router(config-webvpn-context)# webvpn context SSLVPN-GW-WEB ! Enters webvpn context
configuration mode

Router(config-webvpn-context)# secondary-color white ! Configures login portal

Router(config-webvpn-context)# title-color #FF9900 ! Configures login portal

Router(config-webvpn-context)# text-color black ! Configures login portal

Router(config-webvpn-context)# ssl encryption rc4-md5 ! Configures RC4-MD5 SSL encryption

Router(config-webvpn-context)# ssl authenticate verify all ! Performs user authentication

Router(config-webvpn-context)# url-list "WEB-SERVERS" ! Configures list of URLs in DMZ
that the user can access

Router(config-webvpn-url)# heading "Web Servers" ! Configures display properties for web
servers

Router(config-webvpn-url)#url-text "Server1" url-value "http://10.0.2.65/index.html"

Router(config-webvpn-url)# url-text "Server2" url-value "http://10.0.2.66/index.html"

Router(config-webvpn-url)# url-text "Server3" url-value "http://10.0.2.67/index.html"


Router(config-webvpn-url)#policy group SSLVPN-POLICY-WEB ! Defines policy for DMZ web
servers

Router(config-webvpn-group)# url-list "WEB-SERVERS" ! Associates policy with URL list

Router(config-webvpn-group)# functions svc-enabled ! Enables use of tunnel mode

Router(config-webvpn-group)# mask-urls ! Obfuscates sensitive URLs

Router(config-webvpn-group)# svc address-pool "SSLVPN-Address-Pool" ! Assigns local
addresses

Router(config-webvpn-group)# svc keep-client-installed ! Maintains Cisco AnyConnect VPN
client software installations on the connecting PCs

Router(config-webvpn-group)# default-group-policy SSLVPN-POLICY-WEB ! Associates SSLVPN
context with this group policy

Router(config-webvpn-context)# aaa authentication list VPN-AUTH-LIST ! Configures AAA for
SSLVPN users

Router(config-webvpn-context)# gateway SSLVPN-GATEWAY-1 ! Assigns gateway to this SSLVPN
context

Router(config-webvpn-context)# inservice ! Starts the SSLVPN policy

Router(config-webvpn-context)# exit

The following example illustrates a second SSL VPN context.

Router(config-webvpn)# webvpn context SSLVPN-GW-APP ! Enters webvpn context configuration
mode

Router(config-webvpn-context)# ssl encryption rc4-md5 ! Configures RC4-MD5 SSL encryption

Router(config-webvpn-context)# ssl authenticate verify all ! Performs user authentication

Router(config-webvpn-context)# url-list "APP-SERVERS" ! Associates policy with URL list

Router(config-webvpn-url)#   heading "Application Servers" ! Configures display properties
for application servers

Router(config-webvpn-url)# url-text "Server1" url-value "http://10.0.2.65/index.html"

Router(config-webvpn-url)# url-text "Server2" url-value "http://10.0.2.66/index.html"

Router(config-webvpn-url)# url-text "Server3" url-value "http://10.0.2.67/index.html"

Router(config-webvpn-url)# policy group SSLVPN-POLICY-APP

Router(config-webvpn-group)# url-list "APP-SERVERS" ! Associates policy with URL list

Router(config-webvpn-group)# default-group-policy SSLVPN-POLICY-APP ! Associates SSLVPN
context with this group policy

Router(config-webvpn-context)# aaa authentication list VPN-AUTH-LIST ! Configures AAA for
SSLVPN users

Router(config-webvpn-context)# gateway SSLVPN-GATEWAY-2 ! Assigns gateway to this SSLVPN
context

Router(config-webvpn-context)# inservice ! Starts the SSLVPN policy

Router(config-webvpn-context)# exit

Router(config)#

Threat Defense Detection and Mitigation Implementation

•Zone-based Policy Firewall Implementation

•Cisco IOS IPS Implementation

•Layer 2 Security

Zone-based Policy Firewall Implementation

Zone-based Policy Firewall (ZPF) offers assignment of traffic into secure zones for multiple-interface routers. It changes the firewall configuration from interface-based classic Context-Based Access Control (CBAC) model to a more flexible zone-based configuration.

Interfaces are assigned to different zones, and inspection policies are applied to traffic moving between zones. As the inspection policies are zone based rather than interface based, different policies can be applied to traffic from and to the same interface.

There are four zones in the Streamlined Medium Branch Network: Private (LAN), Public (WAN), VPN, and DMZ. Inspection policies were applied for the following zone pairs:

•Traffic originated from Private to Public

•Traffic originated from Private to DMZ

•Traffic originated from Public to Private

•Traffic originated from Public to DMZ

•Traffic originated from router to Private

•Traffic originated from Private to router

•Traffic originated from Private to VPN

•Traffic originated from VPN to Private

Router(config)# parameter-map type inspect publicPrivateOutParamMap ! Defines a
parameter-map for traffic from Public to Private zone

Router(config-profile)# max-incomplete low 6000 ! Specifies minimum number of half-open
session before IOS stops removing sessions

Router(config-profile)# max-incomplete high 10000 ! Specifies maximum number of half-open
session after which IOS starts removing sessions

Router(config-profile)# one-minute low 18000 ! Specifies minimum number of half-open
session in one minute before IOS stops removing sessions

Router(config-profile)# one-minute high 20000 ! Specifies maximum number of half-open
session in one minute after which IOS starts removing sessions

Router(config-profile)# udp idle-time 10 ! Specifies maximum length of time for which UDP
inspect information is maintained

Router(config-profile)# icmp idle-time 5 ! Specifies maximum length of time for which ICMP
inspect information is maintained

Router(config-profile)# tcp max-incomplete host 7000 block-time 0 ! Specifies the maximum
number of half-open TCP sessions to the same destination before IOS starts removing
sessions

Router(config-profile)# exit

Router(config)# ip access-list extended privatePublicOutRule10Acl ! Defines ACL for
traffic from IOS to Private zone

Router(config-ext-nacl)# permit 10.0.0.0 0.0.0.255 ! Permits all data VLAN traffic

Router(config-ext-nacl)# permit 10.0.1.0 0.0.0.255 ! Permits all voice VLAN traffic

Router(config-ext-nacl)# exit


Router(config)# ip access-list extended publicPrivateOutRule10Acl ! Defines ACL for
traffic from Public zone to Private zone

Router(config-ext-nacl)# permit ip 172.16.0.0 0.0.255.255 10.0.0.0 0.0.0.255 ! Permits
central site traffic to Data VLAN

Router(config-ext-nacl)# permit ip 172.16.0.0 0.0.255.255 10.0.1.0 0.0.0.255 ! Permits
central site traffic to Voice VLAN

Router(config-ext-nacl)# permit ip 172.16.0.0 0.0.255.255 10.0.2.0 0.0.0.31 ! Permits
central site traffic to Managment VLAN

Router(config-ext-nacl)# permit ip host 239.1.100.1 any ! Permits key server multicast
address

Router(config-ext-nacl)# permit ip host 209.165.201.10 any ! Permits key server

Router(config-ext-nacl)# exit

Router(config)# class-map type inspect match-all FROM-SELF-CMAP ! Defines class map for
traffic from IOS to Private zone

Router(config-cmap)# match access-group name selfPrivateRule10 ! Matches traffic in
specified ACL

Router(config-cmap)# exit

Router(config)# class-map type inspect match-any TO-SELF-CMAP ! Defines class map for
traffic from Private

Router(config-cmap)# match access-group name selfPrivateRule10 ! Matches traffic in
specified ACL

Router(config-cmap)# exit

Router(config)# class-map type inspect match-any privateDMZOutRule10Protocols ! Defines
class map for protocols from Private to DMZ zone

Router(config-cmap)# match protocol http ! Matches HTTP traffic

Router(config-cmap)# match protocol https ! Matches Secure HTTP traffic

Router(config-cmap)# match protocol dns ! Matches DNS traffic

Router(config-cmap)# match protocol ssh ! Matches Secure Shell traffic

Router(config-cmap)# exit

Router(config)# class-map type inspect match-any privatePublicOutRule10 ! Defines class
map for traffic from Private to Public zone

Router(config-cmap)# match access-group name publicPrivateOutRule10Acl ! Matches traffic
in specified ACL

Router(config-cmap)# exit

Router(config)# class-map type inspect match-any SELF-SERVICE-CMAP ! Defines class map for
protocols originating from IOS

Router(config-cmap)# match protocol tcp ! Matches TCP traffic

Router(config-cmap)# match protocol udp ! Matches UDP traffic

Router(config-cmap)# match protocol icmp ! Matches ICMP traffic

Router(config-cmap)# match protocol h323 ! Matches H323 traffic

Router(config-cmap)# match protocol echo ! Matches ICMP echo traffic

Router(config-cmap)# exit

Router(config-cmap)# class-map type inspect match-any publicDMZOutRule10Protocols !
Defines class map for protocols from Public to DMZ zone

Router(config-cmap)# match protocol http ! Matches HTTP traffic

Router(config-cmap)# match protocol https ! Matches Secure HTTP traffic

Router(config-cmap)# match protocol dns ! Matches DNS traffic

Router(config-cmap)# match protocol ssh ! Matches Secure Shell traffic

Router(config-cmap)# exit


Router(config)# policy-map type inspect publicDMZOutFwPolicy ! Defines inspect policy for
Public to DMZ zone

Router(config-pmap)# class type inspect publicDMZOutRule10Protocols ! Matches traffic
classified by specified class-map

Router(config-pmap-c)# inspect publicPrivateOutParamMap ! Enables packet inspection
according to the Public to Private zone parameter map definition

Router(config-pmap-c)# exit

Router(config-pmap)# class class-default ! Matches all other traffic

Router(config-pmap-c)# drop log ! Drops the traffic

Router(config-pmap-c)# exit

Router(config-pmap)# exit


Router(config)# policy-map type inspect privateSelfOutFwPolicy ! Defines inspect policy
for Private to IOS zone

Router(config-pmap)# class type inspect SELF-SERVICE-MAP ! Matches traffic classified to
IOS parameter map definition

Router(config-pmap-c)# pass ! Passes the traffic

Router(config-pmap-c)# exit

Router(config-pmap)# class class-default ! Matches all other traffic

Router(config-pmap-c)# drop ! Drops the traffic

Router(config-pmap-c)# exit

Router(config-pmap)# exit


Router(config)# policy-map type inspect selfPrivateOutFwPolicy ! Defines inspect policy
for IOS to Private zone

Router(config-pmap)# class type inspect SELF-SERVICE-MAP ! Matches from IOS parameter map
definition

Router(config-pmap-c)# pass ! Passes the traffic

Router(config-pmap-c)# exit

Router(config-pmap)# class class-default ! Matches all other traffic

Router(config-pmap-c)# drop ! Drops the traffic

Router(config-pmap-c)# exit

Router(config-pmap)# exit


Router(config)# policy-map type inspect privatePublicOutFwPolicy ! Defines inspect policy
for Private to Public zone

Router(config-pmap)# class type inspect privatePublicOutRule10 ! Matches traffic
classified by specified class-map

Router(config-pmap-c)# inspect publicPrivateOutParamMap ! Enables packet inspection
according to the Public to Private zone parameter map definition percent. No specific
protocol configured in class privatePublicOutRule10 for inspection. All protocols will be
inspected

Router(config-pmap-c)# exit

Router(config-pmap)# class class-default ! Matches all other traffic

Router(config-pmap-c)# drop ! Drops the traffic

Router(config-pmap-c)# exit

Router(config-pmap)# exit


Router(config)# policy-map type inspect privateDMZOutFwPolicy ! Defines inspect policy for
Private to DMZ zone

Router(config-pmap)# class type inspect privateDMZOutRule10Protocols ! Matches traffic
classified by specified class-map

Router(config-pmap-c)# inspect publicPrivateOutParamMap ! Enables packet inspection
according to the Public to Private zone parameter map definition

Router(config-pmap-c)# exit

Router(config-pmap-c)# class class-default ! Matches all other traffic

Router(config-pmap-c)# drop log ! Drops the traffic

Router(config-pmap-c)# exit

Router(config-pmap)# exit


Router(config)# zone security Public ! Define Security Zone named Public

Router(config-sec-zone)# description Public Internet Connection

Router(config-sec-zone)# exit

Apply Public security zone on the WAN interface or subinterface as described in WAN interface configuration sections.

Router(config)# zone security Private ! Define Security Zone named Private

Router(config-sec-zone)# description Customer Private Network

Router(config-sec-zone)# exit

Router(config)# zone security DMZ ! Define Security Zone named DMZ

Router(config-sec-zone)# description Customer DMZ Network

Router(config-sec-zone)# exit

Apply Private and DMZ security zones on the LAN interface or subinterface as described in VLAN interface configuration sections.

Router(config)# zone-pair security privatePublicOut source Private destination Public !
Define zone-pair for Private to Public traffic

Router(config-sec-zone-pair)# description Outbound Firewall Policy from Private to Public

Router(config-sec-zone-pair)# service-policy type inspect privatePublicOutFwPolicy ! Apply
firewall policy for zone-pair

Router(config-sec-zone-pair)# exit


Router(config)# zone-pair security publicDMZOut source Public destination DMZ ! Define
zone-pair for Public to DMZ traffic

Router(config-sec-zone-pair)# description Outbound Firewall Policy from Public to DMZ

Router(config-sec-zone-pair)# service-policy type inspect publicDMZOutFwPolicy ! Apply
firewall policy for zone-pair

Router(config-sec-zone-pair)# exit


Router(config)# zone-pair security privateDMZOut source Private destination DMZ ! Define
zone-pair for Private to DMZ traffic

Router(config-sec-zone-pair)# description Outbound Firewall Policy from Private to DMZ

Router(config-sec-zone-pair)# service-policy type inspect privateDMZOutFwPolicy ! Apply
firewall policy for zone-pair

Router(config-sec-zone-pair)# exit


Router(config)# zone-pair security privateSelf source Private destination self ! Define
zone-pair for Private to IOS traffic

Router(config-sec-zone-pair)# service-policy type inspect privateSelfOutFwPolicy ! Apply
firewall policy for zone-pair

Router(config-sec-zone-pair)# exit


Router(config)# zone-pair security selfPrivate source self destination Private ! Define
zone-pair for IOS to Private traffic

Router(config-sec-zone-pair)# service-policy type inspect selfPrivateOutFwPolicy ! Apply
firewall policy for zone-pair

Router(config-sec-zone-pair)# exit

Zone-based Policy Firewall Verification

To verify your zone-based firewall configuration, enter the following commands:

Router# show policy-map type inspect zone-pair

 Zone-pair: publicPrivateOut


  Service-policy inspect : publicPrivateOutFwPolicy


    Class-map: publicPrivateOutRule10 (match-any)

      Match: access-group name publicPrivateOutRule10Acl

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: class-map match-any publicPrivateOutRule10Protocols

        160728 packets, 5222722 bytes

        30 second rate 0 bps

        Match: protocol http

          0 packets, 0 bytes

          30 second rate 0 bps

        Match: protocol https

          23 packets, 1196 bytes

          30 second rate 0 bps

        Match: protocol dns

          0 packets, 0 bytes

          30 second rate 0 bps

        Match: protocol ssh

          0 packets, 0 bytes

          30 second rate 0 bps

        Match: protocol icmp

          81876 packets, 2947880 bytes

          30 second rate 0 bps

        Match: protocol ftp

          0 packets, 0 bytes

          30 second rate 0 bps

        Match: protocol tcp

          78575 packets, 2251480 bytes

          30 second rate 0 bps

        Match: protocol udp

          246 packets, 22166 bytes

          30 second rate 0 bps

        Match: protocol bgp

          0 packets, 0 bytes

          30 second rate 0 bps

        Match: protocol smtp

          0 packets, 0 bytes

          30 second rate 0 bps

      Inspect

        Packet inspection statistics [process switch:fast switch]

        tcp packets: [77702:1346327]

        udp packets: [2:0]

        icmp packets: [18235:7]


        Session creations since subsystem startup or last reset 95910

        Current session counts (estab/half-open/terminating) [0:0:0]

        Maxever session counts (estab/half-open/terminating) [14:101:1]

        Last session created 08:55:49

        Last statistic reset never

        Last session creation rate 0

        Maxever session creation rate 15120

        Last half-open session total 0


    Class-map: class-default (match-any)

      Match: any

      Drop

        0 packets, 0 bytes

 Zone-pair: publicDMZOut


  Service-policy inspect : publicDMZOutFwPolicy


    Class-map: publicDMZOutRule10Protocols (match-any)

      Match: protocol http

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol https

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol dns

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol ssh

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol bgp

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol icmp

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: access-group name DMZPublicOutRuleAcl20

        0 packets, 0 bytes

        30 second rate 0 bps

      Inspect

        Session creations since subsystem startup or last reset 0

        Current session counts (estab/half-open/terminating) [0:0:0]

        Maxever session counts (estab/half-open/terminating) [0:0:0]

        Last session created never

        Last statistic reset never

        Last session creation rate 0

        Maxever session creation rate 0

        Last half-open session total 0


    Class-map: class-default (match-any)

      Match: any

      Drop

        0 packets, 0 bytes

 Zone-pair: privateDMZOut


  Service-policy inspect : privateDMZOutFwPolicy


    Class-map: privateDMZOutRule10Protocols (match-any)

      Match: protocol http

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol https

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol dns

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol ssh

        0 packets, 0 bytes

        30 second rate 0 bps

      Inspect

        Session creations since subsystem startup or last reset 0

        Current session counts (estab/half-open/terminating) [0:0:0]

        Maxever session counts (estab/half-open/terminating) [0:0:0]

        Last session created never

        Last statistic reset never

        Last session creation rate 0

        Maxever session creation rate 0

        Last half-open session total 0


    Class-map: class-default (match-any)

      Match: any

      Drop

        0 packets, 0 bytes

 Zone-pair: vpnPrivateIn


  Service-policy inspect : vpnPrivateInFwPolicy


    Class-map: vpnPrivateInRule10 (match-any)

      Match: access-group name vpnPrivateInRule10Acl

        4314 packets, 109136 bytes

        30 second rate 0 bps

      Inspect

        Packet inspection statistics [process switch:fast switch]

        tcp packets: [229:3495]

        udp packets: [10:6177032]

        icmp packets: [0:31]


        Session creations since subsystem startup or last reset 271

        Current session counts (estab/half-open/terminating) [0:0:0]

        Maxever session counts (estab/half-open/terminating) [2:11:1]

        Last session created 5d08h

        Last statistic reset never

        Last session creation rate 0

        Maxever session creation rate 10

        Last half-open session total 0


    Class-map: class-default (match-any)

      Match: any

      Drop

        0 packets, 0 bytes

 Zone-pair: vpnPrivateOut


  Service-policy inspect : vpnPrivateOutFwPolicy


    Class-map: vpnPrivateOutRule10 (match-any)

      Match: access-group name vpnPrivateOutRule10Acl

        6356447 packets, 231662957 bytes

        30 second rate 0 bps

      Inspect

        Packet inspection statistics [process switch:fast switch]

        tcp packets: [9061:117338799]

        udp packets: [1761:2253]

        icmp packets: [0:6176836]

        ftp packets: [0:11]

        tftp packets: [160:6]

        tftp-data packets: [1600:1756]

        skinny packets: [2867:62498341]


        Session creations since subsystem startup or last reset 6356113

        Current session counts (estab/half-open/terminating) [5:0:0]

        Maxever session counts (estab/half-open/terminating) [193:22:97]

        Last session created 00:00:48

        Last statistic reset never

        Last session creation rate 0

        Maxever session creation rate 22400

        Last half-open session total 0


    Class-map: class-default (match-any)

      Match: any

      Drop

        0 packets, 0 bytes

 Zone-pair: publicSelfOut


  Service-policy inspect : publicSelfOutFwPolicy


    Class-map: publicSelfOutRule20 (match-any)

      Match: access-group name publicSelfOutRule20Acl

        255 packets, 39396 bytes

        30 second rate 0 bps

      Match: protocol tcp

        17229 packets, 735614 bytes

        30 second rate 0 bps

      Match: protocol udp

        89136 packets, 6774336 bytes

        30 second rate 0 bps

      Match: protocol icmp

        5 packets, 400 bytes

        30 second rate 0 bps

      Inspect

        Packet inspection statistics [process switch:fast switch]

        tcp packets: [457182:0]

        udp packets: [179870:0]

        icmp packets: [43:0]


        Session creations since subsystem startup or last reset 89587

        Current session counts (estab/half-open/terminating) [1:0:0]

        Maxever session counts (estab/half-open/terminating) [4:4:1]

        Last session created 00:00:45

        Last statistic reset never

        Last session creation rate 1

        Maxever session creation rate 6

        Last half-open session total 0


    Class-map: CRYPTO-CMAP (match-all)

      Match: access-group 123

      Pass

        81354612 packets, 8078747532 bytes


    Class-map: class-default (match-any)

      Match: any

      Drop (default action)

        0 packets, 0 bytes

 Zone-pair: publicSelfIn


  Service-policy inspect : publicSelfInFwPolicy


    Class-map: publicSelfInRule20 (match-any)

      Match: access-group name publicSelfInRule20Acl

        279 packets, 35460 bytes

        30 second rate 0 bps

      Match: protocol tcp

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol udp

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol icmp

        0 packets, 0 bytes

        30 second rate 0 bps

      Inspect

        Packet inspection statistics [process switch:fast switch]

        udp packets: [919:0]

        icmp packets: [111:0]


        Session creations since subsystem startup or last reset 279

        Current session counts (estab/half-open/terminating) [0:0:0]

        Maxever session counts (estab/half-open/terminating) [1:2:0]

        Last session created 21:40:08

        Last statistic reset never

        Last session creation rate 0

        Maxever session creation rate 74

        Last half-open session total 0


    Class-map: CRYPTO-CMAP (match-all)

      Match: access-group 123

      Pass

        0 packets, 0 bytes


    Class-map: class-default (match-any)

      Match: any

      Drop (default action)

        0 packets, 0 bytes

 Zone-pair: DMZPublicOut


  Service-policy inspect : publicDMZOutFwPolicy


    Class-map: publicDMZOutRule10Protocols (match-any)

      Match: protocol http

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol https

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol dns

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol ssh

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol bgp

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: protocol icmp

        0 packets, 0 bytes

        30 second rate 0 bps

      Match: access-group name DMZPublicOutRuleAcl20

        0 packets, 0 bytes

        30 second rate 0 bps

      Inspect

        Session creations since subsystem startup or last reset 0

        Current session counts (estab/half-open/terminating) [0:0:0]

        Maxever session counts (estab/half-open/terminating) [0:0:0]

        Last session created never

        Last statistic reset never

        Last session creation rate 0

        Maxever session creation rate 0

        Last half-open session total 0


    Class-map: class-default (match-any)

      Match: any

      Drop

        0 packets, 0 bytes


 Zone-pair: selfprivate


  Service-policy inspect : selfFwPolicy


    Class-map: SELF-CMAP (match-any)

      Match: access-group name SELF-ACL

        24257448 packets, 1807595033 bytes

        30 second rate 1000 bps

      Pass

        24257448 packets, 1807595033 bytes


    Class-map: class-default (match-any)

      Match: any

      Drop

        0 packets, 0 bytes

 Zone-pair: vpnself


  Service-policy inspect : selfFwPolicy


    Class-map: SELF-CMAP (match-any)

      Match: access-group name SELF-ACL

        545089 packets, 17426918 bytes

        30 second rate 0 bps

      Pass

        545089 packets, 17426918 bytes


    Class-map: class-default (match-any)

      Match: any

      Drop

        0 packets, 0 bytes

 Zone-pair: selfvpn


  Service-policy inspect : selfFwPolicy


    Class-map: SELF-CMAP (match-any)

      Match: access-group name SELF-ACL

        1088484 packets, 28319861 bytes

        30 second rate 0 bps

      Pass

        1088484 packets, 28319861 bytes


    Class-map: class-default (match-any)

      Match: any

      Drop

        0 packets, 0 bytes

Router#

DMVPN uses Virtual Tunnel Interface (VTI) for IPsec VPN connectivity. When the DMVPN interface is assigned to a security zone, traffic routing to and from other interfaces in the router are subjected to zone-to-zone firewall policy.

If the DMVPN interface is assigned to the same security zone as another interface (for example, Gigabit Ethernet 0/0), traffic moving between hosts on the DMVPN and hosts connected to Gigabit Ethernet 0/0 will pass freely with no policy application.

In the Streamlined Medium Branch Network, the tunnel interface is assigned to the VPN security zone. Additional inspection policies were applied.

Router(config)# ip access-list extended publicSelfInRule20Acl ! Defines ACL for Public to
IOS zone traffic

Router(config-ext-nacl)# permit udp any eq isakmp host 209.165.201.9 eq isakmp ! Matches
ISAKMP traffic

Router(config-ext-nacl)# exit


Router(config)# ip access-list extended publicSelfOutRule20Acl ! Defines ACL for IOS to
Public zone traffic

Router(config-ext-nacl)# permit udp host 22.0.14.253 eq isakmp any eq isakmp ! Matches
ISAKMP traffic

Router(config-ext-nacl)# permit ip 192.168.0.0 0.0.0.252 ! Central site network

Router(config-ext-nacl)# permit ip 209.165.201.0 0.0.0.252 ! Central site network

Router(config-ext-nacl)# exit


Router(config)# ip access-list extended vpnPrivateInRule10Acl ! Defines ACL for VPN to
Private zone traffic

Router(config-ext-nacl)# permit ip any any ! Matches all traffic

Router(config-ext-nacl)# exit


Router(config)# ip access-list extended vpnPrivateOutRule10Acl ! Defines ACL for Private
to VPN zone traffic

Router(config-ext-nacl)# permit ip any any ! Matches all traffic

Router(config-ext-nacl)# exit


Router(config)# ip access-list extended NON-TCP-ACL ! Defines ACL for WAAS GRE tunnel

Router(config-ext-nacl)# permit gre host 10.0.2.90 host 10.0.2.89

Router(config-ext-nacl)# exit


Router(config)# ip access-list extended DMZPublicOutRuleAcl20 ! Defines ACL for DMZ to
Public zone traffic

Router(config-ext-nacl)# permit tcp host 10.0.2.70 eq www any ! DMZ server

Router(config-ext-nacl)# permit tcp host 10.0.2.71 eq www any ! DMZ server

Router(config-ext-nacl)# permit tcp host 10.0.2.72 eq www any ! DMZ server


Router(config-ext-nacl)# exit


Router(config)# access-list 123 permit esp any any ! Matches IPSec ESP traffic

Router(config)# ip access-list extended SELF-ACL ! Defines ACL for IOS traffic

Router(config-ext-nacl)# permit tcp any any ! Matches TCP

Router(config-ext-nacl)# permit gre any any ! Matches GRE

Router(config-ext-nacl)# permit ip any any ! Matches IP

Router(config-ext-nacl)# exit


Router(config)# class-map type inspect match-any vpnPrivateInRule10 ! Defines class-map
for VPN to Private zone traffic

Router(config-cmap)# match access-group name vpnPrivateInRule10Acl ! Matches traffic
specified in ACL

Router(config-cmap)# exit


Router(config)# class-map type inspect match-all CRYPTO-MAP ! Defines class-map for
matching VPN traffic

Router(config-cmap)# match access-group 123 ! Matches traffic specified in ACL

Router(config-cmap)# exit


Router(config)# class-map type inspect match-any publicSelfInRule20 ! Defines class-map
for matching Public to IOS zone traffic

Router(config-cmap)# match access-group name publicSelfInRule20Acl ! Matches traffic
specified in ACL

Router(config-cmap)# match protocol tcp ! Matches TCP traffic

Router(config-cmap)# match protocol udp ! Matches UDP traffic

Router(config-cmap)# match protocol icmp ! Matches ICMP traffic

Router(config-cmap)# exit


Router(config)# class-map type inspect match-any vpnPrivateOutRule10 ! Defines class-map
for Private to VPN zone traffic

Router(config-cmap)# match access-group name vpnPrivateOutRule10Acl ! Matches traffic
specified in ACL

Router(config-cmap)# exit


Router(config)# class-map type inspect match-any publicSelfOutRule20 ! Defines class-map
for matching IOS to Public zone traffic

Router(config-cmap)# match access-group name publicSelfOutRule20Acl ! Matches traffic
specified in ACL

Router(config-cmap)# match protocol tcp ! Matches TCP traffic

Router(config-cmap)# match protocol udp ! Matches UDP traffic

Router(config-cmap)# match protocol icmp ! Matches ICMP traffic

Router(config-cmap)# exit


Router(config)# class-map type inspect match-any publicDMZOutRule10Protocols ! Defines
class-map for matching DMZ to Public zone traffic

Router(config-cmap)# match protocol http ! Matches HTTP traffic

Router(config-cmap)# match protocol https ! Matches Secure HTTP traffic

Router(config-cmap)# match protocol dns ! Matches DNS traffic

Router(config-cmap)# match protocol ssh ! Matches Secure Shell traffic

Router(config-cmap)# match protocol bgp ! Matches BGP traffic

Router(config-cmap)# match protocol icmp ! Matches ICMP traffic

Router(config-cmap)# match access-group name DMZPublicOutRuleAcl20 ! Matches traffic
specified in ACL

Router(config-cmap)# exit



Router(config)# policy-map type inspect publicSelfInFwPolicy ! Defines inspect policy for
Public to IOS zone

Router(config-pmap)# class type inspect publicSelfInRule20 ! Matches traffic classified by
specified class-map

Router(config-pmap-c)# inspect ! Enables packet inspection

Router(config-pmap-c)# exit

Router(config-pmap)# class type inspect CRYPTO-CMAP ! Matches traffic classified by
specified class-map

Router(config-pmap-c)# pass ! Passes traffic

Router(config-pmap-c)# exit

Router(config-pmap)# class class-default ! Matches all other traffic

Router(config-pmap-c)# drop log ! Drops traffic

Router(config-pmap-c)# exit

Router(config-pmap)# exit


Router(config)# policy-map type inspect publicDMZOutFwPolicy ! Defines policy for DMZ to
Public zoneRouter(config-pmap)# class type inspect publicDMZOutRule10Protocols ! Matches
traffic classified by specified class-map

Router(config-pmap-c)# inspect publicPrivateOutParamMap ! Enables inspection for Public to
Private zone traffic

Router(config-pmap-c)# exit

Router(config-pmap)# class class-default ! Matches all other traffic

Router(config-pmap-c)# drop log ! Drops traffic

Router(config-pmap-c)# exit

Router(config-pmap)# exit


Router(config)# policy-map type inspect vpnPrivateInFwPolicy ! Defines policy for VPN to
Private zone trafficRouter(config-pmap)# class type inspect vpnPrivateInRule10 ! Matches
traffic classified by specified class-map

Router(config-pmap-c)# inspect ! Enables packet inspection percent. No specific protocol
configured in class vpnPrivateInRule10 for inspection. All protocols will be inspected

Router(config-pmap-c)# exit

Router(config-pmap)# class class-default ! Matches all other traffic

Router(config-pmap-c)# drop log ! Drops traffic

Router(config-pmap-c)# exit

Router(config-pmap)# exit


Router(config)# policy-map type inspect publicSelfOutFwPolicy ! Defines policy for IOS to
Public zone traffic

Router(config-pmap)# class type inspect publicSelfOutRule20 ! Matches traffic classified
by specified class-map

Router(config-pmap-c)# inspect ! Enables packet inspection

Router(config-pmap-c)# exit

Router(config-pmap)# class type inspect CRYPTO-CMAP ! Matches traffic classified by
specified class-map

Router(config-pmap-c)# pass ! Pass the traffic

Router(config-pmap-c)# exit

Router(config-pmap)# class class-default ! Matches all other traffic

Router(config-pmap-c)# drop log ! Drops the traffic

Router(config-pmap-c)# exit

Router(config-pmap)# exit


Router(config)# policy-map type inspect vpnPrivateOutFwPolicy ! Defines policy for Private
to VPN zone traffic

Router(config-pmap)# class type inspect vpnPrivateOutRule10 ! Matches traffic classified
by specified class-map

Router(config-pmap-c)# inspect ! Enables packet inspection

 percentNo specific protocol configured in class vpnPrivateOutRule10 for inspection. All
protocols will be inspected

Router(config-pmap-c)# exit

Router(config-pmap)# class class-default ! Matches all other traffic

Router(config-pmap-c)# drop log ! Drops traffic

Router(config-pmap-c)# exit

Router(config-pmap)# exit


Router(config)# zone security VPN ! Define VPN Zone name

Router(config-sec-zone)# description customer VPN Network

Router(config-sec-zone)# exit


Router(config)# zone-pair security vpnPrivateIn source VPN destination Private ! Define
zone-pair for VPN to Private zone traffic

Router(config-sec-zone-pair)# service-policy type inspect vpnPrivateInFwPolicy ! Apply
firewall policy for zone-pair

Router(config-sec-zone-pair)# exit


Router(config)# zone-pair security vpnPrivateOut source Private destination VPN ! Define
zone-pair for Private to VPN zone traffic

Router(config-sec-zone-pair)# service-policy type inspect vpnPrivateOutFwPolicy ! Apply
firewall policy for zone-pair

Router(config-sec-zone-pair)# exit



Router(config)# zone-pair security publicSelfOut source self destination Public ! Define
zone-pair for IOS to Public zone traffic

Router(config-sec-zone-pair)# service-policy type inspect publicSelfOutFwPolicy ! Apply
firewall policy for zone-pair

Router(config-sec-zone-pair)# exit


Router(config)# zone-pair security publicSelfIn source Public destination self ! Define
zone-pair for Public to IOS zone traffic

Router(config-sec-zone-pair)# service-policy type inspect publicSelfInFwPolicy ! Apply
firewall policy for zone-pair

Router(config-sec-zone-pair)# exit


Router(config)# zone-pair security DMZPublicOut source DMZ destination Public ! Define
zone-pair to  for DMZ to Public zone traffic

Router(config-sec-zone-pair)# service-policy type inspect publicDMZOutFwPolicy

Router(config-sec-zone-pair)# exit


Router(config)# interface Tunnel 1 ! Enters Tunnel interface configuration mode

Router(config-if)# zone-member security VPN ! Assign a zone to the interface

Router(config-if)# exit

Cisco IOS IPS Implementation

The Cisco IOS IPS acts as an inline intrusion detection sensor, watching packets and sessions as they flow through the router and scanning each packet to match any of the Cisco IOS IPS signatures. When Cisco IOS IPS detects suspicious activity, it responds before network security can be compromised and logs the event through Cisco IOS syslog messages or Security Device Event Exchange (SDEE).

In the Streamlined Medium Branch Foundation, IPS inspection was enabled on the DATA VLAN in both directions. All types of traffic were inspected using advanced signature set stored in the flash memory.

Router# mkdir flash:ips5 ! Creates the folder in flash for saving the signature files

Router(config)# config t

Router(config)# ip ips config location flash:/ips5/ retries 1 ! Specifies the location to
save the signature file

Router(config)# ip ips deny-action ips-interface ! Changes the default behavior of the ACL
filters that are created for the deny actions.

Router(config)# ip ips notify SDEE ! Enables SDEE event notification on a router

Router(config)# ip ips name IPS-ADVSET ! Defines an IOS IPS rule


Router(config)# ip ips signature-category ! Allows the fine tuning of signature parameters
on the basis of signature category

Router (config-ips-category)# category all ! Specifies the signature category to be used
for multiple signature actions or conditions

Router(config-ips-category-action)# retired true ! Retires all the signatures in the "all"
category

Router(config-ips-category-action)# category ios_ips advanced ! Enables advanced signature
set

Router (config-ips-category-action)# retired false ! Enables the signatures in the IOS_IPS
category

Router(config-ips-category-action)# end

Router(config)# copy tftp://<ipaddr>/IOS-S341-CLI.pkg idconf ! Loads the signature package
(IOS-S341-CLI.pkg) to the specified location in ip ips config location

Cisco IOS IPS Verification

To verify your Cisco IOS IPS configuration, enter the following command:

Router# show ip ips statistics

Interfaces configured for ips 2

Session creations since subsystem startup or last reset 0

Current session counts (estab/half-open/terminating) [0:0:0]

Maxever session counts (estab/half-open/terminating) [0:0:0]

Last session created never

Last statistic reset never

TCP reassembly statistics

  received 0 packets out-of-order; dropped 0

  peak memory usage 0 KB; current usage: 0 KB

  peak queue length 0

Access Control List Implementation

Access control list (ACL) configuration is a basic filtering process that can be used to control access network based on source or source/destination combination.

In Streamlined Medium Branch Network, ACLs entries are used to block TFTP traffic between certain endpoints. This is only an illustrative example.

Router(config)# ip access-list extended BLOCK-TFTP ! Specifies an Extended named ACL

Router(config-ext-nacl)# deny udp 172.16.10.0 0.0.0.255 eq tftp 10.0.0.0 0.0.0.255 eq tftp
! Deny TFTP traffic from specific source to specific destination

Router(config-ext-nacl)# deny udp 172.16.20.0 0.0.0.255 eq tftp 10.0.0.0 0.0.0.255 eq tftp

Router(config-ext-nacl)# deny udp 172.16.30.0 0.0.0.255 eq tftp 10.0.0.0 0.0.0.255 eq tftp

uRPF Implementation

The uRPF feature is automatically implemented when using AutoSecure. For the sake of completeness, the full configuration is provided.

Router(config)# access-list 103 permit udp any any eq bootpc ! Specifies ACL that permits
bootpc traffic

Each WAN interface was configured to support uRPF filtering.

Router(config)# interface Multilink1 ! Enters Multilink interface configuration mode

Router(config-if)# ip verify unicast source reachable-via rx allow-default 103 ! Enables
uRPF filtering

Router(config-if)# exit


Router(config)# interface ATM0/2/0.1 point-to-point ! Enters backup interface
configuration mode

Router(config-if)# ip verify unicast source reachable-via rx allow-default 103 ! Enables
uRPF filtering

Router(config-if)# exit

Layer 2 Security

•Port Security Implementation

•Dynamic ARP Inspection Implementation

•IP Source Guard Implementation

•DHCP Snooping Implementation

•BPDU Guard Implementation

Port Security Implementation

Following port security configuration was applied to both access layer switches.

Switch-Access(config)# interface range g1/0/4 - 52 ! Enters configuration for range of
Gigabit Ethernet

Switch-Access(config-if-range)# switchport port-security ! Enables port security in this
port

Switch-Access(config-if-range)# switchport port-security maximum 2 ! Specifies to allow
traffic from maximum 2 mac-address as source address

Switch-Access(config-if-range)# switchport port-security aging type inactivity ! Specifies
to age out the dynamically learned mac address if no traffic for specified period

Switch-Access(config-if-range)# switchport port-security aging time 2 ! Specifies to age
out the dynamically learned mac-address after 2 minutes

Switch-Access(config-if-range)# switchport port-security violation restrict ! Specifies
the port to drop packet from non secure mac address and send a trap

Port Security Verification

To verify your port security configuration, enter the following command:

Switch-Access# show port-security interface g1/0/4

Port Security              : Enabled

Port Status                : Secure-up

Violation Mode             : Restrict

Aging Time                 : 2 mins

Aging Type                 : Inactivity

SecureStatic Address Aging : Disabled

Maximum MAC Addresses      : 2

Total MAC Addresses        : 0

Configured MAC Addresses   : 0

Sticky MAC Addresses       : 0

Last Source Address:Vlan   : 0000.0000.0000:0

Security Violation Count   : 0

Switch-Access#

Dynamic ARP Inspection Implementation

Following command demonstrates how to apply dynamic Address Resolution Protocol (ARP) inspection excluding specified hosts.

Switch-Access(config)# arp access-list STATIC-HOSTS ! Defines ARP access-list for hosts
that will be allowed to ARP packets

Switch-Access(config-arp-nacl)# permit ip host 10.0.0.5  mac any

Switch-Access(config-arp-nacl)# permit ip host 10.0.0.6 mac any

Switch-Access(config-arp-nacl)# permit ip host 10.0.0.7  mac any

Switch-Access(config-arp-nacl)# permit ip host 10.0.0.8  mac any

Switch-Access(config-arp-nacl)# permit ip host 10.0.0.9  mac any

Switch-Access(config-arp-nacl)# permit ip host 10.0.0.10  mac any

Switch-Access(config-arp-nacl)# exit

Switch-Access(config)# ip arp inspection vlan 301-302 ! Enables ARP inspection on
specified VLANs

Switch-Access(config)# ip arp inspection validate dst-mac ! Specifies to perform a check
destination-MAC and Target MAC to be same on ARP packet

Switch-Access(config)# ip arp inspection log-buffer entries 100 ! Enable the dynamic ARP
inspection log buffer to hold 100 entries

Switch-Access(config)# ip arp inspection log-buffer logs 1 interval 100 ! Enables every
log entry to generate a system message every 100 seconds

Switch-Access(config)# ip arp inspection filter STATIC-HOSTS vlan 301-303 ! Applies ARP
ACL to specified VLANs

Switch-Access(config)# errdisable recovery cause arp-inspection ! Enable error recovery
for Dynamic ARP inspection error-disabled state.

Switch-Access(config)# interface Port-Channel1 ! Enters EtherChannel configuration mode

Switch-Access(config-if)# ip arp inspection trust ! Disables ARP inspection

Switch-Access(config)# interface range g1/0/2 - 3 ! Enters gigabit Ethernet configuration
mode

Switch-Access(config-if)# ip arp inspection trust ! Disables ARP inspection

Switch-Access(config)# interface g1/0/1 ! Enters gigabit Ethernet configuration mode

Switch-Access(config-if)# ip arp inspection trust ! Disables ARP inspection

Dynamic ARP Inspection Verification

To verify your dynamic ARP inspection configuration, enter the following command:

Switch-Access# show ip arp inspection vlan 301


Source Mac Validation      : Disabled

Destination Mac Validation : Enabled

IP Address Validation      : Disabled


 Vlan     Configuration    Operation   ACL Match          Static ACL

 ----     -------------    ---------   ---------          ----------

  301     Enabled          Active      static-host        No


 Vlan     ACL Logging      DHCP Logging

 ----     -----------      ------------

  301     Deny             Deny

Switch-Access#

IP Source Guard Implementation

The following source guard configuration was applied to both access layer switches.

Switch-Dist(config)# ip source binding 0030.94C2.9A40 vlan 303 10.0.2.65 interface g1/0/7

! Specifies MAC to IP binding for statically assigned DMZ server address

Switch-Dist(config)# ip source binding 0030.94C2.9A41 vlan 303 10.0.2.66 interface g1/0/8

! Specifies MAC to IP binding for statically assigned DMZ server address

Switch-Dist(config)# ip source binding 0030.94C2.9A42 vlan 303 10.0.2.67 interface g1/0/9

! Specifies MAC to IP binding for statically assigned DMZ server address

Switch-Dist(config)# ip source binding 0030.94C2.9A43 vlan 303 10.0.2.68 interface g1/0/10

! Specifies MAC to IP binding for statically assigned DMZ server address

Switch-Dist(config)# ip source binding 0030.94C2.9A44 vlan 303 10.0.2.69 interface g1/0/11

! Specifies MAC to IP binding for statically assigned DMZ server address

Switch-Dist(config)# ip source binding 0030.94C2.9A45 vlan 303 10.0.2.70 interface g1/0/12

! Specifies MAC to IP binding for statically assigned DMZ server address

Switch-Dist(config)# ip source binding 0030.94C2.9A46 vlan 303 10.0.2.71 interface g1/0/13

! Specifies MAC to IP binding for statically assigned DMZ server address

Switch-Dist(config)# ip source binding 0030.94C2.9A47 vlan 303 10.0.2.72 interface g1/0/14

! Specifies MAC to IP binding for statically assigned DMZ server address

Switch-Dist(config)# ip source binding 0030.94C2.9A48 vlan 303 10.0.2.73 interface g1/0/15

! Specifies MAC to IP binding for statically assigned DMZ server address

Switch-Dist(config)# ip source binding 0030.94C2.9A49 vlan 303 10.0.2.74 interface g1/0/16

! Specifies MAC to IP binding for statically assigned DMZ server address

Switch-Dist(config)# ip source binding 0030.94C2.9A50 vlan 303 10.0.2.75 interface g1/0/17

! Specifies MAC to IP binding for statically assigned DMZ server address

Switch-Dist(config)# ip source binding 0030.94C2.9A51 vlan 303 10.0.2.76 interface g1/0/18

! Specifies MAC to IP binding for statically assigned DMZ server address

Switch-Dist(config)# ip source binding 0030.94C2.9A52 vlan 303 10.0.2.77 interface g1/0/19

! Specifies MAC to IP binding for statically assigned DMZ server address

Switch-Dist(config)# ip source binding 0030.94C2.9A53 vlan 303 10.0.2.78 interface g1/0/20

! Specifies MAC to IP binding for statically assigned DMZ server address

Switch-Access(config)# interface range g1/0/4 - 52 ! Enters gigabit Ethernet configuration
mode

Switch-Access(config-if-range)# ip verify source port-security ! Specifies to check the
binding table and allow traffic only if it matches an entry

DHCP Snooping Implementation

Switch-Access(config)# ip dhcp snooping ! Enables DHCP snooping globally on the switch

Switch-Access(config)# ip dhcp snooping vlan 301-302 ! Enables DHCP snooping for specified
VLANs

Switch-Access(config)# interface Port-Channel1 ! Enters EtherChannel configuration mode

Switch-Access(config-if)# ip dhcp snooping trust ! Disables DHCP snooping

Switch-Access(config)# interface range g1/0/2 - 3 ! Enters gigabit Ethernet configuration
mode

Switch-Access(config-if)# ip dhcp snooping trust ! Disables DHCP snooping

Switch-Access(config)# interface g1/0/1 ! Enters gigabit Ethernet configuration mode

Switch-Access(config-if)# ip dhcp snooping trust ! Disables DHCP snooping

DHCP Snooping Verification

To verify your Dynamic Host Configuration Protocol (DHCP) snooping configuration, enter the following command.

Switch-Access# show ip dhcp snooping

Switch DHCP snooping is enabled

DHCP snooping is configured on following VLANs:

301-303

Insertion of option 82 is enabled

BPDU Guard Implementation

The following is an example for configuring port security on all trunk ports.

Switch-Dist(config-if)# interface range Port-channel 1 - 5 ! Enters Ether channel
configuration mode

Switch-Dist(config-if-range)# spanning-tree bpduguard disable ! Disables BPDU guard

Switch-Dist(config)# interface range g1/0/7 - 28 ! Enters gigabit Ethernet configuration
mode

Switch-Dist(config-if)# spanning-tree bpduguard enable ! Enables BPDU guard

Switch-Dist(config)# interface range g2/0/7 - 28 ! Enters gigabit Ethernet configuration
mode

Switch-Dist(config-if)# spanning-tree bpduguard enable ! Enables BPDU guard



Switch-Access(config-if)# interface Port-channel 1 ! Enters EtherChannel configuration
mode

Switch-Access(config-if)# spanning-tree bpduguard disable ! Disables BPDU guard

Switch-Access(config)# interface range g1/0/3 - 52 ! Enters gigabit Ethernet configuration
mode

Switch-Access(config-if)# spanning-tree bpduguard enable ! Enables BPDU guard

Management Services Implementation

•NetFlow Implementation

•SNMP Implementation

•NTP Implementation

•IP SLA Implementation

•Syslog Implementation

•Cisco Configuration Professional Implementation

•Cisco Configuration Engine Implementation

NetFlow Implementation

Cisco IOS NetFlow efficiently collects and measure data as it enters specific router interface. This data can be used for network traffic accounting and network planning.

NetFlow can be configured to collect data for top flows, and the data can be used for further analysis.

Router(config)# ip flow-top-talkers ! Enabled NetFlow to capture traffic statistics for
top flows

Router(config-flow-top-talkers)# top 5 ! Specifies the maximum number of top talkers

Router(config-flow-top-talkers)# sort-by packets ! Specifies to sort top talkers by number
of bytes

Router(config-flow-top-talkers)# cache-timeout 100 ! Specifies the time up to which top
talkers statistics collected

Router(config-flow-top-talkers)# exit

Router(config)# exit

NetFlow Verification

To verify your NetFlow configuration, enter the following command:

Router# show ip flow top-talkers


SrcIf         SrcIPaddress    DstIf         DstIPaddress    Pr SrcP DstP  Pkts

Mu1           10.0.0.22       Local         10.0.0.8        2F 0000 0000    28

Mu1           10.0.0.27       Local         10.0.0.10       32 AAB6 2992    28

Tu1           172.16.0.10      Null          224.0.0.10      58 0000 0000    27

3 of 5 top talkers shown. 3 flows processed.


Router#

SNMP Implementation

Simple Network Management Protocol (SNMP) is an application layer protocol which facilitates the exchange of management information between a network device and an SNMP server. This information can be used for network management and troubleshooting.

SNMP is enabled to send traps for specific events that will be used for troubleshooting. Two SNMP communities with different privileges were configured.

Router(config)# ip access-list standard Full ! List of clients with full access to SNMP
agent

Router(config-std-nacl)# permit host 172.16.4.5

Router(config-std-nacl)# exit

Router(config)# ip access-list standard Browse ! List of clients with browse access to
SNMP agent

Router(config-std-nacl)# permit host 10.0.0.6

Router(config-std-nacl)# exit

Router(config)# snmp-server community RW-ACCESS rw Full ! Enables SNMP community with
Read/Write access to server

Router(config)# snmp-server community RO-ACCESS ro Browse ! Enables SNMP community with
Read-Only access to server

Router(config)# snmp-server enable traps snmp authentication linkdown linkup coldstart
warmstart ! Enables notification for various router events

Router(config)# snmp-server enable traps eigrp ! Enables EIGRP notification

Router(config)# snmp-server enable traps flash insertion removal ! Enables Flash
Insertion/Removal notification

Router(config)# snmp-server enable traps envmon ! Enables Environmental monitor
notification

Router(config)# snmp-server enable traps bgp ! Enables BGP protocol notification

Router(config)# snmp-server enable traps memory bufferpeak ! Enables Memory buffer peak
notification

Router(config)# snmp-server enable traps hsrp ! Enables HSRP notification

Router(config)# snmp-server enable traps ospf state-change ! Enables OSPF protocol
state-change notification

Router(config)# snmp-server enable traps ospf errors ! Enables OSPF error notification

Router(config)# snmp-server enable traps ospf retransmit ! Enables OSPF LSA retransmit
notification

Router(config)# snmp-server enable traps ospf lsa ! Enables OSPF LSA notification

Router(config)# snmp-server enable traps ospf cisco-specific state-change
nssa-trans-change ! Enables OSPF NSSA state change notification

Router(config)# snmp-server enable traps ospf cisco-specific state-change shamlink
interface-old ! Enables OSPF replaced interface shamlink notification

Router(config)# snmp-server enable traps ospf cisco-specific state-change shamlink
neighbor ! Enables OSPF neighbor shamlink transition notification

Router(config)# snmp-server enable traps ospf cisco-specific errors ! Enables OSPF
nonvirtual interface mismatch error notification

Router(config)# snmp-server enable traps ospf cisco-specific retransmit ! Enables OSPF
retransmit error notification

Router(config)# snmp-server enable traps ospf cisco-specific lsa ! Enables OSPF LSA
notification

Router(config)# snmp-server enable traps cpu threshold ! Enables CPU threshold violation
notification

Router(config)#

NTP Implementation

Network Time Protocol (NTP) is used to synchronize the time in local devices to a radio clock or atomic clock attached to the time server. Synchronized time in all the network devices is helpful for troubleshooting and understanding logging messages.

Router(config)# ntp authenticate ! Enables NTP authentication

Router(config)# ntp authentication-key 1234 md5 NTP-KEY ! Specifies authentication key and
Password

Router(config)# ntp trusted-key 1234 ! Specifies the key number to be used for
authentication

Router(config)# ntp server 172.16.0.60 key 1234 ! Specifies central site NTP server
address and key


Switch-Dist (config)# ntp authenticate ! Enables NTP authentication

Switch-Dist (config)# ntp authentication-key 1234 md5 NTP-KEY ! Specifies authentication
key and Password

Switch-Dist (config)# ntp trusted-key 1234 ! Specifies the key number to be used for
authentication

Switch-Dist (config)# ntp server 172.16.0.60 key 1234 ! Specifies central site NTP server
address and key


Switch-Access (config)# ntp authenticate ! Enables NTP authentication

Switch-Access (config)# ntp authentication-key 1234 md5 NTP-KEY ! Specifies authentication
key and Password

Switch-Access (config)# ntp trusted-key 1234 ! Specifies the key number to be used for
authentication

Switch-Access (config)# ntp server 172.16.0.60 key 1234 ! Specifies central site NTP
server address and key

Set time zone and daylight saving for a specific time zone. The following example uses U.S. Pacific Standard Time zone.

Router(config)# clock timezone pst -8 ! Sets the time zone

Router(config)# clock summer-time pdt recurring ! Sets daylight savings time

Switch-Dist(config)# clock timezone pst -8 ! Sets the time zone

Switch-Dist(config)# clock summer-time pdt recurring ! Sets daylight savings time


Switch-Access(config)# clock timezone pst -8 ! Sets the time zone

Switch-Access(config)# clock summer-time pdt recurring ! Sets daylight savings time

NTP Verification

To verify your NTP configuration, enter the following command:

Router# show ntp status

Clock is synchronized, stratum 4, reference is 10.66.66.11

nominal freq is 250.0000 Hz, actual freq is 249.9966 Hz, precision is 2**18

reference time is CC70BD86.5EFBE4E6 (02:16:54.371 PDT Tue Sep 9 2008)

clock offset is -0.0255 msec, root delay is 0.79 msec

root dispersion is 0.11 msec, peer dispersion is 0.05 msec

Router#

IP SLA Implementation

An IP Service Level Agreement (SLA) is a management tool running on Cisco IOS software that can be used to analyze IP service levels for IP applications and services in order to increase the network productivity and to reduce the frequency of network outages.

In the Streamlined Medium Branch Network architecture, the User Datagram Protocol (UDP)-echo operation is used to test end-to-end connectivity and response time, and UDP jitter is used to measure packet variability.

Router(config)# ip sla 10 ! Configures IP SLA operation with specified ID

Router(config-ip-sla)# udp-echo 209.165.201.10 65535 source-ip 209.165.201.9 source-port
65000 ! Performs UDP echo operation between two Loopback Interfaces

Router(config-ip-sla-udp)# frequency 30 ! Sets the rate at which a specified IP SLA
operation repeats

Router(config)# ip sla 20 ! Configures IP SLA operation with specified ID

Router(config-ip-sla-udp)# udp-jitter 209.165.201.10 65535 source-ip 209.165.201.9
source-port 65000 ! Performs UDP jitter operation between two Loopback Interfaces

Router(config-ip-sla-jitter)# frequency 30 ! Sets the rate at which a specified IP SLA
operation repeats


Router(config-ip-sla-udp)# exit

Router(config)# ip sla schedule 10 start-time now life forever ! Starts the IP SLA
operation now and runs it indefinitely

Router(config)# ip sla schedule 20 start-time now life forever ! Starts the IP SLA
operation now and runs it indefinitely

IP SLA Verification

To verify your IP SLA configuration, enter the following command:

Router# show ip sla statistics


Round Trip Time (RTT) for       Index 10

        Latest RTT: NoConnection/Busy/Timeout

Latest operation start time: *22:45:46.259 pst Mon Feb 2 2009

Latest operation return code: No connection

Number of successes: 0

Number of failures: 3

Operation time to live: Forever




Round Trip Time (RTT) for       Index 20

        Latest RTT: 0 milliseconds

Latest operation start time: *20:22:59.119 pst Mon Feb 2 2009

Latest operation return code: Socket bind error

RTT Values:

        Number Of RTT: 0                RTT Min/Avg/Max: 0/0/0 milliseconds

Latency one-way time:

        Number of Latency one-way Samples: 0

        Source to Destination Latency one way Min/Avg/Max: 0/0/0 milliseconds

        Destination to Source Latency one way Min/Avg/Max: 0/0/0 milliseconds

Jitter Time:

        Number of SD Jitter Samples: 0

        Number of DS Jitter Samples: 0

        Source to Destination Jitter Min/Avg/Max: 0/0/0 milliseconds

        Destination to Source Jitter Min/Avg/Max: 0/0/0 milliseconds

Packet Loss Values:

        Loss Source to Destination: 0           Loss Destination to Source: 0

        Out Of Sequence: 0      Tail Drop: 0

        Packet Late Arrival: 0  Packet Skipped: 0

Voice Score Values:

        Calculated Planning Impairment Factor (ICPIF): 0

        Mean Opinion Score (MOS): 0

Number of successes: 0

Number of failures: 4

Operation time to live: Forever

Syslog Implementation

Apply following commands to enable syslog logging.

Router(config)# service timestamps log datetime msec localtime show-timezone ! Instructs
the system to timestamp syslog messages

Router(config)# logging 172.16.0.90 ! Identifies syslog server

Router(config)# logging trap notifications ! Log notice messages and above

Router(config)# logging facility local2 ! Specifies the facility level used by the syslog
messages

Router(config)# logging buffered 4096 ! Sets size of internal log buffer


Switch-Access(config)# service timestamps log datetime msec localtime show-timezone !
Instructs the system to timestamp syslog messages

Switch-Access (config)# logging 172.16.0.90 ! Identifies syslog server

Switch-Access (config)# logging trap notifications ! Log notice messages and above

Switch-Access (config)# logging facility local2 ! Specifies the facility level used by the
syslog messages

Switch-Access (config)# logging buffered 4096 ! Sets size of internal log buffer


Switch-Dist(config)# service timestamps log datetime msec localtime show-timezone !
Instructs the system to timestamp syslog messages

Switch-Dist (config)# logging 172.16.0.90 ! Identifies syslog server

Switch-Dist (config)# logging trap notifications ! Log notice messages and above

Cisco Configuration Professional Implementation

Monitoring of the Streamlined Medium Branch Network was done with the Cisco Configuration Professional in monitor mode. Cisco Configuration Professional provides an overview of router status and performance metrics without having to use the Cisco IOS command-line interface. Figure 5 shows the monitor overview, which includes information such as CPU and memory usage, interface status, firewall status, and VPN status.

Figure 5 Cisco Configuration Professional Monitor Overview

Figure 6 shows the interface status for the Gigabit Ethernet interface, which includes packets in and packets out, and bandwidth usage.

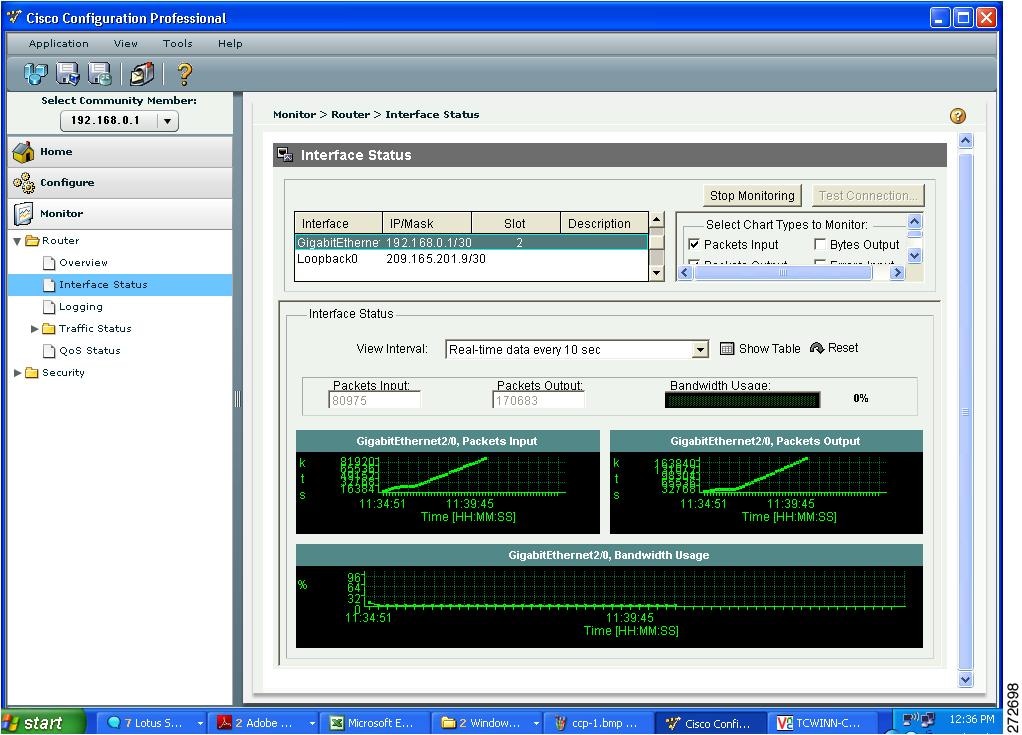

Figure 6 Cisco Configuration Professional Gigabit Ethernet Interface Status

Figure 7 shows the interface status for the tunnel interface.

Figure 7 Cisco Configuration Professional Tunnel Interface Status

Figure 8 shows the VPN status for the DMVPN tunnel, which includes encapsulation and decapsulation packets and send and receive error packets.

Figure 8 Cisco Configuration Professional VPN Status

Figure 9 shows the interface traffic analysis.

Figure 9 Cisco Configuration Professional Traffic Analysis

Cisco Configuration Engine Implementation

There are several steps required to enable deployment with the Cisco Configuration Engine. First, bootstrap configuration must be applied to each device. The boostrap configuration is either preloaded or obtained from a centrally hosted DHCP server through option 150. In the Streamlined Medium Branch Network, both routers and all switches were preloaded with the following bootstrap configuration.

Router(config)# cns trusted-server all-agents cce.example.com ! Specifies trusted server
for CNS agent

Router(config)# cns id hardware-serial ! Identifies this devices by its serial number to
CCE

Router(config)# cns id hardware-serial event ! Identifies this devices by its serial
number to CCE event logging component

Router(config)# cns event cce.example.com ! Enables event agent

Router(config)# cns config initial cce.example.com 80 ! Initiates an initial configuration
on CCE server port 80

Router(config)# cns config partial cce.example.com 80 ! Initiates an incremental
configuration on CCE server port 80

Router(config)# cns exec 80 ! Enables CNS agent


Switch-Access(config)# cns trusted-server all-agents cce.example.com ! Specifies trusted
server for CNS agent

Switch-Access(config)# cns id hardware-serial ! Identifies this devices by its serial
number to CCE

Switch-Access(config)# cns id hardware-serial event ! Identifies this devices by its
serial number to CCE event logging component

Switch-Access(config)# cns event cce.example.com ! Enables event agent

Switch-Access(config)# cns config initial cce.example.com 80 ! Initiates an initial
configuration on CCE server port 80

Switch-Access(config)# cns config partial cce.example.com 80 ! Initiates an incremental
configuration on CCE server port 80

Switch-Access(config)# cns exec 80 ! Enables CNS agent


Switch-Dist(config)# cns trusted-server all-agents cce.example.com ! Specifies trusted
server for CNS agent

Switch-Dist(config)# cns id hardware-serial ! Identifies this devices by its serial number
to CCE

Switch-Dist(config)# cns id hardware-serial event ! Identifies this devices by its serial
number to CCE event logging component

Switch-Dist(config)# cns event cce.example.com ! Enables event agent

Switch-Dist(config)# cns config initial cce.example.com 80 ! Initiates an initial
configuration on CCE server port 80

Switch-Dist(config)# cns config partial cce.example.com 80 ! Initiates an incremental
configuration on CCE server port 80

Switch-Dist(config)# cns exec 80 ! Enables CNS agent

Secondly, the device CNS ID must be entered into the CCE server prior to powering on of branch devices. Each device CNS is associated with Cisco IOS image to be loaded onto the device and a configuration toolkit. The Streamlined Medium Branch Network provides following 10 CCE toolkits:

•Configuration for zero-touch deployment with Cisco Configuration Engine

•Bootstrap Configuration for routers and switches

•Router (Primary Data and DMZ, Backup Voice)

•Gigabit Ethernet WAN interface, active primary and standby backup WAN links, OSPF routing, DMVPN over primary and backup WAN links, and Cisco Unified CME with SCCP configured IP Phones and H.323 trunking to the central site.

•Four T1 WAN interface bundle with MLPPP encapsulation, active primary and standby backup WAN links, EIGRP routing, GETVPN over primary and DMVPN over backup WAN links, and Cisco Unified CME with SIP configured IP Phones and SIP trunking to central site.

•Four T1 WAN interface bundle with MLFR encapsulation, simultaneously active primary and backup WAN links, EIGRP routing, DMVPN over primary and backup WAN links, and Cisco Unified SRST with SCCP configured IP Phones and H.323 trunking to central site.

•Two T1 WAN interface bundle with MLPPP encapsulation, simultaneously active primary and backup WAN links, OSPF routing, GETVPN over primary and DMVPN over backup WAN links, and Cisco Unified SRST with SIP configured IP Phones and SIP trunking to central site.

•Router (Primary Voice, Backup Data, and DMZ)

•Gigabit Ethernet WAN interface, active primary and standby backup WAN links, OSPF routing, DMVPN over primary and backup WAN links, and Cisco Unified CME with SCCP configured IP Phones and H.323 trunking to central site.

•Four T1 WAN interface bundle with MLPPP encapsulation, active primary and standby backup WAN links, EIGRP routing, GETVPN over primary and DMVPN over backup WAN links, and Cisco Unified CME with SIP configured IP Phones and SIP trunking to central site.

•Four T1 WAN interface bundle with MLFR encapsulation, simultaneously active primary and backup WAN links, EIGRP routing, DMVPN over primary and backup WAN links, and Cisco Unified SRST with SCCP configured IP Phones and H.323 trunking to central site.

•Two T1 WAN interface bundle with MLPPP encapsulation, simultaneously active primary and backup WAN links, OSPF routing, GETVPN over primary and DMVPN over backup WAN links, and Cisco Unified SRST with SIP configured IP Phones and SIP trunking to central site.

•Access Switches

•A 48-port access switch with a two-link EtherChannel trunk and Data, DMZ, and Voice VLANs on access ports.

Downloading and Using the Configuration Templates

Download the templates from the following location:

•Configuration Templates for Streamlined Medium Branch Network

To use the configuration templates for manual configurations, download them to a TFTP server that is accessible from the routers and switches. To use the configuration templates with Cisco Configuration Engine (CCE) 3.0, complete the following steps:

Step 1 Log in to CCE and navigate to Tools > Template Manager.

Step 2 In the Template Manager window, shown in Figure 10, click Add Template. The Template Engine window appears.

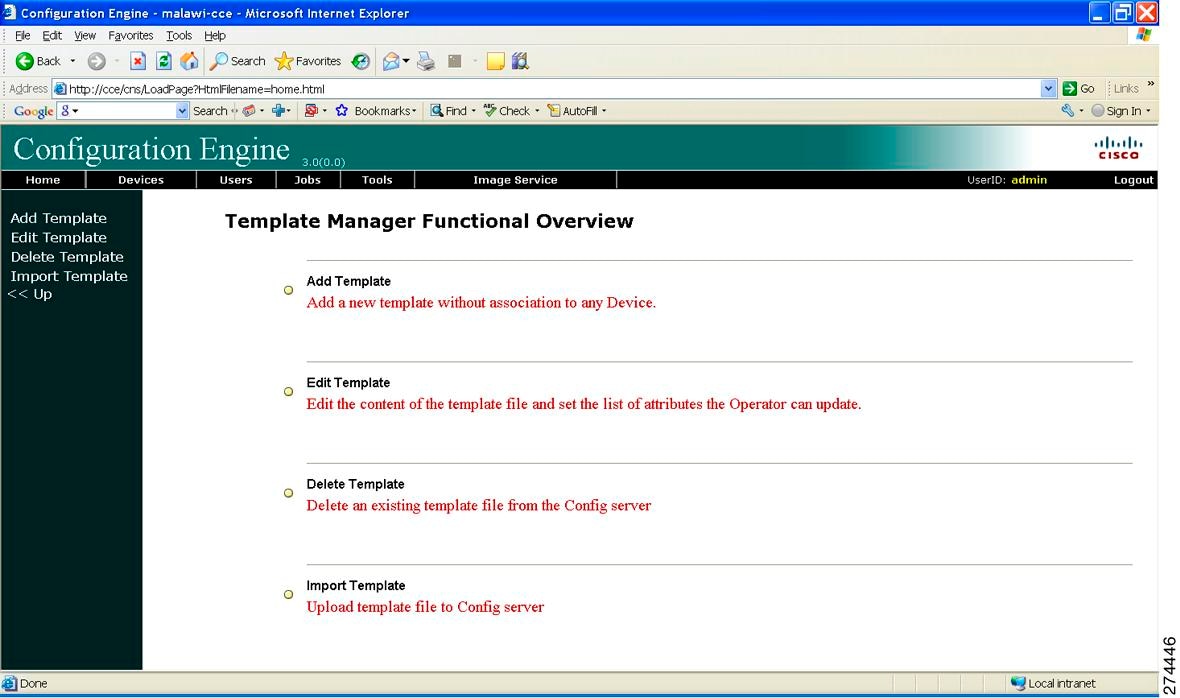

Figure 10 CCE Template Manager

Step 3 In the Template Engine window, shown in Figure 11, choose the best template engine for your specific environment, and then click Next. The CCE Configuration Editor window appears.

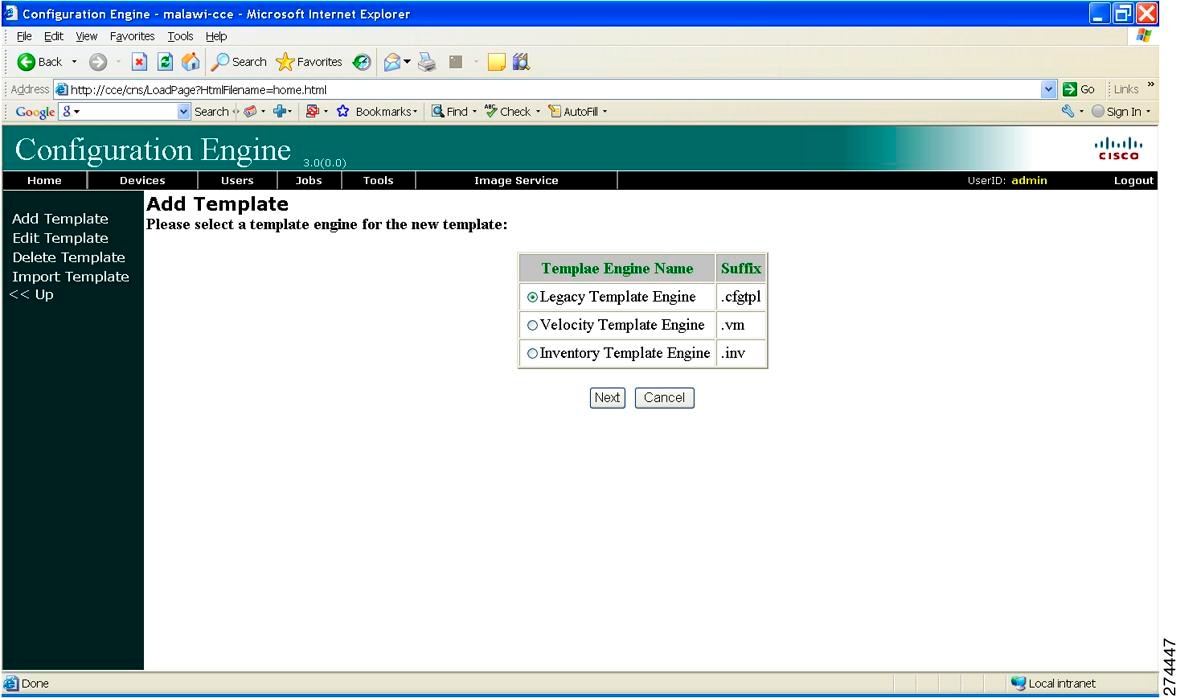

Figure 11 CCE Template Engine

Step 4 From the list of configuration templates, copy the configuration template that best meets your needs from one of the above listed configuration templates and paste it into the CCE Configuration Editor, shown in Figure 12.

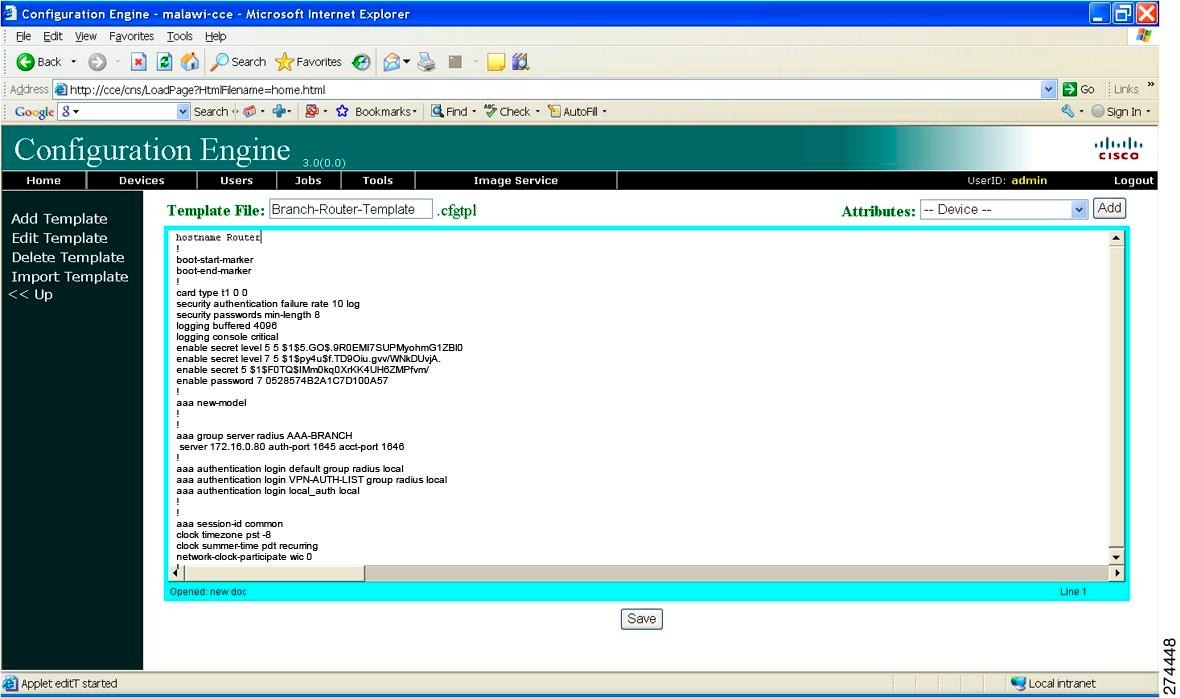

Figure 12 CCE Configuration Editor

Step 5 Customize the configuration to meet the needs of your specific environment. After editing the configuration, name and save the configuration.

Step 6 Navigate to the Device Manager window, shown in Figure 13, and click Add Device.

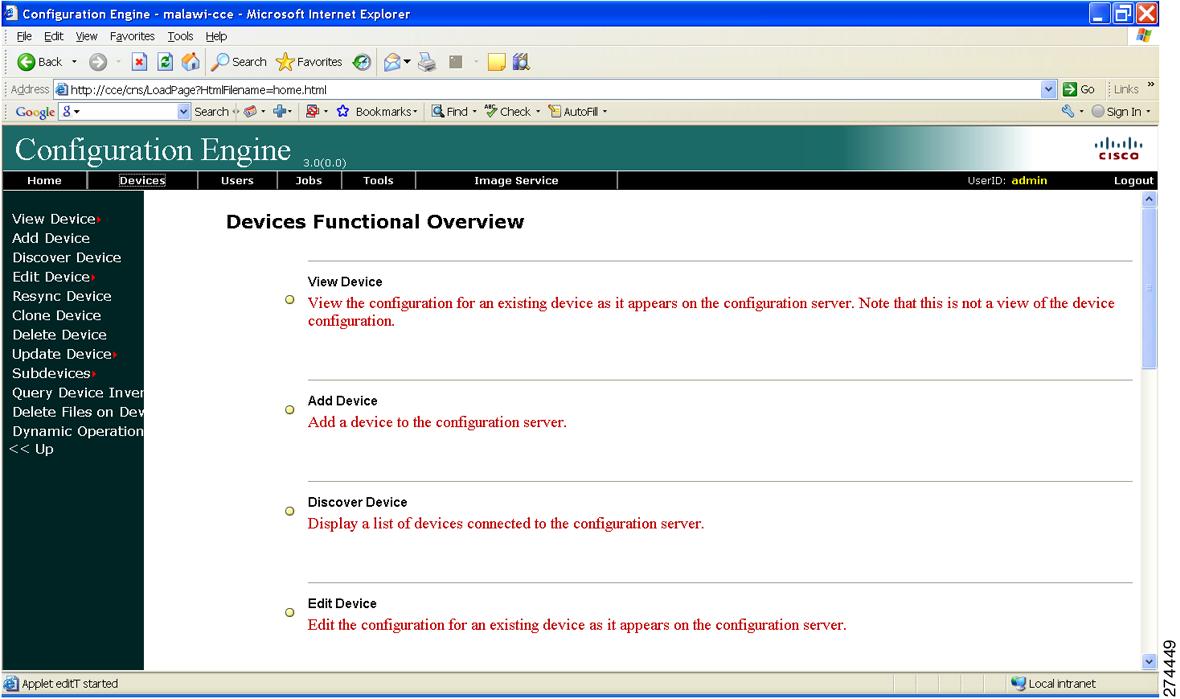

Figure 13 CCE Device Manager

Step 7 In the Create Device Editor window, shown in Figure 14, assign a Device Name, a Unique ID that corresponds to the configuration name specified in Step 5, and a Device Type. Click Next. The Device Group Selector window appears.

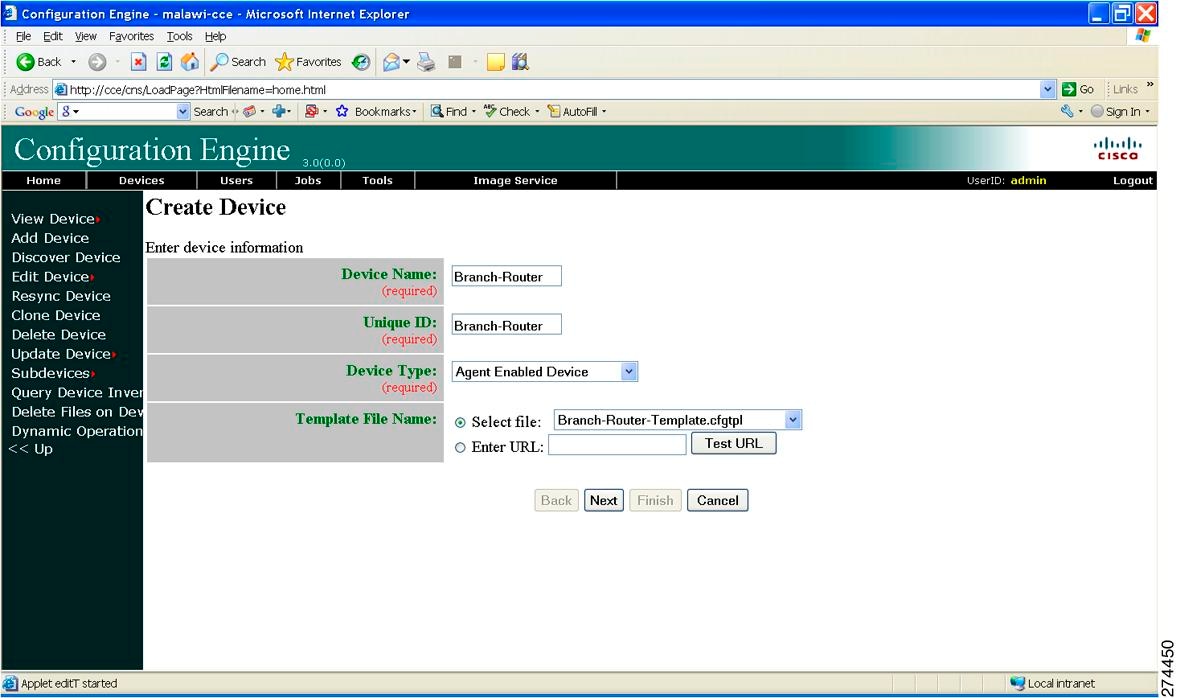

Figure 14 CCE Create Device Editor

Step 8 Choose group membership as shown in Figure 15. CCE supports management of devices as groups. See the CCE documentation for details on how to manage devices as a group. Click Next. The Device Group Selector window appears.

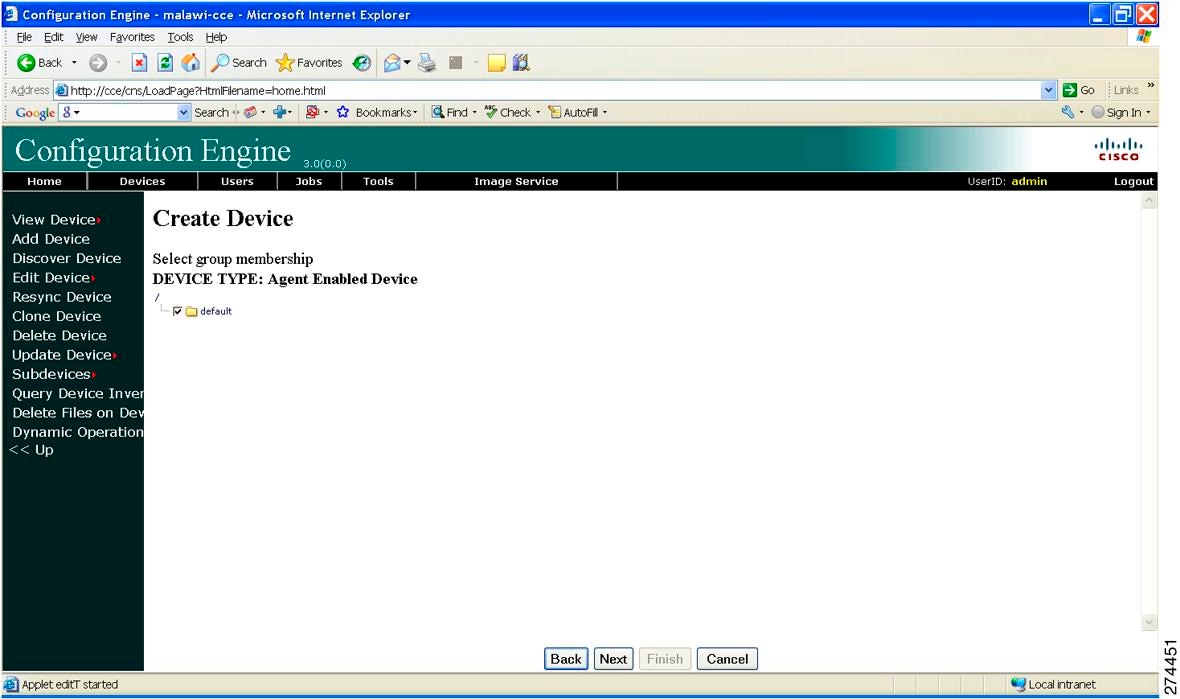

Figure 15 CCE Device Group Selector

Step 9 In the Device Identification Assignment window, shown in Figure 16, enter the Event ID, Config ID, and Image ID (CCE supports the ability to distribute Cisco IOS software images; see the CCE documentation for additional information) for the Device Type. Click Finish.

Note These IDs must match the identification provided in the device Bootstrap Configuration.

Figure 16 CCE Device Identification Assignment

Step 10 Repeat this procedure for all routers and switches.

Voice Services Implementation

•PRI-Trunk and FXS Port Implementation

•Cisco Unified CME with SCCP Endpoints Implementation

•Cisco Unified CME with SIP Endpoints Implementation

•Cisco Unified SRST with SCCP Endpoints Implementation

•Cisco Unified SRST with SIP Endpoints Implementation

This section describes the implementation of two scenarios for voice services:

•Distributed infrastructure and branch endpoints are controlled by Cisco Unified Communications Manager Express (Cisco Unified CME). Local branch voice mail is provided through Cisco Unity Express access.

•Centralized call control with Cisco Unified Communications Manager (Cisco Unified CM). Cisco Unified Survivable Remote Site Telephony (Cisco Unified SRST) is configured in case of WAN failure.

The following high-level steps must be performed for each telephony service:

1. Configure voice connectivity.

2. Perform telephony service setup.

3. Install IP Phones.

4. Configure voice gateway.

5. Configure dial plan.

6. Set up transcoding and conferencing.

7. Implement Music on Hold.

8. Integrate voice mail.

9. Configure emergency services.

PRI-Trunk and FXS Port Implementation

A 12- channel T1 PRI trunk was used to connect the router to the public switched telephone network (PSTN).

Router(config)# card type t1 0 ! Declares network module in slot 0 operational in T1 mode

Router(config)# isdn switch-type primary-4ess ! Acts as Primary 4ESS switch interface to
the PSTN network

Router(config)# network-clock-participate wic 0 ! Enables MFT card to synchronize with NTP
server

Router(config)# controller T1 0/0/0 ! Enters T1 controller configuration mode

Router(config-controller)# pri-group timeslots 1-12 ! Configures Non-facility associated
signaling for first 12 channels of the T1 link

Router(config-controller)# exit

The following configuration applies to analog Foreign Exchange Service (FXS) ports.

Router(config)# voice-port0/3/0 ! Enters voice port configuration mode

Router(config-voiceport)# station-id name ANALOG-1 ! Assigns a name for the voice port

Router(config-voiceport)# exit


Router(config)# voice-port0/3/1! Enters voice port configuration mode

Router(config-voiceport)# station-id name ANALOG-2 ! Assigns a name for the voice port

Router(config-voiceport)# exit


Router(config)# voice-port0/3/2 ! Enters voice port configuration mode

Router(config-voiceport)# station-id name ANALOG-3 ! Assigns a name for the voice port

Router(config-voiceport)# exit


Router(config)# voice-port0/3/3 ! Enters voice port configuration mode

Router(config-voiceport)# station-id name ANALOG-4 ! Assigns a name for the voice port

Router(config-voiceport)# exit

In the Streamlined Medium Branch network 4xT1, the serial interface utilizes compressed RTP to place calls over the WAN. There are several ways to configure cRTP. In the following implantation, cRTP is configured on the QoS class map:

Router(config)# policy-map EIGHT-CLASS-V3PN-EDGE ! Defines child policy map

Router(config-pmap)# class VOICE ! Matches traffic classified by VOICE class-map

Router(config-pmap-c)# compress header ip rtp ! Enables cRTP compression

Router(config-pmap-c)# exit

The Streamlined Medium Branch Networks has been tested with both SIP- and SCCP-enabled phones. Each phone type requires a different configuration. To implement SCCP-based phones, follow the SCCP instructions in the "Cisco Unified CME with SCCP Endpoints Implementation" section. To implement SIP-based phones, follow SIP instructions in the "Cisco Unified CME with SIP Endpoints Implementation" section.

To implement the various voice services described in the following sections, several resources are necessary at the central site. Table 2 lists these resources and the associated IP addresses that are used in the implementation instructions.

Table 2 Central Site Resources Required for Voice Implementation

Resource
IP Address

NTP Server

172.16.0.60

Cisco Call Manager

172.16.200.10

Message Wait Indicator Server

172.16.0.110

Music on Hold Multicast Group

239.1.1.1


Cisco Unified CME with SCCP Endpoints Implementation

•Cisco Unified CME with SCCP Endpoints: Telephony Service Setup

•Cisco Unified CME with SCCP Endpoints: IP Phone Installation and Configuration

•Cisco Unified CME with SCCP Endpoints: H.323 Voice Gateway Implementation

•Cisco Unified CME with SCCP Endpoints: Dial Plan Implementation

•Cisco Unified CME with SCCP Endpoints: CAC Implementation

•Cisco Unified CME with SCCP Endpoints: Transcoding and Conferencing Implementation

•Cisco Unified CME with SCCP Endpoints: Music on Hold Implementation

•Cisco Unified CME with SCCP Endpoints: Voice Mail and Auto Attendant Integration

•Cisco Unified CME with SCCP Endpoints: Emergency Services Implementation

•Cisco Unified CME with SCCP Endpoints Verification

Cisco Unified CME with SCCP Endpoints: Telephony Service Setup

The Cisco IOS software provides an automated mechanism for configuring IP telephony services.

Router(config)# telephony-service setup ! Enters into Unified CME start setup mode


 --- Cisco IOS Telephony Services Setup ---


Do you want to setup DHCP service for your IP Phones? [yes/no]: no


Do you want to start telephony-service setup? [yes/no]: yes

Configuring Cisco IOS Telephony Services :


  Enter the IP source address for Cisco IOS Telephony Services :10.0.1.2

  Enter the Skinny Port for Cisco IOS Telephony Services :  [2000]:

  How many IP Phones do you want to configure :  [0]: 75 ! User configurable number of
  phones up to maximum of 240 on 3900 ISRs

  Do you want dual-line extensions assigned to phones? [yes/no]: yes

  What Language do you want on IP Phones :

      0  English

      1  French

      2  German

      3  Russian

      4  Spanish

      5  Italian

      6  Dutch

      7  Norwegian

      8  Portuguese

      9  Danish

      10 Swedish

      11 Japanese

 [0]: ! Maintains default English language

  Which Call Progress tone set do you want on IP Phones :

      0  United States

      1  France

      2  Germany

      3  Russia

      4  Spain

      5  Italy

      6  Netherlands

      7  Norway

      8  Portugal

      9  UK

      10  Denmark

      11  Switzerland

      12  Sweden

      13  Austria

      14  Canada

      15  Japan

 [0]: ! Maintains default United States call progress tone

  What is the first extension number you want to configure : 5001


Do you have Direct-Inward-Dial service for all your phones? [yes/no]: yes

  Enter the full E.164 number for the first phone :4085555001 ! Assigns DID number


Do you want to forward calls to a voice message service? [yes/no]: yes

  Enter extension or pilot number of the voice message service:5444

  Call forward No Answer Timeout : [18]: ! Maintains default value of 18 seconds.
  Possible values are from 5 to 60000 seconds


Do you wish to change any of the above information? [yes/no]: no

CNF-FILES: Clock is not set or synchronized,

                retaining old versionStamps


 ---- Setup completed config ---


Router(config)#

*Sep 10 05:37:10.207:  percentLINK-3-UPDOWN: Interface ephone_dsp DN 1.2, changed state to
up

*Sep 10 05:37:10.207:  percentLINK-3-UPDOWN: Interface ephone_dsp DN 2.1, changed state to
up

*Sep 10 05:37:10.207:  percentLINK-3-UPDOWN: Interface ephone_dsp DN 2.2, changed state to
up

*Sep 10 05:37:10.207:  percentLINK-3-UPDOWN: Interface ephone_dsp DN 3.1, changed state to
up

*Sep 10 05:37:10.207:  percentLINK-3-UPDOWN: Interface ephone_dsp DN 3.2, changed state to
up

*Sep 10 05:37:10.207:  percentLINK-3-UPDOWN: Interface ephone_dsp DN 4.1, changed state to
up

*Sep 10 05:37:10.207:  percentLINK-3-UPDOWN: Interface ephone_dsp DN 4.2, changed state to
up

Cisco Unified CME with SCCP Endpoints: IP Phone Installation and Configuration

In the Streamlined Medium Branch Network, IP Phones are installed by simply connecting them to ports on the access layer switches. Because all the ports offer Power-over-Ethernet, no additional power cables are necessary. After they are installed, the phones are configured with the default configuration that was generated during the telephony setup in the previous section. However, if the IP Phone firmware needs to be upgraded in the future, enter the following commands.

Note The following configuration is not required with the Cisco IOS software image used for the Streamlined Medium Branch Network validation.

Router(config)# telephony-service ! Enters telephony configuration mode

Router(config-telephony)# load 7960-7940 P00308000900 ! Loads telephony SCCP firmware
files for 7960 to 7940 phones

Router(config-telephony)# load 7942 SCCP42.8-3-2S ! Loads telephony SCCP firmware files
for 7942 phones

Router(config-telephony)# load 7962 SCCP62.8-3-2S ! Loads telephony SCCP firmware files
for 7962 phones

Router(config-telephony)# load 7965 SCCP65.8-3-2S ! Loads telephony SCCP firmware files
for 7965 phones

Router(config-telephony)# load 7971 SCCP71.8-3-2S ! Loads telephony SCCP firmware files
for 7971 phones

Router(config-telephony)# load 7985 cmterm_7985.4-1-6-0 ! Loads telephony SCCP firmware
for 7985 video phone

Apply the following command after defining the new ephone type.

Router(config-telephony)# load 7937 cmterm_7937.1-2-1-0 ! Loads telephony SCCP firmware
files for 7937 conference station


Router(config-telephony)# create cnf-files ! Builds XML configuration file for SCCP phones

Router(config-telephony)# exit

This guide provides Cisco IOS software commands for setting up IP Phones. Alternatively, a graphical user interface (GUI) allows the configuration of directory numbers through a web interface. To set up the web configuration tool, use the following instructions to enable the services on the router:

Router(config)# ip http server ! Enables HTTP server

Router(config)# ip http path flash: ! Specifies location of HTTP files in IOS

Router(config)# telephony-service ! Enters telephony configuration mode

Router(config-telephony)# web admin system name admin password c1$k0SyS ! Defines username
and password for system administrator

Router(config-telephony)# dn-webedit ! Enables ability to configure directory numbers

Router(config-telephony)# time-webedit ! Enables ability to configure phone time

Router(config-telephony)# exit


Router(config)# telephony-service ! Enters telephony configuration mode

Router(config-telephony)# max-ephones 100 ! Sets the maximum number of phones that can
register with Cisco CME

Router(config-telephony)# max-dn 200 ! Sets the maximum number of directory numbers (two
for each phone)

Router(config-telephony)# ip source-address 10.0.1.2 port 2000 secondary 10.0.1.1 ! Sets
IP address used for phone registration and secondary router for backup

Router(config-telephony)# time-zone 5 ! Sets time zone to Pacific Standard/Daylight Time

Router(config-telephony)# no auto-reg-phone ! Disables registration of unconfigured phones

Router(config-telephony)# voicemail 5444 ! Defines number for speed dialing voicemail from
phone

Router(config-telephony)# system message Your current options ! Message displayed on IP
Phones

Router(config-telphony)# secondary-dialtone 9 ! Provides dial tone for PSTN calls

Router(config-telphony)# transfer-system full-blind ! Transfers calls without consultation

Router(config-telphony)# transfer-pattern 9.........! Allows transfers for all calls
originating from PSTN

Router(config-telphony)# transfer-pattern 4.........! Allows transfers for all calls
originating in area code starting with "4"

Router(config-telphony)# call-forward pattern .T ! Allows call forwarding for all calls

Router(config-telephony)# exit


Router(config)# ephone-template 1 ! Defines ephone configuration template tag

Router(config-ephone-template)# softkeys hold Join Newcall Resume Select ! Softkey display
when the connected party is on hold

Router(config-ephone-template)# softkeys idle ConfList Join Newcall Pickup Redial !
Softkey display when the phone is idle

Router(config-ephone-template)# softkeys seized Redial Endcall Cfwdall Pickup Callback
Meetme ! Softkey display when caller is attempting to call but has not been connected yet

Router(config-ephone-template)# softkeys connected Trnsfer Hold Confrn Endcall ! Softkey
display when connection to remote point has been established

Router(config-ephone-template)# exit

Apply the following configuration to all IP Phones 1 to 100. Set the unique DN number and assign the desired extension to each phone.

Router(config)# ephone-dn 1 dual-line ! Enters directory number configuration mode

Router(config-ephone-dn)# number 5001 ! Configures phone (or extension) number for this
directory number

Router(config-ephone-dn)# call-forward busy 5444 ! Forwards call for a busy extension to
voicemail

Router(config-ephone-dn)# call-forward noan 5444 timeout 10 ! Forwards call for an
extension that does not answer to voicemail after 10 seconds of ringing

Router(config-ephone-dn)# exit


Router(config)# ephone 1 ! Enters phone configuration mode

Router(config-ephone)# ephone-template 1 ! Associates phone with configuration template

Router(config-ephone)# button 1:1 ! Associates phone with directory number 1:2, 1:3, etc.

Router(config-ephone)# exit

To configure soft phone, use the following example.

Router(config)# ephone 120 ! Enters phone configuration mode

Router(config-ephone)# type CIPC ! Specifies that this is softphone

Router(config-ephone)# ephone-template 1 ! Associates phone with configuration template

Router(config-ephone)# button 1:120 ! Associates phone with directory number 1:2, 1:3,
etc.

Router(config-ephone)# exit

In Cisco IOS 12.4(20)T and later, apply the following configuration to define a conference station.

Router(config)# ephone-type 7937 ! Enters ephone-type template configuration mode

Router(config-ephone-type)# device-id 431 ! Specifies 7937 conference station device id

Router(config-ephone-type)# device-type 7937 ! Specifies device type

Router(config-ephone-type)# device-name 7936 Conference Station ! Assigns name to the
device type

Router(config-ephone-type)# num-buttons 1 ! Number of line buttons supported

Router(config-ephone-type)# num-presentations 6 ! Number of call presentations lines

Router(config-ephone-type)# exit


Router(config)# ephone-dn 110 dual-line ! Enters directory number configuration

Router(config-ephone-dn)# number 5110 ! Configures extension (or phone) number for this
directory number

Router(config-ephone-dn)# name Engineering Conference Room ! Associates a name with this
directory number

Router(config-ephone-dn)# exit


Router(config)# ephone 110! Enters phone configuration mode

Router(config-ephone)# button 1:110 ! Associates phone with directory number

Router(config-ephone)# exit

Generate the configuration file.

Router(config)# telephony-service ! Enters telephony configuration mode

Router(config-telephony)# create cnf-files ! Builds XML configuration file for SCCP phones

Router(config-telephony)# reset all ! Reloads the phone configuration

Router(config-telephony)# exit

Cisco Unified CME with SCCP Endpoints: H.323 Voice Gateway Implementation

The following configuration enables VoIP on the network and sets up H.323 dial peers between the branch gateway and the destination telephone networks.

Router(config)# voice service voip ! Enters voice service configuration mode

Router(config-voi-srv)# allow-connections h323 to h323 ! Enables calls h323 endpoint to
h323 endpoint

Router(config-voi-srv)# allow-connections h323 to SIP ! Enables calls from h323 endpoint
to SIP endpoint

Router(config-voi-srv)# exit

Cisco Unified CME with SCCP Endpoints: Dial Plan Implementation

Ten dial peers were defined for the Streamlined Medium Branch Network: central site, local calls, two 911 emergency services dial peers, voice mail, auto attendant, long distance, international calling, and fax pass-through or fax relay. Voice mail and emergency services dial peers are described in the "Cisco Unified CME with SIP Endpoints: Voice Mail and Auto Attendant Integration" section.

Router(config)# dial-peer voice 1 voip ! Enters dial peer to central site configuration
mode

Router(config-dial-peer)# dtmf-relay h245-alphanumeric ! Specifies H.245 alphanumeric
method for relaying dual tone multifrequency tones

Router(config-dial-peer)# destination-pattern 408....... ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# session target ipv4:172.16.200.10 ! Specifies central site dial
peer address

Router(config-peer)# exit


Router(config)# dial-peer voice 2 pots ! Enters dial peer for local area calls
configuration mode

Router(config-dial-peer)# destination-pattern 9....... ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 3 pots ! Enters dial peer for long distance calls
configuration mode

Router(config-dial-peer)# destination-pattern 91.......... ! Specifies area code prefix
for central site dial peer

Router(config-dial-peer)# prefix 1 ! Prefix that the system adds automatically to the dial
string

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 4 pots ! Enters dial peer for international calls
configuration mode

Router(config-dial-peer)# destination-pattern 9011T ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# prefix 011 ! Prefix that the system adds automatically to the
dial string

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit

When calls over the WAN exceed the maximum allocated bandwidth, they are redirected to PSTN.

Router(config)# dial-peer voice 15 pots ! Enters dial peer for PSTN bypass configuration
mode

Router(config-dial-peer)# destination-pattern 408....... ! Specifies destination pattern

Router(config-dial-peer)# port 0/0/23 ! Specifies outgoing/incoming interface for calls

Router(config-dial-peer)# preference 1 ! Sets the dial peer preference order

Router(config-dial-peer)# prefix 408 ! Prefix that the system adds automatically to the
dial string

If you are using fax pass-through, apply the following configuration.

Router(config)# dial-peer voice 6 voip ! Enters dial peer for fax passthrough
configuration mode

Router(config-dial-peer)# destination-pattern 4085555333 ! Specifies local number of fax
machine

Router(config-dial-peer)# session target ipv4:172.16.200.10 ! Specifies central site dial
peer address

Router(config-dial-peer)# fax protocol pass-through g711ulaw ! Configures fax passthrough
with G.711 codec

Router(config-peer)# exit

If you are using fax relay, apply the following configuration.

Router(config)# dial-peer voice 7 voip ! Enters dial peer for fax relay configuration mode

Router(config-dial-peer)# destination-pattern 4085555333 ! Specifies local number of fax
machine

Router(config-dial-peer)# session target ipv4:172.16.200.10 ! Specifies central site dial
peer address

Router(config-dial-peer)# fax-relay ecm disable ! Disables fax relay ECM

Router(config-dial-peer)# fax rate 9600 ! Selects fax transmission rate

Router(config-dial-peer)# fax protocol t38 ! Sets the T.38 fax relay protocol

Router(config-dial-peer)# codec g711ulaw ! Configures fax relay with G.711 codec

Router(config-peer)# exit

Cisco Unified CME with SCCP Endpoints: CAC Implementation

RSVP is not supported with Cisco Unified CME. A limited workaround is possible by setting a limit on the number of voice calls that can be placed over the WAN.

Router(config)# dial-peer voice 1 voip ! Enters dial peer to central site configuration
mode

Router(config-dial-peer)# max-con 36 ! Sets the maximum number of WAN based calls to 36

Router(config-dial-peer)# exit

Cisco Unified CME with SCCP Endpoints: Transcoding and Conferencing Implementation

Transcoding compresses and decompresses voice streams to match endpoint-device capabilities. Transcoding is required when an incoming voice stream is digitized and compressed (by means of a codec) to save bandwidth and the local device does not support that type of compression.

Router(config)# telephony-service ! Enters telephony configuration mode

Router(config-telphony)# sdspfarm units 4 ! Specifies number of DSP farms that can
register with SCCP server

Router(config-telphony)# sdspfarm transcode sessions 5 ! Specifies maximum number of
simultaneous transcoding sessions

Router(config-telphony)# sdspfarm tag 2 CONFERENCE ! Creates DSP farm profile

Router(config-telphony)# sdspfarm tag 3 TRANSCODE ! Creates DSP farm profile

Router(config-telphony)# conference hardware ! Configures CME for multiparty conferencing

Router(config-telphony)# exit


Router(config)# voice-card 0 ! Enters DSP farm configuration mode

Router(config-voicecard)# dsp services dspfarm ! Enables DSP services

Router(config-voicecard)# exit

Router(config)# sccp local GigabitEthernet0/1.2 ! Sets the interface for conferencing and
transcoding to register with CME

Router(config)# sccp ccm 10.0.1.1 identifier 1 version 5.0.1 ! Associates conferencing and
transcoding with CME

Router(config)# sccp ! Enables SCCP globally

Router(config)# sccp ccm group 1 ! Creates SCCP group and enters SCCP configuration mode

Router(config-sccp-ccm)# associate ccm 1 priority 1 ! Associates SCCP group 1 with CME

Router(config-sccp-ccm)# associate profile 2 register CONFERENCE ! Associates DSP farm
profile with with a SCCP group

Router(config-sccp-ccm)# associate profile 3 register TRANSCODE ! Associates DSP farm
profile with with a SCCP group

Router(config-sccp-ccm)# exit


Router(config)# dspfarm profile 2 transcode ! Enters DSP farm profile configuration mode

Router(config-dspfarm-profile)# codec g711ulaw ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g711alaw ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729ar8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729abr8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729r8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec pass-through ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# maximum sessions 5 ! Specifies maximum number of
simultaneous sessions supported by this profile

Router(config-dspfarm-profile)# associate application sccp ! Associates SCCP with this DSP
farm profile

Router(config-dspfarm-profile)# no shutdown

Router(config-dspfarm-profile)# exit


Router(config)# dspfarm profile 3 conference ! Enters DSP farm profile configuration mode

Router(config-dspfarm-profile)# codec g711ulaw ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g711alaw ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729ar8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729abr8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729r8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729br8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# maximum sessions 3 ! Specifies maximum number of
simultaneous sessions supported by this profile

Router(config-dspfarm-profile)# associate application sccp ! Associates SCCP with this DSP
farm profile

Router(config-dspfarm-profile)# no shutdown

Router(config-dspfarm-profile)# exit


Router(config)# ephone-dn 241 dual-line ! Enters directory number configuration mode

Router(config-ephone-dn)# number 5555 ! Associates telephone extension with this directory
number

Router(config-ephone-dn)# conference ad-hoc ! Configures ad-hoc conferencing

Router(config-ephone-dn)# no huntstop ! Continues call hunting if line is unavailable

Router(config-ephone-dn)# exit


Router(config)# ephone-dn 242 dual-line ! Enters directory number configuration mode

Router(config-ephone-dn)# number 5555 ! Associates telephone extension with this directory
number

Router(config-ephone-dn)# conference ad-hoc ! Configures ad-hoc conferencing

Router(config-ephone-dn)# no huntstop ! Continues call hunting if line is unavailable

Router(config-ephone-dn)# preference 1 ! Sets dial peer preference order

Router(config-ephone-dn)# exit


Router(config)# ephone-dn 243 dual-line ! Enters directory number configuration mode

Router(config-ephone-dn)# number 5555 ! Associates telephone extension with this directory
number

Router(config-ephone-dn)# conference ad-hoc ! Configures ad-hoc conferencing

Router(config-ephone-dn)# huntstop ! Stop hunting for lines, all conferencing lines are
occupied

Router(config-ephone-dn)# preference 2 ! Sets dial peer preference order

Router(config-ephone-dn)# exit


Router(config)# ephone-dn 244 dual-line ! Enters directory number configuration mode

Router(config-ephone-dn)# number 5666 ! Associates telephone extension with this directory
number

Router(config-ephone-dn)# conference meetme ! Configures meet me conferencing

Router(config-ephone-dn)# no huntstop ! Continues call hunting if line is unavailable

Router(config-ephone-dn)# exit


Router(config)# ephone-dn 245 dual-line ! Enters directory number configuration mode

Router(config-ephone-dn)# number 5666 ! Associates telephone extension with this directory
number

Router(config-ephone-dn)# conference meetme ! Configures meet me conferencing

Router(config-ephone-dn)# no huntstop ! Continues call hunting if line is unavailable

Router(config-ephone-dn)# preference 1 ! Sets dial peer preference order

Router(config-ephone-dn)# exit


Router(config)# ephone-dn 246 dual-line ! Enters directory number configuration mode

Router(config-ephone-dn)# number 5666 ! Associates telephone extension with this directory
number

Router(config-ephone-dn)# conference meetme ! Configures meet me conferencing

Router(config-ephone-dn)# huntstop ! Stop hunting for lines, all conferencing lines are
occupied

Router(config-ephone-dn)# preference 2 ! Sets dial peer preference order

Router(config-ephone-dn)# exit

Cisco Unified CME with SCCP Endpoints: Music on Hold Implementation

Music on Hold (MOH) is an audio stream that is played to PSTN and VoIP G.711 or G.729 callers who are placed on hold by phones in a Cisco Unified Communications Manager Express (Cisco Unified CME) system. This audio stream is intended to reassure callers that they are still connected to their calls.

Router(config)# telephony-service ! Enters telephony configuration mode

Router(config-telephony)# moh music-on-hold.au ! Specifies music on hold file

Router(config-telephony)# exit

Cisco Unified CME with SCCP Endpoints: Voice Mail and Auto Attendant Integration

Voice mail is provided by the Cisco Unity Express service module in the Advanced Integration Module 2 (AIM2). The AIM2 module requires the following configuration.

Router(config)# interface Service-Engine 0/1 ! Enters Cisco Unity Express configuration
mode

Router(config-if)# ip address 10.0.2.86 255.255.255.252 ! Assigns ip address to the
service engine router interface

Router(config-if)# service-module ip address 10.0.2.85 255.255.255.252 ! Assigns IP
address to service module internal interface

Router(config-if)# service-module ip default-gateway 10.0.2.86 ! Assigns default gateway
for the service module

Router(config-if)# zone-member security Private ! Assigns Cisco Unity Express to private
security zone

Router(config-if)# no shutdown

Router(config-if)# exit

Router(config)# ip route 10.0.2.884 255.255.255.252 Service-Engine 0/1 ! Adds a static
route entry to direct traffic to the module

Cisco Unity Express uses SIP as its signaling protocol and requires a SIP dial peer.

Router(config)# dial-peer voice 7 voip ! Enters dial peer for voicemail configuration mode

Router(config-dial-peer)# destination-pattern 5444 ! Specifies mailbox extension

Router(config-dial-peer)# session target ipv4:10.0.1.85 ! Specifies voicemail address

Router(config-dial-peer)# session protocol sipv2! Enables SIP for voicemail communication

Router(config-dial-peer)# codec g711ulaw ! Specifies codec for voicemail messages

Router(config-dial-peer)# b2bua ! Enables SIP to SCCP forwarding

Router(config-dial-peer)# dtmf-relay sip-notify! Specifies DTMF relay method

Router(config-dial-peer)# no vad ! Disables voice activity detection

Router(config-peer)# exit


Router(config)# dial-peer voice 9 voip ! Enters dial peer for Auto Attendant configuration
mode

Router(config-dial-peer)# destination-pattern 5000 ! Specifies mailbox extension

Router(config-dial-peer)# session target ipv4:10.0.2.85 ! Specifies voicemail address

Router(config-dial-peer)# session protocol sipv2 ! Enables SIP for voicemail communication

Router(config-dial-peer)# codec g711ulaw ! Specifies codec for voicemail messages

Router(config-dial-peer)# b2bua ! Enables SIP to SCCP forwarding

Router(config-dial-peer)# dtmf-relay sip-notify ! Specifies DTMF relay method

Router(config-dial-peer)# no vad ! Disables voice activity detection

Router(config-peer)# exit

The following configuration turns on the message wait indicator.

Router(config)# ephone-dn 19 ! Enters directory number configuration mode

Router(config-ephone-dn)# number 8000.... ! Phone number for placing MWI notification call

Router(config-ephone-dn)# mwi on ! When call placed to this DN turn MWI on


Router(config-ephone-dn)# ephone-dn 20 ! Enters directory number configuration mode

Router(config-ephone-dn)# number 8001.... ! Phone number for placing MWI notification call

Router(config-ephone-dn)# mwi off ! When call placed to this DN turn MWI off

Additional Cisco Unified CME configuration is performed through a Web-based user interface as shown in Figure 17 through Figure 22. Figure 17 shows the login prompt window.

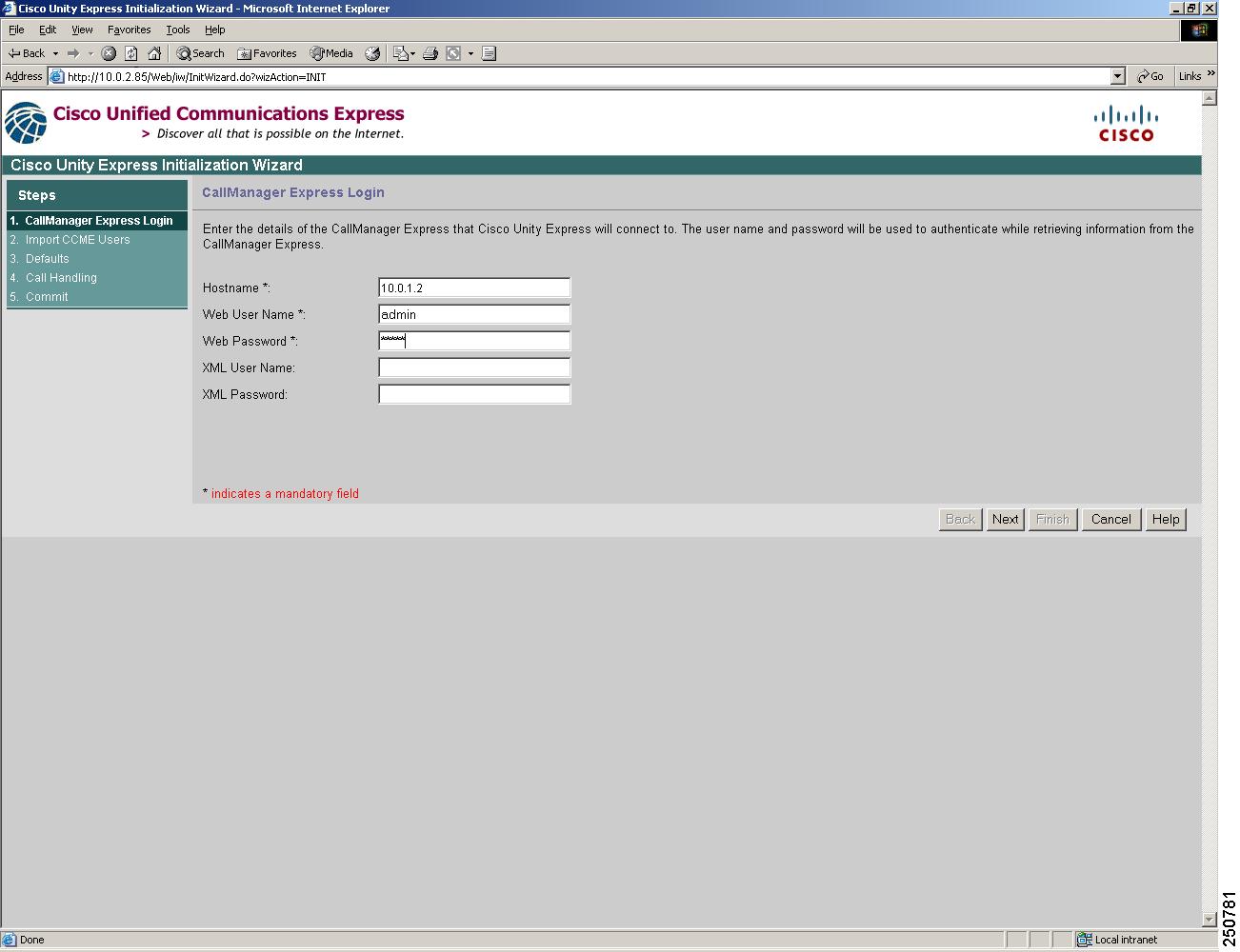

Figure 17 Cisco Unified CME Login Prompt

Figure 18 shows the Cisco Unified CME import users window.

Figure 18 Importing Cisco Unified CME Users

Figure 19 shows the Cisco Unified CME defaults window.

Figure 19 Configuring Mailbox Defaults

Figure 20 shows the call handling configuration window.

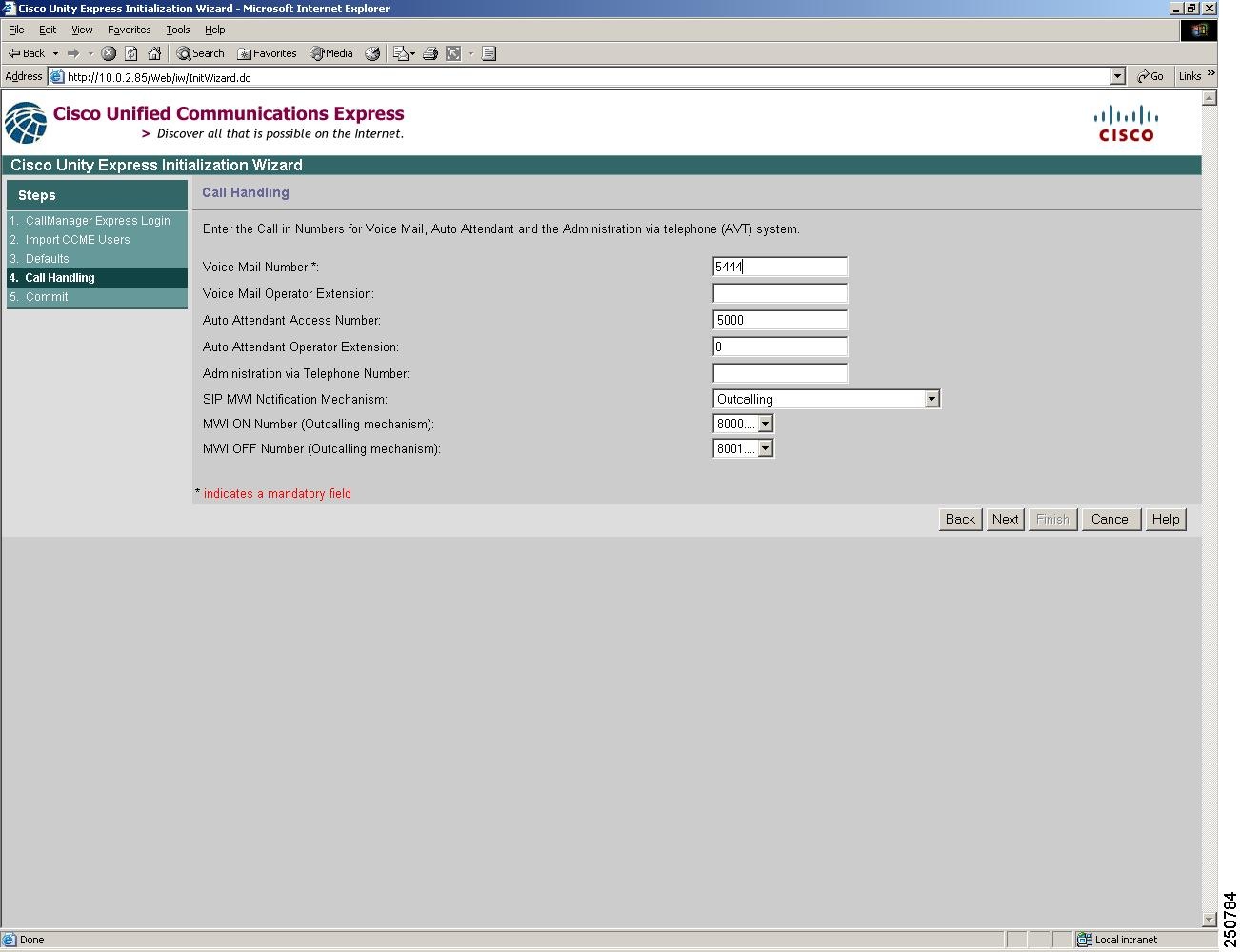

Figure 20 Configuring Call Handling

Figure 21 shows the Cisco Unified CME configuration verification window.

Figure 21 Verifying Configuration

Figure 22 shows the Cisco Unified CME configuration status window.

Figure 22 Reviewing Configuration Status

Cisco Unified CME with SCCP Endpoints: Emergency Services Implementation

The following is the implementation of emergency number calling for North America. The PRI trunk is used for placing emergency calls.

Router(config)# dial-peer voice 10 pots ! Enters dial peer for emergency calls
configuration mode

Router(config-dial-peer)# destination-pattern 911 ! Specifies North America emergency
number

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 11 pots ! Enters dial peer for local area calls
configuration mode

Router(config-dial-peer)# destination-pattern 9911 ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# prefix 911 ! Prefix that the system adds automatically to the
dial string

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit

Cisco Unified CME with SCCP Endpoints Verification

Router(config)# show ephone phone-load

DeviceName        CurrentPhoneload       PreviousPhoneload      LastReset

=====================================================================



SEP796000060053   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060052   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060051   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060050   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060049   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060059   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060058   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060057   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060056   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060055   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060054   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060063   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060062   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060061   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060060   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060042   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060041   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060040   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060043   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060044   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060045   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060046   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060047   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060048   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized

SEP796000060086   SCCP41.8-3-2S          SCCP41.8-3-2S          Initialized


Router# show telephony-service ephone-template

ephone-template 1

softkeys hold  Join Newcall Resume Select

softkeys idle  ConfList Join Newcall Pickup Redial RmLstC

softkeys seized  Redial Endcall Cfwdall Pickup Callback Meetme

softkeys connected  Trnsfer Hold Confrn Endcall

conference drop-mode never

conference add-mode all

conference admin: No

max-calls-per-button 8

busy-trigger-per-button 0

privacy default

Always send media packets to this router: No

Preferred codec: g711ulaw

keepalive 30 auxiliary 30

User Locale: US

Network Locale: US



Router# show ephone


ephone-1[0] Mac:001C.58FB.7640 TCP socket:[7] activeLine:0 REGISTERED in SCCP ver 12/9

mediaActive:0 offhook:0 ringing:0 reset:0 reset_sent:0 paging 0 debug:0 caps:12

IP:10.0.1.11 53063 7965  keepalive 126205 max_line 6

button 1: dn 1  number 5001 CH1   IDLE         CH2   IDLE

Preferred Codec: g722-64



ephone-2[1] Mac:001E.4AF1.38D4 TCP socket:[-1] activeLine:0 UNREGISTERED

mediaActive:0 offhook:0 ringing:0 reset:0 reset_sent:0 paging 0 debug:0 caps:7

IP:0.0.0.0 0 Unknown 0  keepalive 0 max_line 0

Preferred Codec: g711ulaw



ephone-3[2] Mac:001C.58F9.BD38 TCP socket:[2] activeLine:0 REGISTERED in SCCP ver 12/9

mediaActive:0 offhook:0 ringing:0 reset:0 reset_sent:0 paging 0 debug:0 caps:12

IP: 10.0.1.12 51579 7962  keepalive 126880 max_line 6

button 1: dn 2  number 5002 CH1   IDLE         CH2   IDLE

Preferred Codec: g711ulaw



Router# show telephony-service ephone

Number of Configured ephones 180 (Registered 180)

ephone 1

Device Security Mode: Non-Secure

mac-address 001C.58FB.7640

type 7965

button  1:1

keepalive 30 auxiliary 30

max-calls-per-button 8

busy-trigger-per-button 0

ephone-template 1

Always send media packets to this router: No

Preferred codec: g711ulaw

conference drop-mode never

conference add-mode all

conference admin: No

privacy: Yes

privacy button: No

user-locale US

network-locale US


Router# show telephony-service

CONFIG (Version=4.1(0))
=====================
Version 4.1(0)
Cisco Unified Communications Manager Express
For on-line documentation please see:
www.cisco.com/univercd/cc/td/doc/product/access/ip_ph/ip_ks/index.htm



ip source-address 192.168.0.1 port 2000
max-ephones 120
max-dn 100
max-conferences 3
dspfarm units 4
dspfarm transcode sessions 3
conference software
hunt-group report delay 1 hours
hunt-group logout DND
max-redirect 5
cnf-file location: system:
cnf-file option: PER-PHONE-TYPE
network-locale[0] US   (This is the default network locale for this box)
network-locale[1] US
network-locale[2] US
network-locale[3] US
network-locale[4] US
user-locale[0] US    (This is the default user locale for this box)
user-locale[1] US
user-locale[2] US
user-locale[3] US
user-locale[4] US
srst mode auto-provision is OFF
srst ephone template is 0
srst dn template is 0
srst dn line mode is single
time-format 12
date-format mm-dd-yy
timezone 0 Greenwich Standard Time
no transfer-pattern is configured, transfer is restricted to local SCCP phones only.
keepalive 30 auxiliary 30
timeout interdigit 10
timeout busy 10
timeout ringing 180
timeout ringin-callerid 8
timeout night-service-bell 12
caller-id name-only: enable
web admin system name Admin
web admin customer name Customer
edit DN through Web:  disabled.
edit TIME through web:  disabled.
Log (table parameters):
     max-size: 150
     retain-timer: 15
transfer-system full-consult
local directory service: enabled.
Extension-assigner tag-type ephone-tag.

Cisco Unified CME with SIP Endpoints Implementation

•Cisco Unified CME with SIP Endpoints: Telephony Service Setup

•Cisco Unified CME with SIP Endpoints: IP Phone Installation and Configuration

•Cisco Unified CME with SIP Endpoints: SIP Voice Gateway Implementation

•Cisco Unified CME with SIP Endpoints: Dial Plan Implementation

•Cisco Unified CME with SIP Endpoints: CAC Implementation

•Cisco Unified CME with SIP Endpoints: Transcoding Implementation

•Cisco Unified CME with SIP Endpoints: Music on Hold Implementation

•Cisco Unified CME with SIP Endpoints: Voice Mail and Auto Attendant Integration

•Cisco Unified CME with SIP Endpoints: Emergency Services Implementation

Cisco Unified CME with SIP Endpoints: Telephony Service Setup

Configure the SIP gateway at the branch router.

Router(config)# voice service voip ! Enters voice service configuration mode

Router(config-voi-srv)# allow-connections SIP to SIP ! Enables calls from SIP endpoint to
SIP endpoint

Router(config-voi-srv)# sip ! Enters SIP configuration mode

Router(config-voi-sip)# registrar server expires max 120 min 60 ! Sets the SIP Phone
keepalive.  The phone will check every 2 minutes whether it is registered with Cisco CME
in case the router lost its registration information during reboot

Router(config-voi-sip)# bind control source-interface GigabitEthernet0/1.2 ! Specifies SIP
to Voice VLAN binding

Router(config-voi-sip)# bind media source-interface GigabitEthernet0/1.2 ! Specifies SIP
to Voice VLAN binding

Router(config-voi-sip)# exit

Router(config-voi-srv)# exit

Cisco Unified CME with SIP Endpoints: IP Phone Installation and Configuration

In the Streamlined Medium Branch Network, IP Phones are installed by simply connecting them to ports on the access layer switches. Because all the ports offer Power over Ethernet, no additional power cables are necessary. Once installed, phones are configured with the default configuration generated during the Cisco Unified CME installation. However, if IP Phone firmware needs to be upgraded in the future, issue the following commands.

Note The following configuration is not required with the Cisco IOS software image used for the Streamlined Medium Branch Network validation.

Router(config)# voice register global ! Enters voice register configuration mode

Router(config-register-global)# mode cme ! Enables CME mode in the register

Router(config-register-global)# load 7960-7940 P0S3-08-3-00 ! Loads SIP firmware files for
7960-7940 phones

Router(config-register-global)# load 7961 SIP61.8-3-2S ! Loads SIP firmware files for 7961
phone

Router(config-register-global)# load 7962 SIP62.8-3-2S ! Loads SIP firmware files for 7962
phone

Router(config-register-global)# load 7965 SIP65.8-3-2S ! Loads SIP firmware files for 7965
phone

Router(config-register-global)# load 7971 SIP71.8-3-2S ! Loads SIP firmware files for 7971
phone


Router(config-register-global)# create profile ! Generates provisioning file

Router(config-register-global)# exit

To configure Cisco Unified CME with SIP endpoints from the command line, apply the following configuration.

Router(config)# voice register global ! Enters voice configuration mode

Router(config-register-global)# mode cme ! Enables CME mode in the register

Router(config-register-global)# max-pool 100 ! Sets the maximum number of SIP Phones

Router(config-register-global)# max-dn 200 ! Sets the maximum number of directory numbers
(two for each phone)

Router(config-register-global)# source-address 10.0.1.2 port 2000 ! Sets IP address used
for phone registration

Router(config-register-global)# dst auto-adjust ! Enables automatic adjustment of Daylight
Savings Time

Router(config-register-global)# timezone 5 ! Sets time zone to Pacific Standard/Daylight
Time

Router(config-register-global)# voicemail 5444 ! Defines number for speed dialing
voicemail from phone

Router(config-register-global)# ntp-server 172.16.0.60 ! Synchronizes clock on the phones
with the specified NTP server

Router(config-register-global)# exit

Router(config)# telephony-service ! Enters telephony configuration mode

Router(config-telphony)# secondary-dialtone 9 ! Provides dial tone for PSTN calls

Router(config-telphony)# exit

Apply the following configuration to all IP Phones 1 to 100. Set a unique DN number and assign the desired extension to each phone.

Router(config)# voice register dn 1 ! Enters directory configuration mode

Router(config-register-dn)# number 5001! Configures extension number for this directory
number

Router(config-register-dn)# call-forward b2bua busy 5444 ! Forwards calls for a busy
extension to voicemail

Router(config-register-dn)# call-forward b2bua noan 5444 timeout 10 ! Forwards calls for a
no answer extension to voicemail after 10 seconds of running

Router(config-register-dn)# call-forward b2bua mailbox 5444 ! Designates a mailbox at the
end of call forward chaing

Router(config-register-dn)# mwi ! Configures Voicemail indicator

Router(config-register-dn)# exit


Router(config)# voice register pool 1 ! Enters voice register pool configuration mode

Router(config-register-pool)# id mac 00E1.CB13.0395 ! Explicitly identifies the phone

Router(config-register-pool)# type 7960 ! Defines phone type for the SIP phone being
configured. Other types are 7942, 7945, 7961, 7962, 7965, 7971

Router(config-register-pool)# number 1 dn 1! Associates phone 1 with directory number 1

Router(config-register-pool)# exit

Generate a configuration file.

Router(config)# voice register global ! Enters voice register configuration mode

Router(config-register-global)# create profile ! Generates provisioning file

Router(config-register-global)# reset ! Reboots the SIP phone

Router(config-register-global)# exit

Cisco Unified CME with SIP Endpoints: SIP Voice Gateway Implementation

The SIP voice gateway is responsible for connecting the branch VoIP network to the PSTN and to the central site telephony network. The following configuration enables VoIP on the network and sets up SIP dial peers between the branch gateway and the destination telephone networks. IP Phones are configured for SIP signaling.

Router(config)# voice service voip ! Enters voice service configuration mode

Router(config- voi-srv)# allow-connections SIP to h323 ! Enables calls from SIP endpoint
to h323 endpoint

Router(config-voi-srv)# allow-connections SIP to SIP ! Enables calls between SIP endpoints

Cisco Unified CME with SIP Endpoints: Dial Plan Implementation

Ten dial peers were defined for the Streamlined Medium Branch Network: central site, local calls, two 911 emergency services dial peers, voicemail, Auto Attendant, long distance, international calling, and fax pass-through or fax relay. Voice mail, Auto Attendant, and emergency services dial peers are described in the "Cisco Unified CME with SIP Endpoints: Voice Mail and Auto Attendant Integration" section and "Cisco Unified CME with SIP Endpoints: Emergency Services Implementation" section.

To provide automatic dialing without pressing the dial button, apply the following dial plan configuration.

Router(config)# voice register dialplan 1 ! Enters dial plan configuration mode

Router(config-register-dialplan)# type 7940-7960-others ! Specifies all phones

Router(config-register-dialplan)# pattern 1 9......... ! Matches outbound PSTN traffic

Router(config-register-dialplan)# pattern 1 4......... ! Matches central site traffic

Router(config-register-dialplan)# exit


Router(config)# voice register pool 1 ! Enters register configuration mode

Router(config-register-pool)# dialplan 1 ! Assigns dial plan to phones

Router(config-register-pool)# exit ! Assigns dial plan to phones


Router(config)# dial-peer voice 1 voip ! Enters dial peer to central site configuration
mode

Router(config-dial-peer)# session protocol sipv2 ! Enables SIP for voicemail communication

Router(config-dial-peer)# dtmf-relay rtp-nte ! Specifies Network Time Protocol method for
relaying pressed digit tones

Router(config-dial-peer)# destination-pattern 408....... ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# session target ipv4:172.16.200.10 ! Specifies central site dial
peer address

Router(config-dial-peer)# no vad ! Disables voice activity detection

Router(config-peer)# exit


Router(config)# dial-peer voice 2 pots ! Enters dial peer for local area calls
configuration mode

Router(config-dial-peer)# destination-pattern 9....... ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 3 pots ! Enters dial peer for long distance calls
configuration mode

Router(config-dial-peer)# destination-pattern 91.......... ! Specifies area code prefix
for central site dial peer

Router(config-dial-peer)# prefix 1 ! Prefix that the system adds automatically to the dial
string

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 4 pots ! Enters dial peer for international calls
configuration mode

Router(config-dial-peer)# destination-pattern 9011T ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# prefix 011 ! Prefix that the system adds automatically to the
dial string

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit

When calls over the WAN exceed the maximum allocated bandwidth, they are redirected to PSTN.

Router(config)# dial-peer voice 15 pots ! Enters dial peer for PSTN bypass configuration
mode

Router(config-dial-peer)# destination-pattern 408....... ! Specifies destination pattern

Router(config-dial-peer)# port 0/0/23 ! Specifies outgoing/incoming interface for calls

Router(config-dial-peer)# preference 1 ! Sets the dial peer preference order

Router(config-dial-peer)# prefix 408 ! Prefix that the system adds automatically to the
dial string

If you are using fax pass-through, apply the following configuration.

Router(config)# dial-peer voice 6 voip ! Enters dial peer for fax passthrough
configuration mode

Router(config-dial-peer)# session protocol sipv2 ! Enables SIP for voicemail communication

Router(config-dial-peer)# destination-pattern 4085555333 ! Specifies local number of fax
machine

Router(config-dial-peer)# session target ipv4:172.16.200.10 ! Specifies central site dial
peer address

Router(config-dial-peer)# fax protocol pass-through g711ulaw ! Configures fax passthrough
with G.711 codec

Router(config-peer)# exit

If you are using fax relay, apply the following configuration.

Router(config)# dial-peer voice 7 voip ! Enters dial peer for fax relay configuration mode

Router(config-dial-peer)# session protocol sipv2 ! Enables SIP for voicemail communication

Router(config-dial-peer)# destination-pattern 4085555333 ! Specifies local number of fax
machine

Router(config-dial-peer)# session target ipv4:172.16.200.10 ! Specifies central site dial
peer address

Router(config-dial-peer)# fax-relay ecm disable ! Disables fax relay ECM

Router(config-dial-peer)# fax rate 9600 ! Selects fax transmission rate

Router(config-dial-peer)# fax protocol t38 ! Sets the T.38 fax relay protocol

Router(config-dial-peer)# codec g711ulaw ! Configures fax relay with G.711 codec

Router(config-peer)# exit

Cisco Unified CME with SIP Endpoints: CAC Implementation

Resource Reservation Protocol (RSVP) is not supported with Cisco Unified CME. A limited workaround is possible by setting a limit on the number of voice calls that can be placed over the WAN.

Router(config)# dial-peer voice 1 voip ! Enters dial peer to central site configuration
mode

Router(config-dial-peer)# max-con 36! Sets the maximum number of WAN based calls to 36

Router(config-dial-peer)# exit

Cisco Unified CME with SIP Endpoints: Transcoding Implementation

Transcoding compresses and decompresses voice streams to match end device capabilities. Transcoding is required when an incoming voice stream is digitized and compressed (by means of a codec) to save bandwidth and the local device does not support that type of compression. Conferencing is not supported with SIP and Cisco Unified CME.

Router(config)# telephony-service ! Enters telephony configuration mode

Router(config-telephony)# max-ephones 100 ! Sets the maximum number of phones that can
register with Cisco CME

Router(config-telephony)# max-dn 200 ! Sets the maximum number of directory numbers (two
for each phone)

Router(config-telphony)# sdspfarm units 4 ! Specifies number of DSP farms that can
register with SCCP server

Router(config-telphony)# sdspfarm transcode sessions 5 ! Specifies maximum number of
simultaneous transcoding sessions

Router(config-telphony)# sdspfarm tag 3 TRANSCODE ! Creates DSP farm profile

Router(config-telphony)# exit


Router(config)# voice-card 0 ! Enters DSP farm configuration mode

Router(config-voicecard)# dsp services dspfarm ! Enables DSP services

Router(config-voicecard)# exit


Router(config)# dspfarm profile 3 ! Enters DSP farm profile configuration mode

Router(config-dspfarm-profile)# codec g711ulaw ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g711alaw ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729ar8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729abr8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729r8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec pass-through ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# maximum sessions 5 ! Specifies maximum number of
simultaneous sessions supported by this profile

Router(config-dspfarm-profile)# no shutdown

Router(config-dspfarm-profile)# exit

Cisco Unified CME with SIP Endpoints: Music on Hold Implementation

MOH is an audio stream that is played to PSTN and VoIP G.711 or G.729 callers who are placed on hold by phones in a Cisco Unified CME system. This audio stream is intended to reassure callers that they are still connected to their calls.

Router(config)# telephony-service ! Enters telephony configuration mode

Router(config-telephony)# moh music-on-hold.au ! Specifies music on hold file

Router(config-telephony)# exit

Cisco Unified CME with SIP Endpoints: Voice Mail and Auto Attendant Integration

Voice mail is provided by the Cisco Unity Express service module in the Advanced Integration Module 2 (AIM2). The AIM2 module requires the following configuration.

Router(config)# interface Service-Engine 0/1 ! Enters Cisco Unity Express configuration
mode

Router(config-if)# ip address 10.0.2.86 255.255.255.252 ! Assigns ip address to the
service engine router interface

Router(config-if)# service-module ip address 10.0.2.85 255.255.255.252 ! Assigns IP
address to service module internal interface

Router(config-if)# service-module ip default-gateway 10.0.2.86 ! Assigns default gateway
for the service module

Router(config-if)# no shutdown

Router(config-if)# exit

Router(config)# ip route 10.0.2.84 255.255.255.252 Service-Engine 0/1 ! Adds a static
route entry to direct traffic to the module

Configure a dial peer for voice mail, because Cisco Unity Express uses SIP as its signaling protocol.

Router(config)# dial-peer voice 8 voip ! Enters dial peer for voicemail configuration mode

Router(config-dial-peer)# destination-pattern 5444 ! Specifies mailbox extension

Router(config-dial-peer)# session target ipv4:10.0.2.85 ! Specifies voicemail address

Router(config-dial-peer)# session protocol sipv2! Enables SIP for voicemail communication

Router(config-dial-peer)# codec g711ulaw ! Specifies codec for voicemail messages

Router(config-dial-peer)# b2bua ! Enables SIP to SCCP forwarding

Router(config-dial-peer)# dtmf-relay sip-notify ! Specifies DTMF relay method

Router(config-dial-peer)# no vad ! Disables voice activity detection

Router(config-peer)# exit


Router(config)# dial-peer voice 9 voip ! Enters dial peer for autoattendant configuration
mode

Router(config-dial-peer)# destination-pattern 5000 ! Specifies mailbox extension

Router(config-dial-peer)# session target ipv4:10.0.2.85 ! Specifies voicemail address

Router(config-dial-peer)# session protocol sipv2! Enables SIP for voicemail communication

Router(config-dial-peer)# codec g711ulaw ! Specifies codec for voicemail messages

Router(config-dial-peer)# b2bua ! Enables SIP to SCCP forwarding

Router(config-dial-peer)# dtmf-relay sip-notify! Specifies DTMF relay method

Router(config-dial-peer)# no vad ! Disables voice activity detection

Router(config-peer)# exit


Router(config)# sip-ua ! Enters SIP user agent configuration mode

Router(config-sip-ua)# mwi-server ipv4:172.16.0.110 expires 3600 port 5060 transport udp

! Sets Cisco Unified Manager address for providing message wait indicator

Router(config-voi-sip)# exit


Router# service-module Service-Engine 0/1 session ! Sessions into the CUE service module


CUE(config)# ccn application voicemail ! Enters voicemail configuration mode

CUE(config-application)# description "Cisco Voicemail" ! Sets user friendly name for
voicemail application

CUE(config-application)# maxsessions 4 ! Sets maximum number of users concurrently
listening to voicemail

CUE(config-application)# exit


CUE(config)# ccn trigger sip phonenumber 5444 ! Assigns number that will trigger voicemail

CUE(config-trigger)# application voicemail ! Assigns voicemail to the call trigger

CUE(config-trigger)# enabled ! Turns the trigger on

CUE(config-trigger)# maxsessions 4 ! Sets maximum number of users concurrently listening
to voicemail

CUE(config-trigger)# exit

CUE(config)# exit

Create user mailboxes. Repeat the following steps for all users.

CUE# username John create ! Creates mailbox for user John

CUE# configure terminal

CUE(config)# username John phonenumber 5001 ! Assigns mailbox for John to extension

CUE(config)# exit


CUE# configure terminal

CUE(config)# voice mailbox owner John ! Enters configuration mode for voicemail mailbox

CUE(config-mailbox)# description "John's Mailbox" ! Sets user friendly description

CUE(config-mailbox)# enable ! Turns the mailbox on

CUE(config-mailbox)# expiration time 14 ! Sets expiration time for voicemail to two weeks

CUE(config-mailbox)# mailboxsize 600 ! Sets voicemail box size to 10 minutes of messages

CUE(config-mailbox)# messagesize 120 ! Sets maximum message size to 2 minutes

CUE(config-mailbox)# exit

Cisco Unified CME with SIP Endpoints: Emergency Services Implementation

The following is the implementation of emergency number calling for North America. The PRI trunk is used for placing emergency calls.

Router(config)# dial-peer voice 10 pots ! Enters dial peer for emergency calls
configuration mode

Router(config-dial-peer)# destination-pattern 911 ! Specifies North America emergency
number

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 11 pots ! Enters dial peer for local area calls
configuration mode

Router(config-dial-peer)# destination-pattern 9911 ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# prefix 911 ! Prefix that the system adds automatically to the
dial string

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit

Cisco Unified SRST with SCCP Endpoints Implementation

•Cisco Unified SRST with SCCP Endpoints: Telephony Service Setup

•Cisco Unified SRST with SCCP Endpoints: IP Phone Installation and Configuration

•Cisco Unified SRST with SCCP Endpoints: H.323 Voice Gateway Implementation

•Cisco Unified SRST with SCCP Endpoints: Dial Plan Implementation

•Cisco Unified SRST with SCCP Endpoints: RSVP Implementation

•Cisco Unified SRST with SCCP Endpoints: Transcoding and Conferencing Implementation

•Cisco Unified SRST with SCCP Endpoints: Music on Hold Implementation

•Cisco Unified SRST with SCCP Endpoints: Voice Mail and Auto Attendant Integration

•Cisco Unified SRST with SCCP Endpoints: Emergency Services Implementation

Cisco Unified SRST provides Cisco Unified CM with fallback support for Cisco IP Phones that are attached to a Cisco router on a branch network. Cisco Unified SRST enables routers to provide call-handling support for Cisco IP Phones when they lose connection to a remote primary, secondary, or tertiary Cisco Unified CM, or when WAN connection is operationally down.

Cisco Unified SRST with SCCP Endpoints: Telephony Service Setup

Configure Cisco Unified SRST at the central site Cisco Unified CM as shown in Figure 23. The Cisco Unified SRST reference name is used in configuring the Cisco Unified SRST device pool as shown in Figure 24.

Figure 23 Cisco Unified SRST Configuration in Cisco Unified CM

Figure 24 Cisco Unified SRST Device Pool Configuration in Cisco Unified CM

Configure the Cisco Unified SRST fallback mode at the branch router.

Router(config)# call-manager-fallback ! Enters call manager fallback configuration mode

Router(config-cm-fallback)# ip source-address 10.0.1.2 port 2000 ! Sets IP address for
phone registration

Router(config-cm-fallback)# max-dn 480 dual-line ! Sets the maximum number of directory
numbers and configures dual channel

Router(config-cm-fallback)# max-ephones 100 ! Sets the maximum number of IP Phones

Router(config-cm-fallback)# exit

Cisco Unified SRST with SCCP Endpoints: IP Phone Installation and Configuration

In the Streamlined Medium Branch Network, IP Phones are installed by simply connecting them to ports on the access layer switches. Because all the ports offer Power over Ethernet, no additional power cables are necessary. After installation, the phones are configured with a default configuration generated during the telephony setup in the previous section.

Router(config)# clock timezone PST -8 ! Sets the timezone for display on IP Phones

Router(config)# call-manager-fallback ! Enters call manager fallback configuration mode

Router(config-cm-fallback)# user-locale US ! Sets the language for display on IP Phones

Router(config-cm-fallback)# system message primary Your current options ! Sets message for
display on IP Phones

Router(config-cm-fallback)# secondary-dialtone 9 ! Provides dial tone for PSTN calls

Router(config-cm-fallback)# call-forward busy 5444 ! Forwards busy calls to voicemail

Router(config-cm-fallback)# call-forward noan 5444 timeout 10 ! Forwards busy calls to
voicemail after 10 minutes of ringing

Router(config-cm-fallback)# dialplan-pattern 1 408555.... extension-length 4 ! Creates
dialplan pattern that expands extension numbers to full E.164 numbers

Router(config-cm-fallback)# transfer-system full-blind ! Transfers calls without
consultation

Router(config-cm-fallback)# transfer-pattern 9......... ! Allows transfers for all calls
originating from PSTN

Router(config-cm-fallback)# transfer-pattern 4......... ! Allows transfers for all calls
originating in area code starting with "4"

Router(config-cm-fallback)# transfer-system full-consult ! Consults call before transfer
on second line

Router(config-cm-fallback)# call-forward pattern .T ! Allows call forwarding for all calls


Router(config-cm-fallback)# exit

Cisco Unified SRST with SCCP Endpoints: H.323 Voice Gateway Implementation

The following configuration enables VoIP on the network and sets up H.323 dial peers between the branch gateway and the destination telephone network, as shown in Figure 25, Figure 26, and Figure 27.

Figure 25 H.323 Gateway Cisco Unified CM Configuration

Figure 26 H.323 Gateway Cisco Unified CM Configuration 2?

Figure 27 H.323 Gateway Cisco Unified CM Configuration for Cisco Unified SRST Mode

Cisco Unified SRST with SCCP Endpoints: Dial Plan Implementation

Twelve dial peers were defined for the Streamlined Medium Branch Network:

•Central site WAN

•Central site PSTN

•Local calls

•Four 911 emergency services dial peers

•Voice mail

•Auto Attendant

•Long distance

•International calling

•Fax pass through or fax relay

Voice mail and emergency services dial peers are described in the"Cisco Unified SRST with SCCP Endpoints: Voice Mail and Auto Attendant Integration" section and the "Cisco Unified SRST with SCCP Endpoints: Emergency Services Implementation" section.

Router(config)# dial-peer voice 1 pots ! Enters dial peer for central site calls

Router(config-dial-peer)# destination-pattern 5.... ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# prefix 1408555 ! Prefix that the system adds automatically to
the dial string

Router(config-dial-peer)# incoming called-number .T ! Associates dial peer with any
incoming number

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit

When calls over the WAN exceed the maximum allocated bandwidth, they are redirected to PSTN.

Router(config)# dial-peer voice 15 pots ! Enters dial peer for PSTN bypass configuration
mode

Router(config-dial-peer)# destination-pattern 408....... ! Specifies destination pattern

Router(config-dial-peer)# port 0/0/23 ! Specifies outgoing/incoming interface for calls

Router(config-dial-peer)# preference 1 ! Sets the dial peer preference order

Router(config-dial-peer)# prefix 408 ! Prefix that the system adds automatically to the
dial string

Router(config-dial-peer)# exit


Router(config)# dial-peer voice 2 voip ! Enters dial peer to central site configuration
mode

Router(config-dial-peer)# dtmf-relay h245-alphanumeric ! Specifies H.245 method for
relaying pressed digit tones

Router(config-dial-peer)# destination-pattern 408....... ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# session target ipv4:172.16.200.10 ! Specifies central site dial
peer address

Router(config-peer)# exit


Router(config)# dial-peer voice 3 pots ! Enters dial peer for local area calls
configuration mode

Router(config-dial-peer)# destination-pattern 9....... ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 4 pots ! Enters dial peer for long distance calls
configuration mode

Router(config-dial-peer)# destination-pattern 91.......... ! Specifies area code prefix
for central site dial peer

Router(config-dial-peer)# prefix 1 ! Prefix that the system adds automatically to the dial
string

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 5 pots ! Enters dial peer for international calls
configuration mode

Router(config-dial-peer)# destination-pattern 9011T ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# prefix 011 ! Prefix that the system adds automatically to the
dial string

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit

If using fax pass-through, apply the following configuration.

Router(config)# dial-peer voice 6 voip ! Enters dial peer for fax passthrough
configuration mode

Router(config-dial-peer)# destination-pattern 4085555333 ! Specifies local number of fax
machine

Router(config-dial-peer)# session target ipv4:172.16.200.10 ! Specifies central site dial
peer address

Router(config-dial-peer)# fax protocol pass-through g711ulaw ! Configures fax passthrough
with G.711 codec

Router(config-peer)# exit

If using fax relay, apply the following configuration.

Router(config)# dial-peer voice 7 voip ! Enters dial peer for fax relay configuration mode

Router(config-dial-peer)# destination-pattern 4085555333 ! Specifies local number of fax
machine

Router(config-dial-peer)# session target ipv4:172.16.200.10 ! Specifies central site dial
peer address

Router(config-dial-peer)# fax-relay ecm disable ! Disables fax relay ECM

Router(config-dial-peer)# fax rate 9600 ! Selects fax transmission rate

Router(config-dial-peer)# fax protocol t38 ! Sets the T.38 fax relay protocol

Router(config-dial-peer)# codec g711ulaw ! Configures fax relay with G.711 codec

Router(config-peer)# exit

Cisco Unified SRST with SCCP Endpoints: RSVP Implementation

The following implementation applies to Cisco Unified SRST branch voice deployments. Use the following commands on the tunnel interface for DMVPN, WAN primary, and on the WAN interface for GETVPN.

Note On the four T1 WAN links, the maximum bandwidth that can be managed by RSVP is 4550 kp/s.

Router(config)# interface Tunnel 1 ! Enters tunnel interface configuration mode

Router(config-if)# ip rsvp bandwidth 8112 ! Sets maximum allowed bandwidth for voice (see
Table 20) plus video (512 kb/s)

Router(config-if)# ip rsvp data-packet classification none ! Turns off per-packet data
processing

Router(config-if)# ip rsvp resource-provider none ! Specifies no resource provider for the
traffic flows

Router(config-if)# ip rsvp policy local identity RSVP-VOICE ! Creates RSVP policy for
voice

Router(config-rsvp-local-policy)# maximum bandwidth group 7600! Sets maximum bandwidth for
voice

Router(config-rsvp-local-policy)# forward all ! Forwards all traffic for this policy

Router(config-rsvp-local-policy)# exit

Router(config-if)# ip rsvp policy local identity RSVP-VIDEO ! Creates RSVP policy for
video

Router(config-rsvp-local-policy)# maximum bandwidth group 512 ! Sets maximum bandwidth for
video

Router(config-rsvp-local-policy)# forward all ! Forwards all traffic for this policy

Router(config-rsvp-local-policy)# exit

Router(config-if)# ip rsvp policy local default ! Default policy for traffic that does not
matchin above identifiers

Router(config-if)# exit


Router(config)# ip rsvp policy identity RSVP-VIDEO policy-locator .*VideoStream.* !
Creates a policy for matching video traffic

Router(config)# ip rsvp policy identity RSVP-VOICE policy-locator .*AudioStream.* !
Creates a policy for matching voice traffic

Router(config)# ip rsvp policy preempt ! Enables preempting of lower reservation by higher
reservation

The RSVP policy must be applied on the voice VLAN interface.

Branch(config)# interface GigabitEthernet0/1.2 ! Enters gigabit Ethernet sub-interface 2
configuration mode

Router(config-if)# ip rsvp bandwidth ! Enables RSVP on the interface

Router(config-if)# exit

Cisco Unified SRST with SCCP Endpoints: Transcoding and Conferencing Implementation

Transcoding compresses and decompresses voice streams to match end device capabilities. Transcoding is required when an incoming voice stream is digitized and compressed (by means of a codec) to save bandwidth and the local device does not support that type of compression.

Router(config)# call-manager-fallback ! Enters call manager fallback configuration mode

Router(config-cm-fallback)# max-conferences 3 ! Specifies the maximum number of
simultaneous conferences

Router(config-cm-fallback)# exit


Router(config)# voice-card 0 ! Enters DSP farm configuration mode

Router(config-voicecard)# dsp services dspfarm ! Enables DSP services

Router(config-voicecard)# exit

Router(config)# sccp local GigabitEthernet0/1.2 ! Sets the interface for conferencing and
transcoding to register with CME

Router(config)# sccp ccm  10.0.1.2 identifier 1 version 5.0.1 ! Associates conferencing
and transcoding with CME

Router(config)# sccp ! Enables SCCP globally

Router(config)# sccp ccm group 1 ! Creates SCCP group and enters SCCP configuration mode

Router(config-sccp-ccm)# associate ccm 1 priority 1 ! Associates SCCP group 1 with CME

Router(config-sccp-ccm)# associate profile 3 register CONFERENCE ! Associates DSP farm
profile with with a SCCP group

Router(config-sccp-ccm)# associate profile 2 register TRANSCODE ! Associates DSP farm
profile with with a SCCP group

Router(config-sccp-ccm)# exit


Router(config)# dspfarm profile 2 transcode ! Enters DSP farm profile configuration mode

Router(config-dspfarm-profile)# codec g711ulaw ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g711alaw ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729ar8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729abr8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729r8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec pass-through ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# maximum sessions 5 ! Specifies maximum number of
simultaneous sessions supported by this profile

Router(config-dspfarm-profile)# associate application sccp ! Associates SCCP with this DSP
farm profile

Router(config-dspfarm-profile)# no shutdown

Router(config-dspfarm-profile)# exit


Router(config)# dspfarm profile 3 conference ! Enters DSP farm profile configuration mode

Router(config-dspfarm-profile)# codec g711ulaw ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g711alaw ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729ar8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729abr8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729r8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729br8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# maximum sessions 3 ! Specifies maximum number of
simultaneous sessions supported by this profile

Router(config-dspfarm-profile)# associate application sccp ! Associates SCCP with this DSP
farm profile

Router(config-dspfarm-profile)# no shutdown

Router(config-dspfarm-profile)# exit

Transcoding and conferencing are configured on the remote Cisco Unified CM as shown in Figure 28 and Figure 29.

Figure 28 Transcoding Configuration for Cisco Unified SRST Mode

Figure 29 Conferencing Configuration for Cisco Unified SRST Mode

Cisco Unified SRST with SCCP Endpoints: Music on Hold Implementation

Music on hold (MOH) is an audio stream that is played to PSTN and VoIP G.711 or G.729 callers who are placed on hold by phones in a Cisco Unified CME system. This audio stream is intended to reassure callers that they are still connected to their calls.

Router(config)# call-manager-fallback ! Enters call manager fallback configuration mode

Router(config-cm-fallback)# moh music-on-hold.au ! Specifies music on hold file

Router(config-cm-fallback)# multicast moh 239.1.1.1 port 16384 ! Uses multicast for MoH

Router(config-cm-fallback)# exit

Cisco Unified SRST with SCCP Endpoints: Voice Mail and Auto Attendant Integration

Voice mail is provided by the Cisco Unity Express service module in the Advanced Integration Module 2 (AIM2). The AIM2 module requires the following configuration.

Router(config)# interface service-engine 0/1 ! Enters Cisco Unity Express configuration
mode

Router(config-if)# ip address 10.0.2.86 255.255.255.252 ! Assigns ip address to the
service engine router interface

Router(config-if)# service-module ip address 10.0.2.85 255.255.255.252 ! Assigns IP
address to service module internal interface

Router(config-if)# service-module ip default-gateway 10.0.2.86 ! Assigns default gateway
for the service module

Router(config-if)# zone-member security Private ! Assigns Cisco Unity Express to private
security zoneRouter(config-if)# no shutdown

Router(config-if)# exit

Router(config)# ip route 10.0.2.84 255.255.255.252 Service-Engine 0/1 ! Adds a static
route entry to direct traffic to the module

Configure a dial peer for voice mail because Cisco Unity Express uses SIP as its signaling protocol.

Router(config)# dial-peer voice 8 voip ! Enters dial peer for voicemail configuration mode

Router(config-dial-peer)# destination-pattern 5444 ! Specifies mailbox extension

Router(config-dial-peer)# session target ipv4:10.0.2.85 ! Specifies voicemail address

Router(config-dial-peer)# session protocol sipv2! Enables SIP for voicemail communication

Router(config-dial-peer)# codec g711ulaw ! Specifies codec for voicemail messages

Router(config-dial-peer)# b2bua ! Enables SIP to SCCP forwarding

Router(config-dial-peer)# dtmf-relay sip-notify! Specifies DTMF relay method

Router(config-dial-peer)# no vad ! Disables voice activity detection

Router(config-peer)# exit


Router(config)# dial-peer voice 9 voip ! Enters dial peer for autoattendant configuration
mode

Router(config-dial-peer)# destination-pattern 5000 ! Specifies mailbox extension

Router(config-dial-peer)# session target ipv4:10.0.2.85 ! Specifies voicemail address

Router(config-dial-peer)# session protocol sipv2! Enables SIP for voicemail communication

Router(config-dial-peer)# codec g711ulaw ! Specifies codec for voicemail messages

Router(config-dial-peer)# b2bua ! Enables SIP to SCCP forwarding

Router(config-dial-peer)# dtmf-relay sip-notify! Specifies DTMF relay method

Router(config-dial-peer)# no vad ! Disables voice activity detection

Router(config-peer)# exit

The local Cisco Unity Express software must be registered with the Cisco Unified CM software at the central site. The following reference provides implementation details:

http://cisco.com/en/US/products/sw/voicesw/ps5520/products_configuration_example09186a0080289ef0.shtml

Additional Cisco Unity Express configuration is performed through a web-based user interface, as shown in Figure 17 through Figure 22.

Cisco Unified SRST with SCCP Endpoints: Emergency Services Implementation

The following provides implementation of emergency number calling for North America. The PRI trunk is used to place emergency calls. Each 911 call is selectively routed to the closest Public Safety Answering Point (PSAP), based on the caller's location. In addition, the caller's phone number and address automatically display on a terminal at the PSAP. The PSAP can quickly dispatch emergency help, even if the caller is unable to communicate the caller's location. Also, if the caller disconnects prematurely, the PSAP has the information it needs to contact the 911 caller.

Router(config)# voice emergency response location 1 ! Enters emergency response
configuration mode

Router(cfg-emrgncy-resp-location)# elin 1 4085555150 ! Specifies ELIN number provided by
PSAP

Router(cfg-emrgncy-resp-location)# name Bdlg 22, Floor 2 ! Internal location name

Router(cfg-emrgncy-resp-location)# subnet 1 10.0.1.0 255.255.255.0 ! Assigns Voice VLAN
subnet as origination of the emergency call

Router(cfg-emrgncy-resp-location)# subnet 2 10.0.4.0 255.255.255.0 ! Assigns backup Voice
VLAN subnet as origination of the emergency call

Router(cfg-emrgncy-resp-location)# exit


Router(config)# dial-peer voice 10 pots ! Enters dial peer for emergency calls
configuration mode

Router(config-dial-peer)# emergency response zone ! Replaces local extension with ELIN
number

Router(config-dial-peer)# destination-pattern 911 ! Specifies North America emergency
number

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 11 pots ! Enters dial peer for local area calls
configuration mode

Router(config-dial-peer)# emergency response zone ! Replaces local extension with ELIN
number

Router(config-dial-peer)# destination-pattern 9911 ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# prefix 911 ! Prefix that the system adds automatically to the
dial string

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 12 pots ! Enters dial peer for ELIN callback configuration
mode

Router(config-dial-peer)# incoming called-number 4085555150 ! Specifies ELIN number

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# emergency response callback ! Identifies the ELIN dial peer

Router(config-peer)# exit


Router(config)# dial-peer voice 13 pots ! Enters dial peer for ELIN callback configuration
mode

Router(config-dial-peer)# incoming called-number 4085555150 ! Specifies ELIN number

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# emergency response callback ! Identifies the ELIN dial peer

Router(config-peer)# exit

Cisco Unified SRST with SIP Endpoints Implementation

•Cisco Unified SRST with SIP Endpoints: Telephony Service Setup

•Cisco Unified SRST with SIP Endpoints: Cisco Unified SRST Fallback Mode at the Branch Router

•Cisco Unified SRST with SIP Endpoints: IP Phone Installation and Configuration

•Cisco Unified SRST with SIP Endpoints: SIP Voice Gateway Implementation

•Cisco Unified SRST with SIP Endpoints: Dial Plan Implementation

•Cisco Unified SRST with SIP Endpoints: RSVP Implementation

•Cisco Unified SRST with SIP Endpoints: Transcoding and Conferencing Implementation

•Cisco Unified SRST with SIP Endpoints: Music on Hold Implementation

•Cisco Unified SRST with SIP Endpoints: Voice Mail and Auto Attendant Integration

•Cisco Unified SRST with SIP Endpoints: Emergency Services Implementation

Cisco Unified SRST provides Cisco Unified CM with fallback support for Cisco IP Phones that are attached to a Cisco router on a branch network. Cisco Unified SRST enables routers to provide call-handling support for Cisco IP Phones when they lose connection to a remote primary, secondary, or tertiary Cisco Unified CM, or when WAN connection is operationally down.

Cisco Unified SRST with SIP Endpoints: Telephony Service Setup

Configure the Cisco Unified SRST at Cisco Unified CM of the central site, as shown in Figure 30. The Cisco Unified SRST reference name is used in configuring Cisco Unified SRST device pools as shown in Figure 31.

Figure 30 Cisco Unified SRST Configuration in Cisco Unified CM

Figure 31 Cisco Unified SRST Device Pool Configuration in Cisco Unified CM

Cisco Unified SRST with SIP Endpoints: Cisco Unified SRST Fallback Mode at the Branch Router

Router(config)# voice register global ! Enters voice configuration mode

Router(config-register-global)# max-pool 100 ! Sets the maximum number of SIP Phones

Router(config-register-global)# max-dn 200 ! Sets the maximum number of directory numbers
(two for each phone)

Router(config-register-global)# system message Your current options ! Sets message for
display on IP Phones

Router(config-register-global)# dialplan-pattern 1 4085555... extension-length 4 ! Creates
dial plan pattern that expands extension numbers to full E.164 numbers

Router(config-register-global)# exit


Router(config)# voice register pool 1 ! Enters voice register pool configuration mode

Router(config-register-pool)# id network 10.0.1.0 255.255.255.0 ! Identifies Voice VLAN
with SIP Phones

Router(config-register-pool)# proxy 172.16.0.20 preference 1 monitor probe icmp-ping !
Defines remote proxy dial peer and method to monitor the state of the peer

Router(config-register-pool)# call-forward b2bua busy 5444 ! Forwards busy calls to
voicemail

Router(config-register-pool)# call-forward b2bua noan 5444 timeout 10 ! Forwards busy
calls to voicemail after 10 minutes of ringing

Router(config-register-pool)# codec g711ulaw ! Sets the codec for local calls

Router(config-register-pool)# exit

Cisco Unified SRST with SIP Endpoints: IP Phone Installation and Configuration

In Cisco Unified SRST mode, the Cisco Unified CM controls IP Phone firmware installation and configuration.

Cisco Unified SRST with SIP Endpoints: SIP Voice Gateway Implementation

The following configuration enables VoIP on the network and sets up SIP dial peers between the branch gateway and the destination telephone networks, as shown in Figure 32, Figure 33, and Figure 34.

Figure 32 SIP Trunk Cisco Unified CM Configuration (1 of 3)

Figure 33 SIP Trunk Cisco Unified CM Configuration (2 of 3)

Figure 34 SIP Trunk Cisco Unified CM Configuration (3 of 3)

Cisco Unified SRST with SIP Endpoints: Dial Plan Implementation

Twelve dial peers were defined for the Streamlined Medium Branch Network: central site WAN, central site PSTN, local calls, four 911 emergency services dial peers, voice mail, auto attendant, long distance, international calling and fax pass-through or fax relay. Voice mail, auto attendant and emergency services dial peers are described in the "Cisco Unified SRST with SIP Endpoints: Voice Mail and Auto Attendant Integration" section and in the "Cisco Unified SRST with SIP Endpoints: Emergency Services Implementation" section.

Router(config)# dial-peer voice 1 pots ! Enters dial peer for central site calls

Router(config-dial-peer)# destination-pattern 5.... ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# prefix 1408555 ! Prefix that the system adds automatically to
the dial string

Router(config-dial-peer)# incoming called-number .T ! Associates dial peer with any
incoming number

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 2 voip ! Enters dial peer to central site configuration
mode

Router(config-dial-peer)# session protocol sipv2! Enables SIP for voicemail communication

Router(config-dial-peer)# dtmf-relay rtp-nte ! Specifies Network Time Protocol method for
relaying pressed digit tones

Router(config-dial-peer)# destination-pattern 408....... ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# session target ipv4:172.16.200.10 ! Specifies central site dial
peer address

Router(config-dial-peer)# no vad ! Disables voice activity detection

Router(config-peer)# exit


Router(config)# dial-peer voice 3 pots ! Enters dial peer for local area calls
configuration mode

Router(config-dial-peer)# destination-pattern 9....... ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 4 pots ! Enters dial peer for long distance calls
configuration mode

Router(config-dial-peer)# destination-pattern 91.......... ! Specifies area code prefix
for central site dial peer

Router(config-dial-peer)# prefix 1 ! Prefix that the system adds automatically to the dial
string

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 5 pots ! Enters dial peer for international calls
configuration mode

Router(config-dial-peer)# destination-pattern 9011T ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# prefix 011 ! Prefix that the system adds automatically to the
dial string

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit

When calls over the WAN exceed the maximum allocated bandwidth, they are redirected to PSTN.

Router(config)# dial-peer voice 15 pots ! Enters dial peer for PSTN bypass configuration
mode

Router(config-dial-peer)# destination-pattern 408....... ! Specifies destination pattern

Router(config-dial-peer)# port 0/0/23 ! Specifies outgoing/incoming interface for calls

Router(config-dial-peer)# preference 1 ! Sets the dial peer preference order

Router(config-dial-peer)# prefix 408 ! Prefix that the system adds automatically to the
dial string

If using fax pass-through, apply the following configuration.

Router(config)# dial-peer voice 6 voip ! Enters dial peer for fax passthrough
configuration mode

Router(config-dial-peer)# session protocol sipv2! Enables SIP for voicemail communication

Router(config-dial-peer)# destination-pattern 4085555333 ! Specifies local number of fax
machine

Router(config-dial-peer)# session target ipv4:172.16.200.10 ! Specifies central site dial
peer address

Router(config-dial-peer)# fax protocol pass-through g711ulaw ! Configures fax passthrough
with G.711 codec

Router(config-peer)# exit

If using fax relay, apply the following configuration.

Router(config)# dial-peer voice 7 voip ! Enters dial peer for fax relay configuration mode

Router(config-dial-peer)# session protocol sipv2! Enables SIP for voicemail communication

Router(config-dial-peer)# destination-pattern 4085555333 ! Specifies local number of fax
machine

Router(config-dial-peer)# session target ipv4:172.16.200.10 ! Specifies central site dial
peer address

Router(config-dial-peer)# fax-relay ecm disable ! Disables fax relay ECM

Router(config-dial-peer)# fax rate 9600 ! Selects fax transmission rate

Router(config-dial-peer)# fax protocol t38 ! Sets the T.38 fax relay protocol

Router(config-dial-peer)# codec g711ulaw ! Configures fax relay with G.711 codec

Router(config-peer)# exit

Cisco Unified SRST with SIP Endpoints: RSVP Implementation

The following implementation applies to Cisco Unified SRST branch voice deployments. Apply the following commands on the tunnel interface for DMVPN, WAN primary, and for the WAN interface for GETVPN.

Router(config)# interface Tunnel 1 ! Enters tunnel interface configuration mode

Router(config-if)# ip rsvp bandwidth 8112 ! Sets maximum allowed bandwidth for voice (see
Table 18) plus video (512 Mbps)

Router(config-if)# ip rsvp data-packet classification none ! Turns off per-packet data
processing

Router(config-if)# ip rsvp resource-provider none ! Specifies no resource provider for the
traffic flows

Router(config-if)# ip rsvp policy local identity RSVP-VOICE ! Creates RSVP policy for
voice

Router(config-rsvp-local-policy)# maximum bandwidth group 7600 ! Sets maximum bandwidth
for voice

Router(config-rsvp-local-policy)# forward all ! Forwards all traffic for this policy

Router(config-rsvp-local-policy)# exit

Router(config-if)# ip rsvp policy local identity RSVP-VIDEO ! Creates RSVP policy for
video

Router(config-rsvp-local-policy)# maximum bandwidth group 512 ! Sets maximum bandwidth for
video

Router(config-rsvp-local-policy)# forward all ! Forwards all traffic for this policy

Router(config-rsvp-local-policy)# exit

Router(config-if)# ip rsvp policy local default ! Default policy for traffic that does not
match in above identifiers

Router(config-if)# exit


Router(config)# ip rsvp policy identity RSVP-VIDEO policy-locator .*VideoStream.* !
Creates a policy for matching video traffic

Router(config)# ip rsvp policy identity RSVP-VOICE policy-locator .*AudioStream.* !
Creates a policy for matching voice traffic

Router(config)# ip rsvp policy preempt ! Enables preempting of lower reservation by higher
reservation

The RSVP policy must be applied on the voice VLAN interface.

Branch(config)# interface GigabitEthernet0/1.2 ! Enters gigabit Ethernet sub-interface 2
configuration mode

Router(config-if)# ip rsvp bandwidth ! Enables RSVP on the interface

Router(config-if)# exit

Cisco Unified SRST with SIP Endpoints: Transcoding and Conferencing Implementation

Transcoding compresses and decompresses voice streams to match end device capabilities. Transcoding is required when an incoming voice stream is digitized and compressed (by means of a codec) to save bandwidth and the local device does not support that type of compression. Transcoding and conferencing are configured on the Cisco Call Manager of the central site, as shown in Figure 35 and Figure 36.

Router(config)# voice-card 0 ! Enters DSP farm configuration mode

Router(config-voicecard)# dsp services dspfarm ! Enables DSP services

Router(config-voicecard)# exit

Router(config)# sccp local GigabitEthernet0/1.2 ! Sets the interface for conferencing and
transcoding to register with CME

Router(config)# sccp ccm  10.0.1.2 identifier 1 version 5.0.1 ! Associates conferencing
and transcoding with CME

Router(config)# sccp ! Enables SCCP globally

Router(config)# sccp ccm group 1 ! Creates SCCP group and enters SCCP configuration mode

Router(config-sccp-ccm)# associate ccm 1 priority 1 ! Associates SCCP group 1 with CME

Router(config-sccp-ccm)# associate ccm 2 priority 2 ! Associates SCCP group 2 with CME

Router(config-sccp-ccm)# associate profile 3 register CONFERENCE ! Associates DSP farm
profile with with a SCCP group

Router(config-sccp-ccm)# associate profile 2 register TRANSCODE ! Associates DSP farm
profile with with a SCCP group

Router(config-sccp-ccm)# exit


Router(config)# dspfarm profile 2 transcode ! Enters DSP farm profile configuration mode

Router(config-dspfarm-profile)# codec g711ulaw ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g711alaw ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729ar8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729abr8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729r8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec pass-through ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# maximum sessions 5 ! Specifies maximum number of
simultaneous sessions supported by this profile

Router(config-dspfarm-profile)# associate application sccp ! Associates SCCP with this DSP
farm profile

Router(config-dspfarm-profile)# no shutdown

Router(config-dspfarm-profile)# exit


Router(config)# dspfarm profile 3 conference ! Enters DSP farm profile configuration mode

Router(config-dspfarm-profile)# codec g711ulaw ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g711alaw ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729ar8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729abr8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729r8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# codec g729br8 ! Specifies codec supported by DSP farm

Router(config-dspfarm-profile)# maximum sessions 3 ! Specifies maximum number of
simultaneous sessions supported by this profile

Router(config-dspfarm-profile)# associate application sccp ! Associates SCCP with this DSP
farm profile

Router(config-dspfarm-profile)# no shutdown

Router(config-dspfarm-profile)# exit

Figure 35 Transcoding Configuration for Cisco Unified SRST Mode

Figure 36 Conferencing Configuration for Cisco Unified SRST Mode

Cisco Unified SRST with SIP Endpoints: Music on Hold Implementation

Music on hold (MOH) is implemented at the Unified Call Manager at the central site. Please see the following instructions to implement MOH in Cisco Unified CM:

http://www.cisco.com/en/US/docs/voice_ip_comm/cucm/admin/6_1_1/ccmfeat/fsmoh.html

Cisco Unified SRST with SIP Endpoints: Voice Mail and Auto Attendant Integration

Voice mail is provided by the Cisco Unity Express service module in the Advanced Integration Module 2 (AIM2). The AIM2 module requires the following configuration.

Router(config)# interface Service-Engine 0/1 ! Enters Cisco Unity Express configuration
mode

Router(config-if)# ip address 10.0.2.86 255.255.255.252 ! Assigns IP address to the
service engine router interface

Router(config-if)# service-module ip address 10.0.2.85 255.255.255.252 ! Assigns IP
address to service module internal interface

Router(config-if)# service-module ip default-gateway 10.0.2.86 ! Assigns default gateway
for the service module

Router(config-if)# zone-member security Private ! Assigns Cisco Unity Express to private
security zone

Router(config-if)# no shutdown

Router(config-if)# exit

Router(config)# ip route 10.0.2.84 255.255.255.252 Service-Engine 0/1 ! Adds a static
route entry to direct traffic to the module

Configure a dial peer for voice mail, because Cisco Unity Express uses SIP as its signaling protocol.

Router(config)# dial-peer voice 8 voip ! Enters dial peer for voicemail configuration mode

Router(config-dial-peer)# destination-pattern 5444 ! Specifies mailbox extension

Router(config-dial-peer)# session target ipv4:10.0.2.85 ! Specifies voicemail address

Router(config-dial-peer)# session protocol sipv2 ! Enables SIP for voicemail communication

Router(config-dial-peer)# codec g711ulaw ! Specifies codec for voicemail messages

Router(config-dial-peer)# b2bua ! Enables SIP to SCCP forwarding

Router(config-dial-peer)# dtmf-relay sip-notify ! Specifies DTMF relay method

Router(config-dial-peer)# no vad ! Disables voice activity detection

Router(config-peer)# exit


Router(config)# dial-peer voice 9 voip ! Enters dial peer for autoattendant configuration
mode

Router(config-dial-peer)# destination-pattern 5000 ! Specifies mailbox extension

Router(config-dial-peer)# session target ipv4:10.0.2.85 ! Specifies voicemail address

Router(config-dial-peer)# session protocol sipv2 ! Enables SIP for voicemail communication

Router(config-dial-peer)# codec g711ulaw ! Specifies codec for voicemail messages

Router(config-dial-peer)# b2bua ! Enables SIP to SCCP forwarding

Router(config-dial-peer)# dtmf-relay sip-notify ! Specifies DTMF relay method

Router(config-dial-peer)# no vad ! Disables voice activity detection

Router(config-peer)# exit

The local Cisco Unity Express software must be registered with Cisco Unified CM software at the central site. The following reference provides implementation details:

http://cisco.com/en/US/products/sw/voicesw/ps5520/products_configuration_example09186a0080289ef0.shtml

Additional Cisco Unity Express configuration is performed through a web-based user interface, as shown in Figure 17 through Figure 22.

Cisco Unified SRST with SIP Endpoints: Emergency Services Implementation

The following example implements emergency number calling for North America. The PRI trunk is used for placing emergency calls. Each 911 call is selectively routed to the closest PSAP based on the caller's location. In addition, the caller's phone number and address automatically display on a terminal at the PSAP. The PSAP can quickly dispatch emergency help, even if the caller is unable to communicate the caller's location. Also, if the caller disconnects prematurely, the PSAP has the information it needs to contact the 911 caller.

Router(config)# voice emergency response location 1 ! Enters emergency response
configuration mode

Router(cfg-emrgncy-resp-location)# elin 1 4085555150 ! Specifies ELIN number provided by
PSAP

Router(cfg-emrgncy-resp-location)# subnet 1 10.0.1.0 255.255.255.0 ! Assigns Voice VLAN
subnet as origination of the emergency call

Router(cfg-emrgncy-resp-location)# subnet 2 10.0.4.0 255.255.255.0 ! Assigns backup Voice
VLAN subnet as origination of the emergency call


Router(cfg-emrgncy-resp-location)# exit


Router(config)# dial-peer voice 10 pots ! Enters dial peer for emergency calls
configuration mode

Router(config-dial-peer)# emergency response zone ! Replaces local extension with ELIN
number

Router(config-dial-peer)# destination-pattern 911 ! Specifies North America emergency
number

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 11 pots ! Enters dial peer for local area calls
configuration mode

Router(config-dial-peer)# emergency response zone ! Replaces local extension with ELIN
number

Router(config-dial-peer)# destination-pattern 9911 ! Specifies area code prefix for
central site dial peer

Router(config-dial-peer)# prefix 911 ! Prefix that the system adds automatically to the
dial string

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# port 0/0/0:23 ! Specifies outgoing/incoming interface for calls

Router(config-peer)# exit


Router(config)# dial-peer voice 12 pots ! Enters dial peer for ELIN callback configuration
mode

Router(config-dial-peer)# incoming called-number 4085555150 ! Specifies ELIN number

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# emergency response callback ! Identifies the ELIN dial peer

Router(config-peer)# exit


Router(config)# dial-peer voice 13 pots ! Enters dial peer for ELIN callback configuration
mode

Router(config-dial-peer)# incoming called-number 4085555150 ! Specifies ELIN number

Router(config-dial-peer)# direct-inward-dial ! Enables DID numbers

Router(config-dial-peer)# emergency response callback ! Identifies the ELIN dial peer

Router(config-peer)# exit

Optimization Services Implementation

•Cisco WAAS Implementation

•Router and Cisco WAE Module Configuration

•Additional Cisco WAE-Application Accelerator Configuration

•Cisco WAE-Central Manager Implementation

Cisco WAAS Implementation

In the Streamlined Medium Branch Network, the Cisco NME-WAE-502 network module was used to optimize the Common Internet File System (CIFS), FTP, and HTTP traffic.

Two types of configuration are applied to devices that run Cisco Wide Area Application Services (Cisco WAAS):

•Router and Cisco WAE module configuration

•Central manager configuration

After the router and module configurations are complete, the Cisco Wide Area Application Engine (Cisco WAE) module can be registered with the central manager. Registration with the central manager requires that all router configuration steps be complete, and that the Cisco WAE be able to connect to the central manager. After the Cisco WAE has been registered and activated with the central manager, all additional configuration options can be set through the central manager device groups.

The central manager configuration provides the remaining configuration for the entire Cisco WAAS deployment. The central manager configuration options can be applied at the device or device group level. To simplify the deployment and management of the Cisco WAAS solution, the Streamlined Medium Branch Network uses device groups as the primary central manager configuration method.

Router and Cisco WAE Module Configuration

The router provides Cisco Web Cache Communication Protocol (Cisco WCCP) interception points for Cisco WAAS. Cisco WCCP redirection allows the router to redirect traffic to Cisco WAAS for optimization. Various methods of interception and redirection are supported by routers and switches. Redirection methods depend on the speed requirements and the router or switch platform. This deployment uses both generic router encapsulation (GRE) redirection and Layer 2 (L2) redirection.

The loopback interface on the router is essential for identifying the router ID. Although any IP address can be used to identify the router ID, the loopback interface is preferred over the physical interfaces. Loopback interfaces are always available, and there are no physical ties to them. Other routing protocols also use loopback interfaces as the preferred method for naming the router ID. If the IP address is tied to a specific physical interface, and the physical interface fails, then the IP address becomes unavailable, causing unexpected problems for the Cisco WCCP groups.

The Cisco WCCPv2 services 61 and 62, also known as TCP promiscuous mode services, allow the Cisco WCCP to transparently intercept and redirect traffic to the Cisco WAE module. Service 61 redirects ingress traffic, and service 62 redirects egress traffic. Services 61 and 62 are both needed to redirect bidirectional traffic flow. Passwords should be assigned to Cisco WCCP groups to prevent rogue traffic interception and redirection.

Branch(config)# ip wccp 61 ! Enables WCCP services

Branch(config)# ip wccp 62 ! Enables WCCP services

Branch(config)# ip inspect WAAS enable ! Enables inspection of packets coming from WAE

Branch(config)# interface Integrated-Service-Engine 1/0 ! Enters WAE module configuration
mode

Branch(config-if)# ip address 10.0.2.90 255.255.255.252 ! Assigns IP address to the
backplane interface

Branch(config-if)# ip wccp redirect exclude in ! Excludes packets received on this
interface from redirection to prevent a traffic loop

Branch(config-if)# zone-member security Private ! Assigns the interface to a private zone

Branch(config-if)# service-module ip address 10.0.2.89 255.255.255.252 ! Assigns IP
address to service module internal interface

Branch(config-if)# service-module ip default-gateway 10.0.2.90 ! Assigns default gateway
for the service module

Branch(config-if)# no keepalive ! Disables keep alive for the interface

Branch(config-if)# exit

Router(config)# ip route 10.0.2.88 255.255.255.252 Integrated-Service-Engine 1/0 ! Adds a
static route entry to direct traffic to the module

Apply WCCP redirection on WAN, Tunnel, and LAN interfaces

Branch(config)# interface Serial3/0.1 point-to-point ! Enters Tunnel interface
configuration mode

Branch(config)# ip wccp 62 redirect in ! Enables WCCP redirection on the WAN interface


Branch(config)# interface Tunnel1 ! Enters Tunnel interface configuration mod

Branch(config)# ip wccp 62 redirect in ! Enables WCCP redirection on the Tunnel interface


Branch(config)# interface GigabitEthernet0/1.1 ! Enters Tunnel interface configuration
mode

Branch(config)# ip wccp 61 redirect in ! Enables WCCP redirection on the Tunnel interface

Configurations for LAN, WAN, and tunnel interfaces are provided in the "WAN Services Implementation" section, the "LAN Services Implementation" section, and the "Security Services Implementation" section.

Additional Cisco WAE-Application Accelerator Configuration

Additional commands are necessary to complete the Cisco WAE implementation.

Router(config)# service-module integrated-Service-Engine 1/0 session ! Sessions into the
WAE service module

Trying 10.0.2.90, 2066 ... Open




Cisco Wide Area Application Engine Console


Username: admin

Password:

System Initialization Finished.

WAE(config)# device mode application-accelerator ! Sets the WAE module to application
acceleration mode (the default)

WAE(config)# primary-interface GigabitEthernet 1/0 ! Sets the primary interface for
traffic interception and delivery

WAE(config)# ip name-server 172.16.0.70 ! Assigns central site DNS server for the module

WAE(config)# ntp server 172.16.0.60 ! Assigns central site NTP server for the module

WAE(config)# central-manager address 172.16.100.1 ! Assigns the Central Manager for the
module

WAE(config)# wccp router-list 1 10.0.2.90 ! Adds the router to the WCCPv2 router list

WAE(config)# wccp tcp-promiscuous router-list-num 1 ! Enables TCP promiscuous mode to
accept all traffic on the router's primary interface

The Cisco WCCP configuration for TCP promiscuous mode services 61 and 62 succeeded. The Cisco WCCP configuration for TCP promiscuous mode services succeeded. Remember to configure Cisco WCCP services 61 and 62 on the corresponding router.

WAE(config)# wccp version 2 ! Enables WCCP version 2

WAE(config)# cms enable ! Initializes the local database and connects to the central
manager

The following traffic interception policies can be automatically configured from the Cisco WAE central manager. The CLI version of these policies is provided for demonstration purposes and as a starting point for customization.

WAE(config)# policy-engine application name File-Transfer ! Creates a new application name
for FTP traffic

WAE(config)# policy-engine application name WEB ! Creates a new application name for HTTP
traffic

WAE(config)# policy-engine application name WAFS ! Creates a new application name for file
system traffic

WAE(config)# policy-engine application classifier FTP-Control ! Creates application
classifier for FTP control trafficWAE(config-app-cls)# match dst port eq 21 ! Matches
traffic with destination port 21

WAE(config-app-cls)# exit

WAE(config-pol-eng-app)# exit

WAE(config)# policy-engine application classifier FTP-Data ! Creates application
classifier for FTP data traffic

WAE(config-app-cls)# match dst port eq 20 ! Matches traffic with destination port 20

WAE(config-app-cls)# exit

WAE(config-pol-eng-app)# exit

WAE(config)# policy-engine application classifier HTTP ! Creates application classifier
for HTTP traffic

WAE(config-app-cls)# match dst port eq 80 ! Matches traffic with destination port 80

WAE(config-app-cls)# match dst port eq 8080 ! Matches traffic with destination port 8080

WAE(config-app-cls)# match dst port eq 8000 ! Matches traffic with destination port 8000

WAE(config-app-cls)# match dst port eq 8001 ! Matches traffic with destination port 8001

WAE(config-app-cls)# match dst port eq 3128 ! Matches traffic with destination port 3128

WAE(config-app-cls)# exit

WAE(config-pol-eng-app)# exit

WAE(config)# policy-engine application classifier CIFS ! Creates application classifier
for CIFS traffic

WAE(config-app-cls)# match dst port eq 139 ! Matches traffic with destination port as 139

WAE(config-app-cls)# match dst port eq 445 ! Matches traffic with destination port as 445

WAE(config-app-cls)# exit

WAE(config-pol-eng-app)# exit

WAE(config)# policy-engine application map basic name File-Transfer classifier FTP-Control
action pass-through ! Assigns FTP application to a classifier and specifies the action to
be taken for matching FTP control traffic

WAE(config)# policy-engine application map basic name File-Transfer classifier FTP-Data
action optimize full ! Assigns FTP application to a classifier and specifies the action to
be taken for matching FTP data traffic

WAE(config)# policy-engine application map basic name Web classifier HTTP action optimize
full ! Assigns HTTP application to a classifier and specifies the action to be taken for
matching HTTP traffic

WAE(config)# policy-engine application map basic name WAFS classifier CIFS action optimize
full accelerate cifs-adaptor ! Assigns WAFS application to a classifier and specifies the
action to be taken for matching CIFS traffic. Uses CIFS specific application adaptor

WAE(config)# policy-engine application map adaptor WAFS transport name WAFS All action
optimize full ! Assigns WAFS application to a classifier and specifies the action to be
taken for matching CIFS traffic

Activating the Application Accelerators

For security purposes, Cisco WAEs that are being added to the Cisco WAAS network need to be approved by the Cisco WAAS network administrator. This security feature prevents unauthorized devices from joining the Cisco WAAS network. This section provides steps for activating all the inactive devices.

To activate the devices, from the Cisco WAAS Central Manager window, choose Devices > Devices.

1. In the taskbar, click the Activate All Inactive WAEs icon, shown in the red box in Figure 37, to activate the two inactive Cisco WAEs.

Figure 37 Devices Window

2. The Activate All Inactive WAE window appears, as shown in Figure 38. By default, the Create a new location for each inactive WAE option is chosen.

Figure 38 Activating Inactive Cisco WAEs

3. Click Submit at the bottom of the page.

4. When a Transaction Warning dialog box appears, click OK, and then click Submit. The current state of the core and edge Cisco WAEs is now listed as pending instead of inactive, as shown in the red box in the middle of Figure 39. Notice in the red box at the top of the Figure 39 that the system status has changed to orange, with two devices reporting Major.

Figure 39 Pending Devices

5. After a few minutes, all devices show Online in the Status column, as shown in Figure 40.

Figure 40 Online Devices

Cisco WAE-Central Manager Implementation

The central manager is the management component of Cisco WAAS. The central manager provides a GUI for configuration, monitoring, and management of multiple branch-office and data center Cisco WAEs. The central manager can scale to support thousands of Cisco WAE devices for large-scale deployments. The central manager must be used in order to make configuration changes through the web interface. If the central manager fails, the Cisco WAEs continue to function; however, changes cannot be made using the web pages on the central manager until the central manager comes back online.

The Cisco WAEs need to connect to the central manager at the initial setup. The registration process adds the Cisco WAE to the central manager and initializes the local Cisco WAE database. When disk encryption on the Cisco WAE is enabled, the central manager must be available to distribute the encryption key if the Cisco WAE reboots.

Centralized reporting can be obtained from the central manager. Individually, the Cisco WAEs provide basic statistics through the CLI and local-device GUI. Systemwide application statistics are available from the central manager GUI. Detailed reports such as total traffic reduction, application mix, and pass-through traffic are available from the central manager GUI.

WAE-CM(config)# device mode central-manager ! Sets the WAE device to central manager mode.
The device is set to application acceleration by default

WAE-CM(config)# primary-interface GigabitEthernet 1/0 ! Sets the primary interface for
traffic interception and delivery

WAE-CM(config)# interface GigabitEthernet 1/0 ! Enters gigabit Ethernet configuration mode
for the specified port

WAE-CM(config-if)# ip address 172.16.100.1 255.255.255.0 ! Assigns IP address for the
interface

WAE-CM(config-if)# no shutdown

The interface was up.

WAE-CM(config-if)# exit

WAE-CM(config)# ip default-gateway 192.168.0.2 ! Assigns default gateway for the central
manager

WAE-CM(config)# ntp server 172.16.0.60 ! Assigns NTP server for the central manager

WAE-CM(config)# cms enable ! Starts centralized management service

Verify that the Cisco WAAS central manager process has successfully started by using an Internet Explorer browser to go to the following URL to start the Cisco WAAS Central Manager GUI shown in Figure 41:

https://cm_server_ip or host_name:8443

Figure 41 Cisco WAAS Central Manager GUI

1. Log in using the following default credentials:

Username: admin

Password: default

The Devices window shown in Figure 42 appears.

Figure 42 Devices Window

For ease of use and to start collecting statistics earlier, you need to change a few parameters. In the following steps, you extend the central manager session timeout interval and modify the intervals by which the Cisco WAAS central manager or Cisco WAE pulls or pushes data to and from the Cisco WAAS Central Manager.

2. Choose System > Configuration. The Config Properties window shown in Figure 43 appears.

Figure 43 Config Properties Window

3. Choose ALL from the Rows drop-down list shown in the red box in Figure 43.

4. Click the Edit icon next to the parameter to change each of the parameters in the red boxes 2 to 5 in Figure 43 to the following values:

cdm.session.timeout: 100

System.datafeed.pollRate: 60

System.healthmonitor.collectRate: 30

System.monitoring.collectRate: 60

Caveats

•Zone-based firewall does not support inspection of SIP and SCCP in releases earlier than Cisco IOS Release 12.4(20)T. See DDTS CSCsm79679.

•Zone-based firewall does not support stateful switchover.

•Message waiting indicator (MWI) does not work during router failover.

•Cisco Unified CME does not work with HSRP.

•Cisco web Cache Communication Protocol (Cisco WCCP) version 2 is not Virtual Routing and Forwarding (VRF) aware and does not work if multiple VRF interfaces (VRF-lite) are configured on the customer edge (CE) router.

•Call preservation is not supported during HSRP. Only local IP Phone calls may be preserved.

•Traffic shaping is not supported over virtual access interfaces with PPP over ATM.
See DDTS CSCsm77478.

•VRF-aware IP SLA is not supported in releases earlier than Cisco IOS Release 12.4(20)T.

•Bidirectional Forwarding Detection (BFD) is supported only on Gigabit Ethernet interfaces. Support for additional WAN encapsulations such as Frame Relay and PPP is planned for future releases.

•GETVPN is not VRF aware in releases earlier than Cisco IOS Release 12.4(20)T.

•When registered to Cisco Unified CME, the Cisco Unified IP Conference Station 7936 running firmware version 1.1 continues to display message prompts such as "hold" and "enter number" after the call has ended. See DDTS CSCsm61235.
