Technical Specifications
This chapter lists physical dimensions, power specifications, mounting requirements and interface specifications for ASR 5000 system components.
It includes the following sections:
Physical Dimensions
The ASR 5000 can be mounted in any standard (EIA-310-D, IEC 60297) 19-inch (482.6 mm) equipment cabinet or telecommunications rack. The table below lists the dimensions for the chassis and each component that can be placed within the chassis.
Component | Height | Width | Depth |
---|---|---|---|
Chassis | 24.50 in. (62.23 cm) |
17.5 in. (44.45 cm) |
24.0 in. (60.96 cm) |
Application Card | 17.05 in. (46.31 cm) |
1.01in. (2.56 cm) |
14.10 in. (35.81cm) |
Line Card (half-height) | 8.59 in. (21.82 cm) |
1.01in. (2.56 cm) |
5.24 in. (13.31cm) |
XGLC (full-height) | 17.48 in. (44.40 cm) |
1.01in. (2.56 cm) |
5.24 in. (13.31cm) |
Fan Tray (Lower) | 2.50 in. (6.35 cm) |
16.25 in. (41.27 cm) |
17.25 in. (43.82 cm) |
Fan Tray (Upper) | 2.875 in. (7.30 cm) |
16.25 in. (41.27 cm) |
19.375 in. (49.21 cm) |
Power Filtering Unit (PFU) | 3.6 in. (9.14 cm) |
8.25 in. (20.96 cm) |
5.12 in. (13.00 cm) |
Weights
The following table identifies the maximum weights for fully-loaded systems—cards installed in all slots and all other components installed.
Component | Weight |
---|---|
Chassis |
|
Empty |
65 lbs. (29.48 kg) |
As Shipped (empty chassis with PFUs, fan trays, bezels and blanking panels) |
160 lbs. (72.57 kg) |
Shipping (as shipped chassis, shipping container and packing materials) |
251 lbs. (113.85 kg) |
Fully loaded (as shipped chassis with all slots filled with cards) |
307 lbs. (139.25 kg) |
Packet Processing Cards |
|
Packet Services Card 2 (PSC2) |
11.50 lbs. (5.22 kg) |
Packet Service Card 3 (PSC3) |
11.0 lbs. (4.95 kg) |
Switch Process I/O Card (SPIO) |
1.25 lbs. (0.57 kg) |
System Management Card (SMC) |
10.00 lbs. (4.54 kg) |
Line Cards |
|
Channelized Line Card 2 (CLC2) |
1.25 lbs. (0.57 kg) |
Fast Ethernet (10/100) Line Card (FLC2) |
1.00 lbs. (0.45 kg) |
Gigabit Ethernet Line Card (GLC2) |
1.00 lbs. (0.45 kg) |
Optical Line Card (OLC2) |
1.25 lbs. (0.57 kg) |
Quad Gigabit Ethernet Line Card (QGLC) |
1.25 lbs. (0.57 kg) |
Redundancy Crossbar Card (RCC) |
1.00 lbs. (0.45 kg) |
10 Gigabit Ethernet Line Card (XGLC) |
2.25 lbs. (1.02 kg) |
Power Specifications
The following table provides essential power specifications for the chassis and all associated cards within the system.
Characteristic | Value |
---|---|
Input Voltage |
Maximum range: -40VDC to -60VDC Nominal range: -48VDC to -60 VDC |
TUV Rated Peak Current Load |
165A @ -48 VDC |
Maximum Peak Power Load |
5760W |
Chassis Maximum Power Load |
800W |
Line Card (rear-installed) Maximum Power Load |
SPIO: 15W FLC2: 13.5W GLC2: 10.5W QGLC: 15W XGLC: 25W OLC2:23W CLC2: 23W RCC: 20W |
Application Card (front-installed) Maximum Power Load |
SMC: 130W PSC2: 325W PSC3: 330W |
Power Feed |
PFU: 160A @ -48VDC |
Estimating Power Requirements
Use the following formula to estimate total power consumption for each deployed chassis.
Note | Use these estimates as a guide. Obey all cable and power safety regulations and assure that they are sufficient for your system's requirements. |
(Total Application Card Maximum Power Load) + (Total Line Card Maximum Power Load) + Chassis Maximum Power Load = Total Power Consumption
For example, the calculation for estimating the power required for an ASR 5000 installation with (3) PSC2s, (2) SMCs, (2) SPIOs, (2) RCCs, and (4) GLC2s would be:
(325W x 3) + (130W x 2) + (20W x 2) + (13.5W x 4) + 800W = 2129W
Mounting Requirements
Each 24.5 in. (62.23 cm.) height chassis requires 14 Rack Units (RUs) of space. You can mount the system into any 19-inch (482.6 mm) equipment rack or telco cabinet with the mounting brackets supplied with the chassis. Additional hardware (not supplied), such as extension brackets, may be used to install the chassis in a standard 23-inch (584.2 mm) cabinet or rack. Both front and mid-mount installations are possible, depending on the position of the mounting brackets on the chassis.

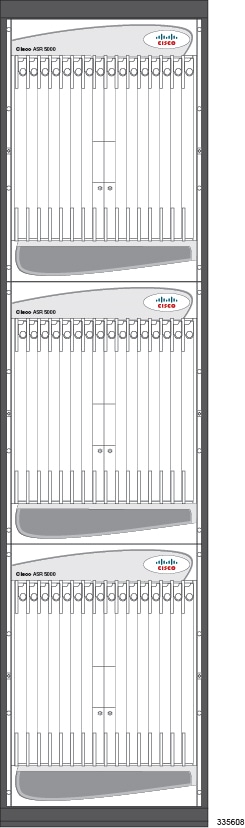

You can mount a maximum of three ASR 5000 chassis in a 2- or 4-post equipment rack or telco cabinet, provided that all system cooling and ventilation requirements are met. Three stacked chassis will occupy a minimum of 42 RUs.
Caution | When planning chassis installation, ensure that equipment rack or cabinet hardware does not hinder air flow at any of the intake or exhaust vents. Also, make sure that the rack/cabinet hardware, as well as the ambient environment, allow the system to function within the required limits. For more information, refer to Environmental Specifications in this guide. |
Rack mounting requires the use of industry-standard (EIA-310-D, IEC 60297) equipment racks and cabinets, as well as supplier-recommended fasteners. The following figure depicts how three chassis can be mounted in a 42 RU equipment rack.
Interface Specifications
The table below lists the line card interfaces for use within the chassis.
Card Type | Port | Quantity | Connector Type | Notes |
---|---|---|---|---|
SPIO | Console | 1 | RJ-45, RS-232 serial | — |
Console Cable Assembly | 1 | RJ-45 to DB-9 | — | |
Gigabit Ethernet | 2 | Optical SFP | — | |
10/100 Mbps | 2 | RJ-45, Ethernet | 1 | |
CO Alarm | 1 | 10-pin, Molex | — | |
CO Alarm cable Assembly | 1 | Dual 10-pin Molex to barrier terminal | — | |
BITS BNC (optional) | 1 | BNC, coaxial cable | 2 | |
BITS 3-Pin (optional) | 3-pin, wire-wrap | |||
FLC2 | 10/100 Ethernet | 8 | RJ-45, Ethernet | 1 |
GLC2 | Gigabit Ethernet | 1 | SFP-SX | 3 |
SFP-LX | ||||
SFP-T, copper RJ-45 | ||||
QGLC | Gigabit Ethernet | 4 | SFP-SX | 4 |
SFP-LX | ||||
SFP-T, copper RJ-45 | ||||
XGLC | 10 Gigabit Ethernet | 1 | 10GBase-SR, SFP+ | 5 |
10GBase-LR, SFP+ | ||||
OLC2 | ATM/POS OC-3 SM IR-1 | 1 | Single-mode Fiber, LC duplex | — |
ATM/POS OC-3 Multi-Mode | Multi-mode Fiber, LC duplex | |||
CLC2 | Channelized (STM-1/OC-3) SM IR-1 | 1 | Single-mode Fiber, LC duplex | — |
Channelized (STM-1/OC-3)Multi-Mode | Multi-mode Fiber, LC duplex |
- An RJ-45 Ethernet interface may have more than one pin-out configuration, depending on the type of cable used.
- An SPIO may be equipped with one type of BITS connector – BNC or 3-pin.
- A Small Form-factor Pluggable transceiver is supplied with the GLC2 based on the customer-specified interface type.
- Four Small Form-factor Pluggable transceivers are supplied with the QGLC based on the customer-specified interface type.
- An enhanced SFP (SFP+) transceiver is supplied with the XGLC based on the customer-specified interface type.
- SPIO Card Interfaces
- Fast Ethernet Line Card (FLC2) Interfaces
- Gigabit Ethernet Card (GLC2/QGLC) SFP Interfaces
- 10 Gigabit Ethernet Line Card (XGLC) SFP+
- Fiber ATM/POS OC-3 (OLC2) Multi-Mode Interface
- Channelized Line Cards
SPIO Card Interfaces
Each interface on the SPIO card is described below. In each accompanying figure, the interface is shown in the same orientation as the way it appears on the card.
- Console Port
- Fiber SFP Interface
- 10/100/1000 Mbps RJ-45 Interface
- Central Office Alarm Interface
- BITS Timing Interface
Console Port
The Console port is an RJ-45 RS-232 interface used to access the command line interface. The interface communicates at a baud rate of 9600 to 115,200 bps (115.2 Kbps). The default is 115,200 bps.
Pin | Signal Description | Signal Type |
---|---|---|
1 |
Clear to Send (CTS) |
Input |
2 |
Data set Ready (DSR) |
Input |
3 |
Receive Data (RX) |
Input |
4 |
Signal Ground (SGND) |
N/A |
5 |
Ready to Send (RTS) |
Output |
6 |
Transmit Data (TX) |
Output |
7 |
Data Carrier Detect (DCD) |
Input |
8 |
Data Terminal Ready (DTR) |
Output |
Console Cable Specifications
SPIO cards are shipped with a console cable assembly that includes a 7-foot (2 meter) serial cable with RJ-45 connectors on each end, and an RJ-45-to-DB-9 adapter. Use the RJ-45-to-DB-9 adapter to connect the console cable to a terminal server or terminal emulation device such as a laptop computer. The cable's pin-out is provided in the following figure and table.
Signal Description | Signal Type | RJ-45 Pin | DB-9 Pin | Signal |
---|---|---|---|---|
Clear to Send (CTS) |
Input |
1 |
7 |
RTS |
Data set Ready (DSR) |
Input |
2 |
4 |
DTR |
Receive Data (RxD) |
Input |
3 |
3 |
TxD |
Signal Ground (SGND) |
N/A |
4 |
5 |
SGND |
Ready to Send (RTS) |
Output |
5 |
8 |
CTS |
Transmit Data (TxD) |
Output |
6 |
2 |
RxD |
Data Carrier Detect (DCD) |
Input |
7 |
1 |
DCD |
Data Terminal Ready (DTR) |
Output |
8 |
6 |
DSR |
Signal Description | Signal Type | RJ-45 Pin | DB-25 Pin | Signal |
---|---|---|---|---|
Clear to Send (CTS) |
Input |
1 |
5 |
CTS |
Data set Ready (DSR) |
Input |
2 |
6 |
DSR |
Receive Data (RX) |
Input |
3 |
3 |
RxD |
Signal Ground (SGND) |
- |
4 |
7 |
SGND |
Ready to Send (RTS) |
Output |
5 |
4 |
RTS |
Transmit Data (TX) |
Input |
6 |
2 |
TxD |
Data Carrier Detect (DCD) |
Output |
7 |
8 |
DCD |
Data Terminal Ready (DTR) |
Output |
8 |
20 |
DTR |
Fiber SFP Interface
The fiber Small Form-factor Pluggable (SFP) interface has two host connectors that transmit and receive data.
Signal | Level |
---|---|
Max TX: |
0 dBm |
Min TX: |
-9.5 dBm |
Max RX: |
0 dBm (saturation average power) |
Min RX: |
-20 (typical) / -17 (max.) dBm (sensitivity average power) |
10/100/1000 Mbps RJ-45 Interface
The two RJ-45 interfaces are auto-sensing 10/100/1000 Ethernet (10Base-T/100Base-TX/1000Base-T) that require unshielded twisted pair (UTP) copper cable.
Pin | 10Base-T 10Mbps Cat3 | 100Base-Tx 100Mbps Cat5 | 1000Base-Tx 1Gbps Cat5+ |
---|---|---|---|
1 |
TX+ |
TX+ |
BI DA+ |
2 |
TX- |
TX- |
BI DA- |
3 |
RX+ |
RX+ |
BI DB+ |
4 |
Not used |
Not used |
BI DC+ |
5 |
Not used |
Not used |
BI DC- |
6 |
RX- |
RX- |
BI DB- |
7 |
Not used |
Not used |
BI DD+ |
8 |
Not used |
Not used |
BI DD- |
Central Office Alarm Interface
The Central Office (CO) alarm interface is a 10-pin Molex connector supporting three dry-contact relay switches. The three normally closed (NC) relays can support normally open (NO) or NC devices.
Pin | Signal |
---|---|
1 |
Major Alarm - Normally closed |
2 |
Major Alarm - Common |
3 |
Major Alarm - Normally open |
4 |
Minor Alarm - Normally closed |
5 |
Minor Alarm - Common |
6 |
Minor Alarm - Normally open |
7 |
Critical Alarm - Normally closed |
8 |
Critical Alarm - Common |
9 |
Critical Alarm - Normally open |
10 |
Not used |
The 8-foot (2.4 meter) CO alarm cable shipped with the chassis supports redundant SPIO card installations. This "Y" cable has two Molex connectors on one end that are keyed to fit into the CO Alarm interfaces in one direction only. Each connector mates with one of the side-by-side SPIO cards. On the opposite end is a 9-pin terminal block that you can mount to the telco cabinet or equipment rack frame.
The following figure and table display this cable assembly and its pinouts.
CO Alarms IF Pin No. | Cable Wire Color | Cable Terminal Block Position No. | Signal |
---|---|---|---|
1 |
Black |
1 |
Major Alarm - Normally closed |
2 |
Orange |
2 |
Major Alarm - Common |
3 |
Red |
3 |
Major Alarm - Normally open |
4 |
Brown |
4 |
Minor Alarm - Normally closed |
5 |
Yellow |
5 |
Minor Alarm - Common |
6 |
Green |
6 |
Minor Alarm - Normally open |
7 |
Blue |
7 |
Critical Alarm - Normally closed |
8 |
Violet |
8 |
Critical Alarm - Common |
9 |
Gray |
9 |
Critical Alarm - Normally open |
10 |
Not wired |
Not equipped |
Not applicable |
Electrical Characteristics
Each of the three dry-contact relay switches is rated to support a maximum switching current of 1A@30VDC. The relay contacts should not directly connected to high current devices such as sirens and flashing lamps.
Central Office Alarm Wiring Example
The following figure depicts how the dry-contact relays can each control up to two external alarm indicators. In this example, the CO alarm interface is connected to a CO Alarm Panel, where green LEDs are wired to indicate normal operation, and red LEDs are wired to indicate an alarm condition.
With all relays de-energized (normally closed), the green LED is illuminated. If an alarm relay is energized, the NO (normally open) contact closes and the red LED is illuminated.
BITS Timing Interface
External Building Interface Timing Supply (BITS) timing is an alternative to using clock signals derived from an ATM port on an OLC/OLC2, or an ANSI SONET STS-3/SDH STM-1 port on a CLC/CLC2 to synchronize line card timing. (Line-derived clocking requires that the SPIO be equipped with the optional Stratum 3 clock module.)
BITS E1 BNC Interface
The BNC version of the SPIO employs a 75-ohm coaxial BNC connector that accepts an analog E1 BITS signal from which the SPIO derives a 2048 kHz clock. The following figure shows the BITS BNC timing interface.
BITS T1 3-Pin Interface
The 3-pin version of the SPIO employs a wire-wrap connector that accepts a T1 (DS1) BITS data signal (all ones) from which the SPIO derives a 1544 kHz clock. The following figure shows the BITS 3-wire timing interface wire-wrap pin-out.
Fast Ethernet Line Card (FLC2) Interfaces
Each of the eight RJ-45 interfaces available on the FLC2 supports auto-sensing 10Base-Tx or 100Base-Tx Ethernet interfaces.
10/100 Mbps RJ-45 Interface
The RJ-45 interfaces on the Fast Ethernet line card support the following cable types and transfer rates.
Pin | 10Base-T 10Mbps Cat3 | 100Base-TX 100Mbps Cat5 |
---|---|---|
1 |
TX+ |
TX+ |
2 |
TX- |
TX- |
3 |
RX+ |
RX+ |
4 |
na |
na |
5 |
na |
na |
6 |
RX- |
RX- |
7 |
na |
na |
8 |
na |
na |
Gigabit Ethernet Card (GLC2/QGLC) SFP Interfaces
1000Base-SX
The 1000Base-SX fiber SFP interface on the Gigabit Ethernet Card (GLC2) has one pair of fiber connectors. The Quad Gigabit Ethernet Card (QGLC) has four pairs.
Signal | Level |
---|---|
Max TX: |
0 dBm |
Min TX: |
-9.5 dBm |
Max RX: |
0 dBm (saturation average power) |
Min RX: |
-20 (typical) / -17 (max.) dBm (sensitivity average power) |
1000Base-LX Interface
The 1000Base-LX fiber SFP interface on the Ethernet 1000 LX line card has one pair of host connectors. The QGLC has four pairs.
Signal | Level |
---|---|
Max TX: |
0 dBm |
Min TX: |
-9.5 dBm |
Max RX: |
0 dBm (saturation average power) |
Min RX: |
-20 (typical) / -19 (max.) dBm (sensitivity average power) |
1000Base-T
The 1000Base-T SFP copper interfaces on the GLC2 and QGLC line cards require unshielded twisted pair (UTP) copper CAT-5 cable with a bit error rate (BER) less than 10e-10. Pinouts for the RJ-45 Ethernet ports are shown in the table below.
Pin | 1000Base-Tx 1Gbps Cat5+ |
---|---|
1 |
BI DA+ |
2 |
BI DA- |
3 |
BI DB+ |
4 |
BI DC+ |
5 |
BI DC- |
6 |
BI DB- |
7 |
BI DD+ |
8 |
BI DD- |
RX = Receive Data TX = Transmit Data BI = BI directional data DA, DB, DC, DD = Data Pair A, B, C, and D |
10 Gigabit Ethernet Line Card (XGLC) SFP+
10GBase-SR
The 10GBase-SR fiber SFP+ interface on the XGLC has one pair of fiber connectors.
Signal | Level |
---|---|
Max TX: |
-1.0 dBm |
Min TX: |
-7.3 dBm |
Max RX: |
-1.0 dBm (saturation average power) |
Min RX: |
-11.1 (max.) dBm (sensitivity average power) |
10 Base-LR Interface
The 10GBase-LR fiber SFP+ interface on the XGLC has one pair of host connectors.
Signal | Level |
---|---|
Max TX: |
0.5 dBm |
Min TX: |
-8.2 dBm |
Max RX: |
0.5 dBm (saturation average power) |
Min RX: |
-12.6 (max.) dBm (sensitivity average power) |
Fiber ATM/POS OC-3 (OLC2) Multi-Mode Interface
Fiber ATM/POS OC-3 SM IR-1 Interface
The fiber-optic SFP interface on OLC2 Optical ATM Line Cards with the SM IR-1 interface has one pair of host connectors.
Signal | Level |
---|---|
Max TX: |
-8 dBm |
Min TX: |
-15 dBm |
Max RX: |
-8 dBm (saturation average power) |
Min RX: |
-28 (max.) dBm (sensitivity average power) |
Signal | Level |
---|---|
Max TX: |
-14 dBm |
Min TX: |
-19 dBm |
Max RX: |
-12 dBm (saturation average power) |
Min RX: |
-30 (max.) dBm (sensitivity average power) |
Channelized Line Cards
- Channelized Line Card (CLC2) with Single-Mode Interface
- Channelized Line Cards (CLC2) with Multi-Mode Interface
Channelized Line Card (CLC2) with Single-Mode Interface
The optical SFP interface on the 4-port CLC2 with the single-mode interface has four pairs of connectors that accept SFP transceivers.
Signal | Level |
---|---|
Max TX: |
-8 dBm |
Min TX: |
-15 dBm |
Max RX: |
-8 dBm (saturation average power) |
Min RX: |
-28 (max.) dBm (sensitivity average power) |
Channelized Line Cards (CLC2) with Multi-Mode Interface
The fiber SFP interface on the 4-port CLC2 with the multi-mode interface has four pairs of connectors that receive SFP transceivers.
Signal | Level |
---|---|
Max TX: |
-14 dBm |
Min TX: |
-19 dBm |
Max RX: |
-12 dBm (saturation average power) |
Min RX: |
-30 (max.) dBm (sensitivity average power) |
