RTU Licensing

This chapter contains the following topics:

RTU Licensing Using Web GUI

Procedure

Step 1

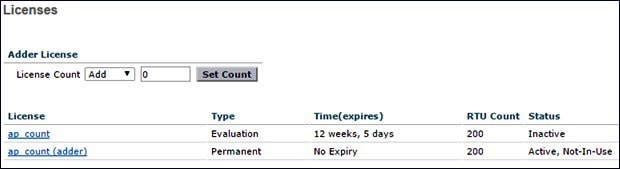

To install AP adder licenses, click Management > Software Activation > Licenses.

Step 2

In the Adder License area, in the License Count field, set the license task to Add, enter the number of AP licenses you have purchased for the vWLC, and then click Set Count.

Step 3

Read the End User License Agreement (EULA) and click I Accept.

The AP adder licenses are installed and activated on the vWLC.

RTU Licensing Using CLI

Procedure

Step 1

To install AP adder licenses using the CLI, enter the following command:

(Cisco Controller) > license add ap-count <1-200>

Step 2

Read the End User License Agreement (EULA), type Y, and press Enter to accept:

Feature Name: ap-count

Right to Use

Enabling additional access points supported by this controller product may require the purchase of supplemental or "adder" licenses. You may remove supplemental licenses from one controller and transfer to another controller in the same product family. NOTE: licenses embedded in the controller at time of shipment are not transferrable.

By clicking "I AGREE" (or "I ACCEPT") below, you warrant and represent that you have purchased sufficient supplemental licenses for the access points to be enabled.

All supplemental licenses are subject to the terms and conditions of the Cisco end user license agreement (http://www.cisco.com/en/US/docs/general/warranty/English/EU1KEN_.html), together with any applicable supplemental end user license agreements, or SEULA's.

Pursuant to such terms, Cisco is entitled to confirm that your access point enablement is properly licensed.

If you do not agree with any of the above, do not proceed further and CLICK "DECLINE" below.

ACCEPT? [y/n]: Y

Successfully added the license.

Step 3

The AP adder licenses are installed and activated on the vWLC. You can view the installed licenses by typing the show license summary command:

(Cisco Controller) > show license summary

Feature name: ap_count

License type: Evaluation

License Eula: Not Accepted

Evaluation total period: 12 weeks 6 days

License state: Inactive, Not-In-Use

RTU License Count: 200

Feature name: ap_count (adder)

License type: Permanent

License state: Active, Not-In-Use

RTU License Count: 200

Step 4

To activate or deactivate a feature license, enter the following command:

license {activate | deactivate} feature license_name
