Feature Summary and Revision History

Feature Description

CPS has been enhanced to generate alarms and let the service provider operators know:

• When the sharding database in the ADMIN replica-set is missing session shard entries in the HA/GR environment

• When a shard is created and an entry exists in the sharding database of the ADMIN replica-set, but Session Manager VM is not reachable

• When indexes are missing on collections existing on SPR/Session database

The following new alarms have been added:

• SESSION_SHARD_UNREACHABLE

• ADMIN_DB_MISSING_SHARD_ENTRIES

• MISSING_SESSION_INDEXES

• MISSING_SPR_INDEXES

A new qns.conf parameter skipUnreachableShards has been added. By default, the value is set to false. The value must be set to true so that the above mentioned alarms are generated. Contact your Cisco Account representative for information on qns.conf file parameters.

For more information, see the following sections:

• Application Notifications table in the CPS SNMP, Alarms, and Clearing Procedures Guide

• Clearing Procedures chapter in the CPS SNMP, Alarms, and Clearing Procedures Guide

• Testing Traps Generated by CPS in the CPS Troubleshooting Guide

Feature Summary and Revision History

Feature Description

CPS is enhanced to support MongoDB health monitor for write operations where application detects the false reporting of no PRIMARY connection available for the replica-sets and takes action accordingly.

Note	The scope is limited to ADMIN, SESSION, SPR (excluding remote database), and Balance (excluding remote database) replica-sets.

The process of monitoring MongoDB write operations is divided into two sub-parts: Application side and Platform side.

• On the application side, MongoDB write operation and Reset MongoDB client connection threads are initialized to perform the write operations on replica-sets. This is done to verify the write operation failure threshold reached or not. If threshold has reached, MongoDB client connections are reset. Also, generates the counters for all the configured replica-sets.

• The platform scripts fetches the counters generated by the application and checks whether the failure counter for write operation is incrementing, and counter for reset MongoDB client connection fails after maximum retry of reset attempts. If parameter autoheal_qns_enabled value is set to TRUE, all the configured replica-sets sends an alarm and restarts the application (QNS process on QNS VMs) where the alarm is reported. If parameter value is set to FALSE, then the alarm is raised for all the configured replica-sets.

For more information on autoheal_qns_enabled configuration, see the following sections:

• Installing Platform Scripts for MongoDB Health Monitoring - VMware in the CPS Installation Guide for VMware

• Installing Platform Scripts for MongoDB Health Monitoring - OpenStack in the CPS Installation Guide for OpenStack

The following parameters should be configured in qns.conf file.

The following new statistics are added:

• mongodb_heartbeat_update_success_<replicaSetName>

• mongodb_heartbeat_update_error_<replicaSetName>

• mongo_client_reset_<replicaSetName>

• mongo_client_reset_fail_<replicasetSetName>

For more information on statistics, see Statistics/KPI Additions or Changes.

Also, a new alarm, Database Operations is added.

For more information, see the following sections:

• Application Notifications table in the CPS SNMP, Alarms, and Clearing Procedures Guide

• Clearing Procedures chapter in the CPS SNMP, Alarms, and Clearing Procedures Guide

• Testing Traps Generated by CPS in the CPS Troubleshooting Guide

• Installing Platform Scripts for MongoDB Health Monitoring - VMware in the CPS Installation Guide for VMware

• Installing Platform Scripts for MongoDB Health Monitoring - OpenStack in the CPS Installation Guide for OpenStack

Performance Impact

• When the MongoDB health monitoring is enabled, application initiates two thread for each Session, ADMIN, Balance (excluding remote database replica-sets), SPR (excluding remote database replica-sets) replica sets. The number of threads depends on the number of replica-sets.

• In the scaled setups, as there are more number of replica-sets, you will observe that there is an increase in CPU utilization by 4 - 5%. The increase in the CPU utilization varies if the environment has large number of replica-sets.

Feature Summary and Revision History

Feature Description

CPS can now detect missing or unrecognizable secondary session shards and direct the applications not to use them for its CRUD (create, read, update and delete) operations.

This excludes arbiter members and hot standby/backup members as arbiter nodes do not store any data as well as participate in application related CRUD operations. The hot standby/backup VMs are not used in normal traffic operations unless there is a failover/election in progress.

The following scenarios describe when a session shard of a secondary member becomes unreachable:

• When the sessionmgr VM is shutdown. All mongo process running on that VM including the one hosting session information is down, which means all the shards are not reachable.

• The sessionmgr VM is up, but the mongo process is shutdown gracefully:

  • Using monit stop aido_client followed by /etc/init.d/sessionmgr-portno. stop (for instance)

  • The mongo process is killed abruptly after monit stop aido_client

  In this case, all the session shards are not reachable on that secondary member.

• Another variant could be that the shards were created but later dropped from the mongo CLI using:

  session_cache_*, db.dropDatabase() command on the secondary members

New qns.conf parameters, skipUnreachableShards and skipDbOperOnUnreachableShards are added. Both the parameters must be set to true to skip database operations on unreachable shards.

• skipUnreachableShards: By default, the value is set to false. The value must be set to true to generate or clear the alarms.

• skipDbOperOnUnreachableShards: By default, the value is set to false. The value must be set to true to enable the feature.

Contact your Cisco Account representative for information on qns.conf file parameters.

Restriction

The scope of the feature is restricted to prevent an application from using secondary member session shards when they are unreachable. This feature is not meant to eliminate CRUD operations on other databases such as, SPR, Balance, sk_cache and so on. All session shards unreachable checks happen on secondary MongoDB members in a replica-set. The existing logic to detect unreachable primaries remain unaltered, which when not available writes to the hot standby database for a brief period. Then they are reconciled to newly elected primaries and flushed from hot standby database. No changes were done to the existing behavior related to primary members when unreachable.

Feature Summary and Revision History

Feature Description

Previous Behavior: In previous releases, PCRF created dedicated bearers during the RCS service. Creating dedicated bearers for each RCS service sometimes exceeded dedicated bearer limit in PGW and hence there was a degradation and interference with VoLTE calls.

New Behavior: In current release, CPS skips dedication bearer creation during AAR for RCS media type ‘MESSAGE’ and takes no action over the Gx interface for rule-installation.

For the first Rx transaction, there is no existing pre-configured rule. CRD lookup happens on table rx_dedicated_bearer_create. If result is true, then dedicated bearer is created. Otherwise, rule installation is skipped. For this feature, CRD must be configured to return false for media-type=6 so that the rule installation is skipped. There is no RAR on Gx interface for rule activation, but any other trigger (for example, new event-trigger added to Gx session based on specific-actions AVP on Rx_AAR) can trigger Gx RAR.

For the second or any upcoming transaction, CRD lookup is done based on existing service object EvaluateRxDedicatedBearer for each media sub-components and result is used in evaluating the existing pre-configured rule.

To support this feature, following new configurations have been added in Policy Builder:

• EvaluateRxDedicatedBearerCreate under rx service configuration objects

  EvaluateRxDedicatedBearerCreate service object is introduced which should be added under service configuration object. While configuring the service option, new STG table should be linked to this object.

• rx_dedicated_bearer_create search table for CRD lookup

• rx_bearer_evaluation_create search table to evaluate rule for the first transaction

Note	As CRD lookup happens for AAR-I, there can be an increase in Rx response time.

For more information, see EvaluateRxDedicatedBearerCreate section in the CPS Mobile Configuration Guide.

Configuration

Service object EvaluateRxDedicatedBearerCreate has been added which must be binded to new STG. In New CRD/STG table, one must set output column to ‘false’ for media-type:6 so that dedicated bearer is not created.

Sample Policy Builder and CRD changes are mentioned below (table name, column names can be changed).

1. Policy Builder - Search Table Groups

   Adding new STG: rx_dedicated_bearer_create. Evaluation order for this STG must be new (evaluation order configured can be different for new CRD version).



2. Policy Builder - Service Configuration

   1. Use case template:

      Add newly created service object EvaluateRxDedicatedBearerCreate in the existing use case template:



   2. Service option:

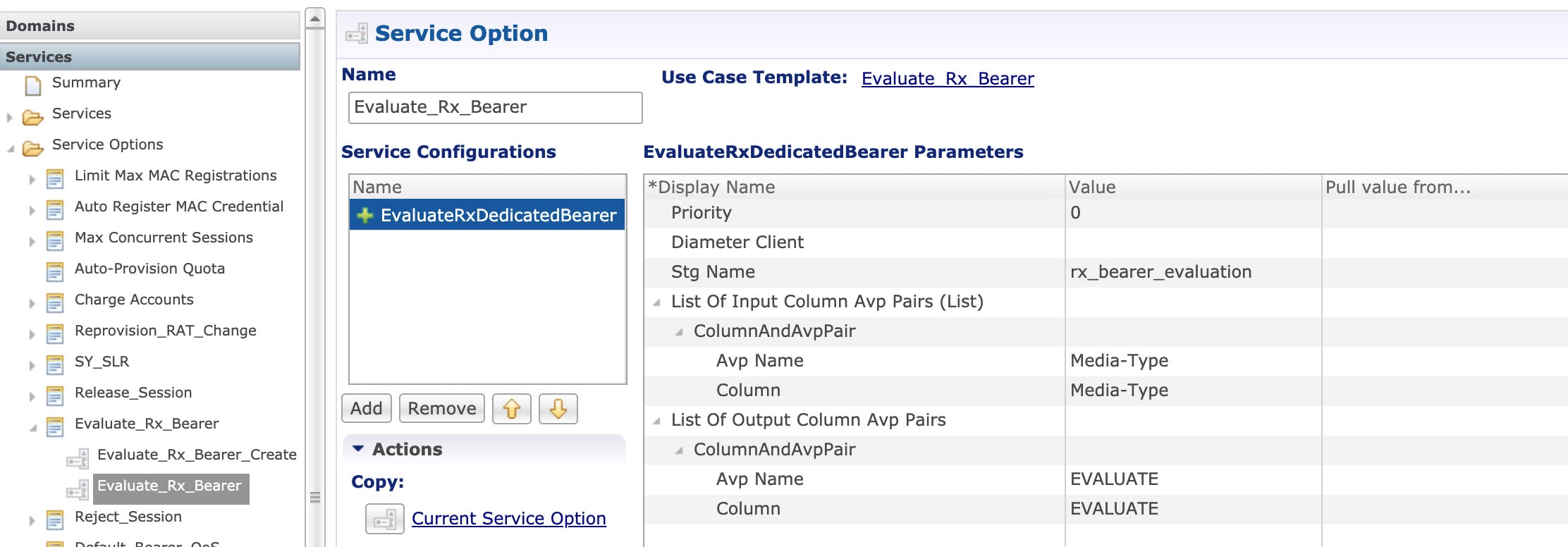

      Existing:

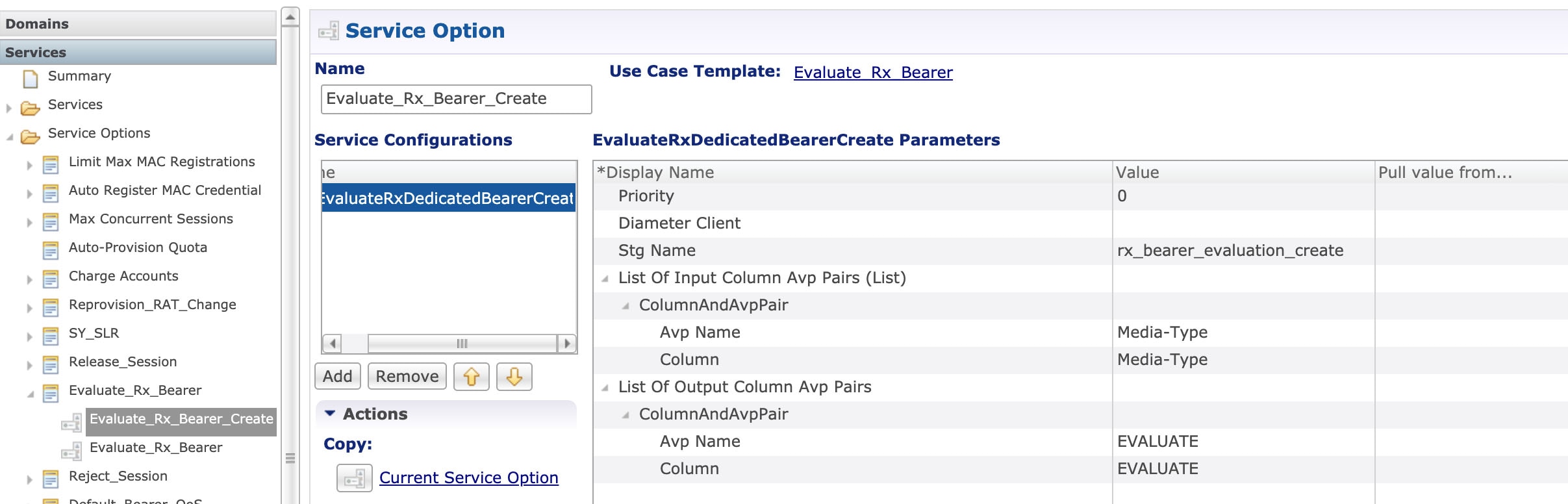

      Add new service object and bind it to new STG. Also bind the input and output column to new CRD table (Media-Type, Evaluate of rx_bearer_evaluation_create).

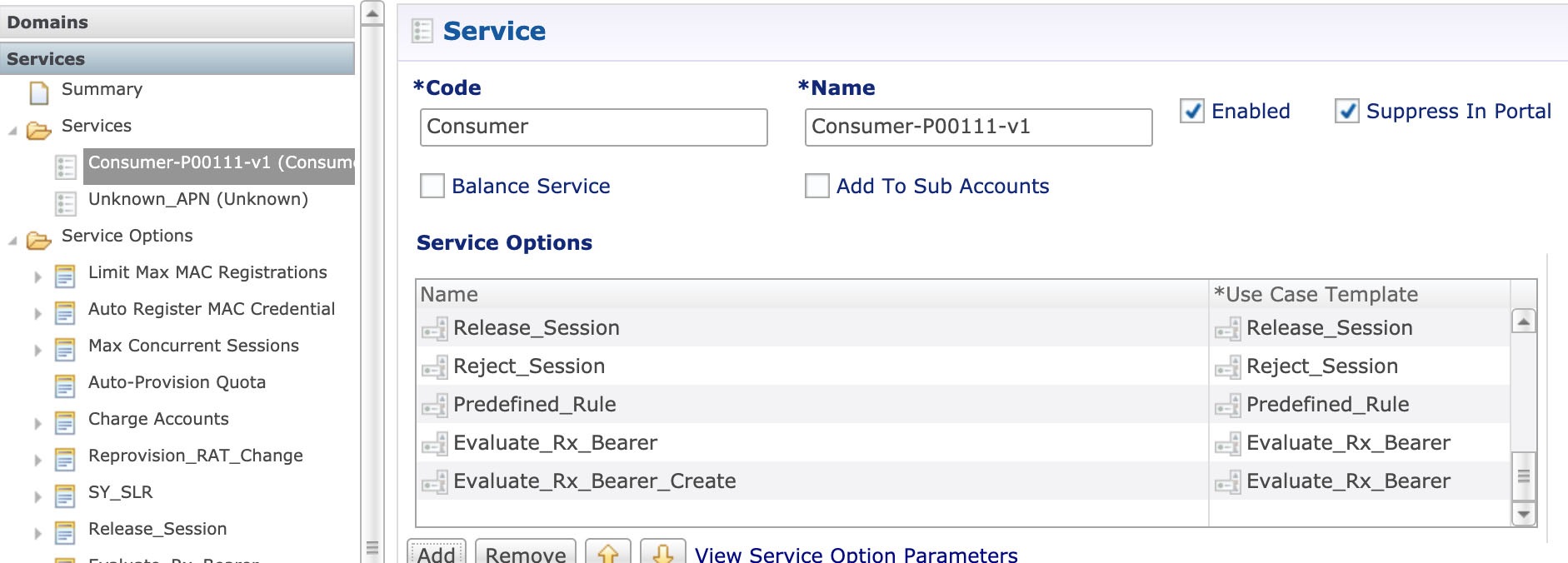

   3. Service binding:

      New service option must be added to service.

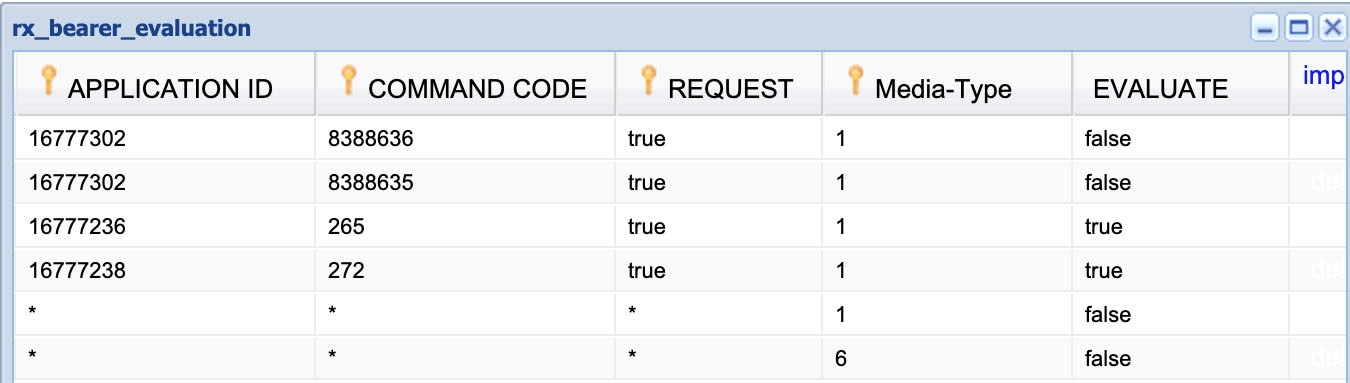

3. CRD Data: rx_bearer_evalution table data

   Existing design contains “Evaluate” as output column which is used only during update (can be CCR-U/2nd AAR/Sy messages)

   1. Existing CRD table:

      The configuration shown below is set Evaluation to false when CPS receive a Sy SSNR or SLA.

      One more entry must be added for media-type: 6 and output should be set to false so that bearer evaluation is skipped (however, bearer is not created).

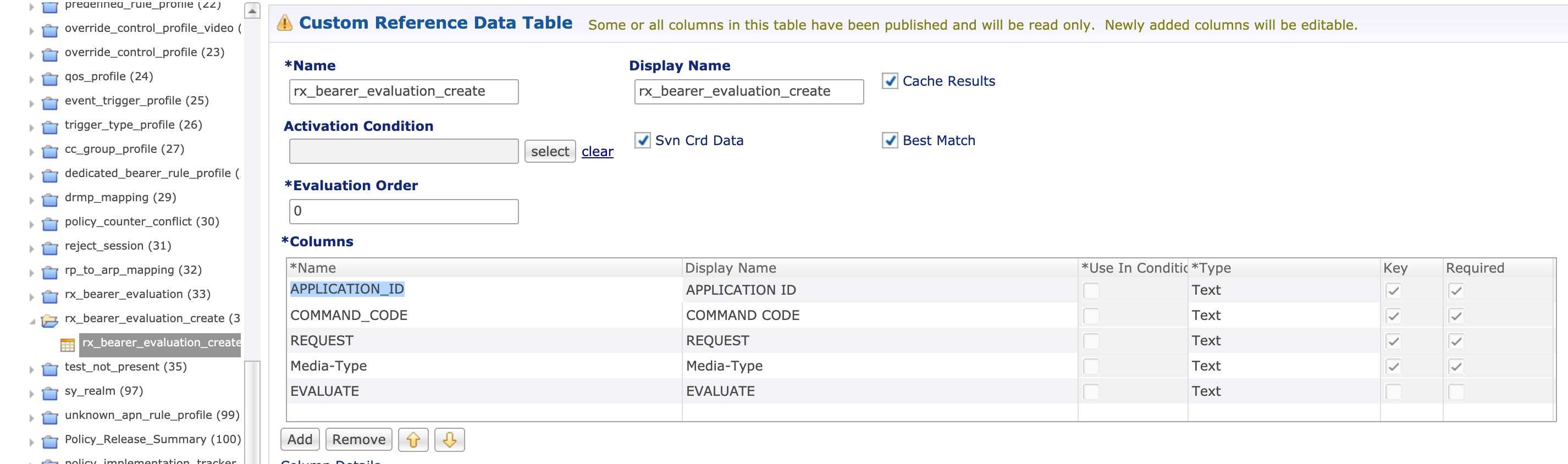

   2. New CRD table:

      The rx_bearer_evaluation_create search table is created to evaluate rule for the first transaction and decide if dedicated bearer must be created.

      Output must be set to false for media-type: 6 (MESSAGE) so that rule is not created.

      For all other media-type, it should be true. If there are no entries for specific media-type, the value is set to true (by default) and rule is created for each media sub-component if present.



Feature Summary and Revision History

Feature Description

Previous Behavior: In previous releases, clock synchronization did not happen between Session Managers and Policy Director (LB01) for fresh installations. Also, NTP was not in sync and TIME_WAIT increased after sessionmgr VM was restarted or suspended.

New Behavior: In current release, the issue has been fixed and NTP time synchronization happens between Session Managers and Policy Director (LB) VM of HA/GR/Dual cluster during deployment/reboot/powered-on scenarios.

As a part of fix, MongoDB on Session Manager does not start till loop for syncing NTP is completed.

Feature Summary and Revision History

Feature Description

Important

This feature is not fully qualified in this release, and is available only for testing purposes. It is planned to be qualified in the subsequent release. For more information, contact your Cisco Account representative.

CPS now provides support for WPS service on PCRF using LWR. The following new UDC service object is introduced to configure the Rx message AVPs which can be used to generate a LDAP attribute:

• BindUDCAttributeForRx

LWR replicated LDAP attribute generated using service BindUDCAttributeForRx can become stale during certain error scenarios. In such scenarios, a Guard Time can be specified to ignore the AVP if it is older than the configured time. While processing any event, QNS evaluates the staleness of the configured attribute and does not use it for policy evaluations.

CPS also supports modification of QoS in WPS usecase if the UE sessions for different APNs are created on different CPS datacenters.

Note	This feature can only be supported when LWR replication is configured for cross-site replication.

For more information, see Configuring WPS Service on PCRF section in the CPS UDC Administration Guide.
