Connecting the Cisco 1500 Series Mesh Access Points to the Network

This chapter describes how to connect the Cisco 1500 Series mesh access points to the network.

The wireless mesh terminates on two points on the wired network. The first location is where the RAP attaches to the wired network, and where all bridged traffic connects to the wired network. The second location is where the CAPWAP controller connects to the wired network; this location is where the WLAN client traffic from the mesh network connects to the wired network (see Figure 1). The WLAN client traffic from CAPWAP is tunneled at Layer 2, and matching WLANs should terminate on the same switch VLAN where the controllers are collocated. The security and network configuration for each of the WLANs on the mesh depend on the security capabilities of the network to which the controller is connected.

Figure 1. Mesh Network Traffic Termination


Note

When an HSRP configuration is in operation on a mesh network, we recommend that the In-Out multicast mode be configured. For more details on multicast configuration, see the Enabling Multicast on the Network (CLI) section.

For more information about upgrading to a new controller software release, see the Release Notes for Cisco Wireless LAN Controllers and Lightweight Access Points at http:/​/​www.cisco.com/​en/​US/​products/​ps10315/​prod_​release_​notes_​list.html.

For more information about mesh and controller software releases and the compatible access points, see the Cisco Wireless Solutions Software Compatibility Matrix at http:/​/​www.cisco.com/​en/​US/​docs/​wireless/​controller/​5500/​tech_notes/​Wireless_​Software_​Compatibility_​Matrix.html.

This chapter contains the following sections:

Adding Mesh Access Points to the Mesh Network

This section assumes that the controller is already active in the network and is operating in Layer 3 mode.


Note

Controller ports that the mesh access points connect to should be untagged.

Before adding a mesh access point to a network, do the following:

    Step 1   Add the MAC address of the mesh access point to the controller’s MAC filter. See the Adding MAC Addresses of Mesh Access Points to MAC Filter section.
    Step 2   Define the role (RAP or MAP) for the mesh access point. See the Defining Mesh Access Point Role section.
    Step 3   Verify that Layer 3 is configured on the controller. See the Verifying Layer 3 Configuration section.
    Step 4   Configure a primary, secondary, and tertiary controller for each mesh access point. See the Configuring Multiple Controllers Using DHCP 43 and DHCP 60 section.

    Configure a backup controller. See the Configuring Backup Controllers section.

    Step 5   Configure external authentication of MAC addresses using an external RADIUS server. See the Configuring External Authentication and Authorization Using a RADIUS Server.
    Step 6   Configure global mesh parameters. See the Configuring Global Mesh Parameters section.
    Step 7   Configure backhaul client access. See the Configuring Advanced Features section.
    Step 8   Configure local mesh parameters. See the Configuring Local Mesh Parameters section.
    Step 9   Configure antenna parameters. See the Configuring Antenna Gain section.
    Step 10   Configure channels for serial backhaul. This step is applicable only to serial backhaul access points. See the Backhaul Channel Deselection on Serial Backhaul Access Point section.
    Step 11   Configure the DCA channels for the mesh access points. See the Configuring Dynamic Channel Assignment section.
    Step 12   Configure mobility groups (if desired) and assign controllers. See the Configuring Mobility Groups chapter in the Cisco Wireless LAN Controller Configuration Guide.
    Step 13   Configure Ethernet bridging (if desired). See the Configuring Ethernet Bridging section.
    Step 14   Configure advanced features such as Ethernet VLAN tagging network, video, and voice. See the Configuring Advanced Features section.

    Adding MAC Addresses of Mesh Access Points to MAC Filter

    You must enter the radio MAC address for all mesh access points that you want to use in the mesh network into the appropriate controller. A controller only responds to discovery requests from outdoor radios that appear in its authorization list. MAC filtering is enabled by default on the controller, so only the MAC addresses need to be configured. If the access point has an SSC and has been added to the AP Authorization List, then the MAC address of the AP does not need to be added to the MAC Filtering List.

    You can add the mesh access point using either the GUI or the CLI.


    Note

    You can also download the list of mesh access point MAC addresses and push them to the controller using Cisco Prime Infrastructure.

    Adding the MAC Address of the Mesh Access Point to the Controller Filter List (GUI)

    To add a MAC filter entry for the mesh access point on the controller using the controller GUI, follow these steps:

      Step 1   Choose Security > AAA > MAC Filtering. The MAC Filtering page appears.
      Figure 2. MAC Filtering Page

      Step 2   Click New. The MAC Filters > New page appears.
      Step 3   Enter the radio MAC address of the mesh access point.
      Note

      For 1500 series outdoor mesh access points, specify the BVI MAC address of the mesh access point into the controller as a MAC filter. For indoor mesh access points, enter the Ethernet MAC. If the required MAC address does not appear on the exterior of the mesh access point, enter the following command at the access point console to display the BVI and Ethernet MAC addresses: sh int | i hardware.

      Step 4   From the Profile Name drop-down list, select Any WLAN.
      Step 5   In the Description field, specify a description of the mesh access point. The text that you enter identifies the mesh access point on the controller.
      Note

      You might want to include an abbreviation of its name and the last few digits of the MAC address, such as ap1522:62:39:10. You can also note details on its location such as roof top, pole top, or its cross streets.

      Step 6   From the Interface Name drop-down list, choose the controller interface to which the mesh access point is to connect.
      Step 7   Click Apply to commit your changes. The mesh access point now appears in the list of MAC filters on the MAC Filtering page.
      Step 8   Click Save Configuration to save your changes.
      Step 9   Repeat this procedure to add the MAC addresses of additional mesh access points to the list.

      Adding the MAC Address of the Mesh Access Point to the Controller Filter List (CLI)

      To add a MAC filter entry for the mesh access point on the controller using the controller CLI, follow these steps:

        Step 1   To add the MAC address of the mesh access point to the controller filter list, enter this command:

        config macfilter add ap_mac wlan_id interface [description]

        A value of zero (0) for the wlan_id parameter specifies any WLAN, and a value of zero (0) for the interface parameter specifies none. You can enter up to 32 characters for the optional description parameter.

        Step 2   To save your changes, enter this command:

        save config

        Defining Mesh Access Point Role

        By default, AP1500s are shipped with a radio role set to MAP. You must reconfigure a mesh access point to act as a RAP.

        General Notes about MAP and RAP Association With The Controller

        The general notes are as follows:

        • A MAP always sets the Ethernet port as the primary backhaul if it is UP, and secondarily the 802.11a/n radio. This gives the network administrator time to reconfigure the mesh access point as a RAP, initially. For faster convergence on the network, we recommend that you do not connect any Ethernet device to the MAP until it has joined the mesh network.
        • A MAP that fails to connect to a controller on a UP Ethernet port, sets the 802.11a/n radio as the primary backhaul. If a MAP fails to find a neighbor or fails to connect to a controller through a neighbor, the Ethernet port is set as the primary backhaul again.
        • A MAP connected to a controller over an Ethernet port does not build a mesh topology (unlike a RAP).
        • A RAP always sets the Ethernet port as the primary backhaul.
        • If the Ethernet port is DOWN on a RAP, or a RAP fails to connect to a controller on a UP Ethernet port, the 802.11a/n radio is set as the primary backhaul for 15 minutes. Failing to find a neighbor or failing to connect to a controller via any neighbor on the 802.11a/n radio causes the primary backhaul to go into the scan state. The primary backhaul begins its scan with the Ethernet port.

        Configuring the AP Role (GUI)

        To configure the role of a mesh access point using the GUI, follow these steps:

          Step 1   Click Wireless to open the All APs page.
          Step 2   Click the name of an access point. The All APs > Details (General) page appears.
          Step 3   Click the Mesh tab.
          Figure 3. All APs > Details for (Mesh) Page

          Step 4   Choose RootAP or MeshAP from the AP Role drop-down list.
          Step 5   Click Apply to commit your changes and to cause the access point to reboot.

          Configuring the AP Role (CLI)

          To configure the role of a mesh access point using the CLI, enter the following command:

          config ap role {rootAP | meshAP} Cisco_AP

          Configuring Multiple Controllers Using DHCP 43 and DHCP 60

          To configure DHCP Option 43 and 60 for mesh access points in the embedded Cisco IOS DHCP server, follow these steps:

            Step 1   Enter configuration mode at the Cisco IOS CLI.
            Step 2   Create the DHCP pool, including the necessary parameters such as the default router and name server. The commands used to create a DHCP pool are as follows:

ip dhcp pool pool name
network IP Network Netmask
default-router Default router
dns-server DNS Server


            where:


pool name is the name of the DHCP pool, such as AP1520
IP Network is the network IP address where the controller resides, such as 10.0.15.1
Netmask is the subnet mask, such as 255.255.255.0
Default router is the IP address of the default router, such as 10.0.0.1
DNS Server is the IP address of the DNS server, such as 10.0.10.2

            Step 3   Add the option 60 line using the following syntax:

option 60 ascii “VCI string”


            For the VCI string, use one of the values below. The quotation marks must be included.


For Cisco 1550 series access points, enter “Cisco AP c1550”
For Cisco 1520 series access points, enter “Cisco AP c1520”
For Cisco 1240 series access points, enter “Cisco AP c1240”
For Cisco 1130 series access points, enter “Cisco AP c1130”

            Step 4   Add the option 43 line using the following syntax:

option 43 hex hex string


            The hex string is assembled by concatenating the TLV values shown below:

            Type + Length + Value

            Type is always f1(hex). Length is the number of controller management IP addresses times 4 in hex. Value is the IP address of the controller listed sequentially in hex.

            For example, suppose that there are two controllers with management interface IP addresses 10.126.126.2 and 10.127.127.2. The type is f1(hex). The length is 2 * 4 = 8 = 08 (hex). The IP addresses translate to 0a7e7e02 and 0a7f7f02. Assembling the string then yields f1080a7e7e020a7f7f02.

            The resulting Cisco IOS command added to the DHCP scope is listed below:


option 43 hex f1080a7e7e020a7f7f02

            Backup Controllers

            A single controller at a centralized location can act as a backup for mesh access points when they lose connectivity with the primary controller in the local region. Centralized and regional controllers need not be in the same mobility group. Using the controller GUI or CLI, you can specify the IP addresses of the backup controllers, which allows the mesh access points to fail over to controllers outside of the mobility group.

            You can also configure primary and secondary backup controllers (which are used if primary, secondary, or tertiary controllers are not specified or are not responsive) for all access points connected to the controller as well as various timers, including the heartbeat timer and discovery request timers.


            Note

            The fast heartbeat timer is not supported on access points in bridge mode. The fast heartbeat timer is configured only on access points in local and FlexConnect modes.

            The mesh access point maintains a list of backup controllers and periodically sends primary discovery requests to each entry on the list. When the mesh access point receives a new discovery response from a controller, the backup controller list is updated. Any controller that fails to respond to two consecutive primary discovery requests is removed from the list. If the mesh access point’s local controller fails, it chooses an available controller from the backup controller list in this order: primary, secondary, tertiary, primary backup, and secondary backup. The mesh access point waits for a discovery response from the first available controller in the backup list and joins the controller if it receives a response within the time configured for the primary discovery request timer. If the time limit is reached, the mesh access point assumes that the controller cannot be joined and waits for a discovery response from the next available controller in the list.


            Note

            When a mesh access point’s primary controller comes back online, the mesh access point disassociates from the backup controller and reconnects to its primary controller. The mesh access point falls back to its primary controller and not to any secondary controller for which it is configured. For example, if a mesh access point is configured with primary, secondary, and tertiary controllers, it fails over to the tertiary controller when the primary and secondary controllers become unresponsive and waits for the primary controller to come back online so that it can fall back to the primary controller. The mesh access point does not fall back from the tertiary controller to the secondary controller if the secondary controller comes back online; it stays connected to the tertiary controller until the primary controller comes back up.

            Configuring Backup Controllers (GUI)

            Using the controller GUI, follow these steps to configure primary, secondary, and tertiary controllers for a specific mesh access point and to configure primary and secondary backup controllers for all mesh access points:

              Step 1   Choose Wireless > Access Points > Global Configuration to open the Global Configuration page (see Figure 1).
              Figure 4. Global Configuration Page

              Note

              The fast heartbeat timer is not supported on mesh access points.

              Step 2   In the AP Primary Discovery Timeout field, enter a value between 30 and 3600 seconds (inclusive) to configure the access point primary discovery request timer. The default value is 120 seconds.
              Step 3   If you want to specify a primary backup controller for all access points, specify the IP address of the primary backup controller in the Back-up Primary Controller IP Address field and the name of the controller in the Back-up Primary Controller Name field.
              Note

              The default value for the IP address is 0.0.0.0, which disables the primary backup controller.

              Step 4   If you want to specify a secondary backup controller for all access points, specify the IP address of the secondary backup controller in the Back-up Secondary Controller IP Address field and the name of the controller in the Back-up Secondary Controller Name field.
              Note

              The default value for the IP address is 0.0.0.0, which disables the secondary backup controller.

              Step 5   Click Apply to commit your changes.
              Step 6   If you want to configure primary, secondary, and tertiary backup controllers for a specific point, follow these steps:
              1. Choose Access Points > All APs to open the All APs page.
              2. Click the name of the access point for which you want to configure primary, secondary, and tertiary backup controllers.
              3. Click the High Availability tab.
              4. If desired, specify the name and IP address of the primary backup controller for this access point in the Primary Controller fields.
                Note

                Specifying an IP address for the backup controller is optional in this step and the next two steps. If the backup controller is outside the mobility group to which the mesh access point is connected (the primary controller), then you need to provide the IP address of the primary, secondary, or tertiary controller, respectively. The controller name and IP address must belong to the same primary, secondary, or tertiary controller. Otherwise, the mesh access point cannot join the backup controller.

              5. If desired, specify the name and IP address of the secondary backup controller for this mesh access point in the Secondary Controller fields.
              6. If desired, specify the name and IP address of the tertiary backup controller for this mesh access point in the Tertiary Controller fields.
              7. No change is required to the AP Failover Priority value. The default value for mesh access points is critical and it cannot be modified.
              8. Click Apply to commit your changes.
              Step 7   Click Save Configuration to save your changes.

              Configuring Backup Controllers (CLI)

              Using the controller CLI, follow these steps to configure primary, secondary, and tertiary controllers for a specific mesh access point and to configure primary and secondary backup controllers for all mesh access points.

                Step 1   To configure a primary controller for a specific mesh access point, enter this command:

                config ap primary-base controller_name Cisco_AP [controller_ip_address]

                Note

                The controller_ip_address parameter in this command and the next two commands is optional. If the backup controller is outside the mobility group to which the mesh access point is connected (the primary controller), then you need to provide the IP address of the primary, secondary, or tertiary controller, respectively. In each command, the controller_name and controller_ip_address must belong to the same primary, secondary, or tertiary controller. Otherwise, the mesh access point cannot join the backup controller.

                Step 2   To configure a secondary controller for a specific mesh access point, enter this command:

                config ap secondary-base controller_name Cisco_AP [controller_ip_address]

                Step 3   To configure a tertiary controller for a specific mesh access point, enter this command:

                config ap tertiary-base controller_name Cisco_AP [controller_ip_address]

                Step 4   To configure a primary backup controller for all mesh access points, enter this command:

                config advanced backup-controller primary backup_controller_name backup_controller_ip_address

                Step 5   To configure a secondary backup controller for all mesh access points, enter this command:

                config advanced backup-controller secondary backup_controller_name backup_controller_ip_address

                Note

                To delete a primary or secondary backup controller entry, enter 0.0.0.0 for the controller IP address.

                Step 6   To configure the mesh access point primary discovery request timer, enter this command:

                config advanced timers ap-primary-discovery-timeout interval

                where interval is a value between 30 and 3600 seconds. The default value is 120 seconds.

                Step 7   To configure the mesh access point discovery timer, enter this command:

                config advanced timers ap-discovery-timeout interval

                where interval is a value between 1 and 10 seconds (inclusive). The default value is 10 seconds.

                Step 8   To configure the 802.11 authentication response timer, enter this command:

                config advanced timers auth-timeout interval

                where interval is a value between 10 and 600 seconds (inclusive). The default value is 10 seconds.

                Step 9   To save your changes, enter this command:

                save config

                Step 10   To view a mesh access point’s configuration, enter these commands:
                • show ap config general Cisco_AP
                • show advanced backup-controller
                • show advanced timers
                • show mesh config

                Information similar to the following appears for the show ap config general Cisco_AP command:


Cisco AP Identifier.............................. 1
Cisco AP Name.................................... AP5
Country code..................................... US  - United States
Regulatory Domain allowed by Country............. 802.11bg:-AB    802.11a:-AB
AP Country code.................................. US  - United States
AP Regulatory Domain............................. 802.11bg:-A    802.11a:-N
Switch Port Number .............................. 1
MAC Address...................................... 00:13:80:60:48:3e
IP Address Configuration......................... DHCP
IP Address....................................... 1.100.163.133
...
Primary Cisco Switch Name........................ 1-4404
Primary Cisco Switch IP Address.................. 2.2.2.2
Secondary Cisco Switch Name...................... 1-4404
Secondary Cisco Switch IP Address................ 2.2.2.2
Tertiary Cisco Switch Name....................... 2-4404
Tertiary Cisco Switch IP Address................. 1.1.1.4


                Information similar to the following appears for the show advanced backup-controller command:


AP primary Backup Controller .................... controller1 10.10.10.10
AP secondary Backup Controller ............... 0.0.0.0


                Information similar to the following appears for the show advanced timers command:


Authentication Response Timeout (seconds)........ 10
Rogue Entry Timeout (seconds).................... 1300
AP Heart Beat Timeout (seconds).................. 30
AP Discovery Timeout (seconds)................... 10
AP Primary Discovery Timeout (seconds)........... 120


                Information similar to the following appears for the show mesh config command:


Mesh Range....................................... 12000
Backhaul with client access status............... disabled
Background Scanning State........................ enabled
Mesh Security
Security Mode................................. EAP
External-Auth................................. disabled
Use MAC Filter in External AAA server......... disabled
Force External Authentication................. disabled
Mesh Alarm Criteria
Max Hop Count................................. 4
Recommended Max Children for MAP.............. 10
Recommended Max Children for RAP.............. 20
Low Link SNR.................................. 12
High Link SNR................................. 60
Max Association Number........................ 10
Association Interval.......................... 60 minutes
Parent Change Numbers......................... 3
Parent Change Interval........................ 60 minutes
Mesh Multicast Mode.............................. In-Out
Mesh Full Sector DFS............................. enabled
Mesh Ethernet Bridging VLAN Transparent Mode..... enabled

                Configuring External Authentication and Authorization Using a RADIUS Server

                External authorization and authentication of mesh access points using a RADIUS server such as Cisco ACS (4.1 and later) is supported in release 5.2 and later releases. The RADIUS server must support the client authentication type of EAP-FAST with certificates.

                Before you employ external authentication within the mesh network, ensure that you make these changes:

                • The RADIUS server to be used as an AAA server must be configured on the controller.
                • The controller must also be configured on the RADIUS server.
                • Add the mesh access point configured for external authorization and authentication to the user list of the RADIUS server.
                  • For additional details, see the Adding a Username to a RADIUS Server section.
                • Configure EAP-FAST on the RADIUS server and install the certificates. EAP-FAST authentication is required if mesh access points are connected to the controller using an 802.11a interface; the external RADIUS servers need to trust Cisco Root CA 2048. For information about installing and trusting the CA certificates, see the Configuring RADIUS Servers section.

                  Note

                  If mesh access points connect to a controller using a Fast Ethernet or Gigabit Ethernet interface, only MAC authorization is required.


                  Note

                  This feature also supports local EAP and PSK authentication on the controller.

                Configuring RADIUS Servers

                To install and trust the CA certificates on the RADIUS server, follow these steps:

                  Step 1   Download the CA certificates for Cisco Root CA 2048 from the following locations:
                  Step 2   Install the certificates as follows:
                  1. From the CiscoSecure ACS main menu, click System Configuration > ACS Certificate Setup > ACS Certification Authority Setup.
                  2. In the CA certificate file box, type the CA certificate location (path and name). For example: C:\Certs\crca2048.cer.
                  3. Click Submit.
                  Step 3   Configure the external RADIUS servers to trust the CA certificate as follows:
                  1. From the CiscoSecure ACS main menu, choose System Configuration > ACS Certificate Setup > Edit Certificate Trust List. The Edit Certificate Trust List appears.
                  2. Select the check box next to the Cisco Root CA 2048 (Cisco Systems) certificate name.
                  3. Click Submit.
                  4. To restart ACS, choose System Configuration > Service Control, and then click Restart.

                  For additional configuration details on Cisco ACS servers, see the following:

                  Adding a Username to a RADIUS Server

                  Add MAC addresses of mesh access point that are authorized and authenticated by external RADIUS servers to the user list of that server prior to enabling RADIUS authentication for a mesh access point.

                  For remote authorization and authentication, EAP-FAST uses the manufacturer’s certificate (CERT) to authenticate the child mesh access point. Additionally, this manufacturer certificate-based identity serves as the username for the mesh access point in user validation.

                  For Cisco IOS-based mesh access points, in addition to adding the MAC address to the user list, you need to enter the platform_name_string–MAC_address string to the user list (for example, c1240-001122334455). The controller first sends the MAC address as the username; if this first attempt fails, then the controller sends the platform_name_string–MAC_address string as the username.


                  Note

                  The Authentication MAC address is different for outdoor versus indoor APs. Outdoor APs use the AP's BVI MAC address, whereas indoor APs use the AP's Gigabit Ethernet MAC address.

                  RADIUS Server Username Entry
                  For each mesh access point, two entries must be added to the RADIUS server, the platform_name_string-MAC_address string, then a hyphen delimited MAC Address. For example:
                  • platform_name_string-MAC_address User: c1520-aabbccddeeff Password: cisco
                  • Hyphen Delimited MAC Address User: aa-bb-cc-dd-ee-ff Password: aa-bb-cc-dd-ee-ff

                  Note

                  The AP1552 platform uses a platform name of c1520.

                  Enabling External Authentication of Mesh Access Points (GUI)

                  To enable external authentication for a mesh access point using the GUI, follow these steps:

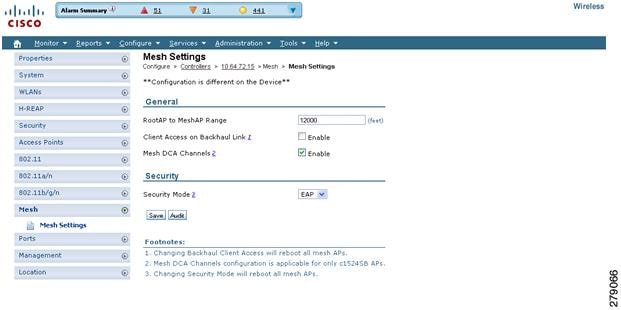

                    Step 1   Choose Wireless > Mesh. The Mesh page appears (see Figure 1).
                    Figure 5. Mesh Page

                    Step 2   In the security section, select the EAP option from the Security Mode drop-down list.
                    Step 3   Select the Enabled check boxes for the External MAC Filter Authorization and Force External Authentication options.
                    Step 4   Click Apply.
                    Step 5   Click Save Configuration.

                    Enable External Authentication of Mesh Access Points (CLI)

                    To enable external authentication for mesh access points using the CLI, enter the following commands:

                      Step 1   config mesh security eap
                      Step 2   config macfilter mac-delimiter colon
                      Step 3   config mesh security rad-mac-filter enable
                      Step 4   config mesh radius-server index enable
                      Step 5   config mesh security force-ext-auth enable (Optional)

                      View Security Statistics (CLI)

                      To view security statistics for mesh access points using the CLI, enter the following command:

                      show mesh security-stats Cisco_AP

                      Use this command to display packet error statistics and a count of failures, timeouts, and association and authentication successes as well as reassociations and reauthentications for the specified access point and its child.

                      Configuring Global Mesh Parameters

                      This section provides instructions to configure the mesh access point to establish a connection with the controller including:

                      • Setting the maximum range between RAP and MAP (not applicable to indoor MAPs).
                      • Enabling a backhaul to carry client traffic.
                      • Defining if VLAN tags are forwarded or not.
                      • Defining the authentication mode (EAP or PSK) and method (local or external) for mesh access points including security settings (local and external authentication).

                      You can configure the necessary mesh parameters using either the GUI or the CLI. All parameters are applied globally.

                      Configuring Global Mesh Parameters (GUI)

                      To configure global mesh parameters using the controller GUI, follow these steps:

                        Step 1   Choose Wireless > Mesh.
                        Step 2   Modify the mesh parameters as appropriate.
                        Table 1 Global Mesh Parameters

                        Parameter

                        Description

                        Range (RootAP to MeshAP)

                        The optimum distance (in feet) that should exist between the root access point (RAP) and the mesh access point (MAP). This global parameter applies to all mesh access points when they join the controller and all existing mesh access points in the network.

                        Range: 150 to 132,000 feet

                        Default: 12,000 feet

                        Note

                        After this feature is enabled, all mesh access points reboot.

                        IDS (Rogue and Signature Detection)

                        When you enable this feature, IDS reports are generated for all traffic on the client access only and not on the backhaul.

                        When you disable this feature, no IDS reports are generated, which preserves bandwidth on the backhaul.

                        You have to use the following command to enable or disable it on the mesh APs:


config mesh ids-state {enable | disable}

                        Note

                        2.4GHz IDS is activated with the global IDS settings on the controller.

                        Backhaul Client Access

                        Note

                        This parameter applies to mesh access points with two or more radios (1552, 1524SB, 1522, 1240, 1130, and 11n indoor mesh APs) excluding the 1524PS.

                        When Backhaul Client Access is enabled, it allows wireless client association over the backhaul radio. Generally, backhaul radio is a 5-GHz radio for most of the mesh access points except for 1522 where backhaul can be 2.4 GHz. This means that a backhaul radio can carry both backhaul traffic and client traffic.

                        When Backhaul Client Access is disabled, only backhaul traffic is sent over the backhaul radio and client association is only over the second radio(s).

                        Default: Disabled

                        Note

                        After this feature is enabled, all mesh access points reboot.

                        VLAN Transparent

                        This feature determines how a mesh access point handles VLAN tags for Ethernet bridged traffic.

                        Note

                        See the Configuring Advanced Features section for overview and additional configuration details.

                        If VLAN Transparent is enabled, then VLAN tags are not handled and packets are bridged as untagged packets.

                        Note

                        No configuration of Ethernet ports is required when VLAN transparent is enabled. The Ethernet port passes both tagged and untagged frames without interpreting the frames.

                        If VLAN Transparent is disabled, then all packets are handled according to the VLAN configuration on the port (trunk, access, or normal mode).

                        Note

                        If the Ethernet port is set to Trunk mode, then Ethernet VLAN tagging must be configured. See the Enabling Ethernet Bridging (GUI) section.

                        Note

                        For an overview of normal, access, and trunk Ethernet port use, see the Ethernet Port Notes section.

                        Note

                        To use VLAN tagging, you must uncheck the VLAN Transparent check box.

                        Note

                        VLAN Transparent is enabled as a default to ensure a smooth software upgrade from 4.1.192.xxM releases to release 5.2. Release 4.1.192.xxM does not support VLAN tagging.

                        Default: Enabled.

                        Security Mode

                        Defines the security mode for mesh access points: Pre-Shared Key (PSK) or Extensible Authentication Protocol (EAP).

                        Note

                        EAP must be selected if external MAC filter authorization using a RADIUS server is configured.

                        Note

                        Local EAP or PSK authentication is performed within the controller if the External MAC Filter Authorization parameter is disabled (check box unchecked).

                        Options: PSK or EAP

                        Default: EAP

                        External MAC Filter Authorization

                        MAC filtering uses the local MAC filter on the controller by default.

                        When external MAC filter authorization is enabled, if the MAC address is not found in the local MAC filter, then the MAC address in the external RADIUS server is used.

                        This protects your network against rogue mesh access points by preventing mesh access points that are not defined on the external server from joining.

                        Before employing external authentication within the mesh network, the following configuration is required:

                        • The RADIUS server to be used as an AAA server must be configured on the controller.
                        • The controller must also be configured on the RADIUS server.
                        • The mesh access point configured for external authorization and authentication must be added to the user list of the RADIUS server.
                          • For remote authorization and authentication, EAP-FAST uses the manufacturer’s certificate (CERT) to authenticate the child mesh access point. Additionally, this manufacturer certificate-based identity serves as the username for the mesh access point in user validation.
                          • For IOS-based mesh access points (1130, 1240, 1522, 1524), the platform name of the mesh access point is located in front of its Ethernet address within the certificate; therefore, their username for external RADIUS servers is platform_name_string–Ethernet MAC address such as c1520-001122334455.
                        • The certificates must be installed and EAP-FAST must be configured on the RADIUS server.
                          Note

                          When this capability is not enabled, by default, the controller authorizes and authenticates mesh access points using the MAC address filter.

                        Default: Disabled.

                        Force External Authorization

                        When enabled along with EAP and External MAC Filter Authorization parameters, external authorization and authentication of mesh access points is done by default by an external RADIUS server (such as Cisco 4.1 and later). The RADIUS server overrides local authentication of the MAC address by the controller which is the default.

                        Default: Disabled.

                        Step 3   Click Apply.
                        Step 4   Click Save Configuration.

                        Configuring Global Mesh Parameters (CLI)

                        To configure global mesh parameters including authentication methods using the controller CLI, follow these steps:


                        Note

                        See the Configuring Global Mesh Parameters (GUI) section for descriptions, valid ranges, and default values of the parameters used in the CLI commands.

                          Step 1   To specify the maximum range (in feet) of all mesh access points in the network, enter this command:

                          config mesh range feet

                          To see the current range, enter the show mesh range command.

                          Step 2   To enable or disable IDS reports for all traffic on the backhaul, enter this command:

                          config mesh ids-state {enable | disable}

                          Step 3   To specify the rate (in Mbps) at which data is shared between access points on the backhaul interface, enter this command:

                          config ap bhrate {rate | auto} Cisco_AP

                          Step 4   To enable or disable client association on the primary backhaul (802.11a) of a mesh access point, enter these commands:

                          config mesh client-access {enable | disable}

                          config ap wlan {enable | disable} 802.11a Cisco_AP

                          config ap wlan {add | delete} 802.11a wlan_id Cisco_AP

                          Step 5   To enable or disable VLAN transparent, enter this command:

                          config mesh ethernet-bridging VLAN-transparent {enable | disable}

                          Step 6   To define a security mode for the mesh access point, enter one of the following commands:
                          1. To provide local authentication of the mesh access point by the controller, enter this command:

                            config mesh security {eap | psk}

                          2. To store the MAC address filter in an external RADIUS server for authentication instead of the controller (local), enter these commands:

                            config macfilter mac-delimiter colon

                            config mesh security rad-mac-filter enable

                            config mesh radius-server index enable

                          3. To provide external authentication on a RADIUS server and define a local MAC filter on the controller, enter these commands:

                            config mesh security eap

                            config macfilter mac-delimiter colon

                            config mesh security rad-mac-filter enable

                            config mesh radius-server index enable

                            config mesh security force-ext-auth enable

                          4. To provide external authentication on a RADIUS server using a MAC username (such as c1520-123456) on the RADIUS server, enter these commands:

                            config macfilter mac-delimiter colon

                            config mesh security rad-mac-filter enable

                            config mesh radius-server index enable

                            config mesh security force-ext-auth enable

                          Step 7   To save your changes, enter this command:

                          save config

                          Viewing Global Mesh Parameter Settings (CLI)

                          Use these commands to obtain information on global mesh settings:

                          • show mesh client-access—When Backhaul Client Access is enabled, it allows wireless client association over the backhaul radio. Generally, backhaul radio is a 5-GHz radio for most of the mesh access points except for 1522 where backhaul can be 2.4 GHz. This means that a backhaul radio can carry both backhaul traffic and client traffic. When Backhaul Client Access is disabled, only backhaul traffic is sent over the backhaul radio and client association is only over the second radio(s).

(Cisco Controller)> show mesh client-access
Backhaul with client access status: enabled
                          • show mesh ids-state—Shows the status of the IDS reports on the backhaul as either enabled or disabled.

(Cisco Controller)> show mesh ids-state
Outdoor Mesh IDS(Rogue/Signature Detect): .... Disabled

                          • show mesh config—Displays global configuration settings.

(Cisco Controller)> show mesh config
Mesh Range....................................... 12000
Mesh Statistics update period.................... 3 minutes
Backhaul with client access status............... disabled
Background Scanning State........................ enabled
Backhaul Amsdu State............................. disabled

Mesh Security
Security Mode................................. EAP
External-Auth................................. disabled
Use MAC Filter in External AAA server......... disabled
Force External Authentication................. disabled

Mesh Alarm Criteria
Max Hop Count................................. 4
Recommended Max Children for MAP.............. 10
Recommended Max Children for RAP.............. 20
Low Link SNR.................................. 12
High Link SNR................................. 60
Max Association Number........................ 10
Association Interval.......................... 60 minutes
Parent Change Numbers......................... 3
Parent Change Interval........................ 60 minutes

Mesh Multicast Mode.............................. In-Out
Mesh Full Sector DFS............................. enabled

Mesh Ethernet Bridging VLAN Transparent Mode..... enabled

                          Backhaul Client Access

                          When Backhaul Client Access is enabled, it allows wireless client association over the backhaul radio. Generally, backhaul radio is a 5-GHz radio for most of the mesh access points except for 1522 where backhaul can be 2.4 GHz. This means that a backhaul radio can carry both backhaul traffic and client traffic.

                          When Backhaul Client Access is disabled, only backhaul traffic is sent over the backhaul radio and client association is only over the second radio(s).


                          Note

                          Backhaul Client Access is disabled by default. After this feature is enabled, all mesh access points, except slave AP and its child APs in Daisy-chained deployment, reboot.

                          This feature is applicable to mesh access points with two or more radios (1552, 1524SB, 1522, Indoor APs in mesh mode) excluding the 1524PS.

                          Configuring Backhaul Client Access (GUI)

                          This figure shows how to enable Backhaul Client Access using the GUI. You will be prompted that the AP will reboot if you enable Backhaul Client Access.

                          Figure 6. Configuring Backhaul Client Access using the GUI

                          Configuring Backhaul Client Access (CLI)

                          Use the following command to enable Backhaul Client Access:


(Cisco Controller)> config mesh client-access enable


                          The following message is displayed:


All Mesh APs will be rebooted
Are you sure you want to start? (y/N)

                          Backhaul Client Access on Serial Backhaul Access Points

                          With Backhaul Client Access, you can have client access on the backhaul 802.11a radios in addition to the backhaul functionality. This feature is applicable to mesh access points with two or more radios (1552, 1524SB, 1522, Indoor APs in mesh mode) excluding the 1524PS.

                          The dual 5-GHz Backhaul Client Access feature is intended for the serial backhaul access point platform, which has three radio slots. The radio in slot 0 operates in the 2.4-GHz band and is used for client access. The radios in slot 1 and slot 2 operate in the 5-GHz band and are primarily used for backhaul. However, with the Backhaul Client Access feature, clients were allowed to associate over the slot 1 radio. But slot 2 radio was used only for backhaul. With the 7.0 release, client access over the slot 2 radio is allowed with this Dual 5-GHz Universal Access feature.

                          By default, client access is disabled over both the backhaul radios. Follow the guidelines to enable or disable client access on the radio slots that constitute 5-GHz radios, irrespective of the radios being used as downlinks or uplinks:

                          • You can enable client access on slot 1 even if client access on slot 2 is disabled.
                          • You can enable client access on slot 2 only when client access on slot 1 is enabled.
                          • If you disable client access on slot 1, client access on slot 2 is automatically disabled on the CLI.
                          • To disable only the extended client access (on the slot 2 radio), use the GUI.
                          • All the mesh access points reboot whenever client access is enabled or disabled.

                          The two 802.11a backhaul radios use the same MAC address. There may be instances where a WLAN maps to the same BSSID on more than one slot. Client access on the slot 2 radio is referred to as Extended Universal Access (EUA) in this document.

                          Configuring Extended Universal Access (GUI)

                            Step 1   Choose Controller > Wireless > Mesh.

                            The Controller GUI when Backhaul Client Access is disabled page appears.

                            Figure 7. Advanced Controller Settings for Mesh Page

                            Step 2   Select the Backhaul Client Access check box to display the Extended Backhaul Client Access check box.
                            Step 3   Select the Extended Backhaul Client Access check box and click Apply. A message appears.
                            Step 4   Click OK.

                            After EUA is enabled, 802.11a radios appear.

                            Figure 8. 802.11a Radios after EUA is Enabled

                            Slot 2 in the 5-GHz radio in the RAPSB (serial backhaul) that is used to extend the backhaul in the DOWNLINK direction is displayed as DOWNLINK ACCESS, where slot 1 in the 5-GHz radio in the RAPSB that is used for client access is displayed as ACCESS. Slot 2 in the 5-GHz radio in the MAPSB that is used for the UPLINK is displayed as UPLINK ACCESS, and slot 1 in the MAPSB is used for the DOWNLINK ACCESS with an omnidirectional antenna that also provides the client access.

                            Create WLAN on the WLC with the appropriate SSID mapped to the correct interface (VLAN). After you create a WLAN, it is applied to all the radios by default. If you want to enable client access only on 802.11a radios, choose only the appropriate radio policy from the list.

                            Figure 9. Radio Policy Selection

                            Configuring Extended Universal Access (CLI)

                            Before You Begin
                            • Go to the Controller prompt and enter the config mesh client-access enable extended command. The following message is displayed:

Enabling client access on both backhaul slots
Same BSSIDs will be used on both slots
All Mesh Serial Backhaul APs will be rebooted
Are you sure you want to start? (y/N)

                            • Enter the show mesh client-access command to know the status of the backhaul with client access and the backhaul with client access extended. The status is displayed as follows:

Backhaul with client access status: enabled
Backhaul with client access extended status(3 radio AP): enabled

                            • There is no explicit command to disable client access only on slot 2 (EUA). You have to disable client access on both the backhaul slots by entering the following command: config mesh client-access disable The following message is displayed:

All Mesh APs will be rebooted
Are you sure you want to start? (y/N)

                            • You can disable EUA from the GUI without disturbing client access on the slot 1 radio, but all 1524SB access points will be rebooted. It is possible to enable client access only on slot 1 and not on slot 2 by entering the following command: config mesh client-access enable The following message is displayed:

All Mesh APs will be rebooted
Are you sure you want to start? (y/N)


                            Configuring Extended Universal Access from Cisco Prime Infrastructure

                              Step 1   Choose Controllers > Controller IP Address > Mesh > Mesh Settings.

                              The Mesh page when Backhaul Client Access is disabled appears.

                              Figure 10. Mesh Settings Page

                              Step 2   Select the Client Access on Backhaul Link check box to display the Extended Backhaul Client Access check box.
                              Step 3   Select the Extended Backhaul Client Access check box and click Apply. A message appears indicating the possible results of enabling the Extended Backhaul Client Access.
                              Step 4   Click OK to continue.

                              Configuring Local Mesh Parameters

                              After configuring global mesh parameters, you must configure the following local mesh parameters for these specific features if in use in your network:

                              Configuring Wireless Backhaul Data Rate

                              Backhaul is used to create only the wireless connection between the access points. The backhaul interface by default is 802.11a or 802.11a/n depending upon the access point. The rate selection is important for effective use of the available RF spectrum. The rate can also affect the throughput of client devices, and throughput is an important metric used by industry publications to evaluate vendor devices.

                              Dynamic Rate Adaptation (DRA) introduces a process to estimate optimal transmission rate for packet transmissions. It is important to select rates correctly. If the rate is too high, packet transmissions fail resulting in communication failure. If the rate is too low, the available channel bandwidth is not used, resulting in inferior products, and the potential for catastrophic network congestion and collapse.

                              Data rates also affect the RF coverage and network performance. Lower data rates, for example 6 Mbps, can extend farther from the access point than can higher data rates, for example 300 Mbps. As a result, the data rate affects cell coverage and consequently the number of access points required. Different data rates are achieved by sending a more redundant signal on the wireless link, allowing data to be easily recovered from noise. The number of symbols sent out for a packet at the 1-Mbps data rate is higher than the number of symbols used for the same packet at 11 Mbps. Therefore, sending data at the lower bit rates takes more time than sending the equivalent data at a higher bit rate, resulting in reduced throughput.

                              In the controller release 5.2, the default data rate for the mesh 5-GHz backhaul is 24 Mbps. It remains the same with 6.0 and 7.0 controller releases.

                              With the 6.0 controller release, mesh backhaul can be configured for ‘Auto’ data rate. Once configured, the access point picks the highest rate where the next higher rate cannot be used because of conditions not being suitable for that rate and not because of conditions that affect all rates. That is, once configured, each link is free to settle down to the best possible rate for its link quality.

                              We recommend that you configure the mesh backhaul to Auto.

                              For example, if mesh backhaul chose 48 Mbps, then this decision is taken after ensuring that we cannot use 54 Mbps as there is not enough SNR for 54 and not because some just turned the microwave oven on which affects all rates.

                              A lower bit rate might allow a greater distance between MAPs, but there are likely to be gaps in the WLAN client coverage, and the capacity of the backhaul network is reduced. An increased bit rate for the backhaul network either requires more MAPs or results in a reduced SNR between MAPs, limiting mesh reliability and interconnection.

                              This figure shows the RAP using the "auto" backhaul data rate, and it is currently using 54 Mbps with its child MAP.

                              Figure 11. Bridge Rate Set to Auto


                              Note

                              The data rate can be set on the backhaul on a per-AP basis. It is not a global command.

                              Related Commands

                              Use these commands to obtain information about backhaul:

                              • config ap bhrate—Configures the Cisco Bridge backhaul Tx rate. The syntax is as follows:

(controller) > config ap bhrate backhaul-rate ap-name

                                Note

                                Preconfigured data rates for each AP (RAP=18 Mbps, MAP1=36 Mbps) are preserved after the upgrade to 6.0 or later software releases.??Before you upgrade to the 6.0 release, if you have the backhaul data rate configured to any data rate, then the configuration is preserved.

                                The following example shows how to configure a backhaul rate of 36000 Kbps on a RAP:

                                (controller) > config ap bhrate 36000 HPRAP1

                              • show ap bhrate—Displays the Cisco Bridge backhaul rate. The syntax is as follows:

(controller) > show ap bhrate ap-name

                              • show mesh neigh summary—Displays the link rate summary including the current rate being used in backhaul Example:

(controller) > show mesh neigh summary HPRAP1

AP Name/Radio    Channel     Rate     Link-Snr     Flags      State
--------------- --------   --------   -------     -----       -----
00:0B:85:5C:B9:20 0          auto        4       0x10e8fcb8   BEACON
00:0B:85:5F:FF:60 0          auto        4       0x10e8fcb8   BEACON DEFAULT
00:0B:85:62:1E:00 165        auto        4       0x10e8fcb8   BEACON
OO:0B:85:70:8C:A0 0          auto        1       0x10e8fcb8   BEACON
HPMAP1           165         54          40      0x36         CHILD BEACON
HJMAP2           0          auto         4       0x10e8fcb8   BEACON


                              Backhaul capacity and throughput depends upon the type of the AP, that is, if it is 802.11a/n or only 802.11a, number of backhaul radios it has, and so on.

                              In AP1524 SB, Slot 2 in the 5-GHz radio in the RAP is used to extend the backhaul in the downlink direction, whereas Slot 2 in the 5-GHz radio in the MAP is used for backhaul in the uplink. We recommend using a directional antenna with the Slot 2 radio. MAPs extend Slot 1 radio in the downlink direction with Omni or directional antenna also providing client access. Client access can be provided on the Slot 2 radio from the 7.0 release onwards.

                              AP1524SB provides you with better throughput, and throughput rarely degrades after the first hop. The performance of AP1524SB is better than AP1522 and AP1524PS because these APs have only a single radio for the backhaul uplink and downlink (see the figures below).

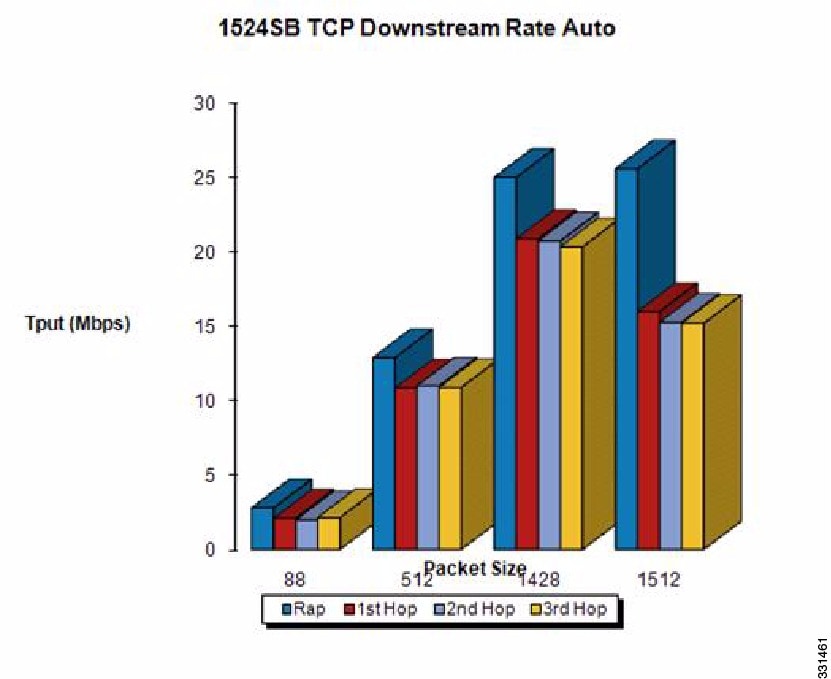

                              Figure 12. 1524SB TCP Downstream Rate Auto

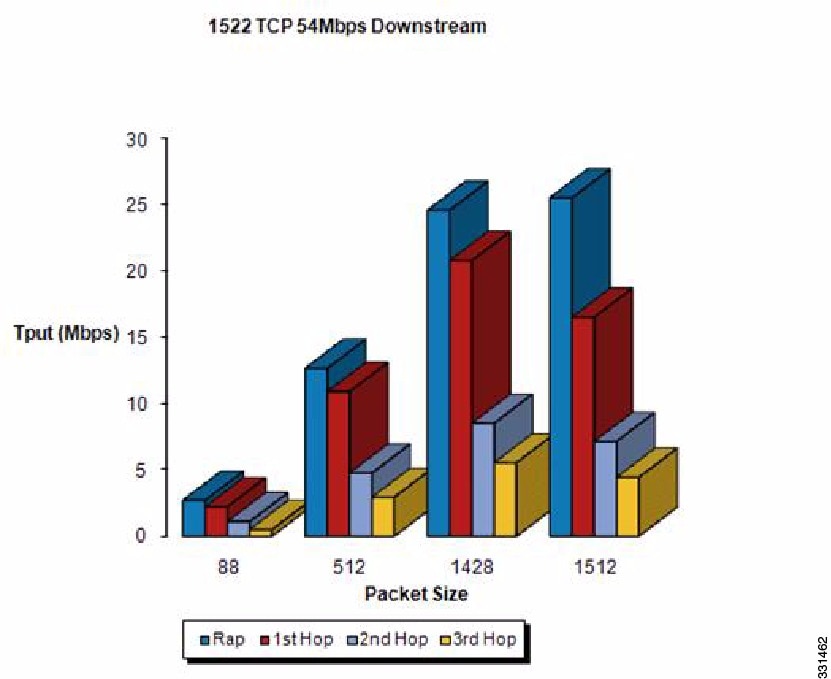

                              Figure 13. 1522 TCP 54 Mbps Downstream


                              Note

                              With DRA, each hop uses the best possible data rate for the backhaul. The data rate can be changed on a per-AP basis.

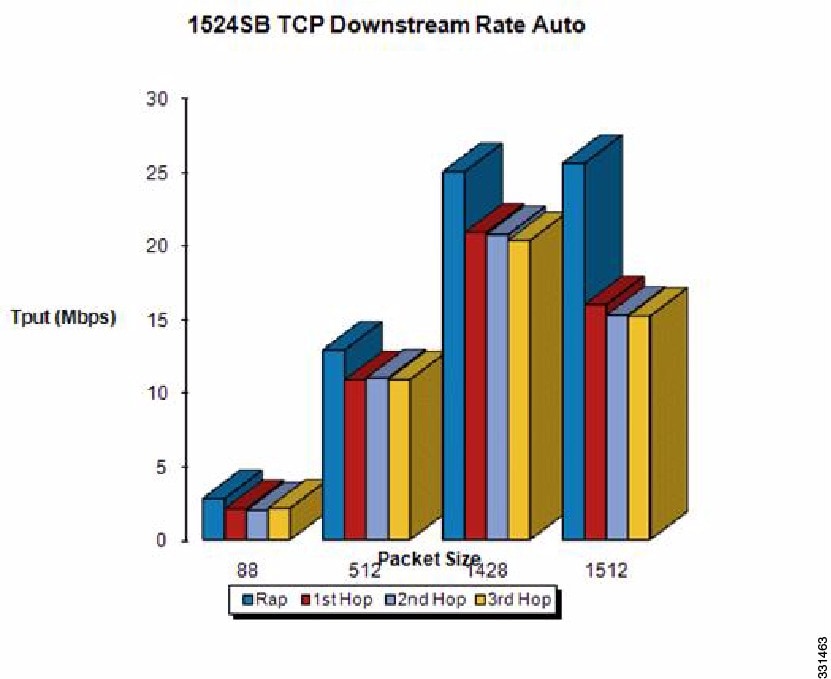

                              Figure 14. 1524SB TCP Downstream Rate Auto

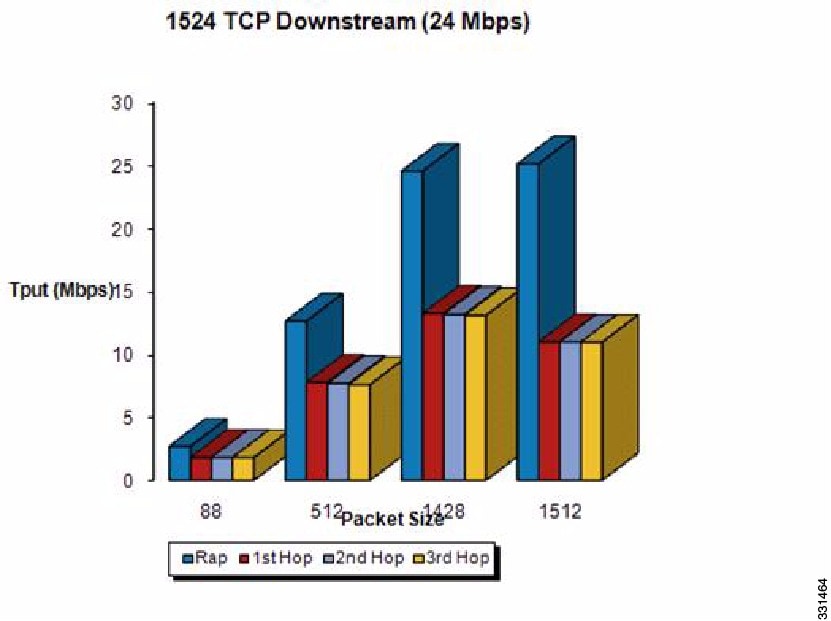

                              Figure 15. 1524 TCP Downstream (24 Mbps)


                              Note

                              Using 1552 802.11n provides you higher throughput and more capacity. It offers a very fat backhaul pipe to start with from the RAP.

                              Figure 16. AP1552 Backhaul Throughput

                              Table 2 AP1552 Backhaul Capacity

                              Hops

                              RAP

                              One

                              Two

                              Three

                              Four

                              Maximum Throughput (20 MHz BH)

                              112 Mbps

                              83 Mbps

                              41 Mbps

                              25 Mbps

                              15 Mbps

                              Maximum Throughput (40 MHz BH)

                              206 Mbps

                              111 Mbps

                              94 Mbps

                              49 Mbps

                              35 Mbps

                              The requirements for the above are as follows:
                              • Packet size to be 1370 bytes (Veriwave Client)
                              • 5-GHz 802.11n
                              • MCS 15
                              • Less than 1 percent packet loss
                              • Greater than 40 dB SNR for client access and backhaul
                              • UDP traffic, security enabled, and universal access enabled

                              Configuring Ethernet Bridging

                              For security reasons, the Ethernet port on all MAPs is disabled by default. It can be enabled only by configuring Ethernet bridging on the root and its respective MAP.


                              Note
                              Exceptions are allowed for a few protocols even though Ethernet bridging is disabled. For example, the following protocols are allowed:
                              • Spanning Tree Protocol (STP)
                              • Address Resolution Protocol (ARP)
                              • Control and Provisioning of Wireless Access Points (CAPWAP)
                              • Bootstrap Protocol (BOOTP) packets

                              Enable Spanning Tree Protocol (STP) on all connected switch ports to avoid Layer 2 looping.

                              Ethernet bridging has to be enabled for two scenarios:

                              1. When you want to use the mesh nodes as bridges (see Figure 1).

                                Note

                                You do not need to configure VLAN tagging to use Ethernet bridging for point-to-point and point-to-multipoint bridging deployments.

                              2. When you want to connect any Ethernet device such as a video camera on the MAP using its Ethernet port. This is the first step to enable VLAN tagging.
                                Figure 17. Point-to-Multipoint Bridging

                              Enabling Ethernet Bridging (GUI)

                              To enable Ethernet bridging on a RAP or MAP using the GUI, follow these steps:

                                Step 1   Choose Wireless > All APs.
                                Step 2   Click the AP name link of the mesh access point on which you want to enable Ethernet bridging.
                                Step 3   At the details page, select the Mesh tab (see Figure 1).
                                Figure 18. All APs > Details for (Mesh) Page

                                Step 4   Select either RootAP or MeshAP from the AP Role drop-down list, if not already selected.
                                Step 5   Select the Ethernet Bridging check box to enable Ethernet bridging or deselect it to disable this feature.
                                Step 6   Click Apply to commit your changes. An Ethernet Bridging section appears at the bottom of the page listing each of the Ethernet ports of the mesh access point.
                                Step 7   Ensure that you enable Ethernet bridging for every parent mesh AP taking the path from the mesh AP in question to the controller. For example, if you enable Ethernet bridging on MAP2 in Hop 2, then you must also enable Ethernet bridging on MAP1 (parent MAP), and on the RAP connecting to the controller.

                                Configuring Bridge Group Names

                                Bridge group names (BGNs) control the association of mesh access points. BGNs can logically group radios to avoid two networks on the same channel from communicating with each other. The setting is also useful if you have more than one RAP in your network in the same sector (area). BGN is a string of 10 characters maximum.

                                A BGN of NULL VALUE is assigned by default by manufacturing. Although not visible to you, it allows a mesh access point to join the network prior to your assignment of your network-specific BGN.

                                If you have two RAPs in your network in the same sector (for more capacity), we recommend that you configure the two RAPs with the same BGN, but on different channels.

                                Configuring Bridge Group Names (CLI)

                                  Step 1   To set a bridge group name (BGN), enter this command:

                                  config ap bridgegroupname set group-name ap-name

                                  Note

                                  The mesh access point reboots after a BGN configuration.

                                  Caution

                                  Exercise caution when you configure a BGN on a live network. Always start a BGN assignment from the farthest-most node (last node, bottom of mesh tree) and move up toward the RAP to ensure that no mesh access points are dropped due to mixed BGNs (old and new BGNs) within the same network.

                                  Step 2   To verify the BGN, enter the following command:

                                  show ap config general ap-name

                                  Verifying Bridge Group Names (GUI)

                                    Step 1   Click Wireless > Access Points > AP Name. The details page for the selected mesh access point appears.
                                    Step 2   Click the Mesh tab. Details for the mesh access point including the BGN appears.

                                    Configuring Public Safety Band Settings

                                    A public safety band (4.9 GHz) is supported on the AP1522 and AP1524PS.

                                    Figure 19. AP 1524PS Diagram Showing Radio Placement

                                    • For the AP1524PS, the 4.9-GHz radio is independent of the 5-GHz radio and is not used for backhaul. The 5.8 GHz is used only for backhaul, and there is no client access possible on it. On the AP1524PS, the 4.9-GHz band is enabled by default.
                                      • In Japan, 4.9 GHz is enabled by default as 4.9 GHz is unlicensed.
                                    • For AP1522s, you can enable the 4.9-GHz public safety band on the backhaul. This step can only be done at the global level and cannot be done on a per mesh access point basis.
                                      • For client access on the 4.9-GHz band on the AP1522, you have to enable the feature backhaul client access.
                                    • For public safety-only deployments, the AP1522 and the AP1524PS must each be connected to its own separate RAP-based tree. For such deployments, the 1522 must use the 4.9-GHz backhaul and the 1524PS must be in its own RAP tree and use the 5.8-GHz backhaul.
                                    • In some parts of the world including the USA, you can only have public safety traffic on the 4.9-GHz backhaul. Check the destination countries compliance before installing.

                                    The 4.9-GHz subband radio on the AP1524PS supports public safety channels within the 5-MHz (channels 1 to 10), 10-MHz (channels 11 to 19), and 20-MHz (channels 20 to 26) bandwidths.

                                    • The following data rates are supported within the 5 MHz bandwidth: 1.5, 2.25, 3, 4.5, 6, 9, 12, and 13.5 Mbps. The default rate is 6 Mbps.
                                    • The following data rates are supported within the 10-MHz bandwidth: 3, 4.5, 6, 9, 12, 18, 24, and 27 Mbps. The default rate is 12 Mbps. Those AP1522s with serial numbers prior to FTX1150XXXX do not support 5 and 10 MHz channels on the 4.9-GHz radio; however, a 20-MHz channel is supported.
                                    • Those AP1522s with serial numbers after FTX1150XXXX support 5, 10, and 20 MHz channels.
                                    Enabling the 4.9-GHz Band

                                    When you attempt to enable the 4.9-GHz band, you get a warning that the band is a licensed band in most parts of the world.

                                    Figure 20. Public Safety Warning During Configuration

                                    • To verify that a public safety band is on the mesh access point using the CLI, enter the following command:

(Cisco Controller)> show mesh public-safety
Global Public Safety status: enabled
                                    • To verify that a public safety band is on the mesh access point using the GUI: Wireless > Access Points > 802.11a radio > Configure (from the Antenna drop-down list)

                                    Configuring Interoperability with Cisco 3200

                                    Cisco AP1522 and AP1524PS can interoperate with the Cisco 3200 on the public safety channel (4.9-GHz) as well as the 2.4-GHz access and 5.8-GHz backhaul.

                                    The Cisco 3200 creates an in-vehicle network in which devices such as PCs, surveillance cameras, digital video recorders, printers, PDAs, and scanners can share wireless networks such as cellular or WLAN based services back to the main infrastructure. This feature allows data collected from in-vehicle deployments such as a police cars to be integrated into the overall wireless infrastructure.

                                    This section provides configuration guidelines and step-by-step instructions for configuring interoperability between the Cisco 3200 and the AP1522 and the AP1524PS.

                                    For specific interoperability details between series 1130, 1240, and 1520 (1522, 1524PS) mesh access points and Cisco 3200, see Table 1.

                                    Table 3 Mesh Access Points and Cisco 3200 Interoperability

                                    Mesh Access Point Model

                                    Cisco 3200 Model

                                    1552, 15221

                                    c32012, c32023, c32054

                                    1524PS

                                    c3201, c3202

                                    1524SB, 1130, 1240, Indoor 802.11n mesh access points

                                    c3201, c3205
                                    1 Universal access must be enabled on the AP1522 if connecting to a Cisco 3200 on the 802.11a radio or 4.9-GHz band.
                                    2 Model c3201 is a Cisco 3200 with a 802.11b/g radio (2.4-GHz).
                                    3 Model c3202 is a Cisco 3200 with a 4-9-GHz subband radio.
                                    4 Model c3205 is a Cisco 3200 with a 802.11a radio (5.8-GHz subband).
                                    Configuration Guidelines for Public Safety 4.9-GHz Band

                                    For the AP1522 or AP1524PS and Cisco 3200 to interoperate on the public safety network, the following configuration guidelines must be met:

                                    • Client access must be enabled on the backhaul (mesh global parameter). This feature is not supported on the AP1524PS.
                                    • Public safety must be enabled globally on all mesh access points (MAPs) in the mesh network.
                                    • The channel number assignment on the AP1522 or AP1524PS must match those on the Cisco 3200 radio interfaces:
                                      • Channels 20 (4950 GHz) through 26 (4980 GHz) and subband channels 1 through 19 (5 and 10 MHz) are used for Cisco 3200 interoperability. This configuration change is made on the controller. No changes are made to the mesh access point configuration.
                                      • Channel assignments are only made to the RAP. Updates to the MAP are propagated by the RAP.

                                    The default channel width for Cisco 3200s is 5 MHz. You must either change the channel width to 10 or 20 MHz to enable WGBs to associate with the AP1522 and AP1524PS or change the channel on the AP1522 or AP1524PS to a channel in the 5-MHz band (channels 1 to 10) or 10-MHz band (channels 11 to 19).

                                    • Radio (802.11a) must be disabled when configuring channels and then reenabled when using the CLI. When using the GUI, enabling and disabling of the 802.11a radio for channel configuration is not required.
                                    • Cisco 3200s can scan channels within but not across the 5, 10 or 20-MHz bands.

                                    Enabling AP1522 to Associate with Cisco 3200 (GUI)

                                      Step 1   To enable the backhaul for client access, choose Wireless > Mesh to access the Mesh page.
                                      Step 2   Select the Backhaul Client Access Enabled check box to allow wireless client association over the 802.11a radio. Click Apply.
                                      Note

                                      You are prompted with a message to allow reboot of all the mesh access points to enable Backhaul Client Access on a network. Click OK.

                                      Step 3   To assign the channel to use for the backhaul (channels 20 through 26), click Wireless > Access Points > Radio and select 802.11a/n from the Radio subheading. A summary page for all 802.11a radios displays.
                                      Step 4   At the Antenna drop-down list for the appropriate RAP, select Configure. The Configure page is displayed.
                                      Step 5   At the RF Backhaul Channel Assignment section, select the Custom option for the Assignment Method option and select any channel between 1 and 26.
                                      Step 6   Click Apply to commit your changes.
                                      Step 7   Click Save Configuration to save your changes.

                                      Enabling 1522 and 1524PS Association with Cisco 3200 (CLI)

                                        Step 1   To enable client access mode on the AP1522, enter this command:

                                        config mesh client-access enable

                                        Step 2   To enable the public safety on a global basis, enter this command:

                                        config mesh public-safety enable all

                                        Step 3   To enable the public safety channels, enter these commands:
                                        1. On the AP1522, enter these commands:

                                          config 802.11a disable Cisco_MAP

                                          config 802.11a channel ap Cisco_MAP channel number

                                          config 802.11a enable Cisco_MAP

                                        2. On the AP1524PS, enter these commands:

                                          config 802.11–a49 disable Cisco_MAP

                                          config 802.11–a49 channel ap Cisco_MAP channel number

                                          config 802.11–a49 enable Cisco_MAP

                                          Note

                                          Enter the config 802.11–a58 enable Cisco_MAP command to enable a 5.8-GHz radio.

                                          Note

                                          For both the AP1522 and AP1524PS, channel number is equal to any value 1 to 26.

                                        Step 4   To save your changes, enter this command:

                                        save config

                                        Step 5   To verify your configuration, enter these commands:

                                        show mesh public-safety

                                        show mesh client-access

                                        show ap config 802.11a summary (1522 only)

                                        show ap config 802.11–a49 summary (1524PS only)

                                        Note

                                        Enter the show config 802.11-a58 summary command to display configuration details for a 5.8-GHz radio.

                                        Configuring Power and Channel Settings

                                        The backhaul channel (802.11a/n) can be configured on a RAP. MAPs tune to the RAP channel. The local access can be configured independently for MAP.

                                        Configuring Power and Channel Settings (GUI)

                                          Step 1   Choose Wireless > Access Points > 802.11a/n.
                                          Note

                                          Radio slots are displayed for each radio. For an AP1524SB, the 802.11a radio will display for slots 1 and 2 that operate in the 5-GHz band. For an AP1524PS, the 802.11a radio will display for slots 1 and 2, operating in the 5-GHz and 4.9-GHz bands respectively.

                                          Step 2   Select configure from the Antenna drop-down list for the 802.11a/n radio. The Configure page is displayed.
                                          Note

                                          For the 1524SB, select the Antenna drop-down list for a RAP with a radio role of downlink.

                                          Step 3   Assign a channel (assignment methods of global and custom) for the radio.
                                          Note

                                          When you assign a channel to the AP1524SB, choose the Custom assignment method, and select one of the supported channels for the 5-GHz band.

                                          Step 4   Assign Tx power levels (global and custom) for the radio.

                                          There are five selectable power levels for the 802.11a backhaul for AP1500s.

                                          Note

                                          The default Tx power level on the backhaul is the highest power level (Level 1).

                                          Note

                                          Radio Resource Management (RRM) is OFF (disabled) by default. RRM cannot be turned ON (enabled) for the backhaul.

                                          Step 5   Click Apply when power and channel assignment are complete.
                                          Step 6   From the 802.11a/n Radios page, verify that channel assignments were made correctly.

                                          Configuring the Channels on the Serial Backhaul (CLI)

                                          To configure channels on the serial backhaul of the RAP using the controller CLI, follow these steps:

                                            Step 1   To configure the backhaul channel on the radio in slot 2 of the RAP, enter this command:

                                            config slot 2 channel ap Cisco_RAPSB channel

                                            The available channels for the 5.8-GHz band are 149, 153, 157, 161, and 165.

                                            Step 2   To configure the transmit power level on the radio in slot 2 of the RAP, enter this command:

                                            config slot 2 txPower ap Cisco_RAPSB power

                                            Valid values are 1 through 5; the default value is 1.

                                            Step 3   To display the configurations on the mesh access points, enter these commands:

                                            • show mesh path MAP Information similar to the following appears:

AP Name/Radio


Channel


Rate


Link-Snr


Flags


State


MAP1SB


161


auto


60


0x10ea9d54


UPDATED NEIGH PARENT BEACON


RAPSB


153


auto


51


0x10ea9d54


UPDATED NEIGH PARENT BEACON


RAPSB is a Root AP.

                                            • show mesh backhaul RAPSB Information similar to the following appears:

Current Backhaul Slot(s)......................... 1, 2,

Basic Attributes for Slot 1
    Radio Type................................... RADIO_TYPE_80211a
    Radio Role................................... ACCESS
    Administrative State ........................ ADMIN_ENABLED
    Operation State ............................. UP
    Current Tx Power Level ...................... 1
    Current Channel ............................. 165
    Antenna Type................................. EXTERNAL_ANTENNA
    External Antenna Gain (in .5 dBm units)...... 0

Basic Attributes for Slot 2
    Radio Type................................... RADIO_TYPE_80211a
    Radio Role................................... RADIO_DOWNLINK
    Administrative State ........................ ADMIN_ENABLED
    Operation State ............................. UP
    Current Tx Power Level ...................... 3
    Current Channel ............................. 153
    Antenna Type................................. EXTERNAL_ANTENNA
    External Antenna Gain (in .5 dBm units)...... 0

                                            • show ap channel MAP1SB Information similar to the following appears:

802.11b/g Current Channel ................. 11
Slot Id ................................... 0
Allowed Channel List....................... 1,2,3,4,5,6,7,8,9,10,11
802.11a(5.8Ghz) Current Channel ........... 161
Slot Id ................................... 1
Allowed Channel List....................... 149,153,157,161,165
802.11a(5.8Ghz) Current Channel ........... 153
Slot Id ................................... 2
Allowed Channel List....................... 149,153,157,161,165


                                            Configuring Antenna Gain

                                            You must configure the antenna gain for the mesh access point to match that of the antenna installed using the controller GUI or controller CLI.

                                            Configuring Antenna Gain (GUI)

                                            To configure antenna parameters using the controller GUI, follow these steps:

                                              Step 1   Choose Wireless > Access Points > Radio > 802.11a/n to open the 802.11a/n Radios page.
                                              Step 2   For the mesh access point antenna you want to configure, hover the mouse over the blue arrow (far right) to display antenna options. Choose Configure.
                                              Note

                                              Only external antennas have configurable gain settings.

                                              Step 3   In the Antenna Parameters section, enter the antenna gain.

                                              The gain is entered in 0.5 dBm units. For example, 2.5 dBm = 5.

                                              Note

                                              The entered gain value must match that value specified by the vendor for that antenna.

                                              Step 4   Click Apply and then Save Configuration to save the changes.

                                              Configuring Antenna Gain (CLI)

                                              Enter this command to configure the antenna gain for the 802.11a backhaul radio using the controller CLI:

                                              config 802.11a antenna extAntGain antenna_gain AP_name

                                              where gain is entered in 0.5-dBm units (for example, 2.5 dBm =5).

                                              Backhaul Channel Deselection on Serial Backhaul Access Point

                                              This feature is applicable to mesh APs with two 5-GHz radios, such as 1524SB (serial backhaul).

                                              The backhaul channel deselection feature helps you to restrict the set of channels available to be assigned for the serial backhaul MAPs and RAPs. Because 1524SB MAP channels are automatically assigned, this feature helps in regulating the set of channels that get assigned to mesh access points. For example, if you do not want channel 165 to get assigned to any of the 1524SB mesh access points, you need to remove channel 165 from the DCA list and enable this feature.

                                              When you remove certain channels from the DCA list and enable the mesh backhaul dca-channel command, those channels will not be assigned to any serial backhaul access points in any scenario. Even if a radar is detected on all channels within the DCA list channels, the radio will be shut down rather than moved to channels outside it. A trap message is sent to the Prime Infrastructure, and the message is displayed showing that the radio has been shut down because of DFS. You will not be able to assign channels to the serial backhaul RAP outside of the DCA list with the config mesh backhaul dca-channels enable command enabled. However, this is not case for the APs with one 5-GHz radio such as 1552, 1522, and 1524PS APs. For these APs, you can assign any channel outside of the DCA list for a RAP, and the controller/AP can also select a channel outside of the DCA list if no radar-free channel is available from the list.

                                              This feature is best suited in an interoperability scenario with indoor mesh access points or workgroup bridges that support a channel set that is different from outdoor access points. For example, channel 165 is supported by outdoor access points but not by indoor access points in the -A domain. By enabling the backhaul channel deselection feature, you can restrict the channel assignment to only those channels that are common to both indoor and outdoor access points.


                                              Note

                                              Channel deselection is applicable to 7.0 and later releases.

                                              In some scenarios, there may be two linear tracks or roads for mobility side by side. Because channel selection of MAPs happens automatically, there can be a hop at a channel, which is not available on the autonomous side, or the channel has to be skipped when the same or adjacent channel is selected in a neighborhood access point that belongs to a different linear chain.

                                              Configuring Backhaul Channel Deselection (GUI)

                                                Step 1   Choose Controller > Wireless > 802.11a/n > RRM > DCA

                                                The Dynamic Channel Assignment Algorithm page appears.

                                                Step 2   Select one or more channels to include in the DCA list.

                                                The channels included in the DCA list will not be assigned to the access points associated to this controller during automatic channel assignment.

                                                Step 3   Choose Wireless > Mesh

                                                The Mesh page appears.

                                                Step 4   Select the Mesh DCA Channels check box to enable the backhaul channel deselection using the DCA list. This option is applicable for serial backhaul access points.
                                                Step 5   After you enable the backhaul deselection option, choose Wireless > Access Points > Radios > 802.11a/n to configure the channel for the RAP downlink radio.
                                                Step 6   From the list of access points, click on the Antenna drop-down list for a RAP and choose Configure.

                                                The Configure page appears.

                                                Step 7   In the RF Backhaul Channel assignment section, choose Custom.
                                                Step 8   Select a channel for the RAP downlink radio from the drop-down list, which appears when you choose Custom.
                                                Step 9   Click Apply to apply and save the backhaul channel deselection configuration changes.

                                                Configuring Backhaul Channel Deselection (CLI)

                                                To configure backhaul channel deselection using CLI, follow these steps:

                                                  Step 1   From the controller prompt, enter the show advanced 802.11a channel command to review the channel list already configured in the DCA list.

(Controller) > show advanced 802.11a channel
Automatic Channel Assignment
  Channel Assignment Mode........................ AUTO
  Channel Update Interval........................ 600 seconds
  Anchor time (Hour of the day).................. 0
  Channel Update Contribution.................... SNI..
  CleanAir Event-driven RRM option............... Enabled
  CleanAir Event-driven RRM sensitivity.......... Medium
  Channel Assignment Leader...................... 09:2b:16:28:00:03
  Last Run....................................... 286 seconds ago
  DCA Sensitivity Level.......................... MEDIUM (15 dB)
  DCA 802.11n Channel Width...................... 20 MHz
  DCA Minimum Energy Limit....................... -95 dBm
  Channel Energy Levels
    Minimum...................................... unknown
    Average...................................... unknown
    Maximum...................................... unknown
  Channel Dwell Times
    Minimum...................................... 0 days, 17 h 02 m 05 s
    Average...................................... 0 days, 17 h 46 m 07 s
    Maximum...................................... 0 days, 18 h 28 m 58 s
  802.11a 5 GHz Auto-RF Channel List

--More-- or (q)uit
    Allowed Channel List......................... 36,40,44,48,52,56,60,64,116,
                                                  140
    Unused Channel List.......................... 100,104,108,112,120,124,128,
                                                  132,136
  DCA Outdoor AP option.......................... Disabled

                                                  Step 2   To add a channel to the DCA list, enter the config advanced 802.11a channel add channel number command, where channel number is the channel number that you want to add to the DCA list.

                                                  You can also delete a channel from the DCA list by entering the config advanced 802.11a channel delete channel number command, where channel number is the channel number that you want to delete from the DCA list.

                                                  Before you add or delete a channel to or from the DCA list, ensure that the 802.11a network is disabled.

                                                  • To disable the 802.11a network, enter the following command: config 802.11a disable network
                                                  • To enable the 802.11a network, enter the following command: config 802.11a enable network You cannot directly delete a channel from the DCA list if it is assigned to any 1524 RAP. To delete a channel assigned to a RAP, you must first change the channel assigned to the RAP and then enter the config advanced 802.11a channel delete channel number command from the controller. The following is a sample output of the add channel and delete channel commands:

(Controller) > config 802.11a disable network

Disabling the 802.11a network may strand mesh APs. Are you sure you want to continue? (y/n)y

(Controller) > config advanced 802.11a channel add 132

(Controller) > config advanced 802.11a channel delete 116

802.11a 5 GHz Auto-RF:
Allowed Channel List......................... 36,40,44,48,52,56,60,64,116,
                                                  132,140
DCA channels for cSerial Backhaul Mesh APs is enabled.
DCA list should have at least 3 non public safety channels supported by Serial Backhaul Mesh APs.
Otherwise, the Serial Backhaul Mesh APs can get stranded.
Are you sure you want to continue? (y/N)y

Failed to delete channel.
Reason: Channel 116 is configured for one of the Serial Backhaul RAPs.
Disable mesh backhaul dca-channels or configure a different channel for Serial Backhaul RAPs.

(Controller) > config advanced 802.11a channel delete 132

  802.11a 5 GHz Auto-RF:
Allowed Channel List..................... 36,40,44,48,52,56,60,64,116,132,140
DCA channels for Serial Backhaul Mesh APs is enabled.
DCA list should have at least 3 non public safety channels supported by Serial Backhaul Mesh APs.
Otherwise, the Serial Backhaul Mesh APs can get stranded.
Are you sure you want to continue? (y/N)y

(Controller) > config 802.11a enable network

                                                  Step 3   After a suitable DCA list has been created, enter the config mesh backhaul dca-channels enable command to enable the backhaul channel deselection feature for mesh access points.

                                                  You can enter the config mesh backhaul dca-channels disable command if you want to disable the backhaul channel deselection feature for mesh access points.

                                                  It is not required that you disable 802.11a network to enable or disable this feature.

                                                  The following is a sample output:


(Controller) > config mesh backhaul dca-channels enable
  802.11a 5 GHz Auto-RF:
    Allowed Channel List......................... 36,40,44,48,52,56,60,64,116,
                                                  140
Enabling DCA channels for c1524 mesh APs will limit the channel set to the DCA channel list.
DCA list should have at least 3 non public safety channels supported by Serial Backhaul Mesh APs.
Otherwise, the Serial Backhaul Mesh APs can get stranded.
Are you sure you want to continue? (y/N)y

(Controller) > config mesh backhaul dca-channels disable

                                                  Step 4   To check the current status of the backhaul channel deselection feature, enter the show mesh config command.

                                                  The following is a sample output:


(Controller) > show mesh config

Mesh Range....................................... 12000
Mesh Statistics update period.................... 3 minutes
Backhaul with client access status............... enabled
Background Scanning State........................ enabled
Backhaul Amsdu State............................. disabled

Mesh Security
   Security Mode................................. PSK
   External-Auth................................. enabled
      Radius Server 1............................ 209.165.200.240
   Use MAC Filter in External AAA server......... disabled
   Force External Authentication................. disabled

Mesh Alarm Criteria
   Max Hop Count................................. 4
   Recommended Max Children for MAP.............. 10
   Recommended Max Children for RAP.............. 20
   Low Link SNR.................................. 12
   High Link SNR................................. 60
   Max Association Number........................ 10
   Association Interval.......................... 60 minutes
   Parent Change Numbers......................... 3

--More-- or (q)uit
   Parent Change Interval........................ 60 minutes

Mesh Multicast Mode.............................. In-Out
Mesh Full Sector DFS............................. enabled

Mesh Ethernet Bridging VLAN Transparent Mode..... enabled

Mesh DCA channels for Serial Backhaul APs................ disabled

                                                  Step 5   Enter the config slot slot number channel ap ap-name channel number command to assign a particular channel to the 1524 RAP downlink radio.
                                                  • slot number refers to the slot of the downlink radio to which the channel is assigned.
                                                  • ap-name refers to the name of the access point on which the channel is configured.
                                                  • channel number refers to the channel that is assigned to a slot on the access point. Slot 2 of the 1524 RAP acts as a downlink radio. If backhaul channel deselection is enabled, you can assign only those channels that are available in the DCA list the access point. The following is a sample output:

(Controller) > config slot 2 channel ap Controller-RAP2-1524 136
Mesh backhaul dca-channels is enabled. Choose a channel from the DCA list.
(Controller) > config slot 2 channel ap Controller-RAP2-1524 140

                                                  Backhaul Channel Deselection Guidelines

                                                  Follow these guidelines when configuring backhaul channel deselection:

                                                  • Channels for serial backhaul RAP 11a access radio and both 11a radios of serial backhaul MAPs are assigned automatically. You cannot configure these channels.
                                                  • Look out for trap logs on the controller. In case of radar detection and subsequent channel change, messages similar to below appear:

Channel changed for Base Radio MAC: 00:1e:bd:19:7b:00 on 802.11a
radio. Old channel: 132. New Channel: 116. Why: Radar. Energy
before/after change: 0/0. Noise before/after change: 0/0.
Interference before/after change: 0/0.

Radar signals have been detected on channel 132 by 802.11a radio
with MAC: 00:1e:bd:19:7b:00 and slot 2

                                                  • For every serial backhaul AP, channels on downlink and uplink radios should always be noninterfering (for example, if the uplink is channel 104, the 100, 104, and 108 channels cannot be assigned for a downlink radio on that AP). An alternate adjacent channel is also selected for an 11a access radio on RAP.
                                                  • If radar signals are detected on all channels except the uplink radio channel, the downlink radio will be shut down and the uplink radio will act as both an uplink and a downlink (that is, the behavior is similar to 1522 APs in this case).
                                                  • Radar detection is cleared after 30 minutes. Any radio that is shut down because of radar detection should be back up and operational after this duration.
                                                  • There is a 60-second silent period immediately after moving to a DFS-enabled channel (irrespective of whether the channel change is because of radar detection or user configured in case of a RAP) during which the AP scans for radar signals without transmitting anything. A small period (60 seconds) of downtime may occur because of radar detection, if the new channel is also DFS-enabled. If radar detection occurs again on the new channel during the silent period, the parent changes its channel without informing the child AP because it is not allowed to transmit during the silent period. In this case, the child AP dissociates and goes back to scan mode, rediscovers the parent on the new channel and then joins back, which causes a slightly longer (approximately 3 minutes) downtime.
                                                  • For a RAP, the channel for the downlink radio is always selected from within the DCA list, irrespective of whether the backhaul channel deselection feature is enabled or not. The behavior is different for a MAP because the MAP can pick any channel that is allowed for that domain, unless the backhaul channel deselection feature is enabled. We recommend that you have quite a few channels added to the 802.11a DCA channel list to prevent any radios getting shut down because of a lack of channels even if the backhaul channel deselection feature is not in use.
                                                  • Because the DCA list that was used for the RRM feature is also used for mesh APs through the backhaul channel deselection feature, keep in mind that any addition or deletion of channels from the DCA list will affect the channel list input to the RRM feature for nonmesh access points as well. RRM is off for mesh.
                                                  • For -M domain APs, a slightly longer time interval (25 to 50 percent more time than usual) may be required for the mesh network to come up because there is a longer list of DFS-enabled channels in the -M domain, which each AP scans before joining the parent.

                                                  Configuring Dynamic Channel Assignment

                                                  Using the controller GUI, follow these steps to specify the channels that the dynamic channel assignment (DCA) algorithm considers when selecting the channels to be used for RRM scanning. This functionality is helpful when you know that the clients do not support certain channels because they are legacy devices or they have certain regulatory restrictions.

                                                  The steps outlined in this section are only relevant to mesh networks.

                                                    Step 1   To disable the 802.11a/n or 802.11b/g/n network, follow these steps:
                                                    1. Choose Wireless > 802.11a/n or 802.11b/g/n > Network to open the 802.11a (or 802.11b/g) Global Parameters page.
                                                    2. Deselect the 802.11a (or 802.11b/g) Network Status check box.
                                                    3. Click Apply to commit your changes.
                                                    Step 2   Choose Wireless > 802.11a/n or 802.11b/g/n > RRM > DCA to open the 802.11a (or 802.11b/g) > RRM > Dynamic Channel Assignment (DCA) page.
                                                    Step 3   Choose one of the following options from the Channel Assignment Method drop-down list to specify the controller’s DCA mode:
                                                    • Automatic—Causes the controller to periodically evaluate and, if necessary, update the channel assignment for all joined mesh access points. This is the default value.
                                                    • Freeze—Causes the controller to evaluate and update the channel assignment for all joined mesh access points, if necessary, but only when you click Invoke Channel Update Once.
                                                      Note

                                                      The controller does not evaluate and update the channel assignment immediately after you click Invoke Channel Update Once. It waits for the next interval to elapse.

                                                    • OFF—Turns off DCA and sets all mesh access point radios to the first channel of the band, which is the default value. If you choose this option, you must manually assign channels on all radios.
                                                    Step 4   From the Interval drop-down list, choose one of the following options to specify how often the DCA algorithm is allowed to run: 10 minutes, 1 hour, 2 hours, 3 hours, 4 hours, 6 hours, 8 hours, 12 hours, or 24 hours. The default value is 10 minutes.
                                                    Step 5   From the AnchorTime drop-down list, choose a number to specify the time of day when the DCA algorithm is to start. The options are numbers between 0 and 23 (inclusive) representing the hour of the day from 12:00 a.m. to 11:00 p.m.
                                                    Step 6   Select the Avoid Foreign AP Interference check box to cause the controller’s RRM algorithms to consider 802.11 traffic from foreign access points (those access points not included in your wireless network) when assigning channels to lightweight access points, or deselect it to disable this feature. For example, RRM may adjust the channel assignment to have access points avoid channels close to foreign access points. The default value is checked.
                                                    Step 7   Select the Avoid Cisco AP Load check box to cause the controller’s RRM algorithms to consider 802.11 traffic from Cisco lightweight access points in your wireless network when assigning channels, or deselect it to disable this feature. For example, RRM can assign better reuse patterns to access points that carry a heavier traffic load. The default value is deselected.
                                                    Step 8   Select the Avoid Non-802.11a (802.11b) Noise check box to cause the controller’s RRM algorithms to consider noise (non-802.11 traffic) in the channel when assigning channels to lightweight access points, or deselect it to disable this feature. For example, RRM may have access points avoid channels with significant interference from nonaccess point sources, such as microwave ovens. The default value is checked.
                                                    Step 9   From the DCA Channel Sensitivity drop-down list, choose one of the following options to specify how sensitive the DCA algorithm is to environmental changes such as signal, load, noise, and interference when determining whether to change channels:
                                                    • Low—The DCA algorithm is not particularly sensitive to environmental changes.
                                                    • Medium—The DCA algorithm is moderately sensitive to environmental changes.
                                                    • High—The DCA algorithm is highly sensitive to environmental changes.

                                                    The default value is Medium.

                                                    Table 4 DCA Sensitivity Thresholds

                                                    Option

                                                    2.4-GHz DCA Sensitivity Threshold

                                                    5-GHz DCA Sensitivity Threshold

                                                    High

                                                    5 dB

                                                    5 dB

                                                    Medium

                                                    15 dB

                                                    20 dB

                                                    Low

                                                    30 dB

                                                    35 dB

                                                    Step 10   For 802.11a/n networks only, choose one of the following Channel Width options to specify the channel bandwidth supported for all 802.11n radios in the 5-GHz band:
                                                    • 20 MHz—The 20-MHz channel bandwidth (default)
                                                      Note

                                                      To override the globally configured DCA channel width setting, you can statically configure an access point’s radio for 20-MHz mode on the 802.11a/n Cisco APs > Configure page. If you ever change the static RF channel assignment method to Global on the access point radio, the global DCA configuration overrides the channel width configuration that the access point was previously using.

                                                      This page also shows the following nonconfigurable channel parameter settings:

                                                    • Channel Assignment Leader—The MAC address of the RF group leader, which is responsible for channel assignment.
                                                    • Last Auto Channel Assignment—The last time RRM evaluated the current channel assignments.
                                                    Step 11   In the DCA Channel List section, the DCA Channels field shows the channels that are currently selected. To choose a channel, select its check box in the Select column. To exclude a channel, deselect its check box.

                                                    Range: 802.11a—36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140, 149, 153, 157, 161, 165, 190, 196?802.11b/g—1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11

                                                    Default: 802.11a—36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140, 149, 153, 157, 161?802.11b/g—1, 6, 11

                                                    Note

                                                    These extended UNII-2 channels in the 802.11a band do not appear in the channel list: 100, 104, 108, 112, 116, 132, 136, and 140. If you have Cisco Aironet 1500 series mesh access points in the -E regulatory domain, you must include these channels in the DCA channel list before you start operation. If you are upgrading from a previous release, verify that these channels are included in the DCA channel list. To include these channels in the channel list, select the Extended UNII-2 Channels check box.

                                                    Step 12   If you are using AP1500s in your network, you must set the 4.9-GHz channels in the 802.11a band on which they are to operate. The 4.9-GHz band is for public safety client access traffic only. To choose a 4.9-GHz channel, select its check box in the Select column. To exclude a channel, deselect its check box.

                                                    Range: ?802.11a—1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26

                                                    Default:?802.11a—20, 26

                                                    Step 13   Click Apply to commit your changes.
                                                    Step 14   To reenable the 802.11a or 802.11b/g network, follow these steps:
                                                    1. Click Wireless > 802.11a/n or 802.11b/g/n > Network to open the 802.11a (or 802.11b/g) Global Parameters page.
                                                    2. Select the 802.11a (or 802.11b/g) Network Status check box.
                                                    3. Click Apply to commit your changes.
                                                    Step 15   Click Save Configuration to save your changes.
                                                    Note

                                                    To see why the DCA algorithm changed channels, click Monitor and then View All under Most Recent Traps. The trap provides the MAC address of the radio that changed channels, the previous channel and the new channel, the reason why the change occurred, the energy before and after the change, the noise before and after the change, and the interference before and after the change. Dynamic Channel Assignment on 5 GHz radio is supported only on outdoor access points in local or flexconnect mode.

                                                    Configuring Advanced Features

                                                    This section includes the following topics:

                                                    Using the 2.4-GHz Radio for Backhaul

                                                    Until the 7.0 release, mesh used the 5-GHz radio for backhaul, and the 2.4-GHz radio was used only for client access. The reasons for using only the 5-GHz radio for backhaul are as follows:

                                                    • More channels are available
                                                    • More EIRP is available
                                                    • Less interference occurs
                                                    • Most of the client access occurs over the 2.4-GHz band

                                                    However, under certain conditions, such as dense foliage areas, you might have needed to use the 2.4-GHz band for a backhaul because it has better penetration.

                                                    With the 7.0.116.0 release, you can configure an entire mesh network to use a single backhaul that can be either 5 GHz or 2.4 GHz.


                                                    Caution

                                                    This feature is available only for AP1522 (two radios). This feature should be used only after exploring the 5-GHz backhaul option.


                                                    Caution

                                                    We recommend that you use 5 GHz as the first option and use 2.4 GHz only if the 5-GHz option does not work.

                                                    Changing the Backhaul from 5 GHz to 2.4 GHz

                                                    When you specify only the RAP name as an argument to the command, the whole mesh sector changes to 2.4 GHz or 5 GHz backhaul. The warning messages indicate the change in backhaul, whether it is from 2.4 GHz to 5 GHz or vice versa.


                                                    Note

                                                    The 2.4-GHz backhaul cannot be configured using the controller user interface, but only through the CLI.

                                                    To change the backhaul from 5 GHz to 2.4 GHz, follow these steps:

                                                      Step 1   To change the backhaul, enter the following command:

(Cisco Controller) > config mesh backhaul slot 0 enable RAP


                                                      The following message appears;


Warning! Changing backhaul slot will bring down the mesh for renegotiation!!!
After backhaul is changed, 5 GHz client access channels need to be changed manually

Are you sure you want to continue? (y/N)


                                                      Press y.

                                                      Note

                                                      When you change the 5-GHz backhaul to local client access, the 5-GHz client access frequencies on all the APs are the same, because the backhaul frequency is ported on these 5-GHz radios for client access. You need to configure these channels for a better frequency planning.

                                                      Step 2   To change the backhaul from 2.4 GHz to 5 GHz, enter the following command:

(Cisco Controller) > config mesh backhaul slot 1 enable RAP


                                                      The following message appears:


Warning! Changing backhaul slot will bring down the mesh for renegotiation!!!
Are you sure you want to continue? (y/N)


                                                      Press y.

                                                      Note

                                                      You cannot configure the 2.4-GHz backhaul using the controller GUI, but you can configure the 2.4-GHz backhaul using the CLI.

                                                      Step 3   To verify the current backhaul in use, enter the following command:

(Cisco Controller) > show mesh backhaul AP_name

                                                      Note

                                                      For a 5-GHz backhaul, dynamic frequency selection (DFS) occurs only on 5 GHz and not on 2.4 GHz. The mechanism, which differs for RAP and MAP, is called a coordinated change mechanism.

When 5 GHz is converted to client access from the backhaul or 2.4 GHz is being used as backhaul, DFS works similar to how it works for a local mode AP. DFS is detected on a 5-GHz client access, and the request is sent to the controller for a new channel. Mesh adjacency is not affected for the 2.4-GHz backhaul.

                                                      Note

                                                      2.4 GHz backhaul client access is supported only on 1520 series Access Points.

                                                      Configuring Ethernet VLAN Tagging

                                                      Ethernet VLAN tagging allows specific application traffic to be segmented within a wireless mesh network and then forwarded (bridged) to a wired LAN (access mode) or bridged to another wireless mesh network (trunk mode).

                                                      A typical public safety access application that uses Ethernet VLAN tagging is the placement of video surveillance cameras at various outdoor locations within a city. Each of these video cameras has a wired connection to a MAP. The video of all these cameras is then streamed across the wireless backhaul to a central command station on a wired network.

                                                      Figure 21. Ethernet VLAN Tagging

                                                      Ethernet Port Notes

                                                      Ethernet VLAN tagging allows Ethernet ports to be configured as normal, access, or trunk in both indoor and outdoor implementations:


                                                      Note

                                                      When VLAN Transparent is disabled, the default Ethernet port mode is normal. VLAN Transparent must be disabled for VLAN tagging to operate and to allow configuration of Ethernet ports. To disable VLAN Transparent, which is a global parameter, see the Configuring Global Mesh Parameters section.

                                                      • Normal mode—In this mode, the Ethernet port does not accept or send any tagged packets. Tagged frames from clients are dropped. Use the normal mode in applications when only a single VLAN is in use or there is no need to segment traffic in the network across multiple VLANs.
                                                      • Access Mode—In this mode, only untagged packets are accepted. All incoming packets are tagged with user-configured VLANs called access-VLANs. Use the access mode for applications in which information is collected from devices connected to the MAP, such as cameras or PCs, and then forwarded to the RAP. The RAP then applies tags and forwards traffic to a switch on the wired network.
                                                      • Trunk mode—This mode requires the user to configure a native VLAN and an allowed VLAN list (no defaults). In this mode, both tagged and untagged packets are accepted. Untagged packets are accepted and are tagged with the user-specified native VLAN. Tagged packets are accepted if they are tagged with a VLAN in the allowed VLAN list.
                                                      • Use the trunk mode for bridging applications such as forwarding traffic between two MAPs that reside on separate buildings within a campus.

                                                      Ethernet VLAN tagging operates on Ethernet ports that are not used as backhauls.


                                                      Note

                                                      In the controller releases prior to 7.2, the Root Access Point (RAP) native VLAN is forwarded out of Mesh Access Point (MAP) Ethernet ports with Mesh Ethernet Bridging and VLAN Transparent enabled.

                                                      In the 7.2 and later controller releases, the Root Access Point (RAP) native VLAN is not forwarded out of Mesh Access Point (MAP) Ethernet ports with Mesh Ethernet Bridging and VLAN Transparent enabled.

                                                      This change in behavior increases reliability and minimizes the possibility of forwarding loops on Mesh Backhauls.

                                                      Ethernet VLAN Tagging Guidelines

                                                      Follow these guidelines for Ethernet tagging:

                                                      • For security reasons, the Ethernet port on a mesh access point (RAP and MAP) is disabled by default. It is enabled by configuring Ethernet bridging on the mesh access point port.
                                                      • Ethernet bridging must be enabled on all the mesh access points in the mesh network to allow Ethernet VLAN tagging to operate.
                                                      • VLAN mode must be set as non-VLAN transparent (global mesh parameter). See the Configuring Global Mesh Parameters (CLI) section. VLAN transparent is enabled by default. To set as non-VLAN transparent, you must unselect the VLAN transparent option on the Wireless > Mesh page.
                                                      • VLAN tagging can only be configured on Ethernet interfaces as follows:
                                                        • On AP1500s, three of the four ports can be used as secondary Ethernet interfaces: port 0-PoE in, port 1-PoE out, and port 3- fiber. Port 2 - cable cannot be configured as a secondary Ethernet interface.
                                                        • In Ethernet VLAN tagging, port 0-PoE in on the RAP is used to connect to the trunk port of the switch of the wired network. Port 1-PoE out on the MAP is used to connect to external devices such as video cameras.
                                                      • Backhaul interfaces (802.11a radios) act as primary Ethernet interfaces. Backhauls function as trunks in the network and carry all VLAN traffic between the wireless and wired network. No configuration of primary Ethernet interfaces is required.
                                                      • For indoor mesh networks, the VLAN tagging feature functions as it does for outdoor mesh networks. Any access port that is not acting as a backhaul is secondary and can be used for VLAN tagging.
                                                      • VLAN tagging cannot be implemented on RAPs because the RAPs do not have a secondary Ethernet port, and the primary port is used as a backhaul. However, VLAN tagging can be enabled on MAPs with a single Ethernet port because the Ethernet port on a MAP does not function as a backhaul and is therefore a secondary port.
                                                      • No configuration changes are applied to any Ethernet interface acting as a backhaul. A warning displays if you attempt to modify the backhaul’s configuration. The configuration is only applied after the interface is no longer acting as a backhaul.
                                                      • No configuration is required to support VLAN tagging on any 802.11a backhaul Ethernet interface within the mesh network as follows:
                                                        • This includes the RAP uplink Ethernet port. The required configuration occurs automatically using a registration mechanism.
                                                        • Any configuration changes to an 802.11a Ethernet link acting as a backhaul are ignored and a warning results. When the Ethernet link no longer functions as a backhaul, the modified configuration is applied.
                                                      • VLAN configuration is not allowed on port-02-cable modem port of AP1500s (wherever applicable). VLANs can be configured on ports 0 (PoE-in), 1 (PoE-out), and 3 (fiber).
                                                      • Up to 16 VLANs are supported on each sector. The cumulative number of VLANs supported by a RAP’s children (MAP) cannot exceed 16.
                                                      • The switch port connected to the RAP must be a trunk:
                                                        • The trunk port on the switch and the RAP trunk port must match.
                                                        • The RAP must always connect to the native VLAN ID 1 on a switch. The RAP’s primary Ethernet interface is by default the native VLAN of 1.
                                                        • The switch port in the wired network that is attached to the RAP (port 0–PoE in) must be configured to accept tagged packets on its trunk port. The RAP forwards all tagged packets received from the mesh network to the wired network.
                                                        • No VLANs, other than those destined for the mesh sector, should be configured on the switch trunk port.
                                                      • A configured VLAN on a MAP Ethernet port cannot function as a Management VLAN.
                                                      • Configuration is effective only when a mesh access point is in the CAPWAP RUN state and VLAN-Transparent mode is disabled.
                                                      • Whenever there roaming or a CAPWAP restart, an attempt is made to apply configuration again.

                                                      VLAN Registration

                                                      To support a VLAN on a mesh access point, all the uplink mesh access points must also support the same VLAN to allow segregation of traffic that belongs to different VLANs. The activity by which an mesh access point communicates its requirements for a VLAN and gets response from a parent is known as VLAN registration.


                                                      Note

                                                      VLAN registration occurs automatically. No user intervention is required.

                                                      VLAN registration is summarized below:

                                                      1. Whenever an Ethernet port on a mesh access point is configured with a VLAN, the port requests its parent to support that VLAN.
                                                      2. If the parent is able to support the request, it creates a bridge group for the VLAN and propagates the request to its parent. This propagation continues until the RAP is reached.
                                                      3. When the request reaches the RAP, it checks whether it is able to support the VLAN request. If yes, the RAP creates a bridge group and a subinterface on its uplink Ethernet interface to support the VLAN request.
                                                      4. If the mesh access point is not able to support the VLAN request by its child, at any point, the mesh access point replies with a negative response. This response is propagated to downstream mesh access points until the mesh access point that requested the VLAN is reached.
                                                      5. Upon receiving negative response from its parent, the requesting mesh access point defers the configuration of the VLAN. However, the configuration is stored for future attempts. Given the dynamic nature of mesh, another parent and its uplink mesh access points might be able to support it in the case of roaming or a CAPWAP reconnect.

                                                      Enabling Ethernet VLAN Tagging (GUI)

                                                      You must enable Ethernet bridging before you can configure VLAN tagging.

                                                      To enable VLAN tagging on a RAP or MAP using the GUI, follow these steps:

                                                        Step 1   After enabling Ethernet bridging, choose Wireless > All APs.
                                                        Step 2   Click the AP name link of the mesh access point on which you want to enable VLAN tagging.
                                                        Step 3   On the details page, select the Mesh tab.
                                                        Step 4   Select the Ethernet Bridging check box to enable the feature and click Apply.

                                                        An Ethernet Bridging section appears at the bottom of the page listing each of the four Ethernet ports of the mesh access point.

                                                        • If configuring a MAP access port, click, for example, gigabitEthernet1 (port 1-PoE out). Select access from the mode drop-down list. Enter a VLAN ID. The VLAN ID can be any value between 1 and 4095. Click Apply.
                                                          Note

                                                          VLAN ID 1 is not reserved as the default VLAN.

                                                          Note

                                                          A maximum of 16 VLANs are supported across all of a RAP’s subordinate MAP.

                                                        • If configuring a RAP or MAP trunk port, click gigabitEthernet0 (port 0-PoE in). Select trunk from the mode drop-down list. Specify a native VLAN ID for incoming traffic. The native VLAN ID can be any value between 1 and 4095. Do not assign any value assigned to a user-VLAN (access). Click Apply. A trunk VLAN ID field and a summary of configured VLANs appears at the bottom of the screen. The trunk VLAN ID field is for outgoing packets. Specify a trunk VLAN ID for outgoing packets: If forwarding untagged packets, do not change the default trunk VLAN ID value of zero. (MAP-to-MAP bridging, campus environment) If forwarding tagged packets, enter a VLAN ID (1 to 4095) that is not already assigned. (RAP to switch on wired network). Click Add to add the trunk VLAN ID to the allowed VLAN list. The newly added VLAN displays under the Configured VLANs section on the page.
                                                          Note

                                                          To remove a VLAN from the list, select the Remove option from the arrow drop-down list to the right of the desired VLAN.

                                                        Step 5   Click Apply.
                                                        Step 6   Click Save Configuration to save your changes.

                                                        Configuring Ethernet VLAN Tagging (CLI)

                                                        To configure a MAP access port, enter this command:

                                                        config ap ethernet 1 mode access enable AP1500-MAP 50

                                                        where AP1500-MAP is the variable AP_name and 50 is the variable access_vlan ID

                                                        To configure a RAP or MAP trunk port, enter this command:

                                                        config ap ethernet 0 mode trunk enable AP1500-MAP 60

                                                        where AP1500-MAP is the variable AP_name and 60 is the variable native_vlan ID

                                                        To add a VLAN to the VLAN allowed list of the native VLAN, enter this command:

                                                        config ap ethernet 0 mode trunk add AP1500-MAP3 65

                                                        where AP1500-MAP 3 is the variable AP_name and 65 is the variable VLAN ID

                                                        Viewing Ethernet VLAN Tagging Configuration Details (CLI)

                                                        • To view VLAN configuration details for Ethernet interfaces on a specific mesh access point (AP Name) or all mesh access points (summary), enter this command:

                                                          show ap config ethernet ap-name

                                                        • To see if VLAN transparent mode is enabled or disabled, enter this command:

                                                          show mesh config

                                                        Workgroup Bridge Interoperability with Mesh Infrastructure

                                                        A workgroup bridge (WGB) is a small standalone unit that can provide a wireless infrastructure connection for Ethernet-enabled devices. Devices that do not have a wireless client adapter to connect to the wireless network can be connected to the WGB through the Ethernet port. The WGB is associated with the root AP through the wireless interface, which means that wired clients get access to the wireless network.

                                                        A WGB is used to connect wired networks over a single wireless segment by informing the mesh access point of all the clients that the WGB has on its wired segment via IAPP messages. The data packets for WGB clients contain an additional MAC address in the 802.11 header (4 MAC headers, versus the normal 3 MAC data headers). The additional MAC in the header is the address of the WGB itself. This additional MAC address is used to route the packet to and from the clients.

                                                        WGB association is supported on all radios of every mesh access point.

                                                        Figure 22. WGB Example

                                                        In the current architecture, while an autonomous AP functions as a workgroup bridge, only one radio interface is used for controller connectivity, Ethernet interface for wired client connectivity, and other radio interface for wireless client connectivity. dot11radio 1 (5 GHz) can be used to connect to a controller (using the mesh infrastructure) and Ethernet interface for wired clients. dot11radio 0 (2.4 GHz) can be used for wireless client connectivity. Depending on the requirement, dot11radio 1 or dot11radio 0 can be used for client association or controller connectivity.

                                                        With the 7.0 release, a wireless client on the second radio of the WGB is not dissociated by the WGB upon losing its uplink to a wireless infrastructure or in a roaming scenario.

                                                        With two radios, one radio can be used for client access and the other radio can be used for accessing the access points. Having two independent radios performing two independent functions provides you better control and lowers the latency. Also, wireless clients on the second radio for the WGB do not get disassociated by the WGB when an uplink is lost or in a roaming scenario. One radio has to be configured as a Root AP (radio role) and the second radio has to be configured as a WGB (radio role).


                                                        Note

                                                        If one radio is configured as a WGB, then the second radio cannot be a WGB or a repeater.

                                                        The following features are not supported for use with a WGB:

                                                        • Idle timeout
                                                        • Web authentication—If a WGB associates to a web-authentication WLAN, the WGB is added to the exclusion list, and all of the WGB-wired clients are deleted (web-authentication WLAN is another name for a guest WLAN).
                                                        • For wired clients behind the WGB, MAC filtering, link tests, and idle timeout

                                                        Configuring Workgroup Bridges

                                                        A workgroup bridge (WGB) is used to connect wired networks over a single wireless segment by informing the mesh access point of all the clients that the WGB has on its wired segment via IAPP messages. In addition to the IAPP control messages, the data packets for WGB clients contain an extra MAC address in the 802.11 header (4 MAC headers, versus the normal 3 MAC data headers). The extra MAC in the header is the address of the workgroup bridge itself. This extra MAC address is used to route the packet to and from the clients.

                                                        WGB association is supported on both the 2.4-GHz (802.11b/g) and 5-GHz (802.11a) radios on the AP1522, and the 2.4-GHz (802.11b) and 4.9-GHz (public safety) radios on the AP1524PS;

                                                        Supported platforms are autonomous WGBs AP1130, AP1240, AP1310, and the Cisco 3200 Mobile Router (hereafter referred to as Cisco 3200) which are configured as WGBs can associate with a mesh access point. See the “Cisco Workgroup Bridges” section in Cisco Wireless LAN Controller Configuration Guide for configuration steps at http:/​/​www.cisco.com/​en/​US/​products/​ps6366/​products_​installation_​and_​configuration_​guides_​list.html

                                                        The supported WGB modes and capacities are as follows:

                                                        • The autonomous access points configured as WGBs must be running Cisco IOS release 12.4.25d-JA or later.

                                                          Note

                                                          If your mesh access point has two radios, you can only configure workgroup bridge mode on one of the radios. We recommend that you disable the second radio. Workgroup bridge mode is not supported on access points with three radios such as the AP1524SB.

                                                        • Client mode WGB (BSS) is supported; however, infrastructure WGB is not supported. The client mode WGB is not able to trunk VLAN as in an infrastructure WGB.
                                                        • Multicast traffic is not reliably transmitted to WGB because no ACKs are returned by the client. Multicast traffic is unicast to infrastructure WGB, and ACKs are received back.
                                                        • If one radio is configured as a WGB in a Cisco IOS access point, then the second radio cannot be a WGB or a repeater.
                                                        • Mesh access points can support up to 200 clients including wireless clients, WGB, and wired clients behind the associated WGB.
                                                        • A WGB cannot associate with mesh access points if the WLAN is configured with WPA1 (TKIP) +WPA2 (AES), and the corresponding WGB interface is configured with only one of these encryptions (either WPA1 or WPA2):
                                                          Figure 23. WPA Security Settings for a WGB

                                                          Figure 24. WPA-2 Security Settings for a WGB

                                                        To view the status of a WGB client, follow these steps:

                                                          Step 1   Choose Monitor > Clients.
                                                          Step 2   On the client summary page, click on the MAC address of the client or search for the client using its MAC address.
                                                          Step 3   In the page that appears, note that the client type is identified as a WGB (far right).
                                                          Figure 25. Clients are Identified as a WGB

                                                          Step 4   Click on the MAC address of the client to view configuration details:

                                                          • For a wireless client, the page seen in Figure 4 appears.
                                                          • For a wired client, the page seen in Figure 5 appears.
                                                            Figure 26. Monitor > Clients > Detail Page (Wireless WGB Client)

                                                            Figure 27. Monitor > Clients > Detail Page (Wired WGB Client)

                                                          Guidelines for Configuration

                                                          Follow these guidelines when you configure:

                                                          • We recommend using a 5-GHz radio for the uplink to Mesh AP infrastructure so you can take advantage of a strong client access on two 5-GHz radios available on mesh access points. A 5-GHz band allows more Effective Isotropic Radiated Power (EIRP) and is less polluted. In a two-radio WGB, configure 5-GHz radio (radio 1) mode as WGB. This radio will be used to access the mesh infrastructure. Configure the second radio 2.4-GHz (radio 0) mode as Root for client access.
                                                          • On the Autonomous access points, only one SSID can be assigned to the native VLAN. You cannot have multiple VLANs in one SSID on the autonomous side. SSID to VLAN mapping should be unique because this is the way to segregate traffic on different VLANs. In a unified architecture, multiple VLANs can be assigned to one WLAN (SSID).
                                                          • Only one WLAN (SSID) for wireless association of the WGB to the access point infrastructure is supported. This SSID should be configured as an infrastructure SSID and should be mapped to the native VLAN.
                                                          • A dynamic interface should be created in the controller for each VLAN configured in the WGB.
                                                          • A second radio (2.4-GHz) on the access point should be configured for client access. You have to use the same SSID on both radios and map to the native VLAN. If you create a separate SSID, then it is not possible to map it to a native VLAN, due to the unique VLAN/SSID mapping requirements. If you try to map the SSID to another VLAN, then you do not have multiple VLAN support for wireless clients.
                                                          • All Layer 2 security types are supported for the WLANs (SSIDs) for wireless client association in WGB.
                                                          • This feature does not depend on the AP platform. On the controller side, both mesh and nonmesh APs are supported.
                                                          • There is a limitation of 20 clients in the WGB. The 20-client limitation includes both wired and wireless clients. If the WGB is talking to autonomous access points, then the client limit is very high.
                                                          • The controller treats the wireless and wired clients behind a WGB in the same manner. Features such as MAC filtering and link test are not supported for wireless WGB clients from the controller.
                                                          • If required, you can run link tests for a WGB wireless client from an autonomous AP.
                                                          • Multiple VLANs for wireless clients associated to a WGB are not supported.
                                                          • Up to 16 multiple VLANs are supported for wired clients behind a WGB from the 7.0 release and later releases.
                                                          • Roaming is supported for wireless and wired clients behind a WGB. The wireless clients on the other radio will not be dissociated by the WGB when an uplink is lost or in a roaming scenario.

                                                          We recommend that you configure radio 0 (2.4 GHz) as a Root (one of the mode of operations for Autonomous AP) and radio 1 (5 GHz) as a WGB.

                                                          Configuration Example

                                                          When you configure from the CLI, the following are mandatory:

                                                          • dot11 SSID (security for a WLAN can be decided based on the requirement).
                                                          • Map the subinterfaces in both the radios to a single bridge group.

                                                            Note

                                                            A native VLAN is always mapped to bridge group 1 by default. For other VLANs, the bridge group number matches the VLAN number; for example, for VLAN 46, the bridge group is 46.

                                                          • Map the SSID to the radio interfaces and define the role of the radio interfaces.

                                                          In the following example, one SSID (WGBTEST) is used in both radios, and the SSID is the infrastructure SSID mapped to NATIVE VLAN 51. All radio interfaces are mapped to bridge group -1.


WGB1#config t
WGB1(config)#interface Dot11Radio1.51
WGB1(config-subif)#encapsulation dot1q 51 native
WGB1(config-subif)#bridge-group 1
WGB1(config-subif)#exit
WGB1(config)#interface Dot11Radio0.51
WGB1(config-subif)#encapsulation dot1q 51 native
WGB1(config-subif)#bridge-group 1
WGB1(config-subif)#exit
WGB1(config)#dot11 ssid WGBTEST
WGB1(config-ssid)#VLAN 51
WGB1(config-ssid)#authentication open
WGB1(config-ssid)#infrastructiure-ssid
WGB1(config-ssid)#exit
WGB1(config)#interface Dot11Radio1
WGB1(config-if)#ssid WGBTEST
WGB1(config-if)#station-role workgroup-bridge
WGB1(config-if)#exit
WGB1(config)#interface Dot11Radio0
WGB1(config-if)#ssid WGBTEST
WGB1(config-if)#station-role root
WGB1(config-if)#exit


                                                          You can also use the GUI of an autonomous AP for configuration. From the GUI, subinterfaces are automatically created after the VLAN is defined.

                                                          Figure 28. SSID Configuration Page

                                                          WGB Association Check

                                                          Both the WGB association to the controller and the wireless client association to WGB can be verified by entering the show dot11 associations client command in autonomous AP.


WGB#show dot11 associations client

802.11 Client Stations on Dot11Radio1:

SSID [WGBTEST] :


MAC Address


IP Address


Device


Name


Parent


State


0024.130f.920e


209.165.200.225


LWAPP-Parent


RAPSB


-


Assoc

                                                          From the controller, choose Monitor > Clients. The WGB and the wireless/wired client behind the WGB are updated and the wireless/wired client are shown as the WGB client.

                                                          Figure 29. Updated WGB Clients

                                                          Figure 30. Updated WGB Clients

                                                          Figure 31. Updated WGB Clients

                                                          Link Test Result

                                                          Figure 32. Link Test Results

                                                          A link test can also be run from the controller CLI using the following command:


(Cisco Controller) > linktest client mac-address

                                                          Link tests from the controller are only limited to the WGB, and they cannot be run beyond the WGB from the controller to a wired or wireless client connected to the WGB. You can run link tests for the wireless client connected to the WGB from the WGB itself using the following command:


ap#dot11 dot11Radio 0 linktest target client-mac-address
Start linktest to 0040.96b8.d462, 100 512 byte packets
ap#


POOR (4% lost)


Time (msec)


Strength (dBm)


SNR Quality


Retries








In


Out


In


Out


In


Out


Sent: 100


Avg. 22


-37


-83


48


3


Tot. 34


35


Lost to Tgt: 4


Max. 112


-34


-78


61


10


Max. 10


5


Lost to Src: 4


Min. 0


-40


-87


15


3








Rates (Src/Tgt)     24Mb 0/5  36Mb 25/0  48Mb 73/0  54Mb 2/91
Linktest Done in 24.464 msec

                                                          WGB Wired/Wireless Client

                                                          You can also use the following commands to know the summary of WGBs and clients associated with a Cisco lightweight access point:


(Cisco Controller) > show wgb summary
Number of WGBs................................... 2


MAC Address


IP Address


AP Name


Status


WLAN


Auth


Protocol


Clients


00:1d:70:97:bd:e8


209.165.200.225


c1240


Assoc


2


Yes


802.11a


2


00:1e:be:27:5f:e2


209.165.200.226


c1240


Assoc


2


Yes


802.11a


5


(Cisco Controller) > show client summary

Number of Clients................................ 7


MAC Address


AP Name


Status


WLAN/Guest-Lan


Auth


Protocol


Port


Wired


00:00:24:ca:a9:b4


R14


Associated


1


Yes


N/A


29


No


00:24:c4:a0:61:3a


R14


Associated


1


Yes


802.11a


29


No


00:24:c4:a0:61:f4


R14


Associated


1


Yes


802.11a


29


No


00:24:c4:a0:61:f8


R14


Associated


1


Yes


802.11a


29


No


00:24:c4:a0:62:0a


R14


Associated


1


Yes


802.11a


29


No


00:24:c4:a0:62:42


R14


Associated


1


Yes


802.11a


29


No


00:24:c4:a0:71:d2


R14


Associated


1


Yes


802.11a


29


No



(Cisco Controller) > show wgb detail 00:1e:be:27:5f:e2

Number of wired client(s): 5


MAC Address


IP Address


AP Name


Mobility


WLAN


Auth


00:16:c7:5d:b4:8f


Unknown


c1240


Local


2


No


00:21:91:f8:e9:ae


209.165.200.232


c1240


Local


2


Yes


00:21:55:04:07:b5


209.165.200.234


c1240


Local


2


Yes


00:1e:58:31:c7:4a


209.165.200.236


c1240


Local


2


Yes


00:23:04:9a:0b:12


Unknown


c1240


Local


2


No

                                                          Client Roaming

                                                          High-speed roaming of Cisco Compatible Extension (CX), version 4 (v4) clients is supported at speeds up to 70 miles per hour in outdoor mesh deployments of AP1522s and AP1524s. An example application might be maintaining communication with a terminal in an emergency vehicle as it moves within a mesh public network.

                                                          Three Cisco CX v4 Layer 2 client roaming enhancements are supported:

                                                          • Access point assisted roaming—Helps clients save scanning time. When a Cisco CX v4 client associates to an access point, it sends an information packet to the new access point listing the characteristics of its previous access point. Roaming time decreases when the client recognizes and uses an access point list built by compiling all previous access points to which each client was associated and sent (unicast) to the client immediately after association. The access point list contains the channels, BSSIDs of neighbor access points that support the client’s current SSID(s), and time elapsed since disassociation.
                                                          • Enhanced neighbor list—Focuses on improving a Cisco CX v4 client’s roam experience and network edge performance, especially when servicing voice applications. The access point provides its associated client information about its neighbors using a neighbor-list update unicast message.
                                                          • Roam reason report—Enables Cisco CX v4 clients to report the reason why they roamed to a new access point. It also allows network administrators to build and monitor a roam history.

                                                            Note

                                                            Client roaming is enabled by default. For more information, see the Enterprise Mobility Design Guide at http:/​/​www.cisco.com/​en/​US/​docs/​solutions/​Enterprise/​Mobility/​emob41dg/​eMob4.1.pdf

                                                          WGB Roaming Guidelines

                                                          Follow these guidelines for WGB roaming:

                                                          • Configuring a WGB for roaming—If a WGB is mobile, you can configure it to scan for a better radio connection to a parent access point or bridge. Use the ap(config-if)#mobile station period 3 threshold 50 command to configure the workgroup bridge as a mobile station. When you enable this setting, the WGB scans for a new parent association when it encounters a poor Received Signal Strength Indicator (RSSI), excessive radio interference, or a high frame-loss percentage. Using these criteria, a WGB configured as a mobile station searches for a new parent association and roams to a new parent before it loses its current association. When the mobile station setting is disabled (the default setting), a WGB does not search for a new association until it loses its current association.
                                                          • Configuring a WGB for Limited Channel Scanning—In mobile environments such as railroads, a WGB instead of scanning all the channels is restricted to scan only a set of limited channels to reduce the hand-off delay when the WGB roams from one access point to another. By limiting the number of channels, the WGB scans only those required channels; the mobile WGB achieves and maintains a continuous wireless LAN connection with fast and smooth roaming. This limited channel set is configured using the ap(config-if)#mobile station scan set of channels. This command invokes scanning to all or specified channels. There is no limitation on the maximum number of channels that can be configured. The maximum number of channels that can be configured is restricted only by the number of channels that a radio can support. When executed, the WGB scans only this limited channel set. This limited channel feature also affects the known channel list that the WGB receives from the access point to which it is currently associated. Channels are added to the known channel list only if they are also part of the limited channel set.

                                                          Configuration Example

                                                          The following example shows how to configure a roaming configuration:


ap(config)#interface dot11radio 1
ap(config-if)#ssid outside
ap(config-if)#packet retries 16
ap(config-if)#station role workgroup-bridge
ap(config-if)#mobile station
ap(config-if)#mobile station period 3 threshold 50
ap(config-if)#mobile station scan 5745 5765


                                                          Use the no mobile station scan command to restore scanning to all the channels.

                                                          Table 1 identifies mesh access points and their respective frequency bands that support WGB.

                                                          Table 5 WGB Interoperability Chart

                                                          RAP/MAP

                                                          WGB

                                                          Backhaul

                                                          MAR3200

                                                          802.11n Indoor APs

                                                          1130/1240

                                                          1310

                                                          4.9 GHz (5, 10, 20 MHz)

                                                          5 GHz

                                                          2.4 GHz

                                                          5 GHz

                                                          2.4 GHz

                                                          5 GHz

                                                          2.4 GHz

                                                          5 GHz

                                                          2.4 GHz

                                                          1552/1552

                                                          No

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          No

                                                          Yes

                                                          1524SB/1524SB

                                                          No

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          No

                                                          Yes

                                                          1524PS/1524PS

                                                          Yes

                                                          No

                                                          Yes

                                                          No

                                                          Yes

                                                          No

                                                          Yes

                                                          No

                                                          Yes

                                                          1522/1522

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          No

                                                          Yes

                                                          1524SB/1522

                                                          No

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          No

                                                          Yes

                                                          1524PS/1522

                                                          No

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          No

                                                          Yes

                                                          1522/1524SB

                                                          No

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          No

                                                          Yes

                                                          1522/1524PS

                                                          Yes

                                                          No

                                                          Yes

                                                          No

                                                          Yes

                                                          No

                                                          Yes

                                                          No

                                                          Yes

                                                          1240/1130

                                                          No

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          Yes

                                                          No

                                                          Yes

                                                          Troubleshooting Tips

                                                          If a wireless client is not associated with a WGB, use the following steps to troubleshoot the problem:

                                                          1. Verify the client configuration and ensure that the client configuration is correct.
                                                          2. Check the show bridge command output in autonomous AP, and confirm that the AP is reading the client MAC address from the right interface.
                                                          3. Confirm that the subinterfaces corresponding to specific VLANs in different interfaces are mapped to the same bridge group.
                                                          4. If required, clear the bridge entry using the clear bridge command (remember that this command will remove all wired and wireless clients associated in a WGB and make them associate again).
                                                          5. Check the show dot11 association command output and confirm that the WGB is associated with the controller.
                                                          6. Ensure that the WGB has not exceeded its 20-client limitation.

                                                          In a normal scenario, if the show bridge and show dot11 association command outputs are as expected, wireless client association should be successful.

                                                          Configuring Voice Parameters in Indoor Mesh Networks

                                                          You can configure call admission control (CAC) and QoS on the controller to manage voice and video quality on the mesh network.

                                                          The indoor mesh access points are 802.11e capable, and QoS is supported on the local 2.4-GHz access radio and the 5-GHz backhaul radio. CAC is supported on the backhaul and the CCXv4 clients (which provides CAC between the mesh access point and the client).


                                                          Note

                                                          Voice is supported only on indoor mesh networks. Voice is supported on a best-effort basis in the outdoors in a mesh network.

                                                          Call Admission Control

                                                          Call Admission Control (CAC) enables a mesh access point to maintain controlled quality of service (QoS) when the wireless LAN is experiencing congestion. The Wi-Fi Multimedia (WMM) protocol deployed in CCXv3 ensures sufficient QoS as long as the wireless LAN is not congested. However, to maintain QoS under differing network loads, CAC in CCXv4 or later is required.


                                                          Note

                                                          CAC is supported in Cisco Compatible Extensions (CCX) v4 or later. See Chapter 6 of the Cisco Wireless LAN Controller Configuration Guide at http:/​/​www.cisco.com/​en/​US/​docs/​wireless/​controller/​7.0/​configuration/​guide/​c70sol.html

                                                          Two types of CAC are available for access points: bandwidth-based CAC and load-based CAC. All calls on a mesh network are bandwidth-based, so mesh access points use only bandwidth-based CAC.

                                                          Bandwidth-based, or static CAC enables the client to specify how much bandwidth or shared medium time is required to accept a new call. Each access point determines whether it is capable of accommodating a particular call by looking at the bandwidth available and compares it against the bandwidth required for the call. If there is not enough bandwidth available to maintain the maximum allowed number of calls with acceptable quality, the mesh access point rejects the call.

                                                          Quality of Service and Differentiated Services Code Point Marking

                                                          Cisco supports 802.11e on the local access and on the backhaul. Mesh access points prioritize user traffic based on classification, and therefore all user traffic is treated on a best-effort basis.

                                                          Resources available to users of the mesh vary, according to the location within the mesh, and a configuration that provides a bandwidth limitation in one point of the network can result in an oversubscription in other parts of the network.

                                                          Similarly, limiting clients on their percentage of RF is not suitable for mesh clients. The limiting resource is not the client WLAN, but the resources available on the mesh backhaul.

                                                          Similar to wired Ethernet networks, 802.11 WLANs employ Carrier Sense Multiple Access (CSMA), but instead of using collision detection (CD), WLANs use collision avoidance (CA), which means that instead of each station trying to transmit as soon as the medium is free, WLAN devices will use a collision avoidance mechanism to prevent multiple stations from transmitting at the same time.

                                                          The collision avoidance mechanism uses two values called CWmin and CWmax. CW stands for contention window. The CW determines what additional amount of time an endpoint should wait, after the interframe space (IFS), to attend to transmit a packet. Enhanced distributed coordination function (EDCF) is a model that allows end devices that have delay-sensitive multimedia traffic to modify their CWmin and CWmax values to allow for statically greater (and more frequent) access to the medium.

                                                          Cisco access points support EDCF-like QoS. This provides up to eight queues for QoS.

                                                          These queues can be allocated in several different ways, as follows:

                                                          • Based on TOS / DiffServ settings of packets
                                                          • Based on Layer 2 or Layer 3 access lists
                                                          • Based on VLAN
                                                          • Based on dynamic registration of devices (IP phones)

                                                          AP1500s, with Cisco controllers, provide a minimal integrated services capability at the controller, in which client streams have maximum bandwidth limits, and a more robust differentiated services (diffServ) capability based on the IP DSCP values and QoS WLAN overrides.

                                                          When the queue capacity has been reached, additional frames are dropped (tail drop).

                                                          Encapsulations

                                                          Several encapsulations are used by the mesh system. These encapsulations include CAPWAP control and data between the controller and RAP, over the mesh backhaul, and between the mesh access point and its client(s). The encapsulation of bridging traffic (noncontroller traffic from a LAN) over the backhaul is the same as the encapsulation of CAPWAP data.

                                                          There are two encapsulations between the controller and the RAP. The first is for CAPWAP control, and the second is for CAPWAP data. In the control instance, CAPWAP is used as a container for control information and directives. In the instance of CAPWAP data, the entire packet, including the Ethernet and IP headers, is sent in the CAPWAP container.

                                                          Figure 33. Encapsulations

                                                          For the backhaul, there is only one type of encapsulation, encapsulating mesh traffic. However, two types of traffic are encapsulated: bridging traffic and CAPWAP control and data traffic. Both types of traffic are encapsulated in a proprietary mesh header.

                                                          In the case of bridging traffic, the entire packet Ethernet frame is encapsulated in the mesh header.

                                                          All backhaul frames are treated identically, regardless of whether they are MAP to MAP, RAP to MAP, or MAP to RAP.

                                                          Figure 34. Encapsulating Mesh Traffic

                                                          Queuing on the Mesh Access Point

                                                          The mesh access point uses a high speed CPU to process ingress frames, Ethernet, and wireless on a first-come, first-serve basis. These frames are queued for transmission to the appropriate output device, either Ethernet or wireless. Egress frames can be destined for either the 802.11 client network, the 802.11 backhaul network, or Ethernet.

                                                          AP1500s support four FIFOs for wireless client transmissions. These FIFOs correspond to the 802.11e platinum, gold, silver, and bronze queues, and obey the 802.11e transmission rules for those queues. The FIFOs have a user configurable queue depth.

                                                          The backhaul (frames destined for another outdoor mesh access point) uses four FIFOs, although user traffic is limited to gold, silver, and bronze. The platinum queue is used exclusively for CAPWAP control traffic and voice, and has been reworked from the standard 802.11e parameters for CWmin, CWmax, and so on, to provide more robust transmission but higher latencies.

                                                          The 802.11e parameters for CWmin, CWmax, and so on, for the gold queue have been reworked to provide lower latency at the expense of slightly higher error rate and aggressiveness. The purpose of these changes is to provide a channel that is more conducive to video applications.

                                                          Frames that are destined for Ethernet are queued as FIFO, up to the maximum available transmit buffer pool (256 frames). There is support for a Layer 3 IP Differentiated Services Code Point (DSCP), so marking of the packets is there as well.

                                                          In the controller to RAP path for the data traffic, the outer DSCP value is set to the DSCP value of the incoming IP frame. If the interface is in tagged mode, the controller sets the 802.1Q VLAN ID and derives the 802.1p UP (outer) from 802.1p UP incoming and the WLAN default priority ceiling. Frames with VLAN ID 0 are not tagged.

                                                          Figure 35. Controller to RAP Path

                                                          For CAPWAP control traffic the IP DSCP value is set to 46, and the 802.1p user priority is set to 7. Prior to transmission of a wireless frame over the backhaul, regardless of node pairing (RAP/MAP) or direction, the DSCP value in the outer header is used to determine a backhaul priority. The following sections describe the mapping between the four backhaul queues the mesh access point uses and the DSCP values shown in Backhaul Path QoS.

                                                          Table 6 Backhaul Path QoS

                                                          DSCP Value

                                                          Backhaul Queue

                                                          2, 4, 6, 8 to 23

                                                          Bronze

                                                          26, 32 to 63

                                                          Gold

                                                          46 to 56

                                                          Platinum

                                                          All others including 0

                                                          Silver

                                                          Note

                                                          The platinum backhaul queue is reserved for CAPWAP control traffic, IP control traffic, and voice packets. DHCP, DNS, and ARP requests are also transmitted at the platinum QoS level. The mesh software inspects each frame to determine whether it is a CAPWAP control or IP control frame in order to protect the platinum queue from use by non-CAPWAP applications.

                                                          For a MAP to the client path, there are two different procedures, depending on whether the client is a WMM client or a normal client. If the client is a WMM client, the DSCP value in the outer frame is examined, and the 802.11e priority queue is used.

                                                          Table 7 MAP to Client Path QoS

                                                          DSCP Value

                                                          Backhaul Queue

                                                          2, 4, 6, 8 to 23

                                                          Bronze

                                                          26, 32 to 45, 47

                                                          Gold

                                                          46, 48 to 63

                                                          Platinum

                                                          All others including 0

                                                          Silver

                                                          If the client is not a WMM client, the WLAN override (as configured at the controller) determines the 802.11e queue (bronze, gold, platinum, or silver), on which the packet is transmitted.

                                                          For a client of a mesh access point, there are modifications made to incoming client frames in preparation for transmission on the mesh backhaul or Ethernet. For WMM clients, a MAP illustrates the way in which the outer DSCP value is set from an incoming WMM client frame.

                                                          Figure 36. MAP to RAP Path

                                                          The minimum value of the incoming 802.11e user priority and the WLAN override priority is translated using the information listed in Table 3 to determine the DSCP value of the IP frame. For example, if the incoming frame has as its value a priority indicating the gold priority, but the WLAN is configured for the silver priority, the minimum priority of silver is used to determine the DSCP value.

                                                          Table 8 DSCP to Backhaul Queue Mapping

                                                          DSCP Value

                                                          802.11e UP

                                                          Backhaul Queue

                                                          Packet Types

                                                          2, 4, 6, 8 to 23

                                                          1, 2

                                                          Bronze

                                                          Lowest priority packets, if any

                                                          26, 32 to 34

                                                          4, 5

                                                          Gold

                                                          Video packets

                                                          46 to 56

                                                          6, 7

                                                          Platinum

                                                          CAPWAP control, AWPP, DHCP/DNS, ARP packets, voice packets

                                                          All others including 0

                                                          0, 3

                                                          Silver

                                                          Best effort, CAPWAP data packets

                                                          If there is no incoming WMM priority, the default WLAN priority is used to generate the DSCP value in the outer header. If the frame is an originated CAPWAP control frame, the DSCP value of 46 is placed in the outer header.

                                                          With the 5.2 code enhancements, DSCP information is preserved in an AWPP header.

                                                          All wired client traffic is restricted to a maximum 802.1p UP value of 5, except DHCP/DNS and ARP packets, which go through the platinum queue.

                                                          The non-WMM wireless client traffic gets the default QoS priority of its WLAN. The WMM wireless client traffic may have a maximum 802.11e value of 6, but it must be below the QoS profile configured for its WLAN. If admission control is configured, WMM clients must use TSPEC signaling and get admitted by CAC.

                                                          The CAPWAPP data traffic carries wireless client traffic and has the same priority and treatment as wireless client traffic.

                                                          Now that the DSCP value is determined, the rules described earlier for the backhaul path from the RAP to the MAP are used to further determine the backhaul queue on which the frame is transmitted. Frames transmitted from the RAP to the controller are not tagged. The outer DSCP values are left intact, as they were first constructed.

                                                          Bridging Backhaul Packets

                                                          Bridging services are treated a little differently from regular controller-based services. There is no outer DSCP value in bridging packets because they are not CAPWAP encapsulated. Therefore, the DSCP value in the IP header as it was received by the mesh access point is used to index into the table as described in the path from the mesh access point to the mesh access point (backhaul).

                                                          Bridging Packets from and to a LAN

                                                          Packets received from a station on a LAN are not modified in any way. There is no override value for the LAN priority. Therefore, the LAN must be properly secured in bridging mode. The only protection offered to the mesh backhaul is that non-CAPWAP control frames that map to the platinum queue are demoted to the gold queue.

                                                          Packets are transmitted to the LAN precisely as they are received on the Ethernet ingress at entry to the mesh.

                                                          The only way to integrate QoS between Ethernet ports on AP1500 and 802.11a is by tagging Ethernet packets with DSCP. AP1500s take the Ethernet packet with DSCP and places it in the appropriate 802.11e queue.

                                                          AP1500s do not tag DSCP itself:

                                                          • On the ingress port, the AP1500 sees a DSCP tag, encapsulates the Ethernet frame, and applies the corresponding 802.11e priority.
                                                          • On the egress port, the AP1500 decapsulates the Ethernet frame, and places it on the wire with an untouched DSCP field.

                                                          Ethernet devices, such as video cameras, should have the capability to mark the bits with DSCP value to take advantage of QoS.


                                                          Note

                                                          QoS only is relevant when there is congestion on the network.

                                                          Guidelines For Using Voice on the Mesh Network

                                                          Follow these guidelines when you use voice on the mesh network:

                                                          • Voice is supported only on indoor mesh networks. For outdoors, voice is supported on a best-effort basis on a mesh infrastructure.
                                                          • When voice is operating on a mesh network, calls must not traverse more than two hops. Each sector must be configured to require no more than two hops for voice.
                                                          • RF considerations for voice networks are as follows:
                                                            • Coverage hole of 2 to 10 percent
                                                            • Cell coverage overlap of 15 to 20 percent
                                                            • Voice needs RSSI and SNR values that are at least 15 dB higher than data requirements
                                                            • RSSI of -67 dBm for all data rates should be the goal for 11b/g/n and 11a/n
                                                            • SNR should be 25 dB for the data rate used by client to connect to the AP
                                                            • Packet error rate (PER) should be configured for a value of one percent or less
                                                            • Channel with the lowest utilization (CU) must be used
                                                          • On the 802.11a/n or 802.11b/g/n > Global parameters page, do the following:
                                                            • Enable dynamic target power control (DTPC).
                                                            • Disable all data rates less than 11 Mbps.
                                                          • On the 802.11a/n or 802.11b/g/n > Voice parameters page, do the following:
                                                            • Load-based CAC must be disabled.
                                                            • Enable admission control (ACM) for CCXv4 or v5 clients that have WMM enabled. Otherwise, bandwidth-based CAC does not operate properly.
                                                            • Set the maximum RF bandwidth to 50 percent.
                                                            • Set the reserved roaming bandwidth to 6 percent.
                                                            • Enable traffic stream metrics.
                                                          • On the 802.11a/n or 802.11b/g/n > EDCA parameters page, you should do the following:
                                                            • Set the EDCA profile for the interface as voice optimized.
                                                            • Disable low latency MAC.
                                                          • On the QoS > Profile page, you should do the following:
                                                            • Create a voice profile and select 802.1Q as the wired QoS protocol type.
                                                          • On the WLANs > Edit > QoS page, you should do the following:
                                                            • Select a QoS of platinum for voice and gold for video on the backhaul.
                                                            • Select allowed as the WMM policy.
                                                          • On the WLANs > Edit > QoS page, you should do the following:
                                                            • Select CCKM for authorization (auth) key management (mgmt) if you want to support fast roaming.
                                                          • On the x > y page, you should do the following:
                                                            • Disable voice active detection (VAD).

                                                          Voice Call Support in a Mesh Network

                                                          Table 1 shows the actual calls in a clean, ideal environment.

                                                          Table 9 Calls Possible with 1520 Series in 802.11a and 802.11b/g Radios

                                                          No. of Calls5

                                                          802.11a Radio

                                                          802.11b/g Radio

                                                          RAP

                                                          12

                                                          12

                                                          MAP1

                                                          7

                                                          10

                                                          MAP2

                                                          4

                                                          8
                                                          5 Traffic was bidirectional 64K voice flows. VoCoder type: G.711, PER <= 1%. Network setup was daisy-chained with no calls traversing more than 2 hops. No external interference.

                                                          Table 2 shows the actual calls in a clean, ideal environment.

                                                          Table 10 Calls Possible with 1550 Series in 802.11a/n 802.11b/g/n Radios

                                                          No. of Calls

                                                          6

                                                          802.11a/n Radio 20 MHz

                                                          802.11a/n Radio 40 MHz

                                                          802.11b/g/n Backhaul Radio 20 MHz

                                                          802.11b/g/n Backhaul Radio 40 MHz

                                                          RAP

                                                          20

                                                          35

                                                          20

                                                          20

                                                          MAP1 (First Hop)

                                                          10

                                                          20

                                                          15

                                                          20

                                                          MAP2 (Second Hop)

                                                          8

                                                          15

                                                          10

                                                          15
                                                          6 Traffic was bidirectional 64K voice flows. VoCoder type: G.711, PER <= 1%. Network setup was daisy-chained with no calls traversing more than 2 hops. No external interference.

                                                          While making a call, observe the MOS score of the call on the 7921 phone. A MOS score between 3.5 and 4 is acceptable.

                                                          Table 11 MOS Ratings

                                                          MOS rating

                                                          User satisfaction

                                                          > 4.3

                                                          Very satisfied

                                                             4.0

                                                          Satisfied

                                                             3.6

                                                          Some users dissatisfied

                                                             3.1

                                                          Many users dissatisfied

                                                          < 2.58

                                                          —

                                                          Viewing the Voice Details for Mesh Networks (CLI)

                                                          Use the commands in this section to view details on voice and video calls on the mesh network:
                                                          Figure 37. Mesh Network Example

                                                          • To view the total number of voice calls and the bandwidth used for voice calls on each RAP, enter this command: show mesh cac summary Information similar to the following appears:


AP Name          Slot#   Radio  BW Used/Max  Calls
------------    -------  -----  -----------  -----
SB_RAP1              0   11b/g     0/23437    0
                     1   11a       0/23437    2
SB_MAP1              0   11b/g     0/23437    0
                     1   11a       0/23437    0
SB_MAP2              0   11b/g     0/23437    0
                     1   11a       0/23437    0
SB_MAP3              0   11b/g     0/23437    0
                     1   11a      0/23437    0?
                                                          • To view the mesh tree topology for the network and the bandwidth utilization (used/maximum available) of voice calls and video links for each mesh access point and radio, enter this command: show mesh cac bwused {voice | video} AP_name Information similar to the following appears:

AP Name       Slot#    Radio      BW Used/Max
------------- -------  -----      -----------
SB_RAP1         0      11b/g       1016/23437
                1      11a         3048/23437
|SB_MAP1        0      11b/g       0/23437
                1      11a         3048/23437
||  SB_MAP2     0      11b/g       2032/23437
                1      11a         3048/23437
||| SB_MAP3     0      11b/g       0/23437
                1      11a         0/23437

                                                            Note

                                                            The bars (|) to the left of the AP Name field indicate the number of hops that the MAP is from its RAP.


                                                            Note

                                                            When the radio type is the same, the backhaul bandwidth utilization (bw used/max) at each hop is identical. For example, mesh access points map1, map2, map3, and rap1 are all on the same radio backhaul (802.11a) and are using the same bandwidth (3048). All of the calls are in the same interference domain. A call placed anywhere in that domain affects the others.

                                                          • To view the mesh tree topology for the network and display the number of voice calls that are in progress by mesh access point radio, enter this command: show mesh cac access AP_name

Information similar to the following appears:

AP Name             Slot#   Radio     Calls
-------------      -------  -----    -----
SB_RAP1              0      11b/g      0
                     1      11a        0
|   SB_MAP1          0      11b/g      0
                     1      11a        0
||  SB_MAP2          0      11b/g      1
                     1      11a        0
||| SB_MAP3          0      11b/g      0
                     1      11a        0


                                                            Note

                                                            Each call received by a mesh access point radio causes the appropriate calls summary column to increment by one. For example, if a call is received on the 802.11b/g radio on map2, then a value of one is added to the existing value in that radio’s calls column. In this case, the new call is the only active call on the 802.11b/g radio of map2. If one call is active when a new call is received, the resulting value is two.

                                                          • To view the mesh tree topology for the network and display the voice calls that are in progress, enter this command: show mesh cac callpath AP_name

Information similar to the following appears:

AP Name             Slot#   Radio     Calls
-------------      -------  -----    -----
SB_RAP1              0      11b/g      0
                     1      11a        1
|   SB_MAP1          0      11b/g      0
                     1      11a        1
||  SB_MAP2          0      11b/g      1
                     1      11a        1
||| SB_MAP3          0      11b/g      0
                     1      11a        0


                                                            Note

                                                            The calls column for each mesh access point radio in a call path increments by one. For example, for a call that initiates at map2 (show mesh cac call path SB_MAP2) and terminates at rap1 by way of map1, one call is added to the map2 802.11b/g and 802.11a radio calls column, one call to the map1 802.11a backhaul radio calls column, and one call to the rap1 802.11a backhaul radio calls column.

                                                          • To view the mesh tree topology of the network, the voice calls that are rejected at the mesh access point radio due to insufficient bandwidth, and the corresponding mesh access point radio where the rejection occurred, enter this command: show mesh cac rejected AP_name Information similar to the following appears:


AP Name             Slot#   Radio     Calls
-------------      -------  -----    -----
SB_RAP1              0      11b/g      0
                     1      11a        0
|   SB_MAP1          0      11b/g      0
                     1      11a        0
||  SB_MAP2          0      11b/g      1
                     1      11a        0
||| SB_MAP3          0      11b/g      0
                     1      11a        0


                                                            Note

                                                            If a call is rejected at the map2 802.11b/g radio, its calls column increments by one.

                                                          • To view the number of bronze, silver, gold, platinum, and management queues active on the specified access point, enter this command. The peak and average length of each queue are shown as well as the overflow count. show mesh queue-stats AP_name Information similar to the following appears:

Queue Type  Overflows  Peak length  Average length
 ----------  ---------  -----------  --------------
 Silver      0          1            0.000
 Gold        0          4            0.004
 Platinum    0          4            0.001
 Bronze      0          0            0.000
 Management  0          0            0.000

                                                            Overflows—The total number of packets dropped due to queue overflow. Peak Length—The peak number of packets waiting in the queue during the defined statistics time interval. Average Length—The average number of packets waiting in the queue during the defined statistics time interval.

                                                          Enabling Mesh Multicast Containment for Video

                                                          You can use the controller CLI to configure three mesh multicast modes to manage video camera broadcasts on all mesh access points. When enabled, these modes reduce unnecessary multicast transmissions within the mesh network and conserve backhaul bandwidth.

                                                          Mesh multicast modes determine how bridging-enabled access points MAP and RAP send multicasts among Ethernet LANs within a mesh network. Mesh multicast modes manage non-CAPWAP multicast traffic only. CAPWAP multicast traffic is governed by a different mechanism.

                                                          The three mesh multicast modes are as follows:

                                                          • Regular mode—Data is multicast across the entire mesh network and all its segments by bridging-enabled RAP and MAP.
                                                          • In-only mode—Multicast packets received from the Ethernet by a MAP are forwarded to the RAP’s Ethernet network. No additional forwarding occurs, which ensures that non-CAPWAP multicasts received by the RAP are not sent back to the MAP Ethernet networks within the mesh network (their point of origin), and MAP to MAP multicasts do not occur because they are filtered out.

                                                            Note

                                                            When an HSRP configuration is in operation on a mesh network, we recommend the In-Out multicast mode be configured.

                                                          • In-out mode—The RAP and MAP both multicast but in a different manner:
                                                            • In-out mode is the default mode.
                                                            • If multicast packets are received at a MAP over Ethernet, they are sent to the RAP; however, they are not sent to other MAP over Ethernet, and the MAP to MAP packets are filtered out of the multicast.
                                                            • If multicast packets are received at a RAP over Ethernet, they are sent to all the MAPs and their respective Ethernet networks. When the in-out mode is in operation, it is important to properly partition your network to ensure that a multicast sent by one RAP is not received by another RAP on the same Ethernet segment and then sent back into the network.

                                                              Note

                                                              If 802.11b clients need to receive CAPWAP multicasts, then multicast must be enabled globally on the controller as well as on the mesh network (using the config network multicast global enable CLI command). If multicast does not need to extend to 802.11b clients beyond the mesh network, the global multicast parameter should be disabled (using the config network multicast global disable CLI command).

                                                          Enabling Multicast on the Mesh Network (CLI)

                                                          To enable multicast mode on the mesh network to receive multicasts from beyond the mesh networks, enter these commands:

                                                          config network multicast global enable

                                                          config mesh multicast {regular | in | in-out}

                                                          To enable multicast mode only the mesh network (multicasts do not need to extend to 802.11b clients beyond the mesh network), enter these commands:

                                                          config network multicast global disable

                                                          config mesh multicast {regular | in | in-out}


                                                          Note

                                                          Multicast for mesh networks cannot be enabled using the controller GUI.

                                                          IGMP Snooping

                                                          IGMP snooping delivers improved RF usage through selective multicast forwarding and optimizes packet forwarding in voice and video applications.

                                                          A mesh access point transmits multicast packets only if a client is associated with the mesh access point that is subscribed to the multicast group. So, when IGMP snooping is enabled, only that multicast traffic relevant to given hosts is forwarded.

                                                          To enable IGMP snooping on the controller, enter the following command:

                                                          configure network multicast igmp snooping enable

                                                          A client sends an IGMP join that travels through the mesh access point to the controller. The controller intercepts the join and creates a table entry for the client in the multicast group. The controller then proxies the IGMP join through the upstream switch or router.

                                                          You can query the status of the IGMP groups on a router by entering the following command:


router# show ip gmp groups
IGMP Connected Group Membership

Group Address    Interface   Uptime  Expires    Last Reporter
233.0.0.1        Vlan119     3w1d    00:01:52   10.1.1.130


                                                          For Layer 3 roaming, an IGMP query is sent to the client’s WLAN. The controller modifies the client’s response before forwarding and changes the source IP address to the controller’s dynamic interface IP address.

                                                          The network hears the controller’s request for the multicast group and forwards the multicast to the new controller.

                                                          For more information about video, see the following:

                                                          Locally Significant Certificates for Mesh APs

                                                          Until the 7.0 release, mesh APs supported only the Manufactured Installed Certificate (MIC) to authenticate and get authenticated by controllers to join the controller. You might have had to have your own public key infrastructure (PKI) to control CAs, to define policies, to define validity periods, to define restrictions and usages on the certificates that are generated, and get these certificates installed on the APs and controllers. After these customer-generated or locally significant certificates (LSCs) are present on the APs and controllers, the devices start using these LSCs, to join, authenticate, and derive a session key. Cisco supported normal APs from the 5.2 release and later releases and extended the support for mesh APs as well from the 7.0 release.

                                                          • Graceful fallback to MIC if APs are unable to join the controller with LSC certificates—Local APs try to join a controller with an LSC for the number of times that are configured on the controller (the default value is 3). After these trials, the AP deletes the LSC and tries to join a controller with an MIC. Mesh APs try to join a controller with an LSC until its lonely timer expires and the AP reboots. The lonely timer is set for 40 minutes. After the reboot, the AP tries to join a controller with an MIC. If the AP is again not able to join a controller with an MIC in 40 minutes, the AP reboots and then tries to join a controller with an LSC.

                                                            Note

                                                            An LSC in mesh APs is not deleted. An LSC is deleted in mesh APs only when the LSC is disabled on the controller, which causes the APs to reboot.

                                                          • Over the air provisioning of MAPs.

                                                          Guidelines for Configuration

                                                          Follow these guidelines when using LSCs for mesh APs:

                                                          • This feature does not remove any preexisting certificates from an AP. It is possible for an AP to have both LSC and MIC certificates.
                                                          • After an AP is provisioned with an LSC, it does not read in its MIC certificate on boot-up. A change from an LSC to an MIC will require the AP to reboot. APs do it for a fallback if they cannot be joined with an LSC.
                                                          • Provisioning an LSC on an AP does not require an AP to turn off its radios, which is vital for mesh APs, which may get provisioned over-the-air.
                                                          • Because mesh APs need a dot1x authentication, a CA and ID certificate is required to be installed on the server in the controller.
                                                          • LSC provisioning can happen over Ethernet and over-the-air in case of MAPs.You have to connect the mesh AP to the controller through Ethernet and get the LSC certificate provisioned. After the LSC becomes the default, an AP can be connected over-the-air to the controller using the LSC certificate.

                                                          Differences Between LSCs for Mesh APs and Normal APs

                                                          CAPWAP APs use LSC for DTLS setup during a JOIN irrespective of the AP mode. Mesh APs also use the certificate for mesh security, which involves a dot1x authentication with the controller through the parent AP. After the mesh APs are provisioned with an LSC, they need to use the LSC for this purpose because MIC will not be read in.

                                                          Mesh APs use a statically configured dot1x profile to authenticate.

                                                          This profile is hardcoded to use "cisco" as the certificate issuer. This profile needs to be made configurable so that vendor certificates can be used for mesh authentication (enter the config local-auth eap-profile cert-issuer vendor "prfMaP1500LlEAuth93" command).

                                                          You must enter the config mesh lsc enable/disable command to enable or disable an LSC for mesh APs. This command will cause all the mesh APs to reboot.


                                                          Note

                                                          An LSC on mesh is open for very specific Oil and Gas customers with the 7.0 release. Initially, it is a hidden feature. The config mesh lsc enable/disable is a hidden command. Also, the config local-auth eap-profile cert-issuer vendor "prfMaP1500LlEAuth93" command is a normal command, but the "prfMaP1500LlEAuth93" profile is a hidden profile, and is not stored on the controller and is lost after the controller reboot.

                                                          Certificate Verification Process in LSC AP

                                                          LSC-provisioned APs have both LSC and MIC certificates, but the LSC certificate will be the default one. The verification process consists of the following two steps:

                                                          1. The controller sends the AP the MIC device certificate, which the AP verifies with the MIC CA.
                                                          2. The AP sends the LSC device certificate to the controller, which the controller verifies with the LSC CA.

                                                          Getting Certificates for LSC Feature

                                                          To configure LSC, you must first gather and install the appropriate certificates on the controller. The following steps show how to accomplish this using Microsoft 2003 Server as the CA server.

                                                          To get the certificates for LSC, follow these steps:

                                                            Step 1   Go to the CA server (http://<ip address of caserver/crtsrv) and login.
                                                            Step 2   Get the CA certificate as follows:
                                                            1. Click the Download a CA certificate link, certificate chain, or CRF.
                                                            2. Choose the encoding method as DER.
                                                            3. Click the Download CA certificate link and use the save option to download the CA certificate on to your local machine.
                                                            Step 3   To use the certificate on the controller, convert the downloaded certificate to PEM format. You can convert this in a Linux machine using the following command:

                                                            # openssl x509 -in <input.cer> -inform DER -out <output.cer> -outform PEM

                                                            Step 4   Configure the CA certificate on the controller as follows:
                                                            1. Choose COMMANDS > Download File.
                                                            2. Choose the file type as Vendor CA Certificate from the File Type drop-down list.
                                                            3. Update the rest of the fields with the information of the TFTP server where the certificate is located.
                                                            4. Click Download.
                                                            Step 5   To install the Device certificate on the WLC, login to the CA server as mentioned in Step 1 and do the following:
                                                            1. Click the Request a certificate link.
                                                            2. Click the advanced certificate request link.
                                                            3. Click Create and submit a request to this CA link.
                                                            4. Go to the next screen and choose the Server Authentication Certificate from the Certificate Template drop-down list.
                                                            5. Enter a valid name, email, company, department, city, state, and country/region. (Remember it in case you want the cap method to check the username against its database of user credentials).
                                                              Note

                                                              The e-mail is not used.

                                                            6. Enable Mark keys as exportable.
                                                            7. Click Submit.
                                                            8. Install the certificate on your laptop.
                                                            Step 6   Convert the device certificate obtained in the Step 5. To get the certificate, go to your internet browser options and choose exporting to a file. Follow the options from your browser to do this. You need to remember the password that you set here.

                                                            To convert the certificate, use the following command in a Linux machine:

                                                            # openssl pkcs12 -in <input.pfx> -out <output.cer>

                                                            Step 7   On the controller GUI, choose Command > Download File. Choose Vendor Device Certificate from the File Type drop-down list. Update the rest of the fields with the information of the TFTP server where the certificate is located and the password you set in the previous step and click Download.
                                                            Step 8   Reboot the controller so that the certificates can then be used.
                                                            Step 9   You can check that the certificates were successfully installed on the controller using this command:

                                                            show local-auth certificates

                                                            Configuring a Locally Significant Certificate (CLI)

                                                            To configure a locally significant certificate (LSC), follow these steps:

                                                              Step 1   Enable LSC and provision the LSC CA certificate in the controller.
                                                              Step 2   Enter the following command:

                                                              config local-auth eap-profile cert-issuer vendor prfMaP1500LlEAuth93

                                                              Step 3   Turn on the feature by entering the following command:

                                                              config mesh lsc {enable | disable}

                                                              Step 4   Connect the mesh AP through Ethernet and provision for an LSC certificate.
                                                              Step 5   Let the mesh AP get a certificate and join the controller using the LSC certificate.
                                                              Figure 38. Local Significant Certificate Page

                                                              Figure 39. AP Policy Configuration

                                                              LSC-Related Commands

                                                              The following commands are related to LSCs:

                                                              • config certificate lsc {enable | disable}
                                                                • enable—To enable an LSC on the system.
                                                                • disable—To disable an LSC on the system. Use this keyword to remove the LSC device certificate and send a message to an AP, to do the same and disable an LSC, so that subsequent joins could be made using the MIC/SSC. The removal of the LSC CA cert on the WLC should be done explicitly by using the CLI to accommodate any AP that has not transitioned back to the MIC/SSC.
                                                              • config certificate lsc ca-server url-path ip-address Following is the example of the URL when using Microsoft 2003 server: http:<ip address of CA>/sertsrv/mscep/mscep.dll This command configures the URL to the CA server for getting the certificates. The URL contains either the domain name or the IP address, port number (typically=80), and the CGI-PATH. http://ipaddr:port/cgi-path Only one CA server is allowed to be configured. The CA server has to be configured to provision an LSC.
                                                              • config certificate lsc ca-server delete This command deletes the CA server configured on the controller.
                                                              • config certificate lsc ca-cert {add | delete} This command adds or deletes the LSC CA certificate into/from the controller's CA certificate database as follows:
                                                                • add—Queries the configured CA server for a CA certificate using the SSCEP getca operation, and gets into the WLC and installs it permanently into the WLC database. If installed, this CA certificate is used to validate the incoming LSC device certificate from the AP.
                                                                • delete—Deletes the LSC CA certificate from the WLC database.
                                                              • config certificate lsc subject-params Country State City Orgn Dept Email This command configures the parameters for the device certificate that will be created and installed on the controller and the AP. All of these strings have 64 bytes, except for the Country that has a maximum of 3 bytes. The Common Name is automatically generated using its Ethernet MAC address. This should be given prior to the creation of the controller device certificate request. The above parameters are sent as an LWAPP payload to the AP, so that the AP can use these parameters to generate the certReq. The CN is automatically generated on the AP using the current MIC/SSC "Cxxxx-MacAddr" format, where xxxx is the product number.
                                                              • config certificate lsc other-params keysize The default keysize value is 2048 bits.
                                                              • config certificate lsc ap-provision {enable | disable} This command enables or disables the provisioning of the LSCs on the APs if the APs just joined using the SSC/MIC. If enabled, all APs that join and do not have the LSC will get provisioned. If disabled, no more automatic provisioning will be done. This command does not affect the APs, which already have LSCs in them.
                                                              • config certificate lsc ra-cert {add | delete} We recommend this command when the CA server is a Cisco IOS CA server. The controller can use the RA to encrypt the certificate requests and make communication more secure. RA certificates are not currently supported by other external CA servers, such as MSFT.
                                                                • add—Queries the configured CA server for an RA certificate using the SCEP operation and installs it into the controller database. This keyword is used to get the certReq signed by the CA.
                                                                • delete—Deletes the LSC RA certificate from the WLC database.
                                                              • config auth-list ap-policy lsc {enable | disable} After getting the LSC, an AP tries to join the controller. Before the AP tries to join the controller, you must mandatorily enter this command on the controller console. By default, the config auth-list ap-policy lsc command is in the disabled state, and the APs are not allowed to join the controller using the LSC.
                                                              • config auth-list ap-policy mic {enable | disable} After getting the MIC, an AP tries to join the controller. Before the AP tries to join the controller, you must mandatorily enter this command on the controller console. By default, the config auth-list ap-policy mic command is in the enabled state. If an AP cannot join because of the enabled state, this log message on the controller side is displayed: LSC/MIC AP is not allowed to join.
                                                              • show certificate lsc summary This command displays the LSC certificates installed on the WLC. It would be the CA certificate, device certificate, and optionally, an RA certificate if the RA certificate has also been installed. It also indicates if an LSC is enabled or not.
                                                              • show certificate lsc ap-provision This command displays the status of the provisioning of the AP, whether it is enabled or disabled, and whether a provision list is present or not.
                                                              • show certificate lsc ap-provision details This command displays the list of MAC addresses present in the AP provisioning lists.

                                                              Controller GUI Security Settings

                                                              Although the settings are not directly related to the feature, it might help you in achieving the desired behavior with respect to APs provisioned with an LSC.

                                                              • Case 1—Local MAC Authorization and Local EAP Authentication Add the MAC address of RAP/MAP to the controller MAC filter list. Example:

(Cisco Controller) > config macfilter mac-delimiter colon
(Cisco Controller) > config macfilter add 00:0b:85:60:92:30 0 management

                                                              • Case 2—External MAC Authorization and Local EAP authentication Enter the following command on the WLC:

(Cisco Controller) > config mesh security rad-mac-filter enable

                                                                or Check only the external MAC filter authorization on the GUI page and follow these guidelines:
                                                                • Do not add the MAC address of the RAP/MAP to the controller MAC filter list.
                                                                • Configure the external radius server details on the WLC.
                                                                • Enter the config macfilter mac-delimiter colon command configuration on the WLC.
                                                                • Add the MAC address of the RAP/MAP in the external radius server in the following format: User name: 11:22:33:44:55:66 Password : 11:22:33:44:55:66

                                                              Deployment Guidelines

                                                              • When using local authorization, the controller should be installed with the vendor's CA and device certificate.
                                                              • When using an external AAA server, the controller should be installed with the vendor’s CA and device certificate.
                                                              • Mesh security should be configured to use ‘vendor’ as the cert-issuer.
                                                              • MAPs cannot move from an LSC to an MIC when they fall back to a backup controller.

                                                              The config mesh lsc {enable | disable} command is required to enable or disable an LSC for mesh APs. This command causes all the mesh APs to reboot.

                                                              Connecting the Cisco 1500 Series Mesh Access Points to the Network

                                                              Contents

                                                              Connecting the Cisco 1500 Series Mesh Access Points to the Network

                                                              This chapter describes how to connect the Cisco 1500 Series mesh access points to the network.

                                                              The wireless mesh terminates on two points on the wired network. The first location is where the RAP attaches to the wired network, and where all bridged traffic connects to the wired network. The second location is where the CAPWAP controller connects to the wired network; this location is where the WLAN client traffic from the mesh network connects to the wired network (see Figure 1). The WLAN client traffic from CAPWAP is tunneled at Layer 2, and matching WLANs should terminate on the same switch VLAN where the controllers are collocated. The security and network configuration for each of the WLANs on the mesh depend on the security capabilities of the network to which the controller is connected.

                                                              Figure 1. Mesh Network Traffic Termination


                                                              Note

                                                              When an HSRP configuration is in operation on a mesh network, we recommend that the In-Out multicast mode be configured. For more details on multicast configuration, see the Enabling Multicast on the Network (CLI) section.

                                                              For more information about upgrading to a new controller software release, see the Release Notes for Cisco Wireless LAN Controllers and Lightweight Access Points at http:/​/​www.cisco.com/​en/​US/​products/​ps10315/​prod_​release_​notes_​list.html.

                                                              For more information about mesh and controller software releases and the compatible access points, see the Cisco Wireless Solutions Software Compatibility Matrix at http:/​/​www.cisco.com/​en/​US/​docs/​wireless/​controller/​5500/​tech_notes/​Wireless_​Software_​Compatibility_​Matrix.html.

                                                              This chapter contains the following sections:

                                                              Adding Mesh Access Points to the Mesh Network

                                                              This section assumes that the controller is already active in the network and is operating in Layer 3 mode.


                                                              Note

                                                              Controller ports that the mesh access points connect to should be untagged.

                                                              Before adding a mesh access point to a network, do the following:

                                                                Step 1   Add the MAC address of the mesh access point to the controller’s MAC filter. See the Adding MAC Addresses of Mesh Access Points to MAC Filter section.
                                                                Step 2   Define the role (RAP or MAP) for the mesh access point. See the Defining Mesh Access Point Role section.
                                                                Step 3   Verify that Layer 3 is configured on the controller. See the Verifying Layer 3 Configuration section.
                                                                Step 4   Configure a primary, secondary, and tertiary controller for each mesh access point. See the Configuring Multiple Controllers Using DHCP 43 and DHCP 60 section.

                                                                Configure a backup controller. See the Configuring Backup Controllers section.

                                                                Step 5   Configure external authentication of MAC addresses using an external RADIUS server. See the Configuring External Authentication and Authorization Using a RADIUS Server.
                                                                Step 6   Configure global mesh parameters. See the Configuring Global Mesh Parameters section.
                                                                Step 7   Configure backhaul client access. See the Configuring Advanced Features section.
                                                                Step 8   Configure local mesh parameters. See the Configuring Local Mesh Parameters section.
                                                                Step 9   Configure antenna parameters. See the Configuring Antenna Gain section.
                                                                Step 10   Configure channels for serial backhaul. This step is applicable only to serial backhaul access points. See the Backhaul Channel Deselection on Serial Backhaul Access Point section.
                                                                Step 11   Configure the DCA channels for the mesh access points. See the Configuring Dynamic Channel Assignment section.
                                                                Step 12   Configure mobility groups (if desired) and assign controllers. See the Configuring Mobility Groups chapter in the Cisco Wireless LAN Controller Configuration Guide.
                                                                Step 13   Configure Ethernet bridging (if desired). See the Configuring Ethernet Bridging section.
                                                                Step 14   Configure advanced features such as Ethernet VLAN tagging network, video, and voice. See the Configuring Advanced Features section.

                                                                Adding MAC Addresses of Mesh Access Points to MAC Filter

                                                                You must enter the radio MAC address for all mesh access points that you want to use in the mesh network into the appropriate controller. A controller only responds to discovery requests from outdoor radios that appear in its authorization list. MAC filtering is enabled by default on the controller, so only the MAC addresses need to be configured. If the access point has an SSC and has been added to the AP Authorization List, then the MAC address of the AP does not need to be added to the MAC Filtering List.

                                                                You can add the mesh access point using either the GUI or the CLI.


                                                                Note

                                                                You can also download the list of mesh access point MAC addresses and push them to the controller using Cisco Prime Infrastructure.

                                                                Adding the MAC Address of the Mesh Access Point to the Controller Filter List (GUI)

                                                                To add a MAC filter entry for the mesh access point on the controller using the controller GUI, follow these steps:

                                                                  Step 1   Choose Security > AAA > MAC Filtering. The MAC Filtering page appears.
                                                                  Figure 2. MAC Filtering Page

                                                                  Step 2   Click New. The MAC Filters > New page appears.
                                                                  Step 3   Enter the radio MAC address of the mesh access point.
                                                                  Note

                                                                  For 1500 series outdoor mesh access points, specify the BVI MAC address of the mesh access point into the controller as a MAC filter. For indoor mesh access points, enter the Ethernet MAC. If the required MAC address does not appear on the exterior of the mesh access point, enter the following command at the access point console to display the BVI and Ethernet MAC addresses: sh int | i hardware.

                                                                  Step 4   From the Profile Name drop-down list, select Any WLAN.
                                                                  Step 5   In the Description field, specify a description of the mesh access point. The text that you enter identifies the mesh access point on the controller.
                                                                  Note

                                                                  You might want to include an abbreviation of its name and the last few digits of the MAC address, such as ap1522:62:39:10. You can also note details on its location such as roof top, pole top, or its cross streets.

                                                                  Step 6   From the Interface Name drop-down list, choose the controller interface to which the mesh access point is to connect.
                                                                  Step 7   Click Apply to commit your changes. The mesh access point now appears in the list of MAC filters on the MAC Filtering page.
                                                                  Step 8   Click Save Configuration to save your changes.
                                                                  Step 9   Repeat this procedure to add the MAC addresses of additional mesh access points to the list.

                                                                  Adding the MAC Address of the Mesh Access Point to the Controller Filter List (CLI)

                                                                  To add a MAC filter entry for the mesh access point on the controller using the controller CLI, follow these steps:

                                                                    Step 1   To add the MAC address of the mesh access point to the controller filter list, enter this command:

                                                                    config macfilter add ap_mac wlan_id interface [description]

                                                                    A value of zero (0) for the wlan_id parameter specifies any WLAN, and a value of zero (0) for the interface parameter specifies none. You can enter up to 32 characters for the optional description parameter.

                                                                    Step 2   To save your changes, enter this command:

                                                                    save config

                                                                    Defining Mesh Access Point Role

                                                                    By default, AP1500s are shipped with a radio role set to MAP. You must reconfigure a mesh access point to act as a RAP.

                                                                    General Notes about MAP and RAP Association With The Controller

                                                                    The general notes are as follows:

                                                                    • A MAP always sets the Ethernet port as the primary backhaul if it is UP, and secondarily the 802.11a/n radio. This gives the network administrator time to reconfigure the mesh access point as a RAP, initially. For faster convergence on the network, we recommend that you do not connect any Ethernet device to the MAP until it has joined the mesh network.
                                                                    • A MAP that fails to connect to a controller on a UP Ethernet port, sets the 802.11a/n radio as the primary backhaul. If a MAP fails to find a neighbor or fails to connect to a controller through a neighbor, the Ethernet port is set as the primary backhaul again.
                                                                    • A MAP connected to a controller over an Ethernet port does not build a mesh topology (unlike a RAP).
                                                                    • A RAP always sets the Ethernet port as the primary backhaul.
                                                                    • If the Ethernet port is DOWN on a RAP, or a RAP fails to connect to a controller on a UP Ethernet port, the 802.11a/n radio is set as the primary backhaul for 15 minutes. Failing to find a neighbor or failing to connect to a controller via any neighbor on the 802.11a/n radio causes the primary backhaul to go into the scan state. The primary backhaul begins its scan with the Ethernet port.

                                                                    Configuring the AP Role (GUI)

                                                                    To configure the role of a mesh access point using the GUI, follow these steps:

                                                                      Step 1   Click Wireless to open the All APs page.
                                                                      Step 2   Click the name of an access point. The All APs > Details (General) page appears.
                                                                      Step 3   Click the Mesh tab.
                                                                      Figure 3. All APs > Details for (Mesh) Page

                                                                      Step 4   Choose RootAP or MeshAP from the AP Role drop-down list.
                                                                      Step 5   Click Apply to commit your changes and to cause the access point to reboot.

                                                                      Configuring the AP Role (CLI)

                                                                      To configure the role of a mesh access point using the CLI, enter the following command:

                                                                      config ap role {rootAP | meshAP} Cisco_AP

                                                                      Configuring Multiple Controllers Using DHCP 43 and DHCP 60

                                                                      To configure DHCP Option 43 and 60 for mesh access points in the embedded Cisco IOS DHCP server, follow these steps:

                                                                        Step 1   Enter configuration mode at the Cisco IOS CLI.
                                                                        Step 2   Create the DHCP pool, including the necessary parameters such as the default router and name server. The commands used to create a DHCP pool are as follows:

ip dhcp pool pool name
network IP Network Netmask
default-router Default router
dns-server DNS Server


                                                                        where:


pool name is the name of the DHCP pool, such as AP1520
IP Network is the network IP address where the controller resides, such as 10.0.15.1
Netmask is the subnet mask, such as 255.255.255.0
Default router is the IP address of the default router, such as 10.0.0.1
DNS Server is the IP address of the DNS server, such as 10.0.10.2

                                                                        Step 3   Add the option 60 line using the following syntax:

option 60 ascii “VCI string”


                                                                        For the VCI string, use one of the values below. The quotation marks must be included.


For Cisco 1550 series access points, enter “Cisco AP c1550”
For Cisco 1520 series access points, enter “Cisco AP c1520”
For Cisco 1240 series access points, enter “Cisco AP c1240”
For Cisco 1130 series access points, enter “Cisco AP c1130”

                                                                        Step 4   Add the option 43 line using the following syntax:

option 43 hex hex string


                                                                        The hex string is assembled by concatenating the TLV values shown below:

                                                                        Type + Length + Value

                                                                        Type is always f1(hex). Length is the number of controller management IP addresses times 4 in hex. Value is the IP address of the controller listed sequentially in hex.

                                                                        For example, suppose that there are two controllers with management interface IP addresses 10.126.126.2 and 10.127.127.2. The type is f1(hex). The length is 2 * 4 = 8 = 08 (hex). The IP addresses translate to 0a7e7e02 and 0a7f7f02. Assembling the string then yields f1080a7e7e020a7f7f02.

                                                                        The resulting Cisco IOS command added to the DHCP scope is listed below:


option 43 hex f1080a7e7e020a7f7f02

                                                                        Backup Controllers

                                                                        A single controller at a centralized location can act as a backup for mesh access points when they lose connectivity with the primary controller in the local region. Centralized and regional controllers need not be in the same mobility group. Using the controller GUI or CLI, you can specify the IP addresses of the backup controllers, which allows the mesh access points to fail over to controllers outside of the mobility group.

                                                                        You can also configure primary and secondary backup controllers (which are used if primary, secondary, or tertiary controllers are not specified or are not responsive) for all access points connected to the controller as well as various timers, including the heartbeat timer and discovery request timers.


                                                                        Note

                                                                        The fast heartbeat timer is not supported on access points in bridge mode. The fast heartbeat timer is configured only on access points in local and FlexConnect modes.

                                                                        The mesh access point maintains a list of backup controllers and periodically sends primary discovery requests to each entry on the list. When the mesh access point receives a new discovery response from a controller, the backup controller list is updated. Any controller that fails to respond to two consecutive primary discovery requests is removed from the list. If the mesh access point’s local controller fails, it chooses an available controller from the backup controller list in this order: primary, secondary, tertiary, primary backup, and secondary backup. The mesh access point waits for a discovery response from the first available controller in the backup list and joins the controller if it receives a response within the time configured for the primary discovery request timer. If the time limit is reached, the mesh access point assumes that the controller cannot be joined and waits for a discovery response from the next available controller in the list.


                                                                        Note

                                                                        When a mesh access point’s primary controller comes back online, the mesh access point disassociates from the backup controller and reconnects to its primary controller. The mesh access point falls back to its primary controller and not to any secondary controller for which it is configured. For example, if a mesh access point is configured with primary, secondary, and tertiary controllers, it fails over to the tertiary controller when the primary and secondary controllers become unresponsive and waits for the primary controller to come back online so that it can fall back to the primary controller. The mesh access point does not fall back from the tertiary controller to the secondary controller if the secondary controller comes back online; it stays connected to the tertiary controller until the primary controller comes back up.

                                                                        Configuring Backup Controllers (GUI)

                                                                        Using the controller GUI, follow these steps to configure primary, secondary, and tertiary controllers for a specific mesh access point and to configure primary and secondary backup controllers for all mesh access points:

                                                                          Step 1   Choose Wireless > Access Points > Global Configuration to open the Global Configuration page (see Figure 1).
                                                                          Figure 4. Global Configuration Page

                                                                          Note

                                                                          The fast heartbeat timer is not supported on mesh access points.

                                                                          Step 2   In the AP Primary Discovery Timeout field, enter a value between 30 and 3600 seconds (inclusive) to configure the access point primary discovery request timer. The default value is 120 seconds.
                                                                          Step 3   If you want to specify a primary backup controller for all access points, specify the IP address of the primary backup controller in the Back-up Primary Controller IP Address field and the name of the controller in the Back-up Primary Controller Name field.
                                                                          Note

                                                                          The default value for the IP address is 0.0.0.0, which disables the primary backup controller.

                                                                          Step 4   If you want to specify a secondary backup controller for all access points, specify the IP address of the secondary backup controller in the Back-up Secondary Controller IP Address field and the name of the controller in the Back-up Secondary Controller Name field.
                                                                          Note

                                                                          The default value for the IP address is 0.0.0.0, which disables the secondary backup controller.

                                                                          Step 5   Click Apply to commit your changes.
                                                                          Step 6   If you want to configure primary, secondary, and tertiary backup controllers for a specific point, follow these steps:
                                                                          1. Choose Access Points > All APs to open the All APs page.
                                                                          2. Click the name of the access point for which you want to configure primary, secondary, and tertiary backup controllers.
                                                                          3. Click the High Availability tab.
                                                                          4. If desired, specify the name and IP address of the primary backup controller for this access point in the Primary Controller fields.
                                                                            Note

                                                                            Specifying an IP address for the backup controller is optional in this step and the next two steps. If the backup controller is outside the mobility group to which the mesh access point is connected (the primary controller), then you need to provide the IP address of the primary, secondary, or tertiary controller, respectively. The controller name and IP address must belong to the same primary, secondary, or tertiary controller. Otherwise, the mesh access point cannot join the backup controller.

                                                                          5. If desired, specify the name and IP address of the secondary backup controller for this mesh access point in the Secondary Controller fields.
                                                                          6. If desired, specify the name and IP address of the tertiary backup controller for this mesh access point in the Tertiary Controller fields.
                                                                          7. No change is required to the AP Failover Priority value. The default value for mesh access points is critical and it cannot be modified.
                                                                          8. Click Apply to commit your changes.
                                                                          Step 7   Click Save Configuration to save your changes.

                                                                          Configuring Backup Controllers (CLI)

                                                                          Using the controller CLI, follow these steps to configure primary, secondary, and tertiary controllers for a specific mesh access point and to configure primary and secondary backup controllers for all mesh access points.

                                                                            Step 1   To configure a primary controller for a specific mesh access point, enter this command:

                                                                            config ap primary-base controller_name Cisco_AP [controller_ip_address]

                                                                            Note

                                                                            The controller_ip_address parameter in this command and the next two commands is optional. If the backup controller is outside the mobility group to which the mesh access point is connected (the primary controller), then you need to provide the IP address of the primary, secondary, or tertiary controller, respectively. In each command, the controller_name and controller_ip_address must belong to the same primary, secondary, or tertiary controller. Otherwise, the mesh access point cannot join the backup controller.

                                                                            Step 2   To configure a secondary controller for a specific mesh access point, enter this command:

                                                                            config ap secondary-base controller_name Cisco_AP [controller_ip_address]

                                                                            Step 3   To configure a tertiary controller for a specific mesh access point, enter this command:

                                                                            config ap tertiary-base controller_name Cisco_AP [controller_ip_address]

                                                                            Step 4   To configure a primary backup controller for all mesh access points, enter this command:

                                                                            config advanced backup-controller primary backup_controller_name backup_controller_ip_address

                                                                            Step 5   To configure a secondary backup controller for all mesh access points, enter this command:

                                                                            config advanced backup-controller secondary backup_controller_name backup_controller_ip_address

                                                                            Note

                                                                            To delete a primary or secondary backup controller entry, enter 0.0.0.0 for the controller IP address.

                                                                            Step 6   To configure the mesh access point primary discovery request timer, enter this command:

                                                                            config advanced timers ap-primary-discovery-timeout interval

                                                                            where interval is a value between 30 and 3600 seconds. The default value is 120 seconds.

                                                                            Step 7   To configure the mesh access point discovery timer, enter this command:

                                                                            config advanced timers ap-discovery-timeout interval

                                                                            where interval is a value between 1 and 10 seconds (inclusive). The default value is 10 seconds.

                                                                            Step 8   To configure the 802.11 authentication response timer, enter this command:

                                                                            config advanced timers auth-timeout interval

                                                                            where interval is a value between 10 and 600 seconds (inclusive). The default value is 10 seconds.

                                                                            Step 9   To save your changes, enter this command:

                                                                            save config

                                                                            Step 10   To view a mesh access point’s configuration, enter these commands:
                                                                            • show ap config general Cisco_AP
                                                                            • show advanced backup-controller
                                                                            • show advanced timers
                                                                            • show mesh config

                                                                            Information similar to the following appears for the show ap config general Cisco_AP command:


Cisco AP Identifier.............................. 1
Cisco AP Name.................................... AP5
Country code..................................... US  - United States
Regulatory Domain allowed by Country............. 802.11bg:-AB    802.11a:-AB
AP Country code.................................. US  - United States
AP Regulatory Domain............................. 802.11bg:-A    802.11a:-N
Switch Port Number .............................. 1
MAC Address...................................... 00:13:80:60:48:3e
IP Address Configuration......................... DHCP
IP Address....................................... 1.100.163.133
...
Primary Cisco Switch Name........................ 1-4404
Primary Cisco Switch IP Address.................. 2.2.2.2
Secondary Cisco Switch Name...................... 1-4404
Secondary Cisco Switch IP Address................ 2.2.2.2
Tertiary Cisco Switch Name....................... 2-4404
Tertiary Cisco Switch IP Address................. 1.1.1.4


                                                                            Information similar to the following appears for the show advanced backup-controller command:


AP primary Backup Controller .................... controller1 10.10.10.10
AP secondary Backup Controller ............... 0.0.0.0


                                                                            Information similar to the following appears for the show advanced timers command:


Authentication Response Timeout (seconds)........ 10
Rogue Entry Timeout (seconds).................... 1300
AP Heart Beat Timeout (seconds).................. 30
AP Discovery Timeout (seconds)................... 10
AP Primary Discovery Timeout (seconds)........... 120


                                                                            Information similar to the following appears for the show mesh config command:


Mesh Range....................................... 12000
Backhaul with client access status............... disabled
Background Scanning State........................ enabled
Mesh Security
Security Mode................................. EAP
External-Auth................................. disabled
Use MAC Filter in External AAA server......... disabled
Force External Authentication................. disabled
Mesh Alarm Criteria
Max Hop Count................................. 4
Recommended Max Children for MAP.............. 10
Recommended Max Children for RAP.............. 20
Low Link SNR.................................. 12
High Link SNR................................. 60
Max Association Number........................ 10
Association Interval.......................... 60 minutes
Parent Change Numbers......................... 3
Parent Change Interval........................ 60 minutes
Mesh Multicast Mode.............................. In-Out
Mesh Full Sector DFS............................. enabled
Mesh Ethernet Bridging VLAN Transparent Mode..... enabled

                                                                            Configuring External Authentication and Authorization Using a RADIUS Server

                                                                            External authorization and authentication of mesh access points using a RADIUS server such as Cisco ACS (4.1 and later) is supported in release 5.2 and later releases. The RADIUS server must support the client authentication type of EAP-FAST with certificates.

                                                                            Before you employ external authentication within the mesh network, ensure that you make these changes:

                                                                            • The RADIUS server to be used as an AAA server must be configured on the controller.
                                                                            • The controller must also be configured on the RADIUS server.
                                                                            • Add the mesh access point configured for external authorization and authentication to the user list of the RADIUS server.
                                                                              • For additional details, see the Adding a Username to a RADIUS Server section.
                                                                            • Configure EAP-FAST on the RADIUS server and install the certificates. EAP-FAST authentication is required if mesh access points are connected to the controller using an 802.11a interface; the external RADIUS servers need to trust Cisco Root CA 2048. For information about installing and trusting the CA certificates, see the Configuring RADIUS Servers section.

                                                                              Note

                                                                              If mesh access points connect to a controller using a Fast Ethernet or Gigabit Ethernet interface, only MAC authorization is required.


                                                                              Note

                                                                              This feature also supports local EAP and PSK authentication on the controller.

                                                                            Configuring RADIUS Servers

                                                                            To install and trust the CA certificates on the RADIUS server, follow these steps:

                                                                              Step 1   Download the CA certificates for Cisco Root CA 2048 from the following locations:
                                                                              Step 2   Install the certificates as follows:
                                                                              1. From the CiscoSecure ACS main menu, click System Configuration > ACS Certificate Setup > ACS Certification Authority Setup.
                                                                              2. In the CA certificate file box, type the CA certificate location (path and name). For example: C:\Certs\crca2048.cer.
                                                                              3. Click Submit.
                                                                              Step 3   Configure the external RADIUS servers to trust the CA certificate as follows:
                                                                              1. From the CiscoSecure ACS main menu, choose System Configuration > ACS Certificate Setup > Edit Certificate Trust List. The Edit Certificate Trust List appears.
                                                                              2. Select the check box next to the Cisco Root CA 2048 (Cisco Systems) certificate name.
                                                                              3. Click Submit.
                                                                              4. To restart ACS, choose System Configuration > Service Control, and then click Restart.

                                                                              For additional configuration details on Cisco ACS servers, see the following:

                                                                              Adding a Username to a RADIUS Server

                                                                              Add MAC addresses of mesh access point that are authorized and authenticated by external RADIUS servers to the user list of that server prior to enabling RADIUS authentication for a mesh access point.

                                                                              For remote authorization and authentication, EAP-FAST uses the manufacturer’s certificate (CERT) to authenticate the child mesh access point. Additionally, this manufacturer certificate-based identity serves as the username for the mesh access point in user validation.

                                                                              For Cisco IOS-based mesh access points, in addition to adding the MAC address to the user list, you need to enter the platform_name_string–MAC_address string to the user list (for example, c1240-001122334455). The controller first sends the MAC address as the username; if this first attempt fails, then the controller sends the platform_name_string–MAC_address string as the username.


                                                                              Note

                                                                              The Authentication MAC address is different for outdoor versus indoor APs. Outdoor APs use the AP's BVI MAC address, whereas indoor APs use the AP's Gigabit Ethernet MAC address.

                                                                              RADIUS Server Username Entry
                                                                              For each mesh access point, two entries must be added to the RADIUS server, the platform_name_string-MAC_address string, then a hyphen delimited MAC Address. For example:
                                                                              • platform_name_string-MAC_address User: c1520-aabbccddeeff Password: cisco
                                                                              • Hyphen Delimited MAC Address User: aa-bb-cc-dd-ee-ff Password: aa-bb-cc-dd-ee-ff

                                                                              Note

                                                                              The AP1552 platform uses a platform name of c1520.

                                                                              Enabling External Authentication of Mesh Access Points (GUI)

                                                                              To enable external authentication for a mesh access point using the GUI, follow these steps:

                                                                                Step 1   Choose Wireless > Mesh. The Mesh page appears (see Figure 1).
                                                                                Figure 5. Mesh Page

                                                                                Step 2   In the security section, select the EAP option from the Security Mode drop-down list.
                                                                                Step 3   Select the Enabled check boxes for the External MAC Filter Authorization and Force External Authentication options.
                                                                                Step 4   Click Apply.
                                                                                Step 5   Click Save Configuration.

                                                                                Enable External Authentication of Mesh Access Points (CLI)

                                                                                To enable external authentication for mesh access points using the CLI, enter the following commands:

                                                                                  Step 1   config mesh security eap
                                                                                  Step 2   config macfilter mac-delimiter colon
                                                                                  Step 3   config mesh security rad-mac-filter enable
                                                                                  Step 4   config mesh radius-server index enable
                                                                                  Step 5   config mesh security force-ext-auth enable (Optional)

                                                                                  View Security Statistics (CLI)

                                                                                  To view security statistics for mesh access points using the CLI, enter the following command:

                                                                                  show mesh security-stats Cisco_AP

                                                                                  Use this command to display packet error statistics and a count of failures, timeouts, and association and authentication successes as well as reassociations and reauthentications for the specified access point and its child.

                                                                                  Configuring Global Mesh Parameters

                                                                                  This section provides instructions to configure the mesh access point to establish a connection with the controller including:

                                                                                  • Setting the maximum range between RAP and MAP (not applicable to indoor MAPs).
                                                                                  • Enabling a backhaul to carry client traffic.
                                                                                  • Defining if VLAN tags are forwarded or not.
                                                                                  • Defining the authentication mode (EAP or PSK) and method (local or external) for mesh access points including security settings (local and external authentication).

                                                                                  You can configure the necessary mesh parameters using either the GUI or the CLI. All parameters are applied globally.

                                                                                  Configuring Global Mesh Parameters (GUI)

                                                                                  To configure global mesh parameters using the controller GUI, follow these steps:

                                                                                    Step 1   Choose Wireless > Mesh.
                                                                                    Step 2   Modify the mesh parameters as appropriate.
                                                                                    Table 1 Global Mesh Parameters

                                                                                    Parameter

                                                                                    Description

                                                                                    Range (RootAP to MeshAP)

                                                                                    The optimum distance (in feet) that should exist between the root access point (RAP) and the mesh access point (MAP). This global parameter applies to all mesh access points when they join the controller and all existing mesh access points in the network.

                                                                                    Range: 150 to 132,000 feet

                                                                                    Default: 12,000 feet

                                                                                    Note

                                                                                    After this feature is enabled, all mesh access points reboot.

                                                                                    IDS (Rogue and Signature Detection)

                                                                                    When you enable this feature, IDS reports are generated for all traffic on the client access only and not on the backhaul.

                                                                                    When you disable this feature, no IDS reports are generated, which preserves bandwidth on the backhaul.

                                                                                    You have to use the following command to enable or disable it on the mesh APs:


config mesh ids-state {enable | disable}

                                                                                    Note

                                                                                    2.4GHz IDS is activated with the global IDS settings on the controller.

                                                                                    Backhaul Client Access

                                                                                    Note

                                                                                    This parameter applies to mesh access points with two or more radios (1552, 1524SB, 1522, 1240, 1130, and 11n indoor mesh APs) excluding the 1524PS.

                                                                                    When Backhaul Client Access is enabled, it allows wireless client association over the backhaul radio. Generally, backhaul radio is a 5-GHz radio for most of the mesh access points except for 1522 where backhaul can be 2.4 GHz. This means that a backhaul radio can carry both backhaul traffic and client traffic.

                                                                                    When Backhaul Client Access is disabled, only backhaul traffic is sent over the backhaul radio and client association is only over the second radio(s).

                                                                                    Default: Disabled

                                                                                    Note

                                                                                    After this feature is enabled, all mesh access points reboot.

                                                                                    VLAN Transparent

                                                                                    This feature determines how a mesh access point handles VLAN tags for Ethernet bridged traffic.

                                                                                    Note

                                                                                    See the Configuring Advanced Features section for overview and additional configuration details.

                                                                                    If VLAN Transparent is enabled, then VLAN tags are not handled and packets are bridged as untagged packets.

                                                                                    Note

                                                                                    No configuration of Ethernet ports is required when VLAN transparent is enabled. The Ethernet port passes both tagged and untagged frames without interpreting the frames.

                                                                                    If VLAN Transparent is disabled, then all packets are handled according to the VLAN configuration on the port (trunk, access, or normal mode).

                                                                                    Note

                                                                                    If the Ethernet port is set to Trunk mode, then Ethernet VLAN tagging must be configured. See the Enabling Ethernet Bridging (GUI) section.

                                                                                    Note

                                                                                    For an overview of normal, access, and trunk Ethernet port use, see the Ethernet Port Notes section.

                                                                                    Note

                                                                                    To use VLAN tagging, you must uncheck the VLAN Transparent check box.

                                                                                    Note

                                                                                    VLAN Transparent is enabled as a default to ensure a smooth software upgrade from 4.1.192.xxM releases to release 5.2. Release 4.1.192.xxM does not support VLAN tagging.

                                                                                    Default: Enabled.

                                                                                    Security Mode

                                                                                    Defines the security mode for mesh access points: Pre-Shared Key (PSK) or Extensible Authentication Protocol (EAP).

                                                                                    Note

                                                                                    EAP must be selected if external MAC filter authorization using a RADIUS server is configured.

                                                                                    Note

                                                                                    Local EAP or PSK authentication is performed within the controller if the External MAC Filter Authorization parameter is disabled (check box unchecked).

                                                                                    Options: PSK or EAP

                                                                                    Default: EAP

                                                                                    External MAC Filter Authorization

                                                                                    MAC filtering uses the local MAC filter on the controller by default.

                                                                                    When external MAC filter authorization is enabled, if the MAC address is not found in the local MAC filter, then the MAC address in the external RADIUS server is used.

                                                                                    This protects your network against rogue mesh access points by preventing mesh access points that are not defined on the external server from joining.

                                                                                    Before employing external authentication within the mesh network, the following configuration is required:

                                                                                    • The RADIUS server to be used as an AAA server must be configured on the controller.
                                                                                    • The controller must also be configured on the RADIUS server.
                                                                                    • The mesh access point configured for external authorization and authentication must be added to the user list of the RADIUS server.
                                                                                      • For remote authorization and authentication, EAP-FAST uses the manufacturer’s certificate (CERT) to authenticate the child mesh access point. Additionally, this manufacturer certificate-based identity serves as the username for the mesh access point in user validation.
                                                                                      • For IOS-based mesh access points (1130, 1240, 1522, 1524), the platform name of the mesh access point is located in front of its Ethernet address within the certificate; therefore, their username for external RADIUS servers is platform_name_string–Ethernet MAC address such as c1520-001122334455.
                                                                                    • The certificates must be installed and EAP-FAST must be configured on the RADIUS server.
                                                                                      Note

                                                                                      When this capability is not enabled, by default, the controller authorizes and authenticates mesh access points using the MAC address filter.

                                                                                    Default: Disabled.

                                                                                    Force External Authorization

                                                                                    When enabled along with EAP and External MAC Filter Authorization parameters, external authorization and authentication of mesh access points is done by default by an external RADIUS server (such as Cisco 4.1 and later). The RADIUS server overrides local authentication of the MAC address by the controller which is the default.

                                                                                    Default: Disabled.

                                                                                    Step 3   Click Apply.
                                                                                    Step 4   Click Save Configuration.

                                                                                    Configuring Global Mesh Parameters (CLI)

                                                                                    To configure global mesh parameters including authentication methods using the controller CLI, follow these steps:


                                                                                    Note

                                                                                    See the Configuring Global Mesh Parameters (GUI) section for descriptions, valid ranges, and default values of the parameters used in the CLI commands.

                                                                                      Step 1   To specify the maximum range (in feet) of all mesh access points in the network, enter this command:

                                                                                      config mesh range feet

                                                                                      To see the current range, enter the show mesh range command.

                                                                                      Step 2   To enable or disable IDS reports for all traffic on the backhaul, enter this command:

                                                                                      config mesh ids-state {enable | disable}

                                                                                      Step 3   To specify the rate (in Mbps) at which data is shared between access points on the backhaul interface, enter this command:

                                                                                      config ap bhrate {rate | auto} Cisco_AP

                                                                                      Step 4   To enable or disable client association on the primary backhaul (802.11a) of a mesh access point, enter these commands:

                                                                                      config mesh client-access {enable | disable}

                                                                                      config ap wlan {enable | disable} 802.11a Cisco_AP

                                                                                      config ap wlan {add | delete} 802.11a wlan_id Cisco_AP

                                                                                      Step 5   To enable or disable VLAN transparent, enter this command:

                                                                                      config mesh ethernet-bridging VLAN-transparent {enable | disable}

                                                                                      Step 6   To define a security mode for the mesh access point, enter one of the following commands:
                                                                                      1. To provide local authentication of the mesh access point by the controller, enter this command:

                                                                                        config mesh security {eap | psk}

                                                                                      2. To store the MAC address filter in an external RADIUS server for authentication instead of the controller (local), enter these commands:

                                                                                        config macfilter mac-delimiter colon

                                                                                        config mesh security rad-mac-filter enable

                                                                                        config mesh radius-server index enable

                                                                                      3. To provide external authentication on a RADIUS server and define a local MAC filter on the controller, enter these commands:

                                                                                        config mesh security eap

                                                                                        config macfilter mac-delimiter colon

                                                                                        config mesh security rad-mac-filter enable

                                                                                        config mesh radius-server index enable

                                                                                        config mesh security force-ext-auth enable

                                                                                      4. To provide external authentication on a RADIUS server using a MAC username (such as c1520-123456) on the RADIUS server, enter these commands:

                                                                                        config macfilter mac-delimiter colon

                                                                                        config mesh security rad-mac-filter enable

                                                                                        config mesh radius-server index enable

                                                                                        config mesh security force-ext-auth enable

                                                                                      Step 7   To save your changes, enter this command:

                                                                                      save config

                                                                                      Viewing Global Mesh Parameter Settings (CLI)

                                                                                      Use these commands to obtain information on global mesh settings:

                                                                                      • show mesh client-access—When Backhaul Client Access is enabled, it allows wireless client association over the backhaul radio. Generally, backhaul radio is a 5-GHz radio for most of the mesh access points except for 1522 where backhaul can be 2.4 GHz. This means that a backhaul radio can carry both backhaul traffic and client traffic. When Backhaul Client Access is disabled, only backhaul traffic is sent over the backhaul radio and client association is only over the second radio(s).

(Cisco Controller)> show mesh client-access
Backhaul with client access status: enabled
                                                                                      • show mesh ids-state—Shows the status of the IDS reports on the backhaul as either enabled or disabled.

(Cisco Controller)> show mesh ids-state
Outdoor Mesh IDS(Rogue/Signature Detect): .... Disabled

                                                                                      • show mesh config—Displays global configuration settings.

(Cisco Controller)> show mesh config
Mesh Range....................................... 12000
Mesh Statistics update period.................... 3 minutes
Backhaul with client access status............... disabled
Background Scanning State........................ enabled
Backhaul Amsdu State............................. disabled

Mesh Security
Security Mode................................. EAP
External-Auth................................. disabled
Use MAC Filter in External AAA server......... disabled
Force External Authentication................. disabled

Mesh Alarm Criteria
Max Hop Count................................. 4
Recommended Max Children for MAP.............. 10
Recommended Max Children for RAP.............. 20
Low Link SNR.................................. 12
High Link SNR................................. 60
Max Association Number........................ 10
Association Interval.......................... 60 minutes
Parent Change Numbers......................... 3
Parent Change Interval........................ 60 minutes

Mesh Multicast Mode.............................. In-Out
Mesh Full Sector DFS............................. enabled

Mesh Ethernet Bridging VLAN Transparent Mode..... enabled

                                                                                      Backhaul Client Access

                                                                                      When Backhaul Client Access is enabled, it allows wireless client association over the backhaul radio. Generally, backhaul radio is a 5-GHz radio for most of the mesh access points except for 1522 where backhaul can be 2.4 GHz. This means that a backhaul radio can carry both backhaul traffic and client traffic.

                                                                                      When Backhaul Client Access is disabled, only backhaul traffic is sent over the backhaul radio and client association is only over the second radio(s).


                                                                                      Note

                                                                                      Backhaul Client Access is disabled by default. After this feature is enabled, all mesh access points, except slave AP and its child APs in Daisy-chained deployment, reboot.

                                                                                      This feature is applicable to mesh access points with two or more radios (1552, 1524SB, 1522, Indoor APs in mesh mode) excluding the 1524PS.

                                                                                      Configuring Backhaul Client Access (GUI)

                                                                                      This figure shows how to enable Backhaul Client Access using the GUI. You will be prompted that the AP will reboot if you enable Backhaul Client Access.

                                                                                      Figure 6. Configuring Backhaul Client Access using the GUI

                                                                                      Configuring Backhaul Client Access (CLI)

                                                                                      Use the following command to enable Backhaul Client Access:


(Cisco Controller)> config mesh client-access enable


                                                                                      The following message is displayed:


All Mesh APs will be rebooted
Are you sure you want to start? (y/N)

                                                                                      Backhaul Client Access on Serial Backhaul Access Points

                                                                                      With Backhaul Client Access, you can have client access on the backhaul 802.11a radios in addition to the backhaul functionality. This feature is applicable to mesh access points with two or more radios (1552, 1524SB, 1522, Indoor APs in mesh mode) excluding the 1524PS.

                                                                                      The dual 5-GHz Backhaul Client Access feature is intended for the serial backhaul access point platform, which has three radio slots. The radio in slot 0 operates in the 2.4-GHz band and is used for client access. The radios in slot 1 and slot 2 operate in the 5-GHz band and are primarily used for backhaul. However, with the Backhaul Client Access feature, clients were allowed to associate over the slot 1 radio. But slot 2 radio was used only for backhaul. With the 7.0 release, client access over the slot 2 radio is allowed with this Dual 5-GHz Universal Access feature.

                                                                                      By default, client access is disabled over both the backhaul radios. Follow the guidelines to enable or disable client access on the radio slots that constitute 5-GHz radios, irrespective of the radios being used as downlinks or uplinks:

                                                                                      • You can enable client access on slot 1 even if client access on slot 2 is disabled.
                                                                                      • You can enable client access on slot 2 only when client access on slot 1 is enabled.
                                                                                      • If you disable client access on slot 1, client access on slot 2 is automatically disabled on the CLI.
                                                                                      • To disable only the extended client access (on the slot 2 radio), use the GUI.
                                                                                      • All the mesh access points reboot whenever client access is enabled or disabled.

                                                                                      The two 802.11a backhaul radios use the same MAC address. There may be instances where a WLAN maps to the same BSSID on more than one slot. Client access on the slot 2 radio is referred to as Extended Universal Access (EUA) in this document.

                                                                                      Configuring Extended Universal Access (GUI)

                                                                                        Step 1   Choose Controller > Wireless > Mesh.

                                                                                        The Controller GUI when Backhaul Client Access is disabled page appears.

                                                                                        Figure 7. Advanced Controller Settings for Mesh Page

                                                                                        Step 2   Select the Backhaul Client Access check box to display the Extended Backhaul Client Access check box.
                                                                                        Step 3   Select the Extended Backhaul Client Access check box and click Apply. A message appears.
                                                                                        Step 4   Click OK.

                                                                                        After EUA is enabled, 802.11a radios appear.

                                                                                        Figure 8. 802.11a Radios after EUA is Enabled

                                                                                        Slot 2 in the 5-GHz radio in the RAPSB (serial backhaul) that is used to extend the backhaul in the DOWNLINK direction is displayed as DOWNLINK ACCESS, where slot 1 in the 5-GHz radio in the RAPSB that is used for client access is displayed as ACCESS. Slot 2 in the 5-GHz radio in the MAPSB that is used for the UPLINK is displayed as UPLINK ACCESS, and slot 1 in the MAPSB is used for the DOWNLINK ACCESS with an omnidirectional antenna that also provides the client access.

                                                                                        Create WLAN on the WLC with the appropriate SSID mapped to the correct interface (VLAN). After you create a WLAN, it is applied to all the radios by default. If you want to enable client access only on 802.11a radios, choose only the appropriate radio policy from the list.

                                                                                        Figure 9. Radio Policy Selection

                                                                                        Configuring Extended Universal Access (CLI)

                                                                                        Before You Begin
                                                                                        • Go to the Controller prompt and enter the config mesh client-access enable extended command. The following message is displayed:

Enabling client access on both backhaul slots
Same BSSIDs will be used on both slots
All Mesh Serial Backhaul APs will be rebooted
Are you sure you want to start? (y/N)

                                                                                        • Enter the show mesh client-access command to know the status of the backhaul with client access and the backhaul with client access extended. The status is displayed as follows:

Backhaul with client access status: enabled
Backhaul with client access extended status(3 radio AP): enabled

                                                                                        • There is no explicit command to disable client access only on slot 2 (EUA). You have to disable client access on both the backhaul slots by entering the following command: config mesh client-access disable The following message is displayed:

All Mesh APs will be rebooted
Are you sure you want to start? (y/N)

                                                                                        • You can disable EUA from the GUI without disturbing client access on the slot 1 radio, but all 1524SB access points will be rebooted. It is possible to enable client access only on slot 1 and not on slot 2 by entering the following command: config mesh client-access enable The following message is displayed:

All Mesh APs will be rebooted
Are you sure you want to start? (y/N)


                                                                                        Configuring Extended Universal Access from Cisco Prime Infrastructure

                                                                                          Step 1   Choose Controllers > Controller IP Address > Mesh > Mesh Settings.

                                                                                          The Mesh page when Backhaul Client Access is disabled appears.

                                                                                          Figure 10. Mesh Settings Page

                                                                                          Step 2   Select the Client Access on Backhaul Link check box to display the Extended Backhaul Client Access check box.
                                                                                          Step 3   Select the Extended Backhaul Client Access check box and click Apply. A message appears indicating the possible results of enabling the Extended Backhaul Client Access.
                                                                                          Step 4   Click OK to continue.

                                                                                          Configuring Local Mesh Parameters

                                                                                          After configuring global mesh parameters, you must configure the following local mesh parameters for these specific features if in use in your network:

                                                                                          Configuring Wireless Backhaul Data Rate

                                                                                          Backhaul is used to create only the wireless connection between the access points. The backhaul interface by default is 802.11a or 802.11a/n depending upon the access point. The rate selection is important for effective use of the available RF spectrum. The rate can also affect the throughput of client devices, and throughput is an important metric used by industry publications to evaluate vendor devices.

                                                                                          Dynamic Rate Adaptation (DRA) introduces a process to estimate optimal transmission rate for packet transmissions. It is important to select rates correctly. If the rate is too high, packet transmissions fail resulting in communication failure. If the rate is too low, the available channel bandwidth is not used, resulting in inferior products, and the potential for catastrophic network congestion and collapse.

                                                                                          Data rates also affect the RF coverage and network performance. Lower data rates, for example 6 Mbps, can extend farther from the access point than can higher data rates, for example 300 Mbps. As a result, the data rate affects cell coverage and consequently the number of access points required. Different data rates are achieved by sending a more redundant signal on the wireless link, allowing data to be easily recovered from noise. The number of symbols sent out for a packet at the 1-Mbps data rate is higher than the number of symbols used for the same packet at 11 Mbps. Therefore, sending data at the lower bit rates takes more time than sending the equivalent data at a higher bit rate, resulting in reduced throughput.

                                                                                          In the controller release 5.2, the default data rate for the mesh 5-GHz backhaul is 24 Mbps. It remains the same with 6.0 and 7.0 controller releases.

                                                                                          With the 6.0 controller release, mesh backhaul can be configured for ‘Auto’ data rate. Once configured, the access point picks the highest rate where the next higher rate cannot be used because of conditions not being suitable for that rate and not because of conditions that affect all rates. That is, once configured, each link is free to settle down to the best possible rate for its link quality.

                                                                                          We recommend that you configure the mesh backhaul to Auto.

                                                                                          For example, if mesh backhaul chose 48 Mbps, then this decision is taken after ensuring that we cannot use 54 Mbps as there is not enough SNR for 54 and not because some just turned the microwave oven on which affects all rates.

                                                                                          A lower bit rate might allow a greater distance between MAPs, but there are likely to be gaps in the WLAN client coverage, and the capacity of the backhaul network is reduced. An increased bit rate for the backhaul network either requires more MAPs or results in a reduced SNR between MAPs, limiting mesh reliability and interconnection.

                                                                                          This figure shows the RAP using the "auto" backhaul data rate, and it is currently using 54 Mbps with its child MAP.

                                                                                          Figure 11. Bridge Rate Set to Auto


                                                                                          Note

                                                                                          The data rate can be set on the backhaul on a per-AP basis. It is not a global command.

                                                                                          Related Commands

                                                                                          Use these commands to obtain information about backhaul:

                                                                                          • config ap bhrate—Configures the Cisco Bridge backhaul Tx rate. The syntax is as follows:

(controller) > config ap bhrate backhaul-rate ap-name

                                                                                            Note

                                                                                            Preconfigured data rates for each AP (RAP=18 Mbps, MAP1=36 Mbps) are preserved after the upgrade to 6.0 or later software releases.??Before you upgrade to the 6.0 release, if you have the backhaul data rate configured to any data rate, then the configuration is preserved.

                                                                                            The following example shows how to configure a backhaul rate of 36000 Kbps on a RAP:

                                                                                            (controller) > config ap bhrate 36000 HPRAP1

                                                                                          • show ap bhrate—Displays the Cisco Bridge backhaul rate. The syntax is as follows:

(controller) > show ap bhrate ap-name

                                                                                          • show mesh neigh summary—Displays the link rate summary including the current rate being used in backhaul Example:

(controller) > show mesh neigh summary HPRAP1

AP Name/Radio    Channel     Rate     Link-Snr     Flags      State
--------------- --------   --------   -------     -----       -----
00:0B:85:5C:B9:20 0          auto        4       0x10e8fcb8   BEACON
00:0B:85:5F:FF:60 0          auto        4       0x10e8fcb8   BEACON DEFAULT
00:0B:85:62:1E:00 165        auto        4       0x10e8fcb8   BEACON
OO:0B:85:70:8C:A0 0          auto        1       0x10e8fcb8   BEACON
HPMAP1           165         54          40      0x36         CHILD BEACON
HJMAP2           0          auto         4       0x10e8fcb8   BEACON


                                                                                          Backhaul capacity and throughput depends upon the type of the AP, that is, if it is 802.11a/n or only 802.11a, number of backhaul radios it has, and so on.

                                                                                          In AP1524 SB, Slot 2 in the 5-GHz radio in the RAP is used to extend the backhaul in the downlink direction, whereas Slot 2 in the 5-GHz radio in the MAP is used for backhaul in the uplink. We recommend using a directional antenna with the Slot 2 radio. MAPs extend Slot 1 radio in the downlink direction with Omni or directional antenna also providing client access. Client access can be provided on the Slot 2 radio from the 7.0 release onwards.

                                                                                          AP1524SB provides you with better throughput, and throughput rarely degrades after the first hop. The performance of AP1524SB is better than AP1522 and AP1524PS because these APs have only a single radio for the backhaul uplink and downlink (see the figures below).

                                                                                          Figure 12. 1524SB TCP Downstream Rate Auto

                                                                                          Figure 13. 1522 TCP 54 Mbps Downstream


                                                                                          Note

                                                                                          With DRA, each hop uses the best possible data rate for the backhaul. The data rate can be changed on a per-AP basis.

                                                                                          Figure 14. 1524SB TCP Downstream Rate Auto

                                                                                          Figure 15. 1524 TCP Downstream (24 Mbps)


                                                                                          Note

                                                                                          Using 1552 802.11n provides you higher throughput and more capacity. It offers a very fat backhaul pipe to start with from the RAP.

                                                                                          Figure 16. AP1552 Backhaul Throughput

                                                                                          Table 2 AP1552 Backhaul Capacity

                                                                                          Hops

                                                                                          RAP

                                                                                          One

                                                                                          Two

                                                                                          Three

                                                                                          Four

                                                                                          Maximum Throughput (20 MHz BH)

                                                                                          112 Mbps

                                                                                          83 Mbps

                                                                                          41 Mbps

                                                                                          25 Mbps

                                                                                          15 Mbps

                                                                                          Maximum Throughput (40 MHz BH)

                                                                                          206 Mbps

                                                                                          111 Mbps

                                                                                          94 Mbps

                                                                                          49 Mbps

                                                                                          35 Mbps

                                                                                          The requirements for the above are as follows:
                                                                                          • Packet size to be 1370 bytes (Veriwave Client)
                                                                                          • 5-GHz 802.11n
                                                                                          • MCS 15
                                                                                          • Less than 1 percent packet loss
                                                                                          • Greater than 40 dB SNR for client access and backhaul
                                                                                          • UDP traffic, security enabled, and universal access enabled

                                                                                          Configuring Ethernet Bridging

                                                                                          For security reasons, the Ethernet port on all MAPs is disabled by default. It can be enabled only by configuring Ethernet bridging on the root and its respective MAP.


                                                                                          Note
                                                                                          Exceptions are allowed for a few protocols even though Ethernet bridging is disabled. For example, the following protocols are allowed:
                                                                                          • Spanning Tree Protocol (STP)
                                                                                          • Address Resolution Protocol (ARP)
                                                                                          • Control and Provisioning of Wireless Access Points (CAPWAP)
                                                                                          • Bootstrap Protocol (BOOTP) packets

                                                                                          Enable Spanning Tree Protocol (STP) on all connected switch ports to avoid Layer 2 looping.

                                                                                          Ethernet bridging has to be enabled for two scenarios:

                                                                                          1. When you want to use the mesh nodes as bridges (see Figure 1).

                                                                                            Note

                                                                                            You do not need to configure VLAN tagging to use Ethernet bridging for point-to-point and point-to-multipoint bridging deployments.

                                                                                          2. When you want to connect any Ethernet device such as a video camera on the MAP using its Ethernet port. This is the first step to enable VLAN tagging.
                                                                                            Figure 17. Point-to-Multipoint Bridging

                                                                                          Enabling Ethernet Bridging (GUI)

                                                                                          To enable Ethernet bridging on a RAP or MAP using the GUI, follow these steps:

                                                                                            Step 1   Choose Wireless > All APs.
                                                                                            Step 2   Click the AP name link of the mesh access point on which you want to enable Ethernet bridging.
                                                                                            Step 3   At the details page, select the Mesh tab (see Figure 1).
                                                                                            Figure 18. All APs > Details for (Mesh) Page

                                                                                            Step 4   Select either RootAP or MeshAP from the AP Role drop-down list, if not already selected.
                                                                                            Step 5   Select the Ethernet Bridging check box to enable Ethernet bridging or deselect it to disable this feature.
                                                                                            Step 6   Click Apply to commit your changes. An Ethernet Bridging section appears at the bottom of the page listing each of the Ethernet ports of the mesh access point.
                                                                                            Step 7   Ensure that you enable Ethernet bridging for every parent mesh AP taking the path from the mesh AP in question to the controller. For example, if you enable Ethernet bridging on MAP2 in Hop 2, then you must also enable Ethernet bridging on MAP1 (parent MAP), and on the RAP connecting to the controller.

                                                                                            Configuring Bridge Group Names

                                                                                            Bridge group names (BGNs) control the association of mesh access points. BGNs can logically group radios to avoid two networks on the same channel from communicating with each other. The setting is also useful if you have more than one RAP in your network in the same sector (area). BGN is a string of 10 characters maximum.

                                                                                            A BGN of NULL VALUE is assigned by default by manufacturing. Although not visible to you, it allows a mesh access point to join the network prior to your assignment of your network-specific BGN.

                                                                                            If you have two RAPs in your network in the same sector (for more capacity), we recommend that you configure the two RAPs with the same BGN, but on different channels.

                                                                                            Configuring Bridge Group Names (CLI)

                                                                                              Step 1   To set a bridge group name (BGN), enter this command:

                                                                                              config ap bridgegroupname set group-name ap-name

                                                                                              Note

                                                                                              The mesh access point reboots after a BGN configuration.

                                                                                              Caution

                                                                                              Exercise caution when you configure a BGN on a live network. Always start a BGN assignment from the farthest-most node (last node, bottom of mesh tree) and move up toward the RAP to ensure that no mesh access points are dropped due to mixed BGNs (old and new BGNs) within the same network.

                                                                                              Step 2   To verify the BGN, enter the following command:

                                                                                              show ap config general ap-name

                                                                                              Verifying Bridge Group Names (GUI)

                                                                                                Step 1   Click Wireless > Access Points > AP Name. The details page for the selected mesh access point appears.
                                                                                                Step 2   Click the Mesh tab. Details for the mesh access point including the BGN appears.

                                                                                                Configuring Public Safety Band Settings

                                                                                                A public safety band (4.9 GHz) is supported on the AP1522 and AP1524PS.

                                                                                                Figure 19. AP 1524PS Diagram Showing Radio Placement

                                                                                                • For the AP1524PS, the 4.9-GHz radio is independent of the 5-GHz radio and is not used for backhaul. The 5.8 GHz is used only for backhaul, and there is no client access possible on it. On the AP1524PS, the 4.9-GHz band is enabled by default.
                                                                                                  • In Japan, 4.9 GHz is enabled by default as 4.9 GHz is unlicensed.
                                                                                                • For AP1522s, you can enable the 4.9-GHz public safety band on the backhaul. This step can only be done at the global level and cannot be done on a per mesh access point basis.
                                                                                                  • For client access on the 4.9-GHz band on the AP1522, you have to enable the feature backhaul client access.
                                                                                                • For public safety-only deployments, the AP1522 and the AP1524PS must each be connected to its own separate RAP-based tree. For such deployments, the 1522 must use the 4.9-GHz backhaul and the 1524PS must be in its own RAP tree and use the 5.8-GHz backhaul.
                                                                                                • In some parts of the world including the USA, you can only have public safety traffic on the 4.9-GHz backhaul. Check the destination countries compliance before installing.

                                                                                                The 4.9-GHz subband radio on the AP1524PS supports public safety channels within the 5-MHz (channels 1 to 10), 10-MHz (channels 11 to 19), and 20-MHz (channels 20 to 26) bandwidths.

                                                                                                • The following data rates are supported within the 5 MHz bandwidth: 1.5, 2.25, 3, 4.5, 6, 9, 12, and 13.5 Mbps. The default rate is 6 Mbps.
                                                                                                • The following data rates are supported within the 10-MHz bandwidth: 3, 4.5, 6, 9, 12, 18, 24, and 27 Mbps. The default rate is 12 Mbps. Those AP1522s with serial numbers prior to FTX1150XXXX do not support 5 and 10 MHz channels on the 4.9-GHz radio; however, a 20-MHz channel is supported.
                                                                                                • Those AP1522s with serial numbers after FTX1150XXXX support 5, 10, and 20 MHz channels.
                                                                                                Enabling the 4.9-GHz Band

                                                                                                When you attempt to enable the 4.9-GHz band, you get a warning that the band is a licensed band in most parts of the world.

                                                                                                Figure 20. Public Safety Warning During Configuration

                                                                                                • To verify that a public safety band is on the mesh access point using the CLI, enter the following command:

(Cisco Controller)> show mesh public-safety
Global Public Safety status: enabled
                                                                                                • To verify that a public safety band is on the mesh access point using the GUI: Wireless > Access Points > 802.11a radio > Configure (from the Antenna drop-down list)

                                                                                                Configuring Interoperability with Cisco 3200

                                                                                                Cisco AP1522 and AP1524PS can interoperate with the Cisco 3200 on the public safety channel (4.9-GHz) as well as the 2.4-GHz access and 5.8-GHz backhaul.

                                                                                                The Cisco 3200 creates an in-vehicle network in which devices such as PCs, surveillance cameras, digital video recorders, printers, PDAs, and scanners can share wireless networks such as cellular or WLAN based services back to the main infrastructure. This feature allows data collected from in-vehicle deployments such as a police cars to be integrated into the overall wireless infrastructure.

                                                                                                This section provides configuration guidelines and step-by-step instructions for configuring interoperability between the Cisco 3200 and the AP1522 and the AP1524PS.

                                                                                                For specific interoperability details between series 1130, 1240, and 1520 (1522, 1524PS) mesh access points and Cisco 3200, see Table 1.

                                                                                                Table 3 Mesh Access Points and Cisco 3200 Interoperability

                                                                                                Mesh Access Point Model

                                                                                                Cisco 3200 Model

                                                                                                1552, 15221

                                                                                                c32012, c32023, c32054

                                                                                                1524PS

                                                                                                c3201, c3202

                                                                                                1524SB, 1130, 1240, Indoor 802.11n mesh access points

                                                                                                c3201, c3205
                                                                                                1 Universal access must be enabled on the AP1522 if connecting to a Cisco 3200 on the 802.11a radio or 4.9-GHz band.
                                                                                                2 Model c3201 is a Cisco 3200 with a 802.11b/g radio (2.4-GHz).
                                                                                                3 Model c3202 is a Cisco 3200 with a 4-9-GHz subband radio.
                                                                                                4 Model c3205 is a Cisco 3200 with a 802.11a radio (5.8-GHz subband).
                                                                                                Configuration Guidelines for Public Safety 4.9-GHz Band

                                                                                                For the AP1522 or AP1524PS and Cisco 3200 to interoperate on the public safety network, the following configuration guidelines must be met:

                                                                                                • Client access must be enabled on the backhaul (mesh global parameter). This feature is not supported on the AP1524PS.
                                                                                                • Public safety must be enabled globally on all mesh access points (MAPs) in the mesh network.
                                                                                                • The channel number assignment on the AP1522 or AP1524PS must match those on the Cisco 3200 radio interfaces:
                                                                                                  • Channels 20 (4950 GHz) through 26 (4980 GHz) and subband channels 1 through 19 (5 and 10 MHz) are used for Cisco 3200 interoperability. This configuration change is made on the controller. No changes are made to the mesh access point configuration.
                                                                                                  • Channel assignments are only made to the RAP. Updates to the MAP are propagated by the RAP.

                                                                                                The default channel width for Cisco 3200s is 5 MHz. You must either change the channel width to 10 or 20 MHz to enable WGBs to associate with the AP1522 and AP1524PS or change the channel on the AP1522 or AP1524PS to a channel in the 5-MHz band (channels 1 to 10) or 10-MHz band (channels 11 to 19).

                                                                                                • Radio (802.11a) must be disabled when configuring channels and then reenabled when using the CLI. When using the GUI, enabling and disabling of the 802.11a radio for channel configuration is not required.
                                                                                                • Cisco 3200s can scan channels within but not across the 5, 10 or 20-MHz bands.

                                                                                                Enabling AP1522 to Associate with Cisco 3200 (GUI)

                                                                                                  Step 1   To enable the backhaul for client access, choose Wireless > Mesh to access the Mesh page.
                                                                                                  Step 2   Select the Backhaul Client Access Enabled check box to allow wireless client association over the 802.11a radio. Click Apply.
                                                                                                  Note

                                                                                                  You are prompted with a message to allow reboot of all the mesh access points to enable Backhaul Client Access on a network. Click OK.

                                                                                                  Step 3   To assign the channel to use for the backhaul (channels 20 through 26), click Wireless > Access Points > Radio and select 802.11a/n from the Radio subheading. A summary page for all 802.11a radios displays.
                                                                                                  Step 4   At the Antenna drop-down list for the appropriate RAP, select Configure. The Configure page is displayed.
                                                                                                  Step 5   At the RF Backhaul Channel Assignment section, select the Custom option for the Assignment Method option and select any channel between 1 and 26.
                                                                                                  Step 6   Click Apply to commit your changes.
                                                                                                  Step 7   Click Save Configuration to save your changes.

                                                                                                  Enabling 1522 and 1524PS Association with Cisco 3200 (CLI)

                                                                                                    Step 1   To enable client access mode on the AP1522, enter this command:

                                                                                                    config mesh client-access enable

                                                                                                    Step 2   To enable the public safety on a global basis, enter this command:

                                                                                                    config mesh public-safety enable all

                                                                                                    Step 3   To enable the public safety channels, enter these commands:
                                                                                                    1. On the AP1522, enter these commands:

                                                                                                      config 802.11a disable Cisco_MAP

                                                                                                      config 802.11a channel ap Cisco_MAP channel number

                                                                                                      config 802.11a enable Cisco_MAP

                                                                                                    2. On the AP1524PS, enter these commands:

                                                                                                      config 802.11–a49 disable Cisco_MAP

                                                                                                      config 802.11–a49 channel ap Cisco_MAP channel number

                                                                                                      config 802.11–a49 enable Cisco_MAP

                                                                                                      Note

                                                                                                      Enter the config 802.11–a58 enable Cisco_MAP command to enable a 5.8-GHz radio.

                                                                                                      Note

                                                                                                      For both the AP1522 and AP1524PS, channel number is equal to any value 1 to 26.

                                                                                                    Step 4   To save your changes, enter this command:

                                                                                                    save config

                                                                                                    Step 5   To verify your configuration, enter these commands:

                                                                                                    show mesh public-safety

                                                                                                    show mesh client-access

                                                                                                    show ap config 802.11a summary (1522 only)

                                                                                                    show ap config 802.11–a49 summary (1524PS only)

                                                                                                    Note

                                                                                                    Enter the show config 802.11-a58 summary command to display configuration details for a 5.8-GHz radio.

                                                                                                    Configuring Power and Channel Settings

                                                                                                    The backhaul channel (802.11a/n) can be configured on a RAP. MAPs tune to the RAP channel. The local access can be configured independently for MAP.

                                                                                                    Configuring Power and Channel Settings (GUI)

                                                                                                      Step 1   Choose Wireless > Access Points > 802.11a/n.
                                                                                                      Note

                                                                                                      Radio slots are displayed for each radio. For an AP1524SB, the 802.11a radio will display for slots 1 and 2 that operate in the 5-GHz band. For an AP1524PS, the 802.11a radio will display for slots 1 and 2, operating in the 5-GHz and 4.9-GHz bands respectively.

                                                                                                      Step 2   Select configure from the Antenna drop-down list for the 802.11a/n radio. The Configure page is displayed.
                                                                                                      Note

                                                                                                      For the 1524SB, select the Antenna drop-down list for a RAP with a radio role of downlink.

                                                                                                      Step 3   Assign a channel (assignment methods of global and custom) for the radio.
                                                                                                      Note

                                                                                                      When you assign a channel to the AP1524SB, choose the Custom assignment method, and select one of the supported channels for the 5-GHz band.

                                                                                                      Step 4   Assign Tx power levels (global and custom) for the radio.

                                                                                                      There are five selectable power levels for the 802.11a backhaul for AP1500s.

                                                                                                      Note

                                                                                                      The default Tx power level on the backhaul is the highest power level (Level 1).

                                                                                                      Note

                                                                                                      Radio Resource Management (RRM) is OFF (disabled) by default. RRM cannot be turned ON (enabled) for the backhaul.

                                                                                                      Step 5   Click Apply when power and channel assignment are complete.
                                                                                                      Step 6   From the 802.11a/n Radios page, verify that channel assignments were made correctly.

                                                                                                      Configuring the Channels on the Serial Backhaul (CLI)

                                                                                                      To configure channels on the serial backhaul of the RAP using the controller CLI, follow these steps:

                                                                                                        Step 1   To configure the backhaul channel on the radio in slot 2 of the RAP, enter this command:

                                                                                                        config slot 2 channel ap Cisco_RAPSB channel

                                                                                                        The available channels for the 5.8-GHz band are 149, 153, 157, 161, and 165.

                                                                                                        Step 2   To configure the transmit power level on the radio in slot 2 of the RAP, enter this command:

                                                                                                        config slot 2 txPower ap Cisco_RAPSB power

                                                                                                        Valid values are 1 through 5; the default value is 1.

                                                                                                        Step 3   To display the configurations on the mesh access points, enter these commands:

                                                                                                        • show mesh path MAP Information similar to the following appears:

AP Name/Radio


Channel


Rate


Link-Snr


Flags


State


MAP1SB


161


auto


60


0x10ea9d54


UPDATED NEIGH PARENT BEACON


RAPSB


153


auto


51


0x10ea9d54


UPDATED NEIGH PARENT BEACON


RAPSB is a Root AP.

                                                                                                        • show mesh backhaul RAPSB Information similar to the following appears:

Current Backhaul Slot(s)......................... 1, 2,

Basic Attributes for Slot 1
    Radio Type................................... RADIO_TYPE_80211a
    Radio Role................................... ACCESS
    Administrative State ........................ ADMIN_ENABLED
    Operation State ............................. UP
    Current Tx Power Level ...................... 1
    Current Channel ............................. 165
    Antenna Type................................. EXTERNAL_ANTENNA
    External Antenna Gain (in .5 dBm units)...... 0

Basic Attributes for Slot 2
    Radio Type................................... RADIO_TYPE_80211a
    Radio Role................................... RADIO_DOWNLINK
    Administrative State ........................ ADMIN_ENABLED
    Operation State ............................. UP
    Current Tx Power Level ...................... 3
    Current Channel ............................. 153
    Antenna Type................................. EXTERNAL_ANTENNA
    External Antenna Gain (in .5 dBm units)...... 0

                                                                                                        • show ap channel MAP1SB Information similar to the following appears:

802.11b/g Current Channel ................. 11
Slot Id ................................... 0
Allowed Channel List....................... 1,2,3,4,5,6,7,8,9,10,11
802.11a(5.8Ghz) Current Channel ........... 161
Slot Id ................................... 1
Allowed Channel List....................... 149,153,157,161,165
802.11a(5.8Ghz) Current Channel ........... 153
Slot Id ................................... 2
Allowed Channel List....................... 149,153,157,161,165


                                                                                                        Configuring Antenna Gain

                                                                                                        You must configure the antenna gain for the mesh access point to match that of the antenna installed using the controller GUI or controller CLI.

                                                                                                        Configuring Antenna Gain (GUI)

                                                                                                        To configure antenna parameters using the controller GUI, follow these steps:

                                                                                                          Step 1   Choose Wireless > Access Points > Radio > 802.11a/n to open the 802.11a/n Radios page.
                                                                                                          Step 2   For the mesh access point antenna you want to configure, hover the mouse over the blue arrow (far right) to display antenna options. Choose Configure.
                                                                                                          Note

                                                                                                          Only external antennas have configurable gain settings.

                                                                                                          Step 3   In the Antenna Parameters section, enter the antenna gain.

                                                                                                          The gain is entered in 0.5 dBm units. For example, 2.5 dBm = 5.

                                                                                                          Note

                                                                                                          The entered gain value must match that value specified by the vendor for that antenna.

                                                                                                          Step 4   Click Apply and then Save Configuration to save the changes.

                                                                                                          Configuring Antenna Gain (CLI)

                                                                                                          Enter this command to configure the antenna gain for the 802.11a backhaul radio using the controller CLI:

                                                                                                          config 802.11a antenna extAntGain antenna_gain AP_name

                                                                                                          where gain is entered in 0.5-dBm units (for example, 2.5 dBm =5).

                                                                                                          Backhaul Channel Deselection on Serial Backhaul Access Point

                                                                                                          This feature is applicable to mesh APs with two 5-GHz radios, such as 1524SB (serial backhaul).

                                                                                                          The backhaul channel deselection feature helps you to restrict the set of channels available to be assigned for the serial backhaul MAPs and RAPs. Because 1524SB MAP channels are automatically assigned, this feature helps in regulating the set of channels that get assigned to mesh access points. For example, if you do not want channel 165 to get assigned to any of the 1524SB mesh access points, you need to remove channel 165 from the DCA list and enable this feature.

                                                                                                          When you remove certain channels from the DCA list and enable the mesh backhaul dca-channel command, those channels will not be assigned to any serial backhaul access points in any scenario. Even if a radar is detected on all channels within the DCA list channels, the radio will be shut down rather than moved to channels outside it. A trap message is sent to the Prime Infrastructure, and the message is displayed showing that the radio has been shut down because of DFS. You will not be able to assign channels to the serial backhaul RAP outside of the DCA list with the config mesh backhaul dca-channels enable command enabled. However, this is not case for the APs with one 5-GHz radio such as 1552, 1522, and 1524PS APs. For these APs, you can assign any channel outside of the DCA list for a RAP, and the controller/AP can also select a channel outside of the DCA list if no radar-free channel is available from the list.

                                                                                                          This feature is best suited in an interoperability scenario with indoor mesh access points or workgroup bridges that support a channel set that is different from outdoor access points. For example, channel 165 is supported by outdoor access points but not by indoor access points in the -A domain. By enabling the backhaul channel deselection feature, you can restrict the channel assignment to only those channels that are common to both indoor and outdoor access points.


                                                                                                          Note

                                                                                                          Channel deselection is applicable to 7.0 and later releases.

                                                                                                          In some scenarios, there may be two linear tracks or roads for mobility side by side. Because channel selection of MAPs happens automatically, there can be a hop at a channel, which is not available on the autonomous side, or the channel has to be skipped when the same or adjacent channel is selected in a neighborhood access point that belongs to a different linear chain.

                                                                                                          Configuring Backhaul Channel Deselection (GUI)

                                                                                                            Step 1   Choose Controller > Wireless > 802.11a/n > RRM > DCA

                                                                                                            The Dynamic Channel Assignment Algorithm page appears.

                                                                                                            Step 2   Select one or more channels to include in the DCA list.

                                                                                                            The channels included in the DCA list will not be assigned to the access points associated to this controller during automatic channel assignment.

                                                                                                            Step 3   Choose Wireless > Mesh

                                                                                                            The Mesh page appears.

                                                                                                            Step 4   Select the Mesh DCA Channels check box to enable the backhaul channel deselection using the DCA list. This option is applicable for serial backhaul access points.
                                                                                                            Step 5   After you enable the backhaul deselection option, choose Wireless > Access Points > Radios > 802.11a/n to configure the channel for the RAP downlink radio.
                                                                                                            Step 6   From the list of access points, click on the Antenna drop-down list for a RAP and choose Configure.

                                                                                                            The Configure page appears.

                                                                                                            Step 7   In the RF Backhaul Channel assignment section, choose Custom.
                                                                                                            Step 8   Select a channel for the RAP downlink radio from the drop-down list, which appears when you choose Custom.
                                                                                                            Step 9   Click Apply to apply and save the backhaul channel deselection configuration changes.

                                                                                                            Configuring Backhaul Channel Deselection (CLI)

                                                                                                            To configure backhaul channel deselection using CLI, follow these steps:

                                                                                                              Step 1   From the controller prompt, enter the show advanced 802.11a channel command to review the channel list already configured in the DCA list.

(Controller) > show advanced 802.11a channel
Automatic Channel Assignment
  Channel Assignment Mode........................ AUTO
  Channel Update Interval........................ 600 seconds
  Anchor time (Hour of the day).................. 0
  Channel Update Contribution.................... SNI..
  CleanAir Event-driven RRM option............... Enabled
  CleanAir Event-driven RRM sensitivity.......... Medium
  Channel Assignment Leader...................... 09:2b:16:28:00:03
  Last Run....................................... 286 seconds ago
  DCA Sensitivity Level.......................... MEDIUM (15 dB)
  DCA 802.11n Channel Width...................... 20 MHz
  DCA Minimum Energy Limit....................... -95 dBm
  Channel Energy Levels
    Minimum...................................... unknown
    Average...................................... unknown
    Maximum...................................... unknown
  Channel Dwell Times
    Minimum...................................... 0 days, 17 h 02 m 05 s
    Average...................................... 0 days, 17 h 46 m 07 s
    Maximum...................................... 0 days, 18 h 28 m 58 s
  802.11a 5 GHz Auto-RF Channel List

--More-- or (q)uit
    Allowed Channel List......................... 36,40,44,48,52,56,60,64,116,
                                                  140
    Unused Channel List.......................... 100,104,108,112,120,124,128,
                                                  132,136
  DCA Outdoor AP option.......................... Disabled

                                                                                                              Step 2   To add a channel to the DCA list, enter the config advanced 802.11a channel add channel number command, where channel number is the channel number that you want to add to the DCA list.

                                                                                                              You can also delete a channel from the DCA list by entering the config advanced 802.11a channel delete channel number command, where channel number is the channel number that you want to delete from the DCA list.

                                                                                                              Before you add or delete a channel to or from the DCA list, ensure that the 802.11a network is disabled.

                                                                                                              • To disable the 802.11a network, enter the following command: config 802.11a disable network
                                                                                                              • To enable the 802.11a network, enter the following command: config 802.11a enable network You cannot directly delete a channel from the DCA list if it is assigned to any 1524 RAP. To delete a channel assigned to a RAP, you must first change the channel assigned to the RAP and then enter the config advanced 802.11a channel delete channel number command from the controller. The following is a sample output of the add channel and delete channel commands:

(Controller) > config 802.11a disable network

Disabling the 802.11a network may strand mesh APs. Are you sure you want to continue? (y/n)y

(Controller) > config advanced 802.11a channel add 132

(Controller) > config advanced 802.11a channel delete 116

802.11a 5 GHz Auto-RF:
Allowed Channel List......................... 36,40,44,48,52,56,60,64,116,
                                                  132,140
DCA channels for cSerial Backhaul Mesh APs is enabled.
DCA list should have at least 3 non public safety channels supported by Serial Backhaul Mesh APs.
Otherwise, the Serial Backhaul Mesh APs can get stranded.
Are you sure you want to continue? (y/N)y

Failed to delete channel.
Reason: Channel 116 is configured for one of the Serial Backhaul RAPs.
Disable mesh backhaul dca-channels or configure a different channel for Serial Backhaul RAPs.

(Controller) > config advanced 802.11a channel delete 132

  802.11a 5 GHz Auto-RF:
Allowed Channel List..................... 36,40,44,48,52,56,60,64,116,132,140
DCA channels for Serial Backhaul Mesh APs is enabled.
DCA list should have at least 3 non public safety channels supported by Serial Backhaul Mesh APs.
Otherwise, the Serial Backhaul Mesh APs can get stranded.
Are you sure you want to continue? (y/N)y

(Controller) > config 802.11a enable network

                                                                                                              Step 3   After a suitable DCA list has been created, enter the config mesh backhaul dca-channels enable command to enable the backhaul channel deselection feature for mesh access points.

                                                                                                              You can enter the config mesh backhaul dca-channels disable command if you want to disable the backhaul channel deselection feature for mesh access points.

                                                                                                              It is not required that you disable 802.11a network to enable or disable this feature.

                                                                                                              The following is a sample output:


(Controller) > config mesh backhaul dca-channels enable
  802.11a 5 GHz Auto-RF:
    Allowed Channel List......................... 36,40,44,48,52,56,60,64,116,
                                                  140
Enabling DCA channels for c1524 mesh APs will limit the channel set to the DCA channel list.
DCA list should have at least 3 non public safety channels supported by Serial Backhaul Mesh APs.
Otherwise, the Serial Backhaul Mesh APs can get stranded.
Are you sure you want to continue? (y/N)y

(Controller) > config mesh backhaul dca-channels disable

                                                                                                              Step 4   To check the current status of the backhaul channel deselection feature, enter the show mesh config command.

                                                                                                              The following is a sample output:


(Controller) > show mesh config

Mesh Range....................................... 12000
Mesh Statistics update period.................... 3 minutes
Backhaul with client access status............... enabled
Background Scanning State........................ enabled
Backhaul Amsdu State............................. disabled

Mesh Security
   Security Mode................................. PSK
   External-Auth................................. enabled
      Radius Server 1............................ 209.165.200.240
   Use MAC Filter in External AAA server......... disabled
   Force External Authentication................. disabled

Mesh Alarm Criteria
   Max Hop Count................................. 4
   Recommended Max Children for MAP.............. 10
   Recommended Max Children for RAP.............. 20
   Low Link SNR.................................. 12
   High Link SNR................................. 60
   Max Association Number........................ 10
   Association Interval.......................... 60 minutes
   Parent Change Numbers......................... 3

--More-- or (q)uit
   Parent Change Interval........................ 60 minutes

Mesh Multicast Mode.............................. In-Out
Mesh Full Sector DFS............................. enabled

Mesh Ethernet Bridging VLAN Transparent Mode..... enabled

Mesh DCA channels for Serial Backhaul APs................ disabled

                                                                                                              Step 5   Enter the config slot slot number channel ap ap-name channel number command to assign a particular channel to the 1524 RAP downlink radio.
                                                                                                              • slot number refers to the slot of the downlink radio to which the channel is assigned.
                                                                                                              • ap-name refers to the name of the access point on which the channel is configured.
                                                                                                              • channel number refers to the channel that is assigned to a slot on the access point. Slot 2 of the 1524 RAP acts as a downlink radio. If backhaul channel deselection is enabled, you can assign only those channels that are available in the DCA list the access point. The following is a sample output:

(Controller) > config slot 2 channel ap Controller-RAP2-1524 136
Mesh backhaul dca-channels is enabled. Choose a channel from the DCA list.
(Controller) > config slot 2 channel ap Controller-RAP2-1524 140

                                                                                                              Backhaul Channel Deselection Guidelines

                                                                                                              Follow these guidelines when configuring backhaul channel deselection:

                                                                                                              • Channels for serial backhaul RAP 11a access radio and both 11a radios of serial backhaul MAPs are assigned automatically. You cannot configure these channels.
                                                                                                              • Look out for trap logs on the controller. In case of radar detection and subsequent channel change, messages similar to below appear:

Channel changed for Base Radio MAC: 00:1e:bd:19:7b:00 on 802.11a
radio. Old channel: 132. New Channel: 116. Why: Radar. Energy
before/after change: 0/0. Noise before/after change: 0/0.
Interference before/after change: 0/0.

Radar signals have been detected on channel 132 by 802.11a radio
with MAC: 00:1e:bd:19:7b:00 and slot 2

                                                                                                              • For every serial backhaul AP, channels on downlink and uplink radios should always be noninterfering (for example, if the uplink is channel 104, the 100, 104, and 108 channels cannot be assigned for a downlink radio on that AP). An alternate adjacent channel is also selected for an 11a access radio on RAP.
                                                                                                              • If radar signals are detected on all channels except the uplink radio channel, the downlink radio will be shut down and the uplink radio will act as both an uplink and a downlink (that is, the behavior is similar to 1522 APs in this case).
                                                                                                              • Radar detection is cleared after 30 minutes. Any radio that is shut down because of radar detection should be back up and operational after this duration.
                                                                                                              • There is a 60-second silent period immediately after moving to a DFS-enabled channel (irrespective of whether the channel change is because of radar detection or user configured in case of a RAP) during which the AP scans for radar signals without transmitting anything. A small period (60 seconds) of downtime may occur because of radar detection, if the new channel is also DFS-enabled. If radar detection occurs again on the new channel during the silent period, the parent changes its channel without informing the child AP because it is not allowed to transmit during the silent period. In this case, the child AP dissociates and goes back to scan mode, rediscovers the parent on the new channel and then joins back, which causes a slightly longer (approximately 3 minutes) downtime.
                                                                                                              • For a RAP, the channel for the downlink radio is always selected from within the DCA list, irrespective of whether the backhaul channel deselection feature is enabled or not. The behavior is different for a MAP because the MAP can pick any channel that is allowed for that domain, unless the backhaul channel deselection feature is enabled. We recommend that you have quite a few channels added to the 802.11a DCA channel list to prevent any radios getting shut down because of a lack of channels even if the backhaul channel deselection feature is not in use.
                                                                                                              • Because the DCA list that was used for the RRM feature is also used for mesh APs through the backhaul channel deselection feature, keep in mind that any addition or deletion of channels from the DCA list will affect the channel list input to the RRM feature for nonmesh access points as well. RRM is off for mesh.
                                                                                                              • For -M domain APs, a slightly longer time interval (25 to 50 percent more time than usual) may be required for the mesh network to come up because there is a longer list of DFS-enabled channels in the -M domain, which each AP scans before joining the parent.

                                                                                                              Configuring Dynamic Channel Assignment

                                                                                                              Using the controller GUI, follow these steps to specify the channels that the dynamic channel assignment (DCA) algorithm considers when selecting the channels to be used for RRM scanning. This functionality is helpful when you know that the clients do not support certain channels because they are legacy devices or they have certain regulatory restrictions.

                                                                                                              The steps outlined in this section are only relevant to mesh networks.

                                                                                                                Step 1   To disable the 802.11a/n or 802.11b/g/n network, follow these steps:
                                                                                                                1. Choose Wireless > 802.11a/n or 802.11b/g/n > Network to open the 802.11a (or 802.11b/g) Global Parameters page.
                                                                                                                2. Deselect the 802.11a (or 802.11b/g) Network Status check box.
                                                                                                                3. Click Apply to commit your changes.
                                                                                                                Step 2   Choose Wireless > 802.11a/n or 802.11b/g/n > RRM > DCA to open the 802.11a (or 802.11b/g) > RRM > Dynamic Channel Assignment (DCA) page.
                                                                                                                Step 3   Choose one of the following options from the Channel Assignment Method drop-down list to specify the controller’s DCA mode:
                                                                                                                • Automatic—Causes the controller to periodically evaluate and, if necessary, update the channel assignment for all joined mesh access points. This is the default value.
                                                                                                                • Freeze—Causes the controller to evaluate and update the channel assignment for all joined mesh access points, if necessary, but only when you click Invoke Channel Update Once.
                                                                                                                  Note

                                                                                                                  The controller does not evaluate and update the channel assignment immediately after you click Invoke Channel Update Once. It waits for the next interval to elapse.

                                                                                                                • OFF—Turns off DCA and sets all mesh access point radios to the first channel of the band, which is the default value. If you choose this option, you must manually assign channels on all radios.
                                                                                                                Step 4   From the Interval drop-down list, choose one of the following options to specify how often the DCA algorithm is allowed to run: 10 minutes, 1 hour, 2 hours, 3 hours, 4 hours, 6 hours, 8 hours, 12 hours, or 24 hours. The default value is 10 minutes.
                                                                                                                Step 5   From the AnchorTime drop-down list, choose a number to specify the time of day when the DCA algorithm is to start. The options are numbers between 0 and 23 (inclusive) representing the hour of the day from 12:00 a.m. to 11:00 p.m.
                                                                                                                Step 6   Select the Avoid Foreign AP Interference check box to cause the controller’s RRM algorithms to consider 802.11 traffic from foreign access points (those access points not included in your wireless network) when assigning channels to lightweight access points, or deselect it to disable this feature. For example, RRM may adjust the channel assignment to have access points avoid channels close to foreign access points. The default value is checked.
                                                                                                                Step 7   Select the Avoid Cisco AP Load check box to cause the controller’s RRM algorithms to consider 802.11 traffic from Cisco lightweight access points in your wireless network when assigning channels, or deselect it to disable this feature. For example, RRM can assign better reuse patterns to access points that carry a heavier traffic load. The default value is deselected.
                                                                                                                Step 8   Select the Avoid Non-802.11a (802.11b) Noise check box to cause the controller’s RRM algorithms to consider noise (non-802.11 traffic) in the channel when assigning channels to lightweight access points, or deselect it to disable this feature. For example, RRM may have access points avoid channels with significant interference from nonaccess point sources, such as microwave ovens. The default value is checked.
                                                                                                                Step 9   From the DCA Channel Sensitivity drop-down list, choose one of the following options to specify how sensitive the DCA algorithm is to environmental changes such as signal, load, noise, and interference when determining whether to change channels:
                                                                                                                • Low—The DCA algorithm is not particularly sensitive to environmental changes.
                                                                                                                • Medium—The DCA algorithm is moderately sensitive to environmental changes.
                                                                                                                • High—The DCA algorithm is highly sensitive to environmental changes.

                                                                                                                The default value is Medium.

                                                                                                                Table 4 DCA Sensitivity Thresholds

                                                                                                                Option

                                                                                                                2.4-GHz DCA Sensitivity Threshold

                                                                                                                5-GHz DCA Sensitivity Threshold

                                                                                                                High

                                                                                                                5 dB

                                                                                                                5 dB

                                                                                                                Medium

                                                                                                                15 dB

                                                                                                                20 dB

                                                                                                                Low

                                                                                                                30 dB

                                                                                                                35 dB

                                                                                                                Step 10   For 802.11a/n networks only, choose one of the following Channel Width options to specify the channel bandwidth supported for all 802.11n radios in the 5-GHz band:
                                                                                                                • 20 MHz—The 20-MHz channel bandwidth (default)
                                                                                                                  Note

                                                                                                                  To override the globally configured DCA channel width setting, you can statically configure an access point’s radio for 20-MHz mode on the 802.11a/n Cisco APs > Configure page. If you ever change the static RF channel assignment method to Global on the access point radio, the global DCA configuration overrides the channel width configuration that the access point was previously using.

                                                                                                                  This page also shows the following nonconfigurable channel parameter settings:

                                                                                                                • Channel Assignment Leader—The MAC address of the RF group leader, which is responsible for channel assignment.
                                                                                                                • Last Auto Channel Assignment—The last time RRM evaluated the current channel assignments.
                                                                                                                Step 11   In the DCA Channel List section, the DCA Channels field shows the channels that are currently selected. To choose a channel, select its check box in the Select column. To exclude a channel, deselect its check box.

                                                                                                                Range: 802.11a—36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140, 149, 153, 157, 161, 165, 190, 196?802.11b/g—1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11

                                                                                                                Default: 802.11a—36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140, 149, 153, 157, 161?802.11b/g—1, 6, 11

                                                                                                                Note

                                                                                                                These extended UNII-2 channels in the 802.11a band do not appear in the channel list: 100, 104, 108, 112, 116, 132, 136, and 140. If you have Cisco Aironet 1500 series mesh access points in the -E regulatory domain, you must include these channels in the DCA channel list before you start operation. If you are upgrading from a previous release, verify that these channels are included in the DCA channel list. To include these channels in the channel list, select the Extended UNII-2 Channels check box.

                                                                                                                Step 12   If you are using AP1500s in your network, you must set the 4.9-GHz channels in the 802.11a band on which they are to operate. The 4.9-GHz band is for public safety client access traffic only. To choose a 4.9-GHz channel, select its check box in the Select column. To exclude a channel, deselect its check box.

                                                                                                                Range: ?802.11a—1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26

                                                                                                                Default:?802.11a—20, 26

                                                                                                                Step 13   Click Apply to commit your changes.
                                                                                                                Step 14   To reenable the 802.11a or 802.11b/g network, follow these steps:
                                                                                                                1. Click Wireless > 802.11a/n or 802.11b/g/n > Network to open the 802.11a (or 802.11b/g) Global Parameters page.
                                                                                                                2. Select the 802.11a (or 802.11b/g) Network Status check box.
                                                                                                                3. Click Apply to commit your changes.
                                                                                                                Step 15   Click Save Configuration to save your changes.
                                                                                                                Note

                                                                                                                To see why the DCA algorithm changed channels, click Monitor and then View All under Most Recent Traps. The trap provides the MAC address of the radio that changed channels, the previous channel and the new channel, the reason why the change occurred, the energy before and after the change, the noise before and after the change, and the interference before and after the change. Dynamic Channel Assignment on 5 GHz radio is supported only on outdoor access points in local or flexconnect mode.

                                                                                                                Configuring Advanced Features

                                                                                                                Using the 2.4-GHz Radio for Backhaul

                                                                                                                Until the 7.0 release, mesh used the 5-GHz radio for backhaul, and the 2.4-GHz radio was used only for client access. The reasons for using only the 5-GHz radio for backhaul are as follows:

                                                                                                                • More channels are available
                                                                                                                • More EIRP is available
                                                                                                                • Less interference occurs
                                                                                                                • Most of the client access occurs over the 2.4-GHz band

                                                                                                                However, under certain conditions, such as dense foliage areas, you might have needed to use the 2.4-GHz band for a backhaul because it has better penetration.

                                                                                                                With the 7.0.116.0 release, you can configure an entire mesh network to use a single backhaul that can be either 5 GHz or 2.4 GHz.


                                                                                                                Caution

                                                                                                                This feature is available only for AP1522 (two radios). This feature should be used only after exploring the 5-GHz backhaul option.


                                                                                                                Caution

                                                                                                                We recommend that you use 5 GHz as the first option and use 2.4 GHz only if the 5-GHz option does not work.

                                                                                                                Changing the Backhaul from 5 GHz to 2.4 GHz

                                                                                                                When you specify only the RAP name as an argument to the command, the whole mesh sector changes to 2.4 GHz or 5 GHz backhaul. The warning messages indicate the change in backhaul, whether it is from 2.4 GHz to 5 GHz or vice versa.


                                                                                                                Note

                                                                                                                The 2.4-GHz backhaul cannot be configured using the controller user interface, but only through the CLI.

                                                                                                                To change the backhaul from 5 GHz to 2.4 GHz, follow these steps:

                                                                                                                  Step 1   To change the backhaul, enter the following command:

(Cisco Controller) > config mesh backhaul slot 0 enable RAP


                                                                                                                  The following message appears;


Warning! Changing backhaul slot will bring down the mesh for renegotiation!!!
After backhaul is changed, 5 GHz client access channels need to be changed manually

Are you sure you want to continue? (y/N)


                                                                                                                  Press y.

                                                                                                                  Note

                                                                                                                  When you change the 5-GHz backhaul to local client access, the 5-GHz client access frequencies on all the APs are the same, because the backhaul frequency is ported on these 5-GHz radios for client access. You need to configure these channels for a better frequency planning.

                                                                                                                  Step 2   To change the backhaul from 2.4 GHz to 5 GHz, enter the following command:

(Cisco Controller) > config mesh backhaul slot 1 enable RAP


                                                                                                                  The following message appears:


Warning! Changing backhaul slot will bring down the mesh for renegotiation!!!
Are you sure you want to continue? (y/N)


                                                                                                                  Press y.

                                                                                                                  Note

                                                                                                                  You cannot configure the 2.4-GHz backhaul using the controller GUI, but you can configure the 2.4-GHz backhaul using the CLI.

                                                                                                                  Step 3   To verify the current backhaul in use, enter the following command:

(Cisco Controller) > show mesh backhaul AP_name

                                                                                                                  Note

                                                                                                                  For a 5-GHz backhaul, dynamic frequency selection (DFS) occurs only on 5 GHz and not on 2.4 GHz. The mechanism, which differs for RAP and MAP, is called a coordinated change mechanism.

When 5 GHz is converted to client access from the backhaul or 2.4 GHz is being used as backhaul, DFS works similar to how it works for a local mode AP. DFS is detected on a 5-GHz client access, and the request is sent to the controller for a new channel. Mesh adjacency is not affected for the 2.4-GHz backhaul.

                                                                                                                  Note

                                                                                                                  2.4 GHz backhaul client access is supported only on 1520 series Access Points.

                                                                                                                  Configuring Ethernet VLAN Tagging

                                                                                                                  Ethernet VLAN tagging allows specific application traffic to be segmented within a wireless mesh network and then forwarded (bridged) to a wired LAN (access mode) or bridged to another wireless mesh network (trunk mode).

                                                                                                                  A typical public safety access application that uses Ethernet VLAN tagging is the placement of video surveillance cameras at various outdoor locations within a city. Each of these video cameras has a wired connection to a MAP. The video of all these cameras is then streamed across the wireless backhaul to a central command station on a wired network.

                                                                                                                  Figure 21. Ethernet VLAN Tagging

                                                                                                                  Ethernet Port Notes

                                                                                                                  Ethernet VLAN tagging allows Ethernet ports to be configured as normal, access, or trunk in both indoor and outdoor implementations:


                                                                                                                  Note

                                                                                                                  When VLAN Transparent is disabled, the default Ethernet port mode is normal. VLAN Transparent must be disabled for VLAN tagging to operate and to allow configuration of Ethernet ports. To disable VLAN Transparent, which is a global parameter, see the Configuring Global Mesh Parameters section.

                                                                                                                  • Normal mode—In this mode, the Ethernet port does not accept or send any tagged packets. Tagged frames from clients are dropped. Use the normal mode in applications when only a single VLAN is in use or there is no need to segment traffic in the network across multiple VLANs.
                                                                                                                  • Access Mode—In this mode, only untagged packets are accepted. All incoming packets are tagged with user-configured VLANs called access-VLANs. Use the access mode for applications in which information is collected from devices connected to the MAP, such as cameras or PCs, and then forwarded to the RAP. The RAP then applies tags and forwards traffic to a switch on the wired network.
                                                                                                                  • Trunk mode—This mode requires the user to configure a native VLAN and an allowed VLAN list (no defaults). In this mode, both tagged and untagged packets are accepted. Untagged packets are accepted and are tagged with the user-specified native VLAN. Tagged packets are accepted if they are tagged with a VLAN in the allowed VLAN list.
                                                                                                                  • Use the trunk mode for bridging applications such as forwarding traffic between two MAPs that reside on separate buildings within a campus.

                                                                                                                  Ethernet VLAN tagging operates on Ethernet ports that are not used as backhauls.


                                                                                                                  Note

                                                                                                                  In the controller releases prior to 7.2, the Root Access Point (RAP) native VLAN is forwarded out of Mesh Access Point (MAP) Ethernet ports with Mesh Ethernet Bridging and VLAN Transparent enabled.

                                                                                                                  In the 7.2 and later controller releases, the Root Access Point (RAP) native VLAN is not forwarded out of Mesh Access Point (MAP) Ethernet ports with Mesh Ethernet Bridging and VLAN Transparent enabled.

                                                                                                                  This change in behavior increases reliability and minimizes the possibility of forwarding loops on Mesh Backhauls.

                                                                                                                  Ethernet VLAN Tagging Guidelines

                                                                                                                  Follow these guidelines for Ethernet tagging:

                                                                                                                  • For security reasons, the Ethernet port on a mesh access point (RAP and MAP) is disabled by default. It is enabled by configuring Ethernet bridging on the mesh access point port.
                                                                                                                  • Ethernet bridging must be enabled on all the mesh access points in the mesh network to allow Ethernet VLAN tagging to operate.
                                                                                                                  • VLAN mode must be set as non-VLAN transparent (global mesh parameter). See the Configuring Global Mesh Parameters (CLI) section. VLAN transparent is enabled by default. To set as non-VLAN transparent, you must unselect the VLAN transparent option on the Wireless > Mesh page.
                                                                                                                  • VLAN tagging can only be configured on Ethernet interfaces as follows:
                                                                                                                    • On AP1500s, three of the four ports can be used as secondary Ethernet interfaces: port 0-PoE in, port 1-PoE out, and port 3- fiber. Port 2 - cable cannot be configured as a secondary Ethernet interface.
                                                                                                                    • In Ethernet VLAN tagging, port 0-PoE in on the RAP is used to connect to the trunk port of the switch of the wired network. Port 1-PoE out on the MAP is used to connect to external devices such as video cameras.
                                                                                                                  • Backhaul interfaces (802.11a radios) act as primary Ethernet interfaces. Backhauls function as trunks in the network and carry all VLAN traffic between the wireless and wired network. No configuration of primary Ethernet interfaces is required.
                                                                                                                  • For indoor mesh networks, the VLAN tagging feature functions as it does for outdoor mesh networks. Any access port that is not acting as a backhaul is secondary and can be used for VLAN tagging.
                                                                                                                  • VLAN tagging cannot be implemented on RAPs because the RAPs do not have a secondary Ethernet port, and the primary port is used as a backhaul. However, VLAN tagging can be enabled on MAPs with a single Ethernet port because the Ethernet port on a MAP does not function as a backhaul and is therefore a secondary port.
                                                                                                                  • No configuration changes are applied to any Ethernet interface acting as a backhaul. A warning displays if you attempt to modify the backhaul’s configuration. The configuration is only applied after the interface is no longer acting as a backhaul.
                                                                                                                  • No configuration is required to support VLAN tagging on any 802.11a backhaul Ethernet interface within the mesh network as follows:
                                                                                                                    • This includes the RAP uplink Ethernet port. The required configuration occurs automatically using a registration mechanism.
                                                                                                                    • Any configuration changes to an 802.11a Ethernet link acting as a backhaul are ignored and a warning results. When the Ethernet link no longer functions as a backhaul, the modified configuration is applied.
                                                                                                                  • VLAN configuration is not allowed on port-02-cable modem port of AP1500s (wherever applicable). VLANs can be configured on ports 0 (PoE-in), 1 (PoE-out), and 3 (fiber).
                                                                                                                  • Up to 16 VLANs are supported on each sector. The cumulative number of VLANs supported by a RAP’s children (MAP) cannot exceed 16.
                                                                                                                  • The switch port connected to the RAP must be a trunk:
                                                                                                                    • The trunk port on the switch and the RAP trunk port must match.
                                                                                                                    • The RAP must always connect to the native VLAN ID 1 on a switch. The RAP’s primary Ethernet interface is by default the native VLAN of 1.
                                                                                                                    • The switch port in the wired network that is attached to the RAP (port 0–PoE in) must be configured to accept tagged packets on its trunk port. The RAP forwards all tagged packets received from the mesh network to the wired network.
                                                                                                                    • No VLANs, other than those destined for the mesh sector, should be configured on the switch trunk port.
                                                                                                                  • A configured VLAN on a MAP Ethernet port cannot function as a Management VLAN.
                                                                                                                  • Configuration is effective only when a mesh access point is in the CAPWAP RUN state and VLAN-Transparent mode is disabled.
                                                                                                                  • Whenever there roaming or a CAPWAP restart, an attempt is made to apply configuration again.

                                                                                                                  VLAN Registration

                                                                                                                  To support a VLAN on a mesh access point, all the uplink mesh access points must also support the same VLAN to allow segregation of traffic that belongs to different VLANs. The activity by which an mesh access point communicates its requirements for a VLAN and gets response from a parent is known as VLAN registration.


                                                                                                                  Note

                                                                                                                  VLAN registration occurs automatically. No user intervention is required.

                                                                                                                  VLAN registration is summarized below:

                                                                                                                  1. Whenever an Ethernet port on a mesh access point is configured with a VLAN, the port requests its parent to support that VLAN.
                                                                                                                  2. If the parent is able to support the request, it creates a bridge group for the VLAN and propagates the request to its parent. This propagation continues until the RAP is reached.
                                                                                                                  3. When the request reaches the RAP, it checks whether it is able to support the VLAN request. If yes, the RAP creates a bridge group and a subinterface on its uplink Ethernet interface to support the VLAN request.
                                                                                                                  4. If the mesh access point is not able to support the VLAN request by its child, at any point, the mesh access point replies with a negative response. This response is propagated to downstream mesh access points until the mesh access point that requested the VLAN is reached.
                                                                                                                  5. Upon receiving negative response from its parent, the requesting mesh access point defers the configuration of the VLAN. However, the configuration is stored for future attempts. Given the dynamic nature of mesh, another parent and its uplink mesh access points might be able to support it in the case of roaming or a CAPWAP reconnect.

                                                                                                                  Enabling Ethernet VLAN Tagging (GUI)

                                                                                                                  You must enable Ethernet bridging before you can configure VLAN tagging.

                                                                                                                  To enable VLAN tagging on a RAP or MAP using the GUI, follow these steps:

                                                                                                                    Step 1   After enabling Ethernet bridging, choose Wireless > All APs.
                                                                                                                    Step 2   Click the AP name link of the mesh access point on which you want to enable VLAN tagging.
                                                                                                                    Step 3   On the details page, select the Mesh tab.
                                                                                                                    Step 4   Select the Ethernet Bridging check box to enable the feature and click Apply.

                                                                                                                    An Ethernet Bridging section appears at the bottom of the page listing each of the four Ethernet ports of the mesh access point.

                                                                                                                    • If configuring a MAP access port, click, for example, gigabitEthernet1 (port 1-PoE out). Select access from the mode drop-down list. Enter a VLAN ID. The VLAN ID can be any value between 1 and 4095. Click Apply.
                                                                                                                      Note

                                                                                                                      VLAN ID 1 is not reserved as the default VLAN.

                                                                                                                      Note

                                                                                                                      A maximum of 16 VLANs are supported across all of a RAP’s subordinate MAP.

                                                                                                                    • If configuring a RAP or MAP trunk port, click gigabitEthernet0 (port 0-PoE in). Select trunk from the mode drop-down list. Specify a native VLAN ID for incoming traffic. The native VLAN ID can be any value between 1 and 4095. Do not assign any value assigned to a user-VLAN (access). Click Apply. A trunk VLAN ID field and a summary of configured VLANs appears at the bottom of the screen. The trunk VLAN ID field is for outgoing packets. Specify a trunk VLAN ID for outgoing packets: If forwarding untagged packets, do not change the default trunk VLAN ID value of zero. (MAP-to-MAP bridging, campus environment) If forwarding tagged packets, enter a VLAN ID (1 to 4095) that is not already assigned. (RAP to switch on wired network). Click Add to add the trunk VLAN ID to the allowed VLAN list. The newly added VLAN displays under the Configured VLANs section on the page.
                                                                                                                      Note

                                                                                                                      To remove a VLAN from the list, select the Remove option from the arrow drop-down list to the right of the desired VLAN.

                                                                                                                    Step 5   Click Apply.
                                                                                                                    Step 6   Click Save Configuration to save your changes.

                                                                                                                    Configuring Ethernet VLAN Tagging (CLI)

                                                                                                                    To configure a MAP access port, enter this command:

                                                                                                                    config ap ethernet 1 mode access enable AP1500-MAP 50

                                                                                                                    where AP1500-MAP is the variable AP_name and 50 is the variable access_vlan ID

                                                                                                                    To configure a RAP or MAP trunk port, enter this command:

                                                                                                                    config ap ethernet 0 mode trunk enable AP1500-MAP 60

                                                                                                                    where AP1500-MAP is the variable AP_name and 60 is the variable native_vlan ID

                                                                                                                    To add a VLAN to the VLAN allowed list of the native VLAN, enter this command:

                                                                                                                    config ap ethernet 0 mode trunk add AP1500-MAP3 65

                                                                                                                    where AP1500-MAP 3 is the variable AP_name and 65 is the variable VLAN ID

                                                                                                                    Viewing Ethernet VLAN Tagging Configuration Details (CLI)

                                                                                                                    • To view VLAN configuration details for Ethernet interfaces on a specific mesh access point (AP Name) or all mesh access points (summary), enter this command:

                                                                                                                      show ap config ethernet ap-name

                                                                                                                    • To see if VLAN transparent mode is enabled or disabled, enter this command:

                                                                                                                      show mesh config

                                                                                                                    Workgroup Bridge Interoperability with Mesh Infrastructure

                                                                                                                    A workgroup bridge (WGB) is a small standalone unit that can provide a wireless infrastructure connection for Ethernet-enabled devices. Devices that do not have a wireless client adapter to connect to the wireless network can be connected to the WGB through the Ethernet port. The WGB is associated with the root AP through the wireless interface, which means that wired clients get access to the wireless network.

                                                                                                                    A WGB is used to connect wired networks over a single wireless segment by informing the mesh access point of all the clients that the WGB has on its wired segment via IAPP messages. The data packets for WGB clients contain an additional MAC address in the 802.11 header (4 MAC headers, versus the normal 3 MAC data headers). The additional MAC in the header is the address of the WGB itself. This additional MAC address is used to route the packet to and from the clients.

                                                                                                                    WGB association is supported on all radios of every mesh access point.

                                                                                                                    Figure 22. WGB Example

                                                                                                                    In the current architecture, while an autonomous AP functions as a workgroup bridge, only one radio interface is used for controller connectivity, Ethernet interface for wired client connectivity, and other radio interface for wireless client connectivity. dot11radio 1 (5 GHz) can be used to connect to a controller (using the mesh infrastructure) and Ethernet interface for wired clients. dot11radio 0 (2.4 GHz) can be used for wireless client connectivity. Depending on the requirement, dot11radio 1 or dot11radio 0 can be used for client association or controller connectivity.

                                                                                                                    With the 7.0 release, a wireless client on the second radio of the WGB is not dissociated by the WGB upon losing its uplink to a wireless infrastructure or in a roaming scenario.

                                                                                                                    With two radios, one radio can be used for client access and the other radio can be used for accessing the access points. Having two independent radios performing two independent functions provides you better control and lowers the latency. Also, wireless clients on the second radio for the WGB do not get disassociated by the WGB when an uplink is lost or in a roaming scenario. One radio has to be configured as a Root AP (radio role) and the second radio has to be configured as a WGB (radio role).


                                                                                                                    Note

                                                                                                                    If one radio is configured as a WGB, then the second radio cannot be a WGB or a repeater.

                                                                                                                    The following features are not supported for use with a WGB:

                                                                                                                    • Idle timeout
                                                                                                                    • Web authentication—If a WGB associates to a web-authentication WLAN, the WGB is added to the exclusion list, and all of the WGB-wired clients are deleted (web-authentication WLAN is another name for a guest WLAN).
                                                                                                                    • For wired clients behind the WGB, MAC filtering, link tests, and idle timeout

                                                                                                                    Configuring Workgroup Bridges

                                                                                                                    A workgroup bridge (WGB) is used to connect wired networks over a single wireless segment by informing the mesh access point of all the clients that the WGB has on its wired segment via IAPP messages. In addition to the IAPP control messages, the data packets for WGB clients contain an extra MAC address in the 802.11 header (4 MAC headers, versus the normal 3 MAC data headers). The extra MAC in the header is the address of the workgroup bridge itself. This extra MAC address is used to route the packet to and from the clients.

                                                                                                                    WGB association is supported on both the 2.4-GHz (802.11b/g) and 5-GHz (802.11a) radios on the AP1522, and the 2.4-GHz (802.11b) and 4.9-GHz (public safety) radios on the AP1524PS;

                                                                                                                    Supported platforms are autonomous WGBs AP1130, AP1240, AP1310, and the Cisco 3200 Mobile Router (hereafter referred to as Cisco 3200) which are configured as WGBs can associate with a mesh access point. See the “Cisco Workgroup Bridges” section in Cisco Wireless LAN Controller Configuration Guide for configuration steps at http:/​/​www.cisco.com/​en/​US/​products/​ps6366/​products_​installation_​and_​configuration_​guides_​list.html

                                                                                                                    The supported WGB modes and capacities are as follows:

                                                                                                                    • The autonomous access points configured as WGBs must be running Cisco IOS release 12.4.25d-JA or later.

                                                                                                                      Note

                                                                                                                      If your mesh access point has two radios, you can only configure workgroup bridge mode on one of the radios. We recommend that you disable the second radio. Workgroup bridge mode is not supported on access points with three radios such as the AP1524SB.

                                                                                                                    • Client mode WGB (BSS) is supported; however, infrastructure WGB is not supported. The client mode WGB is not able to trunk VLAN as in an infrastructure WGB.
                                                                                                                    • Multicast traffic is not reliably transmitted to WGB because no ACKs are returned by the client. Multicast traffic is unicast to infrastructure WGB, and ACKs are received back.
                                                                                                                    • If one radio is configured as a WGB in a Cisco IOS access point, then the second radio cannot be a WGB or a repeater.
                                                                                                                    • Mesh access points can support up to 200 clients including wireless clients, WGB, and wired clients behind the associated WGB.
                                                                                                                    • A WGB cannot associate with mesh access points if the WLAN is configured with WPA1 (TKIP) +WPA2 (AES), and the corresponding WGB interface is configured with only one of these encryptions (either WPA1 or WPA2):
                                                                                                                      Figure 23. WPA Security Settings for a WGB

                                                                                                                      Figure 24. WPA-2 Security Settings for a WGB

                                                                                                                    To view the status of a WGB client, follow these steps:

                                                                                                                      Step 1   Choose Monitor > Clients.
                                                                                                                      Step 2   On the client summary page, click on the MAC address of the client or search for the client using its MAC address.
                                                                                                                      Step 3   In the page that appears, note that the client type is identified as a WGB (far right).
                                                                                                                      Figure 25. Clients are Identified as a WGB

                                                                                                                      Step 4   Click on the MAC address of the client to view configuration details:

                                                                                                                      • For a wireless client, the page seen in Figure 4 appears.
                                                                                                                      • For a wired client, the page seen in Figure 5 appears.
                                                                                                                        Figure 26. Monitor > Clients > Detail Page (Wireless WGB Client)

                                                                                                                        Figure 27. Monitor > Clients > Detail Page (Wired WGB Client)

                                                                                                                      Guidelines for Configuration

                                                                                                                      Follow these guidelines when you configure:

                                                                                                                      • We recommend using a 5-GHz radio for the uplink to Mesh AP infrastructure so you can take advantage of a strong client access on two 5-GHz radios available on mesh access points. A 5-GHz band allows more Effective Isotropic Radiated Power (EIRP) and is less polluted. In a two-radio WGB, configure 5-GHz radio (radio 1) mode as WGB. This radio will be used to access the mesh infrastructure. Configure the second radio 2.4-GHz (radio 0) mode as Root for client access.
                                                                                                                      • On the Autonomous access points, only one SSID can be assigned to the native VLAN. You cannot have multiple VLANs in one SSID on the autonomous side. SSID to VLAN mapping should be unique because this is the way to segregate traffic on different VLANs. In a unified architecture, multiple VLANs can be assigned to one WLAN (SSID).
                                                                                                                      • Only one WLAN (SSID) for wireless association of the WGB to the access point infrastructure is supported. This SSID should be configured as an infrastructure SSID and should be mapped to the native VLAN.
                                                                                                                      • A dynamic interface should be created in the controller for each VLAN configured in the WGB.
                                                                                                                      • A second radio (2.4-GHz) on the access point should be configured for client access. You have to use the same SSID on both radios and map to the native VLAN. If you create a separate SSID, then it is not possible to map it to a native VLAN, due to the unique VLAN/SSID mapping requirements. If you try to map the SSID to another VLAN, then you do not have multiple VLAN support for wireless clients.
                                                                                                                      • All Layer 2 security types are supported for the WLANs (SSIDs) for wireless client association in WGB.
                                                                                                                      • This feature does not depend on the AP platform. On the controller side, both mesh and nonmesh APs are supported.
                                                                                                                      • There is a limitation of 20 clients in the WGB. The 20-client limitation includes both wired and wireless clients. If the WGB is talking to autonomous access points, then the client limit is very high.
                                                                                                                      • The controller treats the wireless and wired clients behind a WGB in the same manner. Features such as MAC filtering and link test are not supported for wireless WGB clients from the controller.
                                                                                                                      • If required, you can run link tests for a WGB wireless client from an autonomous AP.
                                                                                                                      • Multiple VLANs for wireless clients associated to a WGB are not supported.
                                                                                                                      • Up to 16 multiple VLANs are supported for wired clients behind a WGB from the 7.0 release and later releases.
                                                                                                                      • Roaming is supported for wireless and wired clients behind a WGB. The wireless clients on the other radio will not be dissociated by the WGB when an uplink is lost or in a roaming scenario.

                                                                                                                      We recommend that you configure radio 0 (2.4 GHz) as a Root (one of the mode of operations for Autonomous AP) and radio 1 (5 GHz) as a WGB.

                                                                                                                      Configuration Example

                                                                                                                      When you configure from the CLI, the following are mandatory:

                                                                                                                      • dot11 SSID (security for a WLAN can be decided based on the requirement).
                                                                                                                      • Map the subinterfaces in both the radios to a single bridge group.

                                                                                                                        Note

                                                                                                                        A native VLAN is always mapped to bridge group 1 by default. For other VLANs, the bridge group number matches the VLAN number; for example, for VLAN 46, the bridge group is 46.

                                                                                                                      • Map the SSID to the radio interfaces and define the role of the radio interfaces.

                                                                                                                      In the following example, one SSID (WGBTEST) is used in both radios, and the SSID is the infrastructure SSID mapped to NATIVE VLAN 51. All radio interfaces are mapped to bridge group -1.


WGB1#config t
WGB1(config)#interface Dot11Radio1.51
WGB1(config-subif)#encapsulation dot1q 51 native
WGB1(config-subif)#bridge-group 1
WGB1(config-subif)#exit
WGB1(config)#interface Dot11Radio0.51
WGB1(config-subif)#encapsulation dot1q 51 native
WGB1(config-subif)#bridge-group 1
WGB1(config-subif)#exit
WGB1(config)#dot11 ssid WGBTEST
WGB1(config-ssid)#VLAN 51
WGB1(config-ssid)#authentication open
WGB1(config-ssid)#infrastructiure-ssid
WGB1(config-ssid)#exit
WGB1(config)#interface Dot11Radio1
WGB1(config-if)#ssid WGBTEST
WGB1(config-if)#station-role workgroup-bridge
WGB1(config-if)#exit
WGB1(config)#interface Dot11Radio0
WGB1(config-if)#ssid WGBTEST
WGB1(config-if)#station-role root
WGB1(config-if)#exit


                                                                                                                      You can also use the GUI of an autonomous AP for configuration. From the GUI, subinterfaces are automatically created after the VLAN is defined.

                                                                                                                      Figure 28. SSID Configuration Page

                                                                                                                      WGB Association Check

                                                                                                                      Both the WGB association to the controller and the wireless client association to WGB can be verified by entering the show dot11 associations client command in autonomous AP.


WGB#show dot11 associations client

802.11 Client Stations on Dot11Radio1:

SSID [WGBTEST] :


MAC Address


IP Address


Device


Name


Parent


State


0024.130f.920e


209.165.200.225


LWAPP-Parent


RAPSB


-


Assoc

                                                                                                                      From the controller, choose Monitor > Clients. The WGB and the wireless/wired client behind the WGB are updated and the wireless/wired client are shown as the WGB client.

                                                                                                                      Figure 29. Updated WGB Clients

                                                                                                                      Figure 30. Updated WGB Clients

                                                                                                                      Figure 31. Updated WGB Clients

                                                                                                                      Link Test Result

                                                                                                                      Figure 32. Link Test Results

                                                                                                                      A link test can also be run from the controller CLI using the following command:


(Cisco Controller) > linktest client mac-address

                                                                                                                      Link tests from the controller are only limited to the WGB, and they cannot be run beyond the WGB from the controller to a wired or wireless client connected to the WGB. You can run link tests for the wireless client connected to the WGB from the WGB itself using the following command:


ap#dot11 dot11Radio 0 linktest target client-mac-address
Start linktest to 0040.96b8.d462, 100 512 byte packets
ap#


POOR (4% lost)


Time (msec)


Strength (dBm)


SNR Quality


Retries








In


Out


In


Out


In


Out


Sent: 100


Avg. 22


-37


-83


48


3


Tot. 34


35


Lost to Tgt: 4


Max. 112


-34


-78


61


10


Max. 10


5


Lost to Src: 4


Min. 0


-40


-87


15


3








Rates (Src/Tgt)     24Mb 0/5  36Mb 25/0  48Mb 73/0  54Mb 2/91
Linktest Done in 24.464 msec

                                                                                                                      WGB Wired/Wireless Client

                                                                                                                      You can also use the following commands to know the summary of WGBs and clients associated with a Cisco lightweight access point:


(Cisco Controller) > show wgb summary
Number of WGBs................................... 2


MAC Address


IP Address


AP Name


Status


WLAN


Auth


Protocol


Clients


00:1d:70:97:bd:e8


209.165.200.225


c1240


Assoc


2


Yes


802.11a


2


00:1e:be:27:5f:e2


209.165.200.226


c1240


Assoc


2


Yes


802.11a


5


(Cisco Controller) > show client summary

Number of Clients................................ 7


MAC Address


AP Name


Status


WLAN/Guest-Lan


Auth


Protocol


Port


Wired


00:00:24:ca:a9:b4


R14


Associated


1


Yes


N/A


29


No


00:24:c4:a0:61:3a


R14


Associated


1


Yes


802.11a


29


No


00:24:c4:a0:61:f4


R14


Associated


1


Yes


802.11a


29


No


00:24:c4:a0:61:f8


R14


Associated


1


Yes


802.11a


29


No


00:24:c4:a0:62:0a


R14


Associated


1


Yes


802.11a


29


No


00:24:c4:a0:62:42


R14


Associated


1


Yes


802.11a


29


No


00:24:c4:a0:71:d2


R14


Associated


1


Yes


802.11a


29


No



(Cisco Controller) > show wgb detail 00:1e:be:27:5f:e2

Number of wired client(s): 5


MAC Address


IP Address


AP Name


Mobility


WLAN


Auth


00:16:c7:5d:b4:8f


Unknown


c1240


Local


2


No


00:21:91:f8:e9:ae


209.165.200.232


c1240


Local


2


Yes


00:21:55:04:07:b5


209.165.200.234


c1240


Local


2


Yes


00:1e:58:31:c7:4a


209.165.200.236


c1240


Local


2


Yes


00:23:04:9a:0b:12


Unknown


c1240


Local


2


No

                                                                                                                      Client Roaming

                                                                                                                      High-speed roaming of Cisco Compatible Extension (CX), version 4 (v4) clients is supported at speeds up to 70 miles per hour in outdoor mesh deployments of AP1522s and AP1524s. An example application might be maintaining communication with a terminal in an emergency vehicle as it moves within a mesh public network.

                                                                                                                      Three Cisco CX v4 Layer 2 client roaming enhancements are supported:

                                                                                                                      • Access point assisted roaming—Helps clients save scanning time. When a Cisco CX v4 client associates to an access point, it sends an information packet to the new access point listing the characteristics of its previous access point. Roaming time decreases when the client recognizes and uses an access point list built by compiling all previous access points to which each client was associated and sent (unicast) to the client immediately after association. The access point list contains the channels, BSSIDs of neighbor access points that support the client’s current SSID(s), and time elapsed since disassociation.
                                                                                                                      • Enhanced neighbor list—Focuses on improving a Cisco CX v4 client’s roam experience and network edge performance, especially when servicing voice applications. The access point provides its associated client information about its neighbors using a neighbor-list update unicast message.
                                                                                                                      • Roam reason report—Enables Cisco CX v4 clients to report the reason why they roamed to a new access point. It also allows network administrators to build and monitor a roam history.

                                                                                                                        Note

                                                                                                                        Client roaming is enabled by default. For more information, see the Enterprise Mobility Design Guide at http:/​/​www.cisco.com/​en/​US/​docs/​solutions/​Enterprise/​Mobility/​emob41dg/​eMob4.1.pdf

                                                                                                                      WGB Roaming Guidelines

                                                                                                                      Follow these guidelines for WGB roaming:

                                                                                                                      • Configuring a WGB for roaming—If a WGB is mobile, you can configure it to scan for a better radio connection to a parent access point or bridge. Use the ap(config-if)#mobile station period 3 threshold 50 command to configure the workgroup bridge as a mobile station. When you enable this setting, the WGB scans for a new parent association when it encounters a poor Received Signal Strength Indicator (RSSI), excessive radio interference, or a high frame-loss percentage. Using these criteria, a WGB configured as a mobile station searches for a new parent association and roams to a new parent before it loses its current association. When the mobile station setting is disabled (the default setting), a WGB does not search for a new association until it loses its current association.
                                                                                                                      • Configuring a WGB for Limited Channel Scanning—In mobile environments such as railroads, a WGB instead of scanning all the channels is restricted to scan only a set of limited channels to reduce the hand-off delay when the WGB roams from one access point to another. By limiting the number of channels, the WGB scans only those required channels; the mobile WGB achieves and maintains a continuous wireless LAN connection with fast and smooth roaming. This limited channel set is configured using the ap(config-if)#mobile station scan set of channels. This command invokes scanning to all or specified channels. There is no limitation on the maximum number of channels that can be configured. The maximum number of channels that can be configured is restricted only by the number of channels that a radio can support. When executed, the WGB scans only this limited channel set. This limited channel feature also affects the known channel list that the WGB receives from the access point to which it is currently associated. Channels are added to the known channel list only if they are also part of the limited channel set.

                                                                                                                      Configuration Example

                                                                                                                      The following example shows how to configure a roaming configuration:


ap(config)#interface dot11radio 1
ap(config-if)#ssid outside
ap(config-if)#packet retries 16
ap(config-if)#station role workgroup-bridge
ap(config-if)#mobile station
ap(config-if)#mobile station period 3 threshold 50
ap(config-if)#mobile station scan 5745 5765


                                                                                                                      Use the no mobile station scan command to restore scanning to all the channels.

                                                                                                                      Table 1 identifies mesh access points and their respective frequency bands that support WGB.

                                                                                                                      Table 5 WGB Interoperability Chart

                                                                                                                      RAP/MAP

                                                                                                                      WGB

                                                                                                                      Backhaul

                                                                                                                      MAR3200

                                                                                                                      802.11n Indoor APs

                                                                                                                      1130/1240

                                                                                                                      1310

                                                                                                                      4.9 GHz (5, 10, 20 MHz)

                                                                                                                      5 GHz

                                                                                                                      2.4 GHz

                                                                                                                      5 GHz

                                                                                                                      2.4 GHz

                                                                                                                      5 GHz

                                                                                                                      2.4 GHz

                                                                                                                      5 GHz

                                                                                                                      2.4 GHz

                                                                                                                      1552/1552

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      1524SB/1524SB

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      1524PS/1524PS

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      1522/1522

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      1524SB/1522

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      1524PS/1522

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      1522/1524SB

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      1522/1524PS

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      1240/1130

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      Yes

                                                                                                                      No

                                                                                                                      Yes

                                                                                                                      Troubleshooting Tips

                                                                                                                      If a wireless client is not associated with a WGB, use the following steps to troubleshoot the problem:

                                                                                                                      1. Verify the client configuration and ensure that the client configuration is correct.
                                                                                                                      2. Check the show bridge command output in autonomous AP, and confirm that the AP is reading the client MAC address from the right interface.
                                                                                                                      3. Confirm that the subinterfaces corresponding to specific VLANs in different interfaces are mapped to the same bridge group.
                                                                                                                      4. If required, clear the bridge entry using the clear bridge command (remember that this command will remove all wired and wireless clients associated in a WGB and make them associate again).
                                                                                                                      5. Check the show dot11 association command output and confirm that the WGB is associated with the controller.
                                                                                                                      6. Ensure that the WGB has not exceeded its 20-client limitation.

                                                                                                                      In a normal scenario, if the show bridge and show dot11 association command outputs are as expected, wireless client association should be successful.

                                                                                                                      Configuring Voice Parameters in Indoor Mesh Networks

                                                                                                                      You can configure call admission control (CAC) and QoS on the controller to manage voice and video quality on the mesh network.

                                                                                                                      The indoor mesh access points are 802.11e capable, and QoS is supported on the local 2.4-GHz access radio and the 5-GHz backhaul radio. CAC is supported on the backhaul and the CCXv4 clients (which provides CAC between the mesh access point and the client).


                                                                                                                      Note

                                                                                                                      Voice is supported only on indoor mesh networks. Voice is supported on a best-effort basis in the outdoors in a mesh network.

                                                                                                                      Call Admission Control

                                                                                                                      Call Admission Control (CAC) enables a mesh access point to maintain controlled quality of service (QoS) when the wireless LAN is experiencing congestion. The Wi-Fi Multimedia (WMM) protocol deployed in CCXv3 ensures sufficient QoS as long as the wireless LAN is not congested. However, to maintain QoS under differing network loads, CAC in CCXv4 or later is required.


                                                                                                                      Note

                                                                                                                      CAC is supported in Cisco Compatible Extensions (CCX) v4 or later. See Chapter 6 of the Cisco Wireless LAN Controller Configuration Guide at http:/​/​www.cisco.com/​en/​US/​docs/​wireless/​controller/​7.0/​configuration/​guide/​c70sol.html

                                                                                                                      Two types of CAC are available for access points: bandwidth-based CAC and load-based CAC. All calls on a mesh network are bandwidth-based, so mesh access points use only bandwidth-based CAC.

                                                                                                                      Bandwidth-based, or static CAC enables the client to specify how much bandwidth or shared medium time is required to accept a new call. Each access point determines whether it is capable of accommodating a particular call by looking at the bandwidth available and compares it against the bandwidth required for the call. If there is not enough bandwidth available to maintain the maximum allowed number of calls with acceptable quality, the mesh access point rejects the call.

                                                                                                                      Quality of Service and Differentiated Services Code Point Marking

                                                                                                                      Cisco supports 802.11e on the local access and on the backhaul. Mesh access points prioritize user traffic based on classification, and therefore all user traffic is treated on a best-effort basis.

                                                                                                                      Resources available to users of the mesh vary, according to the location within the mesh, and a configuration that provides a bandwidth limitation in one point of the network can result in an oversubscription in other parts of the network.

                                                                                                                      Similarly, limiting clients on their percentage of RF is not suitable for mesh clients. The limiting resource is not the client WLAN, but the resources available on the mesh backhaul.

                                                                                                                      Similar to wired Ethernet networks, 802.11 WLANs employ Carrier Sense Multiple Access (CSMA), but instead of using collision detection (CD), WLANs use collision avoidance (CA), which means that instead of each station trying to transmit as soon as the medium is free, WLAN devices will use a collision avoidance mechanism to prevent multiple stations from transmitting at the same time.

                                                                                                                      The collision avoidance mechanism uses two values called CWmin and CWmax. CW stands for contention window. The CW determines what additional amount of time an endpoint should wait, after the interframe space (IFS), to attend to transmit a packet. Enhanced distributed coordination function (EDCF) is a model that allows end devices that have delay-sensitive multimedia traffic to modify their CWmin and CWmax values to allow for statically greater (and more frequent) access to the medium.

                                                                                                                      Cisco access points support EDCF-like QoS. This provides up to eight queues for QoS.

                                                                                                                      These queues can be allocated in several different ways, as follows:

                                                                                                                      • Based on TOS / DiffServ settings of packets
                                                                                                                      • Based on Layer 2 or Layer 3 access lists
                                                                                                                      • Based on VLAN
                                                                                                                      • Based on dynamic registration of devices (IP phones)

                                                                                                                      AP1500s, with Cisco controllers, provide a minimal integrated services capability at the controller, in which client streams have maximum bandwidth limits, and a more robust differentiated services (diffServ) capability based on the IP DSCP values and QoS WLAN overrides.

                                                                                                                      When the queue capacity has been reached, additional frames are dropped (tail drop).

                                                                                                                      Encapsulations

                                                                                                                      Several encapsulations are used by the mesh system. These encapsulations include CAPWAP control and data between the controller and RAP, over the mesh backhaul, and between the mesh access point and its client(s). The encapsulation of bridging traffic (noncontroller traffic from a LAN) over the backhaul is the same as the encapsulation of CAPWAP data.

                                                                                                                      There are two encapsulations between the controller and the RAP. The first is for CAPWAP control, and the second is for CAPWAP data. In the control instance, CAPWAP is used as a container for control information and directives. In the instance of CAPWAP data, the entire packet, including the Ethernet and IP headers, is sent in the CAPWAP container.

                                                                                                                      Figure 33. Encapsulations

                                                                                                                      For the backhaul, there is only one type of encapsulation, encapsulating mesh traffic. However, two types of traffic are encapsulated: bridging traffic and CAPWAP control and data traffic. Both types of traffic are encapsulated in a proprietary mesh header.

                                                                                                                      In the case of bridging traffic, the entire packet Ethernet frame is encapsulated in the mesh header.

                                                                                                                      All backhaul frames are treated identically, regardless of whether they are MAP to MAP, RAP to MAP, or MAP to RAP.

                                                                                                                      Figure 34. Encapsulating Mesh Traffic

                                                                                                                      Queuing on the Mesh Access Point

                                                                                                                      The mesh access point uses a high speed CPU to process ingress frames, Ethernet, and wireless on a first-come, first-serve basis. These frames are queued for transmission to the appropriate output device, either Ethernet or wireless. Egress frames can be destined for either the 802.11 client network, the 802.11 backhaul network, or Ethernet.

                                                                                                                      AP1500s support four FIFOs for wireless client transmissions. These FIFOs correspond to the 802.11e platinum, gold, silver, and bronze queues, and obey the 802.11e transmission rules for those queues. The FIFOs have a user configurable queue depth.

                                                                                                                      The backhaul (frames destined for another outdoor mesh access point) uses four FIFOs, although user traffic is limited to gold, silver, and bronze. The platinum queue is used exclusively for CAPWAP control traffic and voice, and has been reworked from the standard 802.11e parameters for CWmin, CWmax, and so on, to provide more robust transmission but higher latencies.

                                                                                                                      The 802.11e parameters for CWmin, CWmax, and so on, for the gold queue have been reworked to provide lower latency at the expense of slightly higher error rate and aggressiveness. The purpose of these changes is to provide a channel that is more conducive to video applications.

                                                                                                                      Frames that are destined for Ethernet are queued as FIFO, up to the maximum available transmit buffer pool (256 frames). There is support for a Layer 3 IP Differentiated Services Code Point (DSCP), so marking of the packets is there as well.

                                                                                                                      In the controller to RAP path for the data traffic, the outer DSCP value is set to the DSCP value of the incoming IP frame. If the interface is in tagged mode, the controller sets the 802.1Q VLAN ID and derives the 802.1p UP (outer) from 802.1p UP incoming and the WLAN default priority ceiling. Frames with VLAN ID 0 are not tagged.

                                                                                                                      Figure 35. Controller to RAP Path

                                                                                                                      For CAPWAP control traffic the IP DSCP value is set to 46, and the 802.1p user priority is set to 7. Prior to transmission of a wireless frame over the backhaul, regardless of node pairing (RAP/MAP) or direction, the DSCP value in the outer header is used to determine a backhaul priority. The following sections describe the mapping between the four backhaul queues the mesh access point uses and the DSCP values shown in Backhaul Path QoS.

                                                                                                                      Table 6 Backhaul Path QoS

                                                                                                                      DSCP Value

                                                                                                                      Backhaul Queue

                                                                                                                      2, 4, 6, 8 to 23

                                                                                                                      Bronze

                                                                                                                      26, 32 to 63

                                                                                                                      Gold

                                                                                                                      46 to 56

                                                                                                                      Platinum

                                                                                                                      All others including 0

                                                                                                                      Silver

                                                                                                                      Note

                                                                                                                      The platinum backhaul queue is reserved for CAPWAP control traffic, IP control traffic, and voice packets. DHCP, DNS, and ARP requests are also transmitted at the platinum QoS level. The mesh software inspects each frame to determine whether it is a CAPWAP control or IP control frame in order to protect the platinum queue from use by non-CAPWAP applications.

                                                                                                                      For a MAP to the client path, there are two different procedures, depending on whether the client is a WMM client or a normal client. If the client is a WMM client, the DSCP value in the outer frame is examined, and the 802.11e priority queue is used.

                                                                                                                      Table 7 MAP to Client Path QoS

                                                                                                                      DSCP Value

                                                                                                                      Backhaul Queue

                                                                                                                      2, 4, 6, 8 to 23

                                                                                                                      Bronze

                                                                                                                      26, 32 to 45, 47

                                                                                                                      Gold

                                                                                                                      46, 48 to 63

                                                                                                                      Platinum

                                                                                                                      All others including 0

                                                                                                                      Silver

                                                                                                                      If the client is not a WMM client, the WLAN override (as configured at the controller) determines the 802.11e queue (bronze, gold, platinum, or silver), on which the packet is transmitted.

                                                                                                                      For a client of a mesh access point, there are modifications made to incoming client frames in preparation for transmission on the mesh backhaul or Ethernet. For WMM clients, a MAP illustrates the way in which the outer DSCP value is set from an incoming WMM client frame.

                                                                                                                      Figure 36. MAP to RAP Path

                                                                                                                      The minimum value of the incoming 802.11e user priority and the WLAN override priority is translated using the information listed in Table 3 to determine the DSCP value of the IP frame. For example, if the incoming frame has as its value a priority indicating the gold priority, but the WLAN is configured for the silver priority, the minimum priority of silver is used to determine the DSCP value.

                                                                                                                      Table 8 DSCP to Backhaul Queue Mapping

                                                                                                                      DSCP Value

                                                                                                                      802.11e UP

                                                                                                                      Backhaul Queue

                                                                                                                      Packet Types

                                                                                                                      2, 4, 6, 8 to 23

                                                                                                                      1, 2

                                                                                                                      Bronze

                                                                                                                      Lowest priority packets, if any

                                                                                                                      26, 32 to 34

                                                                                                                      4, 5

                                                                                                                      Gold

                                                                                                                      Video packets

                                                                                                                      46 to 56

                                                                                                                      6, 7

                                                                                                                      Platinum

                                                                                                                      CAPWAP control, AWPP, DHCP/DNS, ARP packets, voice packets

                                                                                                                      All others including 0

                                                                                                                      0, 3

                                                                                                                      Silver

                                                                                                                      Best effort, CAPWAP data packets

                                                                                                                      If there is no incoming WMM priority, the default WLAN priority is used to generate the DSCP value in the outer header. If the frame is an originated CAPWAP control frame, the DSCP value of 46 is placed in the outer header.

                                                                                                                      With the 5.2 code enhancements, DSCP information is preserved in an AWPP header.

                                                                                                                      All wired client traffic is restricted to a maximum 802.1p UP value of 5, except DHCP/DNS and ARP packets, which go through the platinum queue.

                                                                                                                      The non-WMM wireless client traffic gets the default QoS priority of its WLAN. The WMM wireless client traffic may have a maximum 802.11e value of 6, but it must be below the QoS profile configured for its WLAN. If admission control is configured, WMM clients must use TSPEC signaling and get admitted by CAC.

                                                                                                                      The CAPWAPP data traffic carries wireless client traffic and has the same priority and treatment as wireless client traffic.

                                                                                                                      Now that the DSCP value is determined, the rules described earlier for the backhaul path from the RAP to the MAP are used to further determine the backhaul queue on which the frame is transmitted. Frames transmitted from the RAP to the controller are not tagged. The outer DSCP values are left intact, as they were first constructed.

                                                                                                                      Bridging Backhaul Packets

                                                                                                                      Bridging services are treated a little differently from regular controller-based services. There is no outer DSCP value in bridging packets because they are not CAPWAP encapsulated. Therefore, the DSCP value in the IP header as it was received by the mesh access point is used to index into the table as described in the path from the mesh access point to the mesh access point (backhaul).

                                                                                                                      Bridging Packets from and to a LAN

                                                                                                                      Packets received from a station on a LAN are not modified in any way. There is no override value for the LAN priority. Therefore, the LAN must be properly secured in bridging mode. The only protection offered to the mesh backhaul is that non-CAPWAP control frames that map to the platinum queue are demoted to the gold queue.

                                                                                                                      Packets are transmitted to the LAN precisely as they are received on the Ethernet ingress at entry to the mesh.

                                                                                                                      The only way to integrate QoS between Ethernet ports on AP1500 and 802.11a is by tagging Ethernet packets with DSCP. AP1500s take the Ethernet packet with DSCP and places it in the appropriate 802.11e queue.

                                                                                                                      AP1500s do not tag DSCP itself:

                                                                                                                      • On the ingress port, the AP1500 sees a DSCP tag, encapsulates the Ethernet frame, and applies the corresponding 802.11e priority.
                                                                                                                      • On the egress port, the AP1500 decapsulates the Ethernet frame, and places it on the wire with an untouched DSCP field.

                                                                                                                      Ethernet devices, such as video cameras, should have the capability to mark the bits with DSCP value to take advantage of QoS.


                                                                                                                      Note

                                                                                                                      QoS only is relevant when there is congestion on the network.

                                                                                                                      Guidelines For Using Voice on the Mesh Network

                                                                                                                      Follow these guidelines when you use voice on the mesh network:

                                                                                                                      • Voice is supported only on indoor mesh networks. For outdoors, voice is supported on a best-effort basis on a mesh infrastructure.
                                                                                                                      • When voice is operating on a mesh network, calls must not traverse more than two hops. Each sector must be configured to require no more than two hops for voice.
                                                                                                                      • RF considerations for voice networks are as follows:
                                                                                                                        • Coverage hole of 2 to 10 percent
                                                                                                                        • Cell coverage overlap of 15 to 20 percent
                                                                                                                        • Voice needs RSSI and SNR values that are at least 15 dB higher than data requirements
                                                                                                                        • RSSI of -67 dBm for all data rates should be the goal for 11b/g/n and 11a/n
                                                                                                                        • SNR should be 25 dB for the data rate used by client to connect to the AP
                                                                                                                        • Packet error rate (PER) should be configured for a value of one percent or less
                                                                                                                        • Channel with the lowest utilization (CU) must be used
                                                                                                                      • On the 802.11a/n or 802.11b/g/n > Global parameters page, do the following:
                                                                                                                        • Enable dynamic target power control (DTPC).
                                                                                                                        • Disable all data rates less than 11 Mbps.
                                                                                                                      • On the 802.11a/n or 802.11b/g/n > Voice parameters page, do the following:
                                                                                                                        • Load-based CAC must be disabled.
                                                                                                                        • Enable admission control (ACM) for CCXv4 or v5 clients that have WMM enabled. Otherwise, bandwidth-based CAC does not operate properly.
                                                                                                                        • Set the maximum RF bandwidth to 50 percent.
                                                                                                                        • Set the reserved roaming bandwidth to 6 percent.
                                                                                                                        • Enable traffic stream metrics.
                                                                                                                      • On the 802.11a/n or 802.11b/g/n > EDCA parameters page, you should do the following:
                                                                                                                        • Set the EDCA profile for the interface as voice optimized.
                                                                                                                        • Disable low latency MAC.
                                                                                                                      • On the QoS > Profile page, you should do the following:
                                                                                                                        • Create a voice profile and select 802.1Q as the wired QoS protocol type.
                                                                                                                      • On the WLANs > Edit > QoS page, you should do the following:
                                                                                                                        • Select a QoS of platinum for voice and gold for video on the backhaul.
                                                                                                                        • Select allowed as the WMM policy.
                                                                                                                      • On the WLANs > Edit > QoS page, you should do the following:
                                                                                                                        • Select CCKM for authorization (auth) key management (mgmt) if you want to support fast roaming.
                                                                                                                      • On the x > y page, you should do the following:
                                                                                                                        • Disable voice active detection (VAD).

                                                                                                                      Voice Call Support in a Mesh Network

                                                                                                                      Table 1 shows the actual calls in a clean, ideal environment.

                                                                                                                      Table 9 Calls Possible with 1520 Series in 802.11a and 802.11b/g Radios

                                                                                                                      No. of Calls5

                                                                                                                      802.11a Radio

                                                                                                                      802.11b/g Radio

                                                                                                                      RAP

                                                                                                                      12

                                                                                                                      12

                                                                                                                      MAP1

                                                                                                                      7

                                                                                                                      10

                                                                                                                      MAP2

                                                                                                                      4

                                                                                                                      8
                                                                                                                      5 Traffic was bidirectional 64K voice flows. VoCoder type: G.711, PER <= 1%. Network setup was daisy-chained with no calls traversing more than 2 hops. No external interference.

                                                                                                                      Table 2 shows the actual calls in a clean, ideal environment.

                                                                                                                      Table 10 Calls Possible with 1550 Series in 802.11a/n 802.11b/g/n Radios

                                                                                                                      No. of Calls

                                                                                                                      6

                                                                                                                      802.11a/n Radio 20 MHz

                                                                                                                      802.11a/n Radio 40 MHz

                                                                                                                      802.11b/g/n Backhaul Radio 20 MHz

                                                                                                                      802.11b/g/n Backhaul Radio 40 MHz

                                                                                                                      RAP

                                                                                                                      20

                                                                                                                      35

                                                                                                                      20

                                                                                                                      20

                                                                                                                      MAP1 (First Hop)

                                                                                                                      10

                                                                                                                      20

                                                                                                                      15

                                                                                                                      20

                                                                                                                      MAP2 (Second Hop)

                                                                                                                      8

                                                                                                                      15

                                                                                                                      10

                                                                                                                      15
                                                                                                                      6 Traffic was bidirectional 64K voice flows. VoCoder type: G.711, PER <= 1%. Network setup was daisy-chained with no calls traversing more than 2 hops. No external interference.

                                                                                                                      While making a call, observe the MOS score of the call on the 7921 phone. A MOS score between 3.5 and 4 is acceptable.

                                                                                                                      Table 11 MOS Ratings

                                                                                                                      MOS rating

                                                                                                                      User satisfaction

                                                                                                                      > 4.3

                                                                                                                      Very satisfied

                                                                                                                         4.0

                                                                                                                      Satisfied

                                                                                                                         3.6

                                                                                                                      Some users dissatisfied

                                                                                                                         3.1

                                                                                                                      Many users dissatisfied

                                                                                                                      < 2.58

                                                                                                                      —

                                                                                                                      Viewing the Voice Details for Mesh Networks (CLI)

                                                                                                                      Use the commands in this section to view details on voice and video calls on the mesh network:
                                                                                                                      Figure 37. Mesh Network Example

                                                                                                                      • To view the total number of voice calls and the bandwidth used for voice calls on each RAP, enter this command: show mesh cac summary Information similar to the following appears:


AP Name          Slot#   Radio  BW Used/Max  Calls
------------    -------  -----  -----------  -----
SB_RAP1              0   11b/g     0/23437    0
                     1   11a       0/23437    2
SB_MAP1              0   11b/g     0/23437    0
                     1   11a       0/23437    0
SB_MAP2              0   11b/g     0/23437    0
                     1   11a       0/23437    0
SB_MAP3              0   11b/g     0/23437    0
                     1   11a      0/23437    0?
                                                                                                                      • To view the mesh tree topology for the network and the bandwidth utilization (used/maximum available) of voice calls and video links for each mesh access point and radio, enter this command: show mesh cac bwused {voice | video} AP_name Information similar to the following appears:

AP Name       Slot#    Radio      BW Used/Max
------------- -------  -----      -----------
SB_RAP1         0      11b/g       1016/23437
                1      11a         3048/23437
|SB_MAP1        0      11b/g       0/23437
                1      11a         3048/23437
||  SB_MAP2     0      11b/g       2032/23437
                1      11a         3048/23437
||| SB_MAP3     0      11b/g       0/23437
                1      11a         0/23437

                                                                                                                        Note

                                                                                                                        The bars (|) to the left of the AP Name field indicate the number of hops that the MAP is from its RAP.


                                                                                                                        Note

                                                                                                                        When the radio type is the same, the backhaul bandwidth utilization (bw used/max) at each hop is identical. For example, mesh access points map1, map2, map3, and rap1 are all on the same radio backhaul (802.11a) and are using the same bandwidth (3048). All of the calls are in the same interference domain. A call placed anywhere in that domain affects the others.

                                                                                                                      • To view the mesh tree topology for the network and display the number of voice calls that are in progress by mesh access point radio, enter this command: show mesh cac access AP_name

Information similar to the following appears:

AP Name             Slot#   Radio     Calls
-------------      -------  -----    -----
SB_RAP1              0      11b/g      0
                     1      11a        0
|   SB_MAP1          0      11b/g      0
                     1      11a        0
||  SB_MAP2          0      11b/g      1
                     1      11a        0
||| SB_MAP3          0      11b/g      0
                     1      11a        0


                                                                                                                        Note

                                                                                                                        Each call received by a mesh access point radio causes the appropriate calls summary column to increment by one. For example, if a call is received on the 802.11b/g radio on map2, then a value of one is added to the existing value in that radio’s calls column. In this case, the new call is the only active call on the 802.11b/g radio of map2. If one call is active when a new call is received, the resulting value is two.

                                                                                                                      • To view the mesh tree topology for the network and display the voice calls that are in progress, enter this command: show mesh cac callpath AP_name

Information similar to the following appears:

AP Name             Slot#   Radio     Calls
-------------      -------  -----    -----
SB_RAP1              0      11b/g      0
                     1      11a        1
|   SB_MAP1          0      11b/g      0
                     1      11a        1
||  SB_MAP2          0      11b/g      1
                     1      11a        1
||| SB_MAP3          0      11b/g      0
                     1      11a        0


                                                                                                                        Note

                                                                                                                        The calls column for each mesh access point radio in a call path increments by one. For example, for a call that initiates at map2 (show mesh cac call path SB_MAP2) and terminates at rap1 by way of map1, one call is added to the map2 802.11b/g and 802.11a radio calls column, one call to the map1 802.11a backhaul radio calls column, and one call to the rap1 802.11a backhaul radio calls column.

                                                                                                                      • To view the mesh tree topology of the network, the voice calls that are rejected at the mesh access point radio due to insufficient bandwidth, and the corresponding mesh access point radio where the rejection occurred, enter this command: show mesh cac rejected AP_name Information similar to the following appears:


AP Name             Slot#   Radio     Calls
-------------      -------  -----    -----
SB_RAP1              0      11b/g      0
                     1      11a        0
|   SB_MAP1          0      11b/g      0
                     1      11a        0
||  SB_MAP2          0      11b/g      1
                     1      11a        0
||| SB_MAP3          0      11b/g      0
                     1      11a        0


                                                                                                                        Note

                                                                                                                        If a call is rejected at the map2 802.11b/g radio, its calls column increments by one.

                                                                                                                      • To view the number of bronze, silver, gold, platinum, and management queues active on the specified access point, enter this command. The peak and average length of each queue are shown as well as the overflow count. show mesh queue-stats AP_name Information similar to the following appears:

Queue Type  Overflows  Peak length  Average length
 ----------  ---------  -----------  --------------
 Silver      0          1            0.000
 Gold        0          4            0.004
 Platinum    0          4            0.001
 Bronze      0          0            0.000
 Management  0          0            0.000

                                                                                                                        Overflows—The total number of packets dropped due to queue overflow. Peak Length—The peak number of packets waiting in the queue during the defined statistics time interval. Average Length—The average number of packets waiting in the queue during the defined statistics time interval.

                                                                                                                      Enabling Mesh Multicast Containment for Video

                                                                                                                      You can use the controller CLI to configure three mesh multicast modes to manage video camera broadcasts on all mesh access points. When enabled, these modes reduce unnecessary multicast transmissions within the mesh network and conserve backhaul bandwidth.

                                                                                                                      Mesh multicast modes determine how bridging-enabled access points MAP and RAP send multicasts among Ethernet LANs within a mesh network. Mesh multicast modes manage non-CAPWAP multicast traffic only. CAPWAP multicast traffic is governed by a different mechanism.

                                                                                                                      The three mesh multicast modes are as follows:

                                                                                                                      • Regular mode—Data is multicast across the entire mesh network and all its segments by bridging-enabled RAP and MAP.
                                                                                                                      • In-only mode—Multicast packets received from the Ethernet by a MAP are forwarded to the RAP’s Ethernet network. No additional forwarding occurs, which ensures that non-CAPWAP multicasts received by the RAP are not sent back to the MAP Ethernet networks within the mesh network (their point of origin), and MAP to MAP multicasts do not occur because they are filtered out.

                                                                                                                        Note

                                                                                                                        When an HSRP configuration is in operation on a mesh network, we recommend the In-Out multicast mode be configured.

                                                                                                                      • In-out mode—The RAP and MAP both multicast but in a different manner:
                                                                                                                        • In-out mode is the default mode.
                                                                                                                        • If multicast packets are received at a MAP over Ethernet, they are sent to the RAP; however, they are not sent to other MAP over Ethernet, and the MAP to MAP packets are filtered out of the multicast.
                                                                                                                        • If multicast packets are received at a RAP over Ethernet, they are sent to all the MAPs and their respective Ethernet networks. When the in-out mode is in operation, it is important to properly partition your network to ensure that a multicast sent by one RAP is not received by another RAP on the same Ethernet segment and then sent back into the network.

                                                                                                                          Note

                                                                                                                          If 802.11b clients need to receive CAPWAP multicasts, then multicast must be enabled globally on the controller as well as on the mesh network (using the config network multicast global enable CLI command). If multicast does not need to extend to 802.11b clients beyond the mesh network, the global multicast parameter should be disabled (using the config network multicast global disable CLI command).

                                                                                                                      Enabling Multicast on the Mesh Network (CLI)

                                                                                                                      To enable multicast mode on the mesh network to receive multicasts from beyond the mesh networks, enter these commands:

                                                                                                                      config network multicast global enable

                                                                                                                      config mesh multicast {regular | in | in-out}

                                                                                                                      To enable multicast mode only the mesh network (multicasts do not need to extend to 802.11b clients beyond the mesh network), enter these commands:

                                                                                                                      config network multicast global disable

                                                                                                                      config mesh multicast {regular | in | in-out}


                                                                                                                      Note

                                                                                                                      Multicast for mesh networks cannot be enabled using the controller GUI.

                                                                                                                      IGMP Snooping

                                                                                                                      IGMP snooping delivers improved RF usage through selective multicast forwarding and optimizes packet forwarding in voice and video applications.

                                                                                                                      A mesh access point transmits multicast packets only if a client is associated with the mesh access point that is subscribed to the multicast group. So, when IGMP snooping is enabled, only that multicast traffic relevant to given hosts is forwarded.

                                                                                                                      To enable IGMP snooping on the controller, enter the following command:

                                                                                                                      configure network multicast igmp snooping enable

                                                                                                                      A client sends an IGMP join that travels through the mesh access point to the controller. The controller intercepts the join and creates a table entry for the client in the multicast group. The controller then proxies the IGMP join through the upstream switch or router.

                                                                                                                      You can query the status of the IGMP groups on a router by entering the following command:


router# show ip gmp groups
IGMP Connected Group Membership

Group Address    Interface   Uptime  Expires    Last Reporter
233.0.0.1        Vlan119     3w1d    00:01:52   10.1.1.130


                                                                                                                      For Layer 3 roaming, an IGMP query is sent to the client’s WLAN. The controller modifies the client’s response before forwarding and changes the source IP address to the controller’s dynamic interface IP address.

                                                                                                                      The network hears the controller’s request for the multicast group and forwards the multicast to the new controller.

                                                                                                                      For more information about video, see the following:

                                                                                                                      Locally Significant Certificates for Mesh APs

                                                                                                                      Until the 7.0 release, mesh APs supported only the Manufactured Installed Certificate (MIC) to authenticate and get authenticated by controllers to join the controller. You might have had to have your own public key infrastructure (PKI) to control CAs, to define policies, to define validity periods, to define restrictions and usages on the certificates that are generated, and get these certificates installed on the APs and controllers. After these customer-generated or locally significant certificates (LSCs) are present on the APs and controllers, the devices start using these LSCs, to join, authenticate, and derive a session key. Cisco supported normal APs from the 5.2 release and later releases and extended the support for mesh APs as well from the 7.0 release.

                                                                                                                      • Graceful fallback to MIC if APs are unable to join the controller with LSC certificates—Local APs try to join a controller with an LSC for the number of times that are configured on the controller (the default value is 3). After these trials, the AP deletes the LSC and tries to join a controller with an MIC. Mesh APs try to join a controller with an LSC until its lonely timer expires and the AP reboots. The lonely timer is set for 40 minutes. After the reboot, the AP tries to join a controller with an MIC. If the AP is again not able to join a controller with an MIC in 40 minutes, the AP reboots and then tries to join a controller with an LSC.

                                                                                                                        Note

                                                                                                                        An LSC in mesh APs is not deleted. An LSC is deleted in mesh APs only when the LSC is disabled on the controller, which causes the APs to reboot.

                                                                                                                      • Over the air provisioning of MAPs.

                                                                                                                      Guidelines for Configuration

                                                                                                                      Follow these guidelines when using LSCs for mesh APs:

                                                                                                                      • This feature does not remove any preexisting certificates from an AP. It is possible for an AP to have both LSC and MIC certificates.
                                                                                                                      • After an AP is provisioned with an LSC, it does not read in its MIC certificate on boot-up. A change from an LSC to an MIC will require the AP to reboot. APs do it for a fallback if they cannot be joined with an LSC.
                                                                                                                      • Provisioning an LSC on an AP does not require an AP to turn off its radios, which is vital for mesh APs, which may get provisioned over-the-air.
                                                                                                                      • Because mesh APs need a dot1x authentication, a CA and ID certificate is required to be installed on the server in the controller.
                                                                                                                      • LSC provisioning can happen over Ethernet and over-the-air in case of MAPs.You have to connect the mesh AP to the controller through Ethernet and get the LSC certificate provisioned. After the LSC becomes the default, an AP can be connected over-the-air to the controller using the LSC certificate.

                                                                                                                      Differences Between LSCs for Mesh APs and Normal APs

                                                                                                                      CAPWAP APs use LSC for DTLS setup during a JOIN irrespective of the AP mode. Mesh APs also use the certificate for mesh security, which involves a dot1x authentication with the controller through the parent AP. After the mesh APs are provisioned with an LSC, they need to use the LSC for this purpose because MIC will not be read in.

                                                                                                                      Mesh APs use a statically configured dot1x profile to authenticate.

                                                                                                                      This profile is hardcoded to use "cisco" as the certificate issuer. This profile needs to be made configurable so that vendor certificates can be used for mesh authentication (enter the config local-auth eap-profile cert-issuer vendor "prfMaP1500LlEAuth93" command).

                                                                                                                      You must enter the config mesh lsc enable/disable command to enable or disable an LSC for mesh APs. This command will cause all the mesh APs to reboot.


                                                                                                                      Note

                                                                                                                      An LSC on mesh is open for very specific Oil and Gas customers with the 7.0 release. Initially, it is a hidden feature. The config mesh lsc enable/disable is a hidden command. Also, the config local-auth eap-profile cert-issuer vendor "prfMaP1500LlEAuth93" command is a normal command, but the "prfMaP1500LlEAuth93" profile is a hidden profile, and is not stored on the controller and is lost after the controller reboot.

                                                                                                                      Certificate Verification Process in LSC AP

                                                                                                                      LSC-provisioned APs have both LSC and MIC certificates, but the LSC certificate will be the default one. The verification process consists of the following two steps:

                                                                                                                      1. The controller sends the AP the MIC device certificate, which the AP verifies with the MIC CA.
                                                                                                                      2. The AP sends the LSC device certificate to the controller, which the controller verifies with the LSC CA.

                                                                                                                      Getting Certificates for LSC Feature

                                                                                                                      To configure LSC, you must first gather and install the appropriate certificates on the controller. The following steps show how to accomplish this using Microsoft 2003 Server as the CA server.

                                                                                                                      To get the certificates for LSC, follow these steps:

                                                                                                                        Step 1   Go to the CA server (http://<ip address of caserver/crtsrv) and login.
                                                                                                                        Step 2   Get the CA certificate as follows:
                                                                                                                        1. Click the Download a CA certificate link, certificate chain, or CRF.
                                                                                                                        2. Choose the encoding method as DER.
                                                                                                                        3. Click the Download CA certificate link and use the save option to download the CA certificate on to your local machine.
                                                                                                                        Step 3   To use the certificate on the controller, convert the downloaded certificate to PEM format. You can convert this in a Linux machine using the following command:

                                                                                                                        # openssl x509 -in <input.cer> -inform DER -out <output.cer> -outform PEM

                                                                                                                        Step 4   Configure the CA certificate on the controller as follows:
                                                                                                                        1. Choose COMMANDS > Download File.
                                                                                                                        2. Choose the file type as Vendor CA Certificate from the File Type drop-down list.
                                                                                                                        3. Update the rest of the fields with the information of the TFTP server where the certificate is located.
                                                                                                                        4. Click Download.
                                                                                                                        Step 5   To install the Device certificate on the WLC, login to the CA server as mentioned in Step 1 and do the following:
                                                                                                                        1. Click the Request a certificate link.
                                                                                                                        2. Click the advanced certificate request link.
                                                                                                                        3. Click Create and submit a request to this CA link.
                                                                                                                        4. Go to the next screen and choose the Server Authentication Certificate from the Certificate Template drop-down list.
                                                                                                                        5. Enter a valid name, email, company, department, city, state, and country/region. (Remember it in case you want the cap method to check the username against its database of user credentials).
                                                                                                                          Note

                                                                                                                          The e-mail is not used.

                                                                                                                        6. Enable Mark keys as exportable.
                                                                                                                        7. Click Submit.
                                                                                                                        8. Install the certificate on your laptop.
                                                                                                                        Step 6   Convert the device certificate obtained in the Step 5. To get the certificate, go to your internet browser options and choose exporting to a file. Follow the options from your browser to do this. You need to remember the password that you set here.

                                                                                                                        To convert the certificate, use the following command in a Linux machine:

                                                                                                                        # openssl pkcs12 -in <input.pfx> -out <output.cer>

                                                                                                                        Step 7   On the controller GUI, choose Command > Download File. Choose Vendor Device Certificate from the File Type drop-down list. Update the rest of the fields with the information of the TFTP server where the certificate is located and the password you set in the previous step and click Download.
                                                                                                                        Step 8   Reboot the controller so that the certificates can then be used.
                                                                                                                        Step 9   You can check that the certificates were successfully installed on the controller using this command:

                                                                                                                        show local-auth certificates

                                                                                                                        Configuring a Locally Significant Certificate (CLI)

                                                                                                                        To configure a locally significant certificate (LSC), follow these steps:

                                                                                                                          Step 1   Enable LSC and provision the LSC CA certificate in the controller.
                                                                                                                          Step 2   Enter the following command:

                                                                                                                          config local-auth eap-profile cert-issuer vendor prfMaP1500LlEAuth93

                                                                                                                          Step 3   Turn on the feature by entering the following command:

                                                                                                                          config mesh lsc {enable | disable}

                                                                                                                          Step 4   Connect the mesh AP through Ethernet and provision for an LSC certificate.
                                                                                                                          Step 5   Let the mesh AP get a certificate and join the controller using the LSC certificate.
                                                                                                                          Figure 38. Local Significant Certificate Page

                                                                                                                          Figure 39. AP Policy Configuration

                                                                                                                          LSC-Related Commands

                                                                                                                          The following commands are related to LSCs:

                                                                                                                          • config certificate lsc {enable | disable}
                                                                                                                            • enable—To enable an LSC on the system.
                                                                                                                            • disable—To disable an LSC on the system. Use this keyword to remove the LSC device certificate and send a message to an AP, to do the same and disable an LSC, so that subsequent joins could be made using the MIC/SSC. The removal of the LSC CA cert on the WLC should be done explicitly by using the CLI to accommodate any AP that has not transitioned back to the MIC/SSC.
                                                                                                                          • config certificate lsc ca-server url-path ip-address Following is the example of the URL when using Microsoft 2003 server: http:<ip address of CA>/sertsrv/mscep/mscep.dll This command configures the URL to the CA server for getting the certificates. The URL contains either the domain name or the IP address, port number (typically=80), and the CGI-PATH. http://ipaddr:port/cgi-path Only one CA server is allowed to be configured. The CA server has to be configured to provision an LSC.
                                                                                                                          • config certificate lsc ca-server delete This command deletes the CA server configured on the controller.
                                                                                                                          • config certificate lsc ca-cert {add | delete} This command adds or deletes the LSC CA certificate into/from the controller's CA certificate database as follows:
                                                                                                                            • add—Queries the configured CA server for a CA certificate using the SSCEP getca operation, and gets into the WLC and installs it permanently into the WLC database. If installed, this CA certificate is used to validate the incoming LSC device certificate from the AP.
                                                                                                                            • delete—Deletes the LSC CA certificate from the WLC database.
                                                                                                                          • config certificate lsc subject-params Country State City Orgn Dept Email This command configures the parameters for the device certificate that will be created and installed on the controller and the AP. All of these strings have 64 bytes, except for the Country that has a maximum of 3 bytes. The Common Name is automatically generated using its Ethernet MAC address. This should be given prior to the creation of the controller device certificate request. The above parameters are sent as an LWAPP payload to the AP, so that the AP can use these parameters to generate the certReq. The CN is automatically generated on the AP using the current MIC/SSC "Cxxxx-MacAddr" format, where xxxx is the product number.
                                                                                                                          • config certificate lsc other-params keysize The default keysize value is 2048 bits.
                                                                                                                          • config certificate lsc ap-provision {enable | disable} This command enables or disables the provisioning of the LSCs on the APs if the APs just joined using the SSC/MIC. If enabled, all APs that join and do not have the LSC will get provisioned. If disabled, no more automatic provisioning will be done. This command does not affect the APs, which already have LSCs in them.
                                                                                                                          • config certificate lsc ra-cert {add | delete} We recommend this command when the CA server is a Cisco IOS CA server. The controller can use the RA to encrypt the certificate requests and make communication more secure. RA certificates are not currently supported by other external CA servers, such as MSFT.
                                                                                                                            • add—Queries the configured CA server for an RA certificate using the SCEP operation and installs it into the controller database. This keyword is used to get the certReq signed by the CA.
                                                                                                                            • delete—Deletes the LSC RA certificate from the WLC database.
                                                                                                                          • config auth-list ap-policy lsc {enable | disable} After getting the LSC, an AP tries to join the controller. Before the AP tries to join the controller, you must mandatorily enter this command on the controller console. By default, the config auth-list ap-policy lsc command is in the disabled state, and the APs are not allowed to join the controller using the LSC.
                                                                                                                          • config auth-list ap-policy mic {enable | disable} After getting the MIC, an AP tries to join the controller. Before the AP tries to join the controller, you must mandatorily enter this command on the controller console. By default, the config auth-list ap-policy mic command is in the enabled state. If an AP cannot join because of the enabled state, this log message on the controller side is displayed: LSC/MIC AP is not allowed to join.
                                                                                                                          • show certificate lsc summary This command displays the LSC certificates installed on the WLC. It would be the CA certificate, device certificate, and optionally, an RA certificate if the RA certificate has also been installed. It also indicates if an LSC is enabled or not.
                                                                                                                          • show certificate lsc ap-provision This command displays the status of the provisioning of the AP, whether it is enabled or disabled, and whether a provision list is present or not.
                                                                                                                          • show certificate lsc ap-provision details This command displays the list of MAC addresses present in the AP provisioning lists.

                                                                                                                          Controller GUI Security Settings

                                                                                                                          Although the settings are not directly related to the feature, it might help you in achieving the desired behavior with respect to APs provisioned with an LSC.

                                                                                                                          • Case 1—Local MAC Authorization and Local EAP Authentication Add the MAC address of RAP/MAP to the controller MAC filter list. Example:

(Cisco Controller) > config macfilter mac-delimiter colon
(Cisco Controller) > config macfilter add 00:0b:85:60:92:30 0 management

                                                                                                                          • Case 2—External MAC Authorization and Local EAP authentication Enter the following command on the WLC:

(Cisco Controller) > config mesh security rad-mac-filter enable

                                                                                                                            or Check only the external MAC filter authorization on the GUI page and follow these guidelines:
                                                                                                                            • Do not add the MAC address of the RAP/MAP to the controller MAC filter list.
                                                                                                                            • Configure the external radius server details on the WLC.
                                                                                                                            • Enter the config macfilter mac-delimiter colon command configuration on the WLC.
                                                                                                                            • Add the MAC address of the RAP/MAP in the external radius server in the following format: User name: 11:22:33:44:55:66 Password : 11:22:33:44:55:66

                                                                                                                          Deployment Guidelines

                                                                                                                          • When using local authorization, the controller should be installed with the vendor's CA and device certificate.
                                                                                                                          • When using an external AAA server, the controller should be installed with the vendor’s CA and device certificate.
                                                                                                                          • Mesh security should be configured to use ‘vendor’ as the cert-issuer.
                                                                                                                          • MAPs cannot move from an LSC to an MIC when they fall back to a backup controller.

                                                                                                                          The config mesh lsc {enable | disable} command is required to enable or disable an LSC for mesh APs. This command causes all the mesh APs to reboot.
