This chapter includes the following sections:
This guide contains information and procedures for installing Cisco UCS Rack Mount Servers for integration with Cisco UCS Manager release 3.1.
Cisco UCS C-Series Rack-Mount Servers are managed by the built-in standalone software, Cisco Integrated Management Controller (CIMC) . When a C-Series Rack-Mount Server is integrated with Cisco UCS Manager, the CIMC does not manage the server anymore. Instead it is managed with the Cisco UCS Manager software. You will manage the server using the Cisco UCS Manager GUI or Cisco UCS Manager CLI.
If your server is not factory new, make sure to reset the CIMC to factory default settings before integrating the server with Cisco UCS Manager.
You can integrate Cisco UCS C-Series Rack-Mount Servers with Cisco UCS Manager in either one of the following setup:
Cisco UCS Manager 3.1 provides three connectivity modes for Cisco UCS C-Series Rack-Mount Server management. The following are the connectivity modes:
Dual-wire Management (Shared LOM): Shared LAN on Motherboard (LOM) ports on the rack server are used exclusively for carrying management traffic. A separate cable connected to one of the ports on the PCIe card carries the data traffic. Using two separate cables for managing data traffic and management traffic is also referred to as dual-wire management.
Direct Connect Mode: Cisco UCS Manager An additional rack server management mode using direct connection (Sideband) to the Fabric Interconnect.
(注) |
The LOM ports on Cisco UCS C-Series Rack-Mount Servers integrated with Cisco UCS Manager can not be used for data traffic. The LOM ports are disabled when the C-Series Rack-Mount Servers are in Cisco UCS Manager mode. |
The general prerequisites for Dual-wire integration with Cisco UCS Manager are built into the C-Series Rack-Mount Server CIMC release 1.4(6) or later. If you want to use the SingleConnect or direct connect modes you must have the following:
Server CIMC release 1.4(6) or later
Cisco UCS VIC 1225 Virtual Interface Card
Cisco UCS VIC 1227 (MLOM)
Cisco UCS VIC 1225T Virtual Interface Card
Cisco UCS VIC 1227T (MLOM)
Cisco UCS VIC 1387 (MLOM)
Cisco UCS VIC 1385
For the third generation Cisco UCS VIC adapter or later (VIC 13xx), we recommend that you reset CIMC to factory default before connecting the Cisco VIC adapter to the UCS Fabric Interconnect switch.
(注) |
The Cisco UCS VIC 1225T and 1227T adapters are supported only with Cisco Nexus 2232TM-E 10GE Fabric Extender using RJ45 Network cable. |
The following table lists theC-Series Rack-Mount Servers and supported management options:
Servers |
SingleConnect |
Direct Connect Mode |
Dual-wire Management |
---|---|---|---|
Cisco UCS C22 M3 Server |
Yes |
Yes |
Yes |
Cisco UCS C24 M3 Server |
Yes |
Yes |
Yes |
Cisco UCS C220 M3 Server |
Yes |
Yes |
Yes |
Cisco UCS C240 M3 Server |
Yes |
Yes |
Yes |
Cisco UCS C420 M3 Server |
Yes |
Yes |
Yes |
Cisco UCS C220 M4 Server |
Yes |
Yes |
Yes |
Cisco UCS C240 M4 Server |
Yes |
Yes |
Yes |
Cisco UCS C460 M4 Server |
Yes |
Yes |
Yes |
Cisco UCS C3260 M3 Server |
Yes |
Yes |
No |
(注) |
If you have a Cisco UCS Manager release earlier than 2.2(2a), integration is not supported for Cisco UCS C22 and C24 servers that have Intel E5-2400 v2 CPUs at this time. This integration is supported only with Intel E5-2400 v1 CPUs. |
Based on your server model and CIMC version, you can use either one of these three integration options to connect the rack server with Cisco UCS Manager 3.1.
Cisco UCS Manager runs within the fabric interconnect (FI). With earlier Cisco UCS Manager releases, you need to use Fabric Extenders to connect the c-series server with the Fabric Interconnect to enable management with Cisco UCS Manager. You can directly connect the server adapter with the Fabric Interconnect without using the Fabric Extender.
You can use any of the interfaces available with this management service to access, configure, administer, and monitor the network and server resources for all chassis connected to the fabric interconnect. For information about the Cisco UCS 6200 series or Cisco UCS 6300 series fabric interconnects, see the documentation at the following link:
For information about the Cisco Nexus 2232, Cisco Nexus 2232TM-E or Cisco Nexus 2348UPQ fabric extenders (FEXes) in the configuration, see the documentation at the following link:
Replacing servers and certain adapter cards requires that the server be decommissioned and recommissioned. See the decommissioning a Rack-Mount server and recommissioning a Rack-Mount Server sections in the appropriate Cisco UCS Manager Configuration Guide.
You can connect the FEX to the FI in two ways. Cisco UCS Manager FI discovers the FEX based on the FEX/Chassis discovery mode. The FEX connection modes are:
Hard-Pinning mode: The server facing FEX ports are pinned to the connected uplink ports when the FEX is discovered. Cisco UCS Manager pins the server-facing ports to the uplink ports based on the number of acknowledged uplink ports. After the pinning, if you add a new uplink or delete an existing uplink, you must manually acknowledge the FEX to apply the changes.
Port-Channel mode: Port-Channel mode does not have pinning. A single port channel works as the uplink to all server-facing ports. And all uplink ports are members of this single port channel. If one of the uplink ports go down, the traffic is automatically distributed to another available uplink port.
When port-channel uplinks from the FEX are connected only within a set of eight ports managed by a single chip, Cisco UCS Manager maximizes the number of VIFs used in service profiles deployed on the servers.
If uplink connections are distributed across ports managed by separate chips, the VIF count is decreased. For example, if you connect seven members of the port channel to ports 1–7, but the eighth member to port 9, this port channel can only support VIFs as though it had one member.
The Cisco UCS 6200 Series FI has six sets of eight contiguous ports. Each set of ports is managed by a single chip. For more information on FEX discovery policies and port-channel allocation, see the appropriate Cisco UCS Manager Configuration Guide.
The following table describes maximum configurable vNICs/vHBAs on a VIC adapter based on the number of FEX uplinks:
Acknowledged link between FEX and FI |
Maximum configurable vNICs/vHBA on a VIC adapter for the VIC adapters 1225, 1225T, 1227, 1227T, 1385 and 1387 |
---|---|
1 |
117 |
2 |
117 |
4 |
117 |
8 |
117 |
Acknowledged link between FEX and FI |
Maximum configurable vNICs/vHBA on a VIC adapter for the VIC adapters 1225, 1225T, 1227, 1227T, 1385 and 1387 |
---|---|
1 |
12 |
2 |
27 |
4 |
57 |
8 |
117 |
The following hardware is discontinued for this release:
Rack servers:
Cisco UCS C-Series C210 M2 (R210-2121605W)
Cisco UCS C-Series C460 M2 (UCSC-BASE-M2-C460)
Cisco UCS C-Series C200 M2 (UCSC-BSE-SFF-C200)
Cisco UCS C-Series C250 M2 (R250-2480805W)
Cisco UCS C-Series C260 M2 (C260-BASE-2646)
Adapters:
Cisco UCS P81E (N2XX-ACPCI01)
Cisco UCS CNA M61KR-I Intel (N20-AI0102)
Broadcom 57711 Dual Port (N2XX-ABPCI02)
Cisco UCS P81E VIC (N2XX-ACPCI01)
Emulex OneConnect OCe10102-F (N2XX-AEPCI01)
Qlogic QLE 8152-CNA (N2XX-AQPCI01)
Fabric Interconnect::
The following hardware is added this release onwards:
Adapters:
Cisco UCS 1385 VIC (UCSC-PCIE-C40Q-03)
Cisco MLOM 1387 (UCSC-MLOM-C40Q-03)
Qlogic 8442 SFP+ (UCSC-PCIE-QNICSFP)
Qlogic 8442 10GBaseT (UCSC-PCIE-QNICBT)
Emulex OCe14102B-F (UCSC-PCIE-E14102B)
HGST Ultrastar SN100 (UCS-SDHPCIE800GB)
HGST Ultrastar SN100 (UCS-SDHPCIE1600GB)
Cisco UCS 3200GB SanDisk ioMemory SX350 (UCSC-F-S32002)
Cisco UCS 1300GB SanDisk ioMemory SX350 (UCSC-F-S13002)
Cisco UCS 1600GB SanDisk ioMemory SX350 (UCSC-F-S16002)
Cisco UCS 6400GB SanDisk ioMemory SX350 (UCSC-F-S64002)
Nvidia M60 (UCSC-GPU-M60)
Fabric Extenders:
Fabric Interconnect:
The following table shows the officially supported adapter cards for C-Series Rack-Mount Servers integration with Cisco UCS Manager for this release:
Adapter/Server Model | C22 M3 | C24 M3 | C220 M3 | C240 M3 | C420 M3 | C220 M4 | C240 M4 | C460 M4 | Dual-Wire Connection | Single-Wire Connection | Direct Connection |
---|---|---|---|---|---|---|---|---|---|---|---|
Cisco UCS 1225 VIC (UCSC-PCIE-CSC-02) |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Cisco UCS 1225T VIC (UCSC-PCIE-C10T-02) |
- |
- |
Y |
Y |
- |
Y |
Y |
Y |
Y |
Y |
Y |
Cisco UCS 1227 (MLOM ) UCSC-MLOM-CSC-02 |
- |
- |
- |
- |
- |
Y |
Y |
- |
Y |
Y |
Y |
Cisco MLOM 1227T (UCSC-MLOM-C10T-02) |
- |
- |
- |
- |
- |
Y |
Y |
- |
Y |
Y |
Y |
Cisco UCS 1385 VIC (UCSC-PCIE-C40Q-03) |
- |
- |
- |
- |
- |
Y |
Y |
- |
Y |
Y |
Y |
Cisco MLOM 1387 (UCSC-MLOM-C40Q-03) |
- |
- |
- |
- |
- |
Y |
Y |
- |
Y |
Y |
Y |
Emulex OCe11102-FX CNA (UCSC-PCIE-ESFP) |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
- |
- |
Emulex OCe 14102 (UCSC-PCIE-E14102) |
- |
- |
- |
- |
- |
Y |
Y |
- |
Y |
- |
- |
QLogic QLE8242 CNA (UCSC-PCIE-QSFP) |
Y |
Y |
Y |
Y |
Y |
- |
- |
- |
Y |
- |
- |
Broadcom BCM57712 10Gb (UCSC-PCIE-BSFP) |
Y |
Y |
Y |
Y |
Y |
- |
- |
- |
Y |
- |
- |
Broadcom BCM 57810 10Gb (UCSC-PCIE-B3SFP) |
- |
- |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
- |
- |
Intel X520 10Gb (N2XX-AIPCI01) |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
- |
- |
Qlogic 8442 SFP+ (UCSC-PCIE-QNICSFP) |
Y |
Y |
Y |
Y |
- |
Y |
Y |
Y |
Y |
- |
- |
Qlogic 8442 10GBaseT (UCSC-PCIE-QNICBT) |
Y |
Y |
Y |
Y |
- |
Y |
Y |
Y |
Y |
- |
- |
Emulex OCe14102B-F (UCSC-PCIE-E14102B) |
Y |
Y |
Y |
Y |
- |
Y |
Y |
Y |
Y |
- |
- |
HGST Ultrastar SN100 (UCS-SDHPCIE800GB) |
- |
- |
- |
- |
- |
Y |
Y |
Y |
Y |
- |
- |
HGST Ultrastar SN100 (UCS-SDHPCIE1600GB) |
- |
- |
- |
- |
- |
Y |
Y |
Y |
Y |
- |
- |
Cisco UCS 3200GB SanDisk ioMemory SX350 (UCSC-F-S32002) |
- |
- |
- |
- |
- |
Y |
Y |
Y |
NA |
NA |
NA |
Cisco UCS 1300GB SanDisk ioMemory SX350 (UCSC-F-S13002) |
- |
- |
- |
- |
- |
Y |
Y |
Y |
NA |
NA |
NA |
Cisco UCS 1600GB SanDisk ioMemory SX350 (UCSC-F-S16002) |
- |
- |
- |
- |
- |
Y |
Y |
Y |
NA |
NA |
NA |
Cisco UCS 6400GB SanDisk ioMemory SX350 (UCSC-F-S64002) |
- |
- |
- |
- |
- |
Y |
Y |
Y |
NA |
NA |
NA |
Nvidia M60 (UCSC-GPU-M60) |
- |
- |
- |
- |
- |
- |
Y |
Y |
NA |
NA |
NA |
X710-DA4 Intel EagleFountain 4x10GB SFP+ UCSC-PCIE-I404NIC |
- |
- |
- |
- |
- |
Y |
Y |
Y |
- |
- |
- |
X710-DA2 Intel EagleFountain 2x10GB SFP+ UCSC-PCIE-ID10GF |
- |
- |
- |
- |
- |
Y |
Y |
Y |
Y |
NA |
NA |
XL710-QDA2 Intel EagleFountain 2x40GB QSFP+ UCSC-PCIE-I404NIC |
- |
- |
- |
- |
- |
Y |
Y |
Y |
- |
- |
Y |
Intel P3600 800GB NVMe PCIe SSD (UCS-PCI25-8003) |
- |
- |
- |
- |
- |
Y |
Y |
Y |
Y |
- |
- |
Intel P3600 1600GB NVMe PCIe SSD (UCS-PCI25-16003) |
- |
- |
- |
- |
- |
Y |
Y |
Y |
Y |
- |
- |
Intel P3700 400GB NVMe PCIe SSD (UCS-PCI25-40010) |
- |
- |
- |
- |
- |
Y |
Y |
Y |
Y |
- |
- |
Intel P3700 800GB NVMe PCIe SSD (UCS-PCI25-80010) |
- |
- |
- |
- |
- |
Y |
Y |
Y |
Y |
- |
- |
Intel P3600 HHHL 1200GB NVMe PCIe SSD (UCSC-F-I12003) |
- |
- |
- |
- |
- |
Y |
Y |
Y |
Y |
- |
- |
Intel P3600 HHHL 2000GB NVMe PCIe SSD (UCSC-F-I20003) |
- |
- |
- |
- |
- |
Y |
Y |
Y |
Y |
- |
- |
Intel P3700 HHHL 800GB NVMe PCIe SSD (UCSC-F-I80010) |
- |
- |
- |
- |
- |
Y |
Y |
Y |
Y |
- |
- |
Intel P3700 HHHL 1600GB NVMe PCIe SSD (UCSC-F-I160010) |
- |
- |
- |
- |
- |
Y |
Y |
Y |
Y |
- |
- |
PMC-Sierra Storage Controller UCSC-PSAS12GHBA |
- |
- |
- |
- |
- |
Y |
Y |
- |
NA |
NA |
NA |
LSI RAID SAS 9300-8e 12GB HBA UCSC-SAS9300-8E |
- |
- |
- |
- |
- |
Y |
Y |
Y |
- |
- |
- |
HGST 10TB SAS 7200RPM HDD UCS-HD10T7KEM |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
- |
- |
(注) |
For the X710-DA4 Intel EagleFountain 4x10GB SFP+ card, connectivity is not supported by Cisco UCS Manager. For the XL710-QDA2 Intel EagleFountain 2x40GB QSFP+, only direct connectivity to the 63XX fabric interconnect is supported. |
(注) |
For connectivity options and more information on the UCS C3260 M3 server integration with Cisco UCS Manager, see http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Dense-Storage-Server-Integ-Mgmt/3-1/b_UCSM_3260_Integration_Guide.html. |

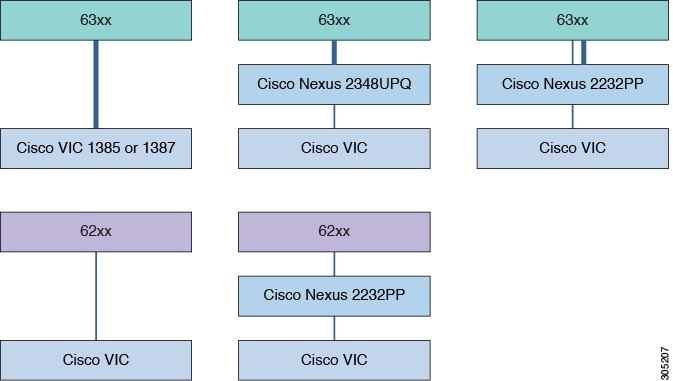

The following image is a graphical representation of the over-all network topology supported in the C-Series server integration with Cisco UCS Manager.
(注) |
While using Cisco VIC 1385 and 1387 in a 10G connection you would a require a 40G to 10G QSFP convertor but you cannot use the 4x10 Breakout Small Form-Factor Pluggable (SFP) cables and 4x10 Active Optical (OAC) cables. |
1 |
Cisco UCS 6300 Series FI (63xx) |
Cisco VIC 1385 or MLOM 1387 |
||
2 |
Cisco UCS 6300 Series FI (63xx) |
Cisco Nexus 2232PP (4x10 G breakout cable) or 2348UQ (40 G link) Cisco VIC 1385 or MLOM 1387 (10 G link) |
||
3 |
Cisco UCS 6200 Series FI (62xx) |
Cisco VIC 1385 or MLOM 1387 |
||
4 |
Cisco UCS 6200 Series FI (62xx) |
Cisco Nexus 2232PP or 2348UQ (10 G link) Cisco VIC 1385 or MLOM 1387 (10 G link)
|
FI / 10G Rack VIC / Connector | VIC 1225 | VIC 1227 | ||||||
---|---|---|---|---|---|---|---|---|
10 G |
QSA |
40 G |
Breakout Cable |
10 G |
QSA |
40 G |
Breakout Cable |
|
FI 62xx |
Yes |
NA |
NA |
NA |
Yes |
NA |
NA |
NA |
FI 6324 |
Yes |
NA |
NA |
Yes (4x10 fabric ports only) |
Yes |
NA |
NA |
Yes (4x10 fabric ports only) |
FI 6332 |
NA |
Yes |
NA |
Yes (4x10 fabric ports only) |
NA |
Yes |
NA |
Yes (4x10 fabric ports only) |
FI 6332-16UP |
NA |
Yes |
NA |
Yes (4x10 fabric ports only) |
NA |
Yes |
NA |
Yes (4x10 fabric ports only) |
FI / 40G Rack VIC / Connector | VIC 1385 | VIC 1387 | ||||||
---|---|---|---|---|---|---|---|---|
QSA |
40 G |
Breakout Cable |
QSA |
40 G |
Breakout Cable |
|||
FI 62xx |
Yes |
NA |
NA |
Yes |
NA |
NA |
||
FI 6324 |
Yes |
NA |
NA |
Yes |
NA |
NA |
||
FI 6332 |
Yes |
Yes |
NA |
Yes |
Yes |
NA |
||
FI 6332-16UP |
Yes |
Yes |
NA |
Yes |
Yes |
NA |
Only servers without expanders can have more than one RAID controllers in the Cisco UCS Manager integrated mode. The following servers are allowed to have more than one RAID controllers in the Cisco UCS Manager integrated mode:
Cisco UCS C24 M3 (UCSC-C24-M3S2)
Cisco UCS C420 M3 (UCSC-C420-M3)
Cisco UCS C240 M3 (UCSC-C240-M3S2)
Cisco UCS C240 M3 NEBS (UCSC-C240-SNEBS)
Any server not on this list that has more than one RAID controller installed, fails discovery.
The following RAID/Storage controllers are supported for C-Series rack-mount servers integration with Cisco UCS Manager.
Server | Supported RAID Controller |
---|---|
Cisco UCS C240 M3 (UCSC-C240-M3) |
|
Cisco UCS 220 M3 (UCSC-C220-M3) |
|
Cisco UCS 22 M3 (UCSC-C22-M3) |
|
Cisco UCS C24 M3 (UCSC-C24-M3) |
|
Cisco UCS C240 M4 (UCSC-C240-M4) |
|
Cisco UCS C220 M4 (UCSC-C220-M4) |
|
Cisco UCS C460 M4 (UCSC-C460-M4) |
|
Some Cisco UCS C-Series Rack-Mount Servers support an internal Cisco FlexFlash Secure Digital (SD) memory card for storage of server software tools and utilities. FlexFlash is disabled by default. You can enable FlexFlash in a local disk policy used in a service profile.
(注) |
Cisco UCS C-Series standalone servers with Cisco FlexFlash SD memory cards configured in Utility mode are not supported in the Cisco UCS Manager Integrated mode. |
After upgrading CIMC if you are unable to install Cisco FlexFlash, apply the scrub policy before configuring the FlexFlash SD cards.
The FlexFlash SD cards can also be scrubbed using the format SD cards option, if the controller supports the same.
