概要
このマニュアルでは、Cisco UCS Manager と統合する Cisco UCS ラックマウント サーバのインストールに関する情報とその手順について説明します。
Cisco UCS C シリーズ ラックマウント サーバ は、組み込みのスタンドアロン ソフトウェアである Cisco Integrated Management Controller(CIMC)によって管理します。Cisco UCS Manager と C シリーズ ラックマウント サーバ を統合すると、Cisco IMC ではサーバを管理しないようになります。代わりに、Cisco UCS Manager ソフトウェアで管理されています。Cisco UCS Manager GUI または Cisco UCS Manager CLI を使用してサーバを管理します。
重要 |
サーバが新規でない場合は、Cisco UCS Manager とサーバを統合する前に、Cisco IMC を工場出荷時の設定にリセットしてください。ご使用のリリースの『Cisco UCS C-Series Integrated Management Controller GUI Configuration Guide』の「Server Utilities」の章を参照して、サーバを工場出荷時のデフォルト設定にリセットしてください。 |

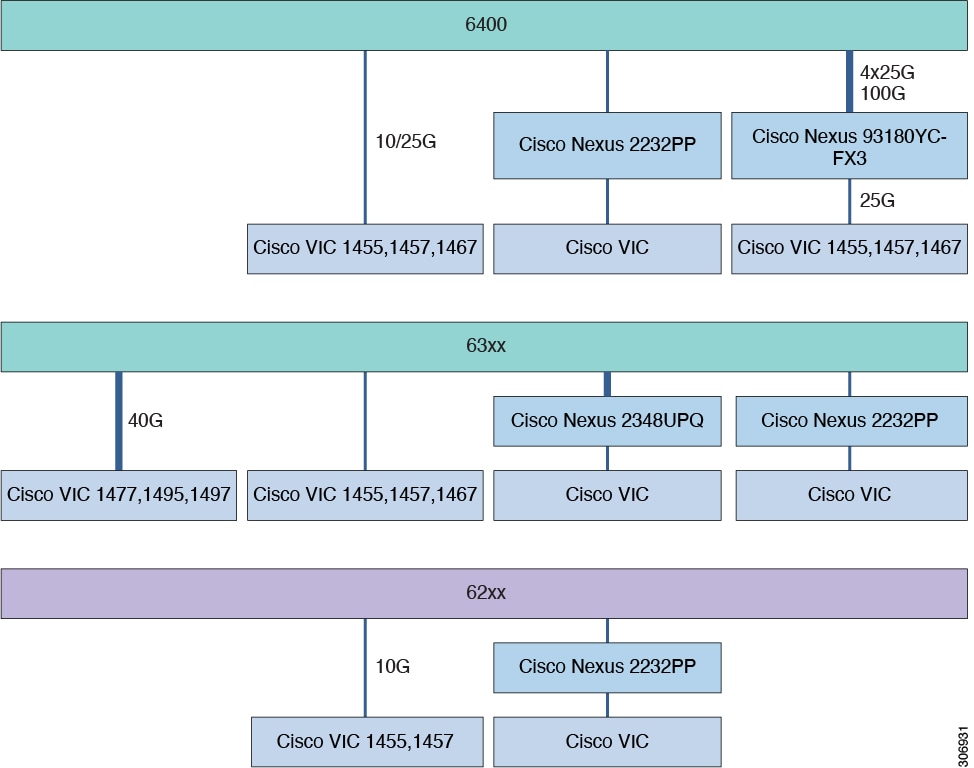

Cisco UCS C シリーズ ラックマウント サーバと Cisco UCS Manager は次のいずれかの設定で統合できます
-
クラスタ セットアップ:ファブリック エクステンダ(FEX)を 2 台使用して、C シリーズ ラックマウント サーバ をファブリック インターコネクト 2 台と接続します。
-
非クラスタ セットアップ:C シリーズ ラックマウント サーバ を FEX 1 台および FI 1 台と接続します。
(注) |
Cisco UCS C シリーズ ラックマウント サーバと Cisco UCS Manager の統合の場合、Cisco VIC アダプタは、サードパーティ製スイッチではなく、Cisco UCS ファブリック インターコネクトにのみ接続できます。 |
Cisco UCS Manager と統合する Cisco UCS S シリーズ ラック マウント サーバについては、特定のリリースの『Cisco UCS S3260 Server Integration with Cisco UCS Manager』ガイドを参照してください。
