Installing a PIX Firewall
The following sections in this chapter describe how to install a PIX Firewall:
•
Before You Begin the Installation
•
Installation Overview
Follow these steps to install a PIX Firewall:
Note
Step 1
http://www.cisco.com/univercd/cc/td/doc/product/iaabu/pix/pix_v52/pixrcs52.htm
Step 2
Step 3
PIX Firewall.Step 4
Step 5
Before You Begin the Installation
Note
Before you begin the installation, gather information about each network interface that will be connected to the PIX Firewall. If you have a PIX 506, all you need are IP addresses for the two interfaces. All other information in Table 2-1 will be provided automatically in the configuration that comes with the PIX 506. For models other than the PIX 506, locate the following information before proceeding.
To prepare to configure the PIX Firewall, locate the following information:
•
•
•
•
•
•
(1,500 bytes/block for Ethernet; 8,192 bytes/block for Token Ring and FDDI).In addition, you should determine the IP address of the outside default router and your network topology and security policy. We recommend that you take a few minutes to draw a diagram of your network with IP addresses, indicating which computers you are protecting, and which switches, routers, and hosts are on each network.
Installing a PIX 506
This section includes the following topics:
Introduction
To download software to a PIX Firewall, see the "Software Installation Notes" section in this chapter or refer to the Cisco PIX Firewall Configuration Guide, Version 5.2.
The Front Panel LEDs, as shown in Figure 2-1, are as follows:
•
•
•
Figure 2-1 PIX 506 Front Panel LEDs
PIX 506 back panel connectors and LEDs are shown Figure 2-2.
The LEDs for the RJ-45 network ports display the following transmission states:
•
•
The USB port to the left of the Console port is not used.
Figure 2-2 PIX 506 Back Panel
PIX 506 Installation Steps
The PIX 506 should be placed on a flat, stable surface. The PIX 506 is not rack mountable.
Follow these steps to install a PIX 506:
Step 1
Connect the RJ-45 connector to the PIX 506 and connect the other end to the serial port connector on your computer.
Figure 2-3 PIX 506 Serial Console Cable
Step 2
Step 3
Figure 2-4 Connecting the Power Supply Module to the PIX 506
Step 4
Configuring the PIX 506
If needed, you can use the PFSS (PIX Firewall Syslog Server) with the PIX 506. Refer to Chapter 4, "Installing the PIX Firewall Syslog Server (PFSS)," for more information on the installation and use of PFSS.
The PIX Firewall Setup Wizard provides an easy-to-use interface for building the initial PIX Firewall configuration. For more information on the PIX Firewall Setup Wizard, see Chapter 9, "Installing the PIX Firewall Setup Wizard."
For more configuration information, refer to the Cisco PIX Firewall Configuration Guide, Version 5.2, which is available in your accessory kit or online at the following site:
http://www.cisco.com/en/US/products/sw/secursw/ps2120/products_configuration_guide_book09186a00801027d5.html
Always check the release notes first before configuring the PIX Firewall for the latest release details. This document is also in your accessory kit or you can view it online at the following site:
http://www.cisco.com/en/US/products/sw/secursw/ps2120/prod_release_notes_list.html
Installing a PIX 515
This section includes the following topics:
Introduction
To download software to a PIX Firewall, see the "Software Installation Notes" section in this chapter or refer to the Cisco PIX Firewall Configuration Guide, Version 5.2.
The PIX 515 front panel LEDs are as follows (see Figure 2-5):
•
•
•
Figure 2-5 PIX 515 Front Panel LEDs

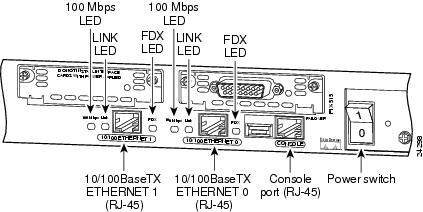

Refer to Figure 2-6 for a display of the controls and connectors on the PIX 515 back panel.
Figure 2-6 PIX 515 Features
The LEDs for the network ports display the following transmission states:
•
•
•
The inside or outside network connections can be made to any available interface port on the PIX 515. If you are only using the ETHERNET 0 and ETHERNET 1 ports, connect the inside network cable to the interface connector marked ETHERNET 0 or ETHERNET 1. Connect the outside network cable to the remaining Ethernet port. Refer to "Configuring the PIX 515" for information on how to configure the ports.
The USB port to the left of the Console port is not used. The detachable plate above the ETHERNET 1 connector is also not used.
Mounting the PIX 515
The PIX 515 can be mounted in a rack, on a wall, or on a flat surface.
If you do not wish to rack mount the unit, attach the rubber feet to the bottom of the unit as shown in Figure 2-7.
Figure 2-7 Attaching the Rubber Feet to the PIX 515
Rack Mounting
Observe the following before installing the PIX 515 into an equipment rack:
•
–
–
Use the following steps to install the PIX 515 in a rack:
Step 1
Step 2
Vertical Mounting
To mount the PIX 515 vertically, attach the brackets to the side of the unit and mount the unit vertically as shown in Figure 2-8.
Figure 2-8 Installing the PIX 515 Vertically
PIX 515 Installation Steps
Use the following steps to install a PIX 515:
Step 1
Connect the RJ-45 connector to the PIX 515 Console port and connect the other end to the serial port connector on your computer.
Figure 2-9 PIX 515 Serial Console Cable
Step 2
Figure 2-10 Four-Port Ethernet Connectors in a PIX 515
Connect the inside, outside, or perimeter network cables to the interface ports. Starting from the top left the connectors are Ethernet 2, Ethernet 3, Ethernet 4, and Ethernet 5. The maximum number of allowed interfaces is 6; do not add a single-port card in the extra slot below the four-port card.
Figure 2-11 Two Single-Port Ethernet Connectors in a PIX 515
As shown in Figure 2-11, if your unit has one or two single-port Ethernet cards installed in the auxiliary assembly on the left of the unit at the rear, the cards are numbered top to bottom so that the top card is Ethernet 2 and the bottom card is Ethernet 3. (Additional interface cards require the PIX-515-UR license to be accessed.)
Step 3
Note
Step 4
Configuring the PIX 515
The PIX Firewall Setup Wizard provides an easy-to-use interface for building the initial PIX Firewall configuration. For more information on the PIX Firewall Setup Wizard, see Chapter 9, "Installing the PIX Firewall Setup Wizard."
For more configuration information, refer to the Cisco PIX Firewall Configuration Guide, Version 5.2, which is available in your accessory kit or online at the following site:
http://www.cisco.com/en/US/products/sw/secursw/ps2120/products_configuration_guide_book09186a00801027d5.html
Always check the release notes first before configuring the PIX Firewall for the latest release details. This document is also in your accessory kit or you can view it online at the following site:
http://www.cisco.com/en/US/products/sw/secursw/ps2120/prod_release_notes_list.html
Refer to the next section for feature license options.
PIX 515 Feature Licenses
If you have a PIX-515-UR unrestricted feature license, the following options are available:
•
•
•
Note
•
Note
Installing a PIX 525
This section includes the following topics:
Introduction
To download software to a PIX Firewall, see the "Software Installation Notes" section in this chapter or refer to the Cisco PIX Firewall Configuration Guide, Version 5.2.

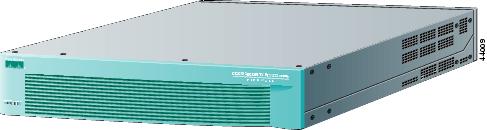

The PIX 525 is displayed in Figure 2-12.
Figure 2-12 PIX 525
The rear panel of the PIX 525 is shown in Figure 2-13.
Figure 2-13 PIX 525 Rear Panel View
There are two LEDs on the front panel of the PIX 525 (see Figure 2-14). The LEDs function as follows:
•
•
Figure 2-14 PIX 525 Front Panel LEDs
There are three LEDs for the each RJ-45 interface port and three types of fixed interface connectors on the back of the PIX 525. The LEDs and connectors are shown in Figure 2-15.
Figure 2-15 PIX 525 Rear Panel
The LEDs display the following transmission states:
•
•
•
The following are fixed connectors on the back of the PIX 525:
•
•
•
PIX 525 Installation Steps
Use the following steps to install a PIX 525:
Step 1
a.
b.
Step 2
Connect the RJ-45 serial cable connector to the PIX 525 console connector and connect the other end to the serial port connector on your computer.
Figure 2-16 PIX 525 Rear Panel
Step 3
Step 4
Note
Step 5
Step 6
Note
Step 7
Configuring the PIX 525
The PIX Firewall Setup Wizard provides an easy-to-use interface for building the initial PIX Firewall configuration. For more information on the PIX Firewall Setup Wizard, see Chapter 9, "Installing the PIX Firewall Setup Wizard."
For more configuration information, refer to the Cisco PIX Firewall Configuration Guide, Version 5.2, which is available in your accessory kit or online at the following site:
http://www.cisco.com/en/US/products/sw/secursw/ps2120/products_configuration_guide_book09186a00801027d5.html
Always check the release notes first before configuring the PIX Firewall for the latest release details. This document is also in your accessory kit or you can view it online at the following site:
http://www.cisco.com/en/US/products/sw/secursw/ps2120/prod_release_notes_list.html
Refer to the next section for feature license options.
PIX 525 Feature Licenses
If you have a PIX-525-UR unrestricted feature license, the following options are available:
•
Note
•
•
•
Note
Installing a PIX 520 or Earlier Model
The following topics are described in this section:
•
•
•
PIX 520 or Earlier Model Installation Instructions
Follow these steps to install a PIX 520 or earlier model:
Step 1
Figure 2-17 PIX 520 Front, Rear, and Side Panels.
Figure 2-18 lists the controls on earlier PIX Firewall models.
Figure 2-18 Earlier PIX Firewall Access
Step 2
If you are not installing a four-port Ethernet card, which is supported only with version 4.4(1) and later, add the cables as shown in Figure 2-19.
Figure 2-19 Up to Four Single-Port Interfaces in a PIX Firewall
PIX Firewall version 2 supports two interfaces, version 3 supports three interfaces, versions 4.0 and 4.1 support three interfaces, version 4.2 supports four interfaces, version 4.3 supports four interfaces, and version 4.4 supports six interfaces. Version 5.0, 5.1, and 5.2 support up to 6 interfaces.
PIX Firewall with a Four-Port Interface Card
As of PIX Firewall version 4.4(1) and later, you can install one optional four-port Ethernet interface card in the PIX 520 and earlier hardware models.
Note
The Cisco four-port Ethernet interface card provides four 10/100 Ethernet connections and has autosense capability. Connectors on the four-port card are numbered top to bottom sequentially; however, the actual device number depends on the slot in which the four-port card is installed. Table 2-2 shows how the top connector is numbered.
With the four-port card, having a card in slot 3 makes the number of interfaces greater than six; while the card in slot 3 cannot be accessed, its presence does not cause problems with the PIX Firewall.
Figure 2-20 shows the location of the interfaces if you install a four-port card in slot 0.
Figure 2-20 Four-Port Ethernet Interface Installed in Slot 0
Figure 2-21 shows how the slots are numbered if a single-port interface card is inserted in slot 0 and a four-port interface card is inserted in slot 1.
Figure 2-21 Single-Port Ethernet Interface Installed in Slot 0 and Four-Port Installed in Slot 1
Figure 2-22 shows how the slots are numbered if single-port interface cards are installed in slot 0 and in slot 1 and a four-port interface card is inserted in slot 2.
Figure 2-22 Single-Port Ethernet Interface Installed in Slot 0 and 1 and Four-Port Ethernet Interface Installed in Slot 2
Installing Interface Cables to a PIX 520 or Earlier Model
Follow these steps to install interface cables to a PIX 520 or earlier model:
Step 1
Step 2
Figure 2-23 PIX Firewall Serial Cable Assembly
Step 3
Step 4
Step 5
If you are installing a DC voltage PIX Firewall, refer to Chapter 8, "Installing a DC Voltage PIX 515 or PIX 520."
Step 6
a.
Note
b.
c.
d.
Step 7
If you need to download software version 5.1 or higher, use the "Boothelper Installation" section. If your site downloads configuration images from a TFTP server, use the section "Downloading a Software Image over TFTP" to learn how you can access boot mode while the PIX Firewall is starting up. The PIX Firewall pauses for 10 seconds for you to press the Escape key or send a BREAK character. On a Windows system, press the Esc key to access boot mode.
To configure your unit, refer to the Cisco PIX Firewall Configuration Guide, Version 5.2, which is available in your accessory kit or online at the following site:
http://www.cisco.com/en/US/products/sw/secursw/ps2120/products_configuration_guide_book09186a00801027d5.html
Always check the release notes first before configuring the PIX Firewall for the latest release details. This document is also in your accessory kit or you can view it online at the following site:
http://www.cisco.com/en/US/products/sw/secursw/ps2120/prod_release_notes_list.html
Startup Messages
When you reboot or power on the PIX Firewall, a list of startup messages appear on the console screen. The list of startup messages is described in the following sections:
•
•
•
•
First Messages
An example of the first messages displayed are as follows:
booting....PhoenixPICOBIOS 4.0 Release 6.0Copyright 1985-1998 ABC Technologies Ltd.All Rights ReservedBuild Time:04/27/00 17:08:34Polaris BIOS Version 0.09CPU = Pentium with MMX 200 MHz640K System RAM Passed63M Extended RAM Passed0512K Cache SRAM PassedSystem BIOS shadowedlimit segment address:EFE5Cisco Secure PIX Firewall BIOS (4.0) #0:Mon Sep 13 13:28:49 PDT 2000Platform PIX-515Flash=i28F640J5 @ 0x300Use BREAK or ESC to interrupt flash boot.Use SPACE to begin flash boot immediately.Reading 2011648 bytes of image from flash.64MB RAMFlash=i28F640J5 @ 0x300BIOS Flash=AT29C257 @ 0xfffd8000mcwa i82559 Ethernet at irq 11 MAC:00aa.0000.000fmcwa i82559 Ethernet at irq 10 MAC:00aa.0000.0010The Flash statement indicates the type of Flash memory. Use the show version command in the Configuration Guide for the Cisco Secure PIX Firewall Version 5.2 to verify the amount of Flash memory. If you have an insufficient amount of memory, the PIX Firewall would have displayed an error message and stopped the installation. Refer to Chapter 1, "Introduction," for a description of the system requirements for the PIX Firewall platforms.
Installing for the First Time or Installing an Activation Key
Note
https://www.cisco.com/cgi-bin/Software/FormManager/formgenerator.pl?pid=221&fid=324PIX Firewall then displays the following message:
Activation Key: aaaabbbb ccccddd eeeeffff 11112222Do you want to enter a new activation key? [n]If you are installing for the first time or you want to enter a new activation key, enter y for Yes.
If you do not wish to enter an activation key, enter n for No, or wait approximately 45 seconds and the PIX Firewall will enter No for you. If you enter y to enter an activation key, you are prompted to enter each part of the activation key:
Enter Activation KeyPart 1 of 4:Enter the first part of your new activation key. (In the previous example for the activation key listing, the first part is aaaabbbb.)
PIX Firewall then prompts you for the other 3 parts of the activation key. Enter each part:
Part 2 of 4:Part 3 of 4:Part 4 of 4:After the Prompts
PIX Firewall then continues the startup messages as follows:
Writing nnnnnnn bytes image into flash...64MB RAMFlash=i28F640J5 @ 0x300BIOS Flash=AT29C257 @ 0xfffd8000To install, you need to see at least 32 MB of RAM. If you had too little memory, a message would display indicating "insufficient memory."
PIX Firewall then lists each interface. Because PIX Firewall interface cards are polled instead of using interrupts, the IRQ (interrupt request) lines can have duplicate numbers:
mcwa i82559 Ethernet at irq 10 MAC: 0050.54fe.eaeamcwa i82559 Ethernet at irq 7 MAC: 0050.54fe.eaebmcwa i82558 Ethernet at irq 11 MAC: 00e0.b600.4520mcwa i82558 Ethernet at irq 11 MAC: 00e0.b600.4521In this example, the PIX Firewall has four Ethernet interfaces. The MAC address is a unique hardware identifier for each interface.
The following messages then appear:
AMCC Chip Address: f880Indirect Address Register: fc40Indirect Data Register: fc00IRQ: 9If an encryption card is present, the following message appears:
CA9568 Encryption @ 0x3a0The PIX Firewall symbol appears followed by the version number and the number of connections.
-----------------------------------------------------------------------|| |||| |||||| ||||..:||||||:..:||||||:..c i s c o S y s t e m sPrivate Internet eXchange-----------------------------------------------------------------------Cisco Secure PIX FirewallCisco Secure PIX Firewall Version 5.2(1)Licensed Features:Failover: EnabledVPN-DES: EnabledVPN-3DES: DisabledMaximum Interfaces: 6If an encryption card is present, the following export statement appears:
****************************** Warning *******************************An encryption device has been discovered.This product is not authorized for use by persons located outside theUnited States and Canada that do not have export license authorityfrom Cisco Systems, Inc. and/or the U.S. Government.This product may not be exported outside the U.S. and Canada either byphysical or electronic means without the prior written approval ofCisco Systems, Inc. and/or the U.S. Government.Persons outside the U.S. and Canada may not reexport, resell, ortransfer this product by either physical or electronic means withoutprior written approval of Cisco Systems, Inc. and/or U.S. Government.******************************* Warning *******************************If you have an activation key that supports encryption, the following statement appears:
****************************** Warning *******************************Compliance with U.S. Export Laws and Regulations - Encryption.This product performs encryption and is regulated for exportby the U.S. Government.This product is not authorized for use by persons locatedoutside the United States and Canada that do not have priorapproval from Cisco Systems, Inc. or the U.S. Government.This product may not be exported outside the U.S. and Canadaeither by physical or electronic means without PRIOR approvalof Cisco Systems, Inc. or the U.S. Government.Persons outside the U.S. and Canada may not re-export, resellor transfer this product by either physical or electronic meanswithout prior approval of Cisco Systems, Inc. or the U.S.Government.******************************* Warning *******************************PIX Firewall then displays the following messages:
The 'logging trap' command now sets only the syslog server logging level.Use the 'logging history' command to set the SNMP logging level.Cryptochecksum(unchanged): 29bd47de e4c13958 db57ee04 282ae9deCopyright (c) 1996-2000 by Cisco Systems, Inc.Restricted Rights LegendUse, duplication, or disclosure by the Government issubject to restrictions as set forth in subparagraph(c) of the Commercial Computer Software - RestrictedRights clause at FAR sec. 52.227-19 and subparagraph(c) (1) (ii) of the Rights in Technical Data and ComputerSoftware clause at DFARS sec. 252.227-7013.Cisco Systems, Inc.170 West Tasman DriveSan Jose, California 95134-1706Type help or '?' for a list of available commands.pixfirewall> enableEnter the enable command to start unprivileged mode. You are then prompted for the enable password as follows:
Password:Unless you have assigned a value to the enable password, which you can do with the enable password command, press the Enter key to signify the default of no password. You are now in unprivileged mode.
Start configuration mode by entering the configure terminal command:
pixfirewall# configure terminalpixfirewall(config)#You are now ready to start configuring your PIX Firewall, which is described in the following sections and in the Cisco PIX Firewall Configuration Guide, Version 5.2.
Writing Different Versions of the Configuration to Flash Memory
If the Flash memory version and the version of the installation software differ, PIX Firewall automatically writes the image to Flash memory. The following is an example of the message that is displayed when the Flash memory and the installation software are different versions:
Flash version 5.2(0), Install version 5.2(1)The following is an example of the message and the complete screen that is displayed when the Flash memory and the installation software are different versions:
PIX BIOS (3.5)Booting Floppy...................................Execing flopCisco Secure PIX Firewall floppy loader (3.0) #0:Wed Feb 23 10:11:36 PST 2000Reading installation media.................64MB RAMFlash=AT29C040A @ 0x300BIOS Flash=AM28F256 @ 0xfffd8000mcwa i82557 Ethernet at irq 11 MAC:00a0.c977.a616mcwa i82557 Ethernet at irq 10 MAC:00a0.c967.e25cmcwa i82557 Ethernet at irq 15 MAC:00a0.c986.8e4c-----------------------------------------------------------------------|| |||| |||||| ||||..:||||||:..:||||||:..c i s c o S y s t e m sPrivate Internet eXchange-----------------------------------------------------------------------Cisco Secure PIX BoothelperCisco Secure PIX Boothelper Version 5.2(1)pixboothelper> a 10.132.12.66address:10.132.12.66pixboothelper> s 10.129.0.2server 10.129.0.2pixboothelper> i 0current interface is 00: i82557 @ PCI(bus:0 dev:13 irq:11) ethernet0 100basetx1: i82557 @ PCI(bus:0 dev:14 irq:10) ethernet1 not_init2: i82557 @ PCI(bus:0 dev:15 irq:15) ethernet2 not_initpixboothelper> f pix-5.2.1-releasefile pix-5.2.1-releasepixboothelper> tftptftp pix-5.2.1-release@10.129.0.2..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................The example startup messages continue:
Received nnnnnnn bytes.Flash version 5.2(0), Install version 5.2(1)Installing to flashSerial Number:nnnnnnn (0xnnnnn)Activation Key:70ffbacc 62b8e7c2 87021a9c 98c9a02bDo you want to enter a new activation key? [n]Writing nnnnnnn bytes image into flash...Ready to reboot, please remove the disk.
Writing the Same Version of the Configuration to Flash Memory
If the versions are the same, you are prompted with the following:
Do you wish to copy the install image into flash? [n]If you wish to load the configuration, enter Y for Yes. Alternatively, you can ignore the prompt and the PIX Firewall will not start the download. If you do not perform the download, proceed to the
"After the Prompts" section.The following is an example of the message displayed when the Flash memory and the installation software are the same versions:
Flash version 5.2(1), Install version 5.2(1)Do you wish to copy the install image into flash? [n] yInstalling to flashSerial Number:nnnnnnn (0xnnnnn)Activation Key:aaaabbbb ccccddd eeeeffff 11112222Do you want to enter a new activation key? [n]All other startup messages are the same as shown in the previous section, "Writing Different Versions of the Configuration to Flash Memory."
Configuration Version Message
PIX Firewall now displays a warning message if the configuration file (stored in Flash memory) is newer than the PIX Firewall software version currently being loaded. This message warns you of the possibility of unrecognized commands in the configuration file. For example, if you install a version of 5.0 software when the current version is 5.1 or higher, the following example message appears at startup:
Configuration Compatibility Warning:The config is from version 5.1(1).but the image is version 5.0(3).In the message, "config" is the version in Flash memory and "image" is the version you are installing.
You will not receive this message if the installation is an upgrade of the same major release. For example, if you are installing from version 5.1(1) to 5.1(2).
Software Installation Notes
This section provides information about installing software on a PIX Firewall.
Note
The following topics are discussed in this section:
•
Boothelper Installation
Note
Follow these steps to install the PIX Firewall software using the Boothelper:
Step 1
http://www.cisco.com/pcgi-bin/tablebuild.pl/pix
Step 2
Note
If you are using Windows, also download the rawrite.exe program from CCO, and download a TFTP server from the following site:
http://www.cisco.com/pcgi-bin/tablebuild.pl/tftp
The UNIX and LINUX operating systems contain a TFTP server.
Step 3
ps aux | grep inetd command string to determine the process ID of the current inetd process. Use the kill command to kill the process. The process will restart automatically. Continue with Step 5.Step 4
C:\pix> rawriteRaWrite 1.2 - Write disk file to raw floppy disketteEnter source file name: bh521.binEnter destination drive: a:Please insert a formatted diskette into drive A: and press -ENTER- :Number of sectors per track for this disk is 18Writing image to drive A:. Press ^C to abort.Track: 78 Head: 1 Sector: 16Done.C:\pix>If you are using UNIX, use the dd command. For example, if the diskette device name is rd0, use the following command:
dd bs=18b if=./bh521.bin of=/dev/rd0Step 5
Step 6
Step 7
Step 8
a.
b.
c.
d.
e.
f.
g.
The following is an example session:
Cisco Secure PIX Boothelper Version 5.2(1)pixboothelper> a 10.132.12.66address:10.132.12.66pixboothelper> s 10.129.0.2server 10.129.0.2pixboothelper> i 0current interface is 00: i82557 @ PCI(bus:0 dev:13 irq:11) ethernet0 100basetx1: i82557 @ PCI(bus:0 dev:14 irq:10) ethernet1 not_init2: i82557 @ PCI(bus:0 dev:15 irq:15) ethernet2 not_initpixboothelper> f pix-5.2.1-releasefile pix-5.2.1-releasepixboothelper> tftptftp pix-5.2.1-release@10.129.0.2...........................................................................................
Step 9
Step 10
Step 11
a.
b.
c.
After Boothelper downloads the PIX Firewall image via TFTP, it verifies the checksum of the image. If it is not version 5.1 or later, it displays the message "Checksum verification on flash image failed" and reboots the PIX Firewall.
Keep the Boothelper diskette available for future upgrades. You will need to repeat these steps whenever you download an image to your PIX Firewall unit. Alternatively, you can use the copy tftp flash command to download an image directly from the PIX Firewall command line. Refer to "Using the copy tftp flash Command" for more information.
Downloading a Software Image over TFTP
The PIX 506, PIX 515, and PIX 525 receive their boot image from either Flash memory or by downloading the image from a TFTP server. You can obtain a TFTP server as an option from Cisco, you can use the TFTP server provided with UNIX, or you can use a TFTP server available for your computer.
You can download a free TFTP server from Cisco at the following site:
http://www.cisco.com/pcgi-bin/tablebuild.pl/tftp
Because the PIX 506, PIX 515, and PIX 525 do not have a diskette drive, you need to send a binary image to the unit using Trivial File Transfer Protocol (TFTP). The PIX 506, PIX 515, and PIX 525 have a special mode called ROM monitor mode that lets you retrieve the binary image over the network.
You can get the most current PIX Firewall software image from the following site:
http://www.cisco.com/pcgi-bin/tablebuild.pl/pix
Note
Note
Note
Note
Using TFTP Commands
The following sections describe TFTP commands:
•
With the 5.1 or higher software release, you can use the copy tftp flash command from the PIX Firewall configuration mode. This command allows remote management of a binary image that can be uploaded without accessing monitor mode. The next section describes the copy tftp flash command.
Use the monitor command with software prior to the 5.1 release. See the "Using the monitor Command" section for more details.
Using the copy tftp flash Command
Once you start the PIX Firewall and go to configuration mode, you can use the copy tftp flash command to download a software image via TFTP. You can use the copy tftp flash command with any PIX Firewall model running version 5.1 or later.
The image you download is made available to the PIX Firewall on the next reload (reboot).
The command syntax is as follows:
copy tftp[:[[//location][/pathname]]] flash
If the command is used without the location or pathname optional parameters, then the location and filename are obtained from the user interactively via a series of questions similar to those presented by Cisco IOS software. If you only enter a colon (:), parameters are taken from the tftp-server command settings. If other optional parameters are supplied, then these values would be used in place of the corresponding tftp-server command setting. Supplying any of the optional parameters, such as a colon and anything after it, causes the command to run without prompting for user input.
The location is either an IP address or a name that resolves to an IP address via the PIX Firewall naming resolution mechanism (currently static mappings via the name and names commands). PIX Firewall must know how to reach this location via its routing table information. This information is determined by the ip address command, the route command, or also RIP, depending upon your configuration.
The pathname can include any directory names besides the actual last component of the path to the file on the server. The pathname cannot contain spaces. If a directory name has spaces, set the directory in the TFTP server instead of in the copy tftp flash command. In UNIX, the file needs to be world readable for the TFTP server to access it.
If your TFTP server has been configured to point to a directory on the system from which you are downloading the image, you need only use the IP address of the system and the image filename. For example, if you want to download the pix521.bin file from the D: partition on a Windows system (IP address 10.1.1.5), you would access the Cisco TFTP Server View>Options menu and enter the filename path in the TFTP server root directory edit box; for example, D:\pix_images. To copy the file to the PIX Firewall, use the following copy tftp command:
copy tftp://10.1.1.5/pix521.bin flashThe TFTP server receives the command and correlates the actual file location from its root directory information. The server then downloads the TFTP image to the PIX Firewall.
Note
Examples
The following example causes the PIX Firewall to prompt you for the filename and location before you start the TFTP download:
copy tftp flashAddress or name of remote host [127.0.0.1]? 10.1.1.5Source file name [cdisk]? pix521.bincopying tftp://10.1.1.5/pix521.bin to flash[yes|no|again]?yes!!!!!!!!!!!!!!!!!!!!!!!...Received 1695744 bytes.Erasing current image.Writing 1597496 bytes of image.!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!...Image installed.The next example takes the information from the tftp-server command. In this case, the TFTP server is in an intranet and resides on the outside interface. The example sets the filename and location from the tftp-server command, saves memory, and then downloads the image to Flash memory:
tftp-server outside 10.1.1.5 pix521.binWarning: 'outside' interface has a low security level (0).write memoryBuilding configuration...Cryptochecksum: 017c452b d54be501 8620ba48 490f7e99[OK]copy tftp: flashcopying tftp://10.1.1.5/pix521.bin to flash!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!...The next examples override the information in the tftp-server command to let you specify alternate information about the filename and location. If you have not set the tftp-server command, you can also use the copy tftp flash command to specify all information as shown in the second example that follows:
copy tftp:/pix521.bin flashcopy tftp://10.0.0.1/pix521.bin flashThe next examples map an IP address to the tftp-host name with the name command and use the tftp-host name in the copy commands:
name 10.1.1.6 tftp-hostcopy tftp://tftp-host/pix521.bin flashcopy tftp://tftp-host/tftpboot/pix521.bin flashUsing the monitor Command
After the PIX 506, PIX 515, or PIX 525 restarts, it pauses 10 seconds. To start the ROM monitor, press the Escape key or send a BREAK character. If you are using Windows HyperTerminal for your console program, you can press the Esc (Escape) key. From a Telnet session to a terminal server that has serial access to the PIX 506, PIX 515, and PIX 525, use ctrl ] to get the Telnet command prompt, and then enter the send break command. If you do not want to enter boot mode when the PIX 506, PIX 515, or PIX 525 restarts, press the Space bar to start the normal boot immediately, or wait until the 10 seconds passes and the unit will boot normally from Flash memory.
From ROM monitor, you can enter a number of commands that let you specify the file and location of the configuration image, and then download it to the unit. The ROM monitor also lets you ping the TFTP server to see if it is online and to specify the IP address of the nearest router if the image is not on a subnet shared with a PIX 506, PIX 515, or PIX 525 interface.
Note
The TFTP server should be installed, but is not required to be, on the most secure part of the network, preferably on the inside interface.
After you download an image, use the write memory command to store the image in Flash memory.
The monitor feature only works on the PIX 506, PIX 515, and PIX 525 and not with earlier models of the PIX Firewall.
The maximum length of a filename is 122 characters.
If the TFTP service stops receiving data requests during a file transfer, it waits four seconds and then closes the connection.
Follow these steps to download an image over TFTP using the monitor command:
Step 1
Note
The monitor> prompt appears.
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9
The following is an example of the download screen display:
Rebooting....PIX BIOS (4.0) #47: Sat May 8 10:09:47 PDT 2000Platform PIX-520Flash=AT29C040A @ 0x300Use BREAK or ESC to interrupt flash boot.Use SPACE to begin flash boot immediately.Flash boot interrupted.0: i8255X @ PCI(bus:0 dev:13 irq:11)1: i8255X @ PCI(bus:0 dev:14 irq:10)Using 1: i82558 @ PCI(bus:0 dev:14 irq:10), MAC: 0090.2722.f0b1Use? for help.monitor> ?? this help messageaddress [addr] set IP addressfile [name] set boot file namegateway [addr] set IP gatewayhelp this help messageinterface [num] select TFTP interfaceping <addr> send ICMP echoreload halt and reload systemserver [addr] set server IP addresstftp TFTP downloadtimeout TFTP timeouttrace toggle packet tracingUse of the monitor command continues:
monitor> addr 192.168.1.1address 192.168.1.1monitor> serv 192.168.1.2server 192.168.1.2monitor> file pix521.binfile pix521.binmonitor> ping 192.168.1.2Sending 5, 100-byte 0x5b8d ICMP Echoes to 192.168.1.2, timeout is 4 seconds:!!!!!Success rate is 100 percent (5/5)monitor> tftptftp pix521.bin@192.168.1.2................................Received 626688 bytesPIX admin loader (3.0) #0: Tue May 11 10:43:02 PDT 2000Flash=AT29C040A @ 0x300Flash version n.n.n.n, Install version n.n.nInstalling to flash...TFTP Download Error Codes
During a TFTP download, if tracing is on, non-fatal errors appear in the midst of dots that display as the software downloads. The error code appears inside angle brackets.
For example, random bad blocks would appear as follows:
....<11>..<11>.<11>......<11>...Also, tracing will show "A" and "T" for ARP and timeouts, respectively. Receipt of non-IP packets causes the protocol number to display inside parentheses.
Table 2-3 lists the TFTP error codes.
Note
Upgrading the Activation Key
Note
Note
https://www.cisco.com/cgi-bin/Software/FormManager/formgenerator.pl?pid=221&fid=324
To become a registered Cisco user, complete the form at the following site:
http://tools.cisco.com/RPF/register/register.doFollow these steps to upgrade an activation key on the PIX 506, PIX 515, and PIX 525:
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
When done, refer to "After the Prompts" for additional prompts information that displays when a PIX Firewall starts up.
