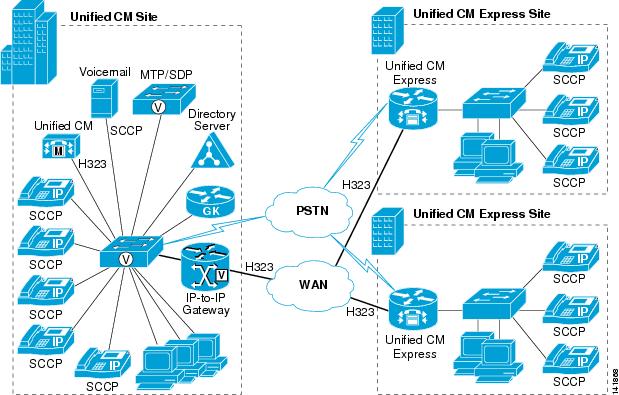

Interoperability of Cisco Unified CallManager and CallManager Express
Call Processing
This chapter provides design guidance for scalable and resilient call processing systems with Cisco Unified CallManager 4.2. This chapter also discusses how to choose the appropriate hardware and deployment scenario for Cisco Unified CallManager based on specific requirements that include the following:
•
Scale — The number of users, gateways, applications, and so forth
•
•
This chapter focuses on the following topics:
•
This section discusses the minimum hardware requirements for Cisco Unified CallManager. This section also explains the various feature services that can be enabled on the Cisco Unified CallManager server and the purpose of each.
•
This section provides guidelines for using the Cisco CallManager Capacity Tool, which must be used when planning an IP Telephony deployment. The Cisco CallManager Capacity Tool provides guidance on resources used on a Cisco Unified CallManager server, based on certain deployment requirements.
•
This section explains how gatekeepers can be used in an IP Telephony deployment. Cisco Gatekeeper may also be paired with other standby gatekeepers or may be clustered for higher performance and resilience. Gatekeepers may also be used for call routing and call admission control.
•
This section explains the H.323 integration between Cisco Unified CallManager and Cisco Unified CallManager Express in a distributed call processing deployment.
Cisco Unified CallManager Cluster Guidelines
The Cisco Unified CallManager architecture enables a group of physical servers to work together as a single IP PBX system. This grouping of servers is known as a cluster. A cluster of Cisco Unified CallManager servers may be distributed across an IP network, within design limitations, allowing for spatial redundancy and, hence, resilience to be designed into the IP Communications system.
This section describes the various functions performed by the servers that form a Cisco Unified CallManager cluster, and it provides guidelines for deploying the servers in ways that achieve the desired scale, performance, and resilience.
Hardware Platforms
Cisco Unified CallManager clusters utilize various types of servers, depending on the scale, performance, and redundancy required. They range from non-redundant, single-processor servers to highly redundant, multi-processor units.
Table 8-1 lists the general types of servers you can use in a cluster, along with their main characteristics.
For a complete list of currently supported hardware configurations, refer to the documentation available at
http://www.cisco.com/go/swonly
The server platforms have particular memory requirements, which are documented in Product Bulletin 2864, Physical Memory Recommendations For Cisco CallManager Version 4.0 and Later, available at
http://www.cisco.com/en/US/products/sw/voicesw/ps556/prod_bulletin0900aecd80284099.html
Servers should be deployed in an environment that provides high availability, not only for the IP network but also for power and cooling. Servers should be powered from an uninterruptible power supply (UPS) if building power does not have the required availability. Servers with dual power supplies could also be plugged into two different power sources to avoid the failure of one power circuit causing the server to fail.
Connectivity to the IP network should also ensure maximum performance and availability. The Cisco Unified CallManager servers should be connected to the Ethernet at 100 Mbps full-duplex. If 100 Mbps is not available on smaller deployments, then use 10 Mbps full-duplex. Many servers also include the capability of using Gigabit Ethernet, which is also an option. Ensure that servers are connected to the network using full-duplex, which can be achieved with 10 Mbps and 100 Mbps by hard-coding the switch port and the server NIC. For 1000 Mbps, Cisco recommends using Auto/Auto for speed and duplex configuration on both the NIC and the switch port.
Note
Server platforms with dual Ethernet NICs can support NIC Teaming. This feature will depend on the manufacturer, and it allows a server to be connected to the Ethernet via two NICs and, hence, two cables. In some circumstances, this feature can be useful to provide additional levels of redundancy; however, careful design of the IP infrastructure is required prior to successful deployment. For additional information regarding the installation of teaming drivers on Cisco and Hewlett-Packard (HP) server platforms, refer to the documentation at
http://www.cisco.com/en/US/products/hw/voiceapp/ps378/prod_installation_guide09186a00803a0032.html
General Clustering Guidelines
The following guidelines apply to all Cisco Unified CallManager clusters:
Note
•
•
–
–
–
•
Cisco Unified CallManager Cluster Services
Within a Cisco Unified CallManager cluster, there are servers that provide unique services. Each of these services can coexist with others on the same physical server. For example, in a small system it is possible to have a single server be a database publisher, backup subscriber, music on hold (MoH) server, TFTP server, CTI Manager, and Conference Bridge. As the scale and performance requirements of the cluster increase, many of these services should be moved to a single, dedicated physical server.
A Cisco Unified CallManager 4.2 cluster may contain as many as 20 servers, of which a maximum of eight may run the Cisco CallManager service that provides call processing. The other servers may be configured as a dedicated database publisher, dedicated Trivial File Transfer Protocol (TFTP) server, or music on hold (MoH) servers. Media streaming applications (conference bridge or media termination point) may also be installed on a separate server that registers with the cluster.
When deploying a cluster with Cisco MCS 7815 or equivalent servers, there is a minimum limit of two servers in a cluster: one as the publisher, TFTP server, and backup call processing server, and the other as the primary call processing server. A maximum of 300 phones is supported in this configuration on a Cisco MCS 7815. When deploying a two-server cluster with higher-capacity servers, Cisco recommends that you do not exceed 1250 users in the cluster. Above 1250 users, a dedicated publisher and separate servers for primary and secondary call processing services is recommended, thus increasing the number of servers in a cluster.
It is also possible to deploy a single-server cluster with an MCS 7825 or greater servers. With an MCS 7825 or equivalent server, the limit is 500 users; with a higher-availability server, the single-server cluster should not exceed 1000 users. In a single-server configuration, there is no redundancy unless Survivable Remote Site Telephony (SRST) is also deployed to provide service during periods when the Cisco Unified CallManager is not available. Cisco does not recommend a single-server deployment for production environments. The load balancing option is not available when the publisher is a backup call processing subscriber.

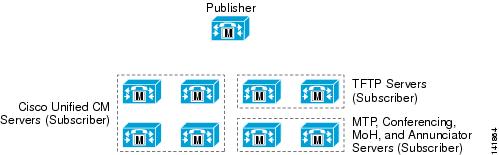

Figure 8-1 illustrates a typical Cisco Unified CallManager cluster.
Figure 8-1 Typical Cisco Unified CallManager Cluster
Intracluster Communications
There are two primary kinds of communication within a Cisco Unified CallManager cluster (intracluster communications). (See Figure 8-2.) The first is a mechanism for distributing the database that contains all the device configuration information (see Database Replication in Figure 8-2). The configuration database is stored on a publisher server, and a read-only copy is replicated to the subscriber members of the cluster. Changes made on the publisher are communicated to the subscriber databases, ensuring that the configuration is consistent across the members of the cluster, as well as facilitating spatial redundancy of the database.
The second type of Intracluster communication is the propagation and replication of run-time data such as registration of devices, locations bandwidth, and shared media resources (see ICCS in Figure 8-2). This information is shared across all members of a cluster running the Cisco Unified CallManager Service, and it assures the optimum routing of calls between members of the cluster and associated gateways.
Lightweight Directory Access Protocol (LDAP) directory information is also replicated between all servers in a cluster. The LDAP directory is replicated by the publisher to all other servers. Cisco Unified CallManager may be integrated into a corporate LDAP directory, such as Microsoft Active Directory or Netscape Directory. The replication is then dependant on the integration method deployed and is outside the scope of this document. For more information on directory integration, refer to the chapter on LDAP Directory Integration, page 18-1.

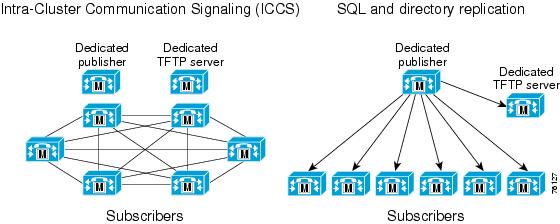

Figure 8-2 Intracluster Communications
Publisher
The publisher is a required server in all clusters, and there can currently be only one per cluster. This server is the first to be installed and provides the database services to all other members in the cluster. The publisher server is the only server that has read and write access to the configuration database. When configuration changes are made, other members of the cluster have a read-only copy of the database. On larger systems with more than 1250 users, Cisco recommends a dedicated publisher to prevent administrative operations from affecting the telephony users. A dedicated publisher does not have any call processing services or TFTP services running on the server. Other servers run the TFTP and Cisco Unified CallManager services.
Servers in the cluster will attempt to use the publisher's database when initializing. If the publisher is not available, they will use the local read-only copy from their hard drives.
If the system is running but the publisher is not available, the following operations will not be available:
•
•
•
Extension Mobility will not function without the publisher because it requires access to the read/write database. Therefore, Cisco recommends running this service on the publisher only. Device Mobility will not update the device pool settings for the phone when roaming to another site. The phone uses its home device pool settings if the publisher is not available.
The choice of hardware platform for the publisher is based on the scale and performance of the cluster. Cisco recommends that the publisher have the same performance capability as the call processing subscribers. Ideally the publisher should also be a high-availability server to minimize the impact of a hardware failure.
Call Processing Subscriber
When installing the Cisco Unified CallManager software, you can define two types of servers, publisher and subscriber. These terms are used to define the database relationship during installation. Once the software is installed, only the database and network services are enabled. All subscribers will subscribe to the publisher to obtain a read-only copy of the database information.
A call processing subscriber is a server that has the Cisco CallManager Service enabled. A single server license is required to enable this service on a subscriber. The Cisco CallManager Service cannot be enabled on a server if the publisher is not available because the publisher acts as a licensing server and distributes the licenses needed to activate the Cisco CallManager Service. Once this service is enabled, the server is able to perform call processing functions. Devices such as phones, gateways, and media resources can register and make calls only to servers with this service enabled. Cisco Unified CallManager 4.2 supports up to eight servers in a cluster with the Cisco CallManager Service enabled.
Depending on the redundancy scheme chosen (see Call Processing Redundancy), the call processing subscriber will be either a primary (active) subscriber or a backup (standby) subscriber. In the load-balancing option, the subscriber can be both a primary and backup subscriber. When planning the design of a cluster, you should generally dedicate the call processing subscribers to this function. In larger-scale or higher-performance clusters, the call processing service should not be enabled on the publisher and TFTP server. Call processing subscribers normally operate in either dedicated pairs or shared pairs, depending on the redundancy scheme adopted. One-to-one redundancy uses dedicated pairs, while two-to-one redundancy uses two pairs of servers that share one server from each pair (the backup server).
The choice of hardware platform depends on the scale, performance, redundancy, and cost of the servers. Scale and performance are covered in the section on Cisco Unified CallManager Platform Capacity Planning, and redundancy is covered in the section on Call Processing Redundancy.
Call Processing Redundancy
With Cisco Unified CallManager 4.2, you can choose from the following redundancy configurations:
•
•
The 1:1 redundancy scheme allows upgrades with only the failover periods impacting the cluster. The 1:1 redundancy scheme enables you to upgrade the cluster using the following method:
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
With this upgrade method, there is no period (except for the failover period) when devices are registered to subscriber servers that are running different versions of the Cisco Unified CallManager software. This factor can be important because the Intra-Cluster Communication Signaling (ICCS) protocol that communicates between subscribers can detect a different software version and shut down communications to that subscriber.
The 2:1 redundancy scheme allows for fewer servers in a cluster, but it can potentially result in an outage during upgrades.
Note
Note
Call Processing Subscriber Redundancy
The following figures illustrate typical cluster configurations to provide call processing redundancy with Cisco Unified CallManager.
Figure 8-3 Basic Redundancy Schemes
Figure 8-3 illustrates the two basic redundancy schemes available. In each case the backup server must be capable of handling the capacity of at least a single primary call processing server failure. In the 2:1 redundancy scheme, the backup might have to be capable of handling the failure of a single call processing server or potentially both primary call processing servers, depending on the requirements of a particular deployment. Sizing the capacity of the servers and choosing the hardware platforms is covered in the section on Cisco Unified CallManager Platform Capacity Planning.

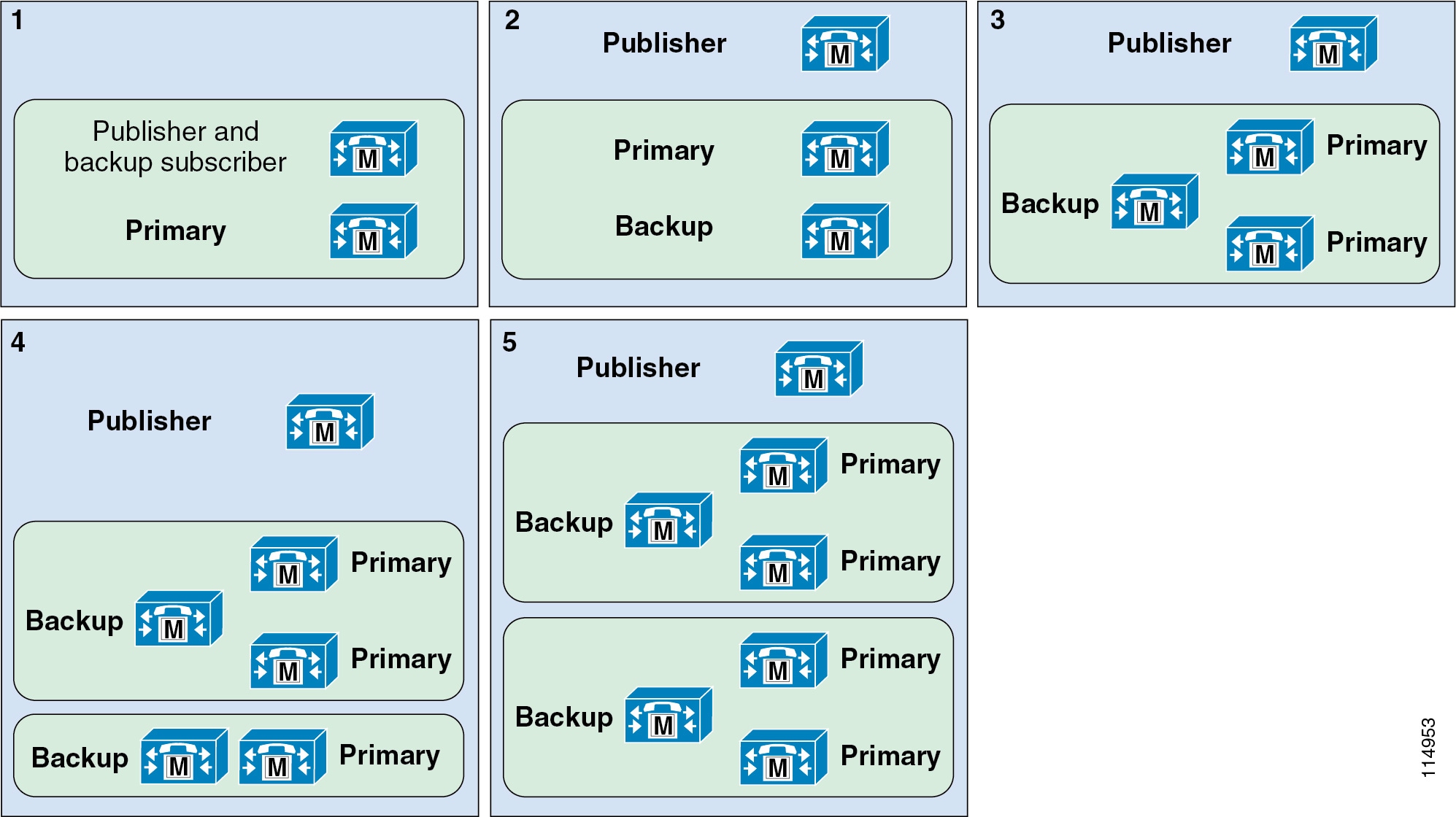

Figure 8-4 1:1 Redundancy Configuration Options
In Figure 8-4 the five options shown all indicate 1:1 redundancy. Option 1 is used for clusters supporting less than 1250 users. Options 2 through 5 illustrate increasingly scalable clusters. The exact scale will depend on the hardware platforms chosen or required.
Note that the illustrations show only publisher and call processing subscribers.
Figure 8-5 2:1 Redundancy Configuration Options
Load Balancing
Normally a backup server has no devices registered to it unless its primary is unavailable. This model allows for:
•
•
The 1:1 redundancy scheme enables you to balance distribution of the devices over the primary and backup server pairs. With load balancing, you can move up to half of the device load from the primary to the secondary subscriber by using the Cisco Unified CallManager redundancy groups and device pool settings. This model allows for:
•
•
To plan for 50/50 load balancing, calculate the capacity of a cluster without load balancing, and then distribute the load across the primary and backup subscribers based on devices and call volume. To allow for failure of the primary or the backup server, the total load on the primary and secondary subscribers should not exceed that of a single subscriber server.
TFTP Server
The TFTP server performs two main functions:
•
•
The TFTP service can be enabled on any server in the cluster. However, in a cluster with more than1250 users, other services might be impacted by configuration changes that can cause the TFTP service to regenerate configuration files. Therefore, Cisco recommends that you dedicate a specific server to the TFTP service in a cluster with more than 1250 users, with Extension Mobility, or with other features that cause configuration changes.
The TFTP server is used by phones and MGCP gateways to obtain configuration information. There is no restriction on the number of servers that can have TFTP service enabled, however Cisco recommends deploying 2 TFTP servers for a large cluster, thus providing redundancy for TFTP service. More than 2 TFTP servers can be deployed in a cluster, but this can result in an extended period for rebuilding of all TFTP files on all TFTP servers. When configuring the TFTP options using DHCP or statically, you can normally define an IP address array (more than one IP address) for a TFTP server. Therefore, you can assign half of the devices to use TFTP server A as the primary and TFTP server B as the backup, and the other half to use TFTP server B as the primary and TFTP server A as the backup. To improve performance on dedicated TFTP servers, you can set service parameters to increase the number of simultaneous TFTP sessions allowed on the server.
When upgrading a Cisco Unified CallManager cluster, Cisco highly recommends that you upgrade the TFTP servers after the publisher and before any other server, also allowing additional time following the upgrade for the TFTP server to rebuild all the configuration files. Either use the typical Cisco TFTP - BuildDuration time or use the real-time monitoring tool to monitor the Cisco TFTP - DeviceBuildCount until it stops incrementing. This upgrade order ensures that any new binaries and configuration changes are available before the upgrade of other services in the cluster. If you are manually adding a specific binary or firmware load for a phone or gateway, be sure to copy the file to each TFTP server in the cluster.
By default, Cisco Unified CallManager Release 3.3 and later versions cache the configuration files in memory and do not store them on the hard drive of the TFTP server. This default setting can be changed to place the configuration files on the hard drive of the TFTP server, but doing so will impact TFTP performance. Therefore, Cisco recommends that you do not change this default setting.
Cisco recommends that you use the same hardware platform for the TFTP servers as used for the call processing subscribers.
CTI Manager
CTI Manager is required in a cluster for applications that use TAPI or JTAPI Computer Telephony Integration (CTI). The CTI Manager acts as a broker between the CTI application and the Cisco Unified CallManager service. It provides authentication of the application and enables control or monitoring of authorized devices. The CTI application communicates with a primary CTI Manager and, in the event of a failure, will switch to a backup CTI Manager. The CTI Manager should be enabled only on call processing subscribers, thus allowing for a maximum of eight CTI Managers in a cluster. Cisco recommends that you load-balance CTI applications across the various CTI Managers in the cluster to provide maximum resilience, performance, and redundancy.
Generally, it is good practice to associate devices that will be controlled or monitored by an application with the same server pair used for the CTI Manager. For example, an interactive voice response (IVR) application requires four CTI ports. They would be provisioned as follows, assuming the use of 1:1 redundancy and 50/50 load balancing:
•
•
The above example allows for redundancy in case of failure of the CTI Manager on server A and also allows for the IVR call load to be spread across two servers. This approach also minimizes the impact of a Cisco Unified CallManager server failure.
IP Voice Media Streaming Application
Media resources such as conferencing and music on hold may be provided by IP Voice Media Streaming Application services running on the same physical server as the Cisco Unified CallManager service.
Media resources include:
•
•
•
•
Because of the additional processing and network requirements for media, it is essential to follow all guidelines for running media resources within a cluster. Generally, Cisco recommends non-dedicated servers for multicast MoH and the annunciator, but a dedicated media resource server is recommended for large-scale software-based conferencing and MTP unless those services are within the design guidelines detailed in the chapters on Media Resources, page 6-1, and Music on Hold, page 7-1.
Voice Activity Detection
Cisco also recommends that you leave voice activity detection (VAD) disabled within the cluster. VAD is disabled by default in the Cisco CallManager service parameters, and you should disable it on H.323 dial peers by using the no vad command.
Extension Mobility
When Extension Mobility is used in a cluster, the expected capacity and performance can impact the choice of the publisher hardware platform. As a user logs in or logs out from a phone, the configuration must be updated in the configuration database, the TFTP service has to regenerate the configuration file, and then the device is reset to make the change. Most of this takes place on the publisher.
Currently supported limits for Extension Mobility are as follows:
•
–
•
–
–
Cisco Unified CallManager Platform Capacity Planning
Many types of devices can register with Cisco Unified CallManager; for example, IP phones, voicemail ports, CTI (TAPI or JTAPI) devices, gateways, and DSP resources such as transcoding and conferencing. Each of these devices requires resources from the server platform with which it is registered. The required resources can include memory, processor usage, and disk I/O. Each device then consumes additional server resources during transactions, which are normally in the form of calls. For example, a device that makes only 6 calls per hour consumes fewer resources than a device making 12 calls per hour.
The recommendations provided in this section are based on calculations made using the Cisco Unified CallManager Capacity Calculator with default trace levels and CDRs enabled. Higher levels of performance can be achieved by disabling, reducing, or reconfiguring other functions that are not directly related to processing calls. Increasing some of these functions can also have an impact on the call processing capabilities of the system. These functions include tracing, call detail recording, highly complex dial plans, and other services that are co-resident on the server. Highly complex dial plans can include multiple line appearances as well as large numbers of partitions, calling search spaces, route patterns, translations, route groups, hunt groups, pickup groups, route lists, extensive use of call forwarding, co-resident services, and other co-resident applications. All of these functions can consume additional resources within the Cisco Unified CallManager server.
To improve system performance, the following techniques can provide useful options:
•
http://www.cisco.com/en/US/products/sw/voicesw/ps556/prod_bulletin0900aecd80284099.html
•
•
•
•
The following guidelines apply to Cisco Unified CallManager Release 4.2:
•
•
•
•
•
Capacity Calculations
The Cisco CallManager Capacity Tool for Cisco Unified CallManager Release 4.x enables you to calculate the capacity of the system for various configurations. The capacity planning tool is currently available to all www.cisco.com users with a login account. If your system does not meet the following guidelines, or if you consider the system to be more complex and would like to verify the capacity but you do not have access to the Cisco CallManager Capacity Tool, please contact your Cisco Systems Engineer (SE) or the Cisco Technical Assistance Center (TAC).
The Cisco CallManager Capacity Tool is available (with proper login authentication) at
http://www.cisco.com/partner/WWChannels/technologies/resources/CallManager/
If your system meets the following requirements, you should not need to verify your configuration with the Cisco CallManager Capacity Tool:
•
•
•
•
•
•
•
•
•
•
•
•
•
The maximum number of users Cisco Unified CallManager can support depends on the server platform, as indicated in Table 8-2.
Table 8-2 Maximum Number of Devices per Server Platform
Cisco MCS-7845 (All supported models)
7500
Yes
Yes
Cisco MCS-7835 (All supported models)
2500
Yes
No
Cisco MCS-7825 (All supported models)
1000
No
No
Cisco MCS-7815 (All supported models)3
300
No
No
1 A platform that is not a high-availability server can support a maximum of 500 IP Phones in a non-redundant installation.
2 A high-availability server supports redundancy for both the power supplies and the hard disks.
3 MCS-7815 servers support only N+1 redundancy and may not be a member of a cluster.
For the latest information on supported platforms, third-party platforms, and specific hardware configurations, refer to the online documentation at
http://www.cisco.com/go/swonly
Note
Cisco CallManager Capacity Tool
The Cisco CallManager Capacity Tool requires various pieces of information to provide a calculation of the minimum size and type of servers required for a system. The information includes the type and quantity of devices, such as IP phones, gateways, and media resources. For each device type, the capacity tool also requires the average BHCA and the average utilization time. For example, if all IP phones make an average of 5 calls per hour and the average call lasts 3 minutes, then the BHCA is 5 and the utilization is 0.25. (Five calls of 3 minutes each equals 15 minutes per hour on the phone, which is 0.25 hour.)
In addition to the device information, the capacity tool also requires information regarding the dial plan, such as route patterns and translation patterns. When all the details have been entered, the capacity tool will calculate how many primary servers of the desired server type are required, as well as the number of clusters if the required capacity exceeds a single cluster.
The capacity tool replaces the previous mechanisms known as device weights, BHCA multipliers, call type multipliers, and dial plan weights.
When you use the Cisco CallManager Capacity Tool, the results will indicate the highest capacity of the various resources calculated for the configuration. The resources include hard limits, memory, processor utilization, and disk I/O activity. If you add more devices, it might look as if no more capacity is being used because the additional configuration is using resources that are below the current highest capacity indicated.
For example, if 2500 third-party controlled SCCP IP phones were added to the Cisco CallManager Capacity Tool, it would show that a single MCS 7845 subscriber is required and is at 100% capacity. If an additional 1000 phones are added, the results still indicate a single MCS 7845 subscriber is required and is at 100% capacity. This result is due to the fact that CTI capacity for this server is at 100%, and additional IP phones do not add CTI requirements. Until the number of other devices exceeds one of the other limits, it will appear as if no additional capacity is being used. This is normal and expected behavior for the Cisco CallManager Capacity Tool.
Use the guidelines in the following sections to provide information for the capacity calculator.
Phone Calculations
The main Telephony section (not the Contact Center section) of the Capacity Tool lists the following phone types:
•
•
For each phone type, you can enter quantity, BHCA, utilization, and line appearance values, which are further explained in the following sections.
Quantity
This value is the total number of IP phones of each type that will be configured in the cluster. The quantity includes all Cisco 7900 Series IP Phones, VG248 ports, VG224, IP Communicator, and other third-party SCCP endpoint devices. The quantity must include all configured phones even if they are not active.
BHCA
This value is the average BHCA of all phones of each type. If you have shared lines across multiple phones, the BHCA should include one call for each and every phone that shares that line. Shared lines across multiple phone types will affect the BHCA for each type. (That is, one call to a shared line will be calculated as multiple calls, one to each phone that rings.) If you have different groups of phones that generate different BHCAs, use the following method to provide a BHCA value for use in the Cisco CallManager Capacity Tool.
For example, assume there are two classes of user with the following characteristics:
•
•
The total BHCA for all phone devices in this case is 22,000.
Then divide the total BHCA by the total number of phone devices, to yield:
Average BHCA per phone device = 22,000 / 5,100 = 4.31 BHCA
Utilization
This value is the average call utilization per phone, and it includes all the time that a call is on the phone. The actual utilization of a phone can exceed 100% if that phone allows multiple calls per line or has multiple line appearances that also are frequently utilized. Utilization is measured as a percentage of an hour. For example, a phone that is on a call for 3 minutes in the busiest hour is considered to be 5% utilized. The same method for calculating BHCA can also be used to calculate the average utilization for various groups of phone. If the phone has shared lines, then only the expected utilization for that phone should be calculated and not the actual utilization for the line that is shared. The Cisco CallManager Capacity Tool currently accepts an average utilization for all phones.
Lines Appearances
This value is the average number of lines for all the phones. If a phone has multiple appearances of the same DN in different partitions, it will be counted as multiple line appearances. Shared lines should be counted as one line, but ensure that the correct BHCA and utilization are calculated. Multiple calls per line do not increase the line appearance count, but they do affect the BHCA and utilization calculations. For example, if it is normal for a phone to have two calls, one active and the other on hold for various amounts of time, then the utilization will be higher for that device because two calls are actually connected.
Gateways
Quantity of Gateways
The quantity of gateways is split into several entries because it depends on gateway type, as follows:
•
This value is the total number of gateways that need to be configured in the Cisco Unified CallManager database. For example, a Cisco IOS MGCP gateway can have multiple T1s or E1s, but they would be added as a single gateway. A Cisco WS-6608 module would be added as a gateway per port that is configured as a T1 or E1 gateway, up to the maximum of eight per module.
•
This value is the total number of analogue gateways to be added in the Cisco Unified CallManager database. Generally, an entire module (WS-6624 or Cisco Unified CallManager) or hardware platform (Cisco IOS Router platform) would be added as a single gateway.
•
An entire module or hardware platform would be added as a single gateway. This quantity does not include H.323 gateways that are not defined in Cisco Unified CallManager but are used via H.323 trunks.
Number of DS0s
This value is the total number of DS0s or analogue ports supported by each type of gateway. The number of DS0s is split between the different types of gateways as follows:
•
24 * (Number of T1 CAS spans)
•
(23 or 30) * (Total number of PRIs)
•
(Total number of DS0s) / (Number of calls supported on all digital, analogue, or IP interfaces)
BHCA
The BHCA is the average for all DS0s or analogue ports on a gateway during the busiest hour. The method for calculating this average is the same as the method used for the phone BHCA.
Utilization
This value is the average utilization of all DS0s or analogue ports during the busiest hour.
EM Profiles
Extension Mobility (EM) profiles contain line appearances that should also be included in the phone calculations. They will not affect the quantity of devices, but they will increase the average number of line appearances per phone. The BHCA and utilization of an EM user should already have been calculated for the phone they will log into.
H.323 and SIP Trunks
Quantity of Trunks
This value is the total number of trunks that will be configured in the Cisco Unified CallManager database. A gatekeeper controlled trunk is not affected by the possible number of destinations and, therefore, will be counted once for each configured gatekeeper controlled trunk. This situation is also the case for Session Initiation Protocol (SIP) trunks using a SIP proxy.
Quantity of Calls
This value is the total number of concurrent calls expected to be allowed on all trunks. The number of allowed calls will generally be controlled by locations or gatekeeper call admission control. Keep in mind that regions and codecs can also affect the total number of calls allowed.
Utilization
This value is the average utilization of all calls across all trunks. It is a percentage of the busiest hour, where 75% utilization means that calls will be active for 45 minutes per hour.
MTP Requirements
MTP requirements must also be considered separately in the calculator. If you have MTP required on an H.323 trunk, then an MTP resource is required for every concurrent call on that trunk. MTP resources are always required for SIP trunks.
CTI Route Points, Ports, and Third-Party Controlled Lines
CTI route point calculations include the total quantity, average BHCA, and utilization values. Any assigned directory numbers should be added to the Dial Plan section of the tool.
CTI ports can be used in a variety of ways by the applications controlling them. For simplicity they have been divided into two groups:
•
A simple call is a call either to or from the port to another device, with no supplementary service being invoked. It is the typical call scenario where one party calls another, the called party answers, the call proceeds, and the parties hang up.
A redirect is a call to a CTI port that is not actually answered. Instead, it is forwarded to another destination or redirected. This is even simpler than a simple call because no call is connected, so no media is connected to the CTI port.
•
These call types are typical of an IVR or auto-attendant application.
A transfer type call is characterized as a call that is connected to a CTI port, then at some point the CTI port transfers the caller without consultation (or blind transfer) to another destination.
A conference is a variation of the transfer, whereby a call connected to the CTI port is either transferred with consultation (three-way call) or is conferenced with another party for the duration of the call.
Third-Party Controlled Lines
Each application that requires third-party control or monitoring of a device or line must be counted and entered in this field of the calculator. If more than one application is monitoring or controlling the same device, it will need to be counted more than once.
Gatekeeper Design Considerations
A single Cisco IOS gatekeeper can provide call routing and call admission control for up to 100 Cisco Unified CallManager clusters in a distributed call processing environment. Multiple gatekeepers can be configured to support thousands of Cisco Unified CallManager clusters. You can also implement a hybrid Cisco Unified CallManager and toll-bypass network by using Cisco IOS gatekeepers to provide communication and call admission control between the H.323 gateways and Cisco Unified CallManager.
Gatekeeper call admission control is a policy-based scheme requiring static configuration of available resources. The gatekeeper is not aware of the network topology, so it is limited to hub-and-spoke topologies.
The Cisco 2600, 2800, 3600, 3700, 3800, and 7200 Series routers all support the gatekeeper feature. You can configure Cisco IOS gatekeepers in a number of different ways for redundancy, load balancing, and hierarchical call routing. This section considers the design requirements for building a gatekeeper network, but it does not deal with the call admission control or dial plan resolution aspects, which are covered in the chapters on Call Admission Control, page 9-1, and Dial Plan, page 10-1, respectively.
For additional information regarding gatekeepers, refer to the Cisco IOS H.323 Configuration Guide, available at
Hardware Platform Selection
The choice of gatekeeper platform is based on the number of calls per second and the number of concurrent calls. A higher number of calls per second requires a more powerful CPU, such as a Cisco 3700, 3800, or 7200 Series Router. A higher number of concurrent calls requires more memory. For the latest information on platform selection, contact your Cisco partner or Cisco Systems Engineer (SE).
Gatekeeper Redundancy
With gatekeepers providing all call routing and admission control for intercluster communications, redundancy is required. Prior to Cisco Unified CallManager Release 3.3, the only method for providing gatekeeper redundancy was Hot Standby Router Protocol (HSRP); however, beginning with Cisco Unified CallManager Release 3.3, gatekeeper clustering and redundant gatekeeper trunks are also available as methods of providing gatekeeper redundancy. The following sections describe these methods.
Note
Hot Standby Router Protocol (HSRP)
Hot Standby Router Protocol (HSRP) is the only option for gatekeeper redundancy with Cisco Unified CallManager prior to Release 3.3. HSRP does not provide the features required to build a redundant and scalable gatekeeper network, therefore it should be used only in Cisco Unified CallManager environments prior to Release 3.3.
The following guidelines apply to HSRP:
•
–
–
•
•
•
•

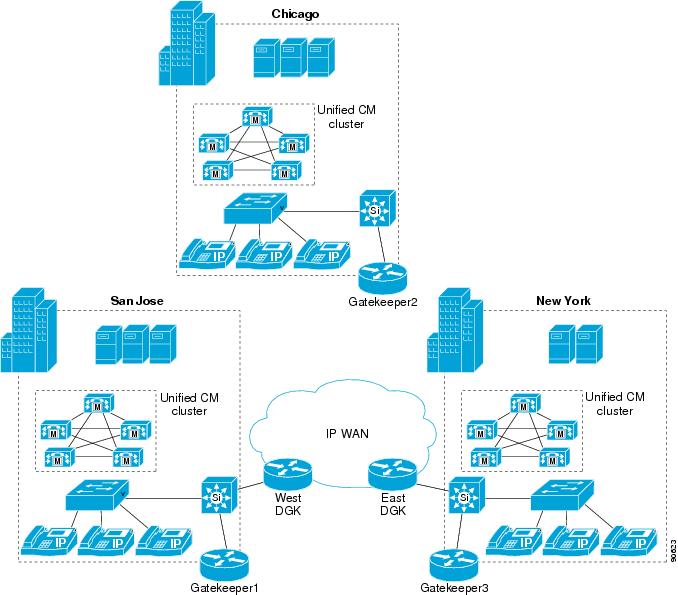

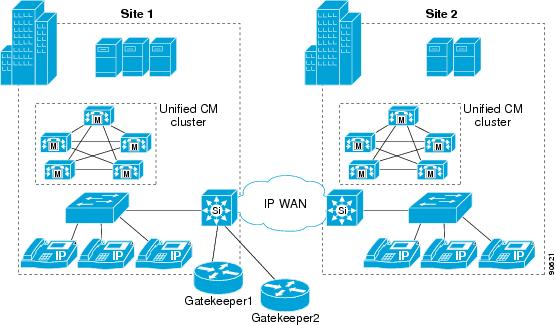

Figure 8-6 show a network configuration using HSRP for gatekeeper redundancy.
Figure 8-6 Gatekeeper Redundancy Using HSRP
Example 8-1 shows the configuration for Gatekeeper 1 and Example 8-2 shows the configuration for Gatekeeper 2 in Figure 8-6. Both configurations are identical except for the HSRP configuration on the Ethernet interface.
Example 8-1 Configuration for Gatekeeper 1
interface Ethernet0/0ip address 10.1.10.2 255.255.255.0standby ip 10.1.10.1standby priority 110gatekeeperzone local GK-Site1 customer.com 10.1.10.1zone local GK-Site2 customer.comzone prefix GK-Site1 408.......zone prefix GK-Site2 212.......bandwidth interzone default 160gw-type-prefix 1#* default-technologyarq reject-unknown-prefixno shutdownExample 8-2 Configuration for Gatekeeper 2
interface Ethernet0/0ip address 10.1.10.3 255.255.255.0standby ip 10.1.10.1gatekeeperzone local GK-Site1 customer.com 10.1.10.1zone local GK-Site2 customer.comzone prefix GK-Site1 408.......zone prefix GK-Site2 212.......bandwidth interzone default 160gw-type-prefix 1#* default-technologyarq reject-unknown-prefixno shutdownThe following notes also apply to Example 8-1 and Example 8-2:
•
•
•
•
•
•
For additional and advanced HSRP information, refer to the online documentation at the following locations:
•
•
•
Gatekeeper Clustering (Alternate Gatekeeper)
Gatekeeper clustering (alternate gatekeeper) enables the configuration of a "local" gatekeeper cluster, with each gatekeeper acting as primary for some Cisco Unified CallManager trunks and an alternate for others. Gatekeeper Update Protocol (GUP) is used to exchange state information between gatekeepers in a local cluster. GUP tracks and reports CPU utilization, memory usage, active calls, and number of registered endpoints for each gatekeeper in the cluster. Load balancing is supported by setting thresholds for any of the following parameters in the GUP messaging:
•
•
•
•
With the support of gatekeeper clustering (alternate gatekeeper) and Cisco Unified CallManager Release 3.3 or later, stateful redundancy and load balancing is available. Gatekeeper clustering provides the following features:
•
•
•
•
•
Figure 8-7 shows three sites with Cisco Unified CallManager distributed call processing and three distributed gatekeepers configured in a local cluster.
Figure 8-7 Gatekeeper Clustering
In Figure 8-7, Gatekeeper 2 is the backup for Gatekeeper 1, Gatekeeper 3 is the backup for Gatekeeper 2, and Gatekeeper 1 is the backup for Gatekeeper 3.
Example 8-3 shows the configuration for Gatekeeper 1 (SJC), and Example 8-4 shows the configuration for Gatekeeper 2 (CHC). The configuration for Gatekeeper 3 (NYC) is not shown because it is very similar to the other two.
Example 8-3 Gatekeeper Clustering Configuration for Gatekeeper 1
gatekeeperzone local SJC cisco.com 10.1.1.1zone local CHC_GK1 cisco.comzone local NYC_GK1 cisco.com!zone cluster local SJC_Cluster SJCelement SJC_GK2 10.1.2.1 1719element SJC_GK3 10.1.3.1 1719!zone cluster local CHC_Cluster CHC_GK1element CHC 10.1.2.1 1719element CHC_GK3 10.1.3.1 1719!zone cluster local NYC_Cluster NYC_GK1element NYC 10.1.3.1 1719element NYC_GK2 10.1.2.1 1719!zone prefix SJC 40852.....zone prefix NYC_GK1 21251.....zone prefix CHC_GK1 72067.....gw-type-prefix 1#* default-technologyload-balance cpu 80 memory 80bandwidth interzone SJC 192bandwidth interzone NYC_GK1 160bandwidth interzone CHC_GK1 160arq reject-unknown-prefixno shutdownExample 8-4 Gatekeeper Clustering Configuration for Gatekeeper 2
gatekeeperzone local CHC cisco.com 10.1.2.1zone local SJC_GK2 cisco.comzone local NYC_GK2 cisco.com!zone cluster local CHC_Cluster CHCelement CHC_GK3 10.1.3.1 1719element CHC_GK1 10.1.1.1 1719!zone cluster local SJC_Cluster SJC_GK2element SJC 10.1.1.1 1719element SJC_GK3 10.1.3.1 1719!zone cluster local NYC_Cluster NYC_GK2element NYC_GK1 10.1.1.1 1719element NYC 10.1.3.1 1719!zone prefix SJC_GK2 40852.....zone prefix NYC_GK2 21251.....zone prefix CHC 72067.....gw-type-prefix 1#* default-technologyload-balance cpu 80 memory 80bandwidth interzone CHC_Voice 160bandwidth interzone SJC_Voice2 192bandwidth interzone NYC_Voice3 160arq reject-unknown-prefixno shutdownThe following notes also apply to Example 8-3 and Example 8-4:
•
•
•
•
•
•
•
All gatekeepers in the cluster display all Cisco Unified CallManager trunk registrations. For trunks that use the gatekeeper as a primary resource, the flag field is blank. For trunks that use another gatekeeper in the cluster as their primary gatekeeper, the flag field is set to A (alternate). Having all endpoints registered as primary or alternate allows all calls to be resolved locally without having to send a location request (LRQ) to another gatekeeper.
Example 8-5 shows the output from the show gatekeeper endpoints command on Gatekeeper 1 (SJC).
Example 8-5 Output for Gatekeeper Endpoints
GATEKEEPER ENDPOINT REGISTRATION================================CallSignalAddr Port RASSignalAddr Port Zone Name Type Flags--------------- ----- --------------- ----- --------- ---- -----10.1.1.12 1307 10.1.1.12 1254 SJC VOIP-GWH323-ID: SJC-to-GK-trunk_110.1.1.12 4422 10.1.1.12 4330 SJC VOIP-GWH323-ID: SJC-to-GK-trunk_210.1.2.12 4587 10.1.2.12 4330 CHC_GK1 VOIP-GW AH323-ID: CHC-to-GK-trunk_110.1.3.21 2249 10.1.3.21 1245 NYC_GK1 VOIP-GW AH323-ID: NYC-to-GK-trunk_1Total number of active registrations = 4Directory Gatekeeper Redundancy
You can implement directory gatekeeper redundancy by using HSRP or by configuring multiple identical directory gatekeepers. When a gatekeeper is configured with multiple remote zones using the same zone prefix, the gatekeeper can use either of the following methods:
•
Redundant remote zones (matching zone prefixes) are assigned a cost, and LRQs are sent to the matching zones in order based on the cost values. Using sequential LRQs saves WAN bandwidth by not blasting LRQs to all matching gatekeepers.
•
LRQs are sent to redundant zones (matching zone prefixes) simultaneously. The first gatekeeper to respond with an Location Confirm (LCF) is the one that is used.
Cisco recommends that you use multiple active directory gatekeepers with sequential LRQs, thus allowing directory gatekeepers to be placed in different locations. Using HSRP requires both directory gatekeepers to be located in the same subnet, and only one gatekeeper can be active at any time.
Figure 8-8 illustrates a Cisco Unified CallManager distributed call processing environment with two active directory gatekeepers.
Figure 8-8 Redundant Directory Gatekeepers
Example 8-6 and Example 8-7 show the configurations for the two directory gatekeepers in Figure 8-8.
Example 8-6 Configuration for West Directory Gatekeeper
gatekeeperzone local DGKW customer.com 10.1.10.1zone remote SJC customer.com 10.1.1.1zone remote CHC customer.com 10.1.2.1zone remote NYC customer.com 10.1.3.1zone prefix SJC 408.......zone prefix CHC 720.......zone prefix NYC 212.......lrq forward-queriesno shutdownExample 8-7 Configuration for East Directory Gatekeeper
gatekeeperzone local DGKE customer.com 10.1.12.1zone remote SJC customer.com 10.1.1.1zone remote CHC customer.com 10.1.2.1zone remote NYC customer.com 10.1.3.1zone prefix SJC 408.......zone prefix CHC 720.......zone prefix NYC 212.......lrq forward-queriesno shutdownThe following notes also apply to Example 8-6 and Example 8-7:
•
•
•
•
•
Note
Example 8-8, Example 8-9, and Example 8-10 show the configurations for Gatekeepers 1 to 3 in Figure 8-8.
Example 8-8 Configuration for Gatekeeper 1 (SJC)
zone local SJC customer.com 10.1.1.1zone remote DGKW customer.com 10.1.10.1zone remote DGKE customer.com 10.1.12.1zone prefix SJC 408.......zone prefix DGKW ..........zone prefix DGKE ..........bandwidth remote 192gw-type-prefix 1# default-technologyarq reject-unknown-prefixno shutdownExample 8-9 Configuration for Gatekeeper 2 (CHC)
gatekeeperzone local GK-CHC customer.com 10.1.2.1zone remote DGKE customer.com 10.1.12.1zone remote DGKW customer.com 10.1.10.1zone prefix CHC 720.......zone prefix DGKE ..........zone prefix DGKW ..........bandwidth remote 160gw-type-prefix 1# default-technologyarq reject-unknown-prefixno shutdownExample 8-10 Configuration for Gatekeeper 3 (NYC)
gatekeeperzone local NYC customer.com 10.1.3.1zone remote DGKE customer.com 10.1.12.1zone remote DGKW customer.com 10.1.10.1zone prefix NYC 212.......zone prefix DGKE ..........zone prefix DGKW ..........bandwidth remote 160gw-type-prefix 1# default-technologyarq reject-unknown-prefixno shutdownThe following notes also apply to Example 8-8, Example 8-9, and Example 8-10:
•
•
•
•
•
•
Interoperability of Cisco Unified CallManager and CallManager Express
This section explains the requirements for interoperability and internetworking of Cisco Unified CallManager with Cisco Unified CallManager Express (CME, formerly called Cisco IOS Telephony Services, or ITS) using H.323 protocol in a multisite IP telephony deployment. This section highlights the recommended deployments between phones controlled by Cisco Unified CallManager and phones controlled by CME.
Cisco CME 3.4 supports Cisco IP SCCP Phones 7902, 7905, 7910, 7912, 7920, 7935, 7936, 7940, 7960, 7970, 7971, and Cisco IP Communicator. Cisco Unified CallManager 4.2 supports CME with SIP phones.
The following section provides guidelines for achieving interoperability between Cisco Unified CallManager and Cisco Unified CallManager Express:
For more information about CME, refer to the product documentation for Cisco Unified CallManager Express, available online at
Multisite IP Telephony Deployments Using Cisco Unified CallManager and CME, with H.323 Trunks and an IP-to-IP Gateway
An IP-to-IP gateway is a separate router that provides a proxy (or front end) for a system that does not support H.450, such as Cisco Unified CallManager. The IP-to-IP gateway can be placed between Cisco Unified CallManager and a CME router, and it provides H.323-to-H.323 call connections to terminate and re-originate calls for transfers and forwards to endpoints that do not support H.450.
Cisco Unified CallManager Express can be directly integrated with Cisco Unified CallManager using an H.323 interface without the IP-to-IP gateway. However, because Cisco Unified CallManager does not support H.450 specifications, supplementary services such call transfer and call forward initiated from Cisco Unified CallManager phones will require the media to be hair-pinned (over the WAN in some cases) through Cisco Unified CallManager even though the Cisco Unified CallManager phones might not be involved in the call. The IP-to-IP gateway ensure that this media hair-pinning does not occur over the WAN.
The IP-to-IP gateway can also act as the PSTN gateway for the remote Cisco CME systems as well as for Cisco Unified CallManager. A separate PSTN gateway is not required in such cases.
The IP-to-IP gateway must run a Cisco IOS release that is compliant with Cisco CME 3.4 and that supports H.450, such as Cisco IOS Release 12.4(6)T or later with the IP VOICE feature set.
Figure 8-9 shows an IP Telephony deployment with Cisco Unified CallManager connected to Cisco CME through an IP-to-IP gateway.
Figure 8-9 Multisite IP Telephony Deployment with Cisco Unified CallManager, CME, and an IP-to-IP Gateway
Best Practices
Follow these guidelines and best practices when using the deployment model illustrated in Figure 8-9:
•
•
•
•
•
•
Note
•
•
•
Note
Example 8-11 lists a sample configuration for the IP-to-IP gateway.
Example 8-11 Configuration for IP-to-IP Gateway
voice service voipallow-connections h323 to h323supplementary-service h450.2supplementary-service h450.3supplementary-service h450.12h323emptycapabilityh225 id-passthruh225 connect-passthruh245 passthru tcsnonstd-passthrudial-peer voice 1 voip /* To Cisco Unified CallManager endpoints */destination-pattern xxxxsession target ipv4:y.y.y.ydtmf-relay h245-alphanumericcodec g729r8no vaddial-peer voice 1 voip /* To Cisco Unified CallManager endpoints */destination-pattern zzzzsession target ras /* "ras" if gatekeeper is used, otherwise "ipv4:a.b.c.d" */dtmf-relay h245-alphanumericcodec g729r8no vadExample 8-12 lists a sample configuration for the in this H.323 deployment model.
Example 8-12 Configuration for Cisco CME 3.4 with H.323
voice service voiph323interface FastEthernet0/1ip address 10.10.10.23 255.255.255.0h323-gateway voip interfaceh323-gateway voip id cme ipaddr 10.10.10.30 1719dial-peer voice 1 voip /* To Cisco Unified CallManager endpoints */destination-pattern xxxxsession target rassession transport tcpcodec g729r8 /* Voice class can also be used */no vadtelephony-serviceip source-address 10.10.10.22 port 2000create cnf-fileskeepalive 45max-conferences 8 gain -6moh music-on-hold.autransfer-system full-blind /* Used with multiple PSTN connections */transfer-pattern .T
