Adding and Deleting Mobility Services Engines and Licenses

This chapter describes how to add and delete a Cisco 3300 Series Mobility Services Engine from Cisco WCS.

This chapter contains the following sections:

•Adding a Mobility Services Engine to Cisco WCS

•Deleting a Mobility Services Engine from the Cisco WCS

•Registering Client and wIPS Product Authorization Keys

•Installing Client and wIPS License Files

•Registering Tag PAKs

Adding a Mobility Services Engine to Cisco WCS

To add a mobility services engine to Cisco WCS, log into WCS and follow these steps:

Step 1 Verify that you can ping the mobility service engine.

Step 2 Choose Services > Mobility Services to display the Mobility Services window.

Step 3 From the Select a command drop-down menu, select Add Mobility Services Engine. Click Go.

Step 4 In the Device Name field, enter a name for the mobility services engine.

Step 5 In the IP Address field, enter the mobility services engine's IP address.

Step 6 (Optional) In the Contact Name field, enter the name of the mobility services engine administrator.

Step 7 In the User Name and Password fields, enter the username and password for the mobility services engine.

The default username and password are both admin.

Note If you changed the username and password during the automatic installation script, enter those values here. If you did not change the default passwords, Cisco strongly recommends that you rerun the automatic installation script and change the username and password.

Step 8 Check the Enable HTTP check box to allow communication between the mobility services engine and third-party applications.

Step 9 Click Next. The Select Mobility Service window appears.

Step 10 To enable a service on the mobility services engine, check the check box next to that service.

Note A mobility services engine can support multiple services.

Step 11 Click Save.

Note After adding a new mobility services engine, you can synchronize network designs (campus, building, and outdoor maps), controllers, switches (specific Catalyst Series 3000 and 4000 only), and event groups for the mobility services engine and Cisco WCS. Refer to Chapter 3 "Synchronizing Mobility Services Engines".

Note For a list of Catalyst Series 3000 and 4000 switches that can operate with a mobility services engine, refer to the "Enabling Location Services on Wired Switches and Wired Clients" section.

Deleting a Mobility Services Engine from the Cisco WCS

To delete one or more mobility services engines from the Cisco WCS database, follow these steps:

Step 1 Choose Services > Mobility Services to display the Mobility Services window.

Step 2 Select the mobility services engine to be deleted by checking the corresponding check box.

Step 3 From the Select a command drop-down menu, select Delete Service(s). Click Go.

Step 4 Click OK to confirm that you want to delete the selected mobility services engine from the WCS database.

Step 5 Click Cancel to stop deletion.

Registering Client and wIPS Product Authorization Keys

You receive a product authorization key (PAK) when you order a client, wIPs, or tag license from Cisco. You must register the PAK to receive the license file for install on the mobility services engine. License files are emailed to you after successfully registering a PAK.

Client and wIPS PAKs are registered with Cisco.

Note Tag PAKs are registered with AeroScout. Refer to "Registering Tag PAKs" section.

To register a product authorization key (PAK) to obtain a license file for install, follow these steps:

Step 1 Open a browser window and enter www.cisco.com/go/license. Enter the PAK and click SUBMIT (see Figure 2-1).

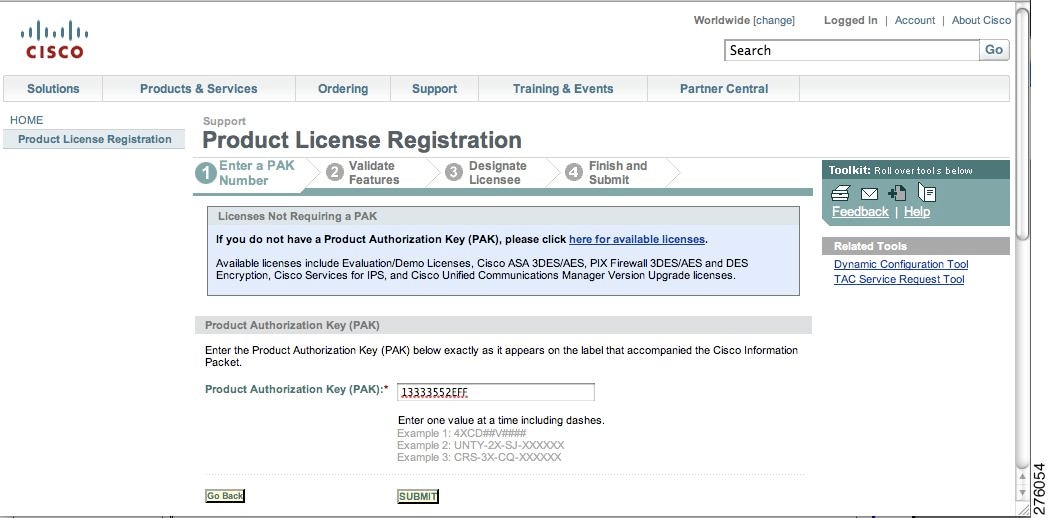

Figure 2-1 Enter PAK Number Window

Step 2 Verify the license purchase. Click Continue if correct (see Figure 2-2). The licensee entry window appears (see Figure 2-3).

Note If the license is incorrect, click TAC Service Request Tool link (right) to report the problem.

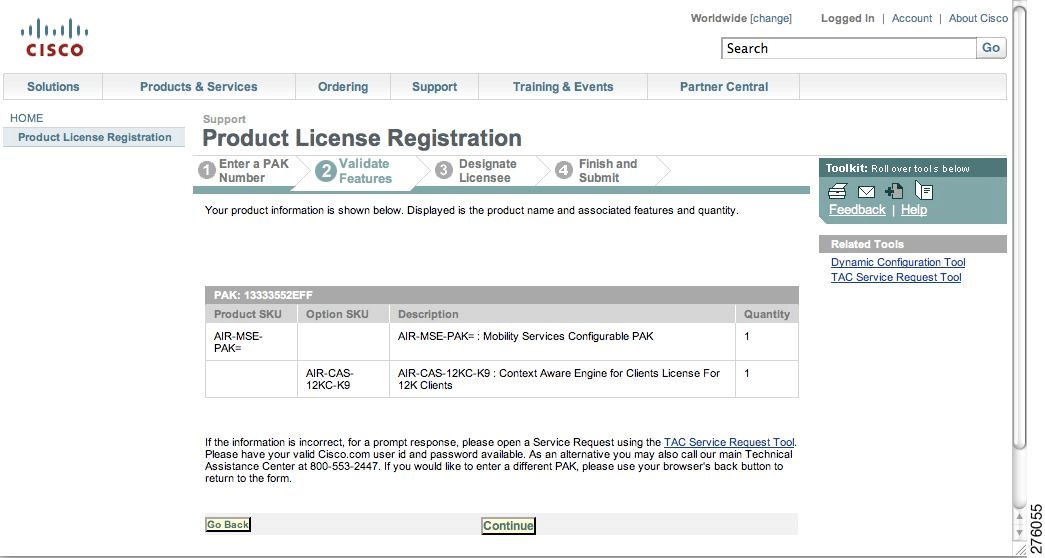

Figure 2-2 Validate License Purchase Window

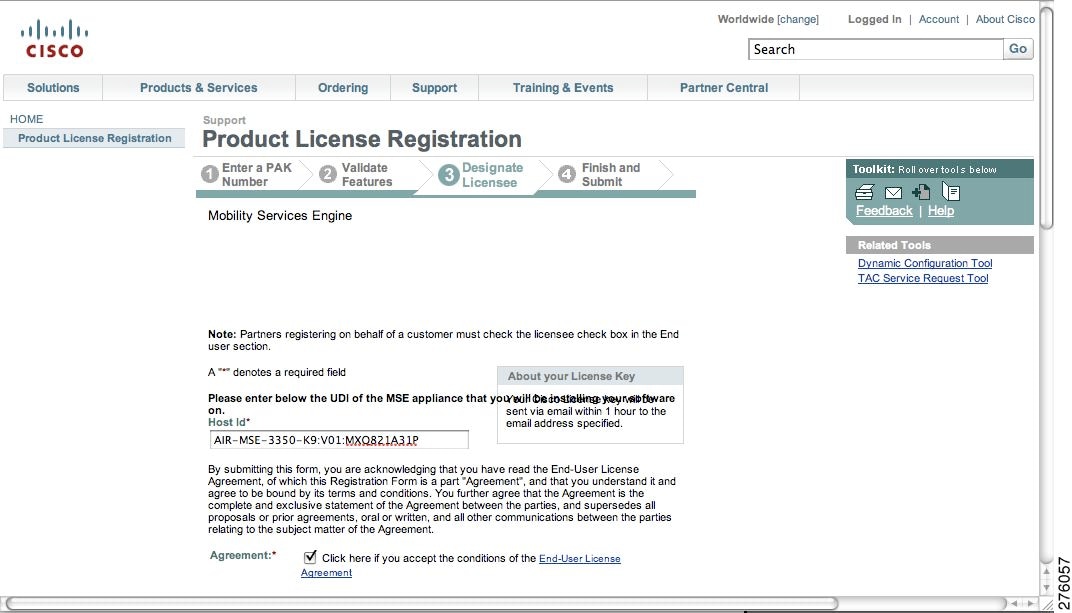

Figure 2-3 Designate Licensee Window, 1 of 2

Step 3 At the Designate Licensee window:

a. Enter the mobility service engine's UDI in the host ID field. This is the mobility services engine on which the license will be installed.

Note UDI information for a mobility services engine is found on the General Properties panel at Services > Mobility Services Engine > Device Name > System.

b. Check Agreement check box. Registrant information appears beneath the Agreement check box (see Figure 2-4).

Modify information as necessary.

Note Ensure that the phone number does not include any characters in the string for the registrant and end user. For example, enter 408 555 1212 rather than 408.555.1212 or 408-555-1212.

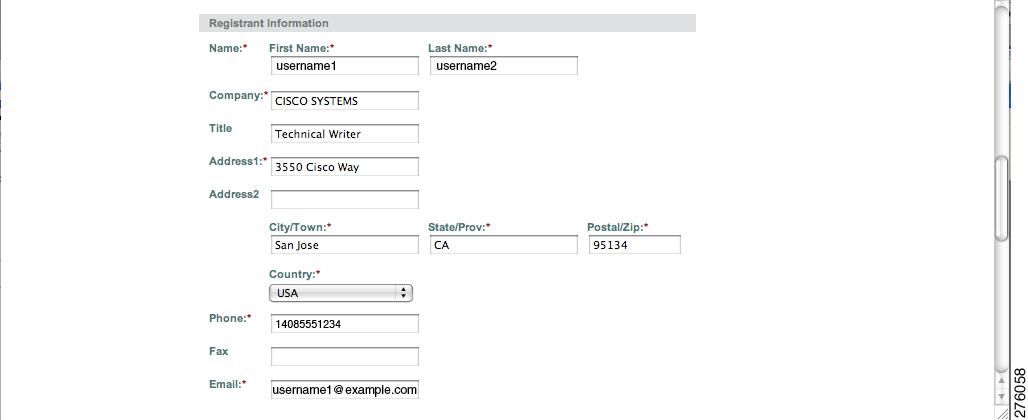

Figure 2-4 Designate Licensee Window, 2 of 2

c. If registrant and end user are not the same person, check Licensee (End-User) check box beneath registrant information and enter the end user's information.

d. Click Continue. A summary of entered data appears (see Figure 2-5).

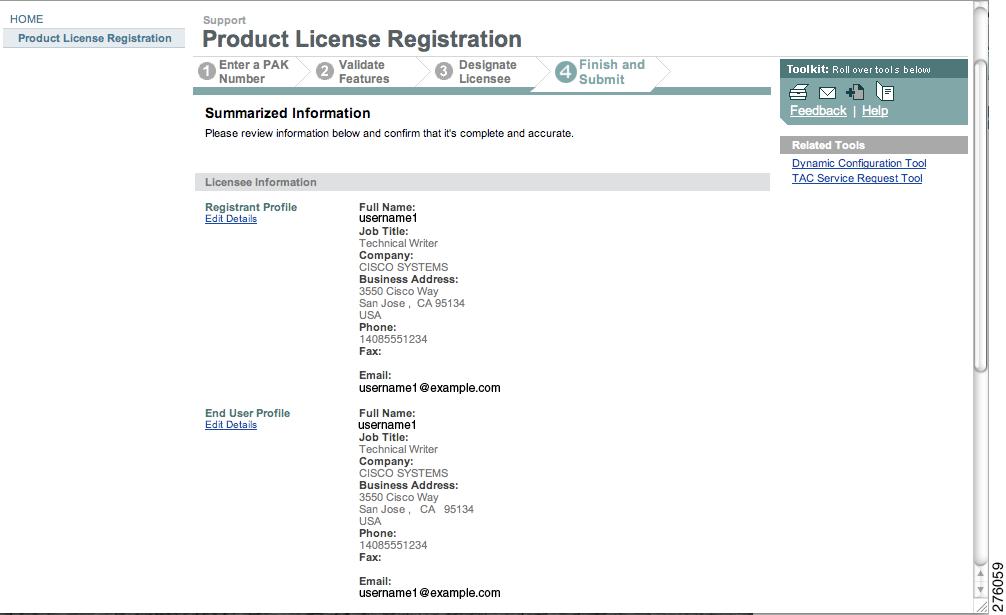

Figure 2-5 Finish and Submit Window

Step 4 At the Finish and Submit window, review registrant and end user data. Click Edit Details to correct information. Click Submit. A confirmation window appears (see Figure 2-6).

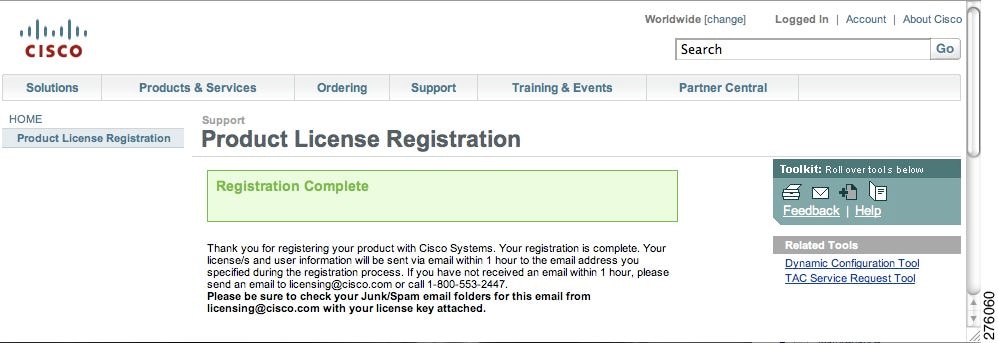

Figure 2-6 Registration Confirmation Window

Installing Client and wIPS License Files

You can install client and wIPS licenses from Cisco WCS.

Tag licenses are installed using the AeroScout System Manager. Refer to "Installing Tag Licenses" section.

To add a client or wIPS license to Cisco WCS after registering the PAK, follow these steps:

Step 1 Choose Administration > License Center (see Figure 2-7).

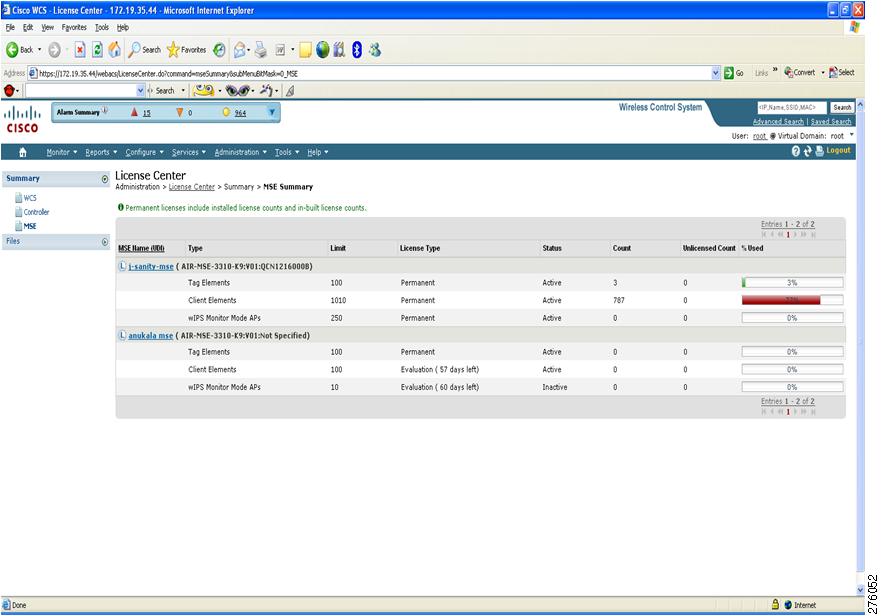

Figure 2-7 Administration > License Center Window

Step 2 Choose Files > MSE Files (left panel).

Step 3 Click Add. A pop-up entry panel appears (see Figure 2-8).

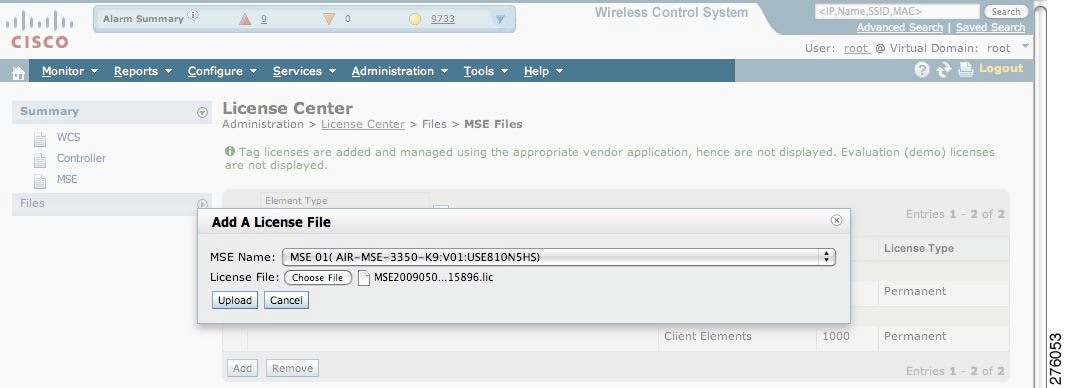

Figure 2-8 Add a License File Panel

Step 4 Select MSE Name.

Note Verify that the UDI of the selected mobility services engine matches the one you entered when registering the PAK.

Step 5 Click Choose File to browse and to select the license file.

Step 6 Click Upload. Newly added license appears in MSE license file list.

Registering Tag PAKs

To register tags at the AeroScout web site, follow these steps:

Step 1 Open a browser and enter http://www.aeroscout.com/content/support.

Step 2 Login if you have an existing account or click Create New Account to create a login a username and password.

If created a new account, you will receive a notification email with your username and password.

Step 3 After logging in, click Register Products Purchased from Cisco on the Home tab.

To register your product, you need the following information: PAK number, MSE ID (MSE serial number (S/N)) and Installation Type.

You will receive an email message from AeroScout that confirms registration.

Your PAK number is verified within 2 business days by email. If your PAK number is found to be invalid you must register again with a valid PAK number.

Installing Tag Licenses

After successfully registering your PAK, you will receive an email with your license key and instructions on how to download context-aware software and a copy of the AeroScout Context-Aware Engine for Tags, for Cisco Mobility Services Engine User's Guide.

Note The license key you will receive through mail is a .lic file. You should save the received license key as a .lic file. This file can be subsequently used to install the license through WCS.

Refer to the users guide for details on installed your tag licenses.
