Mount the Chassis

Unpack and Inspect the Chassis


Note
The chassis is thoroughly inspected before shipment. If any damage occurred during transportation or any items are missing, contact your customer service representative immediately. Keep the shipping container in case you need to send the chassis back due to damage.

See Package Contents for a list of what shipped with the chassis.


Warning

You must install the unit in a restricted access location in the following cases:

  • If you are using a DC power connection and the ambient temperature is more than 50°C.

  • If you are using a centralized DC power connection.

Procedure

Step 1

Remove the chassis from its cardboard container and save all packaging material.

Step 2

Compare the shipment to the equipment list provided by your customer service representative. Verify that you have all items.

Step 3

Check for damage and report any discrepancies or damage to your customer service representative. Have the following information ready:

  • Invoice number of shipper (see the packing slip)

  • Model and serial number of the damaged unit

  • Description of damage

  • Effect of damage on the installation

Wall-Mount the Chassis

Secure the Wallmount Kit to both sides of the Module using the provided screws.

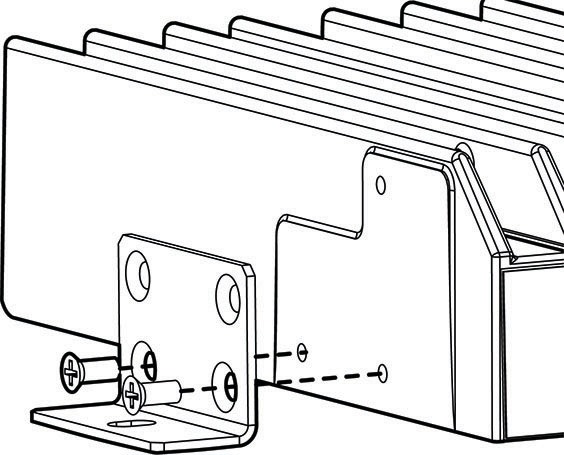

Figure 1. Secure the Wallmount Kit

  • The support surface and the fasteners you use must support at least 2.5 kg (5.5 lbs.).

  • Cable pull—accidental or otherwise—should not exceed the 2.5 kg (5.5 lbs.) limit.

Rack-Mount the Chassis

To rack-mount the chassis:

Procedure

Step 1

Secure two L-shaped mounting brackets vertically to both sides of each Module using the provided screws.

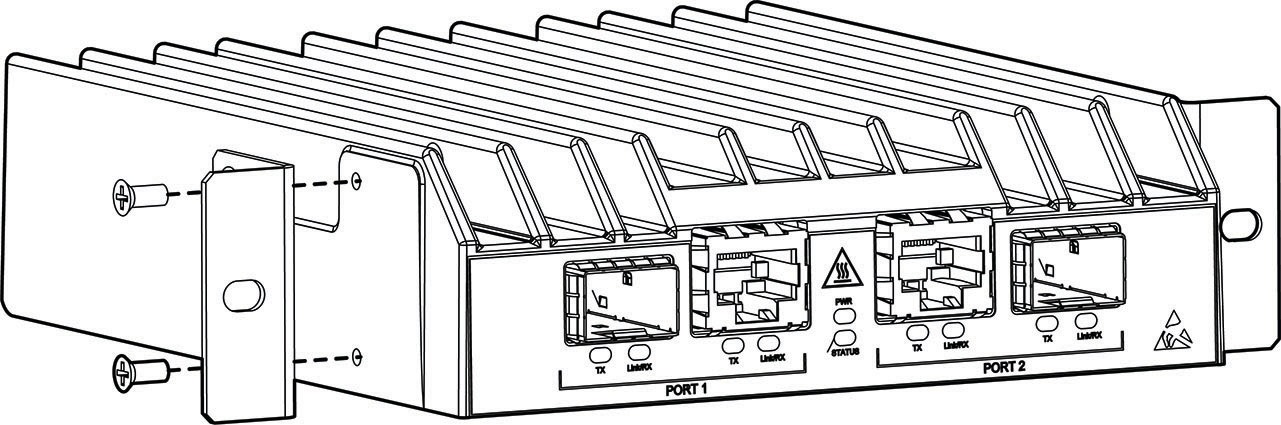

Figure 2. Secure the L-shaped Mounting Brackets

Step 2

Carefully slide each Module into the rack mount bracket with its heat sink facing upward. The rack-mount bracket may provide up to three bays.

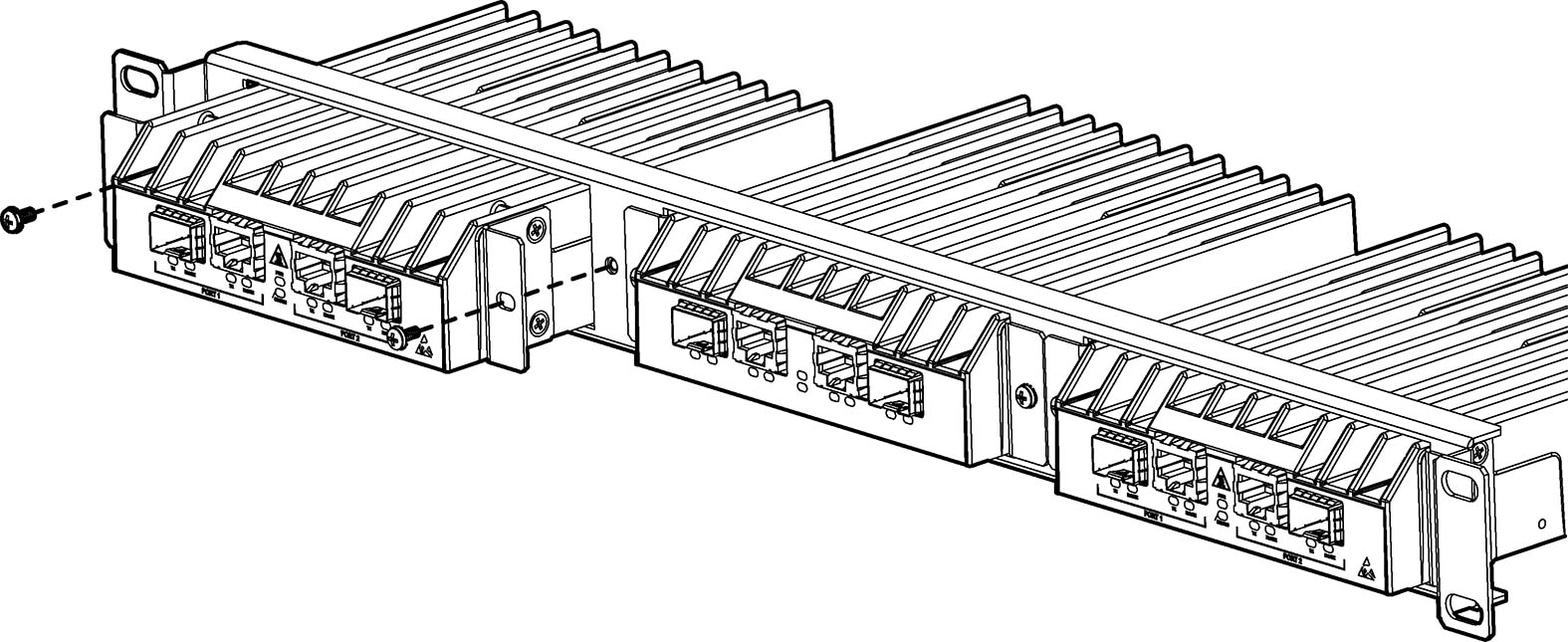

Figure 3. Slide the Module

Step 3

Align the L-shaped brackets with the pre-drilled holes and secure each Module to the rack mount bracket.

Step 4

Secure the rack-mount bracket to the rack using the fasteners as recommended by the manufacturer.

Ground the Chassis


Note

Grounding is applicable for the DC Power Input Model only.

Note

Statement 7013—Equipment Grounding Systems—Common Bonding Network (CBN)

This equipment is suitable for installations using the CBN.

Note

Statement 8016—Installation Location Where the National Electric Code (NEC) Applies

This equipment is suitable for installation in locations where the NEC applies.


Warning

Statement 1101—Connected To Grounded Outlet

In the Scandinavian countries (Denmark, Finland, Iceland, Norway, and Sweden) the appliance must be connected to a grounded outlet.


Warning

For optimal performance, connect the functional ground screw to a suitable grounding point before applying power.
