Stretched VRF Use Case

About the Stretched VRF Use Case

Stretched VRF (intra-VRF) is a common use case where a single (common) VRF is defined in a template that is associated to all the sites (on-premises and cloud sites). A separate template is used to deploy networks for the on-premises site since it is not possible to stretch networks between on-premises and cloud sites.

Stretching the same VRF to all the sites enables the exchanging of prefixes between the sites without having the requirement of any additional routing configuration. CIDR blocks (used to provision subnets in cloud VPCs/VNets) are mapped to this stretched VRF.


Note

Stretching a Layer 2 subnet across on-premises and cloud sites or between cloud sites is not supported.

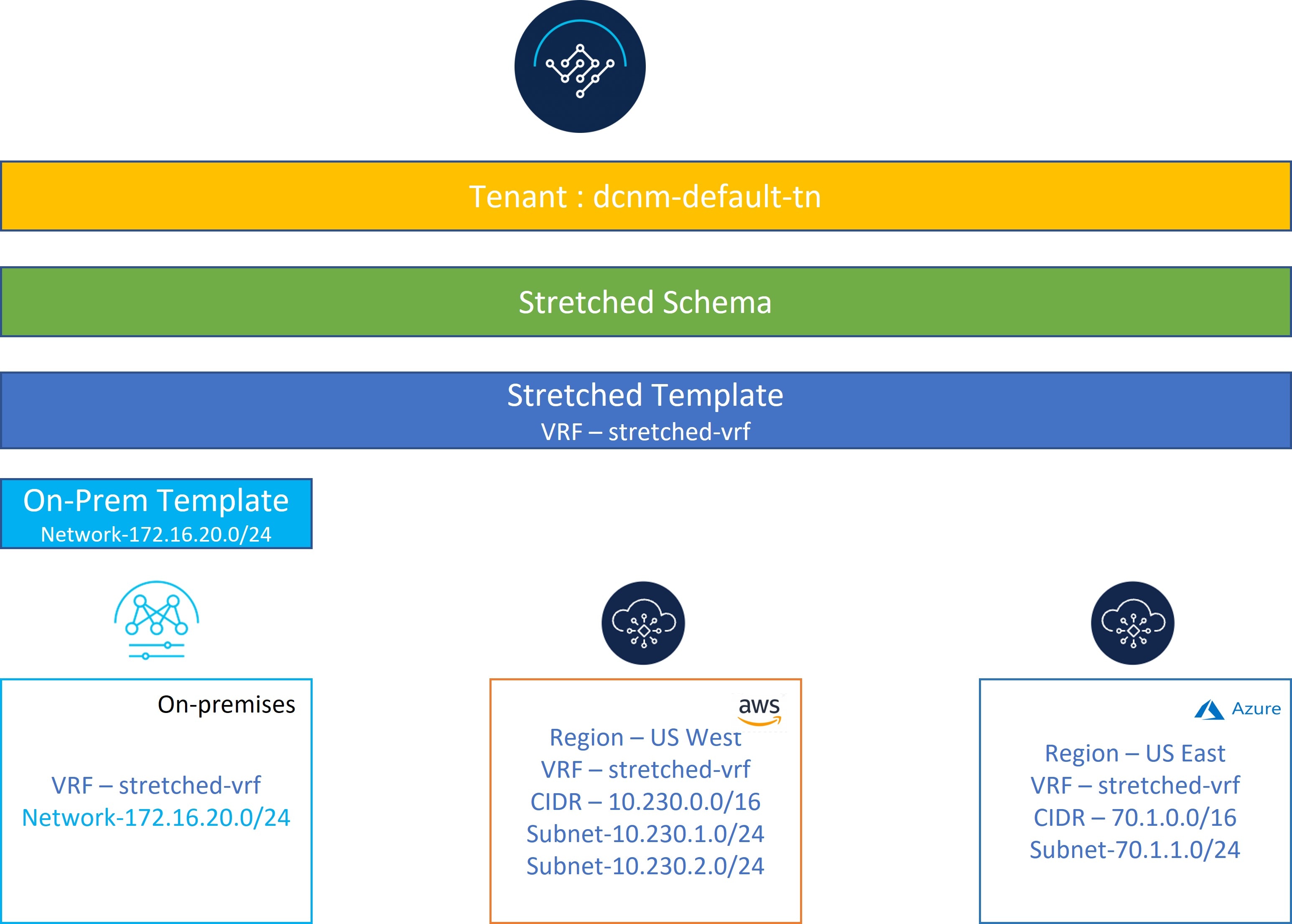

The following figure shows two templates being created under the Demo schema:

  • The Stretched Template, which defines the VRF to be deployed to all three sites. For cloud sites, we define the regions and CIDR blocks under the VRF.

  • The On_Prem Template, which contains the networks to be deployed to the on-premises VXLAN fabric.

Figure 1.

Configure the Stretched VRF Use Case

Procedure

Step 1

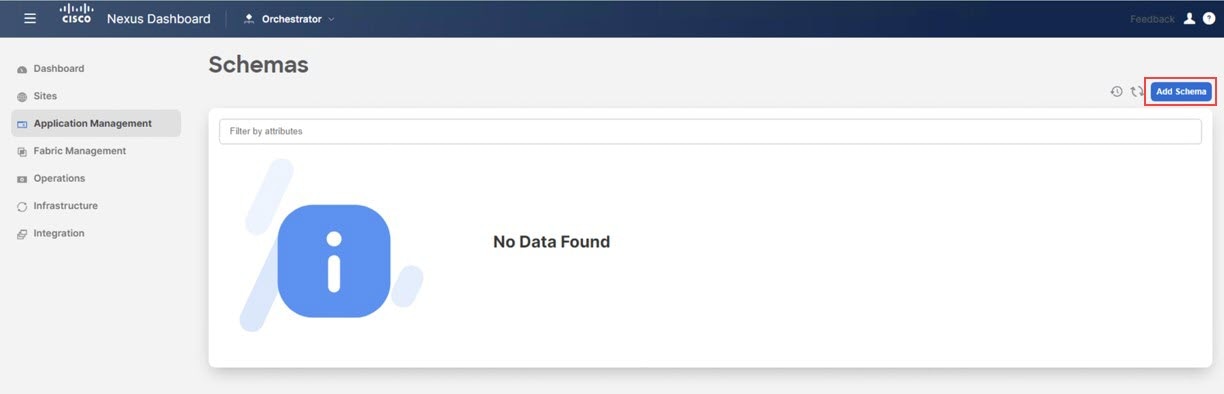

In NDO, navigate to Application Management > Schemas and click Add Schema.

Figure 2.

Step 2

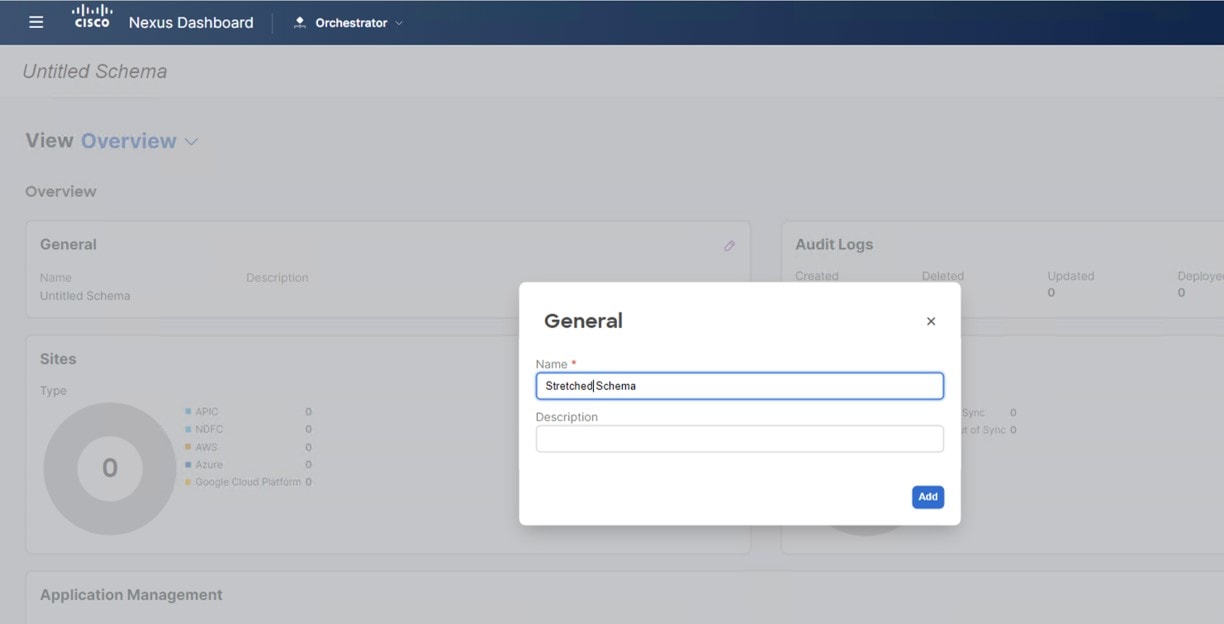

Provide the schema name and click Add.

For this use case, we will name the new schema Stretched Schema.

Figure 3.

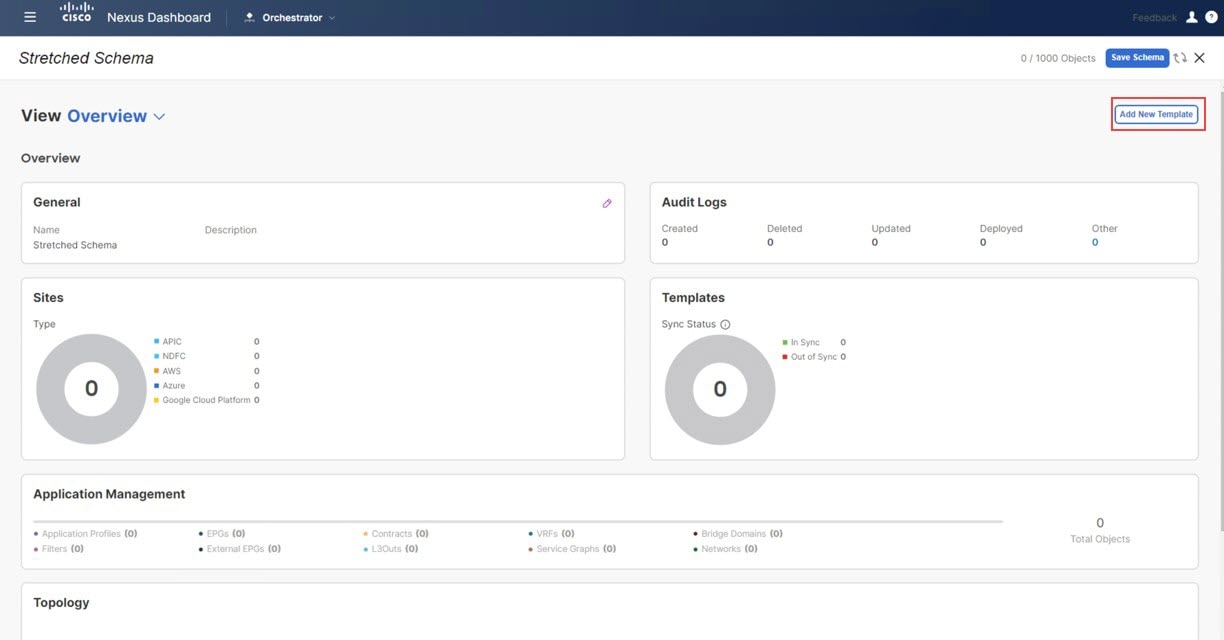

You are returned to the Overview page for the new Stretched Schema schema.

Step 3

Click Add New Template.

Figure 4.

Step 4

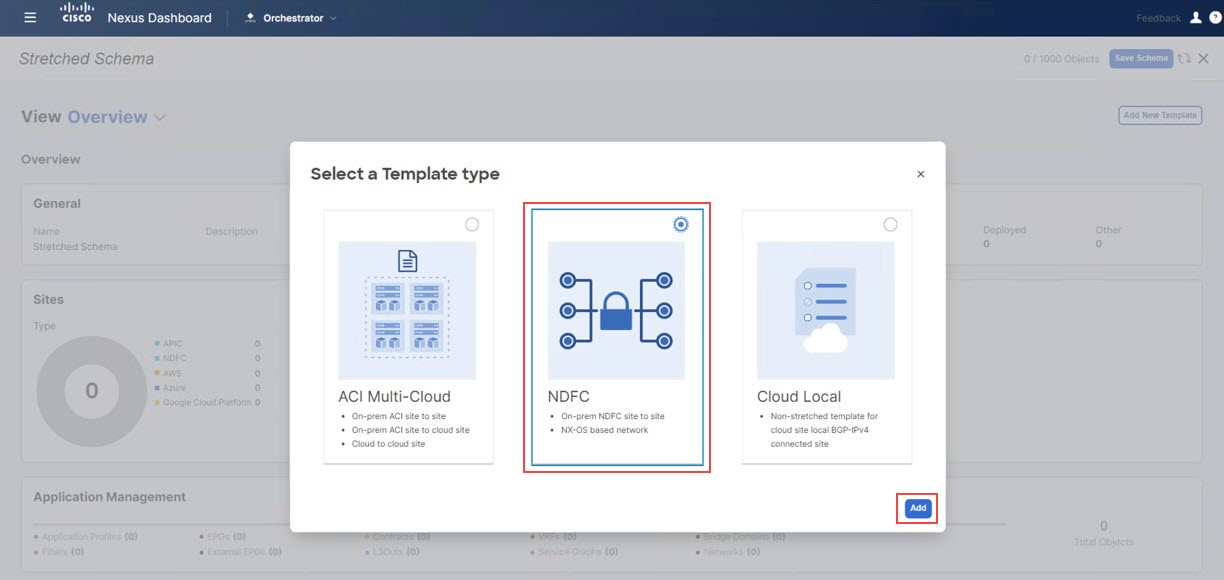

Choose the NDFC template, then click Add.

You should use the NDFC template type for on-premises as well as cloud sites.

Figure 5.

Step 5

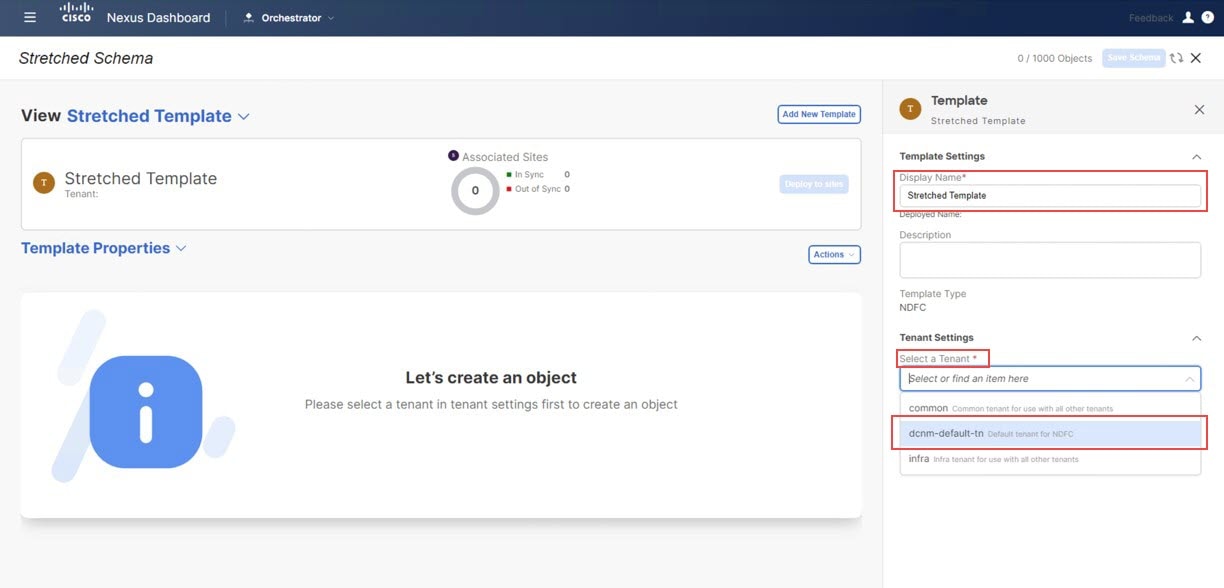

Enter a name in the Display Name field to create an NDFC-type template (for example, Stretched Template) and select the dcnm-default-tn tenant in the Select a Tenant field to map the template to that tenant.

Figure 6.

Step 6

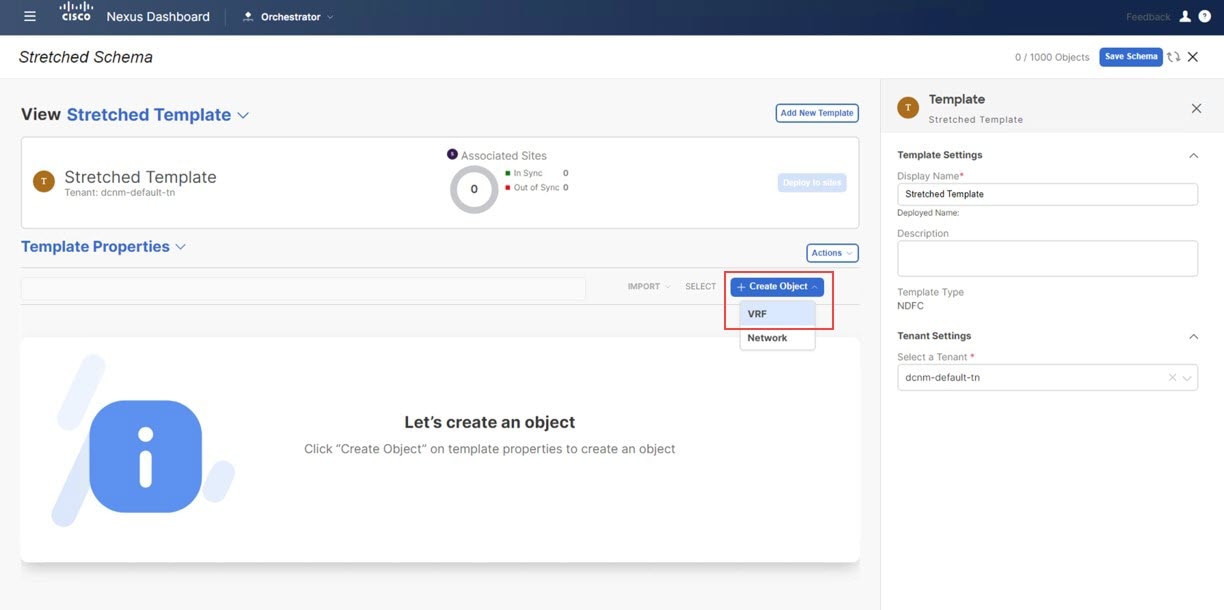

Under Template Properties, click Create Object and choose VRF to create a VRF that will be stretched to all the sites.

Figure 7.
Note

If you have an on-premises VRF already created that you want to use instead of creating a new VRF, under Template Properties, click Import, then import the already-created VRF.

Currently, we only support importing VRFs and networks from on-premises sites.

Step 7

Enter a name in the Display Name field for the stretched VRF (for example, stretched-vrf).

Figure 8.

Step 8

Associate all the sites (on-premises and cloud sites) to Stretched Template for the stretched VRF use case.

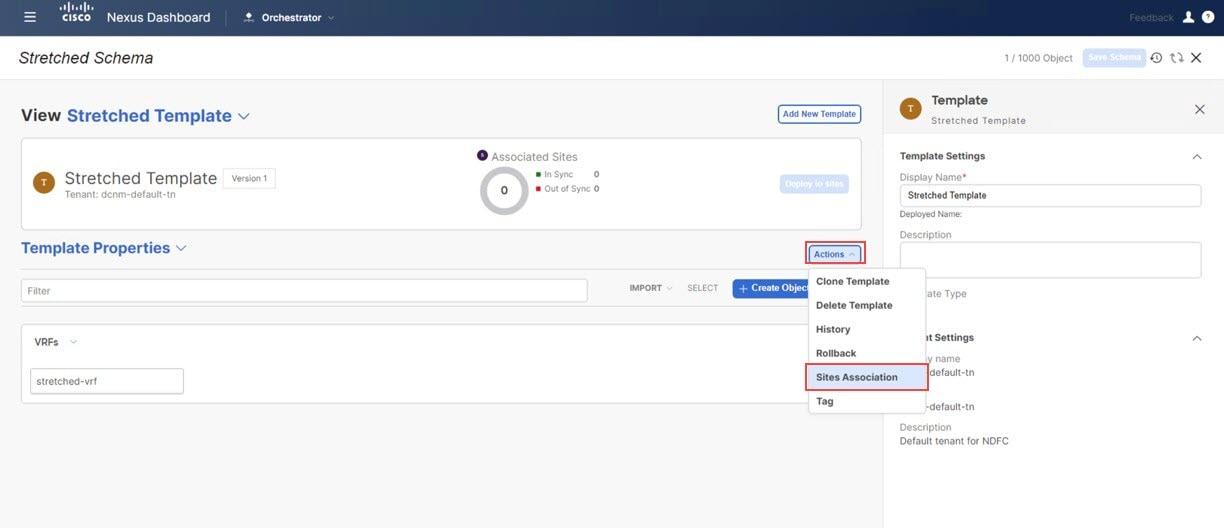

  1. In the Template Properties area, click Actions > Sites Association.

    Figure 9.

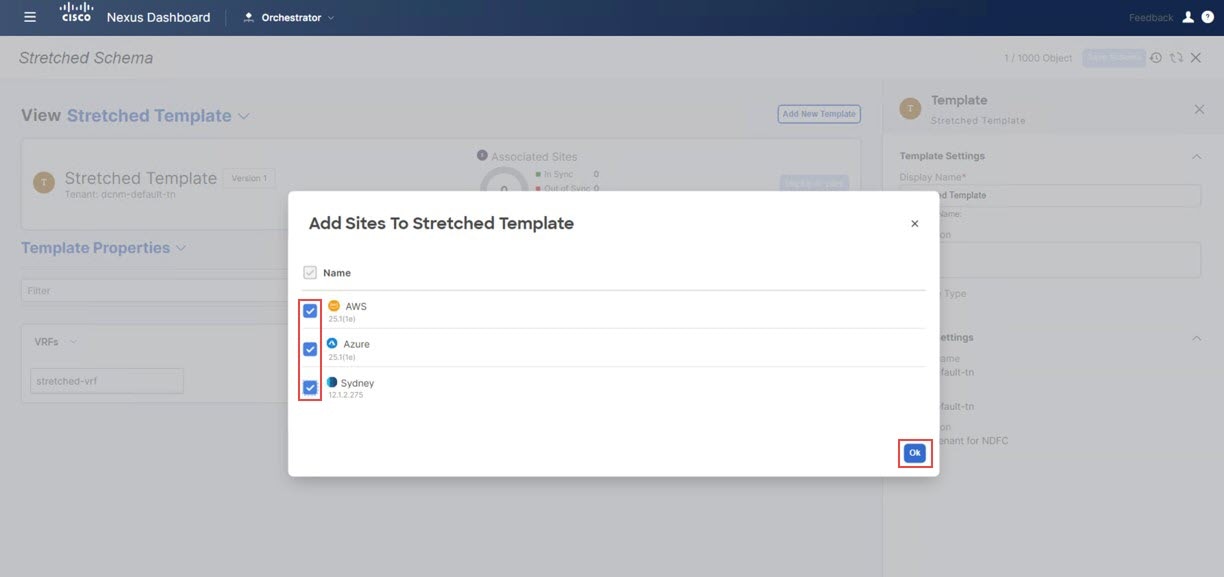

  2. Select all the sites, then click Ok.

    This also allows you to select each site individually to provision site-level configurations for the objects defined in this template (in this specific case, just the stretched VRF).

    Figure 10.

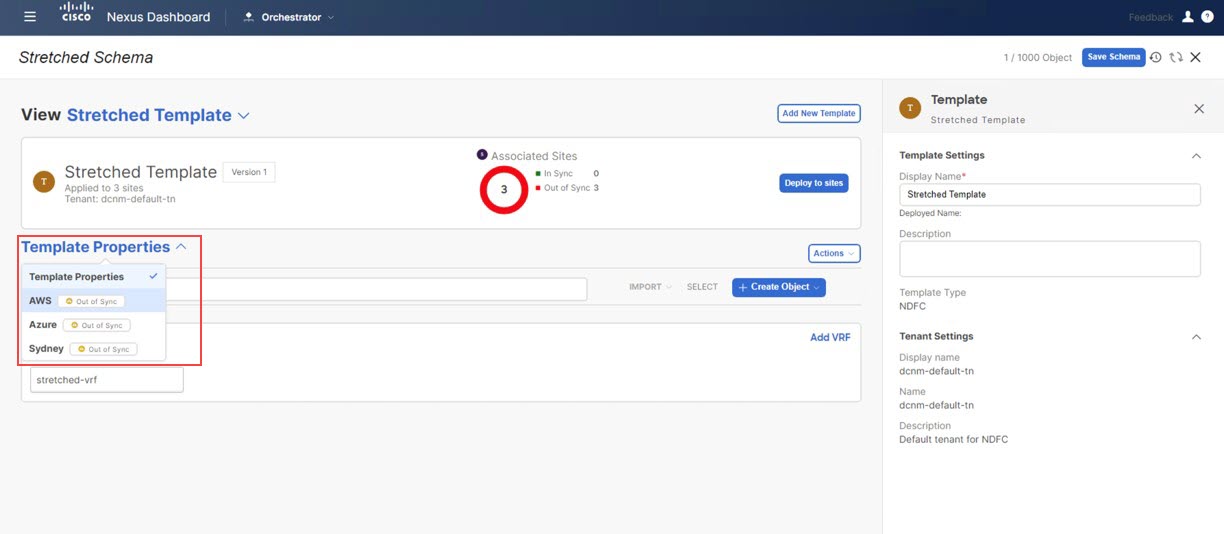

    Once the sites are associated with the template, they will appear under Template Properties.

    Figure 11.

Step 9

Click Template Properties and select the first cloud site (the AWS site in this example use case), then associate the VRF to the appropriate regions to create the VPC.

  1. Click the VRF, then click Add Region to create the VPC in the selected region.

    Figure 12.
    The Add Cloud Region CIDRs window appears.

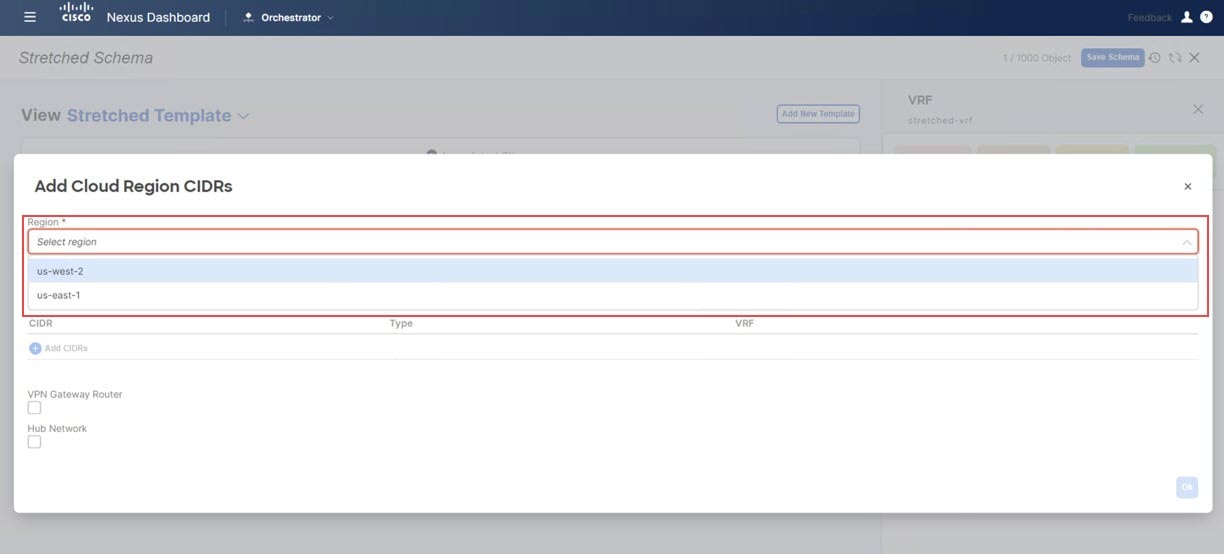

  2. In the Region field, choose the region where you want to create the VPC.

    Figure 13.

  3. In the CIDR field, click Add CIDRs and define a CIDR block for the VPC.

  4. Click Add Subnet to create the subnets and map them to the availability zones, then click Save.

    Figure 14.

  5. Check the box under the Hub Network field, then select the hub network that was created on the Cisco Cloud Network Controller for AWS.

    This allows the Cisco Cloud Network Controller to attach the subnets onto the transit gateway, which builds the connectivity from those subnets to the transit gateway, where the transit gateway already has the connectivity to the Cisco Catalyst 8000Vs in the cloud.

  6. In the Subnets field, map the subnets that will be used for the transit gateway.

    It is best practice to have a dedicated subnet that will be used for the transit gateway.

    Figure 15.
    Note

    Alternatively, a dedicated /25 subnet per availability zone can be used for connectivity to a hub network (TGW). This will allow the entire end-point subnets to be used for end hosts.

  7. Click Ok.

    You are returned to the AWS template window.

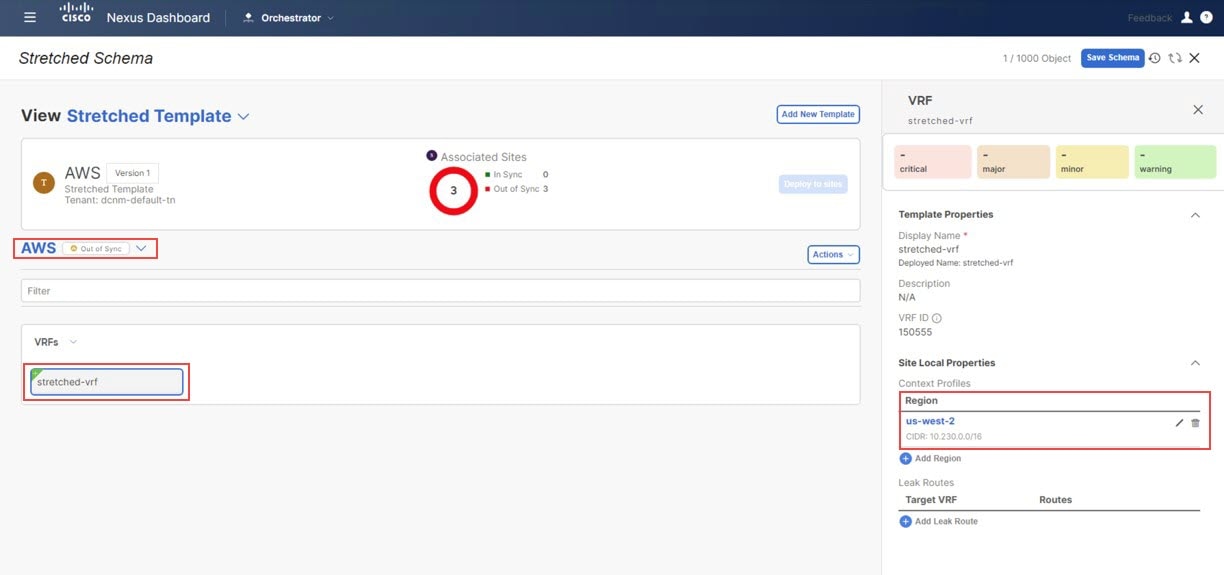

    When this configuration is deployed, a VPC with CIDR 10.230.0.0/16 will be created in the AWS cloud, stretching between the us-west-2a and us-west-2b availability zones, with the 10.230.1.0/24 and 10.230.2.0/24 subnets created respectively.

    Figure 16.

Step 10

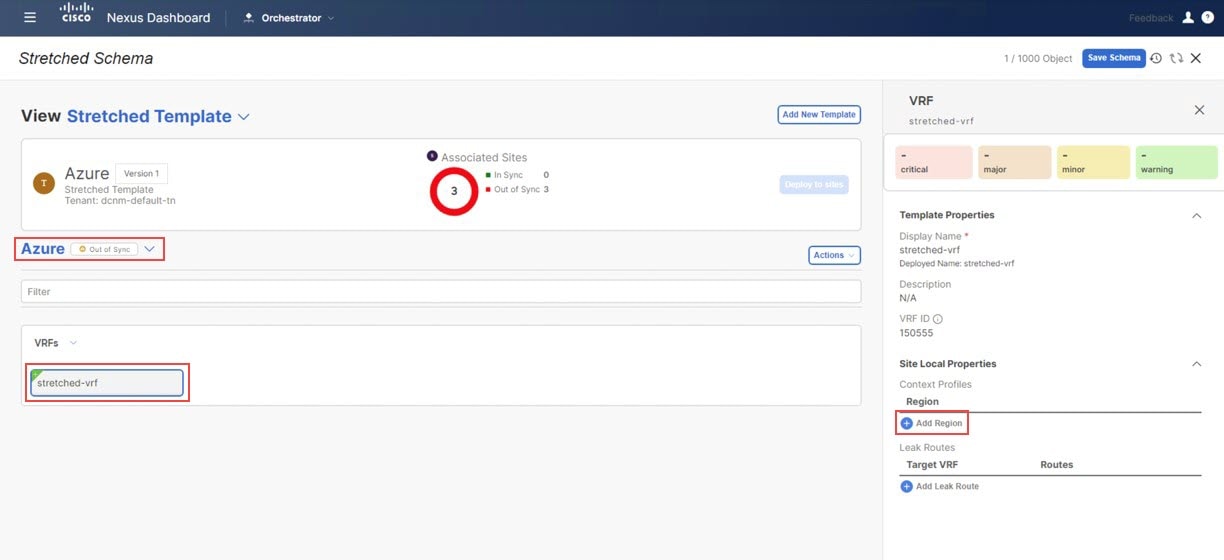

Click Template Properties and select the second cloud site (the Azure site in this example use case), then associate the VRF to the appropriate region to create the VNet.

  1. Click the VRF, then click Add Region to create the VNet in the selected region.

    Figure 17.
    The Add Cloud Region CIDRs window appears.

  2. In the Region field, choose the region where you want to create the VNet.

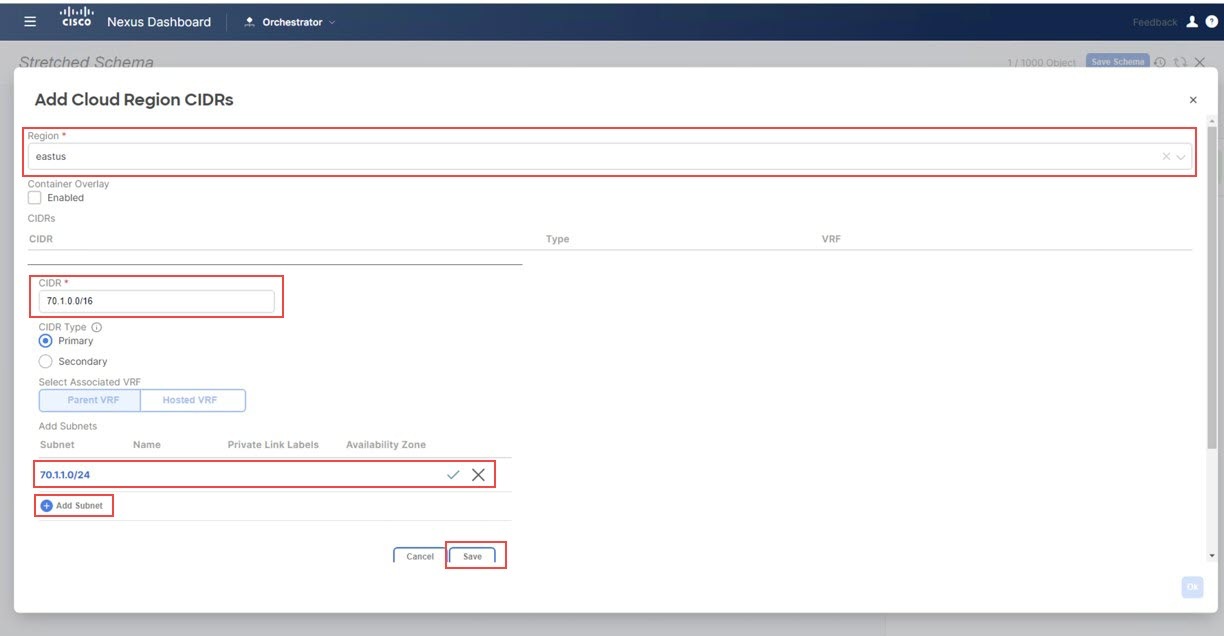

  3. In the CIDR field, click Add CIDRs and define a CIDR block for the VNet.

  4. Click Add Subnet to create the subnets, then click Save.

    Figure 18.

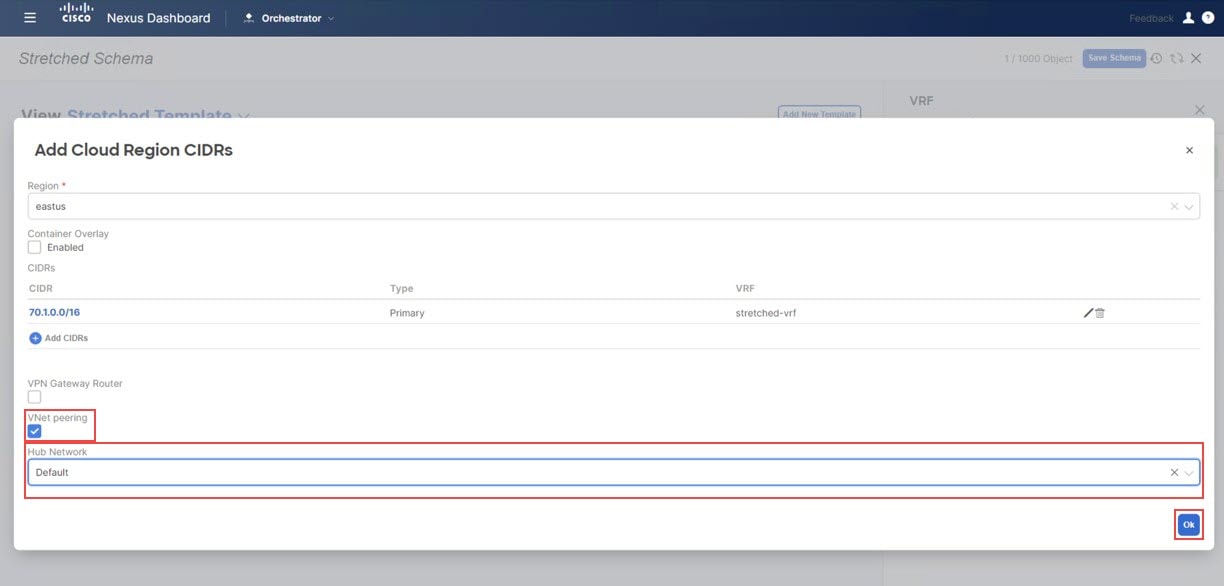

  5. Check the box under the VNet Peering field, then select the Default hub network that was created on the Cisco Cloud Network Controller for Azure.

    Figure 19.

  6. Click Ok.

    When this configuration is deployed, the VNet that you configured (in this example, 70.1.0.0/16) will be created on the appropriate region in Azure (in this example, the eastus Azure region) and VNet peering is configured to the infra VNet in the infra tenant in Azure.

    Figure 20.

Step 11

Click Template Properties and select the on-premises site (the Sydney site in this example use case), then select the stretched-vrf VRF.

Step 12

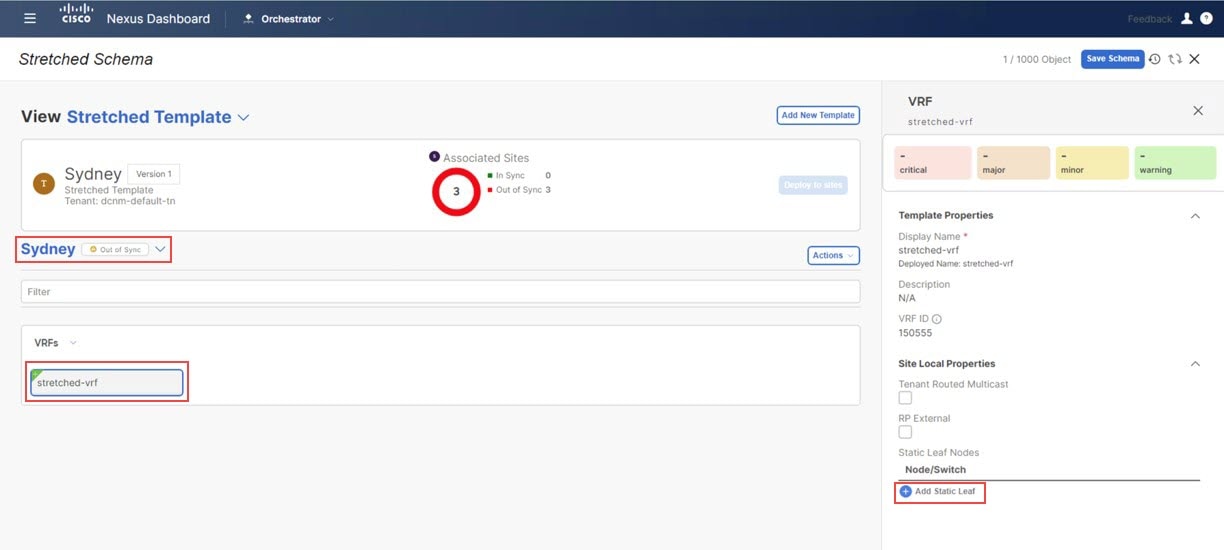

In the right pane, click Add Static Leaf.

Figure 21.
The Add Static Leaf window appears.

Step 13

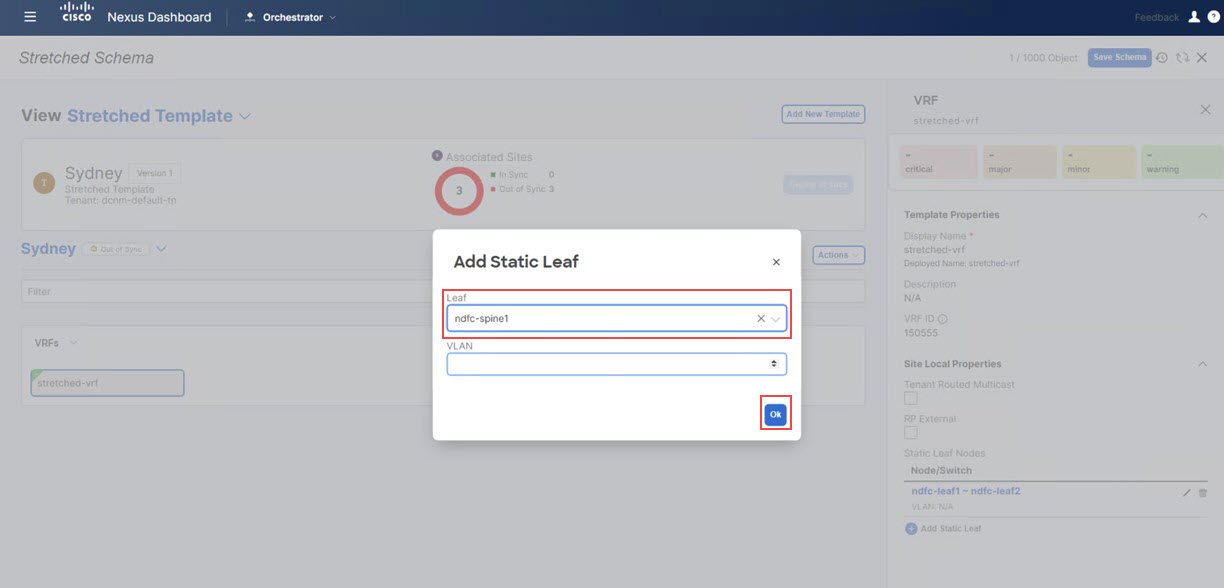

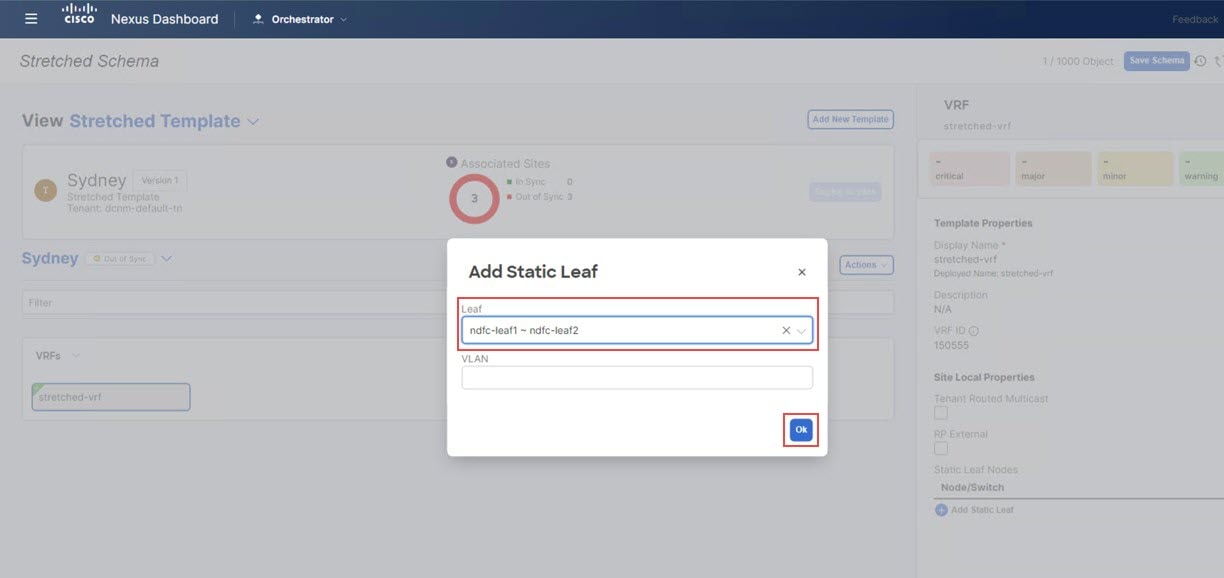

In the Leaf field, select the leaf/border/border gateway device where this VRF is to be deployed and click Ok.

Figure 22.
You are returned to the Stretched Template page.

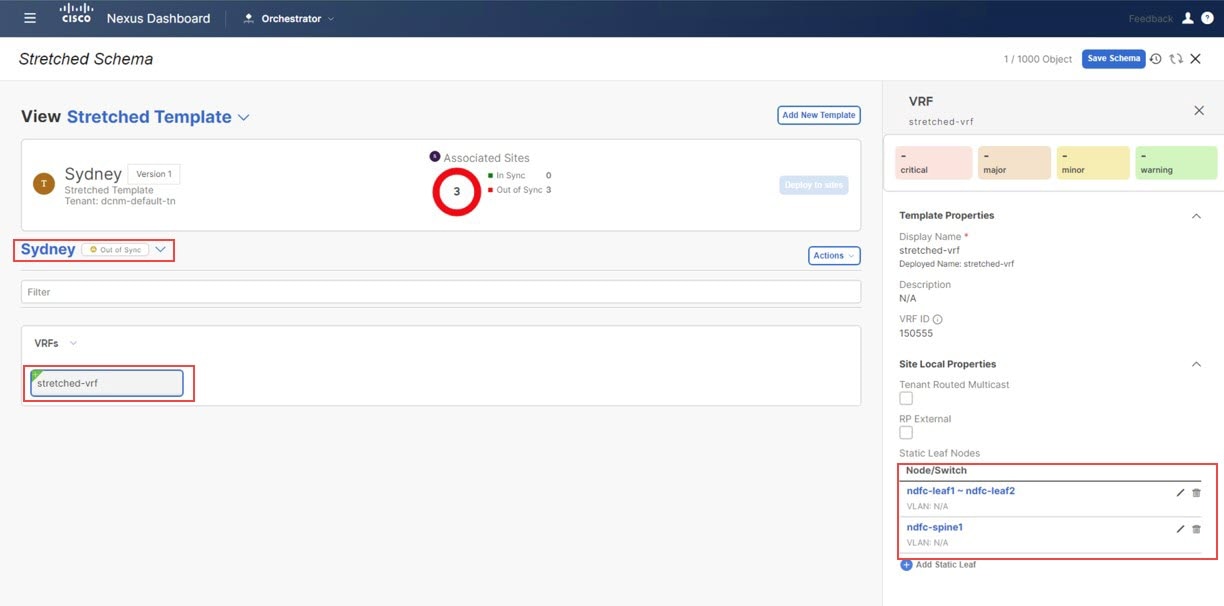

Step 14

Click Add Static Leaf again to add additional leaf/border/border gateway devices where this VRF is to be deployed.

In this example, you need to deploy the VRF on the leaf nodes (where the endpoints part of the network mapped to the VRF will be connected) and on the BGW spine node to be able to extend the Layer 3 connectivity for the VRF towards the cloud sites.

Figure 23.

When you have added all of the leaf/border/border gateway devices where this VRF is to be deployed, they will appear in the Stretched Template page.

Figure 24.

Step 15

Click the arrow next to the Sydney site, and from the drop-down menu, select Template Properties.

Step 16

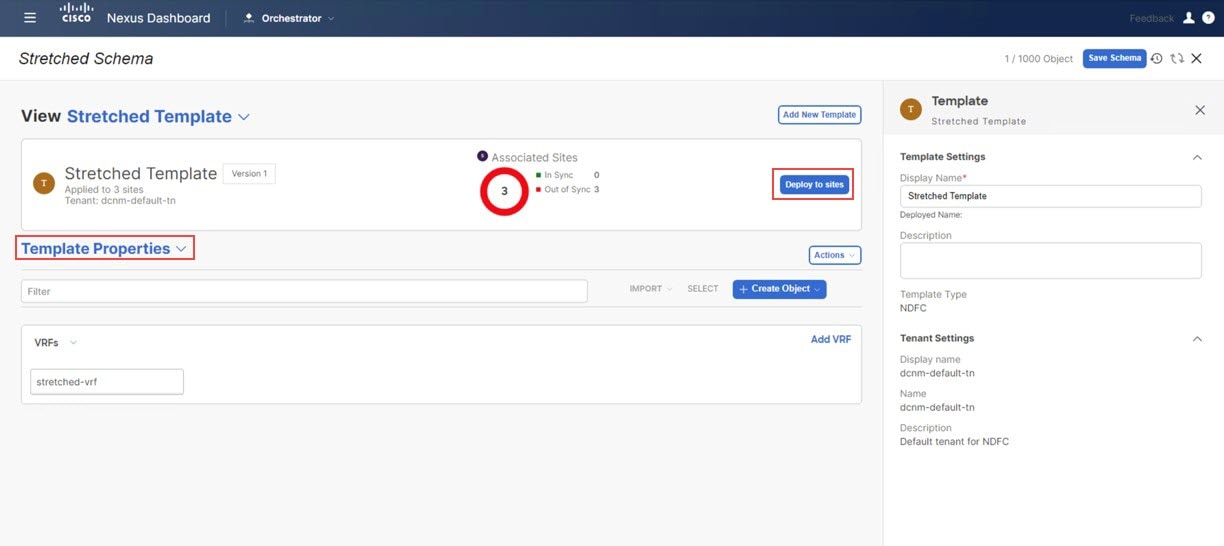

Click Deploy to sites.

Figure 25.

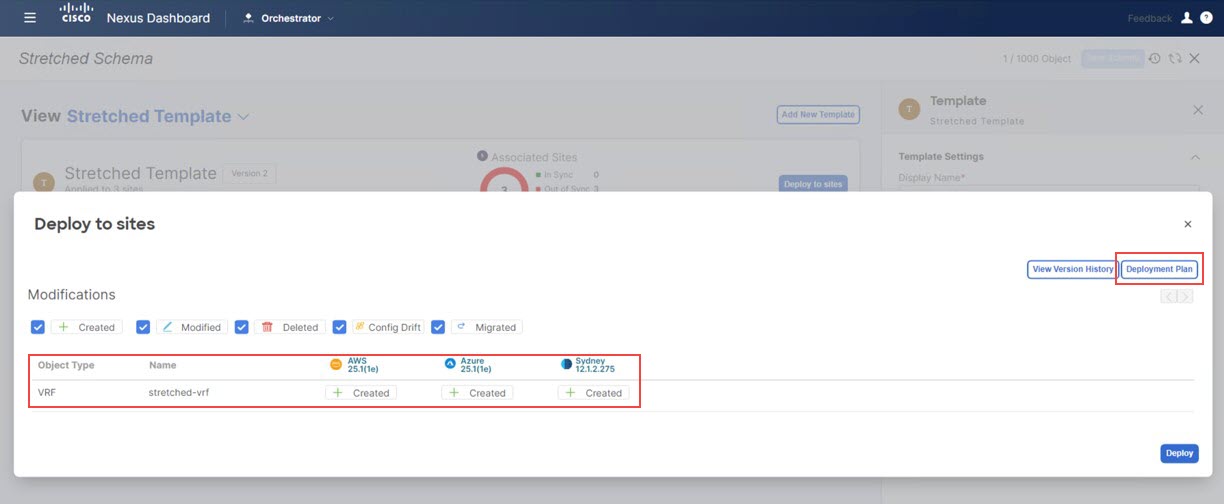

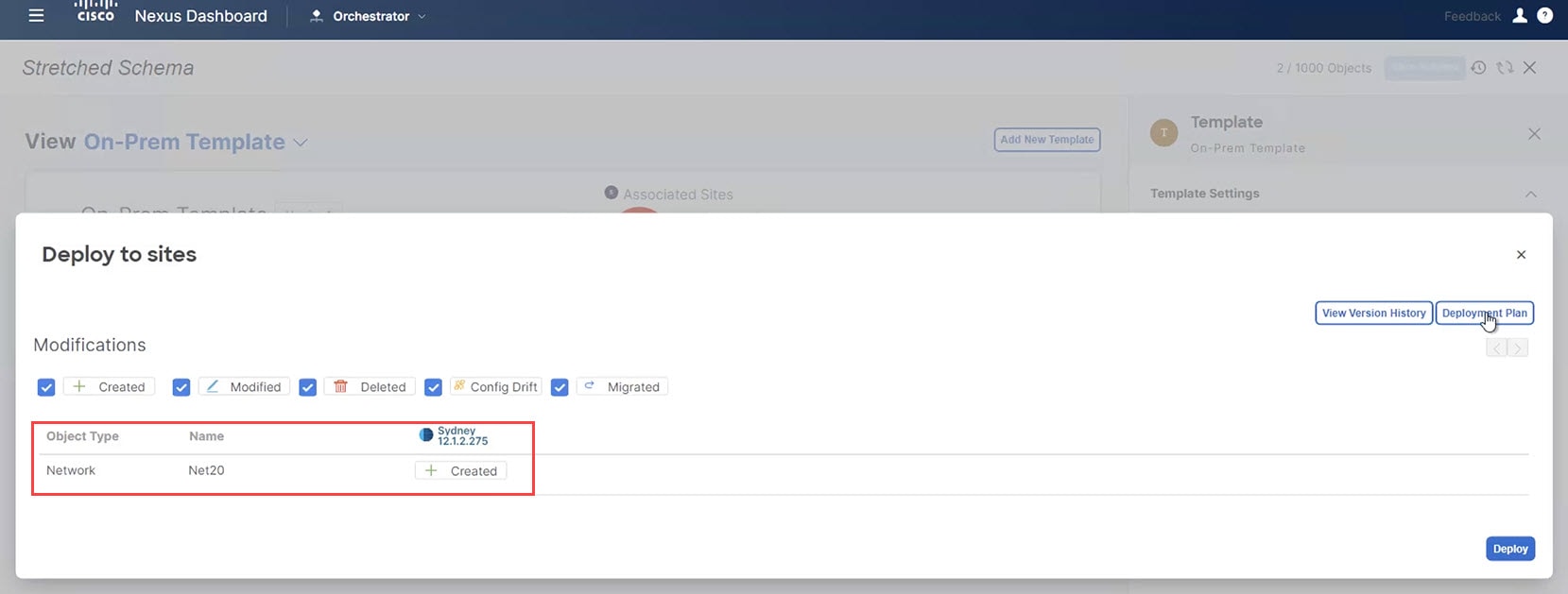

The Deploy to Sites window appears, showing the three sites where the stretched template will be deployed.

Figure 26.

Step 17

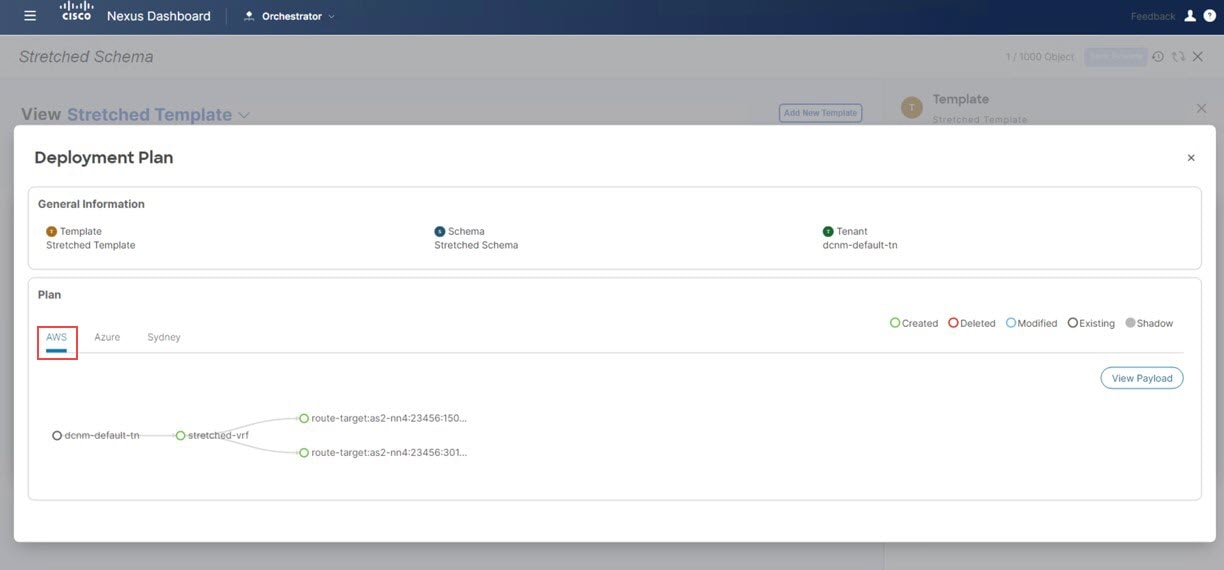

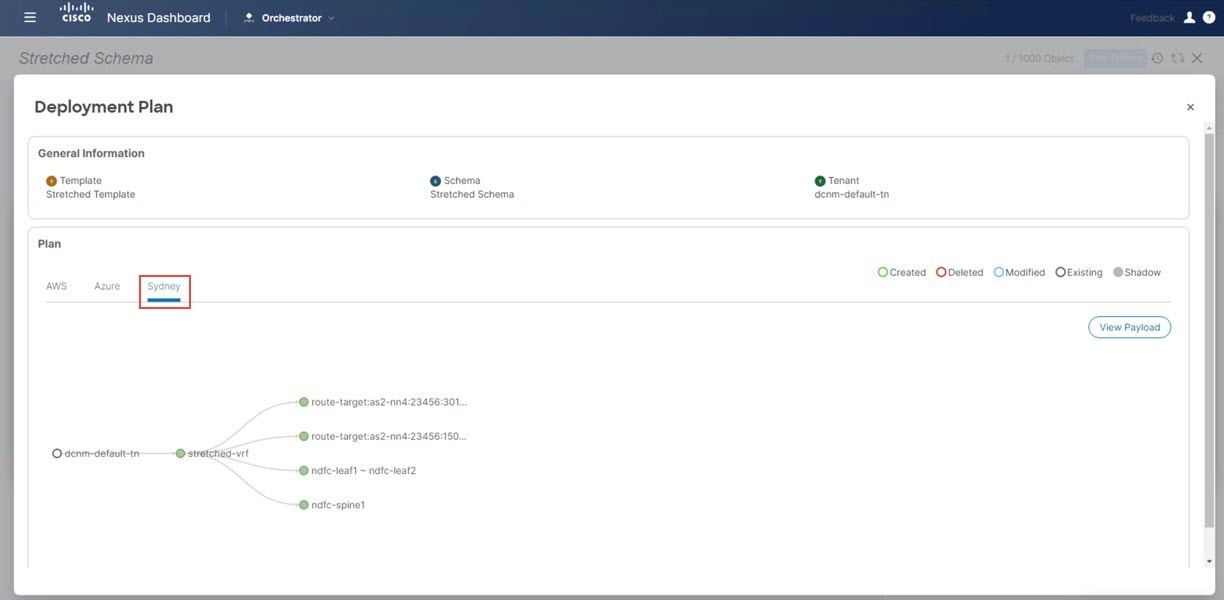

Click Deployment Plan for additional verification, then click on each site to see the deployment plan for that specific site.

Figure 27.
Figure 28.
Figure 29.

Step 18

Click Deploy to have NDO push the configurations to the site specific controllers (NDFC and Cloud Network Controller).

Figure 30.

Step 19

Verify that the configurations were deployed successfully.

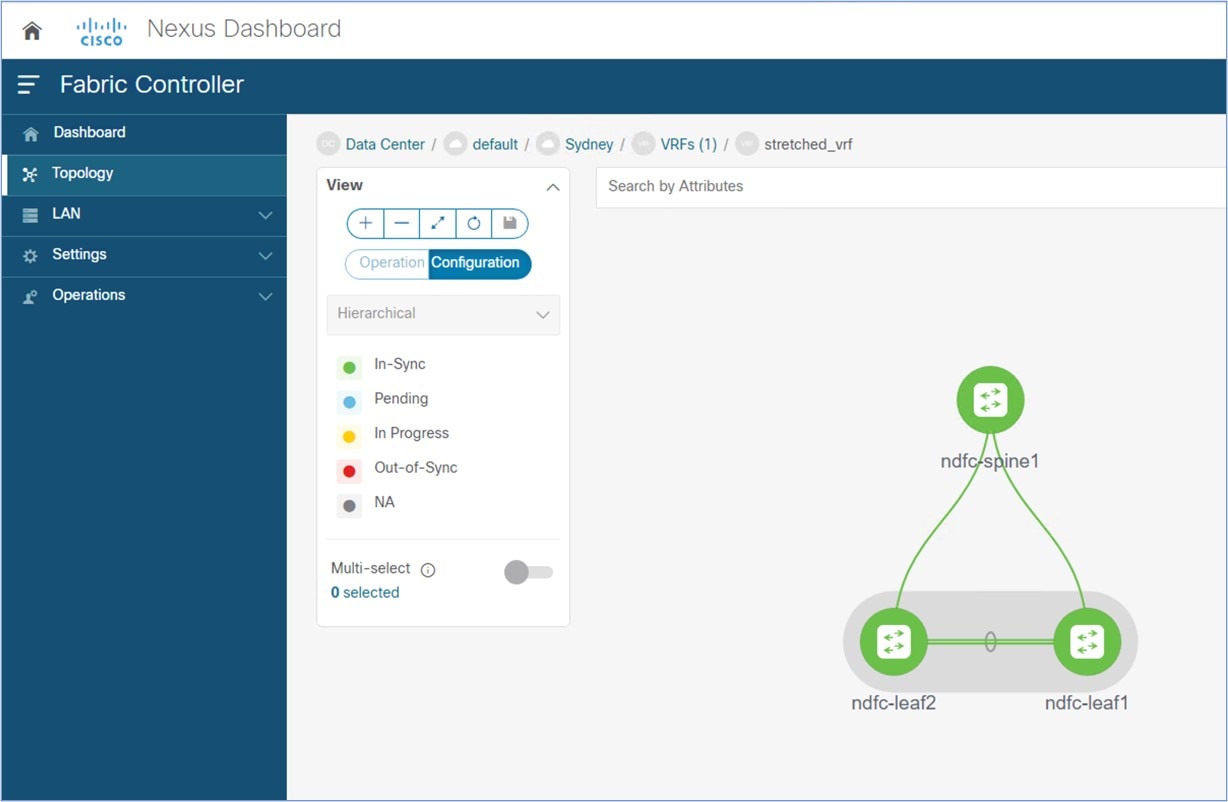

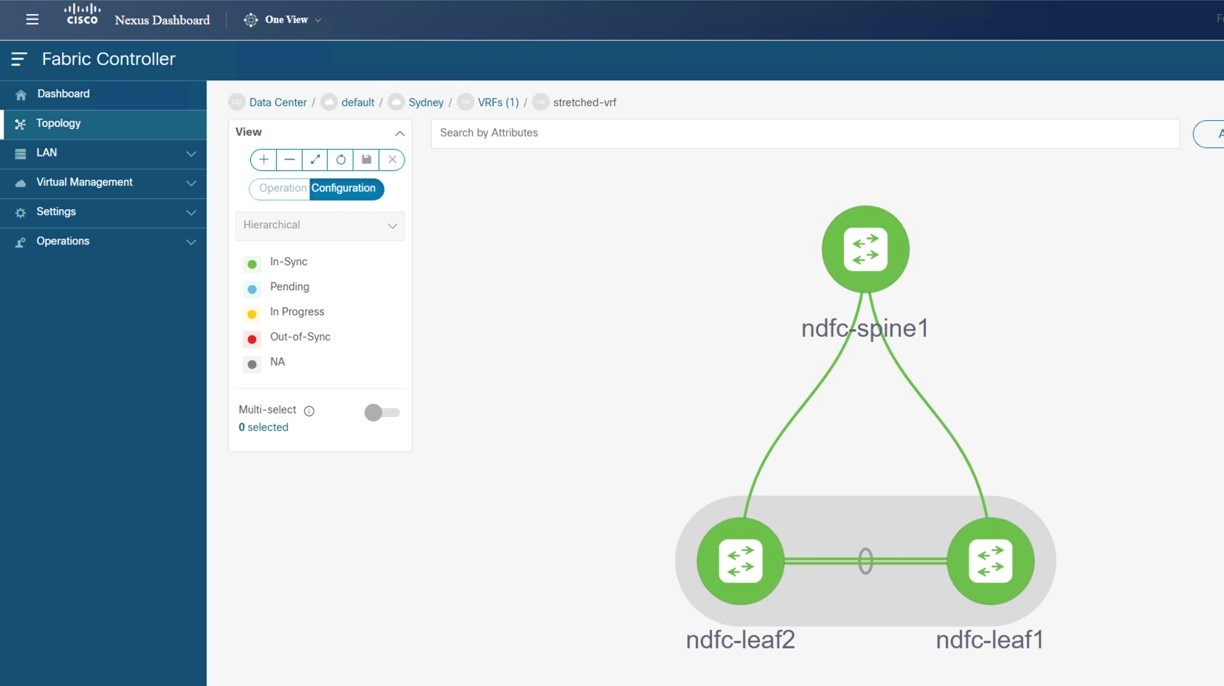

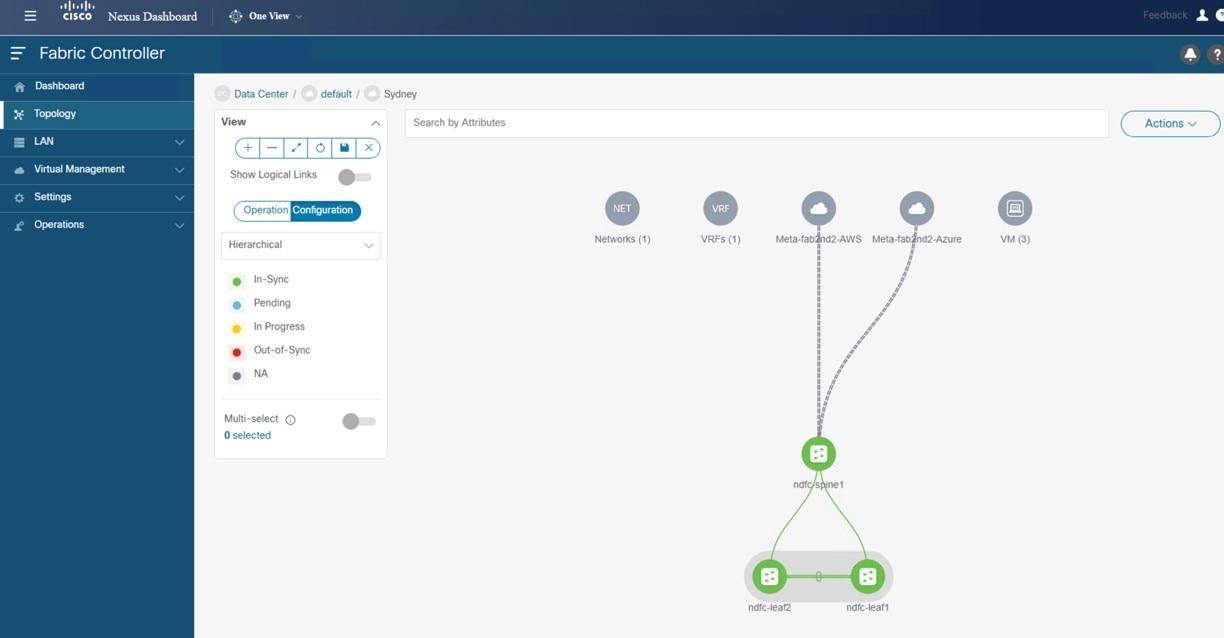

  • To view the VRF deployment on NDFC, go to the Topology view, select the on-premises fabric Sydney > VRFs, then select stretched-vrf.

    Figure 31.

  • Connect to the Cloud Network Controller deployed on AWS to verify that the configurations for the first cloud site (AWS) were deployed successfully.

    Go to Application Management > VRFs, locate stretched-vrf and click under the column VPCs, then go to the Overview page and click under Subnets.

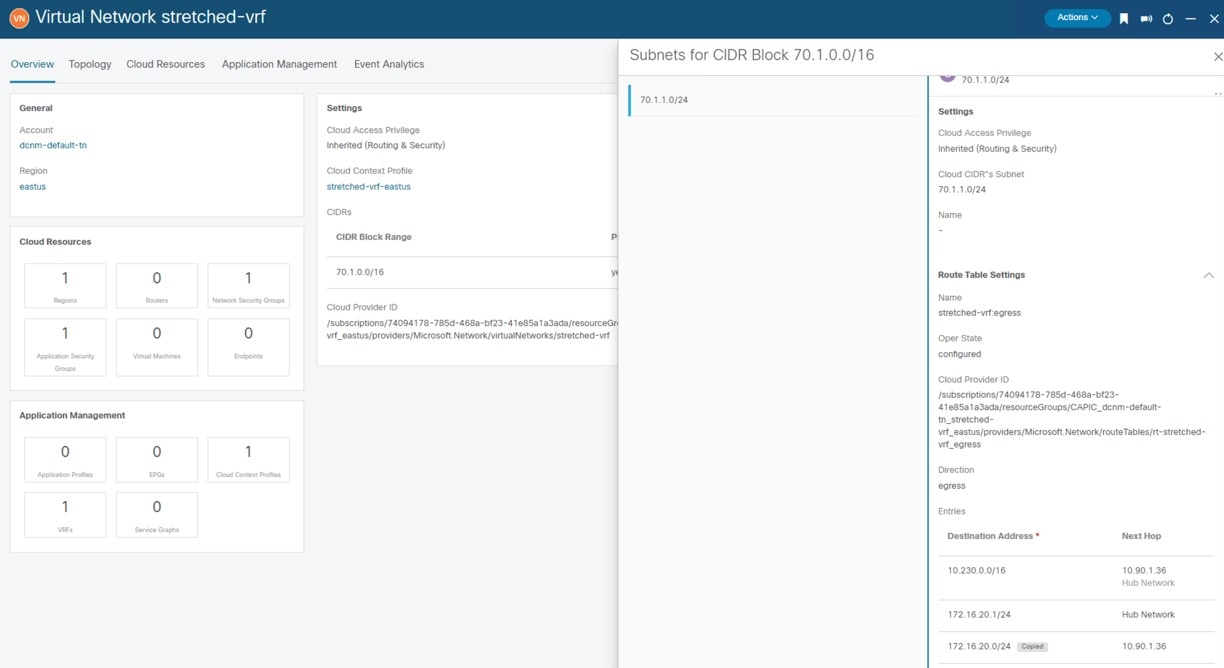

  • Connect to the Cloud Network Controller deployed on Azure to verify that the configurations for the second cloud site (Azure) were deployed successfully.

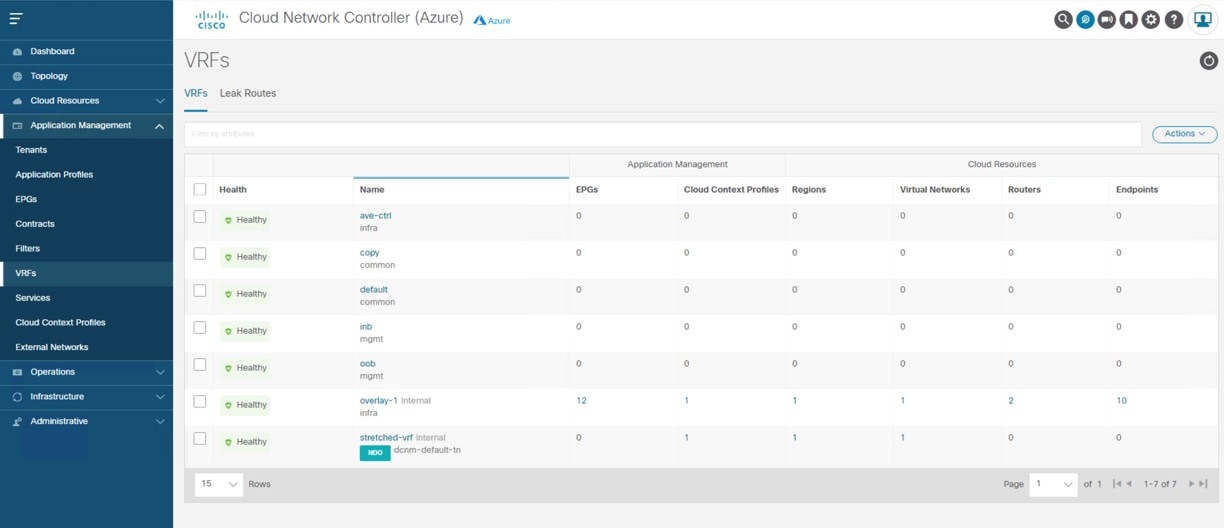

    Go to Application Management > VRFs, locate stretched-vrf and click under the column Virtual Networks, then go to the Overview page and click under Subnets.

Step 20

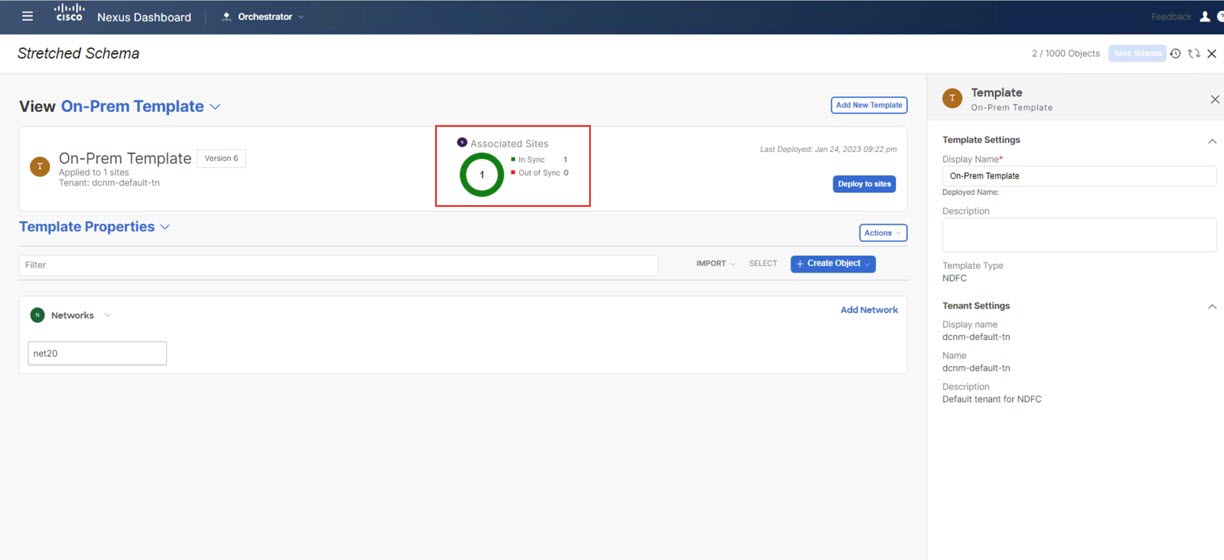

Create another template under Demo Schema for deploying networks on the on-premises site.

  1. Under the Demo Schema template, click Add New Template.

  2. Choose the NDFC template.

  3. Enter a name in the Display Name field to create an NDFC-type template (for example, On-Prem Template) and select the dcnm-default-tn tenant in the Select a Tenant field to map the template to that tenant.

    Figure 32.

Step 21

Create the net20 network under the VRF on On-Prem Template.

Note

If you have a network already created that you want to use instead of creating a new network, under Template Properties, click Import, then import the already-created network.

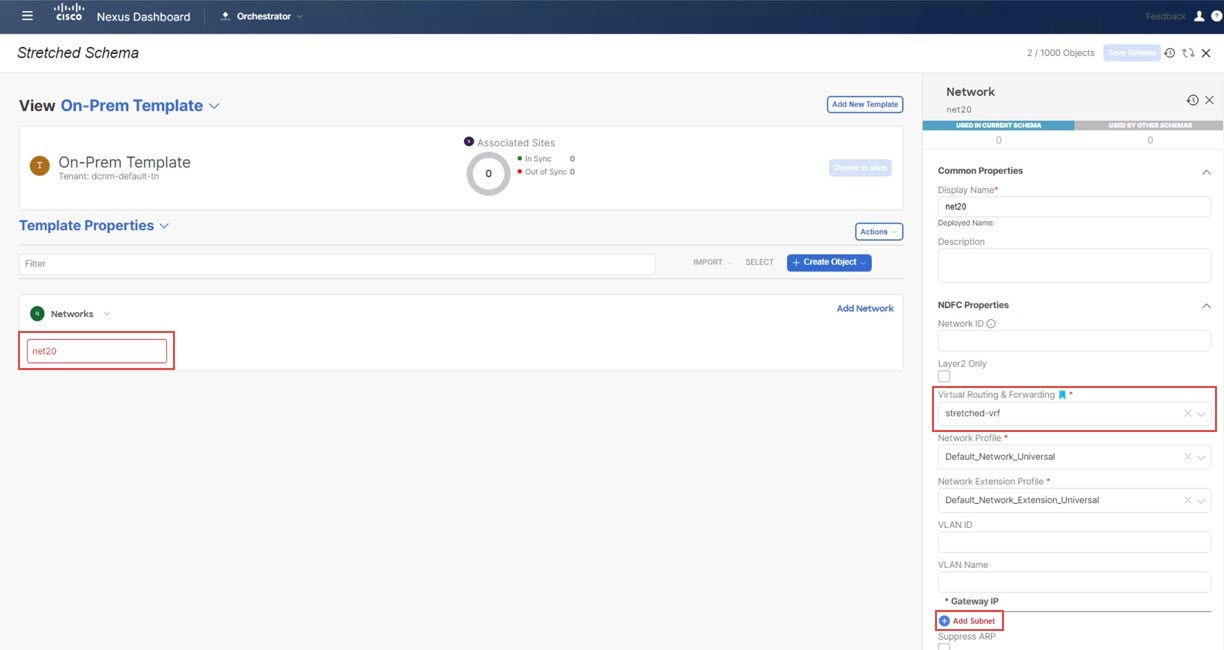

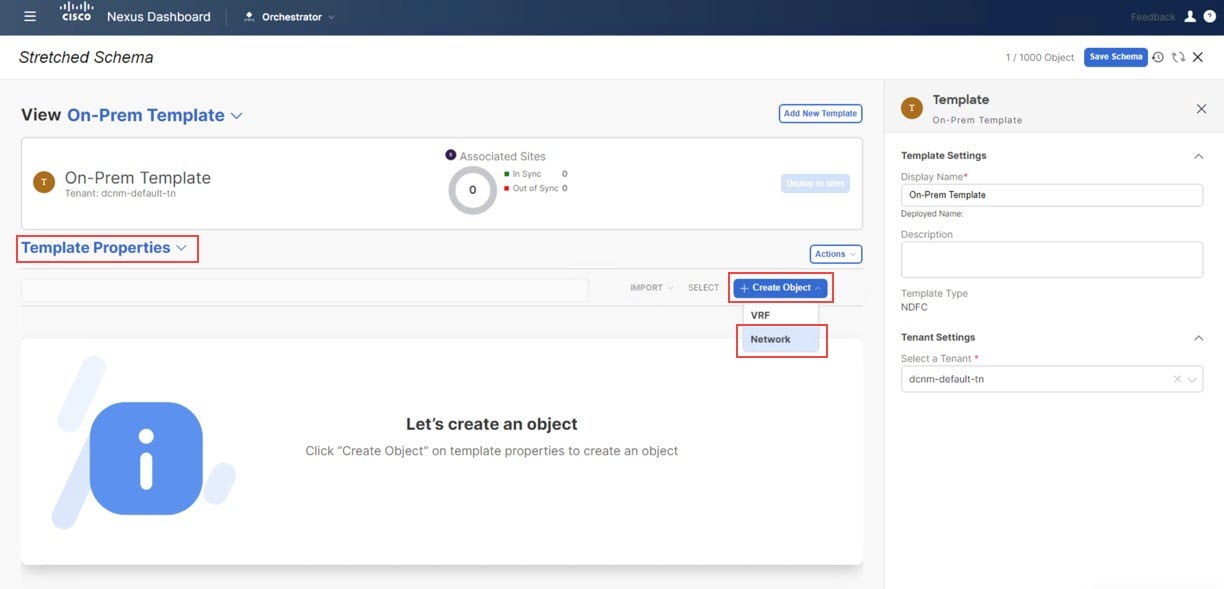

  1. Under Template Properties, click Create Object and choose Network to create a network.

    Figure 33.

  2. Enter a name in the Display Name field for the network (for example, net20).

  3. In the Virtual Routing & Forwarding field, choose the stretched-vrf VRF to map net20 to that VRF.

    Figure 34.

  4. In the Gateway IP field, click Add Subnet.

    The Add Subnet window appears.

  5. Click Add Gateway IP and provide the gateway IP address, then click the checkmark to accept the value and click Add.

    Figure 35.

    The gateway IP address is now displayed in the Gateway IP field.

    Figure 36.

  6. Define other optional parameters for this network, if necessary.

Step 22

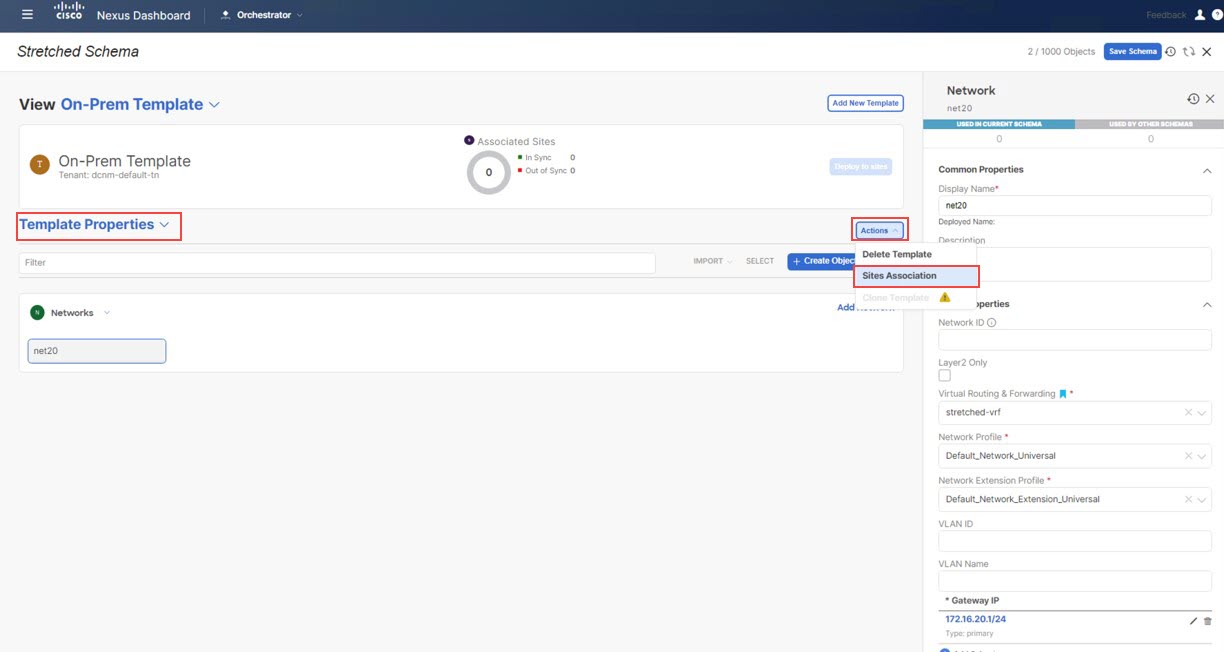

In the Template Properties area, click Actions > Sites Association.

Figure 37.

Step 23

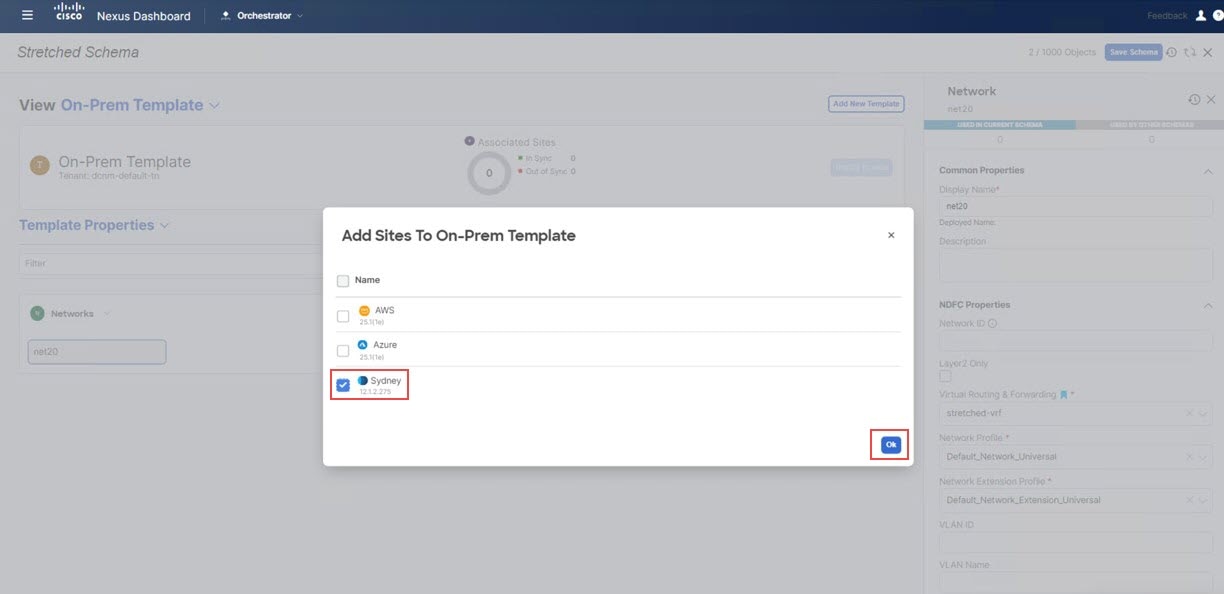

Associate this template only to the on-premises site (the Sydney site in this example use case), then click Ok.

Figure 38.

You are returned to the On-Prem Template window.

Step 24

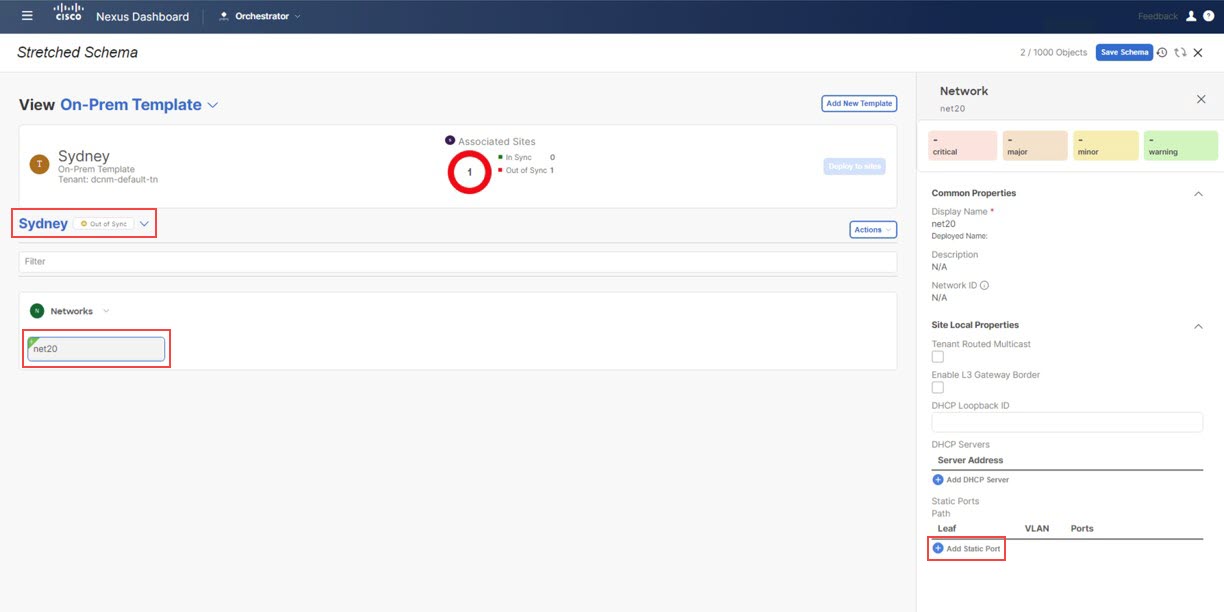

From the Template Properties drop-down, select the on-premises site (the Sydney site in this example use case), click the net20 network, then click Add Static Port to add the ports where you want to deploy this network.

The Add Static Port window appears.
Figure 39.

Step 25

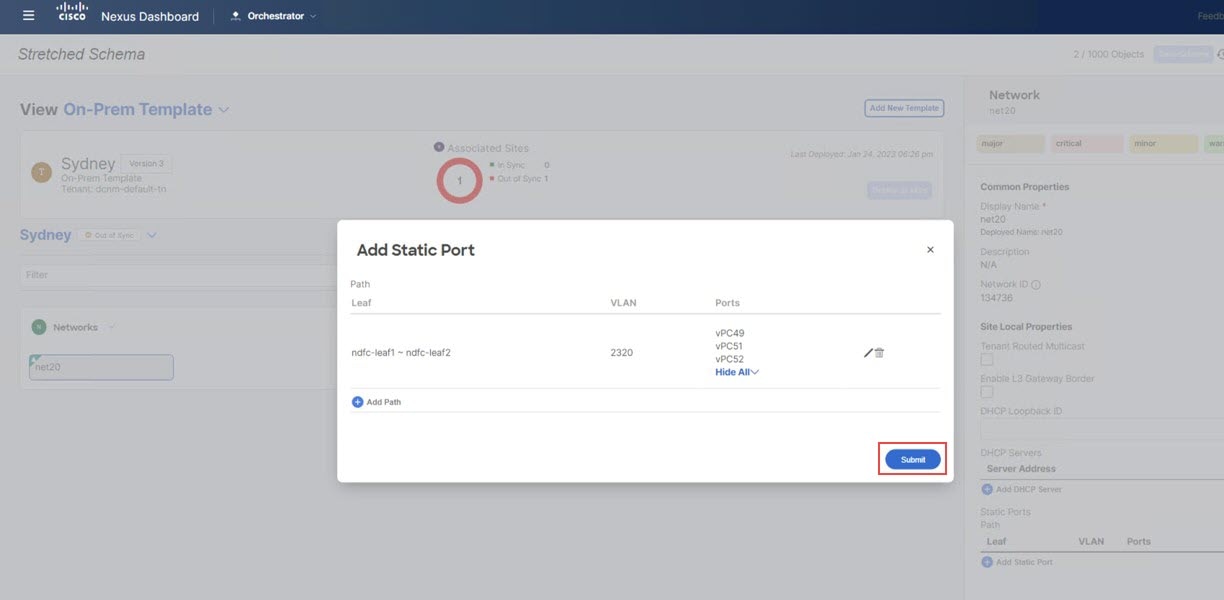

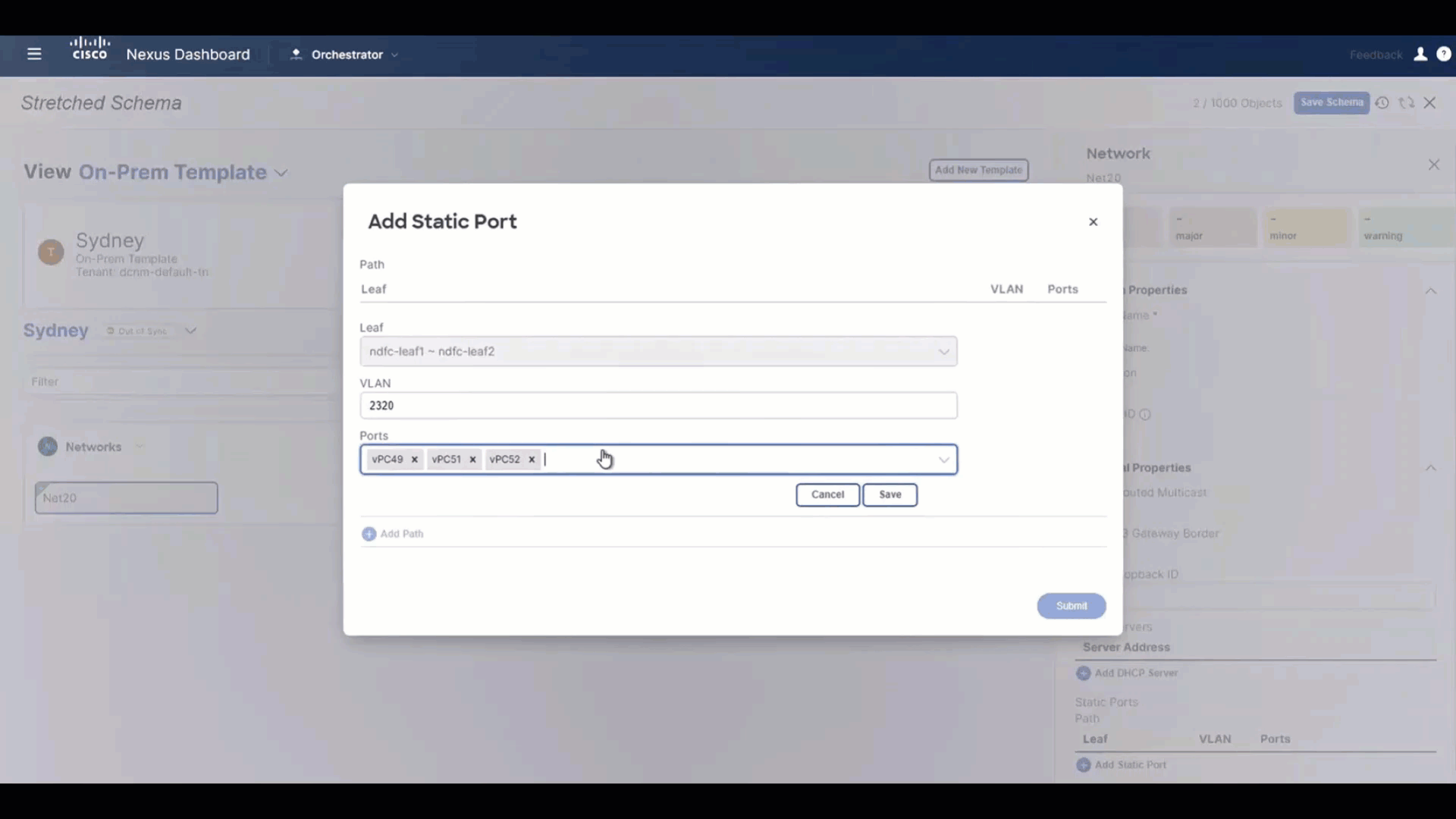

In the Add Static Port window, click Add Path.

The Add Static Port window appears.

Step 26

In the Leaf field, select the device where you want to deploy this network.

Step 27

(Optional) Enter the necessary information in the VLAN field.

Step 28

In the Ports field, select the ports where you want to deploy this network.

Step 29

Click Save.

Figure 40.
You are returned to the Add Static Port window.

Step 30

In the Add Static Port window, click Submit.

Figure 41.

You are returned to the On-Prem Template window.

Step 31

Click the arrow next to the on-premises site (the Sydney site in this example use case), and from the drop-down menu, select Template Properties.

Step 32

Click Deploy to Sites.

Figure 42.

The Deploy to Sites window appears, showing the site where the template will be deployed.

Figure 43.

Step 33

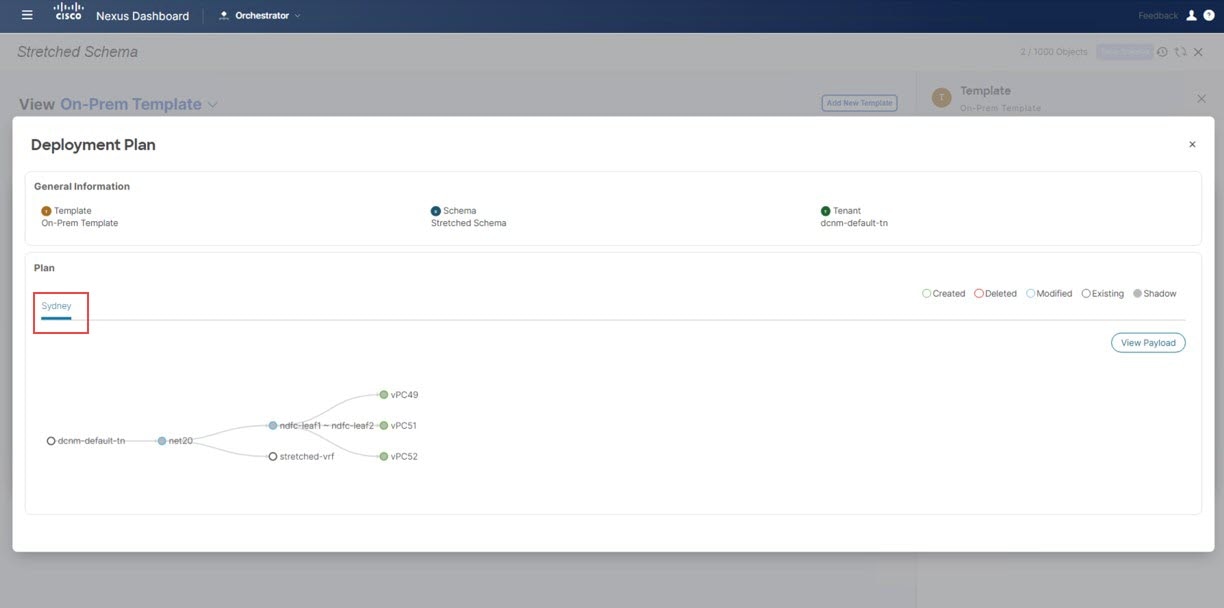

Click Deployment Plan for additional verification, then click on the on-premises site to see the deployment plan for that specific site.

Figure 44.

Step 34

Click Deploy to have NDO push the configurations to NDFC.

Figure 45.

Step 35

Verify that the configurations were deployed successfully.

Note that for each of these verification steps, the exact command that would be used specifically for the configurations in this use case are shown. Replace the appropriate variables in each command based on your configuration.

  1. In NDO, verify that the configurations were deployed successfully.

    • Verify that the Stretched Template was deployed successfully.

      Figure 46.

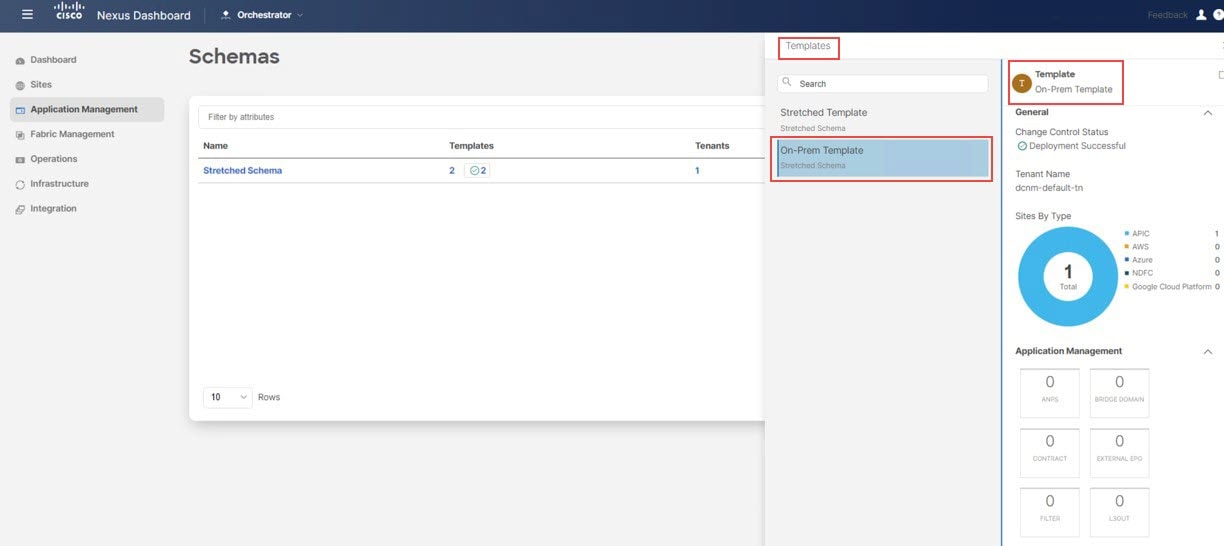

    • Verify that the On-Prem Template was deployed successfully.

      Figure 47.

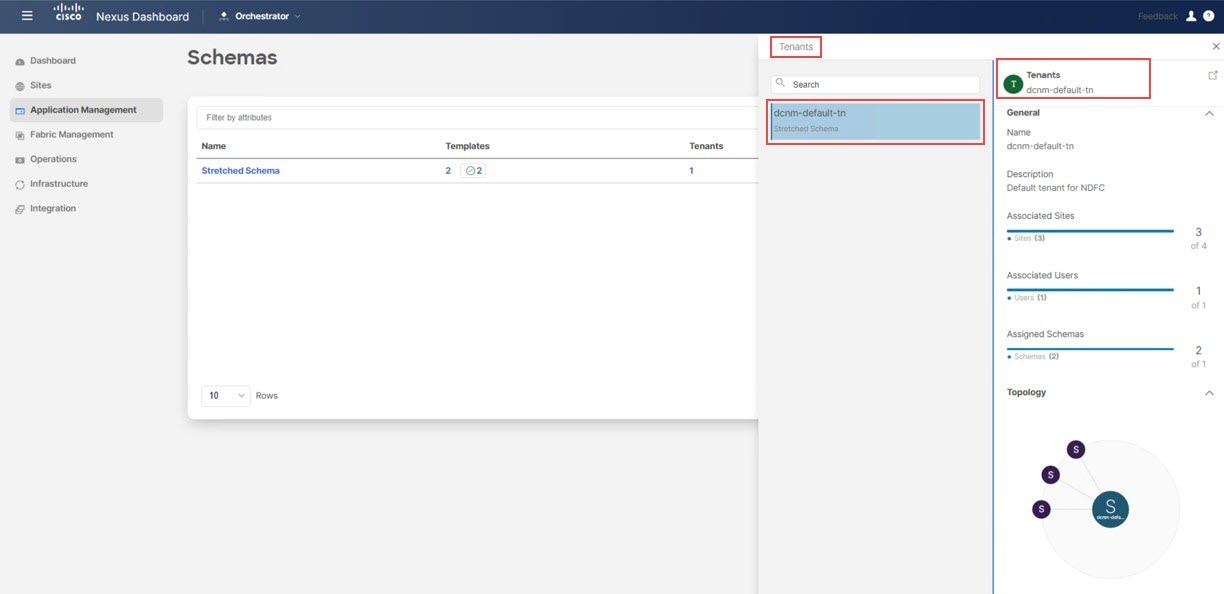

    • Verify that the dcn-default-tn tenant was deployed successfully.

      Figure 48.

  2. In NDFC, verify that the following were done successfully:

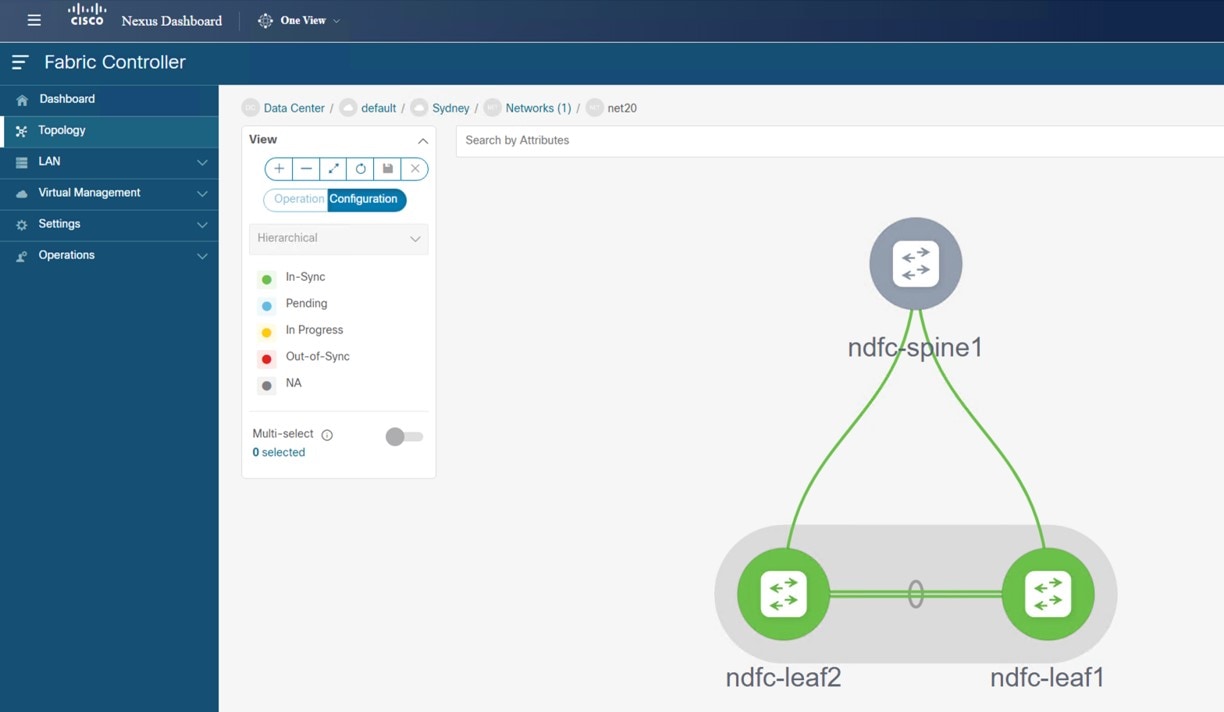

    • Verify that one vrf and one network has been created.

      Figure 49.

    • Verify that the VRF was deployed successfully.

      Figure 50.

    • Verify that the network was deployed successfully.

      Figure 51.

  3. Enter sh ip route vrf stretched-vrf on the on-premises Border Gateway Spine device:

    For this use case, using the routing table, you can verify that the NDFC leaf switch can reach out to the following subnets:

    • AWS: 10.230.0.0/16

    • Azure: 70.1.0.0/16

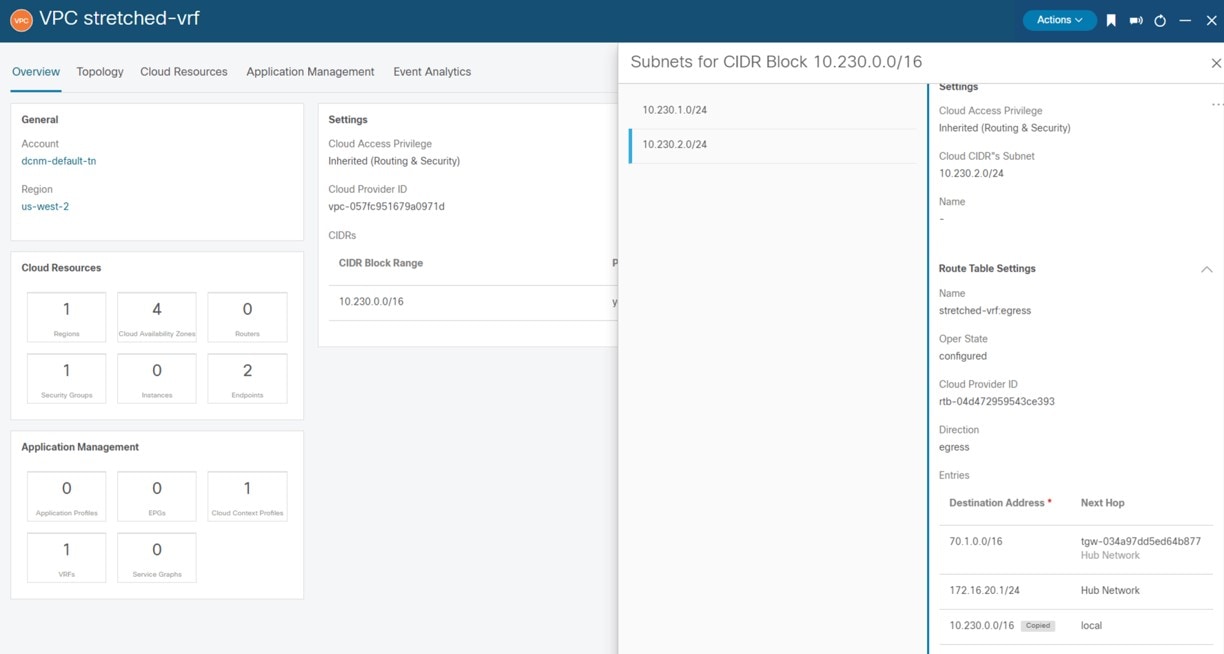

  4. Connect to the Cloud Network Controller deployed on AWS and make the following verifications:

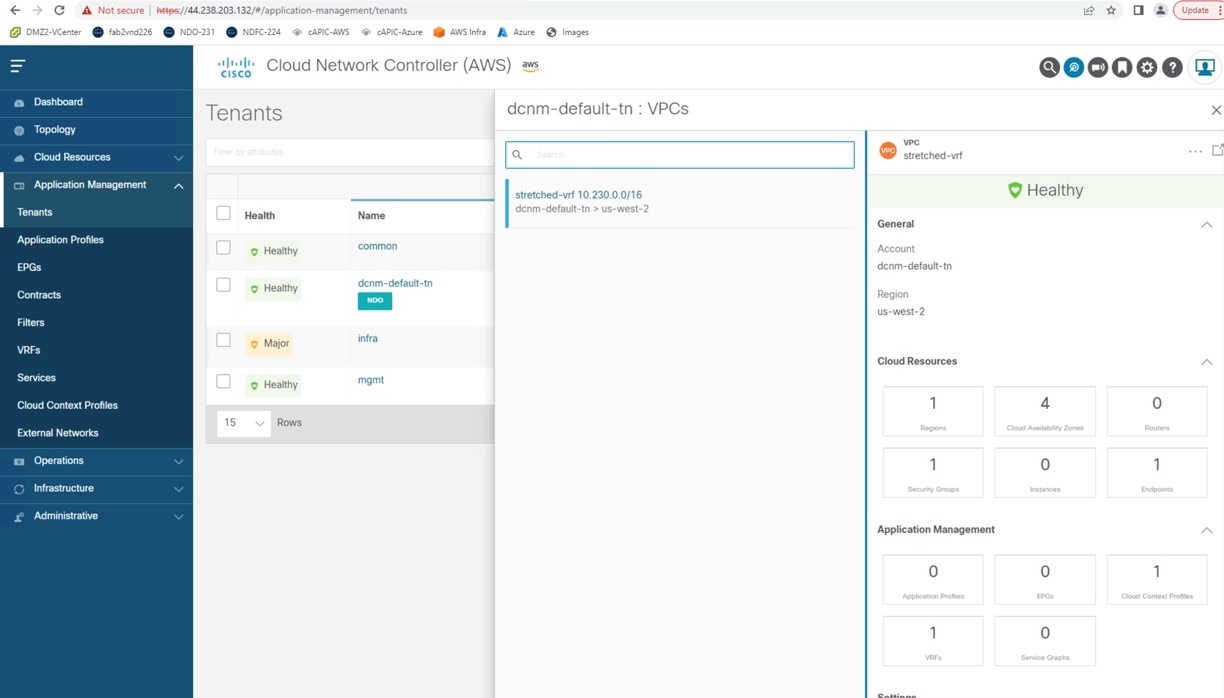

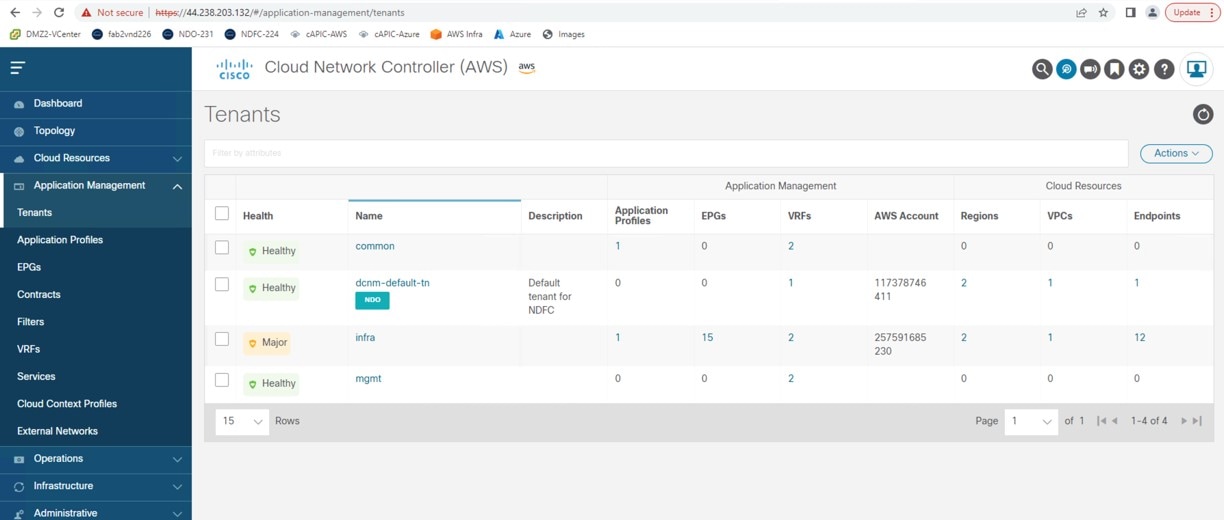

    • Verify that the dcnm-default-tn tenant is created and one VPC is deployed:

    • Verify that the VPC is deployed:

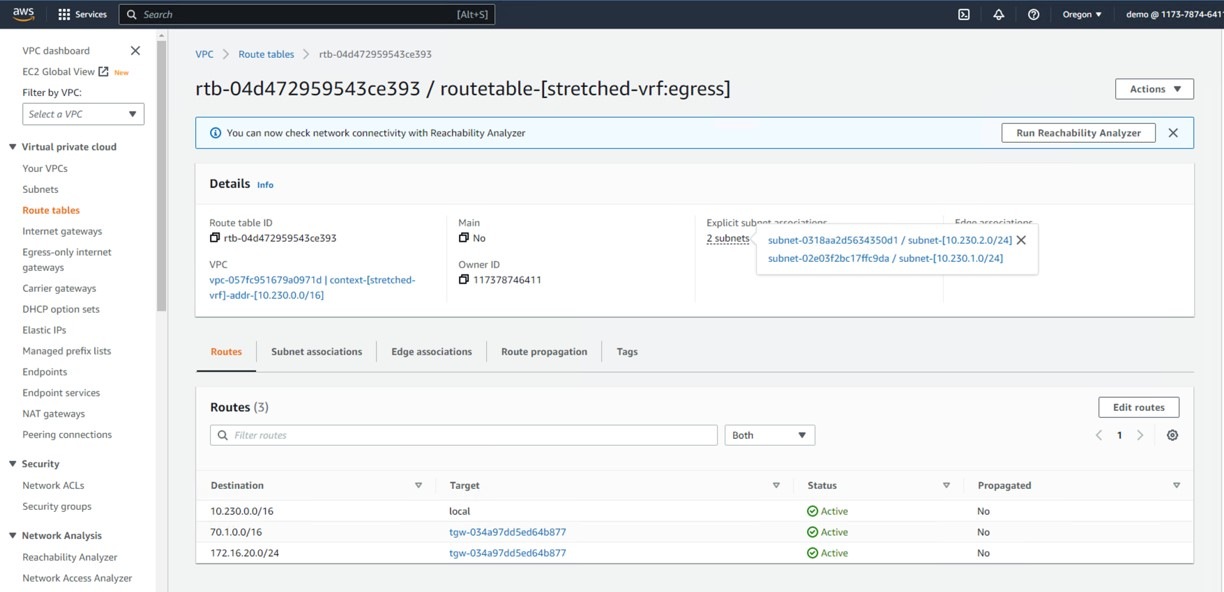

    • Using the routing table view from the Cloud Network Controller deployed on AWS, verify that the reachable subnets are:

      • NDFC: 172.16.20.0/24

      • Azure: 70.1.0.0/16

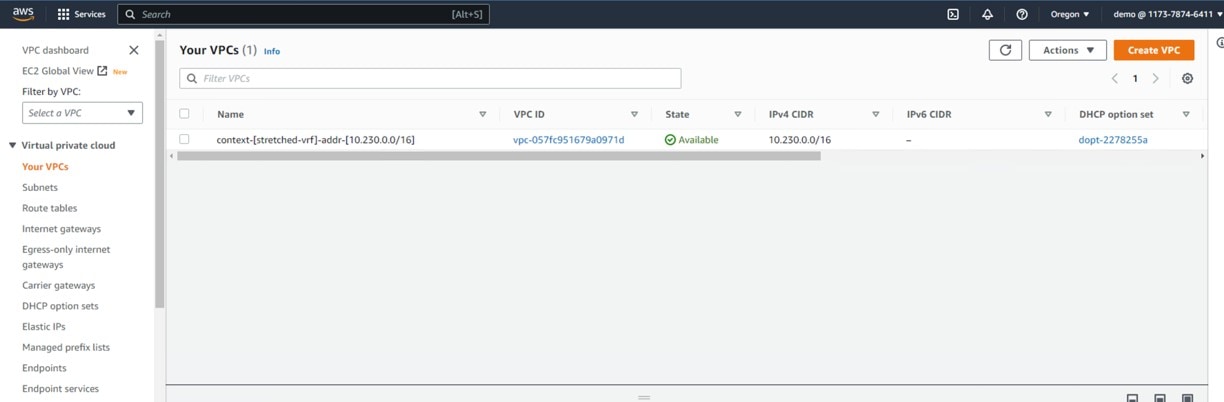

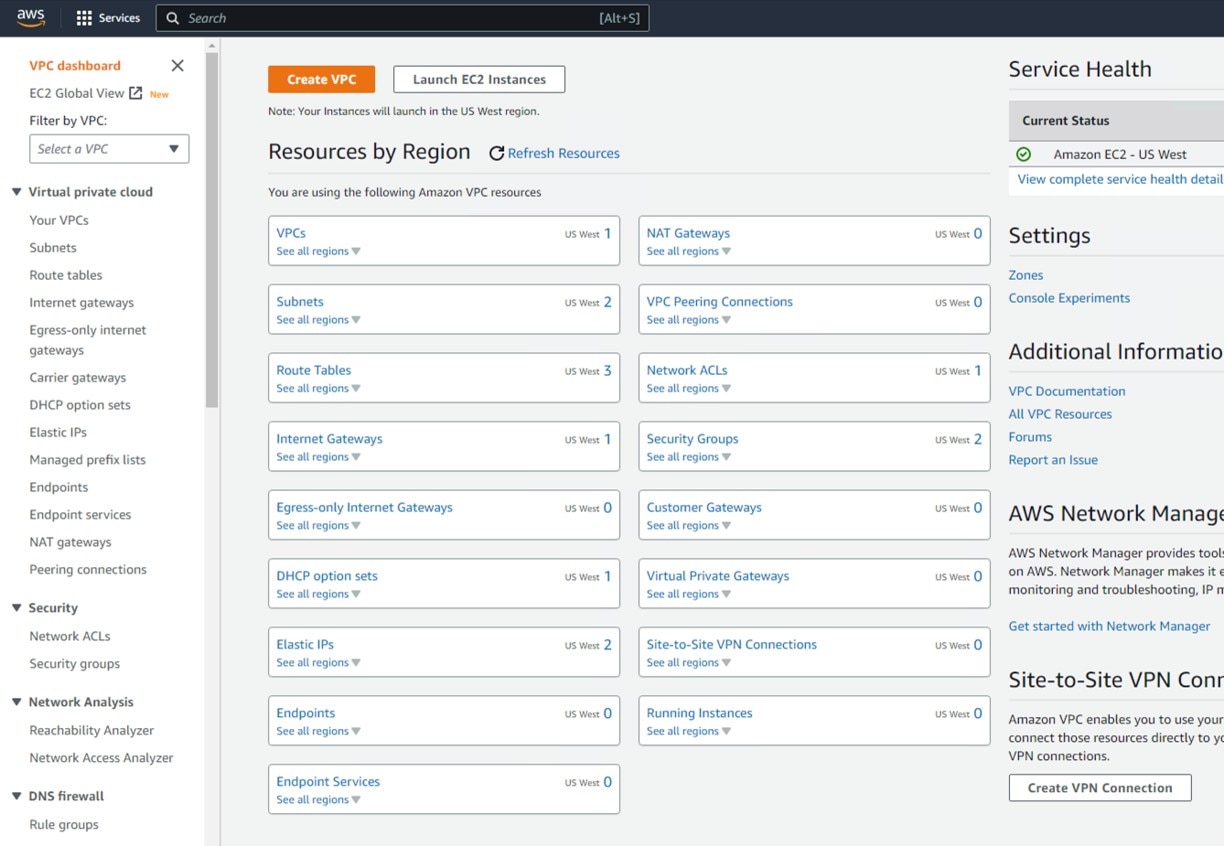

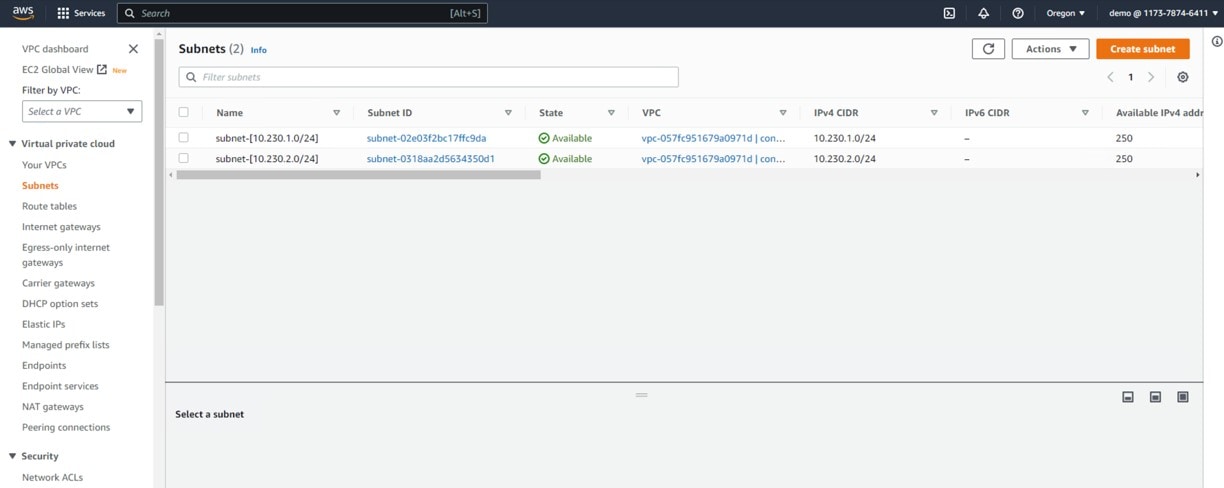

  5. In the AWS console, verify the following:

    • Verify that you see one VPC and two subnets.

    • Verify that you see the routing table.

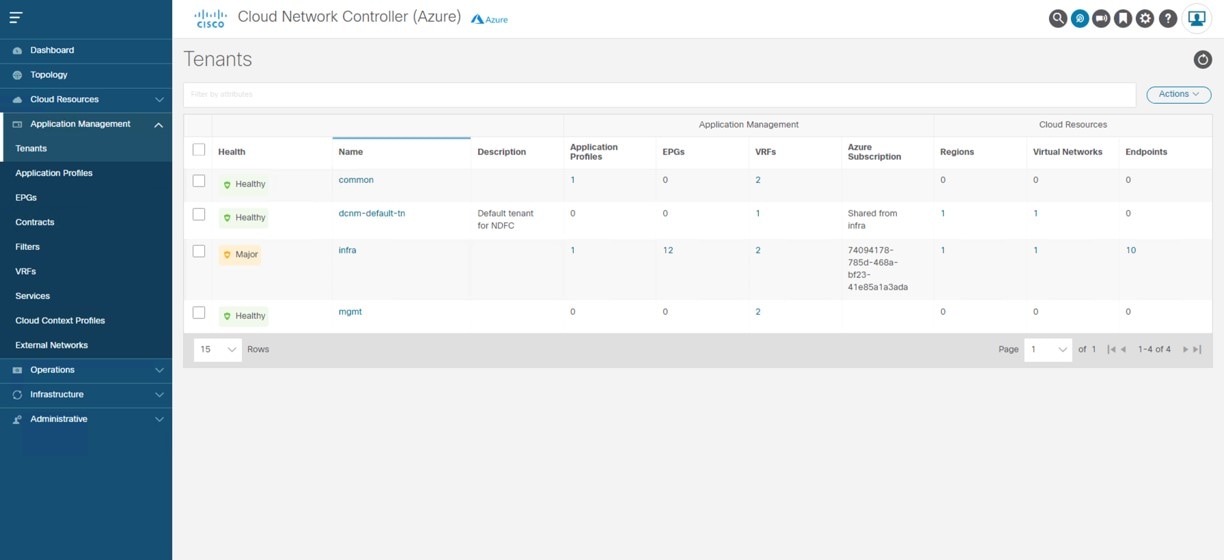

  6. Connect to the Cloud Network Controller deployed on Azure and make the following verifications

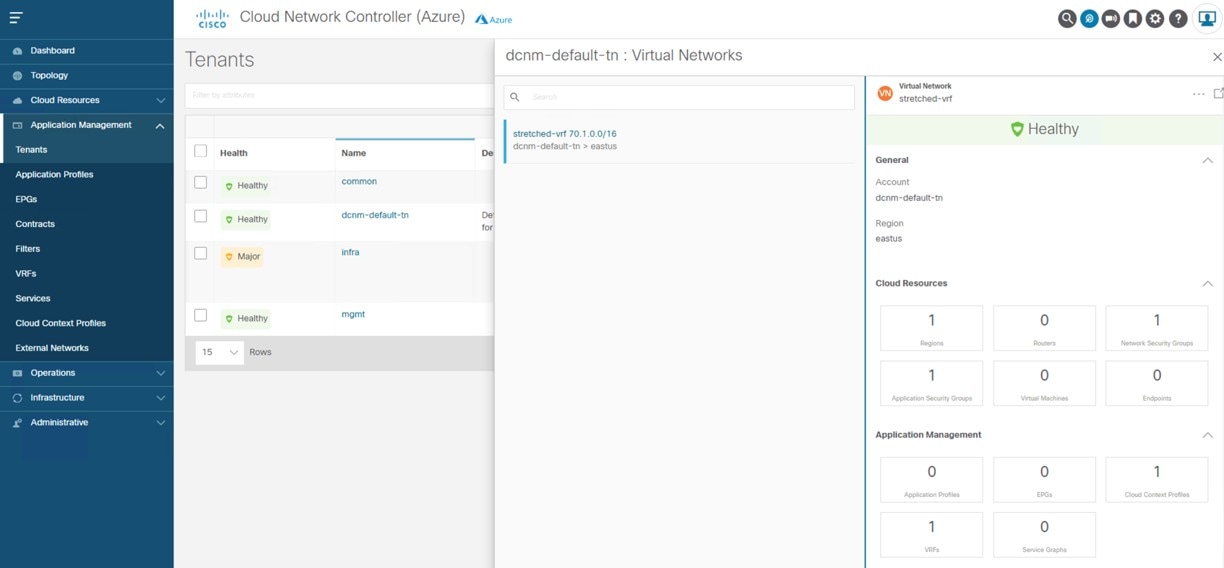

    • Verify that the dcnm-default-tn tenant is created:

    • Verify that the VRF is deployed:

    • Using the routing table view from the Cloud Network Controller deployed on AWS, verify that the reachable subnets are:

      • NDFC: 172.16.20.0/24

      • AWS: 10.230.0.0/16

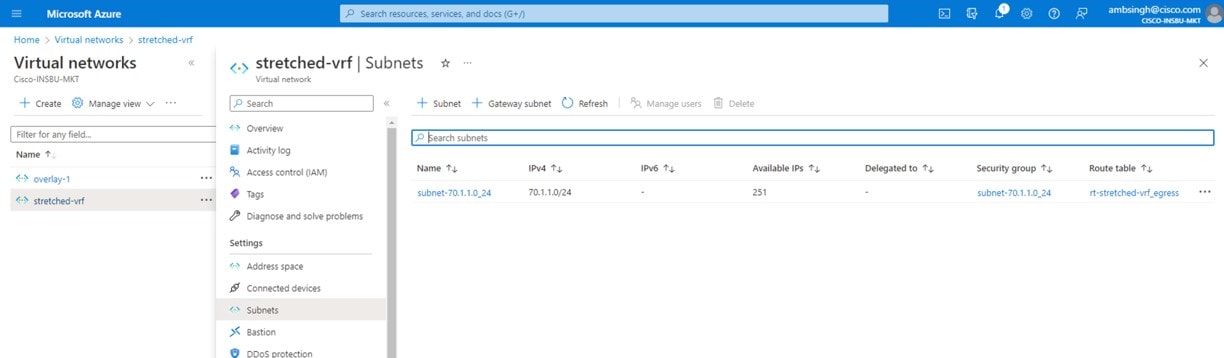

  7. In the Azure console, verify that you can see the subnets:
