Status LEDs and Buttons
This section contains information for interpreting front, rear, and internal LED states.
Front-Panel LEDs
![](/c/dam/en/us/td/i/300001-400000/300001-310000/309001-310000/309154.jpg)
LED Name |
States |
|
1 |
Power button/LED ( |
|
2 |
Unit identification ( |
|
3 |
System health ( |
|
4 |
Power supply status ( |
|
5 |
Fan status ( |
|
6 |
Network link activity ( |
|
7 |
Temperature status ( |
|
Rear-Panel LEDs

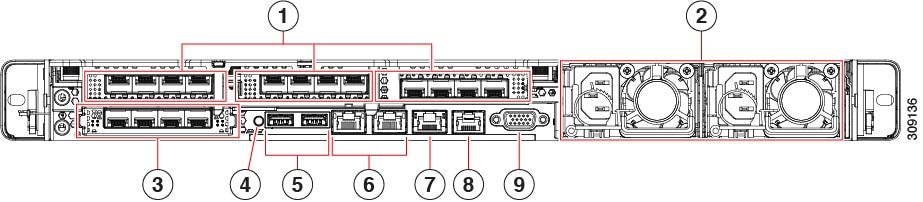

![](/c/dam/en/us/td/i/300001-400000/300001-310000/309001-310000/309136.jpg)
LED Name |
States |
|
1 |
1-Gb/10-Gb Ethernet link speed (on both LAN1 and LAN2) |
|
2 |
1-Gb/10-Gb Ethernet link status (on both LAN1 and LAN2) |
|
3 |
1-Gb Ethernet dedicated management link speed |
|
4 |
1-Gb Ethernet dedicated management link status |
|
5 |
Rear unit identification |
|
6 |
Power supply status (one LED each power supply unit) |
AC power supplies:
DC power supplies:
|
7 |
1-Gb Ethernet dedicated management port |
|
8 |
COM port (RJ-45 connector) |
- |
9 |
VGA display port (DB15 connector) |
- |

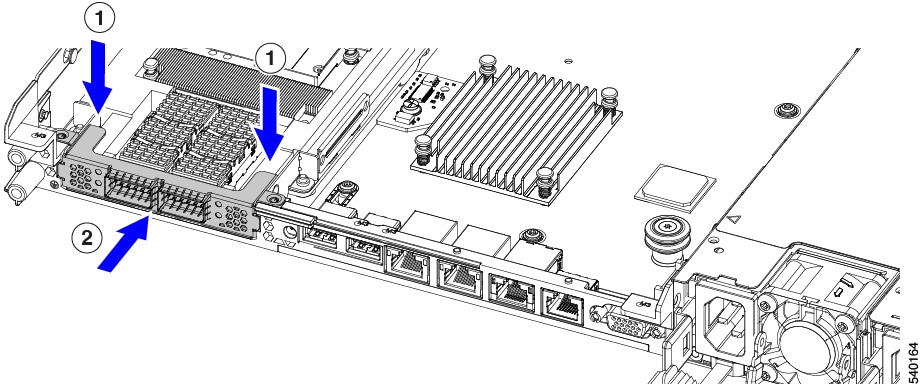

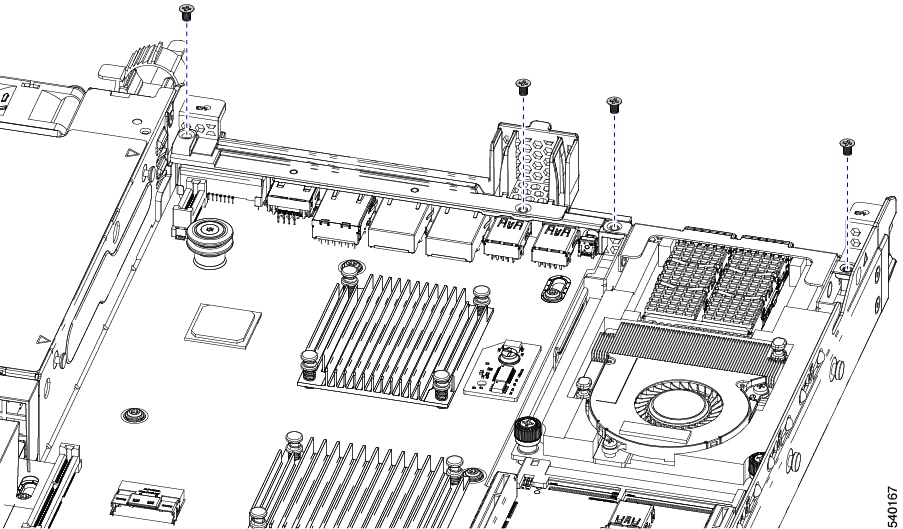

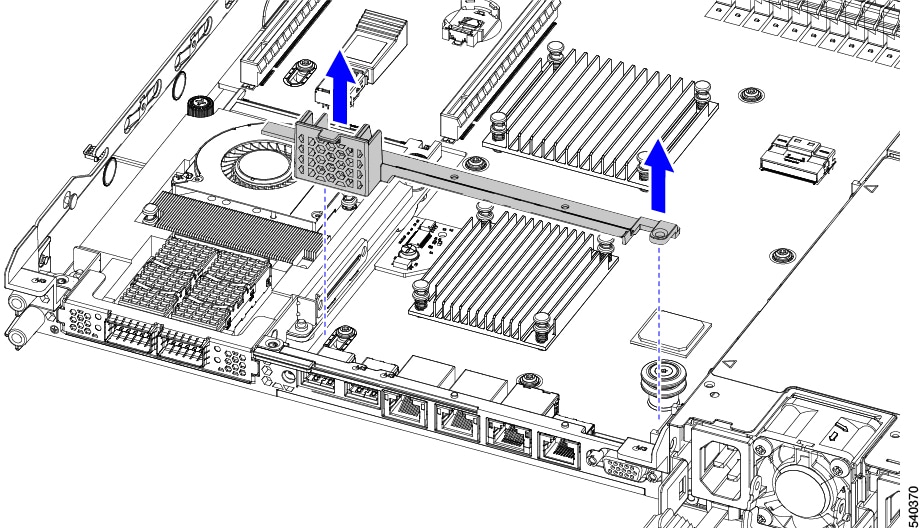

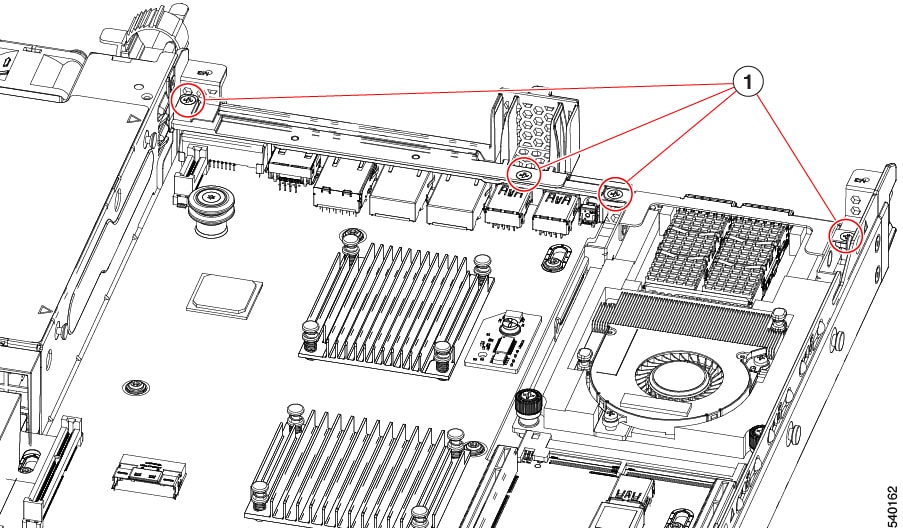

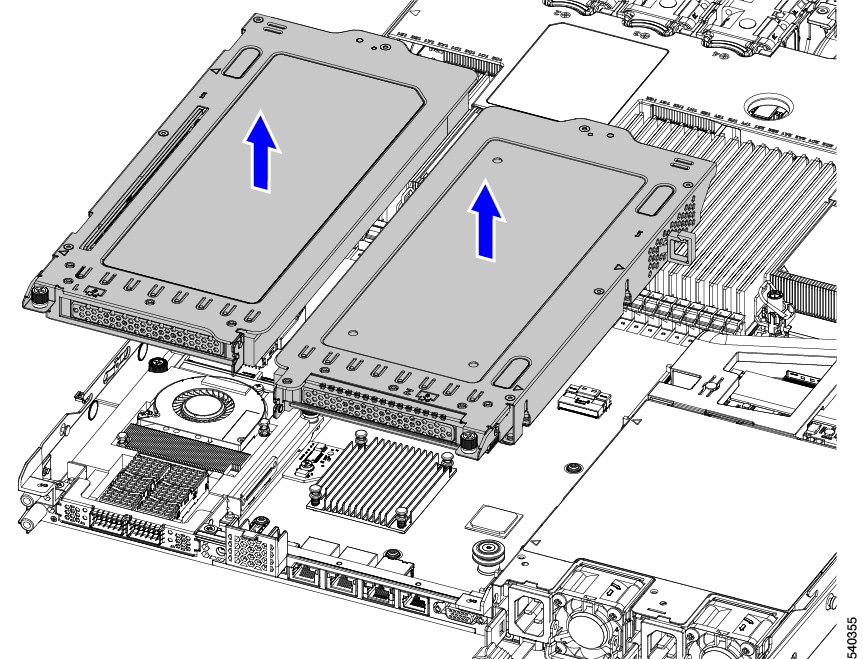

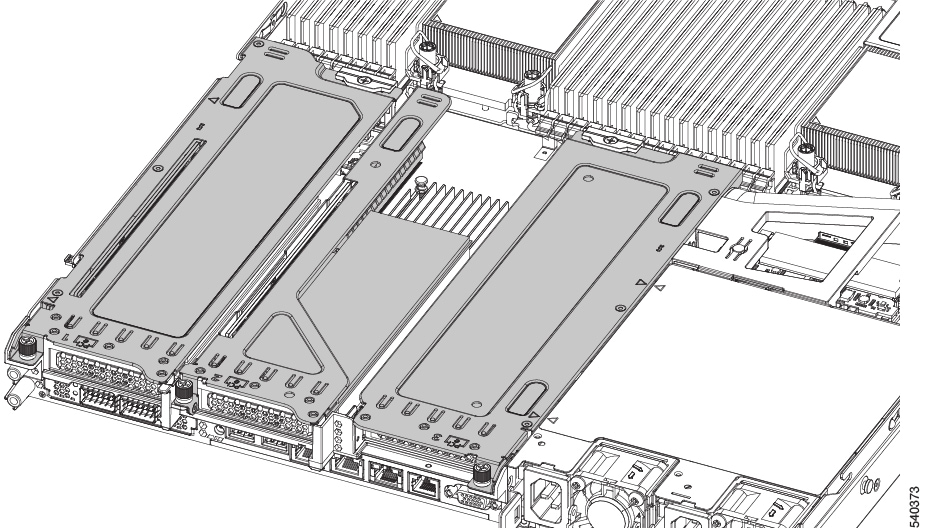

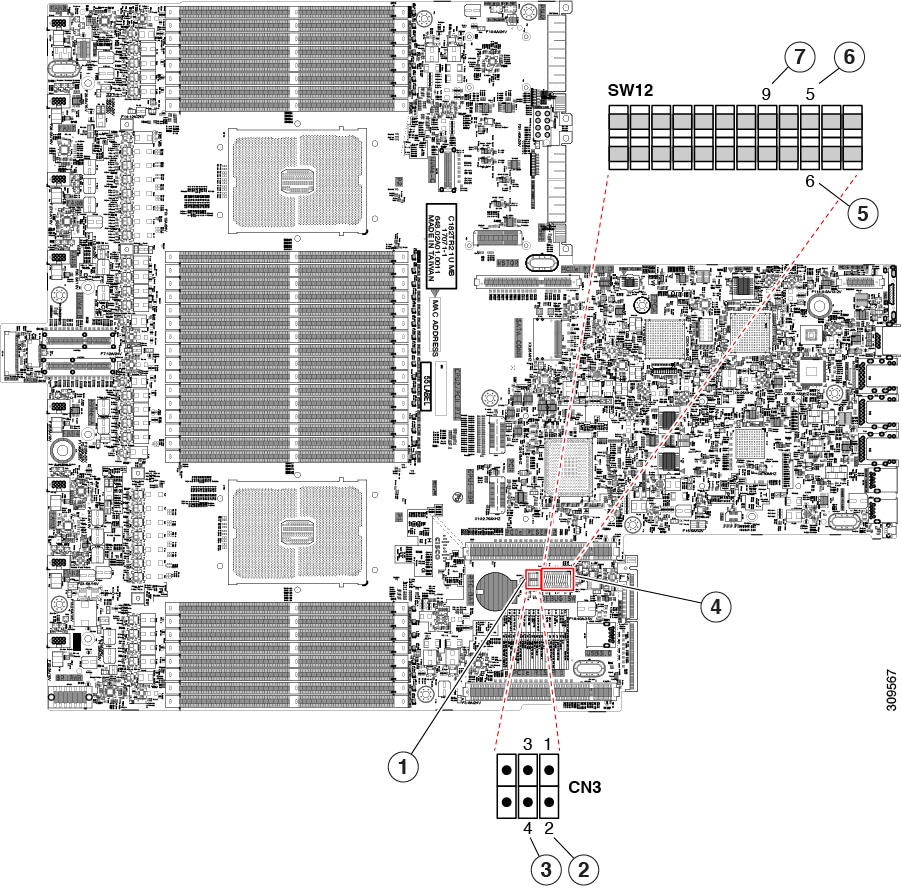

Internal Diagnostic LEDs

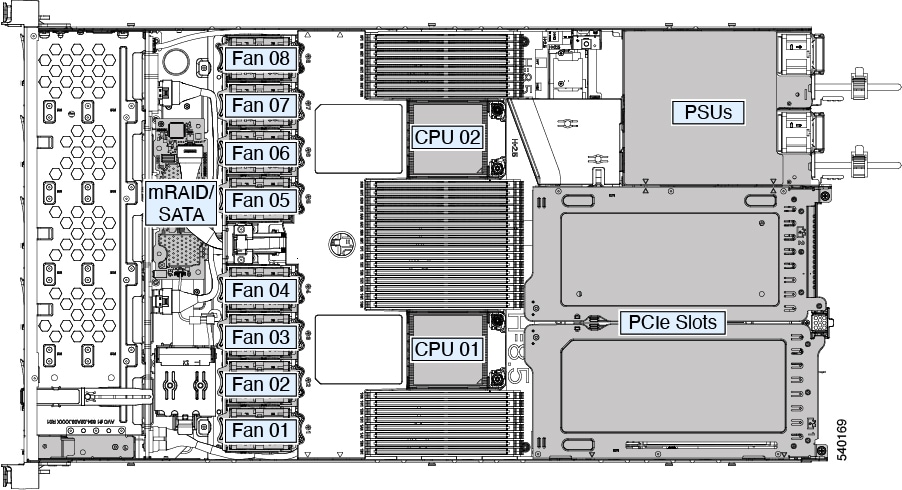

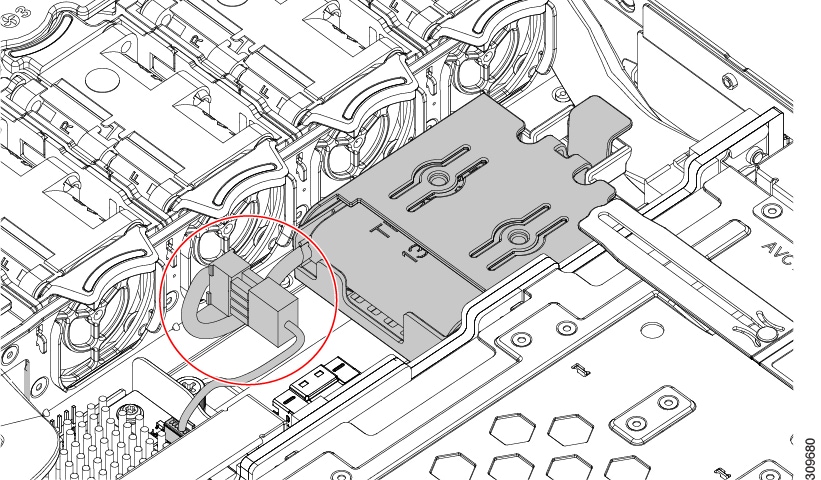

The server has internal fault LEDs for CPUs, DIMMs, and fan modules.
![](/c/dam/en/us/td/i/300001-400000/300001-310000/306001-307000/306123.jpg)
1 |
Fan module fault LEDs (one behind each fan connector on the motherboard)
|
3 |

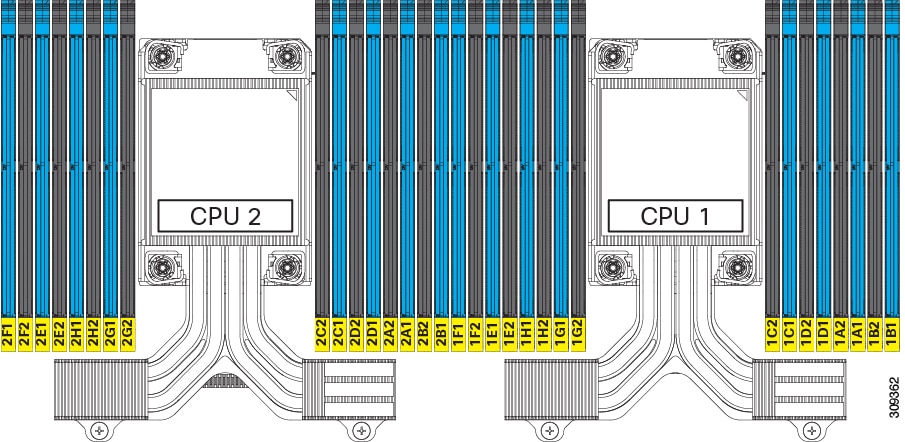

DIMM fault LEDs (one behind each DIMM socket on the motherboard) These LEDs operate only when the node is in standby power mode.
|
2 |
CPU fault LEDs (one behind each CPU socket on the motherboard). These LEDs operate only when the node is in standby power mode.
|
- |
