Modular QoS CLI Three-Level Hierarchical Policer

The Modular QoS CLI (MQC) Three-Level Hierarchical Policer extends the traffic policing functionality by allowing you to configure traffic policing at three levels of policy map hierarchies; a primary level, a secondary level, and a tertiary level. Traffic policing may be configured at any or all of these levels, depending on the needs of your network. Configuring traffic policing in a three-level hierarchical structure provides a high degree of granularity for traffic policing.

Feature Specifications for the Modular QoS CLI (MQC) Three-Level Hierarchical Policer

Feature History

Release

Modification

12.2(13)T

This feature was introduced.

Supported Platforms

For platforms supported in Cisco IOS Release 12.2(13)T, consult Cisco Feature Navigator.

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest caveats and feature information, see Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table at the end of this module.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

Restrictions for the Modular QoS CLI Three-Level Hierarchical Policer

If traffic policing is configured at both the top level and secondary levels, note the following caveats:

  • When traffic policing is configured at both the primary and secondary levels, the traffic policer at the secondary level acts only on packets sent by the policer at the top level.

However, the packet classification for the policy map at the secondary level occurs before the primary level policer has acted on the classes. When this situation occurs, the class counters for the policy map at the secondary level may not be equal to the number of packets acted upon by the second level policer.

The following output of the show policy-map interfacecommand helps to illustrate this point. In this sample output two policy maps (called "primary_level," and "secondary_level," respectively) have been configured. The primary_level policy map contains a class map called "c1," and the secondary_level policy map contains a class map called "c3".

> > > show policy interface serial5/0.1
> > >  Serial5/0.1
> > >
> > >   Service-policy output: primary_level
> > >
> > >     Class-map: c1 (match-all)
> > >       24038 packets, 3004750 bytes
> > >       30 second offered rate 0 bps, drop rate 0 bps
> > >       Match: any
> > >       police:
> > >           cir 300000 bps, bc 9375 bytes
> > >         conformed 18105 packets, 2263125 bytes; actions:
> > >           transmit
> > >         exceeded 5933 packets, 741625 bytes; actions:              (*)
> > >           drop
> > >         conformed 0 bps, exceed 0 bps
> > >
> > >       Service-policy : secondary_level
> > >
> > >         Class-map: c3 (match-all)
> > >           24038 packets, 3004750 bytes

> > >           30 second offered rate 0 bps, drop rate 0 bps
> > >           Match: any
> > >           police:                (<= Indicates traffic policing has been configured)
> > >               cir 200000 bps, bc 3000 bytes
> > >               pir 250000 bps, be 3000 bytes
> > >             conformed 12047 packets, 1505875 bytes; actions:       (**)
> > >               set-frde-transmit
> > >             exceeded 3004 packets, 375500 bytes; actions:          (**)
> > >               set-frde-transmit
> > >             violated 3054 packets, 381750 bytes; actions:          (**)
> > >               set-frde-transmit
> > >             conformed 0 bps, exceed 0 bps, violate 0 bps
> > >
> > >         Class-map: class-default (match-any)
> > >           0 packets, 0 bytes
> > >           30 second offered rate 0 bps, drop rate 0 bps
> > >           Match: any
> > >             0 packets, 0 bytes
> > >             30 second rate 0 bps

Note the following about this example:

    • The class counter for the class map called "c3" shows 24038 packets (italicized in the example).
    • Traffic policing has been configured in the policy map, and the traffic policing feature for class map "c3" shows a total of 18105 packets -- 12047 conformed packets, plus 3004 exceeded packets, plus 3054 violated packets (indicated by the double asterisks ("**") in the example). This total is because 5933 packets have already been dropped in class map "c1" (indicated by the "*" in the example).
    • Therefore, only 18105 packets (24038 packets minus 5933 packets) are acted upon by the traffic policing feature configured in the second_level policy map.

  • In this implementation of the Modular QoS CLI (MQC) Three-Level Hierarchical Policer, traffic policing at the primary level does not guarantee fairness in sharing bandwidth among the child classes. If packets from two different classes arrive at the same rate and then go through a traffic policer, the output rates of the two classes could be different because this feature acts as an aggregate policer.

In other words, it is possible that the primary-level policer could drop packets in one class in favor of the other class. This situation would happen because the primary-level policer had enough tokens when the packets for one class arrived, but there were not enough tokens left for the other class. This pattern could continue indefinitely, based on the arrival pattern of the packets.

Information About the Modular QoS CLI Three-Level Hierarchical Policer

Modular Quality of Service Command-Line Interface

The MQC is a command-line interface (CLI) structure that allows you to create traffic policies and attach these policies to interfaces.

In the MQC, the class-map command is used to define a traffic class (which is then associated with a traffic policy). The purpose of a traffic class is to classify traffic.

The Modular quality of service (QoS) CLI structure consists of the following three processes:

  • Defining a traffic class with the class-map command.

  • Creating a traffic policy by associating the traffic class with one or more QoS features (using the policy-map command).

  • Attaching the traffic policy to the interface with the service-policy command.

A traffic class contains three major elements: a name, a series of match commands, and, if more than one match command exists in the traffic class, an instruction on how to evaluate these match commands. The traffic class is named in the class-map command line; that is, if you enter the class-map ciscocommand while configuring the traffic class in the CLI, the traffic class would be named "cisco".

The match commands are used to specify various criteria for classifying packets. Packets are checked to determine whether they match the criteria specified in the match commands. If a packet matches the specified criteria, that packet is considered a member of the class and is forwarded according to the QoS specifications set in the traffic policy. Packets that fail to meet any of the matching criteria are classified as members of the default traffic class.

Packet Flow in the Modular QoS CLI Three-Level Hierarchical Policer

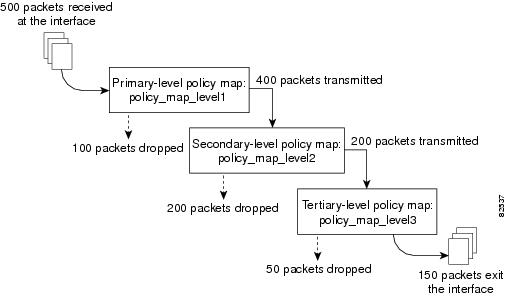

The figure below illustrates the flow of packets among policy maps configured for traffic policing at each level in the hierarchy.

Figure 1. Packet Flow Among Policy Maps

In the figure above, three policy maps are configured: policy_map_level1 (the primary-level policy map), policy_map_level2 (the secondary-level policy map), and policy_map_level3 (the tertiary-level policy map). Traffic policing is configured in each policy map, and each policy map is attached to a service policy and to an interface.

In this simplified illustration, 500 packets arrive at the interface at which the policy map called "policy_map_level1" is attached. Because of the way traffic policing is configured in this policy map, 100 packets are dropped and 400 packets are transmitted.

The traffic policer at the secondary-level policy map (policy_map_level2) then evaluates the packets and treats them as determined by the way traffic policing is configured at this level. Of the 400 packets received, 200 are dropped and 200 are transmitted.

The traffic policer at the tertiary-level policy map (policy_map_level3), in turn, evaluates the 200 packets it has now received and applies the appropriate treatment as determined by the way the traffic policing is configured at this level.

Other Traffic Policing-Related Features

The Cisco IOS traffic policing software features allow you to control the maximum rate of traffic sent or received on an interface. Traffic policing is often configured on interfaces at the edge of a network to limit traffic into or out of the network. Traffic that falls within the rate parameters is sent, whereas traffic that exceeds or violates the parameters is dropped or sent with a different priority.

The Cisco IOS software currently includes the following traffic policing features:

  • Traffic Policing (a single-rate policer)

  • Two-Rate Policer

  • Policer Enhancements -- Multiple Actions

  • Percentage-Based Policing and Shaping

Previously, these features could be configured at two levels of a policy map hierarchy; the top level and one secondary level. With the Modular QoS CLI (MQC) Three-Level Hierarchical Policer, these traffic policing-related features can configured in three levels of a policy map hierarchy.

The tasks for configuring each of these traffic policing-related features is essentially the same. That is, you use the MQC to create a policy map. Then you use the police command to configure traffic policing for a specific class within that policy map. The policy map is then attached to an interface.

Traffic policing can be configured to specify multiple marking actions for the traffic being policed, or to use a percentage of available bandwidth when policing traffic.

How to Configure the Modular QoS CLI Three-Level Hierarchical Policer

Configuring Traffic Policing

Traffic policing can be configured at any level of the policy map hierarchy, that is, at the primary level, secondary level, or the tertiary level.

Before You Begin

Before configuring traffic policing, you must use the MQC to create a policy map.

SUMMARY STEPS

    1.    enable

    2.    configure {terminal | memory | network}

    3.    policy-map policy-name

    4.    class-map class-map-name

    5.    police bps burst-normal burst-max conform-action action exceed-action action violate-action action

    6.    exit


DETAILED STEPS
     Command or ActionPurpose
    Step 1 enable


    Example:
    Router> enable


    Enables higher privilege levels, such as privileged EXEC mode.

    Enter your password if prompted.


    Step 2 configure {terminal | memory | network}


    Example:
    Router# configure terminal


    Enters global configuration mode.


    Step 3 policy-map policy-name


    Example:
    Router(config)# policy-map policy1


    Specifies the name of the policy map created earlier and enters policy-map configuration mode.


    Step 4 class-map class-map-name


    Example:
    Router(config-pmap)# class-map class1


    Specifies the name of the class map created when the policy map was created earlier and enters policy-map class configuration mode.


    Step 5 police bps burst-normal burst-max conform-action action exceed-action action violate-action action


    Example:
    Router(config-pmap-c)# police 8000 1000 1000 conform-action transmit exceed-action drop violate-action drop


    Configures traffic policing according to burst sizes and any optional actions specified.


    Step 6 exit


    Example:
    Router(config-pmap-c)# exit


    (Optional) Exits the policy-map class configuration mode.



    Attaching the Policy Map to an Interface

    After the policy map has been created and traffic policing has been configured, the policy map must be attached to an interface. Policy maps can be attached to either the input or output direction of the interface.

    Depending on the needs of your network, you may need to attach the policy map to a subinterface, an ATM permanent virtual circuit (PVC), a Frame Relay data-link connection identifier (DLCI), or other type of interface.

    SUMMARY STEPS

      1.    enable

      2.    configure {terminal | memory | network}

      3.    interface type number

      4.    pvc [name] vpi / vci [ilmi | qsaal | smds]

      5.    service-policy {input| output} policy-map-name

      6.    exit


    DETAILED STEPS
       Command or ActionPurpose
      Step 1 enable


      Example:
      Router> enable


      Enables higher privilege levels, such as privileged EXEC mode.

      • Enter your password if prompted.


      Step 2 configure {terminal | memory | network}


      Example:
      Router# configure terminal


      Enters global configuration mode.


      Step 3 interface type number


      Example:






      Example:


      Router(config-if)#

interface s4/0








Configures an interface (or subinterface) type and enters interface configuration mode.



      •
Enter the interface type number.


        •












      Step 4

            pvc
           [name] vpi / vci [ilmi | qsaal | smds]


      Example:


      Router(config-if)# pvc cisco 0/16 ilmi








(Optional) Creates or assigns a name to an ATM PVC and specifies the encapsulation type on an ATM PVC. Enters ATM virtual circuit (VC) configuration mode (config-if-atm-vc).



      Note



This step is required only if you are attaching the policy map to an ATM PVC. If you are not attaching the policy map to an ATM PVC, skip this step and proceed with Step 5
.








      Step 5

            service-policy

{input| output} policy-map-name


      Example:


      Router(config-if)#

service-policy input policy1






      Example:










Specifies the name of the policy map to be attached to the input or
output
direction of the interface.



      Note



Policy maps can be configured on ingress or egress routers. They can also be attached in the input or output direction of an interface. The direction (input or output) and the router (ingress or egress) to which the policy map should be attached varies according your network configuration. When using the service-policy command to attach the policy map to an interface, be sure to choose the router and the interface direction that are appropriate for your network configuration.





      •
Enter the policy map name.


        •







      Step 6

            exit




      Example:


      Router(config-if)# exit








(Optional) Exits interface configuration mode.










      What to Do Next



If you want to configure traffic policing at another level in the policy map hierarchy, repeat the steps in the Configuring Traffic Policing section and the Attaching the Policy Map to an Interface section.








      Verifying the Configuration





This task allows you to verify that you created the configuration you intended and that the feature is functioning correctly.




SUMMARY STEPS
        1.


            enable




        2.
      Do one of the following:
        •

              show
              policy-map


          •

        •

          •

        •

              show
              policy-map
              interface


              interface-name


          •





        3.


            exit





      DETAILED STEPS
         Command or ActionPurpose
        Step 1

            enable




        Example:


        Router> enable








Enables higher privilege levels, such as privileged EXEC mode.



        •
Enter your password if prompted.


          •







        Step 2Do one of the following:
        •

              show
              policy-map


          •

        •

          •

        •

              show
              policy-map
              interface


              interface-name


          •




        Example:


        Router# show policy-map






        Example:









        Example:


        Router#
show policy-map interface s4/0








Displays all configured policy maps.




or




Displays the packet statistics of all classes that are configured for all service policies either on the specified interface or subinterface or on a specific PVC on the interface.



        •
Enter the interface name.


          •







        Step 3

            exit




        Example:


        Router(config-if)# exit








(Optional) Exits interface configuration mode.










        Troubleshooting Tips



The commands in the Verifying the Configuration section allow you to verify that you achieved the intended configuration and that the feature is functioning correctly. If after using the show commands listed above, the configuration is not correct or the feature is not functioning as expected, do the following:



If the configuration is not the one you intended, complete the following procedures:


        •
Use the show running-config command and analyze the output of the command.


          •

        •
If the policy map does not appear in the output of the show running-config command, enable the logging console command.


          •

        •
Attach the policy map to the interface again.


          •




If the packets are not being matched correctly (for example, the packet counters are not incrementing correctly), complete the following procedures:


        •
Use the show policy-mapcommand and analyze the output of the command.


          •

        •
Use the show running-config command and analyze the output of the command.


          •

        •
Run the show policy-map interface command and analyze the output of the command. Review the the following:
          •
If a policy map applies queueing, and the packets are matching the correct class, but you see unexpected results, compare the number of packets to the number of packets matched.
            •

          •
If the interface is congested, and you are only seeing a small number of packets matched, check the tuning of the tx ring, and evaluate whether the queueing is happening on the tx ring. To do this, use the show controllers command, and look at the value of the tx count in the show output of the command.
            •





          •











        Configuration Examples for the Modular QoS CLI Three-Level Hierarchical Policer








        Example  Configuring the Modular QoS CLI Three-Level Hierarchical Policer





In the following example, the Modular QoS CLI (MQC) Three-Level Hierarchical Policer has been configured for three classes within three separate policy maps. The three classes, called "c1," "c2," and "c3," respectively, have been configured using the match criteria specified as follows:



        class-map c1
   match any
class-map c2
   match ip precedence 1 2 3
class-map c3
   match ip precedence 2





Next, the classes are configured in three separate policy maps, called "p_all" (the primary-level policy map), "pmatch_123" (the secondary-level policy map), and "pmatch_2" (the tertiary-level policy map), as shown below.



        policy p_all
   class c1
      police 100000
      service-policy pmatch_123
policy pmatch_123
  class c2
     police 20000
     service-policy pmatch_2
policy pmatch_2
  class c3
     police 8000





The primary goal of this configuration is to limit all traffic to 100 kbps. Within this, the secondary goal is make sure that packets with precedence values of 1, 2, or 3 do not exceed 20 kbps and that packets with precedence value of 2 never exceed 8 kbps.




To verify that the classes have been configured correctly and to confirm the results of the traffic policing configuration in the policy maps, the show policy-map command and the show policy-map interfacecommand can be used, as shown in the following sections.




The following sample output of the show policy-mapcommand verifies the configuration of the classes in the policy maps:



        Router# show policy map
  Policy Map p_all
    Class c1
     police cir 100000 bc 3000
       conform-action transmit
       exceed-action drop
      service-policy pmatch_123
  Policy Map pmatch_123
    Class c2
     police cir 20000 bc 1500
       conform-action transmit
       exceed-action drop
      service-policy pmatch_2
  Policy Map pmatch_2
    Class c3
     police cir 8000 bc 1500
       conform-action transmit
       exceed-action drop





The following sample output of the show policy-map interface command confirms the results of this configuration on the attached interface:



        Router# show policy-map interface Ethernet3/1
 Ethernet3/1
  Service-policy output:p_all
    Class-map:c1 (match-all)
      0 packets, 0 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match:any
      police:
          cir 100000 bps, bc 3000 bytes
        conformed 0 packets, 0 bytes; actions:
          transmit
        exceeded 0 packets, 0 bytes; actions:
          drop
        conformed 0 bps, exceed 0 bps,
      Service-policy :pmatch_123
        Class-map:c2 (match-all)
          0 packets, 0 bytes
          5 minute offered rate 0 bps, drop rate 0 bps
          Match:ip precedence 1  2  3
          police:
              cir 20000 bps, bc 1500 bytes
            conformed 0 packets, 0 bytes; actions:
              transmit
            exceeded 0 packets, 0 bytes; actions:
              drop
            conformed 0 bps, exceed 0 bps,
          Service-policy :pmatch_2
            Class-map:c3 (match-all)
              0 packets, 0 bytes
              5 minute offered rate 0 bps, drop rate 0 bps
              Match:ip precedence 2
              police:
                  cir 8000 bps, bc 1500 bytes
                conformed 0 packets, 0 bytes; actions:
                  transmit
                exceeded 0 packets, 0 bytes; actions:
                  drop
                conformed 0 bps, exceed 0 bps,
            Class-map:class-default (match-any)
              0 packets, 0 bytes
              5 minute offered rate 0 bps, drop rate 0 bps
              Match:any
        Class-map:class-default (match-any)
          0 packets, 0 bytes
          5 minute offered rate 0 bps, drop rate 0 bps
          Match:any
    Class-map:class-default (match-any)
      0 packets, 0 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match:any











        Additional References




         The following sections provide additional references related to the Modular QoS CLI (MQC) Three-Level Hierarchical Policer:






        Related Documents






         Related Topic






         Document Title










         QoS commands: complete command syntax, command modes, command history, defaults, usage guidelines, and examples







						Cisco IOS Quality of Service Solutions Command Reference










         Additional information about configuring traffic policing






         "Policing and Shaping Overview" module









         Modular Quality of Service (QoS) Command-Line Interface (CLI) (MQC)






         "Applying QoS Features Using the MQC" module









         Two-rate traffic policing






         "Two-Rate Policer" module









         Traffic policing using multiple policer actions






         "Policer Enhancements--Multiple Actions" module









         Percentage-based traffic policing and shaping






         "Percentage-Based Policing and Shaping" module









         Frame Relay configurations






         "Configuring Frame Relay" module









         Frame Relay commands: complete command syntax, command modes, command history, defaults, usage guidelines, and examples






        Cisco IOS Wide-Area Networking Command Reference
















        Standards






         Standards






         Title










         No new or modified standards are supported by this feature, and support for existing standards has not been modified by this feature.






         --















        MIBs






         MIBs






         MIBs Link










        •  CISCO-CLASS-BASED-QOS-CAPABILITY-MIB



          •

        •  CISCO-CLASS-BASED-QOS-MIB



          •








         To obtain lists of supported MIBs by platform and Cisco IOS release, and to download MIB modules, go to the Cisco MIB website on Cisco.com at the following URL:




         http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml















        RFCs






         RFCs






         Title










         RFC 2697








						  A
						  Single
						  Rate
						  Three
						  Color
						  Marker










         RFC 2698








						  A
						  Two
						  Rate
						  Three
						  Color
						  Marker
















        Technical Assistance






         Description






         Link










         The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.







						http:/​/​www.cisco.com/​cisco/​web/​support/​index.html





































Modular QoS CLI Three-Level Hierarchical Policer






        Modular QoS CLI Three-Level Hierarchical Policer


         The Modular QoS CLI (MQC) Three-Level Hierarchical Policer extends the traffic policing functionality by allowing you to configure traffic policing at three levels of policy map hierarchies; a primary level, a secondary level, and a tertiary level. Traffic policing may be configured at any or all of these levels, depending on the needs of your network. Configuring traffic policing in a three-level hierarchical structure provides a high degree of granularity for traffic policing.



        Feature Specifications for the Modular QoS CLI (MQC) Three-Level Hierarchical Policer






         Feature History

















         Release






         Modification









         12.2(13)T






         This feature was introduced.









         Supported Platforms









         For platforms supported in Cisco IOS Release 12.2(13)T, consult Cisco Feature Navigator.

















        Finding Feature Information


         Your software release may not support all the features documented in this module. For the latest caveats and feature information, see
		Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table at the end of this module.



        Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to
		www.cisco.com/​go/​cfn. An account on Cisco.com is not required.







        Restrictions for the Modular QoS CLI Three-Level Hierarchical Policer



If traffic policing is configured at both the top level and secondary levels, note the following caveats:


        •
When traffic policing is configured at both the primary and secondary levels, the traffic policer at the secondary level acts only on packets sent by the policer at the top level.


          •




However, the packet classification for the policy map at the secondary level occurs before the primary level policer has acted on the classes. When this situation occurs, the class counters for the policy map at the secondary level may not be equal to the number of packets acted upon by the second level policer.



The following output of the show policy-map interfacecommand helps to illustrate this point. In this sample output two policy maps (called "primary_level," and "secondary_level," respectively) have been configured. The primary_level policy map contains a class map called "c1," and the secondary_level policy map contains a class map called "c3".


        > > > show policy interface serial5/0.1
> > >  Serial5/0.1
> > >
> > >   Service-policy output: primary_level
> > >
> > >     Class-map: c1 (match-all)
> > >       24038 packets, 3004750 bytes
> > >       30 second offered rate 0 bps, drop rate 0 bps
> > >       Match: any
> > >       police:
> > >           cir 300000 bps, bc 9375 bytes
> > >         conformed 18105 packets, 2263125 bytes; actions:
> > >           transmit
> > >         exceeded 5933 packets, 741625 bytes; actions:              (*)
> > >           drop
> > >         conformed 0 bps, exceed 0 bps
> > >
> > >       Service-policy : secondary_level
> > >
> > >         Class-map: c3 (match-all)
> > >           24038 packets, 3004750 bytes

> > >           30 second offered rate 0 bps, drop rate 0 bps
> > >           Match: any
> > >           police:                (<= Indicates traffic policing has been configured)
> > >               cir 200000 bps, bc 3000 bytes
> > >               pir 250000 bps, be 3000 bytes
> > >             conformed 12047 packets, 1505875 bytes; actions:       (**)
> > >               set-frde-transmit
> > >             exceeded 3004 packets, 375500 bytes; actions:          (**)
> > >               set-frde-transmit
> > >             violated 3054 packets, 381750 bytes; actions:          (**)
> > >               set-frde-transmit
> > >             conformed 0 bps, exceed 0 bps, violate 0 bps
> > >
> > >         Class-map: class-default (match-any)
> > >           0 packets, 0 bytes
> > >           30 second offered rate 0 bps, drop rate 0 bps
> > >           Match: any
> > >             0 packets, 0 bytes
> > >             30 second rate 0 bps




Note the following about this example:


        •

          •
The class counter for the class map called "c3" shows 24038 packets (italicized in the example).
            •

          •
Traffic policing has been configured in the policy map, and the traffic policing feature for class map "c3" shows a total of 18105 packets -- 12047 conformed packets, plus 3004 exceeded packets, plus 3054 violated packets (indicated by the double asterisks ("**") in the example). This total is because 5933 packets have already been dropped in class map "c1" (indicated by the "*" in the example).
            •

          •
Therefore, only 18105 packets (24038 packets minus 5933 packets) are acted upon by the traffic policing feature configured in the second_level policy map.
            •






          •

        •
In this implementation of the Modular QoS CLI (MQC) Three-Level Hierarchical Policer, traffic policing at the primary level does not guarantee fairness in sharing bandwidth among the child classes. If packets from two different classes arrive at the same rate and then go through a traffic policer, the output rates of the two classes could be different because this feature acts as an aggregate policer.


          •




In other words, it is possible that the primary-level policer could drop packets in one class in favor of the other class. This situation would happen because the primary-level policer had enough tokens when the packets for one class arrived, but there were not enough tokens left for the other class. This pattern could continue indefinitely, based on the arrival pattern of the packets.






        Information About the Modular QoS CLI Three-Level Hierarchical Policer




        Modular Quality of Service Command-Line Interface



The MQC is a command-line interface (CLI) structure that allows you to create traffic policies and attach these policies to interfaces.



In the MQC, the class-map command is used to define a traffic class (which is then associated with a traffic policy). The purpose of a traffic class is to classify traffic.



The Modular quality of service (QoS) CLI structure consists of the following three processes:


        •
Defining a traffic class with the class-map command.


          •

        •
Creating a traffic policy by associating the traffic class with one or more QoS features (using the policy-map command).


          •

        •
Attaching the traffic policy to the interface with the service-policy command.


          •




A traffic class contains three major elements: a name, a series of match commands, and, if more than one match command exists in the traffic class, an instruction on how to evaluate these match commands. The traffic class is named in the class-map command line; that is, if you enter the class-map ciscocommand while configuring the traffic class in the CLI, the traffic class would be named "cisco".



The match commands are used to specify various criteria for classifying packets. Packets are checked to determine whether they match the criteria specified in the match commands. If a packet matches the specified criteria, that packet is considered a member of the class and is forwarded according to the QoS specifications set in the traffic policy. Packets that fail to meet any of the matching criteria are classified as members of the default traffic class.






        Packet Flow in the Modular QoS CLI Three-Level Hierarchical Policer


         The figure below illustrates the flow of packets among policy maps configured for traffic policing at each level in the hierarchy.



        Figure 1. Packet Flow Among Policy Maps



         In the figure above, three policy maps are configured: policy_map_level1 (the primary-level policy map), policy_map_level2 (the secondary-level policy map), and policy_map_level3 (the tertiary-level policy map). Traffic policing is configured in each policy map, and each policy map is attached to a service policy and to an interface.



         In this simplified illustration, 500 packets arrive at the interface at which the policy map called "policy_map_level1" is attached. Because of the way traffic policing is configured in this policy map, 100 packets are dropped and 400 packets are transmitted.



         The traffic policer at the secondary-level policy map (policy_map_level2) then evaluates the packets and treats them as determined by the way traffic policing is configured at this level. Of the 400 packets received, 200 are dropped and 200 are transmitted.



         The traffic policer at the tertiary-level policy map (policy_map_level3), in turn, evaluates the 200 packets it has now received and applies the appropriate treatment as determined by the way the traffic policing is configured at this level.







        Other Traffic Policing-Related Features



The Cisco IOS traffic policing software features allow you to control the maximum rate of traffic sent or received on an interface. Traffic policing is often configured on interfaces at the edge of a network to limit traffic into or out of the network. Traffic that falls within the rate parameters is sent, whereas traffic that exceeds or violates the parameters is dropped or sent with a different priority.



The Cisco IOS software currently includes the following traffic policing features:


        •
Traffic Policing (a single-rate policer)


          •

        •
Two-Rate Policer


          •

        •
Policer Enhancements -- Multiple Actions


          •

        •
Percentage-Based Policing and Shaping


          •




Previously, these features could be configured at two levels of a policy map hierarchy; the top level and one secondary level. With the Modular QoS CLI (MQC) Three-Level Hierarchical Policer, these traffic policing-related features can configured in three levels of a policy map hierarchy.



The tasks for configuring each of these traffic policing-related features is essentially the same. That is, you use the MQC to create a policy map. Then you use the police command to configure traffic policing for a specific class within that policy map. The policy map is then attached to an interface.



Traffic policing can be configured to specify multiple marking actions for the traffic being policed, or to use a percentage of available bandwidth when policing traffic.








        How to Configure the Modular QoS CLI Three-Level Hierarchical Policer




        Configuring Traffic Policing





Traffic policing can be configured at any level of the policy map hierarchy, that is, at the primary level, secondary level, or the tertiary level.





        Before You Begin


Before configuring traffic policing, you must use the MQC to create a policy map.




SUMMARY STEPS
          1.


            enable




          2.


            configure
           {terminal | memory | network}


          3.


            policy-map


            policy-name




          4.


            class-map


            class-map-name






          5.


            police

          bps
          burst-normal burst-max

            conform-action

          action

            exceed-action

          action

            violate-action

          action



          6.


            exit





        DETAILED STEPS
           Command or ActionPurpose
          Step 1

            enable




          Example:


          Router> enable








Enables higher privilege levels, such as privileged EXEC mode.




Enter your password if prompted.






          Step 2

            configure
           {terminal | memory | network}


          Example:


          Router# configure terminal








Enters global configuration mode.






          Step 3

            policy-map


            policy-name




          Example:


          Router(config)# policy-map policy1








Specifies the name of the policy map created earlier and enters policy-map configuration mode.








          Step 4

            class-map


            class-map-name






          Example:


          Router(config-pmap)# class-map class1








Specifies the name of the class map created when the policy map was created earlier and enters policy-map class configuration mode.








          Step 5

            police

          bps
          burst-normal burst-max

            conform-action

          action

            exceed-action

          action

            violate-action

          action



          Example:


          Router(config-pmap-c)# police 8000 1000 1000 conform-action transmit exceed-action drop violate-action drop








Configures traffic policing according to burst sizes and any optional actions specified.






          Step 6

            exit




          Example:


          Router(config-pmap-c)# exit








(Optional) Exits the policy-map class configuration mode.












          Attaching the Policy Map to an Interface





After the policy map has been created and traffic policing has been configured, the policy map must be attached to an interface. Policy maps can be attached to either the input or output direction of the interface.




Depending on the needs of your network, you may need to attach the policy map to a subinterface, an ATM permanent virtual circuit (PVC), a Frame Relay data-link connection identifier (DLCI), or other type of interface.




SUMMARY STEPS
            1.


            enable




            2.


            configure
           {terminal | memory | network}


            3.


            interface


            type
            number




            4.


            pvc
           [name] vpi / vci [ilmi | qsaal | smds]


            5.


            service-policy

{input| output} policy-map-name


            6.


            exit





          DETAILED STEPS
             Command or ActionPurpose
            Step 1

            enable




            Example:


            Router> enable








Enables higher privilege levels, such as privileged EXEC mode.



            •
Enter your password if prompted.


              •







            Step 2

            configure
           {terminal | memory | network}


            Example:


            Router# configure terminal








Enters global configuration mode.






            Step 3

            interface


            type
            number




            Example:








            Example:


            Router(config-if)#

interface s4/0








Configures an interface (or subinterface) type and enters interface configuration mode.



            •
Enter the interface type number.


              •












            Step 4

            pvc
           [name] vpi / vci [ilmi | qsaal | smds]


            Example:


            Router(config-if)# pvc cisco 0/16 ilmi








(Optional) Creates or assigns a name to an ATM PVC and specifies the encapsulation type on an ATM PVC. Enters ATM virtual circuit (VC) configuration mode (config-if-atm-vc).



            Note



This step is required only if you are attaching the policy map to an ATM PVC. If you are not attaching the policy map to an ATM PVC, skip this step and proceed with Step 5
.








            Step 5

            service-policy

{input| output} policy-map-name


            Example:


            Router(config-if)#

service-policy input policy1






            Example:










Specifies the name of the policy map to be attached to the input or
output
direction of the interface.



            Note



Policy maps can be configured on ingress or egress routers. They can also be attached in the input or output direction of an interface. The direction (input or output) and the router (ingress or egress) to which the policy map should be attached varies according your network configuration. When using the service-policy command to attach the policy map to an interface, be sure to choose the router and the interface direction that are appropriate for your network configuration.





            •
Enter the policy map name.


              •







            Step 6

            exit




            Example:


            Router(config-if)# exit








(Optional) Exits interface configuration mode.










            What to Do Next



If you want to configure traffic policing at another level in the policy map hierarchy, repeat the steps in the Configuring Traffic Policing section and the Attaching the Policy Map to an Interface section.








            Verifying the Configuration





This task allows you to verify that you created the configuration you intended and that the feature is functioning correctly.




SUMMARY STEPS
              1.


            enable




              2.
      Do one of the following:
              •

              show
              policy-map


                •

              •

                •

              •

              show
              policy-map
              interface


              interface-name


                •





              3.


            exit





            DETAILED STEPS
               Command or ActionPurpose
              Step 1

            enable




              Example:


              Router> enable








Enables higher privilege levels, such as privileged EXEC mode.



              •
Enter your password if prompted.


                •







              Step 2Do one of the following:
              •

              show
              policy-map


                •

              •

                •

              •

              show
              policy-map
              interface


              interface-name


                •




              Example:


              Router# show policy-map






              Example:









              Example:


              Router#
show policy-map interface s4/0








Displays all configured policy maps.




or




Displays the packet statistics of all classes that are configured for all service policies either on the specified interface or subinterface or on a specific PVC on the interface.



              •
Enter the interface name.


                •







              Step 3

            exit




              Example:


              Router(config-if)# exit








(Optional) Exits interface configuration mode.










              Troubleshooting Tips



The commands in the Verifying the Configuration section allow you to verify that you achieved the intended configuration and that the feature is functioning correctly. If after using the show commands listed above, the configuration is not correct or the feature is not functioning as expected, do the following:



If the configuration is not the one you intended, complete the following procedures:


              •
Use the show running-config command and analyze the output of the command.


                •

              •
If the policy map does not appear in the output of the show running-config command, enable the logging console command.


                •

              •
Attach the policy map to the interface again.


                •




If the packets are not being matched correctly (for example, the packet counters are not incrementing correctly), complete the following procedures:


              •
Use the show policy-mapcommand and analyze the output of the command.


                •

              •
Use the show running-config command and analyze the output of the command.


                •

              •
Run the show policy-map interface command and analyze the output of the command. Review the the following:
                •
If a policy map applies queueing, and the packets are matching the correct class, but you see unexpected results, compare the number of packets to the number of packets matched.
                  •

                •
If the interface is congested, and you are only seeing a small number of packets matched, check the tuning of the tx ring, and evaluate whether the queueing is happening on the tx ring. To do this, use the show controllers command, and look at the value of the tx count in the show output of the command.
                  •





                •











              Configuration Examples for the Modular QoS CLI Three-Level Hierarchical Policer








              Example  Configuring the Modular QoS CLI Three-Level Hierarchical Policer





In the following example, the Modular QoS CLI (MQC) Three-Level Hierarchical Policer has been configured for three classes within three separate policy maps. The three classes, called "c1," "c2," and "c3," respectively, have been configured using the match criteria specified as follows:



              class-map c1
   match any
class-map c2
   match ip precedence 1 2 3
class-map c3
   match ip precedence 2





Next, the classes are configured in three separate policy maps, called "p_all" (the primary-level policy map), "pmatch_123" (the secondary-level policy map), and "pmatch_2" (the tertiary-level policy map), as shown below.



              policy p_all
   class c1
      police 100000
      service-policy pmatch_123
policy pmatch_123
  class c2
     police 20000
     service-policy pmatch_2
policy pmatch_2
  class c3
     police 8000





The primary goal of this configuration is to limit all traffic to 100 kbps. Within this, the secondary goal is make sure that packets with precedence values of 1, 2, or 3 do not exceed 20 kbps and that packets with precedence value of 2 never exceed 8 kbps.




To verify that the classes have been configured correctly and to confirm the results of the traffic policing configuration in the policy maps, the show policy-map command and the show policy-map interfacecommand can be used, as shown in the following sections.




The following sample output of the show policy-mapcommand verifies the configuration of the classes in the policy maps:



              Router# show policy map
  Policy Map p_all
    Class c1
     police cir 100000 bc 3000
       conform-action transmit
       exceed-action drop
      service-policy pmatch_123
  Policy Map pmatch_123
    Class c2
     police cir 20000 bc 1500
       conform-action transmit
       exceed-action drop
      service-policy pmatch_2
  Policy Map pmatch_2
    Class c3
     police cir 8000 bc 1500
       conform-action transmit
       exceed-action drop





The following sample output of the show policy-map interface command confirms the results of this configuration on the attached interface:



              Router# show policy-map interface Ethernet3/1
 Ethernet3/1
  Service-policy output:p_all
    Class-map:c1 (match-all)
      0 packets, 0 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match:any
      police:
          cir 100000 bps, bc 3000 bytes
        conformed 0 packets, 0 bytes; actions:
          transmit
        exceeded 0 packets, 0 bytes; actions:
          drop
        conformed 0 bps, exceed 0 bps,
      Service-policy :pmatch_123
        Class-map:c2 (match-all)
          0 packets, 0 bytes
          5 minute offered rate 0 bps, drop rate 0 bps
          Match:ip precedence 1  2  3
          police:
              cir 20000 bps, bc 1500 bytes
            conformed 0 packets, 0 bytes; actions:
              transmit
            exceeded 0 packets, 0 bytes; actions:
              drop
            conformed 0 bps, exceed 0 bps,
          Service-policy :pmatch_2
            Class-map:c3 (match-all)
              0 packets, 0 bytes
              5 minute offered rate 0 bps, drop rate 0 bps
              Match:ip precedence 2
              police:
                  cir 8000 bps, bc 1500 bytes
                conformed 0 packets, 0 bytes; actions:
                  transmit
                exceeded 0 packets, 0 bytes; actions:
                  drop
                conformed 0 bps, exceed 0 bps,
            Class-map:class-default (match-any)
              0 packets, 0 bytes
              5 minute offered rate 0 bps, drop rate 0 bps
              Match:any
        Class-map:class-default (match-any)
          0 packets, 0 bytes
          5 minute offered rate 0 bps, drop rate 0 bps
          Match:any
    Class-map:class-default (match-any)
      0 packets, 0 bytes
      5 minute offered rate 0 bps, drop rate 0 bps
      Match:any











              Additional References




               The following sections provide additional references related to the Modular QoS CLI (MQC) Three-Level Hierarchical Policer:






              Related Documents






               Related Topic






               Document Title










               QoS commands: complete command syntax, command modes, command history, defaults, usage guidelines, and examples







						Cisco IOS Quality of Service Solutions Command Reference










               Additional information about configuring traffic policing






               "Policing and Shaping Overview" module









               Modular Quality of Service (QoS) Command-Line Interface (CLI) (MQC)






               "Applying QoS Features Using the MQC" module









               Two-rate traffic policing






               "Two-Rate Policer" module









               Traffic policing using multiple policer actions






               "Policer Enhancements--Multiple Actions" module









               Percentage-based traffic policing and shaping






               "Percentage-Based Policing and Shaping" module









               Frame Relay configurations






               "Configuring Frame Relay" module









               Frame Relay commands: complete command syntax, command modes, command history, defaults, usage guidelines, and examples






              Cisco IOS Wide-Area Networking Command Reference
















              Standards






               Standards






               Title










               No new or modified standards are supported by this feature, and support for existing standards has not been modified by this feature.






               --















              MIBs






               MIBs






               MIBs Link










              •  CISCO-CLASS-BASED-QOS-CAPABILITY-MIB



                •

              •  CISCO-CLASS-BASED-QOS-MIB



                •








               To obtain lists of supported MIBs by platform and Cisco IOS release, and to download MIB modules, go to the Cisco MIB website on Cisco.com at the following URL:




               http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml















              RFCs






               RFCs






               Title










               RFC 2697








						  A
						  Single
						  Rate
						  Three
						  Color
						  Marker










               RFC 2698








						  A
						  Two
						  Rate
						  Three
						  Color
						  Marker
















              Technical Assistance






               Description






               Link










               The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.







						http:/​/​www.cisco.com/​cisco/​web/​support/​index.html
