RSVP Fast Local Repair
The RSVP Fast Local Repair feature provides quick adaptation to routing changes occurring in global as well as VRF routing domains, without the overhead of the refresh period to guarantee the quality of service (QoS) for data flows. With fast local repair (FLR), Resource Reservation Protocol (RSVP) speeds up its response to routing changes from 30 seconds to a few seconds.
Finding Feature Information
Your software release may not support all the features documented in this module. For the latest caveats and feature information, see Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table at the end of this module.
Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/go/cfn. An account on Cisco.com is not required.
Prerequisites for RSVP FLR
You must configure RSVP on one or more interfaces on at least two neighboring devices that share a link within the network.
Restrictions for RSVP FLR
- RSVP FLR applies only when RSVP is used to set up resource reservations for IPv4 unicast flows; IPv4 multicast flows are not supported.
- RSVP FLR does not apply to traffic engineering (TE) tunnels and, therefore, does not affect TE sessions.
- RSVP FLR does not support message bundling.
Information About RSVP FLR
Feature Overview of RSVP FLR
RSVP FLR provides for dynamic adaptation when routing changes occur in global or VRF routing domains. When a route changes, the next PATH and RESV message refreshes establish path and reservation states along the new route. Depending on the configured refresh interval, this reroute happens in tens of seconds. However, during this time, the QoS of flows is not guaranteed because congestion may occur while data packets travel over links where reservations are not yet in place.
In order to provide faster adaptation to routing changes, without the overhead of a refresh period, RSVP registers with the routing information base (RIB) and receives notifications when routes change, thereby triggering state refreshes for the affected destinations. These triggered refreshes use the new route information and, as a result, install reservations over the new path.
When routes change, RSVP has to reroute all affected paths and reservations. Without FLR, the reroute happens when refresh timers expire for the path states. With real time applications such as VoIP and VoD, the requirement changes and the reroute must happen quickly, within three seconds from the triggering event such as link down or link up.

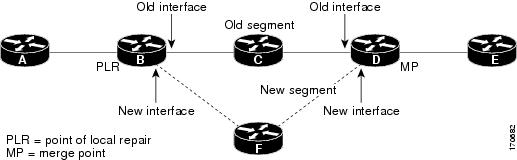

The figure below illustrates the FLR process.
| Figure 1 | Overview of RSVP FLR |
Initial RSVP states are installed for an IPv4 unicast flow over devices A, B, C, D, and E. Device A is the source or headend, while device E is the destination or tailend. The data packets are destined to an address of device E. Assume that a route change occurs, and the new path taken by the data packets is from device A to device B to device F to device D to device E; therefore, the old and new paths differ on the segments between device B and D. The device B to device C to device D segment is the old segment, while the device B to device F to device D segment is the new segment.
A route may change because of a link or node failure, or if a better path becomes available.
RSVP at device B detects that the route change affects the RSVP flow and initiates the FLR procedure. The node that initiates an FLR repair procedure, device B in the figure above, is the point of local repair (PLR). The node where the new and old segments meet, device D in the figure above, is the merge point (MP). The interfaces at the PLR and the MP that are part of the old segment are the old interfaces, while the interfaces that are part of the new segment are the new interfaces.
If a route has changed because of a failure, the PLR may not be the node that detects the failure. For example, it is possible that the link from device C to device D fails, and although device C detects the failure, the route change at device B is the trigger for the FLR procedure. device C, in this case, is also referred to as the node that detects the failure.
The support for FLR in VRF domains means that RSVP can get a route change notification, even if there is a route change in any VRF domains, as RSVP FLR was previously supported only in the global routing domain.
Benefits of RSVP FLR
Faster Response Time to Routing Changes
FLR reduces the time that it takes for RSVP to determine that a physical link has gone down and that the data packets have been rerouted. Without FLR, RSVP may not recognize the link failure for 30 seconds when all of the sessions are impacted by having too much traffic for the available bandwidth. With FLR, this time can be significantly reduced to a few seconds.
After detecting the failure, RSVP recomputes the admission control across the new link. If the rerouted traffic fits on the new link, RSVP reserves the bandwidth and guarantees the QoS of the new traffic.
If admission control fails on the new route, RSVP does not explicate tear down the flow, but instead sends a RESVERROR message towards the receiver. If a proxy receiver is running, then RSVP sends a PATHERROR message towards the headend, in response to the RESVERROR message, indicating the admission failure. In both cases, with and without a proxy receiver, the application tears down the failed session either at the headend or at the final destination.
Until this happens, the data packets belonging to this session still flow over the rerouted segment although admission has failed and QoS is affected.
The support of FLR in VRF domains means that if there is a route change in any routing domain, RSVP can use FLR to adapt to the routing change, as RSVP FLR was previously supported only in the global routing domain.
How to Configure RSVP FLR
You can configure the RSVP FLR parameters in any order that you want.
- Configuring the RSVP FLR Wait Time
- Configuring the RSVP FLR Repair Rate
- Configuring the RSVP FLR Notifications
- Verifying the RSVP FLR Configuration
Configuring the RSVP FLR Wait Time
DETAILED STEPS
Configuring the RSVP FLR Repair Rate
DETAILED STEPS
| Command or Action | Purpose | |||
|---|---|---|---|---|
|
|
Example: Device> enable |
Enables privileged EXEC mode. |
||
|
|
Example: Device# configure terminal |
Enters global configuration mode. |
||
|
|
Example: Device(config)# ip rsvp signalling fast-local-repair rate 100 |
Configures the repair rate that RSVP uses for an FLR procedure.
|
||
|
|
Example: Device(config)# exit |
(Optional) Returns to privileged EXEC mode. |
Configuring the RSVP FLR Notifications
DETAILED STEPS
| Command or Action | Purpose | |
|---|---|---|
|
|
Example: Device> enable |
Enables privileged EXEC mode. |
|
|
Example: Device# configure terminal |
Enters global configuration mode. |
|
|
Example: Device(config)# ip rsvp signalling fast-local-repair notifications 100 |
Configures the number of path state blocks (PSBs) that RSVP processes before it suspends. |
|
|
Example: Device(config)# exit |
(Optional) Returns to privileged EXEC mode. |
Verifying the RSVP FLR Configuration
 Note |
You can use the following show commands in user EXEC or privileged EXEC mode. |
DETAILED STEPS
| Command or Action | Purpose | |||
|---|---|---|---|---|
|
|
Example: Device> enable |
(Optional) Enables privileged EXEC mode.
|
||
|
|
Example: Device# show ip rsvp signalling fast-local-repair statistics detail |
Displays FLR-specific information that RSVP maintains. |
||
|
|
Example: Device# show ip rsvp interface ethernet 1/0 |
Displays RSVP-related information. |
||
|
|
Example: Device# show ip rsvp |
Displays general RSVP related information. |
||
|
|
Example: Device# show ip rsvp sender detail |
Displays RSVP PATH-related sender information currently in the database.
|
||
|
|
Example: Device# exit |
(Optional) Exits privileged EXEC mode and returns to user EXEC mode. |
Configuration Examples for RSVP FLR
Example Configuring RSVP FLR
The configuration options for RSVP FLR are the following:
Note |
You can configure these options in any order. |
Configuring the Wait Time
The following example configures Ethernet interface 1/0 with a bandwidth of 200 kbps and a wait time of 1000 msec:
Device# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Device(config)# interface ethernet1/0 Device(config-if)# ip rsvp bandwidth 200 Device(config-if)# ip rsvp signalling fast-local-repair wait-time 1000
Device(config-if)# end
Configuring the Number of Notifications
The following example configures the number of flows that are repaired before suspending to 100:
Device# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Device(config)# ip rsvp signalling fast-local-repair notifications 100 Device(config)# end
Configuring the Repair Rate
The following example configures a repair rate of 100 messages per second:
Device# configure terminal Enter configuration commands, one per line. End with CNTL/Z. Device(config)# ip rsvp signalling fast-local-repair rate 100 Device(config)# end
Example Verifying the RSVP FLR Configuration
This section contains the following examples:
Verifying the Details for FLR Procedures
The following example displays detailed information about FLR procedures:
Device# show ip rsvp signalling fast-local-repair statistics detail
Fast Local Repair: enabled
Max repair rate (paths/sec): 10
Max processed (paths/run): 10
FLR Statistics:
FLR 1: DONE
Start Time: 05:18:54 IST Mon Nov 5 2007
Number of PSBs repaired: 2
Used Repair Rate (msgs/sec): 10
RIB notification processing time: 0(us).
Time of last PSB refresh: 5025(ms).
Time of last Resv received: 6086(ms).
Time of last Perr received: 0(us).
Suspend count: 0
FLR Pacing Unit: 100 msec.
Affected neighbors:
Nbr Address Interface Relative Delay Values (msec) VRF
10.1.2.12 Et0/3 [5000 ,..., 5000 ] vrfRed
10.1.2.12 Et1/3 [5000 ,..., 5000 ] vrfBlue
Verifying Configuration Details for a Specific Interface
The following example from the show ip rsvp interface detail command displays detailed information, including FLR, for the Ethernet 1/0 interface:
Device# show ip rsvp interface detail ethernet1/0
Et1/0:
RSVP: Enabled
Interface State: Up
Bandwidth:
Curr allocated: 9K bits/sec
Max. allowed (total): 300K bits/sec
Max. allowed (per flow): 300K bits/sec
Max. allowed for LSP tunnels using sub-pools (pool 1): 0 bits/sec
Set aside by policy (total): 0 bits/sec
Traffic Control:
RSVP Data Packet Classification is ON via CEF callbacks
Signalling:
DSCP value used in RSVP msgs: 0x30
Number of refresh intervals to enforce blockade state: 4
FLR Wait Time (IPv4 flows):
Repair is delayed by 1000 msec.
Authentication: disabled
Key chain: <none>
Type: md5
Window size: 1
Challenge: disabled
Hello Extension:
State: Disabled
Verifying Configuration Details Before, During, and After an FLR Procedure
The following is sample output from the show ip rsvp sender detail command before an FLR procedure has occurred:
Device# show ip rsvp sender detail
PATH:
Destination 192.168.101.21, Protocol_Id 17, Don't Police , DstPort 1
Sender address: 10.10.10.10, port: 1
Path refreshes:
arriving: from PHOP 172.3.31.34 on Et0/0 every 30000 msecs
Traffic params - Rate: 9K bits/sec, Max. burst: 9K bytes
Min Policed Unit: 0 bytes, Max Pkt Size 2147483647 bytes
Path ID handle: 01000401.
Incoming policy: Accepted. Policy source(s): Default
Status:
Output on Ethernet1/0. Policy status: Forwarding. Handle: 02000400
Policy source(s): Default
Path FLR: Never repaired
The following is sample output from the show ip rsvp sender detail command at the PLR during an FLR procedure:
Device# show ip rsvp sender detail
PATH:
Destination 192.168.101.21, Protocol_Id 17, Don't Police , DstPort 1
Sender address: 10.10.10.10, port: 1
Path refreshes:
arriving: from PHOP 172.16.31.34 on Et0/0 every 30000 msecs
Traffic params - Rate: 9K bits/sec, Max. burst: 9K bytes
Min Policed Unit: 0 bytes, Max Pkt Size 2147483647 bytes
Path ID handle: 01000401.
Incoming policy: Accepted. Policy source(s): Default
Status:
Path FLR: PSB is currently being repaired...try later
PLR - Old Segments: 1
Output on Ethernet1/0, nhop 172.5.36.34
Time before expiry: 2 refreshes
Policy status: Forwarding. Handle: 02000400
Policy source(s): Default
The following is sample output from the show ip rsvp sender detail command at the MP during an FLR procedure:
Device# show ip rsvp sender detail
PATH:
Destination 192.168.101.21, Protocol_Id 17, Don't Police , DstPort 1
Sender address: 10.10.10.10, port: 1
Path refreshes:
arriving: from PHOP 172.16.37.35 on Et1/0 every 30000 msecs
Traffic params - Rate: 9K bits/sec, Max. burst: 9K bytes
Min Policed Unit: 0 bytes, Max Pkt Size 2147483647 bytes
Path ID handle: 09000406.
Incoming policy: Accepted. Policy source(s): Default
Status: Proxy-terminated
Path FLR: Never repaired
MP - Old Segments: 1
Input on Serial2/0, phop 172.16.36.35
Time before expiry: 9 refreshes
The following is sample output from the show ip rsvp sender detail command at the PLR after an FLR procedure:
Device# show ip rsvp sender detail
PATH:
Destination 192.168.101.21, Protocol_Id 17, Don't Police , DstPort 1
Sender address: 10.10.10.10, port: 1
Path refreshes:
arriving: from PHOP 172.16.31.34 on Et0/0 every 30000 msecs
Traffic params - Rate: 9K bits/sec, Max. burst: 9K bytes
Min Policed Unit: 0 bytes, Max Pkt Size 2147483647 bytes
Path ID handle: 05000401.
Incoming policy: Accepted. Policy source(s): Default
Status:
Output on Serial3/0. Policy status: Forwarding. Handle: 3B000406
Policy source(s): Default
Path FLR: Started 12:56:16 EST Thu Nov 16 2006, PSB repaired 532(ms) after.
Resv/Perr: Received 992(ms) after.
Additional References
The following sections provide references related to the RSVP FLR feature.
Related Documents
| Related Topic |
Document Title |
|---|---|
| RSVP commands: complete command syntax, command mode, defaults, usage guidelines, and examples |
Cisco IOS Quality of Service Solutions Command Reference |
| QoS features including signaling, classification, and congestion management |
"Quality of Service Overview" module |
| Cisco IOS commands |
Standards
| Standard |
Title |
|---|---|
| No new or modified standards are supported by this feature, and support for existing standards has not been modified by this feature. |
-- |
MIBs
| MIB |
MIBs Link |
|---|---|
| No new or modified MIBs are supported by this feature, and support for existing MIBs has not been modified by this feature. |
To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL: |
RFCs
| RFC |
Title |
|---|---|
| RFC 2205 |
Resource ReSerVation Protocol (RSVP)--Version 1 Functional Specification |
| RFC 2209 |
Resource ReSerVation Protocol (RSVP)--Version 1 Messaging Processing Rules |
Technical Assistance
| Description |
Link |
|---|---|
| The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password |
Feature Information for RSVP FLR
The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.
Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/go/cfn. An account on Cisco.com is not required.
| Table 1 | Feature Information for RSVP FLR |
| Feature Name |
Releases |
Feature Information |
|---|---|---|
| RSVP Fast Local Repair |
12.2(33)SRB, 15.0(1)M |
The RSVP Fast Local Repair feature provides quick adaptation to routing changes without the overhead of the refresh period to guarantee QoS for data flows. With FLR, RSVP speeds up its response to routing changes from 30 seconds to a few seconds. This feature was integrated into Cisco IOS Release 15.0(1)M. Support for FLR in VRF domains was added. The following commands were introduced or modified: clear ip rsvp signalling fast-local-repair statistics, ip rsvp signalling fast-local-repair notifications, ip rsvp signalling fast-local-repair rate, ip rsvp signalling fast-local-repair wait-time, show ip rsvp, show ip rsvp interface, show ip rsvp sender, show ip rsvp signalling fast-local-repair. |
Glossary
admission control --The process by which an RSVP reservation is accepted or rejected on the basis of end-to-end available network resources.
bandwidth --The difference between the highest and lowest frequencies available for network signals. The term is also used to describe the rated throughput capacity of a given network medium or protocol.
message pacing-- A system for managing volume and timing that permits messages from multiple sources to be spaced apart over time. RSVP message pacing maintains, on an outgoing basis, a count of the messages that it has been forced to drop because the output queue for the interface used for the message pacing was full.
MP --merge point. The node where the new and old FLR segments meet.
PLR --point of local repair. The node that initiates an FLR procedure.
QoS --quality of service. A measure of performance for a transmission system that reflects its transmission quality and service availability.
RSVP --Resource Reservation Protocol. A protocol that supports the reservation of resources across an IP network. Applications running on IP end systems can use RSVP to indicate to other nodes the nature (bandwidth, jitter, maximum burst, and so on) of the packet streams that they want to receive.
VRF --Virtual Routing and Forwarding. VRF is A VPN routing and forwarding instance. A VRF consists of an IP routing table, a derived forwarding table, a set of interfaces that use the forwarding table, and a set of rules and routing protocols that determine what goes into the forwarding table. In general, a VRF includes the routing information that defines a customer VPN site that is attached to a PE device.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.
Feedback
