NetFlow Configuration for Traffic Monitoring and Analysis

This page will help you understand the fundamental principles, variations, benefits, and limitations associated with NetFlow. Additionally, it offers guidance on configuring NetFlow.

NetFlow Essential Concepts and Terms

  • Data source: Specific locations within the router, such as physical interfaces and VLANs, where traffic measurements can be taken.

  • Flow: Indicates a collection of IP or MPLS packets traversing the router during a time period. All packets belonging to a particular Flow share common attributes derived from the packet's data

  • Flow record: Is a set of key and non-key NetFlow field values used to characterize flows in the NetFlow cache. It is generated by examining packet headers, and adding a description of packet details in the NetFlow cache.

  • Exporter: Positioned within the router that has NetFlow enabled, an Exporter monitors incoming packets, and generates Flows from them. The Exporter transmits information derived from these Flows, encapsulates as Flow Records, to the NetFlow Collector.

  • Collector: An external device designed to receive Flow Records from one or multiple Exporters. The Collector processes the incoming export packets, and stores the associated Flow record details. Optionally, Flow records can undergo aggregation before storing it onto the hard disk.

  • NetFlow Cache: The Cache is a segment of memory that stores flow entries prior to their exportation to an external collector. This includes two cache types: the normal cache and the permanent cache.

  • Netflow Analyser: Is an external device or an application responsible for collecting and scrutinizing flow records to furnish valuable insights.

  • Collector address: This comprises the IP address and a UDP port number. By default, the designated destination port number is 2055.

How NetFlow works

Table 1. Feature History Table

Feature Name

Release Information

Description
Netflow support Release 24.4.1

Introduced in this release on: Fixed Systems(8200, 8700)(select variants only*); Modular Systems (8800 [LC ASIC: P100])(select variants only*).

NetFlow enhances the system's traffic monitoring capabilities by allowing you to track and analyze IP traffic flows in real-time, offering improved visibility into network utilization and aiding in troubleshooting.

*This feature is now supported on:

  • 8212-48FH-M

  • 8711-32FH-M

  • 8712-MOD-M

  • 88-LC1-12TH24FH-E

  • 88-LC1-52Y8H-EM

  • 88-LC1-36EH

NetFlow serves as a network monitoring protocol that facilitates the logging of metadata for each flow that traverses the router, both entering or leaving it. This protocol provides comprehensive insights into network flows, including details such as source and destination IP addresses, ports, and packet counts. It's commonly applied for traffic analysis, capacity planning, and network troubleshooting.

Recording of Packet Flows in NetFlow

The packet in NetFlow is recorded as follows:

Figure 1. Packet Flows in NetFlow
Recording flow of packets using NetFlow technology Flow Creation Datagram Generation Data Export Analysis and Reporting

In NetFlow, the focus is on recording and collecting full packet flows in the network traffic data. When NetFlow is configured on the router, the router collects flow data by extracting key field attributes from the packet streams, and generates a flow record. This record, along with accounting information, is stored in the database or NetFlow Cache. The extracted records, once sampled, are exported to one or more NetFlow collectors via the UDP transport layer protocol. This exported data has several purpose: enterprise accounting and ISP billing, and so on.

Here's how NetFlow handles the recording of packet flows:

  1. Flow Creation: NetFlow creates flow records by monitoring network traffic passing through the router. As a packet stream traverses a router interface, the packets are collected and an internal header is appended. These packets are dispatched to the line card's CPU, which generate a flow record. The router extracts pertinent header details from the packets and creates cache entries. The packets are subject to a policer, which helps protect the internal control plane. With each subsequent arrival of a packet from the same flow, the cache entry is updated. Flow records persist within the line card's cache until they age out due to timer expiration.

    When the expiry of the set timer occurs, the NetFlow is generated. There are timers (two of them) running for flow aging.

    • The active timer signifies the maximum allowable duration for a particular cache entry's existence, even if matched by received sampled packets.

    • The inactive timer represents the duration without receipt of a sampled packet corresponding to a specific cache entry.

  2. Datagram Generation: The NetFlow agent generates NetFlow datagrams that contain information about the packets. These datagrams include details such as source and destination IP addresses, port numbers, protocol information, and various flow statistics.

  3. Data Export: The NetFlow datagrams are periodically exported from the NetFlow agent to a designated NetFlow collector or analyzer. The export can be done using protocols like UDP or TCP, and the datagrams are typically sent in a structured format like IPFIX or JSON.

    A flow record is sent to the NetFlow collector in the following scenarios:

    • The flow has been inactive or active for an extended period.

    • The user triggers the export of the flow.

    • The flow concludes, which is particularly relevant when TCP connections are terminated.

  4. Analysis and Reporting: Upon receiving the NetFlow data, the NetFlow collector or analyzer processes and analyzes the information. It aggregates the sampled data to provide statistical insights into network traffic, including top talkers, protocol distribution, traffic patterns, and other metrics.

Collect additional BGP information elements for MPLS IPv4 and IPV6 using IPFIX

Table 2. Feature History Table

Feature Name

Release Information

Description
Collect additional BGP information elements for MPLS IPv4 and IPV6 using IPFIX Release 24.4.1

Introduced in this release on: Fixed Systems(8200, 8700)(select variants only*); Modular Systems (8800 [LC ASIC: P100])(select variants only*).

This feature helps you monitor and optimize your network more effectively with IPFIX, which enhances the collection of BGP Information Elements (IEs) in IPFIX records.

*This feature is now supported on:

  • 8212-48FH-M

  • 8711-32FH-M

  • 8712-MOD-M

  • 88-LC1-12TH24FH-E

  • 88-LC1-52Y8H-EM

  • 88-LC1-36EH

This feature is specifically designed to improve congestion mitigation in core-edge link scenarios, this update introduces support for gathering eight additional BGP fields in IPFIX MPLS IPv4/IPv6 records. With this feature, you can efficiently monitor and optimize your network.

Additionally, two new Information Elements, namely Minimum Time-to-Live (TTL) and Maximum TTL, are recorded. These elements provide information about the minimum Time to Live for a flow and the maximum Time to Live for a flow.

Table 3. Information Elements

IE Field

IE Number

BgpSourceAsNumber

16

BgpDestinationAsNumber

17

BgpNextHopIPv4Address

18

BgpNextHopIPv6Address

63

DestinationIPv4PrefixLength

13

DestinationIPv6PrefixLength

30

IpNextHopIPv4Address

15

IpNextHopIPv6Address

62

Minimum TTL

52

Maximum TTL

53

IE number, or Information Element Number, is a unique identifier assigned to specific elements within network communication protocols, facilitating standardized interpretation and management. For more information refer IP Flow Information Export (IPFIX) Entities.

Configuration

The following example shows how to collect MPLS traffic with both IPv6 and IPv4 fields.

Configuring Monitor map:

Router(config)#flow monitor-map mpls-1
Router(config-fmm)#record mpls ipv4-ipv6-fields
Router(config-fmm)#commit
Router(config-fmm)#exit

Configuring Sampler map:

Router(config)#sampler-map fsm1
Router(config-sm)#random 1 out-of 4000
Router(config-sm)#commit
Router(config-sm)#exit

Apply a Monitor Map and a Sampler Map to a physical interface

Router(config)#interface HundredGigE 0/0/0/24
Router(config-if)#flow mpls monitor mpls-1 sampler fsm1 ingress
Router(config-if)#exit

Verification

Verify the flow monitor stats statistics using the show flow monitor cache location command .

Router#show flow monitor mpls-1 cache summary location 0/0/CPU0========== Record number: 1 ==========
========== Record number: 1 ==========
LabelType        :   Unknown
Prefix/Length    : 20.1.1.0/24
Label1-EXP-S     :    16001-0-1
Label2-EXP-S     :       -
Label3-EXP-S     :       -
Label4-EXP-S     :       -
Label5-EXP-S     :       -
Label6-EXP-S     :       -
InputInterface   : FH0/0/0/1
OutputInterface  : FH0/0/0/0
ForwardStatus    : Fwd
FirstSwitched    : 00 08:28:52:189
LastSwitched     : 00 08:28:57:649
ByteCount        : 2352
PacketCount      : 56
Dir              : Ing
SamplerID        : 1
IPV4SrcAddr      : 30.1.1.1
IPV4DstAddr      : 20.1.1.1
IPV4TOS          : 0
IPV4Prot         : udp
L4SrcPort        : 2025
L4DestPort       : 2500
L4TCPFlags       : 0
IPV4SrcPrfxLen   : 24
IPV4DstPrfxLen   : 24
BGPNextHopV4     : 192.168.10.10
BGPNextHopV6     : ::
BGPSrcOrigAS     : 2000
BGPDstOrigAS     : 1000
IPV4NextHop      : 192.168.10.10
IPV6NextHop      : ::
MinimumTTL       : 90
MaximumTTL       : 110
InputVRFID       : default
OutputVRFID      : default


========== Record number: 1 ==========
LabelType        :   Unknown
Prefix/Length    : ::/0
Label1-EXP-S     :    16001-0-1
Label2-EXP-S     :       -
Label3-EXP-S     :       -
Label4-EXP-S     :       -
Label5-EXP-S     :       -
Label6-EXP-S     :       -
InputInterface   : FH0/0/0/1
OutputInterface  : FH0/0/0/0
ForwardStatus    : Fwd
FirstSwitched    : 00 08:27:38:692
LastSwitched     : 00 08:27:47:572
ByteCount        : 5580
PacketCount      : 90
Dir              : Ing
SamplerID        : 1
IPv6SrcAddr      : 50::1
IPv6DstAddr      : 40::1
IPv6TC           : 0
IPv6FlowLabel    : 0
IPv6OptHdrs      : 0x0
IPV6Prot         : udp
L4SrcPort        : 2025
L4DestPort       : 2500
L4TCPFlags       : 0
IPV6SrcPrfxLen   : 64
IPV6DstPrfxLen   : 64
BGPNextHopV4     : 0.0.0.0
BGPNextHopV6     : ::ffff:192.168.10.10
BGPSrcOrigAS     : 2000
BGPDstOrigAS     : 1000
IPV4NextHop      : 192.168.10.10
IPV6NextHop      : ::
MinimumTTL       : 195
MaximumTTL       : 205
InputVRFID       : default
OutputVRFID      : default

Monitor Traffic Within Your Network

NetFlow extends its support to IPv4, IPv6, MPLS, BGP, SRv6, and GTP-U flow types, providing the capacity to monitor a diverse range of packet information.

Monitor IP Traffic

NetFlow can be used to collect traffic data for both IPv4 and IPv6 networks. The data collected includes information such as source and destination IP addresses, protocol types, port numbers, and bandwidth usage. This data can be used to identify network trends, detect security threats, and optimize network performance.

Key IP traffic attributes monitored:

  • Source and Destination IP Addresses

  • Source and Destination MAC Addresses

  • Source and Destination Ports for TCP/User Datagram Protocol (UDP) ports

  • Differentiated Services Code Point (DSCP)

  • Layer 3 Protocol

  • Type of Service (ToS) Byte

  • Traffic receiving Interface

  • Complete IPv4 Header fields, including IP-ID and TTL, among others

  • Counts for Packets and Bytes

  • Full Spectrum of IPv6 Header fields, encompassing Flow Label and Option Header, among others

  • Flow timestamps

Monitor MPLS Traffic

NetFlow can be used to collect traffic data for MPLS traffic in a networks. NetFlow provides detailed visibility into MPLS traffic, allowing you to identify anomalies, detect cyber threats, and respond quickly to potential security incidents

Key MPLS traffic attribute monitored:

  • MPLS Labels

Monitor BGP Traffic

NetFlow can be used to monitor BGP traffic in your network. NetFlow can capture BGP packets and provide information on their frequency, direction, and content. This information can be used to identify potential security threats and monitor BGP router behavior. BGP is used by network routers to exchange routing information and establish optimal paths for data to travel through a network. By monitoring BGP communication with NetFlow, you can gain valuable insights into their network's performance and ensure that their routing strategies are effective.

Key BGP traffic attributes monitored:

  • Next-hop address

  • Source autonomous system (AS) number

  • Destination autonomous system (AS) number

  • Source prefix mask

  • Destination prefix mask

  • BGP Next Hop

  • BGP Policy Accounting traffic index

Monitor SRv6 Traffic

During the transition from conventional IP/MPLS networks to SRv6-based networks, the requirement for information elements specific to SRv6 traffic flow in the core arises. To address this requirement, we have introduced support for SRv6 monitoring using Netflow.

Starting from IOS-XR software release 7.10.1, you can monitor the performance of SRv6-based core networks using IPFIX.

Restriction and Limitation

  • SRv6 traffic monitoring using IPFIX is supported only on P-nodes; decapsulation nodes are not supported.

Monitor GTP-U Traffic in 5G Network

Cisco 8000 routers introduces the capability to monitor the performance of GTP-U traffic in 5G networks. This feature utilizes Netflow and IPFIX to collect and analyze traffic data, offering valuable insights into network performance and facilitating effective management of 5G network traffic.

Starting from IOS-XR software release 24.2.1, three new GTP-U related information elements can be gathered in Netflow and IPFIX records for both IPv4 and IPv6 traffic. This advancement allows administrators to optimize the performance and security of their 5G networks.

The newly introduced information elements are as follows:

IE Field

IE Number

GTP_TEID

507

GTP_QFI

509

GTP_SESS_DIR

510

IE number, or Information Element Number, is a unique identifier assigned to specific elements within network communication protocols, facilitating standardized interpretation and management. For more information, refer IP Flow Information Export (IPFIX) Entities.

Benefits of GTP-U Traffic Monitoring

The following are some of the key benefits of enabling GTP-U traffic monitoring on your router.

  • Monitor Network Slicing: 5G network slicing enables the creation of dedicated virtual networks with specific functionalities. By exporting GTP traffic records, you can conduct detailed analysis of the traffic within each slice, ensuring optimal performance and resource allocation.

  • Flexible Deployment: GTP-U monitoring can be implemented on any network node where the outermost traffic encapsulation utilizes the GTP protocol. This capability can be activated to monitor traffic at various strategic points across the network infrastructure.

  • IPv6 Support for 5G Deployments: With the expansion of 5G networks, there’s an increasing use of IPv6, especially in scenarios where 5G base stations (gNodeBs) connect to User Plane Functions (UPFs) using IPv6. This feature ensures that flow records for such IPv6 GTP-U traffic can be captured and exported effectively.

GTP-U Traffic Record Templates

This section provides you with all the record template options available for monitoring GTP-U traffic.

IPv4-GTP-IPv4 Record

This record captures GTP-U traffic details between IPv4 interfaces, essential for monitoring and optimizing IPv4 5G network performance.

S.No IPFIX NetFlow V9
IE # Field

Size

(Bytes)

 IE # Field

Size

(Bytes)
46 256 V9_ETH_TYPE 2 256 V9_ETH_TYPE 2
47 243 V9_DOT1Q_VLAN_ID 2 243 V9_DOT1Q_VLAN_ID 2
48 245 V9_DOT1Q_CUST_VLAN_ID 2 245 V9_DOT1Q_CUST_VLAN_ID 2
49 244 V9_DOT1Q_PRIORITY 1 244 V9_DOT1Q_PRIORITY 1
50 198 IN_BYTES_DELTA 8 444 V9_AS_PATH 128
1 2 V9_IN_PKTS 8 2 V9_IN_PKTS 4
2 1 V9_IN_BYTES 8 1 V9_IN_BYTES 4
3 10 V9_INPUT_SNMP 4 10 V9_INPUT_SNMP 4
4 14 V9_OUTPUT_SNMP 4 14 V9_OUTPUT_SNMP 4
5 22 V9_FIRST_SWITCHED 4 22 V9_FIRST_SWITCHED 4
6 21 V9_LAST_SWITCHED 4 21 V9_LAST_SWITCHED 4
7 89 V9_FORWARDING_STATUS 4 89 V9_FORWARDING_STATUS 1
8 61 V9_DIRECTION 1 61 V9_DIRECTION 1
9 302 SELECTOR_ID 4 48 V9_FLOW_SAMPLER_ID 2
10 234 V9_VRF_ID_INPUT 4 234 V9_VRF_ID_INPUT 4
11 235 V9_VRF_ID_OUTPUT 4 235 V9_VRF_ID_OUTPUT 4
12 55 V9_POST_QOS_TOS 1 55 V9_POST_QOS_TOS 1
13 8 V9_IPV4SRCADDR 4 8 V9_IPV4SRCADDR 4
14 12 V9_IPV4DSTADDR 4 12 V9_IPV4DSTADDR 4
15 7 V9_SRC_PORT 2 7 V9_SRC_PORT 2
16 11 V9_DST_PORT 2 11 V9_DST_PORT 2
17 9 V9_SRC_MASK 1 9 V9_SRC_MASK 1
18 13 V9_DST_MASK 1 13 V9_DST_MASK 1
19 4 V9_PROT 1 4 V9_PROT 1
20 6 V9_TCP_FLAGS 2 6 V9_TCP_FLAGS 1
21 5 V9_TOS 1 5 V9_TOS 1
22 52 V9_MIN_TTL 1 52 V9_MIN_TTL 1
23 53 V9_MAX_TTL 1 53 V9_MAX_TTL 1
24 54 V9_IP_IDENT 4 54 V9_IP_IDENT 4
25 197 IPFIX_FRAG_FLAGS 1 197 IPFIX_FRAG_FLAGS 1
26 88 V9_FRAGMENT_OFFSET 2 88 V9_FRAGMENT_OFFSET 2
27 184 IPFIX_TCP_SEQ_NUM 4 184 IPFIX_TCP_SEQ_NUM 4
28 25 V9_MIN_PKT_LEN 8 25 V9_MIN_PKT_LEN 8
29 26 V9_MAX_PKT_LEN 8 26 V9_MAX_PKT_LEN 8
30 503 IPFIX_L4_CHECKSUM 2 503 IPFIX_L4_CHECKSUM 2
31 504 IPFIX_ICMP_8_BYTES 8 504 IPFIX_ICMP_8_BYTES 8
32 507 GTP_TEID 4 507 GTP_TEID 4
33 509 GTP_QFI 1 509 GTP_QFI 1
34 510 GTP_SESS_DIR 1 510 GTP_SESS_DIR 1
35 8 V9_IPV4SRCADDR 4 8 V9_IPV4SRCADDR 4
36 12 V9_IPV4DSTADDR 4 12 V9_IPV4DSTADDR 4
37 5 V9_TOS 1 5 V9_TOS 1
38 16 V9_SRC_AS 4 16 V9_SRC_AS 4
39 17 V9_DST_AS 4 17 V9_DST_AS 4
40 18 V9_BGP_IPV4_NEXT_HOP 4 18 V9_BGP_IPV4_NEXT_HOP 4
41 63 V9_BGP_IPV6_NEXT_HOP 16 63 V9_BGP_IPV6_NEXT_HOP 16
42 15 V9_IPV4_NEXT_HOP 4 15 V9_IPV4_NEXT_HOP 4
43 62 V9_IPV6_NEXT_HOP 16 62 V9_IPV6_NEXT_HOP 16
44 56 V9_IN_SRC_MAC 6 56 V9_IN_SRC_MAC 6
45 80 V9_IN_DST_MAC 6 80 V9_IN_DST_MAC 6
46 256 V9_ETH_TYPE 2 256 V9_ETH_TYPE 2
47 243 V9_DOT1Q_VLAN_ID 2 243 V9_DOT1Q_VLAN_ID 2
48 245 V9_DOT1Q_CUST_VLAN_ID 2 245 V9_DOT1Q_CUST_VLAN_ID 2
49 244 V9_DOT1Q_PRIORITY 1 244 V9_DOT1Q_PRIORITY 1
50 198 IN_BYTES_DELTA 8 444 V9_AS_PATH 128
51 445 V9_STD_COMM 128

IPv4-GTP-IPv6 Record

This record monitors GTP-U traffic that starts in an IPv4 network and transitions into an IPv6 network, aiding in cross-network compatibility analysis.

S.No IPFIX NetFlow V9
IE # Field

Size

(Bytes)

 IE # Field

Size

(Bytes)
1 2 V9_IN_PKTS 8 2 V9_IN_PKTS 4
2 1 V9_IN_BYTES 8 1 V9_IN_BYTES 4
3 10 V9_INPUT_SNMP 4 10 V9_INPUT_SNMP 4
4 14 V9_OUTPUT_SNMP 4 14 V9_OUTPUT_SNMP 4
5 22 V9_FIRST_SWITCHED 4 22 V9_FIRST_SWITCHED 4
6 21 V9_LAST_SWITCHED 4 21 V9_LAST_SWITCHED 4
7 89 V9_FORWARDING_STATUS 4 89 V9_FORWARDING_STATUS 1
8 61 V9_DIRECTION 1 61 V9_DIRECTION 1
9 302 SELECTOR_ID 4 48 V9_FLOW_SAMPLER_ID 2
10 234 V9_VRF_ID_INPUT 4 234 V9_VRF_ID_INPUT 4
11 235 V9_VRF_ID_OUTPUT 4 235 V9_VRF_ID_OUTPUT 4
12 55 V9_POST_QOS_TOS 1 55 V9_POST_QOS_TOS 1
13 27 V9_IPV6_SRC_ADDR 16 27 V9_IPV6_SRC_ADDR 16
14 28 V9_IPV6_DST_ADDR 16 28 V9_IPV6_DST_ADDR 16
15 31 V9_FLOW_LABEL 4 31 V9_FLOW_LABEL 3
16 64 V9_IPV6_OPTION_HEADERS 4 64 V9_IPV6_OPTION_HEADERS 4
17 7 V9_SRC_PORT 2 7 V9_SRC_PORT 2
18 11 V9_DST_PORT 2 11 V9_DST_PORT 2
19 30 V9_IPV6_DST_MASK 1 30 V9_IPV6_DST_MASK 1
20 29 V9_IPV6_SRC_MASK 1 29 V9_IPV6_SRC_MASK 1
21 4 V9_PROT 1 4 V9_PROT 1
22 6 V9_TCP_FLAGS 2 6 V9_TCP_FLAGS 1
23 5 V9_TOS 1 5 V9_TOS 1
24 52 V9_MIN_TTL 1 52 V9_MIN_TTL 1
25 53 V9_MAX_TTL 1 53 V9_MAX_TTL 1
26 54 V9_IP_IDENT 4 54 V9_IP_IDENT 4
27 197 IPFIX_FRAG_FLAGS 1 197 IPFIX_FRAG_FLAGS 1
28 88 V9_FRAGMENT_OFFSET 2 88 V9_FRAGMENT_OFFSET 2
29 184 IPFIX_TCP_SEQ_NUM 4 184 IPFIX_TCP_SEQ_NUM 4
30 25 V9_MIN_PKT_LEN 8 25 V9_MIN_PKT_LEN 8
31 26 V9_MAX_PKT_LEN 8 26 V9_MAX_PKT_LEN 8
32 503 IPFIX_L4_CHECKSUM 2 503 IPFIX_L4_CHECKSUM 2
33 504 IPFIX_ICMP_8_BYTES 8 504 IPFIX_ICMP_8_BYTES 8
34 507 GTP_TEID 4 507 GTP_TEID 4
35 509 GTP_QFI 1 509 GTP_QFI 1
36 510 GTP_SESS_DIR 1 510 GTP_SESS_DIR 1
37 8 V9_IPV4SRCADDR 4 8 V9_IPV4SRCADDR 4
38 12 V9_IPV4DSTADDR 4 12 V9_IPV4DSTADDR 4
39 5 V9_TOS 1 5 V9_TOS 1
40 16 V9_SRC_AS 4 16 V9_SRC_AS 4
41 17 V9_DST_AS 4 17 V9_DST_AS 4
42 18 V9_BGP_IPV4_NEXT_HOP 4 18 V9_BGP_IPV4_NEXT_HOP 4
43 63 V9_BGP_IPV6_NEXT_HOP 16 63 V9_BGP_IPV6_NEXT_HOP 16
44 15 V9_IPV4_NEXT_HOP 4 15 V9_IPV4_NEXT_HOP 4
45 62 V9_IPV6_NEXT_HOP 16 62 V9_IPV6_NEXT_HOP 16
46 56 V9_IN_SRC_MAC 6 56 V9_IN_SRC_MAC 6
47 80 V9_IN_DST_MAC 6 80 V9_IN_DST_MAC 6
48 256 V9_ETH_TYPE 2 256 V9_ETH_TYPE 2
49 243 V9_DOT1Q_VLAN_ID 2 243 V9_DOT1Q_VLAN_ID 2
50 245 V9_DOT1Q_CUST_VLAN_ID 2 245 V9_DOT1Q_CUST_VLAN_ID 2
51 244 V9_DOT1Q_PRIORITY 1 244 V9_DOT1Q_PRIORITY 1
52 198 IN_BYTES_DELTA 8 444 V9_AS_PATH 128
53 445 V9_STD_COMM 128

IPv6-GTP-IPv4 Record

This record monitors GTP-U traffic moving from an IPv6 network to an IPv4 network, ensuring seamless data flow across different network types.

S.No IPFIX NetFlow V9
IE # Field

Size

(Bytes)

 IE # Field

Size

(Bytes)
1 2 V9_IN_PKTS 8 2 V9_IN_PKTS 4
2 1 V9_IN_BYTES 8 1 V9_IN_BYTES 4
3 10 V9_INPUT_SNMP 4 10 V9_INPUT_SNMP 4
4 14 V9_OUTPUT_SNMP 4 14 V9_OUTPUT_SNMP 4
5 21 V9_LAST_SWITCHED 4 21 V9_LAST_SWITCHED 4
6 22 V9_FIRST_SWITCHED 4 22 V9_FIRST_SWITCHED 4
7 89 V9_FORWARDING_STATUS 4 89 V9_FORWARDING_STATUS 1
8 61 V9_DIRECTION 1 61 V9_DIRECTION 1
9 302 SELECTOR_ID 4 48 V9_FLOW_SAMPLER_ID 2
10 234 V9_VRF_ID_INPUT 4 234 V9_VRF_ID_INPUT 4
11 235 V9_VRF_ID_OUTPUT 4 235 V9_VRF_ID_OUTPUT 4
12 55 V9_POST_QOS_TOS 1 55 V9_POST_QOS_TOS 1
13 8 V9_IPV4SRCADDR 4 8 V9_IPV4SRC4ADDR 4
14 12 V9_IPV4DSTADDR 4 12 V9_IPV4DSTADDR 4
15 7 V9_SRC_PORT 2 7 V9_SRC_PORT 2
16 11 V9_DST_PORT 2 11 V9_DST_PORT 2
17 9 V9_SRC_MASK 1 9 V9_SRRC_MASK 1
18 13 V9_DST_MASK 1 13 V9_DST_MASK 1
19 4 V9_PROT 1 4 V9_PROT 1
20 6 V9_TCP_FLAGS 2 6 V9_TCP_FLAGS 1
21 5 V9_TOS 1 5 V9_TOS 1
22 52 V9_MIN_TTL 1 52 V9_MIN_TTL 1
23 53 V9_MAX_TTL 1 53 V9_MAX_TTL 1
24 54 V9_IP_IDENT 4 54 V9_IP_IDENT 4
25 197 IPFIX_FRAG_FLAGS 1 197 IPFIX_FRAG_FLAGS 1
26 88 V9_FRAGMENT_OFFSET 2 88 V9_FRAGMENT_OFFSET 2
27 184 IPFIX_TCP_SEQ_NUM 4 184 IPFIX_TCP_SEQ_NUM 4
28 25 V9_MIN_PKT_LEN 8 25 V9_MIN_PKT_LEN 8
29 26 V9_MAX_PKT_LEN 8 26 V9_MAX_PKT_LEN 8
30 503 IPFIX_L4_CHECKSUM 2 503 IPFIX_L4_CHECKSUM 2
31 504 IPFIX_ICMP_8_BYTES 8 504 IPFIX_ICMP_8_BYTES 8
32 507 GTP_TEID 4 507 GTP_TEID 4
33 509 GTP_QFI 1 509 GTP_QFI 1
34 510 GTP_SESS_DIR 1 510 GTP_SESS_DIR 1
35 27 V9_IPV6_SRC_ADDR 16 27 V9_IPV6_SRC_ADDR 16
36 28 V9_IPV6_DST_ADDR 16 28 V9_IPV6_DST_ADDR 16
37 5 V9_TOS 1 5 V9_TOS 1
38 31 V9_FLOW_LABEL 4 31 V9_FLOW_LABEL 3
39 16 V9_SRC_AS 4 16 V9_SRC_AS 4
40 17 V9_DST_AS 4 17 V9_DST_AS 4
41 18 V9_BGP_IPV4_NEXT_HOP 4 18 V9_BGP_IPV4_NEXT_HOP 4
42 63 V9_BGP_IPV6_NEXT_HOP 16 63 V9_BGP_IPV6_NEXT_HOP 16
43 15 V9_IPV4_NEXT_HOP 4 15 V9_IPV4_NEXT_HOP 4
44 62 V9_IPV6_NEXT_HOP 16 62 V9_IPV6_NEXT_HOP 16
45 56 V9_IN_SRC_MAC 6 56 V9_IN_SRC_MAC 6
46 80 V9_IN_DST_MAC 6 80 V9_IN_DST_MAC 6
47 256 V9_ETH_TYPE 2 256 V9_ETH_TYPE 2
48 243 V9_DOT1Q_VLAN_ID 2 243 V9_DOT1Q_VLAN_ID 2
49 245 V9_DOT1Q_CUST_VLAN_ID 2 245 V9_DOT1Q_CUST_VLAN_ID 2
50 244 V9_DOT1Q_PRIORITY 1 244 V9_DOT1Q_PRIORITY 1
51 198 IN_BYTES_DELTA 8 444 V9_AS_PATH 128
52 445 V9_STD_COMM 128

IPv6-GTP-IPv6 Record

This record provides insights into GTP-U traffic within IPv6 networks, crucial for maintaining the integrity and efficiency of modern 5G infrastructures.

S.No IPFIX NetFlow V9
IE # Field

Size

(Bytes)

 IE # Field

Size

(Bytes)
1 2 V9_IN_PKTS 8 2 V9_IN_PKTS 4
2 1 V9_IN_BYTES 8 1 V9_IN_BYTES 4
3 10 V9_INPUT_SNMP 4 10 V9_INPUT_SNMP 4
4 14 V9_OUTPUT_SNMP 4 14 V9_OUTPUT_SNMP 4
5 21 V9_LAST_SWITCHED 4 21 V9_LAST_SWITCHED 4
6 22 V9_FIRST_SWITCHED 4 22 V9_FIRST_SWITCHED 4
7 89 V9_FORWARDING_STATUS 4 89 V9_FORWARDING_STATUS 1
8 61 V9_DIRECTION 1 61 V9_DIRECTION 1
9 302 SELECTOR_ID 4 48 V9_FLOW_SAMPLER_ID 2
10 234 V9_VRF_ID_INPUT 4 234 V9_VRF_ID_INPUT 4
11 235 V9_VRF_ID_OUTPUT 4 235 V9_VRF_ID_OUTPUT 4
12 55 V9_POST_QOS_TOS 1 55 V9_POS_QOS_TOS 1
13 27 V9_IPV6_SRC_ADDR 16 27 V9_IPV6_SRC_ADDR 16
14 28 V9_IPV6_DST_ADDR 16 28 V9_IPV6_DST_ADDR 16
15 31 V9_FLOW_LABEL 4 31 V9_FLOW_LABEL 3
16 64 V9_IPV6_OPTION_HEADERS 4 64 V9_IPV6_OPTION_HEADERS 4
17 7 V9_SRC_PORT 2 7 V9_SRC_PORT 2
18 11 V9_DST_PORT 2 11 V9_DST_PORT 2
19 30 V9_IPV6_DST_MASK 1 30 V9_IPV6_DST_MASK 1
20 29 V9_IPV6_SRC_MASK 1 29 V9_IPV6_SRC_MASK 1
21 4 V9_PROT 1 4 V9_PROT 1
22 6 V9_TCP_FLAGS 2 6 V9_TCP_FLAGS 1
23 5 V9_TOS 1 5 V9_TOS 1
24 52 V9_MIN_TTL 1 52 V9_MIN_TTL 1
25 53 V9_MAX_TTL 1 53 V9_MAX_TTL 1
26 54 V9_IP_IDENT 4 54 V9_IP_IDENT 4
27 197 IPFIX_FRAG_FLAGS 1 197 IPFIX_FRAG_FLAGS 1
28 88 V9_FRAGMENT_OFFSET 2 88 V9_FRAGMENT_OFFSET 2
29 184 IPFIX_TCP_SEQ_NUM 4 184 IPFIX_TCP_SEQ_NUM 4
30 25 V9_MIN_PKT_LEN 8 25 V9_MIN_PKT_LEN 8
31 26 V9_MAX_PKT_LEN 8 26 V9_MAX_PKT_LEN 8
32 503 IPFIX_L4_CHECKSUM 2 503 IPFIX_L4_CHECKSUM 2
33 504 IPFIX_ICMP_8_BYTES 8 504 IPFIX_ICMP_8_BYTES 8
34 507 GTP_TEID 4 507 GTP_TEID 4
35 509 GTP_QFI 1 509 GTP_QFI 1
36 510 GTP_SESS_DIR 1 510 GTP_SESS_DIR 1
37 27 V9_IPV6_SRC_ADDR 16 27 V9_IPV6_SRC_ADDR 16
38 28 V9_IPV6_DST_ADDR 16 28 V9_IPV6_DST_ADDR 16
39 5 V9_TOS 1 5 V9_TOS 1
40 31 V9_FLOW_LABEL 4 31 V9_FLOW_LABEL 3
41 16 V9_SRC_AS 4 16 V9_SRC_AS 4
42 17 V9_DST_AS 4 17 V9_DST_AS 4
43 18 V9_BGP_IPV4_NEXT_HOP 4 18 V9_BGP_IPV4_NEXT_HOP 4
44 63 V9_BGP_IPV6_NEXT_HOP 16 63 V9_BGP_IPV6_NEXT_HOP 16
45 15 V9_IPV4_NEXT_HOP 4 15 V9_IPV4_NEXT_HOP 4
46 62 V9_IPV6_NEXT_HOP 16 62 V9_IPV6_NEXT_HOP 16
47 56 V9_IN_SRC_MAC 6 56 V9_IN_SRC_MAC 6
48 80 V9_IN_DST_MAC 6 80 V9_IN_DST_MAC 6
49 256 V9_ETH_TYPE 2 256 V9_ETH_TYPE 2
50 243 V9_DOT1Q_VLAN_ID 2 243 V9_DOT1Q_VLAN_ID 2
51 245 V9_DOT1Q_CUST_VLAN_ID 2 245 V9_DOT1Q_CUST_VLAN_ID 2
52 244 V9_DOT1Q_PRIORITY 1 244 V9_DOT1Q_PRIORITY 1
53 198 IN_BYTES_DELTA 8 444 V9_AS_PATH 128
54 445 V9_STD_COMM 128

Extended Template Records

IPv4 Peering Extended Record

This record extends monitoring capabilities to include detailed peering information for IPv4 traffic, enhancing traffic management and security measures.

S.No IPFIX NetFlow V9
IE # Field

Size

(Bytes)

 IE # Field

Size

(Bytes)
1 2 V9_IN_PKTS 8 2 V9_IN_PKTS 4
2 1 V9_IN_BYTES 8 1 V9_IN_BYTES 4
3 8 V9_IPV4SRCADDR 4 8 V9_IPV4SRCADDR 4
4 12 V9_IPV4DSTADDR 4 12 V9_IPV4DSTADDR 4
5 10 V9_INPUT_SNMP 4 10 V9_INPUT_SNMP 4
6 14 V9_OUTPUT_SNMP 4 14 V9_OUTPUT_SNMP 4
7 22 V9_FIRST_SWITCHED 4 22 V9_FIRST_SWITCHED 4
8 21 V9_LAST_SWITCHED 4 21 V9_LAST_SWITCHED 4
9 7 V9_SRC_PORT 2 7 V9_SRC_PORT 2
10 11 V9_DST_PORT 2 11 V9_DST_PORT 2
11 16 V9_SRC_AS 4 16 V9_SRC_AS 4
12 17 V9_DST_AS 4 17 V9_DST_AS 4
13 18 V9_BGP_IPV4_NEXT_HOP 4 18 V9_BGP_IPV6_NEXT_HOP 4
14 63 V9_BGP_IPV6_NEXT_HOP 16 63 V9_BGP_IPV6_NEXT_HOP 16
15 15 V9_IPV4_NEXT_HOP 4 15 V9_IPV4_NEXT_HOP 4
16 62 V9_IPV6_NEXT_HOP 16 62 V9_IPV6_NEXT_HOP 16
17 9 V9_SRC_MASK 1 9 V9_SRC_MASK 1
18 13 V9_DST_MASK 1 13 V9_DST_MASK 1
19 4 V9_PROT 1 4 V9_PROT 1
20 6 V9_TCP_FLAGS 2 6 V9_TCP_FLAGS 1
21 5 V9_TOS 1 5 V9_TOS 1
22 55 V9_POST_QOS_TOS 1 55 V9_POST_QOS_TOS 1
23 61 V9_DIRECTION 1 61 V9_DIRECTION 1
24 89 V9_FORWARDING_STATUS 4 89 V9_FORWARDING_STATUS 1
25 302 SELECTOR_ID 4 48 V9_FLOW_SAMPLER_ID 2
26 234 V9_VRF_ID_INPUT 4 234 V9_VRF_ID_INPUT 4
27 235 V9_VRF_ID_OUTPUT 4 235 V9_VRF_ID_OUTPUT 4
28 52 V9_MIN_TTL 1 52 V9_MIN_TTL 1
29 53 V9_MAX_TTL 1 53 V9_MAX_TTL 1
30 54 V9_IP_IDENT 4 54 V9_IP_IDENT 4
31 197 IPFIX_FRAG_FLAGS 1 197 IPFIX_FRAG_FLAGS 1
32 88 V9_FRAGMENT_OFFSET 2 88 V9_FRAGMENT_OFFSET 2
33 184 IPFIX_TCP_SEQ_NUM 4 184 IPFIX_TCP_SEQ_NUM 4
34 25 V9_MIN_PKT_LEN 8 25 V9_MIN_PKT_LEN 8
35 26 V9_MAX_PKT_LEN 8 26 V9_MAX_PKT_LEN 8
36 503 IPFIX_L4_CHECKSUM 2 503 IPFIX_L4_CHECKSUM 2
37 504 IPFIX_ICMP_8_BYTES 8 504 IPFIX_ICMP_8_BYTES 8
38 56 V9_IN_SRC_MAC 6 56 V9_IN_SRC_MAC 6
39 80 V9_IN_DST_MAC 6 80 V9_IN_DST_MAC 6
40 256 V9_ETH_TYPE 2 256 V9_ETH_TYPE 2
41 243 V9_DOT1Q_VLAN_ID 2 243 V9_DOT1Q_VLAN_ID 2
42 245 V9_DOT1Q_CUST_VLAN_ID 2 245 V9_DOT1Q_CUST_VLAN_ID 2
43 244 V9_DOT1Q_PRIORITY 1 244 V9_DOT1Q_PRIORITY 1
44 198 IN_BYTES_DELTA 8 444 V9_AS_PATH 128
45 445 V9_STD_COMM 128

IPv6 Peering Extended Record

This record offers comprehensive peering data for IPv6 traffic, supporting advanced traffic analysis and network optimization strategies.

S.No IPFIX NetFlow V9
IE # Field

Size

(Bytes)

 IE # Field

Size

(Bytes)
1 2 V9_IN_PKTS 8 2 V9_IN_PKTS 4
2 1 V9_IN_BYTES 8 1 V9_IN_BYTES 4
3 27 V9_IPV6_SRC_ADDR 16 27 V9_IPV6_SRC_ADDR 16
4 28 V9_IPV6_DST_ADDR 16 28 V9_IPV6_DST_ADDR 16
5 10 V9_INPUT_SNMP 4 10 V9_INPUT_SNMP 4
6 14 V9_OUTPUT_SNMP 4 14 V9_OUTPUT_SNMP 4
7 22 V9_FIRST_SWITCHED 4 22 V9_FIRST_SWITCHED 4
8 21 V9_LAST_SWITCHED 4 21 V9_LAST_SWITCHED 4
9 31 V9_FLOW_LABEL 4 31 V9_FLOW_LABEL 3
10 64 V9_IPV6_OPTION_HEADERS 4 64 V9_IPV6_OPTION_HEADERS 4
11 7 V9_SRC_PORT 2 7 V9_SRC_PORT 2
12 11 V9_DST_PORT 2 11 V9_DST_PORT 2
13 16 V9_SRC_AS 4 16 V9_SRC_AS 4
14 17 V9_DST_AS 4 17 V9_DST_AS 4
15 18 V9_BGP_IPV4_NEXT_HOP 4 18 V9_BGP_IPV6_NEXT_HOP 4
16 63 V9_BGP_IPV6_NEXT_HOP 16 63 V9_BGP_IPV6_NEXT_HOP 16
17 15 V9_IPV4_NEXT_HOP 4 15 V9_IPV4_NEXT_HOP 4
18 62 V9_IPV6_NEXT_HOP 16 62 V9_IPV6_NEXT_HOP 16
19 30 V9_IPV6_DST_MASK 1 30 V9_IPV6_DST_MASK 1
20 29 V9_IPV6_SRC_MASK 1 29 V9_IPV6_SRC_MASK 1
21 4 V9_PROT 1 4 V9_PROT 1
22 6 V9_TCP_FLAGS 2 6 V9_TCP_FLAGS 1
23 5 V9_TOS 1 5 V9_TOS 1
24 55 V9_POST_QOS_TOS 1 55 V9_POST_QOS_TOS 1
25 61 V9_DIRECTION 1 61 V9_DIRECTION 1
26 89 V9_FORWARDING_STATUS 4 89 V9_FORWARDING_STATUS 1
27 302 SELECTOR_ID 4 48 V9_FLOW_SAMPLER_ID 2
28 234 V9_VRF_ID_INPUT 4 234 V9_VRF_ID_INPUT 4
29 235 V9_VRF_ID_OUTPUT 4 235 V9_VRF_ID_OUTPUT 4
30 52 V9_MIN_TTL 1 52 V9_MIN_TTL 1
31 53 V9_MAX_TTL 1 53 V9_MAX_TTL 1
32 54 V9_IP_IDENT 4 54 V9_IP_IDENT 4
33 197 IPFIX_FRAG_FLAGS 1 197 IPFIX_FRAG_FLAGS 1
34 88 V9_FRAGMENT_OFFSET 2 88 V9_FRAGMENT_OFFSET 2
35 184 IPFIX_TCP_SEQ_NUM 4 184 IPFIX_TCP_SEQ_NUM 4
36 25 V9_MIN_PKT_LEN 8 25 V9_MIN_PKT_LEN 8
37 26 V9_MAX_PKT_LEN 8 26 V9_MAX_PKT_LEN 8
38 503 IPFIX_L4_CHECKSUM 2 503 IPFIX_L4_CHECKSUM 2
39 504 IPFIX_ICMP_8_BYTES 8 504 IPFIX_ICMP_8_BYTES 8
40 56 V9_IN_SRC_MAC 6 56 V9_IN_SRC_MAC 6
41 80 V9_IN_DST_MAC 6 80 V9_IN_DST_MAC 6
42 256 V9_ETH_TYPE 2 256 V9_ETH_TYPE 2
43 243 V9_DOT1Q_VLAN_ID 2 243 V9_DOT1Q_VLAN_ID 2
44 245 V9_DOT1Q_CUST_VLAN_ID 2 245 V9_DOT1Q_CUST_VLAN_ID 2
45 244 V9_DOT1Q_PRIORITY 1 244 V9_DOT1Q_PRIORITY 1
46 198 IN_BYTES_DELTA 8 444 V9_AS_PATH 128
47 445 V9_STD_COMM 128

Monitor PWHE Interface Traffic

Table 4. Feature History Table

Feature Name

Release Information

Feature Description

Monitor PWHE Interface Traffic

Release 24.3.1

Introduced in this release on: Modular Systems (8800 [LC ASIC: P100]) (select variants only*)

NetFlow is now supported on Pseudowire Headend (PWHE) interfaces, enhancing traffic congestion monitoring and network operation efficiency. This feature enables monitoring of IP traffic transmitted through PWHE interfaces, which facilitates the termination and encapsulation of legacy non-IP traffic into IP packets.

This feature is supported on:

  • 88-LC1-52Y8H-EM

  • 88-LC1-12TH24FH-E

NetFlow now effectively monitors and manages traffic on Pseudowire Headend (PWHE) interfaces. These interfaces are essential for monitoring legacy services within modern IP/MPLS networks. A PWHE router, located at the network's edge, is designed to terminate pseudowire connections from various legacy non-IP traffic sources. It then encapsulates this traffic into native IP packets. This enhancement provides network administrators with comprehensive visibility, enabling them to make well-informed decisions for maintaining optimal network performance.

Before Cisco IOS XR Release 24.3.1, NetFlow was not supported on PWHE interfaces. The latest update extends NetFlow's functionality to include both IPv4 and IPv6 traffic flows on PWHE interfaces.

Benefits of PWHE Traffic Monitoring

The following are some of the key benefits of monitoring traffic on PWHE interface.

  • Detailed traffic insights: NetFlow on PWHE interfaces provides visibility into traffic types, volumes, and patterns, essential for network analysis.

  • Enhanced network management: Enables comprehensive traffic analysis for accurate accounting, billing and effective troubleshooting.

  • Comprehensive monitoring: Offers both ingress and egress traffic monitoring on PWHE main and sub-interfaces for a complete network performance view.

Interface Types Supported with NetFlow

  • Physical main interfaces

  • L3 interfaces

  • L3 subinterfaces

  • L2 interfaces

  • Bundle interfaces

  • Bundle sub-interfaces

  • PW-Ether interfaces

  • BVI interfaces

NetFlow Guidelines and Limitations

General

  • NetFlow is supported in the ingress direction for all routers.

  • NetFlow supports export format Version 9 and IPFIX.

  • The configuration of the sampler rate as 1 out of 1 is supported.

  • Ingress Layer 2 NetFlow or IPFIX is not supported in the Release 7.9.x.

  • You can configure only one active sampler per system.

  • Netflow does not cache for MPLS Decap, GRE Decap, and SRv6 Decap nodes when these are configured on sub-interfaces. It is only supported on main interfaces.

Features not Supported

  • The full Packet Capture (FPC) feature is not supported.

  • Destination-based NetFlow accounting is not supported.

  • NetFlow filtering using ACL is not supported.

  • The Post-QoS Data Monitoring feature is not supported on Q100 ASIC-based line cards.

Flow Exporter

  • Netflow exporter packet does not support TCP.

  • A source interface or source address must be configured to enable the exporter. If you do not configure a source interface, the exporter remains in a disabled state. If both a source interface and a source address are configured, the source address takes precedence.

Flow Monitor

  • A valid record type such as IPv4, IPv6, or MPLS must be configured for every flow monitor map

Interfaces

  • NetFlow is not supported on Bridge Virtual Interface (BVI).

  • The data and flow records for GRE transit traffic do not have the output interface, source, and destination prefix lengths fields set.

  • We do not recommend using the management interface to export the NetFlow packets.

  • The output interface field is not updated in data and flow records when the traffic is routed through ACL-based forwarding (ABF).

IPFIX 315

  • If IPFIX 315 is enabled on a line card, then all the ports on that line card should have IPFIX315 configured.

  • Enable the IPFIX 315 configuration on a sub interface explicitly if the traffic for that sub interface is required to be exported.

  • The incoming and outgoing interface information will point to sub-interface if routed via sub-interface.

  • For IPFIX 315, the outgoing interface information may not be correct incase of packets that are multicasted or broadcasted on multiple ports.

  • On a dual RP centralized system, IPFIX 315 or sFlow has to be enabled on both RP's respectively. Otherwise, the system displays an error message during configuration.

BGP Attributes - MPLS Record Types on Cisco 8010 Series Routers

  • On edge nodes, only ingress direction is supported.

  • The MPLS record types, such as mpls ipv4-fields, mpls ipv6-fields, and mpls ipv4-ipv6-fields, are only supported.

  • At the edge node on MPLS or SR-MPLS core with Penultimate Hop Popping (PHP) or Ultimate Hop Popping (UHP) disabled, the packets that are sampled should contain the MPLS label to fetch the BGP attributes.

Comparative Overview of NetFlow Version 9 and Version 10 (IPFIX)

Multiple versions of the NetFlow protocol exist. This section provides a comprehensive overview of the distinct versions within the NetFlow monitoring protocol, including NetFlow v9 and NetFlow v10 (IPFIX). It highlights the variations between these protocols.

NetFlow Version 9

NetFlow Version 9 is a template-based approach that provides flexibility in the record format. It enables enhancements to NetFlow services without concurrently altering the basic flow-record format.

NetFlow Options Template

The NetFlow Options Template serves as a distinctive template record designed to communicate the format of data associated with the NetFlow operation. Instead of sharing details about IP flows, these options serve the purpose of providing metadata pertaining to the NetFlow process itself. There are distinct options templates: the sampler options template and the interface options template. The NetFlow process exports these two tables. Furthermore, the NetFlow process also exports the VRF (Virtual Routing and Forwarding) table.

Sampler Table

The Sampler Table and Interface Option Templates play a significant role in organizing information.

The Sampler Options Template consists of a sampler table, while the Interface Option Templates consists of an interface table. Enabling these options for the sampler and interface tables simplifies the process for the collector to determine data flow information.

The sampler table offers insights into active samplers. Its primary purpose is to aid the collector in estimating the sampling rate for individual data flows. The sampler table provides the following information for each sampler:

Element ID Field Name Value

48

SamplerID

This ID is assigned to the sampler. It is used by the collector to retrieve information about the sampler for a data flow record.

49

SamplerMode

This field indicates the mode in which the sampling has been performed.

50

SamplerRandomInterval

This field indicates the rate at which the sampling is performed.

84

SamplerName

This field indicates the name of the sampler.

Interface Table

The interface table, contains data about interfaces that are monitored for data flow. With this data, the collector derives the interface names linked to the data flow. The interface table contains the following information:

Field Name Value

ingressInterface

This field indicates the SNMP index assigned to the interface. By matching this value to the Ingress interface in the data flow record, the collector is able to retrieve the name of the interface.

interfaceDescription

This field indicates the name of the interface.

VRF Table

The VRF table consists mapping of VRF IDs to the VRF names. Using this information, the collector determines the name of the required VRF.

The VRF table is exported at intervals specified by the optional timeout keyword that can be configured manually. The default value is 1800 seconds.

The VRF table consists of the following information:

Field Name Value

ingressVRFID

The identifier of the VRF with the name in the VRF-Name field.

VRF-Name

The VRF name has the VRFID value ingressVRFID. The value "default" indicates that the interface is not assigned explicitly to a VRF.

The data records contain ingressVRFID as an extra field in each record. The values of these fields are used to lookup the VRF Table to find the VRF names. A value of 0 in these fields indicates that the VRF is unknown.

Configure NetFlow Version 9

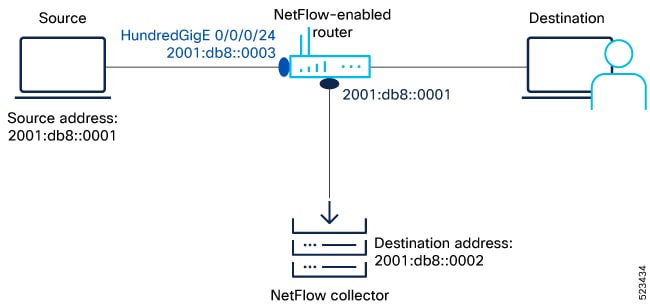

Let's consider the following topology to configure NetFlow.

Figure 2. NetFlow Version 9 Configuration
Configuring NetFlow Version 9 for traffic monitoring

To monitor traffic, you must configure one or more Flow Exporter and associate it to a Flow Monitor Flow Monitor and enable NetFlow on the interface either in egress or ingress direction. Optionally, you can configure a Flow Sampler to set the sampling rate for flow samples.

Before you begin

First, let's gather the required details to enable NetFlow on a router:

  • The IP address of the source is : 2001:db8::0003

  • The IP address of the NetFlow Collector (Destination address): 2001:db8::0002

  • Interface of the router where you want to enable Netflow: HundredGigE 0/0/0/24

  • The NetFlow version used to transport the data to the collector: version 9

Procedure

Step 1

Configure a Flow Exporter using the flow exporter-map command to specify where and how the packets should be exported.

Example:

Router# configure
Router(config)# flow exporter-map Expo1
Router(config-fem)# source-address 2001:db8::0003
Router(config-fem)# destination 2001:db8::0002
Router(config-fem)# transport udp 1024
Router(config-fem)# version v9
Router(config-fem-ver)# options interface-table
Router(config-fem-ver)# commit
Router(config-fem-ver)# root
Router(config)#exit

Step 2

Create a Flow Monitor using the flow monitor-map command to define the type of traffic to be monitored. You can include one or more exporter maps in the monitor map. A single flow monitor map can support up to eight exporters.

The record type specifies the type of packets that are sampled as the packets pass through the router. MPLS, IPv4, and IPv6 packet sampling is supported.

Example:

Here are the examples to record IP packets, MPLS packets, BGP packets, SRv6, and GTP-U packets.

  •
Router#configure
Router(config)# flow monitor-map fmm-ipv6
Router(config-fmm)# record ipv6
Router(config-fmm)# cache entries 500000
Router(config-fmm)# cache timeout active 60
Router(config-fmm)# cache timeout inactive 20
Router(config-fmm)# exporter Expo1
outer(config-fmm)# commit
Router(config-fmm)# root
Router(config)#exit

  • MPLS Packet Monitoring: In this example, you create a flow monitor map to record the MPLS packets.


Router(config)#flow monitor-map fmm-mpls-ipv6
Router(config-fmm)#record mpls ipv6-fields labels 3
Router(config-fmm)#exporter Expo1
Router(config-fmm)#cache entries 2000000
Router(config-fmm)#exit

  • BGP Packet Monitoring: In this example, you create a flow monitor map to record the BGP packets with the permanent cache.


Router(config)#router bgp 50
Router(config-bgp)#address-family ipv6 unicast
Router(config-bgp-af)#bgp attribute-download
Router(config-bgp-af)#root
Router(config)#flow monitor-map fmm-bgp
Router(config-fmm)#record ipv6 peer-as
Router(config-fmm)#exporter Expo1
Router(config-fmm)#cache entries 2000000
Router(config-fmm)#exit

  • SRv6 Packet Monitoring: Starting from Cisco IOS-XR release 7.10.1, you can create a flow monitor map to record the SRv6 packets.

    Router#configure
Router(config-fem)# flow monitor-map MON
Router(config-fmm)# record ipv6 srv6
Router(config-fmm)# exporter EXPRouter(config-fmm)# cache timeout inactive 5
Router(config-fmm)# !
Router(config-fmm)# sampler-map SAMP
Router(config-fmm)# random 1 out-of 1000
Router(config-fmm)# !
Router(config-fmm)# interface GigabitEthernet0/1/0/0
Router(config-fmm)# ipv6 address 2002:1::1/64
Router(config-fmm)# flow ipv6 monitor M1 sampler SAMP ingress

  • GTP-U Packet Monitoring: Starting from Cisco IOS-XR release 24.2.1, you can create a flow monitor map to record the GTP-U packets.


Router(config)#flow monitor-map ipv6
Router(config-fmm)#record ipv6 gtp
Router(config-fmm)#exporter Expo1
Router(config-fmm)#option bgpattr
Router(config-fmm)#cache timeout active 30

Router(config-fmm)#cache timeout inactive 5

Router(config-fmm)#exit

Step 3

Configure a Flow Sampler using the sampler-map command to define the rate at which the packet sampling should be performed at the interface where NetFlow is enabled. Use the same sampler map configuration on the sub-interfaces and physical interfaces under a port.

Example:

Router(config)# configure
Router(config)# sampler-map fsm1
Router(config-sm)# random 1 out-of 262144
Router(config)# exit
Router(config)#commit
Router(config)#exit
Router#

Step 4

Apply a Flow Monitor Map and a Flow Sampler to a physical interface using the flow command to enable NetFlow on the router. You can choose to enable IPv4, IPv6, MPLS-aware NetFlow on the interface. Enable NetFlow in the ingress direction to monitor the incoming packets.

Note



Consider these points before applying the sampler map:

  • Remove any existing Netflow or sFlow configurations before applying a new Flow sampler on an interface using the no form of the command.

  • Use the same sampler map configuration on the sub-interfaces and physical interfaces under a port.

Example:


Router#configure
Router(config)#interface HundredGigE 0/0/0/24
Router(config-if)#flow ipv6 monitor fmm-ipv6 sampler fsm1 ingress
Router(config-if)#commit
Router(config-if)#root
Router(config)#exit
  • Netflow on PWHE Interface - Apply a Monitor Map and a Sampler Map to a physical interface using the flow command to enable NetFlow on the ingress and egress of the Pseudowire Headend interface router.
    Router(config)# interface PE1313
Router(config-if)# flow ipv6 monitor IPv6-MONITOR-MAP sampler
FNF-SAMPLER-MAP ingress
Router(config-if)# flow ipv6 monitor IPv6-MONITOR-MAP sampler
FNF-SAMPLER-MAP egress

Step 5

View the running configuration to verify the configuration that you have configured.

Example:


Router# show run

flow exporter-map Expo1
 version v9
  options interface-table
 !
 transport udp 1024
 source-address 2001:db8::3
 destination 2001:db8::2
!
flow monitor-map fmm-ipv6
 record ipv6
 exporter Expo1
 cache entries 500000
 cache timeout active 60
 cache timeout inactive 20
!
sampler-map fsm1
 random 1 out-of 262144
!

interface HundredGigE0/0/0/24
 shutdown
 flow ipv6 monitor fmm-ipv6 sampler fsm1 ingress
!
end

Step 6

You can verify the the above configurations using the following steps:

  1. Verify the Flow Exporter configuration using the show flow exporter-map command.

    Example:


Router#show flow exporter-map Expo1
Flow Exporter Map : Expo1
-------------------------------------------------
Id                  : 1
Packet-Length       : 1468
DestinationIpAddr   : 2001:db8::2
VRFName             : default
SourceIfName        :
SourceIpAddr        : 2001:db8::3
DSCP                : 0
TransportProtocol   : UDP
TransportDestPort   : 1024
Do Not Fragment     : Not Enabled

Export Version: 9
  Common Template Timeout : 1800 seconds
  Options Template Timeout : 1800 seconds
  Data Template Timeout : 1800 seconds
  Interface-Table Export Timeout : 1800 seconds
  Sampler-Table Export Timeout : 0 seconds
  VRF-Table Export Timeout : 0 seconds

  2. Verify the Flow Monitor configuration using the show flow monitor-map command.

    Example:

    Router#show flow monitor-map fmm-ipv6

Flow Monitor Map : fmm-ipv6
-------------------------------------------------
Id:                1
RecordMapName:     ipv6
ExportMapName:     Expo1
CacheAgingMode:    Normal
CacheMaxEntries:   500000
CacheActiveTout:   60 seconds
CacheInactiveTout: 20 seconds
CacheUpdateTout:   N/A
CacheRateLimit:    2000
HwCacheExists:     False
HwCacheInactTout:  50

  3. Verify the sampler map configuration using the show sampler-map command.

    Example:

    Router#show sampler-map fsm1

Sampler Map : fsm1
-------------------------------------------------
Id:      1
Mode:    Random (1 out of 262144 Pkts)
Router#

What to do next

You can now analyse the exported data using a NetFlowAnalyser.

Verify NetFlow Version 9

Procedure

Verify the flows captured using the show flow monitor name cache command.

  • Cache Summary

    In the following example, you can verify the amount of flows added and exported.


Router#show flow monitor fmm-ipv6 cache summary location 0/0/CPU0
Cache summary for Flow Monitor monitor1:
Cache size: 1000000
Current entries: 295
Flows added: 184409
Flows not added: 0
Ager Polls: 9824
 - Active timeout 183855
 - Inactive timeout 259
 - Immediate 0
 - TCP FIN flag 0
 - Emergency aged 0
 - Counter wrap aged 0
 - Total 184114
Periodic export:
- Counter wrap 0
- TCP FIN flag 0
Flows exported 184114

  • Cache Record for SRv6 L2 services

    This example shows the complete recorded data for SRv6 L2 services

    Router#show flow monitor fmm-ipv6 cache record location 0/0/CPU0
========== Record number: 1 ==========
IPv6SrcAddr : 2::2
IPv6DstAddr : bbbb:bc00:88:e000::
BGPDstOrigAS : 0
BGPSrcOrigAS : 0
BGPNextHopV6 : fe80::232:17ff:fe7e:1ce1
IPv6TC : 0
IPv6FlowLabel : 50686
IPv6OptHdrs : 0x0
IPV6Prot : 143
L4SrcPort : 0
L4DestPort : 0
L4TCPFlags : 0
IPV6DstPrfxLen : 48
IPV6SrcPrfxLen : 128
InputInterface : Hu0/0/0/10
OutputInterface : BE111.1
ForwardStatus : Fwd
FirstSwitched : 01 18:51:25:797
LastSwitched : 01 18:51:25:797
ByteCount : 61004304
PacketCount : 113814
Dir : Ing
SamplerID : 1
InputVRFID : default
OutputVRFID : default
InnerIPV4SrcAddr : 0.0.0.0
InnerIPV4DstAddr : 0.0.0.0
InnerIPv6SrcAddr : ::
InnerIPv6DstAddr : ::
InnerL4SrcPort : 0
InnerL4DestPort : 0
SrcMacAddr : 00:0c:29:0e:d8:32
DstMacAddr : 00:0c:29:0e:d8:3c
EthType : 2048
Dot1qPriority : 0
Dot1qVlanId : 2001
RecordType : SRv6 L2 Service Record
SRHFlags : 0x0
SRHTags : 0x0
SRHSegmentsLeft : 0
SRHNumSegments : 0

  • Cache Record for QoS services

    In the following example, you can verify the QoS value from the IPv6TC field and post QoS type of service (TOS)/DSCP from the IPv6PostTC field.


Router#show flow monitor fmm-ipv6 cache record location 0/0/CPU0
========== Record number: 1 ==========
IPv6SrcAddr     : 2001:db8::3
IPv6DstAddr     : 2001:db8::2
BGPDstOrigAS    : 0
BGPSrcOrigAS    : 0
BGPNextHopV6    : 1000:1::2
IPv6TC          : 0
IPv6PostTC      : 48
IPv6FlowLabel   : 0
IPv6OptHdrs     : 0x10
IPV6Prot        : 59
L4SrcPort       : 0
L4DestPort      : 0
L4TCPFlags      : 0
IPV6DstPrfxLen  : 128
IPV6SrcPrfxLen  : 128
InputInterface  : FH0/0/0/0
OutputInterface : FH0/0/0/12
ForwardStatus   : Fwd
FirstSwitched   : 00 00:59:02:416
LastSwitched    : 00 00:59:02:416
ByteCount       : 46
PacketCount     : 1
Dir             : Ing
SamplerID       : 1
InputVRFID      : default
OutputVRFID     : default

  • Cache Record for GTP-U services

    In the following example, you can verify the GTP tunnel ID, QoS flow identifier, and GTP session details from the GTPTeid, GTPQFI and GTPSESSDIR field.

    Router#show flow monitor fmm-ipv6 cache format record location 0/0/CPU0
========== Record number: 1 ==========
RecordType       : GTP Tunneled Record
IPV4SrcAddr      : 0.0.0.0
IPV4DstAddr      : 0.0.0.0
IPv6SrcAddr      : 2001:db8:1::1
IPv6DstAddr      : 2001:db8:2::2
L4SrcPort        : 0
L4DestPort       : 0
IPV4Prot         : icmpv6
IPV4TOS          : 0
InputInterface   : Gi0/2/0/0
OutputInterface  : 0
L4TCPFlags       : 0
ForwardStatus    : Fwd
FirstSwitched    : 00 00:08:59:286
LastSwitched     : 00 00:08:59:286
ByteCount        : 1296
PacketCount      : 1
Dir              : Ing
GTPTeid          : 11
GTPQFI           : 0
GTPSESSDIR       : 0
IPv6TC           : 0
IPv6FlowLabel    : 690680
MinimumTTL       : 64
MaximumTTL       : 64
IPFragFlags      : 0
IPFragOffset     : 181
IPIdentification : 0
IPV6Ident        : 1546089621
L4SequenceNum    : 0
L4Checksum       : 0
MinPktLen        : 100
MaxPktLen        : 100
ICMPBytes        : 0x8000cf945edf0002
OuterIPV4SrcAddr : 100.100.100.1
OuterIPV4DstAddr : 200.200.200.2
OuterIPv6SrcAddr : ::
OuterIPv6DstAddr : ::
BGPNextHopV4     : 0.0.0.0
BGPNextHopV6     : ::
BGPSrcOrigAS     : 0
BGPDstOrigAS     : 0
IPV4NextHop      : 0.0.0.0
IPV6NextHop      : ::
SrcMacAddr       : 00:00:3f:11:50:20
DstMacAddr       : 45:00:00:62:00:00
EthType          : 2048
Dot1qPriority    : 0
Dot1qVlanId      : 0
CustVlanId       : 0
InputVRFID       : default
OutputVRFID      : default
========== Record number: 2 ==========
RecordType       : GTP Tunneled Record
IPV4SrcAddr      : 192.168.12.2
IPV4DstAddr      : 192.168.12.1
IPv6SrcAddr      : ::
IPv6DstAddr      : ::
L4SrcPort        : 0
L4DestPort       : 0
IPV4Prot         : icmp
IPV4TOS          : 0
InputInterface   : Gi0/2/0/0
OutputInterface  : 0
L4TCPFlags       : 0
ForwardStatus    : Fwd
FirstSwitched    : 00 00:08:54:244
LastSwitched     : 00 00:08:54:244
ByteCount        : 64
PacketCount      : 1
Dir              : Ing
GTPTeid          : 11
GTPQFI           : 0
GTPSESSDIR       : 0
IPv6TC           : 0
IPv6FlowLabel    : 0
MinimumTTL       : 255
MaximumTTL       : 255
IPFragFlags      : 0
IPFragOffset     : 97
IPIdentification : 4
IPV6Ident        : 0
L4SequenceNum    : 0
L4Checksum       : 0
MinPktLen        : 100
MaxPktLen        : 100
ICMPBytes        : 0xabcdabcdabcdabcd
OuterIPV4SrcAddr : 100.100.100.1
OuterIPV4DstAddr : 200.200.200.2
OuterIPv6SrcAddr : ::
OuterIPv6DstAddr : ::
BGPNextHopV4     : 0.0.0.0
BGPNextHopV6     : ::
BGPSrcOrigAS     : 0
BGPDstOrigAS     : 0
IPV4NextHop      : 0.0.0.0
IPV6NextHop      : ::
SrcMacAddr       : 00:00:3f:11:50:20
DstMacAddr       : 45:00:00:62:00:00
EthType          : 2048
Dot1qPriority    : 0
Dot1qVlanId      : 0
CustVlanId       : 0
InputVRFID       : default
OutputVRFID      : default

What to do next

You can now analyse the exported data using a NetFlowAnalyser.

Modify NetFlow Configuration

You can modify only the following flow attributes that is already applied to an interface for a monitor map, exporter map, or a sampler map.

Note that when you modify the flow attributes, the cache counters are cleared and results in resetting of the counters. As a result there could be flow accounting mismatch.

Table 5. Flow Entities and Flow Attributes that can be altered

Flow Entity

Flow Attribute

Command

Monitor map

cache timeout

  • active

  • inactive

  • update

  • rate-limit

cache timeout

exporter

exporter

cache entries

cache entries

cache permanent

cache permanent

options outphysint | bgpattr | filtered | outbundlemember

options

Exporter Map

source <source interface>

source

destination <destinaiton address>

destination

dscp <dscp_value>

dscp

version v9 | ipfix

version ipfix

Sampler Map

sampling interval

sampling interval

IPFIX (NetFlow version 10)

IPFIX flow record enhancements for L2 and L3 traffic

 Release 24.4.1

Introduced in this release on: Fixed Systems(8200, 8700)(select variants only*); Modular Systems (8800 [LC ASIC: P100])(select variants only*).

The IPFIX flow record enhancements for L2 and L3 traffic introduced in Cisco IOS XR Release 7.2.12 to ensure scalability and adaptability to diverse network environments are now supported on the following hardware.

*This feature is now supported on:

  • 8212-48FH-M

  • 8711-32FH-M

  • 8712-MOD-M

  • 88-LC1-12TH24FH-E

  • 88-LC1-52Y8H-EM

  • 88-LC1-36EH

IPFIX flow record enhancements for L2 and L3 traffic

 Release 7.2.12

This release introduces:

  • Support for flow-based IPFIX protocol version 10(v10), for L2 interfaces. Only L3 interfaces were supported in previous releases.

  • A new record-type, MPLS-IPv4, to capture BGP next-hop information.

Internet Protocol Flow Information Export (IPFIX) has been standardized by the Internet Engineering Task Force (IETF) as an export protocol for transmitting NetFlow packets. Building upon NetFlow version 9, IPFIX introduces efficient flow data formatting through templates, ensuring scalability and adaptability to diverse network environments. Utilizing UDP as the transport protocol, IPFIX facilitates the seamless transfer of NetFlow information from exporters to collectors. With native support for IPv6 flow records, the inclusion of optional data fields, and the ability to send data to multiple collectors, IPFIX proves to be a versatile and powerful solution for network administrators, enabling comprehensive traffic analysis, monitoring, and enhanced visibility into network behavior.

IPFIX 315

The Internet Engineering Task Force (IETF) has standardized Internet Protocol Flow Information Export (IPFIX) as an export protocol for sending IP flow information. Router supports the IPFIX 315 format for exporting flow information. The IPFIX 315 format enables the transmission of 'n' octets of frame information starting from the Ethernet header up to the transport header of the traffic flow over the network. IPFIX 315 supports the sending of variable-sized packet records with variable payload information, such as IPv4, IPv6, MPLS, and nested packets like OuterIP-GRE-InnerIP, and more. The process involves sampling and exporting the traffic flow information. Also, along with the Ethernet frame information, the IPFIX 315 format exports the information of the incoming and outgoing interfaces of the sampled packet.

The information of the packets flowing through a device is used for a variety of purposes, including network monitoring, capacity planning, traffic management, and more.

When exporting packets, a special cache-type called Immediate Aging is used. Immediate Aging ensures that the flows are exported as soon as they are added to the cache.

Sampling and Exporting Information

To sample the traffic flow information, configure a sampler-map that specifies the rate at which packets (one out of every 'n' packets) are sampled. Not all packets flowing through a device are exported; only the packets selected based on the sampling rate are exported.

The size of the exported packet depends on the sampled packet size and the location of the L4 header. The exported packet size is determined as follows:

  • If the sampled packet size is more than 160 bytes and the L4 header is not obtained within the first 160 bytes, the exported packet size is 160 bytes.

  • If the L4 header is within the first 160 bytes, the exported packet size is equal to the length of the sampled packet until the L4 header.

  • If the packet size is less than 160 bytes and the L4 header isn’t within the first 160 bytes, the exported packet size is equal to the length of the packet.

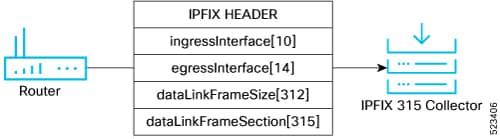

This figure IPFIX 315 Export Packet Format shows exported packet information.

Figure 3. IPFIX 315 Export Packet Format
IPFIX 315 packet format used to export data

Monitoring Post-QoS data in NetFlow and IPFIX

Table 6. Feature History Table

Feature Name

Release Information

Description

Monitoring post-QoS data in NetFlow and IPFIX

 Release 24.4.1

Introduced in this release on: Fixed Systems(8200, 8700)(select variants only*); Modular Systems (8800 [LC ASIC: P100])(select variants only*).

This feature which empowers you to verify that QoS policies are applied as required, obtain a comprehensive view of your network's performance, and gain detailed insights into how QoS policies influence traffic is now supported on the following hardware.

*This feature is now supported on:

  • 8212-48FH-M

  • 8711-32FH-M

  • 8712-MOD-M

  • 88-LC1-12TH24FH-E

  • 88-LC1-52Y8H-EM

  • 88-LC1-36EH

Monitoring post-QoS data in NetFlow and IPFIX

 Release 24.1.1 You now have the capability to obtain a comprehensive view of your network's performance, gaining detailed insights into how QoS policies influence traffic. This empowers you to verify that QoS policies are applied as expected and assess the effectiveness of QoS mechanisms in prioritizing critical traffic. Access to this information is made possible by enabling the export of post-QoS information in both Netflow and IPFIX, supported by the incorporation of Post-QoS Information Elements.

You can now monitor information on QoS policies through the post-QoS information element field export for NetFlow and IPFIX. This improvement focuses on the analysis of packet-level information by incorporating the export of Post-QoS details, specifically the Differentiated Services Code Point (DSCP) in IPv4 and Traffic Class in IPv6. This enhancement facilitates in-depth monitoring of sampled packets, emphasizing their post-processing QoS characteristics.

In NetFlow v9 or IPFIX packets, the post-QoS field utilizes the information element postIpClassOfService (IE55) for collecting post-QoS data. Moreover, this feature brings added visibility to both pre- and post-QoS Type of Service (TOS)/DSCP values within the show command, providing you with the data to assess network performance comprehensively.


Note

The ingress QoS (i.e., pre-QoS) parameters are already exported in prior IOS-XR software releases.

  • ipClassOfService - For IPv4, it represents the value of the Type of Service (TOS) field in the IPv4 packet header. For IPv6 packets, it signifies the value of the Traffic Class field in the IPv6 packet header. This information element is available prior to IOS-XR software release 24.1.1.

  • postIpClassOfService - The definition of this information element is identical to the above mentioned definition of 'ipClassOfService,' except that it reports a potentially modified value caused by a router function after the packet has passed the observation point. This information element is introduced in IOS-XR software release 24.1.1.

NetFlow v9 and NetFlow v10 (IPFIX)

This section helps you understand the NetFlow v9 and NetFlow v10 (IPFIX) based on the following factors:

Table 7. NetFlow v9 and NetFlow v10 (IPFIX)

Factor

NetFlow v9

NetFlow v10 (IPFIX)
Transport Typically uses UDP Supports both UDP and TCP transport protocols
Compatibility Compatible with older NetFlow versions Backward-compatible with NetFlow v9

Flexibility

Fixed set of predefined fields

More flexible with variable-length information elements and custom-defined attribute

Information Elements

Limited set of predefined fields

Extensive list of predefined elements

Configure IPFIX

Let's consider the following topology to configure IPFIX:

Figure 4. NetFlow IPFIX Configuration
Configuring NetFlow IPFIX for traffic monitoring

To monitor traffic, you must configure one or more Flow Exporter and associate it to a Flow Monitor and enable IPFIX on the interface either in egress or ingress direction. Optionally, you can configure a Flow Sampler to set the sampling rate for flow samples.

Procedure

Step 1

First, let's gather the required details to enable IPFIX on a router:

  • The IP address of the source : 2001:db8::0001

  • The IP address of the IPFIX Collector (Destination address): 2001:db8::0002

  • Interface of the router where we will enable IPFIX: HundredGigE 0/0/0/24

  • NetFlow version used to transport the data to the collector: IPFIX

Step 2

Configure a Flow Exporter using the flow exporter-map command to specify where and how the packets should be exported.

Router(config)# flow exporter-map fem_ipfix
Router(config-fem)# destination 2001:db8::0002
Router(config-fem)# source Loopback 0
Router(config-fem)# transport udp 9001
Router(config-fem)# exit
Router(config-fem)# version ipfix
Router(config-fem-ipfix)# template data timeout 600
Router(config-fem-ipfix)# options interface-table
Router(config-fem-ipfix)# exit

Verify the Flow Exporter configuration using the show flow exporter-map command.


Router#show exporter-map fem_ipfix
Flow Exporter Map : fem_ipfix
-------------------------------------------------
Id                  : 1
Packet-Length       : 1468
DestinationIpAddr   : 2001:db8::2
VRFName             : default
SourceIfName        :
SourceIpAddr        : 2001:db8::3
DSCP                : 0
TransportProtocol   : UDP
TransportDestPort   : 1024
Do Not Fragment     : Not Enabled

Export Version: IPFIX
  Common Template Timeout : 1800 seconds
  Options Template Timeout : 1800 seconds
  Data Template Timeout : 1800 seconds
  Interface-Table Export Timeout : 1800 seconds
  Sampler-Table Export Timeout : 0 seconds
  VRF-Table Export Timeout : 0 seconds

Step 3

Create a Flow Monitor using the flow monitor-map command to define the type of traffic to be monitored. You can include one or more exporter maps in the monitor map. A single flow monitor map can support up to eight exporters.

The record type specifies the type of packets that are sampled as the packets pass through the router. MPLS, IPv4, and IPv6 packet sampling is supported.


Router(config)# flow monitor-map fmm1
Router(config-fmm)# record ipv6
Router(config-fmm)# option filtered
Router(config-fmm)# exporter fem_ipfix
Router(config-fmm)# cache entries 65535
Router(config-fmm)# cache timeout active 1800
Router(config-fmm)# cache timeout inactive 15
Router(config-fmm)# exit

Verify the Flow Monitor configuration using the show flow monitor-map command.

Router#show flow monitor-map fmm1

Flow Monitor Map : fmm1
-------------------------------------------------
Id:                1
RecordMapName:     ipv6
ExportMapName:     Expo1
CacheAgingMode:    Normal
CacheMaxEntries:   500000
CacheActiveTout:   60 seconds
CacheInactiveTout: 20 seconds
CacheUpdateTout:   N/A
CacheRateLimit:    2000
HwCacheExists:     False
HwCacheInactTout:  50

Step 4

Configure a Flow Sampler using the sampler-map sampler-map command. .Use the same sampler map configuration on the sub-interfaces and physical interfaces under a port.

Router(config)# configure
Router(config)# sampler-map fsm1
Router(config-sm)# random 1 out-of 4000
Router(config)# exit
Router(config)#commit
Router(config)#exit
Router#

Verify the sampler map configuration using the show sampler-map show sampler-map command.

Router#show sampler-map fsm1

Sampler Map : fsm1
-------------------------------------------------
Id:      1
Mode:    Random (1 out of 4000 Pkts)
Router#

Step 5

View the running configuration to verify the configuration that you have configured.



Router#show run
Thu Nov  9 06:40:07.296 UTC
Building configuration...

flow exporter-map fem_ipfix
 version ipfix
  options interface-table
  template data timeout 600
 !
 transport udp 9001
 source Loopback0
 destination 2001:db8::2
!
flow monitor-map fmm1
 record ipv6
 option filtered
 exporter fem_ipfix
 cache entries 65535
 cache timeout active 1800
 cache timeout inactive 1
!
sampler-map fsm1
 random 1 out-of 4000
!
interface FourHundredGigE0/0/0/1
 shutdown
!
interface HundredGigE0/0/0/24
 shutdown
 flow ipv4 monitor fmm1 sampler fsm1 ingress
 flow ipv6 monitor fmm-ipv6 sampler fsm1 ingress
!
end

Step 6

Apply a Monitor Map and a Sampler Map to a physical interface using the flow command to enable IPFIX on the router.


Router(config)#interface HundredGigE 0/0/0/24
Router(config-if)#flow ipv4 monitor fmm1 sampler fsm1 ingress
Router(config-if)#exit

Configure IPFIX 315

This section provides you instructions to enable IPFIX 315 on Cisco IOS XR Software.

Procedure

Step 1

Enable IPFIX 315 for flow monitoring.

Router(config)# hw-module profile netflow ipfix315-enable

Step 2

Configure an exporter map with IPFIX as the exporter version using the flow exporter-map command in global configuration mode to specify where and how the packets should be exported.

Router(config)# flow exporter-map ipfix_exp
Router(config-fem)# version ipfix
Router(config-fem-ipfix)# template data timeout 10
Router(config-fem)# dscp 63
Router(config-fem)# transport udp 12000
Router(config-fem)# source Loopback 0
Router(config-fem)# destination 100.10.1.159
Router(config-fem)# exit

Step 3

Create a flow monitor using the flow monitor-mapcommand in global configuration mode to define the type of traffic to be monitored. You can include one or more exporter maps in the monitor map.


Router(config)# flow monitor-map ipfix_mon
Router(config-fmm)# record datalinksectiondump
Router(config-fmm)# exporter ipfix_exp
Router(config-fmm)# cache immediate
Router(config-fmm)# exit

Step 4

Configure a sampler map using the sampler-mapcommand to define the rate at which the packet sampling should be performed at the interface where IPFIX is enabled.

Router# sampler-map ipfix_sm
Router(config-sm)# random 1 out-of 32000
Router(config)# exit

Step 5

Apply a monitor map and a Sampler Map to a physical interface using the flowcommand to enable IPFIX on the router.


Router(config)#interface TenGigE0/0/0/5
Router(config-if)#ipv4 address 192.1.108.2 255.255.255.0
Router(config-if)#ipv6 address 1:108::2/64
Router(config-if)#flow datalinkframesection monitor ipfix_mon sampler ipfix_sm ingress
Router(config-if)#encapsulation dot1q 139

Step 6

Verify the sampled and exported flow statistics using the show flow platform producer statistics location command.

In this show output, you can see that the system has actively received and monitored a total of 630,478 IPFIX 315 packets.

Router#show flow platform producer statistics location 0/0/0/5
Netflow Platform Producer Counters:
IPv4 Ingress Packets: 0
IPv4 Egress Packets: 0
IPv6 Ingress Packets: 0
IPv6 Egress Packets: 0
MPLS Ingress Packets: 0
MPLS Egress Packets: 0
IPFIX315 Ingress Packets: 630478
IPFIX315 Egress Packets: 0
Drops (no space): 0
Drops (other): 0
Unknown Ingress Packets: 0
Unknown Egress Packets: 0
Worker waiting: 2443

Step 7

Verify the flow monitor stats statistics using the show flow monitor cache location command.

This example shows that there were 50399 flows added to the cache and exported.

Router#show flow platform producer statistics location 0/0/0/5
Cache summary for Flow Monitor ipfix_mon:
Cache size: 65535
Current entries: 0
Flows added: 50399
Flows not added: 0
Ager Polls: 2784
- Active timeout 0
- Inactive timeout 0
- Immediate 50399
- TCP FIN flag 0
- Emergency aged 0
- Counter wrap aged 0
- Total 50399
Periodic export:
- Counter wrap 0
- TCP FIN flag 0
Flows exported 50399
Matching entries: 0

Revision History

Table 8. Feature History Table

Feature Name

Release Information

Feature Description
Monitor GTP-U Traffic in 5G Network

Release 24.4.1

 Introduced in this release on: Fixed Systems (8200 (P100), 8700 (P100); Modular Systems (8800 [LC ASIC: P100])

You now get a comprehensive view of your 5G network's performance and gain detailed insights into the slice utilization, QoS policies applied, and their impact on traffic.

Monitor GTP-U Traffic in 5G Network

Release 24.2.11

You now get a comprehensive view of your 5G network's performance and gain detailed insights into the slice utilization, QoS policies applied, and their impact on traffic. This includes verifying the QoS policies of the deployed slices, assessing the effectiveness of 5G slice mechanisms and tracking GTP-U endpoints for specific applications or services. This information is available because we've enabled the exporting of GTP-U related Information Elements.

This feature introduces these changes:

CLI:
Collect Additional BGP Information Elements for MPLS IPv4 and IPV6 Using IPFIX

Release 24.1.1

 You can now collect insights into how MPLS traffic is flowing through the network, assess the performance of your traffic engineering policies and make informed adjustments, pinpoint where in your MPLS network packets are being misrouted or dropped for swift troubleshooting, and also enable accurate billing for your users' customers because of insights into accurate resource usage. This is made possible because we have enabled the collection of BGP information elements for MPLS IPv4 and IPv6 traffic using IPFIX.

This feature modifies the output of the show flow monitor command.

Monitoring Post-QoS Data in NetFlow and IPFIX

Release 24.1.1

 You now have the capability to obtain a comprehensive view of your network's performance, gaining detailed insights into how QoS policies influence traffic. This empowers you to verify that QoS policies are applied as expected and assess the effectiveness of QoS mechanisms in prioritizing critical traffic. Access to this information is made possible by enabling the export of post-QoS information in both Netflow and IPFIX, supported by the incorporation of Post-QoS Information Elements.
IPFIX Enablement for SRv6 and Services over SRv6 Core

Release 7.10.1

During the transition from conventional IP/MPLS networks to SRv6-based networks, the necessity for monitoring SRv6 traffic flow becomes crucial. This feature enables IPFIX to effectively monitor SRv6 IP traffic flow from network devices in the core.

The feature introduces these changes:

CLI:

  • The srv6 keyword is introduced in the record ipv6 command.
