Cisco CNS Configuration Engine Administrator Guide, 1.4

Directory Administration Tool

This chapter describes the Directory Administration Tool (DAT) including information about:

•How to Login

•How to Manage Devices

•How to Manage Groups

•How to Manage Applications

•Managing Directory Setup

•How to Manage Bulk Data

•Managing IMGW Parameters

The Data administration Tool (DAT) presents you with a web-based user interface that allows you to populate and manage the data in the directories. You can View/Add/Delete/Modify CNS agent-enabled devices and legacy devices and switches devices (see "Intelligent Modular Gateway" section), groups of devices, and applications in the directory. Also, you can View/Add/Delete/Modify events specific to each application. DAT also provides you with the additional capability of bulk data upload.

How to Login

To connect to the DAT user interface, follow these steps:

Step 1 From the Tools main menu of the Cisco CNS Configuration Engine 1.4 user interface, click DAT.

The login window appears (see Figure 4-1).

Figure 4-1 Directory Administration Tool Login Window

Step 2 Enter your User ID.

This is the user name for the Cisco CNS Configuration Engine 1.4 administrative account that you entered during Setup.

Step 3 Enter your password.

Step 4 Click LOGIN.

The Directory Administration Tool Home page appears (see Figure 4-2).

Figure 4-2 Directory Administration Tool Home Page

How to Log Out

To log out of the system, click on Logout link.

How to Manage Devices

To view and modify devices, from the Home page, click Devices. The Device Management page appears (see Figure 4-3).

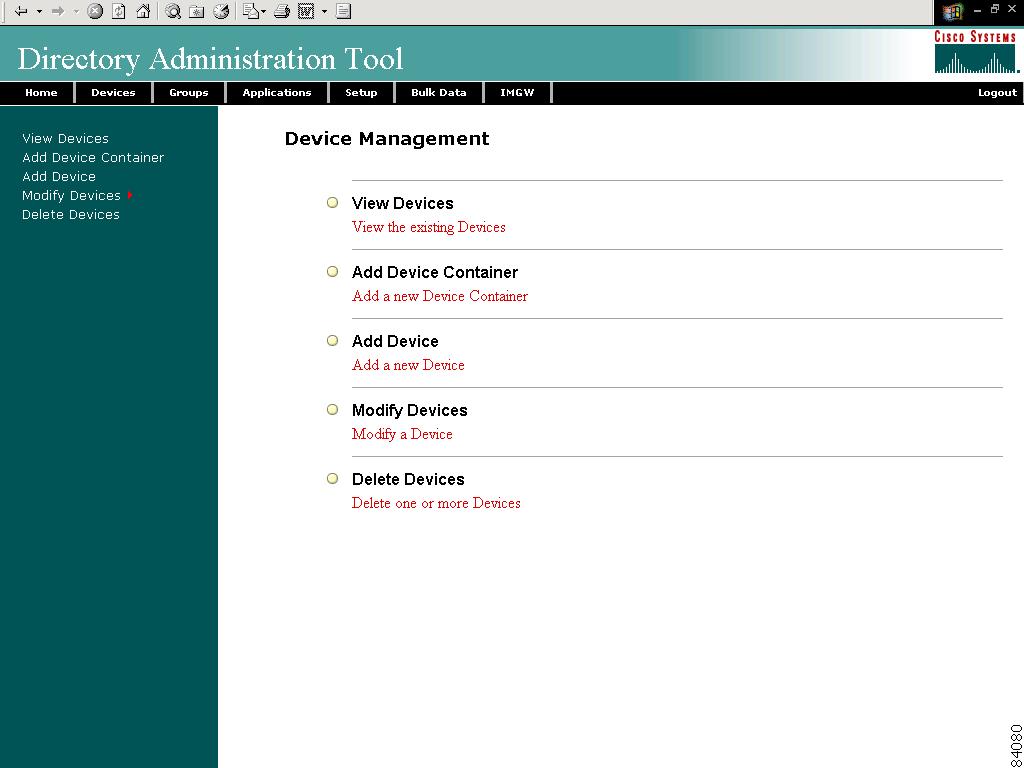

Figure 4-3 Device Management Page

How to View Devices in the System

To view the devices currently in the system, follow these steps:

Step 1 From the Device Management page, click View Device.

The Device List page appears (see Figure 4-4).

Figure 4-4 Device List

Note Devices with no parent attributes are shown with a dully-shaded icon, so you can easily identify the devices with no groups associated.

Step 2 Click on the icon for the device configuration you wish to view.

Information about that device appears (see Figure 4-5).

Step 3 To return to the main menu, click the Home tab.

Figure 4-5 Device Details

How to Add a Device Container

To add a device container, follow these steps:

Step 1 From the Device Management page, click Add Device Container.

The Add Device Container page appears (Figure 4-6).

Figure 4-6 Add Device Container

Step 2 Select the appropriate Parent Container from the drop-down list.

Table 4-1 lists the valid values for this field.

Step 3 Enter a value in the Container Name field.

Step 4 To clear the field and enter a new value, click Reset.

Step 5 To add this device container, click Add.

Step 6 To return to the main menu, click the Home tab.

How to Add a Device

To add a device, follow these steps:

Step 1 From the Device Management page, click Add Device.

The Add Device page appears (see Figure 4-7)

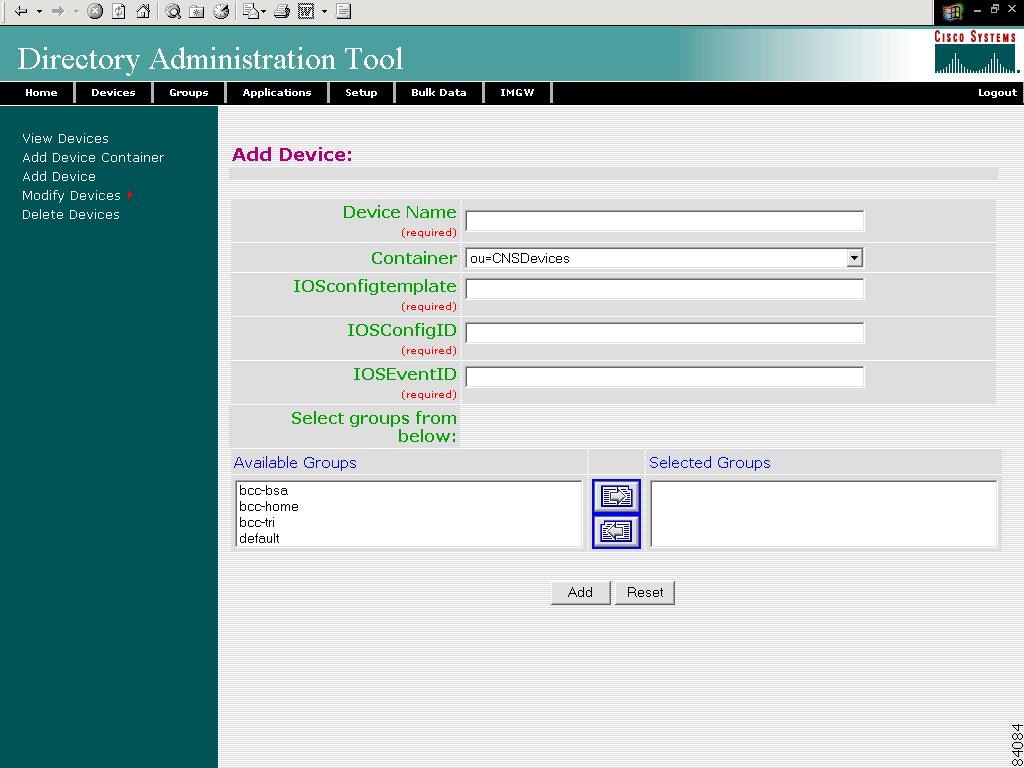

Figure 4-7 Add Device

Step 2 Enter a value in the Device Name field.

Table 4-2 lists valid values for the fields on this page.

Step 3 Enter a value in the Device Name field.

Step 4 Select a container from the Container pull-down menu.

Step 5 Enter a template ID for this device in the IOSConfigtemplate field.

Step 6 Enter a value for the unique configuration ID in the IOSConfigID field.

Step 7 Enter a value for the unique event ID in the IOSEventID field.

Step 8 From the Available Groups list, select the groups into which this device belongs.

Step 9 To clear all field and enter new values, click Reset.

Step 10 To add this device to the system, click Add.

Step 11 To return to the main menu, click the Home tab.

How to Modify Devices Details

To modify a device details, follow these steps:

Step 1 From the Device Management page, click Modify Devices.

The Devices in the Directory list appears (see Figure 4-8).

Figure 4-8 Devices in the Directory

Note Devices with no parent attributes are shown with a dully-shaded icon, so you can easily identify the devices with no groups associated.

Step 2 Click on the icon for the device you wish to modify.

The Device Details page appears (see Figure 4-9)

Figure 4-9 Device Details

Step 3 To modify the detail information about this device, in the left side-bar menu, click Modify Device Details.

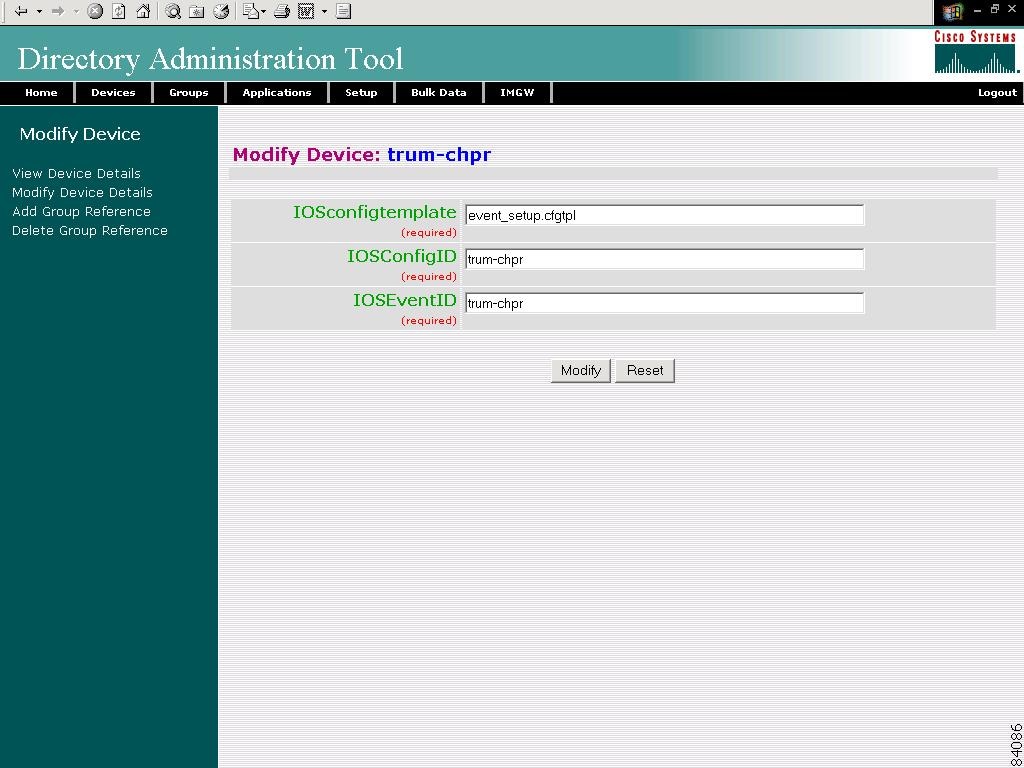

The Modify Device task page appears (see Figure 4-10).

Figure 4-10 Modify Task

Step 4 Modify all appropriate fields.

Table 4-3 lists valid values for these fields.

Step 5 To clear all field and enter new values, click Reset.

Step 6 To apply these changes to this device, click Apply.

Step 7 To return to the main menu, click the Home tab.

How to Add Device Group References to a Device

To add groups in which this device is referenced as a member, follow these steps:

Step 1 From the Modify Device page left side-bar menu, click Add Group Reference.

The Group Reference page appears (see Figure 4-11).

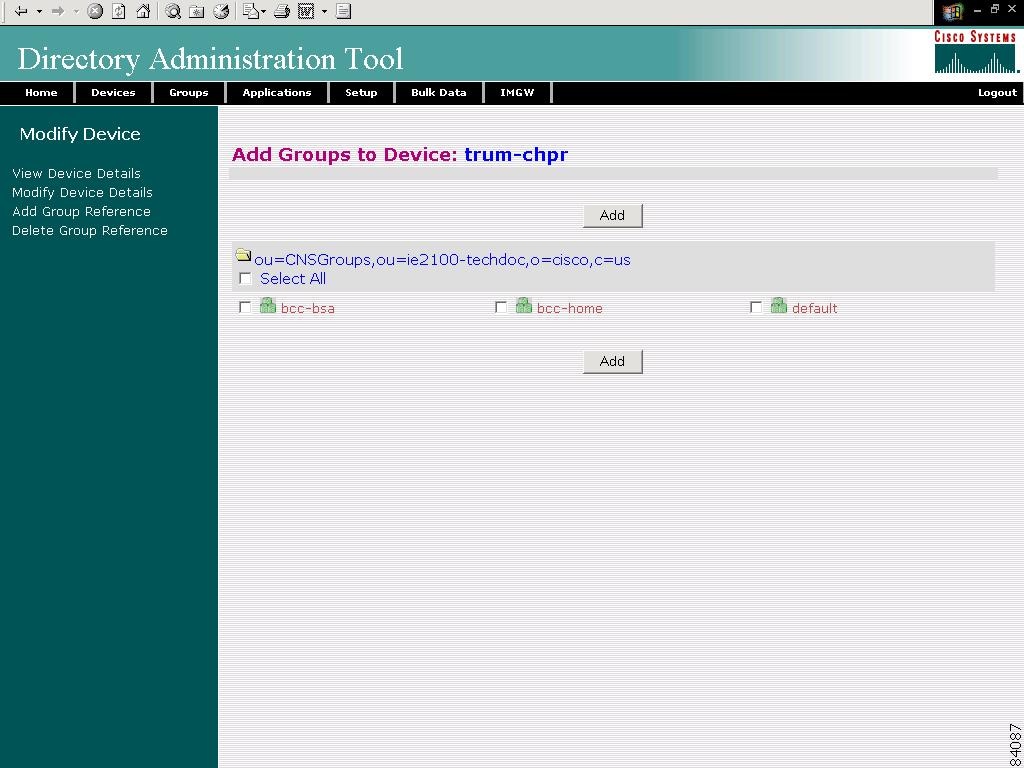

Figure 4-11 Add Groups to Device

Step 2 Check the groups in which you want this device to appear.

Step 3 To apply these changes to this device, click Add.

Step 4 To return to the main menu, click the Home tab.

How to Delete Device Group References to a Device

To delete groups in which this device is referenced as a member, follow these steps:

Step 1 From the Modify Device page left side-bar menu, click Delete Group Reference.

The Delete Devices from Group page appears (see Figure 4-12).

Figure 4-12 Delete Devices from Group

Step 2 Check those group references you want to delete.

Step 3 To these group references, click Delete.

Step 4 To return to the main menu, click the Home tab.

How to Delete Devices

The delete device function relative to groups is different for each type of directory.

For Critical Path, NDS, and iPlanet, if the device is the only member of a group when you delete the device, the group remains in an empty state. However, the device reference is deleted from the group.

To delete devices from the system using DAT, follow these steps:

Step 1 From the Device Management page, click Delete Devices.

The Delete Devices page appears (see Figure 4-13)

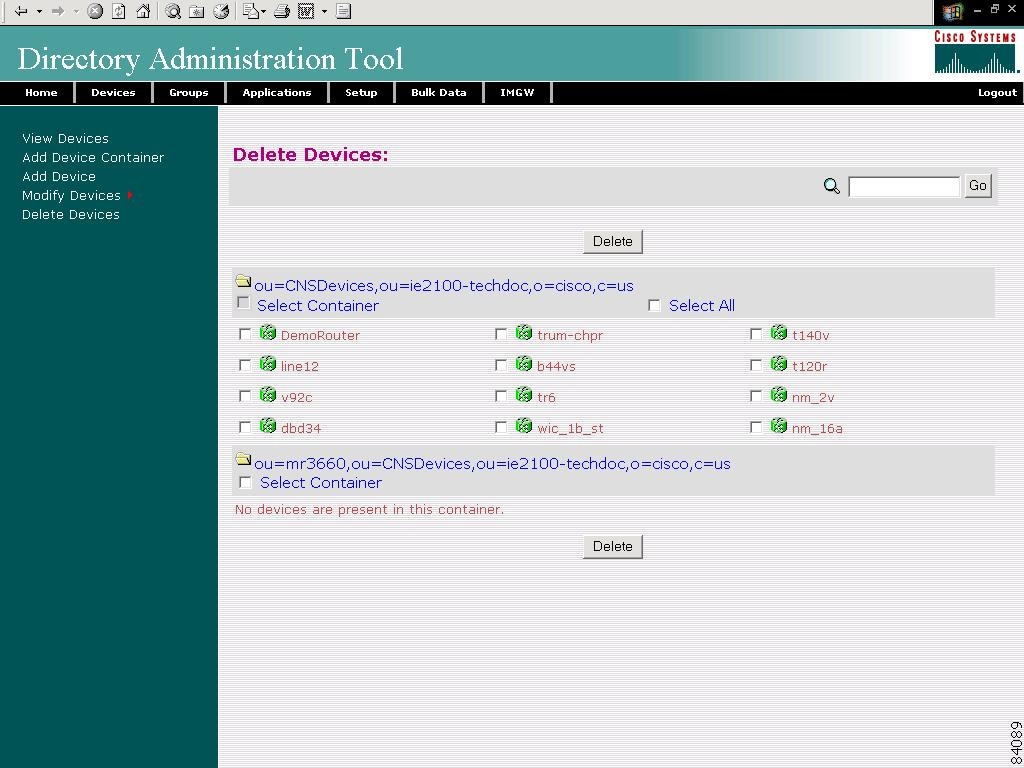

Figure 4-13 Delete Devices

Note Devices with no parent attributes are shown with a dully-shaded icon, so you can easily identify the devices with no groups associated.

Step 2 Select the devices you want to delete from the system.

Step 3 To delete this device, click Delete.

Step 4 To return to the main menu, click the Home tab.

How to Manage Groups

To manage groups in the system, from the main menu, click the Groups tab.

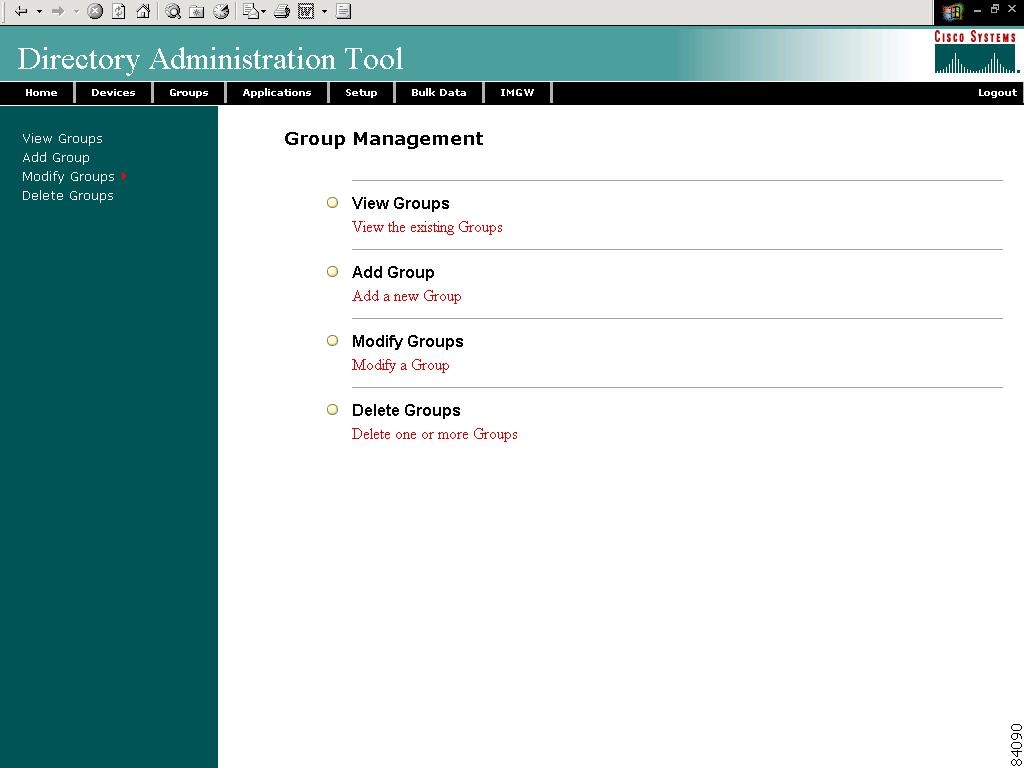

The Group Management page appears (see Figure 4-14).

Figure 4-14 Group Management

How to View Groups in the System

To view all the groups in the system, follow these steps:

Step 1 From the Group Management page, click View Groups.

The group listing appears (see Figure 4-15).

Figure 4-15 Groups in the System

Step 2 To view the details of a particular group, click on the icon associated with the group you want to view.

The Groups Detail page appears (see Figure 4-16).

Figure 4-16 Groups Details

Step 3 To return to the main menu, click the Home tab.

How to Add a Group

To add a group, follow these steps:

Step 1 From the Group Management page, click Add Group.

The Add Group page appears (see Figure 4-17).

Figure 4-17 Add Group

Step 2 Enter a value for the group name in the Group Name field.

Table 4-4 lists valid values for this field.

Step 3 From the list of available devices, select the devices you want associated with this group.

Step 4 From the list of available applications, select the applications you want associated with this group.

Step 5 Modify all appropriate fields.

Step 6 To clear all field and enter new values, click Reset.

Step 7 To add this group, click Add.

Step 8 To return to the main menu, click the Home tab.

Modifying Groups

To modify a group, follow these steps:

Step 1 From the Group Management page, click Modify Group.

The Group list appears (see Figure 4-15).

Step 2 Click on the icon associated with the group you want to modify.

The group details appear (see Figure 4-16).

Step 3 From the left side-bar menu, choose which aspect of the group you want to modify.

Modifying Group Details

Using the user interface to modify group details (attributes) is possible only if you have extended the group objectclass in the directory with extra attributes.

How to Populate a Group Attribute

Before you can populate a group attribute, you must extend the directory schema manually. The Cisco CNS Configuration Engine 1.4 cannot add new attributes to the group objectclass in the directory.

Once you have extended the schema, you can populate the new object class using DAT by following these steps:

Step 1 In the DAT user interface, under Group Setup, click on Add More Attributes to the UI.

(See "How to View and Modify Group Setup" section.)

Step 2 Enter the new attributes.

Step 3 Click Save.

Now, when you go to Modify Groups, you can modify these new attributes under Modify Group Details.

How to Modify Group Details

To modify group details, follow these steps:

Step 1 From the Group Management page, click Modify Groups.

The group list appears (see Figure 4-15).

Step 2 Click on the icon associated with the group you want to modify.

The Group Details page appears (see Figure 4-16).

Step 3 To modify the group attributes, from the left side-bar menu, click on Modify Group Details.

The modify attributes task page appears (see Figure 4-18).

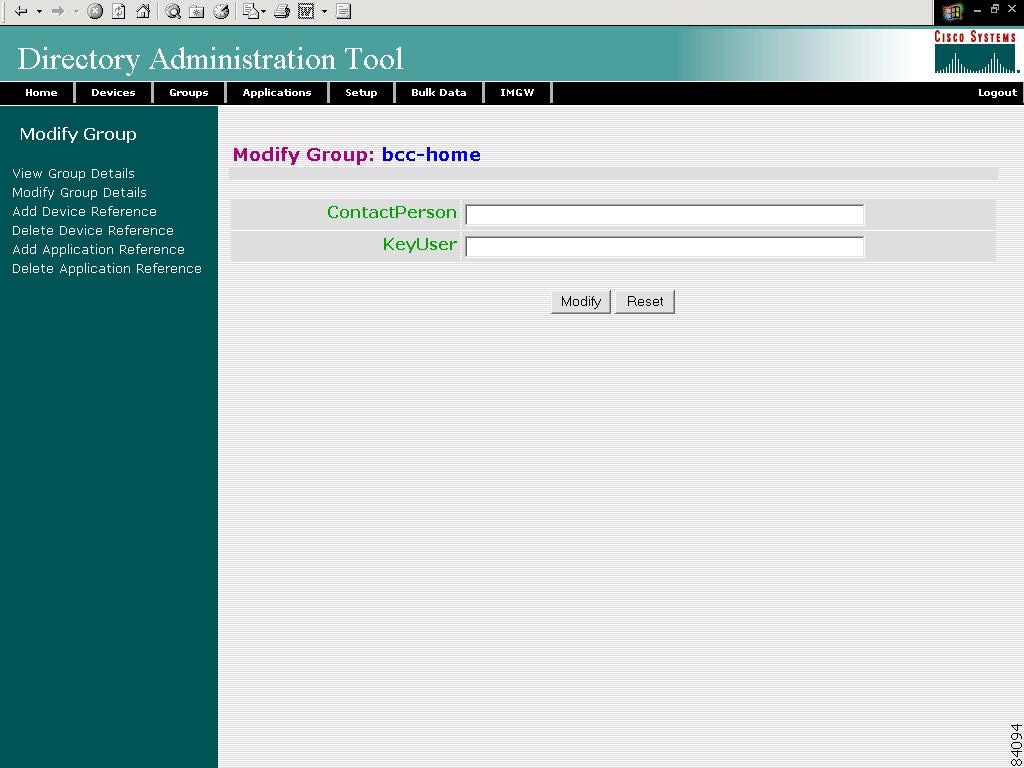

Figure 4-18 Modify Group Details

Step 4 Modify all appropriate attributes.

Table 4-5 lists valid values for these fields.

Step 5 To clear all field and enter new values, click Reset.

Step 6 To modify this group, click Modify.

Step 7 To return to the main menu, click the Home tab.

How to Add Device References to a Group

To add devices to a group, follow these steps:

Step 1 From the Group Management page, click Modify Groups.

The group list appears (see Figure 4-15).

Step 2 Select the group you want to modify by clicking on its icon.

Step 3 To add devices to this group, from the left side-bar menu, click on Add Device Reference.

The device list appears (see Figure 4-19).

Figure 4-19 Add Devices to Group

Step 4 Check all devices you want to appear in this group.

Step 5 To modify the group with these devices, click Add.

Step 6 To return to the main menu, click the Home tab.

How to Delete Devices from a Group

To delete devices to a group, follow these steps:

Step 1 From the Group Management page, click Modify Groups.

The group list appears (see Figure 4-15).

Step 2 Select the group you want to modify by clicking on its icon.

The list of devices currently associated with this group appears (see Figure 4-20).

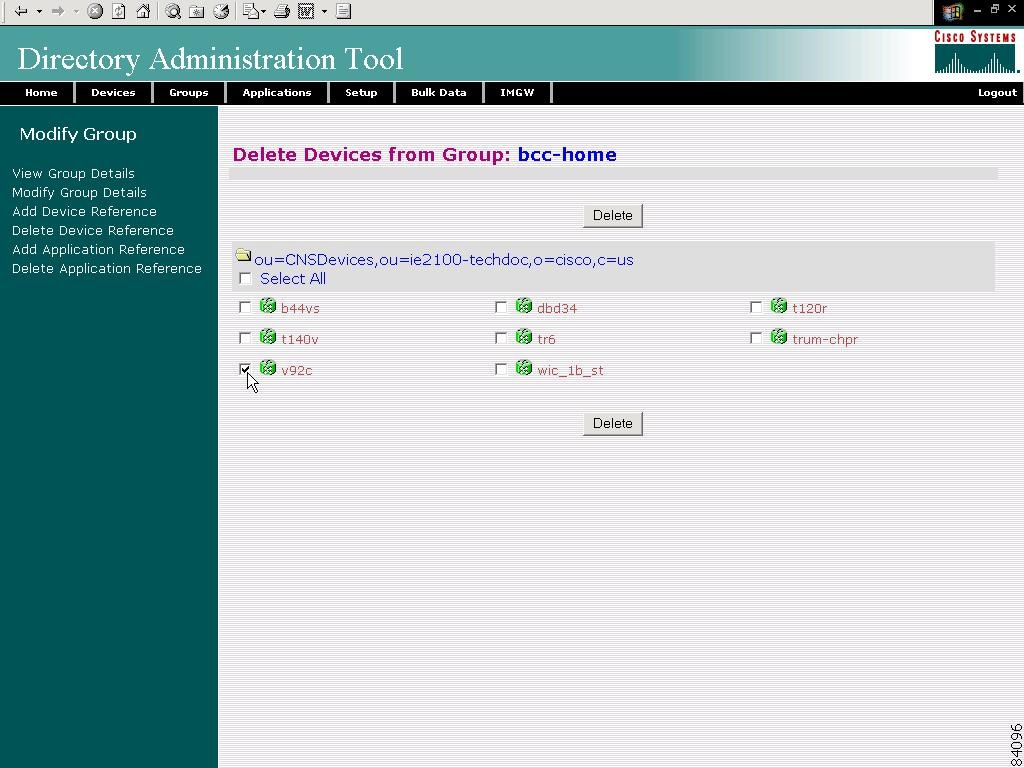

Figure 4-20 Delete Devices from Group

Step 3 Check all devices you want to delete from this group.

Step 4 To delete these devices from this group, click Delete.

Step 5 To return to the main menu, click the Home tab.

How to Add Applications to a Group

To add applications to a group, follow these steps:

Step 1 From the Group Management page, click Modify Groups.

The group list appears (see Figure 4-15).

Step 2 Select the group you want to modify by clicking on its icon.

Step 3 To add applications to this group, from the left side-bar menu, click on Add Application Reference.

A list of applications appears (see Figure 4-21).

Figure 4-21 Add Applications to Group

Step 4 Check the applications you want to add to this group.

Step 5 To modify the group with these applications, click Add.

Step 6 To return to the main menu, click the Home tab.

How to Delete Applications from a Group

To delete applications to a group, follow these steps:

Step 1 From the Group Management page, click Modify Groups.

The group list appears (see Figure 4-15).

Step 2 Select the group you want to modify by clicking on its icon.

The list of applications currently associated with this group appears (see Figure 4-22).

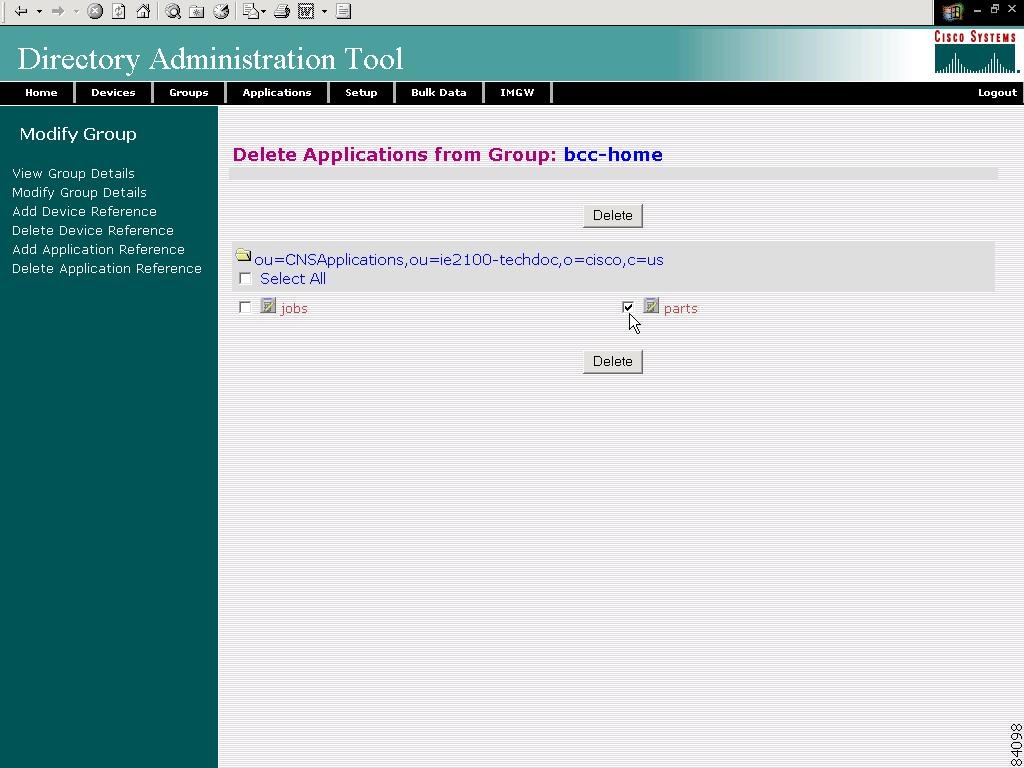

Figure 4-22 Delete Applications from Group

Step 3 Check the applications you want to delete from this group.

Step 4 To delete these applications from this group, click Delete.

Step 5 To return to the main menu, click the Home tab.

How to Delete Groups

To delete group(s) from the system using DAT, follow these steps:

Step 1 From the Device Management page, click Delete Groups.

The Delete Groups page appears

Step 2 Select the group(s) you want to delete from the system.

Step 3 To delete this group(s), click Delete.

Step 4 To return to the main menu, click the Home tab.

How to Manage Applications

To view and modify applications, from the main menu, click the Applications tab.

The Application Management page appears (see Figure 4-23).

Figure 4-23 Application Management

How to View Applications on the System

To view the current list of applications running on the system, follow these steps:

Step 1 From the Application Management page, click View Applications.

The application list appears (see Figure 4-24).

Figure 4-24 Applications List

Step 2 To view the details of an application, click on the icon associated with application you want to view.

The application details appear (seeFigure 4-25) listing the events in the application and group currently associated with this application.

Figure 4-25 Application Details

Step 3 To return to the main menu, click the Home tab.

How to Add Applications

To add an application to the system, follow these steps:

Step 1 From the Application Management page, click Add Application.

The Add Application page appears (see Figure 4-26).

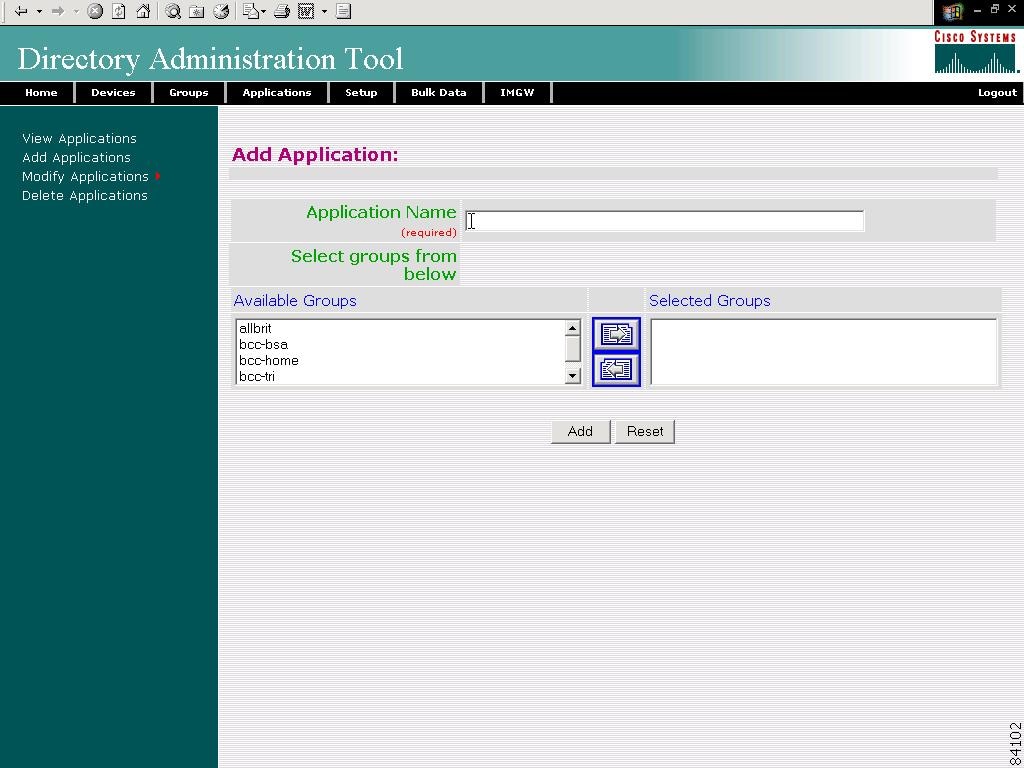

Figure 4-26 Add Applications

Step 2 Enter a value in the Application Name field.

Table 4-6 list the valid values for this field.

Step 3 From the list of Available Groups, choose the groups with which you want this application associated.

Step 4 To clear your entries and start over, click Reset.

Step 5 To add this application to the system, click Add.

After adding an application, you get a success message with a link to add events to that application. Clicking the link takes you to the add events screen (see "How to Add Events to an Application" section).

Step 6 To return to the main menu, click the Home tab.

Modifying Applications

To modify an application, follow these steps:

Step 1 From the Application Management page, click Modify Application.

The Application list appears (see Figure 4-24).

Step 2 Click on the icon associated with the application you want to modify.

The application details appear (see Figure 4-25).

Step 3 From the left side-bar menu, choose which aspect of the application you want to modify.

Modifying Application Details

Using the user interface to modify application details (attributes) is possible only if you have extended the application objectclass in the directory with extra attributes.

How to Populate an Application Attribute

Before you can populate a application attribute, you must extend the directory schema manually. The Cisco CNS Configuration Engine 1.4 cannot add new attributes to the application objectclass in the directory.

Once you have extended the schema, you can populate the new object class using DAT by following these steps:

Step 1 In the DAT user interface, under Application Setup, click on Add More Attributes to the UI.

(See "How to View and Modify Application Setup" section.)

Step 2 Enter the new attributes.

Step 3 Click Save.

Now, when you go to Modify Application, you can modify these new attributes under Modify Application Details.

How to Modify Application Details

To modify application details (attributes), follow these steps:

Step 1 From the left side-bar menu, click Modify Applications Details.

The modify attributes task page appears.

Figure 4-27 Modify Application Details

Step 2 Modify the application UI attribute as required.

Note The valid values could be anything that is supported by the schema of the directory.

Step 3 To clear all field and enter new values, click Reset.

Step 4 To modify this application, click Modify.

Step 5 To return to the main menu, click the Home tab.

How to Add Events to an Application

To add events to this application, follow these steps:

Step 1 From the left side-bar menu, click Add Events.

The Add Events page appears (see Figure 4-28).

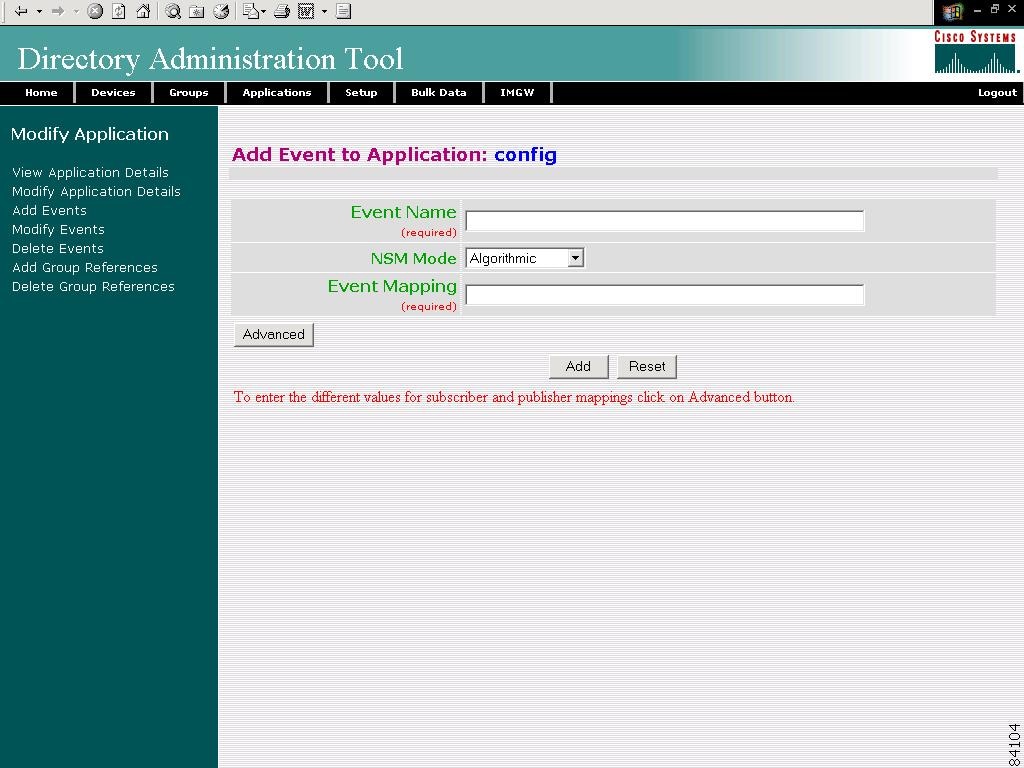

Figure 4-28 Add Events to an Application

Step 2 Enter a value in the Event Name field.

Table 4-7 lists valid values for these fields.

All the events that are added in the internal directory for config application are as follows:

cisco.mgmt.cns.config.complete

cisco.mgmt.cns.config.failure

cisco.mgmt.cns.config.warning

cisco.mgmt.cns.config.sync-status

cisco.mgmt.cns.config.reboot - deprecated. Use cisco.mgmt.cns.exec.reload instead.

cisco.mgmt.cns.config.load

cisco.mgmt.cns.config.id-changed

cisco.mgmt.cns.config-changed

cisco.mgmt.cns.config-changed.lost

Step 3 From the NSM Mode pull down menu, choose a mode.

•Algorithmic — NSM server uses a mapping algorithm

•Non-algorithmic — NSM server mapping algorithm is overridden by the application

Step 4 Enter the event mapping in the Event Mapping field.

For more information about naming events, see "NameSpace Mapper" section.

Step 5 To change Subscriber and Publisher parameters from default, click Advanced.

The Advanced Event page appears (see Figure 4-29).

Figure 4-29 Advanced Event Add

Step 6 Enter a value in the Event Name field.

Table 4-8 lists valid values for these fields.

Step 7 Select the Subscriber Default mode from the pull down menu.

Step 8 Select the Publisher Default mode from the pull down menu.

Step 9 To add a new subscriber mapping, enter the subscriber mapping in the New Mapping field, the click Add to list.

Step 10 To remove a subscriber mapping, in the Subscriber Mapping list, select the desired mapping, then click Remove.

Step 11 To add a new publisher mapping, enter the publisher mapping in the New Mapping field, the click Add to list.

Step 12 To remove a publisher mapping, in the Publisher Mapping list, select the desired mapping, then click Remove.

Step 13 To add this event to the system, click Add.

Step 14 To clear your entries and start over, click Reset.

Step 15 To return to the main menu, click the Home tab.

How to Modify Events in an Application

To modify events to this application, follow these steps:

Step 1 From the Application Management page, click Modify Application.

The application list appears (see Figure 4-24).

Step 2 Click on the icon associated with the application for which you want to modify events.

The Application Details page appears (see Figure 4-25).

Step 3 From the left side-bar menu, click Modify Events.

The events list for this application appears (see Figure 4-30).

Figure 4-30 Modify Events in Application

Step 4 Click on the icon associated with the event you want to modify.

The Modify Event page appears (see Figure 4-31).

Figure 4-31 Modify Event

Step 5 Modify all appropriate fields.

Table 4-9 lists valid values for these fields.

Step 6 To clear your entries and start over, click Reset.

Step 7 To Modify this event, click Modify.

Step 8 To return to the main menu, click the Home tab.

How to Delete Events in a Application

To delete events from an application, follow these steps:

Step 1 From the Application Management page, click Modify Application.

The application list appears (see Figure 4-24).

Step 2 Click on the icon associated with the application from which you want to delete events.

The Application Details page appears (see Figure 4-25).

Step 3 From the left side-bar menu, click Delete Events.

The delete events list for this application appears (see Figure 4-32).

Figure 4-32 Delete Events from Application

Step 4 Check all events you want to delete from this application.

Step 5 To delete these events, click Delete.

Step 6 To return to the main menu, click the Home tab.

How to Add Group References to an Application

To add group references to an application, follow these steps:

Step 1 From the Application Management page, click Modify Application.

The application list appears (see Figure 4-24).

Step 2 Click on the icon associated with the application from which you want to add groups.

The Application Details page appears (see Figure 4-25).

Step 3 From the left side-bar menu, click Add Group References.

A list of available groups to add to this application appears (see Figure 4-33).

Figure 4-33 Add Groups to an Application

Step 4 Check all groups you want associated with this application.

Step 5 To add these group references to this application, click Add.

Step 6 To return to the main menu, click the Home tab.

How to Delete Group References from an Application

To delete group references from an application, follow these steps:

Step 1 From the Application Management page, click Modify Application.

The application list appears (see Figure 4-24).

Step 2 Click on the icon associated with the application from which you want to delete groups.

The Application Details page appears (see Figure 4-25).

Step 3 From the left side-bar menu, click Delete Group References.

A list of groups currently associated with this application appears (see Figure 4-34).

Figure 4-34 Delete Groups from an Application

Step 4 Check all groups you want to delete from this application.

Step 5 To delete these groups to this application, click Delete.

Step 6 To return to the main menu, click the Home tab.

How to Delete Applications

To delete an application, follow these steps:

Step 1 From the Application Management page, click Delete Application.

The Application list appears (see Figure 4-24).

Step 2 Click the icon(s) associated with the application you want to delete.

Step 3 To delete these applications, click Delete.

Step 4 To return to the main menu, click the Home tab.

Managing Directory Setup

When the Cisco CNS Configuration Engine 1.4 is setup, DAT also gets configured with the values as entered by the user during setup. If you have extended the schema, then you have to provide the information about the new attributes (name of the attribute, whether the attribute is mandatory or not, and whether the attribute is single-valued or multi-valued).

Note Adding attributes in setup does not add these attributes to the directory. These attributes are written only to the DAT property files.

There are some attributes related to directories that get default values during initial setup of the system. You may need to change some of these attributes to match your specific values.

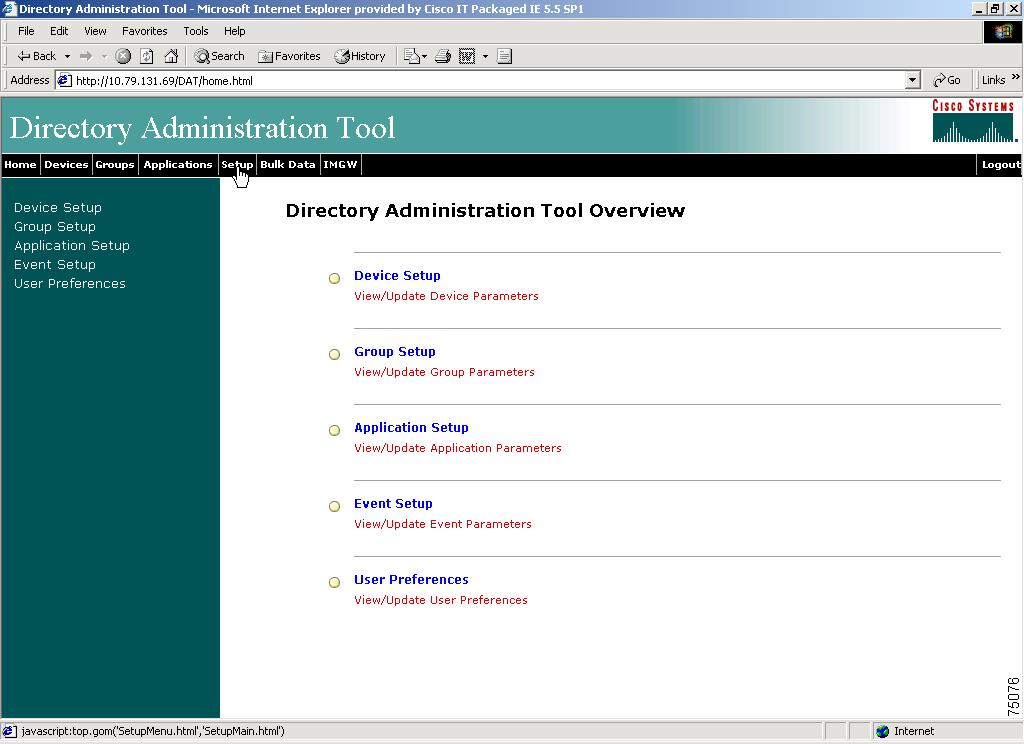

From the DAT main menu, click the Setup tag. The Setup page appears (see Figure 4-35).

Figure 4-35 Setup Page

How to View and Modify Device Setup

To view and modify device setup, follow these steps:

Step 1 From the Setup main menu, choose, Device Setup.

The Device Setup page appears (see Figure 4-36).

Figure 4-36 View and Modify Device Setup

Step 2 To modify device setup, change all appropriate fields.

With this page, you can add new attributes that you intend to populate through DAT. The names of the other attributes; template, uniqueconfigid, uniquedeviceid, Parent (device-group association) are also listed in this page.These values are the same as entered during the Cisco CNS Configuration Engine 1.4 setup. These attributes are made mandatory. To change any of these values, the Cisco CNS Configuration Engine 1.4 setup has to be run again. These are the attributes that DAT recognizes initially.If you want more attributes to be managed by DAT, you can add those attribute details on this page.

Step 3 To add more attributes, click Add More Attributes to the UI.

Here you can add more attributes to the Device objectClass. You can add new attributes to a Device by giving the attribute name and whether it is mandatory, multi valued.

Note Adding attributes in setup does not add these attributes to the directory. These attributes are written only to the DAT property files. Before you can use the DAT UI to populate a newly added attribute, directory schema must have been extended with that new attribute.

Step 4 To reset this device setup to default values, click Reset to Default.

This restores the Cisco CNS Configuration Engine 1.4 settings for only device setup.

Step 5 To save your changes, click Save.

Step 6 To cancel this task, click Cancel.

Step 7 To return to the main menu, click the Home tab.

How to View and Modify Group Setup

To view and modify group setup, follow these steps:

Step 1 From the Setup main menu, choose, Group Setup.

The Group Setup page appears (see Figure 4-37).

Figure 4-37 View and Modify Group Setup

Step 2 To add more attributes, click Add More Attributes to the UI.

Here you can add new attributes to the group objectClass; for example, you might be interested in designating a contact person for each of the groups. This can be done by adding an attribute to the group object class in the directory. You can add new attributes to a group by giving the attribute name and whether it is mandatory, or multi valued.

Note Adding attributes in setup does not add these attributes to the directory. These attributes are written only to the DAT property files. Before you can use the DAT UI to populate a newly added attribute, directory schema must have been extended with that new attribute.

Step 3 To reset this group setup to default values, click Reset to Default.

This restores the Cisco CNS Configuration Engine 1.4 settings for only group setup.

Step 4 To save your changes, click Save.

Step 5 To cancel this task, click Cancel.

Step 6 To return to the main menu, click the Home tab.

How to View and Modify Application Setup

To view and modify application setup, follow these steps:

Step 1 From the Setup main menu, choose, Application Setup.

The Application Setup page appears (see Figure 4-38).

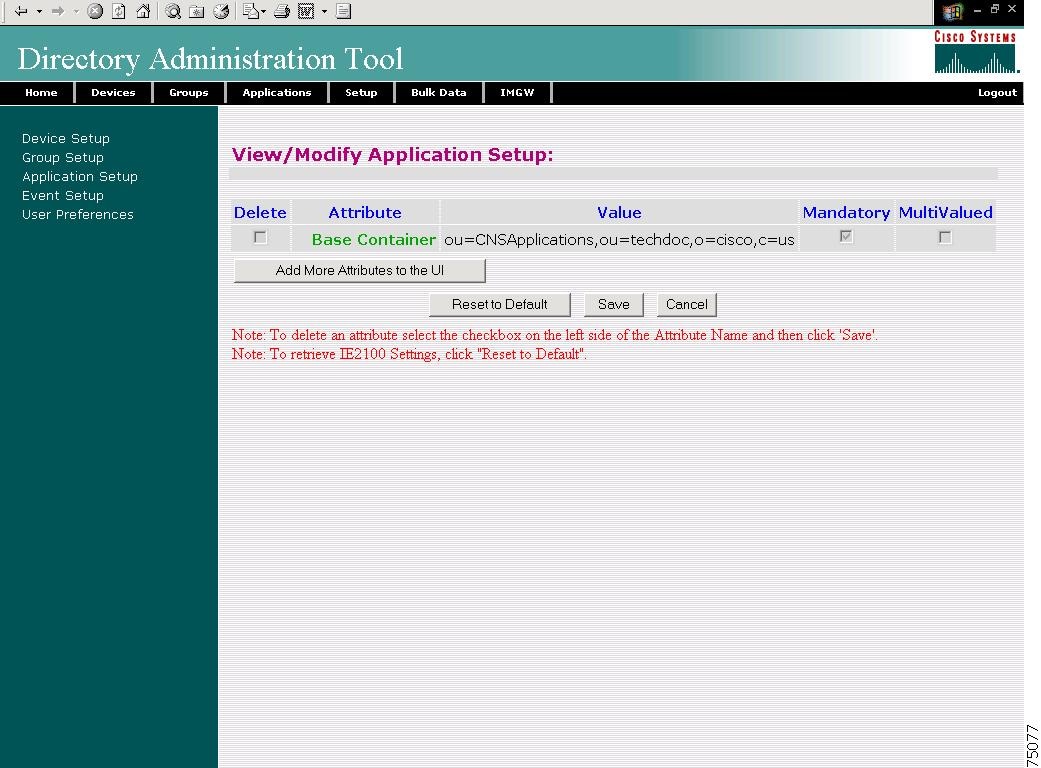

Figure 4-38 View and Modify Application Setup

Step 2 Click Save.

Step 3 To add more attributes, click Add More Attributes to the UI.

Here you can add more attributes to the application objectClass; for example, you might be interested in designating a contact person for each of the applications. This can be done by adding an attribute to the application object class in the directory. You can add new attributes to applications by giving the attribute name and whether it is mandatory, or multi valued.

Note Adding attributes in setup does not add these attributes to the directory. These attributes are written only to the DAT property files. Before you can use the DAT UI to populate a newly added attribute, directory schema must have been extended with that new attribute.

Step 4 To reset this application setup to default values, click Reset to Default.

This restores theCisco CNS Configuration Engine 1.4 settings for only application setup.

Step 5 To save your changes, click Save.

Step 6 To cancel this task, click Cancel.

Step 7 To return to the main menu, click the Home tab.

How to View and Modify Event Setup

To view and modify Event setup, follow these steps:

Step 1 From the Setup main menu, choose, Event Setup.

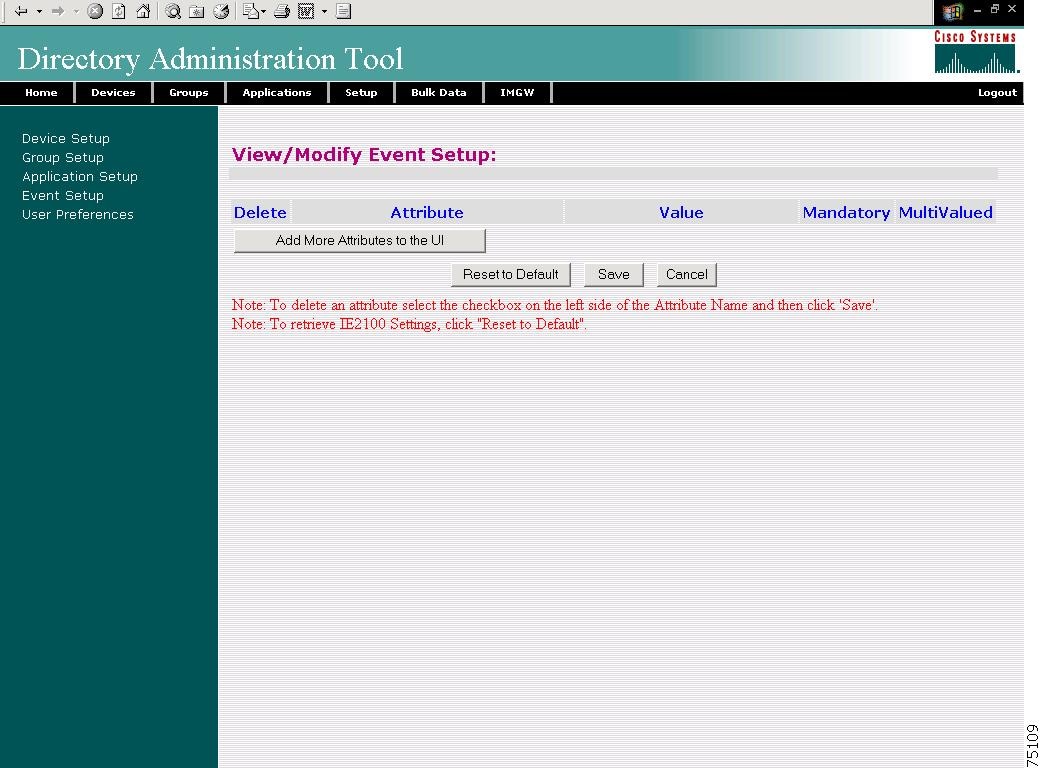

The Event Setup page appears (see Figure 4-39).

Figure 4-39 View and Modify Event Setup

Step 2 To modify event setup, change all appropriate fields.

If you use the default NSM schema, you will notice that there are no fields to be modified here. This is because there are no attributes required for the event object class. However if you have extended the schema and added some extra attributes to the event object class then you can modify those attributes by changing the name of the attribute in the Value text box and updating the Mandatory and MultiValued check boxes.

Step 3 To add more attributes, click Add More Attributes to the UI.

Here you can add more attributes to the event objectClass; for example, you might be interested in adding an extra event to the object class. This can be done by adding an attribute to the event object class in the directory. You can add new attributes to events by giving the attribute name and whether it is mandatory, or multi valued.

Note Adding attributes in setup does not add these attributes to the directory. These attributes are written only to the DAT property files. Before you can use the DAT UI to populate a newly added attribute, directory schema must have been extended with that new attribute.

Step 4 To save your changes, click Save.

Step 5 To cancel this task, click Cancel.

Step 6 To return to the main menu, click the Home tab.

How to View and Modify User Preferences

To view and modify user preferences, follow these steps:

Step 1 From the Setup main menu, choose, User Preferences.

The User Preferences page appears (see Figure 4-40).

Figure 4-40 View and Modify User Preferences

Step 2 To modify user preferences, change all appropriate fields.

This consists of the following options:

•Number of devices in a row

•Number of groups in a row

•Number of applications in a row

•Number of events in a row.

These options can be changed by changing the value in the text box.

Step 3 To save your changes, click Save.

Step 4 To cancel this task, click Cancel.

Step 5 To return to the main menu, click the Home tab.

How to Manage Bulk Data

To manage bulk data loads, from the main menu, click the Bulk Data tab.

The Bulk Data main menu appears (see Figure 4-41).

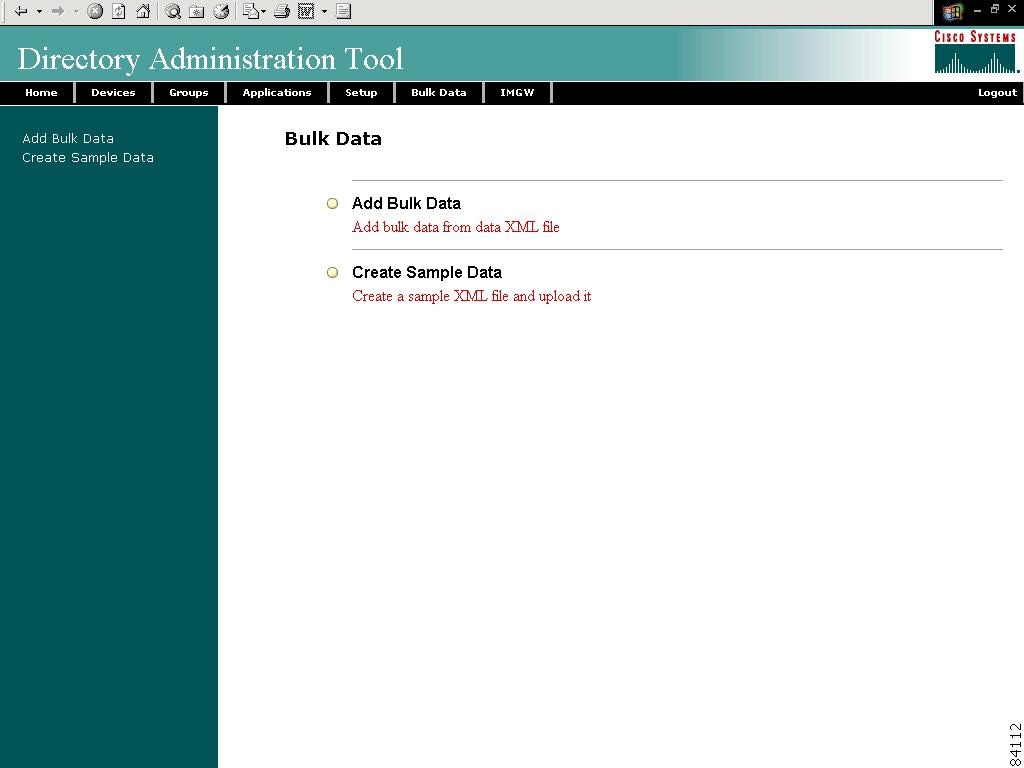

Figure 4-41 Bulk Data

XML DTD

The following example shows the Document Type Definition (DTD) for the XML bulk upload:

<?xml version="1.0" encoding="utf-8"?>

<!ELEMENT cns-bulk-upload (cns-element-data)>

<!ATTLIST cns-bulk-upload

	stop-on-error (true | false) "false"

>

<!ELEMENT cns-element-data ( NSM-DATA | IMGW-DATA | IMAGE-DATA)>

<!ELEMENT IMGW-DATA (imgw-device*)>

<!ATTLIST IMGW-DATA

	op-type (add) #REQUIRED

>

<!ELEMENT imgw-device (device-id, gateway-id?, device-type, hop-information*)>

<!ELEMENT device-id (#PCDATA)>

<!ELEMENT gateway-id (#PCDATA)>

<!ELEMENT device-type (#PCDATA)>

<!ELEMENT hop-information (hop-type, ip-address?, port?, username?, password?)>

<!ELEMENT hop-type (#PCDATA)>

<!ELEMENT ip-address (#PCDATA)>

<!ELEMENT port (#PCDATA)>

<!ELEMENT username (#PCDATA)>

<!ELEMENT password (#PCDATA)>

<!ELEMENT NSM-DATA (cns-device-container*, cns-device-info*, cns-application-info*,
cns-group-info*)>

<!ATTLIST NSM-DATA

	op-type (add) #REQUIRED

	validate-data (true | false) #REQUIRED

>

<!ELEMENT cns-device-container (device-container-name+, parent-container?)>

<!-- This tag is to add the sub containers for devices-->

<!ELEMENT device-container-name (#PCDATA)>

<!ELEMENT parent-container (#PCDATA)>

<!-- This is an optional tag that specifies which container the dev. container object is
to be added-->

<!ELEMENT cns-device-info (cns-device-name, cns-extended-attr*, device-container?,
dev-image-information?)>

<!ELEMENT device-container (#PCDATA)>

<!-- This is an optional tag that specifies which container this object is to be added-->

<!ELEMENT cns-device-name (#PCDATA)>

<!ELEMENT cns-extended-attr (#PCDATA)>

<!ELEMENT dev-image-information (image-id, activation-template?, dev-image-info+)>

<!ELEMENT image-id (#PCDATA)>

<!ELEMENT activation-template (#PCDATA)>

<!ELEMENT dev-image-info (image-name, distribution)>

<!ELEMENT image-name (#PCDATA)>

<!ELEMENT distribution ( destination?, location)>

<!ATTLIST distribution

	overwrite  (yes | no) "no"

	erase-flash (yes | no) "no"

	activate (true | false) "false"

>

<!ELEMENT destination (#PCDATA)>

<!ELEMENT location (#PCDATA)>

<!ELEMENT cns-application-info (cns-application-name, cns-subject-mapping*,
application-container?)>

<!ELEMENT application-container (#PCDATA)>

<!-- This is an optional tag that specifies which container this object is to be added-->

<!ELEMENT cns-application-name (#PCDATA)>

<!ELEMENT cns-subject-mapping (cns-original-subject, cns-pub-mapping*, cns-sub-mapping*,
cns-pub-default, cns-sub-default, cns-extended-attr*)>

<!ELEMENT cns-original-subject (#PCDATA)>

<!ELEMENT cns-pub-mapping (#PCDATA)>

<!ELEMENT cns-sub-mapping (#PCDATA)>

<!ELEMENT cns-pub-default (#PCDATA)>

<!ELEMENT cns-sub-default (#PCDATA)>

<!ELEMENT cns-group-info (cns-group-name, cns-group-application-name*, cns-group-member*,
cns-extended-attr*, group-container?)>

<!ELEMENT group-container (#PCDATA)>

<!-- This is an optional tag that specifies which container this object is to be added-->

<!ELEMENT cns-group-name (#PCDATA)>

<!ELEMENT cns-group-application-name (#PCDATA)>

<!ELEMENT cns-group-member (#PCDATA)>

<!ATTLIST cns-group-application-name

	application-container CDATA #IMPLIED

>

<!ATTLIST cns-group-member

	device-container CDATA #IMPLIED

>

<!ATTLIST cns-extended-attr

	name CDATA #REQUIRED

>

<!-- Here starts the definition for Image-data-->

<!ELEMENT IMAGE-DATA (image+)>

<!ATTLIST IMAGE-DATA

	op-type (add) #REQUIRED

>

<!ELEMENT image (name, image-info)>

<!ELEMENT name (#PCDATA)>

<!ELEMENT image-info (img-name, img-chksum?, hdr-chksum?, software-version?,
system-description?, file-byte-size?, platform-family-name?, img-location*)>

<!ATTLIST image-info

        image-type (IOS | pix-image | pdm | other) "IOS"

>

<!ELEMENT img-name (#PCDATA)>

<!ELEMENT img-chksum (#PCDATA)>

<!ELEMENT hdr-chksum (#PCDATA)>

<!ELEMENT file-byte-size (#PCDATA)>

<!ELEMENT system-description (#PCDATA)>

<!ELEMENT platform-family-name (#PCDATA)>

<!ELEMENT software-version (#PCDATA)>

<!ELEMENT img-location (#PCDATA)>

How to Upload Bulk Data

To upload bulk data to your system, follow these steps:

Step 1 From the Bulk Data main menu, click Add Bulk Data.

The Upload Bulk Data page appears (see Figure 4-42).

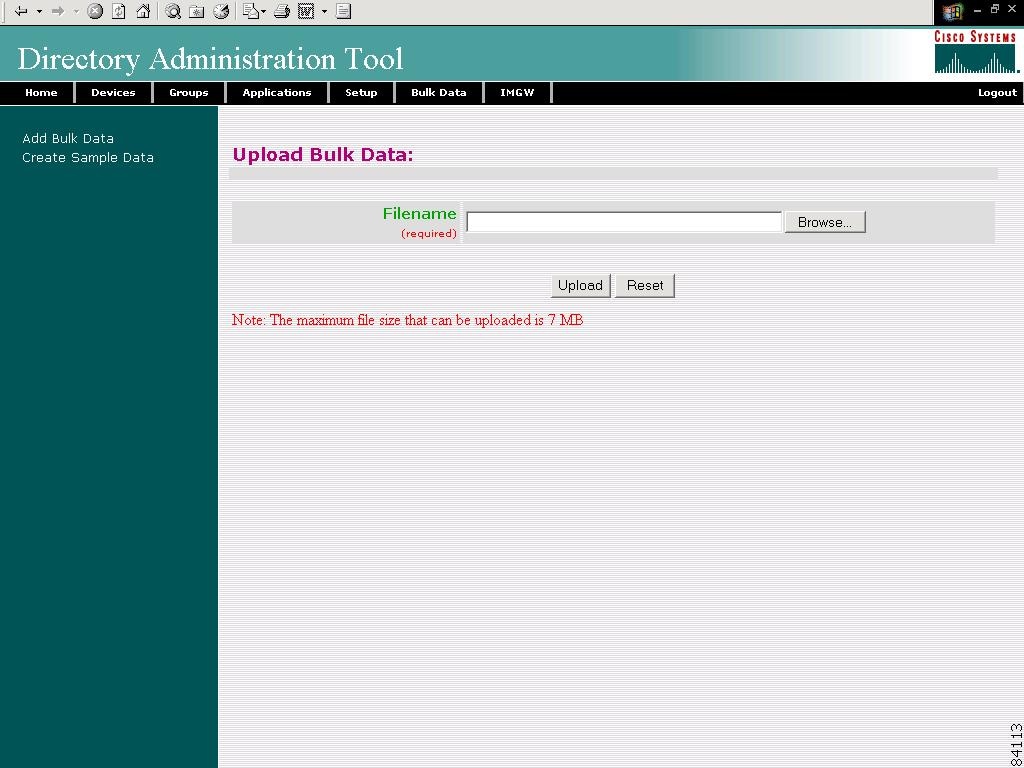

Figure 4-42 Upload Bulk Data

Step 2 If you know the filename of the data file you want to load, enter it in the Filename field, otherwise use the browse function.

Table 4-10lists the valid values for this field.

Step 3 To use the browser to locate the filename of the data file you want to upload, click Browse.

Step 4 To clear your entry and start over, click Reset.

Step 5 To initiate the upload, click Upload.

Step 6 To return to the main menu, click the Home tab.

Command-Line Upload of Bulk Data

You can also upload the XML file to the directory using a command line utility as follows:

Step 1 FTP the bulk upload XML file to the /opt/CSCOdat/scripts/ directory on the CNS 2100 Series system.

Step 2 Login to the box using Telnet

Step 3 Go to: /opt/CSCOdat/scripts/

Step 4 Run the following command to invoke the bulk upload command line utility:

./upload.sh <xml filename>

For example: ./upload.sh my_bulk_data.xml

This uploads the data to the LDAP directory.

Creating Sample Data for Bulk Upload

Even though the DTD (see "XML DTD" section) outlines the structure of the input XML file, it does not convey the information about what values should be given for each tag. By looking at the sample data files (NSM and IMGW) in this section, you can get an idea of how the data should be arranged in the Bulk Upload XML file.

You can create sample data files for both NSM and IMGW devices.

How to Create Sample Data for Bulk Upload

To create sample data on your system, follow these steps:

Step 1 From the Bulk Data main menu, click Add Bulk Data.

The Upload Bulk Data page appears (see Figure 4-43).

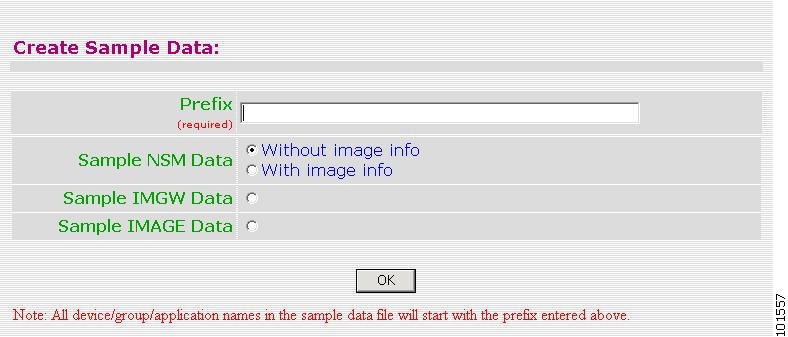

Figure 4-43 Create Sample Data

Step 2 Enter the prefix name for this sample in the Prefix field.

Table 4-11 lists valid values for these fields.

Step 3 Select whether this is for NSM, IMGW, or IMAGE data.

Step 4 To create this sample, click OK.

Step 5 To return to the main menu, click the Home tab.

NSM Data Sample

The following example shows an NSM data sample for bulk upload:

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE cns-bulk-upload SYSTEM "BulkUpload.dtd">

<cns-bulk-upload stop-on-error="false">

    <cns-element-data>

        <NSM-DATA op-type="add" validate-data="false">

            <cns-device-container>

                <device-container-name>SampleSubDevices</device-container-name>

            </cns-device-container>

            <cns-device-container>

                <device-container-name>SubSubDevices</device-container-name>


<parent-container>ou=SampleSubDevices,ou=CNSDevices,ou=cns-pokhran4,o=infy,c=in</parent-co
ntainer>

            </cns-device-container>

            <cns-device-info>

                <cns-device-name>SampleDevice1</cns-device-name>

                <cns-extended-attr
name="IOSconfigtemplate">DemoRouter.cfgtpl</cns-extended-attr>

                <cns-extended-attr name="IOSConfigID">SampleDevice1</cns-extended-attr>

                <cns-extended-attr name="IOSEventID">SampleDevice1</cns-extended-attr>

            </cns-device-info>

            <cns-device-info>

                <cns-device-name>SampleDevice2</cns-device-name>

                <cns-extended-attr
name="IOSconfigtemplate">DemoRouter.cfgtpl</cns-extended-attr>

                <cns-extended-attr name="IOSConfigID">SampleDevice2</cns-extended-attr>

                <cns-extended-attr name="IOSEventID">SampleDevice2</cns-extended-attr>

            </cns-device-info>

            <cns-device-info>

                <cns-device-name>SampleDevice3</cns-device-name>

                <cns-extended-attr
name="IOSconfigtemplate">DemoRouter.cfgtpl</cns-extended-attr>

                <cns-extended-attr name="IOSConfigID">SampleDevice3</cns-extended-attr>

                <cns-extended-attr name="IOSEventID">SampleDevice3</cns-extended-attr>

            </cns-device-info>

            <cns-device-info>

                <cns-device-name>SampleDevice4</cns-device-name>

                <cns-extended-attr
name="IOSconfigtemplate">DemoRouter.cfgtpl</cns-extended-attr>

                <cns-extended-attr name="IOSConfigID">SampleDevice4</cns-extended-attr>

                <cns-extended-attr name="IOSEventID">SampleDevice4</cns-extended-attr>


<device-container>ou=SampleSubDevices,ou=CNSDevices,ou=cns-pokhran4,o=infy,c=in</device-co
ntainer>

            </cns-device-info>

            <cns-device-info>

                <cns-device-name>SampleDevice5</cns-device-name>

                <cns-extended-attr
name="IOSconfigtemplate">DemoRouter.cfgtpl</cns-extended-attr>

                <cns-extended-attr name="IOSConfigID">SampleDevice5</cns-extended-attr>

                <cns-extended-attr name="IOSEventID">SampleDevice5</cns-extended-attr>


<device-container>ou=SubSubDevices,ou=SampleSubDevices,ou=CNSDevices,ou=cns-pokhran4,o=inf
y,c=in</device-container>

            </cns-device-info>

            <cns-application-info>

                <cns-application-name>SampleTestApp</cns-application-name>

                <cns-subject-mapping>

                    <cns-original-subject>SampleTestApp.Event1</cns-original-subject>


<cns-pub-mapping>SampleTestApp.Event1.cns-pub-mapping</cns-pub-mapping>


<cns-sub-mapping>SampleTestApp.Event1.cns-sub-mapping</cns-sub-mapping>

                    <cns-pub-default>0</cns-pub-default>

                    <cns-sub-default>0</cns-sub-default>

                </cns-subject-mapping>

                <cns-subject-mapping>

                    <cns-original-subject>SampleTestApp.Event2</cns-original-subject>


<cns-pub-mapping>SampleTestApp.Event2.cns-pub-mapping</cns-pub-mapping>


<cns-sub-mapping>SampleTestApp.Event2.cns-sub-mapping</cns-sub-mapping>

                    <cns-pub-default>0</cns-pub-default>

                    <cns-sub-default>0</cns-sub-default>

                </cns-subject-mapping>

            </cns-application-info>

            <cns-group-info>

                <cns-group-name>SampleGroup1</cns-group-name>

                <cns-group-application-name>SampleTestApp</cns-group-application-name>

                <cns-group-member>SampleDevice1</cns-group-member>

                <cns-group-member>SampleDevice2</cns-group-member>

                <cns-group-member>SampleDevice3</cns-group-member>

            </cns-group-info>

            <cns-group-info>

                <cns-group-name>SampleGroup2</cns-group-name>

                <cns-group-application-name>SampleTestApp</cns-group-application-name>

                <cns-group-member>SampleDevice1</cns-group-member>

                <cns-group-member>SampleDevice2</cns-group-member>

                <cns-group-member>SampleDevice3</cns-group-member>

                <cns-group-member
device-container="ou=SampleSubDevices,ou=CNSDevices,ou=cns-pokhran4,o=infy,c=in">SampleDev
ice4</cns-group-member>

                <cns-group-member
device-container="ou=SubSubDevices,ou=SampleSubDevices,ou=CNSDevices,ou=cns-pokhran4,o=inf
y,c=in">SampleDevice5</cns-group-member>

            </cns-group-info>

        </NSM-DATA>

    </cns-element-data>

</cns-bulk-upload>

NSM Data Sample With Image Information

The following example shows an NSM data sample with image information:

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE cns-bulk-upload SYSTEM "BulkUpload.dtd">

<cns-bulk-upload stop-on-error="false">

    <cns-element-data>

        <NSM-DATA op-type="add" validate-data="false">

            <cns-device-container>

                <device-container-name>xyzSubDevices</device-container-name>

            </cns-device-container>

            <cns-device-container>

                <device-container-name>SubSubDevices</device-container-name>


<parent-container>ou=xyzSubDevices,ou=CNSDevices,ou=cns-pokhran4,o=cisco,c=us</parent-cont
ainer>

            </cns-device-container>

            <cns-device-info>

                <cns-device-name>xyzDevice1</cns-device-name>

                <cns-extended-attr
name="IOSconfigtemplate">DemoRouter.cfgtpl</cns-extended-attr>

                <cns-extended-attr name="IOSConfigID">xyzDevice1</cns-extended-attr>

                <cns-extended-attr name="IOSEventID">xyzDevice1</cns-extended-attr>

                <dev-image-information>

                    <image-id>xyzDevice1</image-id>

                    <activation-template>DemoRouter.cfgtpl</activation-template>

                    <dev-image-info>

                        <image-name>xyzIMAGEObj1</image-name>

                        <distribution overwrite="yes" erase-flash="no" activate="false">

                            <destination>flash</destination>

                            <location>tftp://test.com/c7200-js-mz1</location>

                        </distribution>

                    </dev-image-info>

                </dev-image-information>

            </cns-device-info>

            <cns-device-info>

                <cns-device-name>xyzDevice2</cns-device-name>

                <cns-extended-attr
name="IOSconfigtemplate">DemoRouter.cfgtpl</cns-extended-attr>

                <cns-extended-attr name="IOSConfigID">xyzDevice2</cns-extended-attr>

                <cns-extended-attr name="IOSEventID">xyzDevice2</cns-extended-attr>

                <dev-image-information>

                    <image-id>xyzDevice2</image-id>

                    <activation-template>DemoRouter.cfgtpl</activation-template>

                    <dev-image-info>

                        <image-name>xyzIMAGEObj2</image-name>

                        <distribution overwrite="yes" erase-flash="no" activate="false">

                            <destination>flash</destination>

                            <location>tftp://test.com/c7200-js-mz2</location>

                        </distribution>

                    </dev-image-info>

                </dev-image-information>

            </cns-device-info>

            <cns-device-info>

                <cns-device-name>xyzDevice3</cns-device-name>

                <cns-extended-attr
name="IOSconfigtemplate">DemoRouter.cfgtpl</cns-extended-attr>

                <cns-extended-attr name="IOSConfigID">xyzDevice3</cns-extended-attr>

                <cns-extended-attr name="IOSEventID">xyzDevice3</cns-extended-attr>

                <dev-image-information>

                    <image-id>xyzDevice3</image-id>

                    <activation-template>DemoRouter.cfgtpl</activation-template>

                    <dev-image-info>

                        <image-name>xyzIMAGEObj3</image-name>

                        <distribution overwrite="yes" erase-flash="no" activate="false">

                            <destination>flash</destination>

                            <location>tftp://test.com/c7200-js-mz3</location>

                        </distribution>

                    </dev-image-info>

                </dev-image-information>

            </cns-device-info>

            <cns-device-info>

                <cns-device-name>xyzDevice4</cns-device-name>

                <cns-extended-attr
name="IOSconfigtemplate">DemoRouter.cfgtpl</cns-extended-attr>

                <cns-extended-attr name="IOSConfigID">xyzDevice4</cns-extended-attr>

                <cns-extended-attr name="IOSEventID">xyzDevice4</cns-extended-attr>


<device-container>ou=xyzSubDevices,ou=CNSDevices,ou=cns-pokhran4,o=cisco,c=us</device-cont
ainer>

                <dev-image-information>

                    <image-id>xyzDevice4</image-id>

                    <activation-template>DemoRouter.cfgtpl</activation-template>

                    <dev-image-info>

                        <image-name>xyzIMAGEObj4</image-name>

                        <distribution overwrite="yes" erase-flash="no" activate="false">

                            <destination>flash</destination>

                            <location>tftp://test.com/c7200-js-mz4</location>

                        </distribution>

                    </dev-image-info>

                </dev-image-information>

            </cns-device-info>

            <cns-device-info>

                <cns-device-name>xyzDevice5</cns-device-name>

                <cns-extended-attr
name="IOSconfigtemplate">DemoRouter.cfgtpl</cns-extended-attr>

                <cns-extended-attr name="IOSConfigID">xyzDevice5</cns-extended-attr>

                <cns-extended-attr name="IOSEventID">xyzDevice5</cns-extended-attr>


<device-container>ou=SubSubDevices,ou=xyzSubDevices,ou=CNSDevices,ou=cns-pokhran4,o=cisco,
c=us</device-container>

                <dev-image-information>

                    <image-id>xyzDevice5</image-id>

                    <activation-template>DemoRouter.cfgtpl</activation-template>

                    <dev-image-info>

                        <image-name>xyzIMAGEObj5</image-name>

                        <distribution overwrite="yes" erase-flash="no" activate="false">

                            <destination>flash</destination>

                            <location>tftp://test.com/c7200-js-mz5</location>

                        </distribution>

                    </dev-image-info>

                </dev-image-information>

            </cns-device-info>

            <cns-application-info>

                <cns-application-name>xyzTestApp</cns-application-name>

                <cns-subject-mapping>

                    <cns-original-subject>xyzTestApp.Event1</cns-original-subject>

                    <cns-pub-mapping>xyzTestApp.Event1.cns-pub-mapping</cns-pub-mapping>

                    <cns-sub-mapping>xyzTestApp.Event1.cns-sub-mapping</cns-sub-mapping>

                    <cns-pub-default>1</cns-pub-default>

                    <cns-sub-default>1</cns-sub-default>

                </cns-subject-mapping>

                <cns-subject-mapping>

                    <cns-original-subject>xyzTestApp.Event2</cns-original-subject>

                    <cns-pub-mapping>xyzTestApp.Event2.cns-pub-mapping</cns-pub-mapping>

                    <cns-sub-mapping>xyzTestApp.Event2.cns-sub-mapping</cns-sub-mapping>

                    <cns-pub-default>1</cns-pub-default>

                    <cns-sub-default>1</cns-sub-default>

                </cns-subject-mapping>

            </cns-application-info>

            <cns-group-info>

                <cns-group-name>xyzGroup1</cns-group-name>

                <cns-group-application-name>xyzTestApp</cns-group-application-name>

                <cns-group-member>xyzDevice1</cns-group-member>

                <cns-group-member>xyzDevice2</cns-group-member>

                <cns-group-member>xyzDevice3</cns-group-member>

            </cns-group-info>

            <cns-group-info>

                <cns-group-name>xyzGroup2</cns-group-name>

                <cns-group-application-name>xyzTestApp</cns-group-application-name>

                <cns-group-member>xyzDevice1</cns-group-member>

                <cns-group-member>xyzDevice2</cns-group-member>

                <cns-group-member>xyzDevice3</cns-group-member>

                <cns-group-member
device-container="ou=xyzSubDevices,ou=CNSDevices,ou=cns-pokhran4,o=cisco,c=us">xyzDevice4<
/cns-group-member>

                <cns-group-member
device-container="ou=SubSubDevices,ou=xyzSubDevices,ou=CNSDevices,ou=cns-pokhran4,o=cisco,
c=us">xyzDevice5</cns-group-member>

            </cns-group-info>

        </NSM-DATA>

    </cns-element-data>

</cns-bulk-upload>

NOTES

•

For Bulk Upload of NSM devices with Image Info, make sure that the image objects referenced in the

•

 The location given should be one of the multiple image locations specified with the image object.

•

If there are errors while adding the devices, please check the error file provided as a result of the Upload operation. There can be an exception given as CISException, which points to the CISDevice creation failed, which could have occurred if you had ignored the checklist. In this case, just recheck the information provided in the

Image Sample Data

The following example shows image data sample:

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE cns-bulk-upload SYSTEM "BulkUpload.dtd">

<cns-bulk-upload stop-on-error="false">

    <cns-element-data>

        <IMAGE-DATA op-type="add">

            <image>

                <name>xyzIMAGEObj1</name>

                <image-info image-type="IOS">

                    <img-name>c7200-js-mz1</img-name>

                    <img-chksum>0x1256faf245</img-chksum>

                    <software-version>12.2(8)T6</software-version>

                    <system-description>Cisco Network Operating
System</system-description>

                    <file-byte-size>1040</file-byte-size>

                    <platform-family-name>7200</platform-family-name>

                    <img-location>tftp://test.com/c7200-js-mz1</img-location>

                </image-info>

            </image>

            <image>

                <name>xyzIMAGEObj2</name>

                <image-info image-type="IOS">

                    <img-name>c7200-js-mz2</img-name>

                    <img-chksum>0x1256faf245</img-chksum>

                    <software-version>12.2(8)T6</software-version>

                    <system-description>Cisco Network Operating
System</system-description>

                    <file-byte-size>1040</file-byte-size>

                    <platform-family-name>7200</platform-family-name>

                    <img-location>tftp://test.com/c7200-js-mz2</img-location>

                </image-info>

            </image>

            <image>

                <name>xyzIMAGEObj3</name>

                <image-info image-type="IOS">

                    <img-name>c7200-js-mz3</img-name>

                    <img-chksum>0x1256faf245</img-chksum>

                    <software-version>12.2(8)T6</software-version>

                    <system-description>Cisco Network Operating
System</system-description>

                    <file-byte-size>1040</file-byte-size>

                    <platform-family-name>7200</platform-family-name>

                    <img-location>tftp://test.com/c7200-js-mz3</img-location>

                </image-info>

            </image>

            <image>

                <name>xyzIMAGEObj4</name>

                <image-info image-type="IOS">

                    <img-name>c7200-js-mz4</img-name>

                    <img-chksum>0x1256faf245</img-chksum>

                    <software-version>12.2(8)T6</software-version>

                    <system-description>Cisco Network Operating
System</system-description>

                    <file-byte-size>1040</file-byte-size>

                    <platform-family-name>7200</platform-family-name>

                    <img-location>tftp://test.com/c7200-js-mz4</img-location>

                </image-info>

            </image>

            <image>

                <name>xyzIMAGEObj5</name>

                <image-info image-type="IOS">

                    <img-name>c7200-js-mz5</img-name>

                    <img-chksum>0x1256faf245</img-chksum>

                    <software-version>12.2(8)T6</software-version>

                    <system-description>Cisco Network Operating
System</system-description>

                    <file-byte-size>1040</file-byte-size>

                    <platform-family-name>7200</platform-family-name>

                    <img-location>tftp://test.com/c7200-js-mz5</img-location>

                </image-info>

            </image>

        </IMAGE-DATA>

    </cns-element-data>

</cns-bulk-upload>

IMGW Sample Data

The following example shows an IMGW data sample for bulk upload:

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE cns-bulk-upload SYSTEM "BulkUpload.dtd">

<cns-bulk-upload stop-on-error="false">

    <cns-element-data>

        <IMGW-DATA op-type="add">

            <imgw-device>

                <device-id>xyzIMGWDevice1</device-id>

                <gateway-id>xyzIMGWGatewayID1</gateway-id>

                <device-type>IOS</device-type>

            </imgw-device>

            <imgw-device>

                <device-id>xyzIMGWDevice2</device-id>

                <gateway-id>xyzIMGWGatewayID2</gateway-id>

                <device-type>IOS</device-type>

                <hop-information>

                    <hop-type>IOS_LOGIN</hop-type>

                    <ip-address>0.0.0.0</ip-address>

                    <port>0000</port>

                    <username>xyzusr2</username>

                    <password>xyzpwd2</password>

                </hop-information>

            </imgw-device>

            <imgw-device>

                <device-id>xyzIMGWDevice3</device-id>

                <gateway-id>xyzIMGWGatewayID3</gateway-id>

                <device-type>IOS</device-type>

                <hop-information>

                    <hop-type>IOS_LOGIN</hop-type>

                    <ip-address>0.0.0.0</ip-address>

                    <port>0000</port>

                    <username>xyzusr3</username>

                    <password>xyzpwd3</password>

                </hop-information>

                <hop-information>

                    <hop-type>IOS_LOGIN</hop-type>

                    <ip-address>0.0.0.0</ip-address>

                    <port>0000</port>

                    <username>xyzuser3</username>

                    <password>xyzpasswd3</password>

                </hop-information>

            </imgw-device>

            <imgw-device>

                <device-id>xyzIMGWDevice4</device-id>

                <gateway-id>xyzIMGWGatewayID4</gateway-id>

                <device-type>IOS</device-type>

                <hop-information>

                    <hop-type>IOS_LOGIN</hop-type>

                    <ip-address>0.0.0.0</ip-address>

                    <port>0000</port>

                    <username>xyzusr4</username>

                    <password>xyzpwd4</password>

                </hop-information>

                <hop-information>

                    <hop-type>IOS_LOGIN</hop-type>

                    <ip-address>0.0.0.0</ip-address>

                    <port>0000</port>

                    <username>xyzuser4</username>

                    <password>xyzpasswd4</password>

                </hop-information>

            </imgw-device>

            <imgw-device>

                <device-id>xyzIMGWDevice5</device-id>

                <gateway-id>xyzIMGWGatewayID5</gateway-id>

                <device-type>IOS</device-type>

                <hop-information>

                    <hop-type>IOS_LOGIN</hop-type>

                    <ip-address>0.0.0.0</ip-address>

                    <port>0000</port>

                    <username>xyzusr5</username>

                    <password>xyzpwd5</password>

                </hop-information>

                <hop-information>

                    <hop-type>IOS_LOGIN</hop-type>

                    <ip-address>0.0.0.0</ip-address>

                    <port>0000</port>

                    <username>xyzuser5</username>

                    <password>xyzpasswd5</password>

                </hop-information>

            </imgw-device>

        </IMGW-DATA>

    </cns-element-data>

</cns-bulk-upload>

Updating Configurations for IMGW Devices

In order to modify configurations for IMGW devices, corresponding CNS devices with the same device names must be created in the Configure Registrar.

The steps for updating configurations for IMGW devices in the Configure Registrar are outlined as follows:

Step 1 Create a CNS device, making sure its device name is the same as that of its corresponding IMGW device (see "How to Add a Device" section).

Provide ConfigID, EventID, and a template file as the ConfigTemplate.

Note ConfigID must be the same as the device name.

Step 2 Create template file if it does not exist (see "Templates and Template Management" section).

Step 3 Edit template parameters for the device (see "How to Edit Device Templates" section).

Step 4 Preview the configuration for the device (see "How to View Device Configuration" section).

Step 5 Update the device configuration (see "How to Update Device Configuration and Image" section).

Check the response message returned by IMGW (see "How to View Log Files" section).

Managing IMGW Parameters

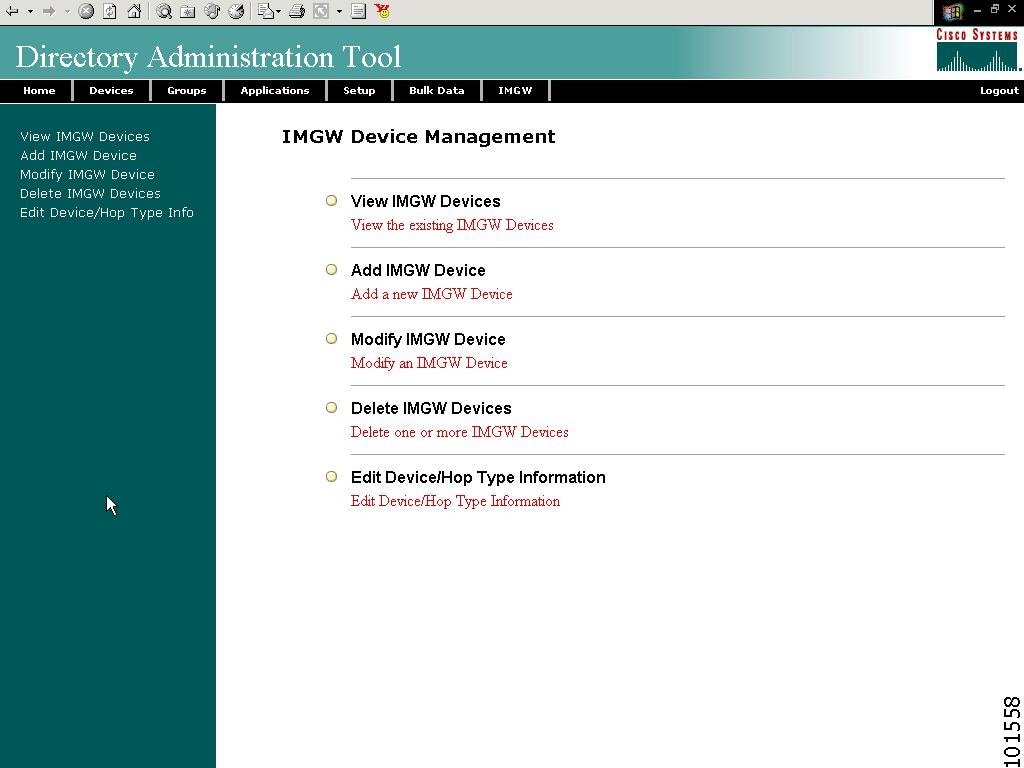

To manage IMGW parameters, from the main menu, click the IMGW tab.

The IMGW main menu appears (see Figure 4-44).

Figure 4-44 IMGW Device Management

How to View IMGW Devices

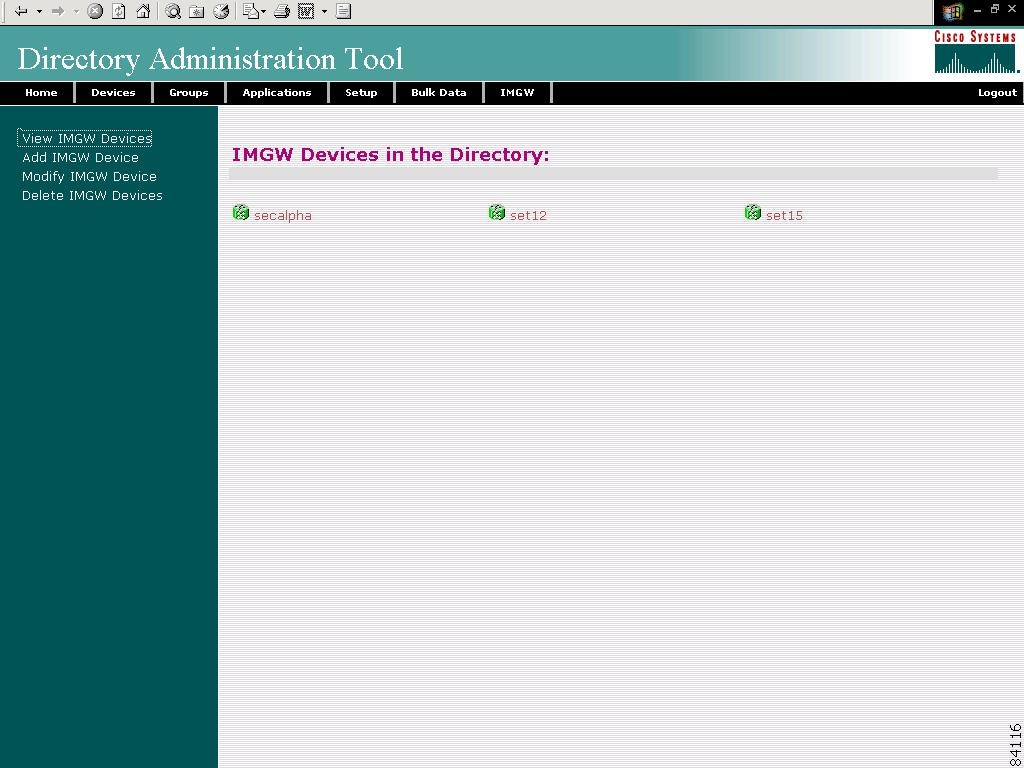

To view IMGW devices in the system, click View IMGW Devices.

The IMGW Devices page appears (see Figure 4-45).

You can see the details of a particular device by clicking on the device icon.

Figure 4-45 IMGW Devices in the System

Adding IMGW Devices to the System

This section describes how to add IMGW devices to the system. However, before adding a device to IMGW, you should be familiar with hop tables.

Hop Tables

To access devices by means of Telnet, it is necessary to construct hop tables (see "HopInfo Examples" section). These are tables that indicate what network path exists to the device, as well as all the authentication information necessary at each stage, or hop.

What You Should Know About Device Hop Information

The Hop Information (HopInfo) structure describes one portion of the path between source and destination. HopInfo can be chained together to specify how to login to a device. Examples of uses of this structure include:

•Devices with basic authentication mode requiring IP address, username, and password

•Devices with additional authentication modes such as Cisco IOS enable mode

•Embedded-within-embedded applications such as linecards on a Catalyst switch

The latter two examples require a login, but not a hop to a different device. Therefore, they are referred to as virtual hops.

Table 4-12 shows the fields in the HopInfo structure:

Currently Supported Device Types

Table 4-13 through Table 4-20 provide the HopInfo list for devices that are directly accessible on the network by IMGW. For accessing devices by way of Commserver, see Table 4-21.

All the rows in these tables are mandatory. Also, the hop_type fields cannot be NULL or empty. The fields marked with X are mandatory in IMGW unless they are not required on the device-side.

When any of the above devices is accessed by way of a Commserver (such as a Cisco 2511 Access Server), the resultant HopInfo list has the following two rows prepended to the respective HopInfo list for that device:

Note Because the current release does not support port username, the username field of HopInfo structure for COMMSERVER is always ignored by IMGW. Do not set up the port username on the Commserver.

HopInfo Examples

How to Add an IMGW Device

To add an IMGW device to the system, follow these steps:

Step 1 From the IMGW main menu, click Add IMGW Device.

The Add IMGW Device page appears (see Figure 4-46).

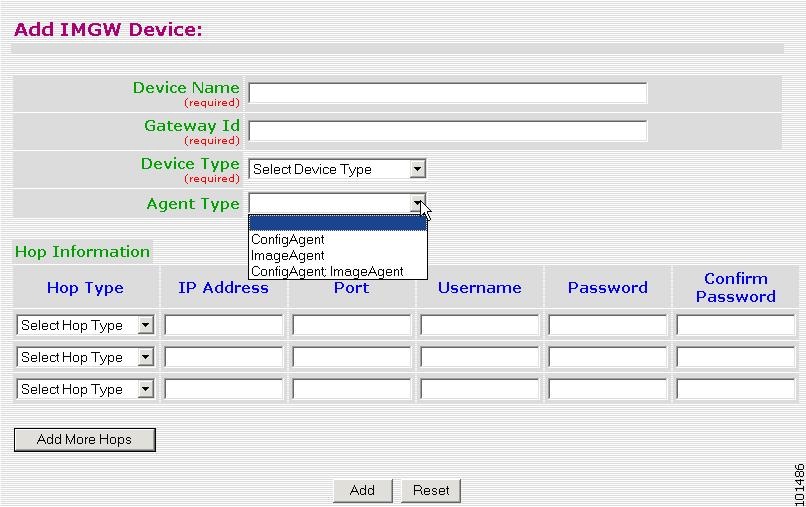

Figure 4-46 Add IMGW Devices

Step 2 Enter the name of the device in the Device Name field.

Table 4-27 lists valid values for these fields.

Step 3 Enter the gateway ID in the Gateway Id field.

Note The gateway ID for IMGW devices must be the same as that entered during Setup (see "Re-configure IMGW Parameters" section on page 2-9). By convention, hostname is used as the gateway ID.

Step 4 Select the device type from the drop-down list.

Step 5 Select the agent type from the drop-down list.

Step 6 Enter parameters about each hop in the Hop Information fields.

For more information, see "Hop Tables" section.

Step 7 To add more hops, click Add More Hops.

Step 8 To clear your entries and start over, click Reset.

Step 9 To add this IMGW device to the system, click Add.

Step 10 To return to the main menu, click the Home tab.

How to Modify IMGW Devices

To modify an IMGW device to the system, follow these steps:

Step 1 From the IMGW main menu, click Modify IMGW Device.

The Modify IMGW Device page appears (see Figure 4-47).

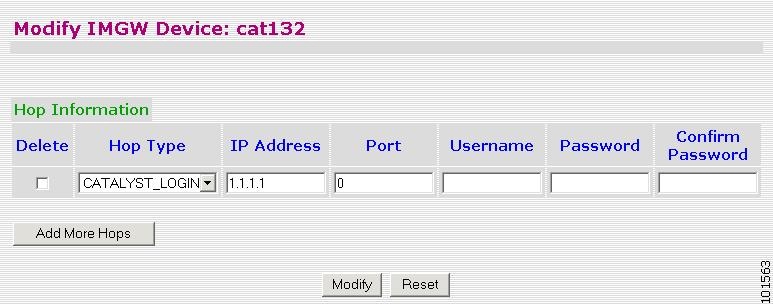

Figure 4-47 Modify IMGW Devices

Step 2 Modify all required fields.

Table 4-28 lists valid values for these fields.

Step 3 To add more hops, click Add More Hops.

Step 4 To delete a hop, select the Delete check-box.

Step 5 To clear your entries and start over, click Reset.

Step 6 To apply these changes, click Modify.

Step 7 To return to the main menu, click the Home tab.

How to Delete IMGW Devices

To delete IMGW devices from the system, follow these steps:

Step 1 From the IMGW main menu, click Delete IMGW Devices.

The delete IMGW devices page appears (see Figure 4-48).

Figure 4-48 Delete IMGW Devices

Step 2 Check all IMGW devices you want to delete from the system.

Step 3 To delete these IMGW devices, click Delete.

To return to the main menu, click the Home tab.

How to Edit Device/Hop Type Information

To complete information about how to edit device and hop type information using the IMGW Device Module Toolkit, see "How to Use the IMGW Device Module Development Toolkit."
