Setting Up Cisco MNM Security
This chapter is designed for system administrators. It provides an overview of Cisco Media Gateway Controller (MGC) Node Manager (MNM) security capabilities and describes the following:
Note
This chapter describes managing security as it applies to users of Cisco MNM; it does not cover the use of SSH or the Security Policy attribute in communicating with managed components. For information on installing SSH, see the Cisco Media Gateway Controller Node Manager Installation Guide at: http://www.cisco.com/en/US/products/sw/netmgtsw/ps1912/prod_installation_guides_list.html. Information on using SSH-enabled functions is covered under the relevant functions in this guide. To define a component's security policy at deployment, see Chapter 5, "Deploying Your Network in Cisco MNM". To change the security policy of an existing component using the Accounts dialog box, see Chapter 8, "Other Network Management Tasks," "Viewing or Modifying Account and SNMP Information" section on page 8-6.
Overview of Cisco MNM Security
Cisco MNM provides user access control, which allows you as a system administrator to control the operations that different users can perform. Each user has a different login name and password and a specific set of privileges within the system.
A standard administrator user (admin) is available by default. The administrator user has access to all features at all times. Do not edit the administrator user except to change the password.
Cisco MNM requires every user to have a login ID and password. Users must specify their login ID and enter the correct password before they can start the application. An administrator account is provided to allow for creating, modifying, resetting, and deleting user accounts.
Within Cisco MNM, access to features can be restricted on the basis of the user's access level to a subset (or group) of these features. For example, administration of particular managed objects should be performed only by operators who are responsible for that particular site or for a region in which that site resides. However, these operators may also require visibility of objects outside their own area of control.
The basic building blocks used to control user access are described in the following sections.
User Groups
Cisco MNM user accounts can be collected by an administrator into groups. These user groups can be used to model user roles. A typical setup might involve a user group for system administrators, for network fault detail users, and for operators to manage a given site.
Cisco MNM applies access control based on user groups. The Cisco MNM administrator configures access control by assigning access specifications to the relevant user groups.
Feature Lists
All features are grouped together into feature lists. The benefit of feature lists is that it is easy to give access to a related set of features by simply choosing a feature list instead of having to assign features individually. A feature may appear in more than one feature list. Permissions are:
•R—Read only. Available to all users. Useful for new users finding their way around the system.
•RW—Read-Write. Normal level, allowing the user to make modifications, such as acknowledging and clearing events or deploying the network. Operators typically have Read-Write access to the features they need for day-to-day tasks.
•RWA—Administrator. Administration level, allowing the user Read-Write access to all features at all times. This is available to administrators only.
Table 4-1 describes feature lists available in Cisco MNM.
|
|
|
|
|---|---|---|
AccessManagement |
RWA |
Set up users, user groups, assign passwords, and define access parameters. |
AutoDiscovery |
RW |
Launch the auto-discovery services. |
Change Password |
RWA |
Change passwords. |
Deployment |
RW |
Deploy sites, regions, and networks (generic object deployment). |
EventGroupEditFeatureList |
RW |
Create and edit event groups. |
EventGroupViewFeatureList |
R |
View existing event groups. |
Events-View |
R |
Launch the event browser in read-only mode. |
Events-Clear_Acknowledge |
RW |
Clear and acknowledge events. |
GenericConfigApplication |
RWA |
Launch the object configuration utility. |
Help |
R |
Launch online help. |
Host-Dialplan-Properties |
R |
View properties of Cisco PGW 2200 Softswitch host dial plan components. |
Host-Signaling-Performance |
RW |
View performance statistics for signaling components. |
Host-Signaling-Properties |
R |
View properties of Cisco PGW 2200 Softswitch host signaling components. |
Host-Trunking-Properties |
R |
View properties of Cisco PGW 2200 Softswitch host trunking components. |
Launchpad |
R |
Use the CEMF LaunchPad (start a CEMF session). |
MGC-Node-Accounts |
RWA |
Change passwords, login IDs, and SNMP community strings. |
MGC-Node-Admins |
RWA |
Use the Cisco MNM Administration Tool to start, stop, or reboot a device. |
MGC-Node-Diagnostics |
RW |
Run diagnostic tools on Cisco PGW 2200 Softswitch node components. |
MGC-Node-Filesystems |
RW |
View file system information on BAMS, HSI server, and Cisco PGW 2200 Softswitch host devices. |
MGC-Node-Properties |
R |
View properties of Cisco PGW 2200 Softswitch node components. |
MGC-Node-Provisioning |
RWA |
Deploy all Cisco PGW 2200 Softswitch node components (either manually or through a seed file). |
MGC-Node-States |
RW |
Change the states of Cisco PGW 2200 Softswitch node components. |
MGC-Node-Tools |
RW |
Launch Cisco PGW 2200 Softswitch node component tools. |
MGC-Node-Transfer |
RW |
Configure performance. |
MGC-Node-Trap-Forwarding |
RWA |
Configure trap forwarding destinations. |
NotificationEditFeatureList |
RW |
Create and edit notification profiles. |
NotificationViewFeatureList |
R |
View existing notification profiles. |
ObjectGroups-Edit |
RW |
Create and edit object groups. |
ObjectGroups-View |
R |
View existing object groups. |
Performance Management |
RW |
Open the Performance Manager utility. |
ThresholderEditFeatureList |
RW |
Define and edit thresholds. |
ThresholderViewFeatureList |
R |
View existing thresholds. |
Viewer-Edit |
RW |
Use the Map Viewer in read-write mode. |
Viewer-View |
R |
Use the Map Viewer in read-only mode. |
1 Use this column to determine which features are appropriate for various types of users. For more information, see the "Setting Up Security for Typical User Roles" section. |
Note In Cisco MNM, features are preassigned to feature lists and cannot be modified.
Access Specifications
Access specifications define the features that can be invoked by a group of users and the objects upon which these features can be invoked.
Cisco MNM provides a number of access specifications. As a system administrator, you can create additional access specifications tailored to your needs.
Each access specification can include the following components:
•Feature lists—Lists the Cisco MNM features in the access specification. A feature list can appear in more than one access specification. Cisco MNM feature lists are shown in Table 4-1.
•User groups—Cisco MNM user accounts can be collected by an administrator into groups that correspond to user roles at your site. By associating user groups with access specifications, you can apply access control.
•A permission level—For example, read-only, read-write (view and modify information), and read-write-administrator (read and write all functions at all times).
•An optional object group—Where an object group is supplied, users have access to the features included in this access specification only for those objects contained within the group. Where no object group is supplied, the access specification provides the specified access to features for all objects. You might use this option to grant the administrative user group for a site read-write access to the objects on that site, while another access specification would be used for read-only access for non administrative users.
Table 4-2 lists access specifications predefined in Cisco MNM.
Setting Up Security
To set up security, define the following:
•User accounts—Assign login IDs and passwords to individuals and optionally place them in user groups.
•User groups—Assign access specifications to a named group and assign users to user groups.
You can add new access specifications to define new groupings of features tailored to specific user roles in your system.
These tasks may be done in any order. They are interrelated—user groups have associated access specifications and users, and access specifications are linked to user groups. Before beginning, think through the types of users working with your system and the kinds of tasks they need to perform. Use this to plan user groups and access specifications on paper before you create user accounts, user groups, and access specifications. For examples, see the "Setting Up Security for Typical User Roles" section.
Setting Up New Accounts
You must set up new accounts for all users. Use the following procedure to create a new account for a user and assign a password:
Step 1 Click the Access icon on the Cisco EMF LaunchPad.
The Access Manager window opens.
Step 2 Choose Edit > Create > User.
The Create User window opens.
Step 3 Enter the login information for the new user. The login name must contain 5 to 32 characters; only alphanumeric characters and underscores are valid, and the first character must be a letter. Click Forward.
The Copy From Existing User window opens. If user groups have been defined and one or more user is already assigned to a group, "Copy from existing user" copies the user group assignment of the selected user.
Step 4 If you do not want to copy the assignment of an existing user or none exists, click No, and then click Forward.
To automatically place this user in the same user group as another user, click Yes. The list of users displays.
Step 5 Select the user whose assignment you want to copy, and click Forward.
The Select User Groups window opens.
Step 6 Select a user group, click the right arrow to move the group to the Selected User Groups list, and click Forward.
If no user groups are defined, click Forward. You may define a user group later and assign the user to it at any time. For more information on user groups, see the "Creating a User Group" section.
The User Password Entry window opens.
Step 7 Enter a password for the user and confirm it.
The Summary Details for User window opens.
Note Passwords must contain 8 to 32 alphanumeric characters and at least one punctuation character such as _, %, (, or ^. Click Forward.
Step 8 If you are satisfied with the user definition, click Finish. If not, click Back to make modifications.
When you click Finish, the user is added and the Access Manager window closes. You are returned to the Launchpad window.
Creating a User Group
Use the following procedure to define an access privilege user group to which you can assign users:
Step 1 Click the Access icon on the Cisco EMF Launchpad.
The Access Manager window opens.
Step 2 Choose Edit > Create > User Group.
The Create User Group window opens.
Step 3 Enter the name for the new group.
The Copy From Existing User Group window opens. If user groups have been defined and one or more user is already assigned to a group, "Copy from existing user group" copies the access specifications and user membership of the selected group. Use this to base a group on an existing group, and then click the Modify > User Groups menu option to add or remove access specifications or users.
Step 4 If you do not want to copy an existing user or none exists, click No, and then click Forward.
If you want to base this user group on another, click Yes. The list of groups displays. Select the group you want to copy, and then click Forward.
The Select Users window opens listing existing users.
Step 5 Select each user you want in the new group, and then click the right arrow to move the user to the Selected Users list. Press Ctrl-click to select multiple users. When you are finished, click Forward.
The Select Access Specifications window opens, listing available access specifications. See Table 4-2 for the list of predefined Cisco MNM access specifications.
Step 6 Select each desired access specification, and then click the right arrow to move the specification to the Selected Access Specs list. Press Ctrl-click to select multiple specifications. When you are finished, click Forward.
The Summary Details for User Group window opens listing the user group name, members, and selected access specifications.
For details on access specifications, see the "Creating a New Access Specification" section.
Note Giving a user group Full User Access Control allows each user in the user group to add or delete other users to or from the group and to change specifications for all other users.
Step 7 If you are satisfied with the user group definition, click Finish. If not, click Back to make modifications.
When you click Finish, the user group is added and the Access Manager closes. You are returned to the Launchpad window.
Creating a New Access Specification
Use the following procedure to create a new access specification:
Step 1 Click the Access icon on the Cisco EMF Launchpad.
The Access Manager window opens.
Step 2 Choose Edit > Create > Access Spec.
The Create Access Specification window appears.
Step 3 Enter the name for the new specification.
The Copy From Existing Access Spec window appears. "Copy from existing access spec" copies the access specification and its user group assignments, if any. Use this to base a specification on an existing specification, and then click the Modify > Access Specs menu option to add or remove feature lists or user groups. See Table 4-2 for a list of predefined access specifications.
Step 4 If you want to base this specification on another, click Yes. The list of specifications displays. Select the one you want to copy, and then click Forward. Skip to Step 9.
If you do not want to copy an existing access specification, click No, and click Forward. The Select Permission window opens. Continue to Step 5.
Step 5 Select the permission for the new specification:
Read Only (basic level)—Information can be viewed only.
Read-Write (normal level)—Information can be viewed or modified.
Read-Write-Admin (administration level)—Read-Write access to all features at all times. This is available to administrators only.
Click Forward.
The Select User Groups window opens listing user groups to which you can assign this specification.
Step 6 Select each user group you want to assign the new specification, and click the right arrow to move it to the Selected User Groups list. Press Ctrl-click to select multiple groups. When you are finished, click Forward.
The Select Feature Lists window opens displaying the available feature lists. See Table 4-1.
Step 7 Select each feature you want to include in the specification, and click the right arrow to move the group to the Selected Features list. Press Ctrl-click to select multiple features. When you are finished, click Forward.
The Select Object Groups window opens. Each access specification can have one associated object group to limit this specification to a particular type of object.
Step 8 Select the object group, if any, that you want to associate with this access specification, and click Finish.
Note If you do not select a group, the specification is not restricted to a specific object group.
Step 9 The Summary Details for Access Specifications window opens, summarizing the new specification, including:
•The access specification name
•Permissions
•Feature lists included
•The object group associated with the specification
•User groups to which the specification is assigned
If you are satisfied with the new access specification, click Finish. If not, click Back to make modifications.
When you click Finish, the access specification is added to the specification list and the Access Manager closes. You are returned to the Launchpad window.
Setting Up Security for Typical User Roles
Table 4-3 summarizes how to set up security for typical user roles.
|
|
|
|---|---|
Administrator |
Use the instructions in the "Setting Up New Accounts" section to create a new user by copying the existing administrator template. The administrator should have all the features labeled with the permissions R, RW, and RWA in Table 4-1. |
Normal user (read permission and ability to deploy and launch tools, but not to use configuration management) |
Using the instructions in the "Creating a New Access Specification" section, create a new access specification with the features labeled with the permissions R and RW in Table 4-1, but not including: • • • Use the instructions in the "Creating a User Group" section to create a new user group with the access specification you just created. Use the instructions in the "Setting Up New Accounts" section to create a new account and user, and assign the user to the group you just created. |
Novice user or user who only needs to view information |
Using the instructions in the "Creating a New Access Specification" section, create a new access specification with the features labeled with the permission R in Table 4-1. Using the instructions in the "Creating a User Group" section, create a new user group with the access specification you just created. Using the instructions in the "Setting Up New Accounts" section, create a new account and user, and assign the user to the group you just created. |
Modifying Security Settings
You can do the following using the Access Manager:
•Modify a user account to change the user login, name, or user group membership.
•Modify a user group or access specification:
–To complete the definition of a new user group or access specification created by copying an existing one.
–To change properties of an existing group or specification.
•Delete users, user groups, and access specifications.
•Change the administrative password.
•Change user passwords.
Details are provided in the following sections.
Modifying a User Account
Use the following procedure to modify a user login, name, or user group membership:
Step 1 Click the Access icon on the Cisco EMF Launchpad.
The Access Manager window opens.
Step 2 Do one of the following:
•Choose Edit > Modify > User.
•If the user list is not selected, choose Users from the drop-down list. Double-click the user account you want to modify.
The User Editor window opens. In the left, the window includes a list of users. In the right pane, it includes the tabs User Details and Select User Groups. The description pane at the bottom of the window provides details on the current selection.

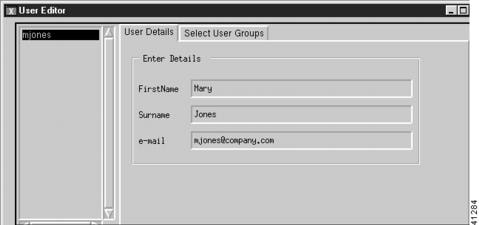

Figure 4-1 User Editor Window
Step 3 Select a user from the list.
Step 4 Make the desired modifications.
Step 5 Click Apply. To cancel the changes, click Revert.
Step 6 When you are done, click Close. You are returned to the Launchpad window.
Modifying User Groups or Access Specifications
Use the following procedure to modify a user group or access specification:
Step 1 Click the Access icon on the Cisco EMF Launchpad.
The Access Manager window opens.
Step 2 Do one of the following:
•Choose Edit > Modify > User Group or Access Spec.
•From the drop-down list, choose User Groups or Access Specifications to display a list of groups or specifications. Double-click the object you want to modify.
Step 3 The Editor window opens. The left pane includes a list of existing objects, user groups, or access specifications. The right pane includes a tab for each of the windows you used when you created the group or specification. The description pane at the bottom of the window provides details on the current selection. Figure 4-2 shows an example.

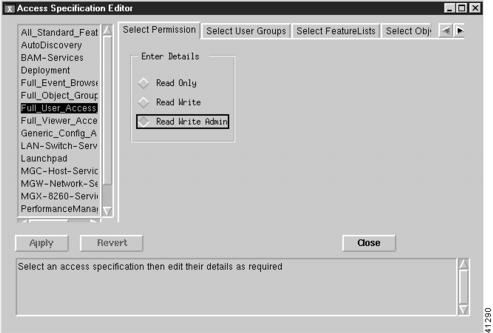

Figure 4-2 Access Specification Editor Window
Step 4 Click the object you want to modify.
Step 5 Make the desired modifications.
Step 6 Click Apply. To cancel the changes, click Revert.
Step 7 When you are done, click Close. You are returned to the Launchpad window.
Deleting a User, User Group, or Access Specification
Use the following procedure to delete a user, user group, or access specification:
Step 1 Click the Access icon on the Cisco EMF LaunchPad.
The Access Manager window opens.
Step 2 In the drop-down list, choose the users, groups, or specifications you want to delete. Use Ctrl-click for multiple selections.
Step 3 Choose Edit > Delete. You are prompted for confirmation.
Step 4 Click Yes.
The selections are deleted from the list.
Changing the Administrative Password
Use the following procedure to change the administrative password:
Step 1 Click the Access icon on the Cisco EMF Launchpad.
The Access Manager window opens.
Step 2 Choose Edit > Change Admin Password.
Step 3 Change the password, and click OK.
Changing a User's Password
Use the following procedure to change a user's password:
Step 1 Click the Access icon on the Cisco EMF Launchpad.
The Access Manager window opens.
Step 2 Choose Edit > Change Password.
Step 3 Change the password, and click OK.
Feedback
