Each power supply has a separate power cable. Standard power cables or jumper power cables are available for connection to the appliance. The jumper power cables, for use in racks, are available as an optional alternative to the standard power cables.

Note	Only the approved power cables or jumper power cables that are provided with the appliance are supported.

The following power cords are supported.

AC Power Cables

• Argentina

  Figure: CAB-250V-10A-AR AC power cable, 250 V, 10 A, CAB-250V-10A-AR

• Australia

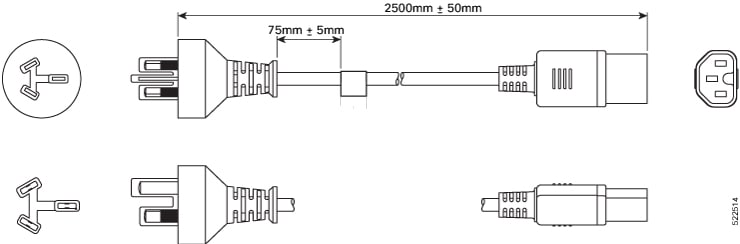

  Figure: CAB-9K10A-AU AC power cable, 250 V, 10 A, 3112 plug, CAB-9K10A-AU

• Brazil

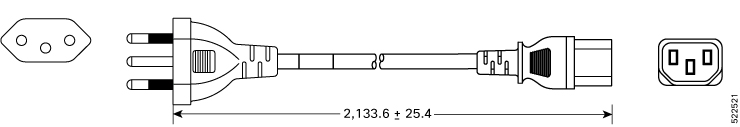

  Figure: CAB-250V-10A-BR AC power cable, 250 V, 10 A, CAB-250V-10A-BR

• China

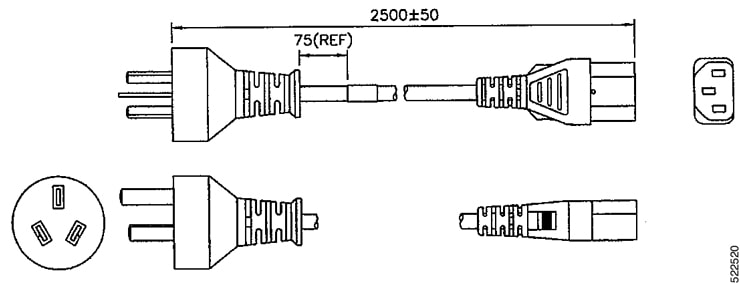

  Figure: CAB-250V-10A-CN AC power cable, 250 V, 10 A, CAB-250V-10A-CN

• Europe

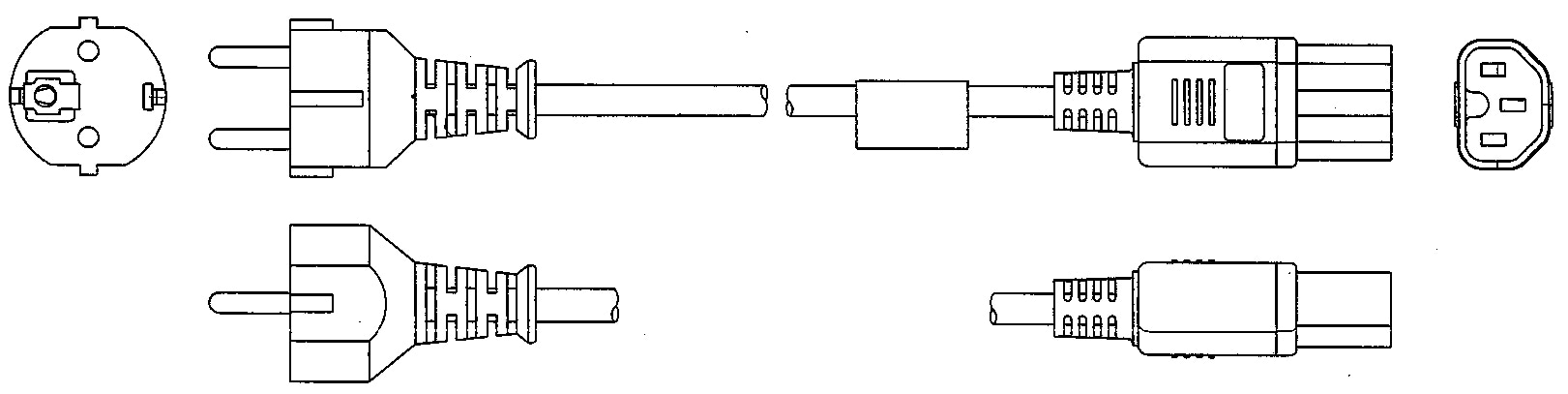

  Figure: CAB-9K10A-EU AC Power cable, 250 V, 10 A; CEE 7/7 Plug, CAB-9K10A-EU

• Europe and North America

  Figure: NCS1010-DC-CBL-ET= AC power cable, 10 A; C13 to C14, recessed receptacle, CAB-C13-C14-AC

• Israel

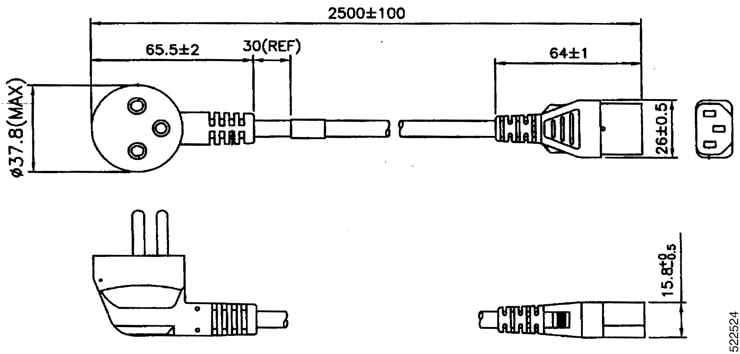

  Figure CAB-250V-10A-IS AC Power cable, 250 V, 10 A, CAB-250V-10A-IS

• Italy

  Figure: CAB-9K10A-IT AC power cable, 250 V, 10 A, CEI 23-16/VII plug, CAB-9K10A-IT

• India

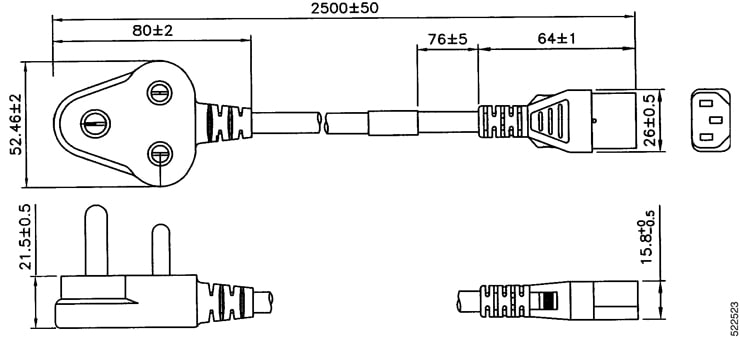

  Figure: CAB-250V-10A-ID AC power cable, 250 V, 10 A, CAB-250V-10A-ID

• Japan PSE Mark

  Figure: CAB-C13-C14-2M-JP AC Power cable, C13 to C14, CAB-C13-C14-2M-JP

• North America

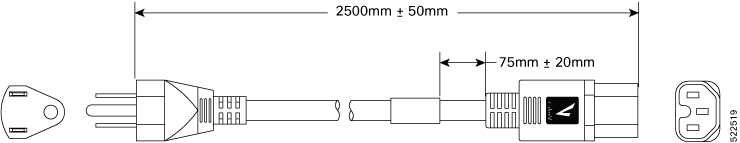

  Figure: CAB-C13-C14-AC AC power cable, 125 V, 13 A, NEMA 5–15 plug, CAB-9K12A-NA

• North America

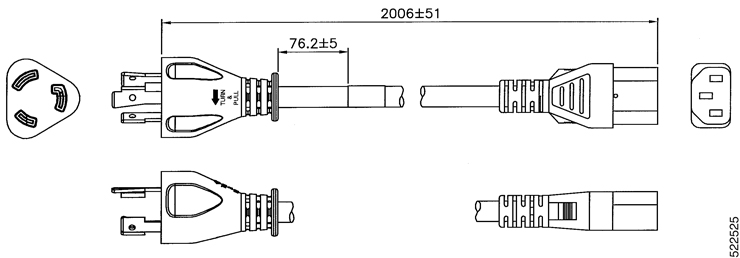

  Figure: CAB-AC-L620-C13 AC power cable, NEMA L6-20 to C13 connectors – If rated for greater than 12.5 A, it is compliant with North America, CAB-AC-L620-C13

  ,

• Switzerland

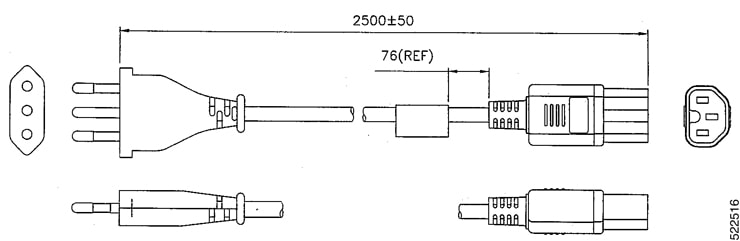

  Figure: CAB-9K10A-SW AC power cable, 250 V, 10 A, MP232 plug, CAB-9K10A-SW

• Taiwan

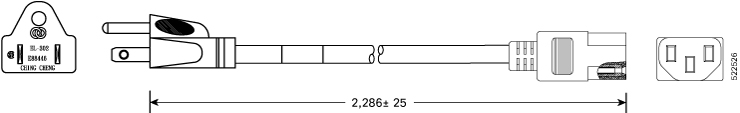

  Figure: CAB-ACTW AC power cable, 250 V, 10 A, CAB-ACTW

• United Kingdom

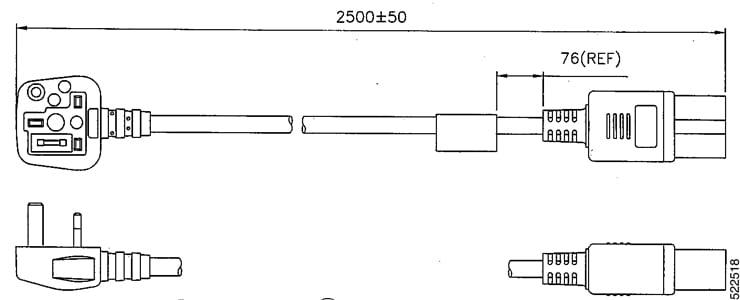

  Figure: CAB-9K10A-UK AC power cable, 250 V, 10 A (13-A fuse), BS1363 plug, CAB-9K10A-UK

• Europe, North America, United Kingdom, Australia, New Zealand, Morocco, and Korea

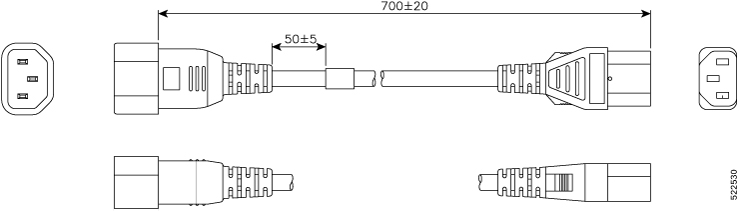

  Figure: CAB-C13-CBN AC cabinet jumper power cable, 250, 10 A, C13 to C14, Compliant with Europe and North America at 200-240V, CAB-C13-CBN

• Europe, North America, United Kingdom, Australia, New Zealand, Morocco, Korea, China, and Russia

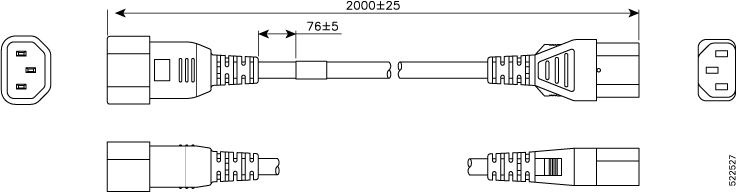

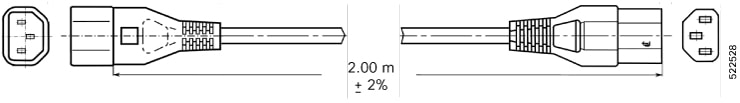

  Figure: CAB-C13-C14-2M AC cabinet jumper power cable, 250, 10 A, C13 to C14, Compliant with Europe and North America at 200-240V, CAB-C13-C14-2M

DC Power Cables

• Europe

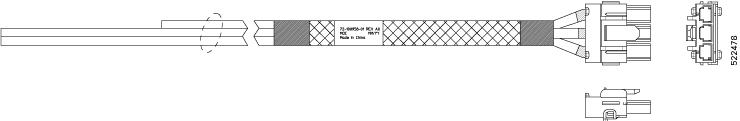

  Figure: NCS1010-DC-CBL-ET= CABASY, WIRES, DC POWER, 10AWG, 930W / NCS 1010 DC Cable - ETSI compliant, NCS1010-DC-CBL-ET=

• Worldwide

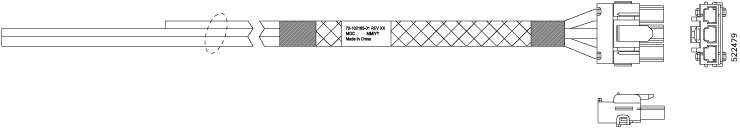

  Figure: CAB-48DC-40A-8AWG DC power cable, –48 VDC, 40 A, 8 AWG, Three-socket Mini-Fit connector to three-wire, CAB-48DC-40A-8AWG, and CAB-48DC-40A-10AWG

  Note	We recommend using NCS1010-DC-CBL-ET= with the ETSI 300-mm cabinet to remain compliant with the 300-mm footprint.

The following figures depict the power cables:
