Introduction to Installing Pluggable Interface Modules
This section describes the equipment and the procedures for successfully installing the Cisco Pluggable Interface Modules (PIM).
![]() Important |
The Pluggable Module is not hot swappable. The router must be reloaded after a new module is installed. |
The highlights of the LTE PIM are:
-
All cellular interfaces are supported through a PIM
-
We recommend that you use Industrial Temp micro SIMs, 3FF size, that are rated from -40C to +105C
-
To ensure a reliable contact to the SIM socket, gold-plated SIM cards must be used.

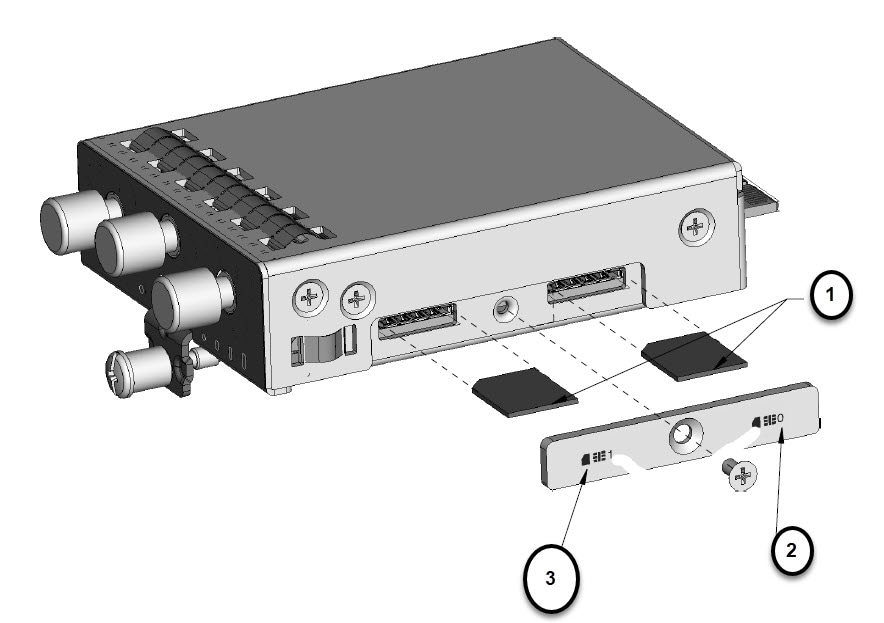

The following images show examples of a pluggable module. In this case, the LTE pluggable module.
![](/c/dam/en/us/td/i/400001-500000/420001-430000/428001-429000/428005.jpg)
Item |
Description |
---|---|
1 |
Cellular-Main SMA |
2 |
GPS SMA |
3 |
Cellular-Div SMA |
4 |
Enable LED |
5 |
SIM 0 LED |
6 |
SIM 1 LED |
7 |
GPS LED |
8 |
RSSI LEDs |
