Applications Overview

The Cisco 1120 Connected Grid Router is a ruggedized communication platform, designed for use inside substations or utility cabinets. This platform is built to meet the communication infrastructure needs of electric, gas, and water utilities.

The router provides an end-to-end communication network that enables increased power grid efficiency and reliability, reduced energy consumption, and reduced greenhouse gas emissions. The router also enables distributed intelligence for converged smart grid applications, including:

■Advanced Metering Infrastructure (AMI)

■Distribution Automation (DA)

■Integration of Distributed Energy Resources (DER)

■Remote workforce automation

The router provides reliable and secure real-time communication between network systems and the many devices that exist on the distribution grid, including meters, sensors, protection relays, Intelligent Electronic Devices (IEDs), plug-in electric vehicle (PEV) charging stations, and distributed solar farms. Network data is forwarded and processed over secure communication links between devices within the distribution grid for local decision processing.

Additionally, this data is sent to Supervisory Control and Data Acquisition (SCADA) systems and other management systems. The router supports physical connection to legacy distribution automation (DA) devices (over the serial port); the data from these devices can also be sent to central SCADA systems using protocol translation over the IP network.

Hardware Compliance

For a complete list of regulatory and compliance standards supported by the router, see the Regulatory Compliance and Safety Information for the Cisco 1000 Series Routers document on Cisco.com at: www.cisco.com/go/cgr1000-docs

Router Hardware Overview

The Cisco 1120 Connected Grid Router is a modular, ruggedized router that features:

Figure 1 Module Panel, Cisco 1120 Connected Grid Router

Figure 2 Port Panel, Cisco 1120 Connected Grid Router

Chassis

The router chassis is ruggedized to withstand harsh indoor operating environments, such as power substations and utility boxes.

UV testing has not been performed on the unit. The chassis has TGIC (triglycidyl isocyanurate) powder coating, so UV will not harm the device. The antennas are a polycarbonate blend and are UV stabilized. The exact life of the device is unknown. However, the device is designed for approximately 10-15 years of life, and there are devices in the field for 10 years already.

Note: For a complete list of regulatory and compliance standards supported by the router, see the Regulatory Compliance and Safety Information for the Cisco 1000 Series Routers document on Cisco.com at: www.cisco.com/go/cgr1000-docs

Mounting Features

The router ships with a single mounting kit, which supports the following mounting options:

■Mounting on a DIN rail, which is a standard interior mounting option for substation devices and equipment. See Figure 3.

■Mounting on a wall, using the mounting keyholes on the mounting bracket.

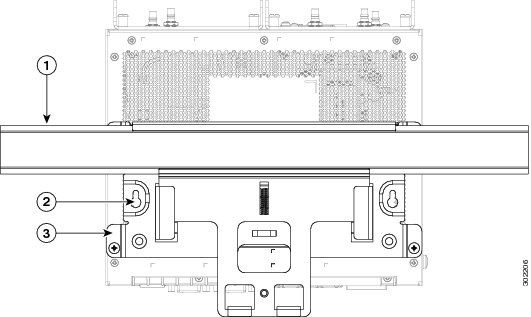

Figure 3 Mounting Features (Router Shown Mounted on a DIN Rail)

Mounting Procedures

For instructions on how to mount the router using the mounting bracket kit, see Mounting the Router.

Module Panel (Front Panel) Features

The module panel labels appear inverted when the router rests on its base (see ). The label orientation is designed to be read when the router is installed on a DIN rail.

Figure 4 Module Panel (Front Panel) Features

This sections discusses:

■Front Panel LEDs

■WiFi Antenna Port

■USB Port

■SD Flash Memory Module

■GPS Antenna Port

■Kensington-Compatible Security Slot

■Connected Grid Module Slots

Front Panel LEDs

For detailed descriptions of the LEDs that appear on the front panel, see Router LED Locations and States.

WiFi Antenna Port

A single WiFi antenna is installed directly in this port to support the router. For more information, see the WiFi Short-Range Access Point. You must order this antenna separately from the router. displays the WiFi antenna port location.

Antennas

For more detailed information about supported antennas, including specifications and installation instructions, see these documents:

■About Connected Grid Antennas

■ Connected Grid Antennas Installation Guide on Cisco.com

Specifications

USB Port

See for the USB port location.

The router features one standard USB 2.0 port for connecting and powering an optional USB peripheral device.

The USB port operates at the following speeds:

■1 Mbps

■12 Mbps

■480 Mbps

USB Connections

■Depending on the USB devices you connect to this port, you might require a USB extension cable to connect devices.

■To prevent a connected USB device accidental or unauthorized removal from the port, secure any connected USB device with a locking mechanism designed for this purpose. You must provide any locking device or mechanism.

Specifications

SD Flash Memory Module

The router supports one Cisco Secure Digital (SD) flash memory module (SD card), which stores router software, configurations, and network data. For detailed information about the SD card, see the Using the SD Flash Memory Module chapter.

Supported SD Cards

These are the supported SD cards:

Caution: You must use a supported Cisco SD card with the router. Using an unsupported card could impact SD card reliability and therefore router performance.

Caution: Do not remove the SD card from the router; removing the SD card will cause the router to stop operating.

Specifications

GPS Antenna Port

See for the GPS antenna port location.

You can connect a single Connected Grid GPS antenna using the 15-foot cable that is integrated into the antenna. Mount the GPS antenna is mounted on the exterior of the substation or utility cabinet to enable connectivity between the router and the GPS system.

Supported Antennas

For more detailed information about supported antennas, including specifications and installation instructions, see these documents:

■About Connected Grid Antennas

■ Connected Grid Antennas Installation Guide on Cisco.com

Specifications

Kensington-Compatible Security Slot

See for the Kensington-compatible security slot location.

The front panel features one Kensington-compatible security slot. Use this slot to secure the router at the installation location with a Kensington (or compatible) security cable.

Dimensions

Connected Grid Module Slots

The router has two module slots to support up to two compatible Cisco Connected Grid modules that add NAN and LAN interfaces to the router.

■For more information about the Connected Grid modules for this router, see About Connected Grid Modules.

■For detailed installation instructions for installing Cisco Connected Grid modules in the router, see the corresponding installation and configuration guide for each module at: www.cisco.com/go/cg-modules

Module Numbering

The router uses module numbering to identify the integrated and modular router components. Some system software commands refer to the following module numbers.

■ Module 1 is the integrated router supervisor engine (located on the CPU motherboard)

■ Module 2 is the router integrated Ethernet switch module, which has six Fast Ethernet ports and two Gigabit Ethernet ports.

■ Module 3 and Module 4 are external, Connected Grid modules installed in the router module slots with the corresponding numbers (see ).

Cable Panel (Back Panel) Features

Figure 5 Cable Panel (Back Panel) Features

This section discusses:

■Back Panel LEDs

■CONFIG Reset Button

■PWR RESET Button

■Small Form-Factor Pluggable (SFP) Ports

■Ethernet Ports

■Combo Ports

■Serial Ports

■Console Port

■Power Connections

■Alarm Port

Back Panel LEDs

For detailed descriptions of the LEDs that appear on the back panel, see Router LED Locations and States.

CONFIG Reset Button

See Figure 5 for the CONFIG Reset button location.

Caution: When you use the CONFIG Reset button to restore the router to the factory default software configuration, the current software configuration is permanently deleted from the router.

Press the CONFIG Reset button for at least 5 seconds to return the router software configuration to the factory default, and power cycle the router. Power cycling the router turns the router off, then immediately back on. The router will temporarily stop operating on the network during the power cycle, then resume operating when the power cycle process is complete.

PWR RESET Button

See Figure 5 for the PWR RESET button location.

Press the PWR RESET button for at least 5 seconds to power cycle the router. Power cycling the router turns the router off, then immediately back on. The router will temporarily stop operating on the network during the power cycle, then resume operating when power cycle process is complete.

Small Form-Factor Pluggable (SFP) Ports

The router features two fiber optical SFP ports that support optional Cisco rugged SFP modules for Gigabit Ethernet connections. The ports are labeled as follows (see Figure 5):

■ETH 2/1

■ETH 2/2

Note: Interfaces ETH 2/1 and ETH 2/2 are also used by the Gigabit Ethernet ports. For more information about how these ports are used together, see the Combo Ports.

Hot Swapping SFP Modules

The SFP modules can be installed or removed while the router is on and operating normally.

Supported SFPs

Note: See the Cisco 1000 Series Connected Grid Routers Release Notes for the most recent information about supported hardware and software.

These are the supported SFP modules:

Specifications

Ethernet Ports

See Figure 5 for Ethernet port locations

Ethernet Connections

The router supports the following Ethernet connection types:

■1000BASE-T—1000 Mbps full-duplex transmission over a Category 5 or higher shielded twisted-pair (UTP) cable. Supports the Ethernet maximum length of 328 feet (100 meters).

■100BASE-T—100 Mbps full-duplex transmission over a Category 5 or higher shielded twisted-pair (UTP) cable. Supports the Ethernet maximum length of 328 feet (100 meters).

■10BASE-T—10 Mbps full-duplex transmission over a Category 5 or higher shielded twisted-pair (UTP) cable. Supports the Ethernet maximum length of 328 feet (100 meters).

Fast Ethernet (FE) Ports

The router features six Fast Ethernet (FE) ports that can be connected to local network devices, such as IEDs, sensors, and reclosers. The ports are labeled as follows:

■ETH 2/3

■ETH 2/4

■ETH 2/5

■ETH 2/6

■ETH 2/7

■ETH 2/8

Specifications

Gigabit Ethernet (GE) Ports

The router features two Gigabit Ethernet (GE) ports for a WAN connection to a primary substation or control center. The ports are labeled as follows:

■ETH 2/1

■ETH 2/2

Note: Interfaces ETH 2/1 and ETH 2/2 are also used by the SFP ports. For more information about how these ports are used together, see the Combo Ports.

The GE ports automatically detect the type of any connected cable (fiber or copper) and then switch to the corresponding mode (fiber or copper). When both cables types are connected to the router, the first cable that establishes a link is enabled.

Specifications

Combo Ports

The two Gigabit Ethernet ports and the two SFP ports are labeled identically (ETH 2/1 and ETH 2/2) because the SFP and GE interfaces share physical ports on the router. Only one instance of each interface (ETH 2/1 and ETH 2/2) can be in use at any time.

■ GE ports: Copper GE connections

■ SFP modules: Fiber optic GE connections

These ports automatically detect the type of any connected cable (fiber or copper) and then switch to the corresponding mode (fiber or copper).

Note: If connections are made to both interfaces of the same name (ETH 2/1 or ETH 2/2), the first connection that establishes a link is the only connection enabled.

Figure 6 GE Ports and SFP Ports Share Interfaces ETH 2/1 and ETH 2/2

Serial Ports

See Figure 5 for serial port locations.

The router has two serial ports that support the following modes (selected with system software commands):

■RS232

■RS485

The ports are labeled as follows:

■SER 1/1

■SER 1/2

Specifications

Console Port

See Figure 5 for the console port location.

The router features a single asynchronous console port for connecting a console or PC directly to the router. To configure the router locally, using the command-line interface (CLI), you must establish a connection to the router with a terminal session.

Note: The router also supports wireless console connections with an internal WiFi short-range access point. For more information, see WiFi Short-Range Access Point.

Console Port Default Settings

The console port does not support hardware flow control. The default settings for the port are: 9600 baud, 8 data bits, no parity, and 1 stop bit.

Connecting to the Console Port

Detailed information about connecting to the console port is in Making Network Connections.

Specifications

Power Connections

■AC Power Connector

■DC Power Connector—DC Input for External Batteries Connection

■Power Specifications

AC Power Connector

See Figure 5 for the AC power connection location.

The AC power supply connector on the router cable-side (back) panel is the connection to the to AC power terminal block. The router supports single-phase and three-phase AC power input.

Note: The mating connector shipped with the router is a 5-way screw terminal printed circuit board plug connector manufactured by Phoenix Contact (part number 1913604).

For detailed information about the AC power supply, including how to connect the router to AC power, see Connecting the Router to Power.

DC Power Connector—DC Input for External Batteries Connection

See Figure 5 for the external DC power input connector.

The router supports an external battery DC power connection. You must provide the battery connection or unit. The batteries can also serve as the primary power source for the router, if no AC source is used.

Note: The mating connector shipped with the router is a 2-way screw terminal printed circuit board plug connector manufactured by Phoenix Contact (part number 1912184).

For detailed information about the DC power input, including how to connect the router to a DC power input source, see Connecting the Router to Power.

Power Specifications

Alarm Port

See Figure 5 for the alarm port location.

Attach the alarm port to an alarm system to monitor and trigger external alarm events. The router supports two alarm inputs and two alarm outputs.

The alarm-trigger setting determines when an alarm is sent to the attached alarm system.

The alarm port has a rating of 30V DC, 1A.

Input Alarm Trigger Settings

■ Open —The open setting indicates that the normal router operating condition has an electrical current passing through the alarm circuits (DRY contact closed). If this electrical current is no longer detected (DRY contact open), an alarm is generated.

■ Closed —The closed setting indicates that the normal router operating condition is that no electrical current is passing through the alarm circuits (DRY contact open). If an electrical current is detected (DRY contact closed), an alarm is generated.

Output Alarm Trigger Settings

■ Normally Open (NO) —This setting depends on the pinout of the cable that is connected to the alarm port. See Connector and Cable Specifications.

■ Normally Closed (NC) —This setting depends on the pinout of the cable that is connected to the alarm port. See Connector and Cable Specifications.

If interfaces fail or other non-fatal errors occur, the alarm port does not respond. Continue to use SNMP to manage these types of errors.

Note: Due to the RJ-45 pin spacing, the alarm port does not support AC signaling.

Specifications

Internal Hardware Features

This section describes router hardware features that are integrated into the router and which are not visible from the router exterior. This section describes the following features:

■Memory

■Internal GPS Module

■WiFi Short-Range Access Point

■Real-Time Clock (RTC)

■Temperature Sensor

Memory

This router supports the three types of memory described in this section.

■ SD Flash Memory Module –See Using the SD Flash Memory Module for information about the router SD card, which stores the router configuration and system data.

■ DDR2 SDRAM –The router features 1 GB of double data rate (DDR2) SDRAM.

■ Boot Flash –The router features 16 MB of boot flash memory, consisting of two 8 MB Serial Peripheral Interface (SPI) flash devices. The boot flash supports the Common Flash Interface (CFI) standard.

Internal GPS Module

The router has an internal Global Positioning System (GPS), which provides precise time and location information to the system.

GPS LED

You can view the GPS LED to determine the GPS state and whether or not it is successfully connected to a GPS satellite. For information on the GPS LED, see Router LED Locations and States.

Specifications

Related Commands

■Displaying GPS Current Time and Location for a Cisco CG-OS Router

■Displaying GPS Current Time and Location for a Cisco IOS Router

Displaying GPS Current Time and Location for a Cisco CG-OS Router

Use the commands in this section to see the GPS current time and location.

Use the show gps time command to display the current GPS time:

Use the show gps location command to display the GPS latitude and longitude:

Displaying GPS Current Time and Location for a Cisco IOS Router

Use the commands in this section to see the GPS current time and location.

Use the show platform gps time command to display the current GPS time:

Use the show platform gps location command to display the GPS latitude and longitude:

WiFi Short-Range Access Point

The router features an integrated, short-range WiFi access point to support a wireless connection to the router, over which you can administer the router. The router can be installed in a utility box or substation; the wireless connection enables you to manage the router from outside these enclosures.

The WiFi connection is available only when the system software is operating. If the system software is not operating, you cannot use the WiFi connection to connect to or administer the router.

■WiFi Default Settings

■Related Commands

WiFi Default Settings

These are the default WiFi interface identity settings for the Cisco CG-OS and Cisco IOS operating systems:

Note: The CGR 1120 router WiFi interface is assigned to module 2 and cannot be changed.

For more information on the WiFi configuration and setting it, see the Cisco 1000 Series Connected Grid Routers WiFi Software Configuration Guide on Cisco.com, at: www.cisco.com/go/cgr1000-docs.

Related Commands

■Displaying WiFi Configuration Information for a Cisco CG-OS Router

■Displaying WiFi Configuration Information for a Cisco IOS Router

Displaying WiFi Configuration Information for a Cisco CG-OS Router

Note: For a CGR 1120 router using the Cisco CG-OS operating system, the WiFi interface is identified as ‘wifi 2/1’.

To display WiFi configuration information, enter any or all of the following commands in privileged EXEC or user EXEC mode:

■ show interface wifi slot/port [associations | brief | description | statistics] –Displays the status of the interface as up or down, the five second input and output rate and the number of input and output packets. Additionally, the Cisco CG-OS router displays hardware details such as radio type (802.11N, 2.4 GHz radio), MAC address and MTU setting.

■ show controller wifi slot/port–Displays serial number, software version, and configured frequency and power settings.

For detailed information about these commands, see the chapter “Configuring the WiFi Interface” in the Cisco 1000 Series Connected Grid Routers WiFi Software Configuration Guide, at www.cisco.com/go/cgr1000-docs.

Displaying WiFi Configuration Information for a Cisco IOS Router

Note: For a CGR 1120 router using the Cisco IOS operating system, the WiFi interface is identified as ‘Dot11Radio 2/1’.

To display WiFi configuration information, enter any or all of the following commands in privileged EXEC or user EXEC mode:

■ show interface dot11Radio 2/1 —Displays the status of the interface as up or down, the five second input and output rate and the number of input and output packets. Also displays hardware details such as radio type (802.11N, 2.4 GHz radio), MAC address and MTU setting.

■ show controller dot11Radio 2/1 —Displays the serial number, software version, and configured frequency and power settings.

For detailed information on how to use these commands, see the Cisco 1000 Series Connected Grid Routers WiFi Software Configuration Guide on Cisco.com, at: www.cisco.com/go/cgr1000-docs.

Real-Time Clock (RTC)

The router features an integrated real-time clock (RTC) with battery backup that supplies the system software with accurate date and time information. The integrated router GPS compares the current RTC time with the time at which it last received a valid signal to ensure accurate timekeeping on the router.

When the router is powered on using the CONFIG Reset button, the RTC sets the router memory controller and clock frequency. For more information, see the CONFIG Reset Button.

RTC Battery

The RTC includes battery backup for the date and time when the router is not receiving any power.

Specifications

Temperature Sensor

The router hardware features an internal temperature sensor used by the router software to monitor the system operating temperature. The router can be configured to generate alerts when the temperature falls outside of a user-defined temperature range. The router can also be configured to store historical temperature data.

For more information about monitoring and storing router temperature data, see the Cisco 1000 Series Connected Grid Routers Software Configuration Guide Set.
