Required Tools
You might need a flat-blade or number 2 Phillips-head screwdriver to loosen or tighten the captive installation screws on the fan tray.
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.
You might need a flat-blade or number 2 Phillips-head screwdriver to loosen or tighten the captive installation screws on the fan tray.
Note |
You have 120 seconds to remove and insert of the fan-tray, under specified ambient operating temperatures. |
Warning |
The fans might still be turning when you remove the fan from the chassis. Keep fingers, screwdrivers, and other objects away from the openings in the fan’s housing. Statement 263 |
Step 1 |

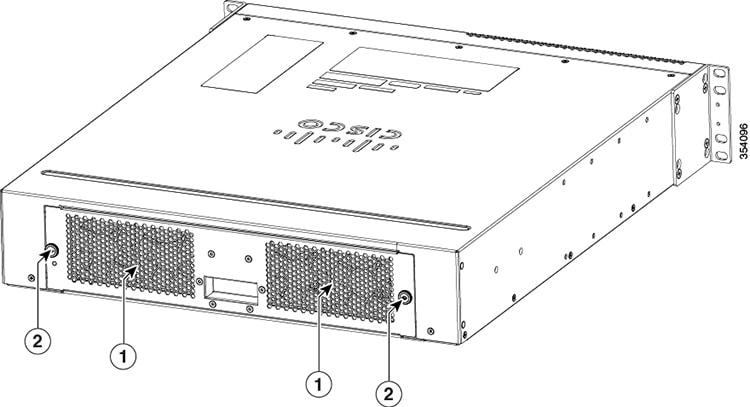

Locate the fan tray as shown in the figure.
|
||
Step 2 |
Loosen the fan tray captive installation screw by turning it counterclockwise. |
||
Step 3 |
Grasp the fan tray, and pull it outward; gently move side to side, if necessary, to unseat the fan tray power connector from the backplane.
|
||
Step 4 |
Pull the fan tray clear of the chassis, and set it aside. |
Step 1 |
Position the fan tray with the captive installation screws in front of the fan tray cavity at the rear of the chassis. |
Step 2 |
Place the fan tray into the chassis cavity so that the pin on the fan tray assembly is aligned with the hole on the chassis. . |
Step 3 |
Push the fan tray into the chassis until the power connector seats in the backplane and the captive installation screw make contact with the chassis. |
Step 4 |
Tighten the captive installation screws. |
Step 1 |
Listen for the fans; you should immediately hear them operating. If you do not hear them, ensure that the fan tray is inserted completely in the chassis and that the faceplate is flush with the switch back panel. |
Step 2 |
Verify that the Fan LED is green. If the LED is amber, one or more of the fans are faulty. If after several attempts the fans do not operate or if you experience trouble with the installation (for instance, if the captive installation screws do not align with the chassis holes), contact a Cisco customer service representative for assistance. |

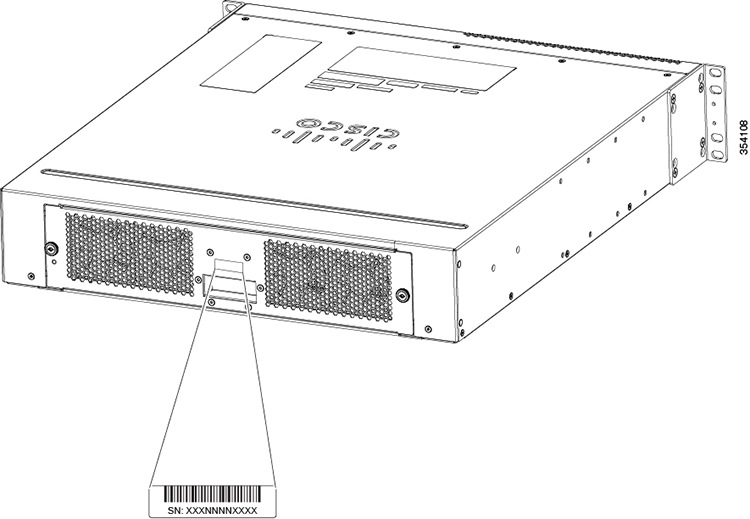

If you contact Cisco Technical Assistance, you need to know the fan serial number. This figure shows where the serial number is located. You can also use the show version privileged EXEC command to see the serial number. For more information, refer to Fan Tray LEDs
