Appendix

Appendix

Configuring Cisco CMX with wireless controller

Procedure

Step 1

From the Cisco CMX navigation pane, choose System>Settings>Controllers and Maps Setup>Advanced.

Step 2

From the Controllers section, select the IP address from the drop-down and enter the wireless controller IP address. From the Controller SNMP Write Community, select a version and click Save.

Step 3

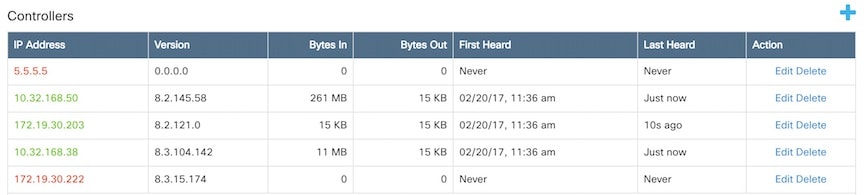

From the main area of the Cisco CMX dashboard, go to the, Controller area, and ensure that the wireless controller IP address is green. This indicates a successful connection between the wireless controller and Cisco CMX.

Note


If the wireless controller IP address is not green, refer to the instructions in the next task.

Configure a Hash Key on wireless controller

If the status of the wireless controller IP address is red, the wireless controller may have been added on Cisco CMX with a read community string. Perform the following troubleshooting task.
Procedure

Step 1

From the Cisco CMX CLI, execute the cmxctl config controllers show command and copy the value of the SHA2 key:


[CMXadmin@CMX-jkp103 configuration]$ cmxctl config controllers show

+-------------+------------------------------------------------------------------+

| MAC Address | 00:50:56:ac:99:6e                                                |

+-------------+------------------------------------------------------------------+

| SHA1 Key    | d116d605fd88e72763a03871bc483786e463ae43                         |

+-------------+------------------------------------------------------------------+

| SHA2 Key    | 66a03889d03cbee5c10e35e641f0ea91109f32832017db60fb3a4cdaf3bf0a7e |

+-------------+------------------------------------------------------------------+

Step 2

From the wireless controller CLI, issue the config auth-list add sha256-lbs-ssc <CMX-mac><sha2KeyHashString> command using the SHA2 string from Step 1.

Step 3

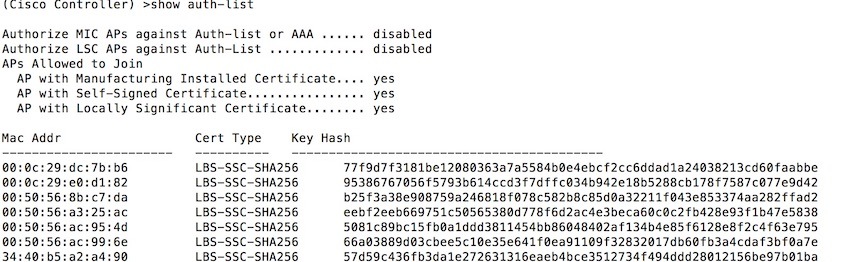

At the wireless controller CLI, execute the show auth-list command:

Configuring a Proxy on Cisco CMX 10.4 and above

This task shows you how to configure a proxy gateway on Cisco CMX (10.4 and above) to allow communication between a Cisco CMX server installed on a private network and an external cloud setup.

Procedure

Step 1

cmxos sysproxy proxy http:// <proxy-gateway-address> <port>

This command configures a proxy gateway that allows communication of an internal Cisco CMX with an external Asset Locator server.

Step 2

cmxos sysproxy no_proxy localhost <website-address>

This command prevents the use of proxy for IP addresses that are within the network.

Step 3

cmxos sysproxy {enable | clear | disable}

This command enables proxy.

Step 4

cmxctl stop -a

Step 5

cmxcl agent start

Step 6

cmxctl start

Step 7

Restart Cisco CMX to see the changes in effect.

Import Maps from Cisco PI to Cisco CMX

Procedure

Step 1

Log in to Cisco PI using the URL https://<PrimeInfrastructure_IP_address>.

  1. Choose Maps>Wireless Maps>Site Maps.

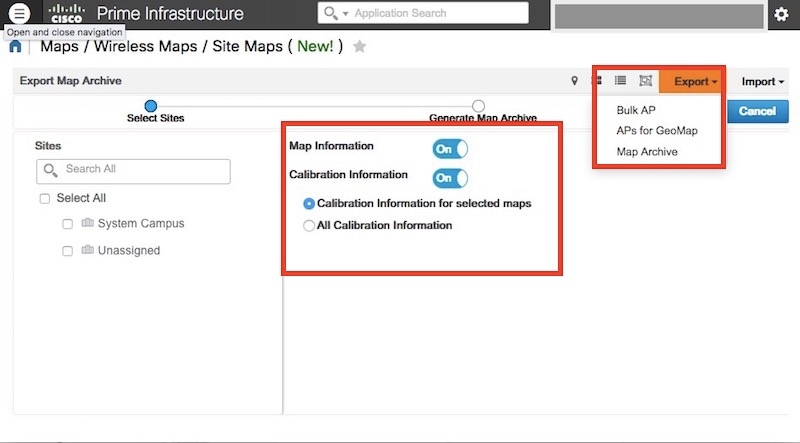

  2. From the right navigation pane, choose Export > Map Archive. Ensure that all the default checks are retained, as shown in the figure.

  3. Select the map to be exported and click Export.

The selected map is downloaded to a compressed .tar file named ImportExport_xxxx .tar.gz, for example, ImportExport_4575dcc9014d3d88.tar.gz, in your browser’s download directory.

Step 2

Log in to Cisco CMX dashboard using the URL https://<CMX_IP_address>.

  1. Choose System>Settings>Controllers and Map Setup>Advanced.

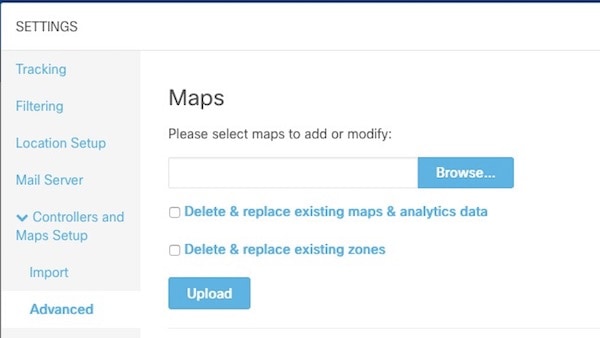

  2. Under Maps, click Browse, select the maps exported from Cisco PI (Step 1), and click Upload.

Step 3

Log in to App dashboard

Step 4

Select Maps from the left menu.

Step 5

Click Upload. The map uploads to the App.

Step 6

Verify that the map uploaded to the App correctly.

How to obtain a Cisco CMX token from Cisco Spaces

This appendix shows you how to add a Cisco CMX to your Cisco Spaces account and obtain a token for the same. You can configure this token on Cisco CMX. This step is a prerequiste for the proper functioning of Asset Locator.

Procedure

Step 1

Log in to your Cisco Spaces account.

Step 2

Click on the button in the top-right corner.

Step 3

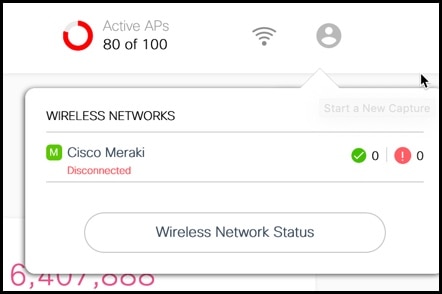

Click Wireless Network Status.

Step 4

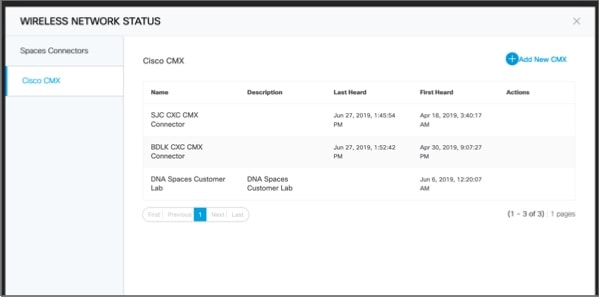

From the Wireless Network Status page that is displayed, click Cisco CMX and Add New CMX

Step 5

From the Wireless Network Status page that is displayed, click Cisco CMX and Add New CMX

Step 6

Enter a Name and Description for your Cisco CMX and click Save.

Step 7

Hover around the right extreme area of the Cisco CMX you added to display the respective hidden menu. Click on the Key button.

Step 8

Authenticate using your Cisco Spaces credentials when prompted and click Submit.

Step 9

When the Token is displayed, click Copy.

What to do next

You can now add this token on your Cisco CMX.

Location Services Using Cisco CMX

Configuring Cisco CMX 10.6 and Above

Configuring Notifications on Cisco CMX 10.6 and above
This step demonstrates how to configure HTTPS notifications in Cisco CMX to notify Application when a location update occurs for a tag.
Before you begin
Get the Application token. Refer to How to Obtain a token from Cisco Spaces of the Appendix.
Procedure

Step 1

From the Cisco Spaces: Asset Locator dashboard, choose Manage> Cloud Apps.

Step 2

In the Cloud Applications> Cisco Spaces section, click Enable.

Note


WARNING

Do not enable Asset Locator if it is present. This is deprecated.

Step 3

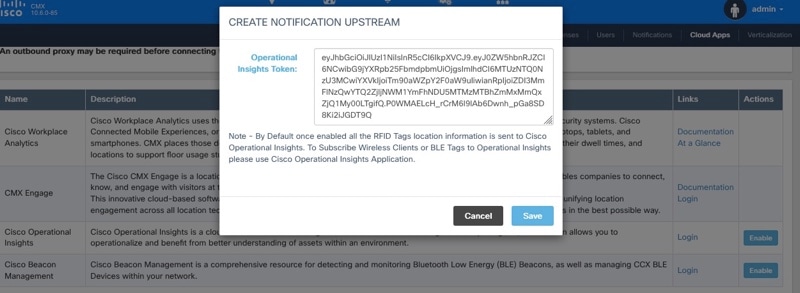

In the Create Notification Upstream dialog box, enter the value of token obtained from Cisco Spaces.

Configuring Cisco CMX 10.5 and Before

Configuring Notifications on Cisco CMX (Prior to Cisco CMX 10.6)
This procedure demonstrates how to configure HTTPS notifications in Cisco CMX to notify Application when a location update occurs for a tag.
Before you begin
You can retreive a token from the Creating Cisco CMX Connector and Retrieving Token section of the Cisco CMX configuration guide.
Procedure

Step 1

From the Cisco CMX dashboard, navigate to Manage > Notification > +New Notification.

Step 2

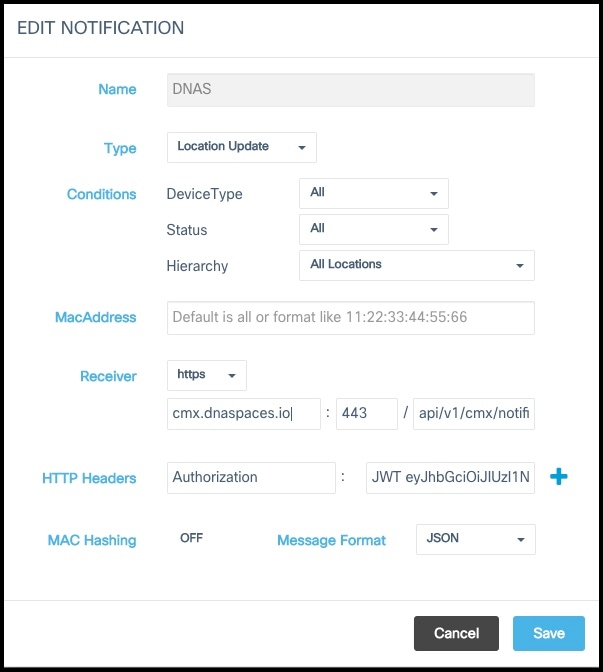

In the Create New Notification dialog box, enter a Name for your notification.

Figure 1. Create New Notification

Step 3

Under Conditions, choose All from the Device Type and Status drop-down box, and choose All Locations from the Heirarchy drop-down box.

Step 4

Leave the MAC address field empty.

Step 5

From Receiver drop-down list, select https .

Step 6

From the information in the activation mail, fill the host address field with https://cmx.dnaspaces.io and port number as 443.

Step 7

In the url field, enter api/v1/cmx/notifications/locationUpdate

Step 8

Turn the MAC hashing option off.

Step 9

From the Message Format drop-down list, select JSON.

Step 10

Click Create.

Enabling Telemetry on Cisco CMX (Prior to 10.3)

This task enables Cisco CMX to send telemetry data to the Asset Locator. Telemetry data is nonlocation data such as temperature of humidity that is collected by the RFID tags and sent to Asset Locator through the Cisco CMX location engine.

Procedure

Step 1

In the Cisco CMX CLI, navigate to the /opt/cmx/etc/node.conf and insert the following line under location section.

user_options=-Dpublish-telemetry=true

Step 2

Restart Cisco CMX.

cmxctl stop -a
cmxctl agent start
cmxctl start

Step 3

Ensure that Cisco CMX and all its services and processes are up and running.

cmxctl status
