Product Overview
This chapter describes the Cisco uBR905 cable access router and its interaction with the Cable Modem Termination System (CMTS)—the cable system headend equipment that provides Internet (TCP/IP) connectivity for subscribers over the cable broadband infrastructure. The chapter provides physical and functional overviews of the Cisco uBR905 cable access router and its supported operating modes.
This chapter provides the following information about the Cisco uBR905 cable access router:
•
Overview of the Cisco uBR905 Cable Access Router
•Physical Description
•Functional Overview
For information on configuring the Cisco uBR905 cable access router, see the Cisco uBR905 Cable Access Router Software Configuration Guide, available on CCO and the Documentation CD-ROM.
Overview of the Cisco uBR905 Cable Access Router
This section provides an overview of the Cisco uBR905 cable access router, its hardware, and its basic operation:
•Introduction
•Features
Introduction
The Cisco uBR905 cable access router functions at its most basic level as a cable modem—a modulator/demodulator that provides high-speed network access on the cable television system to residential and small office/home office (SOHO) subscribers. The Cisco uBR905 router uses the cable system's existing physical plant to provide Internet and other wide area network (WAN) connectivity over the service provider's Hybrid/Fiber Coax (HFC) cable system.
The router is based on the Data-over-Cable Service Interface Specifications (DOCSIS), a standard developed with service providers to ensure that any DOCSIS-certified cable modem can interoperate with any bidirectional, DOCSIS-qualified CMTS. The DOCSIS standard also sets required levels of performance and reliability for the cable network.
Note Information about DOCSIS requirements and current specifications are available at the CableLabs web site at http://www.cablelabs.com.
In this mode, the router operates as an IP bridge between its cable and Ethernet interfaces, performing the following functions:
•Traffic from the cable interface is sent to the Ethernet ports for transmission to the connected CPE devices.
•Traffic from the Ethernet ports is sent to the cable interface for transmission to the Internet (or other network) by the gateway at the headend.
In addition to providing DOCSIS connectivity, the Cisco uBR905 router can also function as an IP router, using static routes and the RIPv2 routing protocol. When operating in routing mode, the Cisco uBR905 router can optionally provide advanced data and routing features, such as IPsec encryption.
In both bridging and routing modes, the router can connect one or more computers to the Internet over the HFC cable system. Subscribers can use the Cisco uBR905 router to create high-speed, permanent access to the Internet, without the need for telco-based services such as leased lines.
Based on the feature licenses your company purchased, other Cisco IOS images can be downloaded from Cisco Connection Online (CCO). These images provide additional functionality such as advanced routing capabilities, firewall protection, and high-security encryption.
For most residential applications that involve basic Internet access, the Cisco uBR905 router is configured as a bridge. For residential and SOHO applications that involve special feature sets such as the firewall feature set, or that include connection to an existing network at the site, the Cisco uBR905 is configured as a router.
Bridging and routing operations are summarized in the following sections.
Bridging Operations
When acting as a DOCSIS-compliant cable modem, the Cisco uBR905 router provides DOCSIS IP bridging for one or more PCs and other customer premises equipment (CPE). The router ships from the factory with a Cisco IOS software image stored in nonvolatile Flash memory that supports DOCSIS-compliant bridging data operations.
When installed and configured as a bridge, the Ethernet hub ports at the rear of the Cisco uBR905 router can be connected directly to PCs at the subscriber site. A maximum of four PCs can be directly connected to the router's hub ports, or a maximum of 254 PCs can be connected if one of the four Ethernet hub ports is connected to a standard 10BaseT Ethernet hub, which then connects to additional computers (or hubs) at the site.
Regardless of the configuration, Cisco IOS software treats all four Ethernet hub ports as one Ethernet interface. See Figure 1-1 for a typical configuration.

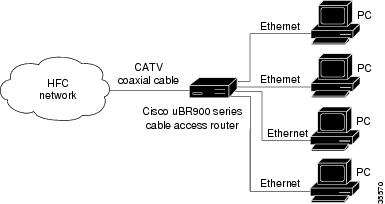

Figure 1-1 Cisco uBR905 in a Bridging Configuration
Note For better network performance, Cisco recommends a maximum limit of 16 CPE devices in either bridging or routing mode. The service provider can also set a different limit by changing the MAX CPE parameter in the DOCSIS configuration file—the default MAX CPE value is one CPE device.
Routing Operations
When configured as a router, the Cisco uBR905 can be connected directly to four PCs via the Ethernet hub ports at the rear of the router. One of the four Ethernet hub ports can also be connected to a standard 10BaseT Ethernet hub, which then connects additional computers or Ethernet devices at the site to a local area network (LAN). (See Figure 1-2.)

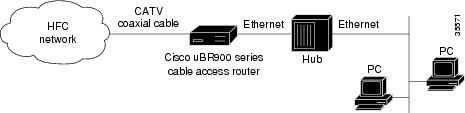

Figure 1-2 Cisco uBR905 in a Routing Configuration
In routing mode, the Cisco uBR905 is typically configured to use the IP address of the headend router as its default IP gateway. Routing mode does not have a maximum limitation on the number of CPE devices, as is the case in bridging mode; however, the CMTS can still limit the number of CPE devices by limiting the number of IP addresses that any particular cable modem can provide services for. If this is the case, the Cisco uBR905 router can use NAT/PAT translations to use one IP address for multiple CPE devices.
Features
This section provides an overview of the Cisco uBR905 cable access router's features, divided into the following categories:
•Basic Features
•Configuration Options
•Management Capabilities
Basic Features
The Cisco uBR905 cable access router provides the following features:
•DOCSIS-compliant cable modem that delivers peak data rates of 44 Mbps downstream and 10 Mbps upstream for an always-on connection
•Support for 6-MHz downstream and 200K-3200 KHz upstream cable channel bandwidth
•Comprehensive power-up and CMTS-initiated diagnostic features
•Continuous downstream and upstream channel performance and impairment information gathering
•IP bridging and IP routing using Cisco IOS software
•Other feature sets, such as IPsec encryption or firewall protection, are optionally available, depending on the Cisco IOS image being used
•Support for an unlimited number of PC and other CPE devices in routing mode (subject to the limits imposed by the service provider)
•Four-port 10Base T Ethernet hub interface
•Coaxial cable (F-connector) interface
•Support for unicast, broadcast, and multicast IP packets
•Automatic configuration and piracy control provided by:
–Automatically downloading a DOCSIS configuration file from the headend to configure itself for operation on the cable network
–Running resident Cisco IOS image or optionally downloading a new Cisco IOS image as directed by the CMTS
–Optionally downloading a Cisco IOS configuration file to configure advanced feature sets
•Support for remote software upgrades without requiring a visit by a cable technician
•Security on the cable interface is provided by the DOCSIS Baseline Privacy Interface (BPI):
–40-bit or 56-bit DES encryption
–Automatically established when enabled and supported by both the router and CMTS
–Encrypts all Ethernet packets transported on the cable interface between the router and CMTS
•Optional end-to-end security provided by IPsec encryption:
–IPsec hardware accelerator provides high-performance encryption without affecting overall throughput
–Provides the capability to create secure virtual private networks (VPNs) across unprotected networks such as the Internet
–Encrypts all or part of the traffic sent between CPE devices and a destination IPsec peer router or gateway
–56-bit DES encryption and 168-bit 3DES high-security encryption, depending on the capabilities of the Cisco IOS image being used
–Supports symmetric key encryption, public key encryption, authentication, and data compression in hardware
–Key management includes support for the IKE protocol, including a true hardware random-number generator, as well as RSA, Diffie-Hellman, and DSA key setup
–Authentication methods include the HMAC SHA-1 and HMAC MD5 authentication algorithms.
•Variable-length packet cable Media Access Control (MAC) transport layer
•Contention-based and reservation-based upstream transmission
•Remote-Diagnostic Features—Delivers increased reliability and reduced maintenance costs
•Supports the use of commercial security products, such as Kensington-compatible lock and cable devices, that attach to the router to prevent theft in small office applications.
Note Cisco does not supply these security products.
Configuration Options
•Automatically download a DOCSIS configuration file from the cable interface, automatically configuring it for communication with the CMTS and cable network.
•Optionally download a new Cisco IOS software image to easily upgrade its capabilities without requiring an onsite visit from a service provider technician.
•Optionally download a Cisco IOS configuration file that configures the unit for communication for advanced features such as IPsec encryption.
Management Capabilities
•Can be managed by the SNMP protocol, through the command-line interface (CLI), which is available through the console port or Telnet access, and by using the built-in web interface. Management and provisioning can also be done using Cisco's network products, such as CiscoView, CiscoWorks 2000, Cisco Network Registrar, Cisco Cable Manager, and Cisco Subscriber Registration Center.
•SNMP support includes support for the SNMPv1, SNMPv2c, and SNMPv3 versions of the protocol.
•Special web interface is automatically activated when the cable interface is not operational, allowing users to easily supply configuration and status information to support engineers.
•LEDs on the front panel provide run-time status information on the Cisco uBR905 cable access router, its interfaces, and its links.
Physical Description
The Cisco uBR905 cable access router is a compact, easy-to-install device that contains:
•A single F-connector interface to the cable system.
•Four RJ-45 (10BaseT Ethernet) hub ports to connect a maximum of four computers directly to the Ethernet hub ports at the rear of the unit (depending on the Cisco IOS release). Alternatively, one of the four ports can connect to an Ethernet hub, which then can connect additional computers or devices at the site. (The actual number of supported CPE devices depends on the Cisco IOS release; see the "Bridging Operations" section for details.)
•One RJ-45 console port (optional) to connect to a laptop PC or console terminal when locally configuring the router; the router ships from the Cisco factory with the console port enabled.
Note The Cisco uBR905 cable access router ships from the Cisco factory with the console port enabled. By default, downloading a Cisco IOS configuration file disables the console port and erases all previously saved configurations. This default behavior prohibits configuration access at the remote site.
Figure 1-3 depicts the front of the Cisco uBR905 cable access router. Figure 1-4 shows the rear of the unit.
Figure 1-3 Cisco uBR905 Cable Access Router Front View

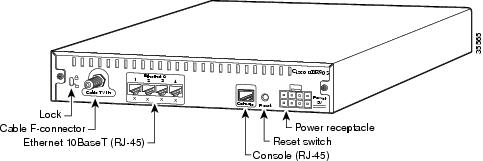

Figure 1-4 Cisco uBR905 Cable Access Router Rear View
The Cisco uBR905 router is designed to work with commercial security products, such as Kensington-compatible lock and cable devices, that attach to the router to prevent theft in small office applications. The router's rear panel contains generic lock and unlock symbols, identified as "Lock" in Figure 1-4.
Note Cisco does not supply these security products.
The following sections describe the router and its features in more detail:
•LED Descriptions
•Data Connectors
•Power Supply
See "Connector and Cable Specifications," for the pinouts and cabling information for each of these connectors. For information on using the console port, see the Cisco uBR905 Software Configuration Guide.
LED Descriptions
The Cisco uBR905 router contains 11 LEDs on the front panel that provide information about the router's status and network connections. Figure 1-5 illustrates the LEDs on the router's front panel, and Table 1-1 lists the meaning for each LED.
Figure 1-5 Cisco uBR905 Cable Access Router Front Panel LEDs
Note LEDs that are not shown in Figure 1-5 are not used.
Table 1-1 Cisco uBR905 Cable Access Router Front Panel LED Description
Label
|
Description
|
Color
|
Function
|
OK
|
System Status
|
Green
|
On = Cisco uBR905 power on and self-test diagnostics have finished successfully, the system image has been booted, and the system is operational.
Blink = After power on and self-test diagnostics have finished successfully, LED blinks as the system image is booted.
Off = No Power. If the OK LED turns off and remains off during the boot process, it indicates the router has failed its self-test diagnostics; in this situation the bottom row of LEDs contain more information about the type of failure (see Table 4-1).
|
ACT
|
Cable Activity
|
Green
|
On = Cable Activity
Off = No Activity
|
1-4
|
Ethernet 1-Ethernet 4
|
Green
|
On = Link Up
Blink = Activity
Off = Link Down
|
LINK
|
Cable RF Link
|
Green
|
On = Cable connection up; RF link up
Blink = Cisco uBR905 is searching for a downstream frequency
Off = Cable connection down; RF link down
|
DS
|
Downstream Signal Lock Status
|
Green
|
On = Cisco uBR905 is locked to a downstream frequency (channel).
Off = Cisco uBR905 has not yet locked to a downstream frequency (channel) or the router has not yet located a digital signal.
|
US
|
Upstream Signal Quality
|
Green
|
On = Cisco uBR905 has established upstream communications with the CMTS; cable access router has completed ranging state 2 (as per DOCSIS), has entered provisioning state, and is communicating within 6 dB of desired final power level (generally within 3 dB).
Off = Cisco uBR905 has not completed secondary ranging; the CMTS has heard from the cable access router, however, and there is some upstream continuity.
|
DSNR
|
Downstream Signal-to-Noise Ratio
|
Green
|
On = Receiving quality, downstream signal; SNR is greater than 5 dB above the downstream lock threshold.
Off = Receiving low or marginal downstream signal strength or quality.
Note The signal is checked approximately every 25 seconds and the DSNR LED is updated to reflect the current state. If this LED remains off, it could indicate a problem with the cable at the subscriber's site.
|
MSG
|
Message Waiting
|
Green
|
No default function defined. The service provider can use SNMP set requests to use this LED for custom applications or services.
|
Data Connectors
As shown in Figure 1-4, the Cisco uBR905 cable access router contains the following data connectors:
•Coaxial cable F-connector —Provides the connection to the CMTS and cable network. The coaxial cable connector is a single cable interface (Cable 0) and must always be connected to the cable system for proper operation.
•Four Ethernet 10Base T hub ports—Provides connectivity to the subscriber CPE devices. The Ethernet ports are in a hub configuration that forms one logical Ethernet interface (Ethernet 0). When the Cisco uBR905 router transmits data to the Ethernet interface, it is broadcast out all four ports.
CPE devices can be connected to the Ethernet ports using one of the following configurations:
–If the router is configured for bridging mode, from one to four CPE devices can be connected directly to the router.
–If the router is configured for bridging mode, an Ethernet hub can be connected to one of the router's Ethernet ports. The hub can then in turn be connected to up to 254 additional CPE devices.
–If the router is configured for routing mode, up to four CPE devices can be directly connected to the router's Ethernet ports.
–If the router is configured for routing mode, an Ethernet hub can be connected to one of the router's Ethernet ports. The hub can then in turn be connected to any number of devices.
Note For network performance reasons, Cisco recommends a maximum of 16 CPE devices in either bridging or routing mode. The service provider may also set a different limit by changing the MAX CPE parameter in the DOCSIS configuration file—the default MAX CPE value is one CPE device, which applies in both bridging and routing modes.
•Console port connector—Provides access to the router's command-line interface (CLI). See the Cisco uBR905 Cable Access Router Software Configuration Guide for more details on using this port and giving CLI commands.
Note The Cisco uBR905 cable access router ships from the Cisco factory with the console port enabled. By default, downloading a Cisco IOS configuration file disables the console port and erases all previously saved configurations. This default behavior prohibits configuration access at the remote site.
Power Supply
The Cisco uBR905 cable access router uses an external AC-input power supply. Refer to Table A-1 in "Technical Specifications," for the AC-input power supply power specifications, including input voltage and operating frequency ranges.
The Cisco uBR905 cable access router does not contain a power switch. After the cable system technician installs, connects, powers on, and initializes the unit, it is intended to remain connected to the broadband network when operating normally.
The same power supply supports both domestic (U.S.) and international operation. Different power cords are required, however, depending on the country of operation.
Warning The router is designed to work with TN power systems. TN power systems have a protective earth. Read the installation instructions in "Installing the Cisco uBR905 Router," before you connect the system to its power source.
Warning Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.
Caution Use only a power supply and cord provided by Cisco. Using any other vendor's power supply and cord can cause loss of data or permanent damage.
Functional Overview
This section provides a functional overview of the operation of the Cisco uBR905 cable access router, divided into the following categories:
•Initial Power On and Provisioning
•Data Operations
Initial Power On and Provisioning
The Cisco uBR905 cable access router ships from the Cisco factory ready to work in a DOCSIS-compliant bridging mode. However, before the router can transmit traffic, the CMTS at the headend must properly provision the router as follows:
1. The appropriate service must be purchased from the cable system. If certain features, such as IPsec data encryption, are desired, a license for the appropriate Cisco IOS software image must also be purchased.
2. When the router is first brought online, the CMTS at the headend downloads a DOCSIS configuration file to the router. This file—which is a binary file that must be in the format required by the DOCSIS specification—configures the router for the appropriate level of services and sets other parameters as needed.
3. At this point, the router is completely configured for basic DOCSIS operations, but if additional features beyond those in the default Cisco IOS software image are desired, the DOCSIS configuration file can also specify that the router should download another Cisco IOS image from the CMTS.
4. To configure the Cisco uBR905 cable access router for any additional features, the cable service provider can do any or all of the following:
–Cisco IOS commands can be included in the Vendor Specific Information field (suboption 131) in the DOCSIS configuration file.
–The Cisco uBR905 cable access router can download a Cisco IOS configuration file from a host workstation specified by the DOCSIS configuration file. The Cisco IOS configuration file is an ASCII text file that contains the Cisco IOS commands needed to configure the router for any additional features.
–A system administrator can manually configure the Cisco uBR905 cable access router by giving Cisco IOS commands at the CLI interface. This can be done either locally by connecting to the system's RJ-45 console port or remotely by establishing a Telnet connection with the unit.
–If SNMP management has been enabled, certain parameters can be queried and configured using an SNMP manager at the cable provider's network operations center (NOC).
Note The CMTS Cisco uBR905 router downloads the DOCSIS configuration file each time it is powered on, but it downloads the Cisco IOS image (if needed) and Cisco IOS configuration file (if needed) only once when the router is initially brought online. However, a new configuration file or image can be downloaded whenever necessary, such as when the cable service offers new services or subscribers upgrade their services.
To ensure that subscribers obtain the exact services they have ordered, the Cisco uBR905 router arrives from the Cisco factory with a unique identifier (UID) that consists of a serial number and MAC address. These factory-assigned values are on a label at the bottom of the router; for convenience, these values are also in a barcode label that can be easily scanned for easy entry into the service provider's provisioning and billing system.
Using the MAC address of the router as the key, the CMTS downloads the DOCSIS configuration file and Cisco IOS image that will provide the services that this particular subscriber has purchased. Service technicians at the headend typically create a number of standard configuration files to match the range of services offered by the provider; these configuration files can be created manually or with tools provided by Cisco Systems for this purpose.
The following sections describe the initial power on and provisioning sequence in more detail, as well as the requirements that must be met by both the router and the CMTS before provisioning can succeed.
Initial Power On Sequence

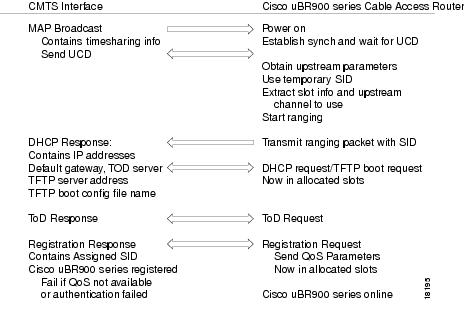

When connected and first powered on, the Cisco uBR905 cable access router performs the following DOCSIS-mandated procedure for automatic installation and configuration:
1. The router boots the read-only memory (ROM) from the ROMMON partition of its Flash memory.
2. The router performs a self-test, initializes processor hardware, and boots the main operating system software—the Cisco IOS release image stored in Flash memory.
3. The router acquires a temporary downstream channel by matching the clock sync signal that is regularly sent out by the CMTS on the downstream channel.
4. The router then waits for an Upstream Channel Descriptor (UCD) message from the CMTS and configures itself for the upstream frequency specified in that message.
5. The router waits for the next upstream bandwidth allocation map message (MAP). These messages are regularly sent from the CMTS to find the next available shared request time slot. The router then uses this time slot to send a ranging request message to the CMTS, communicating the router's user ID (UID, which includes its unique MAC address), using a temporary service identifier (SID) of 0 (zero) to indicate that it has not yet been allocated an upstream channel.
6. In reply to the router's ranging request, the CMTS sends a ranging response containing a temporary SID to be used for the initial router configuration and bandwidth allocation. As needed, the router adjusts its transmit power levels using the power increment value given by the CMTS in its ranging response message.
Note At this point, the router has established connectivity with the CMTS but is not yet online. The next steps allocate permanent upstream and downstream frequencies, as well the configuration required for IP network connectivity.
7. After the next MAP message broadcast, the router uses a shared request time slot to invoke the Dynamic Host Configuration Protocol (DHCP) to establish IP connectivity with the TCP/IP network at the headend.
8. The DHCP server—typically a dedicated server at the headend, but it could also be a CMTS such as a Cisco uBR7200 series universal broadband router—sends a response containing the router's IP address, as well as the IP addresses for the default gateway and time of day (ToD) server. It also sends the IP address for the authorized Trivial File Transfer Protocol (TFTP) server from which the router should download its DOCSIS configuration file. Depending on the particular network configuration, other information could be provided, such as the IP addresses for a syslog server or security server.
9. The router configures itself for the specified IP address and gets the current date and time from the specified ToD server.
10. Using the TFTP protocol, the router downloads the specified DOCSIS configuration file and configures itself for the appropriate parameters. The DOCSIS configuration file defines the router's operating mode such as the provisioned downstream and upstream service assignments, assigned frequencies, data rates, modulation schemes, Class of Service (CoS), type of services to support, and other parameters. Cisco provides tools to help automate the creation of configuration files.
Caution The DOCSIS configuration file must be in the exact format given by the DOCSIS specification. An incorrect DOCSIS configuration file can cause the Cisco uBR905 router to constantly cycle offline. Such errors include wrong downstream frequency, wrong UCD, wrong downstream Channel ID, invalid CoS, incorrect BPI privacy configurations, or shared secret strings.
11. The router sends another registration request to the CMTS containing the CoS parameters given in the DOCSIS configuration file.
12. The CMTS verifies that the router is using the appropriate CoS profile and converts the temporary SID into a data SID with a service class index that points to the applicable CoS profile.
Note Depending on the software image being run and the capabilities of the CMTS, the DOCSIS configuration file can also specify multiple CoS profiles. Each CoS profile is assigned its own SID, either dynamically or statically, depending on the capabilities of the CMTS and software image being used.
13. The router completes its secondary ranging and is then online, passing data between the cable network and the PCs and other customer premises equipment connected to the router.
Note At this point the router is online and operational in the basic DOCSIS bridging mode ("plug and play" mode). The next step is done only if the DOCSIS configuration file specifies that the router must also download a Cisco IOS configuration file and new Cisco IOS image.
14. If the DOCSIS configuration file specifies that the router must download a secondary Cisco IOS image and a Cisco IOS configuration file, the router uses TFTP to download the image and configuration files into its local memory. It then installs the new Cisco IOS image and runs the configuration file.
Alternatively, a system administrator can manually configure the Cisco uBR905 router by giving commands at the router's CLI interface or by using an SNMP manager.
15. If Baseline Privacy Interface (BPI) encryption is configured and enabled on both the router and CMTS, the router and CMTS negotiate the appropriate encryption parameters. After encryption is enabled, all information within Ethernet packets that is sent between the router and CMTS is encrypted to prevent interception or modification by an unauthorized party.
Figure 1-6 illustrates the traffic flow during this process.
Figure 1-6 Cisco uBR905 Cable Access Router Provisioning Overview
Note For more detail on the provisioning process, see the DOCSIS 1.0 Radio Frequency Interface (RFI) specification (SP-RFII01-990731 or later revision).
After the Cisco uBR905 router goes online, it sends data traffic between the attached CPE devices and the network. The service provider typically uses DHCP to assign IP addresses to the CPE devices. The number of IP addresses each subscriber can obtain depends on the services purchased from the provider.
Provisioning Prerequisites
The following requirements must be met before a router can be provisioned:
•All required CMTS routing and network interface equipment must be installed, configured, and operational. This includes all headend routers, servers (DHCP, TFTP, and ToD), network management systems, and/or other configuration or billing systems required for your network.
•Based on the quality and capacity of your cable plant, your system administrator or network planner must have defined your network's IP address allocation plan; the spectrum management plan outlining the recommended operating parameters to optimize performance; and the channel plan identifying the channels available to assign to specific Cisco uBR905 routers.
•A CMTS customer service representative must have recorded all needed subscriber information, initiated a work order, and arranged an installation date with the subscriber.
•The CMTS system administrator or appropriate personnel must have specified the policy parameters for the Cisco uBR905 router and all computers and other CPE devices to be supported at the subscriber site. See Cisco's Network Registrar (CNR) product documentation for more information.
•The CMTS system administrator or appropriate personnel must have defined and pushed DHCP and DOCSIS configuration files to the appropriate servers so that each router, when initialized, can transmit a DHCP request, receive its IP address, obtain its TFTP and ToD server addresses, and download its DOCSIS configuration file. Cisco IOS images and Cisco IOS configuration files must also be prepared for subscribers who are purchasing services that require new software images and advanced configurations.
Note The CMTS uses the router's unique MAC address for the cable interface to ensure that the router downloads only the files appropriate for the levels of service that have been purchased.
•If DHCP is also being used to provision the IP addresses used by the CPE devices at the subscriber's site, the DHCP server must be able to respond to those requests as well.
•The CMTS system administrator must ensure that appropriate databases are updated to activate and support the new subscriber account in the provisioning, billing, and network management systems in place for your network after each router is registered with the CMTS.
•The following files should be prepared and available on the TFTP server:
–DOCSIS configuration file—This is required for every installation. The DOCSIS configuration file specifies the DOCSIS-mandated parameters, such as upstream and downstream frequencies, as well as optional features, such as whether to download a new software image or a Cisco IOS configuration file.
–Cisco IOS image—If upgrading to a Cisco IOS image different from the factory default, that image must be specified in the router's DOCSIS configuration file and available on a TFTP server that is accessible through the cable interface.
–Cisco IOS configuration file—Unless the network administrator at the subscriber's site is manually configuring the Cisco uBR905 router through its command-line interface, a Cisco IOS configuration file must be prepared that specifies the routing parameters required to route data between the cable and serial interfaces. This file can specify any other optional features that are desired. It must be made available on a TFTP server that is accessible through the cable interface.
Upgrading the Software Image
When Cisco IOS images are updated to new releases, the service provider can download them as needed to Cisco uBR905 routers installed in the field (based on the software licenses purchased). See the release notes for the router (listed in the "Related Documentation" section) for a complete list of features and Cisco IOS images that are currently supported.
Service providers can use the router's Media Access Controller (MAC) address to uniquely identify each particular router in the field. The CMTS uses this value to download the proper DOCSIS configuration file to the router before it begins operation.
The DOCSIS configuration file can also contain the name of the software image that the router should be running. If necessary, the CMTS can also download the proper software image to the router and force it to reboot using the new image.
The download of the DOCSIS configuration file usually takes only a few seconds and is done every time the Cisco uBR905 router reboots. The download of the software image can take several minutes to complete, during which time network connectivity is not available. However, the software image must be downloaded only once, until the subscriber needs to be updated with a new or updated image.
See the Cisco uBR905 Cable Access Router Software Configuration Guide for a description on how to download a software image and configuration file to a Cisco uBR905 router installed in the field.
Data Operations
This section provides an overview of how data is transmitted to and from the Cisco uBR905 router across the cable system's HFC network. Figure 1-7 illustrates a typical broadband data cable system, showing the network path between the Cisco uBR905 router and the CMTS headend equipment (Cisco uBR7200 series universal broadband router or other DOCSIS-compliant CMTS).
Figure 1-7 Cisco Broadband Data Cable System
The Cisco uBR905 router provides the connection between the PC and the cable system, modulating the data transmitted to and from the PC so that it can be carried over the coaxial cable installed by the service provider. To avoid interfering with the cable video signals that are also transmitted over this same coaxial cable, the DOCSIS specification allows only certain frequencies to be used for data transmissions. Separate frequencies are used for the data sent from the CMTS to the cable modem (the downstream direction) and for the data sent from the cable modem to the CMTS (the upstream direction).
The CMTS divides the cable plant into downstream channels and upstream segments or clusters of nodes. Each Cisco uBR905 router on the network is configured to receive data on a particular downstream channel. A downstream channel contains one or more upstream segments; partitioning the upstream plant into smaller segments significantly reduces the number of potential ingress sources and failure points.
Downstream Transmissions
Because 90 percent of the data transmitted on the Internet is, on average, sent from the network to the user, the cable system allocates the majority of bandwidth for downstream data (data sent from the CMTS to the router). Downstream transmissions use a 6-MHz data channel in the 88 to 860 MHz range, providing an approximate maximum bandwidth of 27 or 26 Mbps. This bandwidth is shared among all subscribers who have been assigned to this particular downstream channel.
The CMTS receives the downstream data from its Internet or other WAN connections. It addresses the data to the appropriate Cisco uBR905 router and modulates it for transmission on the cable network. When the data arrives at the subscriber's site, the router modulates it for transmission over the Ethernet connection to the appropriate CPE device.
Upstream Transmissions
The data transmitted in the upstream direction (from the user to the network) is typically much less than that on the downstream direction, so a smaller bandwidth is allocated to it. The upstream transmissions share a 200 kHz-wide to 3.2 MHz-wide channel in the 5 to 42 MHz range, providing a bandwidth of up to 10 Mbps.
Typically, service providers allocate different upstream bandwidths depending on the services purchased by a subscriber. For example, a business purchasing basic service might be allocated a 128 kbps upstream, while businesses purchasing premium services might be allocated a 384 kbps upstream. The CMTS enforces this maximum bandwidth on a per cable modem basis, so that each user receives the services purchased.
The CMTS allocates an upstream frequency to the Cisco uBR905 cable access router when it first registers on the system. The CMTS can then move the router to a new upstream or a new upstream frequency as needed to respond to current network conditions and noise levels.
Depending on the bandwidths allocated to each user, the quality of the physical plant and the CMTS used at the headend, users on a single downstream can be allocated across several upstreams. This ensures a responsive network for all users and simplifies bandwidth management when new users are added, or when a user wants to upgrade to a higher bandwidth service.
The Cisco uBR905 cable access router receives the upstream data from the CPE devices to which it is connected. It modulates this data for transmission on the coaxial cable system to the CMTS. The CMTS then routes the data to the appropriate destination (local server, Internet, and so forth) through its WAN interfaces.
The Cisco uBR905 cable access router uses a request/grant mechanism to obtain upstream bandwidth, where each user on the upstream must make a specific request before being allowed to transmit on the upstream. DOCSIS rules and the maximum bandwidth cap prevent any single user from monopolizing the upstream bandwidth. If supported by the CMTS, the Cisco uBR905 cable access router supports DOCSIS 1.1 concatenation, whereby multiple transmissions can be combined into one bandwidth request, reducing overhead and maximizing bandwidth efficiency.
The Cisco uBR905 cable access router also supports unsolicited grants, in which part of the upstream bandwidth is reserved for a particular use. This allows service providers to sell services with both a maximum bandwidth and a guaranteed bandwidth. (The CMTS must also support this feature and be configured on a per-user basis.)
Note End-to-end throughput varies based on the design and loading of network components, the mix of traffic, the processing speed and interface of the host servers, the processing speed and local Ethernet performance of the subscriber's computer, as well as other parameters. Because the network can be configured to support multiple levels of service with different performance requirements, the subscriber's service level agreement also affects throughput. DOCSIS also specifies fundamental performance limitations to ensure that the majority of subscribers experience good performance, rather than permitting a few users to consume the entire capacity.
Security
The Cisco uBR905 provides two basic options to protect the data it transmits over public networks:
•Baseline Privacy Interface (BPI) —Encrypts the Ethernet packets transmitted over the cable interface between a cable modem and CMTS.
•IPsec network security—Provides robust authentication and end-to-end encryption of IP packets over an unprotected network such as the Internet.
Baseline Privacy Interface
BPI security is defined by the DOCSIS 1.0 BPI specification (SP-BPI-I02-990319 or later revision). Both the CMTS and Cisco uBR905 cable access router must support BPI security and enable its use before this option can be used.
When using BPI security, the CMTS and router encrypt all data before transmitting it on the cable interface. Data is encrypted using a 40-bit or 56-bit data encryption algorithm, which prevents unauthorized parties from intercepting and reading the data as it travels across the cable network.
When using the BPI option, the Cisco uBR905 router uses a uniquely assigned key encryption key (kek) to connect to the CMTS. The kek authorizes the router to negotiate a traffic encryption key (tek), which the router and CMTS use to encrypt and decrypt the data sent on the cable interface. The keys have a limited lifespan, and the router must request a new key before the current one expires.
IPsec Network Security
IPsec is a framework of open standards developed by the Internet Engineering Task Force (IETF) for the secure transmission of sensitive information over unprotected networks such as the Internet. IPsec acts at the network layer (Layer 3), protecting and authenticating IP packets between participating IPsec devices ("peers") such as the Cisco uBR905 cable access router.
IPsec encryption provides end-to-end protection across public and insecure networks such as the Internet. Two levels of encryption—56-bit and 168-bit—are available, depending on the software image being used. Keys can be pre-shared or determined from a digital certificate that has been verified by a certificate authority.
The Cisco uBR905 router provides a hardware IPsec accelerator with greatly improved performance over software-based IPsec encryption. Subscribers can have the protection of IPsec encryption without sacrificing the high-speed performance of a cable network.
Note Cisco IOS images with strong encryption (including, but not limited to, 168-bit [3DES] data encryption feature sets) are subject to United States government export controls and have limited distribution. Strong encryption images to be installed outside the United States may require an export license. Customer orders may be denied or subject to delay due to United States government regulations. When applicable, the purchaser or user must obtain local import and use authorizations for all encryption strengths. Contact your sales representative or distributor for more information, or send an e-mail to export@cisco.com.
Feedback
