Using Threshold Manager
Threshold Manager is a CiscoView-launched threshold management application that allows you to set thresholds and retrieve event information. Threshold Manager relies on RMON (Remote Network Monitoring) alarm and event groups supported in Cisco routers and switches. A working knowledge of RMON is required for using this application.
Threshold Manager provides an easy-to-use interface to access device-specific threshold settings. You can set thresholds for network devices using Cisco-provided, predefined default policies. These policies can be applied automatically to target devices. Threshold Manager also supports detailed customization of threshold settings.
For a list of supported devices refer to Chapter 1, "," or the Readme file and the release note. Threshold Manager also has online help.
Note
There are slight differences in the depiction of Threshold Manager when you use a UNIX platform or a Windows platform. However, functions and procedures are the same except where differences are indicated. For UNIX users, a three-button mouse is a prerequisite to performing some functions.
This appendix contains the following sections:
•
•
•
•
Introducing Threshold Manager Terms
To understand Threshold Manager, you should be familiar with the terminology associated with this application. This section defines common terms you see throughout the interface.
What Is a Threshold?
A threshold defines the range in which you expect your network to perform. If thresholds exceed or go below the expected bounds, you examine these areas for potential problems. You can create thresholds for a specific device.
What Is a Policy?
A policy is predefined configuration data that specifies the condition for triggering a threshold event. Threshold Manager uses policies to set thresholds in a Cisco router or switch.
What Is a Policy File?
A policy file is a collection of one or more policies that defines threshold values for specific MIB variables. Each threshold policy is associated with a single SNMP MIB variable type. If a policy specifies an interface type, Threshold Manager applies the policy to the matching device interface. If the policy does not specify an interface type, the application applies the value to all device interfaces. Multiple policy files can be enforced in a device or against a specific interface on a device.
Two types of policy files are available:
•
•
For more information on MIBs, refer to "Introducing CiscoView" section in the "" chapter.
What Is a Profile?
A profile is a group of threshold policy files that cover a specific management area. Threshold Manager supports four profile types:
•
•
•
•
What Is an Alarm?
An alarm is a list of parameters to be watched and pointers to events that are triggered when defined values cross a given threshold. These parameters and pointers are defined by the RMON alarm group. For instance, you define an alarm by picking a variable, such as the number of Ethernet collisions, plus a time interval, such as 1 second, and a threshold, such as 60 collisions. Given this scenario, an alarm is generated when the number of Ethernet collisions exceeds 60 in 1 second.
What Is an Event?
Alarms and events go hand in hand. An event defines the action triggered as a result of an alarm. For example, when the number of collisions on an Ethernet segment exceeds 60 per second, the corresponding event can cause a trap message to be sent to one or more management stations. Events are defined by the RMON event group.
An event is generated by the RMON agent, which could be triggered by a threshold crossing. An event can be signaled as a trap, a new entry in the RMON MIB log table, both, or neither. Threshold Manager displays all events captured from the log table of the RMON agent and correlates threshold-related events to the user-configured threshold policies.
What Is an Agent?
An agent is a process in the device that handles SNMP requests.
Starting Threshold Manager
After Threshold Manager is installed, the CiscoView menu has an additional pulldown menu item called Tools.
Threshold Manager is available only when CiscoView is invoked on devices that support RMON and have a Cisco IOS image with RMON support built into it. The Tools menu is always enabled for non-Cisco IOS devices such as Catalyst switches.
To start Threshold Manager from CiscoView, complete the following steps:
Step 1
Note
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
The Threshold Manager window events list appears.
Note
Starting Threshold Manager from the Command Line
To start Threshold Manager from the command line, do one of the following:
•
$NMSROOT/etc/cview/devices/Threshold-Mgr/tm [-I IP-address [-n host_name [-p /$NMSROOT/etc/cview/devices/Threshold-Mgr [-r read_community_string [-w write_community_string [-e retry_count [-m timeout [-f refresh_interval]]]]]]]]
where:
•
Step 1
Step 2
Step 3
where:
Managing Events
When you start Threshold Manager, the Threshold Manager window events list appears. The Threshold Manager window events list displays threshold events stored as RMON log records in the managed device. This window also displays the name of the target device as either the host name or IP address. The name depends on how you identified the device when you launched Threshold Manager or CiscoView.
Threshold Manager correlates the event information with an existing policy by comparing the object identifier (OID) of the event with the value of the alarm variable in the policy configuration file. If a match occurs, Threshold Manager complements the event display fields of the logged entry with information from the policy file. If no match occurs, Threshold Manager displays a value of undefined in those fields that would be completed by the policy.
Each event occupies a single line in the Threshold Manager window events list and is displayed until one of the following situations occurs:
•
•
•
Viewing Threshold Events
Select View>Retrieve Events.
The Threshold Manager window contains the logged events retrieved from the agent. Threshold Manager retrieves events at startup and again when the refresh timer reaches a specified interval. For more information on the refresh timer, see "Retrieving Events."
When a threshold event is retrieved from the agent, Threshold Manager tries to correlate the event information with existing policies to show additional information. If an event cannot be correlated with any policy, Threshold Manager displays "undefined."
shows the fields and associated policy for each threshold entry in the event list.
You can sort the event list by clicking on the field headers. You can also change the width of the columns by clicking on the dividers between the field headers and stretching the column to the desired size. If you are using UNIX, press the Shift key and click the middle mouse button while dragging the divider. If you are using Windows, click the left mouse button while dragging the divider.
To view a single event, double-click on the event you want to see from the Threshold Manager window events list.
The Single Event View dialog box appears, displaying complete information about a specific event. You use the Single Event View dialog box to determine what threshold settings in the RMON agent generated the event.
The Single Event View dialog box is divided into two panes: Profile Identification and Agent Log Information.
Profile Identification Pane
The Profile Identification pane contains parameters related to the threshold settings that generated the event. This information helps you determine what conditions triggered the event. shows the parameters and their description.
Table A-2 Profile Identification Parameters
Profile
The name of the profile to which the policy file belongs.
Policy Description
A description of the policy. This is the MIB variable name.
Alarm Variable
Name of the MIB variable.
Threshold Parameters: Interval
Interval, in seconds, over which the data is sampled and compared with rising and falling thresholds.
Threshold Parameters: Rising Threshold
Threshold for the sampled statistic. When the current sampled value is greater than or equal to this threshold, a single event is generated. A single event is also generated if the first sample after this entry becomes active, is greater than or equal to this threshold, and the associated Startup Alarm is equal to rising.
After a rising event is generated, another such event is not generated until the sampled value falls below this threshold and reaches Falling Threshold. See "Creating New Policy Files."
Threshold Parameters: Falling Threshold
Threshold for the sampled statistic. When the current sampled value is less than or equal to this threshold, and the value at the last sampling interval was greater than this threshold, a single event is generated. A single event is also generated if the first sample after this entry becomes active, is less than or equal to this threshold, and the associated Startup Alarm is equal to falling.
After a falling event is generated, another such event is not generated until the sampled value rises above this threshold and reaches Rising Threshold. See "Creating New Policy Files."
Sampling Type
Method of sampling the selected variable and calculating the value to be compared with the thresholds. If the value is Absolute, the value of the selected variable is compared directly with the thresholds at the end of the sampling interval. If the value is Delta, the value of the selected variable at the last sample is subtracted from the current value, and the difference compared with the thresholds.
Startup Alarm
Alarm that can be sent when this entry first becomes active. If the first sample after this entry becomes active, is greater than or equal to Rising Threshold, and Startup Alarm is equal to rising, then a single rising alarm is generated. If the first sample after this entry becomes active or is less than or equal to Falling Threshold, and Startup Alarm is equal to falling, a single falling alarm is generated.
Rising Event Type
Agent notification for the rising event. In the case of log, an entry is made in the log table for each event. In the case of snmp-trap, an SNMP trap is sent to one or more management stations.
Falling Event Type
Agent notification for the falling event. In the case of log, an entry is made in the log table for each event. In the case of snmp-trap, an SNMP trap is sent to one or more management stations.
Event Priority
The priority of the event.
If the threshold settings were created by a Threshold Manager policy file, the values from that policy file are displayed. If no policy file is associated with the threshold settings, the fields remain blank.
Agent Log Information Pane (Configuration Information)
The Agent Log Information pane contains information obtained by Threshold Manager from the RMON agent log. This information provides:
•
•
•
•
Because the Agent Log Information pane contains information from the RMON agent log in the managed device, these values display whether a Threshold Manager policy file can be associated with the event.

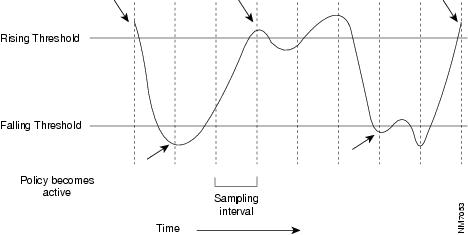

shows when rising and falling events occur with the Startup Alarm set to Rising and Falling.
Figure A-1 When Threshold Events Occur
Retrieving Events
Select View>Retrieve Events to force a retrieve event action from the Threshold Manager window events list.
Threshold Manager retrieves events from the RMON agent log in the following situations:
•
•
•
When the application is operational, Threshold Manager automatically retrieves events from the RMON log at regular intervals. This interval is defined by the refresh timer parameter associated with that instance of Threshold Manager. This parameter is defined when you initiate a Threshold Manager session. The default is 360 seconds. If the refresh timer is set to 0, the Threshold Manager will not automatically retrieve events from the RMON agent.
Sorting Events
To sort events, go to the Threshold Manager window events list and click on any column header to sort the items in that column.
Threshold Manager allows you to change the order in which you view events in the Threshold Manager window events list. This capability permits you to view events in a manner that is most meaningful to you. You can reorder the following fields:
•
•
•
•
•
•
•
•
•
Printing Events
You can print events from the Threshold Manager window events list by selecting File>Print and clicking OK. Make sure your printer is set up properly.
Because events can be deleted from the log, printing lets you maintain a history log of device activity. This log helps you accumulate data to determine your network baselines and performance trends. The printed version of the Threshold Manager window events list contains the information described in "Viewing Threshold Events."
Deleting Events
You can remove events from the RMON log in the managed device. You delete events in the following cases:
•
•
Because events are physically removed from the RMON agent log, deleting events also improves the performance of Threshold Manager when it retrieves and displays new events.
To delete a selected event from the RMON agent log:
Step 1
Step 2
To delete all events from the RMON agent log, select Delete>All Events.
You can also delete selected events from the Single Event View dialog box.
Any user who has launched an instance of Threshold Manager against a device can delete events from that RMON agent log. This means that your Threshold Manager window events list might not display the current contents of the RMON agent log of a device if that device is being managed by more than one Threshold Manager. Your Threshold Manager window events list reflects the change when
•
•
•
Threshold Manager allows you to delete selected events or all events in the log. When you delete a selected event, all events with the same EventIndex value are removed from the RMON log.
Event Task Examples
shows examples of event tasks that you can use to help manage your network.
Managing Thresholds
With Threshold Manager, you can manage existing threshold settings and policies or create new policies. This capability allows you to tailor alarms and events to your specific network needs. The Configure Thresholds dialog box provides you with the tools to do the following:
•
•
•
•
Displaying Thresholds
To access the Configure Thresholds dialog box, select Config>Thresholds.
The Configure Thresholds dialog box defaults to the Config Threshold tab. The Config Threshold tab is divided into two panes. The upper pane is called the Policies pane. The lower pane is called the Current Threshold Settings pane.
Policies Pane
The Policies pane displays all the existing policy files that can be applied to the managed device. The displayed policies can be default policies provided by Cisco Systems, modified policies, or any user-defined policies. Threshold Manager provides detailed information about each policy to help you determine which thresholds to set in the RMON agent.
The content of this pane is specific to the instance of Threshold Manager and is visible only at your local machine.
This pane also allows you to do the following:
•
•
•
•
For more information on the policies, see "Using Policy Files" later in this chapter.
Current Threshold Settings Pane
The Current Threshold Settings pane displays the threshold settings for the RMON agent in a managed device. The threshold settings that display an active status are those enforced in the RMON agent. These threshold settings are viewable from any Threshold Manager launched against that device. The Current Threshold Settings pane also provides information on the number of current threshold settings, the status of those settings, and the last time the current threshold settings pane was updated. From the Current Threshold Settings pane, you can do the following:
•
•
•
•
•
•
If Threshold Manager created the threshold settings, the fields displayed in the Current Threshold Settings pane will contain data provided by the policy file. If Threshold Manager did not create the policy or Threshold Manager cannot associate a policy with an event, only the information provided by the RMON agent will be displayed.
Managing Thresholds
With Threshold Manager you can manage existing threshold settings and policies or create new policies. This capability allows you to tailor alarms and events to your specific network needs. The Configure Thresholds dialog box provides you with the tools to do the following:
•
•
•
•
To access the Configure Thresholds dialog box, select Config>Thresholds.
Obtaining Managed Device Information
The Device Summary dialog box displays summary information about the device and the RMON MIB. The Device Summary dialog box displays information about the device currently managed by Threshold Manager. This is helpful if you want to determine the class of the target device or obtain information about the device interfaces. In a Windows platform, from the Configure Thresholds dialog box, click the Device Summary tab to access the Device Summary dialog box. On a UNIX platform, from the Threshold Manager window, select Config>Device Summary to access the Device Summary dialog box.
describes the fields in the Device Summary dialog box.
Click Retrieve to get the latest Interface/Port List information.
Table A-5 Device Summary Dialog Box
Device Class
Type of device.
Last Refresh Time
Last time events were retrieved by the agent.
Log Entries
Alarm Entries
Event EntriesNumber of entries in the log, alarm, and event tables.1
System Name
System Contact
System Uptime
System Description
System LocationInformation about the system. One or more fields might be blank, depending on the device configuration.
Interface/Port List
List of interfaces and ports available to the device. The icon (Windows NT only) in the left column is either an I (interface) or P (port). A red icon means the interface or port is down, and a green icon means the interface or port is up.
The list of ports and interfaces for the device provides you with information about individual interfaces. This is helpful when you are designing and applying policies to specific interfaces. You can sort on the fields in this dialog box to present the information in a meaningful manner.
1 The counters of the RMON tables in the Device Summary dialog box reflect the value at the time the interface table entries were retrieved completely. Because tables are retrieved asynchronously within Threshold Manager and a large log table might be completed much later than the interface table, there are situations when the counters in the Device Summary dialog box do not match the actual counters.
Changing the Managed Device
There is a one-to-one relationship between a single instance of Threshold Manager and the managed device. Also, when Threshold Manager is launched from CiscoView, the application receives default run-time arguments used for operations. Threshold Manager allows you to alter both the target device and the run-time parameters from within the application. This is particularly useful if you want to use a single instance of Threshold Manager to apply threshold settings in multiple devices or if you started the application with the wrong run-time parameters.
This device information is changed from the Properties dialog box. The Properties dialog box allows you to do the following:
•
•
•
•
•
To access the Properties dialog box on a Windows platform, click the Properties tab from the Configure Thresholds dialog box. On a UNIX platform, select Config>Properties from the Threshold Manager window.
Configuring Thresholds
The Configure Thresholds dialog box allows you to modify and create policies and work with threshold settings.
This dialog box consists of two panes: the Policies pane and the Current Threshold Settings pane, which are described in "Managing Thresholds." For information on changing policies, see "Using Policy Files" later in this chapter. When Threshold Manager is installed, 18 policy files appear in this dialog box. You can select one or all to use as thresholds.
Adding a Threshold Setting
Before you can set a threshold in the RMON agent, you must add the settings to the Current Threshold Settings pane. You can add all policies as threshold settings or you can add specific policies. A policy can result in multiple threshold settings in the Current Threshold Settings pane. The number of times Threshold Manager adds the policy to the Current Threshold Settings pane depends on the target type and number of interfaces defined in the policy file.
To add all policies in the Policies pane to the Current Threshold Settings pane, click Add All Policies.
To add selected policies to the Current Threshold Settings pane:
Step 1
Step 2
To add multiple selected policies to the Current Threshold Settings pane while using UNIX:
Step 1
Step 2
To add multiple selected policies to the Current Threshold Settings pane while using Windows:
Step 1
Step 2
Step 3
A policy added to the Current Threshold Settings pane retains a pending status. This status does not change until you enforce the threshold settings to the RMON agent. Threshold settings with a pending status are viewable only from local machines.
Modifying Threshold Settings
To modify threshold settings:
Step 1
The Configure Thresholds dialog box appears.
Step 2
The Modify Threshold Settings dialog box appears. From this dialog box, you can do the following:
•
•
•
•
•
•
•
•
•
•
•
•
Threshold Manager lets you temporarily alter threshold settings for an alarm object instance. This is useful when you want to monitor network performance for a specific period of time or fine-tune threshold settings before applying them permanently. Changes to existing threshold settings are not saved in the associated policy file. Therefore, if the device loses power or is shut down, the modifications are lost. To make permanent changes to the threshold settings, alter the associated policy file, and add the new threshold settings to the Current Threshold Settings pane.
You can alter a threshold setting that has a pending or active status. A threshold setting with a failed status means the threshold setting was rejected by the RMON agent and cannot be altered.
Deleting a Threshold Setting
You can remove active threshold settings enforced in the RMON agent and pending threshold settings from the Current Threshold Settings pane of the Configure Thresholds dialog box. Deleting a threshold setting removes all events associated with that threshold setting from the RMON log.
To delete a threshold setting, regardless of status:
Step 1
Step 2
A Threshold Manager Warning popup window appears. Click OK, or click Cancel to cancel the deletion.
To delete more than one threshold setting, regardless of status, while using UNIX:
Step 1
Step 2
A Threshold Manager Warning popup window appears. Click OK, or click Cancel to cancel delete.
Step 3
To delete more than one threshold setting, regardless of status while using Windows:
Step 1
Step 2
Step 3
A Threshold Manager Warning popup window appears. Click OK, or click Cancel to cancel delete.
Step 4
Threshold settings with a pending status are removed from the Current Threshold Setting pane when you do the following:
•
•
•
Threshold Manager Task Examples
describes common Threshold Manager tasks.
Using Policy Files
Threshold Manager is delivered with a set of predefined policy files that are used to set threshold values into RMON device agents. A Threshold Manager policy file contains at least one threshold policy (the default policy) for the alarm variable defined in the policy file. A policy file can contain more than one threshold policy to define threshold values for specific interface types, but it contains policies for only one MIB variable. In other words, there is a separate policy for each MIB variable. When an interface-specific policy is defined, Threshold Manager applies the threshold policy to the matching interface type. If no interface-specific threshold policy is defined, Threshold Manager applies the default threshold value to all device interfaces.
Formatting Policy Files
A policy file is an ASCII file; it is defined by keywords used by Threshold Manager to scan the file. Each policy file defines an alarm variable to be monitored by a device RMON agent and one or more threshold policies to be sent to the device agent for monitoring purposes.
To understand the meaning of policies and to simplify file parsing, Threshold Manager imposes strict rules whenever a policy file is created either manually or through the Create Threshold Policy dialog box. It is strongly recommended that you customize policy files by using the Threshold Manager graphical user interface (GUI).
A policy file is composed of many keyword-value pairs. A keyword and its value are separated by an equal sign (=). If the keyword requires more than one value, each value is separated by a colon (:). Each line of a policy profile contains only one keyword-value pair, for example:
Target_Type = etherStats Rising_Threshold = 200 Falling_Threshold = 20 Sample_Interval = 60:0:300The order of the keyword-value pair is not important. All white spaces are ignored during file parsing. If a keyword appears more than once, the last keyword-value pair takes effect. The only exception to this rule is keyword Interface_Threshold.
Defining Interface-Specific Policies
An interface-specific policy is defined by the keyword Interface_Threshold. There can be multiple Interface_Threshold keyword-value pairs in a policy profile, each of which defines a specific threshold policy (value) for a particular interface type, for example:
Interface_Threshold = ethernetCsmacd:375000000:187500000:100000000 Interface_Threshold = ethernetCsmacd:37500000:18750000:10000000The syntax of this special keyword-value pair is as follows:
Interface_Threshold=interface_type:rising_thresh_value:falling_thresh_va lue:interface_speedwhere interface_speed is optional.
Threshold Manager uses interface-specific policies to set specific interface thresholds. If the interface speed is specified in the policy, the policy is applied to interfaces that match both the interface type and speed. If interface speed is not present, the policy is applied to the interface that matches the specified interface type, regardless of speed. The default policy is used to set thresholds for interfaces without an interface-specific policy defined.
Loading Policies
Policies are loaded into Threshold Manager during startup and when a new instance of Threshold Manager is launched to monitor another device. After the policies are loaded, any new policy file created manually is ignored by Threshold Manager. However, a new policy file that is created and saved in the Create Threshold Policy dialog box is immediately visible inside Threshold Manager.
Policy files are grouped into three types: global, device class, and host. All policy files are saved under the config directory of the Threshold Manager. Policy files under the config directory are global policy files and are used for all devices. Policy files under the device class subdirectory apply to devices that belong to the same device class family. Policy files that are saved in the host subdirectory are used to set thresholds against only the specific host.
When reading policies for a given device, Threshold Manager searches that host subdirectory to locate any host-specific policy files defined for that device. It then scans the device class subdirectory for policy files defined for that device class. Last, it picks up any policy files not defined elsewhere.
Naming Policy Files
Threshold Manager policy files require specific naming conventions to simplify file parsing for existing policies and when a new policy file is created. The two Threshold Manager policy file naming conventions are described below.
•
All policy files have a .thd file extension. Threshold Manager loads only policy files with a .thd extension. You can create new policy files manually or by using the Threshold Manager GUI. A policy file created through the GUI is saved as one of the policy file classes based on user's choice, with a file name alarm_variable_name.thd, where alarm_variable_name is the alarm variable entered.
•
The config directory is installed by the Threshold Manager installation script under $NMSROOT/etc/cview/devices/Threshold-Mgr. The config directory is under Threshold-Mgr. CiscoView launches Threshold Manager with a default config directory of $NMSROOT/etc/cview/devices/Threshold-Mgr/config. However, this can be overridden by starting the Threshold Manager with -p Threshold Manager argument. Once Threshold Manager is started, you cannot change the Threshold Manager directory even when you launch a new instance of Threshold Manager from within the application to monitor another device.
Using Default Policy Files
Threshold Manager comes with 18 policy files already defined. In addition, there could be policies that are device-specific that are under the device subdirectories. These device- specific policies override the default policies.
contains a brief description of the policy files.
Modifying a Policy File
Threshold Manager allows you to modify an existing threshold policy file so that you can change threshold settings for an Alarm variable without redefining the complete policy. You can create a policy file once and then tailor it for specific interface types. Altering policy file values does not change any threshold settings, regardless of the status of those settings.
Double-click the selected policy in the Policies pane of the Configure Thresholds dialog box to display the Modify Threshold Policy dialog box. From this dialog box, you can do the following:
•
•
•
•
•
•
•
•
•
•
When you complete your modifications, you can save the changes in the host-specific, device class, or global directories. Saving a policy file automatically updates the existing policy file in the Policies pane. Clicking Continue applies the altered policy directly to the Current Threshold Settings pane without saving the changes.
Customizing Policy Files
A powerful feature of Threshold Manager is that it allows you to easily create customized threshold policies. This means that you can design threshold settings specific to the conditions and performance of your network. Customization also means you can define which alarm variables to monitor, the type of threshold variable, and the specific interfaces to which the thresholds apply.
You create new threshold policies to do the following:
•
•
•
Cisco maintains a list of all SNMP MIBs supported by Cisco IOS Release 10.2 and later. This list is located at
ftp://ftp.cisco.com/pub/mibs/supportlists/
The SNMP MIBs are organized by device class for both routers and switches.
Creating New Policy Files
You create a new policy from the Create Threshold Policy dialog box. To access this dialog box, click the Create New Policy button in the Policies pane of the Configure Thresholds dialog box.
The Create Threshold Policy dialog box contains the following fields:
•
•
•
•
•
The Create Threshold Policy dialog box lets you define the following fields:
•
•
•
•
•
•
•
•
•
•
•
Configuration File Content
The policy configuration file is a text file that sets the parameters of the threshold for a specific MIB variable. The data in the configuration file is composed of keyword-value pairs in the form of <item name> = <item value>. The keywords contained in the configuration file are as follows:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
The syntax of the Interface_Threshold keyword is
<interface type>:<rising threshold value>:<falling threshold value>:<interface speed>
The following is an example of the Interface_Threshold keyword and value:
Interface_Threshold = ethernet Csmacd:375000000:187500000:100000000•
•
•
Policy configuration files are secured using the standard file security procedures in the host operating system.
After you create a policy file, you can do the following:
•
•
•
You can save a threshold policy file in the host-specific, device class, or global directory. Remember that the host-specific directory takes on the name of the managed device. This name can be the host name or IP address of the device, depending on how you identified the device when you launched Threshold Manager. Policy files previously saved under the host name of a device will not appear in the Policies pane if you specify the IP address of the managed device when you launch Threshold Manager.
You cannot save a policy file that has a customized target type.
If the policy file is of an interface variable type, you can apply the threshold settings to one or more interfaces.
You can also add a policy file directly as a threshold setting without saving it to disk. This feature lets you create and add temporary threshold settings. However, there is no permanent record of these policies. They are lost when the managed device is turned off or goes down or when you delete the threshold settings from Threshold Manager.
After creating the policy file, click Continue to add it to the Current Threshold Settings pane. The new threshold setting will have a status of pending.
Adding Settings to Multiple Interfaces
Threshold Manager lets you assign multiple threshold settings to one or more interfaces within a single policy file. You can define common variables once while retaining the freedom to specify individual threshold on an interface-by-interface basis.
To add multiple interface threshold settings within a single policy file:
Step 1
Step 2
Step 3
Step 4
Step 5
Repeat Step 3 and Step 4 as many times as necessary to add interface threshold settings.
After you have defined each specific threshold setting, you can apply it to one or more physical interfaces. Click Continue to access the Interface Selection dialog box. This dialog box displays all available interfaces in an up state for that device. Select the desired interfaces, and click OK to apply the threshold settings to the physical interfaces. This action also places the threshold settings in the lower pane of the Configure Threshold dialog box with a status of pending.
Deleting Policy Files
The current Threshold Manager implementation does not provide a mechanism for deleting existing threshold policies from within the application. You delete policies using the delete function of the UNIX or Windows operating systems.
The policies are located in the Threshold-Mgr/Config directory. Depending on how you saved the policy file, it can be found in one of the following subdirectories:
•
•
•
All default policies in this release of Threshold Manager are found in the global directory.
Policy Task Examples
describes common Threshold Manager policy tasks.
Starting a New Threshold Manager
You can run multiple instances of Threshold Manager simultaneously so as to manage thresholds on several devices. From the pull-down menu, select File>New Threshold Manager to open the Start a New Threshold Manager dialog box.
The defaults in this dialog box apply to the current device configuration. You need to set the IP address of the device to be managed. You also need to specify the Threshold Manager Directory if it is not installed in the default location. The Threshold Manager directory is under the Threshold directory called Threshold-Mgr. For example:
/CWW/etc/cview/devices/Threshold-Mgr/
For descriptions of the other input fields in this dialog box, see "Troubleshooting Threshold Manager" later in this chapter.
Filtering Profiles
Threshold Manager lets you filter out profiles. A profile is a set of policy files that belong to a specific management area. When you filter a profile, all the policy files in that profile are no longer available to this instance of Threshold Manager. Filtering profiles is useful when you want to limit the number or focus on the type of policies available to an RMON agent. You can also use it when you want to set interface-related thresholds. By disabling all other profiles, only the interface policies are shown in the windows that manage policies.
To filter one or more profiles:
Step 1
Step 2
Step 3
Profiles appearing in the Hide Profile pane are no longer available to this version of Threshold Manager, and policy files contained in these profiles will not be displayed in the Policies pane of the Configure Thresholds dialog box. However, any threshold settings active in the RMON agent that belong to the filtered profile are not affected.
Troubleshooting Threshold Manager
describes known problems and how to correct them.
