Managing Advanced Features
Cisco MDS 9000 Family switches support advanced features, such as world wide names, domains, and name server. The Fabric Manager allows you to configure these features on multiple Cisco 9000 switches. The Device Manager allows you to configure these advanced features on a single Cisco 9000 switch. This chapter describes how to configure these advanced features using the Fabric Manager and Device Manager.
Note For information about these advanced features and configuring them using the command-line interface (CLI), refer to the Cisco 9000 Family Configuration Guide.
This chapter includes the following information:
•Managing World Wide Names
•Managing Domain Parameters
•Configuring the Name Server
•Viewing RSCN Information
•Configuring Timers
•Configuring Virtual Routing Redundancy Protocol (VRRP)
Managing World Wide Names
Each port on a Cisco MDS 9000 Family switch is uniquely identified by its world wide names (WWNs), which include the switch MAC address and an identifier for each port. The principal switch selection and the allocation of domain IDs use the WWN to identify a specific port.
To add WWNs from the Fabric Manager, choose FC > WWN Manager on the menu tree. The dialog box from the Fabric Manager displays WWN information for multiple switches. To add WWNs from the Device Manager, choose WWN Manager from the FC menu. The dialog box from the Device Manager displays WWNs for a single switch.
Both dialog boxes show the display-only information described in Table 11-1.
Table 11-1 FC > WWN Manager—Display-Only Attributes
Display-Only Information
|
Description
|
Switch
|
Displays the switch ID. This attribute is only displayed from the Fabric Manager.
|
Type 1 WWNs: Max
|
Displays the maximum number of Type 1 WWNs available for assignment to internal entities. The IEEE publishes standards for three formats for 48-bit WWNs:
•Type 1
•Extended Type 2
•Type 5 Registered
|
Type 1 WWNs: Available
|
Displays the number of Type 1 WWNs currently available for assignment to internal entities.
|
Type 1 WWNs: Reserved
|
Displays the number of Type 1 WWNs reserved and unavailable for use.
|
Type 2&5/Other WWNs: Max
|
Displays the maximum number of total WWNs of types Type 2 and Type 5 available for assignment to internal entities.
|
Type 2&5/Other WWNs: Available
|
Displays the sum total of Type 2 and Type 5 WWNs currently available for assignment to the internal entities.
|
Type 2&5/Other WWNs: Reserved
|
Displays the number of Type 1 WWNs reserved and unavailable for use.
|
SwitchWWN
|
Displays the WWN for the switch (Fabric Manager only)
|
Table 11-2 describes the configurable attributes for the WWN.
Table 11-2 FC > WWN Manager—Configurable Attributes
Configurable Attribute
|
Description
|
BaseMacAddress
|
Specifies the first MAC address used for generating WWNs when the default range of WWNs generated from supervisor MAC addresses is exhausted.
|
MacAddressRange
|
Specifies the number of secondary MAC addresses starting from and including the WWN SecondayBaseMacAddress.
|
Managing Domain Parameters
This section describes how to configure domain parameters and includes the following topics:
•Viewing Domain Information
•Configuring Domain Attributes
•Viewing Domain Information
•Viewing Domain Manager Statistics
•Configuring Domain Interfaces
•Configuring Persistent FCIDs
•Viewing Domain Areas
•Viewing Domain Area Ports
Managing Running Attributes for Domains
To view running domain attributes from the Fabric Manager, choose FC > Domain Manager > Running on the menu tree. The dialog box from the Fabric Manager displays domain attributes for multiple switches.
To view running domain attributes from the Device Manager, choose Domain Manager from the FC menu and click the Running tab. The Domain Manager dialog box, with the Running tab selected, displays domain attributes for a single switch.
Both dialog boxes show the display-only attributes described in Table 11-3.
Table 11-3 FC > Domain Manage > Principal—Display-Only Attributes
Display-Only Attribute
|
Description
|
Switch
|
Displays the switch ID. This attribute is only displayed from the Fabric Manager.
|
Vsan
|
Displays the VSAN ID.
|
State
|
Displays the state of the Domain Manager on the local switch on this VSAN.
|
Local Switch: DomainId
|
Displays the Domain Id of the local switch on this VSAN or zero if no Domain Id has been assigned.
|
Local Switch: WWN
|
Displays the WWN of the local switch on this VSAN.
|
Local Switch: Priority
|
Displays the priority value, used in the principal switch selection process, for the current switch.
|
Principal Switch: WWN
|
Displays the WWN of the principal switch on this VSAN, or zero (0) if the identity of the principal switch is unknown.
|
Principal Switch: Priority
|
Displays the priority value, used in the principal switch selection process, for the principal switch.
|
Configuring Domain Attributes
From this dialog box you can specify a fabric name for fabric logins on the VSAN and set the priority for the switch used in the principal switch selection process.
Table 11-4 describes the configurable principal attributes for the domain.
Table 11-4 FC > Domain Manage > Principal—Configurable Attributes
Configurable Attribute
|
Description
|
FabricName
|
Specifies the WWN that is used for fabric logins on this VSAN.
This attribute is available only if principal switch selection is used.
|
Priority
|
Specifies the priority of the switch used in the principal switch selection process.
|
State
|
Displays the operating state of the VSAN. Click the State heading to sort the information in ascending or descending order.
|
To manage domain attributes from the Fabric Manager, choose FC > Domain Manager > Configuration on the menu tree. The dialog box from the Fabric Manager lets you manage domain attributes for multiple switches.
To manage domain attributes from the Device Manager, choose Domain Manager from the FC menu and click the Configuration tab. The Device Manager dialog box displays domain attributes for a single switch.
Both dialog boxes show the display-only attributes described in Table 11-5.
Table 11-5 FC > Domain Manager > Configuration—Display-Only Attributes
Display-Only Attribute
|
Description
|
Switch
|
Displays the switch ID. This attribute is only displayed from the Fabric Manager.
|
Vsan
|
Displays the VSAN ID.
|
Table 11-6 describes the configurable attributes for the domain.
Table 11-6 FC > Domain Manager > Configuration—Configurable Attributes
Configurable Attribute
|
Description
|
Enable
|
Enables or disables principal switch selection on this VSAN.
•If enabled on an active VSAN, the switch participates in principal switch selection.
•If disabled, the switch does not participate in the principal switch selection or in domain allocation. In this case, the domain ID must be configured statically.
|
ConfigDomain: Id
|
Specifies the configured domain ID of the local switch on this VSAN, or zero if no domain ID has been configured.
|
ConfigDomain: IdType
|
Click to select the type of configured Domain ID. Valid values are:
•static
•preferred
|
FabricName
|
Specifies the WWN that is used for fabric logins on this VSAN.
This attribute is available only if principal switch selection is used.
|
Priority
|
Specifies the priority of the switch used in the principal switch selection process.
|
ContiguousAllocation
|
Specifies how the switch behaves when elected as the principal switch.
Check the check box to enable or disable the ContiguousAllocation feature.
•When enabled, the switch does not accept noncontiguous domain IDs, and attempts to replace all domain IDs in the list with contiguous domain IDs.
•When disabled, the switch grants the domain IDs, even if they are noncontiguous.
|
AutoReconfigure
|
Specifies how the switch responds if two disjointed fabrics with overlapping domain ID lists merge.
Check the check box to enable or disable the AutoReconfigure feature.
•When enabled, the switch rebuilds the fabric.
•When disabled, the switch isolates the E_ports on which the errors occurred.
|
Restart
|
Specifies whether the domain manager is to reconfigure the fabric and rebuild the domain ID tree again in case of errors. Valid values are:
•nonDisrup
•disruptive
•noOp
|
Viewing Domain Information
To view domain information from the Device Manager, choose Domain Manager from the FC menu and click the Domains tab. The dialog box displays domain information for a single switch and shows the display-only attributes described in Table 11-7.
Table 11-7 FC > Domain Manager > Domains—Display-Only Attributes
Display-Only Attribute
|
Description
|
Switch
|
Displays the switch ID. This attribute is only displayed from the Fabric Manager.
|
Vsan, DomainId
|
Displays the VSAN ID and the domain ID.
|
SwitchWwn
|
Displays the WWN of the switch on this VSAN.
|
Viewing Domain Manager Statistics
To monitor domain manager statistics from the Fabric Manager, choose FC > Domain Manager > Statistics on the menu tree. The dialog box from the Fabric Manager displays domain statistics for multiple switches.
To monitor domain manager statistics from the Device Manager, choose Domain Manager from the FC menu and click the Statistics tab. The Domain Manager dialog box, with the Statistics tab selected, displays domain statistics for a single switch.
Both dialog boxes show the display-only attributes described in Table 11-8.
Table 11-8 FC > Domain Manager > Statistics—Display-Only Attributes
Display-Only Attribute
|
Description
|
Switch
|
Displays the switch ID. This attribute is only displayed from the Fabric Manager.
|
Vsan
|
Displays the VSAN ID.
|
PrincipalSwitchSelections
|
Displays the number of principal switch selections on this VSAN.
|
Fabrics—Builds
|
Displays the number of fabric builds on this VSAN.
|
Fabrics—Reconfigures
|
Displays the number of fabric reconfigures on this VSAN.
|
Fcid—Granted
|
Displays the number of FC IDs granted for use on the local switch since the switch was initialized.
|
Fcid—Recovered
|
Displays the number of FC IDs recovered on the local switch since the switch was initialized.
|
Fcid—Free
|
Displays the number of FC IDs unassigned for the VSAN.
|
Fcid—Assigned
|
Displays the number of FC IDs assigned for the VSAN.
|
Fcid—Reserved
|
Displays the number of FC IDs reserved for the VSAN.
|
Configuring Domain Interfaces
To configure domain interfaces from the Fabric Manager, choose FC > Domain Manager > Interfaces on the menu tree. The dialog box from the Fabric Manager displays domain interfaces for multiple switches.
To configure domain interfaces from the Device Manager, choose Domain Manager from the FC menu and click the Interfaces tab. The Domain Manager dialog box, with the Interfaces tab selected, displays domain interfaces for a single switch.
Both dialog boxes show the display-only attributes described in Table 11-9.
Table 11-9 FC > Domain Manager > Interfaces—Display-Only Attributes
Display-Only Attribute
|
Description
|
Switch
|
Displays the switch ID. This attribute is only displayed from the Fabric Manager.
|
Vsan, Interface
|
Displays the VSAN ID and port ID.
|
Role
|
Displays the role of this interface.
|
Table 11-10 describes the configurable attributes for domain interfaces.
Table 11-10 FC > Domain Manager > Interfaces—Configurable Attributes
Configurable Attribute
|
Description
|
RcfReject
|
Enables or disables RcfReject messages on this interface. If enabled, incoming RCF messages are rejected on this interface. If disabled, incoming RCF messages are accepted on this interface.
|
Viewing Domain Areas
To monitor domain areas from the Fabric Manager, choose FC > Domain Manager > Domain > Areas on the menu tree. The dialog box from the Fabric Manager displays domain areas for multiple switches.
To monitor domain areas from the Device Manager, choose Domain Manager from the FC menu and click the Areas tab. The Domain Manager dialog box, with the Areas tab selected, displays domain areas for a single switch.
Both dialog boxes show the display-only attributes described in Table 11-11.
Table 11-11 FC > Domain Manager > Areas—Display-Only Attributes
Display-Only Attribute
|
Description
|
Switch
|
Displays the switch ID. This attribute is only displayed from the Fabric Manager.
|
Vsan
|
Displays the VSAN ID.
|
AssignedAreaIdList
|
Displays the list of area IDs assigned in this VSAN.
|
Configuring Persistent FCIDs
To configure persistent FCIDs from the Fabric Manager, choose FC > Domain Manager > Persistent FCIDs on the menu tree. The dialog box from the Fabric Manager displays persistent FCIDs for multiple switches.
To configure persistent FCIDs from the Device Manager, choose Domain Manager from the FC menu and click the Persistent FCIDs tab. The Domain Manager dialog box, with the Persistent FCIDs tab selected, displays persistent FCIDs for a single switch.
Both dialog boxes show the display-only attributes described in Table 11-9.
Table 11-12 FC > Domain Manager > Persistent FCIDs—Display-Only Attributes
Display-Only Attribute
|
Description
|
VsanID, WWN
|
Displays the VSAN ID and the WWN of the switch on this VSAN.
|
Used
|
Displays True if the FC ID is being used; False if the FC ID is not being used.
|
Table 11-10 describes the configurable attributes for persistent FCIDs.
Table 11-13 FC > Domain Manager > Persistent FCIDs—Configurable Attributes
Configurable Attribute
|
Description
|
FcId
|
Displays the FC ID assigned for this WWN on this VSAN.
|
Mask
|
Displays the number of FC IDs which are assigned either statically or dynamically for this WWN on this VSAN. Possible values are Single, meaning just one FCI ID is assigned, or Area, meaning all of the FC IDs in the area that is specified are assigned.
|
Assignment
|
Displays the type of persistency of this FC ID (static or dynamic).
|
Before you can create persistent FCIDs, you must:
•Configure a static domain ID in that VSAN
•Ascertain that the static configured domain and the runtime domain are the same. You can verify this using the show fcdomain command. For information about using the command line interface (CLI), refer to the Cisco 9000 Family Configuration Guide.
Note If you connect to the switch from an AIX or HP-UX host, be sure to create the persistent FC ID in the VSAN that connects these hosts.
Note Persistent FC IDs with loop-attache devices (FL ports) need to remain connected to the same port in which they were configured.
To create a new persistent FCID, do the following:
Step 1 Click the Create button.
The Create Domain Manager Persistent FCIDs dialog is displayed.
Step 2 Enter the VSAN ID.
Step 3 Enter the WWN.
Step 4 Enter the FCID.
Step 5 Select the Mask.
This is the number of FC IDs which are assigned either statically or dynamically for this WWN on this VSAN. Possible values are Single, meaning just one FCI ID is assigned, or Area, meaning all of the FC IDs in the area that is specified are assigned.
Step 6 Select the Assignment.
This is the type of persistency of this FC ID (static or dynamic).
Step 7 Click Create to create the persistent FCID; click Close to return to the Domain Manager without creating the FCID.
To delete a persistent FCID, do the following.
Step 1 Select the persistent FCID you want to delete.
The Delete button is enabled.
Step 2 Click the Delete button to delete the FCID.
Viewing Domain Area Ports
To monitor area ports for domains from the Fabric Manager, choose FC > Domain Manager > Domain > Area Ports on the menu tree. The FC dialog box from the Fabric Manager displays area ports for domains for multiple switches.
To monitor area ports for domains from the Device Manager, choose Domain Manager from the FC menu and click the Area Ports tab. The Domain Manager dialog box, with the Area Ports tab, displays area ports for domains for a single switch.
Both dialog boxes show the display-only attributes described in Table 11-14.
Table 11-14 FC > Domain Manager > Area Ports—Display-Only Attributes
Display-Only Attribute
|
Description
|
Switch
|
Displays the switch ID. This attribute is only displayed from the Fabric Manager.
|
Vsan, AreaId
|
Displays the VSAN ID and area ID.
|
Ports
|
Displays the list of port IDs assigned in this area and VSAN.
|
Configuring the Name Server
Configuring the Name Server includes the following tasks.
•Viewing General Attributes for the Name Server
•Viewing Advanced Attributes for the Name Server
•Proxy Ports for the Name Server
•Viewing Name Server Statistics
Viewing General Attributes for the Name Server
To view general name server attributes from the Device Manager, choose Name Server from the FC menu. The Name Server dialog box, with the General tab selected, displays name server attributes for a single switch. This dialog box shows the display-only attributes described in Table 11-15.
Table 11-15 FC > Name Server > General—Display-Only Attributes
Display-Only Attribute
|
Description
|
Vsan, Fcid
|
Displays the VSAN ID and Fibre Channel ID.
|
Type
|
Displays the type of this port. Valid values are:
•Nx_port
•Fx_port
•xE_port
|
PortName
|
Displays the Fibre Channel port name (or WWN) for this Nx_port.
|
NodeName
|
Displays the Fibre Channel node name (or WWN) for this Nx_port.
|
FabricPortName
|
Displays the fabric port name (WWN) of the Fx_port to which this Nx_port is attached.
|
ClassOfSvc
|
Displays the class of service supported by the port. Zero (0) indicates that this port does not support any class of service.
|
FC4Type
|
Displays the FC-4 protocol types supported by this Nx_port.
|
FC4Features
|
Displays the FC-4 features associated with this port and FC-4 type (which shows if the port is the target or initiator).
|
Viewing Advanced Attributes for the Name Server
To monitor advanced name server attributes from the Device Manager, choose Name Server from the FC menu and click the Advanced tab. The Name Server dialog box, with the Advanced tab selected, displays advanced name server attributes for a single switch. This dialog box shows the display-only attributes described in Table 11-16.
Table 11-16 FC > Name Server > Advanced—Display-Only Attributes
Display-Only Attribute
|
Description
|
Vsan, Fcid
|
Displays the VSAN ID and Fibre Channel ID.
|
PortIpAddress
|
Displays the IP address of the associated port.
|
SymbolicNodeName
|
Displays the user-defined node name for this port.
|
SymbolicPortName
|
Displays the user-defined name of this port.
|
NodeIpAddress
|
Displays the IP address of the node for this Nx_port.
|
HardAddress
|
If the port is not an NL_port or if it does not have a hard address, this attribute displays all zeros (0).
|
ProcAssoc
|
Displays the Fibre Channel initial process associator (IPA).
|
Proxy Ports for the Name Server
To configure proxy ports for the name server from Fabric Manager, choose FC > Name Server Proxies on the menu tree. The dialog box from the Fabric Manager displays name server proxy ports for multiple switches.
To configure proxy ports for the name server from the Device Manager, choose Name Server from the FC menu and click the Proxy tab. The Name Server dialog box, with the Proxy tab selected, displays name server proxies for a single switch.
Both dialog boxes show the display-only attributes described in Table 11-17.
Table 11-17 FC > Name Server > Proxies—Display-Only Attributes
Display-Only Attribute
|
Description
|
Switch
|
Displays the switch ID. This attribute is only displayed from the Fabric Manager.
|
Vsan
|
Displays the VSAN ID.
|
Table 11-18 displays the configurable proxy attributes for the name server.
Table 11-18 FC > Name Server > Proxies—Configurable Attributes
Configurable Attribute
|
Description
|
PortName
|
Specifies the name of the proxy port that can register or deregister for other ports on this VSAN. Use the proxy attribute to enable third party registrations.
|
Viewing Name Server Statistics
To monitor name server statistics from the Fabric Manager, choose FC > Name Server Statistics on the menu tree. The dialog box from the Fabric Manager displays name server statistics for multiple switches.
To monitor name server statistics from the Device Manager, choose Name Server from the FC menu and click the Statistics tab. The Name Server dialog box, with the Statistics tab selected, displays name server statistics for a single switch.
Both dialog boxes show the display-only attributes described in Table 11-19.
Table 11-19 FC > Name Server > Statistics
Display-Only Attribute
|
Description
|
Switch
|
Displays the switch ID. This attribute is only displayed from the Fabric Manager.
|
Vsan
|
Displays the VSAN ID.
|
Queries—Rx
|
Displays the total number of queries received by the local switch on this VSAN.
|
Queries—Tx
|
Displays the total number of queries sent by the local switch on this VSAN.
|
Requests Rx—Reg
|
Displays the total number of registration requests received by the local switch on this VSAN.
|
Requests Rx—DeReg
|
Displays the total number of deregistration requests received by the local switch on this VSAN.
|
Rscns—Rx
|
Displays the total number of RSCN commands received by the local switch on this VSAN.
|
Rscns—Tx
|
Displays the total number of RSCN commands sent by the local switch on this VSAN.
|
Rejects Tx
|
Displays the total number of requests rejected by the local switch on this VSAN.
|
Viewing LUN Information
This section describes how to manage LUN information and includes the following topics:
•Configuring LUN Discovery
•Viewing Logical Unit Information
•Viewing LUNs Information
Configuring LUN Discovery
To view logical unit number (LUN) information from the Device Manager, choose LUN from the FC menu. The dialog box shows the display-only attributes described in Table 11-20.
Table 11-20 LUN Discover
Display-Only Attribute
|
Description
|
StartDiscovery
|
Determines the scope of LUN discovery. Click local to restrict discovery to directly attached SCSI target devices, ports and LUNs on all VSANs. Click Remote to discover all SCSI target devices, ports and LUNs in the fabric except for those that are directly attached. Click both to discover for both local and remote discovery.
|
Results—Status
|
Displays the outcome of the LUN discovery on the local switch. The possible values are:
•inProgress—Indicates that the discovery is still in progress
•completed—Indicates that the discovery is complete
•failure—Indicates that the discovery encountered a failure
|
CompleteTime
|
Displays the elapsed time since the last system restart when the last discovery was completed.
|
Viewing Logical Unit Information
To view logical unit number (LUN) information from the Device Manager, choose LUN from the FC menu and click the Logical Units tab. The dialog box shows the display-only attributes described in Table 11-21.
Table 11-21 LUN Discover—Display-Only Attributes
Display-Only Attribute
|
Description
|
VsanId
|
The VSAN to which this target belongs.
|
Port WWN
|
The name of this authorized and discovered target device or port.
|
DevType
|
The device type of the SCSI target.
|
VendorId
|
The vendor ID of the SCSI target.
|
ProductId
|
The product ID of the SCSI target.
|
RevLevel
|
The product revision level of the SCSI target.
|
OtherInfo
|
The bytes from 0 to 7 in the INQUIRY command response data.
|
Viewing LUNs Information
To view LUNs information from the Device Manager, choose LUN from the FC menu and click the LUNs tab. The dialog box shows the display-only attributes described in Table 11-22.
Table 11-22 LUN Discover—Display-Only Attributes
Display-Only Attribute
|
Description
|
Id
|
The number of this LUN.
|
Capacity (M)
|
The capacity of this LUN.
|
SerialNum
|
The serial number of this LUN.
|
Viewing RSCN Information
This section describes how to view RSCN information and includes the following topics:
•Viewing RSCN Nx Registrations
•Viewing RSCN Statistics
Viewing RSCN Nx Registrations
To view Nx registrations for RSCN from the Fabric Manager, choose FC > RSCN Registrations on the menu tree. The dialog box from the Fabric Manager displays Nx registrations for RSCN for multiple switches.
To monitor Nx registrations for RSCN from the Device Manager, choose RSCN from the FC menu. The RSCN dialog box, with the Nx Registrations tab selected, displays Nx registrations for RSCN for a single switch.
Both dialog boxes show the display-only attributes described in Table 11-23.
Table 11-23 FC > RSCN Registrations—Display-Only Attributes
Display-Only Attribute
|
Description
|
Switch
|
Displays the switch ID. This attribute is only displayed from the Fabric Manager.
|
Vsan, FcId
|
Displays the VSAN ID and Fibre Channel ID.
|
RegType
|
Displays the registration desired by the subscriber. Valid values are:
•fromFabricCtrlr—Indicates RSCNs generated by the fabric controller
•fromNxPort—Indicates RSCNs generated by the Nx_port
•fromBoth—Indicates RSCNs generated by both the fabric controller and the Nx_port
|
Viewing RSCN Statistics
To monitor registered state change notification (RSCN) statistics from the Fabric Manager, choose FC > RSCN Statistics on the menu tree. The dialog box from the Fabric Manager displays RSCN statistics for multiple switches.
To monitor RSCN from the Device Manager, choose RSCN from the FC menu and click the Statistics tab. The RSCN dialog box, with the Statistics tab selected, displays RSCN statistics for a single switch.
Both dialog boxes show the display-only attributes described in Table 11-24.
Table 11-24 FC > RSCN > Statistics—Display-Only Attributes
Display-Only Attribute
|
Description
|
Switch
|
Displays the switch ID. This attribute is only displayed from the Fabric Manager.
|
Vsan
|
Displays the VSAN ID.
|
RxScrs
|
Displays the number of State Change Registrations (SCRs) received from Nx_Ports on this VSAN.
|
ScrRej
|
Displays the number of SCRs rejected on this VSAN.
|
RxRscns
|
Displays the number of RSCNs received from Nx_Ports on this VSAN.
|
TxRscns
|
Displays the number of RSCNs transmitted from Nx_Ports on this VSAN.
|
RscnReqRej
|
Displays the number of RSCN requests rejected on this VSAN.
|
RxSwRscns
|
Displays the number of interswitch RSCNs received from other switches on this VSAN.
|
TxSwRscns
|
Displays the number of interswitch RSCNs transmitted to other switches on this VSAN.
|
SwRscnReqRej
|
Displays the number of interswitch RSCN requests rejected on this VSAN.
|
Configuring Timers
To configure timers from the Fabric Manager, choose FC > Timers on the menu tree. The dialog box from the Fabric Manager displays timers for multiple switches.
To configure timers from the Device Manager, choose Timers/Policies from the FC menu. The dialog box from the Device Manager displays timers for a single switch.
Both dialog boxes show the display-only attributes described in Table 11-25.
Table 11-25 FC > Timers—Display-Only Attributes
Display-Only Attribute
|
Description
|
Switch
|
Displays the switch ID. This attribute is only displayed from the Fabric Manager.
|
F_S_TOV
|
Displays the fabric stability timeout value, which ensures fabric stability during fabric configuration.
|
Drop Latencies—Switch
|
Displays the drop latency for the switch in milliseconds.
|
Table 11-26 describes the configurable timer attributes.
Table 11-26 FC > Timers—Display-Only Attributes
Configurable Attribute
|
Description
|
R_A_TOV
|
Specifies the resource allocation timeout value for FxPorts for determining when to reuse an NxPort resource, such as a recovery qualifier. Note that all switches in a fabric should be configured with the same value for this timeout. Valid values are 5000 to 15000 ms.
|
E_D_TOV
|
Specifies the error detect timeout value used for FxPorts for detecting an error condition. Note that all switches in a fabric should be configured with the same value for this timeout. Valid values are 2000 to 100000 ms.
|
D_S_TOV
|
Specifies the distributed services timeout value, which indicates how long a distributed services requestor waits for a response. Valid values are 5000 to 100000 ms.
|
Policies—InorderDelivery
|
If enabled, then the in order delivery is guaranteed. If disabled, it is not guaranteed.
|
Policies—TrunkProtocol
|
Enables the trunking protocol. The trunking protocol is used for negotiating trunk mode and calculating operational VSANs on an EISL link. It also performs port VSAN consistency checks. On non-trunking ISL links, if the port VSANs are different, the E ports will be isolated. To avoid this isolation, disable this parameter.
|
Configuring Virtual Routing Redundancy Protocol (VRRP)
Cisco MDS 9000 Family switches support the Virtual Router Redundancy Protocol (VRRP), as described in RFC 2338. VRRP provides redundant paths to a gateway switch. For further information about VRRP, refer to the Cisco MDS 9000 Family Configuration Guide.
This section describes how to use Device Manager to configure VRRP and includes the following information:
•Configuring VRRP Operations Attributes
•Managing IP Addresses for VRRP

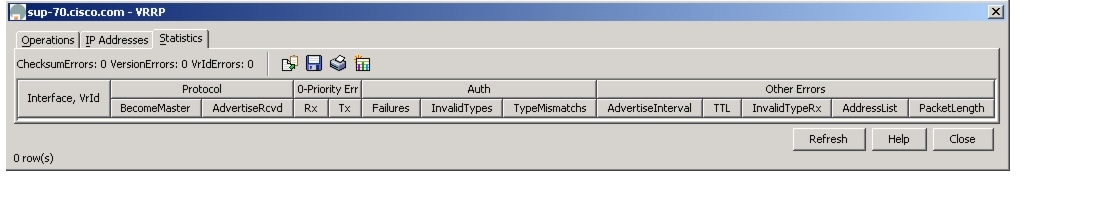

•Viewing VRRP Statistics
Configuring VRRP Operations Attributes
To configure VRRP operations attributes from Device Manager, choose VRRP option from the IP menu. Figure 11-1 shows the VRRP dialog box with the Operations tab selected.

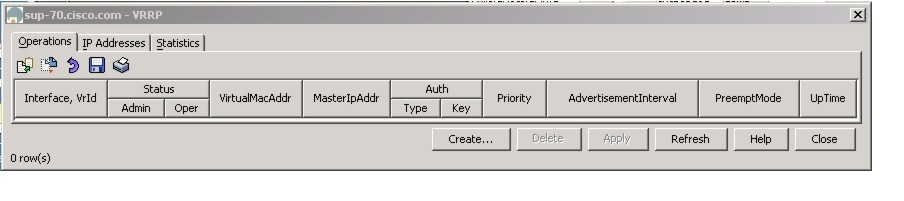

Figure 11-1 VRRP Dialog Box, Operations View
The VRRP Operations view shows the display-only attributes described in Table 11-27.
Table 11-27 VRRP Operations—Display-Only Attributes
Display-Only Attribute
|
Description
|
Interface, VrId
|
Displays the port ID and virtual router ID.
|
Stat—Admin
|
Enables/disables the virtual router, as follows:
•up—transitions the virtual router from the initialized state to either backup or master.
•down—transitions the virtual router from either master or backup to the initialized state.
|
Stat—Oper
|
Displays the current operational state of the virtual router. Valid values are:
•initialize—indicates that the virtual router is waiting for a startup event.
•backup—indicates that the virtual router is monitoring the availability of the master router.
•master—indicates that the virtual router is forwarding packets for IP addresses associated with this router.
|
VirtualMacAddr
|
Displays the number of IP addresses associated with this virtual router.
|
MasterIpAddr
|
Displays the master router's primary IP address. This is the IP address listed as the source in the last VRRP advertisement received by this virtual router.
|
Table 11-28 describes the configurable Operations attributes for the virtual router.
Table 11-28 VRRP Operations—Display-Only Attributes
Configurable Attribute
|
Description
|
Auth—Type
|
Specifies the authentication type used for VRRP exchanges between virtual routers.
|
Auth—Key
|
Specifies the authentication key.
|
Priority
|
Specifies the priority to be used for the virtual router master election process. Higher values imply higher priority. A priority of zero (0) is sent by the master router to indicate that this router has ceased to participate in VRRP and a backup virtual router should transition to become a new master. A priority of 255 is used for the router that owns the associated IP addresses.
|
AdvertisementInterval
|
Specifies the time interval, in seconds, between sending advertisement messages. Only the master router sends VRRP advertisements.
|
PreemptMode
|
Enables a higher priority virtual router to preempt a lower priority master.
|
UpTime
|
Displays the time this virtual router transitioned out of the initialized state.
|
To create a new VRRP entry, click the Create button. You see the window shown in Figure 11-2.

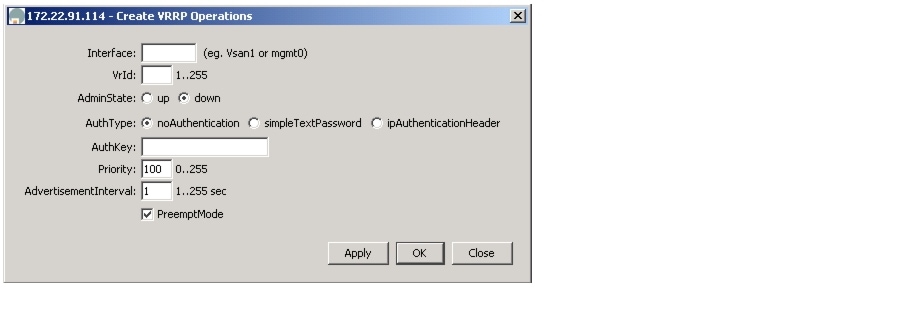

Figure 11-2 Create VRRP
Complete the fields on this window to create a new VRRP entry, and click OK or Apply.
Managing IP Addresses for VRRP

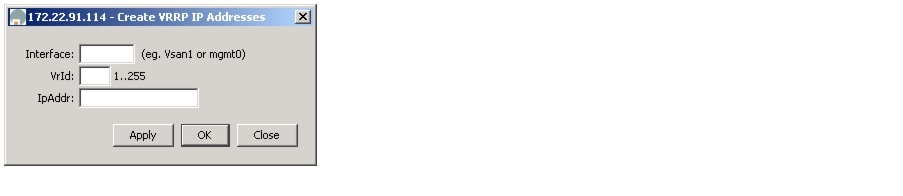

To manage IP addresses for virtual routers from Device Manager, click the IP Addresses tab on the VRRP dialog box.
Figure 11-3 shows the VRRP dialog box with the IP Addresses tab selected.
Figure 11-3 VRRP Dialog Box, IP Addresses View
This window shows the display-only attributes described in Table 11-29.
Table 11-29 VRRP IP Addresses Tab—Display-Only Attributes
Display-Only Attribute
|
Description
|
Port, VrId, Address
|
Displays the port ID, virtual router ID, and IP address.
|
Status
|
Adds/deletes an associated IP address for the virtual router.
|
To create a new VRRP entry, click the Create button. You see the window shown in Figure 11-4.
Figure 11-4 Create VRRP IP Addresses
Complete the fields on this window to create a new VRRP IP Address, and click OK or Apply.
Viewing VRRP Statistics
To monitor VRRP statistics, click the Statistics tab on the VRRP dialog box. Figure 11-5 shows the VRRP dialog box with the Statistics tab selected.
Figure 11-5 VRRP Statistics
This window shows the display-only attributes described in Table 11-30.
Table 11-30 VRRP Statistics Tab—Display-Only Attributes
Display-Only Attribute
|
Description
|
Protocol— BecomeMaster
|
The total number of times that this virtual router's state has transitioned to MASTER.
|
Protocol— AdvertiseRcvd
|
The total number of VRRP advertisements received by this virtual router.
|
0-Priority-Err— Rx
|
The total number of VRRP packets received with a priority of 0.
|
0-Priority-Err— Tx
|
The total number of VRRP packets sent with a priority of 0.
|
Auth— Failures
|
The total number of VRRP packets received that do not pass the authentication check.
|
Auth— InvalidTypes
|
The total number of packets received with an unknown authentication type.
|
Auth— TypeMismatchs
|
The total number of packets that do not match the locally configured authentication method.
|
Other Errors— AdvertiseInterval
|
The total number of VRRP advertisement packets received for which the advertisement interval is different than the one configured for the local virtual router.
|
Other Errors— TTL
|
The total number of VRRP packets received by the virtual router with IP TTL (Time-To-Live) not equal to 255.
|
Other Errors— InvalidTypeRx
|
The number of VRRP packets received by the virtual router with an invalid value in the 'type' field.
|
Other Errors— AddressList
|
The total number of packets received for which the address list does not match the locally configured list for the virtual router.
|
Other Errors— PacketLength
|
The total number of packets received with a packet length less than the length of the VRRP header.
|
