Cisco vWAAS on Cisco CSP 5000-W Series

This chapter describes Cisco vWAAS on the Cisco Cloud Services Platform, W Series appliance, the Cisco CSP 5000-W Series appliances.

This chapter contains the following sections:

vWAAS on Cisco CSP 5000-W Series

This section contains the following topics:

About the Cisco CSP 5000-W Series

The Cisco Cloud Services Platform for WAAS (CSP-W) is a Cisco open x86 hardware platform for deployment of Cisco datacenter network functions virtualization (VNFs). The Cisco CSP 5000-W Series contains an embedded KVM CentOS hypervisor, and enables you to deploy, monitor, and manage the life cycle of vWAAS on NFVIS.

The Cisco 5000-W Series enables you to quickly deploy any Cisco network virtual service through a simple, built-in, native web user interface (WebUI), CLI, or Representational State Transfer (REST) API.

vWAAS Models Supported on CSP 5000-W

Three CSP 5000-W models are used with vWAAS:

  • CSP 5228-W (12,000 connections)—For vWAAS-12000
  • CSP 5228-W (50,000 connections)—For vWAAS-50000
  • CSP 5436-W (150,000 connections)—vWAAS-150000

These CSP 5000-W models replace three End-of-Sale/End-of-Life (EOS/EOL) WAVE models. Table 8-1 shows the corresponding CSP-W and EOS/EOL WAVE models, the supported vWAAS models, and the UCS model used with CSP-W.

Table 8-1 CSP 5000-W, EOS/EOL WAVE Models, and Supported vWAAS and UCS Models

CSP 5000-W Model
Connections
EOS/EOL WAVE Model Replaced
Supported vWAAS Model

CSP 5228-W

12,000

WAVE-7541

vWAAS-12000

CSP 5228-W

50,000

WAVE-7571

vWAAS-50000

CSP 5436-W

150,000

WAVE-8541

vWAAS-150000

For more information on the EOS/EOL WAVE models, see the End-of-Sale and End-of-Life Announcement for the Cisco WAVE 294, 594, 694, 7541, 7571 and 8541.


Noteblank.gif There is no Product Returns and Replacement (RMA) process for CSP 5000-W devices or EOS/EOL WAVE devices.


vWAAS on CSP 5000-W with Akamai Connect

Consider the following guidelines for vWAAS on CSP 5000-W with Akamai Connect:

  • As shown in Table 8-2, a fourth disk is required for vWAAS on CSP 5000-W with Akamai Connect caching.
  • CSP 5000-W devices have fixed resources, so the memory on each device remains the same with or without Akamai Connect enabled.

Table 8-2 Memory and Disk Requirements for vWAAS on CSP 5000-W with Akamai Connect

CSP 5000-W Model
Supported vWAAS Model
Memory Requirement
Fourth Disk Requirement When Akamai is Enabled
Without Akamai
Without Akamai

CSP 5228-W

vWAAS-12000

18 GB

18 GB

750 GB

CSP 5228-W

vWAAS-50000

48 GB

48 GB

850 GB

CSP 5436-W

vWAAS-150000

96 GB

96 GB

1500 GB

Traffic Interception Methods

vWAAS on the CSP 5000-W platform supports off-path deployment for WCCP and AppNav traffic interception. However, the AppNav IOM module is not supported on the CSP-W platform.

CSP 5000-W Hardware Features and Specifications

Table 8-3 shows the specifications for each CSP 5000-W model used with vWAAS.

Note the following about these three CSP 5000-W models:

  • The dedicated management port on the device is used for CIMC connectivity
  • The first port on the four-port 1 G (I350) card is used for NFVIS management only and not for data traffic.
  • Intel SFP+ is required for connecting the Intel X520-DA2 10 Gbps two-port NIC (2x10 GB Fiber interfaces).
  • vWAAS on CSP-W uses CIMC Version 4.0.
  • vWAAS on CSP-W uses NFVIS Version 3.10.1.

Table 8-3 Specifications for CSP-W Models Used with vWAAS

CSP 5228-W for vWAAS 12000
CPU
CPU Speed
Connections
Memory
Storage
Network Interface Card
RAID
Hardware Platform

16 core

2.2 GHz

12,000

52 GB

1.5 TB

PCIe Slot 1—Intel X520-DA2 10Gbps 2 port NIC (2x10 GB Fiber interfaces)

PCIe Slot 2—Intel i350 Quad Port 1 GB Adapter

Cisco 12G Modular RAID controller with 2GB cache

RAID 10

UCS-220-M5

CSP 5228-W for vWAAS 50000
CPU
CPU Speed
Connections
Memory
Storage
Network Interface Card
RAID
Hardware Platform

20 core

2.2 GHz

50,000

76 GB

2.3 TB

PCIe Slot 1—Intel X520-DA2 10Gbps 2 port NIC (2x10 GB Fiber Interfaces)

PCIe Slot 2—Intel i350 Quad Port 1 GB Adapter

Cisco 12G Modular RAID controller with 2GB cache

RAID 10

UCS-220-M5

CSP 5436-W for vWAAS-15000
CPU
CPU Speed
Connections
Memory
Storage
Network Interface Card
RAID
Hardware Platform

28 core

3.0 GHz

150,000

100 GB

4.5 TB

PCIe Slot 1—Intel X520-DA2 10Gbps 2 port NIC (2x10 GB Fiber interfaces)

PCIe Slot 4—Intel i350 Quad Port 1 GB Adapter

Cisco 12G Modular RAID controller with 2GB cache

RAID 10

UCS-240-M5

For more information on RAID configuration, see the Cisco UCS Servers RAID Guide.

Deploying, Registering, and Configuring vWAAS on CSP 5000-W

This section contains the following topics:

Workflow for Deploying, Registering, and Configuring vWAAS on CSP 5000-W

Task
Section or Description

1.blank.gif Install the vWAAS on CSP 5000-W

2.blank.gif Map the interfaces from NFVIS to WAAS

3.blank.gif Register the CSP 5000-W device with the WAAS CM

4.blank.gif Enable Akamai Connect

5.blank.gif Check accelerator status

  • To confirm that operational status of accelerators is Running, use the show accelerator EXEC command.

6.blank.gif Configure WCCP traffic interception

7.blank.gif Configure port channel support

Installing vWAAS on a CSP 5000-W Device

To install any of the three supported vWAAS models on the supported CSP 5000-W device:


Noteblank.gif CSP 5000-W is a bundled solution and is shipped with a pre-installed image


  • Use the following show commands to verify that all hardware details for the CSP 5000-W device are displayed correctly.

blank.gif show version—Verify that the WAAS version is Version 6.4.3a or later.

blank.gif show tfo detail—Verify the number of TFO connections depending on the vWAAS model.

blank.gif show hardware—Validate the CPU and memory depending on the vWAAS model.

blank.gif show inventory—Validate the PID depending on the vWAAS model.

  • For the CSP 5228-W models:

blank.gif The system displays a prompt to select vWAAS-12000 or vWAAS-50000.

blank.gif After you make a selection, the vWAAS installation proceeds automatically.

blank.gif Allow about 60 minutes for vWAAS installation on a CSP 5228-W model.

  • For the CSP 5436-W model:

blank.gif The vWAAS is deployed on the CSP 5436-W and a login prompt for the vWAAS-150000 is displayed.

  • For all CSP 5000-W models, eager zero thick provisioning is used, for optimal performance.
  • NFVIS provides management access to the first port of the Intel i350 PCIe card.

Deploying vWAAS on the CSP 5000-W Platform

Before You Begin

  • Verify that the specified CSP 5000-W Series chassis (CSP 5228-W or CSP 5436-W) is already installed and powered up.

To install vWAAS with NFVIS on a CSP 5000-W Series device on your WAAS system, follow these steps:


Step 1blank.gif Copy the vWAAS bundled image file—an ISO file that contains the NFVIS 3.10.1 image (file format “Cisco_NFVIS...”) and WAAS 6.4.3a image (file format “WAAS-APPLIANCE...”)—on your laptop.

For how to upgrade to NFVIS 3.10.1, see the chapter “Cisco vWAAS with Cisco Enterprise NFVIS,” section Upgrading to Cisco NFVIS 3.10.1.

Step 2blank.gif Connect your laptop’s Ethernet port to the CSP 5000-W device’s Cisco Integrated Management Controller (CIMC) port.

Step 3blank.gif Configure your laptop with a static IP address; for example, 192.168.1.3.


Noteblank.gif By default, the IP address on the ENCS device’s CIMC port is configured as 192.168.1.2.


Step 4blank.gif Open your web browser and enter https://192.168.1.2.

The CIMC console login page appears.

Step 5blank.gif Log in with your user name and password.

Default user name is admin.

Default password is Cisco123.

Step 6blank.gif Click Login.


Noteblank.gif The Change Password dialog box appears the first time, only, that you log into the CIMC console. Change the password as needed and click Save.


Step 7blank.gif The CIMC Home page is displayed.

Step 8blank.gif Navigate to Home > Compute > BIOS > Configure Boot Order.

The Configure Boot Order dialog box appears.

Step 9blank.gif At the Device Types listing, select CD/DVD Linux Virtual CD/DVD.

Click Add.

Step 10blank.gif At the Device Type listing, select HDD.

Click Add.

Step 11blank.gif Using the Up and Down options, set the boot order sequence.

Step 12blank.gif CD/DVD Linux Virtual CD/DVD must be the first listing in the boot order.

Step 13blank.gif To complete the boot order setup, click Apply.

Step 14blank.gif Launch the KVM console. You can launch the KVM console from CIMC Home page or the Remote Management area.

Step 15blank.gif At the KVM console:

After the KVM console is initialized, map the vWAAS bundled image through the Server > Remote Presence > Virtual Media tab on the KVM console.

Step 16blank.gif To load the mapped image, at the KVM Console Power tab, use the Power Cycle System [cold boot] option to power off and then power on the device.


Noteblank.gif When the server reboots, the KVM Console will automatically install the Cisco Enterpirse NFVIS from the virtual CD/DVD drive. The entire installation may take 30 minutes to one hour to complete.


Step 17blank.gif With the installation running in the background, use your laptop to connect via SSH to the CIMC default IP (192.168.1.2).

Step 18blank.gif After the installation is successful, the CSP 5000-W device reboots.

Step 19blank.gif The CSP 5000-W device boots up and displays options to install vWAAS. Depending on your CSP 5000-W model, one of the following choices is displayed:

    • For CSP 5228-W—vWAAS-12000 or vWAAS-50000
    • For CSP 5436-W—vWAAS-150000 is automatically selected for CSP 5436-W.

Step 20blank.gif After installation is complete, the Cisco WAAS login prompt appears.

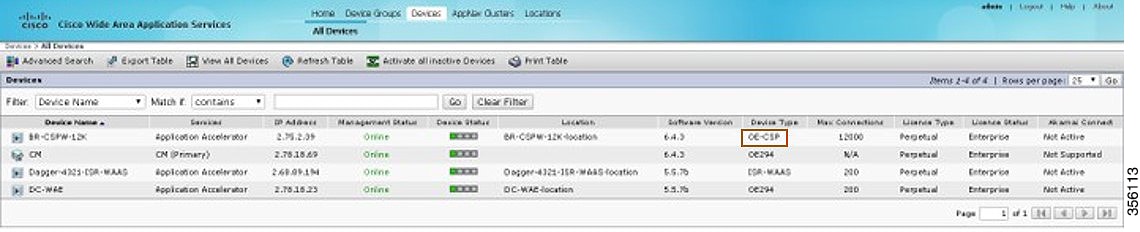

Step 21blank.gif The new OE-CSP device will be displayed in the WAAS Central Manager Devices > All Devices listing table.

Step 22blank.gif You can view detailed information on the new OE-CSP device by navigating to Devices > DeviceName > Dashboard.




Configuring Port Channel and Standby Interface

This section contains the following topics:

Configuring Port Channel Interface

To provide increased bandwidth and redundancy, a port channel bundles individual interfaces within these NIC modules:

  • Virtual 1/0 and 2/0—10G Ethernet interface
  • Virtual 3/0 and 3/1—10G fiber interface

For fiber connectivity, Intel SFP+ is required for connecting the Intel X520-DA2 10 Gbps two-port NIC (2x10 GB Fiber interfaces).

  • Virtual 4/0, 4/1, and 4/2—1G copper interface

Port channeling also load balances traffic across these physical interfaces. The port channel stays operational as long as at least one physical interface within the port channel is operational.

You create a port channel by bundling compatible interfaces. You can configure and run either static port channels or ports channels running the Link Aggregation Control Protocol (LACP).Standby provides aggregation of several physical links into a logical one but for the purpose of furnishing fault-tolerance only.

The following CLI commands are used with Port Channel

  • To create a port channel:
CSP-APPLIANCE#config
CSP-APPLIANCE(config)#interface portchannel 1
CSP-APPLIANCE(config-if)#ip address <addr> <mask>
CSP-APPLIANCE(config-if)#exit

  • To remove a port channel:
CSP-APPLIANCE#config
CSP-APPLIANCE(config)#interface portchannel 1
CSP-APPLIANCE(config-if)#no ip address <addr> <mask>
CSP-APPLIANCE(config-if)#exit
CSP-APPLIANCE(config)#no interface portchannel 1

  • To configure a port channel group for a network interface, use the (config-if) channel-group command:
CSP-APPLIANCE(config)# interface GigabitEthernet 1/0
CSP-APPLIANCE(config-if)# channel-group 1

  • To show the running configuration:
interface PortChannel 1
ip address <addr> <netmask>
exit
!
interface Virtual 4/0
channel-group 1
exit
interface Virtual 4/1
channel-group 1
exit
interface Virtual 4/2
channel-group 1
exit

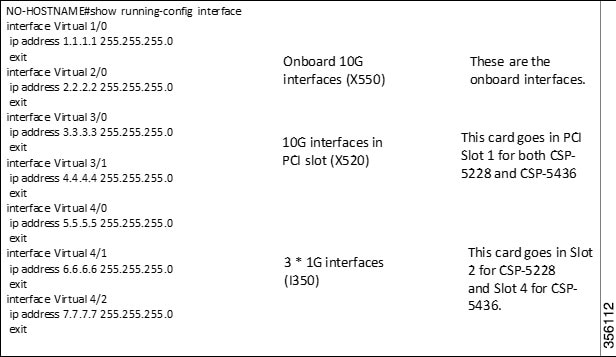

  • Figure 8-1 shows annotated output for the show running-config interface command:

Figure 8-1 WAAS CLI show running-config Annotated Output

  • To show Port Channel or Standby Interface statistics:
CSP-5228#sh interface standby 1
Interface Standby 1 (2 member interface(s)):
Virtual 3/0 (active) (primary) (in use)
Virtual 3/2 (active)
---------------------
Ethernet Address : 52:54:00:42:4f:a6
Internet Address : 2.93.82.20
Netmask : 255.255.255.240
IPv6 Enabled : No
Admin State : Up
Operation State : Running
Maximum Transfer Unit Size : 1500
Input Errors : 0
Input Packets Dropped : 0
Packets Received : 94939473
Output Errors : 0
Output Packets Dropped : 0
Load Interval : 30
Input Throughput : 0 bits/sec, 0 packets/sec
Output Throughput : 0 bits/sec, 0 packets/sec
Packets Sent : 93430587

Interception Statistics
CSP-5228#
CSP-5228#sh interface portChannel 1
Interface PortChannel 1 (3 member interface(s)):
Virtual 3/0 (active)
Virtual 3/1 (active)
Virtual 3/2 (active)
---------------------
Ethernet Address : 52:54:00:42:4f:aa
Internet Address : 22.22.22.2
Netmask : 255.255.255.0
IPv6 Enabled : No
Admin State : Up
Operation State : Down
Maximum Transfer Unit Size : 1500
Input Errors : 0
Input Packets Dropped : 0
Packets Received : 21568
Output Errors : 0
Output Packets Dropped : 0
Load Interval : 30
Input Throughput : 2290669644 bits/sec, 159 packets/sec
Output Throughput : 2290649224 bits/sec, 0 packets/sec
Packets Sent : 41
CSP-5228#


Configuring Standby Interface

You can create two port channel groups and use them as the active and backup member of a standby group.The Standby interface has two modes:

  • Active-backup mode—Implements the Standby interface and provides fault tolerance. Only one server interface in the bond is active. A different server interface becomes active only if the active server interface fails.
  • SRC-DST-IP-PORT mode—Provides load balancing and fault tolerance. In this mode, all frames between the same source and the same destination use the same link.

The following CLI commands are used with Standby Interface:

  • To create a Standby Interface:
CSP-APPLIANCE#config
CSP-APPLIANCE(config)#interface Standby 1
CSP-APPLIANCE(config-if)#ip address <addr> <mask>
CSP-APPLIANCE(config-if)#exit

  • To remove a Standby Interface:
CSP-APPLIANCE#config
CSP-APPLIANCE(config)#interface Standby 1
CSP-APPLIANCE(config-if)#no ip address <addr> <mask>
CSP-APPLIANCE(config-if)#exit
CSP-APPLIANCE(config)#no interface Standby 1

  • To show the running configuration:
interface Standby 1
ip address <addr> <netmask>
exit
!
interface Virtual 1/0
standby 1 primary
exit
interface Virtual 2/0
standby 1
exit

  • To show Port Channel or Standby Interface statistics:
CSP-5228#sh interface standby 1
Interface Standby 1 (2 member interface(s)):
Virtual 3/0 (active) (primary) (in use)
Virtual 3/2 (active)
---------------------
Ethernet Address : 52:54:00:42:4f:a6
Internet Address : 2.93.82.20
Netmask : 255.255.255.240
IPv6 Enabled : No
Admin State : Up
Operation State : Running
Maximum Transfer Unit Size : 1500
Input Errors : 0
Input Packets Dropped : 0
Packets Received : 94939473
Output Errors : 0
Output Packets Dropped : 0
Load Interval : 30
Input Throughput : 0 bits/sec, 0 packets/sec
Output Throughput : 0 bits/sec, 0 packets/sec
Packets Sent : 93430587

Interception Statistics
CSP-5228#
CSP-5228#sh interface portChannel 1
Interface PortChannel 1 (3 member interface(s)):
Virtual 3/0 (active)
Virtual 3/1 (active)
Virtual 3/2 (active)
---------------------
Ethernet Address : 52:54:00:42:4f:aa
Internet Address : 22.22.22.2
Netmask : 255.255.255.0
IPv6 Enabled : No
Admin State : Up
Operation State : Down
Maximum Transfer Unit Size : 1500
Input Errors : 0
Input Packets Dropped : 0
Packets Received : 21568
Output Errors : 0
Output Packets Dropped : 0
Load Interval : 30
Input Throughput : 2290669644 bits/sec, 159 packets/sec
Output Throughput : 2290649224 bits/sec, 0 packets/sec
Packets Sent : 41
CSP-5228#

  • To configure an interface to be a standby for another interface, use the (config-if) standby command:
CSP-APPLIANCE# configure
CSP-APPLIANCE# interface standby 1
CSP-APPLIANCE(config-if)#


Registering or Deregistering a CSP 5000-W Device with the WAAS CM

This section contains the following topics:

Registering a CSP 5000-W Device with the WAAS CM

To register the WAAS appliance or vWAAS model with the WAAS Central Manager (CM), follow these steps:


Step 1blank.gif At the datacenter CSP 5000-W CLI, enter the WAAS Central Manager IP address, for example: 10.78.99.141.

DC-CSP-WAE(config)#central-manager address 10.78.99.141
DC-CSP-WAE(config)#
DC-CSP-WAE(config)#end
DC-CSP-WAE#show running-config | i central
central-manager address 10.78.99.141

Noteblank.gif The IP address configured in the NFVIS management port cannot be accessed from the Central Manager.


Step 2blank.gif Use the cms command to register the CSP-W device:

DC-CSP-WAE(config)#cms enable
Registering WAAS Application Engine...
Sending device registration request to Central Manager with address 10.78.99.141
Please wait, initializing CMS tables
Successfully initialized CMS tables
Registration complete.


Step 3blank.gif Use the copy running-config startup-config command to preserve the running configuration.


Noteblank.gif If you do not use this commend, the management service will not be started on reload, and the WAAS Central Manager will show the node as Offline.


Step 4blank.gif After the device is registered, it is displayed in the WAAS Central Manager as OE-CSP (Figure 8-2).

Figure 8-2 CSP 5000-W Device Displayed in Central Manager Device Listings Page


Step 5blank.gif To view the CSP 5000-W device in the dashboard, navigate to Devices > device-name > Dashboard.

The Device Dashboard window is displayed. Information displayed for the device includes including device model, IP address, interception method, and device-specific charts.

Step 6blank.gif You can also use the CSP 5000-W CLI to view device information:

DC-CSP-WAE#show cms info
Device registration information :
Device Id = 1769435
Device registered as = WAAS Application Engine
Current WAAS Central Manager = 10.78.99.142
Registered with WAAS Central Manager = 10.78.99.142
Status = Online
Time of last config-sync = Fri Jun 3 14:41:26 2018

CMS services information :
Service cms_ce is running







Deregistering a CSP 5000-W Device

To deregister a CSP 5000-W device, follow these steps.


Step 1blank.gif At the datacenter CSP 5000-W CLI, use the cms deregister command to deregister the device.

DC-CSP-WAE#cms deregister

Deregistering WAE device from Central Manager will result in loss of data on encrypted file systems.

If secure store is initialized and open, clear secure store.

If encrypted MAPI is enabled, windows-domain encryption-service identities will be disabled. The passwords must be re-entered again the next time the WAE joins
a central manager.

Do you really want to continue (yes|no) [no]?yes


Step 2blank.gif Click yes to initiate the deregistering process. The system displays the following status messages.

Disabling management service.
management services are already disabled.
Sending de-registration request to CM
SSMGR RETURNING: 7 (Success)
Removing cms database tables.
Re-initializing SSL managed store and restarting SSL accelerator.
Deregistration complete. Save current cli configuration using 'copy running-config startup-config' command because CMS service has been disabled.


Step 3blank.gif Use the copy running-config startup-config command to preserve the running configuration.


Noteblank.gif If you do not use this command, the management service will not be started on reload, and the WAAS Central Manager will show the node as Offline.





CLI Commands Used with vWAAS on CSP 5000-W

Table 8-4 shows the commands used with vWAAS on CSP 5000-W.

Table 8-4 Commands used with vWAAS on CSP 5000-W

Mode
Command
Description

Global Configuration

(config) interface PortChannel

Configures a port-channel interface.

Interface Configuration

(config-if) channel-group

Configures the port channel group for a network interface.

EXEC

copy sysreport disk

The CSP 5000-W logs will be part of the sysreport generation for debugging.

reload

Restarts the VM.

show hardware

Validate the CPU and memory depending on the vWAAS model.

show inventory

Validate the PID depending on the vWAAS model.

show running-config interface

Displays a WAAS device current running configuration on the terminal,

show tfo detail

Verify the number of TFO connections depending on the vWAAS model

show version

Verify that the WAAS version is Version 6.4.3a or later.

shutdown

Powers off the CSP 5000-W device.

Upgrade/Downgrade Guidelines for vWAAS on CSP 5000-W

Consider the following upgrade and downgrade guidelines:

  • For vWAAS on CSP 5000-W:

blank.gif Upgrade is supported for the vWAAS bundled image for WAAS Version 6.4.3a and later, and the associated NFVIS version used with WAAS.

blank.gif Downgrade is not supported for vWAAS for WAAS versions earlier than WAAS 6.4.3a.

blank.gif When there is more than one device type present in the Device Group level, the Central Manager supports upgrade and downgrade that is supported for each device type.


Noteblank.gif CSP 5000-W devices run with specific vWAAS and NFVIS versions. We advise that you upgrade vWAAS and NFVIS together; do not upgrade each of these separately. For more information, see the chapter “Cisco vWAAS with Cisco Enterprise NFVIS, section Upgrade Guidelines for vWAAS with NFVIS.
