Chassis Views

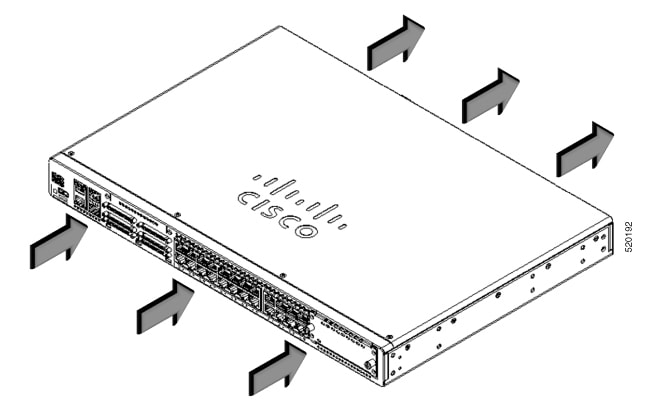

This section contains front and back panel views of the Cisco 1100 Terminal Gateway Routers-showing locations of the power and signal interfaces, interface slots, status indicators, and chassis identification labels.

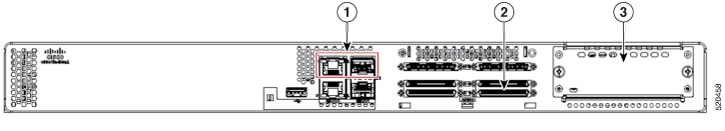

![](/c/dam/en/us/td/i/500001-600000/520001-530000/520001-521000/520097.jpg)
1 |
System LED |
2 |
USB 2.0 |
3 |
GE WAN 0/0/0 - RJ45/SFP |
4 |
GE WAN 0/0/1 – RJ45/SFP |
5 |
ASYNC 16 port |
6 |
ASYNC 32 port |
7 |
NIM |

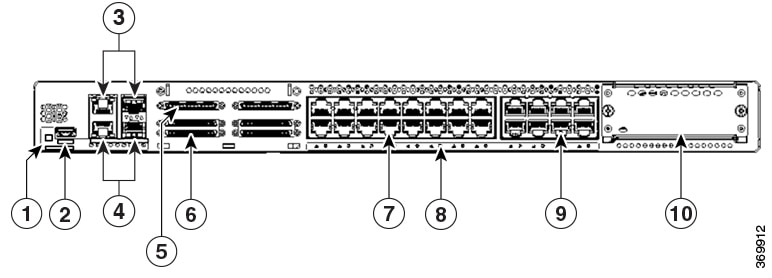

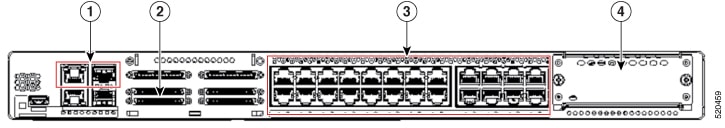

![](/c/dam/en/us/td/i/300001-400000/360001-370000/369001-370000/369912.jpg)

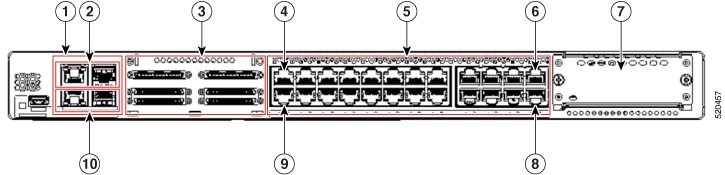

1 |
System LED |
2 |
USB 2.0 |
3 |
GE WAN 0/0/0 - RJ45/SFP |
4 |
GE WAN 0/0/1 – RJ45/SFP |
5 |
ASYNC 16 port |
6 |
ASYNC 32 port |
7 |
Ethernet Switch 0-15 |
8 |
Ethernet Switch LED 0-23 |
9 |
Ethernet Switch 16-23 |
10 |
NIM |

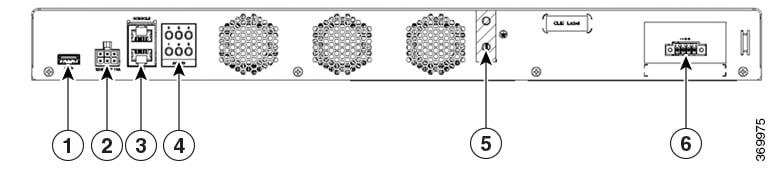

![](/c/dam/en/us/td/i/500001-600000/520001-530000/520001-521000/520147.jpg)
1 |
USB 3.0 |
2 |
6-pin Power Connector |
3 |
RJ-45 Console, AUX |
4 |
ASYNC LED |
5 |
Grounding Attachment |
6 |
Power Supply |
![](/c/dam/en/us/td/i/300001-400000/360001-370000/369001-370000/369975.jpg)
1 |
USB 3.0 |
2 |
6-pin Power Connector |
3 |
RJ-45 Console, AUX |
4 |
ASYNC LED |
5 |
Grounding Attachment |
6 |
Power Supply |
