IEEE 802.1ah on Provider Backbone Bridges
The IEEE 802.1ah on Provider Backbone Bridges feature enables MAC-in-MAC tunneling on Ethernet virtual circuits (EVCs).
- Finding Feature Information
- Prerequisites for IEEE 802.1ah on Provider Backbone Bridges
- Restrictions for IEEE 802.1ah on Provider Backbone Bridges
- Information About IEEE 802.1ah on Provider Backbone Bridges
- How to Configure MAC-in-MAC on Provider Backbone Bridges
- Configuration Examples for MAC-in-MAC on Provider Backbone Bridges
- Additional References
- Feature Information for IEEE 802.1ah on Provider Backbone Bridges
Finding Feature Information
Your software release may not support all the features documented in this module. For the latest feature information and caveats, see the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the Feature Information Table at the end of this document.
Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/go/cfn. An account on Cisco.com is not required.
Prerequisites for IEEE 802.1ah on Provider Backbone Bridges
- The router configuration must include an ES40 line card, because the Institute of Electrical and Electronic Engineers (IEEE) 802.1ah standard is supported on ES40 line cards only.
- IEEE 802.1ah is supported on EVC architecture only.
Restrictions for IEEE 802.1ah on Provider Backbone Bridges
- The following features are not supported:
- Connectivity Fault Management (CFM) over 802.1ah
- Internet Group Multicast Protocol (IGMP) snooping or any mulitcast protocol on the customer-bridge (c-bridge) domain
- Standalone customer-facing backbone edge bridge (I-BEB)
- Standalone backbone core bridge-facing backbone edge bridge (B-BEB)
- The following limits apply to this feature:
- Maximum number of MAC tunnels is 4094.
- Maximum number of service instances under MAC tunnels is 16,384.
- Maximum number of Ethernet Flow Points (EFP) is 32,768.
- Maximum number of EFPs on a single interface is 8000.
- 802.1ah on the port channel is supported for one member link per port channel only.
Information About IEEE 802.1ah on Provider Backbone Bridges
- MAC-in-MAC
- Backbone Edge Bridges
- IB-Bridges
- IEEE 802.1ah for L2 Bridging Networks
- IEEE 802.1ah for Ethernet Over MPLS
- IEEE 802.1ah for Virtual Private LAN Services
MAC-in-MAC
The IEEE 802.1ah on Provider Backbone Bridges feature encapsulates the end users traffic inside the service providers MAC header, enabling the backbone edge bridge (BEB) to support large numbers of service instances. This functionality is also known as MAC-in-MAC or MAC Tunneling Protocol (MTP). It also allows service providers to hide the identity of their equipment vendors by using user-specified MAC address as the tunnel source address. It also separates the user MAC address space from the provider MAC address space which means that only the edge bridges are aware of the customer MAC addresses, and that only the core bridges are aware of the provider addresses.

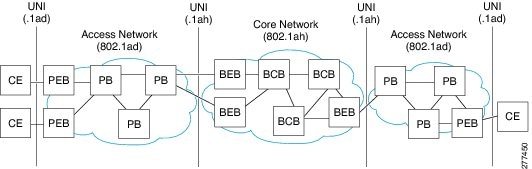

The figure below shows a typical 802.1ah PBB network and the table below describes the PBB network components.
| Table 1 | IEEE 802.1ah PBB Components |
| Component |
Description |
|---|---|
| BCB |
Backbone core bridge |
| BEB |
Backbone edge bridge |
| CE |
Customer equipment |
| PB |
Provider bridge |
| PEB |
Provider edge bridge |
Backbone Edge Bridges
BEBs can contain either an I-Component or a B-Component. The I-Component maps Service VLAN identifiers (S-VIDs) to service instance identifiers (I-SIDs) and adds a PBB header without a B-Tag. The B-Component maps I-SIDs to backbone VIDs (B-VIDs) and adds a PBB header with a B-Tag. The IEEE 802.1ah standard specifies the following three types of BEBs:
- The B-Bridge (B-BEB) contains the B-Component of the MAC-in-MAC bridge. It validates the I-SIDs and maps the frames onto the backbone VLAN (B-VLAN). It also switches traffic based on the B-VLANS within the core bridge.
- The I-Bridge (I-BEB) contains the I-Component of the MAC-in-MAC bridge. It performs B-MAC encapsulation and inserts the I-SIDs based on the S-tags, C-tags, or S-tag/C-tag pairs.
- The IB-Bridge (IB-BEB) contains one or more I-Components and a single B-Component interconnected via a LAN segment.
 Note |
The Cisco 7600 series routers are designed to work as IB-Bridges. |
IB-Bridges
The IB-Bridge contains both the I-Component and the B-Component. The bridge selects the B-MAC and inserts the I-SID based on the provider VLAN tag (S-tag), the customer VLAN tag (C-tag), or both the S-tag and the C-tag. It validates the I-SIDs and it transmits and receives frames on the B-VLAN.
The IB-Bridge has two types of interfaces:
- Port-based interface: On port-based interfaces all S-tagged frames received from a customer are mapped to an I-SID and the S-tags are preserved.
- S-tagged interface: S-tagged interfaces support one-to-one mapping of an S-VLAN to an I-SID to provide S-VLAN translation capabilities. They also support many-to-one mapping of S-VLANs to an I-SID to provide S-VLAN bundling capability.
The IEEE 802.1ah on Provider Backbone Bridges feature supports all services mandated by the IEEE 802.1ah standard and extends the services to provide additional functionality as follows:
- S-Tagged Service:
- In multiplexed environments each S-tag maps to an I-SID and may be retained or removed.
- In bundled environments multiple S-tags map to the same I-SID and the S-tags must be retained.
- C-Tagged Service:
- In multiplexed environments each C-tag maps to an I-SID and may be retained or removed.
- In bundled environments multiple C-tags map to the same I-SID and the C-tags must be retained.
- S/C-Tagged Service:
- In multiplexed environments each S-tag/C-tag pair maps to an I-SID. The S-tag or the S-tag/C-tag pair may be retained or removed.
- In bundled environments multiple S-tag/C-tags pairs map to the same I-SID and the S-tag/C-tag pair must be retained.
- Port-based Service
- Any frame whether untagged or double tagged is mapped to the same I-SID and all tags are retained.
IEEE 802.1ah for L2 Bridging Networks
When IEEE 802.1ah is configured on PBBs in an L2 bridging network the packets on the ingress EFP are tunneled to the appropriate MAC tunnel using the bridging identifier in the I-Component (specified using the bridge-domain c-maccommand). If multiple EFPs use the same I-SID then the C-MAC bridge domain also performs the switching between the EFPs.
The figure below shows a typical L2 bridging network configuration.
| Figure 1 | IEEE 802.1ah L2 Bridging Network |
The table below describes the components of the L2 bridging network.
| Table 2 | L2 Bridging Network Components |
| Component Name |
Description |
|---|---|
| 802.1ad |
IEEE 802.1ad (provider bridges) network |
| 802.1ah |
IEEE 802.1ah (provider backbone bridge) network |
| BEB |
Backbone edge bridge |
| CE |
Customer equipment |
| NNI |
Network-to-network interface (egress EFP) |
| PE-Agg |
Provider edge aggregation device |
| UNI |
User-Network Interface (ingress EFP) |
Unknown Unicast and Customer Multicast Traffic

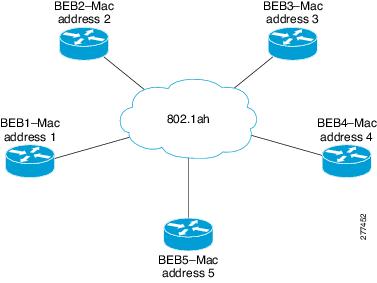

The figure below shows an L2 network where all the BEBs are connected to each other through a single Backbone VLAN (B-VLAN). In this scenario any unknown unicast traffic from BEB1 is forwarded to BEB2 through to BEB5 because they all share the same B-VLAN.
| Figure 2 | BEB B-VLAN Network |
In order to reduce network traffic you can configure a BEB to send traffic to specific BEBs on the B-VLAN. For example, if BEB1 needs to send traffic to BEB3 and BEB4 only, you can use the mac tunnel address destination map command to map the customer destination address (C-DA) to a multicast backbone destination address (B-DA). BEB3 and BEB4 are then registered to receive traffic for this B-DA.
All packets within the 802.1ah network must be sent to a specified MAC address. The address is a static entry in the MAC address tables in the backbone core bridges. If a default MAC tunnel address is not specified in the table, then all unknown unicast packets and customer multicast traffic are sent with the default B-DA, which is a combination of IEEE-assigned Organizational Unique Identifier (OUI) and the I-SID values.
IEEE 802.1ah for Ethernet Over MPLS
When IEEE 802.1ah is configured on Ethernet over Multiprotocol Label Switching (EoMPLS) networks, the Ethernet links are transported as pseudowires using MPLS label switched paths (LSPs) inside an MPLS tunnel. To configure MAC-in-MAC on EoMPLS networks you must specify ingress EFP configuration settings at the UNI, specify MAC-in-MAC settings, and specify switch virtual interface (SVI) configuration settings at the egress NNI. The SVI represents a VLAN of switch ports connected to the bridge via a single interface.
The figure below shows a typical EoMPLS network configuration.
| Figure 3 | EEE 802.1ah EoMPLS Network |
Note |
In EoMPLS networks Cisco 7600 series routers use the bridge domain identifier (set using the bridge-domain command) as the B-tag identifier. Therefore it is not necessary to specify B-VLAN configuration for the MAC-in-MAC tunnel. |
IEEE 802.1ah for Virtual Private LAN Services
When IEEE 802.1ah is configured on virtual private LAN service (VPLS) networks the 802.1ah packets are encapsulated in the VPLS pseudowire.
To configure MAC-in-MAC on VPLS networks you must specify the ingress EFP configuration settings at the UNI, specify the MAC-in-MAC settings, specify the virtual forwarding interface (VFI) settings, and specify the SVI configuration settings at the egress NNI. The SVI represents a VLAN of switch ports connected to the bridge via a single interface.

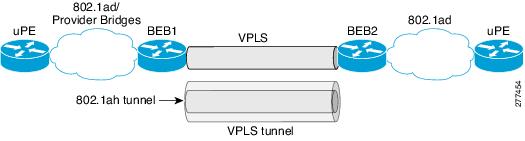

The figure below shows two 802.1ah networks connected by VPLS.
| Figure 4 | IEEE 802.1ah VPLS Network |
How to Configure MAC-in-MAC on Provider Backbone Bridges
- Configuring MAC-in-MAC in an L2 Bridging Network
- Configuring MAC-in-MAC in an Ethernet over MPLS Network
- Configuring MAC-in-MAC in a VPLS Network
Configuring MAC-in-MAC in an L2 Bridging Network
Perform this task to configure MAC-in-MAC in an L2 bridging network where the NNI has a switchport-based configuration.
DETAILED STEPS
Configuring MAC-in-MAC in an Ethernet over MPLS Network
Perform this task to configure MAC-in-MAC in an EoMPLS network.
DETAILED STEPS
Configuring MAC-in-MAC in a VPLS Network
Perform this task to configure MAC-in-MAC in a VPLS network. The following configuration enables the router to work as an IB-Bridge.
Note |
On Cisco 7600 series routers the bridge-domain identifier must be the same as the SVI identifier. |
DETAILED STEPS
Configuration Examples for MAC-in-MAC on Provider Backbone Bridges
- Example MAC-in-MAC Configuration for L2 Bridging Networks
- Example MAC-in-MAC Configuration for Ethernet over MPLS Networks
- Example MAC-in-MAC Configuration for VPLS Networks
Example MAC-in-MAC Configuration for L2 Bridging Networks
In the following example, the UNI configuration is performed on the GigabitEthernet 1/0, GigabitEthernet 2/0, and GigabitEthernet 3/0 interfaces. The MAC-in-MAC tunnel configuration includes commands to configure the default MAC tunnel destination address and the destination map. The NNI configuration is performed on the GigabitEthernet 1/2 interface, and shows the options for a switchport or External Interface (EI)-based NNI.
Note |
For switchport NNI configurations the VLAN ID is the same as the bridge domain ID configured under the MAC tunnel. For EI NNI configurations a service instance is configured under the NNI interface and the binding of the MAC tunnel to the service instance is done using the bridge domain. |
UNI (Ingress) Configuration
interface gigabitethernet 1/0 service instance 10 ethernet encapsulation dot1q 10 bridge-domain 20 c-mac service instance 20 ethernet encapsulation dot1q 20 bridge-domain 30 c-mac interface gigabitethernet 2/0 service instance 10 ethernet encapsulation dot1q 10 bridge-domain 20 c-mac service instance 30 ethernet encapsulation dot1q 20 bridge-domain 30 c-mac interface gigabitethernet 3/0 service instance 10 ethernet encapsulation dot1q 10 bridge-domain 20 c-mac
MAC-in-MAC Tunnel Configuration
ethernet mac-tunnel virtual 1 bridge-domain 100 mac tunnel address destination default 4444.1111.1111 service instance 10 ethernet encapsulation dot1ah isid 10000 bridge-domain 20 c-mac service instance 20 ethernet encapsulation dot1ah isid 20000 bridge-domain 30 c-mac mac tunnel address destination map 3333.1111.1111 5555.2222.2222
Switchport NNI (Egress) Configuration
interface gigabitethernet 1/2 switchport switchport mode trunk switchport trunk allowed vlan 100
EI NNI (Egress) Configuration
interface gigabitethernet 1/2 service instance 20 ethernet encapsulation dot1q bridge-domain 100
Example MAC-in-MAC Configuration for Ethernet over MPLS Networks
The following example shows how to configure a BEB where two 802.1ah networks are connected using MPLS:
UNI (Ingress) Configuration
interface gigabitethernet 1/1 service instance 15 ethernet encapsulation dot1q 20 bridge-domain 10 c-mac
MAC-in-MAC Tunnel Configuration
ethernet mac-tunnel virtual 1 bridge-domain 1000 service instance 500 ethernet encapsulation dot1ah isid 10000 bridge-domain 10 c-mac
SVI Configuration
interface vlan 1000 xconnect 10.243.245.11 100 encapsulation mpls
Example MAC-in-MAC Configuration for VPLS Networks
The following example shows how to configure a BEB where two 802.1ah networks are connected using VPLS. The 802.1ah packets are encapsulated in the VPLS pseudowire.
UNI (Ingress) Configuration
interface gigabitethernet 1/1 service instance 21 ethernet encapsulation dot1q 20 bridge-domain 10 c-mac
MAC-in-MAC Tunnel Configuration
ethernet mac-tunnel virtual 1 bridge-domain 100 service instance 31 ethernet encapsulation dot1ah isid 10000 bridge-domain 10 c-mac service instance 41 ethernet encapsulation dot1ah isid 30000 bridge-domain 20 c-mac
VFI Configuration
l2 vfi myvfi manual vpn id 20 neighbor 172.16.10.12 2000 encapsulation mpls neighbor 172.16.200.120 2000 encapsulation mpls vpn id vpn-id
SVI Configuration
interface vlan 100 xconnect vfi vfi100
Additional References
Related Documents
| Related Topic |
Document Title |
|---|---|
| MAC-in-MAC commands: complete command syntax, command mode, command history, defaults, usage guidelines, and examples |
Cisco IOS Carrier Ethernet Command Reference |
| Cisco IOS commands: master list of commands with complete command syntax, command mode, command history, defaults, usage guidelines, and examples |
Standards
| Standard |
Title |
|---|---|
| IEEE 802.1ah |
IEEE 802.1ah - Provider Backbone Bridges |
MIBs
| MIB |
MIBs Link |
|---|---|
| None |
To locate and download MIBs for selected platforms, Cisco software releases, and feature sets, use Cisco MIB Locator found at the following URL: |
RFCs
| RFC |
Title |
|---|---|
| No new or modified RFCs are supported by this feature, and support for existing RFCs has not been modified by this feature. |
-- |
Technical Assistance
| Description |
Link |
|---|---|
| The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password. |
Feature Information for IEEE 802.1ah on Provider Backbone Bridges
The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.
Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/go/cfn. An account on Cisco.com is not required.
| Table 3 | Feature Information for IEEE 802.1ah on Provider Backbone Bridges feature. |
| Feature Name |
Releases |
Feature Information |
|---|---|---|
| 802.1ah/EVC2.0 for 7600 (Infrastructure) |
12.2(33)SRE |
The IEEE 802.1ah on Provider Backbone Bridges feature enables MAC-in-MAC on EVCs. In Cisco IOS Release 12.2(33)SRE, this feature was introduced on the Cisco 7600 series routers. The following commands were introduced or modified: bridge-domain, clear bridge-domain mac table, description, encapsulation dot1ah isid, ethernet mac-tunnel virtual, mac tunnel address destination default, mac tunnel address destination map, service instance ethernet(mac-tunnel), show bridge-domain, show ethernet mac-tunnel engine slot, show ethernet service instance, show ethernet service mac-tunnel. |
