Configuring MGCP PRI Backhaul and T1 CAS Support

Last Updated: December 14, 2011

This chapter describes the procedures for enabling MGCP PRI backhaul support for Cisco Unified Communications Manager on the Cisco IOS gateway and describes related features.

Feature History for QSIG Supplementary Features for Voice Gateway Routers

Release

Modification

12.3(8)XY

This feature was introduced.

12.3(11)T

This feature was integrated into Cisco IOS Release 12.3(11)T.

Feature History for MGCP Gateway Support for Cisco Unified Communications Manager Network Specific Facilities

Release

Modification

12.2(15)ZJ

This feature was introduced.

12.3(4)T

This feature was integrated into Cisco IOS Release 12.3(4)T.

Feature History for MGCP PRI Backhaul and T1 CAS Support for Cisco Unified Communications Manager

Release

Modification

12.2(2)XN

This feature was introduced for Cisco Unified Communications Manager 3.0 (formerly known as Cisco CallManager 3.0).

12.2(11)T

Support was added for Cisco Unified Communications Manager 3.2 (formerly known as Cisco CallManager 3.2).

Finding Support Information for Platforms and Cisco IOS Software Images

Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn . You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.

For more information about this and related Cisco IOS voice features, see the following:

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest feature information and caveats, see the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the Feature Information Table at the end of this document.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/go/cfn. An account on Cisco.com is not required.

Prerequisites for MGCP PRI Backhaul and T1 CAS Support

  • Cisco IOS Release 12.2(11)T.

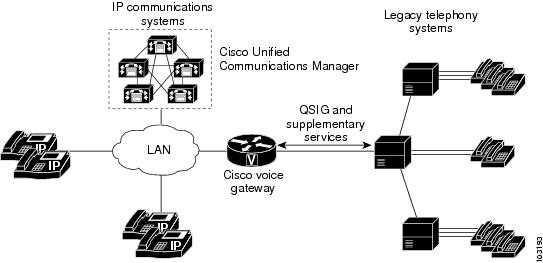

  • QSIG signaling is required to support supplementary services over the T1 and E1 time-division multiplexing (TDM) trunks that support the PRI backhaul mechanism.

Restrictions for MGCP PRI Backhaul and T1 CAS Support

  • Voice interfaces on the NM-HDA and the AIM-VOICE-30 are not supported.
  • Integrated access, in which the channels on a T1 or E1 interface are divided between a group used for voice and another group used for WAN access, is not supported when voice is controlled by Cisco Unified Communications Manager through MGCP.
  • T1 and E1 protocols, such as QSIG, E1 R2, T1 FGD, and PRI NFAS, are not supported with MGCP only with H.323.
  • E1 CAS is not supported.
  • Do not add the application mgcpapp command to dial peers that support PRI backhaul.

Information About MGCP PRI Backhaul and T1 CAS Support

MGCP PRI Backhaul Overview

MGCP PRI backhaul is a method for transporting complete IP telephony signaling information from an ISDN PRI interface in an MGCP gateway to Cisco Unified Communications Manager using a highly reliable TCP connection. The gateway uses a single TCP connection to backhaul all ISDN D channels to Cisco Unified Communications Manager. The "SAP/Channel ID" parameter in the header of each message identifies individual D channels. In addition to carrying the backhaul traffic, the TCP keepalive mechanism also determines MGCP voice gateway connectivity to an available call agent.

MGCP PRI backhaul terminates all ISDN PRI Layer 2 (Q.921) signaling functions on the MGCP gateway while, at the same time, packaging all the ISDN PRI Layer 3 (Q.931) signaling information into packets for transmission to Cisco Unified Communications Manager through an IP tunnel over a TCP connection. This ensures the integrity of the Q.931 signaling information that passes through the network for managing IP telephony devices. A rich set of user-side and network-side ISDN PRI calling functions is supported by MGCP PRI backhaul.

The MGCP gateway also establishes a TCP link to the backup (secondary) Cisco Unified Communications Manager server. In the event of a Cisco Unified Communications Manager switchover, the secondary Cisco Unified Communications Manager server performs the MGCP PRI backhaul functions. During the switchover, all active ISDN PRI calls are preserved, and the affected MGCP gateway is registered with the new Cisco Unified Communications Manager server through a Restart-in-Progress (RSIP) message. In this way, continued gateway operation is ensured.

T1 CAS is supported in nonbackhaul fashion. Cisco Unified Communications Manager supports the following CAS signaling types: E&M, wink-start, and E&M delay-dial. E1 CAS is not supported.

ISDN NSF in Route Patterns

The MGCP Gateway Support for Cisco Unified Communications Manager Network Specific Facilities (NSF) feature supports the use of the ISDN NSF information element in the route pattern. This feature is compatible with Cisco Communications Manager 3.3(2) (formerly known as Cisco CallManager 3.3(2)) and later.

The route pattern design in Cisco Unified Communications Manager enables facilities or services to be invoked on a call-by-call basis. The NSF information element, which is used in ISDN PRI setup messages for outgoing calls, includes the carrier identification code (CIC) and service parameters. The NSF configuration is done in Cisco Unified Communications Manager as part of the route pattern for MGCP-controlled PRI ports. The NSF information element is inserted in the Q.931 stream so that the attached PSTN switch can interpret the information elements and select the service and route the call to a network.

With NSF configured, NSF can be used on a call-by-call basis. Without NSF configuration, you must configure associated gateways as standalone H.323 gateways for which NSF services are configured locally within the router. No configuration is required on the MGCP gateway to use the NSF feature.

How to Configure MGCP PRI Backhaul Support

Configuring MGCP PRI Backhaul on the Cisco Voice Gateway

Perform this task to configure MGCP PRI backhaul on a Cisco Voice Gateway.

SUMMARY STEPS

1.    enable

2.    configure terminal

3.    controller {t1 | e1} slot/port

4.    framing {esf | sf | crc4 | no-crc4 | mp-crc4} [australia]

5.    clock source {internal | line}

6.    linecode {ami | b8zs | hdb3}

7.    isdn switch-type {primary-4ess | primary-5ess | primary-dms100 | primary-ni | primary-net5 | primary-ntt | primary-qsig | primary-ts014}

8.    pri-group timeslots timeslot-range service mgcp

9.    exit

10.    interface serial slot / port : timeslot

11.    isdn bind-L3 ccm-manager

12.    exit


DETAILED STEPS
  Command or Action Purpose
Step 1
enable


Example:

Router> enable



Enables privileged EXEC mode.

  • Enter your password when prompted.

Step 2
configure terminal


Example:

Router# configure terminal



Enters global configuration mode.


Step 3
controller {t1 | e1} slot/port


Example:

Router(config)# controller t1 3/0



Enters controller configuration mode.


Step 4
framing {esf | sf | crc4 | no-crc4 | mp-crc4} [australia]


Example:

Router(config-controller)# framing esf



Specifies the framing type on a E1 or T1 PRI line.

  • Default is sf (super frame) for T1 lines; CRC4 for E1 lines.

Step 5
clock source {internal | line}


Example:

Router(config-controller)# clock source internal



Configures the clock source used by the E1 or T1 controller.

  • Default is line.

Step 6
linecode {ami | b8zs | hdb3}


Example:

Router(config-controller)# linecode b8zs



Specifies the line encoding method for the link.

  • Default is ami (alternate mark inversion) for T1 lines; hdb3 (high-density bipolar 3) for E1 lines.

Step 7
isdn switch-type {primary-4ess | primary-5ess | primary-dms100 | primary-ni | primary-net5 | primary-ntt | primary-qsig | primary-ts014}


Example:

Router(config-if)# isdn switch-type primary-5ess



Specifies the ISDN switch type.

Note    This command can be entered in either global configuration mode or interface configuration mode.

Step 8
pri-group timeslots timeslot-range service mgcp


Example:

Router(config-controller)# pri-group timeslots 1-24 service mgcp



Specifies MGCP as the control protocol used for backhaul.

Note    The controller time slots cannot be shared between backhaul and other Layer 3 protocols.

Step 9
exit


Example:

Router(config-dial-peer)# exit



Exits controller configuration mode and returns to global configuration mode.


Step 10
interface serial slot / port : timeslot


Example:

Router(config)# interface serial 3/0:0



Enters serial interface configuration mode.

  • The syntax of this command is platform-dependent; type ? to determine.

Step 11
isdn bind-L3 ccm-manager


Example:

Router(config-if)# isdn bind-L3 ccm-manager



Enables ISDN to backhaul Q.931.


Step 12
exit


Example:

Router(config-if)# exit



Exits interface configuration mode and returns to global configuration mode.



Verifying MGCP PRI Backhaul Configuration

Perform this task to verify the configuration.

SUMMARY STEPS

1.    show isdn status

2.    show ccm-manager

3.    show ccm-manager backhaul


DETAILED STEPS
Step 1   show isdn status

Use the show isdn status command to verify connectivity.

In the following sample output, the Layer 2 protocol is Q.921, and the Layer 3 protocol is CCM-MANAGER. This output verifies that the Layer 2 and Layer 3 protocols are configured to backhaul ISDN. If you are connected to a live line, you should see Layer 1 status as active and Layer 2 as MULTIPLE_FRAME_ESTABLISHED.



Example:
Router# show isdn status
*00:03:34.423 UTC Sat Jan 1 2000
Global ISDN Switchtype = primary-net5
ISDN Serial1:23 interface
!
******* Network side configuration *******
!
 dsl 0, interface ISDN Switchtype = primary-net5
!
**** Master side configuration ****
!
 L2 Protocol = Q.921 L3 Protocol(s) = CCM-MANAGER
 Layer 1 Status: ACTIVE Layer 2 Status:
 TEI = 0, Ces = 1, SAPI = 0, State = MULTIPLE_FRAME_ESTABLISHED
 Layer 3 Status:
 NLCB:callid=0x0, callref=0x0, state=31, ces=0 event=0x0
 NLCB:callid=0x0, callref=0x0, state=0, ces=1 event=0x0
 0 Active Layer 3 Call(s)
 Activated dsl 0 CCBs = 0
 Number of active calls = 0
 Number of available B-channels = 23
 Total Allocated ISDN CCBs = 0
Step 2   show ccm-manager

Use the show ccm-manager command to view the registration status with Cisco Unified Communications Manager, for example:



Example:
Router# show ccm-manager
MGCP Domain Name: AV-2620-4
Priority        Status                       Host
============================================================
Primary         Registered                   10.16.240.124
First Backup    Backup Ready                 10.16.240.128
Second Backup   None
Current active Call Manager:    10.16.240.124
Backhaul/Redundant link port:   2428
Failover Interval:              30 seconds
Keepalive Interval:             15 seconds
Last keepalive sent:            00:45:31 (elapsed time: 00:00:04)
Last MGCP traffic time:         00:45:31 (elapsed time: 00:00:04)
Last failover time:             None
Switchback mode:                Graceful
MGCP Fallback mode:             Not Selected
Last MGCP Fallback start time:  00:00:00
Last MGCP Fallback end time:    00:00:00
PRI Backhaul Link info:
  Link Protocol:       TCP
  Remote Port Number:  2428
  Remote IP Address:   10.16.240.124
  Current Link State:  OPEN
  Statistics:
     Packets recvd:    32
     Recv failures:    0
     Packets xmitted:  32
     Xmit failures:    0
  PRI Ports being backhauled:
     Slot 1, port 0
Configuration Auto-Download Information
=======================================
Current version-id: {1645327B-F59A-4417-8E01-7312C61216AE}
Last config-downloaded:00:00:49
Current state: Waiting for commands
Configuration Download statistics:
        Download Attempted             : 6
          Download Successful          : 6
          Download Failed              : 0
        Configuration Attempted        : 1
          Configuration Successful     : 1
          Configuration Failed(Parsing): 0
          Configuration Failed(config) : 0
Last config download command: New Registration
Configuration Error History:
FAX mode: cisco
Step 3   show ccm-manager backhaul

Use the show ccm-manager backhaul command to verify the PRI backhaul link information, for example:



Example:
Router# show ccm-manager backhaul
PRI Backhaul Link info:
 Link Protocol:          TCP
 Remote Port Number:     2428
 Remote IP Address:      10.20.71.38
 Current Link State:     OPEN
 Statistics:
  Packets recvd:         0
  Recv failures:         0
  Packets xmitted:       21
  Xmit failures:         0
PRI Ports being backhauled:
 Slot 1, port 1
Note    For a description of the fields displayed in these output examples, see the Cisco IOS Voice Command Reference, Release 12.3T.

Configuring MGCP Gateway Support for Cisco Unified Communications Manager NSF

There are no specific Cisco IOS configuration tasks necessary to support the Network Specific Facilities (NSF) feature other than enabling MGCP PRI backhaul as described in the Configuring MGCP PRI Backhaul on the Cisco Voice Gateway.

Prerequisites for MGCP Gateway Support for Cisco Unified Communications Manager NSF

  • Cisco IOS Release 12.3(4)T or later
  • NM-HDV or NM-HDV2
  • Supported interface cards:
    • AIM-ATM-VOICE-30
    • AIM-VOICE-30
  • Supported switch types:
    • PRI 4ESS
    • PRI 5E8
    • PRI 5E9
    • DMS 100
    • DMS 250
    • PRI NI-2
  • MGCP PRI backhaul configuration. For information, see:
  • Cisco Unified Communications Manager 3.3(2) (formerly known as Cisco CallManager 3.3(2)) or later with the following configured:
    • Network Service Protocol--Choose the PRI protocol that matches the protocol of the terminating gateway from the Network Service Protocol drop-down field.
    • Network Service--Choose the appropriate network service. The values vary depending on the network service protocol that you choose from the Network Service Protocol drop-down field.
    • Service Parameter Name--Displays the service parameter name that is associated with the chosen network service. If no service parameter exists for the network service, the field displays <Not Exist>.
    • Service Parameter Value--Enter the appropriate service parameter value. Valid entries include the digits 0 to 9. If a service parameter does not exist for the network service, Cisco Unified Communications Manager disables this field.
    • Route patterns--For more information, see the Cisco Unified CallManager Administration Guide, Release 4.0(1) .
  • Cisco Unified Communications Manager supports NSF only if the appropriate carrier identification code (CIC) is entered in the CIC field. CICs, which can be 3 or 4 digits or no digits, enable you to reach the services of interexchange carriers. For a complete list of CICs, go to http://www.nanpa.com . The following are examples of commonly used CICs:
    • 0222--WorldCom and MCI
    • 0288--ATT
    • 0333--Sprint

Verifying MGCP Gateway Support for Cisco Unified Communications Manager NSF

Perform this task to verify the configuration.

SUMMARY STEPS

1.    show ccm-manager

2.    show mgcp endpoints

3.    debug ccm-manager backhaul

4.    debug isdn q931


DETAILED STEPS
Step 1   show ccm-manager

Use the show ccm-manager command to verify the registration status of Cisco Unified Communications Manager, for example:



Example:
Router# show ccm-manager
MGCP Domain Name: Router
Priority Status Host
============================================================                          Primary Registered 10.16.240.124
First Backup    None
Second Backup   None
Current active Call Manager: 10.16.240.124
Backhaul/Redundant link port: 2428
Failover Interval: 30 seconds
Keepalive Interval: 15 seconds
Last keepalive sent: 00:45:31 (elapsed time: 00:00:04)
Last MGCP traffic time: 00:45:31 (elapsed time: 00:00:04)
Last failover time: None
Switchback mode: Graceful
MGCP Fallback mode: Not Selected
Last MGCP Fallback start time: 00:00:00
Last MGCP Fallback end time:    00:00:00
PRI Backhaul Link info
 Link Protocol:    TCP
 Remote Port Number: 2428
 Remote IP Address: 10.16.240.124
 Current Link State: OPEN
 Statistics:
   Packets recvd: 32
   Recv failures: 0
   Packets xmitted: 32
   Xmit failures: 0
 PRI Ports being backhauled: Slot 1, port 0
!
Configuration Auto-Download Information
=======================================
No configurations downloaded
Current state: Automatic Configuration Download feature is disabled                          Configuration Error History:
FAX mode: cisco
Step 2   show mgcp endpoints

Use the show mgcp endpoints command to verify the status of the ports on the T1 interface, for example:



Example:
Router# show mgcp endpoints
Interface T1 1/0
!
ENDPOINT-NAME          V-PORT  SIG-TYPE ADMIN
S1/ds1-0/1@AV-2620-4   1/0:23    none     up                           S1/ds1-0/2@AV-2620-4   1/0:23    none     up                           S1/ds1-0/3@AV-2620-4   1/0:23    none     up                           S1/ds1-0/4@AV-2620-4   1/0:23    none     up                           S1/ds1-0/5@AV-2620-4   1/0:23    none     up                           S1/ds1-0/6@AV-2620-4   1/0:23    none     up                           S1/ds1-0/7@AV-2620-4   1/0:23    none     up                           S1/ds1-0/8@AV-2620-4   1/0:23    none     up                           S1/ds1-0/9@AV-2620-4   1/0:23    none     up                           S1/ds1-0/10@AV-2620-   1/0:23    none     up                           S1/ds1-0/11@AV-2620-   1/0:23    none     up                           S1/ds1-0/12@AV-2620-   1/0:23    none     up                           S1/ds1-0/13@AV-2620-   1/0:23    none     up                           S1/ds1-0/14@AV-2620-   1/0:23    none     up                           S1/ds1-0/15@AV-2620-   1/0:23    none     up                           S1/ds1-0/16@AV-2620-   1/0:23    none     up                           S1/ds1-0/17@AV-2620-   1/0:23    none     up                           S1/ds1-0/18@AV-2620-   1/0:23    none     up                           S1/ds1-0/19@AV-2620-   1/0:23    none     up                           S1/ds1-0/20@AV-2620-   1/0:23    none     up                           S1/ds1-0/21@AV-2620-   1/0:23    none     up                           S1/ds1-0/22@AV-2620-   1/0:23    none     up                           S1/ds1-0/23@AV-2620-   1/0:23    none     up
Step 3   debug ccm-manager backhaul

Use the debug ccm-manager backhaul command to verify that the NSF messages are backhauled correctly between the gateway and Cisco Unified Communications Manager, for example:



Example:
Router# debug ccm-manager backhaul events
!
Call Manager backhaul events debugging is ON.
!
3:05:20:
1w0d:
cmbh_rcv_callback: <-- Receiving backhaul msg for Se1/1:23 :
	| bk_msg_type = DATA_REQ
	| bk_chan_id (slot:port) = 1:1
	| Q.931 length = 52
	| Q.931 message type: SETUP
	| Q.931 message = 080200040504038090A21803A983971E028083200604A1323838E7

The bold portion of the above number is the NSF related information in the setup message of the backhaul packet.



Example:
					  28086E616D65343430316C0600813434303170058039393939
1w0d:
cmbrl_send_pak: >-- Sending backhauled msg for Se1/1:23 :
	| bk_msg_type = DATA_IND
	| bk_chan_id (slot:port) = 1:1
	| Q.931 length = 12
	| Q.931 message type: STATUS
	| Q.931 message = 080280047D080280E4140101
1w0d:
cmbrl_send_pak: --> Sending backhauled msg for Se1/1:23 :
	| bk_msg_type = DATA_IND
	| bk_chan_id (slot:port) = 1:1
	| Q.931 length = 10
	| Q.931 message type: CALL PROCEEDING
	| Q.931 message = 08028004021803A98397
1w0d:
cmbrl_send_pak: --> Sending backhauled msg for Se1/1:23 :
	| bk_msg_type = DATA_IND
	| bk_chan_id (slot:port) = 1:1
	| Q.931 length = 9
	| Q.931 message type: PROGRESS
	| Q.931 message = 08028004031E028188
1w0d:
cmbrl_send_pak: --> Sending backhauled msg for Se1/1:23 :
	| bk_msg_type = DATA_IND
	| bk_chan_id (slot:port) = 1:1
	| Q.931 length = 9
	| Q.931 message type: CONNECT
	| Q.931 message = 08028004071E028182
1w0d:
cmbh_rcv_callback: <-- Receiving backhaul msg for Se1/1:23 :
	| bk_msg_type = DATA_REQ
	| bk_chan_id (slot:port) = 1:1
	| Q.931 length = 5
	| Q.931 message type: CONNECT ACK
	| Q.931 message = 080200040F
1w0d:
cmbrl_send_pak: --> Sending backhauled msg for Se1/1:23 :
	| bk_msg_type = DATA_IND
	| bk_chan_id (slot:port) = 1:1
	| Q.931 length = 9
	| Q.931 message type: DISCONNECT
	| Q.931 message = 080280044508028290
1w0d:
cmbh_rcv_callback: <-- Receiving backhaul msg for Se1/1:23 :
	| bk_msg_type = DATA_REQ
	| bk_chan_id (slot:port) = 1:1
	| Q.931 length = 5
	| Q.931 message type: RELEASE
	| Q.931 message = 080200044D
1w0d:
cmbrl_send_pak: --> Sending backhauled msg for Se1/1:23 :
	| bk_msg_type = DATA_IND
	| bk_chan_id (slot:port) = 1:1
	| Q.931 length = 5
	| Q.931 message type: RELEASE COMPLETE
	| Q.931 message = 080280045A
Step 4   debug isdn q931

Use the debug isdn q931 command to display the ISDN Layer 3 processing, for example:



Example:
Router# debug isdn q931
!
debug isdn q931 is ON.
1w0d: ISDN Se1/1:23 Q931: TX -> SETUP pd = 8 callref = 0x0003
        Bearer Capability i = 0x8090A2
                Standard = CCITT
                Transfer Capability = Speech
                Transfer Mode = Circuit
                Transfer Rate = 64 kbit/s
        Channel ID i = 0xA98397
                Exclusive, Channel 23
        Progress Ind i = 0x8083 - Origination address is non-ISDN
        Net Specific Fac i = 0x04A1323838E7
        Display i = 'name4401'
        Calling Party Number i = 0x0081, '4401'
                Plan:Unknown, Type:Unknown
        Called Party Number i = 0x80, '9999'
                Plan:Unknown, Type:Unknown
1w0d: ISDN Se1/1:23 Q931: RX <- STATUS pd = 8 callref = 0x8003
        Cause i = 0x80E4 - Invalid information element contents
        Call State i = 0x01
1w0d: ISDN Se1/1:23 Q931: RX <- CALL_PROC pd = 8 callref = 0x8003
        Channel ID i = 0xA98397
                Exclusive, Channel 23
1w0d: ISDN Se1/1:23 Q931: RX <- PROGRESS pd = 8 callref = 0x8003
        Progress Ind i = 0x8188 - In-band info or appropriate now available
1w0d: ISDN Se1/1:23 Q931: RX <- CONNECT pd = 8 callref = 0x8003
        Progress Ind i = 0x8182 - Destination address is non-ISDN
1w0d: ISDN Se1/1:23 Q931: TX -> CONNECT_ACK pd = 8 callref = 0x0003
1w0d: ISDN Se1/1:23 Q931: RX <- DISCONNECT pd = 8 callref = 0x8003
        Cause i = 0x8290 - Normal call clearing
1w0d: ISDN Se1/1:23 Q931: TX -> RELEASE pd = 8 callref = 0x0003
1w0d: ISDN Se1/1:23 Q931: RX <- RELEASE_COMP pd = 8 callref = 0x8003
Note    For a description of the fields displayed in these output examples, see the Cisco IOS Voice Command Reference, Release 12.3T and the Cisco IOS Debug Command Reference, Release 12.3.

Configuring QSIG Supplementary Features for Cisco IOS Voice Gateways

There are no specific configuration tasks necessary to support QSIG features on the voice gateway except those described in the following Prerequisites section.

Prerequisites

  • Cisco IOS Release 12.3(11)T or later
  • MGCP must be configured on the voice gateway. For information, see "Configuring MGCP Gateway Support for Cisco Unified Communications Manager" on page 23 .
  • ISDN PRI Backhaul must be configured on the MGCP gateway. For information, see the Configuring MGCP PRI Backhaul on the Cisco Voice Gateway.
  • QSIG signaling is required to support supplementary services over the T1 and E1 time-division multiplexing (TDM) trunks that support the PRI backhaul mechanism.
  • Cisco Catalyst 6500 series and Cisco 7600 series Communication Media Module (CMM) requires WS-SVC-CMM-6T1 or WS-SVC-CMM-6E1 port adapter.

QSIG Supplementary Features for Cisco IOS Voice Gateways

The QSIG protocol, a variation of ISDN PRI signaling that is used by PBXs, supports basic calls and supplementary services over TDM trunks. Cisco Unified Communications Manager can interoperate with PBXs using QSIG. The voice gateway supports QSIG over PRI backhaul interfaces. Call control is transparent to the voice gateway as all layer 3 messages are passed through PRI backhaul.

These additional QSIG features and services are supported for Cisco Unified Communications Manager 4.0 (formerly known as Cisco CallManager 4.0) and later:

  • Call diversion (forwarding)
  • Call transfer
  • Identification services
  • Message waiting indication services
Figure 1 QSIG and Supplementary Services Overview


For more information about QSIG support in Cisco Unified Communications Manager, see the "Understanding IP Telephony Protocols" chapter in the Cisco Unified Communications Manager System Guide

Configuration Examples for MGCP PRI Backhaul and T1 CAS


Note
To view relevant configuration examples, go to the Cisco Systems Technologies website at http://cisco.com/web/psa/technologies/index.html . From the website, select Voice > IP Telephony/VoIP, then click Configure> Configuration Examples and Tech Notes.

MGCP PRI Backhaul and T1 CAS Example

In the following example, T1 CAS and PRI backhaul is configured for an MGCP gateway:

mgcp
mgcp call-agent 10.0.0.21 service-type mgcp version 0.1
mgcp dtmf-relay voip codec all mode out-of-band
mgcp modem passthrough voip mode cisco
mgcp modem passthrough voip codec g711alaw
mgcp modem passthrough voip redundancy
mgcp package-capability dtmf-package
mgcp package-capability mf-package
mgcp package-capability rtp-package
mgcp package-capability sst-package
mgcp default-package line-package
mgcp timer net-cont-test 3000
isdn switch-type primary-ni
call rsvp-sync
!
ccm-manager fallback-mgcp
ccm-manager redundant-host 10.0.0.21
ccm-manager mgcp
ccm-manager music-on-hold
! This is the PRI backhaul circuit
controller T1 3/0
 framing esf
 linecode b8zs
 pri-group 0 timeslots 1-24 service mgcp
!
! This is the T1-CAS circuit
controller T1 3/1
 framing esf
 linecode b8zs
 ds0-group 0 timeslots 1-24 type e&m-wink-start
!
interface Serial3/0:23
 no ip address
 no logging event link-status
 isdn switch-type primary-ts014
 isdn incoming-voice voice
 isdn T306 60000
 isdn bind-L3 ccm-manager
 no cdp enable
!
dial-peer voice 501 pots
 service mgcpapp
 incoming called-number
 port 3/1:0

Where to Go Next

  • To configure conferencing, transcoding, and MTP support on a Cisco IOS gateway, see "Configuring Enhanced Conferencing and Transcoding for Voice Gateway Routers" on page 67 .
  • To enable MGCP BRI backhaul support, see "Configuring MGCP-Controlled Backhaul of BRI Signaling in Conjunction with Cisco Unified Communications Manager" on page 129 .
  • To download region-specific tones and their associated frequencies, amplitudes, and cadences, see "Configuring Tone Download to MGCP Gateways" on page 145 .

Additional References

CCDE, CCENT, CCSI, Cisco Eos, Cisco Explorer, Cisco HealthPresence, Cisco IronPort, the Cisco logo, Cisco Nurse Connect, Cisco Pulse, Cisco SensorBase, Cisco StackPower, Cisco StadiumVision, Cisco TelePresence, Cisco TrustSec, Cisco Unified Computing System, Cisco WebEx, DCE, Flip Channels, Flip for Good, Flip Mino, Flipshare (Design), Flip Ultra, Flip Video, Flip Video (Design), Instant Broadband, and Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn, Cisco Capital, Cisco Capital (Design), Cisco:Financed (Stylized), Cisco Store, Flip Gift Card, and One Million Acts of Green are service marks; and Access Registrar, Aironet, AllTouch, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Lumin, Cisco Nexus, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Collaboration Without Limitation, Continuum, EtherFast, EtherSwitch, Event Center, Explorer, Follow Me Browsing, GainMaker, iLYNX, IOS, iPhone, IronPort, the IronPort logo, Laser Link, LightStream, Linksys, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, PCNow, PIX, PowerKEY, PowerPanels, PowerTV, PowerTV (Design), PowerVu, Prisma, ProConnect, ROSA, SenderBase, SMARTnet, Spectrum Expert, StackWise, WebEx, and the WebEx logo are registered trademarks of Cisco and/or its affiliates in the United States and certain other countries.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)

Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.

© 2011 Cisco Systems, Inc. All rights reserved.

© 2011 Cisco Systems, Inc. All rights reserved.
