SIP-to-SIP Extended Feature Functionality for Session Border Controllers

The SIP-to-SIP Extended Feature Functionality for Session Border Controllers (SBCs) enables the SIP-to-SIP functionality to conform with RFC 3261 to interoperate with SIP User Agents (UAs). The SIP-to-SIP Extended Feature Functionality includes:

  • Call Admission Control (based on CPU, memory, and total calls)

  • Delayed Media Call

  • ENUM support

  • Configuring SIP Error Message Pass Through

  • Interoperability with Cisco Unified Communications Manager 5.0 and BroadSoft

  • Lawful Intercept

  • Media Inactivity

  • Modem Passthrough over VoIP

  • TCP and UDP interworking

  • Tcl scripts with SIP NOTIFY VoiceXML with SIP-to-SIP

  • Transport Layer Security (TLS)

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest caveats and feature information, see Bug Search Tool and the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the feature information table.

Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

Prerequisites for SIP-to-SIP Extended Feature Functionality for Session Border Controllers

Cisco Unified Border Element

  • Cisco IOS Release 12.4(6)T or a later release must be installed and running on your Cisco Unified Border Element.

Cisco Unified Border Element (Enterprise)

  • Cisco IOS XE Release 3.1S or a later release must be installed and running on your Cisco ASR 1000 Series Router.

Modem Passthrough over VoIP

The Modem Passthrough over VoIP feature provides the transport of modem signals through a packet network by using pulse code modulation (PCM) encoded packets.

Prerequisites for the Modem Passthrough over VoIP Feature

  • VoIP enabled network.

  • Cisco IOS Release 12.1(3)T must run on the gateways for the Modem Passthrough over VoIP feature to work.

  • Network suitability to pass modem traffic. The key attributes are packet loss, delay, and jitter. These characteristics of the network can be determined by using the Cisco IOS feature Service Assurance Agent.

Cisco Unified Border Element

  • Cisco IOS Release 12.4(6)T or a later release must be installed and running on your Cisco Unified Border Element.

Cisco Unified Border Element (Enterprise)

  • Cisco IOS XE Release 3.3S or a later release must be installed and running on your Cisco ASR 1000 Series Router.

Restrictions for the Modem Passthrough over VoIP Feature

Cisco Unified Border Element (Enterprise)

  • If call started as g729, upon modem tone (2100Hz) detection both the outgoing gateway (OGW) and the trunking gateway (TGW) will genearate NSE packets towards peer side and up speed to g711 as Cisco UBE(Enterprise) passes these packets to the peer side.


Note


That OGW and TGW display the new codec, but the Cisco UBE (Enterprise) continues to show the original codec g729 in the show commands.


Information about Configuring Modem Passthrough over VoIP

The Modem Passthrough over VoIP feature performs the following functions:

  • Represses processing functions like compression, echo cancellation, high-pass filter, and voice activity detection (VAD).

  • Issues redundant packets to protect against random packet drops.

  • Provides static jitter buffers of 200 milliseconds to protect against clock skew.

  • Discriminates modem signals from voice and fax signals, indicating the detection of the modem signal across the connection, and placing the connection in a state that transports the signal across the network with the least amount of distortion.

  • Reliably maintains a modem connection across the packet network for a long duration under normal network conditions.

For further details, the functions of the Modem Passthrough over VoIP feature are described in the following sections.

Modem Tone Detection

The gateway is able to detect modems at speeds up to V.90.

Passthrough Switchover

When the gateway detects a data modem, both the originating gateway and the terminating gateway roll over to G.711. The roll over to G.711 disables the high-pass filter, disables echo cancellation, and disables VAD. At the end of the modem call, the voice ports revert to the prior configuration and the digital signal processor (DSP) goes back to the state before switchover. You can configure the codec by selecting the g711alaw or g711ulaw option of the codec command.

See also the How to Configure Modem Passthrough over VoIP section in this document.

Controlled Redundancy

You can enable payload redundancy so that the Modem Passthrough over VoIP switchover causes the gateway to emit redundant packets.

Packet Size

When redundancy is enabled, 10-ms sample-sized packets are sent. When redundancy is disabled, 20-ms sample-sized packets are sent.

Clock Slip Buffer Management

When the gateway detects a data modem, both the originating gateway and the terminating gateway switch from dynamic jitter buffers to static jitter buffers of 200-ms depth. The switch from dynamic to static is to compensate for Public Switched Telephone Network (PSTN) clocking differences at the originating gateway and the terminating gateway. At the conclusion of the modem call, the voice ports revert to dynamic jitter buffers.

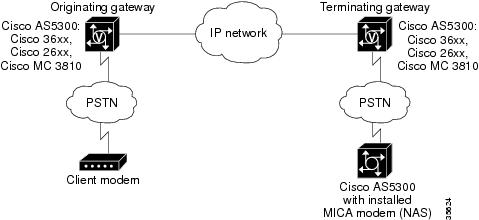

The figure below illustrates the connection from the client modem to a MICA technologies modem network access server (NAS).

Figure 1. Modem Passthrough Connection

How to Configure Modem Passthrough over VoIP

You can configure the Modem Passthrough over VoIP feature on a specific dial peer in two ways, as follows:

  • Globally in the voice-service configuration mode

  • Individually in the dial-peer configuration mode on a specific dial peer

By default, modem passthrough over VoIP capability and redundancy are disabled.


Tip


You need to configure modem passthrough in both the originating gateway and the terminating gateway for the Modem Passthrough over VoIP feature to operate. If you configure only one of the gateways in a pair, the modem call will not connect successfully.


Redundancy can be enabled in one or both of the gateways. When only a single gateway is configured for redundancy, the other gateway receives the packets correctly, but does not produce redundant packets.

See the following sections for the Modem Passthrough over VoIP feature. The two configuration tasks can configure separately or together. If both are configured, the dial-peer configuration takes precedence over the global configuration. Consequently, a call matching a particular dial-peer will first try to apply the modem passthrough configuration on the dial-peer. Then, if a specific dial-peer is not configured, the router will use the global configuration:

Configuring Modem Passthrough over VoIP Globally

For the Modem Passthrough over VoIP feature to operate, you need to configure modem passthrough in both the originating gateway and the terminating gateway so that the modem call matches a voip dial-peer on the gateway.

The default behavior for the voice-service configuration mode is no modem passthrough. This default behavior implies that modem passthrough is disabled for all dial peers on the gateway by default.

When using the voice service voip and modem passthrough nse commands on a terminating gateway to globally set up fax or modem passthrough with NSEs, you must also ensure that each incoming call will be associated with a VoIP dial peer to retrieve the global fax or modem configuration. You associate calls with dial peers by using the incoming called-number command to specify a sequence of digits that incoming calls can match.

To configure the Modem Passthrough over VoIP feature for all the connections of a gateway, use the following commands beginning in global configuration mode:

SUMMARY STEPS

    1.    enable

    2.    voice service voip

    3.    modem passthrough nse [payload-type number] codec {g711ulaw | g711alaw} [redundancy] [maximum-sessions value]

    4.    exit

    5.    exit


DETAILED STEPS
     Command or ActionPurpose
    Step 1 enable


    Example:
    Device> enable



    Enables privileged EXEC mode.

    • Enter your password if prompted.


    Step 2 voice service voip


    Example:
    Device(config)# voice service voip



    Enters voice-service configuration mode.

    Configures voice service for all the connections for the gateways.


    Step 3 modem passthrough nse [payload-type number] codec {g711ulaw | g711alaw} [redundancy] [maximum-sessions value]


    Example:
    Device(config)# Router(conf-voi-serv)# modem passthrough nse payload-type 97 codec g711alaw redundancy maximum-sessions 3



    Configures the Modem Passthrough over VoIP feature The default behavior is no modem passthrough.

    The payload type is an optional parameter for the nse keyword. Use the same payload-type number for both the originating gateway and the terminating gateway. The payload-type numbercan be set from 96 to 119. If you do not specify the payload-type number, the numberdefaults to 100. When the payload-type is 100, and you use the show running-configcommand, the payload-type parameter does not appear.

    Use the same codec type for both the originating gateway and the terminating gateway. g711ulaw codec is required for T1, and g711alaw codec is required for E1.

    The redundancy keyword is an optional parameter for sending redundant packets for modem traffic.

    The maximum-sessions keyword is an optional parameter for the redundancykeyword. This parameter determines the maximum simultaneous modem passthrough sessions with redundancy.


    Step 4 exit


    Example:
    Device(conf-voi-serv)# exit



    Exits voice-service configuration mode.


    Step 5 exit


    Example:
    Device(config)# exit



    Exits global configuration mode.



    Configuring Modem Passthrough over VoIP for a Specific Dial Peer

    To enable Modem Passthrough on the VoIP dial peers on both the originating and terminating gateway, configure modem passthrough globally or explicitly on the dial peer.

    For modem passthrough to operate, you must define VoIP dial peers on both gateways to match the call, for example, by using a destination pattern or an incoming called number. The modem passthrough parameters associated with those dial peers then will apply to the call.


    Note


    When modem passthrough is configured individually for a specific dial peer, that configuration for the specific dial peer takes precedence over the global configuration.


    To configure the Modem Passthrough over VoIP feature for a specific dial peer, use the following commands beginning in global configuration mode:

    SUMMARY STEPS

      1.    enable

      2.    dial-peer voice number voip

      3.    modem passthrough {system | nse [payload-type number] codec {g711ulaw | g711alaw}[redundancy]}

      4.    exit

      5.    exit


    DETAILED STEPS
       Command or ActionPurpose
      Step 1 enable


      Example:
      Device> enable



      Enables privileged EXEC mode.

      • Enter your password if prompted.


      Step 2 dial-peer voice number voip


      Example:
      Device(config)# dial-peer voice 5 voip



      Enters dial-peer configuration mode.

      Configures a specific dial peer in dial-peer configuration mode.


      Step 3 modem passthrough {system | nse [payload-type number] codec {g711ulaw | g711alaw}[redundancy]}


      Example:
      Device(config-dial-peer)# modem passthrough nse payload-type 97 codec g711alaw redundancy



      Configures the Modem Passthrough over VoIP feature for a specific dial peer. The default behavior for the Modem Passthrough for VoIP feature in dial-peer configuration mode is modem passthrough system. As required, the gateway defaults to no modem passthrough.

      When the system keyword is enabled, the following parameters are not available: nse, payload-type, codec, and redundancy. Instead the values from the global configuration are used.

      The payload type is an optional parameter for the nse keyword. Use the same payload-type number for both the originating gateway and the terminating gateway. The payload-type numbercan be set from 96 to 119. If you do not specify the payload-type number, the numberdefaults to 100. When the payload-type is 100, and you use the show running-configcommand, the payload-type parameter does not appear.

      Use the same codec type for both the originating gateway and the terminating gateway. g711ulaw codec is required for T1, and g711alaw codec is required for E1.

      The redundancy keyword is an optional parameter for sending redundant packets for modem traffic.


      Step 4 exit


      Example:
      Device(config-dial-peer)# exit



      Exits dial-peer configuration mode and returns to the global configuration mode.


      Step 5 exit


      Example:
      Device(config)# exit



      Exits global configuration mode.



      Troubleshooting Tips

      To troubleshoot the Modem Passthrough over VoIP feature, perform the following steps:

      • Make sure that you can make a voice call.

      • Make sure that Modem Passthrough over VoIP is configured on both the originating gateway and the terminating gateway.

      • Make sure that both the originating gateway and the terminating gateway have the same named signaling event (NSE) payload-type number.

      • Make sure that both the originating gateway and the terminating gateway have the same maximum-sessions value when the two gateways are configured in the voice-service configuration mode.

      • Use the debug vtsp dsp and debug vtsp session commands to debug a problem.

      Verifying Modem Passthrough over VoIP

      To verify that the Modem Passthrough over VoIP feature is enabled, perform the following steps:

      SUMMARY STEPS

        1.    Enter the show run command to verify the configuration.

        2.    Enter the show dial-peer voice command to verify that Modem Passthrough over VoIP is enabled.


      DETAILED STEPS
        Step 1   Enter the show run command to verify the configuration.
        Step 2   Enter the show dial-peer voice command to verify that Modem Passthrough over VoIP is enabled.

        Monitoring and Maintaining Modem Passthrough over VoIP

        To monitor and maintain the Modem Passthrough over VoIP feature, use the following commands in privileged EXEC mode:

        Command

        Purpose

        Device# show call active voice brief


        Displays information for the active call table or displays the voice call history table. The brief option displays a truncated version of either option.

        Device# show dial-peer voice 15 summary


        Displays configuration information for dial peers. The number argument specifies a specific dial peer from 1 to 32767. The summary option displays a summary of all dial peers.

        Configuration Examples

        The following is sample configuration for the Modem Passthrough over VoIP feature:

        version 12.1
        service timestamps debug uptime
        service timestamps log uptime
        no service password-encryption
        !
        voice service voip
        	 modem passthrough nse codec g711ulaw redundancy maximum-session 5
        !
        !
        resource-pool disable
        !
        !
        !
        !
        !
        ip subnet-zero
        ip ftp source-interface Ethernet0
        ip ftp username lab
        ip ftp password lab
        no ip domain-lookup
        !
        isdn switch-type primary-5ess
        cns event-service server
        !
        !
        !
        !
        !
        mta receive maximum-recipients 0
        !
        !
        controller T1 0
         framing esf
         clock source line primary
         linecode b8zs
         pri-group timeslots 1-24
        !
        controller T1 1
         shutdown
         clock source line secondary 1
        !
        controller T1 2
         shutdown
        !
        controller T1 3
         shutdown
        !
        !
        !
        interface Ethernet0
         ip address 1.1.2.2 255.0.0.0
         no ip route-cache
         no ip mroute-cache
        !
        interface Serial0:23
         no ip address
         encapsulation ppp
         ip mroute-cache
         no logging event link-status
         isdn switch-type primary-5ess
         isdn incoming-voice modem
         no peer default ip address
         no fair-queue
         no cdp enable
         no ppp lcp fast-start
        !
        interface FastEthernet0
         ip address 26.0.0.1 255.0.0.0
         no ip route-cache
         no ip mroute-cache
         load-interval 30
         duplex full
         speed auto
         no cdp enable
        !
        ip classless
        ip route 17.18.0.0 255.255.0.0 1.1.1.1
        no ip http server
        !
        !
        !
        !
        voice-port 0:D
        !
        dial-peer voice 1 pots
         incoming called-number 55511..
         destination-pattern 020..
         direct-inward-dial
         port 0:D
         prefix 020
        !
        dial-peer voice 2 voip
         incoming called-number 020..
         destination-pattern 55511..
         modem passthrough nse codec g711ulaw redundancy
         session target ipv4:26.0.0.2
        !
        !
        line con 0
         exec-timeout 0 0
         transport input none
        line aux 0
        line vty 0 4
         login
        !
        !
        end

        Feature Information for SIP-to-SIP Extended Feature Functionality for Session Border Controllers

        The following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

        Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/​go/​cfn. An account on Cisco.com is not required.

        Table 1 Feature Information for Configuring SIP-to-SIP Extended Feature Functionality for Session Border Controllers

        Feature Name

        Releases

        Feature Information

        SIP-to-SIP Extended Feature Functionality for Session Border Controllers

        12.4(6)T

        The SIP-to-SIP Extended Feature Functionality for Session Border Controllers (SBCs) enables the SIP-to-SIP functionality to conform with RFC 3261 to interoperate with SIP User Agents (UAs).

        In Cisco IOS Release 12.4(6)S, this feature was implemented on the Cisco Unified Border Element

        The following commands were introduced or modified: modem passthrough (dial-peer); modem passthrough (voice-service); show call active voice voice; show call history voice voice; show dial-peer voice; voice service.

        SIP-to-SIP Extended Feature Functionality for Session Border Controllers

        Cisco IOS XE Release 3.1S

        Cisco IOS XE Release 3.3S

        The SIP-to-SIP Extended Feature Functionality for Session Border Controllers (SBCs) enables the SIP-to-SIP functionality to conform with RFC 3261 to interoperate with SIP User Agents (UAs).

        In Cisco IOS Release 12.4(6)S, this feature was implemented on the Cisco Unified Border Element (Enterprise).

        The following commands were introduced or modified: modem passthrough (dial-peer); modem passthrough (voice-service); show call active voice voice; show call history voice voice; show dial-peer voice; voice service.
