Insert Power Supply
Use this procedure to insert the power supply units.

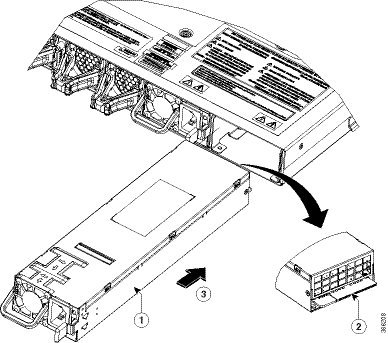

![Insert Power Supply](/c/dam/en/us/td/i/300001-400000/360001-370000/366001-367000/366208.eps/_jcr_content/renditions/366208.jpg)
1 |
Insert the PSU into the cage on the rear side of the unit in the direction shown (slots 0 or 1) |
2 |
The PSU connecting PCB must always face the bottom during insertion |
3 |
Direction to insert the power supply |
