Upgrading IoT FND OVA
Pre-Upgrade Checklist
Upgrading the Database and Docker Server Image
Upgrading IoT FND and FD Container Images
Post-Upgrade Checklist
Upgrading IoT FND from 4.5.1 to later releases and Updating RHEL OS

Upgrading IoT FND OVA

Note

Ensure to upgrade the DB and the docker server image first before upgrading the IoT FND and FD container images.

To upgrade the IoT FND OVA, follow the upgrade sequence given below:

Upgrade the DB and the docker server image using rpm scripts.

For more information, refer to Upgrading the Database and Docker Server Image.
Upgrade the IoT FND and FD container images.

For more information, refer to Upgrading IoT FND and FD Container Images.

Restart Postgres service if the current IoT FND release is prior to 4.9.1 and the target IoT FND release is 4.9.1 or above.

Note

Postgres service restart is not required if the target IoT FND release is greater than 4.9.1. In this case, we assume that during the upgrade to IoT FND 4.9.1, the postgres service is already restarted.
Postgres service restart is a must if you are directly upgrading to 4.10 from a release prior to 4.9.1.

Pre-Upgrade Checklist

The section identifies the tasks that you must perform before you begin the upgrade to ensure successful upgrade and limited downtime.

Procedure

Step 1

Take a snapshot of the existing VM before you upgrade.

This helps in restoring if there is an upgrade failure.

Step 2

Take a backup of the PostgreSQL DB.

Note

For any clarification on backup procedure, contact your DB administrator.

Step 3

Take a backup of cgms.properties file and cgms_keystore file in the location, /opt/fnd/data/.

You can either SCP these files to another server for backup or you can copy in the same or different folder.

root@iot-fnd:~[root@iot-fnd ~]#
root@iot-fnd:~[root@iot-fnd ~]# cd /opt/fnd/data
root@iot-fnd:/opt/fnd/data[root@iot-fnd data]#
root@iot-fnd:/opt/fnd/data[root@iot-fnd data]#ls
cgms_keystore  cgms.properties  cisco-sudi-ca.pem  userPropertyTypes.xml
root@iot-fnd:/opt/fnd/data[root@iot-fnd data]#
root@iot-fnd:/opt/fnd/data[root@iot-fnd data]# cp cgms.properties cgms.properties_backup_09May2022
[root@iot-fnd data]# keytool -importkeystore -srckeystore cgms_keystore -destkeystore cgms_keystore_backup_9May2022 -deststoretype PKCS12
Importing keystore cgms_keystore to cgms_keystore_backup_9May2022...
Enter destination keystore password:
Re-enter new password:
Enter source keystore password:
Entry for alias cgms successfully imported.
Entry for alias cisco_sudi successfully imported.
Entry for alias jmarconi successfully imported.
Import command completed:  3 entries successfully imported, 0 entries failed or cancelled
[root@iot-fnd data]#
[root@iot-fnd data]# ls
cgms_keystore                  cgms_keystore.selfsigned  cgms.properties_backup_09May2022  fnd_psk.keystore
cgms_keystore_backup_9May2022  cgms.properties           cisco-sudi-ca.pem                 userPropertyTypes.xml
[root@iot-fnd data]#

During the IoT FND container upgrade, the following files get overwritten in the directories mentioned below:

Directory — /opt/cgms/server/cgms/conf/:
- jbossas.keystore.password
- jbossas.keystore
- VAULT.dat
- vault.keystore
Directory — /opt/cgms/server/cgms/deploy/:
- security-service.xml file

Backup can be done in the same directory using different name or backup in a different directory or backup and store the files in the SCP server.

For example, taking backup in the same directory:

Login to the FND container
[root@iot-fnd ~]# docker exec -it fnd-container /bin/bash
[root@fnd-server /]#
[root@fnd-server /]# cp /opt/cgms/server/cgms/conf/jbossas.keystore.password /opt/cgms/server/cgms/conf/jbossas.keystore.password.bkp1
[root@fnd-server /]# cp /opt/cgms/server/cgms/conf/jbossas.keystore /opt/cgms/server/cgms/conf/jbossas.keystore.bkp1
[root@fnd-server /]# cp /opt/cgms/server/cgms/conf/vault.keystore /opt/cgms/server/cgms/conf/vault.keystore.bkp1
[root@fnd-server /]# cp /opt/cgms/server/cgms/conf/VAULT.dat /opt/cgms/server/cgms/conf/VAULT.dat.bkp1
[root@fnd-server /]# cp /opt/cgms/server/cgms/deploy/security-service.xml /opt/cgms/server/cgms/deploy/security-service.xml.bkp1
[root@fnd-server /]#

If you are using userpropertyTypes.xml to define custom properties for backup, then follow the steps that are mentioned in the workaround of the bug ID: CSCwc12435. This will be fixed in IoT FND release 4.9 or later.

Step 4

Run the following commands and check the output before you start the upgrade process.

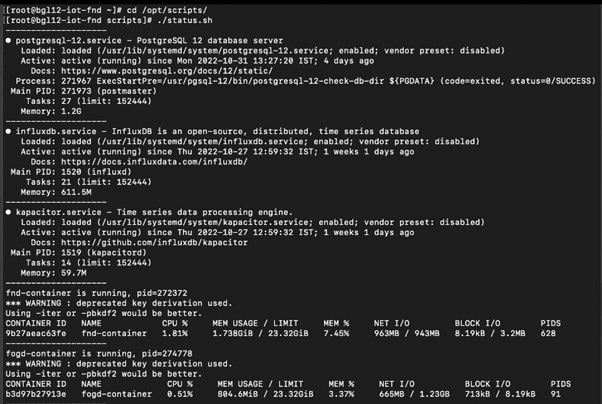

/opt/scripts/status.sh

[root@iot-fnd ~]# /opt/scripts/status.sh
--------------------
● postgresql-12.service - PostgreSQL 12 database server
   Loaded: loaded (/usr/lib/systemd/system/postgresql-12.service; enabled; vendor preset: disabled)
   Active: active (running) since Mon 2022-05-09 02:01:29 PDT; 2h 6min ago
     Docs: https://www.postgresql.org/docs/12/static/
 Main PID: 27638 (postmaster)
    Tasks: 26
   Memory: 250.5M
   CGroup: /system.slice/postgresql-12.service
--------------------
● influxdb.service - InfluxDB is an open-source, distributed, time series database
   Loaded: loaded (/usr/lib/systemd/system/influxdb.service; enabled; vendor preset: disabled)
   Active: active (running) since Mon 2022-05-09 02:02:39 PDT; 2h 5min ago
     Docs: https://docs.influxdata.com/influxdb/
 Main PID: 27892 (influxd)
    Tasks: 21
   Memory: 219.0M
--------------------
● kapacitor.service - Time series data processing engine.
   Loaded: loaded (/usr/lib/systemd/system/kapacitor.service; enabled; vendor preset: disabled)
   Active: active (running) since Mon 2022-05-09 02:02:06 PDT; 2h 5min ago
     Docs: https://github.com/influxdb/kapacitor
 Main PID: 27805 (kapacitord)
    Tasks: 14
   Memory: 21.0M
--------------------
fnd-container is running, pid=61255
CONTAINER ID        NAME                CPU %               MEM USAGE / LIMIT     MEM %               NET I/O             BLOCK I/O           PIDS
a02e6388607d        fnd-container       6.44%               2.612GiB / 23.38GiB   11.17%              17MB / 13.7MB       20.3MB / 2.64MB     580
--------------------
fogd-container is running, pid=63469
CONTAINER ID        NAME                CPU %               MEM USAGE / LIMIT    MEM %               NET I/O             BLOCK I/O           PIDS
a40aa29e2392        fogd-container      6.38%               2.18GiB / 23.38GiB   9.32%               434kB / 135kB       8.19kB / 145kB      99
--------------------
[root@iot-fnd ~]#

docker version

[root@iot-fnd ~]# docker version
Client: Docker Engine - Community
 Version:           19.03.15
 API version:       1.40
 Go version:        go1.13.15
 Git commit:        99e3ed8919
 Built:             Sat Jan 30 03:17:57 2021
 OS/Arch:           linux/amd64
 Experimental:      false

Server: Docker Engine - Community
 Engine:
  Version:          19.03.15
  API version:      1.40 (minimum version 1.12)
  Go version:       go1.13.15
  Git commit:       99e3ed8919
  Built:            Sat Jan 30 03:16:33 2021
  OS/Arch:          linux/amd64
  Experimental:     false
 containerd:
  Version:          1.4.4
  GitCommit:        05f951a3781f4f2c1911b05e61c160e9c30eaa8e
 runc:
  Version:          1.0.0-rc93
  GitCommit:        12644e614e25b05da6fd08a38ffa0cfe1903fdec
 docker-init:
  Version:          0.18.0
  GitCommit:        fec3683
You have new mail in /var/spool/mail/root
[root@iot-fnd ~]#

/opt/fnd/scripts/fnd-container.sh status

[root@iot-fnd ~]# /opt/fnd/scripts/fnd-container.sh status
fnd-container is running, pid=61255
CONTAINER ID        NAME                CPU %               MEM USAGE / LIMIT     MEM %               NET I/O             BLOCK I/O           PIDS
a02e6388607d        fnd-container       6.47%               2.613GiB / 23.38GiB   11.18%              17MB / 13.8MB       20.3MB / 2.64MB     592
[root@iot-fnd ~]#
You have new mail in /var/spool/mail/root
[root@iot-fnd ~]#

docker exec -it fnd-container /etc/init.d/cgms status

[root@iot-fnd ~]# docker exec -it fnd-container /etc/init.d/cgms status
IoT-FND Version 4.7.2-8
05-09-2022 04:09:46 PDT: INFO: IoT-FND database server: 192.68.5.1
05-09-2022 04:09:47 PDT: INFO: IoT-FND database connection verified.
05-09-2022 04:09:47 PDT: INFO: IoT FND timeseries database server: 192.68.5.1
05-09-2022 04:09:47 PDT: INFO: IoT FND kapacitor server: 192.68.5.1
05-09-2022 04:09:48 PDT: INFO: IoT-FND timeseries database/kapacitor connection verified.
05-09-2022 04:09:49 PDT: INFO: IoT-FND application server is up and running.
05-09-2022 04:09:50 PDT: INFO: IoT-FND is up and running.
[root@iot-fnd ~]#

rpm -qa | grep -i postgres

root@iot-fnd:/opt/fnd/data[root@iot-fnd data]# rpm -qa | grep -i postgres
postgresql96-devel-9.6.15-1PGDG.rhel7.x86_64
postgresql96-libs-9.6.15-1PGDG.rhel7.x86_64
postgresql96-server-9.6.15-1PGDG.rhel7.x86_64
postgresql96-9.6.15-1PGDG.rhel7.x86_64
cgms-postgres-4.5.1-11.x86_64
postgresql96-contrib-9.6.15-1PGDG.rhel7.x86_64
root@iot-fnd:/opt/fnd/data[root@iot-fnd data]#

Upgrading the Database and Docker Server Image

This section provides steps for upgrading the database and the docker server image by running the rpm upgrade scripts for releases 4.7.0 to later versions and 4.5.1 to later versions. By running the rpm scripts, you automatically integrate the DB with IoT FND scripts, upgrade the DB, and upgrade the docker server (Community Edition) image.

Note

IoT FND version 4.5.1 provides the option to manually upgrade the DB and docker server image instead of running the Cisco rpm scripts. For more information, refer to Manual Upgrade Option in FND 4.5.1.

Note

IoT FND OVA upgrade will NOT upgrade the RHEL OS version. The RHEL version differs for different versions of IoT FND as in the table below. After upgrading the OVA, it is recommended to upgrade the OS sooner than later. Although IoT FND is a secure application, OS security and patches must be regularly updated with Cisco's guidance.

Table 1. List of IoT FND and the bundled Postgres, Docker, and RHEL OS versions:
IoT FND Version	Postgres Version	Docker Server Version	RHEL OS Version
4.11.0	12.12	19.03.15	8.8
4.10.0	12.12	19.03.15	8.7
4.9.1	12.12	19.03.15	8.6
4.9.0	12.9	19.03.15	8.6
4.8.1	12.9	19.03.15	8.5
4.8.0	12.5	19.03.15	7.7
4.7.2	12.5	19.03.15	7.7
4.7.1	12.5	19.03.15	7.7
4.7.0	12.4	18.09.6	7.7
4.5.1	9.6	18.09.6	7.5

Note

Starting from FND 4.8.1 release, all python scripts are compatible only for Python 3 which comes as default python interpreter in RHEL 8.x. It is recommended to install Python 3.6 manually if IoT FND OVA is upgraded to 4.8.1 or higher without base OS upgrade.

Procedure

Step 1

Obtain the IoT FND upgrade scripts from Cisco.

Step 2

Check the RHEL OS version before upgrading IoT FND OVA to 4.7.1 or higher.

[root@fnd451testupgrade ~]# hostnamectl
   Static hostname: fnd451testupgrade
         Icon name: computer-vm
           Chassis: vm
        Machine ID: 58eb8d728d834d28ad426eca3c9b9c4e
           Boot ID: 40511dab9f4b4beaa8de82fb105423c9
    Virtualization: vmware
  Operating System: Red Hat Enterprise Linux
       CPE OS Name: cpe:/o:redhat:enterprise_linux:7.5:GA:server
            Kernel: Linux 3.10.0-862.el7.x86_64
      Architecture: x86-64
[root@fnd451testupgrade ~]#r

If the RHEL version on the Linux server is lesser than 7.7, then use the following steps to upgrade. You can either do an automatic or manual upgrade.
If the RHEL version on the Linux server is 7.7 or above, then you can skip the steps below.

Method 1 — Automatic Upgrade: For this method, you require subscription to RHEL subscription-manager and active internet connection.

Run the following command to upgrade the container-selinux package.

subscription-manager repos --enable=rhel-7-server-extras-rpms
yum update container-selinux

Example

[root@fnd451testupgrade ~]# subscription-manager repos --enable=rhel-7-server-extras-rpms
Repository 'rhel-7-server-extras-rpms' is enabled for this system.
[root@fnd451testupgrade ~]# yum update container-selinux
Loaded plugins: langpacks, product-id, search-disabled-repos, subscription-manager
https://download.postgresql.org/pub/repos/yum/9.4/redhat/rhel-7Server-x86_64/repodata/repomd.xml: [Errno 14] HTTPS Error 404 - Not Found
Trying other mirror.
To address this issue please refer to the below knowledge base article

https://access.redhat.com/articles/1320623

If above article doesn't help to resolve this issue please open a ticket with Red Hat Support.

Resolving Dependencies
--> Running transaction check
---> Package container-selinux.noarch 2:2.42-1.gitad8f0f7.el7 will be updated
---> Package container-selinux.noarch 2:2.119.2-1.911c772.el7_8 will be an update
--> Processing Dependency: selinux-policy >= 3.13.1-216.el7 for package: 2:container-selinux-2.119.2-1.911c772.el7_8.noarch
--> Processing Dependency: selinux-policy-base >= 3.13.1-216.el7 for package: 2:container-selinux-2.119.2-1.911c772.el7_8.noarch
--> Processing Dependency: selinux-policy-targeted >= 3.13.1-216.el7 for package: 2:container-selinux-2.119.2-1.911c772.el7_8.noarch
--> Running transaction check
---> Package selinux-policy.noarch 0:3.13.1-192.el7 will be updated
---> Package selinux-policy.noarch 0:3.13.1-268.el7_9.2 will be an update
--> Processing Dependency: libsemanage >= 2.5-13 for package: selinux-policy-3.13.1-268.el7_9.2.noarch
--> Processing Dependency: policycoreutils >= 2.5-24 for package: selinux-policy-3.13.1-268.el7_9.2.noarch
---> Package selinux-policy-targeted.noarch 0:3.13.1-192.el7 will be updated
---> Package selinux-policy-targeted.noarch 0:3.13.1-268.el7_9.2 will be an update
--> Running transaction check
---> Package libsemanage.x86_64 0:2.5-11.el7 will be updated
--> Processing Dependency: libsemanage = 2.5-11.el7 for package: libsemanage-python-2.5-11.el7.x86_64
---> Package libsemanage.x86_64 0:2.5-14.el7 will be an update
--> Processing Dependency: libselinux >= 2.5-14 for package: libsemanage-2.5-14.el7.x86_64
--> Processing Dependency: libsepol >= 2.5-10 for package: libsemanage-2.5-14.el7.x86_64
---> Package policycoreutils.x86_64 0:2.5-22.el7 will be updated
--> Processing Dependency: policycoreutils = 2.5-22.el7 for package: policycoreutils-python-2.5-22.el7.x86_64
---> Package policycoreutils.x86_64 0:2.5-34.el7 will be an update
--> Processing Dependency: libselinux-utils >= 2.5-14 for package: policycoreutils-2.5-34.el7.x86_64
--> Running transaction check
---> Package libselinux.x86_64 0:2.5-12.el7 will be updated
--> Processing Dependency: libselinux(x86-64) = 2.5-12.el7 for package: libselinux-python-2.5-12.el7.x86_64
---> Package libselinux.x86_64 0:2.5-15.el7 will be an update
---> Package libselinux-utils.x86_64 0:2.5-12.el7 will be updated
---> Package libselinux-utils.x86_64 0:2.5-15.el7 will be an update
---> Package libsemanage-python.x86_64 0:2.5-11.el7 will be updated
---> Package libsemanage-python.x86_64 0:2.5-14.el7 will be an update
---> Package libsepol.x86_64 0:2.5-8.1.el7 will be updated
---> Package libsepol.x86_64 0:2.5-10.el7 will be an update
---> Package policycoreutils-python.x86_64 0:2.5-22.el7 will be updated
---> Package policycoreutils-python.x86_64 0:2.5-34.el7 will be an update
--> Processing Dependency: setools-libs >= 3.3.8-4 for package: policycoreutils-python-2.5-34.el7.x86_64
--> Running transaction check
---> Package libselinux-python.x86_64 0:2.5-12.el7 will be updated
---> Package libselinux-python.x86_64 0:2.5-15.el7 will be an update
---> Package setools-libs.x86_64 0:3.3.8-2.el7 will be updated
---> Package setools-libs.x86_64 0:3.3.8-4.el7 will be an update
--> Finished Dependency Resolution

Dependencies Resolved

=============================================================================================================================================================================================
Package                                         Arch                           Version                                              Repository                                         Size
=============================================================================================================================================================================================
Updating:
container-selinux                               noarch                         2:2.119.2-1.911c772.el7_8                            rhel-7-server-extras-rpms                          40 k
Updating for dependencies:
libselinux                                      x86_64                         2.5-15.el7                                           rhel-7-server-rpms                                162 k
libselinux-python                               x86_64                         2.5-15.el7                                           rhel-7-server-rpms                                236 k
libselinux-utils                                x86_64                         2.5-15.el7                                           rhel-7-server-rpms                                151 k
libsemanage                                     x86_64                         2.5-14.el7                                           rhel-7-server-rpms                                151 k
libsemanage-python                              x86_64                         2.5-14.el7                                           rhel-7-server-rpms                                113 k
libsepol                                        x86_64                         2.5-10.el7                                           rhel-7-server-rpms                                297 k
policycoreutils                                 x86_64                         2.5-34.el7                                           rhel-7-server-rpms                                917 k
policycoreutils-python                          x86_64                         2.5-34.el7                                           rhel-7-server-rpms                                457 k
selinux-policy                                  noarch                         3.13.1-268.el7_9.2                                   rhel-7-server-rpms                                498 k
selinux-policy-targeted                         noarch                         3.13.1-268.el7_9.2                                   rhel-7-server-rpms                                7.0 M
setools-libs                                    x86_64                         3.3.8-4.el7                                          rhel-7-server-rpms                                620 k

Transaction Summary
=============================================================================================================================================================================================
Upgrade  1 Package (+11 Dependent packages)

Total download size: 11 M
Is this ok [y/d/N]: y
Downloading packages:
No Presto metadata available for rhel-7-server-rpms
No Presto metadata available for rhel-7-server-extras-rpms
(1/12): container-selinux-2.119.2-1.911c772.el7_8.noarch.rpm                                                                                                          |  40 kB  00:00:01
(2/12): libselinux-2.5-15.el7.x86_64.rpm                                                                                                                              | 162 kB  00:00:01
(3/12): libselinux-python-2.5-15.el7.x86_64.rpm                                                                                                                       | 236 kB  00:00:01
(4/12): libselinux-utils-2.5-15.el7.x86_64.rpm                                                                                                                        | 151 kB  00:00:01
(5/12): libsemanage-2.5-14.el7.x86_64.rpm                                                                                                                             | 151 kB  00:00:01
(6/12): libsemanage-python-2.5-14.el7.x86_64.rpm                                                                                                                      | 113 kB  00:00:01
(7/12): libsepol-2.5-10.el7.x86_64.rpm                                                                                                                                | 297 kB  00:00:01
(8/12): policycoreutils-python-2.5-34.el7.x86_64.rpm                                                                                                                  | 457 kB  00:00:01
(9/12): policycoreutils-2.5-34.el7.x86_64.rpm                                                                                                                         | 917 kB  00:00:02
(10/12): selinux-policy-3.13.1-268.el7_9.2.noarch.rpm                                                                                                                 | 498 kB  00:00:02
(11/12): setools-libs-3.3.8-4.el7.x86_64.rpm                                                                                                                          | 620 kB  00:00:02
(12/12): selinux-policy-targeted-3.13.1-268.el7_9.2.noarch.rpm                                                                                                        | 7.0 MB  00:00:08
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total                                                                                                                                                        679 kB/s |  11 MB  00:00:15
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
  Updating   : libsepol-2.5-10.el7.x86_64                                                                                                                                               1/24
  Updating   : libselinux-2.5-15.el7.x86_64                                                                                                                                             2/24
  Updating   : libsemanage-2.5-14.el7.x86_64                                                                                                                                            3/24
  Updating   : libselinux-utils-2.5-15.el7.x86_64                                                                                                                                       4/24
  Updating   : policycoreutils-2.5-34.el7.x86_64                                                                                                                                        5/24
  Updating   : selinux-policy-3.13.1-268.el7_9.2.noarch                                                                                                                                 6/24
  Updating   : selinux-policy-targeted-3.13.1-268.el7_9.2.noarch                                                                                                                        7/24
  Updating   : libsemanage-python-2.5-14.el7.x86_64                                                                                                                                     8/24
  Updating   : libselinux-python-2.5-15.el7.x86_64                                                                                                                                      9/24
  Updating   : setools-libs-3.3.8-4.el7.x86_64                                                                                                                                         10/24
  Updating   : policycoreutils-python-2.5-34.el7.x86_64                                                                                                                                11/24
  Updating   : 2:container-selinux-2.119.2-1.911c772.el7_8.noarch                                                                                                                      12/24
  Cleanup    : 2:container-selinux-2.42-1.gitad8f0f7.el7.noarch                                                                                                                        13/24
  Cleanup    : selinux-policy-targeted-3.13.1-192.el7.noarch                                                                                                                           14/24
  Cleanup    : policycoreutils-python-2.5-22.el7.x86_64                                                                                                                                15/24
  Cleanup    : selinux-policy-3.13.1-192.el7.noarch                                                                                                                                    16/24
  Cleanup    : policycoreutils-2.5-22.el7.x86_64                                                                                                                                       17/24
  Cleanup    : libselinux-utils-2.5-12.el7.x86_64                                                                                                                                      18/24
  Cleanup    : setools-libs-3.3.8-2.el7.x86_64                                                                                                                                         19/24
  Cleanup    : libselinux-python-2.5-12.el7.x86_64                                                                                                                                     20/24
  Cleanup    : libsemanage-python-2.5-11.el7.x86_64                                                                                                                                    21/24
  Cleanup    : libsemanage-2.5-11.el7.x86_64                                                                                                                                           22/24
  Cleanup    : libselinux-2.5-12.el7.x86_64                                                                                                                                            23/24
  Cleanup    : libsepol-2.5-8.1.el7.x86_64                                                                                                                                             24/24
rhel-7-server-rpms/7Server/x86_64/productid                                                                                                                           | 2.1 kB  00:00:00
  Verifying  : libselinux-2.5-15.el7.x86_64                                                                                                                                             1/24
  Verifying  : 2:container-selinux-2.119.2-1.911c772.el7_8.noarch                                                                                                                       2/24
  Verifying  : selinux-policy-3.13.1-268.el7_9.2.noarch                                                                                                                                 3/24
  Verifying  : selinux-policy-targeted-3.13.1-268.el7_9.2.noarch                                                                                                                        4/24
  Verifying  : policycoreutils-2.5-34.el7.x86_64                                                                                                                                        5/24
  Verifying  : libselinux-utils-2.5-15.el7.x86_64                                                                                                                                       6/24
  Verifying  : policycoreutils-python-2.5-34.el7.x86_64                                                                                                                                 7/24
  Verifying  : libsemanage-python-2.5-14.el7.x86_64                                                                                                                                     8/24
  Verifying  : libsemanage-2.5-14.el7.x86_64                                                                                                                                            9/24
  Verifying  : libselinux-python-2.5-15.el7.x86_64                                                                                                                                     10/24
  Verifying  : libsepol-2.5-10.el7.x86_64                                                                                                                                              11/24
  Verifying  : setools-libs-3.3.8-4.el7.x86_64                                                                                                                                         12/24
  Verifying  : libsemanage-python-2.5-11.el7.x86_64                                                                                                                                    13/24
  Verifying  : libsemanage-2.5-11.el7.x86_64                                                                                                                                           14/24
  Verifying  : libselinux-python-2.5-12.el7.x86_64                                                                                                                                     15/24
  Verifying  : setools-libs-3.3.8-2.el7.x86_64                                                                                                                                         16/24
  Verifying  : policycoreutils-2.5-22.el7.x86_64                                                                                                                                       17/24
  Verifying  : 2:container-selinux-2.42-1.gitad8f0f7.el7.noarch                                                                                                                        18/24
  Verifying  : policycoreutils-python-2.5-22.el7.x86_64                                                                                                                                19/24
  Verifying  : selinux-policy-targeted-3.13.1-192.el7.noarch                                                                                                                           20/24
  Verifying  : libsepol-2.5-8.1.el7.x86_64                                                                                                                                             21/24
  Verifying  : selinux-policy-3.13.1-192.el7.noarch                                                                                                                                    22/24
  Verifying  : libselinux-2.5-12.el7.x86_64                                                                                                                                            23/24
  Verifying  : libselinux-utils-2.5-12.el7.x86_64                                                                                                                                      24/24

Updated:
  container-selinux.noarch 2:2.119.2-1.911c772.el7_8

Dependency Updated:
  libselinux.x86_64 0:2.5-15.el7                libselinux-python.x86_64 0:2.5-15.el7                  libselinux-utils.x86_64 0:2.5-15.el7    libsemanage.x86_64 0:2.5-14.el7
  libsemanage-python.x86_64 0:2.5-14.el7        libsepol.x86_64 0:2.5-10.el7                           policycoreutils.x86_64 0:2.5-34.el7     policycoreutils-python.x86_64 0:2.5-34.el7
  selinux-policy.noarch 0:3.13.1-268.el7_9.2    selinux-policy-targeted.noarch 0:3.13.1-268.el7_9.2    setools-libs.x86_64 0:3.3.8-4.el7

Complete!
[root@fnd451testupgrade ~]#

Enabling Selinux with Enforce Mode:

From IoT FND 5.0 release onwards, the Mandatory Access Controls (MAC) system such as selinux should be pre-installed, if an operating system is capable of using a MAC.

Check the selinux status by using the command sestatus.
Install selinux using the necessary packages, if selinux is not installed already.
For CentOS/RHEL OS version:
```
sudo yum install selinux-policy selinux-policy-targeted
```

Edit to set the selinux configuration file to enforcing mode.

sed -i 's/^SELINUX=.*$/SELINUX=enforcing/' /etc/selinux/config

Reboot the virtual machine to apply the changes.
```
sudo reboot
```
Ensure the selinux is enabled and in enforcing mode after rebooting the virtual machine by using the command sestatus.

Method 2 — Manual Upgrade: If the IoT FND server is offline, that has no internet connection because of security reasons, then you have to upgrade the container-selinux and the dependent packages manually by downloading them from the CentOS Mirror website. Download the 11 dependent packages and install them.

Run the following command to install the dependent packages in the same sequence listed in the table.

rpm -Uvh package-name

Note

Minimum required version of the container-selinux package is container-selinux-2.107-3.el7.noarch.rpm.

Note

If the version of the container-selinux is higher, then the dependent rpm packages that are required is also higher. Refer to the CentOS Mirror website on the version requirements of the dependent packages.

Table 2. The dependent packages below apply only for container-selinux-2.107-3.el7.noarch.rpm.
Container-Selinux — Dependent Packages
libsepol-2.5-10.el7.x86_64.rpm
libselinux-2.5-15.el7.x86_64.rpm
libsemanage-2.5-14.el7.x86_64.rpm
libselinux-utils-2.5-15.el7.x86_64.rpm
policycoreutils-2.5-34.el7.x86_64.rpm
selinux-policy-3.13.1-268.el7_9.2.noarch.rpm
selinux-policy-targeted-3.13.1-268.el7_9.2.noarch.rpm
libsemanage-python-2.5-14.el7.x86_64.rpm
libselinux-python-2.5-15.el7.x86_64.rpm
setools-libs-3.3.8-4.el7.x86_64.rpm
policycoreutils-python-2.5-34.el7.x86_64.rpm

Step 3

Extract the cgms rpms files to the IoT FND server.

Based on the OS that you are using, you can extract the scripts (in ZIP format) as follows:

For Windows—Extract the upgrade scripts on PC and then transfer to the IoT FND server.

For extracting the upgrade scripts directly on IoT FND server or Linux—Run the following commands:

[root@iot-fnd opt]# ls
cgms-influx  cgms-postgres  CISCO-IOTFND-VPI-K9-UPGRADE-SCRIPTS-4.7.0-101.zip  containerd  fnd  fogd  monitor  rh  scripts
[root@iot-fnd opt]#
[root@iot-fnd opt]# rpm -qa | grep unzip
unzip-6.0-20.el7.x86_64
[root@iot-fnd opt]#

[root@iot-fnd opt]# unzip CISCO-IOTFND-VPI-K9-UPGRADE-SCRIPTS-4.7.0-101.zip
Archive:  CISCO-IOTFND-VPI-K9-UPGRADE-SCRIPTS-4.7.0-101.zip
  inflating: upgrade-ova-4.7.0-101.rpm
[root@iot-fnd opt]#
[root@iot-fnd opt]# ls
cgms-influx  cgms-postgres  CISCO-IOTFND-VPI-K9-UPGRADE-SCRIPTS-4.7.0-101.zip  containerd  fnd  fogd  monitor  rh  scripts  upgrade-ova-4.7.0-101.rpm
[root@iot-fnd opt]#

For example, if you are upgrading the DB and the docker server image for IoT FND release 4.7.0.

Download the following upgrade script from Cisco.

CISCO-IOTFND-VPI-K9-UPGRADE-SCRIPTS-4.7.0-101.zip
Extract the file to get the rpm:

upgrade-ova-4.7.0-101.rpm
Transfer the extracted rpm file to the IoT FND server.

You can copy the rpm file to any directory. In this example, the file is copied to /opt.

Step 4

Go to the directory where you have copied the rpm file.

For example, cd /opt or any directory where the upgrade-ova-4.7.0-101.rpm file is copied.

Step 5

Run the the following upgrade script.

rpm -Uvh upgrade-ova-<release>-<build number>.rpm

For example, rpm -Uvh upgrade-ova-4.7.2-8.rpm.

The upgrade script automatically integrates the DB with IoT FND scripts (Postgres with Influx DB) and upgrades the docker server image.

Note

You can find the install log information in /root/rpm.log.

Sample log information for the rpm upgrade script:

root@iot-fnd:/opt[root@iot-fnd opt]# rpm -Uvh upgrade-ova-4.7.2-8.rpm
Preparing...
(1%)##############(100%)
Updating / installing...
   1:upgrade-ova-4.7.2-8
   (1%)##############(100%)

Started installer in background. Please check ~/rpm.log in few minutes for details.
root@iot-fnd:/optYou have new mail in /var/spool/mail/root
[root@iot-fnd opt]#
Mon May  9 01:59:29 PDT 2022 Background installer started
Mon May  9 01:59:29 PDT 2022 Please wait until the 'RPM installation completed' message is logged

Mon May  9 01:59:29 PDT 2022 Upgrading cgms-postgres-4.7.2-8.x86_64.rpm
Preparing...                          ########################################
Updating / installing...
cgms-postgres-4.7.2-8                 ########################################
Cleaning up / removing...
cgms-postgres-4.7.0-101               ########################################

Mon May  9 01:59:47 PDT 2022 Upgrading cgms-influx-4.7.2-8.x86_64.rpm
Preparing...                          ########################################
Updating / installing...
cgms-influx-4.7.2-8                   ########################################
Cleaning up / removing...
cgms-influx-4.7.0-101                 ########################################

Mon May  9 02:00:04 PDT 2022 Upgrading monit-5.25.3-1.el7.x86_64.rpm
warning: monit-5.25.3-1.el7.x86_64.rpm: Header V4 RSA/SHA1 Signature, key ID 222b0e83: NOKEY
Preparing...                          ########################################
	package monit-5.25.3-1.el7.x86_64 is already installed

Mon May  9 02:00:18 PDT 2022 Stopping services
Mon May  9 02:00:58 PDT 2022 Upgrading Postgresql to 12.5
Preparing...                          ########################################
Updating / installing...
postgresql12-libs-12.5-1PGDG.rhel7    ########################################
postgresql12-12.5-1PGDG.rhel7         ########################################
postgresql12-server-12.5-1PGDG.rhel7  ########################################
postgresql12-contrib-12.5-1PGDG.rhel7 ########################################
Cleaning up / removing...
postgresql12-contrib-12.4-1PGDG.rhel7 ########################################
postgresql12-server-12.4-1PGDG.rhel7  ########################################
postgresql12-12.4-1PGDG.rhel7         ########################################
postgresql12-libs-12.4-1PGDG.rhel7    ########################################
Mon May  9 02:01:27 PDT 2022 Restarting Postgresql

Mon May  9 02:01:40 PDT 2022 Stopping InfluxDB and Kapacitor
Mon May  9 02:01:50 PDT 2022 Upgrading influxdb-1.8.3.x86_64.rpm
Preparing...                          ########################################
Updating / installing...
influxdb-1.8.3-1                      warning: /etc/influxdb/influxdb.conf created as /etc/influxdb/influxdb.conf.rpmnew
########################################
Cleaning up / removing...
influxdb-1.5.3-1                      ########################################
Mon May  9 02:02:02 PDT 2022 Upgrading kapacitor-1.5.7-1.x86_64.rpm
Preparing...                          ########################################
Updating / installing...
kapacitor-1.5.7-1                     warning: /etc/kapacitor/kapacitor.conf created as /etc/kapacitor/kapacitor.conf.rpmnew
########################################
Cleaning up / removing...
kapacitor-1.5.0-1                     ########################################
Mon May  9 02:02:06 PDT 2022 Restarting InfluxDB and Kapacitor

Mon May  9 02:02:20 PDT 2022 Stopping Docker
Mon May  9 02:02:26 PDT 2022 Upgrading Docker to 19.03.15
warning: container-selinux-2.119.2-1.911c772.el7_8.noarch.rpm: Header V3 RSA/SHA256 Signature, key ID f4a80eb5: NOKEY
Preparing...
(1%)##############(100%)
Updating / installing...
   1:container-selinux-2:2.119.2-1.911
   (1%)##############(100%)
Cleaning up / removing...
   2:container-selinux-2:2.42-1.gitad8
   (1%)##############(100%)
Preparing...
(1%)##############(100%)
Updating / installing...
   1:docker-ce-cli-1:19.03.15-3.el7
   (1%)##############(100%)
   2:containerd.io-1.4.4-3.1.el7
   (1%)##############(100%)
   3:docker-ce-3:19.03.15-3.el7
   (1%)##############(100%)
/usr/bin/dockerd has not been configured as an alternative for dockerd
Cleaning up / removing...
   4:docker-ce-3:18.09.6-3.el7
   (1%)##############(100%)
   5:containerd.io-1.2.5-3.1.el7
   (1%)##############(100%)
   6:docker-ce-cli-1:18.09.6-3.el7
   (1%)##############(100%)
Mon May  9 02:04:11 PDT 2022 Restarting Docker
Mon May  9 02:04:29 PDT 2022 Restarting services
Mon May  9 02:04:59 PDT 2022 RPM installation completed

Example

Manual Upgrade of IoT FND 4.5.1 to Later Versions—Use this upgrade procedure ONLY if you want to upgrade on your own without using Cisco rpm (upgrade-ova-4.7.0-101.rpm) that is provided to you:

Extract the rpm scripts by running the following command:

rpm2cpio upgrade-ova-4.7.0-101.rpm | cpio -idmv

[root@iot-fnd opt]# rpm2cpio upgrade-ova-4.7.0-101.rpm | cpio -idmv
./upgrade-ova-4.7.0-101
./upgrade-ova-4.7.0-101/Application-Watchdog
./upgrade-ova-4.7.0-101/Application-Watchdog/README.md
./upgrade-ova-4.7.0-101/Application-Watchdog/monitor-args.ini
./upgrade-ova-4.7.0-101/Application-Watchdog/monitor.sh
./upgrade-ova-4.7.0-101/Application-Watchdog/monitor_app_health.py
./upgrade-ova-4.7.0-101/Application-Watchdog/plugin_categories.py
./upgrade-ova-4.7.0-101/Application-Watchdog/plugins
./upgrade-ova-4.7.0-101/Application-Watchdog/plugins/container_registration.py
./upgrade-ova-4.7.0-101/Application-Watchdog/plugins/container_registration.yapsy-plugin
./upgrade-ova-4.7.0-101/Application-Watchdog/plugins/container_stats_collection.py
./upgrade-ova-4.7.0-101/Application-Watchdog/plugins/container_stats_collection.yapsy-plugin
./upgrade-ova-4.7.0-101/Application-Watchdog/postgres-vacuum.sh
./upgrade-ova-4.7.0-101/Application-Watchdog/setup.sh
./upgrade-ova-4.7.0-101/Continuous-Integration
./upgrade-ova-4.7.0-101/Continuous-Integration/README.md
./upgrade-ova-4.7.0-101/Continuous-Integration/fnd
./upgrade-ova-4.7.0-101/Continuous-Integration/fnd/conf
./upgrade-ova-4.7.0-101/Continuous-Integration/fnd/conf/fnd-env.list
./upgrade-ova-4.7.0-101/Continuous-Integration/fnd/data
./upgrade-ova-4.7.0-101/Continuous-Integration/fnd/data/cgms_keystore.selfsigned
./upgrade-ova-4.7.0-101/Continuous-Integration/fnd/data/cisco-sudi-ca.pem
./upgrade-ova-4.7.0-101/Continuous-Integration/fnd/data/userPropertyTypes.xml
./upgrade-ova-4.7.0-101/Continuous-Integration/fnd/logs
./upgrade-ova-4.7.0-101/Continuous-Integration/fnd/scripts
./upgrade-ova-4.7.0-101/Continuous-Integration/fnd/scripts/fnd-container.sh
./upgrade-ova-4.7.0-101/Continuous-Integration/fnd/scripts/fnd-task
./upgrade-ova-4.7.0-101/Continuous-Integration/fnd/scripts/setup-IPv6-network.sh
./upgrade-ova-4.7.0-101/Continuous-Integration/fnd/scripts/upgrade.sh
./upgrade-ova-4.7.0-101/Continuous-Integration/fogd
./upgrade-ova-4.7.0-101/Continuous-Integration/fogd/conf
./upgrade-ova-4.7.0-101/Continuous-Integration/fogd/conf/fogd-env.list
./upgrade-ova-4.7.0-101/Continuous-Integration/fogd/scripts
./upgrade-ova-4.7.0-101/Continuous-Integration/fogd/scripts/fogd-container.sh
./upgrade-ova-4.7.0-101/Continuous-Integration/fogd/scripts/fogd-info.sh
./upgrade-ova-4.7.0-101/Continuous-Integration/fogd/scripts/fogd-stats.sh
./upgrade-ova-4.7.0-101/Continuous-Integration/fogd/scripts/fogd-task
./upgrade-ova-4.7.0-101/Continuous-Integration/scripts
./upgrade-ova-4.7.0-101/Continuous-Integration/scripts/status.sh
./upgrade-ova-4.7.0-101/Continuous-Integration/upgrade-ova.spec
./upgrade-ova-4.7.0-101/Continuous-Integration/watchdog
./upgrade-ova-4.7.0-101/Continuous-Integration/watchdog/field-network-director.conf
./upgrade-ova-4.7.0-101/Continuous-Integration/watchdog/field-network-director.sh
./upgrade-ova-4.7.0-101/Continuous-Integration/watchdog/fog-director.conf
./upgrade-ova-4.7.0-101/Continuous-Integration/watchdog/fog-director.sh
./upgrade-ova-4.7.0-101/Continuous-Integration/watchdog/influxdb.conf
./upgrade-ova-4.7.0-101/Continuous-Integration/watchdog/kapacitor.conf
./upgrade-ova-4.7.0-101/Continuous-Integration/watchdog/postgresql.conf
./upgrade-ova-4.7.0-101/rpms
./upgrade-ova-4.7.0-101/rpms/cgms-influx-4.7.0-101.x86_64.rpm
./upgrade-ova-4.7.0-101/rpms/cgms-postgres-4.7.0-101.x86_64.rpm
./upgrade-ova-4.7.0-101/rpms/delay-installer.sh
./upgrade-ova-4.7.0-101/rpms/migrate-postgres.sh
./upgrade-ova-4.7.0-101/rpms/monit-5.25.3-1.el7.x86_64.rpm
./upgrade-ova-4.7.0-101/rpms/postgresql12-12.4-1PGDG.rhel7.x86_64.rpm
./upgrade-ova-4.7.0-101/rpms/postgresql12-contrib-12.4-1PGDG.rhel7.x86_64.rpm
./upgrade-ova-4.7.0-101/rpms/postgresql12-libs-12.4-1PGDG.rhel7.x86_64.rpm
./upgrade-ova-4.7.0-101/rpms/postgresql12-server-12.4-1PGDG.rhel7.x86_64.rpm
./upgrade-ova-4.7.0-101/Application-Watchdog/monitor_app_health.pyc
cpio: ./upgrade-ova-4.7.0-101/Application-Watchdog/monitor_app_health.pyo linked to ./upgrade-ova-4.7.0-101/Application-Watchdog/monitor_app_health.pyc
./upgrade-ova-4.7.0-101/Application-Watchdog/monitor_app_health.pyo
./upgrade-ova-4.7.0-101/Application-Watchdog/plugin_categories.pyc
cpio: ./upgrade-ova-4.7.0-101/Application-Watchdog/plugin_categories.pyo linked to ./upgrade-ova-4.7.0-101/Application-Watchdog/plugin_categories.pyc
./upgrade-ova-4.7.0-101/Application-Watchdog/plugin_categories.pyo
./upgrade-ova-4.7.0-101/Application-Watchdog/plugins/container_registration.pyc
cpio: ./upgrade-ova-4.7.0-101/Application-Watchdog/plugins/container_registration.pyo linked to ./upgrade-ova-4.7.0-101/Application-Watchdog/plugins/container_registration.pyc
./upgrade-ova-4.7.0-101/Application-Watchdog/plugins/container_registration.pyo
./upgrade-ova-4.7.0-101/Application-Watchdog/plugins/container_stats_collection.pyc
cpio: ./upgrade-ova-4.7.0-101/Application-Watchdog/plugins/container_stats_collection.pyo linked to ./upgrade-ova-4.7.0-101/Application-Watchdog/plugins/container_stats_collection.pyc
./upgrade-ova-4.7.0-101/Application-Watchdog/plugins/container_stats_collection.pyo
189297 blocks
[root@iot-fnd opt]#
[root@iot-fnd opt]#
[root@iot-fnd opt]# ls
cgms-influx  cgms-postgres  containerd  fnd  fogd  monitor  rh  scripts  upgrade-ova-4.7.0-101  upgrade-ova-4.7.0-101.rpm
[root@iot-fnd opt]#
[root@iot-fnd opt]#
[root@iot-fnd opt]# cd upgrade-ova-4.7.0-101
[root@iot-fnd upgrade-ova-4.7.0-101]# ls
Application-Watchdog  Continuous-Integration  rpms
[root@iot-fnd upgrade-ova-4.7.0-101]#
[root@iot-fnd upgrade-ova-4.7.0-101]#
[root@iot-fnd upgrade-ova-4.7.0-101]# cd rpms
[root@iot-fnd rpms]#
[root@iot-fnd rpms]# ls
cgms-influx-4.7.0-101.x86_64.rpm    migrate-postgres.sh                       postgresql12-contrib-12.4-1PGDG.rhel7.x86_64.rpm
cgms-postgres-4.7.0-101.x86_64.rpm  monit-5.25.3-1.el7.x86_64.rpm             postgresql12-libs-12.4-1PGDG.rhel7.x86_64.rpm
delay-installer.sh                  postgresql12-12.4-1PGDG.rhel7.x86_64.rpm  postgresql12-server-12.4-1PGDG.rhel7.x86_64.rpm
[root@iot-fnd rpms]#

Run the following script.
```
/opt/fnd/scripts/upgrade.sh
```

Select options 3 and 4 in a sequence to integrate the DB with IoT FND scripts (Postgres and Influx) as shown in the log information:

[root@iot-fnd rpms]# /opt/fnd/scripts/upgrade.sh
This script must be run with root privileges.
Usage: Load container images: No resource required
       For container reload: No resource required
       For FND Postgres RPM upgrade: Requires <path to cgms-postgres.rpm>
       FND Influx RPM upgrade: Requires <path to cgms-influx.rpm>

1) Load container images     4) FND Influx RPM upgrade
2) Container reload          5) Quit
3) FND Postgres RPM upgrade
Enter your choice: 3
Enter cgms-postgres rpm file path: cgms-postgres-4.7.0-101.x86_64.rpm
Stopping FND container...
fnd-container
Preparing...                          ################################# [100%]
Updating / installing...
   1:cgms-postgres-4.7.0-101          ################################# [ 50%]
Cleaning up / removing...
   2:cgms-postgres-4.5.1-11           ################################# [100%]
Starting FND container...
Enter your choice: fnd-container
^C
[root@iot-fnd rpms]# pwd
/opt/upgrade-ova-4.7.0-101/rpms
[root@iot-fnd rpms]# /opt/fnd/scripts/fnd-container.sh status
fnd-container is running, pid=37806
CONTAINER ID        NAME                CPU %               MEM USAGE / LIMIT     MEM %               NET I/O             BLOCK I/O           PIDS
61921642276c        fnd-container       2.41%               2.764GiB / 23.38GiB   11.82%              11.3MB / 9.84MB     0B / 2.33MB         315
[root@iot-fnd rpms]#
[root@iot-fnd rpms]# /opt/fnd/scripts/upgrade.sh
This script must be run with root privileges.
Usage: Load container images: No resource required
       For container reload: No resource required
       For FND Postgres RPM upgrade: Requires <path to cgms-postgres.rpm>
       FND Influx RPM upgrade: Requires <path to cgms-influx.rpm>

1) Load container images     4) FND Influx RPM upgrade
2) Container reload          5) Quit
3) FND Postgres RPM upgrade
Enter your choice: 4
Enter cgms-influx rpm file path: cgms-influx-4.7.0-101.x86_64.rpm
Stopping FND container...
fnd-container
Preparing...                          ################################# [100%]
Updating / installing...
   1:cgms-influx-4.7.0-101            ################################# [ 50%]
Cleaning up / removing...
   2:cgms-influx-4.5.1-11             ################################# [100%]
Starting FND container...
Enter your choice: fnd-container
^C
[root@iot-fnd rpms]#
[root@iot-fnd rpms]# /opt/fnd/scripts/fnd-container.sh status
fnd-container is running, pid=45404
CONTAINER ID        NAME                CPU %               MEM USAGE / LIMIT     MEM %               NET I/O             BLOCK I/O           PIDS
61921642276c        fnd-container       2.44%               2.095GiB / 23.38GiB   8.96%               11.3MB / 9.84MB     0B / 2.45MB         315
[root@iot-fnd rpms]#

Note

The options 3 and 4 present in the script, ./upgrade.sh, ONLY install the database integration scripts and they do not upgrade the entire DB.

To upgrade the entire DB, contact your DB Administrator or visit https://www.postgresql.org/docs/current/upgrading.html to upgrade the Postgres.
Install the docker server image from https://docs.docker.com/engine/install/rhel/.

What to do next

Upgrading IoT FND and FD Container Images

Before you begin

Pre-Upgrade Checklist
Upgrading the Database and Docker Server Image

Procedure

Step 1

Run the following script:

/opt/fnd/scripts/upgrade.sh

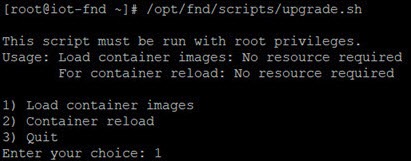

[root@iot-fnd ~]# /opt/fnd/scripts/upgrade.sh

This script must be run with root privileges.
Usage: Load container images: No resource required
       For container reload: No resource required

1) Load container images
2) Container reload
3) Quit
Enter your choice: 1
Do you want to download docker image from registry (y/n)?y
Enter docker registry [devhub-docker.cisco.com]: dockerhub.cisco.com
Enter docker image tag: 4.7.2-8
Downloading FND docker image...
4.7.2-8: Pulling from field-network-director-dev-docker/fnd-image
42ae914c6f41: Pull complete
ea3c714182eb: Pull complete
177abefb5b93: Pull complete
e696bdc28724: Pull complete
89dd87262f50: Pull complete
ff6164c0609f: Pull complete
89a0b2205b62: Pull complete
4dbd23bb6e45: Pull complete
Digest: sha256:2ae8a3cba38ea28156a2c3db55cd8cea0448888a7704479cac33b665d8b2a132
Status: Downloaded newer image for dockerhub.cisco.com/field-network-director-dev-docker/fnd-image:4.7.2-8
dockerhub.cisco.com/field-network-director-dev-docker/fnd-image:4.7.2-8
Downloading Fog Director docker image...
4.7.2-8: Pulling from fog-director-dev-docker/fogd-image
5e9a6732a7a3: Pull complete
55a104320bff: Pull complete
506e5a93cf62: Pull complete
9b2523a38071: Pull complete
8e8389537d47: Pull complete
e6fcef979884: Pull complete
e2e278b80221: Pull complete
63bc79650477: Pull complete
Digest: sha256:16f3227fbac74804f1e2a77aa57ebeeb5b9f05eb4efb0ddccf242865fe673634
Status: Downloaded newer image for dockerhub.cisco.com/fog-director-dev-docker/fogd-image:4.7.2-8
dockerhub.cisco.com/fog-director-dev-docker/fogd-image:4.7.2-8

1) Load container images
2) Container reload
3) Quit

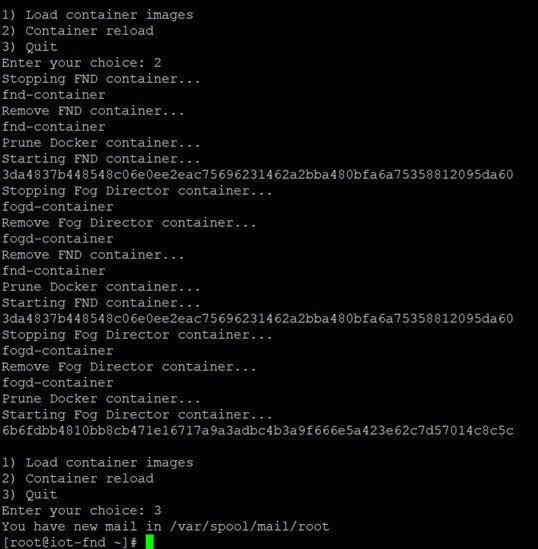

Enter your choice: 2
Stopping FND container...
fnd-container
Remove FND container...
fnd-container
Prune Docker container...
Starting FND container...
a02e6388607d79504f082dccf179514e5dc2d6bcd34021beac21baf1a555c266
Stopping Fog Director container...
fogd-container
Remove Fog Director container...
fogd-container
Prune Docker container...
Starting Fog Director container...
a40aa29e2392e1e99a5f024d3d5838712d66ef638f0c6b0bf209b1932076611c

1) Load container images
2) Container reload
3) Quit
Enter your choice: 3
You have new mail in /var/spool/mail/root
[root@iot-fnd ~]#

Step 2

Enter 1 to load container images.

Step 3

Download the container image for IoT FND from devhub-docker.cisco.com.

Note

You need valid CCO credentials to log into Cisco external docker registry.

Step 4

After the images are downloaded successfully, enter 2 to reload container.

IoT FND upgrade is complete.

Enter 3 to Quit the menu.

What to do next

Post-Upgrade Checklist

Attention

From IoT FND 4.12 onwards, use the following credentials for SSH access after upgrading OVA. The existing credentials username/password (root/cisco123) is disabled for 4.12 and later releases:

Username: fnduser
Password: C!sco123
See Guidelines for resetting password.

Procedure

Step 1

Restart Postgres service if the current IoT FND release is prior to 4.9.1 and the target IoT FND release is 4.9.1 or above.

Step 2

Check the DB and IoT FND status by running the following commands:

```
/opt/scripts/status.sh
```
```
docker version
```

/opt/fnd/scripts/fnd-container.sh status

docker exec -it fnd-container /etc/init.d/cgms status

Note

On completion of the upgrade process, restart the IoT FND container after replacing the files from backup to their original location.

Login to the FND container
[root@iot-fnd ~]# docker exec -it fnd-container /bin/bash
[root@fnd-server /]#
[root@fnd-server /]# cp /opt/cgms/server/cgms/conf/jbossas.keystore.password.bkp1 /opt/cgms/server/cgms/conf/jbossas.keystore.password
[root@fnd-server /]# cp /opt/cgms/server/cgms/conf/jbossas.keystore.bkp1 /opt/cgms/server/cgms/conf/jbossas.keystore
[root@fnd-server /]# cp /opt/cgms/server/cgms/conf/vault.keystore.bkp1 /opt/cgms/server/cgms/conf/vault.keystore
[root@fnd-server /]# cp /opt/cgms/server/cgms/conf/VAULT.dat.bkp1 /opt/cgms/server/cgms/conf/VAULT.dat
[root@fnd-server /]# cp /opt/cgms/server/cgms/deploy/security-service.xml.bkp1 /opt/cgms/server/cgms/deploy/security-service.xml
[root@fnd-server /]#exit
[root@fnd ~]# /opt/fnd/scripts/fnd-container.sh stop
[root@fnd ~]# /opt/fnd/scripts/fnd-container.sh start

Step 3

Log into IoT FND to check if the services are working fine.

For example, you can refresh the metrics for a couple of devices or add/delete devices using CSV.

Upgrading IoT FND from 4.5.1 to later releases and Updating RHEL OS

Note

This procedure is applicable only when you want to upgrade IOT FND version from FND 4.5.1 to FND 4.9.x along with RHEL base OS upgrade.

Procedure

Step 1

Download the latest 4.5.1-11 upgrade zip from Cisco Download page.

CISCO-IOTFND-VPI-K9-UPGRADE-SCRIPTS-4.5.1-11.zip

Step 2

Extract the file to get the rpm.

Step 3

Install the upgrade rpm using the following command.

rpm -ivh upgrade-ova-4.5.1-11.rpm

Step 4

Run the ./upgrade.sh script in /opt/fnd/scripts directory.

Note

You can skip the FND postgres rpm and FND influx upgrade rpm.

Step 5

To upgrade IoT FND from 4.5.1-11 to 4.7.2-8, download the latest 4.7.2-8 upgrade rpm from the Cisco Download page.

Step 6

Upgrade the upgrade-ova-4.7.2- 8.rpm using the following command.

rpm -Uvh upgrade-ova-4.7.2-8.rpm

Step 7

Run the ./upgrade.sh script in /opt/fnd/scripts directory.

Note

IoT FND OVA upgrade will NOT upgrade the RHEL OS version. After upgrading the OVA, it is recommended to upgrade the OS as well.

Step 8

Upgrade base OS from RHEL 7.5 to 7.9.

Step 9

To upgrade from IoT FND 4.7.2-8 to 4.9.x, download the latest 4.9.x upgrade rpm from Cisco Download page.

Step 10

Upgrade the upgrade-ova-4.9. x.rpm using the following command.

rpm -Uvh upgrade-ova-4.9.x.rpm

Step 11

Run the ./upgrade.sh script in /opt/fnd/scripts directory.

Step 12

Upgrade base OS from RHEL 7.9 to 8.6.

Step 13

IoT FND 4.9.0 OVA is bundled with Postgres 12.9 rpms of rhel7. In order to upgrade Postgres 12.9 rpms of base OS rhel8 manually:

Note

Starting from IoT FND 4.9.1 release, the postgres rpm upgrade is automated.

Run the following commands to uninstall the old Postgres (rhel7) rpms.

rpm -qa | grep postgres

rpm -e <postgresql12.9xxxx.rhel7.x86_64.rpm>

Note

Keep the cgms-postgres rpm.

Download all the four Postgres dependent packages from the YUM link and place the packages in /opt/ directory.

postgresql12-libs-12.9-1PGDG.rhel8.x86_64.rpm

postgresql12-12.9-1PGDG.rhel8.x86_64.rpm

postgresql12-server-12.9-1PGDG.rhel8.x86_64.rpm

postgresql12-contrib-12.9-1PGDG.rhel8.x86_64.rpm
Install all the above rpms in the same sequential order with the following command.

rpm -ivh <12.9.1PGDG.rhel8.rpm>
Make symlink with below command.

chkconfig postgresql-12 on
Start the postgres service:

service postgresql-12.service start
Check if the postgres status is Active (running):

service postgresql-12.service status
Reload all the required container with FND upgrade script by using 'Option 2) Container Reload'.
- Run the ./upgrade.sh script in /opt/fnd/scripts/ directory.
- Enter 2 to reload container.
- Enter 3 to quit menu.
Run ./status.sh script in /opt/scripts/ directory to get the running status of all the required services.
Log into IoT FND UI to check if the services are working fine. For example, you can refresh the metrics for a couple of devices or add/delete devices using CSV.

Cisco IoT FND Postgres and Influx DB Deployment with Integrated Application Management on OVA, Release 4.3.1 and Later

Bias-Free Language

Book Title

Cisco IoT FND Postgres and Influx DB Deployment with Integrated Application Management on OVA, Release 4.3.1 and Later

Chapter Title
