Version 5.2 Migration Guide

Device Management

In Version 5.2, only essential management and monitoring functions are available on managed devices. Almost all configuration and analysis functions are restricted to the Defense Center, including the configuration of the new features available in Version 5.2.

Standalone 3D Sensors used as an intrusion detection and prevention system (IPS) are no longer supported. Use the migration feature to transfer intrusion policies and events from your standalone 3D Sensor with IPS to a Version 5.2 Defense Center.

Licensing

Your organization can license a variety of features to create an optimal deployment. Version 5.2 uses a different licensing scheme than Version 4.10.3. Most licenses from previous releases are not supported. You must use the Defense Center to control licenses for itself and the devices it manages.

Tip Add licenses during the initial setup of your Version 5.2 Defense Centers. Otherwise, any devices you register during initial setup are added to the Defense Center as unlicensed. You must then enable licenses on each device individually after the initial setup process is over. For more information, see the Sourcefire 3D System Installation Guide, Version 5.2.

For more information, see:

• Host and User Licenses
• Feature Licenses
• Using the Product Upgrade Tool
• Selecting PIDs for Upgrade Licenses
• Selecting PIDs for Additional Feature Licenses
• Additional Information
• Configuring and Verifying Sensing Interfaces and Inline Sets

Host and User Licenses

In Version 5.2, a FireSIGHT license is required to perform host, application, and user discovery. The FireSIGHT license on your Defense Center also determines how many individual hosts and users you can monitor with the Defense Center and its managed devices, as well as how many users you can use to perform user control. FireSIGHT host and user license limits are model-specific, as listed in the following table.

When you migrate your deployment to Version 5.2, you can use your legacy RNA Host and RUA User licenses instead of a FireSIGHT license. Version 5.2 Defense Centers with legacy licenses use the RNA Host limit as the FireSIGHT host limit and the RUA User limit as both the FireSIGHT user and access-controlled user limit.

Tip During the Version 4.10.3 to Version 5.2 manual reimage process of a physical appliance, you are prompted to delete license and management interface network settings. Keep these settings, although you can re-add them later if you accidentally delete them. For more information, see the Version 5.2 Sourcefire 3D System Installation Guide.

RNA Host and RUA User limits are cumulative. That is, you can add multiple licenses of each type to the Defense Center to monitor the total number of hosts or users allowed by the licenses.

If you later add a FireSIGHT license, the Defense Center uses the higher of the limits. For example, the FireSIGHT license on the DC1500 supports up to 50,000 hosts and users. If the RNA Host limit on your Version 4.10.3 DC1500 was higher than 50,000, using that legacy host license on the same Defense Center running Version 5.2 gives you the higher limit. For your convenience, the web interface displays only the licenses that represent the higher limits.

Note Because FireSIGHT license limits are matched to the hardware capabilities of Defense Centers, Cisco does not recommend exceeding them when using legacy licensing. For guidance, contact Support.

Feature Licenses

Model-specific licenses allow your managed devices to perform a variety of functions, as follows:

Protection

A Protection license allows managed devices to perform intrusion detection and prevention, file control, and Security Intelligence filtering. Note you do not enable a Protection license on Series 2 devices. Registering a Series 2 device to a Version 5.2 Defense Center automatically enables intrusion detection and prevention and file control, without a license. Security Intelligence is not supported on Series 2 devices.

Control

A Control license allows Series 3 managed devices to perform user and application control. It also allows devices to perform switching and routing (including DHCP relay), NAT, and to cluster devices and stacks. A Control license requires a Protection license.

URL Filtering

A URL Filtering license allows Series 3 managed devices to use regularly updated cloud-based category and reputation data to determine which traffic can traverse your network, based on the URLs requested by monitored hosts. A Version 5.2 URL Filtering license also requires Protection and Control licenses.

Malware

A Malware license allows Series 3 managed devices to perform network-based advanced malware protection (AMP), that is, to detect and block malware in files transmitted over your network. It also allows you to view trajectories, which track files transmitted over your network. A Malware license requires a Protection license.

VPN

A VPN license allows you to build secure VPN tunnels among the virtual routers on Series 3 managed devices, or from managed devices to remote devices. A VPN license requires Protection and Control licenses.

Because of architecture and resource limitations, not all licenses can be applied to all managed devices. In general, you cannot license a capability that a device does not support; see Table 1-4.

The following table summarizes which licenses you can add to your Defense Center and apply to each device model. The Defense Center rows (for all licenses except FireSIGHT) indicate whether that Defense Center can manage devices using those licenses. For example, you can use a Series 2 DC1000 to create a VPN deployment using Series 3 devices, but you cannot use a DC500 to perform category and reputation-based URL filtering, regardless of the devices it manages. Note that n/a marks Defense Center-based licenses that are not relevant to managed devices.

Using the Product Upgrade Tool

This section explains how to use the self-service Cisco Product Upgrade Tool to acquire FireSIGHT and Control perpetual licenses for $0 when migrating from 4.10 to 5.x. These licenses are necessary to enable all the base functionality of the FireSIGHT Management Center (previously referred to as the Defense Center) and any FirePOWER Appliances it manages (previously referred to as managed devices)).

Note the following:

• The Control upgrade license that you get using the Product Upgrade Tool also provides the capabilities of the Protection license.
• FirePOWER 5.x does not support standalone devices, so all sensor appliances running Version 5.x must be managed via a FireSIGHT Management Center.

To use the PUT tool to order upgrade licenses:

Step 1 Login to the Product Upgrade Tool ( http://tools.cisco.com/gct/Upgrade/jsp/index.jsp) using your CCO ID.

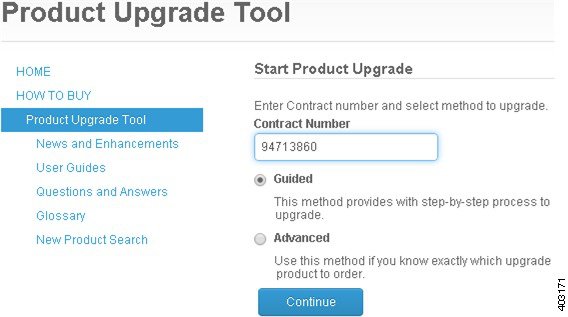

Step 2 Enter the service contract number 94713860 EXACTLY AS SHOWN and select the Continue button. YOU MUST USE THIS SERVICE CONTRACT NUMBER. YOU CANNOT SUBSTITUTE ANY OTHER NUMBER.

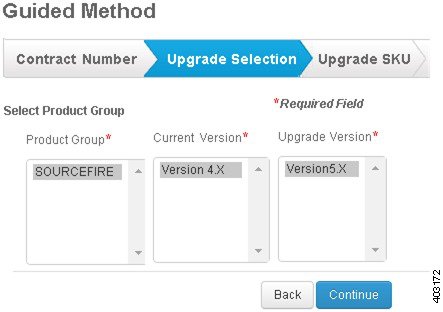

Step 3 Under Product Group, click on SOURCEFIRE. Under Current Version, click on Version 4.X. Under Upgrade Version click on Version 5.X. Select Continue in the lower right corner.

Step 4 On the Upgrade SKU page, select Continue in the lower right corner.

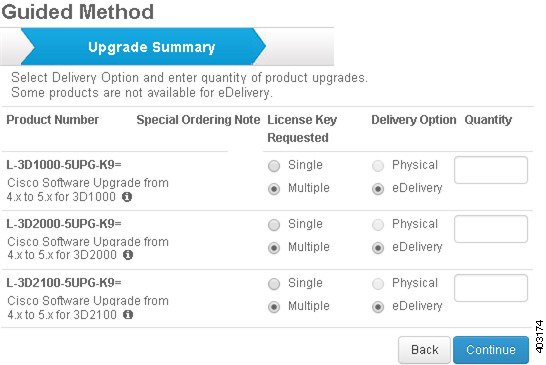

Step 5 Specify the delivery option and quantity you need for each upgrade license shown, then select Continue in the lower right corner. See Selecting PIDs for Upgrade Licenses for more information regarding which PID(s) to select.

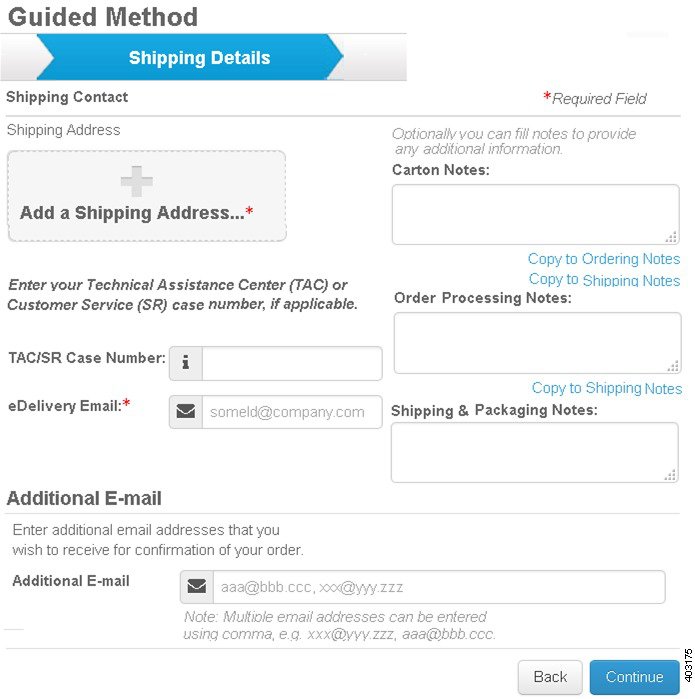

Step 6 Enter your shipping address & shipping contact. Click on Add a Shipping Address and scroll down to the bottom to select your address or add an address..

Step 7 Enter your TAC/SR Case Number (if applicable), eDelivery Email, Additional Email addresses (if applicable), Carton Notes, Order Processing Notes, and Shipping & Packaging Notes. Select Continue in the lower right corner.

Step 8 Please read and agree to the Product Upgrade Tool – Software Ordering Rules.

Step 9 Review your order detail for correctness and select Submit Order.

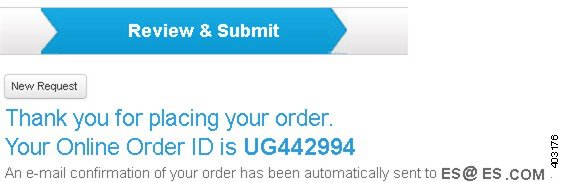

Step 10 You will receive an email confirmation of your order and an order acknowledgment with an estimated shipping date once the order is scheduled.

Step 11 Once the order has been fulfilled, you will receive either an email or a physical paper Claim Certificate, depending on the delivery preference you selected while ordering.

Step 12 If you received a Claim Certificate, skip to To register and fulfill a license through Cisco.

To download your Claim Certificate when you receive an eDelivery Email:

Step 1 Open the email confirming your order.

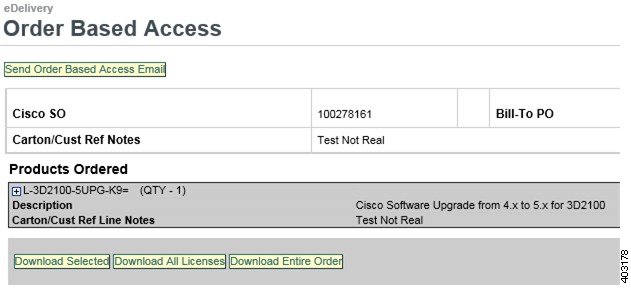

Step 2 Scroll down the email until you see the box titled eDelivery Access Order. Select the eDelivery Access Order link at the bottom.

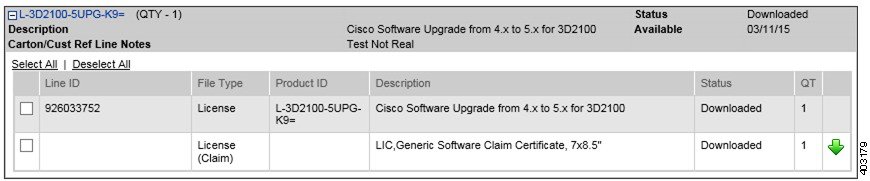

Step 3 Click the plus sign under Products Ordered.

Step 4 Click the green arrow.

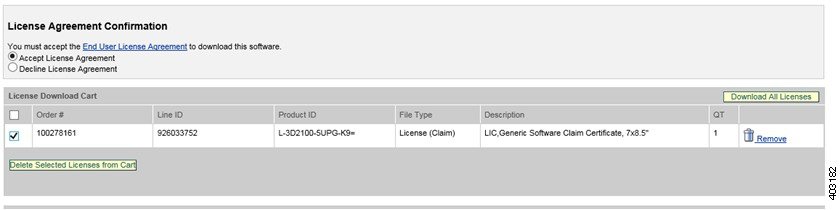

Step 5 Select Accept License Agreement. In the License Download Cart, select the check box of the claim certificate to download. Click Download All Licenses.

Step 6 Save the zip file to your desktop, which includes an End User License Agreement and your Claim Certificate, which includes your PAK number.

To register and fulfill a license through Cisco:

To register your Product Authorization Key and obtain a license, please follow the steps below:

Step 1 Go to www.cisco.com/go/license.

Note You will need a CCO ID to access the License Registration Portal.

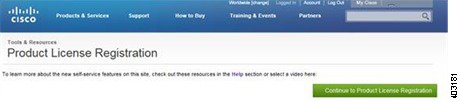

Step 2 Click the green Continue to Product License Registration button on the right-hand side of the screen.

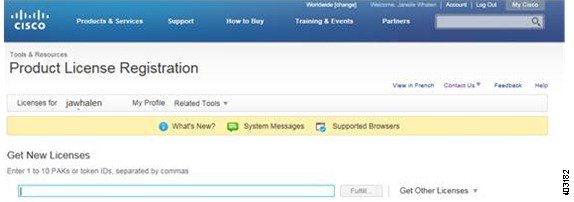

Step 3 Enter the Cisco PAK into the Get New Licenses text box and click the Fulfill box.

Step 4 Your license is generated on the screen as well as emailed to you directly.

Selecting PIDs for Upgrade Licenses

Use this table to select PIDs to use with the Product Upgrade Tool.

Selecting PIDs for Additional Feature Licenses

Use this table to select PIDs for ordering subscription licenses for additional features. See Cisco Security Ordering Guide for Legacy Sourcefire and Related Cisco Offerings for more information.

Additional Information

Watch the License Activation Video for a demonstration.

You can find additional information on licensing in the Sourcefire Licensing Support Forum.

Redundancy and Resource Sharing

The redundancy and resource-sharing features allow you to ensure continuity of operations and to combine the processing resources of multiple physical devices. Device stacking and Defense Center high availability are still supported on many models. Version 5.2 adds clustering, clustered stacks, and other methods of achieving Layer 3 redundancy.

Defense Center High Availability

To ensure continuity of operations, a Defense Center high availability feature allows you to designate redundant DC1000, DC1500, DC3000, or DC3500 Defense Centers to manage devices. The new configurations available in Version 5.2 are maintained on peer Defense Centers. Additionally, the Vulnerability Database (VDB) is now synchronized.

Device Stacking

Device stacking allows you to increase the amount of traffic inspected on a network segment by connecting two to four physical devices in a stacked configuration. When you establish a stacked configuration, you combine the resources of each stacked device into a single, shared configuration. The same devices that supported stacking in Version 4.10.3 support it in Version 5.2.

Device Clustering

Device clustering (sometimes called device high availability) allows you to establish redundancy of networking functionality and configuration data between two or more Series 3 devices or stacks. Clustering two or more peer devices or stacks results in a single logical system for policy applies, system updates, and registration. With device clustering, the system can fail over either manually or automatically.

SFRP

In most cases, you can achieve Layer 3 redundancy without clustering devices by using the Sourcefire Redundancy Protocol (SFRP). SFRP allows Series 3 devices to act as redundant gateways for specified IP addresses. With network redundancy, you can configure two or more devices or stacks to provide identical network connections, ensuring connectivity for other hosts on the network.

Network Traffic Management

Version 5.2 has multiple network traffic management features that allow licensed Series 3 devices to act as part of your organization’s network infrastructure. You can:

• configure a Layer 2 deployment to perform packet switching between two or more network segments
• configure a Layer 3 deployment to route traffic between two or more interfaces
• enable strict enforcement for an inline set, virtual router, or virtual switch on a physical managed device, which blocks connections where the three-way handshake is incomplete
• perform network address translation (NAT)
• build secure VPN tunnels from virtual routers on managed devices to remote devices

Access Control

Access control is a new policy-based feature that allows you to specify, inspect, and log the traffic that can traverse your network. An access control policy determines how the system handles traffic on your network.

Access control rules inside a policy define how traffic is handled by managed devices. These rules can allow, monitor, inspect, or block traffic based on multiple criteria. They can perform simple IP matching, or create complex scenarios involving different networks, users, applications, ports, and URLs.

Using rules within access control policies, you can also invoke intrusion detection and prevention, file control, and advanced malware protection on specific traffic. Finally, access control policies define the traffic that you permit and, therefore, the traffic you can monitor with the discovery feature (previously called RNA).

The diagram below illustrates traffic flow through the system, and provides some details on the types of inspection performed on that traffic.

For more information, see:

• Security Intelligence Filtering
• Application Control
• User Control
• URL Filtering
• Connection Logging
• Intrusion Detection and Prevention
• File Tracking, File Control, and Malware Protection
• Network Discovery

Security Intelligence Filtering

As part of access control, Security Intelligence allows you to blacklist—deny traffic to and from—specific IP addresses before the traffic is subjected to analysis by access control rules.

Series 2 devices cannot perform Security Intelligence filtering, nor can the DC500 manage a Security Intelligence deployment.

Application Control

Application control allows you to use the application detection capabilities to determine the traffic that you want to block, allow, or inspect further. The system detects the following types of application:

• application protocols (formerly services) such as HTTP and SSH, which represent communications between hosts
• clients (formerly client applications) such as web browsers and email clients, which represent software running on the host
• web applications (formerly payloads) such as MPEG video and Facebook, which represent the content or requested URL for HTTP traffic

The system also associates each application that it detects with a predetermined risk and business relevance, as well as a category and optional tags that describe the application’s functions and effects.

You can use access control to handle traffic based on the detection of individual applications, or for groups of applications called application filters (see Reusable Objects).

Series 2 devices cannot perform application control.

User Control

User control allows you to use the user detection capabilities, in conjunction with a Microsoft Active Directory deployment, to determine the traffic that you want to block, allow, or inspect. User control replaces and augments the Version 4.10.3 Real-Time User Awareness (RUA) component.

The Defense Center retrieves groups and user names from an Active Directory server you specify. Sourcefire User Agents (formerly RUA Agents) monitor those users as they log into the network or when they authenticate against Active Directory credentials for any other reason. You can handle network traffic for these access-controlled users on an individual or group basis.

You can also track (but not control) activity for non-access-controlled users, including users detected in specific types of network traffic (for example, IMAP or SIP/VoIP) by managed devices. User Agents can also report LDAP logins for non-access-controlled users, and the Defense Center can retrieve user metadata from Active Directory servers.

Note Use at least Version 2.1 of the User Agent with your Version 5.2 deployment. Version 2.1 has flexible deployment options and includes IPv6 support. It also can detect logoffs and provide information on various types of logins, including interactive user logins to a host, remote desktop logins, file-share authentication, and computer account logins. Support for legacy agents will be phased out in future releases. For more information, see the Sourcefire 3D System User Agent Configuration Guide.

Series 2 devices cannot perform user control, nor can the DC500 manage a user control deployment, although each of these appliances can gather user identity data.

URL Filtering

URL filtering is a licensed feature that allows you to determine the traffic that you want to block, allow, or inspect, based on URLs requested by monitored hosts.

When you enable URL filtering, the Defense Center contacts a cloud service, retrieves data on many commonly visited URLs, and saves that data on licensed appliances. Each of these URLs has an associated category and reputation. These attributes allow you to quickly create URL conditions for access control rules, which can group and combine URL categories and reputations.

Because the cloud service is continually updated with new URLs, as well as new categories and risks for existing URLs, using the cloud service ensures that the system uses up-to-date information to filter requested URLs. Malicious sites that represent security threats such as malware, spam, botnets, and phishing may appear and disappear faster than you can update and apply new policies.

You can also achieve more granular, custom control over URL conditions in access control rules by specifying individual URLs or groups of URLs.

Series 2 devices cannot perform URL filtering of any kind. The DC500 cannot manage a deployment where you filter traffic by URL category and reputation. However, the DC500 can manage devices that filter web traffic using individual URLs or groups of URLs.

Connection Logging

In Version 5.2, you now use the access control feature (instead of the RNA detection policy) to configure the logging of connection events (formerly flow data) detected by managed devices.

For each access control rule, you must decide whether you want to log connections that match the rule. Tying connection logging to individual rules gives you granular control over the connections you want to log.

You should log connections according to the security and compliance needs of your organization. If your goal is to limit the number of events you generate, only enable logging for the traffic critical to your analysis. However, if you want a broader view of your network traffic, you can enable logging for additional rules.

Depending on the rule, you can log a connection event at the beginning or end of a matched connection, or both. In Version 4.10.3, RNA logged connection events only at the end of connections.

In general, if you want to perform analysis on connection data, log end-of-connection events. This is because beginning-of-connection events do not have information that must be determined by examining traffic over the duration of the session. If, however, you simply want to log an event each time the system detects a new connection, beginning-of-connection events are sufficient.

Note As in previous releases, you configure NetFlow connection logging in the network discovery policy.

Intrusion Detection and Prevention

In Version 5.2, intrusion detection and prevention is integrated with access control. Instead of applying intrusion policies independently, you can now associate an intrusion policy with specific access control rules. When traffic matches an access control rule, the system uses the associated intrusion policy to inspect it. The system can also use an intrusion policy associated with the default action of an access control policy to inspect traffic that does not match rules in the policy.

Intrusion Rule Updates

Intrusion rule updates, sometimes called SRUs, replace Security Enhancement Updates (SEUs).

Rule updates provide new and updated intrusion rules and preprocessor rules, modified states for existing rules, and modified default intrusion policy settings. Rule updates may also delete rules and provide new rule categories and system variables. However, they no longer provide new or updated intrusion prevention features such as preprocessors.

FireSIGHT Rule Recommendations

If you use FireSIGHT rule recommendations, the system no longer makes intrusion rule state recommendations for rules with a very high overhead rating. Now, you must manually set the rule state for any rule with a very high overhead rating. If you have intrusion policies where the threshold is set to very high, the migration process changes it to high.

Adaptive Profiles

In Version 5.2, the system applies an intrusion rule to traffic if the rule's service metadata matches application traffic. This occurs regardless of whether you enable adaptive profiles. Enabling adaptive profiles still applies host information gathered from the network to traffic for processing.

File Tracking, File Control, and Malware Protection

To help you identify and mitigate the effects of malware, Version 5.2 of the system includes file control, network file trajectory, and advanced malware protection (AMP) components. You can detect, track, and optionally block the transmission of files (including malware files) in network traffic.

File Control

File control allows managed devices to detect and block your users from uploading (sending) or downloading (receiving) files of specific types over specific application protocols. You configure file control as part of your overall access control configuration; file policies associated with access control rules inspect network traffic that meets rule conditions.

Network-Based Advanced Malware Protection (AMP)

Network-based advanced malware protection (AMP) allows the system to inspect network traffic for malware in several types of files, including PDFs, many Microsoft Office documents, and other types. When a managed device detects one of these file types, the Defense Center obtains the file’s disposition and the managed device uses this information to block or allow the file.

You configure malware protection as part of your overall access control configuration; file policies associated with access control rules inspect network traffic that meets rule conditions.

Series 2 devices cannot perform network-based AMP, nor can the DC500 manage a network-based AMP deployment.

FireAMP Integration

FireAMP is an enterprise-class, advanced malware analysis and protection solution that discovers, understands, and blocks advanced malware outbreaks, advanced persistent threats, and targeted attacks.

If your organization has a FireAMP subscription, individual users install FireAMP Connectors on their computers and mobile devices (also called endpoints). These lightweight agents communicate with the Cisco cloud, which in turn communicates with the Defense Center. After you configure the Defense Center to connect to the cloud, you can use the Defense Center web interface to view endpoint-based malware events generated as a result of scans, detections, and quarantines on the endpoints in your organization.

Use the FireAMP porta l ( http://amp.sourcefire.com/) to configure your FireAMP deployment. The portal helps you quickly identify and quarantine malware. You can identify outbreaks when they occur, track their trajectories, understand their effects, and learn how to successfully recover. You can also use FireAMP to create custom protections, block execution of certain applications based on group policy, and create custom whitelists.

Network File Trajectory

The network file trajectory feature allows you to track a file’s transmission path across a network. The system uses SHA-256 hash values to track files; so, to track a file, the system must either:

• calculate the file’s SHA-256 value and perform a cloud lookup using that value
• receive endpoint-based threat and quarantine data about that file, using the Defense Center’s integration with your organization’s FireAMP subscription

Each file has an associated trajectory map, which contains a visual display of the file’s transfers over time as well as additional information about the file.

You cannot view file trajectories for files detected by Series 2 devices, nor can you view network-based trajectories on a DC500 Defense Center.

Network Discovery

Version 5.2 integrates RNA and RUA into a feature called discovery, and also adds additional capabilities. Discovery can analyze IPv4 and IPv6 network traffic that is not fast-pathed at the device level, or blocked or trusted by the access control policy. In other words, only allowed traffic can be analyzed.

In the network discovery policy, which replaces the RNA detection policy, you can create discovery rules that specify exactly which network segments the system should monitor. For each segment, you can discover applications, hosts, and user activity.

Host Detection

Version 5.2 uses details unique to mobile device traffic to identify a wide variety of mobile operating systems, mobile applications, and associated mobile device hardware. The system can also detect “jailbroken” devices, that is, devices where the user has removed manufacturer limitations on the operating system.

Application Detection

Version 5.2 adds a significant number of detected applications, and introduces application control based on this detection; see Application Control. The application management page is also redesigned and improved. For a complete list of the applications detected, see the Support Site.

User Detection

With Version 5.2, you retain the ability to perform network-based user identification using managed devices to monitor logins over IMAP, POP3, SIP/VoIP, and so on.

In conjunction with a Microsoft Active Directory deployment, you can also deploy User Agents to monitor and retrieve metadata for users as they log into the network or when they authenticate against Active Directory credentials for any other reason. Version 5.2 of the system adds the ability to perform user control for what are called access-controlled users ; see User Control.

Version 2.1 of the agent has flexible deployment options and includes IPv6 support. It also can detect logoffs and provide information on various types of logins, including interactive user logins to a host, remote desktop logins, file-share authentication, and computer account logins.

Note If you want to perform user control, you must install and use Sourcefire User Agents. Use at least Version 2.1 of the User Agent with your Version 5.2 deployment. Support for legacy agents will be phased out in future releases. For more information, see the Sourcefire 3D System User Agent Configuration Guide.

NetFlow

In Version 5.2, you continue to configure NetFlow connection logging (formerly flow data logging) in the network discovery policy. Because NetFlow data collection is not linked to access control rules, you do not have granular control over which connections you want to log. The system automatically saves all NetFlow-based connection events to the Defense Center database; NetFlow events are unidirectional and end-of-connection only.

Geolocation Information

Version 5.2 ’s geolocation feature provides you with additional data about the geographical sources of routable, detected IP addresses (country, continent, and so on).

By regularly updating the geolocation database (GeoDB), you can use the Defense Center to view up-to-date granular information available for an IP address, such as postal code, coordinates, time zone, Autonomous System Number (ASN), Internet service provider (ISP), use type (home or business), organization, domain name, connection type, and proxy information. You can also pinpoint the detected location with any of four third-party map tools.

Dashboards

Version 5.2 adds predefined dashboards, as well as presets for Custom Analysis widgets and configuration options in other widgets. The changes are consistent with the added features and functionality, including: AMP, geolocation, user activity, URL tracking, and so on.

Context Explorer

Version 5.2 features the Context Explorer, which displays detailed, interactive graphical information about your monitored network, using intrusion, connection, file, geolocation, malware, and discovery data.

Distinct sections present information in the form of vivid line, bar, pie, and donut graphs, accompanied by detailed lists. You can easily create and apply custom filters to fine-tune your analysis, and you can examine data sections in more detail by clicking or hovering your cursor over graph areas.

Compared with a dashboard, which is highly customizable, compartmentalized, and updates in real time, the Context Explorer is manually updated, designed to provide broader context for its data, and has a single, consistent layout designed for active user exploration.

Reusable Objects

The system’s new object manager helps you manage objects and other reusable configurations. Objects associate a name with some value or values. When you want to use that value, you can use the named object instead.

Objects can represent IP addresses or ranges of IP addresses, port-protocol combinations, VLAN tags, or URLs. You can use objects in various policies, searches, rules, and so on.

You can also use the object manager to administer:

• application filters, which group applications according to criteria associated with the application risk, business relevance, type, categories, and tags. You can use these filters to constrain access control rules, searches, dashboard widgets, and reports.
• the global malware whitelist of files (based on SHA-256 hash values) that you do not want to inspect or block using AMP; see File Tracking, File Control, and Malware Protection.
• Security Intelligence lists and feeds of IP addresses; see Security Intelligence Filtering.
• security zones, which group one or more inline, passive, switched, or routed interfaces. The interfaces in a single zone can span multiple devices; you can also configure multiple security zones on a single device. Zones allow you to manage and classify traffic flow in various policies and configurations.

Reporting

The reporting interface has been significantly redesigned to give you increased flexibility when designing report templates (previously report profiles), as well as to improve the ease of use. You can now email reports upon generation, as well as import and export report templates. You can no longer modify system-provided report templates.

The new interface also introduces the concept of report input parameters, which allow you to configure a report template to require the user to provide values at generation time that customize the generated report. In this way, you can dynamically tailor a report at generation time to show a particular subset of data, without changing the template.

Health Monitoring

The Defense Center now has only one default health policy, which is used as the basis for the initial health policy applied to the Defense Center, and which you can use to create your own custom health policies.

New health modules provide additional monitoring capabilities. Also, the process of blacklisting individual health modules (instead of entire appliances) is now more straightforward.

Client Vulnerabilities and VDB Updates

The system now correlates vulnerabilities with clients (previously client applications) running on monitored hosts, and can use those vulnerabilities to perform impact assessment. Note, however, that you cannot import third-party client vulnerabilities using the host input feature, nor can you map vendorless or versionless clients to vulnerabilities.

Also, updating the VDB on a Defense Center automatically performs the update on all its managed devices. You no longer have to explicitly update all the appliances in your deployment. Similarly, the VDB is synchronized in high-availability pairs.

User Certificates

You can now add an additional layer of authentication for client connections to the web interface. If you require user certificates, the server checks that any client browser connecting to the web server has a valid user PKI certificate, issued by the same certificate authority that issued the server certificate.

If a client's browser does not have a valid certificate, it cannot connect to the server when user certificates are enabled. You can also configure the system to check certificate revocation lists (CRLs) to identify certificates that have been revoked by the certificate authority, then ignore the invalid certificates.

IPv6 Support

You can configure the Version 5.2 management interface for IPv4-only, IPv6-only, or dual-stacked IPv4/IPv6 networks. The system can integrate with other infrastructure components and detect and process both IPv4 and IPv6 traffic. Except in a few cases, the system supports IPv6 component integration and traffic detection and processing.

For information on the unsupported and partially supported features in an IPv6 environment, please contact Support.

Application Programming Interfaces

Version 5.2 changes the way you interact with the system using a couple of the supported application programming interfaces (APIs).

Database Access

For increased security, an access list now controls which hosts can query the Defense Center’s database using a third-party database access client. You can specify individual IP addresses or IP address ranges.

eStreamer

eStreamer for Version 5.2 includes many new and replaced data blocks associated with new features. Additionally, the names of some of the record and block structures and their fields have been changed to align with new terminology. There is also a new “extended” method of requesting event streams that uses a new message streaming protocol.

Although the eStreamer server continues full support of the event stream request mode used in earlier versions, to request many of the new versions of event types, you must use the extended request mode.

Depending on the type of data you stream from the system, you may need to update your eStreamer client. For detailed information, see the Version 5.2 Sourcefire 3D System eStreamer Integration Guide.

Also, you can now modify your Defense Center’s eStreamer configuration to stream data from an alternate management port.

Series 2 Appliances

Version 5.2 is the first 5.x release where Series 2 appliances are supported. Series 2 is the second series of physical appliances and includes:

• 3D500, 3D1000, and 3D2000 devices
• 3D2100, 3D2500, 3D3500, and 3D4500 devices
• 3D6500 devices
• DC500, DC1000, and DC3000 Defense Centers

Series 2 devices running Version 5.2 have the same capabilities they had when running Version 4.10.3: intrusion detection and prevention (IDS/IPS), network and user discovery (RNA and RUA), and so on. They also support some new 5.x features, such as file control and basic access control.

Because of resource and architecture limitations, Series 2 devices do not support features such as Security Intelligence filtering, advanced access control, and advanced malware protection. Series 2 devices do not support any of the hardware-based features associated with Series 3 devices: switching, routing, NAT, and so on.

The DC1000 and DC3000 Defense Centers support all features; the DC500 has more limited capabilities.

Series 3 Appliances

Series 3 is the third series of physical appliances, and includes:

• 7000 Series devices
• 8000 Series devices
• DC750, DC1500, and DC3500 Defense Centers

Note that 8000 Series devices are more powerful and support a few features that 7000 Series devices do not.

Virtual Appliances

You can host 64-bit virtual Defense Centers and devices on the VMWare vSphere version 4.1 or 5.0 hosting environment by VMWare. Virtual Defense Centers can manage physical and virtual devices; physical Defense Centers can manage physical and virtual devices.

Regardless of the licenses installed and applied, virtual appliances do not support any of the system’s hardware-based features: redundancy (high availability, stacking, clustering), switching, routing, and so on. Also, virtual devices do not have web interfaces.

32-bit virtual appliances and Xen Hypervisor hosting environments are not supported with Version 5.2. You can, however, migrate configurations from your existing 32-bit Version 4.10.3 virtual appliances to a newly created 64-bit Version 5.2 Defense Center.

Supported Capabilities by Appliance Model

Many capabilities are appliance and license dependent. The following table matches the major capabilities of the system with the appliances that support those capabilities, assuming you have the correct licenses installed and applied.

Tip For information on the terms used in the table, see: New and Changed Terminology and New, Changed, and Updated Features and Functionality. You can also find detailed information in the Version 5.2 Sourcefire 3D System User Guide.

Keep in mind that in Version 5.x, analysis functions are restricted to the Defense Center. Only essential management and monitoring functions are available on managed devices; standalone device deployments are not supported. In the table, the Defense Center column for device-based capabilities (such as stacking, switching, and routing) indicates whether that Defense Center can manage and configure devices to perform their functions. For example, you can use a Series 2 DC1000 to manage NAT on Series 3 devices. Also note that certain Defense Center-based features, such as high availability and FireAMP integration, are not relevant to managed devices.
