Version 5.2 Migration Guide

Starting the Configuration Import Script

When you start the configuration import script on a Version 5.2 Defense Center, it first compares the intrusion rule update on the Defense Center to the SEU on the Version 4.10.3 appliance where you exported the package. If the rule update and SEU do not match, the script exits without importing any configurations. Cisco strongly recommends that you update the SEUs and rule updates in your deployment and restart the migration process. For more information, see SEU and Intrusion Rule Update Requirements.

If you cannot restart the migration process because you have already reimaged the appliance where you exported the package, you can force the script to skip the equivalence check by invoking the script with the --force option. In most cases, the resulting imported intrusion configurations will work as expected. If you cannot edit or apply policies after forcing a configuration import, contact Support.

Note If this is the second time you plan to run the import script on this Defense Center, regardless of whether you are re-importing configurations from the same package or you are importing new configurations from a different package, read the warnings in Importing Configurations Multiple Times.

To begin importing migrated configurations onto a Version 5.2 Defense Center:

Access: Admin

Step 1 Copy the package you plan to import to the Version 5.2 Defense Center.

Cisco recommends that you copy all packages to the /var/sf/migration directory.

Step 2 Log into the Defense Center’s shell using an account with Administrator privileges.

For more information, see Logging Into an Appliance to Run Migration Scripts.

Step 3 Navigate to the migration directory:

Step 4 Run the import script as the root user, providing your password when prompted:

where exported_config_package .tgz is the package you copied to the Defense Center. If you did not copy the package to the migration directory, make sure you provide a relative or absolute path to the package.

After you provide your password, the script starts. If the Defense Center passes the rule update equivalence check, the script collects data from the package and performs any necessary cleanup, for example:

Step 5 Continue with Reviewing the Manifest of Exported Configurations.

Reviewing the Manifest of Exported Configurations

After the SEU/rule update equivalence check passes (or if you forced a skip of the check), the script further analyzes the package and displays a Version 4.10.3 configuration manifest:

This manifest is a detailed list of the Version 4.10.3 configurations that the script will either directly import or use to create new Version 5.2 configurations:

• If you exported from a standalone 3D Sensor, the script lists the intrusion policies and local rules that were applied at export time, as well as which IPS detection engines they were applied to.
• If you exported from a Defense Center, the script lists the applied intrusion policies, rules, and detection engines for all sensors managed by that Defense Center. In addition, it also lists any RNA detection engine and policy information, interface sets associated with PEP rules, compliance policies, compliance rules, and traffic profiles.

For more information on which Version 4.10.3 configurations you can migrate to Version 5.2, see Understanding Migrated Configurations and Events.

The manifest is displayed using the less utility. Use the arrow keys and space bar to scroll through the manifest, then press q when you are done. Then, continue with Verifying Configuration Incompatibilities.

Verifying Configuration Incompatibilities

After you review the manifest, the script then displays a list of any Version 4.10.3 configurations in the package that will not be imported onto the Version 5.2 Defense Center. These are some of the same issues that were identified by the export script. For information on each of the issues that the configuration import script cannot resolve, see the following sections:

• Errors Due to Unavailable Policies
• RNA Port Exclusion Issues
• Unsupported Conditions in Compliance Rules and Traffic Profiles

If you planned correctly, the only issues listed should be those that you decided not to correct, because either you want to recreate the configurations in Version 5.2, or you do not want to migrate those configurations.

If the script identifies any unanticipated issues, Cisco recommends that you exit and resolve all critical incompatibilities, then restart the migration process. If you cannot or do not want to restart the process, you should have a thorough understanding of which configurations will not be migrated and why, so that you can recreate them later if necessary.

If the script finds issues, you must confirm your intent to continue the import:

The default is to continue. Unless you exit the migration, continue with the next section, Resolving Configuration Conflicts.

Resolving Configuration Conflicts

After you review the configurations that will not be migrated, the script gives you an opportunity to resolve additional issues. These are some more of the issues that were identified by the export script and discussed in Addressing Configuration Incompatibilities. If you planned correctly, the only issues listed by the import script at this point should be those you decided to resolve during import.

For more information on each of the conflicts that the script can prompt you to resolve, see the following sections:

• Assigning One Detection Engine of Each Type to Interface Sets
• Creating Intrusion Policies For Custom Detection Engine Variables
• Adding Service Metadata to Intrusion Rules
• Resolving Unsupported RNA and RUA Fast-Path PEP Rules
• Limiting Access Control Rules Associated with RNA Port Exclusions

Assigning One Detection Engine of Each Type to Interface Sets

In Version 4.10.3, you could monitor one interface set with multiple IPS (or RNA or RUA) detection engines. This would allow you, for example, to analyze the same traffic with multiple intrusion policies.

Version 5.2 does not support this capability. Now, you apply one access control policy to a device. In that access control policy, if traffic matches an access control rule you can analyze it with one intrusion policy; if it matches no rules, you can analyze it with a different intrusion policy (the default action policy).

If you exported Version 4.10.3 configurations where more than one IPS or RNA detection engine monitored the same interface, the script prompts you to choose one, for example:

Choosing a detection engine in this case associates the intrusion policy that was applied to that detection engine in Version 4.10.3 with a rule in the new Version 5.2 access control policy. This access control rule is configured so that it analyzes the traffic in a security zone that you will later create. The default is the first option.migrate

Choosing an RNA detection engine uses the RNA detection policy that was applied to that detection engine as a basis for your Version 5.2 discovery and logging configurations.

Although it is unlikely that you were using more than one RUA detection engine to monitor the same traffic (because there was no advantage to doing so), the script automatically chooses just one of them to use for Version 5.2.

Creating Intrusion Policies For Custom Detection Engine Variables

In the Sourcefire 3D System, a variable is a representation of a port or network value that is commonly used in intrusion rules. Rather than hard-coding these values in multiple rules, to tailor a rule to accurately reflect your network environment, you can change the variable value.

In Version 4.10.3 you could configure custom variables for IPS detection engines, which had priority over intrusion policy-specific variables which, in turn, had priority over system variables. With Version 5.2, you no longer explicitly configure detection engines or detection engine variables; you still can configure policy-specific variables, which still have priority over system variables. However, this means that you cannot cleanly migrate a Version 4.10.3 intrusion policy applied to IPS detection engines that use custom variables.

To replicate Version 4.10.3 functionality and migrate custom detection engine variables, the import script can create a copy of the intrusion policy for each detection engine that used custom variables. These copies use the original intrusion policy as the base policy; each one has different policy-specific variables that correspond to one of the Version 4.10.3 custom variable sets.

Because this can result in a proliferation of intrusion policies, the import script prompts you whether to create the copies, for example:

The default is to create the copies. If you decline, the script does not migrate custom detection engine variables and your Version 5.2 configurations will use only the parent intrusion policy.

Adding Service Metadata to Intrusion Rules

In Version 4.10.3, local intrusion rules that inspect traffic only on specified ports do so regardless of the application detected in the traffic. In Version 5.2, for an intrusion rule to inspect application traffic, that rule must include a service metadata option for the identified application.

The import script identifies local intrusion rules that have port constraints but no corresponding service metadata, and generates one or more service metadata recommendations based on the rule content. Then, the script prompts you to accept, review, or reject the recommendations, for example:

The default is to accept all recommendations.

If you choose to review recommendations, the script displays each service metadata-rule combination recommendation individually, which you can accept or reject, for example:

If there is one metadata recommendation for a rule, the script prompts you once; if there are eight applications that commonly use that port, the script prompts you eight times. While reviewing, the default is to accept each recommendation.

Note that you cannot use the script to add more than eight service metadata entries; the script presents the first eight, alphabetically. You can add additional metadata after the migration.

If you have a large number of local rules to import, you can also skip adding service metadata rather than reviewing each rule individually.

Note Skipping the addition of service metadata will stop the affected intrusion rules from firing until you add service metadata after the migration. For more information, see the Understanding and Writing Intrusion Rules chapter in the Version 5.2 Sourcefire 3D System User Guide.

Note that the script does not allow you to review or automatically add service metadata to local intrusion rules that inspect traffic basic on port negations. For these rules to fire, you must manually add service metadata after the migration. The script warns you which rules need this manual update, for example:

Resolving Unsupported RNA and RUA Fast-Path PEP Rules

The import script migrates Version 4.10.3 PEP rules with an action of Fast Path by creating access control rules that trust the specified traffic. For information on how other types of PEP rule are migrated, see Migrating PEP Rules into Access Control Rules.

Because of the way Version 5.2 access control rules handle traffic, you cannot have traffic bypass discovery (RNA or RUA) but still be analyzed by an intrusion policy (IPS). Therefore, Version 4.10.3 RNA and RUA fast-path PEP rules cannot be migrated unless you also fast-path IPS.

The import script warns you of these rules, for example:

You have three choices:

• If you delete ( del) the configuration, the default, the traffic associated with the Version 4.10.3 PEP rule will be subject to analysis by the new access control policy. The system will not trust, or fast path, any of that traffic.
• If you fast path only IPS traffic ( ips), the script creates an access control rule for with an action of Allow, but no associated intrusion policy, to inspect matching traffic. This permits traffic to be inspected by discovery, but not an intrusion policy.
• If you fast path all traffic, the script creates an access control rule with an action of Trust for matching traffic. This allows traffic to pass without further inspection.

Limiting Access Control Rules Associated with RNA Port Exclusions

In Version 4.10.3, you configured host discovery and flow data logging in RNA detection policies, and could easily exclude a port associated with a specific IP address from having its sessions logged.

In Version 5.2, logging and monitoring functionality is split: the access control policy governs which connections (flows) are logged on a per-access-control-rule basis, but the network discovery policy governs host discovery. Access control rules also define the traffic that you allow, and only traffic that you allow (as opposed to outright block or trust) can be monitored with discovery or subject to an intrusion policy.

To exclude traffic to and from a specific host from connection logging while preserving logging and inspection for other hosts, the script must create multiple access control rules for combinations of intrusion inspection and port exclusion preference; see Migrating RNA Settings into Rules and Logging Preferences.

If your Version 4.10.3 RNA detection policies specified Source/Destination ports to exclude, the configuration import script prompts you to choose whether to create these extra rules in the new access control policy, for example:

To avoid a confusing proliferation of rules, the default option is to create the access control policy without them.

Note You cannot migrate source-only or destination port exclusions at all.

Creating Security Zones Based on Interface Sets

The Version 4.10.3 concept of interface sets is replaced by Version 5.2 security zones, which are groupings of one or more interfaces that you can use to manage and classify traffic flow in various policies and configurations. The interfaces in a single zone may span multiple devices; you can also configure multiple zones on a single device. Using zones allows you to divide the network into segments where you can apply various policies. You must assign at least one interface to a security zone to match traffic against that security zone, and each interface can belong to only one zone. Note that the sensor migration script automatically assigns migrated passive interfaces, but not inline or inline with failopen interfaces, to security zones. See Completing Your Version 5.2 Deployment.

Tip In Version 5.2, an inline set refers to one or more pairs of inline interfaces that you group to streamline the applying of various networking settings. Inline sets are unrelated to security zones; not all the ingress interfaces in an inline set must belong to the same zone.

In addition to using security zones to group interfaces, you can use zones in various places in the system’s web interface, including access control policies, network discovery rules, and event searches. For example, you could write an access control rule that applies only to a specific source or destination zone, or restrict network discovery to traffic to or from a specific zone.

For each active Version 4.10.3 detection engine in the package you are importing (detection engines that do not have a policy applied are not migrated), the configuration import script prompts you to create a security zone on the Defense Center. Later, after you add your migrated Version 5.2 devices to the Defense Center, you can assign their interfaces to these zones.

Note Although the import script can create security zones, you must manually assign the interfaces on migrated Version 5.2 devices to those zones if you want to match traffic against those zones. Note that the sensor migration script automatically assigns passive, but not inline or inline with failopen, interfaces to zones. For more information, see Configuring and Verifying Sensing Interfaces and Inline Sets.

For example, consider the following scenario:

• you are importing a configuration package onto a 5.2.0 Defense Center that has an existing security zone named passive_zone, which groups interfaces that you want to monitor passively
• the package was exported from a Version 4.10.3 Defense Center that managed two Version 4.10.3 sensors: Sensor_A and Sensor_B
• Sensor_A had a detection engine that monitored an inline-with-failopen interface set named failopen_interfaces
• Sensor_B had a detection engine that monitored a passive interface set named passive_interfaces

First, the script prompts you to select a security zone for the failopen_interfaces set on Sensor_A:

Accepting the default option creates a new zone that shares the name of the migrated detection engine—in this case, failopen_interfaces. You can also type a different name at the prompt.

The import configuration script then prompts you to select a zone for the interfaces in the passive_interfaces set on Sensor_B. Notice how the zone you just created appears in the list:

In this example, you could type 2 (or passive_zone) and press Enter. In this case, the script will not create a new security zone on the Defense Center.

Tip When configuring a migrated device’s interfaces and inline sets, you are not required to assign all the interfaces in an inline set to zones created by the import script, although you may want to for the initial configuration and policy apply steps. Zones are meant to group multiple interfaces for security purposes; in practice you might, for example, group all ingress interfaces in the same zone regardless of their inline set. For more information on how interfaces, inline sets, and zones interact in Version 5.2, see the Sourcefire 3D System User Guide.

After you select or create security zones for your Version 5.2 deployment, continue with Providing Basic Access Control Settings.

Providing Basic Access Control Settings

Access control is a new policy-based feature that allows you to specify, inspect, and log the traffic that can traverse your network. An access control policy determines how the system handles traffic on your network, including which intrusion policies are used and when. Because access control policies define the traffic that you permit, they also define the traffic you can monitor with the discovery feature (previously RNA and RUA).

Naming the Policy

The script prompts you to choose a name for the new policy, for example:

Accepting the default option creates a new policy named after the appliance that exported the configuration package. You can also type a different name at the prompt.

Tip Do not create an access control policy with the same name as an existing access control policy on the Defense Center, because this can be confusing. If you are re-importing configurations from an appliance, accepting the default name offered by the script automatically creates a second, identically named access control policy. Therefore, Cisco recommends that you delete the older policy or choose a different name when re-importing configurations. For more information, see Re-Importing Configurations from the Same Appliance.

Associating an Intrusion Policy with the Default Action

In Version 5.2, the access control policy’s default action specifies how the system handles traffic that does not meet the conditions of any access control rule in an access control policy.

The script prompts you to select an intrusion policy to associate with the default action and thus use to inspect all default-action traffic. You can choose any intrusion policy that exists on the Version 5.2 Defense Center, or you can choose one from the configuration package you are importing. The script lists both system -provided and user-created policies, for example:

The default is to associate the system-provided Balanced Security and Connectivity intrusion policy with the default action. You can specify a different policy by typing its name or number at the prompt.

Note that choosing option 4: Network Discovery Only creates a default action that is not associated with an intrusion policy at all, but that allows all default-action traffic to be inspected by network discovery. This is useful in discovery-only (RNA-only) deployments.

Caution Do not use Experimental Policy 1 unless instructed to do so by a Cisco representative. Cisco uses this policy for testing.

---

After you provide basic access control settings, continue with Verifying the Migrated Configuration.

Verifying the Migrated Configuration

As a final step, the script displays what the results of the migration will be if you continue with the import. It lists:

• the security zones that the script will create or modify
• any intrusion policies and local intrusion rules the script will import
• the access control policy the script will create, including a detailed list of the access control rules in the policy and their associated conditions, actions, and intrusion policies
• any rules that the script will add to the network discovery policy, and their associated networks-to-monitor and other discovery options
• any correlation policies, correlation rules, and traffic profiles that the script will import and activate

Although not listed by the script, the import script will also update various discovery-related settings in the system policy and network discovery policy on the Version 5.2 Defense Center. For details on how your Version 4.10.3 configurations translate to Version 5.2, and for information on the new configurations that the migration process creates, see Understanding Migrated Configurations and Events.

The script displays the migrated configuration using the less utility. Use the arrow keys and space bar to scroll through the configuration, then press q when you are done. Continue with Confirming the Import and Resolving Configuration Collisions.

Confirming the Import and Resolving Configuration Collisions

After you review the proposed results of the migration, the import script asks you whether you want to proceed:

If you exit the script at this point no changes are made to the Version 5.2 Defense Center, except the cleanup of various files from any previous migrations. If you continue, which is the default, the script begins to import the configurations in the package to the Defense Center.

At this point, if a configuration in the package directly conflicts with an existing configuration on the Defense Center, the script prompts you to resolve the conflict.

This occurs because certain configurations, sometimes called objects, are uniquely identified by the system. Multiple versions of the same object cannot exist on a Defense Center. For example, the script might display the following prompt for a conflicting intrusion policy:

The script displays similar prompts for conflicting local intrusion rules, correlation policies and rules, and traffic profiles. The default is to overwrite the older configuration with the one in the package you are importing. You can also keep the older configuration, or specify all to overwrite all remaining conflicting configurations.

Tip This type of conflict occurs only if you are re-importing configurations. For more information on why configurations conflict and what you can do to prevent collisions, see Re-Importing Configurations from the Same Appliance.

After you resolve any object conflicts, the script saves the new configurations to the Version 5.2 Defense Center. The script also activates any correlation policies and traffic profiles that were active in your Version 4.10.3 deployment:

You can now log out of the Defense Center and continue with the next step in your migration plan. Depending on your deployment, it may be time to perform additional configuration imports, or import events, or reimage your Version 4.10.3 3D Sensors into Version 5.2 devices. For more information on planning your migration, see Understanding the Migration Process.

Configuration Import Script Syntax and Options

You must run the configuration import script as the root user. Cisco recommends that you copy the configuration package to the migration directory ( /var/sf/migration) and run the script from that directory using sudo, providing your password when prompted.

After you log in to the appliance’s shell as an Administrator (see Logging Into an Appliance to Run Migration Scripts), the syntax for running the script is as follows:

where exported_config_package .tgz is the package you copied to the Defense Center and options represents one or more script options, as described in the table below. Note that if you are not running the script from the migration directory, or you did not copy the package to the migration directory, make sure you provide relative or absolute paths to the script and package.

Importing Configurations Multiple Times

In a properly planned migration, you run the import script once for each configuration package you need to migrate to Version 5.2. For example, in a simple single Defense Center-to-single Defense Center migration, you would run the configuration import script only once during the whole migration process. However, there are a few situations where you must run the configuration import script more than once.

Importing Multiple Unique Configuration Packages

If you are replacing two or more Version 4.10.3 Defense Centers with one Version 5.2 Defense Center, or if you are adding several former standalone 3D Sensors to a new Defense Center, you must import multiple unique configuration packages onto the Version 5.2 Defense Center.

Running the import script cleans up information from any previous invocations. Also, although the sensor migration script copies and applies interface configurations, importing configurations with the import script does not configure interfaces to reimaged Version 5.2 devices. Therefore, when you have multiple unique packages to import, and you do not intend to use the sensor migration script to migrate some or all sensors, you should run the display interfaces script immediately after each import, and save that script’s output to a file that will not be overwritten. In cases where you do not use the sensor migration script, this preserves the information on how to configure the interfaces on the migrated devices associated with each package after you add the devices to the Defense Center. Alternately, add and configure all devices referenced in the imported package before you perform the next import.

For information on using the display interfaces script, see Configuring and Verifying Sensing Interfaces and Inline Sets.

Re-Importing Configurations from the Same Appliance

If you have planned your migration correctly, you should only run the configuration import script one time for each exported configuration package. However, you may decide that the results of your migration are not what you want, and that your issues can be resolved by another import.

You can either:

• re-import the same package but choose different options during import, or
• re-import a different package.

For example, if the Version 4.10.3 appliances whose configurations you are migrating have not already been reimaged, you can update those configurations then create a new package for re-import.

In either case, there are consequences to a re-import that can affect the migrated configurations on the Defense Center, as described in the following list.

security zones

For each active Version 4.10.3 detection engine in the package you are importing (detection engines that do not have a policy applied are not migrated), the script prompts you to choose or create a security zone on the Defense Center. Later, after you add your migrated Version 5.2 devices to the Defense Center, you can assign their interfaces to these zones.

In a package re-import, Cisco recommends that you choose the same zones you created in the first import. If you did not rename any interface sets in the Version 4.10.3 deployment before you re-exported, accepting the default answers, no new security zones will be created. However, if you changed the name of an interface set in the exported package, accepting the script defaults can create a new zone.

access control policy

Every time you run the import script, the script creates a new access control policy. If you are re-importing configurations, accepting the default name offered by the script automatically creates a second, identically named access control policy.

Because it is confusing to have two policies with the same name, Cisco recommends that you delete the older policy before you begin the import, or choose a different name on re-import.

unique configurations (objects)

The system uniquely identifies the following migrated configurations, sometimes called objects:

– intrusion policies and local intrusion rules

– correlation policies and rules

– traffic profiles

Multiple versions of the same object cannot exist on a Defense Center. If you import a package that contains an object that already exists on the Version 5.2 Defense Center, you must choose which to keep: the existing object or the object in the package. Note that this conflict occurs even if either object has been renamed or otherwise modified.

As an example, consider a scenario where you import a configuration package onto a Version 5.2 Defense Center, then decide that the results are not what you want. You return to your Version 4.10.3 deployment, modify some configurations, then export an updated package. When you import that updated package onto the Version 5.2 Defense Center, all intrusion policies and local intrusion rules, correlation policies and rules, and traffic profiles that were imported the first time and that still exist on the Defense Center now conflict with their counterparts in the updated package.

For your convenience, the import script prompts you to make a decision for each conflicting object; the default is to overwrite the existing configuration with the one from the configuration package. For more information, see Confirming the Import and Resolving Configuration Collisions.

Tip To avoid object collision, before you begin a configuration re-import delete any existing objects that will conflict.

network discovery policy, rules, and other discovery settings

The import script translates some of the RNA network monitoring settings in your Version 4.10.3 deployment to Version 5.2 discovery rules in the network discovery policy.

Because there is only one network discovery policy on a Version 5.2 Defense Center, the script merges (instead of overwrites) the network monitoring settings on the Defense Center with those in the import package. This could result in duplicate discovery rules. Therefore, Cisco recommends that you delete any network discovery rules created by the first import before you begin the re-import.

In addition, a re-import can overwrite other settings in the network discovery policy.

Reimaging and Registering Devices with the Sensor Migration Script

Supported Devices: Series 2, Series 3

You can use the sensor migration script to remotely reimage one or more Version 4.10.3 (or a later patch) 3D Sensors to Version 5.2. First, you install the script on your Version 5.2.0.x Defense Center using the Defense Center’s web interface. Then you run the script as the root user from the Defense Center’s shell, typically via SSH. Alternately, you can also connect to the Series 3 Defense Center shell via Lights-Out Management (LOM). Status messages display migration progress.

Caution Contact Support before using the sensor migration script to migrate a 3D500 3D Sensor.

---

You install one of two script packages depending on whether you run the script from a Series 2 or Series 3 Defense Center. See Table 3-4 for more information. The script from either package can reimage multiple Series 2 and Series 3 sensors in parallel.

You cannot use the script to migrate virtual devices. You can use the script to migrate any eligible physical sensor on your network, regardless of whether you first import configurations or events. The script copies your Version 4.10.3 sensor interface configurations to the Defense Center, reimages the sensors, registers the sensors to the Version 5.2.0.x Defense Center where you run the script, and applies the interface configurations. During the migration, sensor interfaces that were configured to fail open remain open, allowing network traffic to pass without interruption.

Note Inline interfaces fail closed during the reimage when you do not use the sensor migration script, or you use the script and the interfaces are not configured to fail open. In these cases, you may want to remove the sensors from your critical network path during reimage, which may require physical access to the sensors.

The script automatically reboots reimaged sensors at the appropriate migration stage. As a precautionary measure, it disables the use of Ctrl+C when you have responded to all prompts and the migration process begins.

Caution Do not interrupt the migration or reboot your 3D Sensors or Defense Center during the sensor migration. This could corrupt the rebooted system or negatively affect migrated configurations.

---

You can run the script multiple times. For example, you might want to test the migration on a few sample sensors before migrating remaining sensors, or migrate sensors in groups to avoid performance issues. If a sensor fails to migrate, the script skips the failed sensor and continues migrating the other sensors. If you migrate a single sensor and it fails, or you migrate multiple sensors and all sensors fail, the script aborts. In most cases, you can include failed sensors in a subsequent migration.

Although you can migrate up to twenty sensors at a time, Cisco recommends for performance reasons that you migrate no more than ten sensors at a time. The script cautions you before you add another sensor when you have already added ten or more sensors.

R eimaging results in the loss of almost all configuration and event data on the sensor. Although reimaging can retain the sensor’s network, console, and Series 3 Lights-Out Management (LOM) settings, and the sensor migration script can register sensors and preserve interface configurations, you must perform all other setup tasks after the restore process completes. See Completing Your Version 5.2 Deployment for more information.

In the event of an unavoidable migration interruption such as a power outage, you can manually reimage interrupted sensors to Version 5.2 in most cases. However, you lose the script’s advantages of allowing sensors to fail open, copying interface configurations, registering sensors, and providing remote access. If the interruption occurs at a critical stage of the migration and you to lose access to the sensor, contact Support. For instructions on manually reimaging a sensor, see the appropriate Version 5.2 Installation Guide.

Tip You can run the sensor migration script from a Version 5.3 Defense Center if you update the Defense Center from Version 5.2.0.x after installing the script. You cannot install the script directly on a Version 5.3 Defense Center. For example, if you want to manage Version 5.3 devices while migrating sensors, you must install the sensor migration package on your Version 5.2.0.x Defense Center before updating it to Version 5.3.

Note that a Version 4.10.3.x Defense Center where a migrated sensor was originally registered still shows configured interfaces and detection engines for the sensor after the migration; these non-functional ghost images are merely artifacts of the migration.

See the following sections for more information:

• Running the Sensor Migration Script
• Understanding the Status Display
• Understanding End-of-Run Error Messages
• Resolving SSH Key Conflicts

Running the Sensor Migration Script

After you import and install the sensor migration package using the Version 5.2.0.x Defense Center web interface, run the script from the Defense Center command line as the root user. The script prompts you for the following information:

• the user name and password of an account with sudo privileges on the Version 5.2 Defense Center where you run the script.

The script typically pauses approximately three minutes to verify this account information, and aborts if you provide invalid information.

• the IP address or host name for each sensor you want to migrate, and a user name and password of an account with sudo privileges for each.

The script pauses three to five minutes to verify communication between the sensor and the Defense Center each time you provide the user name and password for a sensor; if the script must resolve invalid SSH keys, the pause can be up to approximately eight minutes. See Resolving SSH Key Conflicts for more information.

Cisco recommends that you use the admin account for the Version 5.2 Defense Center where you run the script and for each sensor you specify.

Caution Do not use an LDAP or Radius account for sensor migration. External authentication configurations are not migrated. The reimaged software could exhibit unpredictable behavior, and the script cannot register migrated sensors to the Version 5.2.0.x Defense Center.

---

The script uses the authentication information you provide to facilitate SSH communication over port 22 between migrating 3D Sensors and the Defense Center. If you provide an invalid sensor IP address, host name, user name, or password, the script reprompts you.

Finally, the script lists the sensors you have identified and asks if you want to proceed. If you proceed, the script disables Ctrl+C as a precautionary measure and begins the migration.

The following table explains the options you can use with the sensor migration script.

To reimage and register Version 4.10.3 Sensors:

Access: Admin

Step 1 Obtain the sensor migration package and install it on your Version 5.2.0.x Defense Center. See Obtaining and Installing Migration Packages for more informations.

Caution Make sure you allow sufficient time for the restore process to complete. If you interrupt the process (for example, by pressing Ctrl + C or rebooting), you could cause an unrecoverable error. If you think the restore is taking too long or you experience any other issues with the process, do not quit, reboot, or otherwise interrupt the process. Instead, contact Support. For more information, see CAUTION: Do Not Interrupt the Reimage Process.

---

Step 2 Log into the Defense Center’s shell using an account with sudo privileges.

For more information, see Logging Into an Appliance to Run Migration Scripts.

Step 3 Switch to the root user and provide the password when prompted. For example:

Step 4 Navigate to the sensor migration directory:

Step 5 Enter either of the following commands, depending on whether you want to modify the default timer setting:

• To run the script using the default timeout value of 120 minutes, enter:

• To run the script using a different timeout value, enter:

where value is the number of minutes (120 or greater) before the timer expires.

The script displays a welcome message, then prompts you for the Defense Center’s user name and password. For example:

Step 6 Enter the user name and password for an account with sudo privileges on the Version 5.2 host Defense Center. Cisco recommends that you use the admin account.

Caution Do not use an LDAP or Radius account for sensor migration. External authentication configurations are not migrated. The reimaged software could exhibit unpredictable behavior, and the script cannot register migrated sensors to the Version 5.2.0.x Defense Center.

---

These credentials facilitate communication between migrating 3D Sensors and the Defense Center. The script validates the credentials and aborts if the information is invalid:

If the information is valid, the script prompts you for the host name or IP address of the first sensor you want to migrate:

Step 7 Enter the host name or IP address of a Series 2 or Series 3 sensor on your network.

The script asks if you want to identify another sensor.

Step 8 Enter y to add another sensor or press Enter when you have added the last sensor.

When you indicate that you have added the last sensor, the script lists each sensor and prompts you for the user name and password for the first sensor you specified. For example:

Step 9 Enter the user name and password for a user who has sudo privileges for the sensor. Cisco recommends that you use the admin account for each sensor.

Caution Do not use an LDAP or Radius account for sensor migration. External authentication configurations are not migrated. The reimaged software could exhibit unpredictable behavior, and the script cannot register migrated sensors to the Version 5.2.0.x Defense Center.

---

For each sensor you specified, the script tests the credentials and, if more sensors remain, prompts you for the next user name and password. For example.

Note that testing the SSH connection can take three to five minutes per sensor, and up to eight minutes if the script must resolve invalid SSH keys. The script reprompts if you enter invalid information.

After successfully testing the last sensor, the script warns you that reimaging permanently deletes data from all migrated sensors and asks if you want to begin the migration process.

Step 10 Enter y to start the migration process and the migration timer, or press Enter to exit the script.

The script displays progress information during the migration. See Understanding the Status Display.

When the migration completes or the timer expires, messages:

• provide the result of the migration for each sensor
• remind you to inspect your interface configurations
• remind you to apply your access control policy.

For example:

See Understanding End-of-Run Error Messages for more information.

Step 11 Continue with Completing Your Version 5.2 Deployment.

Understanding the Status Display

The sensor migration begins after you have identified the sensors to migrate, provided the requested information (see Running the Sensor Migration Script), and confirmed that you want to proceed with the migration. At this point the script prohibits you from using Ctrl+C, begins the migration process, and informs you that it is preparing status information:

The script displays updated migration progress approximately every five seconds:

The screen flickers with each update, adding stages as a sensor reaches each stage and incrementing the number of sensors that have passed and failed each stage. The script also displays the minutes and seconds until the timer expires. The timer starts when you respond to the final prompt and counts down from either the default time of 120 minutes or the time you configure. See Table 4-6 for more information.

Caution You cannot use the sensor migration script to migrate sensors that were included in a previous script run where the timer expired. In most cases, you can reimage the sensors manually using the restore procedure. See the Version 5.2 Sourcefire 3D System Installation Guide for information on restoring your sensors. Contact Support if the timer expires and you cannot restore your sensors.

---

The following table explains each stage of the migration:

Sensors are migrated in parallel in a forked arrangement; that is, they begin the migration simultaneously and proceed individually, each at its own pace. Counters update to identify the number of sensors that have passed or failed each stage.

Understanding End-of-Run Error Messages

When the migration process completes, the script identifies each sensor that successfully completed the migration and displays the same completion message for each, as shown in the following example:

When a sensor fails, the script identifies the failed sensor in a single error message that indicates the reason for the failure and suggests a course of action. For example:

When a failure occurs early in the process, you can often include the failed sensor in a script rerun after addressing the reason for the failure. When a failure occurs later in the process, the script suggests (with one exception) that you contact Support. In most cases, you can manually reimage late-stage failures using the restore procedure. The exception is when the migration succeeds and registration fails, in which case the script suggests that you register the sensor manually.

If a sensor loses connectivity for any reason during the migration, the sensor does not complete the migration and the script displays at least one end-of-run error message. These messages indicate the stage that was in progress when connectivity was lost, and the suggested actions indicate whether you can include the sensor in a script rerun.

The following table describes error messages that might display after the migration process completes.

Resolving SSH Key Conflicts

During the migration, the sensor migration script uses SSH on port 22 to establish connections between the Defense Center and the sensors you identify. Before beginning the migration, the script verifies that it can establish these connections. When the script encounters an invalid SSH key for the targeted sensor, the script resolves the conflict by automatically backing up the known_hosts file to /home/< user >/.ssh/known_hosts_< date >_< time > and removing the line in the file that includes the invalid key.

A message at the end of the migration process notifies you when the migration script is not able to automatically resolve an SSH key conflict. See Understanding End-of-Run Error Messages for more information. In this case, you can resolve the conflict and include the affected sensor in a subsequent migration.

You can resolve the conflict using either or both forms of the following command from the Version 5.2 Defense Center command line:

If you enter the command only once, you must identify the sensor in the command using the same form (IP address or host name) that you used to identify the sensor while running the sensor migration script. If you enter both forms of the command, you can use the IP address or host name to identify the sensor while running the sensor migration script.

Manually Adding Version 5.2 Devices to the Defense Center

When you replace physical sensors, recreate virtual sensors, or manually reimage physical sensors instead of using the sensor migration script, you must manually register the Version 5.2 devices to the Version 5.2 Defense Center. In these cases, you should register your devices after importing configurations and events so your policies and security zones are in place.

For detailed instructions on adding devices to a Defense Center, including adding devices in a NAT environment, see the Managing Devices chapter in the Version 5.2 Sourcefire 3D System User Guide.

To add a device to a Defense Center:

Access: Admin/Network Admin

Step 1 Configure the device to be managed by the Defense Center.

You should have designated the Defense Center as the remote manager during the device’s initial setup. If you did not, use a physical device’s web interface ( System > Local > Registration) or a virtual device’s CLI to add the Defense Center.

Step 2 Log into the Defense Center’s web interface, then select Devices > Device Management.

The Device Management page appears.

Step 3 From the Add drop-down menu, select Add Device.

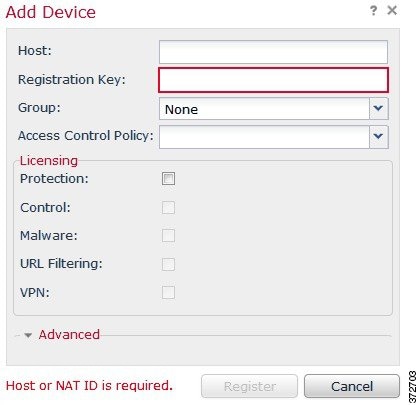

The Add Device pop-up window appears.

Step 4 In the Host field, type the IP address or the hostname of the device you want to add.

The hostname of the device is the fully qualified domain name or the name that resolves through the local DNS to a valid IP address.

Caution Use a hostname rather than an IP address if your network uses DHCP to assign IP addresses.

---

Step 5 In the Registration Key field, type the same registration key that you used when you configured the device to be managed by the Defense Center.

Step 6 From the Access Control Policy drop-down list, select an initial policy to apply to the device.

Select the new access control policy created by the configuration import; see Providing Basic Access Control Settings. If you imported multiple configuration packages and therefore the migration process created several access control policies, make sure you select the policy that contains configuration data specific to that device.

Step 7 If necessary, select the Protection check box to apply a model-specific Protection license to the device.

So that this migrated deployment can behave equivalently with your Version 4.10.3 deployment, you must apply a Protection license to any former Series 3 or virtual 3D Sensor with IPS. You do not have to apply Protection licenses to devices in discovery-only deployments, nor do Series 2 devices require a Protection license. For more information, see Version 5.2 License Requirements.

Step 8 To allow the device to transfer packets to the Defense Center, select the Transfer Packets check box in the Advanced page area.

This option is enabled by default. If you disable it, you completely prohibit packet transfer to the Defense Center.

Step 9 Click Register.

The device is added to the Defense Center. Note that it may take up to two minutes for the Defense Center to verify the device’s heartbeat and establish communication.

Tip The initial access control policy apply may fail, depending on the interface configuration on the device you just added. You can reapply the access control policy later.

Step 10 After communications are successfully established, continue with Completing Your Version 5.2 Deployment.

Configuring and Verifying Sensing Interfaces and Inline Sets

The configuration process for interfaces and inline sets depends on whether you used the sensor migration script or reimaged your sensors manually.

Completing the Configuration After Reimaging Sensors Using the Sensor Migration Script

When you use the sensor migration script to reimage Version 4.10.3 (or a later patch) sensors, the script also registers your Version 5.2 devices to the Version 5.2.0.x Defense Center and configures your interfaces to match their Version 4.10.3 configurations.

In addition to configuring your interfaces, the sensor migration script also:

• creates a security zone for each Version 4.10.3 passive interface, giving the security zone the same name as the detection engine used by the passive interface
• assigns Version 4.10.3 inline interfaces to a Version 5.2 inline set with Bypass Mode enabled for Version 4.10.3 inline with failopen interfaces and disabled for Version 4.10.3 inline only interfaces
• applies your interface configurations to enable detection capability

To complete your sensor migration, Cisco recommends that you view your interface configurations to ensure that they are still appropriate for your Version 5.2 deployment. After verifying your interface configurations, you can continue with the next section, Applying Network Discovery and Access Control Policies.

Completing the Configuration After Reimaging Sensors Manually

When you reimage devices manually, for your migrated deployment to function properly you must manually configure the interfaces and inline sets on your devices after you add them to the Defense Center.

For your convenience, Cisco provides a script that, when you run it after a configuration import, displays the correct interface configurations for the devices associated with that configuration package.

Note Running the configuration import script cleans up information from any previous invocations. Therefore, if you have multiple unique configuration packages to import, run the display interfaces script immediately after each import, and save that script’s output to a file that will not be overwritten. Alternately, add and configure all devices referenced in the imported package before you perform the next import.

Run the display interfaces script as the root user from the migration directory ( /var/sf/migration) using sudo, providing your password when prompted. After you log in to the appliance’s shell as an Administrator (see Logging Into an Appliance to Run Migration Scripts), the syntax for running the script is as follows:

Optionally, redirect the output to save it:

The script provides the name, IP address, and model of each device associated with the most recently imported configuration package, and also provides the following information:

• the link mode and MDI/MDIX settings for the sensing and management interfaces on the device
• for each interface set, the security zone you associated with the set when you imported configurations; see Creating Security Zones Based on Interface Sets
• for each inline interface set, the bypass (failopen) mode and whether tap mode, link state propagation, or transparent inline mode is enabled

As an example:

Using the output of the display interfaces script as a guide, you can use the Defense Center’s web interface to configure the interfaces and inline sets on your managed devices.

You can configure either inline sets or interfaces first depending on your preference. However, keep in mind that if you configure interfaces first, you cannot add them to inline sets until you create the inline sets. On the other hand, if you create inline sets first, you may not be able to add interfaces until you configure the interfaces themselves.

Note After you configure the interfaces and inline sets on a device, you must apply the device configuration (Devices > Device Management) for your changes to take effect and therefore for your deployment to function properly. After you apply the device configuration, you can continue with Applying Network Discovery and Access Control Policies.

For detailed instructions on configuring interfaces and inline sets, see the Managing Devices and Setting Up an IPS Device chapters in the Sourcefire 3D System User Guide.

To configure a managed device’s interfaces:

Access: Admin/Network Admin

Step 1 Log into the Defense Center’s web interface, then select Devices > Device Management.

The Device Management page appears.

Step 2 Next to the device whose interfaces you want to configure, click the edit icon ().

The Interfaces tab for that device appears.

Step 3 Next to the interface you want to edit, click the edit icon ()).

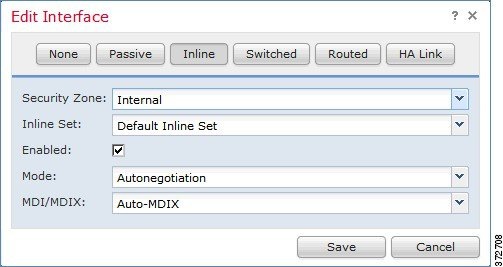

The Edit Interface pop-up window appears. The following graphic shows the options for the management interface.

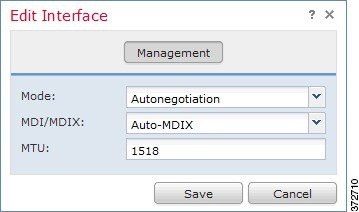

For a sensing device, you can change the type of interface from inline to passive and back. The following graphic shows the options for an inline interface.

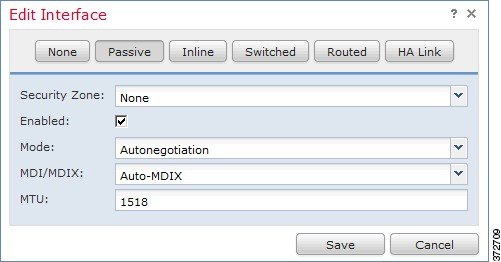

The following graphic shows the options for a passive interface.

Step 4 Using the output of the display interfaces script as a guide, configure the interface according to the needs of your organization.

If you are able, you can add the interface to an inline set now, or you can do it later when you configure inline sets.

Note that you assign interfaces to security zones individually. You are not required to assign all the interfaces in an inline set to the same security zone. Security zones are meant to group multiple interfaces for security purposes; in practice you might, for example, group all ingress interfaces in the same zone regardless of their inline set. For more information on how interfaces, inline sets, and zones interact in Version 5.2, see the Sourcefire 3D System User Guide.

Step 5 Click Save.

To add an inline set:

Access: Admin/Network Admin

Step 1 Select Devices > Device Management.

The Device Management page appears.

Step 2 Next to the device where you want to add the inline set, click the edit icon ().

The Interfaces tab appears.

Step 3 Click Inline Sets.

The Inline Sets tab appears.

Step 4 Click Add Inline Set.

The Add Inline Set pop-up window appears.

Step 5 Using the output of the display interfaces script as a guide, configure the inline set according to the needs of your organization.

If you are able, you can add inline interface pairs now, or you can do it later when you configure the individual interfaces.

Tip To configure advanced settings for the inline set, such as tap mode, link state propagation, and transparent inline mode, use the Advanced tab.

Step 6 Click OK.

Applying Network Discovery and Access Control Policies

As a final step, to make sure traffic is flowing and being handled correctly, you must apply access control and network discovery policies to the migrated devices in your deployment. First apply access control policies, then the network discovery policy.

Tip After you apply these policies, the migration process is over and you can begin to fine tune your deployment, including recreating any configurations that were not migrated. See Next Steps.

Applying Access Control Policies

You must apply a complete access control policy (which includes intrusion policies) to each migrated device in your deployment.

If performed correctly, the migration process created at least one new access control policy on the Version 5.2 Defense Center, and each of these policies targets one or more of your migrated devices. Apply each of these new policies to its target devices.

To quick-apply a complete access control policy:

Access: Admin/Security Approver

Step 1 Log into the Defense Center’s web interface, then select Policies > Access Control.

The Access Control page appears.

Step 2 Click the apply icon () next to the policy you want to apply.

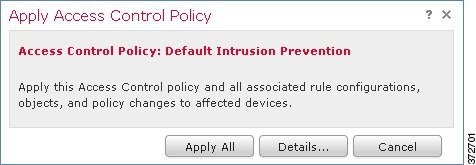

The Apply Access Control Rules pop-up window appears.

Step 3 Click Apply All.

Your policy apply task is queued. Click OK to return to the Access Control page.

Applying the Network Discovery Policy

If you want to perform network and user discovery using your imported configurations, apply the network discovery policy to all the devices in your deployment.

To apply the network discovery policy:

Access: Admin/Security Approver

Step 1 Log into the Defense Center’s web interface, then select Policies > Network Discovery.

The Network Discovery Policy page appears.

Step 2 Click Apply.

A message appears, confirming that you want to apply the policy to all zones targeted by access control policies on the Defense Center.

Step 3 Click Yes to apply the policy.
