Version 5.2 Migration Guide

Understanding Migrated Configurations and Events

---

With very few exceptions, Version 5.2 can perform the same level of intrusion protection, network awareness, and event analysis as Version 4.10.3, and adds many additional features and capabilities. The migration scripts that Cisco provides are designed to allow you to reimage sensors and transfer vital configurations and events from either a Version 4.10.3 Defense Center or a standalone 3D Sensor to a Version 5.2 Defense Center.

In general, you can migrate the following configurations and events:

• intrusion policies, variables, and local rules
• PEP rules from applied PEP policies
• settings from applied RNA detection policies, including networks to monitor
• RNA-related settings in the applied system policy and NetFlow devices specified in the system settings
• compliance policies, compliance rules, and traffic profiles
• 3D Sensor-based RUA configurations
• intrusion and audit events
• interface configurations, when you use the sensor migration script

Note, however, that due to the updated way in which Version 5.2 handles and analyzes traffic, you may not be able to successfully or cleanly migrate specific settings within these configurations.

Any configuration not listed above is not migrated, including (but not limited to) unapplied policies; users, preferences, and roles, including LDAP configurations; compliance responses and white lists; RNA detectors and custom fingerprints; health policies; custom workflows, tables, and searches; reports; dashboards; other types of events; and so on. Note that interface configurations are not copied if you do not use the sensor migration script.

This chapter explains which Version 4.10.3 configurations are migrated, including exceptions within those configurations, and how you can expect the migrated settings to appear in Version 5.2.

Note This chapter summarizes basic concepts. For detailed information on Version 5.2 features, see the Version 5.2 Sourcefire 3D System User Guide.

For more information, see:

• Understanding the New Access Control Policy
• Understanding How Interface Sets Become Security Zones
• Understanding How RNA and RUA Settings Are Migrated
• Understanding Migrated Intrusion and Audit Events
• Understanding Migrated Compliance Policies and Rules
• Changes to eStreamer Syntax and Data Structures

Understanding the New Access Control Policy

Access control is a new policy-based feature that allows you to specify, inspect, and log the traffic that can traverse your network. An access control policy, which you apply to one or more target devices, determines how the system handles traffic on your network.

Along with many added features for Version 5.2, access control policies can perform the following analysis and traffic handling that you could also perform in Version 4.10.3:

• Using access control rules with access control policies, you can duplicate the functionality of most PEP rules to trust (sometimes called fast path) specific traffic.
• Using access control rules, you can invoke intrusion policies to analyze, and optionally block, traffic based on intrusions and exploits.
• Access control policies define the traffic that you permit and, therefore, the traffic you can monitor with the discovery feature (previously called RNA).

The migration process creates a new access control policy on the Version 5.2 Defense Center every time you import a configuration package from a either a Version 4.10.3 3D Sensor or Defense Center.

Note that if the import script cannot build an access control policy using the configurations in an exported Version 4.10.3 package (for example, because the package does not contain the necessary configurations), the script creates a new access control policy with no rules and using Version 5.2 defaults.

After you finish the import process and modify the new access control policy to accommodate any configurations not migrated, you can apply the policy; see Applying Network Discovery and Access Control Policies.

Target Devices

An access control policy target device, or target, is simply a device where you apply the policy. When you add devices to the Version 5.2 Defense Center after you complete the configuration import, you specify the access control policies to apply to those devices. The Defense Center adds the devices as targets for the appropriate policies.

Access Control Rules

Access control rules in an access control policy define how traffic is handled by managed devices. These rules can allow, monitor, inspect, or block traffic based on multiple criteria. They can perform simple IP matching, or create complex scenarios involving different networks, users, applications, ports, and URLs.

The migration process adds rules to the new access control policy based on your Version 4.10.3 PEP rules, applied intrusion policies, and RNA detection policy settings.

Default Action

When you import configurations onto the Defense Center, you name the new access control policy and specify its default action; see Providing Basic Access Control Settings. In Version 5.2, the access control policy’s default action specifies how the system handles traffic that does not meet the conditions of any access control rule in an access control policy.

The script prompts you to select an intrusion policy to associate with the default action, and using it to inspect all default-action traffic. You can choose any intrusion policy that exists on the Version 5.2 Defense Center, or you can choose one from the configuration package you are importing. The script lists both system-provided and user-created policies. The default is to associate the system-provided Balanced Security and Connectivity intrusion policy with the default action.

You can also create a default action that is not associated with an intrusion policy, but that allows all default-action traffic to be inspected by network discovery. This is useful in discovery-only (RNA-only) deployments.

Logging

Connection logging (formerly flow data logging) is now configured as part of access control, rather than as a part of network discovery. The migration process uses the flow data collection preferences in your Version 4.10.3 RNA detection policies to set connection logging preferences for each access control rule and the access control policy default action. However, this split complicates the migration of Version 4.10.3 port exclusion preferences. The migration must create multiple access control rules for combinations of intrusion inspection and port exclusions so that you do not log specified traffic.

See the following sections for more information:

• Migrating PEP Rules into Access Control Rules
• Migrating Intrusion Policies and Creating Access Control Rules
• Migrating RNA Settings into Rules and Logging Preferences
• Example Migrated Access Control Rules

Migrating PEP Rules into Access Control Rules

PEP was a feature in Version 4.10.3 that allowed you to create rules to block or send traffic directly through some 3D Sensors with no further inspection.

---

Note Of the two components of PEP policies in Version 4.10.3 (fast-path rules and PEP rules), only IPv4 and IPv6 PEP rules in applied PEP policies are migrated into access control rules. Version 4.10.3 fast-path rules are not migrated; you must configure these rules at the device level after you add devices to your Version 5.2 deployment. For more information, see the Managing Devices chapter in the Version 5.2 Sourcefire 3D System User Guide.

---

The migration places PEP-created access control rules at the top of the new access control policy so that they are evaluated first. The migration also prioritizes IPv6 PEP rules over IPv4 PEP rules. Note that only PEP rules in applied, non-deleted policies can be migrated.

The migration converts PEP rules to access control rules as described in the following table.



Table 5-1 PEP Rule Migration

If the PEP Rule action was...	The access control rule action is...	And the PEP rule becomes...
Drop	Block	a single access control rule that blocks the traffic specified by the PEP rule. Blocked traffic is not subject to inspection of any kind.
Drop w/ Reset	Block with reset	a single access control rule that blocks the traffic specified by the PEP rule, and resets the connection. Blocked traffic is not subject to inspection of any kind.
Fast Path (or DE Specific where IPS, RNA, and RUA are all set to Fast Path)	Trust	a single access control rule that trusts the traffic specified by the PEP rule. Trusted traffic is not subject to inspection of any kind.
Analyze (or DE Specific where IPS, RNA, and RUA are all set to Analyze)	Allow	a set of access control rules that ensures all traffic specified by the PEP rule is inspected. The network conditions for these access control rules represent the intersection of the networks in the PEP rule and all other rules in the new access control policy.
DE Specific: IPS set to Fast Path RNA and RUA set to Analyze	Allow	a set of access control rules that ensures all traffic specified by the PEP rule is eligible to be monitored by discovery, but is not inspected by an intrusion policy. The network conditions for these access control rules represent the intersection of the networks in the PEP rule and all other rules in the new access control policy.
DE Specific: IPS set to Analyze RNA or RUA set to Fast Path	n/a	Because of the way Version 5.2 access control rules handle traffic, you cannot have traffic bypass discovery (RNA or RUA) but still be analyzed by an intrusion policy (IPS). These PEP rules cannot be migrated; see Resolving Unsupported RNA and RUA Fast-Path PEP Rules.

Migrating RNA Settings into Rules and Logging Preferences

In Version 4.10.3, you configured host discovery and flow data logging in RNA detection policies. In Version 5.2, logging and monitoring functionality is split: the access control policy governs which connections (flows) are logged on a per-access control rule basis, but the network discovery policy governs discovery.

The migration process uses the flow data logging settings in your applied Version 4.10.3 RNA detection policies to determine how to configure connection logging in the Version 5.2 access control policy, which is done using access control rules.

• To exclude traffic to and from a specific port (on one or more hosts) from connection logging while preserving logging and inspection for other hosts, the migration must create multiple access control rules for combinations of intrusion inspection and port exclusion preferences.
• To log (or exclude from logging) connections for a particular network, the migration adds two access control rules for each network to monitor-detection engine combination in the Version 4.10.3 RNA detection policy, once for source traffic and one for destination traffic. For example, if an RNA detection policy is applied to three different detection engines, the migration adds six access control rules.

Access Control Rule Order

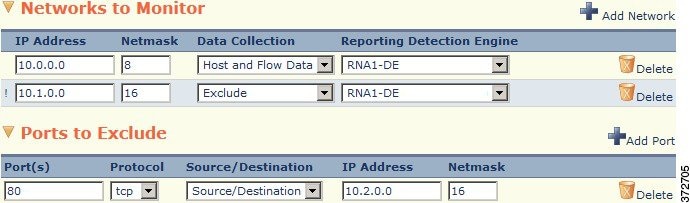

The system places port exclusion-based rules above rules based on networks to monitor or exclude. For example, note the Version 4.10.3 network configurations in the following graphic:

• network to monitor: 10.0.0.0/8
• excluded network: 10.1.0.0/16
• excluded ports: 80 (tcp) on 10.2.0.0/16 in source/destination traffic

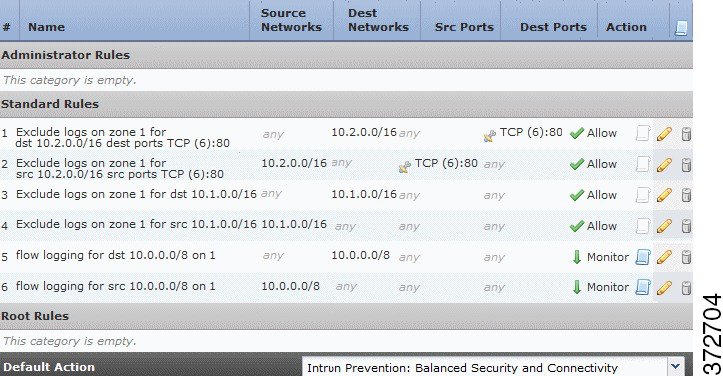

The following graphic shows the access control rules for the migrated configurations in the example. Note that, for clarity, not all columns are shown.



Note the following configurations in the second graphic:

• Rules 1 and 2 allow traffic for the excluded port 80 on 10.2.0.0/16 to proceed without further processing.
• Rules 3 and 4 allow traffic for the excluded network 10.1.0.0/16 to proceed without further processing.
• Rules 5 and 6 monitor remaining traffic on network 10.0.0.0/8. The logging icon (
) for these rules indicates that the system logs connections in matching traffic.

The following table describes the configuration of each access control rule created from an applied intrusion policy.



Table 5-4 Migrated Access Control Rule Settings

Version 4.10.3 Configuration	Version 5.2 Access Control Rule Setting	Details
a network to monitor	an Action of Monitor Source Networks or Destination Networks (Networks tab)	Access control rules created to log connections have an action of Monitor to ensure that logging is enabled. This action also allows traffic to match subsequent access control rules. These rules also specify which network they are monitoring.
a network to exclude from monitoring	an Action of Allow	Access control roles created to allow traffic to pass without logging have an action of Allow but disabled logging options. These rules have an associated intrusion policy if your Version 4.10.3 deployment monitored that network with one.
a port to exclude from monitoring	an Action of Allow Selected Destination Ports or Selected Source Ports (Ports tab)	Access control roles created to allow port-based traffic to pass without logging or inspection have an action of Allow, but no associated intrusion policy or logging options. These rules also specify which ports and protocols they are excluding.
Reporting Detection Engine for a network	Zones (Zones tab)	Restricting logging by zone preserves the Version 4.10.3 setting where each network was monitored by a specific RNA detection engine, which would log the traffic flowing through a specified interface set. For more information, see Understanding How Interface Sets Become Security Zones.
Host and Flow Data collection option for a network	enabled Log at End of Connection and Send Connection Events to Defense Center settings on the Logging tab	The logging settings for an access control rule depends on settings in your Version 4.10.3 RNA detection policies. For more information, see Migrating RNA Settings into Rules and Logging Preferences.
n/a	Intrusion Policy (Inspection table)	All access control rules created to perform intrusion inspection have an associated intrusion policy. Whether an access control rule that logs connections has an associated intrusion policy depends on your Version 4.10.3 intrusion configurations; see Migrating Intrusion Policies and Creating Access Control Rules.
n/a	Enabled, which determines whether the rule is used	Access control rules created by the migration are enabled by default.

Example Migrated Access Control Rules

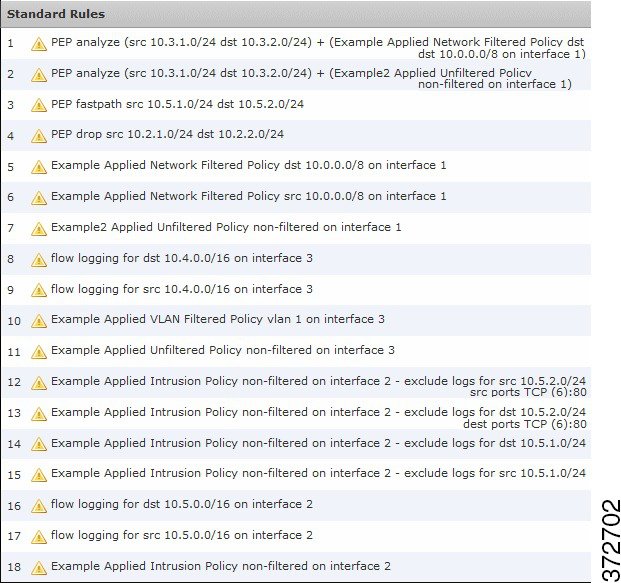

The following graphic includes example access control rules for each type of configuration that populates the access control policy created by the migration.



The warning () icons in the graphic indicate that interfaces for the rules are not yet configured.

The following table describes the rules in the graphic.



Table 5-5 Example Access Control Rules

This Rule...	Appears Because the Exported Configurations Included...
1, 2	a PEP rule with the action Analyze, an initiator in the network 10.3.1.0/24, and a responder in the network 10.3.2.0/24; the rule intersects with network 10.0.0.0/8 targeted in the network-filtered policy Example Applied Network Filtered Policy. The complexities of the migration, including the presence of rules 3 and 4, make these rules necessary.
3	a PEP rule with the action Fast Path, an initiator in the network 10.5.1.0/24, and a responder in the network 10.5.2.0/24.
4	a PEP rule with the action Drop, an initiator in the network 10.2.1.0/24, and a responder in the network 10.2.2.0/24.
5, 6	a network-filtered intrusion policy targeting the network 10.0.0.0/8 and named Example Applied Network Filtered Policy ; the policy was applied to a detection engine that used an interface that was migrated to a zone named interface 1.
7	an unfiltered intrusion policy named Example2 Applied Unfiltered Intrusion Policy which; the policy was applied to a detection engine that used an interface that was migrated to a zone named interface 1.
8, 9	an RNA detection policy configured to monitor hosts and flow data on the 10.4.0.0/16 network; the policy was applied to a detection engine that used an interface that was migrated to a zone named interface 3. Note that this detection policy did not include networks or ports to exclude.
10	a VLAN-filtered intrusion policy targeting VLAN 1 and named Example Applied VLAN Filtered Policy ; the policy was applied to a detection engine that used an interface that was migrated to a zone named interface 3.
11	an unfiltered intrusion policy named Example Applied Unfiltered Policy; the policy was applied to a detection engine that used an interface that was migrated to a zone named interface 3.
13, 12	an exclusion in the RNA detection policy monitoring network 10.5.0.0/16 to prevent logging connections for TCP port 80 in the network 10.5.2.0/24.
15, 14	an exclusion in the RNA detection policy monitoring network 10.5.0.0/16 to prevent logging connections in the network 10.5.1.0/24.
17, 16	an RNA detection policy configured to monitor hosts and flow data on the 10.5.0.0/16 network; the policy was applied to a detection engine that used an interface that was migrated to a zone named interface 2.
18	an unfiltered intrusion policy named Example Applied Intrusion Policy ; the policy was applied to a detection engine that used an interface that was migrated to a zone named interface 2.

Understanding How Interface Sets Become Security Zones

The Version 4.10.3 concept of interface sets is replaced by the Version 5.2 concept of security zones, which are groupings of one or more interfaces that you can use to manage and classify traffic flow in various policies and configurations. The interfaces in a single zone may span multiple devices; you can also configure multiple zones on a single device. Using zones allows you to divide the network into segments where you can apply various policies. You must assign at least one interface to a security zone to match traffic against that security zone, and each interface can belong to only one zone. Note that the sensor migration script automatically assigns migrated passive interfaces (but not inline or inline with failopen interfaces) to security zones. See Completing Your Version 5.2 Deployment.

Tip In Version 5.2, an inline set refers to one or more pairs of inline interfaces that you group to streamline the applying of various networking settings. Inline sets are unrelated to security zones; not all the ingress interfaces in an inline set must belong to the same zone.

In addition to using security zones to group interfaces, you can use zones in various places in the system’s web interface, including access control policies, network discovery rules, and event searches. For example, you could write an access control rule that applies only to a specific source or destination zone, or restrict network discovery to traffic to or from a specific zone.

For each active Version 4.10.3 detection engine in the package you are importing, the configuration import script prompts you to create a security zone on the Defense Center; see Creating Security Zones Based on Interface Sets. Each zone is meant to contain the interfaces in the Version 4.10.3 interface sets monitored by each detection engine.

Note Although the configuration import script can create security zones, if you want to match traffic against those zones you must manually assign the interfaces on migrated Version 5.2 devices to those zones after you add your migrated Version 5.2 devices to the Defense Center. Note that the sensor migration script automatically assigns passive (but not inline or inline with failopen) interfaces to zones. For more information, see Configuring and Verifying Sensing Interfaces and Inline Sets.

When the import script runs, it uses the zones you create to configure rules within the new access control policy and the migrated network discovery rules.

For example, consider a 3D Sensor:

• with an IPS detection engine named IPS_DE
• monitoring a inline interface set named inline_interfaces
• using an unfiltered intrusion policy named no_exploits

If you accept the defaults, the import script:

• creates a Version 5.2 security zone named inline_interfaces where you should assign the interfaces that were in the Version 4.10.3 inline_interfaces set, and
• creates an access control rule that uses the no_exploits intrusion policy to inspect traffic flowing over interfaces in the inline_interfaces zone

Tip When configuring a migrated device’s interfaces and inline sets, you are not required to assign all the interfaces in an inline set to zones created by the import script, although you may want to for the initial configuration and policy apply steps. Zones are meant to group multiple interfaces for security purposes; in practice you might, for example, group all ingress interfaces in the same zone regardless of their inline set. For more information on how interfaces, inline sets, and zones interact in Version 5.2, see the Version 5.2 Sourcefire 3D System User Guide.

Understanding How RNA and RUA Settings Are Migrated

In Version 4.10.3, the most critical piece of your RNA deployment is the RNA detection policy. When applied to RNA detection engines on managed 3D Sensors with RNA, the detection policy controls how RNA events and flow data are collected:

• General settings govern policy-specific data collection preferences.
• A list of networks that you specify tells the system which traffic to monitor and log; you can also specify networks that you are monitoring with NetFlow-enabled devices.
• You can specify a list of ports (for specific IP addresses) that you want to exclude from monitoring and logging.

Also in Version 4.10.3, you could collect user activity using 3D Sensors with RUA by creating an RUA detection engine and assigning it to monitor traffic flowing through a specific interface set.

Various settings in the Version 4.10.3 system policy and system settings govern RNA data storage, impact flag correlation, operating system and service identity conflicts, RUA protocol monitoring, NetFlow settings, and so on.

With very few exceptions, Version 5.2 can monitor and log traffic identically to Version 4.10.3, and also adds some capabilities. However, the way you configure discovery (RNA), user awareness (RUA), and connection logging (flow data logging) is now different, and some settings have moved:

• RNA detection policies have been replaced by a single network discovery policy, which you apply to all devices managed by a Defense Center. Using discovery rules, the network discovery policy specifies which security zones, networks, and ports your devices monitor to generate host, application and user data. The network discovery policy includes NetFlow configurations.
• Because you no longer need to configure common settings across multiple detection policies, settings that were in the Version 4.10.3 system policy are now in the network discovery policy.
• You now configure user detection by 3D Sensors wholly within the network discovery policy; any traffic that you can inspect for host data you can inspect for user data. You no longer configure RUA detection engines or restrict detection protocols in the system settings.
• Connection logging (with the exception of NetFlow logging) has moved to the access control policy, where you configure it on a per-access control rule basis. For more information, see Migrating RNA Settings into Rules and Logging Preferences.

Where possible, the configuration import script gracefully migrates your Version 4.10.3 settings to their Version 5.2 counterparts. Your Version 4.10.3 Networks to Monitor settings in your applied RNA detection policies become discovery rules, your old system policy settings are preserved in the network discovery policy, and so on.

Note that in most cases, you will only have one applied detection policy per Defense Center. If you have two applied detection policies, their rules represent a merged version of the networks to monitor, as long as there are no detection engine conflicts in your Version 4.10.3 configurations; see Assigning One Detection Engine of Each Type to Interface Sets. Similarly, if you have existing discovery rules in your Version 5.2 network discovery policy, the migration merges them with the rules it creates.

Note Only user activity detection by 3D Sensors is migrated. User Agent settings and associated LDAP authorization objects are not migrated; you must recreate those configurations after the migration.

For more information on how RNA and RUA configurations are migrated, see:

• Understanding How The Migration Creates Discovery Rules
• Migrating Other RNA and RUA Settings

Understanding How The Migration Creates Discovery Rules

The migration process converts the Version 4.10.3 Networks to Monitor and Ports to Exclude settings in your applied RNA detection policies into Version 5.2 discovery rules in the single network discovery policy:

• Each network you monitor or exclude creates one discovery rule that monitors that network.

These rules can then be converted to multiple discovery rules, depending on your port exclusions. The number of rules and the networks monitored by each of the rules depends on the intersection of your port-excluded hosts with the networks you were monitoring in Version 4.10.3.

• Each NetFlow network you monitor or exclude creates one discovery rule that monitors that network.

Discovery rules govern whether and how the system collects information on your network’s hosts including the operating systems, active applications, and user activity on those hosts.

---

Note Version 5.2 discovery rules do not govern connection logging for your network traffic; that capability has moved to access control. For more information, see Migrating RNA Settings into Rules and Logging Preferences.

---

Each discovery rule is also restricted by security zone, which ensures that the system uses the rule to examine only the traffic flowing through certain interfaces. (A zone is a collection of interfaces.)

The following table explains how specific discovery rule settings depend on your Version 4.10.3 configurations. All other settings in the created discovery rules use Version 5.2 defaults. Remember that these settings apply to monitoring only and not logging.



Table 5-6 RNA Settings Migrated to Discovery Rules

Version 4.10.3 Policy Configuration	Version 5.2 Discovery Rule Setting	Details
IP Address and Netmask in the Networks to Monitor section	Networks (Network tab)	Depending on how your Version 4.10.3 networks to monitor intersected with your port exclusions, each discovery rule created by the migration monitors all or part of a single network to monitor in Version 5.2.
settings in the Ports to Exclude section, including Port(s) and Protocol	Selected Destination Ports or Selected Source Ports (Port Exclusions tab)	Discovery rules created by the migration exclude source or destination ports from monitoring for the rule’s specified network depending on your settings in the Version 4.10.3 RNA detection policy.
Exclude data collection option for a network	an Action of Exclude	If you excluded a network (including a NetFlow network) from monitoring in Version 4.10.3, that network is also excluded in Version 5.2 using a discovery rule with an Action of Exclude.
Host Data Only or Host and Flow Data collection option for a network	an Action of Discover	If you monitored a network for host data in Version 4.10.3, that network is also monitored in Version 5.2 using a discovery rule with an Action of Discover. This also applies to NetFlow networks to monitor. This new rule enables both Hosts and Applications discovery on those networks, to help you build the network map. It also enables Users discovery when, in Version 4.10.3, you used an RUA detection engine to monitor the traffic now represented by the discovery rule’s security zone restrictions.
the Generate Hosts from NetFlow Data and Generate Services from NetFlow Data general settings	an Action of Log NetFlow Connections if both these options are disabled	If you had these settings disabled in Version 4.10.3, when the migration creates discovery rules based on your NetFlow networks to monitor, an Action of Log NetFlow Connections ensures that NetFlow-discovered hosts and applications are not added to the network map, but NetFlow connections are still logged.
Reporting Detection Engine for each network to monitor	Zones (Zones tab)	Restricting discovery by zone preserves the Version 4.10.3 setting where each network was monitored by a specific RNA detection engine, which would monitor the traffic flowing through a specified interface set. For more information, see Understanding How Interface Sets Become Security Zones. Note Subnet detection is not supported in Version 5.2 because of the deprecation of detection engines and the new way that you create discovery rules.

Understanding Migrated Intrusion and Audit Events

Optionally, you can migrate legacy intrusion and audit events to your Version 5.2 Defense Center. Field names between the two versions correspond, but keep in mind the following points:

• Information in the intrusion event Detection Engine field is migrated to the Version 5.2 Device field.
• Any fields added to event tables since Version 4.10.3 are blank in imported legacy events.

Also keep in mind that the timestamps on legacy events will be “behind” newly generated events on the Version 5.2 Defense Center. Because the database is pruned by event timestamp, your migrated events will be pruned before those events.

Tip If imported intrusion events do not display after you complete the import process, clear your browser cache and try again.

Understanding Migrated Compliance Policies and Rules

In Version 5.2, the Policy & Response compliance features are collectively known as correlation. You can successfully migrate most compliance policies and rules to Version 5.2 correlation policies and rules. Most traffic profiles also migrate successfully.

Note Compliance white lists are not migrated.

Version 4.10.3 configurations migrate regardless of whether they are activated; activated configurations in Version 4.10.3 are automatically activated in Version 5.2 by the migration process.

So that your Version 5.2 correlation configuration can behave equivalently to your Version 4.10.3 deployment, the migration must update configurations that use detection engine constraints. A Version 4.10.3 compliance rule based on an intrusion or flow event that uses a Detection Engine constraint becomes a Version 5.2 correlation rule based on an intrusion or connection event that uses a Security Zone constraint. Restricting correlation rules by zone preserves the Version 4.10.3 setting where a detection engine monitors the traffic flowing through a specified interface set. For more information, see Understanding How Interface Sets Become Security Zones.

Also note that compliance conditions reflect terminology changes. For example, a Version 4.10.3 compliance condition with a Service, Client Application, or Payload constraint becomes a Version 5.2 condition with an Application Protocol, Client, or Web Application constraint. For more information, see New and Changed Terminology.

The Policy & Responses configurations that you cannot migrate are detailed in the following table. Both the configuration export and import scripts warn you that these configurations will not be migrated, and give you a chance to exit the script.

Changes to eStreamer Syntax and Data Structures

With each release of the system software, several of the eStreamer data structures change. To determine whether each of the data structures your client currently receives is the current version of that structure, review the tables in the Host Discovery and Connection Data Blocks, Intrusion Event and Metadata Record Types, and Understanding Host Data Structures chapters in the Version 5.2 Sourcefire 3D System eStreamer Integration Guide. If it is not, update your client to reflect the current structures.

In addition, you should review the Understanding the eStreamer Application Protocol chapter in detail to understand the new types of information available in Version 5.2 and how to request them.

Note Version 4.10.3 eStreamer settings on your appliances are not migrated. After you complete the migration process, you must re-enable the streaming of specific event types to eStreamer clients before you can request data, as well as add the client to the eStreamer server's peers database on the Defense Center. For more information, see the Version 5.2 Sourcefire 3D System User Guide.

For a summary of the major changes to eStreamer, see the following sections.

Series 2 Data Structures and Extended Requests

Series 2 data blocks were introduced in Version 5.0 and have a separate numbering system from series 1 data blocks. These blocks contain discovery and connection data and were previously known as RNA data structures.

Use extended requests to request information, such as Series 2 data blocks, that is not available from normal requests. Submit extended requests by setting bit 30 in the Event Stream Request message. When this bit is set, eStreamer responds with a list of available services. The client returns a Streaming Request message that indicates the service it wants to use, with a request list of event types and versions available from that service.

The eStreamer server sends messages in a bundle format when the client submits an extended request. The client responds with a NULL message to acknowledge receipt of an entire bundle. The client should not acknowledge receipt of individual messages in a bundle.

Alternate Ports

You can now configure eStreamer to use a port other than the primary management port.

IPv6 and Geolocation

Numerous data blocks now include source and destination countries for use with the geolocation feature. Also, all IP address fields now support both IPv4 and IPv6 addresses.
