Upgrading the Cisco IWAN Application

This chapter contains the following section:

Upgrading the Cisco IWAN Application

Upgrade the Cisco IWAN application if you want the network to leverage the latest Cisco APIC-EM controller functionality.

Procedure

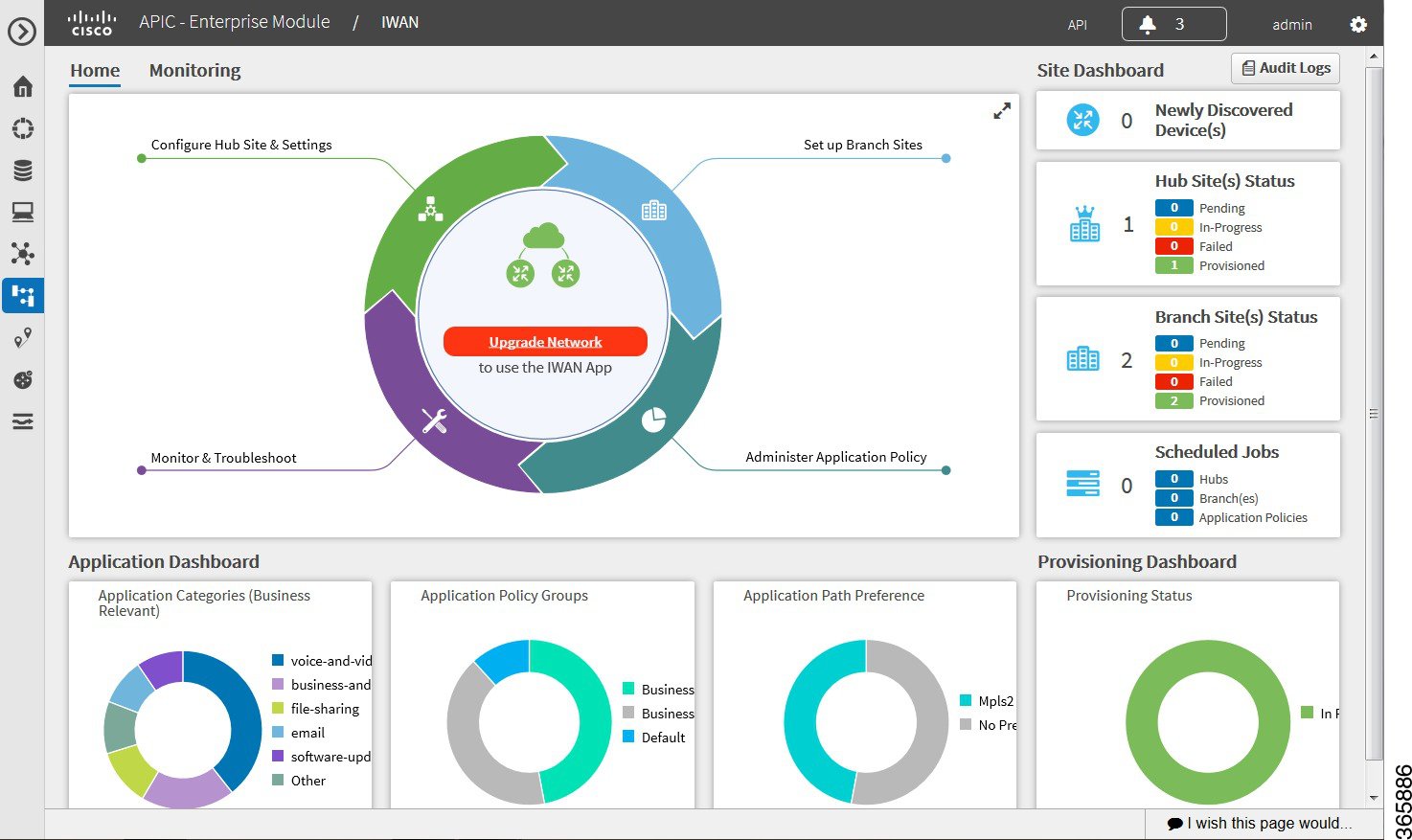

Step 1 After the Cisco APIC-EM upgrade process is complete, a red Upgrade Network button appears on the Cisco IWAN home page as shown in the following figure:





Step 2 Clear the browser cache.

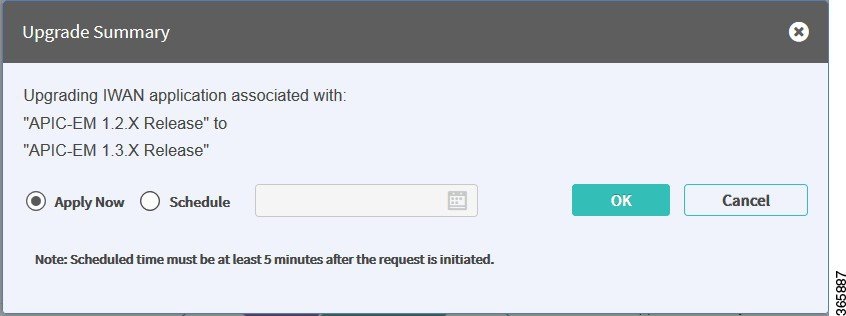

Step 3 Click the red Upgrade Network button. The Upgrade Summary dialog box opens as shown in the following figure.



Step 4 From the Upgrade Summary dialog box, do one of the following:

a. To perform the upgrade immediately, click the Apply Now radio button, and then click OK.

b. To schedule the upgrade later, click the Schedule radio button, specify the date and time, and then click OK.

After the upgrade is complete, the Manage Branch Sites > Sites page opens with the status, Provisioned.
