Migrating to Smart Licensing Using Policy

To upgrade to SLP, you must upgrade the software version (image) on the switch to a supported version.

Before You Begin

Ensure that you have read the Upgrades section, to understand how SLP handles various aspects of all earlier licensing models.

When migrating from traditional licensing model to SLP, license conversion takes place automatically. This Device Led Conversion (DLC) process is triggered when traditional licenses are detected on the device during an upgrade. DLC request is sent to CSSM as part of the license report and may take up to an hour to complete.

Upgrading the Switch Software

See the corresponding release note for the upgrade procedure. If there are any general release-specific considerations, these are called-out in the corresponding release notes.

Also refer to the sample show command outputs of the migration scenarios provided below. Sample outputs are provided for before and after migration, for comparison.

Smart Licensing to Smart Licensing Using Policy

The following is an example of a Cisco Nexus 9000 switch migrating from Smart Licensing to SLP. This is a High Availability setup with an active and a standby.

The show command outputs below call-out key fields to check, before and after migration.

Table 1. Smart Licensing to Smart Licensing Using Policy: Show Commands
Before Upgrade After Upgrade

show license summary (Smart Licensing)

Device# show license summary

Smart Licensing is ENABLED

Registration:
  Status: REGISTERED
  Smart Account: BU Production Test 1
  Virtual Account: N9K_SA_49_Testing
  Export-Controlled Functionality: Allowed

License Authorization:
  Status: AUTHORIZED on Jul 16 14:26:01 2021 UTC

  Last Communication Attempt: SUCCEEDED
  Next Communication Attempt: Aug 15 14:26:01 2021 UTC
  Communication Deadline: Oct 14 14:20:59 2021 UTC

Smart License Conversion:
  Automatic Conversion Enabled: False
  Status: Not started

License Usage:
License                    Entitlement tag                 Count   Status
-------------------------------------------------------------------------
LAN license for Nexus 9... (LAN_ENTERPRISE_SERVICES_PKG)    1       AUTHORIZED
Network Services for Ne... (NETWORK_SERVICES_PKG)           1       AUTHORIZED

The Status and License Authorization fields show that the license is REGISTERED and AUTHORIZED .

show license summary (SLP)

Device# show license summary

License Usage:
License                    Entitlement tag                 Count   Status
-------------------------------------------------------------------------
DCN NDB Add-On License ... (DCN_NDB)                        1       IN USE
Network Services for Ne... (NETWORK_SERVICES_PKG)           1       IN USE
LAN license for Nexus 9... (LAN_ENTERPRISE_SERVICES_PKG)    1       IN USE

The Status field shows that the licenses are now IN USE instead of registered and authorized.

show license usage (Smart Licensing)

Device# show license usage
License Authorization:
  Status: AUTHORIZED on Jul 16 14:26:01 2021 UTC

(LAN_ENTERPRISE_SERVICES_PKG):
  Description: LAN license for Nexus 9500-M4
  Count: 1
  Version: 1.0
  Status: AUTHORIZED

(NETWORK_SERVICES_PKG):
  Description: Network Services for Nexus 9500 -M4
  Count: 1
  Version: 1.0
  Status: AUTHORIZED

show license usage (SLP)

License Authorization: Status: Not Applicable

(DCN_NDB):
Description: DCN NDB Add-On License N9K Modular <<< This is RTU license
Count: 1
Version: 1.0
Status: IN USE
Enforcement Type: NOT ENFORCED
License Type: Generic

(NETWORK_SERVICES_PKG):
Description: Network Services for Nexus 9500 -M4
Count: 1
Version: 1.0
Status: IN USE
Enforcement Type: NOT ENFORCED
License Type: Generic

(LAN_ENTERPRISE_SERVICES_PKG):
Description: LAN license for Nexus 9500-M4
Count: 1
Version: 1.0
Status: IN USE
Enforcement Type: NOT ENFORCED
License Type: Generic

The license counts remain the same.

The Enforcement Type field displays NOT ENFORCED. (There are no export-controlled or enforced licenses on Cisco Nexus Switches).

show license status (Smart Licensing)
Device# show license status
Smart Licensing is ENABLED

Registration:
  Status: REGISTERED
  Smart Account: BU Production Test 1
  Virtual Account: N9K_SA_49_Testing
  Export-Controlled Functionality: Allowed
  Initial Registration: SUCCEEDED on Jul 16 14:25:49 2021 UTC
  Last Renewal Attempt: None
  Next Renewal Attempt: Jan 12 14:25:48 2022 UTC
  Registration Expires: Jul 16 14:20:45 2022 UTC

License Authorization:
  Status: AUTHORIZED on Jul 16 14:26:01 2021 UTC

  Last Communication Attempt: SUCCEEDED on Jul 16 14:26:01 2021 UTC
  Next Communication Attempt: Aug 15 14:26:00 2021 UTC
  Communication Deadline: Oct 14 14:20:58 2021 UTC

Smart License Conversion:
  Automatic Conversion Enabled: False
  Status: Not started

show license status (SLP)

Device# show license status

Utility:
    Status: DISABLED

Smart Licensing using Policy:
    Status: ENABLED

Data Privacy:
    Sending Hostname: yes
    Callhome Hostname Privacy: DISABLED
        Smart Licensing Hostname Privacy: DISABLED
    Version Privacy: DISABLED

Transport:
    Type: Callhome

Policy:
    Policy in use: Merged from multiple sources
    Reporting ACK required: Yes
    Unenforced/Non-Export:
        First report requirement (days): 90 (CISCO default)
        Ongoing reporting frequency (days): 365 (CISCO default)
        On change reporting (days): 90 (CISCO default)
    Enforced (Perpetual/Subscription):
        First report requirement (days): 0 (CISCO default)
        Ongoing reporting frequency (days): 0 (CISCO default)
        On change reporting (days): 0 (CISCO default)
Export (Perpetual/Subscription):
        First report requirement (days): 0 (CISCO default)
        Ongoing reporting frequency (days): 0 (CISCO default)
        On change reporting (days): 0 (CISCO default)
Miscellaneous:
    Custom Id: <empty>

Usage reporting:
    Last ACK received: Jul 16 15:22:31 2021 UTC
    Next ACK deadline: Jul 16 15:22:31 2022 UTC
    Reporting push interval: 30 days
    Next ACK push check: <none>
    Next report push: Aug 15 15:18:28 2021 UTC
    Last report push: Jul 16 15:18:28 2021 UTC
    Last report file write: <none>

Trust Code installed: Jul 16 15:15:47 2021 UTC
    Active: PID: N9K-C9504, SN: FOX2308PCEN
        Jul 16 15:15:47 2021 UTC
    Standby: PID: N9K-C9504, SN: FOX2308PCEN
        Jul 16 15:15:47 2021 UTC

The Transport: field: A transport type was configured and therefore retained after upgrade.

The Policy: header and details: A custom policy was available in the Smart Account or Virtual Account – this has also been automatically installed on the switch. (After establishing trust, CSSM returns a policy. The policy is then automatically installed.)

The Usage Reporting: header: The Next report push: field provides information about when the switch will send the next RUM report to CSSM.

The Trust Code Installed: field: The ID token is successfully converted and a trusted connected has been established with CSSM.

show license udi (Smart Licensing)

 Device# show license udi
 UDI: PID:N9K-C9504, SN:FOX2308PCEN

show license udi (SLP)

Device# show license udi
 UDI: PID:N9K-C9504, SN:FOX2308PCEN
HA UDI List:
 Active: PID:N9K-C9504, SN:FOX2308PCEN
HA UDI List:
 Standby: PID:N9K-C9504, SN:FOX2308PCEN

This is a High Availability setup, and the command displays all UDIs in the setup.

CSSM Web UI After Migration

Log in to the CSSM Web UI at https://software.cisco.com/software/smart-licensing/alerts and click Smart Software Licensing. Under Inventory > Product Instances.

Registered licenses in the Smart Licensing environment were displayed with the hostname of the product instance in the Name column. After upgrade to SLP, they are displayed with the UDI of the product instance. All migrated UDIs are displayed. In this example, they are

PID:C9500-16X,SN:FCW2233A5ZV and PID:C9500-16X,SN:FCW2233A5ZY.

Only the active product instance reports usage, therefore PID:C9500-16X,SN:FCW2233A5ZV displays license consumption information under License Usage.

Figure 1. Smart Licensing to Smart Licensing Using Policy: Active and Standby Product Instances After Migration


Figure 2. Smart Licensing to Smart Licensing Using Policy: UDI and License Usage under Active Product Instance

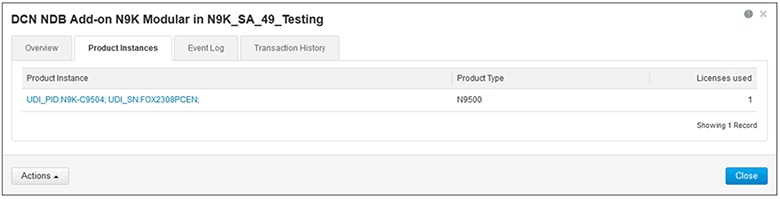

Figure 3. Smart Licensing to Smart Licensing Using Policy: DCN NDB/RTU Licenses Showing up After Upgrade

Reporting After Migration

The product instance sends the next RUM report to CSSM, based on the policy.

If you want to change your reporting interval to report more frequently: on the product instance, configure the license smart usage interval command. For syntax details see the license smart (global config) command in the Command Reference for the corresponding release.

RTU Licensing to Smart Licensing Using Policy

This section provides information about migrating a Cisco Nexus 9000 Series switch from Right-to-Use (RTU) licensing to Smart Licensing Using Policy.

RTU Licensing is available for Cisco Nexus 9000 Series Switches until Cisco NX-OS Release 10.1(2), and SLP is introduced from Cisco NX-OS Release 10.2(1)F.

When the software version is upgraded from a pre-SLP version to the SLP version, all licenses are displayed as IN USE and the Cisco default policy is applied on the product instance. If any add-on licenses are used, the Cisco default policy requires usage reporting in 90 days. As all licenses on Cisco Nexus Switches are unenforced, no functionality is lost.

RTU Licensing to SLP Migration - Feature TAP Aggregation

In a scenario where a Cisco Nexus 9000 Series switch is migrated from a pre-SLP to an SLP-supported release, an NDB license, which is the only RTU license, cannot be consumed unless ACL is configured as below in the pre-SLP release. This is equivalent of the consumption of NDB RTU license in pre-SLP release.

A sample configuration for pre-SLP release is as follows:
switch# config
Enter configuration commands, one per line. End with CNTL/Z.
switch(config)# ip access-list iptest
switch(config-acl)# permit ip any any redirect Ethernet1/1
switch(config-acl)#

A sample show command output after ACL configuration for a pre-SLP release is as follows:

sh ip access-lists iptest
IP access list iptest
10 permit ip any any redirect Ethernet1/1

A sample show command output for license verification after upgrading to an SLP-supported release is as follows and the show feature command shows that the feature tap-aggregation is enabled, and NDB license is consumed:

show license usage
Device# show license usage
License Authorization:
  Status: Not Applicable
(DCN_NDB):
  Description: DCN NDB Add-On License N9K Modular
  Count: 1
  Version: 1.0
  Status: IN USE
  Enforcement Type: NOT ENFORCED
  License Type: Generic

show feature
sh feature | inc tap
tap-aggregation        1          enabled

Note

Beginning with Cisco NX-OS Release 10.2(1)F, feature tap-aggregation is licensed, supported on all Cisco Nexus 9000 Series switches, and requires you to configure feature tap-aggregation before configuring related commands.

CSSM Web UI After Migration

No changes in the CSSM Web UI.

Reporting After Migration

Implement any one of the supported topologies and fulfil reporting requirements. See Supported Topologies and Configuring Smart Licensing Using Policy. The reporting method you can use depends on the topology you implement.

Evaluation or Eval Expired to Smart Licensing Using Policy

The following is an example of a Cisco Nexus 9000 switch with evaluation licenses (Smart Licensing) that are migrated to SLP.

The notion of evaluation licenses does not apply to SLP. When the software version is upgraded to one that supports SLP, all licenses are displayed as IN USE and the Cisco default policy is applied to the product instance. Since all licenses on Cisco Nexus Switches are unenforced, no functionality is lost.

The table below calls out key changes or new fields to check for in the show command outputs, after upgrade to SLP:

Table 2. Evaluation or Eval Expired to Smart Licensing Using Policy: show Commands
Before Upgrade After Upgrade

PGBL-FX2-203(config)# show license usage

License Authorization:
  Status: EVAL MODE
  Evaluation Period Remaining: 86 days, 11 hours, 49 minutes, 40 seconds

(LAN_ENTERPRISE_SERVICES_PKG):
  Description: <empty>
  Count: 1
  Version: 1.0
  Status: EVAL MODE

(NETWORK_SERVICES_PKG):
  Description: <empty>
  Count: 1
  Version: 1.0
  Status: EVAL MODE

(VPN_FABRIC):
  Description: <empty>
  Count: 1
  Version: 1.0
  Status: EVAL MODE

PGBL-FX2-203# show license usage

License Authorization:
  Status: Not Applicable

(NETWORK_SERVICES_PKG):
  Description: Network Services for Nexus9300-XF
  Count: 1
  Version: 1.0
    Status: IN USE     Enforcement Type: NOT ENFORCED
  License Type: Generic

(VPN_FABRIC):
  Description: FAB License for Nexus 9300-XF
  Count: 1
  Version: 1.0
    Status: IN USE
    Enforcement Type: NOT ENFORCED
  License Type: Generic

(LAN_ENTERPRISE_SERVICES_PKG):
  Description: LAN license for Nexus 9300-XF
  Count: 1
  Version: 1.0
  Status: IN USE    Enforcement Type: NOT ENFORCED
  License Type: Generic

PGBL-FX2-203(config)# show license summary

Registration:
  Status: UNREGISTERED
  Smart Account: VDANI-ON-PREM-004
  Virtual Account: Default
  Export-Controlled Functionality: Allowed

License Authorization:
  Status: EVAL MODE
  Evaluation Period Remaining: 86 days, 11 hours, 49 minutes, 6 seconds

Smart License Conversion:
  Automatic Conversion Enabled: False
  Status: Successful on Aug 13 17:19:07 2021 UTC

License Usage:
License                    Entitlement tag                 Count   Status
-------------------------------------------------------------------------
<empty>                    (LAN_ENTERPRISE_SERVICES_PKG)    1       EVAL MODE
<empty>                    (NETWORK_SERVICES_PKG)           1       EVAL MODE
<empty>                    (VPN_FABRIC)                     1       EVAL MODE

PGBL-FX2-203# show license summary

License Usage:
License                    Entitlement tag                 Count   Status
-------------------------------------------------------------------------
Network Services for Ne... (NETWORK_SERVICES_PKG)           1       IN USE
FAB License for Nexus 9... (VPN_FABRIC)                     1       IN USE
LAN license for Nexus 9... (LAN_ENTERPRISE_SERVICES_PKG)    1       IN USE
PGBL-FX2-203(config)# show license status
Smart Licensing is ENABLED

Registration:
  Status: UNREGISTERED
  Smart Account: VDANI-ON-PREM-004
  Virtual Account: Default
  Export-Controlled Functionality: Allowed

License Authorization:
  Status: EVAL MODE
  Evaluation Period Remaining: 86 days, 11 hours, 49 minutes, 3 seconds

Smart License Conversion:
  Automatic Conversion Enabled: False
  Status: Successful on Aug 13 17:19:07 2021 UTC

PGBL-FX2-203# show license status

Utility:
    Status: DISABLED

Smart Licensing using Policy:
    Status: ENABLED

Data Privacy:
    Sending Hostname: yes
    Callhome Hostname Privacy: DISABLED
        Smart Licensing Hostname Privacy: DISABLED
    Version Privacy: DISABLED

Transport:
    Type: CSLU
    Cslu address: cslu-local
Policy:
    Policy in use: Merged from multiple sources
    Reporting ACK required: Yes
    Unenforced/Non-Export:
        First report requirement (days): 90 (CISCO default)
        Ongoing reporting frequency (days): 365 (CISCO default)
        On change reporting (days): 90 (CISCO default)
    Enforced (Perpetual/Subscription):
        First report requirement (days): 0 (CISCO default)
        Ongoing reporting frequency (days): 0 (CISCO default)
        On change reporting (days): 0 (CISCO default)
    Export (Perpetual/Subscription):
        First report requirement (days): 0 (CISCO default)
        Ongoing reporting frequency (days): 0 (CISCO default)
        On change reporting (days): 0 (CISCO default)

Miscellaneous:
    Custom Id: <empty>

Usage reporting:
    Last ACK received: <none>
    Next ACK deadline: Nov 16 09:38:37 2021 UTC
    Reporting push interval: 30 days
    Next ACK push check: <none>
    Next report push: Aug 18 09:39:14 2021 UTC
    Last report push: <none>
    Last report file write: <none>

Trust Code installed: <none>

CSSM Web UI After Migration

No changes in the CSSM Web UI.

Reporting After Migration

Implement any one of the supported topologies and fulfill reporting requirements. See Supported Topologies and Configuring Smart Licensing Using Policy. The reporting method that you can use depends on the topology you implement.
